Article

Cobalt-Based Fischer–Tropsch Synthesis: A Kinetic Evaluation of Metal–Support Interactions Using an Inverse Model System

by
Anna P. Petersen
,
Michael Claeys
,
Patricia J. Kooyman
and
Eric van Steen
*
DST-NRF Centre of excellence in catalysis: c*change, Catalysis Institute, Department of Chemical Engineering, University of Cape Town, Private Bag X3, Rondebosch 7701, South Africa
*
Author to whom correspondence should be addressed.
Catalysts 2019, 9(10), 794; https://doi.org/10.3390/catal9100794
Submission received: 30 August 2019 / Revised: 19 September 2019 / Accepted: 21 September 2019 / Published: 24 September 2019
(This article belongs to the Special Issue Iron and Cobalt Catalysts)
Browse Figures
Review Reports Versions Notes

Abstract

:
Metal–support interactions in the cobalt–alumina system are evaluated using an inverse model system generated by impregnating Co3O4 with a solution of aluminum sec-butoxide in n-hexane. This results in the formation of nano-sized alumina islands on the surface of cobalt oxide. The activated model systems were kinetically evaluated for their activity and selectivity in the Fischer–Tropsch synthesis under industrially relevant conditions (220 °C, 20 bar). The kinetic measurements were complemented by H2-chemisorption, CO-TPR, and pyridine TPD. It is shown that the introduction of aluminum in the model system results in the formation of strong acid sites and enhanced CO dissociation, as evidenced in the CO-TPR. The incorporation of aluminum in the model systems led to a strong increase in the activity factor per surface atom of cobalt in the rate expression proposed by Botes et al. (2009). However, the addition of aluminum also resulted in a strong increase in the kinetic inhibition factor. This is accompanied by a strong decrease in the methane selectivity, and an increase in the desired C5+ selectivity. The observed activity and selectivity changes are attributed to the increase in the coverage of the surface with carbon with increasing aluminum content, due to the facilitation of CO dissociation in the presence of Lewis acid sites associated with the alumina islands on the catalytically active material.

Graphical Abstract

1. Introduction

In the Fischer–Tropsch process, a transition metal-containing catalyst is used to produce hydrocarbons from the very basic starting materials hydrogen and carbon monoxide, which can be derived from various carbon-containing resources such as coal, natural gas, biomass, and even waste [1,2,3]. Metallic cobalt is often regarded as the catalyst of choice, due to its high conversion rate, high selectivity toward linear hydrocarbons, and limited tendency to convert carbon monoxide into carbon dioxide [2,4]. The high cost of metallic cobalt necessitates a sustained, high surface area of the catalytically active metal, keeping in mind the size dependency of the turnover frequency [5,6]. Thus, nano-sized cobalt crystallites of the optimum size [7] need to be distributed on a support to reduce pressure drop. In general, high surface area materials are used as supports, which provide enough space to disperse nano-sized cobalt crystallites and ensure minimal contact between the crystallites. This will reduce the likelihood of sintering via coalescence, and thus increase the thermal stability of the catalyst [8,9].
Support materials are typically considered to be inert, although it is well known that they affect the catalytic active phase in various ways [10,11,12,13,14]. For instance, the reducibility of the precursor(s) of the catalytic active phase [10,11,12] and the particle morphology [13] may change upon changing the support. Furthermore, the support material may provide novel active sites at the perimeter of the catalytically active phase [14].
Model systems can give specific insights in the role of the support in catalysis. Inverse models [15,16,17,18,19], in which the support (or its precursor) is deposited on the catalytically active material (or its precursor), may be used to distinguish between interface effects on the one hand and changes in morphology and degree of reduction on the other hand. We have shown that the deposition of small amounts of the precursor of a support compound in the form of an alkoxide on Co3O4 (as the precursor to metallic cobalt) results in the formation of small islands of support-like structures on the surface of the precursor of the catalytically active material [18,19]. The controlled presence of these nano-sized islands (with a typical size of less than 1 nm) on the catalytically active phase may mimic the metal–support interface and may thus give insights in the role of the metal–support interactions on the activity of the catalytic active phase. Here, we explore the kinetic effect of the modification of Co3O4 (as a precursor for metallic cobalt) with aluminum sec-butoxide (as a precursor for alumina) on the activity, stability, and selectivity in the Fischer–Tropsch synthesis, as studied in a slurry reactor.

2. Results

Cobalt oxide (Co3O4) with an average crystallite size of 14 nm was prepared by the calcination of a cobalt carbonate precursor at 300 °C [18], which was impregnated with aluminum sec-butoxide in dry n-hexane to achieve a weight loading of 0.1, 0.5 or 2.5 wt.% Al [18]. The formation of a separate, alumina phase could not be observed using X-ray diffraction (XRD), although analysis of transmission electron microscopy (TEM) images showed the presence of small alumina islands (<1 nm) on the surface of Co3O4 [18].
Metallic cobalt is the catalytic active phase in the Fischer–Tropsch synthesis [4], and the precursor needs to be reduced prior to the FT synthesis. Temperature programmed reduction profiles of the calcined material showed a significant broadening of the reduction peak upon modification with aluminum, which was accompanied by a shift of the reduction peaks to higher reduction temperatures [18]. This was ascribed to a blockage of defect sites by alumina, thereby hindering hydrogen activation and the nucleation of reduced cobalt phases. The appearance of reduction processes taking place at temperatures in excess of 400 °C were ascribed to the reduction of cobalt ions in proximity to alumina in the catalyst. These materials were reduced prior to the Fischer–Tropsch synthesis isothermally at 350 °C for 10 h. The degree of reduction (DoR) decreased gradually from 96% to 86% upon increasing alumina loading from 0 to 2.5 wt.% (see Table 1). This further implies that the modification of alumina impedes the reduction of Co3O4 as observed in the profiles obtained from temperature-programmed reduction (TPR) [18].
The catalysts studied in this work were essentially bulk cobalt catalysts, and these materials were expected to sinter extensively during catalyst activation, despite the low reduction temperature (the chosen reduction temperature (350 °C) is above the Hüttig temperature of metallic cobalt (253 °C), implying the significant mobility of cobalt atoms at defect sites [20], which may lead to sintering if cobalt particles are in contact with each other). The metal dispersion after reduction as determined using H2 chemisorption varied between 0.23% (particle size approximately 412 nm) for Al0 and 3.30% (particle size approximately 29 nm) for Al2.5, showing severe sintering for specifically the sample containing no aluminum (Al0). Interestingly, the introduction of even a small amount of aluminum to Co3O4 can drastically reduce the extent of catalyst sintering, whilst still achieving a high degree of reduction. The alumina islands on the surface of cobalt oxide [18] may act here as a spacer preventing direct contact between cobalt particles and thereby reducing the extent of sintering. This also indicates that contact between alumina and the cobalt phase remains intact throughout the reduction of Co3O4 to metallic cobalt.
The catalyst activity of the materials was evaluated in a slurry reactor at a pressure of 20 bar and at 220 °C. The initial space velocity was so that the conversion as a function of time could be followed. The CO conversion for all catalysts decreases as a function of time on stream (TOS) during the start-up of the reaction (see Figure 1) due to loss in the activity of the catalyst. Catalyst deactivation has been reported to take place in two distinct stages [21]. The first stage of deactivation is typically ascribed to catalyst sintering. This is often followed by a second stage, in which slower deactivation processes take place, such as catalyst poisoning, catalyst re-oxidation, or build-up of polymeric carbon deposits. The conversion of CO drops rather quickly as a function of time with the samples containing none or a very small amount of aluminum. A steady conversion level was achieved with these samples after less than 50 h on-line. The samples with more aluminum require longer times to stabilize.
The initial activity was evaluated after 16 h on-line (see Table 2), which corresponds to four times the residence time. The initial activity increased with increasing aluminum loading from 0.24 to 0.70 mmolCO/gred. cat/min, corresponding to a cobalt time yield (CTY) of 2.3 × 10−4 s−1 and 6.9 × 10−4 s−1 for the samples Al0 and Al2.5, respectively. However, the initial turnover frequency (TOF) was found to decrease with increasing alumina loading from 0.21 s−1 to 0.04 s−1 for catalyst Al0 and Al2.5, respectively. The obtained turnover frequencies for the sample without aluminum (Al0) resembles the turnover frequency obtained over model catalyst supported on alumina with minimal metal support interactions [6], whereas the obtained turnover frequency for the sample Al2.5 resembles the turnover frequency obtained with a typical impregnated cobalt on alumina catalyst [22]. The decrease in the turnover frequency with increasing aluminum content despite the increase in the rate of reaction per unit mass is a consequence of the strong effect of the increasing aluminum content on the cobalt dispersion (see Table 1). The activity after ca. 95 h on stream as a function of the aluminum content shows the same trend.
The CO-conversion as a function of time on-line was modeled using the rate expression proposed by Botes et al. [23] (see Equation (1)). The loss in activity with time on-line due to deactivation, a, was modeled based on a first-order generalized power-law expression (GPLE) [21,24], taking into account a finite, residual activity (see Equation (2)):
F C O , i n l e t W · X C O   =   − r C O   =   A 0 · p H 2 0.75 · p C O 0.5 ( 1 + B · p C O 0.5 ) 2 · a ( t )
with   − d a d t   =   k d · ( a − a ∞ )
where FCO,inlet is the molar inlet flow of CO, W is the mass of reduced cobalt, XCO is the conversion of CO, A0 is the rate constant per unit mass of reduced catalyst for the fresh catalyst, B is the kinetic inhibition factor, a is the relative activity, and a∞ is the final residual activity relative to the initial activity. The partial pressures of hydrogen and carbon monoxide within the reactor are functions of the conversion of CO as well. The conversion of CO as a function of time on-line was fitted to this set of equations, and the obtained kinetic parameters are shown in Table 2.
The mass-specific, kinetic constant A0 increases quite strongly with increasing aluminum content in the catalyst. Correcting the kinetic constant for the change in metal dispersion A0‘ (see Table 2) shows an increase in the initial kinetic constant with increasing aluminum loading, implying that alumina on the surface facilitates the activity of the catalyst beyond increasing the dispersion (sample Al0.1 seems to be the exception here, possibly due to the difficulty in adequately determining the initial activity). The kinetic inhibition factor, B, also increases with increasing aluminum loading, implying that the inhibition of the rate of the Fischer–Tropsch synthesis by carbonaceous species on the surface becomes stronger upon increasing the aluminum loading. These observations are consistent with our DFT (density functional theory) calculations [26], which indicate that alumina near the metallic cobalt surface (e.g., as a ligand) would facilitate CO dissociation by providing an alternative pathway on the dense Co(111) surface.
The rate constant for deactivation is ca. 10 times smaller for the samples containing 0.5 and 2.5 wt.% aluminum than the rate constants for deactivation for the samples containing none or a very small amount of aluminum, indicating that the presence of small alumina islands on cobalt [18] retards the fast initial deactivation process. Furthermore, the final activity, a∞, increases with increasing aluminum content. Aluminum modification was found to prevent sintering during reduction, as evident from the increased metal dispersion of the activated catalyst determined by H2 chemisorption (see Table 1). The modification of the cobalt surface with alumina may thus also retard and prevent further sintering during the Fischer–Tropsch synthesis.
The CO hydrogenation over cobalt-based catalysts results mainly in the formation of organic product compounds. Some CO2 is formed, but typically with a selectivity of less than 1–2% C. The origin of CO2 in cobalt-based Fischer–Tropsch synthesis has not been established beyond doubt and may be attributed to the water–gas shift reaction (i.e., with the co-generation of hydrogen), further reduction of the catalyst using CO as the reductant, carbon deposition via the Boudouard reaction, or as an alternative pathway to remove surface oxygen.
Figure 2 shows the selectivity for the formation of methane and for the formation of the desired liquid product, C5+ as a function of the aluminum content in the catalyst after ca. 250 h on-line. The conversion level was kept constant at ca. 14.5 ± 2% by varying the space velocity. The methane selectivity and C5+ selectivity show as expected, an opposite trend. The seesaw behavior for these product groups is expected, due to the normalization of the product selectivity to 100% and the relatively small amount of C2–C4 formed in cobalt-based Fischer–Tropsch synthesis [27]. The methane selectivity compared at the same time on-line shows a clear decrease with increasing aluminum content. The observed change in the methane selectivity cannot be attributed to a particle size effect [5,6,28] seeing the large metallic cobalt particles, which are obtained after reduction (see Table 1). Hence, the change in product selectivity must be attributed to the presence of alumina islands on the cobalt surface. The methane selectivity is known to decrease with an increase in the ‘surface’ inventory of active carbon [29,30]. An increase in the coverage with surface carbon will decrease the availability of surface hydrogen [31,32]; this may (in a limited region [33]) result in a decrease in the methane selectivity. Alumina in close proximity to the catalytically active, metallic cobalt surface may facilitate CO dissociation [26], thus resulting in an increase in the coverage with surface carbon and reduced hydrogen availability on the surface. This could thus explain the observed decrease in the methane selectivity with increasing aluminum content. The seesaw relationship between the C5+ selectivity and the methane selectivity implies an increase in the C5+ selectivity with increasing carbon coverage on the surface.
Olefins are the major, primary product of the Fischer–Tropsch synthesis, even when cobalt is used as the catalytically active material [27]. The primarily formed olefins can re-adsorb and undergo secondary reactions, such as hydrogenation, double-bond isomerization, and reincorporation in the chain growth scheme [31]. Figure 2 shows the expected behavior for the olefin content in the fraction of linear hydrocarbons as a function of carbon number: a rather low olefin content in C2 due to the high reactivity of ethene, and a decrease in the olefin content in the fraction of linear hydrocarbons with increasing carbon numbers from C3 onwards due to the increased concentration of these compounds in the liquid phase [34]. The olefin content in the fraction of linear hydrocarbons increases with increasing aluminum content (except for the olefin content in the fraction of C2 hydrocarbons). This indicates a reduced extent of secondary hydrogenation of the primarily formed long-chain olefins in the Fischer–Tropsch synthesis possibly due to an increased coverage of the surface with carbonaceous species and thus lower hydrogen availability on the surface.
The changes in the initial kinetic parameters, A0 and B (see Table 2), and the change in the selectivity due to the modification of the catalytically active material with aluminum are thought to be related to the facilitation of the CO dissociation and the resulting increase in the coverage of the surface with carbon. The ease of CO dissociation may be monitored by CO treatment of these materials, or by reducing Co3O4 in CO rather than H2 [35,36]. CO activation may initially result in the formation of cobalt carbide [36,37,38]. The reduction of Co3O4 using carbon monoxide has been reported to proceed sequentially [36]:
Co3O4 + CO → 3 CoO + CO2
3 CoO + 6 CO →3/2 Co2C + 3 CO2
Cobalt carbide is thermodynamically not stable at a low chemical potential of carbon (e.g., in the absence of CO), and will thus decompose, yielding metallic cobalt. In hydrogen, cobalt carbide decomposes rapidly at temperatures as low as 150–200 °C [36,38]. The decomposition of cobalt carbide is retarded in inert atmosphere, but it will decompose into metallic cobalt and graphitic carbon at temperatures between 300–350 °C [38]:
Co2C → 2 Co + C
Figure 3 shows the profiles obtained from the temperature-programmed reduction in the presence of CO (CO-TPR) for the alumina-modified catalysts. The profiles for the samples with an aluminum content of 0.5 wt.% or less are characterized by a minor peak at ca. 240 °C, a sharp peak at 295 °C, a small feature at 320 °C, and a broad feature above 500 °C. The CO-TPR was followed using in situ XRD (see Figure 3, right). It can be seen that the reduction of Co3O4 in the presence of carbon monoxide starts at ca. 210 °C with the formation of CoO, showing that the first feature in the CO-TPR can be ascribed to CO consumption for the reduction of Co3O4 to CoO. This is subsequently transformed into Co2C (at ca. 295 °C). This will be accompanied by a large amount of CO consumed, thus appearing as a large peak in the CO-TPR at these temperatures. It can thus be concluded that the transformation of Co3O4 into Co2C proceeds sequentially, Co3O4 → CoO → Co2C, as discussed before [36]. At temperatures around 350 °C, the transformation of Co2C to metallic cobalt can be observed in the in situ XRD experiment. This does not appear to be associated with any additional consumption of carbon monoxide. It is thus concluded that at these temperatures, in the presence of carbon monoxide, cobalt carbide transforms into metallic cobalt (with the co-generation of carbon and the simultaneous disappearance of cobalt carbide). The decomposition of Co2C in the presence of carbon monoxide into metallic cobalt and carbon is observed with this sample at ca. 365 °C, i.e., at slightly higher temperatures than in the presence of argon [38]. It has been argued that cobalt carbide can be observed if the decomposition of the meta-stable Co2C phase is kinetically hindered [38]. The presence of CO in these experiments would have resulted in an increase in the chemical potential of carbon and thus an increase in the decomposition temperature.
Exposure of metallic cobalt to CO-containing gases at elevated temperatures will result in carbon formation [39] via the Boudouard reaction:
2 CO → C + CO2
This will be seen at temperatures higher than 400 °C, when metallic cobalt is available.
The CO-TPR profile of sample containing 0.1 wt.% aluminum (Al0.1) shows essentially the same features as the sample containing no aluminum (Al0). However, the onset of the high-temperature peak, which is associated with carbon deposition due to the Boudouard reaction, has shifted to a lower temperature. At the same time, the area under this peak is almost twice as large as the area under the high temperature peak in the CO-TPR of Al0. The on-set for the high temperature peak in the CO-TPR for the sample containing 0.5 wt.% aluminum (Al0.5) was shifted to an even lower temperature. The amount of CO consumed for the Boudouard reaction is larger for the sample Al0.5 than for the sample Al0.1. The observed shift in the on-set temperature for the Boudouard reaction implies that carbon deposition becomes more facile upon increasing the aluminum content in the sample. This could be ascribed to a change in the degree of reduction within the catalyst, but it was shown (see Table 1) that the reducibility of samples in hydrogen reduces with increasing aluminum content. Hence, it is proposed [26] that the interface between metallic cobalt and alumina islands on the surface [18] may be the origin of the higher propensity for CO dissociation. Carbon deposition from CO is thermodynamically limited at high temperatures, and thus the variation in the amount of carbon deposition upon changing the aluminum content in the sample, as visualized by the differences in the area associated with the high-temperature feature in the CO-TPR, may be a consequence of the observed shift in the on-set of the Boudouard reaction to lower temperatures with increasing aluminum content.
The CO-TPR profile of the sample containing 0.5 wt.% aluminum contains additional features with maxima at ca. 345 °C and 380 °C, which are not observed in the CO-TPR profiles of the samples containing less aluminum. This may be considered CO consumption due to the retarded reduction of cobalt, e.g., of cobalt covered by the alumina islands. The reduction of this cobalt will yield directly metallic cobalt at 380 °C, as Co2C does not seem to be stable at this temperature, as evidenced by the in situ XRD study (see Figure 3).
The CO-TPR profile of the sample with the highest weight loading, 2.5 wt.% aluminum (Al2.5), differed strongly from the CO-TPR profiles of the samples containing less aluminum. The sharp peak that appeared at ca. 290 °C for the samples with lower aluminum contents was shifted toward 373 °C. This may be attributed to the presence of alumina islands covering the cobalt oxide surface and hindering the overall reduction process. The high-temperature feature, which was separated by almost 300 °C for the other samples, overlaps with the reduction peaks around 400 °C.
Carbon deposition by the Boudouard reaction could be visualized using TEM imaging of the sample Al0.5 after CO-TPR (see Figure 4). The image shows metal particle sizes within the expected range if only minimal sintering has taken place. It appears that a reduction in CO inhibits the sintering process observed for H2 reduction (see Table 1). The metal particles are encapsulated by material appearing such as multi-wall carbon nanotubes. The d-spacing of this material was determined to be 3.4 Å, which is consistent with graphitic carbon [40,41]. The internal diameter of the carbon nanotubes appears to be in the range of 9–11 nm. The internal diameter is thought to be linked to the metal particle size [42] (the reduction of Co3O4 particles with a size of 14 nm is expected to yield in the absence of sintering metal particles with a size of 10–11 nm).
The enhanced activity for CO dissociation as indicated by the shift in the on-set of the Boudouard reaction to lower temperatures upon increasing the aluminum content in the samples and as argued to be the origin of the change in the kinetic coefficients and the change in the selectivity has been linked to the Lewis acid property of the promoter [25,42,43]. Carbon monoxide may act as a weak Lewis base, which can donate electrons from the 4σ molecular orbital to a Lewis acid [15]. The 4σ molecular orbital is a bonding orbital, and electron withdrawal results in weakening of the C–O bond.
Alumina is known to exhibit Lewis acidity, although the presence of Brønsted acid sites cannot be ruled out [44]. Hence, alumina modification may have introduced acidity in these samples. The acidity of the activated catalysts was investigated by pyridine uptake and by the temperature-programmed desorption of pyridine (py-TPD; see Figure 5). The pyridine uptake of the activated sample containing no aluminum (Al0) during pulse chemisorption was 30 μmol/g. The pyridine uptake on the sample containing aluminum increases roughly linearly with increasing alumina loading over the activated catalyst, and the pyridine uptake relative to the aluminum loading was determined to be 0.2 mol pyridine/mol Al.
Pyridine desorbed at a relatively low temperature of 269 °C from the sample containing no aluminum (Al0), indicating rather weakly adsorbed pyridine. A sharp peak between 350–500 °C was observed during pyridine TPD for the alumina-modified samples. Sharp peaks above 350 °C have been reported to correspond to the decomposition of pyridine to N2 and CO2 [45,46]. The catalyst had also darkened after the experiment, which may suggest carbon deposition [45] indicating that pyridine decomposition may have occurred during the pyridine TPD. Hence, the position of the peak is expected to correlate with the rate of pyridine decomposition rather than the rate of pyridine desorption (and thus the peak area with the thermal conductivity of the decomposition products). The decomposition of pyridine at temperatures below 500 °C, in an inert atmosphere, is only catalyzed by strong acid sites [46,47]. The pyridine TPD experiments indicate that the acid sites on the activated modified samples were strong enough to catalyze the decomposition of pyridine at temperatures below 500 °C.
It can be concluded that pyridine adsorption is associated with the presence of strong acid sites upon modification of the samples with alumina, and that the amount of pyridine adsorbed increases roughly linearly with the aluminum content. Thus, it seems plausible that these strong acid sites are associated with the presence of alumina islands on the surface of the metallic cobalt [18]. The relative constant amount of pyridine adsorbed per aluminum may indicate that the strong acid site is associated with a cluster of ca. 5 Al atoms. Alternatively, these acid sites are located at the interface between the alumina islands and metallic cobalt, and an increase in the aluminum content is associated with an increase in the number of alumina islands, but not necessarily their size.

3. Discussion

Figure 6 shows schematically the formation of a reverse model system to investigate metal–support interactions by the impregnation of Co3O4 with a well-defined crystallite size with a solution of aluminum sec-butoxide in n-hexane [18] (see Figure 6). Upon drying and calcination, sub-nanometer-sized alumina islands on cobalt oxide are formed [18]. Lewis acid sites are being introduced in the catalyst, as evidenced by pyridine uptake and pyridine TPD, due to the presence of aluminum possibly at the interface between metallic cobalt and the alumina islands, which will affect the performance of cobalt in the Fischer–Tropsch synthesis
It may be argued that metal support interactions are exaggerated in this model system with small alumina islands on top of a larger, nano-sized cobalt oxide crystallite. However, these sub-nanometer-sized islands may be present in real catalysts as well. During impregnation, the support will dissolve slightly upon contact with a metal–salt-containing aqueous solution. The dissolved species emanating from the support will reprecipitate during the drying and calcination step. A random reprecipitation process will result in some support material being deposited on/near the metal precursor.
The reduction of cobalt in these model systems is impeded by the presence of alumina islands on top of cobalt oxide (although cobalt aluminate could not be detected using XANES, X-ray absorption near edge structure [18]). This was caused by a change in the pre-exponential factor, implying the inhibition of hydrogen activation on these model systems or the inhibition of the nucleation process.
The reduction of these model systems in hydrogen results in sintering. These alumina islands may act as spacers, and seem to reduce the extent of sintering via coalescence, as evidenced by the increase in the H2 uptake upon increasing the aluminum content. Support materials are thought to aid the thermal stability of catalysts by dispersing the catalytically active phase over a large surface area, since the limited particle mobility on support materials under typical reaction conditions will reduce sintering due to coalescence. Here, we highlight an additional route to stabilize nano-sized particles against sintering by decorating the surface of the catalytically active phase with support-like structures. This would impede the coalescence of particles even in catalysts with a high metal loading.
The presence of alumina islands in our model system may affect the resulting catalytic activity in the Fischer–Tropsch synthesis in two ways, viz. by providing an alternative pathway for CO dissociation and by changing the strength of CO adsorption [26]. The presence of an alternative pathway for CO dissociation will be experimentally observed by an overall, more facile CO dissociation in the presence of alumina. This was evidenced by an increase in the kinetic activity factor, A0′, in the rate expression proposed by Botes et al. [23] and by the lowering of the on-set temperature for the Boudouard reaction in the CO-TPR. The increase in the strength of adsorption due to the presence of alumina was evidenced by an up to 70-fold increase in the kinetic inhibition, B, in the rate expression proposed by Botes et al. [23] upon increasing the aluminum content. This was further substantiated by the change in the product selectivity. The product selectivity in the Fischer–Tropsch synthesis is strongly controlled by the hydrogen availability on the surface [31]. An increase in the strength of CO adsorption will reduce the hydrogen availability and thus (within a limited region [33]), reduce methane selectivity, increase C5+ selectivity, and reduce the extent of secondary reactions.

4. Materials and Methods

Cobalt oxide, Co3O4, with an average crystallite size of 14 nm, was prepared by the calcination of a cobalt carbonate precursor at 300 °C. The detailed synthesis procedure has been elsewhere [18]. The resulting Co3O4 crystallites were impregnated with aluminum sec-butoxide in dry n-hexane to achieve a weight loading of aluminum of 0.1, 0.5, or 2.5 wt.%, respectively. The obtained materials were calcined at 300 °C for 4 h. This results in the formation of highly dispersed, island-like alumina structures on cobalt oxide [18]. The catalysts are labeled according to their loading with aluminum as Al0, Al0.1, Al0.5, and Al2.5.
Hydrogen chemisorption was performed using an ASAP 2020 (Micromeritics, Norcross, GA, USA). The catalyst (100 mg) was dried for 12 h at 120 °C and reduced in hydrogen by increasing the temperature at a heating rate of 1 °C/min to 350 °C and holding for 10 h. After reduction, the chamber was evacuated for 30 min both at 330 °C and 140 °C. The hydrogen uptake was measured at a temperature of 120 °C.
The degree of reduction (DoR) was determined in the temperature-programmed reduction (TPR) cell (Autochem 2950; Micromeritics, Norcross, GA, USA) by activation the catalyst (50 mg) in a flow of 10 mln/min pure H2 at 350 °C by (heating rate: 1 °C/min) for 10 h. Afterwards, the temperature was decreased to 60 °C in flowing hydrogen, and the catalyst bed was purged for 60 min in a flow of 50 mln/min of 5 vol% H2 in Ar. The catalyst bed temperature was increased to 900 °C at 10 °C/min whilst monitoring the hydrogen consumption with a thermal conductivity detector (TCD). The degree of reduction was determined from the ratio of the hydrogen consumption in the TPR after reduction at 350 °C for 10 h (the hydrogen consumption was calibrated using the reduction of Ag2O) with the amount of Co3O4 loaded in the TPR cell.
Temperature programmed reduction studies using CO (CO-TPR) were performed in an Autochem 2950 (Micromeritics, Norcross, GA, USA). The temperature of the catalyst bed (50 mg) was increased to 120 °C at a heating rate of 10 °C/min in a flow of 50 mln/min Ar, and the catalyst was dried for 1 h. The catalyst temperature was decreased to 60 °C, and the gas was switched to CO (10 mln/min). Subsequently, the temperature was increased to 900 °C (heating rate 10 °C /min), and the TCD signal was recorded.
X-ray diffraction (XRD) was performed using a Bruker AXS D8 advance diffractometer (Karlsruhe, Germany) with Co-Kα radiation (1.78897 Å) operating at 40 kV and 30 mA between 20–120° 2θ with a scanning speed of 0.0562° 2θ/s. The phase transitions occurring during the temperature-programmed reduction experiment were explored using in situ reduction with CO (4 mln/min) as the reducing agent. The catalyst was loaded into a borosilicate capillary. The capillary was fitted into an in situ cell, which was developed in house [48,49]. The capillary was heated with infrared heaters. The temperature was increased at a heating rate of 1 °C/min from 50 to 450 °C, and X-ray diffractograms were taken every 5 min.
Transmission electron microscopy (TEM) was performed using a FEI Tecnai T20 (Thermo Fisher Scientific, Waltham, MA, USA) equipped with a LaB6 filament operated at 200 kV. Catalysts were dispersed in methanol, ultrasonicated for 2 min, and transferred to a carbon coated copper grid.
Pyridine temperature-programmed desorption (Py-TPD) was performed using an Autochem 2920 (Micromeritics, Norcross, GA, USA) equipped with a vapor. The catalyst (100 mg) was activated in a stream of 30 mln/min of pure H2 by increasing the temperature to 350 °C at a heating rate of 10 °C/min and reducing the catalyst for 30 min. The temperature was decreased to 120 °C at a heating rate of 10 °C/min under a flow of 10 mln/min He and kept there for 1 h. The sample temperature was decreased to 110 °C, where pyridine pulse adsorption was performed. Helium saturated with pyridine at 60 °C was pulsed 15 times over the activated catalyst in 5-min intervals. Each dose contained 27 μmol pyridine. The pyridine uptake was monitored using a TCD. Weakly adsorbed pyridine was removed by flowing 50 mln/min of pure helium over the catalyst for 1 h. Py-TPD was carried out by increasing the temperature to 900 °C at a heating rate of 10 °C/min in a stream of 50 mln/min He, whilst monitoring the tail gas using a TCD detector.
The Fischer–Tropsch synthesis was performed in a 1-L slurry reactor. The catalyst (3–5 g) was activated ex situ in a flow of hydrogen with a space velocity of 12 ln/h/gcat. The temperature was increased to 350 °C at a constant heating rate of 1 °C/min, and subsequently, the catalyst was reduced for 10 h. The activated catalyst was cooled to room temperature, and then transferred to 30 g of molten wax under an argon atmosphere. The wax was cooled to room temperature, and the mass of the reduced catalyst (mcat,red) was determined by differential weighing of the wax tablet before and after addition of the catalyst. The reactor was filled with 250 g of molten wax, and the catalyst wax tablet was loaded into the reactor. The reactor was pressurized with argon to 20 bar, and the temperature was increased to 220 °C at a stirring speed of 350 rpm. When the desired temperature and pressure were reached, diluted syngas (H2:CO:Ar = 2:1:1) was introduced. The permanent gases were analyzed on-line with a Varian CP-4900 micro GC equipped with a TCD detector to determine the CO conversion and methane selectivity using argon as an internal standard. Gaseous samples were collected in pre-evacuated ampoules [50] at regular intervals, and the samples were analyzed off-line by GC-FID.

5. Conclusions

Metal–support interactions can be investigated using a reverse model system created by impregnating Co3O4 with aluminum sec-butoxide. This results in the formation of alumina islands on the surface of cobalt oxide. The presence of these islands strongly affects the performance of these materials in the Fischer–Tropsch CO hydrogenation. The overall activity per unit mass of catalyst increases with increasing aluminum content, but this is due to the increase in the metal surface area as a consequence of reduced sintering in the presence of alumina islands. A kinetic analysis shows that the kinetics activity factor per the surface cobalt atoms and the kinetic inhibition factor increases with increasing aluminum content. The increase in the kinetic activity factor is ascribed to the enhanced ability to dissociate CO in the presence of the Lewis acid alumina on the surface of the catalytically active metal. The increase in the inhibition factor is ascribed to the increase in the strength of CO adsorption in the presence of alumina. The latter does affect the selectivity of the Fischer–Tropsch synthesis favorably with a decrease in the methane selectivity and an increase in the C5+ selectivity with increasing aluminum content.

Author Contributions

Conceptualization of research by E.v.S.; investigation—A.P.P.; formal analysis, E.v.S., A.P.P.; TEM analysis, P.J.K.; writing—original draft preparation, E.v.S., A.P.P.; writing—review and editing, E.v.S, P.J.K; visualization, E.v.S, A.P.P. and P.J.K.; supervision, E.v.S., M.C.

Funding

Financial support from the DST-NRF Centre of Excellence in Catalysis c*change is gratefully acknowledged. This work is based on the research supported in part by the National Research Foundation of South Africa (Grant numbers: 114606, EVS and 94878 PJK).

Acknowledgments

In this section, you can acknowledge any support given which is not covered by the author contribution or funding sections. This may include administrative and technical support, or donations in kind (e.g., materials used for experiments).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Dry, M.E. Present and future applications of the Fischer-Tropsch process. Appl. Catal. A Gen. 2004, 276, 1–3. [Google Scholar] [CrossRef]
  2. Van Steen, E.; Claeys, M. Fischer-Tropsch catalysts for the Biomass-to-Liquid (BTL)-process. Chem. Eng. Technol. 2008, 31, 655–666. [Google Scholar] [CrossRef]
  3. Tucker, C.L.; van Steen, E. Activity and selectivity of a cobalt-based Fischer-Tropsch catalysts operating at high conversion for once-through biomass-to-liquid operations. Catal. Today 2018. [Google Scholar] [CrossRef]
  4. Iglesia, E. Design, synthesis, and use of cobalt-based Fischer-Tropsch synthesis catalysts. Appl. Catal. A Gen. 1997, 161, 59–78. [Google Scholar] [CrossRef]
  5. Bezemer, G.L.; Bitter, J.H.; Kuipers, H.P.C.E.; Oosterbeek, H.; Holewijn, J.E.; Xu, X.; Kapteijn, F.; van Dillen, A.J.; de Jong, K.P. Cobalt particle size effects in the Fischer−Tropsch reaction studied with carbon nanofiber supported catalysts. J. Am. Chem. Soc. 2006, 128, 3956–3964. [Google Scholar] [CrossRef] [PubMed]
  6. Fischer, N.; van Steen, E.; Claeys, M. Structure sensitivity of the Fischer-Tropsch activity and selectivity on alumina supported catalysts. J. Catal. 2013, 299, 67–80. [Google Scholar] [CrossRef]
  7. Munnik, P.; de Jongh, P.E.; de Jong, K.P. Control and impact of the nanoscale distribution of supported cobalt particles using in the Fischer-Tropsch synthesis. J. Am. Chem. Soc. 2014, 136, 7333–7340. [Google Scholar] [CrossRef]
  8. Andrew, S.P.S. Theory and practice of the formulation of heterogeneous catalysts. Chem. Eng. Sci. 1988, 36, 1431–1445. [Google Scholar] [CrossRef]
  9. Wanke, S.E.; Flynn, P.C. The sintering of supported metal catalysts. Catal. Rev. 1976, 12, 93–135. [Google Scholar] [CrossRef]
  10. Jacobs, G.; Da, T.K.; Zhang, Y.; Li, J.; Racoillet, G.; Davis, B.H. Fischer-Tropsch synthesis: Support, loading and promoter effects on the reducibility of cobalt catalysts. Appl. Catal. A Gen. 2002, 233, 263–281. [Google Scholar] [CrossRef]
  11. Rane, S.; Borg, Ø.; Yang, J.; Rytter, E.; Holmen, A. Effect of alumina phases on hydrocarbon selectivity in Fischer-Tropsch synthesis. Appl. Catal. A Gen. 2010, 338, 160–167. [Google Scholar] [CrossRef]
  12. Saib, A.M.; Claeys, M.; van Steen, E. Silica supported cobalt Fischer-Tropsch synthesis: Influence of support pore diameter. Catal. Today 2002, 71, 395–402. [Google Scholar] [CrossRef]
  13. Vaarkamp, M.; Miller, J.T.; Modica, F.S.; Koningsberger, D.C. On the relation between particle morphology, structure of the metal-support interface and catalytic properties of Pt/γ-Al2O3. J. Catal. 1996, 163, 294–305. [Google Scholar] [CrossRef]
  14. Briggs, N.M.; Barreti, L.; Wegener, E.C.; Herrera, L.V.; Gomez, L.A.; Miller, J.T.; Crossley, S.P. Identification of active sites on supported metal catalysts with carbon nanotube hydrogen highways. Nature Commun. 2018, 9, 3827. [Google Scholar] [CrossRef] [PubMed]
  15. Hayek, K.; Fuchs, M.; Klötzer, B.; Reichl, W.; Rupprechter, G. Studies of metal–support interactions with “real” and “inverted” model systems: Reactions of CO and small hydrocarbons with hydrogen on noble metals in contact with oxides. Top. Catal. 2000, 13, 55–66. [Google Scholar] [CrossRef]
  16. Mogorosi, R.P.; Fischer, N.; Claeys, M.; van Steen, E. Strong metal support interaction by molecular design: Fe-silicate interactions in Fischer-Tropsch catalysts. J. Catal. 2012, 289, 140–150. [Google Scholar] [CrossRef]
  17. Mogorosi, R.P.; Claeys, M.; van Steen, E. Enhanced activity via surface modification of Fe-based Fischer-Tropsch catalyst precursor with titanium butoxide. Top. Catal. 2014, 57, 572–581. [Google Scholar] [CrossRef]
  18. Petersen, A.P.; Forbes, R.P.; Govender, S.; Kooyman, P.J.; van Steen, E. Effect of alumina modification on the reducibility of Co3O4 crystallites studied on inverse model catalysts. Catal. Lett. 2018, 148, 1215–1227. [Google Scholar] [CrossRef]
  19. Macheli, L.; Roy, A.; Carleschi, E.; Doyle, B.P.; van Steen, E. Surface modification of Co3O4 nanocubes with TEOS for an improved performance in the Fischer-Tropsch synthesis. Catal. Today 2018. [Google Scholar] [CrossRef]
  20. Moulijn, J.A.; van Diepen, A.E.; Kapteijn, F. Catalyst deactivation: Is it predictable? What to do? Appl. Catal. A Gen. 2001, 212, 3–16. [Google Scholar] [CrossRef]
  21. Argyle, M.D.; Frost, T.S.; Bartholomew, C.H. Cobalt Fischer–Tropsch catalyst deactivation modeled using generalized power law expressions. Top. Catal. 2014, 57, 415–429. [Google Scholar] [CrossRef]
  22. Nabaho, D.; Niemantsverdriet, J.W.; Claeys, M.; van Steen, E. Hydrogen spillover in the Fischer-Tropsch synthesis: An analysis of platinum as a promoter for cobalt-alumina catalysts. Catal. Today 2016, 261, 17–27. [Google Scholar] [CrossRef]
  23. Botes, F.G.; van Dyk, B.; McGregor, C. The development of a macro kinetic model for a commercial Co/Pt/Al2O3 Fischer-Tropsch catalyst. Ind. Eng. Chem. Res. 2009, 48, 10439–10447. [Google Scholar] [CrossRef]
  24. Fuentes, G.A. Catalyst deactivation and steady-state activity: A generalized power-law equation model. Appl. Catal. 1985, 15, 33–40. [Google Scholar] [CrossRef]
  25. Hu, W.; Xie, J.; Chau, H.W.; Si, B.C. Evaluation of parameter uncertainties in nonlinear regression using Microsoft Excel spreadsheet. Environ. Syst. Res. 2015, 4, 4. [Google Scholar] [CrossRef]
  26. Van Heerden, T.; van Steen, E. Metal-support interaction on cobalt-based FT catalysts - a DFT study of model inverse catalysts. Faraday Discuss. 2017, 197, 87–99. [Google Scholar] [CrossRef] [PubMed]
  27. Van Steen, E.; Claeys, M.; Möller, K.P.; Nabaho, D. Comparing a cobalt-based catalyst with iron-based catalysts for the Fischer-Tropsch XTL-process operating at high conversion. Appl. Catal A Gen. 2018, 549, 51–59. [Google Scholar] [CrossRef]
  28. Borg, Ø.; Dietzel, P.D.C.; Spjelkavik, A.I.; Tveten, E.Z.; Walmsley, J.C.; Diplas, S.; Holmen, A.; Rytter, E. Fischer-Tropsch synthesis: Cobalt particle size and support effects on intrinsic activity and product distribution. J. Catal. 2008, 259, 161–164. [Google Scholar] [CrossRef]
  29. Bertole, C.J.; Mims, C.A.; Kiss, G. The effect of water on the cobalt-catalyzed Fischer–Tropsch synthesis. J. Catal. 2002, 210, 84–96. [Google Scholar] [CrossRef]
  30. Bertole, C.J.; Kiss, G.; Mims, C.A. The effect of surface-active carbon on hydrocarbon selectivity in the cobalt-catalyzed Fischer–Tropsch synthesis. J. Catal. 2004, 223, 309–318. [Google Scholar] [CrossRef]
  31. Schulz, H.; van Steen, E.; Claeys, M. Selectivity and mechanism of Fischer-Tropsch synthesis with iron and cobalt catalysts. Stud. Surf. Sci. Catal. 1994, 81, 455–460. [Google Scholar]
  32. Weststrate, C.J.; Niemantsverdriet, J.W. Understanding FTS selectivity: The crucial role of surface hydrogen. Faraday Discuss. 2017, 197, 101–116. [Google Scholar] [CrossRef] [PubMed]
  33. Van Santen, R.A.; Ciobîcă, I.M.; van Steen, E.; Ghouri, M.M. Mechanistic issues in Fischer-Tropsch catalysis. Adv. Catal. 2011, 54, 127–187. [Google Scholar]
  34. Schulz, H.; Claeys, M. Reactions of α-olefins of different chain length added during Fischer–Tropsch synthesis on a cobalt catalyst in a slurry reactor. Appl. Catal. A Gen. 1999, 186, 71–90. [Google Scholar] [CrossRef]
  35. Yang, J.; Jacobs, G.; Jermwongratanachai, T.; Pendyala, V.R.R.; Ma, W.; Chen, D.; Holmen, A.; Davis, B.H. Fischer–Tropsch synthesis: Impact of H2 or CO activation on methane selectivity. Catal. Lett. 2014, 144, 123–132. [Google Scholar] [CrossRef]
  36. Paterson, J.; Peacock, M.; Ferguson, E.; Purven, R.; Ojeda, M. In situ diffraction of Fischer-Tropsch catalysts: Cobalt reduction and carbide formation. ChemCatChem 2017, 9, 3463–3469. [Google Scholar] [CrossRef]
  37. Nakamura, J.; Toyoshima, I.; Tanaka, K. Formation of carbidic and graphite carbon from CO on polycrystalline cobalt. Surf. Sci. 1988, 201, 185–194. [Google Scholar] [CrossRef]
  38. Claeys, M.; Dry, M.E.; van Steen, E.; du Plessis, E.; van Berge, P.J.; Saib, A.M.; Moodley, D.J. In-situ magnetometer study on the formation and stability of cobalt carbide in Fischer-Tropsch synthesis. J. Catal. 2014, 318, 193–202. [Google Scholar] [CrossRef]
  39. Bremmer, M.; Zacharaki, E.; Sjåstad, A.O.; Navarro, V.; Frenken, J.W.M.; Kooyman, P.J. In situ TEM observation of the Boudouard reaction: Multi-layered graphene formation from CO on cobalt nanoparticles at atmospheric pressure. Faraday Discuss. 2017, 197, 337–351. [Google Scholar] [CrossRef]
  40. Kharissova, O.V.; Kharisov, B.I. Variations of interlayer spacing in carbon nanotubes. RSC Adv. 2014, 4, 30807–30815. [Google Scholar] [CrossRef]
  41. Takenaka, S.; Ishida, M.; Serizawa, M.; Tanabe, E.; Otsuka, K. Formation of carbon nanofibers and carbon nanotubes through methane decomposition over supported cobalt catalysts. J. Phys. Chem. B 2004, 108, 11464–11472. [Google Scholar] [CrossRef]
  42. Boffa, A.B.; Lin, C.; Bell, A.T.; Somorjai, G.A. Lewis acidity as an explanation for oxide promotion of metals: Implications of its importance and limits for catalytic reactions. Catal. Lett. 1994, 27, 243–249. [Google Scholar] [CrossRef]
  43. Johnson, G.R.; Bell, A.T. Effects of Lewis acidity of metal oxide promoters on the activity and selectivity of Co-based Fischer–Tropsch synthesis catalysts. J. Catal. 2016, 338, 250–264. [Google Scholar] [CrossRef]
  44. Rascon, F.; Wischert, R.; Coperet, C. Molecular nature of support effects in single-site heterogeneous catalysts: Silica vs. alumina. Chem. Sci. 2011, 2, 1449–1456. [Google Scholar] [CrossRef]
  45. Stevens, R.W., Jr.; Chuang, S.S.C.; Davis, B.H. Temperature-programmed desorption/decomposition with simultaneous DRIFTS analysis: Adsorbed pyridine on sulfated ZrO2 and Pt-promoted sulfated ZrO2. Thermochim. Acta 2003, 407, 61–71. [Google Scholar] [CrossRef]
  46. Pribylova, L.; Dvorak, B. Gas chromatography/mass spectrometry analysis of components of pyridine temperature-programmed desorption spectra from surface of copper-supported catalysts. J. Chromatogr. A 2009, 1216, 4046–4050. [Google Scholar] [CrossRef]
  47. Barzetti, T.; Selli, E.; Moscotti, D.; Forni, L. Pyridine and ammonia as probes for FTIR analysis of solid acid catalysts. J. Chem. Soc. Faraday Trans. 1996, 92, 1401–1407. [Google Scholar] [CrossRef]
  48. Claeys, M.; Fischer, N. PCT Patent WO 2013/005180 A1. Sample presentation device for radiation-based analytical equipment. 10 January 2013. [Google Scholar]
  49. Fischer, N.; Clapham, B.; Feltes, T.; van Steen, E.; Claeys, M. Size-dependent phase transformation of catalytically active nanoparticles captured in situ. Angew. Chem. Int. Ed. 2014, 53, 1342–1345. [Google Scholar] [CrossRef]
  50. Schulz, H.; Böhringer, W.; Kohl, C.P.; Rahman, N.M.; Will, A. Entwicklung und Anwendung der Kapillar-GC Gesamtproben-Technik für Gas/Dampf Vielstoffgemische; DGMK Forschungsbericht: Hamburg, Germany, 1984; Volume 320. [Google Scholar]
Catalysts 09 00794 g001 550

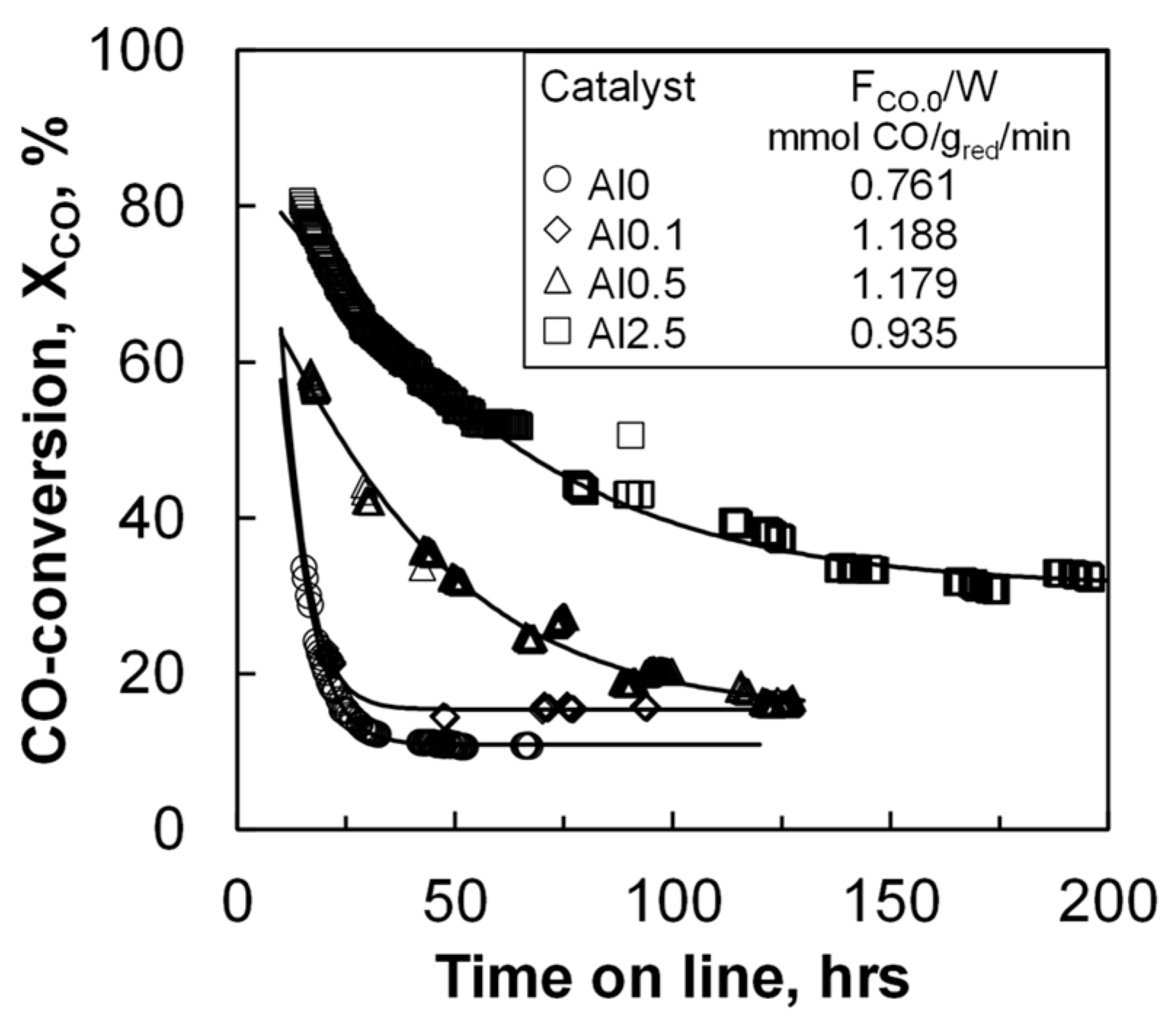

Figure 1. Initial CO conversion in the Fischer–Tropsch synthesis in a slurry reactor at 220 °C, 20 bar and a feed containing H2:CO:Ar = 2:1:1 as a function of time on line (solid lines represent fit to the model – see text).
Figure 1. Initial CO conversion in the Fischer–Tropsch synthesis in a slurry reactor at 220 °C, 20 bar and a feed containing H2:CO:Ar = 2:1:1 as a function of time on line (solid lines represent fit to the model – see text).
Catalysts 09 00794 g001
Catalysts 09 00794 g002 550

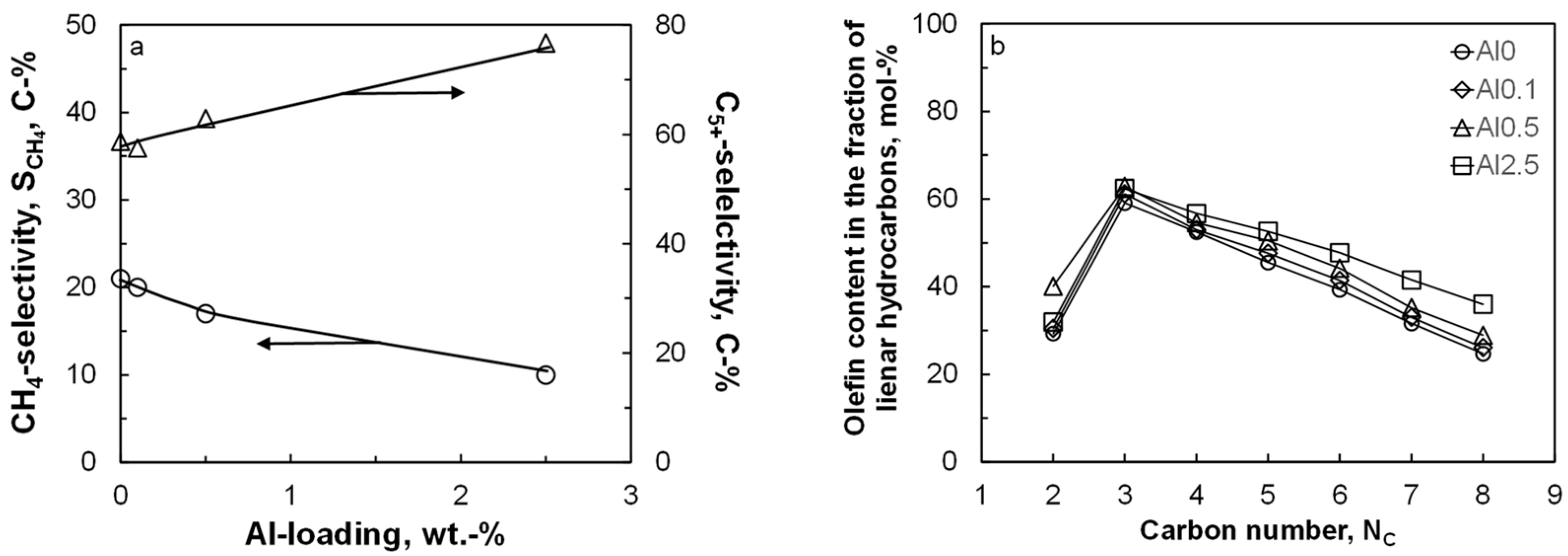

Figure 2. Selectivity for methane and C5+ as a function of the aluminum content (a) and the olefin content in the fraction of linear hydrocarbons as a function of carbon number (b) in the Fischer–Tropsch synthesis (220 °C, 20 bar feed; H2:CO:Ar = 2:1:1; XCO = 14.5 ± 2%).
Figure 2. Selectivity for methane and C5+ as a function of the aluminum content (a) and the olefin content in the fraction of linear hydrocarbons as a function of carbon number (b) in the Fischer–Tropsch synthesis (220 °C, 20 bar feed; H2:CO:Ar = 2:1:1; XCO = 14.5 ± 2%).
Catalysts 09 00794 g002
Catalysts 09 00794 g003 550

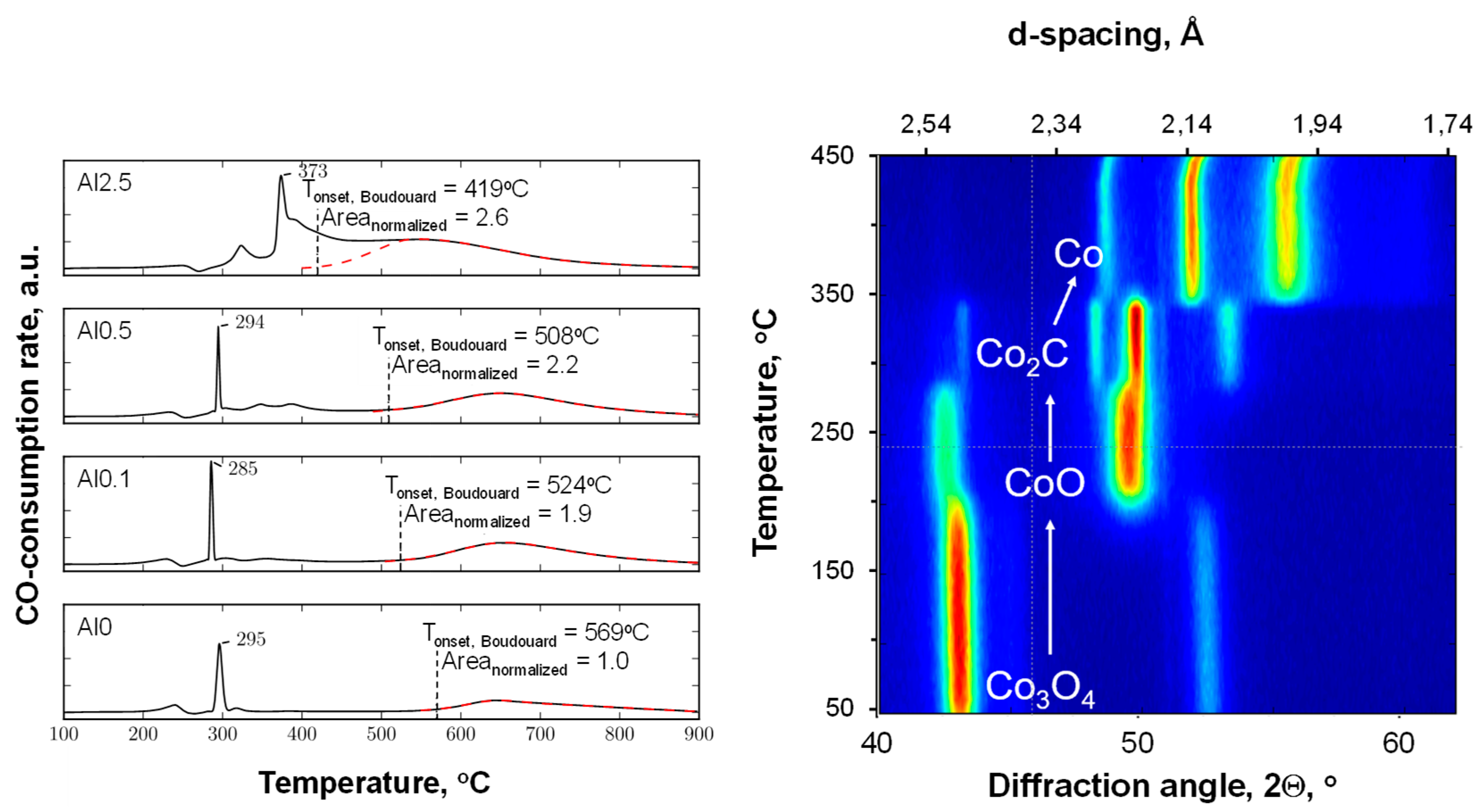

Figure 3. CO-TPR profiles (left) and the corresponding in situ XRD reduction experiments of Al0 using carbon monoxide as the reducing agent (right).
Figure 3. CO-TPR profiles (left) and the corresponding in situ XRD reduction experiments of Al0 using carbon monoxide as the reducing agent (right).
Catalysts 09 00794 g003
Catalysts 09 00794 g004 550
Figure 4. TEM image of the sample containing 0.5 wt.% aluminum (Al0.5) after CO-TPR showing metal particles encapsulated in multi-wall carbon nanotubes.
Figure 4. TEM image of the sample containing 0.5 wt.% aluminum (Al0.5) after CO-TPR showing metal particles encapsulated in multi-wall carbon nanotubes.
Catalysts 09 00794 g004
Catalysts 09 00794 g005 550

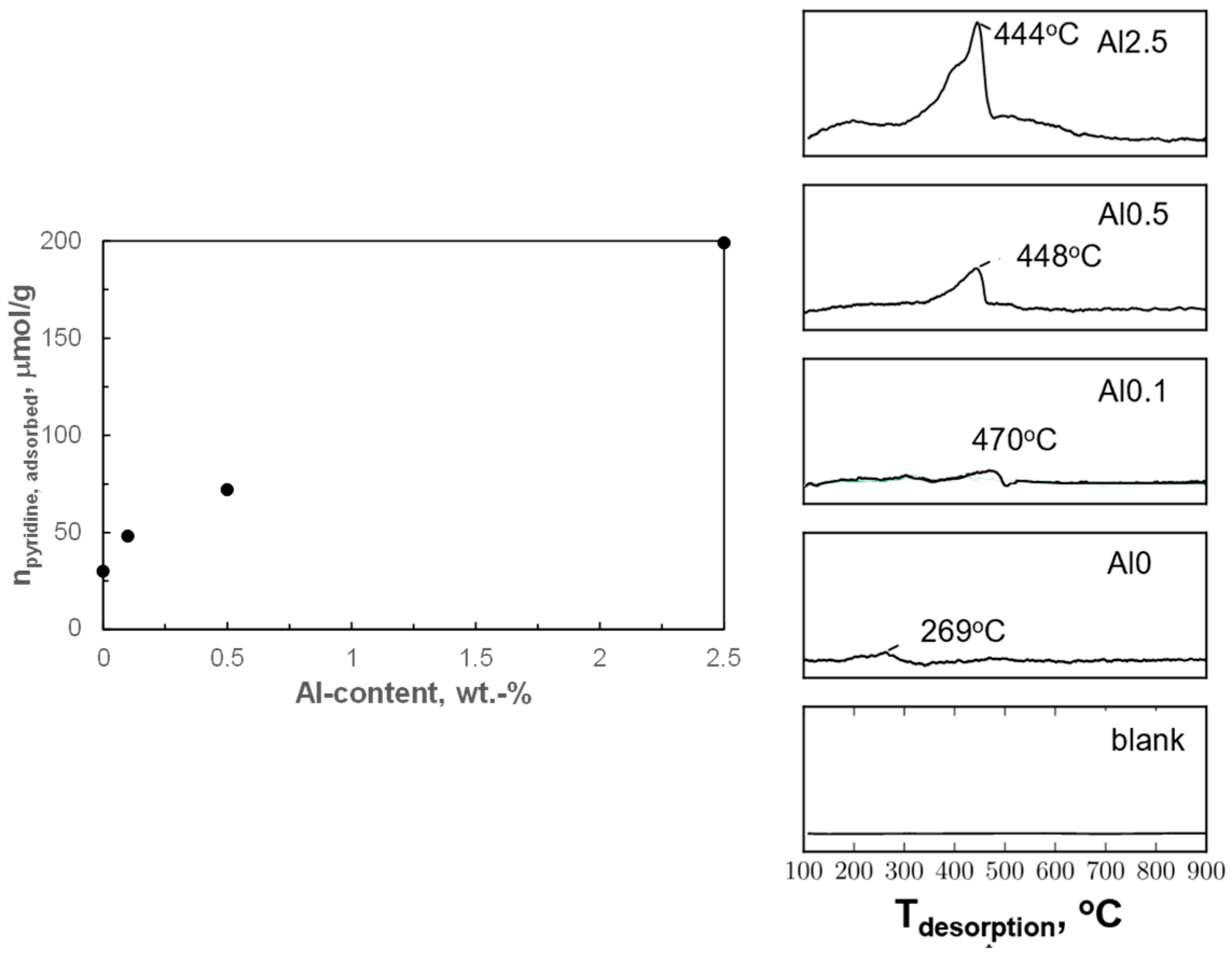

Figure 5. Uptake (left) and temperature programmed desorption (right) of pyridine from the reduced samples (reduction in pure H2, 300 mln/g/min; Treduction = 350 °C; treduction = 0.5 h).
Figure 5. Uptake (left) and temperature programmed desorption (right) of pyridine from the reduced samples (reduction in pure H2, 300 mln/g/min; Treduction = 350 °C; treduction = 0.5 h).
Catalysts 09 00794 g005
Catalysts 09 00794 g006 550

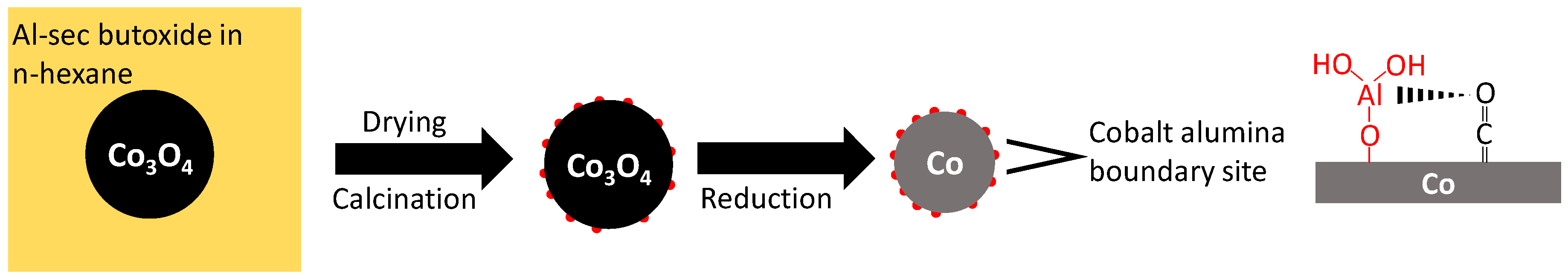

Figure 6. Schematic depiction of the formation of sub-nanometer-sized alumina islands upon impregnating a cobalt oxide surface with Al-sec butoxide in n-hexane, and their interaction with CO adsorbed on the reduced metal surface.
Figure 6. Schematic depiction of the formation of sub-nanometer-sized alumina islands upon impregnating a cobalt oxide surface with Al-sec butoxide in n-hexane, and their interaction with CO adsorbed on the reduced metal surface.
Catalysts 09 00794 g006
Table
Table 1. Physicochemical characterization of used materials.
Table 1. Physicochemical characterization of used materials.
SampleAl Loading
wt.%		DCo3O4
nm		DoR 1,2
%		H2 Uptake 1
cm3 (STP)/g		Dispersion 1,3
%		DCo 1,4
nm
Al0014960.320.22427
Al0.10.114960.880.62155
Al0.50.514902.071.4765
Al2.52.514863.942.8533
1 Reduction: 350 oC in pure H2 for 10 hrs; 2 Degree of reduction; 3 Dispersion of cobalt in the reduced catalyst taking into account the degree of reduction D [ % ]   =   N C o , s u r f a c e N C o · D O R × 100 % ); 4 Cobalt particle size estimated from d C o [ n m ]   =   96 D [ % ] .
Table
Table 2. Initial activity and deactivation in the Fischer–Tropsch synthesis at 220 °C and 20 bar conducted in a slurry reactor with a feed H2:CO:Ar = 2:1:1 (kinetic evaluation of the data according to the rate expression proposed by Botes et al. [23] (see Equation (1)) including a first-order deactivation model according to generalized power-law expression (GPLE) [21,23] (see Equation (2)); uncertainty intervals determined using the bootstrap method [25] with 400 simulations). CTY: cobalt time yield, TOF: turnover frequency.
Table 2. Initial activity and deactivation in the Fischer–Tropsch synthesis at 220 °C and 20 bar conducted in a slurry reactor with a feed H2:CO:Ar = 2:1:1 (kinetic evaluation of the data according to the rate expression proposed by Botes et al. [23] (see Equation (1)) including a first-order deactivation model according to generalized power-law expression (GPLE) [21,23] (see Equation (2)); uncertainty intervals determined using the bootstrap method [25] with 400 simulations). CTY: cobalt time yield, TOF: turnover frequency.
SampleAl0Al0.1Al0.5Al2.5
Al-loading, wt.%0.00.10.52.5
TOS = 16 h-rCO, mmol/g/min0.220.400.720.74
CTY, 10−4 s−12.23.97.17.2
TOF, s−10.0980.0630.0480.026
TOS = 95 h-rCO, mmol/g/min0.080.190.240.40
CTY, 10−4 s−10.81.92.43.9
TOF,s−10.0350.0300.0160.014
A0, mmol/g Co/min/bar1.25 22.1 ± 0.212.0 ± 3.0(1.9 ± 0.0) × 103(8.06 ± 0.02) × 104
A0′, mol/mol Cosurface/s/bar1.25 9.9 ± 0.11.9 ± 0.5(1.3 ± 0.0) × 102(2.8 ± 0.02) × 103
B, bar−0.5 6.1 ± 0.13.0 ± 1.168 ± 1441 ± 2
kd, hr−1 0.18 ± 0.010.20 ± 0.070.02 ± 0.000.02 ± 0.00
a∞ 0.06 ± 0.000.08 ± 0.070.17 ± 0.010.27 ± 0.00
R20.99840.97910.98290.9902

Share and Cite

MDPI and ACS Style

Petersen, A.P.; Claeys, M.; Kooyman, P.J.; van Steen, E. Cobalt-Based Fischer–Tropsch Synthesis: A Kinetic Evaluation of Metal–Support Interactions Using an Inverse Model System. Catalysts 2019, 9, 794. https://doi.org/10.3390/catal9100794

AMA Style

Petersen AP, Claeys M, Kooyman PJ, van Steen E. Cobalt-Based Fischer–Tropsch Synthesis: A Kinetic Evaluation of Metal–Support Interactions Using an Inverse Model System. Catalysts. 2019; 9(10):794. https://doi.org/10.3390/catal9100794

Chicago/Turabian Style

Petersen, Anna P., Michael Claeys, Patricia J. Kooyman, and Eric van Steen. 2019. "Cobalt-Based Fischer–Tropsch Synthesis: A Kinetic Evaluation of Metal–Support Interactions Using an Inverse Model System" Catalysts 9, no. 10: 794. https://doi.org/10.3390/catal9100794

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
