NaBH4-Reduction Induced Evolution of Bi Nanoparticles from BiOCl Nanoplates and Construction of Promising Bi@BiOCl Hybrid Photocatalysts

by
Yuxiang Yan
1,
Hua Yang
1,*,
Zao Yi
2 and
Tao Xian
3
1
State Key Laboratory of Advanced Processing and Recycling of Non-ferrous Metals, Lanzhou University of Technology, Lanzhou 730050, China
2
Joint Laboratory for Extreme Conditions Matter Properties, Southwest University of Science and Technology, Mianyang 621010, China
3
College of Physics and Electronic Information Engineering, Qinghai Normal University, Xining 810008, China
*
Author to whom correspondence should be addressed.
Catalysts 2019, 9(10), 795; https://doi.org/10.3390/catal9100795
Submission received: 11 September 2019 / Revised: 20 September 2019 / Accepted: 22 September 2019 / Published: 24 September 2019
(This article belongs to the Special Issue Photocatalysis and Environment)
Browse Figures
Review Reports Versions Notes

Abstract

:
In this work, we have synthesized BiOCl nanoplates (diameter 140–220 nm, thickness 60–70 nm) via a co-precipitation method, and then created Bi nanoparticles (diameter 35–50 nm) on the surface of BiOCl nanoplates via a NaBH4 reduction method. By varying the NaBH4 concentration and reaction time, the evolution of Bi nanoparticles was systematically investigated. It is demonstrated that with increasing the NaBH4 concentration (at a fixing reaction time of 30 min), BiOCl crystals are gradually reduced into Bi nanoparticles, and pure Bi nanoparticles are formed at 120 mM NaBH4 solution treatment. At low-concentration NaBH4 solutions (e.g., 10 and 30 mM), with increasing the reaction time, BiOCl crystals are partially reduced into Bi nanoparticles, and then the Bi nanoparticles return to form BiOCl crystals. At high-concentration NaBH4 solutions (e.g., 120 mM), BiOCl crystals are reduced to Bi nanoparticles completely with a short reaction time, and further prolong the treatment time leads to the transformation of the Bi nanoparticles into a two-phase mixture of BiOCl and Bi2O3 nanowires. The photodegradation performances of the samples were investigated by choosing rhodamine B (RhB) as the model pollutant and using simulated sunlight as the light source. It is demonstrated that an enhanced photodegradation performance can be achieved for the created Bi@BiOCl hybrid composites with appropriate NaBH4 treatment. The underlying photocatalytic mechanism was systematically investigated and discussed.

1. Introduction

The rapid development of chemical industry leads to the ever-increasing serious pollution of the human living environment. In particular, the industrial wastewater generated from textile/paper/paint/cosmetic manufacturers is causing severe pollution to the water resource. Organic dyes, being the dominant pollutants in the industrial wastewater, pose a great threat to mankind’s health and aquatic life due to their harmful and carcinogenic properties [1]. Among various wastewater treatment technologies, semiconductor-based photocatalysis is particularly interesting because it has many outstanding advantages, such as utilization of sunlight as the power source, capability of decomposing organic dyes into harmless inorganic substances, environmental friendliness, operation simplicity and low cost [2,3,4,5,6]. Under irradiation by the sun’s power, semiconductor photocatalysts are excited to produce electrons (e−) in their conduction band (CB) and holes (h+) in their valence band (VB), and the photoexcited charge carriers are the original reactive species in the photodegradation process of dyes. To make more charge carriers available for the photocatalytic reactions and enhance the photocatalytic performance of semiconductors, the photoexcited electrons and holes must be efficiently separated [7,8,9,10,11,12].
In recent years, bismuth-based semiconductor photocatalysts have been extensively studied because of their excellent capabilities to photocatalytically degrade organic dyes [12,13,14,15,16,17]. Particularly, a great deal of recent interest has been paid to bismuth oxyhalides BiOX (X = I, Cl, Br), which are an important class of bismuth-based semiconductor photocatalysts. The BiOX compounds are constructed by the alternation between [Bi2O2]2+ slabs and double layers of X atoms, thus resulting in the crystalline form of a layered PbFCl-type structure [18]. An interesting self-built internal static electric field (i.e., polarization electric field) is produced in the layer BiOX compounds [19]. The polarization electric field can promote the spatial separation of photogenerated electron/hole pairs, making BiOX exhibit a superior photocatalytic activity for the degradation of organic dyes. Moreover, much work has been devoted to the incorporation of BiOX with other semiconductors to form excellent heterojunction composite photocatalysts [20,21,22,23,24]. Due to the efficient separation of electron/hole pairs resulting from the charge transfer between the two semiconductors, those heterojunction composite photocatalysts generally exhibit photocatalytic performances superior to single semiconductor photocatalysts.
Noble metal nanoparticles and carbon nanomaterials (e.g., carbon quantum dots, carbon nanotubes and graphene) have been widely used to modify semiconductor photocatalysts with the aim of enhancing their photocatalytic performances [25,26,27,28,29]. Due to their intriguing physicochemical characteristics, the metal and carbon nanomaterials have potential technological applications in a wide range of fields such as electronic devices, biomedicine, sensors, and wave absorption [30,31,32,33,34,35,36]. In the aspect of photocatalytic applications, they can be used particularly as excellent electron captures to facilitate the separation of photoexcited electron/hole pairs. Furthermore, localized surface plasmon resonance (LSPR) could be induced in the metal nanoparticles by absorbing visible light [37,38,39]. The LSPR effect of metal nanoparticles can locally enhance the electromagnetic field, which facilitates the generation and separation of electron/hole pairs in semiconductor photocatalysts. These outstanding properties make metal nanoparticles particularly attractive as co-catalysts to improve the photocatalytic performances of semiconductor photocatalysts. Very recently, metal-modified BiOX composite photocatalysts have been extensively investigated, such as Au/BiOCl, Ag/BiOBr, Bi/BiOBr and Ag/Bi/BiOCl [40,41,42,43,44,45,46]. These composite photocatalysts were shown to exhibit superior performances for dye photodegradation when compared with bare BiOX. However, there is little work concerned with the evolution of Bi nanoparticles from BiOX crystals via a NaBH4 reduction method and their effect on the optical and photocatalytic properties of resultant Bi@BiOX samples.
Herein, we presented a co-precipitation method for the synthesis of BiOCl nanoplates, and adopted a NaBH4 reduction method to create Bi nanoparticles on the surface of BiOCl nanoplates. By varying the NaBH4 solution concentration and treatment time, we systematically investigated the evolution process of Bi nanoparticles from BiOCl crystals. The photodegradation performances of the NaBH4-treated BiOCl samples were assessed by degrading rhodamine B (RhB) from aqueous solution using simulated sunlight as the light source. RhB is one of the dominant organic dyes existing in the industrial wastewater. It must be artificially removed because it is highly water-soluble, chemically stable, carcinogenic, and non-biodegradable [47,48,49].

2. Results and Discussion

2.1. Effect of NaBH4 Concentration

Figure 1 shows the XRD patterns of pristine and NaBH4-treated BiOCl samples with different concentrations (reaction time 30 min). It is observed that the diffraction peaks of pristine BiOCl sample matches perfectly with the standard diffraction pattern of PDF#85-0861, implying that BiOCl is crystallized into a pure P4/nmm tetragonal structure (a = 0.389 nm, b = 0.389 nm, c = 0.737 nm). When the BiOCl sample is treated in NaBH4 solution, additional diffraction peaks characterized as metallic Bi are observed on the XRD patterns. With increasing the concentration of NaBH4 solution, the diffraction peak intensity of metallic Bi gradually increases, and a pure metallic phase Bi is formed when the NaBH4 solution concentration is increased up to 120 mM. The Bi crystal has a R-3m rhombohedral structure (PDF#85-1329). The XRD result suggests that the NaBH4 treatment leads to the gradual reduction of BiOCl into metallic Bi.
It is noted that the properties of nanomaterials are highly dependent on their optical absorption properties, which can be determined by UV-vis diffuse reflectance spectroscopy measurements [50,51,52]. Figure 2a demonstrates the apparent color change of the NaBH4-treated BiOCl samples. Pristine BiOCl appears white in color, whereas the color of NaBH4-treated BiOCl samples is gradually deepened to the black with increasing the NaBH4 concentration. The color deepening can be explained due to the formation of Bi nanocrystals by the NaBH4 reduction. It is well established that metal nanocrystals generally have a strong visible-light absorption due to the LSPR [53]. The enhanced visible-light absorption of the NaBH4-treated BiOCl samples is further confirmed by the UV-vis diffuse reflectance spectra, as shown in Figure 2b. Owing to its large bandgap energy, pristine BiOCl manifests a poor optical absorption in the visible-light region. With increasing the NaBH4 concentration (particularly above 5 mM), the NaBH4-treated BiOCl samples exhibit a monotonic increase in the visible-light absorption. Especially treated by 120 mM NaBH4 solution, the obtained sample 120mM-30min-BiOCl absorbs fully visible light. To determine the bandgap energy (Eg) of the samples, the UV-vis diffuse reflectance spectra are differentiated, as shown in Figure 2c. According to the absorption edge (i.e., the peak wavelength [54]), the Eg of the samples is obtained and presented in Figure 2c. The pristine BiOCl has an Eg of 3.57 eV. A slightly decreased Eg is observed for the NaBH4-treated BiOCl samples, which could be ascribed to the lattice expansion of BiOCl crystals due to their partial reduction into Bi.
The morphologies of pristine and NaBH4-treated BiOCl samples with different concentrations were elucidated by SEM observations. Figure 3a illustrates the SEM image of pristine BiOCl, revealing the synthesis of BiOCl nanoplates with size of 140–220 nm in diameter and 60–70 nm in thickness. Due to their large surface energy, the nanoplates are aggregated together to form rose-like microspheres. Figure 3b–f show the SEM images of NaBH4-treated BiOCl samples with different concentrations. It is seen that with increasing the NaBH4 solution concentration, BiOCl crystals are gradually reduced into Bi nanoparticles. Especially increasing the NaBH4 concentration up to 120 mM, BiOCl crystals are completely decomposed and pure Bi nanoparticles are formed. The size of the Bi nanoparticles is about 35–50 nm.
TEM investigation was performed on pristine BiOCl, 30mM-30min-BiOCl and 120mM-30min-BiOCl to further unveil their microstructures. Figure 4a shows the TEM image of pristine BiOCl, revealing that it presents a morphology of nanoplates. The high-resolution TEM (HRTEM) image in Figure 4d shows that the BiOCl nanoplates are well crystallized and present clear lattice fringes with d110 = 0.275 nm. The HRTEM image also shows the possible existence of subgrains in the BiOCl nanoplates. The selected area electron diffraction (SAED) pattern obtained from one of the BiOCl nanoplates is shown in Figure 4g, which clearly presents sharp diffraction spots. This is indicative of the good crystallization of the BiOCl nanoplates. However, the diffraction spots are arranged irregularly and nonperiodically, giving support to the possible existence of subgrains in the BiOCl nanoplates. For the 30mM-30min-BiOCl sample, its TEM image (Figure 4b) and HRTEM image (Figure 4e) demonstrate that partial BiOCl nanoplates are reduced by NaBH4 to form Bi nanoparticles; while in the 120mM-30min-BiOCl sample, BiOCl nanoplates are completely transformed into Bi nanoparticles via the NaBH4 reduction, as depicted from its TEM image (Figure 4c) and HRTEM image (Figure 4f). The Bi nanoparticles manifest obvious lattice fringes, which can be characterized as the rhombohedrally structured Bi. The HRTEM images also reveal the existence of minor amorphous Bi, particularly at the surface of Bi crystals. This is confirmed by the SAED patterns of 30mM-30min-BiOCl (Figure 4h) and 120mM-30min-BiOCl (Figure 4i), both of which clearly show the diffuse diffraction rings that are characteristic of an amorphous material.
The element chemical states of 30mM-30min-BiOCl are analyzed by XPS spectra. Figure 5a shows the survey scan XPS spectrum of 30mM-30min-BiOCl, revealing that Bi, O and Cl elements are included in the sample. The C signal (C 1s → 284.8 eV) detected on the spectrum is used for the binding energy calibration [55]. Figure 5b–d illustrate the high-resolution XPS spectra of Bi 4f, O 1s and Cl 2p core levels, respectively. On the Bi 4f core-level spectrum, the two sharp peaks at 158.2 and 163.6 eV are attributed to Bi 4f7/2 and Bi 4f5/2 signals of Bi3+ species, respectively [56]. The weak peaks at 157.0 and 162.3 eV are characterized as Bi 4f7/2 and Bi 4f5/2 signals of metallic Bi0 species, implying the formation of Bi nanoparticles on the surface of BiOCl nanoplates [56]. The O 1s core-level spectrum presents two peaks at 529.0, and 530.5 eV, which are ascribed to the lattice oxygen of BiOCl crystals and chemisorbed oxygen species, respectively [56,57,58]. The existence of Cl− species is confirmed by the observation of two peaks at 197.1 (Cl 2p3/2) and 198.6 (Cl 2p1/2) on the Cl 2p core-level spectrum [56].
Figure 6a shows the Raman spectra of BiOCl, 30mM-30min-BiOCl and 120mM-30min-BiOCl. The Raman spectrum of pristine BiOCl presents four peaks located at 56, 140, 196, and 394 cm−1, which correspond to the A1g external Bi-Cl stretching mode, A1g internal Bi-Cl stretching mode, Eg internal Bi-Cl stretching mode, and Eg/B1g mode produced by the motion of the oxygen atoms, respectively [59]. These characteristic peaks are indicative of the crystallization of BiOCl crystals. The characteristic Raman peaks of BiOCl crystals become sharply weakened for 30mM-30min-BiOCl, and completely disappear for 120mM-30min-BiOCl. Instead, three vibration bands at 86, 118 and 303 cm−1 are detected on the Raman spectrum of 120mM-30min-BiOCl. These Raman bands are characterized as the vibration modes of metallic Bi [60], implying that treatment by 120 mM NaBH4 solution results in the complete evolution of BiOCl crystals into metallic Bi nanoparticle.
FTIR is a useful technique for determining the functional groups. Figure 6b displays the FTIR spectra of BiOCl, 30mM-30min-BiOCl and 120mM-30min-BiOCl. A strong absorption peak at 525 cm−1 and a weak absorption peak at 431 cm−1 are observed for pristine BiOCl, which are characterized as the FTIR vibration peaks featured in BiOCl crystals [61]. The BiOCl characteristic peaks decrease in intensity for 30mM-30min-BiOCl, and disappear for 120mM-30min-BiOCl. This gives support to the fact that BiOCl crystals are completely reduced into Bi nanoparticles with 120 mM NaBH4 solution treatment. No characteristic peaks from Bi nanoparticles are detected on the FTIR spectrum of 120mM-30min-BiOCl, possibly due to their infrared inactivity. The peak at 1397 cm−1 could be ascribed to the in-plane deformation vibration of O–H groups [62], implying the possible existence of other organic impurities (e.g., alcohols) on the samples. The appearance of absorption peak at 1637 cm−1 (H–O bending vibration) indicates that water molecules are adsorbed on the surface of the samples [63,64,65].
Photoelectrochemical measurements were carried out to elucidate the separation/transfer behavior of photoexcited carriers in the NaBH4-treated BiOCl samples with different concentrations. Figure 7a shows the Nyquist plots of EIS data of the samples. It is seen that the Nyquist plots, except for that of 120mM-30min-BiOCl, display a typical semicircle in the high-frequency region and a straight line in the low-frequency region. With increasing the NaBH4 concentration, the smallest semicircle diameter is observed for the 5mM-30min-BiOCl sample, implying that it has the smallest charge-transfer resistance [66]. The inset in Figure 7a illustrates the transient photocurrent-time curves, which are obtained by intermittently illuminating the samples with simulated sunlight. The samples manifest an obvious photocurrent response behavior with on-off cycles. On the irradiation, the obtained potocurrent density of the samples follows the order: 120mM-30min-BiOCl (0.05 μA cm−2) < BiOCl (0.09 μA cm−2) < 10mM-30min-BiOCl (0.12 μA cm−2) < 3mM-30min-BiOCl (0.15 μA cm−2) < 5mM-30min-BiOCl (0.16 μA cm−2). Both the EIS and photocurrent response analyses demonstrate that NaBH4-treated BiOCl samples with appropriate concentrations (particularly 5mM-30min-BiOCl) exhibit highly enhanced electron/hole separation and interface charge transfer.
PL spectroscopy is another important method that can be used to characterize the photoexcited carrier separation behavior. As seen in Figure 7b, the PL spectra of the NaBH4-treated BiOCl samples show an obvious PL emission peak at 560 nm, which is induced by the recombination of photoexcited electron/hole pairs [67]. With increasing the NaBH4 concentration, the 5mM-30min-BiOCl sample manifests the weakest PL emission peak, implying the lowest electron/hole recombination occurring in 5mM-30min-BiOCl. The PL spectroscopy analysis is consistent with the results obtained by the photocurrent response and EIS analyses.
The photodegradation performances of NaBH4-treated BiOCl samples with different concentrations were assessed by eliminating RhB from aqueous solution under simulated sunlight irradiation. Figure 8a shows the adsorption and time-dependent photodegradation of RhB over the samples. The adsorption percentages (adsorption for 30 min in the dark) and degradation percentages of RhB (photoreaction for 30 min) are shown in Figure 8c. A large adsorption of RhB (33.9%) is observed on pristine BiOCl nanoplates, which could be induced by the polarization electric field existing in the BiOCl crystals [19]. The NaBH4-treated BiOCl samples exhibit a decreased adsorption of RhB, which monotonically decreases with increasing the NaBH4 concentration. This phenomenon can be explained by the gradual reduction of BiOCl crystals into Bi nanoparticles with increasing the NaBH4 concentration, and Bi nanoparticles have a poor dye adsorption behavior. Pristine BiOCl nanoplates photocatalyze 81.3% removal of RhB after 30 min of irradiation. With increasing the NaBH4 concentration, the photodegradation activity of the NaBH4-treated BiOCl samples increases initially and then decreases. The highest degradation level of RhB reaches η = 91.1% for 5mM-30min-BiOCl. Only minor RhB is observed to be degraded for 120mM-30min-BiOCl (where BiOCl cystals are completely transformed to Bi nanoparticles), implying non-photoactivity of Bi nanoparticles. The degradation kinetic analysis is performed to further compare the photodegradation activity of the samples. As shown in Figure 8b, the plots of Ln(Ct/C0) vs t for all the samples present a good linear behavior, and can be modeled using the pseudo-first-order kinetic equation Ln(Ct/C0) = −kappt [68]. kapp is the apparent first-order reaction rate constant, which is obtained as given in Figure 8c. It is seen that the kapp value increases from 0.05347 min−1 for pristine BiOCl to 0.07945 min−1 for the optimal NaBH4-treated sample 5mM-30min-BiOCl, implying the latter has a photodegradation activity 1.5 times larger than that of the former.

2.2. Effect of Treatment Time with NaBH4

By fixing the NaBH4 concentration separately at 10, 30 and 120 mM, we also investigated the effect of treatment time on the structure, optical property and photodegradation performance of NaBH4-treated BiOCl samples. Figure 9a shows the apparent colors of the 10 mM NaBH4-treated BiOCl samples with different reaction times. With increasing the reaction time, the color of the samples deepens from white (pristine BiOCl) to gray, and then returns to white (10mM-3h-BiOCl). The color change of the samples is confirmed by the UV-vis diffuse reflectance spectra, as shown in Figure 9b. The first derivative curves of the UV-vis diffuse reflectance spectra and the obtained Eg values of the samples are shown in Figure 9c. The optical absorption properties suggest that, at the initial time, partial BiOCl crystals are transformed into Bi nanoparticles by NaBH4 reduction. With further prolonging the treatment time, BiOCl crystals are recrystallized from the Bi nanoparticles. As only minor Bi nanoparticles are formed by 10 mM NaBH4 treatment, the XRD patterns manifest no structural change, as shown in Figure 9d. The evolution between BiOCl crystals and Bi nanoparticles can be simply described by the following chemical reactions.
4BiOCl + 3NaBH4 + 9H2O → 4Bi + 3B(OH)3 + 3NaCl + HClO4 + 10H2
4Bi + 3B(OH)3 + 3NaCl + HClO4 → 4BiOCl + 3Na3BO3 + 5H2
The adsorption and photodegradation performances of the 10 mM NaBH4-treated BiOCl samples with different reaction times are illustrated in Figure 9e, and the corresponding kinetic plots of the dye degradation are shown in Figure 9f. It is seen that the NaBH4 treatment time has an obvious effect on the adsorption and photodegradation performances of the samples. As discussed above, BiOCl nanoplates have a large adsorption and excellent photodegradation of RhB, whereas Bi nanoparticles have almost no adsorption and photodegradation performance. However, the incorporation of an appropriate number of Bi nanoparticles on the surface of BiOCl nanoplates could result in the enhanced photodegradation performance. On the other hand, when BiOCl nanoplates are treated with a high-concentration NaBH4 solution and a long time, amorphous and defect structures will be produced in the samples, which is detrimental to the photodegradation performance. All these factors collectively lead to the effect of the treatment time on the adsorption and photodegradation performances of NaBH4-treated BiOCl samples.
Figure 10a shows the apparent color change of the 30 mM NaBH4-treated BiOCl samples with different treatment times. At a short-time treatment (10 min), the 30mM-10min-BiOCl sample becomes black in color. With increasing the treatment time, the color of the NaBH4-treated BiOCl samples gradually becomes shallow, and finally reaches faint yellow for 30mM-6h-BiOCl. The UV-vis diffuse reflectance spectra illustrated in Figure 10b confirm the variation of the visible-light absorption properties of the samples. The Eg values of the samples, derived from the first derivative curves of the UV-vis diffuse reflectance spectra (Figure 9c), manifest a slight difference between the samples, which could be ascribed to the interaction between Bi nanoparticles and BiOCl crystals. With increasing the treatment time, the evolution process from BiOCl crystals partially to Bi nanoparticles, and then from Bi nanoparticles to BiOCl crystals can be verified by the XRD patterns, as shown in Figure 9d. In comparison with pristine BiOCl, weak diffraction peaks of metallic Bi are additionally detected for 30mM-30min-BiOCl; whereas the Bi diffraction peaks disappear for 30mM-6h-BiOCl. In addition to a weak amorphous peak appearing at around 2θ = 30°, all the diffraction peaks of 30mM-6h-BiOCl can be perfectly indexed to the BiOCl phase. As seen from the SEM image in Figure 10e, the 30mM-6h-BiOCl sample presents a morphology of nanowires/nanoparticles, which is different from that of pristine BiOCl (Figure 3a).
Figure 11a shows the photodegradation performances of the 30 mM NaBH4-treated BiOCl samples with different treatment times, and Figure 11b displays the corresponding kinetic plots of the dye degradation. It is seen that the 30mM-6h-BiOCl sample manifests the smallest adsorption and photodegradation toward RhB, which is ascribed to the fact that excess Bi nanoparticles are evolved from BiOCl crystals by the NaBH4 reduction. With increasing the treatment time, the Bi nanoparticles gradually return into BiOCl crystals, and the optimal Bi@BiOCl hybrid composite with an appropriate ratio between Bi and BiOCl could be formed. However, amorphous and defect structures are simultaneously produced. As a result, the optimal NaBH4-treated sample—30mM-4h-BiOCl still exhibits a photodegradation activity smaller than that of pristine BiOCl nanoplates.
Figure 12a–c show the apparent colors, UV-vis diffuse reflectance spectra, and first derivative curves of the UV-vis diffuse reflectance spectra of the 120 mM NaBH4-treated BiOCl samples with different treatment times, respectively. It is seen that the samples treated at short times have extremely strong visible-light absorption. When the treatment time exceeds 5 h, the samples exhibit a gradual decrease in the visible-light absorption. The optical absorption change of the BiOCl samples with different NaBH4 treatment times is highly dependent on their structural evolution, as elucidated by XRD investigation (Figure 12d). Under high-concentration NaBH4 solution treatment (120 mM), BiOCl crystals are reduced to Bi nanoparticles completely with a short time. With prolonging the treatment time, the Bi crystals are dissolved and recrystallized into a two-phase mixture of BiOCl and Bi2O3. On the first derivative UV-vis diffuse reflectance spectra of 120mM-5h-BiOCl and 120mM-9h-BiOCl (Figure 12c), the detected absorption edge at 421.2 nm can be attributed to Bi2O3. The SEM image of 120mM-9h-BiOCl (Figure 12e) demonstrates that BiOCl and Bi2O3 have a morphology of nanowires.
Figure 13a illustrates the photodegradation and adsorption performances of the 120 mM NaBH4-treated BiOCl samples with different treatment times toward RhB, and Figure 13b gives the corresponding kinetic plots of the dye degradation. It is seen that the samples treated at short times (below 2 h) have extremely small adsorption and photodegradation toward RhB, which can be explained due to the full evolution of BiOCl nanoplates into Bi nanoparticles. Further prolonging the treatment time leads to the transformation of Bi nanoparticles into a two-phase mixture of BiOCl and Bi2O3, and furthermore BiOCl/Bi2O3 heterostructures could be formed, which are beneficial to the dye degradation. On the other hand, the formed amorphous and defect structures are detrimental to the photodegradation performance. Among the 120 mM NaBH4-treated BiOCl samples, the highest photodegradation activity is observed for 120mM-9h-BiOCl, but it is smaller than that of pristine BiOCl nanoplates.

2.3. Photodegradation Mechanism of Bi@BiOCl Hybrid Photocatalysts

The above experimental results and analyses suggest that the photodegradation performance of BiOCl nanoplates can be enhanced by the NaBH4 solution treatment (with an appropriate NaBH4 concentration and at a proper treatment time). This phenomenon can be explained due to the creation of Bi nanoparticles on the surface of BiOCl nanoplates, as schematically depicted in Figure 14a. The enhanced photodegradation mechanism of the Bi@BiOCl hybrid composites is schematically illustrated in Figure 14b. When the Bi@BiOCl hybrid composites, both BiOCl nanoplates and Bi nanoparticles are excited. The photoexcitation of BiOCl nanoplates leads to the generation of electrons in their CB and holes in their VB. The photoexcitation of Bi nanoparticles is ascribed to the localized surface plasmon resonance. It is well established the excited metal nanoparticles can act as excellent electron sinks [69], and as a result, the photoexcited electrons in the CB of BiOCl will be transferred to Bi nanoparticles. Simultaneously, the LSPR-induced electrons in Bi nanoparticles could be also transferred to the CB of BiOCl, as depicted in Figure 14b. This electron transfer process can facilitate the separation of photoexcited e−/h+ pairs in BiOCl nanoplates, which is confirmed by the EIS, photocurrent response and PL spectroscopy analyses (Figure 7). More holes in the VB of BiOCl are therefore able to participate in the photocatalytic reactions. The LSPR-induced electrons in Bi nanoparticles could also play a role in the dye degradation. Furthermore, the LSPR of Bi nanoparticles induce locally enhanced electromagnetic field, which will stimulate the generation and separation of e−/h+ pairs in BiOCl. Due to these factors, the formed Bi@BiOCl hybrid composites with appropriate NaBH4 treatment manifest enhanced photodegradation of RhB under simulated sunlight irradiation.
To further understand the photodegradation mechanism of the Bi@BiOCl hybrid composites, Mott–Schottky method [70] was used to determine the CB and VB potentials of BiOCl nanoplates. Figure 14c shows the Mott–Schottky plot of BiOCl derived from the electrochemical measurement at 3000 Hz. By extrapolating the linear portion of the plot to the x-axis, the flat band potential (VFB) of BiOCl is obtained as VFB(SCE) = +0.04 V vs. SCE, correspondingly VFB(NHE) = +0.70 V vs. normal hydrogen electrode (NHE) according to V(NHE) = V(SCE) + 0.059 × pH(=7) + 0.242 [17]. BiOCl behaves as a n-type semiconductivity due to the positive slope of the Mott–Schottky plot, and its CB edge potential can be approximately equal to the value of its flat band potential. Thus, the CB and VB potentials of BiOCl nanoplates (Eg = 3.57 eV) are obtained as +0.70 and +4.27 V vs. NHE, respectively.
Generally, in a photocatalytic system, the dominant reactive species causing the dye degradation include photoexcited holes, hydroxyl (•OH) radicals and superoxide (•O2−) radicals. In the present Bi@BiOCl photocatalytic system, the role of •OH radicals can be negligible according to the reactive species trapping experiments performed using the method described in our previous work [14]. Whereas photoexcited holes and •O2− radicals are confirmed to be the main reactive species causing the dye degradation. Although the VB potential of BiOCl (+4.27 V vs. NHE) is sufficiently positive compared to E0(H2O/•OH) = +2.38 vs. NHE and E0(OH–/•OH) = +1.99 vs. NHE [14], the photoexcited holes do not react with OH− or H2O to produce •OH, instead directly oxidize the dye. One of the feasible ways to generate •O2− radicals is through the reaction of adsorbed O2 molecules with the LSPR-induced electrons in Bi nanoparticles. Moreover, we cannot exclude the possibility that the photoexcited electrons at higher excited states of BiOCl could also react with O2 to produce •O2−, though the CB potential of BiOCl (+0.70 V vs. NHE) is not negative to E0(O2/•O2−) = −0.13 V vs. NHE [14].

3. Materials and Methods

3.1. Materials

The raw materials and chemical reagents (analytical grade) purchased from manufacturers were directly used in the experiments without further purification. Bismuth nitrate pentahydrate (Bi(NO3)3·5H2O, ≥99%) and sodium borohydride (NaBH4, ≥99%) were obtained from Shandong Xiya Chemical Industry Co., Ltd. Glacial acetic acid (CH3COOH, ≥99.5%) and sodium chloride (NaCl, ≥99.5%) were purchased from Guangdong Chemical Reagent Engineering-Technological Research and Development Center. Polyvinyl pyrrolidone (PVP) was purchased from Shanghai Aladdin Reagent Co., Ltd. Methanol (CH3OH, ≥99.5%) was derived from Tianjin Baishi Chemical Industry Co. Ltd.

3.2. Synthesis of BiOCl Nanoplates

In a typical synthesis of BiOCl nanoplates based on a co-precipitation route, 1.4553 g (3 mmol) of Bi(NO3)3·5H2O and 6 mL of glacial acetic acid were dissolved in 30 mL deionized water with magnetic stirring for 1 h (designated as solution A). 0.1753 g (3 mmol) of NaCl was added in 30 mL methanol, followed by 1 h magnetic stirring (designated as solution B). The solution B was slowly added in the solution A drop by drop, followed by magnetic stirring for 12 h. The precipitate was washed with deionized water (3 times) and ethanol (3 times) to remove impurity ions. After dried at 60 °C for 12 h, the product was obtained as BiOCl nanoplates.

3.3. Treatment of BiOCl Nanoplates with NaBH4

The as-synthesized BiOCl nanoplates were treated with NaBH4 solution. The BiOCl sample treated with x mmol L−1 (mM) NaBH4 solution for t min was termed as xmM-tmin-BiOCl. For example, to obtain 10mM-30min-BiOCl with NaBH4 solution treatment, 1 g of PVP was added in 100 mL deionized water with 1 h magnetic stirring, and then 0.5029 g (2 mmol) of BiOCl nanoplates was added in the PVP solution with another 1 h magnetic stirring. There was 30 mL of 10 mM NaBH4 solution slowly added in the above suspension drop by drop, followed by 30 min of magnetic stirring (i.e., reaction for 30 min). After washed with deionized water and ethanol, and dried at 60 °C for 12 h, the final treated sample was obtained as 10mM-30min-BiOCl.

3.4. Characterization Methods

A D8 Advance X-ray diffractometer (Bruker AXS, Karlsruhe, Germany) with λCu-Kα = 0.15406 nm was used for the X-ray powder diffraction (XRD) characterization of the samples. Ultraviolet-visible (UV-vis) diffuse reflectance spectroscopy measurements were carried out on a TU-1901 double beam UV-vis spectrophotometer (Beijing Purkinje General Instrument Co. Ltd., Beijing, China). The scanning/transmission electron microscopy (SEM/TEM) observations were performed on a JSM-6701F field-emission scanning electron microscope (JEOL Ltd., Tokyo, Japan) and a JEM-1200EX field-emission transmission electron microscope (JEOL Ltd., Tokyo, Japan). X-ray photoelectron spectroscopy (XPS) measurement was carried out on a PHI-5702 multi-functional X-ray photoelectron spectrometer (Physical Electronics, hanhassen, MN, USA). Fourier transform infrared (FTIR) spectra were obtained on a Spectrum Two FTIR spectrophotometer (PerkinElmer, Waltham, MA, USA). A LabRAM HR Evolution Raman spectrometer (Horiba Jobin Yvon, France) was used for the Raman microscopy measurements. A RF-6000 fluorescence spectrophotometer (Shimadzu, Kyoto, Japan) was employed to measure the photoluminescence (PL) spectra at an excitation wavelength of 325 nm. All characterizations were performed on the powder samples as-prepared.
Photocurrent response and electrochemical impedance spectroscopy (EIS) were measured on a CST 350 electrochemical workstation (Wuhan Corrtest Instruments Co. Ltd.,Wuhan, China). A three-electrode cell configuration, where a standard calomel electrode (SCE) acted as the reference electrode and a platinum foil acted as the counter-electrode, was used during the photoelectrochemical measurements. The working electrode was prepared according the procedure as described in the literature [71]. The used electrolyte was 0.1 M Na2SO4 aqueous solution, and the light source was a 200-W xenon lamp that emits simulated sunlight (wavelength region: 300–2500 nm).

3.5. Photocatalytic Testing

The photodegradation performances of NaBH4-treated BiOCl samples were investigated by removing RhB from aqueous solution under illumination by a 200-W xenon lamp (a good sunlight simulator [72]). The sunlight simulator has a wavelength region of 300–2500 nm and total irradiance of 0.58 W cm−1 at a distance of 1 cm. 0.03 g of photocatalyst and 100 mL of RhB solution (Cphotocatalyst = 0. 3 g L−1, CRhB = 5 mg L−1) were loaded in the photoreactor. Before the photodegradation experiment, the mixture was magnetically stirred in the dark for 30 min with the aim of determining the adsorption of RhB onto the photocatalyst. The residual RhB concentration of the reaction solution during the photodegradation process was monitored by measuring its absorbance. To achieve this aim, 2.5 mL of the reaction solution was sampled from the photoreactor and then centrifuged (4000 rpm, 10 min) to separate the photocatalyst. A UV-vis spectrophotometer was used to measure the absorbance of the reaction solution at a given wavelength λ = 554 nm. Based on the initial concentration (C0) and residual concentration (Ct) of RhB, the degradation percentage (η) of RhB was given as: η = (C0 − Ct)/C0 × 100%.

4. Conclusions

Herein, the NaBH4-reduction induced evolution of Bi nanoparticles from BiOCl nanoplates was systematically investigated by varying the NaBH4 concentration and reaction time. With increasing the NaBH4 concentration from 1 to 120 mM (reaction time 30 min), BiOCl crystals are gradually transformed into Bi nanoparticle by the NaBH4 reduction. At low-concentration NaBH4 solution (e.g., 10 and 30 mM), the increase in the reaction time leads to the transformation firstly from partial BiOCl crystals into Bi nanoparticles, and then from the Bi nanoparticles into BiOCl crystals. At high-concentration NaBH4 solutions (e.g., 120 mM) and with increasing the reaction time, BiOCl crystals are completely reduced to Bi nanoparticles at a short reaction time, and then the Bi nanoparticles are gradually transformed into a two-phase mixture of BiOCl and Bi2O3 nanowires. Photodegradation experiments under simulated sunlight illumination demonstrate that the Bi@BiOCl hybrid composites created by appropriate NaBH4 treatment can achieve an excellent photodegradation performance, which is higher than that of pristine BiOCl nanoplates. The enhanced photocatalytic mechanism can be explained due to the three aspects: (1) The electron transfer process from the CB of BiOCl to the LSPR-excited Bi nanoparticles promotes the separation of photoexcited e−/h+ pairs in BiOCl nanoplates; (2) The LSPR-induced electrons in Bi nanoparticles could also participate in the photodegradation reactions; (3) The LSPR-induced electromagnetic field from Bi nanoparticles could facilitate the generation and separation of e−/h+ pairs in BiOCl nanoplates.

Author Contributions

H.Y. conceived the idea of experiment; Y.Y. performed the experiments; H.Y., Y.Y., Z.Y. and T.X. discussed the results; H.Y. wrote the manuscript; All authors read and approved the final manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (Grant No. 51662027) and the HongLiu First-Class Disciplines Development Program of Lanzhou University of Technology.

Conflicts of Interest

The authors declare that they have no competing interest.

References

  1. Brown, M.A.; De Vito, S.C. Predicting azo dye toxicity. Crit. Rev. Environ. Sci. Technol. 1993, 23, 249–324. [Google Scholar] [CrossRef]
  2. Zheng, C.X.; Yang, H.; Cui, Z.M.; Zhang, H.M.; Wang, X.X. A novel Bi4Ti3O12/Ag3PO4 heterojunction photocatalyst with enhanced photocatalytic performance. Nanoscale Res. Lett. 2017, 12, 608. [Google Scholar] [CrossRef] [PubMed]
  3. Wang, S.; Chen, C.; Li, Y.; Zhang, Q.; Li, Y.; Gao, H. Synergistic effects of optical and photoluminescence properties, charge transfer, and photocatalytic activity in MgAl2O4:Ce and Mn-Co doped MgAl2O4:Ce phosphors. J. Electron. Mater. 2019, 48, 6675–6685. [Google Scholar] [CrossRef]
  4. He, Z.M.; Tang, B.; Su, J.B.; Xia, Y.M. Fabrication of novel Cu2O/Bi24O31Br10 composites and excellent photocatalytic performance. J. Mater. Sci. Mater. Electron. 2018, 29, 19544–19553. [Google Scholar] [CrossRef]
  5. Zangeneh, H.; Zinatizadeh, A.A.L.; Habibi, M.; Akia, M.; Isa, M.H. Photocatalytic oxidation of organic dyes and pollutants in wastewater using different modified titanium dioxides: A comparative review. J. Ind. Eng. Chem. 2015, 26, 1–36. [Google Scholar] [CrossRef]
  6. Di, L.J.; Yang, H.; Xian, T.; Chen, X.J. Facile synthesis and enhanced visible-light photocatalytic activity of novel p-Ag3PO4/n-BiFeO3 heterojunction composites for dye degradation. Nanoscale Res. Lett. 2018, 13, 257. [Google Scholar] [CrossRef] [PubMed]
  7. He, Z.M.; Xia, Y.M.; Tang, B.; Jiang, X.F.; Su, J.B. Fabrication and photocatalytic property of ZnO/Cu2O core-shell nanocomposites. Mater. Lett. 2016, 184, 148–151. [Google Scholar] [CrossRef]
  8. Yi, Z.; Li, X.; Wu, H.; Chen, X.F.; Yang, H.; Tang, Y.J.; Yi, Y.G.; Wang, J.Q.; Wu, P.H. Fabrication of ZnO@Ag3PO4 core-shell nanocomposite arrays as photoanodes and their photoelectric properties. Nanomaterials 2019, 9, 1254. [Google Scholar] [CrossRef] [PubMed]
  9. Di, L.J.; Yang, H.; Xian, T.; Chen, X.J. Construction of Z-scheme g-C3N4/CNT/Bi2Fe4O9 composites with improved simulated-sunlight photocatalytic activity for the dye degradation. Micromachines 2018, 9, 613. [Google Scholar] [CrossRef]
  10. Wang, S.F.; Gao, H.J.; Wei, Y.; Li, Y.W.; Yang, X.H.; Fang, L.M.; Lei, L. Insight into the optical, color, photoluminescence properties, and photocatalytic activity of the N-O and C-O functional groups decorating spinel type magnesium aluminate. CrystEngComm 2019, 21, 263–277. [Google Scholar] [CrossRef]
  11. Sanabria-Arenas, B.E.; Mazare, A.; Yoo, J.; Nguyen, N.T.; Hejazi, S.; Bian, H.D.; Diamanti, M.V.; Pedeferri, M.P.; Schmuki, P. Intrinsic AuPt-alloy particles decorated on TiO2 nanotubes provide enhanced photocatalytic degradation. Electrochim. Acta 2018, 292, 865–870. [Google Scholar] [CrossRef]
  12. Wang, S.Y.; Yang, H.; Wang, X.X.; Feng, W.J. Surface disorder engineering of flake-like Bi2WO6 crystals for enhanced photocatalytic activity. J. Electron. Mater. 2019, 48, 2067–2076. [Google Scholar] [CrossRef]
  13. Singh, S.; Sharma, R.; Khanuja, M. A review and recent developments on strategies to improve the photocatalytic elimination of organic dye pollutants by BiOX (X = Cl, Br, I, F) nanostructures. Korean J. Chem. Eng. 2018, 35, 1955–1968. [Google Scholar] [CrossRef]
  14. Di, L.J.; Yang, H.; Xian, T.; Liu, X.Q.; Chen, X.J. Photocatalytic and photo-Fenton catalytic degradation activities of Z-scheme Ag2S/BiFeO3 heterojunction composites under visible-light irradiation. Nanomaterials 2019, 9, 399. [Google Scholar] [CrossRef] [PubMed]
  15. Xia, Y.M.; He, Z.M.; Su, J.B.; Hu, K.J. Construction of novel Cu2O/PbBiO2Br composites with enhanced photocatalytic activity. J. Mater. Sci. Mater. Electron. 2019, 30, 9843–9854. [Google Scholar] [CrossRef]
  16. Bera, K.K.; Majumdar, R.; Chakraborty, M.; Bhattacharya, S.K. Phase control synthesis of alpha, beta and alpha/beta Bi2O3 hetero-junction with enhanced and synergistic photocatalytic activity on degradation of toxic dye, Rhodamine-B under natural sunlight. J. Hazard. Mater. 2018, 352, 182–191. [Google Scholar] [CrossRef] [PubMed]
  17. Zhao, X.X.; Yang, H.; Zhang, H.M.; Cui, Z.M.; Feng, W.J. Surface-disorder-engineering-induced enhancement in the photocatalytic activity of Bi4Ti3O12 nanosheets. Desalin. Water Treat. 2019, 145, 326–336. [Google Scholar] [CrossRef]
  18. Zhang, X.; Ai, Z.H.; Jia, F.L.; Zhang, L.Z. Generalized one-pot synthesis, characterization, and photocatalytic activity of hierarchical BiOX (X = Cl, Br, I) nanoplate microspheres. J. Phys. Chem. C 2008, 112, 747–753. [Google Scholar] [CrossRef]
  19. Peng, Y.; Wang, D.; Zhou, H.Y.; Xu, A.W. Controlled synthesis of thin BiOCl nanosheets with exposed {001} facets and enhanced photocatalytic activities. CrystEngComm 2015, 17, 3845–3851. [Google Scholar] [CrossRef]
  20. Xia, Y.M.; He, Z.M.; Yang, W.; Tang, B.; Lu, Y.L.; Hu, K.J.; Su, J.B.; Li, X.P. Effective charge separation in BiOI/Cu2O composites with enhanced photocatalytic activity. Mater. Res. Express 2018, 5, 025504. [Google Scholar] [CrossRef]
  21. Yan, Y.X.; Yang, H.; Yi, Z.; Xian, T.; Wang, X.X. Direct Z-scheme CaTiO3@BiOBr composite photocatalysts with enhanced photodegradation of dyes. Environ. Sci. Pollut. Res. 2019, 1–12. [Google Scholar] [CrossRef] [PubMed]
  22. Shang, J.; Chen, H.G.; Chen, T.Z.; Wang, X.W.; Feng, G.; Zhu, M.W.; Yang, Y.X.; Jia, X.S. Photocatalytic degradation of rhodamine B and phenol over BiFeO3/BiOCl nanocomposite. Appl. Phys. A 2019, 125, 133. [Google Scholar] [CrossRef]
  23. Sun, X.M.; Lu, J.; Wu, J.; Guan, D.Y.; Liu, Q.Z.; Yan, N.Q. Enhancing photocatalytic activity on gas-phase heavy metal oxidation with self-assembled BiOI/BiOCl microflowers. J. Colloid Interface Sci. 2019, 546, 32–42. [Google Scholar] [CrossRef] [PubMed]
  24. Dumrongrojthanath, P.; Phuruangrat, A.; Doungarno, K.; Thongtem, T.; Patiphatpanya, P.; Thongtem, S. Microwave-hydrothermal synthesis of BiOBr/Bi2WO6 nanocomposites for enhanced photocatalytic performance. Ceram. Int. 2018, 44, S148–S151. [Google Scholar] [CrossRef]
  25. Di, L.J.; Xian, T.; Sun, X.F.; Li, H.Q.; Zhou, Y.J.; Ma, J.; Yang, H. Facile preparation of CNT/Ag2S nanocomposites with improved visible and NIR light photocatalytic degradation activity and their catalytic mechanism. Micromachines 2019, 10, 503. [Google Scholar] [CrossRef]
  26. Gao, H.J.; Wang, F.; Wang, S.F.; Wang, X.X.; Yi, Z.; Yang, H. Photocatalytic activity tuning in a novel Ag2S/CQDs/CuBi2O4 composite: Synthesis and photocatalytic mechanism. Mater. Res. Bull. 2019, 115, 140–149. [Google Scholar] [CrossRef]
  27. Priya, B.; Shandilya, P.; Raizada, P.; Thakur, P.; Singh, N.; Singh, P. Photocatalytic mineralization and degradation kinetics of ampicillin and oxytetracycline antibiotics using graphene sand composite and chitosan supported BiOCl. J. Mol. Catal. A Chem. 2016, 423, 400–413. [Google Scholar] [CrossRef]
  28. Bai, Y.; Chen, T.; Wang, P.Q.; Wang, L.; Ye, L.Q.; Shi, X.; Bai, W. Size-dependent role of gold in g-C3N4/BiOBr/Au system for photocatalytic CO2 reduction and dye degradation. Sol. Energy Mater. Sol. Cells 2016, 157, 406–414. [Google Scholar] [CrossRef]
  29. Park, Y.; Na, Y.; Pradhan, D.; Min, B.K.; Sohn, Y. Adsorption and UV/Visible photocatalytic performance of BiOI for methyl orange, Rhodamine B and methylene blue: Ag and Ti-loading effects. CrystEngComm 2014, 16, 3155–3167. [Google Scholar] [CrossRef]
  30. Liang, C.P.; Zhang, Y.B.; Yi, Z.; Chen, X.F.; Zhou, Z.G.; Yang, H.; Yi, Y.; Tang, Y.J.; Yao, W.T.; Yi, Y.G. A broadband and polarization-independent metamaterial perfect absorber with monolayer Cr and Ti elliptical disks array. Results Phys. 2019, 15, 102635. [Google Scholar] [CrossRef]
  31. Yi, Z.; Zeng, Y.; Wu, H.; Chen, X.; Fan, Y.; Yang, H.; Tang, Y.; Yi, Y.; Wang, J.; Wu, P. Synthesis, surface properties, crystal structure and dye-sensitized solar cell performance of TiO2 nanotube arrays anodized under different parameters. Results Phys. 2019, 15, 102609. [Google Scholar] [CrossRef]
  32. Yi, Z.; Liang, C.P.; Chen, X.F.; Zhou, Z.G.; Tang, Y.J.; Ye, X.; Yi, Y.G.; Wang, J.Q.; Wu, P.H. Dual-band plasmonicperfect absorber based on graphene metamaterials for refractive index sensing application. Micromachines 2019, 10, 443. [Google Scholar] [CrossRef] [PubMed]
  33. Liang, C.P.; Yi, Z.; Chen, X.F.; Tang, Y.J.; Yi, Y.; Zhou, Z.G.; Wu, X.G.; Huang, Z.; Yi, Y.G.; Zhang, G.F. Dual-band infrared perfect absorber based on a Ag-dielectric-Ag multilayer films with nanoring grooves arrays. Plasmonics 2019, 1–8. [Google Scholar] [CrossRef]
  34. Wang, X.X.; Zhu, J.K.; Wen, X.L.; Wu, X.X.; Wu, Y.; Su, Y.W.; Tong, H.; Qi, Y.P.; Yang, H. Wide range refractive index sensor based on a coupled structure of Au nanocubes and Au film. Opt. Mater. Express 2019, 9, 3079–3088. [Google Scholar] [CrossRef]
  35. Tong, H.; Xu, Y.Q.; Su, Y.W.; Wang, X.X. Theoretical study for fabricating elliptical subwavelength nanohole arrays by higher-order waveguide-mode interference. Results Phys. 2019, 14, 102460. [Google Scholar] [CrossRef]
  36. Wang, X.; Wu, X.; Zhu, J.; Pang, Z.; Yang, H.; Qi, Y. Theoretical investigation of a highly sensitive refractive-index sensor based on TM0 waveguide mode resonance excited in an asymmetric metal-cladding dielectric waveguide structure. Sensors 2019, 19, 1187. [Google Scholar] [CrossRef] [PubMed]
  37. Zhao, X.X.; Yang, H.; Cui, Z.M.; Yi, Z.; Yu, H. Synergistically enhanced photocatalytic performance of Bi4Ti3O12 nanosheets by Au and Ag nanoparticles. J. Mater. Sci. Mater. Electron. 2019, 30, 13785–13796. [Google Scholar] [CrossRef]
  38. Onathan, A.S.; Ai, L.K.; Jennifer, A.D. Quantum plasmon resonances of individual metallic nanoparticles. Nature 2012, 483, 421–428. [Google Scholar]
  39. Wang, X.X.; Zhu, J.K.; Tong, H.; Yang, X.D.; Wu, X.X.; Pang, Z.Y.; Yang, H.; Qi, Y.P. A theoretical study of a plasmonic sensor comprising a gold nano-disk array on gold film with an SiO2 spacer. Chin. Phys. B 2019, 28, 044201. [Google Scholar] [CrossRef]
  40. Kang, S.; Pawar, R.C.; Lee, C.S. Decoration of Au nanoparticles onto BiOCl sheets for enhanced photocatalytic performance under visible irradiation for the degradation of RhB dye. J. Exp. Nanosci. 2016, 11, 853–871. [Google Scholar] [CrossRef] [Green Version]
  41. Hou, R.J.; Gao, Y.; Zhu, H.J.; Yang, G.X.; Liu, W.H.; Huo, Y.N.; Xie, Z.L.; Li, H.X. Coupling system of Ag/BiOBr photocatalysis and direct contact membrane distillation for complete purification of N-containing dye wastewater. Chem. Eng. J. 2018, 317, 386–393. [Google Scholar] [CrossRef]
  42. Chang, C.; Zhu, L.Y.; Fu, Y.; Chu, X.L. Highly active Bi/BiOI composite synthesized by one-step reaction and its capacity to degrade bisphenol A under simulated solar light irradiation. Chem. Eng. J. 2013, 233, 305–314. [Google Scholar] [CrossRef]
  43. Imam, S.S.; Adnan, R.; Kaus, N.H.M.; Hussin, M.H. Room-temperature synthesis of Bi/BiOBr composites for the catalytic degradation of ciprofloxacin using indoor fluorescent light illumination. J. Mater. Sci. Mater. Electron. 2019, 30, 6263–6276. [Google Scholar] [CrossRef]
  44. Huang, Y.F.; Xu, H.; Luo, D.; Zhao, Y.Z.; Fang, Y.; Wei, Y.L.; Fan, L.Q.; Wu, J.H. Facile in situ synthesis of Ag and Bi co-decorated BiOCl heterojunction with high photocatalytic performance over the full solar spectrum. Solid State Sci. 2019, 89, 74–84. [Google Scholar] [CrossRef]
  45. Li, Y.W.; Zhao, Y.; Wu, G.J.; Ma, H.M.; Zhao, J.Z. Bi superlattice nanopolygons at BiOCl (001) nanosheet assembled architectures for visible-light photocatalysis. Mater. Res. Bull. 2018, 101, 39–47. [Google Scholar] [CrossRef]
  46. Chang, X.F.; Xie, L.; Sha, W.E.I.; Lu, K.; Qi, Q.; Dong, C.Y.; Yan, X.X.; Gondal, M.A.; Rashid, S.G.; Dai, Q.I. Probing the light harvesting and charge rectification of bismuth nanoparticles behind the promoted photoreactivity onto Bi/BiOCl catalyst by (in-situ) electron microscopy. Appl. Catal. B Environ. 2017, 201, 495–502. [Google Scholar] [CrossRef] [Green Version]
  47. Yan, S.C.; Li, Z.S.; Zou, Z.G. Photodegradation of rhodamine B and methyl orange over boron-doped g-C3N4 under visible light irradiation. Langmuir 2010, 26, 3894–3901. [Google Scholar] [CrossRef] [PubMed]
  48. Watanabe, T.; Takirawa, T.; Honda, K. Photocatalysis through excitation of adsorbates. 1. Highly efficient N-deethylation of rhodamine B adsorbed to CdS. J. Phys. Chem. 1977, 81, 1845–1851. [Google Scholar] [CrossRef]
  49. Jain, R.; Mathur, M.; Sikarwar, S.; Mittal, A. Removal of the hazardous dye rhodamine B through photocatalytic and adsorption treatments. J. Environ. Manag. 2007, 85, 956–964. [Google Scholar] [CrossRef]
  50. Zhang, Y.B.; Cen, C.L.; Liang, C.P.; Yi, Z.; Chen, X.F.; Li, M.W.; Zhou, Z.G.; Tang, Y.J.; Yi, Y.G.; Zhang, G.F. Dual-band switchable terahertz metamaterial absorber based on metal nanostructure. Results Phys. 2019, 14, 102422. [Google Scholar] [CrossRef]
  51. Li, M.W.; Liang, C.P.; Zhang, Y.B.; Yi, Z.; Chen, X.F.; Zhou, Z.G.; Yang, H.; Tang, Y.J.; Yi, Y.G. Terahertz wideband perfect absorber based on open loop with cross nested structure. Results Phys. 2019, 15, 102603. [Google Scholar] [CrossRef]
  52. Lv, Z.J.; Yu, H.; Yang, H.; Dong, X.T. Synthesis and luminescent properties of chrysanthemum-like ordered mesoporous Eu3+/ZnO composite materials. Ceram. Int. 2019, 45, 10907–10916. [Google Scholar] [CrossRef]
  53. Wang, X.X.; Pang, Z.Y.; Yang, H.; Qi, Y.P. Theoretical study of subwavelength circular grating fabrication based on continuously exposed surface plasmon interference lithography. Results Phys. 2019, 14, 102446. [Google Scholar] [CrossRef]
  54. Gao, H.J.; Zheng, C.X.; Yang, H.; Niu, X.W.; Wang, S.F. Construction of a CQDs/Ag3PO4/BiPO4 heterostructure photocatalyst with enhanced photocatalytic degradation of rhodamine B under simulated solar irradiation. Micromachines 2019, 10, 557. [Google Scholar] [CrossRef]
  55. Ye, Y.C.; Yang, H.; Zhang, H.M.; Jiang, J.L. A promising Ag2CrO4/LaFeO3 heterojunction photocatalyst applied to photo-Fenton degradation of RhB. Environ. Technol. 2018, 1–18. [Google Scholar] [CrossRef]
  56. Xu, L.; Yan, P.C.; Li, H.N.; Ling, S.Y.; Xia, J.X.; Qiu, J.X.; Xu, Q.; Li, H.M.; Yuan, S.Q. Metallic Bi self-doping BiOCl composites: Synthesis and enhanced photoelectrochemical performance. Mater. Lett. 2017, 196, 225–229. [Google Scholar] [CrossRef]
  57. Pooladi, M.; Shokrollahi, H.; Lavasani, S.A.N.H.; Yang, H. Investigation of the structural, magnetic and dielectric properties of Mn-doped Bi2Fe4O9 produced by reverse chemical co-precipitation. Mater. Chem. Phys. 2019, 229, 39–48. [Google Scholar] [CrossRef]
  58. Li, Y.Y.; Yu, H.; Yang, Y.; Dong, X.T. Fabrication of 3D ordered mesoporous ball-flower structures ZnO material with the excellent gas sensitive property. Sens. Actuat. B Chem. 2019, 300, 127050. [Google Scholar] [CrossRef]
  59. Hu, J.L.; Fan, W.J.; Ye, W.Q.; Huang, C.J.; Qiu, X.Q. Insights into the photosensitivity activity of BiOCl undervisible light irradiation. Appl. Catal. B Environ. 2014, 158–159, 182–189. [Google Scholar] [CrossRef]
  60. Weng, S.X.; Chen, B.B.; Xie, L.Y.; Zheng, Z.Y.; Liu, P. Facile in situ synthesis of a Bi/BiOCl nanocomposite with high photocatalytic activity. J. Mater. Chem. A 2013, 1, 3068–3075. [Google Scholar] [CrossRef]
  61. Duo, F.F.; Wang, Y.W.; Fan, C.M.; Mao, X.M.; Zhang, X.C.; Wang, Y.F.; Liu, J.X. Low temperature one-step synthesis of rutile TiO2/BiOCl compositeswith enhanced photocatalytic activity. Mater. Charact. 2015, 99, 8–16. [Google Scholar] [CrossRef]
  62. Wang, S.Y.; Yang, H.; Yi, Z.; Wang, X.X. Enhanced photocatalytic performance by hybridization of Bi2WO6 nanoparticles with honeycomb-like porous carbon skeleton. J. Environ. Manag. 2019, 248, 109341. [Google Scholar] [CrossRef]
  63. Wang, S.F.; Gao, H.J.; Fang, L.M.; Wei, Y.; Li, Y.W.; Lei, L. Synthesis and characterization of BaAl2O4 catalyst and its photocatalytic activity towards degradation of methylene blue dye. Z. Phys. Chem. 2019, 233, 1161–1181. [Google Scholar] [CrossRef]
  64. Wang, S.; Gao, H.; Chen, C.; Li, Q.; Li, C.; Wei, Y.; Fang, L. Effect of phase transition on optical and photoluminescence properties of nano-MgWO4 phosphor prepared by a gamma-ray irradiation assisted polyacrylamide gel method. J. Mater. Sci. Mater. Electron. 2019, 30, 15744–15753. [Google Scholar] [CrossRef]
  65. Lv, Z.J.; Yu, H.; Dong, X.T. Preparation of bitter melon-like ordered porous fluorinated Eu3+ phenanthroline/ZnO composite with yellow light emission. Langmuir 2019, 35, 10561–10571. [Google Scholar] [CrossRef]
  66. Wang, S.; Gao, H.; Chen, C.; Wei, Y.; Zhao, X. Irradiation assisted polyacrylamide gel route for the synthesize of the Mg1–xCoxAl2O4 nano-photocatalysts and its optical and photocatalytic performances. J. Sol-Gel Sci. Technol. 2019, 92, 186–199. [Google Scholar] [CrossRef]
  67. Huo, Y.Y.; Zhang, J.; Miao, M.; Jin, Y. Solvothermal synthesis of flower-like BiOBr microspheres with highly visible-light photocatalytic performances. Appl. Catal. B Environ. 2012, 111–112, 334–341. [Google Scholar] [CrossRef]
  68. Zhao, X.X.; Yang, H.; Li, S.H.; Cui, Z.M.; Zhang, C.R. Synthesis and theoretical study of large-sized Bi4Ti3O12 square nanosheets with high photocatalytic activity. Mater. Res. Bull. 2018, 107, 180–188. [Google Scholar] [CrossRef]
  69. Yan, Y.X.; Yang, H.; Yi, Z.; Li, R.S.; Wang, X.X. Enhanced photocatalytic performance and mechanism of Au@CaTiO3 composites with Au nanoparticles assembled on CaTiO3 nanocuboids. Micromachines 2019, 10, 254. [Google Scholar] [CrossRef]
  70. Fattah-alhosseini, A. Passivity of AISI 321 stainless steel in 0.5 M H2SO4 solution studied by Mott–Schottky analysis in conjunction with the point defect model. Arab. J. Chem. 2016, 9, S1342–S1348. [Google Scholar] [CrossRef]
  71. Zheng, C.X.; Yang, H. Assembly of Ag3PO4 nanoparticles on rose flower-like Bi2WO6 hierarchical architectures for achieving high photocatalytic performance. J. Mater. Sci. Mater. Electron. 2018, 29, 9291–9300. [Google Scholar] [CrossRef]
  72. Sabatini, V.; Rimoldi, L.; Tripaldi, L.; Meroni, D.; Farina, H.; Ortenzi, M.A.; Ardizzone, S. TiO2-SiO2-PMMA terpolymer floating device for the photocatalytic remediation of water and gas phase pollutants. Catalysts 2018, 8, 568. [Google Scholar] [CrossRef]
Catalysts 09 00795 g001 550

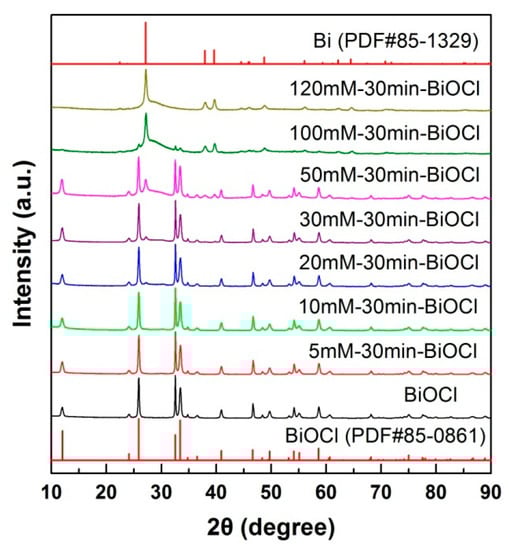

Figure 1. X-ray powder diffraction (XRD) patterns of pristine and NaBH4-treated BiOCl samples with different concentrations (reaction time 30 min).
Figure 1. X-ray powder diffraction (XRD) patterns of pristine and NaBH4-treated BiOCl samples with different concentrations (reaction time 30 min).
Catalysts 09 00795 g001
Catalysts 09 00795 g002 550

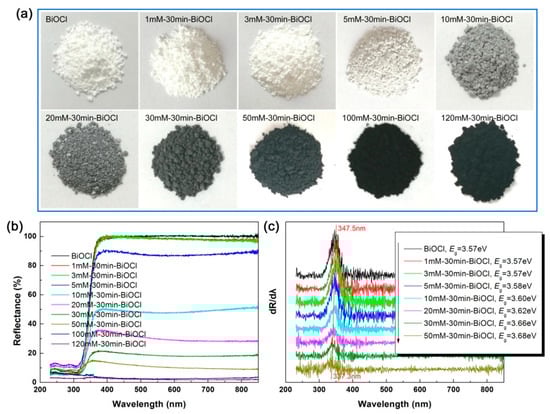

Figure 2. Apparent colors (a), UV-vis diffuse reflectance spectra (b), and first derivative curves of the diffuse reflectance spectra (c) of pristine and NaBH4-treated BiOCl samples with different concentrations.
Figure 2. Apparent colors (a), UV-vis diffuse reflectance spectra (b), and first derivative curves of the diffuse reflectance spectra (c) of pristine and NaBH4-treated BiOCl samples with different concentrations.
Catalysts 09 00795 g002
Catalysts 09 00795 g003 550

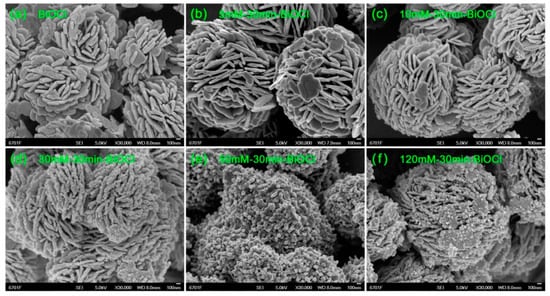

Figure 3. SEM images of pristine and NaBH4-treated BiOCl samples with different concentrations.
Figure 3. SEM images of pristine and NaBH4-treated BiOCl samples with different concentrations.
Catalysts 09 00795 g003
Catalysts 09 00795 g004 550

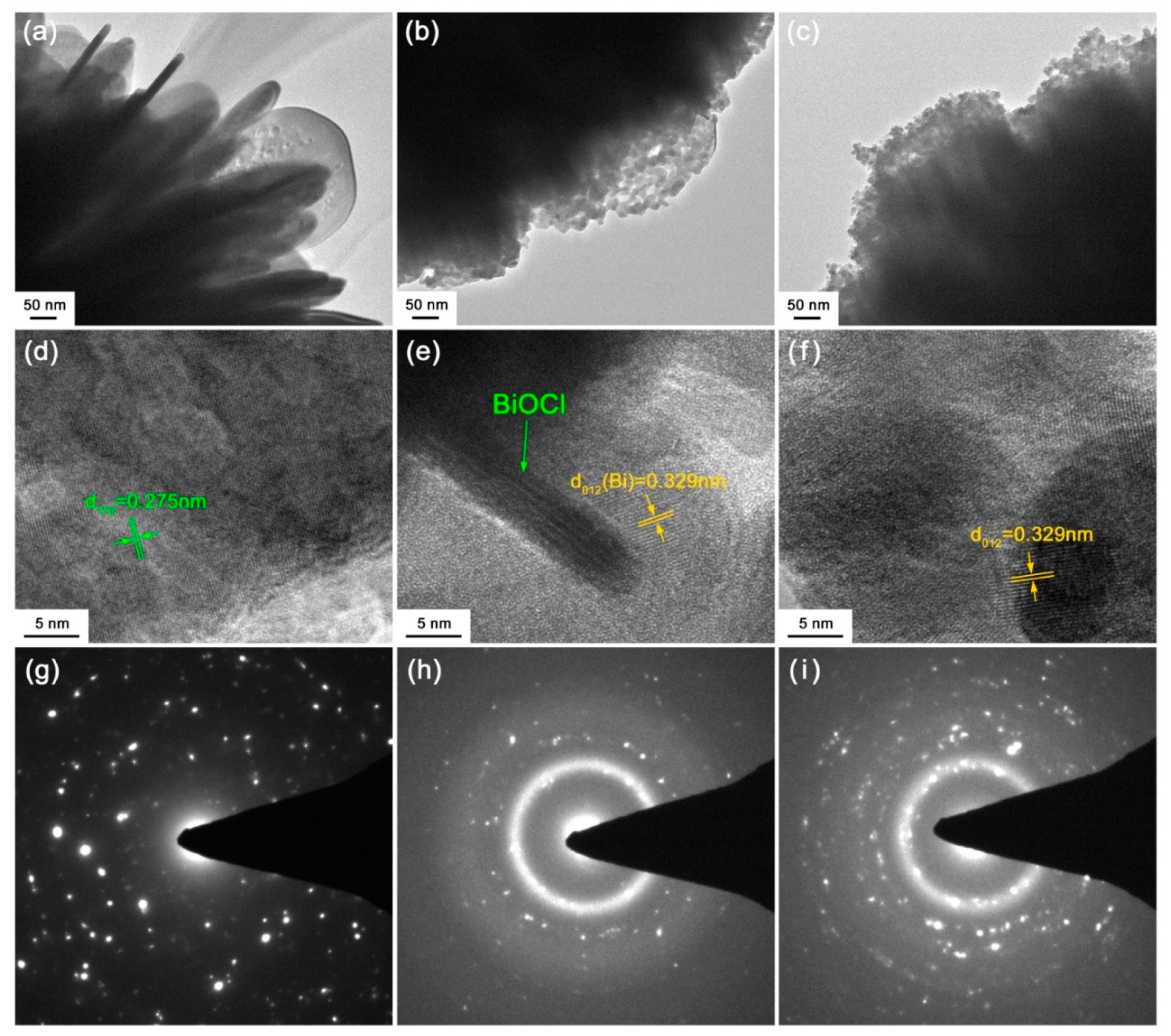

Figure 4. (a–c) TEM images of pristine BiOCl, 30mM-30min-BiOCl and 120mM-30min-BiOCl, respectively. (d–f) HRTEM images of pristine BiOCl, 30mM-30min-BiOCl and 120mM-30min-BiOCl, respectively. (g–i) SAED patterns of pristine BiOCl, 30mM-30min-BiOCl and 120mM-30min-BiOCl, respectively.
Figure 4. (a–c) TEM images of pristine BiOCl, 30mM-30min-BiOCl and 120mM-30min-BiOCl, respectively. (d–f) HRTEM images of pristine BiOCl, 30mM-30min-BiOCl and 120mM-30min-BiOCl, respectively. (g–i) SAED patterns of pristine BiOCl, 30mM-30min-BiOCl and 120mM-30min-BiOCl, respectively.
Catalysts 09 00795 g004
Catalysts 09 00795 g005 550

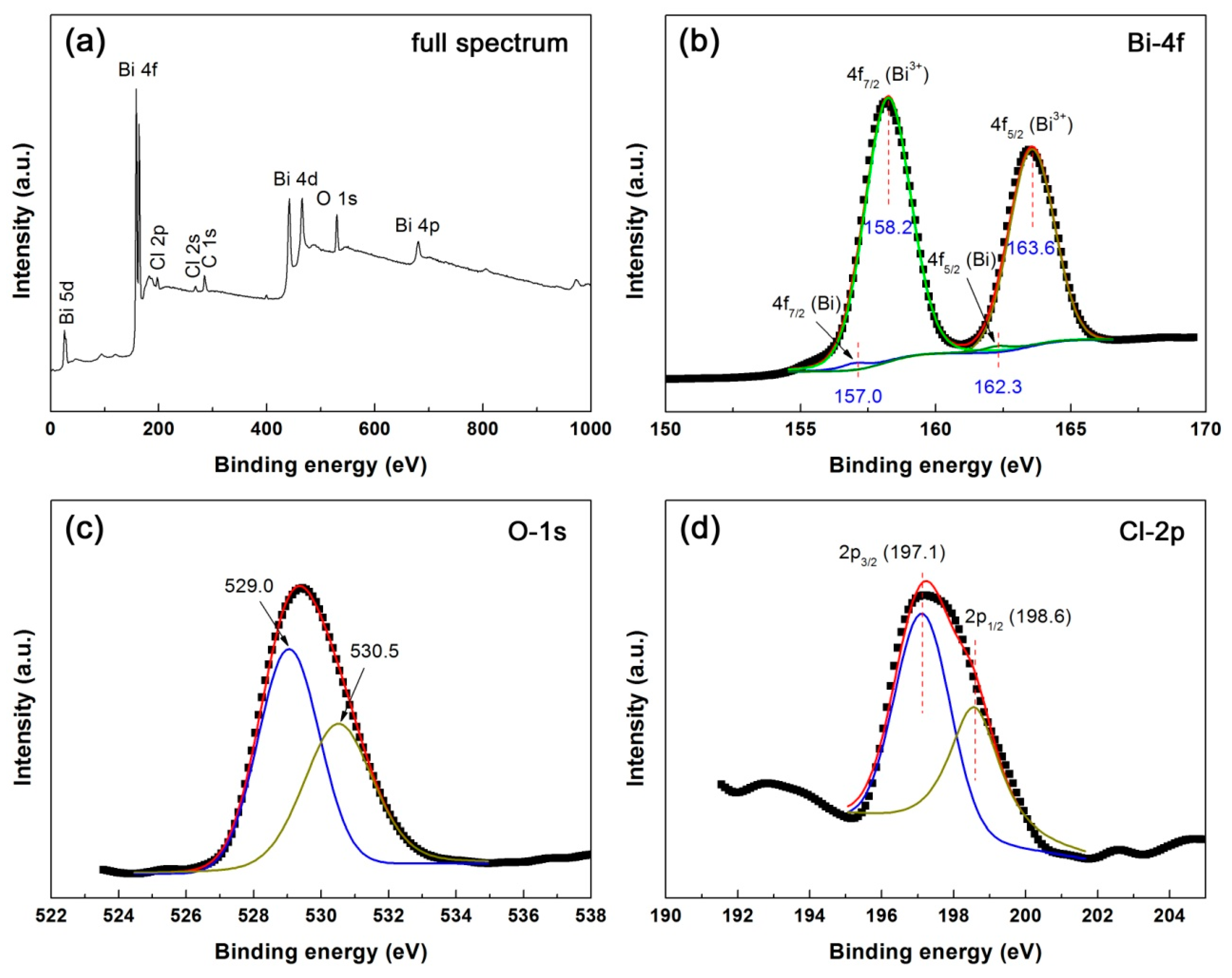

Figure 5. Survey scan XPS spectrum (a) and high-resolution XPS spectra of (b) Bi 4f, (c) O 1s and (d) Cl 2p of 30mM-30min-BiOCl.
Figure 5. Survey scan XPS spectrum (a) and high-resolution XPS spectra of (b) Bi 4f, (c) O 1s and (d) Cl 2p of 30mM-30min-BiOCl.
Catalysts 09 00795 g005
Catalysts 09 00795 g006 550

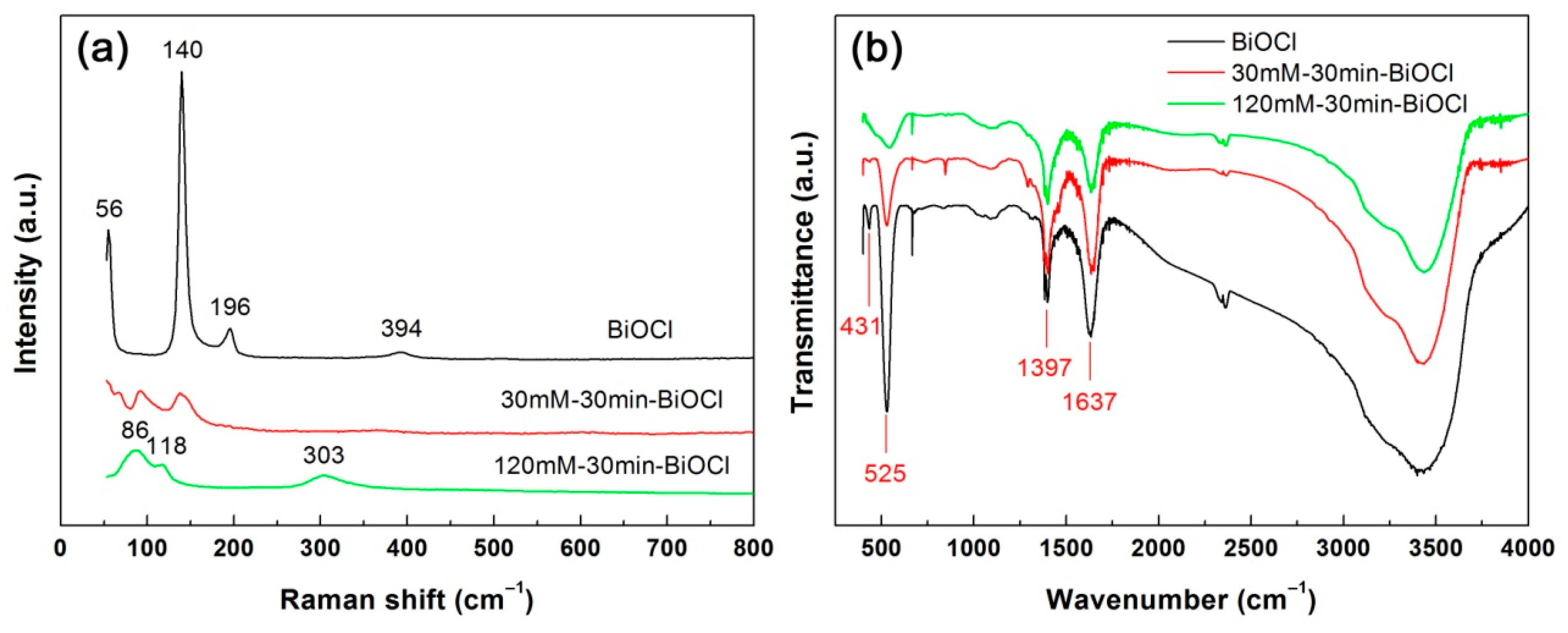

Figure 6. Raman spectra (a) and fourier transform infrared (FTIR) spectra (b) of pristine BiOCl, 30mM-30min-BiOCl and 120mM-30min-BiOCl.
Figure 6. Raman spectra (a) and fourier transform infrared (FTIR) spectra (b) of pristine BiOCl, 30mM-30min-BiOCl and 120mM-30min-BiOCl.
Catalysts 09 00795 g006
Catalysts 09 00795 g007 550

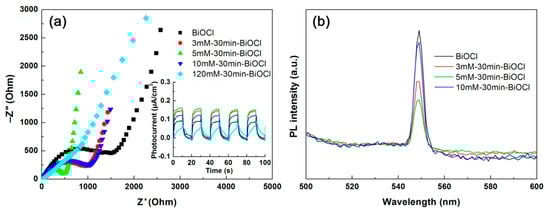

Figure 7. Nyquist plots of the electrochemical impedance spectroscopy (EIS) spectra (a), transient photocurrent response curves (inset in a), and PL spectra (b) of the NaBH4-treated BiOCl samples with different concentrations.
Figure 7. Nyquist plots of the electrochemical impedance spectroscopy (EIS) spectra (a), transient photocurrent response curves (inset in a), and PL spectra (b) of the NaBH4-treated BiOCl samples with different concentrations.
Catalysts 09 00795 g007
Catalysts 09 00795 g008 550

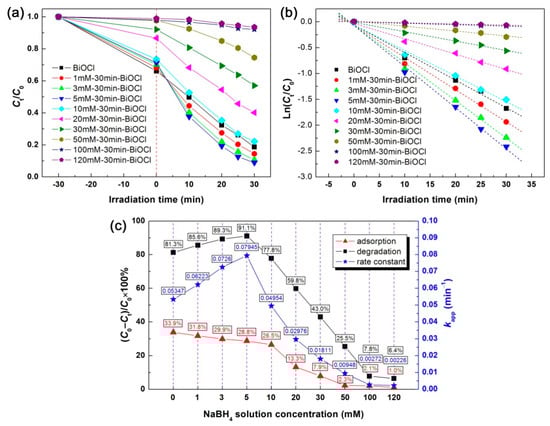

Figure 8. (a) Time-dependent photodegradation curves of RhB over the NaBH4-treated BiOCl samples with different concentrations. (b) The corresponding kinetic plots of the dye degradation. (c) The adsorption/degradation percentages of RhB and the apparent first-order reaction rate constants of the dye degradation.
Figure 8. (a) Time-dependent photodegradation curves of RhB over the NaBH4-treated BiOCl samples with different concentrations. (b) The corresponding kinetic plots of the dye degradation. (c) The adsorption/degradation percentages of RhB and the apparent first-order reaction rate constants of the dye degradation.
Catalysts 09 00795 g008
Catalysts 09 00795 g009 550

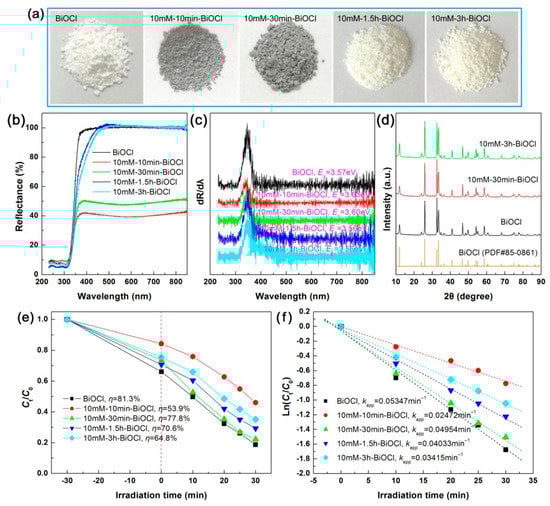

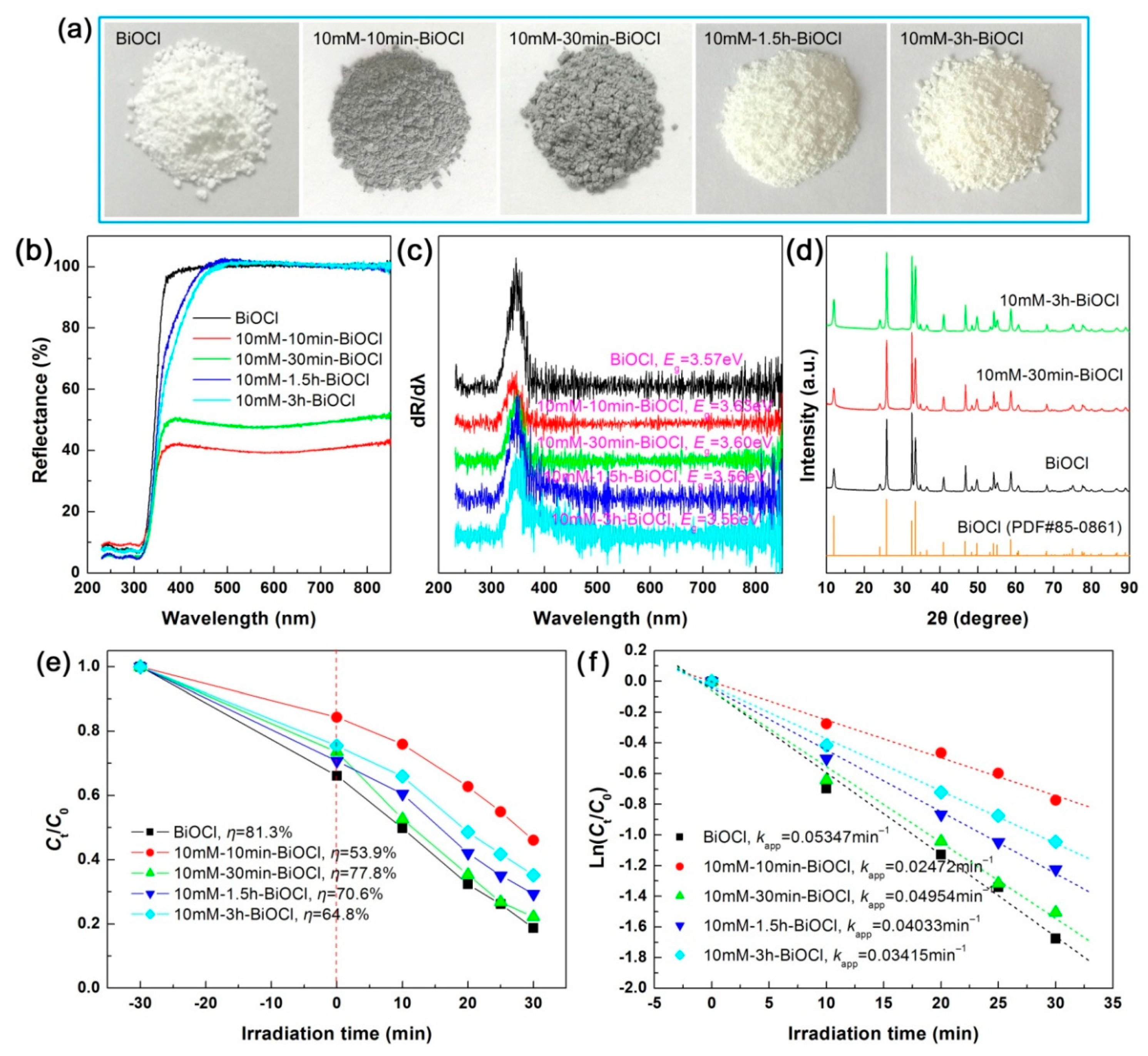

Figure 9. Apparent colors (a), UV-vis diffuse reflectance spectra (b), first derivative curves of the UV-vis diffuse reflectance spectra (c), XRD patterns (d), time-dependent photodegradation of RhB (e), and kinetic plots of the dye degradation (f) for the 10 mM NaBH4-treated BiOCl samples with different treatment times.
Figure 9. Apparent colors (a), UV-vis diffuse reflectance spectra (b), first derivative curves of the UV-vis diffuse reflectance spectra (c), XRD patterns (d), time-dependent photodegradation of RhB (e), and kinetic plots of the dye degradation (f) for the 10 mM NaBH4-treated BiOCl samples with different treatment times.
Catalysts 09 00795 g009
Catalysts 09 00795 g010 550

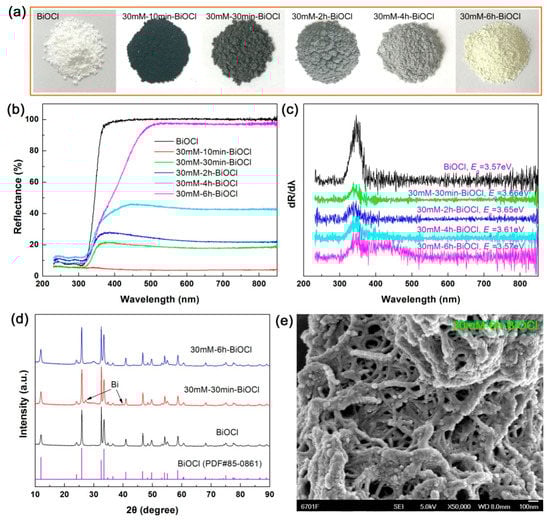

Figure 10. (a–d) Apparent colors, UV-vis diffuse reflectance spectra, first derivative curves of the UV-vis diffuse reflectance spectra, and XRD patterns of the 30 mM NaBH4-treated BiOCl samples with different treatment times, respectively. (e) SEM image of 30mM-6h-BiOCl.
Figure 10. (a–d) Apparent colors, UV-vis diffuse reflectance spectra, first derivative curves of the UV-vis diffuse reflectance spectra, and XRD patterns of the 30 mM NaBH4-treated BiOCl samples with different treatment times, respectively. (e) SEM image of 30mM-6h-BiOCl.
Catalysts 09 00795 g010
Catalysts 09 00795 g011 550

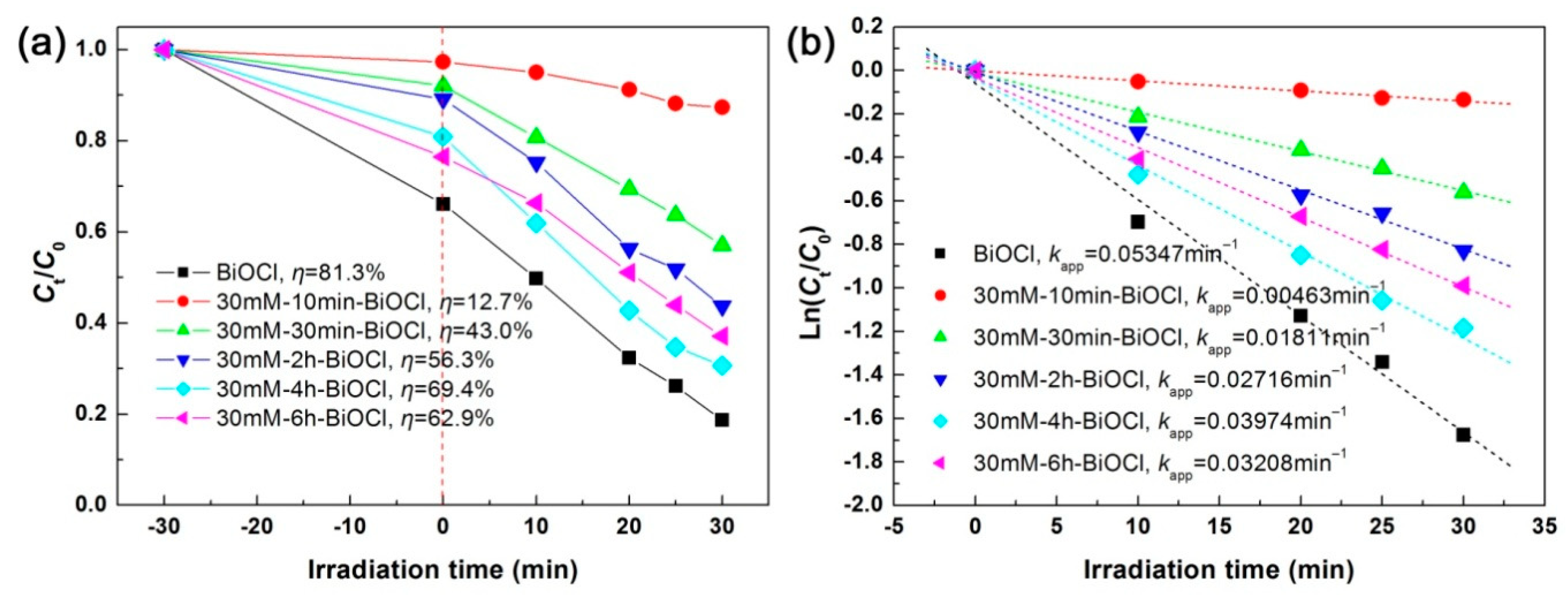

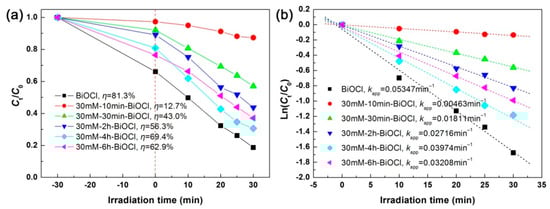

Figure 11. Time-dependent photodegradation of RhB (a) and kinetic plots of the dye degradation (b) over the 30 mM NaBH4-treated BiOCl samples with different treatment times.
Figure 11. Time-dependent photodegradation of RhB (a) and kinetic plots of the dye degradation (b) over the 30 mM NaBH4-treated BiOCl samples with different treatment times.
Catalysts 09 00795 g011
Catalysts 09 00795 g012 550

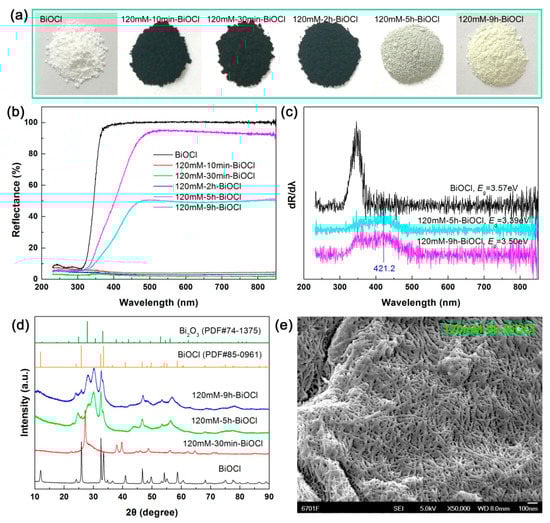

Figure 12. (a–d) apparent colors, UV-vis diffuse reflectance spectra, first derivative curves of the UV-vis diffuse reflectance spectra, and XRD patterns of the 120 mM NaBH4-treated BiOCl samples with different treatment times, respectively. (e) SEM image of 120mM-9h-BiOCl.
Figure 12. (a–d) apparent colors, UV-vis diffuse reflectance spectra, first derivative curves of the UV-vis diffuse reflectance spectra, and XRD patterns of the 120 mM NaBH4-treated BiOCl samples with different treatment times, respectively. (e) SEM image of 120mM-9h-BiOCl.
Catalysts 09 00795 g012
Catalysts 09 00795 g013 550

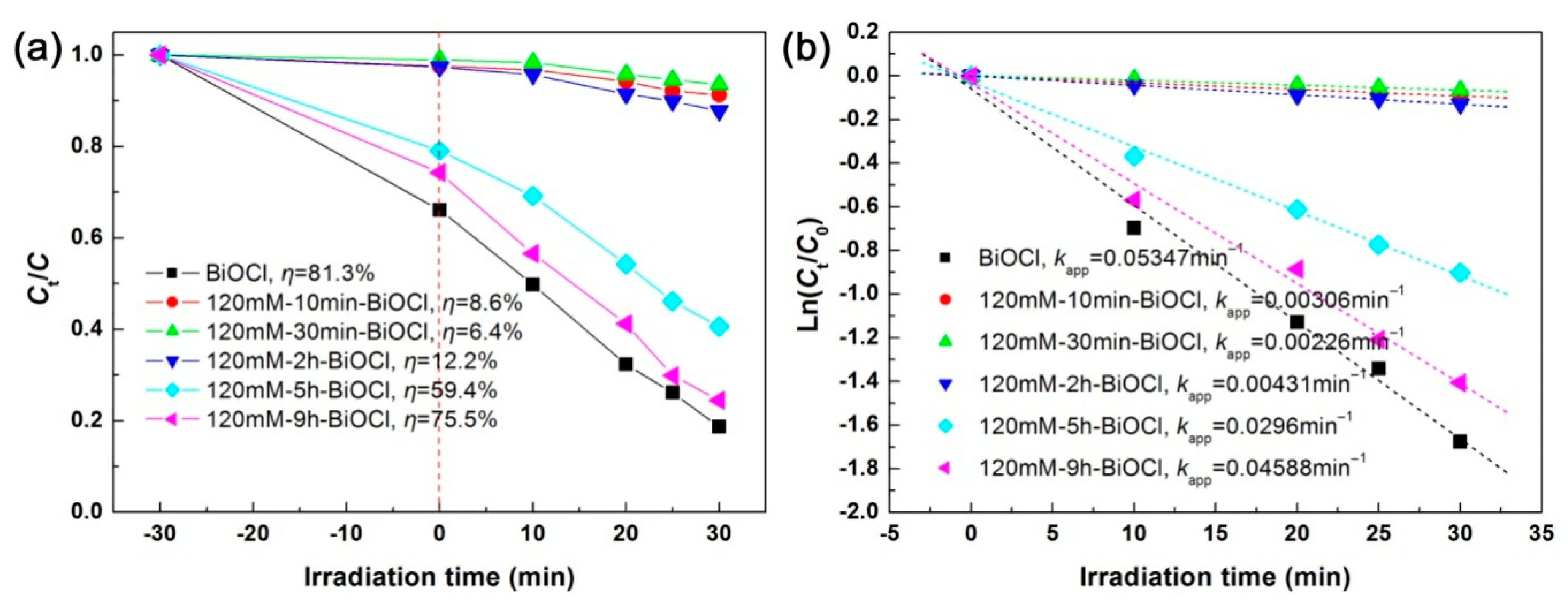

Figure 13. Time-dependent photodegradation of RhB (a) and kinetic plots of the dye degradation (b) over the 120 mM NaBH4-treated BiOCl samples with different treatment times.
Figure 13. Time-dependent photodegradation of RhB (a) and kinetic plots of the dye degradation (b) over the 120 mM NaBH4-treated BiOCl samples with different treatment times.
Catalysts 09 00795 g013
Catalysts 09 00795 g014 550

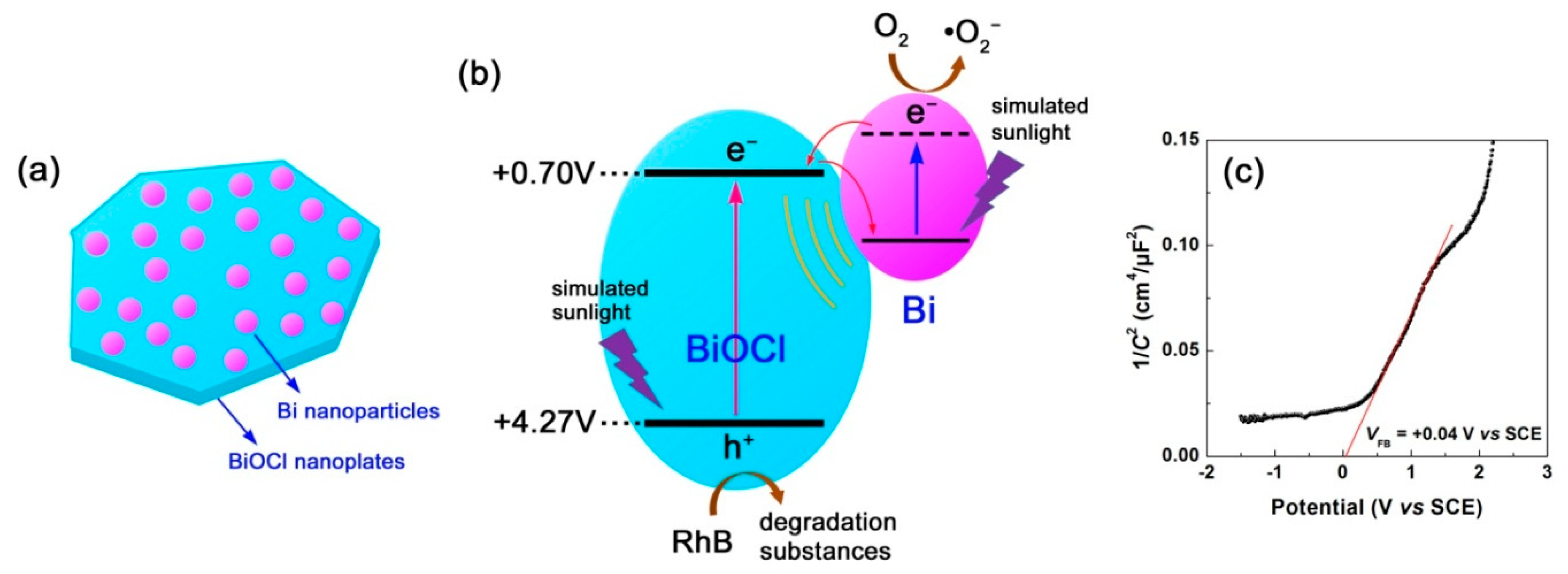

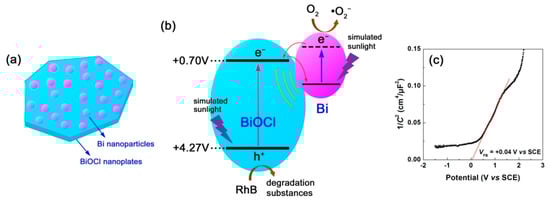

Figure 14. (a) Schematic illustration of the Bi@BiOCl hybrid composites with Bi nanoparticles assembled on the surface of BiOCl nanoplates. (b) Schematic illustration of the photodegradation mechanism of the Bi@BiOCl hybrid composites. (c) Mott–Schottky plot of BiOCl nanoplates.
Figure 14. (a) Schematic illustration of the Bi@BiOCl hybrid composites with Bi nanoparticles assembled on the surface of BiOCl nanoplates. (b) Schematic illustration of the photodegradation mechanism of the Bi@BiOCl hybrid composites. (c) Mott–Schottky plot of BiOCl nanoplates.
Catalysts 09 00795 g014

Share and Cite

MDPI and ACS Style

Yan, Y.; Yang, H.; Yi, Z.; Xian, T. NaBH4-Reduction Induced Evolution of Bi Nanoparticles from BiOCl Nanoplates and Construction of Promising Bi@BiOCl Hybrid Photocatalysts. Catalysts 2019, 9, 795. https://doi.org/10.3390/catal9100795

AMA Style

Yan Y, Yang H, Yi Z, Xian T. NaBH4-Reduction Induced Evolution of Bi Nanoparticles from BiOCl Nanoplates and Construction of Promising Bi@BiOCl Hybrid Photocatalysts. Catalysts. 2019; 9(10):795. https://doi.org/10.3390/catal9100795

Chicago/Turabian Style

Yan, Yuxiang, Hua Yang, Zao Yi, and Tao Xian. 2019. "NaBH4-Reduction Induced Evolution of Bi Nanoparticles from BiOCl Nanoplates and Construction of Promising Bi@BiOCl Hybrid Photocatalysts" Catalysts 9, no. 10: 795. https://doi.org/10.3390/catal9100795

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
