Catalysts 2018, 8(9), 375; doi:10.3390/catal8090375

Article
Ce and Zr Modified WO3-TiO2 Catalysts for Selective Catalytic Reduction of NOx by NH3
1
National Engineering Research Center of Rare Earth Metallurgy and Functional Materials, Baotou Research Institute of Rare Earths, Baotou 014030, China
2
School of Chemical Engineering, Nanjing University of Science and Technology, Nanjing 210094, China
*
Authors to whom correspondence should be addressed.
Received: 21 August 2018 / Accepted: 3 September 2018 / Published: 5 September 2018

Abstract

:
A series of Ce and/or Zr modified WO3-TiO2 catalysts were synthesized by the impregnation method, which were employed for NH3-SCR reaction. The T50 contour lines of NOx were used to quickly optimize catalyst composition, the Ce20Zr12.5WTi catalyst was considered to be the optimization result, and also exhibited excellent NH3-SCR activity and thermal stability with broad operation temperature window, which is a very promising catalyst for NOx abatement from diesel engine exhaust. The excellent catalytic performance is associated with the formation of Ce-Zr solid solution. The introduction of Zr to CeWTi catalyst facilitated the redox of Ce4+/Ce3+ and the formation of more acid sites, more Ce3+ ions, more oxygen vacancies, larger quantities of surface adsorbed oxygen species and NH3, which were beneficial for the excellent selective catalytic reduction (SCR) performance.
Keywords:
NH3-SCR; nitrogen oxides; Ce-Zr solid solution; T50 contour line

1. Introduction

Nitrogen oxides (NOx) resulting from automobiles are major air pollutants, which can cause acid rain, photochemical smog, haze, ozone depletion and direct damages to the respiratory systems of human bodies. Great efforts have been made to the development and application of available technologies for the control of NOx emissions [1,2]. Among these technologies, selective catalytic reduction of NOx with NH3 (NH3-SCR) has been widely used and considered one of the most effective approaches for NOx control in diesel vehicles.
The commercial catalyst used for the NH3-SCR process is V2O5-WO3/TiO2 [3]. However, the toxicity of vanadium species and the narrow operation temperature window restrains the practical application of the V-based catalysts for diesel. Therefore, great efforts have been made to develop an environmentally-benign selective catalytic reduction (SCR) catalyst with high deNOx performance.
CeO2-based oxides have attracted increasing attention due to the excellent redox properties shifting between Ce3+ and Ce4+ [4,5,6]. Among all the CeO2-based catalysts, CeO2/WO3-TiO2 catalyst exhibits excellent SCR performance, with high SCR activity and N2 selectivity, and broad operation temperature window [7,8,9,10,11,12,13,14,15]. However, in practical applications the low-temperature catalytic activity of the catalyst was still relatively low. Moreover, the thermal stability of the CeO2/WO3-TiO2 catalyst was also not satisfied. The problems mentioned above restrained the application of CeO2/WO3-TiO2 in diesel engine exhaust after treatment. From a research aspect, the relationship between the structure and activity of this catalyst has been studied thoroughly, so the modification of the catalyst has become a research hotspot on this basis, including the enhancement of redox properties and acidity.
It is well-known that ZrO2 is usually combined with CeO2 to form the Ce-Zr oxide catalyst, which has shown a great performance in three-way catalyst (TWC), diesel oxidation catalyst (DOC), and SCR applications. ZrO2 can increase the reducibility, surface acidity and stability of CeO2 [16,17,18]. These properties are important factors for catalytic performance in SCR. It is worth nothing that the Zr modified active site of the Ce catalyst CeO2-ZrO2/WO3-TiO2 has not been reported yet.
In this current work, a series of Ce and Zr modified CeO2-ZrO2/WO3-TiO2 catalysts were prepared by the impregnation method, and their deNOx performance was evaluated in a simulated real engine exhaust (Composed of NH3, NOx, CO, CO2, C3H6, H2O, O2 and N2). The T50 contour lines of NOx were used to quickly optimize the catalyst composition. Based on this characterization, the essence of the activity enhancement arising from the Ce and Zr introduction and the active species for the reaction were proposed and discussed in detail.

2. Results and Discussion

2.1. Catalytic Activity

Considering the complex composition of the CexZryWTi catalyst, lots of experiments were generally required to optimize the content. In this study, a method of “prediction verification” was used to optimize the contents of Ce, Zr, and WTi, with an aim to decrease the amount of optimization experiments. Based on the preliminary activity test, a coarse optimization zone was predicted with the calculated contour lines of T50 (Temperature corresponding to NOx conversion of 50%). Subsequently, around the coarse optimization zone, verification experiments were carried out to verify and adjust the zone. Through the cycle of “prediction-verification-reprediction”, the amount of optimization experiments could be controlled at a relatively low level. In this work, optimization was achieved after 13 experiments, as shown in Figure 1a. Among all the CexZryWTi catalysts, the WTi catalyst shows the lowest catalytic activity, when Zr was added to WTi, the catalytic activity enhanced to a limited extent. But when Ce or Ce & Zr was introduced into WTi, the catalytic activity increased largely. The Ce20Zr12.5WTi catalyst possesses the lowest T50. Moreover, the Ce20Zr12.5WTi displayed an excellent catalytic performance from 200 to 500 °C, as presented in Figure 1b.
The optimal catalyst Ce20Zr12.5WTi was thermally aged at different situations and then deNOx performance was tested, as exhibited in Figure 2. Compared with the fresh sample, the SCR activity of aged samples only decreased to a limited extent. For the Aged-Ce20Zr12.5WTi-550 °C-200 h and Aged-Ce20Zr12.5WTi-650 °C-100 h catalysts, the average NOx conversion decreased by 3 and 4.86%, respectively, which suggested that the Ce20Zr12.5WTi possess high thermal stability.

2.2. X-ray Diffraction (XRD) and Brunauer-Emmett-Teller (BET) Analysis

The XRD patterns of CexZryWTi catalysts are presented in Figure 3a. For the WTi catalyst, all the main diffraction peaks were in good agreement with those of anatase TiO2. No peaks attributed to WO3 were detected, indicating that WO3 existed as a high dispersion or amorphous species at the support. When Ce or Ce & Zr was added into WTi, the main characteristic peaks belong to anatase TiO2, at the same time, weak peaks at 2θ ≈ 28.8, 33.2 and 56.5° were detected, which could be attributed to cubic CeO2. Generally, it is thought that the high dispersion of the active component is beneficial to catalytic activity; however, the Ce modified catalysts possessed high SCR performance when CeO2 aggregated on the WTi support. Therefore, Ce species were active sites of the catalyst. Moreover, the catalytic activity of Zr12.5WTi catalyst was similar to WTi and much lower than that for the Ce modified catalyst, which also implied that the Ce species were the main active sites. In addition, as shown in Figure 3b, for Ce20Zr12.5WTi sample, the diffraction peaks of CeO2 shift to a higher 2θ position when compared with Ce20WTi. This observation implied that the relatively smaller Zr4+ has been incorporated into the lattice of CeO2 and formed Ce-Zr solid solution.
The BET surface area, total pore volume, and average pore diameter of the catalysts are summarized in Table 1. It can be seen that the introduction of Ce and Ce & Zr to WTi causes the decrease in surface area. However, the surface area of Ce20Zr12.5WTi catalyst was larger than that of Ce20WTi. It could be due to the formation of the Ce-Zr solid solution between CeO2 and ZrO2 according to the XRD results.

2.3. X-ray Photoelectron Spectroscopy (XPS) Results

Figure 4 displays the XPS spectra of Ce 3d for Ce20WTi and Ce20Zr12.5WTi catalyst. It was reported that two sets of spin-orbital multiplets for Ce, designated u and v, corresponded to the 3d3/2 and 3d5/2 contributions, respectively [19]. The sub-bands labelled u′ and v′ represent the 3d104f1 initial electronic state corresponding to Ce3+, and the sub-bands labelled u, u″, u‴, v, v″, and v‴ represent the 3d104f0 state of Ce4+ [20]. As shown in Table 2, the presence of Ce3+ could create a charge imbalance, oxygen vacancies, unsaturated chemical bonds that generated additional chemisorbed oxygen on the catalyst surface, which could improve the SCR activity [21,22].
The O 1s XPS spectra for CexZryWTi catalysts are exhibited in Figure 5. They are composed of two overlapping peaks, which correspond to two different kinds of oxygen species. The subband with a binding energy of ~529.9 eV contributes to the lattice oxygen (denoted as Oβ). The peak at the binding energy of ~531.3 eV was attributed to surface adsorbed oxygen (denoted by Oα) such as O2 or O [23]. The Oα/(Oα + Oβ) ratio varied as follows: Ce20Zr12.5WTi > Ce20WTi > WTi, as presented in Table 2. This trend was consistent with the Ce3+ ratio of the catalyst. Surface adsorbed oxygen (Oα) is reported to be more active in oxidation reactions due to its higher mobility than lattice oxygen (Oβ) [24]. A high Oα ratio is thought to be beneficial for the NO oxidation in the SCR reaction [25,26], thereby improving the activity of the catalysts.

2.4.H2-Temperature Programed Reduction (H2-TPR) and NH3-Temperature Programed Desorption (NH3-TPD) Analysis

The redox properties of the catalyst were characterized by H2-TPR, as presented in Figure 6. For the WTi catalyst, the peaks at 605 and 693 °C were associated with the multi-stage reduction process from WO3 to WO2 via two non-stoichiometric WOx oxides [27,28]. For Ce20WTi and Ce20Zr12.5WTi catalyst, the peaks at 556 and 544 °C could be assigned to the reduction of surface Ce4+ to Ce3+, while the peaks at 732 and 717 °C might be attributed to the reduction of bulk CeO2 [29,30]. It can also be seen that H2-TPR of Ce4+ and W6+ overlapped on the two catalysts between the temperature range of WOx reduction. In addition, the CeO2 reduction peaks of the two Ce contained catalysts were most obvious, which implied that the active sites of the catalysts were CeO2 species. It is worth noting that the reduction peaks of CeO2 in Ce20Zr12.5WTi moved to lower temperature compared to that of the Ce20WTi catalyst, which indicated that the addition of Zr facilitated the redox property of the catalyst. Namely, Ce and Zr formed solid solution, which lead to an increase of redox property, which was beneficial to SCR activity.
Besides the redox property, surface acidity is another critical factor during the SCR process. The chemisorption and activation of NH3 on the surface acid sites of catalysts are generally viewed as the primary processes in NH3-SCR of NOx. NH3-TPD was performed to investigate the surface acid amount and strength of the CexZryWTi catalysts as shown in Figure 7. All the catalysts exhibited three broad NH3 desorption peaks at 150–350, 350–500, and 500–800 °C, which are attributed to the weak, medium and strong acid sites, respectively [25,30]. When Ce was introduced to WTi, the NH3 desorption amount increased from 83 μmol·g−1 to 212 μmol·g−1. Moreover, for the Ce & Zr modified WTi catalyst, the amounts of the acid site were further enhanced (410 μmol·g−1). Consequently, the simultaneous introduction of Ce and Zr to WTi catalyst brought more active NH3 adsorbed species, which is believed to be significantly beneficial to SCR reaction.

3. Materials and Methods

3.1. Catalyst Preparation

A series of CeO2-ZrO2/WO3-TiO2 (denoted as CexZryWTi; x and y represents the weight percent of CeO2 and ZrO2, respectively; the WO3-TiO2 content is 100-x-y) catalysts were prepared by the impregnation method. Ce(NO3)3·6H2O, Zr(NO3)4·5H2O (Sinopharm Chemical Reagent Corp., Beijing, China) and WO3-TiO2 (Cristal Corp., Thann, France) (WO3: 10 wt %) were used for the experiment. Firstly, a given amount of Ce(NO3)3·6H2O and Zr(NO3)4·5H2O was dissolved in deionized water and mixed with WO3-TiO2 powders. The mixture was stirred for 30 min, then exposed to ultrasonic energy for 2 h, dried at 110 °C overnight, and calcined at 550 °C for 3 h in static air.
The fresh Ce20Zr12.5WTi catalyst was thermally aged in 10% H2O/air at 550 °C for 200 h and named as Ce20Zr12.5WTi-Aged-550 °C-200 h. Similarly, the Ce20Zr12.5WTi-Aged-650 °C-100 h catalyst was obtained by treating the fresh catalyst in 10% H2O/air at 650 °C for 100 h.

3.2. Catalyst Characterization

XRD measurement was carried out on an X’ pert Pro diffractometer (Panalytical Corp., The Netherlands) operating at 40 mA and 40 kV with Cu Kα radiation. The 2θ data from 10° to 90° were collected with the step size of 0.03°.
The BET surface area was measured at –196 °C on an ASAP 2050 physical adsorption instrument (Micromeritics Corp., Norcross, GA, USA) by using the nitrogen adsorption method. The samples were pretreated in a vacuum at 300 °C for 4 h before experiments. The surface area was determined by BET method in 0–0.3 partial pressure range.
X-ray photoelectron spectra (XPS) were recorded with a Thermo ESCALAB 250Xi spectrometer (ThermoFisher Scientific, Waltham, MA, USA) using Al radiation (1486.6 eV). Binding energies of Ce 3d and O 1s were calibrated using C1s peak (B.E. = 284.6 eV) as standard. The catalysts’ surface composition according to atomic ratios was calculated, and Shirley background and Gaussian-Lorentzian was used for peak analysis.
Temperature programmed reduction (TPR) was conducted on an AutoChem 2920 chemisorption analyzer (Micromeritics, Norcross, GA, USA) supplied by the Micromeritics Company. Each time, 100 mg of the sample was heated from room temperature to 800 °C at a rate of 10 °C·min−1. A mixture gas consisting of H2 and Ar with H2 content of 10 vol.% was used as reductant at a flow rate of 50 mL·min−1. Before detection by the TCD, the gas was purified by a trap containing CaO + NaOH materials in order to remove the H2O and CO2.
NH3 temperature programmed desorption (NH3-TPD) was conducted on an AutoChem 2920 chemisorption analyzer (Micromeritics, Norcross, GA, USA) supplied by the Micromeritics Company. After being pretreated at 350 °C in He flow at 200 mL·min−1 for 1 h, the samples were cooled down to 50 °C and saturated with 1% NH3 until adsorption saturation, followed by He purging at the same temperature to remove physical absorption species. The desorption of nitrogen–containing species was then performed in the range of 50–800 °C at a speed of 10 °C·min−1.

3.3. Activity Evaluation

The catalytic performance of the catalysts was tested in a fixed-bed quartz reactor (I.D. = 6 mm) at atmospheric pressure. The reaction conditions were controlled as follows: 200 ppm NO, 200 ppm NH3, 12% O2, 5% H2O, 200 ppm CO, 4.5% CO2, 50 ppm C3H6, and N2 as balance gas. The total flow rate and the gas hourly space velocity (GHSV) were 300 mL min−1 and 200,000 h−1, respectively. The effluent gas, including NO, NO2, and O2 was continuously analyzed by an online flue gas analyzer. The results for the steady-state activity of catalysts were recorded after about 20 min at each temperature. The NOx conversion was calculated accordingly [3], whereas NOx = NO + NO2.
N O x   conversion = [ N O x ] inlet [ N O x ] outlet [ N O x ] inlet × 100 %

4. Conclusions

In this work, Ce and/or Zr was introduced to WO3-TiO2 oxides by the impregnation method. And their deNOx performances were evaluated in a simulated real diesel engine exhaust, in order to decrease the amount of optimization experiments, a method of “prediction verification” was used to optimize the contents of Ce, Zr and WTi. The simultaneous addition of Ce and Zr could improve SCR activity remarkably of the WO3-TiO2. In a wide temperature range 300–500 °C, 100% NOx conversion was obtained at the high GHSV of 300,000 h−1 over the Ce20Zr12.5WTi catalyst, and also this catalyst exhibited high thermal stability. For the Ce and Zr modified WTi catalyst (Ce20Zr12.5WTi), Ce and Zr has formed a solid solution, which facilitates the redox of Ce4+/Ce3+ and formation of a larger amount of oxygen vacancies, larger quantities of surface adsorbed oxygen species (O2 and O), more Ce3+ ions and more acid sites. And the surface adsorbed oxygen are the principal active oxygen species and beneficial for NO oxidation to NO2. Therefore, surface adsorbed oxygen species, together with the improved redox properties and more acid sites were responsible for the excellent SCR performance.

Author Contributions

Conceptualization, Z.L.; Investigation, R.F.; C.Z.; Y.W. (Yu Wang) and X.G.; Data Curation, Y.W. (Yan Wang); Writing-Review & Editing, S.Z.; Supervision, R.W.; Project Administration, W.Z.

Funding

This research was funded by the Science and Technology Projects of China Northern Rare Earth (Group) High-tech Co., Ltd. (Grant No. BFXT-2018-D-1) and Natural Science Foundation of Inner Mongolia (Grant No. 2017MS0209).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. Liu, Z.; Ihl Woo, S. Recent advances in catalytic deNOx science and technology. Catal. Rev. Sci. Eng. 2006, 48, 43–89. [Google Scholar] [CrossRef]
  2. Roy, S.; Hegde, M.S.; Madras, G. Catalysis for NO abatement. Appl. Energy 2009, 86, 2283–2297. [Google Scholar] [CrossRef]
  3. Busca, G.; Lietti, L.; Ramis, G.; Berti, F. Chemical and mechanistic aspects of the selective catalytic reduction of NOx by ammonia over oxide catalysts: A review. Appl. Catal. B Environ. 1998, 18, 1–36. [Google Scholar] [CrossRef]
  4. Yates, M.; Martín, J.A.; Martín-Luengo, M.A.; Suárez, S.; Blanco, J. N2O formation in the ammonia oxidation and in the SCR process with V2O5-WO3 catalysts. Catal. Today 1996, 107–108, 120–125. [Google Scholar] [CrossRef]
  5. Reddy, B.M.; Khan, A.; Yamada, Y.; Kobayashi, T.; Loridant, S.; Volta, J.-C. Structural characterization of CeO2-TiO2 and V2O5/CeO2-TiO2 catalysts by Roman and XPS techniques. J. Phys. Chem. B 2003, 107, 5162–5167. [Google Scholar] [CrossRef]
  6. Guo, R.; Zhou, Y.; Pan, W.; Hong, J.; Zheng, W.; Jin, Q.; Ding, C.; Guo, S. Effect of preparation methods on the performance of CeO2/Al2O3 catalysts for selective catalytic reduction of NO with NH3. J. Ind. Eng. Chem. 2013, 19, 2022–2205. [Google Scholar] [CrossRef]
  7. Xu, W.; Yu, Y.; Zhang, C.; He, H. Selective catalytic reduction of NO by NH3 over a Ce/TiO2 catalyst. Catal. Commun. 2008, 9, 1453–1457. [Google Scholar] [CrossRef]
  8. Shen, Y.; Zhu, S.; Qiu, T.; Shen, S. A novel catalyst of CeO2/Al2O3 for selective catalytic reduction of NO by NH3. Catal. Commun. 2009, 11, 20–23. [Google Scholar] [CrossRef]
  9. Gao, X.; Jiang, Y.; Fu, Y.; Zhong, Y.; Luo, Z.; Cen, K. Preparation and characterization of CeO2/TiO2 catalysts for selective catalytic reduction of NO with NH3. Catal. Commun. 2010, 11, 465–469. [Google Scholar] [CrossRef]
  10. Shan, W.; Liu, F.; He, H.; Shi, X.; Zhang, C. An environmentally-benign CeO2-TiO2 catalyst for the selective catalytic reduction of NOx with NH3 in simulated diesel exhaust. Catal. Today 2012, 184, 160–165. [Google Scholar] [CrossRef]
  11. Chen, L.; Li, J.; Ge, M. DRIFT Study on Cerium-tungsten/titiania catalyst for selective catalytic reduction of NOx with NH3. Environ. Sci. Technol. 2010, 44, 9590–9596. [Google Scholar] [CrossRef] [PubMed]
  12. Shan, W.; Liu, F.; He, H.; Shi, X.; Zhang, C. A superior Ce-W-Ti mixed oxide catalyst for the selective catalytic reduction of NOx with NH3. Appl. Catal. B Environ. 2012, 115–116, 100–106. [Google Scholar] [CrossRef]
  13. Shan, W.; Liu, F.; He, H.; Shi, X.; Zhang, C. Novel cerium-tungsten mixed oxide catalyst for the selective catalytic reduction of NOx with NH3. Chem. Commun. 2011, 47, 8046–8048. [Google Scholar] [CrossRef] [PubMed]
  14. Ma, Z.; Weng, D.; Wu, X.; Si, Z. Effects of WOx modification on the activity, adsorption and redox properties of CeO2 catalyst for NOx reduction with ammonia. J. Environ. Sci. 2012, 24, 1305–1316. [Google Scholar] [CrossRef]
  15. Liu, Z.; Zhang, S.; Li, J.; Ma, L. Promoting effect of MoO3 on the NOx reduction by NH3 over CeO2/TiO2 catalyst studied with in situ DRIFTS. Appl. Catal. B Environ. 2014, 144, 90–95. [Google Scholar] [CrossRef]
  16. Daturi, M.; Finocchio, E.; Binet, C.; Lavalley, J.C.; Fally, F.; Perrichon, V. Study of bulk and surface reduction by hydrogen of CexZr1-xO2 mixed oxides followed by FTIR spectroscopy and magnetic balance. J. Phys. Chem. B 1999, 103, 4884–4891. [Google Scholar] [CrossRef]
  17. Daturi, M.; Bion, N.; Saussey, J.; Lavalley, J.-C.; Hedouin, C.; Seguelong, T.; Blanchard, G. Evidence of a lacunar mechanism for de NOx activity in ceria-based catalysts. Phys. Chem. Chem. Phys. 2001, 3, 252–255. [Google Scholar] [CrossRef]
  18. Vidal, H.; Kaspar, J.; Pijolat, M.; Colon, G.; Bernal, S.; Cordon, A.; Perrichon, V.; Fally, F. Redox behavior of CeO2-ZrO2 mixed oxides: I. Influence of redox treatments on high surface area catalysts. Appl. Catal. B Environ. 2000, 27, 49–63. [Google Scholar] [CrossRef]
  19. Gao, X.; Jiang, Y.; Zhong, Y.; Luo, Z.; Cen, K. The activity and characterization of CeO2-TiO2 catalysts prepared by the sol-gel method for selective catalytic reduction of NO with NH3. J. Hazard. Mater. 2010, 174, 734–739. [Google Scholar] [CrossRef] [PubMed]
  20. Burroughs, P.; Hamnett, A.; Orchard, A.F.; Thornton, G. Satellite structure in the X-ray photoelectron spectra of some binary and mixed oxides of lanthanum and cerium. J. Chem. Soc. Dalton Trans. 1976, 17, 1686–1698. [Google Scholar] [CrossRef]
  21. Liu, C.; Chen, L.; Chang, H.; Ma, L.; Peng, Y.; Arandiyan, H.; Li, J. Characterization of CeO2-WO3 catalysts prepared by different methods for selective catalytic reduction of NOx with NH3. Catal. Commun. 2013, 40, 145–148. [Google Scholar] [CrossRef]
  22. Liu, Z.; Yi, Y.; Li, J.; lhl Woo, S.; Wang, B.; Cao, X.; Li, Z. A superior catalyst with dual redox cycles for the selective reduction of NOx by ammonia. Chem. Commun. 2013, 49, 7726–7728. [Google Scholar] [CrossRef] [PubMed]
  23. Li, H.; Wu, C.-Y.; Li, Y.; Zhang, J. CeO2-TiO2 catalysts for catalytic oxidation of elemental mercury in low-rank coal combustion flue gas. Environ. Sci. Technol. 2011, 45, 7394–7400. [Google Scholar] [CrossRef] [PubMed]
  24. Cai, S.; Zhang, D.; Zhang, L.; Huang, L.; Li, H.; Gao, R.; Shi, L.; Zhang, J. Comparative study of 3D ordered macroporous Ce0.75Zr0.2M0.05O2-δ (M = Fe, Cu, Mn, Co) for selective catalytic reduction of NO with NH3. Catal. Sci. Technol. 2014, 4, 93–101. [Google Scholar] [CrossRef]
  25. Wu, Z.; Jin, R.; Liu, Y.; Wang, H. Ceria modified MnOx/TiO2 as a superior catalyst for NO reduction with NH3 at a low-temperature. Catal. Commun. 2008, 9, 2217–2220. [Google Scholar] [CrossRef]
  26. Chen, L.; Li, J.; Ge, M. Promotional effect of Ce-doped V2O5-WO3/TiO2 with low vanadium loadings for selective catalytic reduction of NOx by NH3. J. Phys. Chem. C 2009, 113, 21177–21184. [Google Scholar] [CrossRef]
  27. Barton, D.G.; Soled, S.L.; Meitzner, G.D.; Fuentes, G.A.; Iglesia, E. Structural and catalytic characterization of solid acids based on zirconia modified by tungsten oxide. J. Catal. 1999, 181, 57–72. [Google Scholar] [CrossRef]
  28. Ma, Z.; Weng, D.; Wu, X.; Si, Z.; Wang, B. A novel Nb-Ce/WOx-TiO2 catalyst with high NH3-SCR activity and stability. Catal. Commun. 2012, 27, 97–100. [Google Scholar] [CrossRef]
  29. Geng, Y.; He, H.; Chen, X.; Ding, H.; Yang, S.; Liu, F.; Shan, W. The effect of Ce on a high-efficiency CeO2/WO3-TiO2 catalyst for the selective catalytic reduction of NOx with NH3. RSC Adv. 2016, 6, 64803–64810. [Google Scholar] [CrossRef]
  30. Zhao, W.; Tang, Y.; Wan, Y.; Li, L.; Yao, S.; Li, X.; Gu, J.; Li, Y.; Shi, J. Promotion effects of SiO2 or/and Al2O3 doped CeO2/TiO2 catalysts for selective catalytic reduction of NO by NH3. J Hazard. Mater. 2014, 278, 350–359. [Google Scholar] [CrossRef] [PubMed]

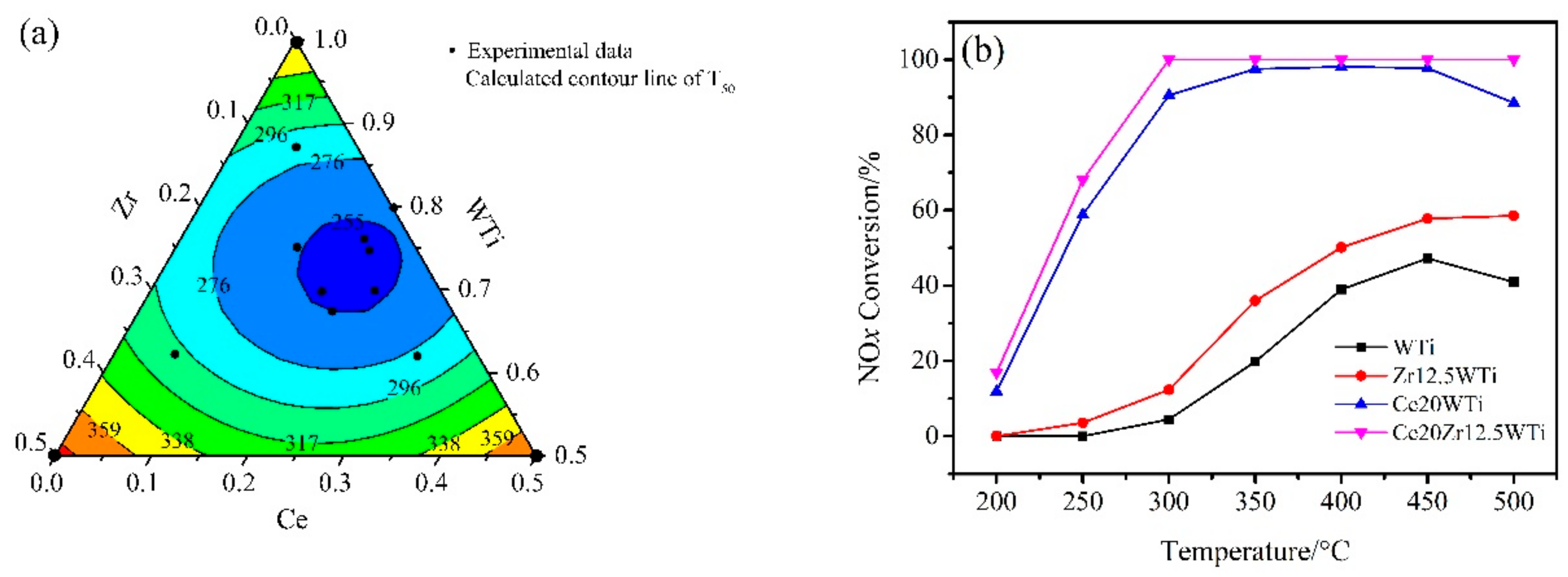

Figure 1. (a) T50 contour lines of NOx and (b) NOx conversion of 200–500 °C over CexZryWTi catalysts.
Figure 1. (a) T50 contour lines of NOx and (b) NOx conversion of 200–500 °C over CexZryWTi catalysts.
Catalysts 08 00375 g001

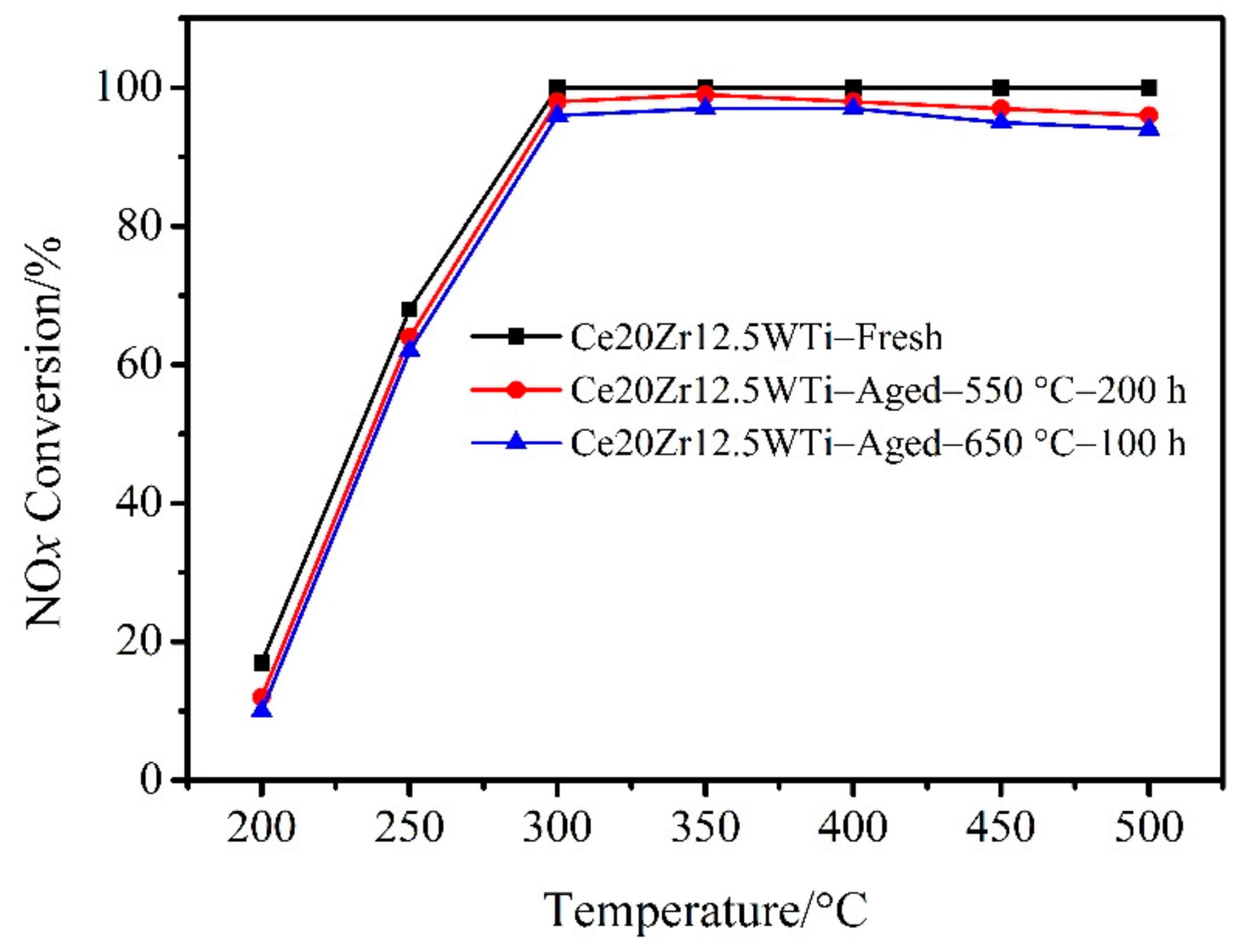

Figure 2. NOx conversion of fresh and aged Ce20Zr12.5WTi catalyst.
Figure 2. NOx conversion of fresh and aged Ce20Zr12.5WTi catalyst.
Catalysts 08 00375 g002

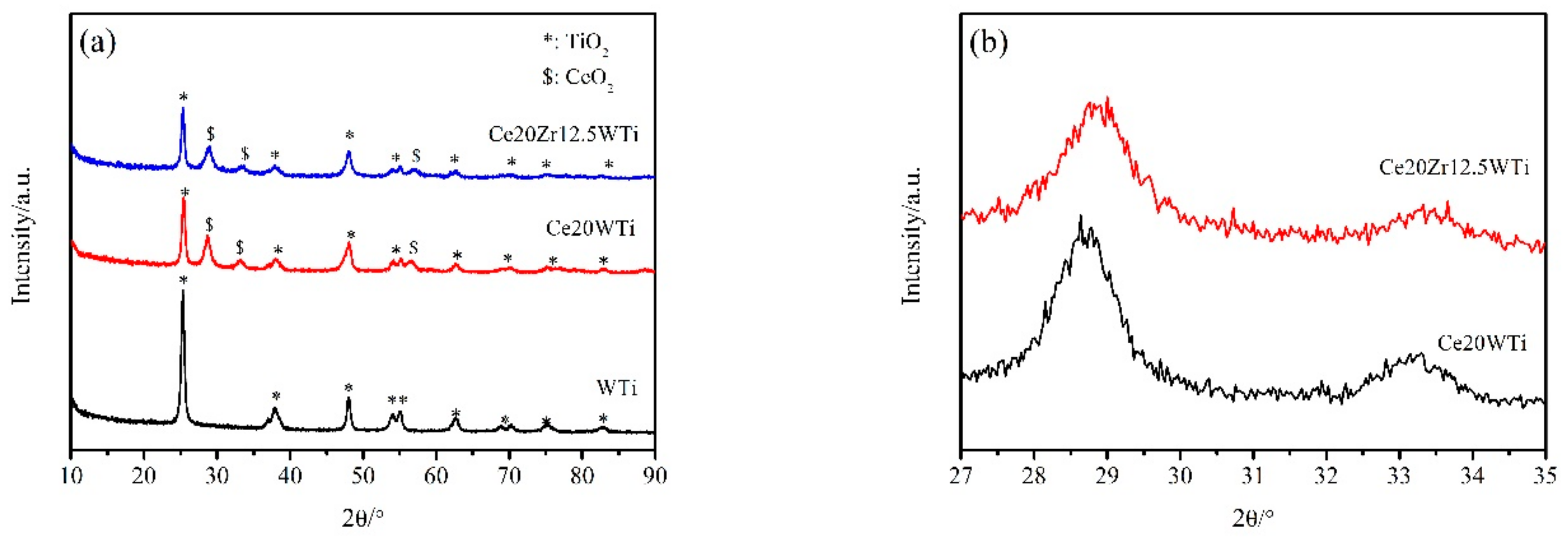

Figure 3. X-ray diffraction (XRD) patterns of CexZryWTi catalysts: (a) full patterns; (b) enlarged part to show the shift of the peaks for CeO2 (111) and (200) reflections.
Figure 3. X-ray diffraction (XRD) patterns of CexZryWTi catalysts: (a) full patterns; (b) enlarged part to show the shift of the peaks for CeO2 (111) and (200) reflections.
Catalysts 08 00375 g003

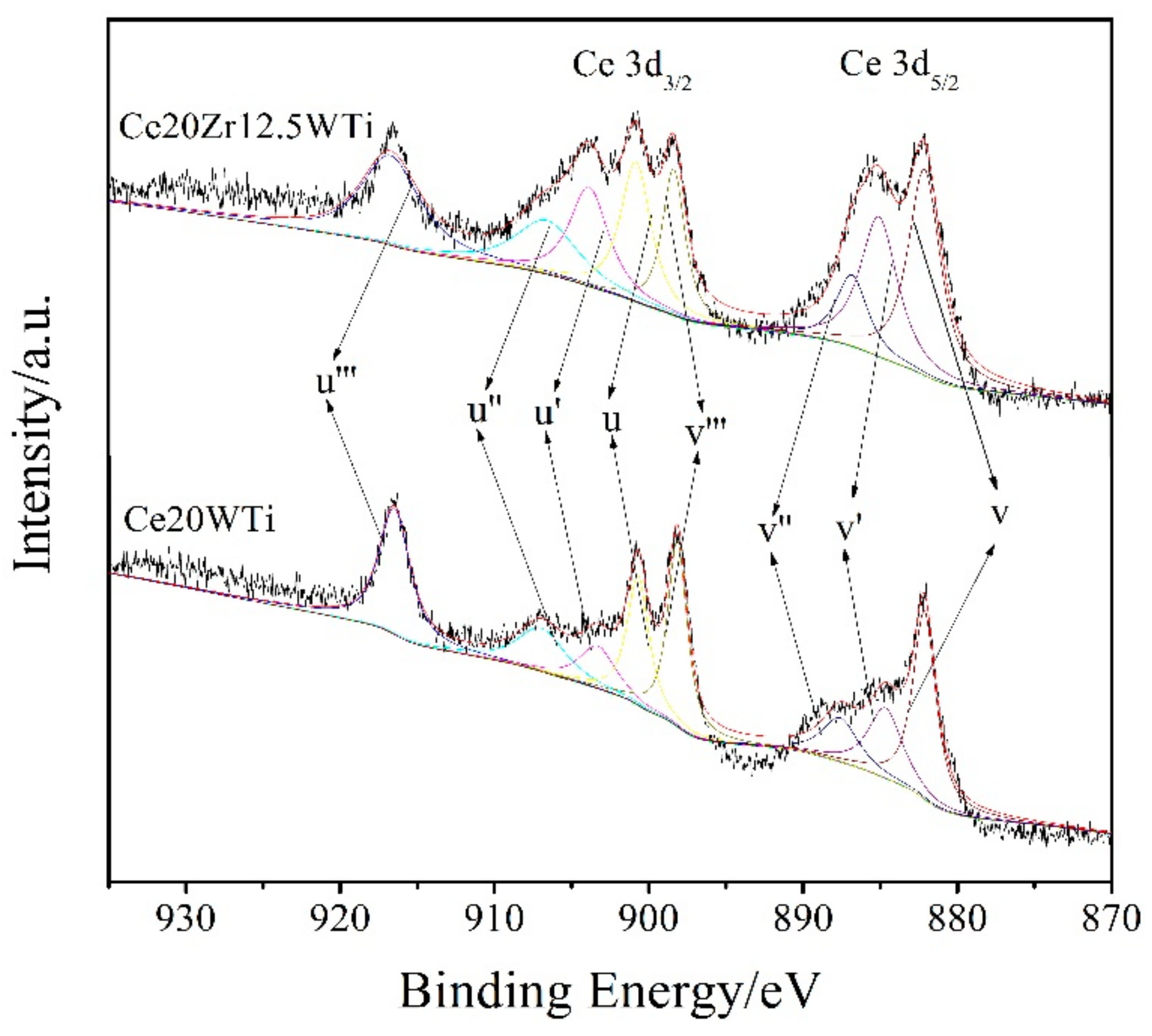

Figure 4. X-ray photoelectron spectroscopy (XPS) spectra of Ce3d for CexZryWTi catalysts.
Figure 4. X-ray photoelectron spectroscopy (XPS) spectra of Ce3d for CexZryWTi catalysts.
Catalysts 08 00375 g004

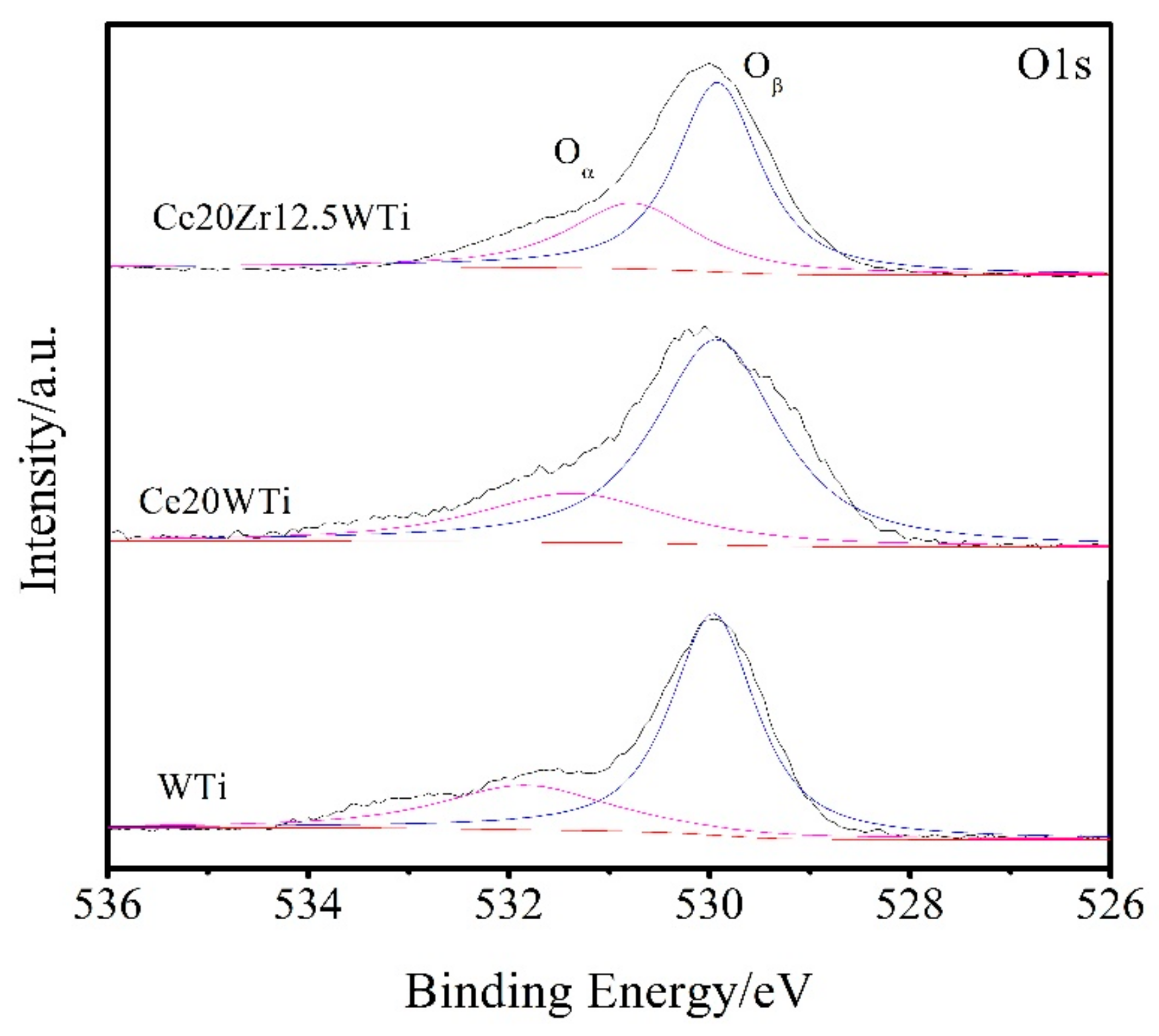

Figure 5. XPS spectra of O 1s core level for CexZryWTi catalysts.
Figure 5. XPS spectra of O 1s core level for CexZryWTi catalysts.
Catalysts 08 00375 g005

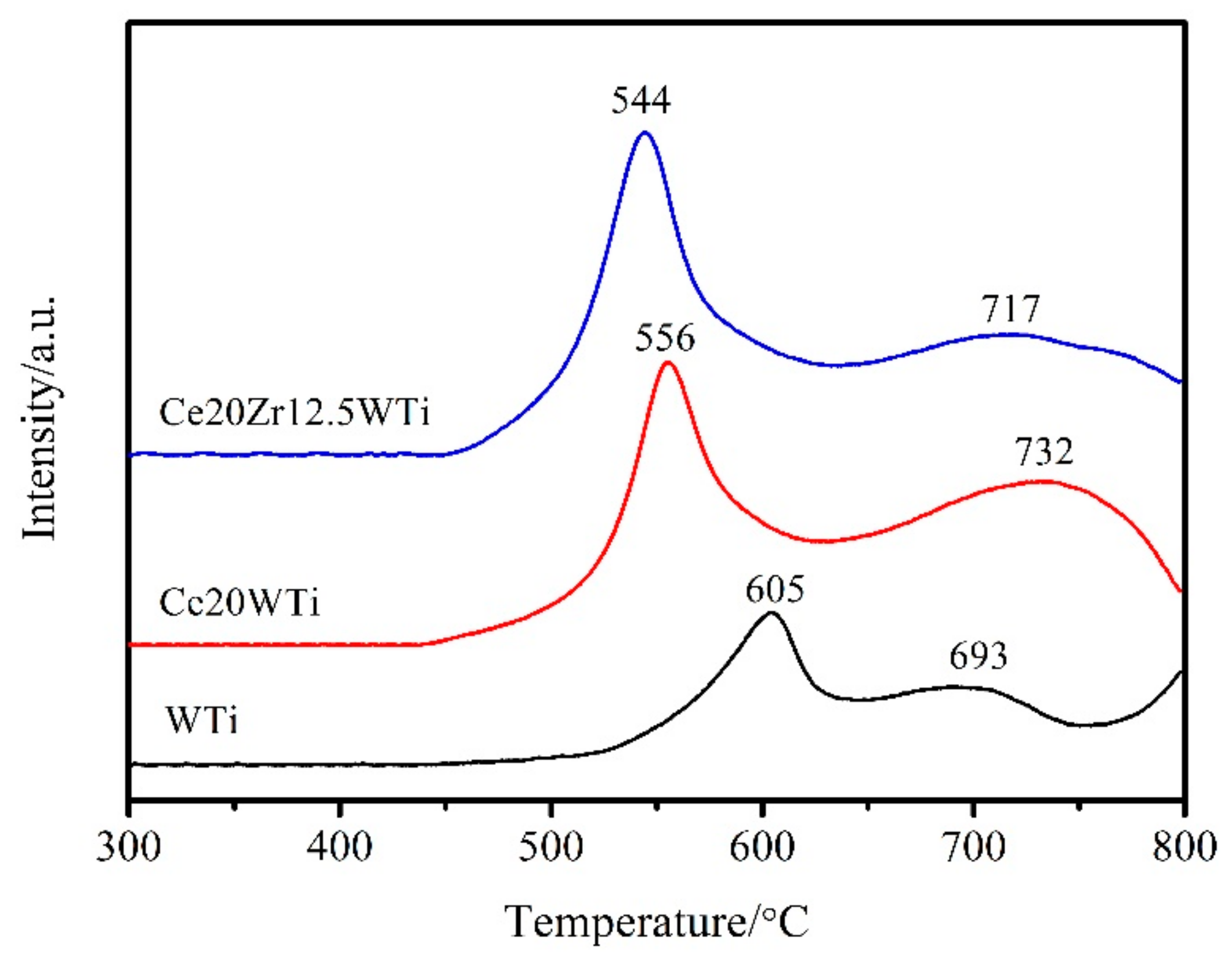

Figure 6. H2-TPR profiles of CexZryWTi catalysts.
