N,S Co-Doped Carbon Nanofibers Derived from Bacterial Cellulose/Poly(Methylene blue) Hybrids: Efficient Electrocatalyst for Oxygen Reduction Reaction

Key Laboratory of Applied Surface and Colloid Chemistry (MOE); Shaanxi Key Laboratory for Advanced Energy Devices; Shaanxi Engineering Lab for Advanced Energy Technology, School of Materials Science and Engineering, Shaanxi Normal University, Xi’an 710119, China
Jiangsu Key Laboratory of Biofuction Molecule, Department of Life Sciences and Chemistry, Jiangsu Second Normal University, Nanjing 210013, China
National Key Laboratory of Science and Technology on Combustion and Explosion, Xi’an Modern Chemistry Research Institute, 168 East Zhangba Road, Xi’an 710065, China
Author to whom correspondence should be addressed.
Catalysts 2018, 8(7), 269;
Received: 26 May 2018 / Revised: 27 June 2018 / Accepted: 27 June 2018 / Published: 30 June 2018


Exploring inexpensive and highly efficient electrocatalyst to decrease the overpotential of oxygen reduction reaction (ORR) is one of the key issues for the commercialization of energy conversion and storage devices. Heteroatom-doped carbon materials have attracted increasing attention as promising electrocatalysts. Herein, we prepared a highly active electrocatalyst, nitrogen, sulfur co-doped carbon nanofibers (N/S-CNF), via in situ chemical oxidative polymerization of methylene blue on the bacterial cellulose nanofibers, followed by carbonization process. It was found that the type of nitrogen/sulfur source, methylene blue and poly(methylene blue), has significantly influence on the catalytic activity of the resultant carbon nanofibers. Benefiting from the porous structure and high surface area (729 m2/g) which favors mass transfer and exposing of active N and S atoms, the N/S-CNF displays high catalytic activity for the ORR in alkaline media with a half-wave potential of about 0.80 V, and better stability and stronger methanol tolerance than that of 20 wt % Pt/C, indicating great potential application in the field of alkaline fuel cell.
Keywords: nitrogen sulfur co-doped carbon nanofibers; bacterial cellulose/poly(methylene blue) hybrids; oxygen reduction reaction; electrocatalyst nitrogen sulfur co-doped carbon nanofibers; bacterial cellulose/poly(methylene blue) hybrids; oxygen reduction reaction; electrocatalyst

1. Introduction

The development of low-cost and efficient energy conversion and storage technologies is of vital importance in alleviating the energy crisis and environmental protection. In recent years, some novel fuel cells and metal-air batteries, a class of devices that convert the chemical energy directly into electricity by electrochemical reactions, have attracted increasing attention [1,2,3,4]. In these devices, the oxygen reduction reaction (ORR) on the cathode is very slow kinetically, and thus requires platinum (Pt) as electrocatalyst. As the high price and unsatisfactory methanol tolerance of Pt have become a bottleneck of its extensive application in the fuel cells and metal-air batteries, the development of cheap and steady non-platinum catalysts is a practical and urgent issue [5,6,7,8]. In such conditions, nitrogen doped carbon nanomaterials (N-Cs) has recently been expanding rapidly because of excellent catalytic activity and high stability for the ORR in alkali media, and many techniques have been developed to prepare high active N-Cs as electrocatalyst for the ORR [9,10,11,12,13,14].
It is very well-known that the catalytic activity of N-Cs is closely related to their structure, meanwhile, the structural characteristics, such as the type and number of active centers, the porous structures [15] and the graphitizing extent [16,17], are controlled by the preparation method. Generally, the most used method to prepare the N-Cs is carbonizing various nitrogen-containing precursors, including (i) the heat-treatment of the existing carbon materials (such as graphene) using N-containing compounds (ammonia etc.); (ii) the pyrolysis of the N,C-containing precursor. In these processes, nitrogen source has great influence on the structure characteristics of the resultant N-Cs, and thus has a positive or negative impact on the catalytic activity for the ORR [18,19]. Understanding the impact of nitrogen source in molecular scale will provide fundamental knowledge for the rational design of N-Cs with high catalytic activity for the ORR.
In addition to the nitrogen source, the carbon source should be paid much attention to. Most of the reported N-Cs are prepared through chemical reagents or pre-synthesized precursor [20,21]. Considering the mass production in practical application, the cheaper raw and more convenient procedures are desired. Biomass is an attractive raw material due to its low cost, abundance and environmental friendly. Recently, various biomass, such as soybean shells [22], poplar catkins [23], biomass lysine [24] and soybean [25], are used to prepare the N-Cs as electrocatalyst for the ORR. Compare to these materials, cellulose, as the most abundant polymer on earth, is an excellent precursor for producing various carbon-based catalyst [23,26]. Especially, bacterial cellulose (BC), a biomass material produced by microbial industrial fermentation process at a very low price, possess a interconnected three dimension porous network structure consisting of cellulose nanofibers, and thus, is an ideal material to prepare of three dimension carbon-based functional nanomaterials [27,28].
Methylene blue (MB), as a cationic phenothiazines dye, contains not only N but also S element. Both can incorporate into the carbon matrix through facile carbonization, and the synergistic effect of N and S further enhances the catalysis performance for the ORR [29]. In addition, MB has good adsorption on the phenolic group of BC through various mechanisms such as electrostatic attractions [30], and it is easy to obtain the hybrid of BC/MB. Though carbonizing it, the nitrogen, sulfur-co-doped carbon nanofibers (N/S-CNF) has been facilely achieved [31]. However, compared with the comical Pt/C, the catalytic activity of N/S-CNF for the ORR is unsatisfied, and there is still no rational explanation for this result, due to the complicated carbonation process [32].
Compared with MB which is a small molecule compound, poly(methylene blue) (PMB) can gradually reduce and release the N/S-containing gas products during the carbonization process. These gas products readily react with the carbonization product and incorporate into it with higher N/S doping amount. Hence, we speculate that poly(methylene blue) (PMB) may be more appropriate as nitrogen source than MB. Luckily, the chemical oxidative polymerization of MB can occur at room temperature using the common oxidant, such as Au3+ and ammonium persulfate ((NH4)2S2O8) [33,34].
Therefore, in this work, using BC as carbon source, MB and PMB as nitrogen source respectively, the N/S-CNF was prepared. After characterizing the microstructure and evaluating the catalytic activity of the N/S-CNF derived from the hybrids of BC/MB and BC/PMB respectively, it is found that the activity for the ORR can be tuned by varying the type of nitrogen precursor. The N/S-CNF, prepared via in situ chemical oxidative polymerization of MB on the BC followed by carbonization process, displays high catalytic activity for the ORR in alkaline media with a half-wave potential of about 0.80 V, and better stability and stronger methanol tolerance than that of 20 wt % Pt/C.

2. Results

2.1. Characterization of the BC/MB and BC/PMB

As presented in Figure 1, the N/S-CNF were prepared by three steps. First, the MB was absorbed on the surface of BC at 100 °C, driven by the electrostatic interaction or hydrogen bond. Secondly, the chemical oxidative polymerization of MB was initiated by (NH4)2S2O8 and the formed PMB enwrapped evenly the nanofibers of BC [34]. Finally, the obtained BC/PMB hybrid was carbonized to form the N/S-CNF.
To identify the formation of PMB on the surface of BC, the samples of BC, BC/MB and BC/PMB were characterized. Scan electron microscopy (SEM) image (Figure 2a) shows that the BC consists of the intertwining nanofibers with a dimension of about 100 nm. After adsorbing MB, some MB particle aggregations are deposited on the surface of BC (Figure 2b). However, after polymerization, these aggregations disappear and some smooth joints gumming the nanofiber together are observed from the BC/PMB (Figure 2c), suggesting the dissolution/reprecipitation process happened during the chemical oxidation polymerization of MB. The EDS results show that N, S and Cl are detected in the BC/MB and BC/PMB, and the contents of N and S in these two samples are similar (Figure 2b,c and Figure S1). However, the content of Cl in the BC/PMB is much lower than that of the BC/MB. This result indicates that, the MB cations are adsorbed on the surface of BC by static electric attractive, after in situ oxidation polymerization, Cl dissolved into solution and the electroneutral PMB was formed. From the FTIR spectra of BC, PMB, and BC /PMB in Figure 2d, the typical peaks belonging to the PMB and BC, which are in agreement with the reported [35,36,37,38], are observed. The peak at 1600 cm−1 assigned to the stretching vibration of the –C=N group of the PMB is detected from the BC/PMB, demonstrating that the PMB has successfully loaded on the BC. In addition, the survey spectra of X-ray photoelectron spectroscopy (XPS) (Figure 2e) further prove the presence of S and N in both the BC/MB and BC/PMB. Similar to the results of EDS, the peak (198.9 eV) ascribed to Cl is detected from the BC/MB while not the BC/PMB. The XPS fine spectra of N1s in Figure 2f further demonstrates the formation of PMB in the BC/PMB due to the appearance of PMB characteristic peak at 400.1 eV [39]. Furthermore, the peaks of pyridinic N (399.7 eV) and protonated amine N (401.6 eV) of the PMB shift to low energy direction, indicating the PMB tightly enwrap the nanofibers of BC, which results in the electron of the skeleton carbon atoms in the BC shifting toward the N atom of PMB due to the difference in electronegativity between them. All these results reveal that the hybrid of BC/PMB has been successfully prepared. Further study (Figure S2) reveals that, without the BC, the prepared PMB are blocks with irregular morphology, testifying the important role of BC in inhibiting the agglomeration of PMB.
Thermogravimetric analysis (TGA) was further carried out to verify the thermal decomposition behavior of the BC, MB, PMB, BC/MB and BC/PMB, and the corresponding TG curves are shown in Figure 3. The MB exhibits the first mass loss step below 250 °C with a mass loss of about 13%, and the second one centers at 250–400 °C with a mass loss of about 26%. With further increasing the temperature, the mass loss increases slowly, and the carbon product at 800 °C is about 52%. Compared with the MB, PMB shows much better thermal stability, and the onset decomposition temperature is up to ~250 °C, but the carbon yield has no change. The BC has a sharp mass loss in the range of 250–375 °C, and a low carbon yield of 11%. For the BC/MB, the thermal decomposition behavior in the low temperature (<250 °C) is similar to that of MB, and the carbon yield is ~40%. No surprise, the BC/PMB displays higher thermal stability below 250 °C, and the carbon yield is close to that of BC/MB and of 37%. Based on these results, it can be suspected that the high decomposition temperature of PMB should be helpful for its decomposition products to participate in the carbonization reaction, and thus promote the formation of N/S co-doped carbon materials.

2.2. Characterization of the Carbonization Products of BC, BC/MB and BC/PMB

After carbonizing the BC, BC/MB and BC/PMB, the resultant products are named by C-BC, C-BC/MB and N/S-CNF, and their morphologies were investigated by SEM and TFM. Compared the images of BC (Figure 2a) and C-BC (Figure 4a,c), no obvious change is observed, except that the nanofibers are fluffier and thinner in the case of C-BC. However, compared with the BC/MB (Figure 2b), the C-BC/MB (Figure 4b) exhibits quite different morphology, which is similar to that of C-BC, seeming that MB particles have been completely decomposed. Nevertheless, the corresponding transmission electron microscopy (TEM) image (Figure 4e) shows that, except for the nanofibers derived from the BC, there are some isolated nanoparticles with a dimension of about 30 nm. Based on the different Z-contrast between S and C elements, these nanoparticles should be the sulfur-rich materials, which are proved by the element mapping results of energy dispersive spectrometer (EDS) (Figure S3). Obviously, these nanoparticles are the carbonized products coming from the incomplete decomposition of MB, due to the absence of S in the BC. Considering the similar morphology of the carbon nanofibers in cases of C-BC and C-BC/MB, it is deduced that the adsorbed MB has little influence on the decomposition of BC, probably due to the weak interface interaction between them, just as shown the TG curve in Figure 3. It is interesting to note that, in contrast to the C-BC and C-BC/MB, the N/S-CNF derived from the BC/PMB, consists of some short and wide nanobelts (Figure 4c), and their diameter and length (Figure S4) are about 70 and 400 nm, respectively. This result demonstrates the great influence of PMB on the carbonization of BC. TEM image in Figure 4e shows that the contrast of the nanobelts is uniform, indicating the absence of sulfur-rich domains in the N/S-CNF. In addition, elemental mappings from energy dispersive spectroscopy (EDS) (Figure 4h,i) confirm the nitrogen and sulfur are successfully incorporated and uniformly distribute in the carbon matrix. Moreover, EDS results (insets in Figure 4b,c) show that the contents of N and S are slightly higher in the case of N/S-CNF than that of C-BC/MB, further proving that PMB as N/S source is helpful for the incorporation of N/S into the carbon framework. No Cl was found by EDS, probably because of the formation of Cl-containing gas.
To gain more insight, the porous structure of N/S-CNF was characterized. As shown in Figure 5a, with respect to the C-BC and C-BC/MB, the N/S-CNF shows a type I isotherm due to the accomplishment of the predominant adsorption of N2 below the relative pressure (P/P0) of 0.02, implying the presence of micro-pores. In addition, a hysteresis loop at P/P0 from 0.40 to 1.0 is also observed, which is a characteristic of mesoporous materials. The pore size distribution (PSD) and surface area were calculated with the slit/cylinder model of quenched solid density functional theory using the adsorption branch. The PSD curve further confirms that both the micro-pore centering at 1.0 nm and the meso-pores with various sizes in 2–35 nm coexist in the N/S-CNF. The calculated surface area is 729 g·cm−2. The C-BC has similar PSD but smaller surface area, while the C-BC/MB belongs to the mesoporous material and has the smallest surface area. These results suggest that the MB or its decomposition product destroyed the micro-pores of C-BC, but the PMB promoted to form more micro-pores in the C-BC, probably by chemical etching the carbon matrix. The hierarchical porous structure and high surface area of N/S-CNF are beneficial to the exposure of more active sites and the diffusion of reactants.
To elucidate the crystallinity of N/S-CNF, X-ray powder diffraction (XRD) and Raman spectroscopic investigation were conducted. The XRD patterns of the N/S-CNF and the control samples show a broad peak at approximately 2θ = 24° and a very weak peak at 2θ = 42° (Figure 5b), which are the characteristics of graphitic carbon materials with low graphitization degree [40]. Raman spectra (Figure 5c) further reveal that both amorphous and crystalline carbon coexist in these samples. The intensity ratios of the D to G bands (ID/IG) are nearly same for these samples, reflecting their similar graphitization degree [41].
To further confirm the chemical state of N and S, X-ray photo electron spectroscopy (XPS) measurement was carried out. As shown the XPS survey spectra in Figure 5d, N and S are detected from the N/S-CNF and C-BC/MB, confirming that the N and S atoms have been successfully introduced into the carbon matrix, which is in agreement with the EDS results. However, the contents of N and S in the N/S-CNF are 3.2% and 0.8%, respectively, which are higher than that (2.6% and 0.4%) of the C-BC/MB. Generally, It is believed that the N and S content play a key role for the improved ORR catalytic activity [13,42], and thus the N/S-CNF should have better catalysis performance than that of C-BC/MB. In addition, it is reported that the N and S species proportion also is crucial for the ORR catalytic activity of electrocatalyst [43]. Form the high-resolution N1s spectra (Figure 5e) of the N/S-CNF and C-BC/MB, four peaks can be deconvoluted into, which are assigned to the pyridinic N (398.7 eV), pyrrolic N (399.8 eV), graphitic N (401.2 eV) and (403.2eV), respectively. Usually, it is accepted that the pyridinic N and graphitic N are active species for the ORR [43]. Compared with the C-BC/MP, the N/S-CNF has a higher amount (77.3 at. %) of the two species and thus should display better catalysis performance for the ORR. In addition, the high-resolution S2p spectra (Figure 5f) show the peaks of P1/2 and P3/2 at binding energy of 163.5 and 164.3 eV which attribute to C–S–C bonds, and the ones at 166.0–170 eV are associated with the oxidized-S species that are chemically inactive for the ORR [30]. Similar to the case of N, the N/S-CNF also possesses higher amount (74.4%) of the active S species than that (64%) of C-BC/MP. Therefore, combining all the above results of SEM, PSD, XRD, XPS, and so on, a conclusion can be drawn that the PMB is more suitable as N and S source to prepare efficient elecrocatalyst for the ORR than the MB.

2.3. Electrocatalytic Activity of the N/S-CNF for the ORR

The electrocatalytic activity of the N/S-CNF for the ORR was evaluated by cyclic voltammetry (CV) measurements in 0.1 M KOH electrolyte. Being compared with the smooth CV curve obtained from the N2-saturated electrolyte (Figure 6a), the CV curve in O2-saturated electrolyte shows a cathodic peak at 0.78 V, implying the electrocatalytic activity of N/S-CNF for the ORR in alkaline media. The ORR performance of the N/S-CNF was further measured with the rotating disk electrode (RDE) using linear sweep voltammetry (LSV) technique. As control subjects, the ORR activities of the C-BC, C-BC/MB and Pt/C electrocatalyst were also tested under the same experimental conditions (Figure 6b). Unsurprisingly, the C-BC shows the worst catalytic activity due to lacking active centres derived from N/S doping. With the benefit of N/S doping, the C-BC/MB exhibits a significant performance boost over the C-BC. Especially, with the aid of the large surface area and high amount of active N and S species, the N/S-CNF shows the best catalytic performance for the ORR, featuring with a comparable E1/2 value (0.80 V) to the commercial 20 wt % Pt/C (0.83 V). In addition, the E1/2 value (0.80 V) is also more positive than some of the reported N,S-co-doped carbon-based electrocatalysts (Table 1). Especially, the E1/2 (0.80 V) in this work is 170 mV higher than that reported N-S-CNF-800 (MB) [31], which was prepared through BC physically absorbing MB and followed the carbonization process. We think the novel preparation method should be responsible for the improved catalytic activity. Firstly, based on the adsorption kinetic of MB on the cellulose [44] a harsh adsorption condition, heating the saturated solution of MB containing the dried BC at 100 °C for 4.5 h with autoclave, was employed to increase the adsorption amount of MB. Secondly, the N/S-CNF was obtained by carbonizing the BC/PMB hybrid that derived from the in situ polymerization of MB on the BC surface, but not by directly carbonizing the BC/MB hybrid as mentioned in the literature [31]. Obviously, compared with the small molecule compound, N,S-containing polymer is much more suitable as N/S source for the synthesis of carbon-based electrocatalyst with high ORR catalytic activity. To clarify the influence of synthesis parameters on the catalytic activity of N/S-CNF, a series of samples were prepared. The corresponding LSV curves for the ORR (Figure S5) reveal that the catalytic activity of N/S-CNF is sensitive to the synthesis condition, and the optimized experimental parameters are critical for achieving the N/S-CNF with high catalytic activity.
The catalysis kinetic of the N/S-CNF for the ORR was further investigated. It is normal that the limiting diffusion current increases with the rotation speed due to the thinned diffusion layer (Figure 6c). The transferred electron number (n) per oxygen molecule involved in the ORR process was calculated with Koutecky–Levich equation, which was to be ca. 3.89 in the potential range of 0.4 to 0.6 V, demonstrating an approximate four-electron pathway. To elucidate the electron transfer mechanism, the hydrogen peroxide yields were measured with rotating ring-disk electrode (RRDE). As shown in Figure 6f, the ring current originating from the oxidation of hydrogen peroxide ions (HO2) is low. The calculated percentage of HO2 is below 17% over the potential range from 0.2 to 0.8 V, which corresponds to a transfer number of ~3.88. This is agreement with the results obtained from the Koutecky–Levich plots, again illuminating a nearly 4e pathway for the ORR catalyzed by the N/S-CNF.
Subsequently, the chronoamperometric responses is used to evaluate the electrocatalytic activity and stability of the N/S-CNF. As shown in Figure 6e, after a brief transient period, the oxygen reduction current at the N/S-CNF electrode remains stable for the long time (6000 s) of polarization, while the current at the Pt/C electrode reduced to about 77% during the same test period, implying the excellent durability of the N/S-CNF.
Methanol-tolerance is an important benchmark for the electrocatalyst used in fuel cells, the catalysis performance of the N/S-CNF in KOH electrolyte containing methanol was investigated by chronoamperometry. As displayed in Figure 6f, after adjusting the concentration of methanol to 1 M in the O2-saturated 0.1 M KOH electrolyte, the ORR current for Pt/C electrocatalyst shows a drastic surge and cannot be recovered to the initial level. Conversely, the current level of the N/S-CNF remains virtually unchanged, indicating its excellent methanol-tolerance.

3. Materials and Methods

3.1. Materials

BC membranes were supplied by Hainan Yida Food Co., Ltd (Hainan, China), stored in acetic acid solution. Before use, BC membranes were immersed into a 0.1 M sodium hydroxide solution at 100 °C for 60 min to remove the residual cells, and then thoroughly washed with deionized water until pH reached neutral. To facilitate experimental operation, the BC membranes were cut to quadrate pieces with size of 3 × 3 cm, and followed by freeze drying at −50 °C. All other chemicals were purchased from Aladdin Reagent Co. Ltd. (Shanghai, China) and used as received.

3.2. Preparation of BC/MB and BC/PMB

6 mL of the saturated solution of MB was poured into the autoclave with volume of 15 mL, and the dried BC membranes of 15 mg were soaked into it. To accelate adsorption of MB on BC membrane, the autoclave was sealed and heated at 100 °C for 4.5 h. The blued BC membranes were washed by water to remove the physically adsorbed day molecules, and then immsered into 10 mL of ammonium peroxydisulphate solution (0.1 M) for 1.5 h to make the methylene blue polymerize. The purple BC membranes were freeze-dried, and transferred into a tubular furnace for carbonization under a flowing N2 atmosphere at 800 °C for 2 h with a heating rate of 2 °C·min−1. After cooled to room temperature, the black carbon powder coded as N/S-CNF was achieved. To compare, the controlled samples were also prepared with the BC membranes adsorbing and unadsorbing MB by the similar process.

3.3. Electrochemical Measurements

Electrochemical experiments were carried out by computer-controlled CHI 760E (Chenhua Instrument, Shanghai, China) electrochemical workstation equipped with RDE apparatus at room temperature, using a standard three-electrode system. The electrocatalyst-modified working electrode was prepared with the elelctrocatalyst ink, which was obtained by mixing 10 mg of electrocatalyst and 5 mL of water/Nafion solution, and sonicating the mixture for 60 min. After the working electrode loaded 10 μL of electrocatalyst ink was dried at room temperature, the CV and LSV tests were measured in N2- or O2-saturated 0.1 M KOH solution, by using a saturated calomel and carbon rod as reference electrode and counter electrode, respectively. All potentials in this work were reported with respect to reversible hydrogen electrode (RHE). The electron transfer number (n) was determined by the Koutecky–Levich equation:
1/j = 1/jk + 1/Bω0.5
Here, jk is the kinetic current density, and B is expressed by the following expression:
B = 0.2 × n × F × (DO2)2/3 × ν−1/6 × CO2
where n represents the number of electrons transferred per oxygen molecule; F is the Faraday constant (F = 96,485 C·mol−1); DO2 is the diffusion coefficient of O2 in 0.1 M KOH (1.9 × 10−5·cm2·s−1); ν is the kinematic viscosity of the electrolyte solution (0.01 cm2·s−1); CO2 is the concentration of dissolved O2 (1.2 × 10-6 mol cm−3). The constant 0.2 is adopted when the rotation speed is expressed in rpm.
The n and H2O2 yield (%) were measured with RRDE, and calculated with the followed equations:
n = 4Id/(Id + Ir/N)
H2O2 (%) = 100 × (4 − n)/2
where Id is the disk current density, Ir is the ring current density, and N = 0.37 is the current collection efficiency.

3.4. Characterization

The crystalline structure, morphology and surface composition of sample were physically characterized by XRD (D/max-rC) (Rigalcu, Tokyo, Japan), TEM (JEM-2100F) (JEOL, Tokyo, Japan) equipped with EDS, SEM (SU-8020) (Hitachi High-Technologies Corp., Japan), Raman Spectrometer (In Via Reflex) (Renishaw PLC, Wotton-under-Edge, UK) and XPS (AXIS ULTRA) (Kratos Analytical Ltd., Hadano, Japan). The surface area and pore volume of the samples were measured on a physical adsorption instrument (ASAP 2400) (Norcross, GA, USA), the functional groups were analyzed by using Fourier transform infrared spectroscopy (FTIR, Nicolet Is10) (Thermo Fisher Scientific, Waltham, MA, USA), and the thermal decomposition behavior was measured by TGA (Q600) (TA Instruments, American).

4. Conclusions

We developed a facile method to fabricate superior ORR catalysts. By simply in situ polymerization of MB on the surface of BC, followed by carbonization, the N/S-CNF nanomaterials was obtained. It was found that, compared with the small molecular substance, the polymer as nitrogen/sulfur source can significantly enhance the catalytic activity of the resultant N,S-co-doped carbon nanofibers. Benefited from the synergistic effect of the multiple active sites, as well as the enriched porosity and high surface area, the N/S-CNF revealed excellent ORR activity in alkaline media with a half-wave potential of about 0.80 V. Moreover, the N/S-CNF showed better long-term stability and methanol tolerance than that commercial 20 wt % Pt/C, demonstrating its potential application in fuel cells and metal-air batteries as alternative Pt electrocatalysts.

Supplementary Materials

The following are available online at, Figure S1: EDS spectra of (a) the BC/MB and (b) BC/PMB, Figure S2: SEM image of the PMB, Figure S3: The dark field TEM image of the C-BC/MB and the corresponding element mapping images of S, N, O and C, Figure S4: The diameter (b) and length (c) distribution of the nanofibers obtained from TEM image (a) of the sample N/S-CNF, Figure S5: Linear sweep voltammetry curves of the samples of N/S-CNF prepared at different condition. Fixed the other experiment parameters, (a) the concentration of MB in the adsorption process of MB on BC was varied from 0.01 to 0.1mol/L; (b) the heat treatment temperature in the adsorption process of MB on BC was varied from 60 to 150 °C; (c) the polymerization time of MB was varied from 0.5 to 6 h. All these linear sweep voltammetry curves were obtained from O2-saturated 0.1 M KOH solution at scan rate of 10 mv/s and a rotation rate of 1600 rpm.

Author Contributions

J.L. analyzed and interpreted the experiment data; Y.-G.J., B.Q., F.Z. and H.G. performed the experiments and collected data; P.C. designed the experiments and drafted the article; Y.C., and Z.A. critically revised the article; X.C. given final approval of the version to be published.


This research was supported by National Science Foundation Committee of China (51773112), Program for Science & Technology Innovation Team of Shaanxi Province (2018TD-030), the Fundamental Research Funds for the Central Universities (GK201801001, GK201703030).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Fu, J.; Cano, Z.P.; Park, M.G.; Yu, A.; Fowler, M.; Chen, Z. Electrically rechargeable zinc-air batteries: Progress, challenges, and perspectives. Adv. Mater. 2017, 29, 1604685. [Google Scholar] [CrossRef] [PubMed]
  2. Tang, C.; Zhang, Q. Nanocarbon for oxygen reduction electrocatalysis: Dopants, edges, and defects. Adv. Mater. 2017, 29, 1604103. [Google Scholar] [CrossRef] [PubMed]
  3. Shao, M.; Chang, Q.; Dodelet, J.-P.; Chenitz, R. Recent advances in electrocatalysts for oxygen reduction reaction. Chem. Rev. 2016, 116, 3594–3657. [Google Scholar] [CrossRef] [PubMed]
  4. Pan, J.; Xu, Y.Y.; Yang, H.; Dong, Z.; Liu, H.; Xia, B.Y. Advanced architectures and relatives of air electrodes in Zn-air batteries. Adv. Sci. 2018, 5, 1700691:1–1700691:30. [Google Scholar] [CrossRef] [PubMed]
  5. Xu, H.; Yan, B.; Li, S.; Wang, J.; Wang, C.; Guo, J.; Du, Y. Facile construction of N-doped graphene supported hollow ptag nanodendrites as highly efficient electrocatalysts toward formic acid oxidation reaction. ACS Sustain. Chem. Eng. 2018, 6, 609–617. [Google Scholar] [CrossRef]
  6. Cheng, H.; Li, M.L.; Su, C.Y.; Li, N.; Liu, Z.Q. Cu-Co bimetallic oxide quantum dot decorated nitrogen-doped carbon nanotubes: A high-efficiency bifunctional oxygen electrode for Zn-air batteries. Adv. Funct. Mater. 2017, 27, 1701833. [Google Scholar] [CrossRef]
  7. Liu, X.; Amiinu Ibrahim, S.; Liu, S.; Pu, Z.; Li, W.; Ye, B.; Tan, D.; Mu, S. H2O2-assisted synthesis of porous N-doped graphene/molybdenum nitride composites with boosted oxygen reduction reaction. Adv. Mater. Interfaces 2017, 4, 1601227. [Google Scholar] [CrossRef]
  8. Su, C.Y.; Cheng, H.; Li, W.; Liu, Z.Q.; Li, N.; Hou, Z.; Bai, F.Q.; Zhang, H.X.; Ma, T.Y. Atomic modulation of FeCo-nitrogen-carbon bifunctional oxygen electrodes for rechargeable and flexible all-solid-state zinc-air battery. Adv. Energy Mater. 2017, 7, 1602420. [Google Scholar] [CrossRef]
  9. Cui, H.; Zhou, Z.; Jia, D. Heteroatom-doped graphene as electrocatalysts for air cathodes. Mater. Horiz. 2017, 4, 7–19. [Google Scholar] [CrossRef]
  10. Zhu, C.; Li, H.; Fu, S.; Du, D.; Lin, Y. Highly efficient nonprecious metal catalysts towards oxygen reduction reaction based on three-dimensional porous carbon nanostructures. Chem. Soc. Rev. 2016, 45, 517–531. [Google Scholar] [CrossRef] [PubMed]
  11. Lee Won, J.; Lim, J.; Kim Sang, O. Nitrogen dopants in carbon nanomaterials: Defects or a new opportunity? Small Methods 2016, 1, 1600014. [Google Scholar]
  12. Xiang, Z.; Cao, D.; Huang, L.; Shui, J.; Wang, M.; Dai, L. Nitrogen-doped holey graphitic carbon from 2D covalent organic polymers for oxygen reduction. Adv. Mater. 2014, 26, 3315–3320. [Google Scholar] [CrossRef] [PubMed]
  13. Yu, H.; Shang, L.; Bian, T.; Shi, R.; Waterhouse Geoffrey, I.N.; Zhao, Y.; Zhou, C.; Wu, L.Z.; Tung, C.H.; Zhang, T. Nitrogen-doped porous carbon nanosheets templated from g-C3N4 as metal-free electrocatalysts for efficient oxygen reduction reaction. Adv. Mater. 2016, 28, 5080–5086. [Google Scholar] [CrossRef] [PubMed]
  14. Chatterjee, K.; Ashokkumar, M.; Gullapalli, H.; Gong, Y.; Vajtai, R.; Thanikaivelan, P.; Ajayan, P.M. Nitrogen-rich carbon nano-onions for oxygen reduction reaction. Carbon 2018, 130, 645–651. [Google Scholar] [CrossRef]
  15. Geng, D.; Chen, Y.; Chen, Y.; Li, Y.; Li, R.; Sun, X.; Ye, S.; Knights, S. High oxygen-reduction activity and durability of nitrogen-doped graphene. Energy Environ. Sci. 2011, 4, 760–764. [Google Scholar] [CrossRef]
  16. Li, L.; Dai, P.; Gu, X.; Wang, Y.; Yan, L.; Zhao, X. High oxygen reduction activity on a metal-organic framework derived carbon combined with high degree of graphitization and pyridinic-N dopants. J Mater. Chem. A 2017, 5, 789–795. [Google Scholar] [CrossRef]
  17. Zhao, J.; Liu, Y.; Quan, X.; Chen, S.; Yu, H.; Zhao, H. Nitrogen-doped carbon with a high degree of graphitization derived from biomass as high-performance electrocatalyst for oxygen reduction reaction. Appl. Surf. Sci. 2017, 396, 986–993. [Google Scholar] [CrossRef]
  18. Zhan, Y.; Yu, X.; Cao, L.; Zhang, B.; Wu, X.; Xie, F.; Zhang, W.; Chen, J.; Xie, W.; Mai, W.; et al. The influence of nitrogen source and doping sequence on the electrocatalytic activity for oxygen reduction reaction of nitrogen doped carbon materials. Int. J. Hydrogen Energy 2016, 41, 13493–13503. [Google Scholar] [CrossRef]
  19. Higgins, D.; Chen, Z.; Chen, Z. Nitrogen doped carbon nanotubes synthesized from aliphatic diamines for oxygen reduction reaction. Electrochim. Acta 2011, 56, 1570–1575. [Google Scholar] [CrossRef]
  20. Lin, C.Y.; Zhang, D.; Zhao, Z.; Xia, Z. Covalent organic framework electrocatalysts for clean energy conversion. Adv. Mater. 2017, 30, 1703646. [Google Scholar] [CrossRef] [PubMed]
  21. Xu, Q.; Tang, Y.; Zhang, X.; Oshima, Y.; Chen, Q.; Jiang, D. Template conversion of covalent organic frameworks into 2d conducting nanocarbons for catalyzing oxygen reduction reaction. Adv. Mater. 2018, 30, 1706330. [Google Scholar] [CrossRef] [PubMed]
  22. Zhou, H.; Zhang, J.; Amiinu, I.S.; Zhang, C.; Liu, X.; Tu, W.; Pan, M.; Mu, S. Transforming waste biomass with an intrinsically porous network structure into porous nitrogen-doped graphene for highly efficient oxygen reduction. Phys. Chem. Chem. Phys. 2016, 18, 10392–10399. [Google Scholar] [CrossRef] [PubMed]
  23. Gao, S.; Li, X.; Li, L.; Wei, X. A versatile biomass derived carbon material for oxygen reduction reaction, supercapacitors and oil/water separation. Nano Energy 2017, 33, 334–342. [Google Scholar] [CrossRef]
  24. Zheng, X.; Cao, X.; Li, X.; Tian, J.; Jin, C.; Yang, R. Biomass lysine-derived nitrogen-doped carbon hollow cubes via a nacl crystal template: An efficient bifunctional electrocatalyst for oxygen reduction and evolution reactions. Nanoscale 2017, 9, 1059–1067. [Google Scholar] [CrossRef] [PubMed]
  25. Lin, G.; Ma, R.; Zhou, Y.; Liu, Q.; Dong, X.; Wang, J. Koh activation of biomass-derived nitrogen-doped carbons for supercapacitor and electrocatalytic oxygen reduction. Electrochim. Acta 2018, 261, 49–57. [Google Scholar] [CrossRef]
  26. Chen, W.; Yu, H.; Lee, S.-Y.; Wei, T.; Li, J.; Fan, Z. Nanocellulose: A promising nanomaterial for advanced electrochemical energy storage. Chem. Soc. Rev. 2018, 47, 2837–2872. [Google Scholar] [CrossRef] [PubMed]
  27. Wu, Z.-Y.; Liang, H.-W.; Chen, L.-F.; Hu, B.-C.; Yu, S.-H. Bacterial cellulose: A robust platform for design of three dimensional carbon-based functional nanomaterials. Acc. Chem. Res. 2016, 49, 96–105. [Google Scholar] [CrossRef] [PubMed]
  28. Liang, H.-W.; Wu, Z.-Y.; Chen, L.-F.; Li, C.; Yu, S.-H. Bacterial cellulose derived nitrogen-doped carbon nanofiber aerogel: An efficient metal-free oxygen reduction electrocatalyst for zinc-air battery. Nano Energy 2015, 11, 366–376. [Google Scholar] [CrossRef]
  29. Pei, Z.; Li, H.; Huang, Y.; Xue, Q.; Huang, Y.; Zhu, M.; Wang, Z.; Zhi, C. Texturing in situ: N,S-enriched hierarchically porous carbon as a highly active reversible oxygen electrocatalyst. Energy Environ. Sci. 2017, 10, 742–749. [Google Scholar] [CrossRef]
  30. Rafatullah, M.; Sulaiman, O.; Hashim, R.; Ahmad, A. Adsorption of methylene blue on low-cost adsorbents: A review. J. Hazard. Mater. 2010, 177, 70–80. [Google Scholar] [CrossRef] [PubMed]
  31. Wu, Z.-Y.; Liang, H.-W.; Li, C.; Hu, B.-C.; Xu, X.-X.; Wang, Q.; Chen, J.-F.; Yu, S.-H. Dyeing bacterial cellulose pellicles for energetic heteroatom doped carbon nanofiber aerogels. Nano Res. 2014, 7, 1861–1872. [Google Scholar] [CrossRef]
  32. Guo, D.; Shibuya, R.; Akiba, C.; Saji, S.; Kondo, T.; Nakamura, J. Active sites of nitrogen-doped carbon materials for oxygen reduction reaction clarified using model catalysts. Science 2016, 351, 361–365. [Google Scholar] [CrossRef] [PubMed]
  33. Tang, Z.; Wang, L.; Ma, Z. Triple sensitivity amplification for ultrasensitive electrochemical detection of prostate specific antigen. Biosens. Bioelectron. 2017, 92, 577–582. [Google Scholar] [CrossRef] [PubMed]
  34. Lv, X.; Zhang, P.; Li, M.; Guo, Z.; Zheng, X. Synthesis of polymethylene blue nanoparticles and their application to label-free DNA detection. Anal. Lett. 2016, 49, 2728–2740. [Google Scholar] [CrossRef]
  35. Li, X.; Zhong, M.; Sun, C.; Luo, Y. A novel bilayer film material composed of polyaniline and poly(methylene blue). Mater. Lett. 2005, 59, 3913–3916. [Google Scholar] [CrossRef]
  36. Shan, J.; Wang, L.; Ma, Z. Novel metal-organic nanocomposites: Poly(methylene blue)-Au and its application for an ultrasensitive electrochemical immunosensing platform. Sensor. Actuators B Chem. 2016, 237, 666–671. [Google Scholar] [CrossRef]
  37. Xiao, X.; Zhou, B.; Tan, L.; Tang, H.; Zhang, Y.; Xie, Q.; Yao, S. Poly(methylene blue) doped silica nanocomposites with crosslinked cage structure: Electropolymerization, characterization and catalytic activity for reduction of dissolved oxygen. Electrochim. Acta 2011, 56, 10055–10063. [Google Scholar] [CrossRef]
  38. Yang, S.; Li, G.; Zhao, J.; Zhu, H.; Qu, L. Electrochemical preparation of ag nanoparticles/poly(methylene blue) functionalized graphene nanocomposite film modified electrode for sensitive determination of rutin. J. Electroanal. Chem. 2014, 717–718, 225–230. [Google Scholar] [CrossRef]
  39. Rincón Rosalba, A.; Artyushkova, K.; Mojica, M.; Germain Marguerite, N.; Minteer Shelley, D.; Atanassov, P. Structure and electrochemical properties of electrocatalysts for nadh oxidation. Electroanalysis 2010, 22, 799–806. [Google Scholar] [CrossRef]
  40. Zheng, F.; Yang, Y.; Chen, Q. High lithium anodic performance of highly nitrogen-doped porous carbon prepared from a metal-organic framework. Nat. Commun. 2014, 5, 5261. [Google Scholar] [CrossRef] [PubMed][Green Version]
  41. Chen, L.-F.; Lu, Y.; Yu, L.; Lou, X.W. Designed formation of hollow particle-based nitrogen-doped carbon nanofibers for high-performance supercapacitors. Energy Environ. Sci. 2017, 10, 1777–1783. [Google Scholar] [CrossRef]
  42. Klingele, M.; Pham, C.; Vuyyuru, K.R.; Britton, B.; Holdcroft, S.; Fischer, A.; Thiele, S. Sulfur doped reduced graphene oxide as metal-free catalyst for the oxygen reduction reaction in anion and proton exchange fuel cells. Electrochem. Commun. 2017, 77, 71–75. [Google Scholar] [CrossRef]
  43. Li, Y.; Yang, J.; Huang, J.; Zhou, Y.; Xu, K.; Zhao, N.; Cheng, X. Soft template-assisted method for synthesis of nitrogen and sulfur co-doped three-dimensional reduced graphene oxide as an efficient metal free catalyst for oxygen reduction reaction. Carbon 2017, 122, 237–246. [Google Scholar] [CrossRef]
  44. Chan, C.H.; Chia, C.H.; Zakaria, S.; Sajab, M.S.; Chin, S.X. Cellulose nanofibrils: a rapid adsorbent for the removal of methylene blue. RSC Adv. 2015, 5, 18204–18212. [Google Scholar] [CrossRef]
  45. Wu, M.; Liu, Y.; Zhu, Y.; Lin, J.; Liu, J.; Hu, H.; Wang, Y.; Zhao, Q.; Lv, R.; Qiu, J. Supramolecular polymerization-assisted synthesis of nitrogen and sulfur dual-doped porous graphene networks from petroleum coke as efficient metal-free electrocatalysts for the oxygen reduction reaction. J. Mater. Chem. A 2017, 5, 11331–11339. [Google Scholar] [CrossRef]
  46. Xu, L.; Fan, H.; Huang, L.; Xia, J.; Li, S.; Li, M.; Ding, H.; Huang, K. Chrysanthemum-derived n and s co-doped porous carbon for efficient oxygen reduction reaction and aluminum-air battery. Electrochim. Acta 2017, 239, 1–9. [Google Scholar] [CrossRef]
  47. Yang, S.; Mao, X.; Cao, Z.; Yin, Y.; Wang, Z.; Shi, M.; Dong, H. Onion-derived n, s self-doped carbon materials as highly efficient metal-free electrocatalysts for the oxygen reduction reaction. Appl. Surf. Sci. 2018, 427, 626–634. [Google Scholar] [CrossRef]
  48. You, C.; Jiang, X.; Han, L.; Wang, X.; Lin, Q.; Hua, Y.; Wang, C.; Liu, X.; Liao, S. Uniform nitrogen and sulphur co-doped hollow carbon nanospheres as efficient metal-free electrocatalysts for oxygen reduction. J. Mater. Chem. A 2017, 5, 1742–1748. [Google Scholar] [CrossRef]
  49. Jiang, T.; Wang, Y.; Wang, K.; Liang, Y.; Wu, D.; Tsiakaras, P.; Song, S. A novel sulfur-nitrogen dual doped ordered mesoporous carbon electrocatalyst for efficient oxygen reduction reaction. Appl. Catal. B-Environ. 2016, 189, 1–11. [Google Scholar] [CrossRef]
  50. Su, Y.; Yao, Z.; Zhang, F.; Wang, H.; Mics, Z.; Cánovas, E.; Bonn, M.; Zhuang, X.; Feng, X. Sulfur-enriched conjugated polymer nanosheet derived sulfur and nitrogen co-doped porous carbon nanosheets as electrocatalysts for oxygen reduction reaction and zinc-air battery. Adv. Funct. Mater. 2016, 26, 5893–5902. [Google Scholar] [CrossRef]
  51. Wu, Z.; Liu, R.; Wang, J.; Zhu, J.; Xiao, W.; Xuan, C.; Lei, W.; Wang, D. Nitrogen and sulfur co-doping of 3D hollow-structured carbon spheres as an efficient and stable metal free catalyst for the oxygen reduction reaction. Nanoscale 2016, 8, 19086–19092. [Google Scholar] [CrossRef] [PubMed]
  52. Pan, F.; Duan, Y.; Zhang, X.; Zhang, J. A facile synthesis of nitrogen/sulfur co-doped graphene for the oxygen reduction reaction. ChemCatChem 2015, 8, 163–170. [Google Scholar] [CrossRef]
  53. Qu, K.; Zheng, Y.; Dai, S.; Qiao, S.Z. Graphene oxide-polydopamine derived n, s-codoped carbon nanosheets as superior bifunctional electrocatalysts for oxygen reduction and evolution. Nano Energy 2016, 19, 373–381. [Google Scholar] [CrossRef]
  54. Zehtab Yazdi, A.; Roberts, E.P.L.; Sundararaj, U. Nitrogen/sulfur co-doped helical graphene nanoribbons for efficient oxygen reduction in alkaline and acidic electrolytes. Carbon 2016, 100, 99–108. [Google Scholar] [CrossRef]

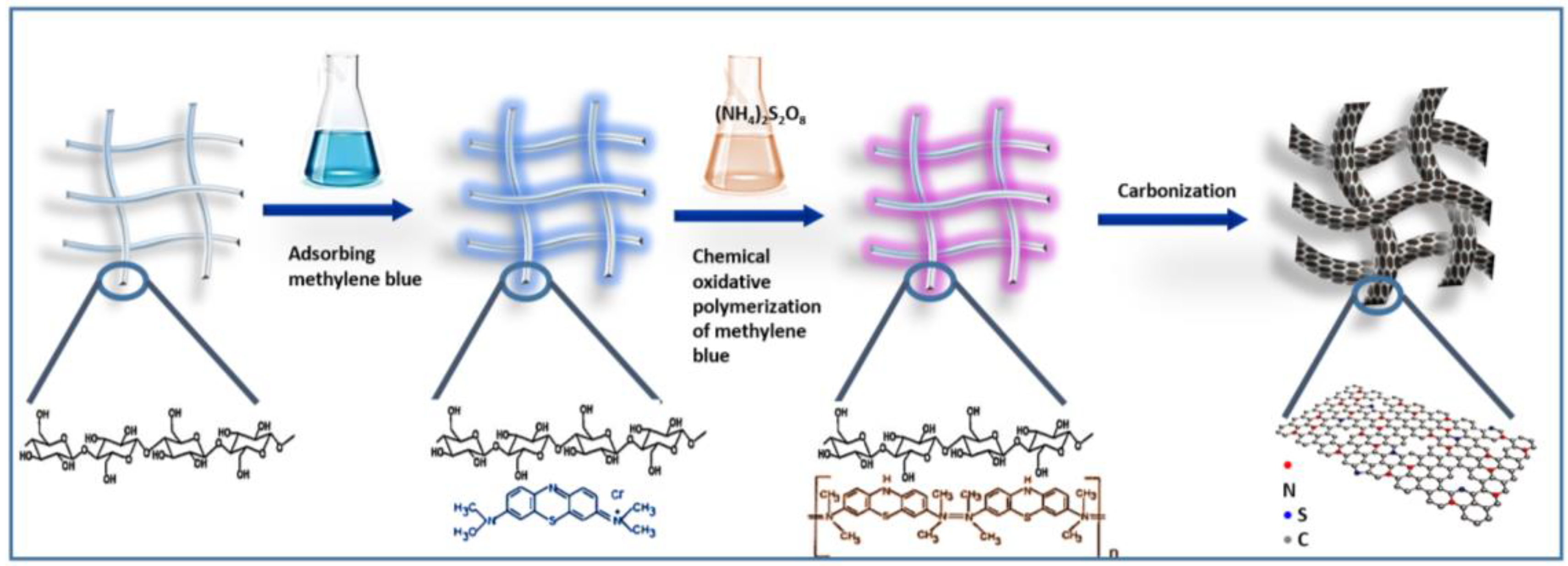

Figure 1. Synthetic procedure of the N/S-CNF.
Figure 1. Synthetic procedure of the N/S-CNF.
Catalysts 08 00269 g001

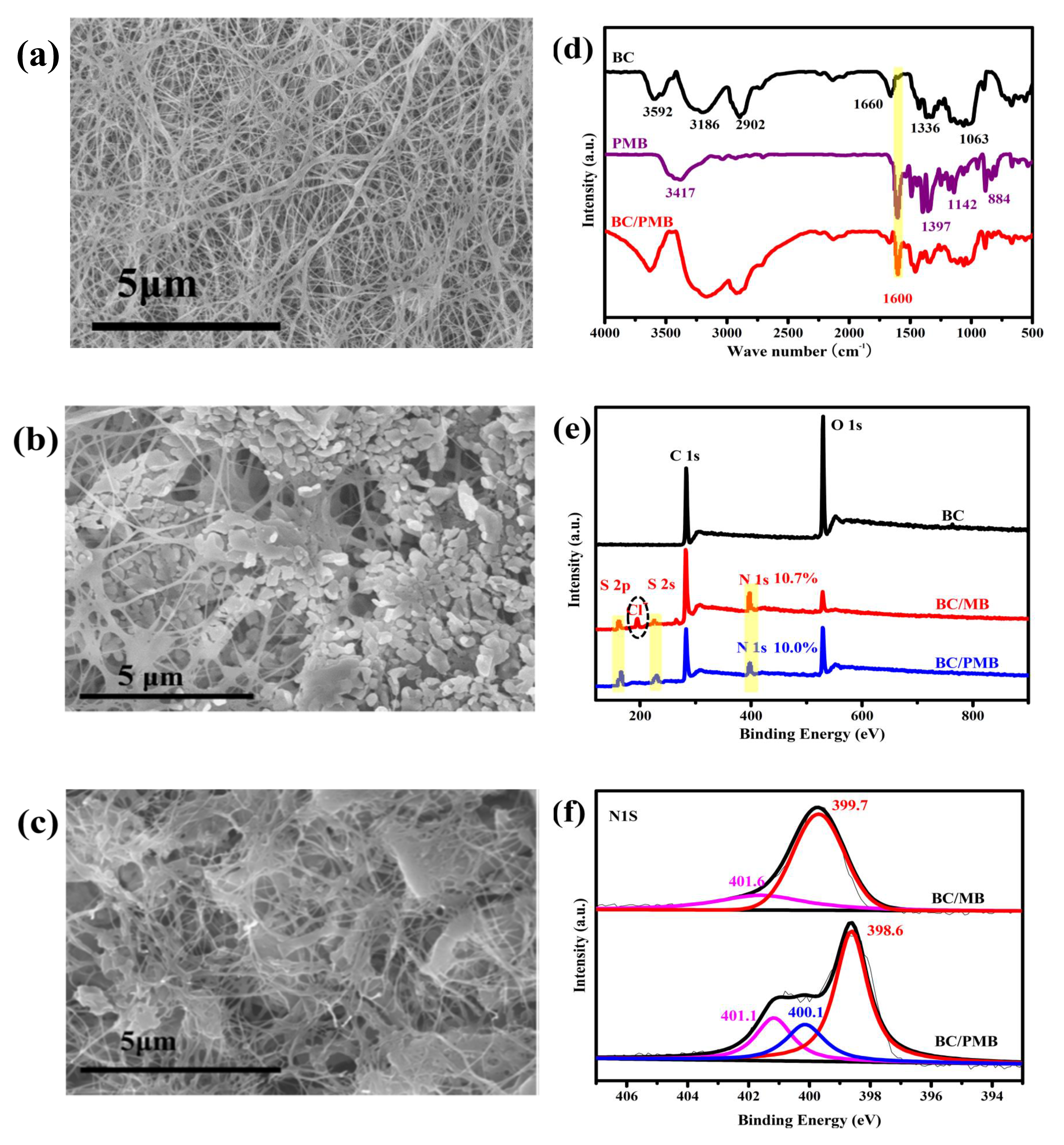

Figure 2. SEM images of (a) BC, (b) BC/MB and (c) BC/PMB; (d) FTIR spectra of BC, PMB and BC/PMB; (e) XPS survey spectra of BC, BC/MB and BC/PMB; and (f) fine XPS spectra of N1S for the BC/MB and BC/PMB.
Figure 2. SEM images of (a) BC, (b) BC/MB and (c) BC/PMB; (d) FTIR spectra of BC, PMB and BC/PMB; (e) XPS survey spectra of BC, BC/MB and BC/PMB; and (f) fine XPS spectra of N1S for the BC/MB and BC/PMB.
Catalysts 08 00269 g002

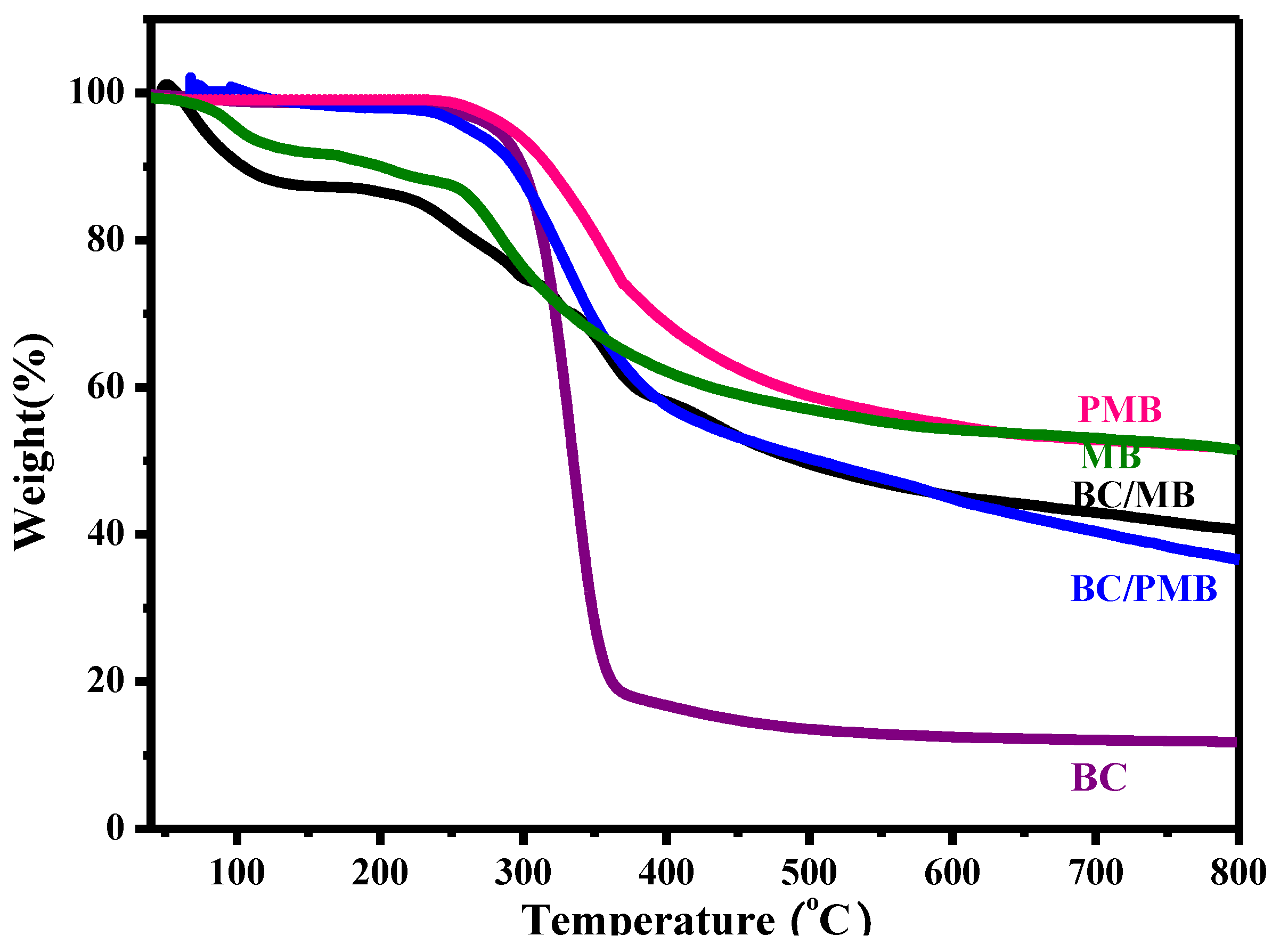

Figure 3. TG curves of the PMB, MB, BC, BC/MB and BC/PMB.
Figure 3. TG curves of the PMB, MB, BC, BC/MB and BC/PMB.
Catalysts 08 00269 g003
Figure 4. SEM and TEM images of the (a,d) C-BC; (b,e) C-BC/MB and (c,f) N/S-CNF; and the element maps (gi) of N,S-CNF. The insets in (b,c) are EDS data.
Figure 4. SEM and TEM images of the (a,d) C-BC; (b,e) C-BC/MB and (c,f) N/S-CNF; and the element maps (gi) of N,S-CNF. The insets in (b,c) are EDS data.
Catalysts 08 00269 g004

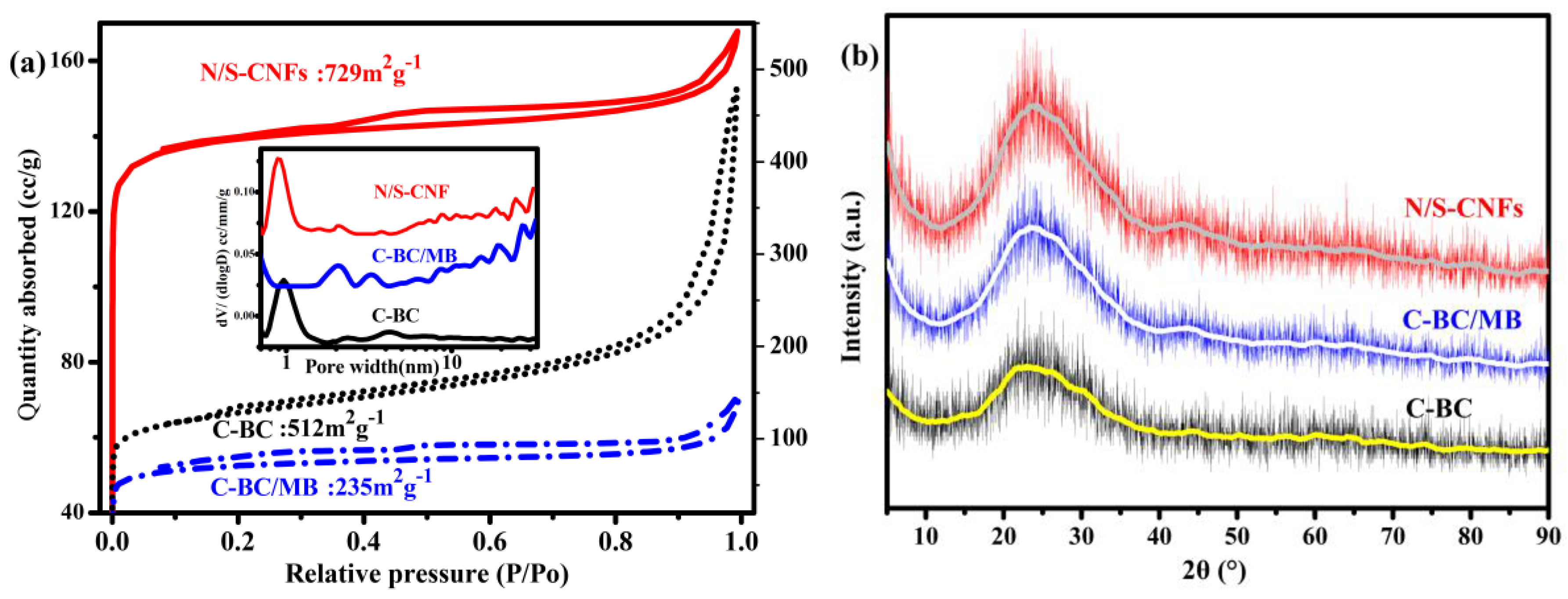

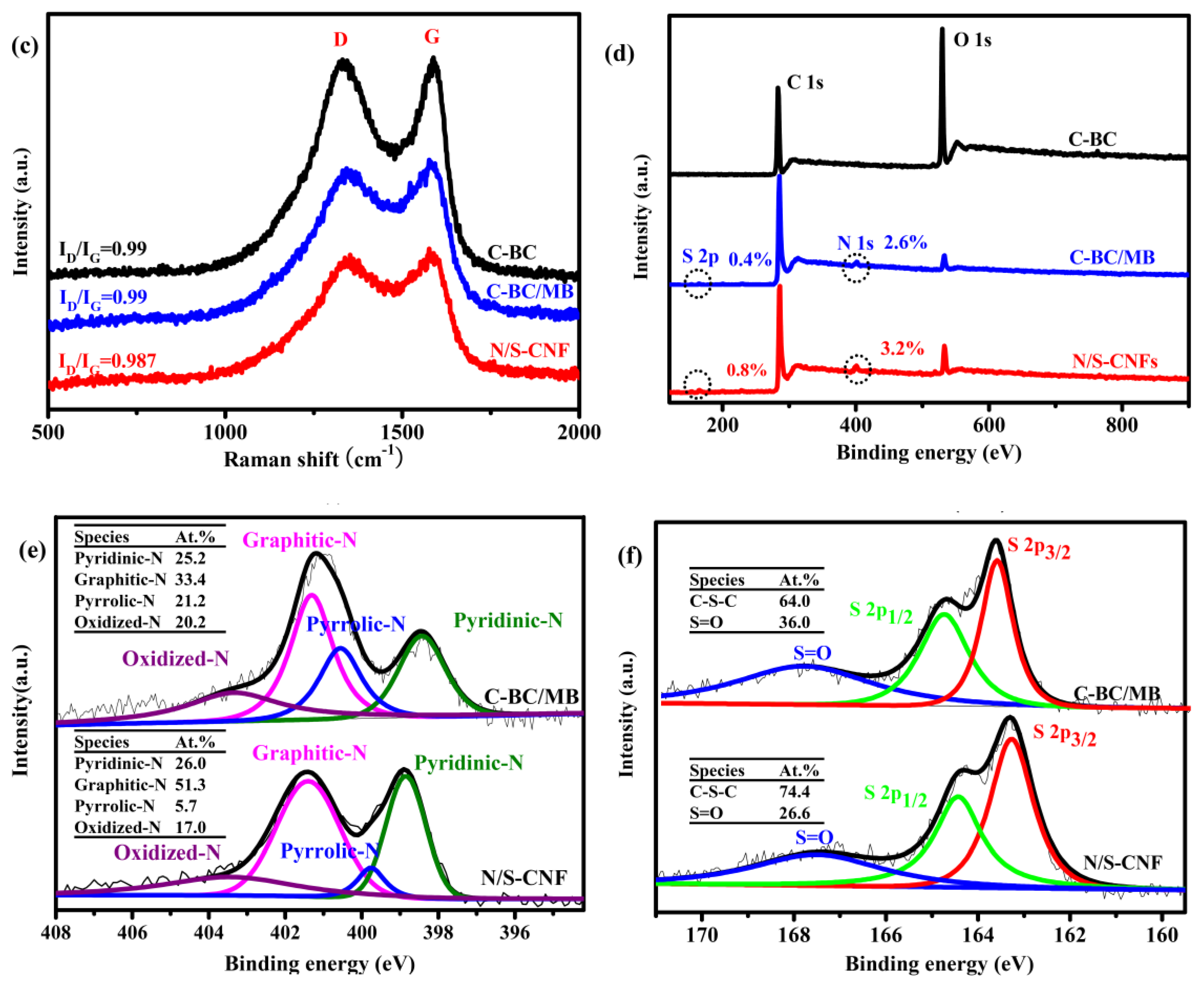

Figure 5. (a) N2 adsorption-desorption isotherms and the inset is the pore size distribution curve; (b) XRD patterns; (c) Raman spectra and (d) XPS full spectra of C-BC, C-BC/MB and N/S-CNF; (e) N1s and (f) S2p fine XPS spectra of C-BC/MB and N/S-CNF.
Figure 5. (a) N2 adsorption-desorption isotherms and the inset is the pore size distribution curve; (b) XRD patterns; (c) Raman spectra and (d) XPS full spectra of C-BC, C-BC/MB and N/S-CNF; (e) N1s and (f) S2p fine XPS spectra of C-BC/MB and N/S-CNF.
Catalysts 08 00269 g005aCatalysts 08 00269 g005b

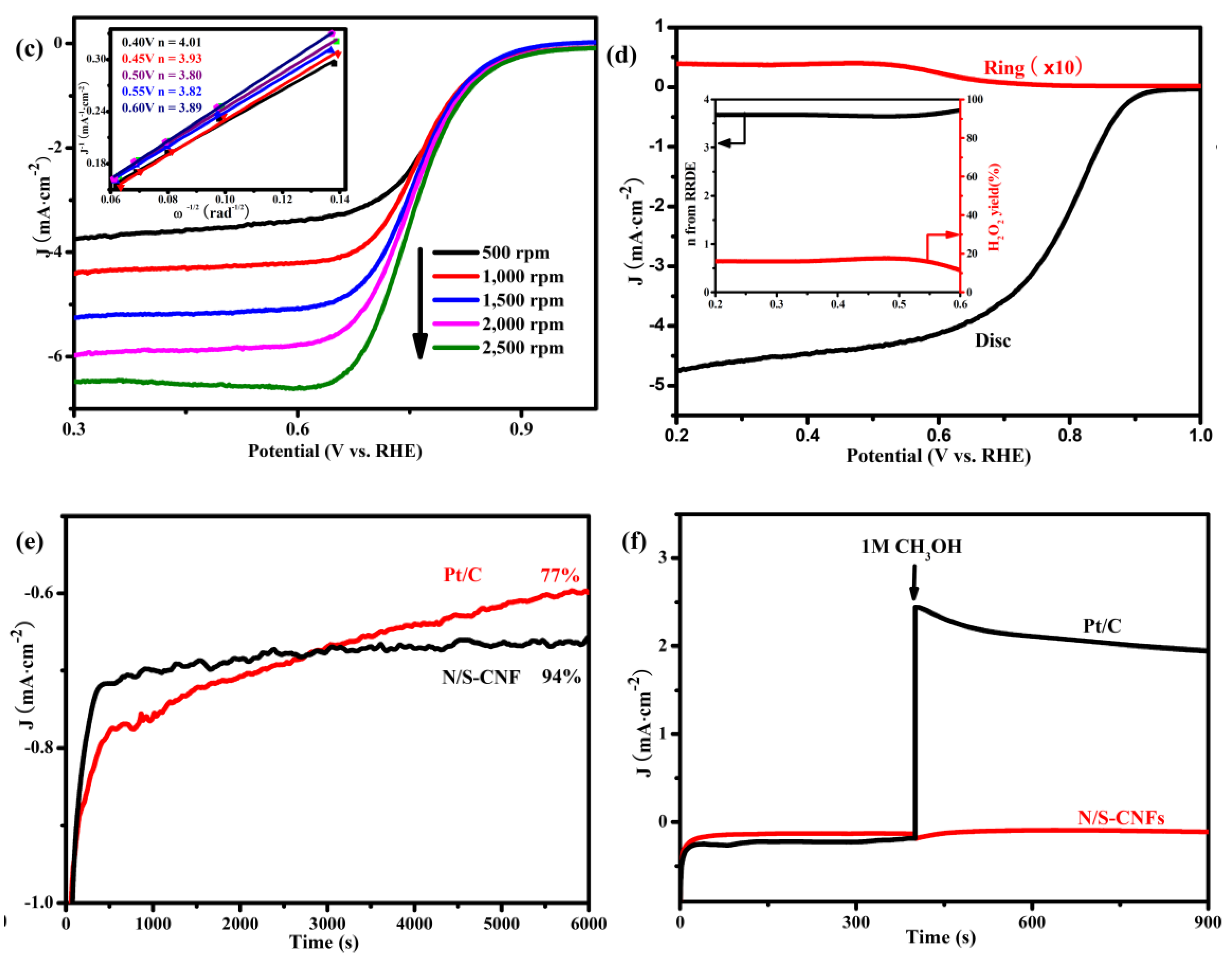

Figure 6. (a) CV curves of the N/S-CNF in N2/O2-saturated 0.1 M KOH solution at scan rate of 50 mV s−1; (b) ORR polarization curves of the C-BC, C-BC/MB, N/S-CNF and Pt/C electrocatalysts at scan rate of 10 mV·s−1 and a rotation rate of 1600 rpm; (c) LSV curves of N/S-CNF at different rotation rates, and the inset is the corresponding Koutecky–Levich plots; (d) RRDE measurements for N/S-CNF electrode; chronoamperometry curves of the N/S-CNF and Pt/C obtained at 0.75 V for (e) the stability test; and (f) methanol tolerance test before and after adding 1 M methanol. (bf) were obtained in O2-saturated 1 M KOH solution.
