Catalysts 2018, 8(4), 158; https://doi.org/10.3390/catal8040158

Article
Binary Nitrogen Precursor-Derived Porous Fe-N-S/C Catalyst for Efficient Oxygen Reduction Reaction in a Zn-Air Battery
1
Shanghai Advanced Research Institute, Chinese Academy of Sciences, Shanghai 201210, China
2
University of the Chinese Academy of Sciences, Beijing 100039, China
*
Authors to whom correspondence should be addressed.
Received: 2 March 2018 / Accepted: 19 March 2018 / Published: 13 April 2018

Abstract

:
It is still a challenge to synthesize non-precious-metal catalysts with high activity and stability for the oxygen reduction reaction (ORR) to replace the state-of-the art Pt/C catalyst. Herein, a Fe, N, S co-doped porous carbon (Fe-NS/PC) is developed by using g-C3N4 and 2,4,6-tri(2-pyridyl)-1,3,5-triazine (TPTZ) as binary nitrogen precursors. The interaction of binary nitrogen precursors not only leads to the formation of more micropores, but also increases the doping amount of both iron and nitrogen dispersed in the carbon matrix. After a second heat-treatment, the best Fe/NS/C-g-C3N4/TPTZ-1000 catalyst exhibits excellent ORR performance with an onset potential of 1.0 V vs. reversible hydrogen electrode (RHE) and a half-wave potential of 0.868 V (RHE) in alkaline medium. The long-term durability is even superior to the commercial Pt/C catalyst. In the meantime, an assembled Zn-air battery with Fe/NS/C-g-C3N4/TPTZ-1000 as the cathode shows a maximal power density of 225 mW·cm−2 and excellent durability, demonstrating the great potential of practical applications in energy conversion devices.
Keywords:
non-precious metal catalyst; oxygen reduction reaction; binary nitrogen precursors; g-C3N4; 2,4,6-tri(2-pyridyl)-1,3,5-triazine

1. Introduction

The oxygen reduction reaction (ORR) plays an important role in the energy efficiency of polymer electrolyte membrane fuel cells (PEMFCs) and metal-air batteries (MABs). So far, platinum (Pt)-based materials are still the most effective catalysts for the ORR due to its sluggish kinetics. However, the high price and scarcity of Pt severely hinder the large-scale applications of PEMFCs and MABs. Therefore, extensive efforts have been devoted to develop low-cost and earth-abundant non-precious metal catalysts with efficient ORR performance. The transition metal (M=Fe, Co, etc.) and nitrogen co-doped carbon materials (M-N-C), such as graphene [1,2], nanotube [3,4], and porous carbon [5,6], have shown great progress in ORR electrocatalysis, especially for Fe-N-C materials, which have been considered as the most promising catalysts for substituting the expensive Pt catalysts [7,8,9].
The excellent ORR activity usually depends on two main factors, namely, the high intrinsic activity of single sites and high density of active sites. Therefore, the M-N-C electrocatalysts for efficient ORR require high heteroatom doping contents, high surface area, porous structure, and good conductivity [10,11,12]. Heteroatom doping is an effective method to tailor the electronic structure of electroneutral carbon matrix, which would facilitate the adsorption of O2. High surface area and porous structure are beneficial to increase the number of accessible active sites and facilitate the mass transport of the ORR relevant species approaching the internal active sites of catalysts [13,14]. Heat-treatment at high temperature is a vital process to form the ORR active centers, therefore, the precursors should be chosen carefully. Recently, the use of binary nitrogen precursors has been developed as an effective synthetic strategy to improve the porosity and heteroatoms doping contents, hence to improve the ORR activity. Wu et al. [15] synthesized a Fe-N-C catalyst derived from polyaniline (PANI) and dicyandiamide (DCDA) as binary nitrogen precursors, which possessed higher ORR activity than the individual PANI or DCDA-derived ones. The superior ORR activity can be ascribed to the increased content of pyridinic nitrogen doped into the carbon matrix. The combination of PANI and DCDA could enhance the porosity and increase the surface area, thanks to the different decomposition temperatures. Chen et al. [16] synthesized a class of Fe-N-C catalysts with 3D nanoporous structure using phenanthroline (Phen) and PANI as dual nitrogen sources. The Phen played the role of pore-creating agent due to its lower thermostability. A similar strategy was also reported by Zelenay et al. [17]. Moreover, it has been proved that the additional doping of S atoms in the Fe-N-C catalyst will remarkably enhance the ORR activity [18]. However, although the development of non-precious metal catalysts has achieved great progress, the application of these materials in practical devices, such as PEMFCs and MABs, is still far from satisfactory, especially for the long-term stability [19].
In this work, we have developed a facile method to synthesize Fe, N, S co-doped porous carbon materials (Fe-NS/PC) as efficient ORR catalysts with g-C3N4 and 2,4,6-tri(2-pyridyl)-1,3,5-triazine (TPTZ) as binary nitrogen precursors. The TPTZ is able to coordinate with Fe3+ [20], which could contribute to the uniformly-dispersed metal-containing species located at the N-doped carbon skeleton [21,22]. The addition of g-C3N4 sheets could inhibit the sintering of TPTZ during carbonization. The interaction of g-C3N4 and TPTZ is beneficial to increase the doping amount of iron and nitrogen, and to facilitate the mass transfer of ORR relevant species. As a result, the binary nitrogen precursor-derived Fe-NS/PC catalyst exhibited better ORR performance than the single nitrogen precursor-derived ones. After second heat treatment, the Fe/NS/C-g-C3N4/TPTZ catalyst shows enhanced activity and long-term durability. The best ORR activity of Fe/NS/C-g-C3N4/TPTZ-1000 is even superior to that of the state-of-the art Pt/C catalyst. A Zn-air battery with the Fe/NS/C-g-C3N4/TPTZ-1000 cathode exhibits a maximal power density of 225 mW·cm−2 at room temperature and superior stability with only 4.03% loss of output voltage at a current density of 20 mA·cm−2 after 20,000 s.

2. Results and Discussion

Figure 1a–c show the scanning electron microscope (SEM) images of the as-synthesized Fe-NS/PC catalysts using g-C3N4 and TPTZ separated as single nitrogen precursor and together as binary nitrogen precursors, denoted as Fe/NS/C-g-C3N4, Fe/NS/C-TPTZ, and Fe/NS/C-g-C3N4/TPTZ, respectively. The Fe/NS/C-g-C3N4 has a fluffy morphology with high porosity (Figure 1a). By contrast, Fe/NS/C-TPTZ shows a denser morphology (Figure 1b), probably because of the collapse of the carbon skeleton during heat-treatment. Through the combination of both g-C3N4 and TPTZ with various thermal stability (Figure S1), the Fe/NS/C-g-C3N4/TPTZ preserves the fluffy morphology (Figure 1c), probably due to the fact that the mixed g-C3N4 sheets prevent the sintering of TPTZ.
The effects of N precursors on BET surface areas and pore structures were studied by N2 adsorption-desorption isotherms. As can be seen in Figure 1d,f, the Fe/NS/C-g-C3N4 exhibits a highest BET surface area of 928 m2/g, the most of which are external surface area. The micropore area is only 82 m2/g. The Fe/NS/C-TPTZ shows a slightly lower BET surface area of 849 m2/g, but a much larger micropore area of 317 m2/g. However, the amounts of mesopores and macropores are relatively few (Figure 1e), which are consistent with the dense structure displayed by SEM image (Figure 1b). After the combination of g-C3N4 and TPTZ, although the BET surface area slightly decreases (759 m2/g), the Fe/NS/C-g-C3N4/TPTZ catalyst integrates the micropores of Fe/NS/C-TPTZ and the fluffy structure of Fe/NS/C-g-C3N4 (Figure 1f), which might facilitate the mass transfer and the ORR catalytic activity [23,24].
X-ray diffraction (XRD) was carried out to characterize the crystal structure of the Fe-NS/PC catalysts. According to the XRD patterns in Figure 1g, the Fe/NS/C-TPTZ exhibits two main diffraction peaks at around 25.5° and 43°, associated to the (002) and (100) planes of graphitic carbon, respectively. The (002) diffraction peak of the Fe/NS/C-g-C3N4 shifts to a higher angle of 29.8°, which can be associated with the carbon nitride (PDF-#78-1747). Noteworthy, the binary nitrogen precursor-derived Fe/NS/C-g-C3N4/TPTZ displays a broad peak at around 25.8° corresponding to the (002) diffraction of graphitic carbon, and a weak swell at 29.8° corresponding to the carbon nitride, which clearly indicates the interaction between two nitrogen precursors during pyrolysis. No other diffraction peaks can be observed, demonstrating the absence of any other Fe-containing crystalline phases.
X-ray photoelectron spectroscopy (XPS) was implemented to investigate the states of each component within the Fe-NS/PC catalysts. The survey XPS spectra (Figure 2a) reveal that the main elements of Fe-NS/PC catalysts consist of Fe, N, C, O, and S. The elemental compositions are summarized in Table S1. Figure 2b–d display the high resolution N 1s spectra of the three Fe-NS/PC catalysts. All the spectra can be deconvoluted into four peaks corresponding to pyridinic N (N1, 398.1–398.7 eV), pyrrolic N (N2, 399.78–400.7 eV), graphitic N (N3, 400.99–401.3 eV), and oxidized N (N4, 402–404.27 eV) [25,26], respectively. Previous reports have demonstrated that both pyridinic N and graphitic N may participate the oxygen reduction reaction [27,28,29]. These two N species (N1 + N3) account for 4.03 at% of all the elements in Fe/NS/C-g-C3N4/TPTZ, remarkably higher than that of Fe/NS/C-g-C3N4 (1.88%) and Fe/NS/C-TPTZ (3.46%), as shown in Table S1. Notably, the contents of Fe and N in Fe/NS/C-g-C3N4/TPTZ are 0.29 at% and 6.67 at%, respectively, both of which are the highest among the three catalysts. In addition, the co-doping of S element in Fe-N-C catalysts would further improve the ORR activity, probably due to the structural defects and electron distribution induced by S atoms [30,31]. Based on the consideration of the high heteroatoms doping contents combined with the porous structure, the high ORR activity could be expected for the Fe/NS/C-g-C3N4/TPTZ catalyst.
The ORR activity of the Fe-NS/PC catalysts were evaluated by rotating disk electrode (RDE) test in O2-saturated 0.1 M KOH solution. As displayed in Figure 3, the Fe/NS/C-g-C3N4/TPTZ catalyst exhibits the best ORR activity with an onset (E0) and half-wave (E1/2) potential of 0.95 V and 0.853 V (RHE), respectively, higher than that of Fe/NS/C-g-C3N4 catalyst (E0 = 0.946 V and E1/2 = 0.843 V). By sharp contrast, the Fe/NS/C-TPTZ shows inferior ORR activity with E0 = 0.917 V (RHE) and much smaller diffusion-limited current, probably due to the agglomerations of sintered carbon that are difficult to disperse obstruct the transfer of ORR-related species, in spite of the high BET surface area. The presence of g-C3N4 in dual nitrogen precursors might avoid the sintering of TPTZ, meanwhile maintain the fluffy structure and increase the Fe, N doping content, thus resulting in the full exposure of active sites, which could be responsible for the high ORR activity of the Fe/NS/C-g-C3N4/TPTZ catalyst.
To further improve the ORR performance, a secondary heat treatment was conducted to the best Fe/NS/C-g-C3N4/TPTZ catalyst at the range of 800–1000 °C, denoted as Fe/NS/C-g-C3N4/TPTZ-T (T = 800, 900, 1000). Figure 4a–h present the transmission electron microscope (TEM) images of Fe/NS/C-g-C3N4/TPTZ, and Fe/NS/C-g-C3N4/TPTZ-T (T = 800, 900, 1000) at diversed magnifications. All these samples show the morphological characteristics of agglomerations of amorphous carbon nanoparticles with the diameter of 20–50 nm. No crystalline iron-containing nanoparticles can be observed for all three catalysts, indicating no agglomerations of iron formed during the second heat treatment. The energy dispersive X-ray spectroscopy (EDX) mapping analysis of Fe/NS/C-g-C3N4/TPTZ-1000 was also carried out to observe the elemental distributions. As can be seen in Figure 4i, the TEM image and the corresponding elemental mapping reveal that all doping heteroatoms, which are regarded as the components of the ORR active sites, are uniformly distributed throughout the carbon matrix, leading to the full exposure of the active sites to the ORR related species.
After a second heat treatment at different temperatures, all three Fe/NS/C-g-C3N4/TPTZ-T (T = 800, 900, 1000) catalysts show two main diffraction peaks at around 29.8° and 43° (Figure 5a), similar to Fe/NS/C-g-C3N4. There are no other diffraction peaks appear, further demonstrating the absence of crystalline iron-containing phases, which is consistent with the TEM results (Figure 4). Figure 5b displays the N2 adsorption-desorption isotherms of the Fe/NS/C-g-C3N4/TPTZ-T (T = 800, 900, 1000) catalysts. The BET suface areas of Fe/NS/C-g-C3N4/TPTZ-800, Fe/NS/C-g-C3N4/TPTZ-900, and Fe/NS/C-g-C3N4/TPTZ-1000 are 876.8 m2 g−1, 1026.4 m2 g−1, 1138.9 m2 g−1, respectively. The pore size distributions of the Fe/NS/C-g-C3N4/TPTZ-T (T = 800, 900, 1000) indicate that the three catalysts all possess a good porous structure (Figure 5c).
The XPS survey spectra of Fe/NS/C-g-C3N4/TPTZ and Fe/NS/C-g-C3N4/TPTZ-T (T = 800, 900, 1000) were collected to measure the elemental compositions, as shown in Figure 6a and Table S2. The contents of doped Fe and N elements reduce along with the secondary heat treatment temperature elevates. The N doping contents of Fe/NS/C-g-C3N4/TPTZ-T (T = 800, 900, 1000) are 4.48%, 2.57%, and 1.40%, respectively, all lower than that of Fe/NS/C-g-C3N4/TPTZ, due to the formation of gaseous N-containing phases. The deconvoluted high-resolution N 1s spectra reveal that the pyridinic N and graphitic N predominate in all three catalysts, as shown in Figure 6b–d and summarized in Table S2. The high-resolution S 2p spectrum of Fe/NS/C-g-C3N4/TPTZ-1000 can be deconvoluted into three peaks, as shown in Figure 6e. The two peaks at 164.0 and 165.2 eV can be described to S 2p3/2 and S 2p1/2 of thiophene-like C-S-C structure, respectively [32,33], while the third peak at 167.3 eV corresponds to sulfate species. The synergetic effects of N, S co-doping would significantly improve the ORR activity by reducing the electron localization around the Fe centers, and improve the interaction with oxygen, facilitating the four-electron pathway [34]. The high-resolution Fe 2p spectrum of Fe/NS/C-g-C3N4/TPTZ-1000 presents two major peaks at around 711 and 724 eV, corresponding to Fe 2p1/2 and Fe 2p3/2, respectively (Figure 6f) [15,35]. The dominant peak at 711 eV can be assigned to Fe3+ or Fe2+ coordinated with N, which are suggested to be the ORR active centers [15,36]. The peak at 718.5 eV is a satellite peak indicating the co-existence of Fe3+ and Fe2+ in the Fe/NS/C-g-C3N4/TPTZ-1000 [35].
The ORR activities of Fe/NS/C-g-C3N4/TPTZ-T (T = 800, 900, 1000) catalysts were measured in O2-saturated 0.1 M KOH solution. For a comparison, commercial Pt/C (20 wt %) catalyst was also evaluated. As displayed in Figure 7a, after secondary heat treatment, the ORR activity of the Fe/NS/C-g-C3N4/TPTZ is further improved. Fe/NS/C-g-C3N4/TPTZ-800 and Fe/NS/C-g-C3N4/TPTZ-900 exhibit similar activity with the half-wave potential (E1/2) of 0.863 V and 0.864 V (RHE), respectively. The best ORR activity is achieved at Fe/NS/C-g-C3N4/TPTZ-1000 with the onset and half-wave potential of 1.0 V and 0.868 V (RHE), respectively, higher than that of Pt/C catalyst (E0 = 0.97 V, E1/2 = 0.841 V). To evaluate the intrinsic catalytic activity, the mass activity (jm) was calculated based on the Koutecky-Levich equation (Table S3). The Fe/NS/C-g-C3N4/TPTZ-1000 catalyst shows the best mass activity of 5.73 A g−1 at 0.9 V, reaching up to 48.8% of that of Pt/C (11.73 A g−1).
To explore the origin of the high ORR activity, we have probed the possible role of Fe and S within the Fe-NS/PC catalysts. As shown in Figure S2, Fe/N/C-g-C3N4/TPTZ-1000 without sulfur doping exhibits lower onset and half-wave potentials for the ORR than Fe/NS/C-g-C3N4/TPTZ-1000, indicating the promoting effects of sulfur co-doping. By sharp comparison, the NS/C-g-C3N4/TPTZ-1000 without Fe doping presents inferior activity, with the half-wave potential 64 mV lower than that of Fe/NS/C-g-C3N4/TPTZ-1000. These results definitely reflect the indispensable roles of Fe and S doping in Fe-NS/PC for high ORR activity. It is well known that SCN can strongly coordinate with Fe atoms. As shown in Figure S3, the Fe/NS/C-g-C3N4/TPTZ-1000 catalyst shows obvious ORR activity degradation after injecting 5 mM SCN, the remaining ORR activity probably results from the N, S co-doped carbon materials. Interestingly, the ORR activity of the Fe/NS/C-g-C3N4/TPTZ-1000 can almost recover after rinsing and replacing with fresh electrolyte, indicating that Fe atoms are at least part of the ORR active sites.
Figure 7b shows the hydrogen peroxide yield (H2O2 %) and the electron transfer number (n) of Fe/NS/C-g-C3N4/TPTZ-1000 calculated from disk current (Id) and ring current (Ir) obtained by rotating ring-disk electrode (RRDE) test. The H2O2 yield is lower than 1.0% over the whole potential range. The corresponding electron transfer number is calculated to be larger than 3.975. Notably, the H2O2 starts to generate at the potential lower than 0.8 V, where the ORR polarization curve has reached the diffusion-limited current. These results indicate a direct four-electron pathway of ORR on the Fe/NS/C-g-C3N4/TPTZ-1000. The Tafel plots of Fe/NS/C-g-C3N4/TPTZ-1000 depicted in Figure 7c show the Tafel slope of 68 mV dec−1, closed to that of Pt/C catalyst (73 mV dec−1).
An accelerated durability test (ADT) was carried out to assess the durability of Fe/NS/C-g-C3N4/TPTZ-1000 catalyst by potential-cycling between 0.6 and 1.1 V at a scan rate of 50 mV s−1 in O2-saturated 0.1 M KOH. As shown in Figure 7d, after 10,000 cycles, the E1/2 of Fe/NS/C-g-C3N4/TPTZ-1000 slightly decreases by 12 mV, demonstrating the superior durability of the Fe/NS/C-g-C3N4/TPTZ-1000 catalyst, due to the robust structure of Fe and N anchored in carbon matrix and the low yield of corrosive H2O2. In sharp contrast, the E1/2 of Pt/C remarkably decreases by 35 mV after only 5000 cycles. The insufficient durability of the Pt/C might suffer from the aggregation of Pt nanoparticles.
To further evaluate the potential for practical application, the Fe/NS/C-g-C3N4/TPTZ-1000 was assembled into a homemade primary Zn-air battery as cathode catalyst. Figure 8a presents the polarization curves of Zn-air batteries with Fe/NS/C-g-C3N4/TPTZ-1000 and Pt/C as cathodes, respectively. The Zn-air battery with Fe/NS/C-g-C3N4/TPTZ-1000 catalyst exhibits an open-circuit voltage (OCV) of 1.385 V and a maximal power density of 225 mW cm−2 at a temperature of ca. 25 °C, which is quite comparable to that of Pt/C with the OCV of 1.411 V and the maximal power density of 246 mW cm−2. This performance outperforms the most of Zn-Air batteries utilizing analogous Fe-N-C cathode reported so far [37,38,39,40]. In the meantime, the long-term stability of a Zn-air battery with Fe/NS/C-g-C3N4/TPTZ-1000 was also tested by recording the galvanostatic discharge curves. As presented in Figure 8b, the Zn-Air battery with Fe/NS/C-g-C3N4/TPTZ-1000 catalyst only presents a voltage loss of 4.03% after 20,000 s at a current density of 20 mA cm−2. For the Pt/C, the output voltage loss reaches 8.17% under the same conditions, demonstrating the improved durability of the Fe/NS/C-g-C3N4/TPTZ-1000. The slight fluctuation may due to the disturbance of testing circumstance such as humidity, which cannot be completely avoided. These results suggest that the as-prepared Fe/NS/C-g-C3N4/TPTZ-1000 catalyst has great potential to replace the precious metal catalysts in practical application of Zn-air battery.

3. Experimental Section

3.1. Preparation of g-C3N4 Nanosheets

Bulk g-C3N4 powder was synthesized according to a procedure described in a previous paper [41]. Typically, dicyandiamide (Aldrich, Milwaukee, WI, USA, 99%) powder was placed in an alumina crucible with cover and heated at 550 °C for 4 h in air with a ramp rate of 2.3 °C/min. The obtained yellow agglomerates were grinded into powders. The light yellow g-C3N4 nanosheets were prepared by thermal etching of bulk g-C3N4 in air at 500 °C for 2 h with a ramp rate of 5 °C/min.

3.2. Catalyst Synthesis

Commercial Ketjenblack EC 600J (KJ 600) carbon black was first pretreated in 6.0 M HCl solution for 12 h to remove metal impurities and collected by filtration. The obtained carbon black was then treated in concentrated HNO3 solution at 80 °C for 8 h to introduce carboxyl groups [42].
In a typical synthesis, 125 mg of 2,4,6-tri(2-pyridyl)-1,3,5-triazine (TPTZ, Adamas, Shanghai, China, 97%), 125 mg of g-C3N4 nanosheets, and 50 mg of acid-treated KJ600 were dispersed in 50 mL of alcohol under vigorous stirring for 30 min, then Fe(SCN)3 solution, prepared by mixing FeCl3 (0.2 M, 1.2 mL) and potassium thiocyanate (KSCN, 0.2 M, 3.6 mL) in 50 mL of alcohol, was added into the suspension and stirred for another 30 min. The solvent was then removed by rotary evaporation and vacuum drying at 80 °C for 3 h. The resulting powder was pyrolyzed at 800 °C in a N2 atmosphere for 1 h with a ramp rate of 10 °C/min. The pyrolyzed sample was subjected to acid leaching in 0.5 M H2SO4 solution at 80 °C for 8 h to remove unstable and inactive species followed by filtration and thoroughly washed with ultrapure water. The sample was finally vacuum dried to obtain the Fe/NS/C-g-C3N4/TPTZ catalyst. As a comparison, Fe/NS/C-g-C3N4 and Fe/NS/C-TPTZ catalysts were prepared by the same procedure except using 250 mg of g-C3N4 or 250 mg of TPTZ as the single nitrogen precursor, respectively.
Moreover, the Fe/NS/C-g-C3N4/TPTZ sample was heat-treated again at 800 °C, 900 °C, and 1000 °C in a N2 atmosphere for 3 h to obtain the Fe/NS/C-g-C3N4/TPTZ-T (T = 800, 900, 1000) catalysts. The synthesis approaches for Fe/N/C-g-C3N4/TPTZ-1000 and NS/C-g-C3N4/TPTZ-1000 are the same as that for Fe/NS/C-g-C3N4/TPTZ-1000 without adding KSCN and FeCl3, respectively.

3.3. Characterizations

The morphology and elemental mapping of the samples were analyzed using field-emission transmission electron microscopy (FE-TEM, JEM-2100F, JEOL Ltd., Tokyo, Japan) with a working voltage of 200 kV. XRD analysis was performed using a D8 advance powder X-ray diffractometer (Bruker, Karlsruhe, Germany) with a Cu Ka (λ = 1.5418 Å) at 0.2° s−1. The elemental composition and chemical states were measured by XPS (K-Alpha, Thermo Scientific, Waltham, MA, USA) with an Al Ka X-ray source. The surface areas and pore structures were characterized using a Micromeritics ASAP 2020 instrument (Micromeritics Instrument Corp., Norcross, GA, USA).

3.4. Electrochemical Measurement

All electrochemical measurements were conducted on a bipotentiostat (CHI-730E, Shanghai Chenhua, Shanghai, China) equipped with a rotating disk electrode (RDE) or rotating ring-disk electrode (RRDE) system (PINE Inc., Durham, NC, USA) at room temperature. An Ag/AgCl electrode and a graphite plate were used as the reference and counter electrode, respectively. The potential has been experimentally corrected to the range of RHE by the following equation: E(RHE) = E(Ag/AgCl) + 0.956 V. The electrolyte was O2-saturated 0.1 M KOH solution.
For all Fe-NS/PC catalysts, 12 mg of catalyst was dispersed in the mixture of 0.5 mL of de-ionized water, 0.45 mL of isopropanol and 0.05 mL of 5 wt % Nafion solution (Aldrich) by sonication for 1 h to produce the ink. A certain volume of the catalyst ink was pipetted onto the pre-polished glassy carbon disk (0.196 cm2 for RDE and 0.2475 cm2 for RRDE) resulting a loading of 0.4 mg cm−2. For commercial Pt/C catalyst (20 wt %, ElectroChem, Inc., Woburn, MA, USA), the ink was prepared by dispersing 10 mg catalyst in 1.0 mL of de-ionized water, 0.95 mL of isopropanol, and 0.05 mL of 5 wt % Nafion solution. The loading of the Pt/C catalyst was 0.1 mg cm−2.
In RDE tests, ORR polarization curves were measured at a scan rate of 10 mV s−1. The electrode rotational speed was 1600 rpm. The background current was determined by recording the voltammogram in N2-saturated electrolyte. The accelerated durability tests (ADT) were carried out by cycling the potential in the range from 0.6 to 1.1 V in O2-saturated electrolyte with a scan rate of 50 mV s−1.
Hydrogen peroxide yield and the electron transfer number (n) can be calculated by the following equations with the potential of ring electrode fixed at 1.4 V (RHE) in RRDE:
H 2 O 2   % = 200 % × I r N | I d | + I r N
n = 4 × | I d | | I d | + I r N
where Id is the disk current, Ir is the ring current, N = 0.37 is the collection efficiency of the Pt ring.

3.5. Primary Zn-Air Battery Test

The cathode of the Zn-air battery was prepared by loading the Fe/NS/C-g-C3N4/TPTZ-1000 or 20 wt % Pt/C catalyst onto carbon fiber paper (3.0 × 4.0 cm) with a catalyst loading of 1.0 mg cm−2. Electrolytic zinc powder was used as the anode. The electrolyte was 6.0 M KOH solution. Polarization curves and galvanostatic discharge curves were measured on Arbin battery testing system.

4. Conclusions

In summary, a Fe, N, S co-doped porous carbon as ORR electrocatalyst was developed based on the interaction of binary nitrogen precursors during the pyrolysis process. After secondary heat treatment, the Fe/NS/C-g-C3N4/TPTZ-1000 catalyst displays superior ORR activity and durability in alkaline media, in comparison with the commercial Pt/C. Enhanced ORR activity and durability can be attributed to its good porous structure, high surface area, high contents of pyridinic N and graphitic N, and the synergy of N and S co-doping. Moreover, the Zn-air battery assembled with Fe/NS/C-g-C3N4/TPTZ-1000 as a cathode exhibits comparable power density and better stability than that of the Pt/C, demonstrating its potential for substituting precious metal catalysts in practical energy devices.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/8/4/158/s1, Figure S1: Thermogravimetric analysis (TGA) of (a) g-C3N4 and (b)TPTZ under N2 atmosphere, Figure S2: ORR polarization curves of Fe/N/C-g-C3N4/TPTZ-1000, NS/C-g-C3N4/TPTZ-1000 and Fe/NS/C-g-C3N4/TPTZ-1000 in O2-saturated 0.1 M KOH solution with a rotational speed of 1600 rpm and a scan rate of 10 mV/s, Figure S3: The polarization curves of Fe/NS/C-g-C3N4/TPTZ-1000 catalyst before and after adding SCN and after rinsing and replacing fresh O2-saturated 0.1 M KOH solution, Table S1: The element contents of Fe/NS/C-g-C3N4 , Fe/NS/C-TPTZ and Fe/NS/C-g-C3N4/TPTZ obtained by XPS, Table S2: The element contents of Fe/NS/C-g-C3N4/TPTZ-T (T = 800, 900, 1000) obtained by XPS, Table S3: Comparison of ORR activity of Fe/NS/C-g-C3N4/TPTZ, Fe/NS/C-g-C3N4/TPTZ-T (T = 800, 900, 1000) and Pt/C catalysts.

Acknowledgments

The financial supports from the National Key Research and Development Program of China (grant no. 2017YFA0206500) and the National Natural Science Foundation of China (grant no. 21673275, 21533005) are greatly appreciated.

Author Contributions

Xiao Liu, Chi Chen, Zhiqing Zou, and Hui Yang conceived and designed the experiments; Xiao Liu performed the experiments; Xiao Liu, Chi Chen, Qingqing Cheng, and Liangliang Zou analyzed the data; Xiao Liu and Chi Chen wrote the paper; Zhiqing Zou and Hui Yang managed all the experiments and the writing process as the corresponding authors.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cui, X.; Yang, S.; Yan, X.; Leng, J.; Shuang, S.; Ajayan, P.M.; Zhang, Z. Pyridinic-Nitrogen-Dominated Graphene Aerogels with Fe-N-C Coordination for Highly Efficient Oxygen Reduction Reaction. Adv. Funct. Mater. 2016, 26, 5708–5717. [Google Scholar] [CrossRef]
  2. Zhu, Z.; Yang, Y.; Guan, Y.; Xue, J.; Cui, L. Constructing of cobalt-embedded in nitrogen-doped carbon material with desired porosity derived from MOFs confined growth within graphene aerogel as a superior catalyst towards HER and ORR. J. Mater. Chem. A 2016, 4, 15536–15545. [Google Scholar] [CrossRef]
  3. Yang, J.; Liu, D.J.; Kariuki, N.N.; Chen, L.X. Aligned carbon nanotubes with built-in FeN4 active sites for electrocatalytic reduction of oxygen. Chem. Commun. 2008, 36, 329–331. [Google Scholar] [CrossRef]
  4. Zeng, L.; Cui, X.; Chen, L.; Ye, T.; Huang, W.; Ma, R.; Zhang, X.; Shi, J. Non-noble bimetallic alloy encased in nitrogen-doped nanotubes as a highly active and durable electrocatalyst for oxygen reduction reaction. Carbon 2017, 114, 347–355. [Google Scholar] [CrossRef]
  5. Liu, H.; Shi, Z.; Zhang, J.; Zhang, L.; Zhang, J. Ultrasonic spray pyrolyzed iron-polypyrrole mesoporous spheres for fuel cell oxygen reduction electrocatalysts. J. Mater. Chem. 2009, 19, 468–470. [Google Scholar] [CrossRef]
  6. Liang, H.W.; Wei, W.; Wu, Z.S.; Feng, X.; Müllen, K. Mesoporous Metal-Nitrogen-Doped Carbon Electrocatalysts for Highly Efficient Oxygen Reduction Reaction. J. Am. Chem. Soc. 2013, 135, 16002–16005. [Google Scholar] [CrossRef] [PubMed]
  7. Wu, G.; Zelenay, P. Nanostructured nonprecious metal catalysts for oxygen reduction reaction. Acc. Chem. Res. 2013, 46, 1878–1889. [Google Scholar] [CrossRef] [PubMed]
  8. Zhang, J.; Dai, L. Heteroatom-doped graphitic carbon catalysts for efficient electrocatalysts of oxygen reduction reaction. ACS Catal. 2015, 5, 7244–7253. [Google Scholar] [CrossRef]
  9. Jia, Q.; Ramaswamy, N.; Hafiz, H.; Tylus, U.; Strickland, K.; Wu, G.; Barbiellini, B.; Bansil, A.; Holby, E.F.; Zelenay, P. Experimental observation of redox-induced Fe–N switching behavior as a determinant role for oxygen reduction activity. ACS Nano 2015, 9, 12496–12505. [Google Scholar] [CrossRef] [PubMed]
  10. Kone, I.; Xie, A.; Tang, Y.; Chen, Y.; Liu, J.; Chen, Y.; Sun, Y.; Yang, X.; Wan, P. Hierarchical Porous Carbon Doped with Iron-Nitrogen-Sulfur for Efficient Oxygen Reduction Reaction. ACS Appl. Mater. Interfaces 2017, 9, 20963–20973. [Google Scholar] [CrossRef] [PubMed]
  11. Yu, H.; Fisher, A.; Cheng, D.; Cao, D. Cu, N-codoped Hierarchical Porous Carbons as Electrocatalysts for Oxygen Reduction Reaction. ACS Appl. Mater. Interfaces 2016, 8, 21431–21439. [Google Scholar] [CrossRef] [PubMed]
  12. Qiao, M.; Tang, C.; He, G.; Qiu, K.; Binions, R.; Parkin, I.; Zhang, Q.; Guo, Z.; Titirici, M. Graphene/nitrogen-doped porous carbon sandwiches for the metal-free oxygen reduction reaction: Conductivity versus active sites. J. Mater. Chem. A 2016, 4, 12658–12666. [Google Scholar] [CrossRef]
  13. Lefèvre, M.; Proietti, E.; Jaouen, F.; Dodelet, J.P. Iron-based catalysts with improved oxygen reduction activity in polymer electrolyte fuel cells. Science 2009, 324, 71–74. [Google Scholar] [CrossRef] [PubMed]
  14. Li, Z.; Sun, H.; Wei, L.; Jiang, W.J.; Wu, M.; Hu, J.S. Lamellar Metal Organic Framework-Derived Fe–N–C Non-Noble Electrocatalysts with Bimodal Porosity for Efficient Oxygen Reduction. ACS Appl. Mater. Interfaces 2017, 9, 5272–5278. [Google Scholar] [CrossRef] [PubMed]
  15. Gupta, S.; Zhao, S.; Ogoke, O.; Lin, Y.; Xu, H.; Wu, G. Engineering Favorable Morphology and Structure of Fe-N-C Oxygen-Reduction Catalysts through Tuning of Nitrogen/Carbon Precursors. ChemSusChem 2017, 10, 774–785. [Google Scholar] [CrossRef] [PubMed]
  16. Fu, X.; Zamani, P.; Choi, J.Y.; Hassan, F.M.; Jiang, G.; Higgins, D.C.; Zhang, Y.; Hoque, M.A.; Chen, Z. In Situ Polymer Graphenization Ingrained with Nanoporosity in a Nitrogenous Electrocatalyst Boosting the Performance of Polymer-Electrolyte-Membrane Fuel Cells. Adv. Mater. 2016, 29, 1604456. [Google Scholar] [CrossRef] [PubMed]
  17. Chung, H.T.; Cullen, D.A.; Higgins, D.; Sneed, B.T.; Holby, E.F.; More, K.L.; Zelenay, P. Direct atomic-level insight into the active sites of a high-performance PGM-free ORR catalyst. Science 2017, 357, 479–484. [Google Scholar] [CrossRef] [PubMed]
  18. Wang, Y.C.; Lai, Y.J.; Song, L.; Zhou, Z.Y.; Liu, J.G.; Wang, Q.; Yang, X.D.; Chen, C.; Shi, W.; Zheng, Y.P.; et al. S-Doping of an Fe/N/C ORR Catalyst for Polymer Electrolyte Membrane Fuel Cells with High Power Density. Angew. Chem. Int. Ed. 2015, 127, 10045–10048. [Google Scholar] [CrossRef]
  19. Chen, P.; Zhou, T.; Xing, L.; Xu, K.; Tong, Y.; Xie, H.; Zhang, L.; Yan, W.; Chu, W.; Wu, C. Atomically Dispersed Iron-Nitrogen Species as Electrocatalysts for Bifunctional Oxygen Evolution and Reduction Reactions. Angew. Chem. Int. Ed. 2017, 56, 610–614. [Google Scholar] [CrossRef] [PubMed]
  20. Tian, J.; Morozan, A.; Sougrati, M.T.; Chenitz, R.; Dodelet, J.P.; Jones, D.; Jaouen, F. Optimized synthesis of Fe/N/C cathode catalysts for PEM fuel cells: A matter of iron-ligand coordination strength. Angew. Chem. Int. Ed. 2013, 52, 6867–6870. [Google Scholar] [CrossRef] [PubMed]
  21. Yang, L.; Kong, J.; Zhou, D.; Ang, J.M.; Phua, S.L.; Yee, W.A.; Liu, H.; Huang, Y.; Lu, X. Transition-Metal-Ion-Mediated Polymerization of Dopamine: Mussel-Inspired Approach for the Facile Synthesis of Robust Transition-Metal Nanoparticle–Graphene Hybrids. Chem. Eur. J. 2014, 20, 7776–7783. [Google Scholar] [CrossRef] [PubMed]
  22. Zhou, D.; Yang, L.; Yu, L.; Kong, J.; Yao, X.; Liu, W.; Xu, Z.; Lu, X. Fe/N/C hollow nanospheres by Fe(III)-dopamine complexation-assisted one-pot doping as nonprecious-metal electrocatalysts for oxygen reduction. Nanoscale 2015, 7, 1501–1509. [Google Scholar] [CrossRef] [PubMed]
  23. Jaouen, F.; Herranz, J.; Lefèvre, M.; Dodelet, J.P.; Kramm, U.I.; Herrmann, I.; Bogdanoff, P.; Maruyama, J.; Nagaoka, T.; Garsuch, A. Cross-laboratory experimental study of non-noble-metal electrocatalysts for the oxygen reduction reaction. ACS Appl. Mater. Interfaces 2009, 1, 1623–1639. [Google Scholar] [CrossRef] [PubMed]
  24. Jaouen, F.; Lefèvre, M.; Dodelet, J.P.; Cai, M. Heat-Treated Fe/N/C Catalysts for O2 Electroreduction: Are Active Sites Hosted in Micropores? J. Phys. Chem. B 2006, 110, 5553–5558. [Google Scholar] [CrossRef] [PubMed]
  25. Yasuda, S.; Furuya, A.; Uchibori, Y.; Kim, J.; Murakoshi, K. Iron–Nitrogen-Doped Vertically Aligned Carbon Nanotube Electrocatalyst for the Oxygen Reduction Reaction. Adv. Funct. Mater. 2016, 26, 738–744. [Google Scholar] [CrossRef]
  26. Choi, I.A.; Kwak, D.H.; Han, S.B.; Park, J.Y.; Park, H.S.; Ma, K.B.; Kim, D.H.; Won, J.E.; Park, K.W. Doped porous carbon nanostructures as non-precious metal catalysts prepared by amino acid glycine for oxygen reduction reaction. Appl. Catal. B Environ. 2017, 211, 235–244. [Google Scholar] [CrossRef]
  27. Liang, W.; Chen, J.; Liu, Y.; Chen, S. Density-functional-theory calculation analysis of active sites for four-electron reduction of O2 on Fe/N-doped graphene. ACS Catal. 2014, 4, 4170–4177. [Google Scholar] [CrossRef]
  28. Xiao, H.; Shao, Z.G.; Zhang, G.; Gao, Y.; Lu, W.; Yi, B. Fe–N–carbon black for the oxygen reduction reaction in sulfuric acid. Carbon 2013, 57, 443–451. [Google Scholar] [CrossRef]
  29. Saidi, W.A. Oxygen reduction electrocatalysis using N-doped graphene quantum-dots. J. Phys. Chem. Lett. 2013, 4, 4160–4165. [Google Scholar] [CrossRef]
  30. Liang, J.; Jiao, Y.; Jaroniec, M.; Qiao, S.Z. Sulfur and nitrogen dual-doped mesoporous graphene electrocatalyst for oxygen reduction with synergistically enhanced performance. Angew. Chem. Int. Ed. 2012, 51, 11496–11500. [Google Scholar] [CrossRef] [PubMed]
  31. Jiang, T.; Wang, Y.; Wang, K.; Liang, Y.; Wu, D.; Tsiakaras, P.; Song, S. A novel sulfur-nitrogen dual doped ordered mesoporous carbon electrocatalyst for efficient oxygen reduction reaction. Appl. Catal. B Environ. 2016, 189, 1–11. [Google Scholar] [CrossRef]
  32. Ai, W.; Luo, Z.; Jiang, J.; Zhu, J.; Du, Z.; Fan, Z.; Xie, L.; Zhang, H.; Huang, W.; Yu, T. Nitrogen and sulfur codoped graphene: Multifunctional electrode materials for high-performance Li-ion batteries and oxygen reduction reaction. Adv. Mater. 2014, 26, 6186–6192. [Google Scholar] [CrossRef] [PubMed]
  33. Chen, C.; Yang, X.D.; Zhou, Z.Y.; Lai, Y.J.; Rauf, M.; Wang, Y.; Pan, J.; Zhuang, L.; Wang, Q.; Wang, Y.C. Aminothiazole-derived N, S, Fe-doped graphene nanosheets as high performance electrocatalysts for oxygen reduction. Chem. Commun. 2015, 51, 17092–17095. [Google Scholar] [CrossRef] [PubMed]
  34. Shen, H.; Gracia-Espino, E.; Ma, J.; Zang, K.; Luo, J.; Wang, L.; Gao, S.; Mamat, X.; Hu, G.; Wagberg, T. Synergistic Effects between Atomically Dispersed Fe−N–C and C–S–C for the Oxygen Reduction Reaction in Acidic Media. Angew. Chem. Int. Ed. 2017, 56, 13800–13804. [Google Scholar] [CrossRef] [PubMed]
  35. Zeng, S.; Lyu, F.; Nie, H.; Zhan, Y.; Bian, H.; Tian, Y.; Li, Z.; Wang, A.; Lu, J.; Li, Y.Y. Facile fabrication of N/S-doped carbon nanotubes with Fe3O4 nanocrystals enchased for lasting synergy as efficient oxygen reduction catalysts. J. Mater. Chem. A 2017, 5, 13189–13195. [Google Scholar] [CrossRef]
  36. Ren, G.; Lu, X.; Li, Y.; Zhu, Y.; Dai, L.; Jiang, L. Porous Core–Shell Fe3C Embedded N-doped Carbon Nanofibers as an Effective Electrocatalysts for Oxygen Reduction Reaction. ACS Appl. Mater. Interfaces 2016, 8, 4118–4125. [Google Scholar] [CrossRef] [PubMed]
  37. Cao, L.; Li, Z.; Gu, Y.; Li, D.; Su, K.; Yang, D.; Cheng, B. Rational design of N-doped carbon nanobox-supported Fe/Fe2N/Fe3C nanoparticles as efficient oxygen reduction catalysts for Zn–air batteries. J. Mater. Chem. A 2017, 5, 11340–11347. [Google Scholar] [CrossRef]
  38. Zhao, Y.; Lai, Q.; Wang, Y.; Zhu, J.; Liang, Y.Y. Interconnected Hierarchically Porous Fe, N-Codoped Carbon Nanofibers as Efficient Oxygen Reduction Catalysts for Zn-Air Batteries. ACS Appl. Mater. Interfaces 2017, 9, 16178–16186. [Google Scholar] [CrossRef] [PubMed]
  39. Yang, J.; Toshimitsu, F.; Yang, Z.; Fujigaya, T.; Nakashima, N. Pristine carbon nanotube/iron phthalocyanine hybrids with a well-defined nanostructure show excellent efficiency and durability for oxygen reduction reaction. J. Mater. Chem. A 2016, 5, 1184–1191. [Google Scholar] [CrossRef]
  40. Cai, P.; Hong, Y.; Ci, S.; Wen, Z. In situ integration of CoFe alloy nanoparticles with nitrogen-doped carbon nanotubes as advanced bifunctional cathode catalysts for Zn-air batteries. Nanoscale 2016, 8, 20048–20055. [Google Scholar] [CrossRef] [PubMed]
  41. Niu, P.; Zhang, L.; Liu, G.; Cheng, H.M. Graphene-like carbon nitride nanosheets for improved photocatalytic activities. Adv. Funct. Mater. 2012, 22, 4763–4770. [Google Scholar] [CrossRef]
  42. Choi, J.Y.; Hsu, R.S.; Chen, Z. Highly active porous carbon-supported nonprecious metal-N electrocatalyst for oxygen reduction reaction in PEM fuel cells. J. Phys. Chem. C 2010, 114, 8048–8053. [Google Scholar] [CrossRef]

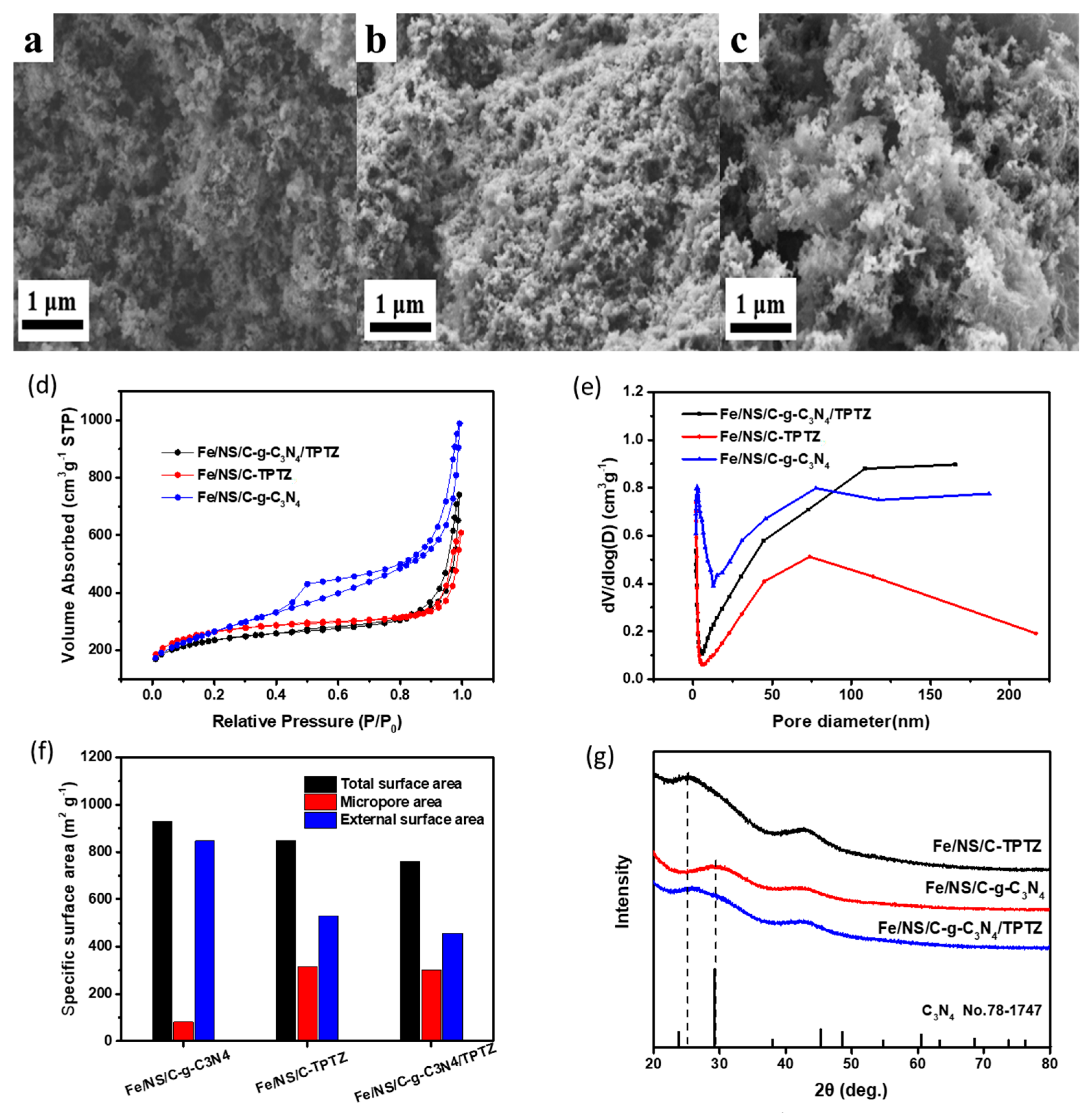

Figure 1. Scanning electron microscope (SEM) images of (a) Fe/NS/C-g-C3N4, (b) Fe/NS/C-TPTZ (TPTZ: 2,4,6-tri(2-pyridyl)-1,3,5-triazine), and (c) Fe/NS/C-g-C3N4/TPTZ; (d) N2 adsorption-desorption isotherms; (e) corresponding pore size distributions; (f) comparison of BET surface areas; and (g) X-ray diffraction (XRD) patterns of Fe/NS/C-g-C3N4, Fe/NS/C-TPTZ, and Fe/NS/C-g-C3N4/TPTZ.
Figure 1. Scanning electron microscope (SEM) images of (a) Fe/NS/C-g-C3N4, (b) Fe/NS/C-TPTZ (TPTZ: 2,4,6-tri(2-pyridyl)-1,3,5-triazine), and (c) Fe/NS/C-g-C3N4/TPTZ; (d) N2 adsorption-desorption isotherms; (e) corresponding pore size distributions; (f) comparison of BET surface areas; and (g) X-ray diffraction (XRD) patterns of Fe/NS/C-g-C3N4, Fe/NS/C-TPTZ, and Fe/NS/C-g-C3N4/TPTZ.
Catalysts 08 00158 g001
Figure 2. (a) X-ray photoelectron spectroscopy (XPS) survey spectra of Fe/NS/C-g-C3N4, Fe/NS/C-TPTZ, and Fe/NS/C-g-C3N4/TPTZ catalysts; high-resolution N 1s XPS spectra of (b) Fe/NS/C-g-C3N4, (c) Fe/NS/C-TPTZ, and (d) Fe/NS/C-g-C3N4/TPTZ.
Figure 2. (a) X-ray photoelectron spectroscopy (XPS) survey spectra of Fe/NS/C-g-C3N4, Fe/NS/C-TPTZ, and Fe/NS/C-g-C3N4/TPTZ catalysts; high-resolution N 1s XPS spectra of (b) Fe/NS/C-g-C3N4, (c) Fe/NS/C-TPTZ, and (d) Fe/NS/C-g-C3N4/TPTZ.
Catalysts 08 00158 g002
Figure 3. Oxygen reduction reaction (ORR) polarization curves of Fe/NS/C-g-C3N4, Fe/NS/C-TPTZ, and Fe/NS/C-g-C3N4/TPTZ catalysts in O2-saturated 0.1 M KOH with a rotating speed of 1600 rpm and at a scan rate of 10 mV s1. RHE: reversible hydrogen electrode.
Figure 3. Oxygen reduction reaction (ORR) polarization curves of Fe/NS/C-g-C3N4, Fe/NS/C-TPTZ, and Fe/NS/C-g-C3N4/TPTZ catalysts in O2-saturated 0.1 M KOH with a rotating speed of 1600 rpm and at a scan rate of 10 mV s1. RHE: reversible hydrogen electrode.
Catalysts 08 00158 g003
Figure 4. Transmission electron microscope (TEM) images of (a,b) Fe/NS/C-g-C3N4/TPTZ; (c,d) Fe/NS/C-g-C3N4/TPTZ-800; (e,f) Fe/NS/C-g-C3N4/TPTZ-900; (g,h) Fe/NS/C-g-C3N4/TPTZ-1000; and (i) TEM-EDX (EDX: energy dispersive X-ray spectroscopy) mapping analysis of C, N, S, O, and Fe of Fe/NS/C-g-C3N4/TPTZ-1000.
Figure 4. Transmission electron microscope (TEM) images of (a,b) Fe/NS/C-g-C3N4/TPTZ; (c,d) Fe/NS/C-g-C3N4/TPTZ-800; (e,f) Fe/NS/C-g-C3N4/TPTZ-900; (g,h) Fe/NS/C-g-C3N4/TPTZ-1000; and (i) TEM-EDX (EDX: energy dispersive X-ray spectroscopy) mapping analysis of C, N, S, O, and Fe of Fe/NS/C-g-C3N4/TPTZ-1000.
Catalysts 08 00158 g004

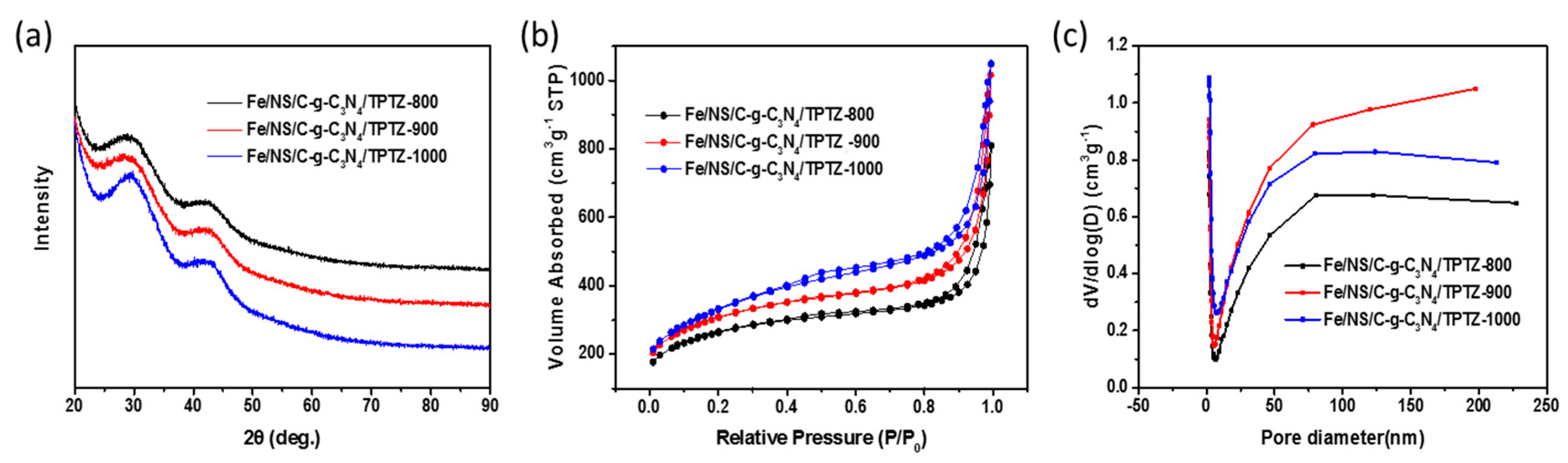

Figure 5. (a) XRD patterns; (b) N2 adsorption-desorption isotherms; and (c) corresponding pore size distributions of Fe/NS/C-g-C3N4/TPTZ-800, Fe/NS/C-g-C3N4/TPTZ-900, and Fe/NS/C-g-C3N4/TPTZ-1000.
Figure 5. (a) XRD patterns; (b) N2 adsorption-desorption isotherms; and (c) corresponding pore size distributions of Fe/NS/C-g-C3N4/TPTZ-800, Fe/NS/C-g-C3N4/TPTZ-900, and Fe/NS/C-g-C3N4/TPTZ-1000.
Catalysts 08 00158 g005

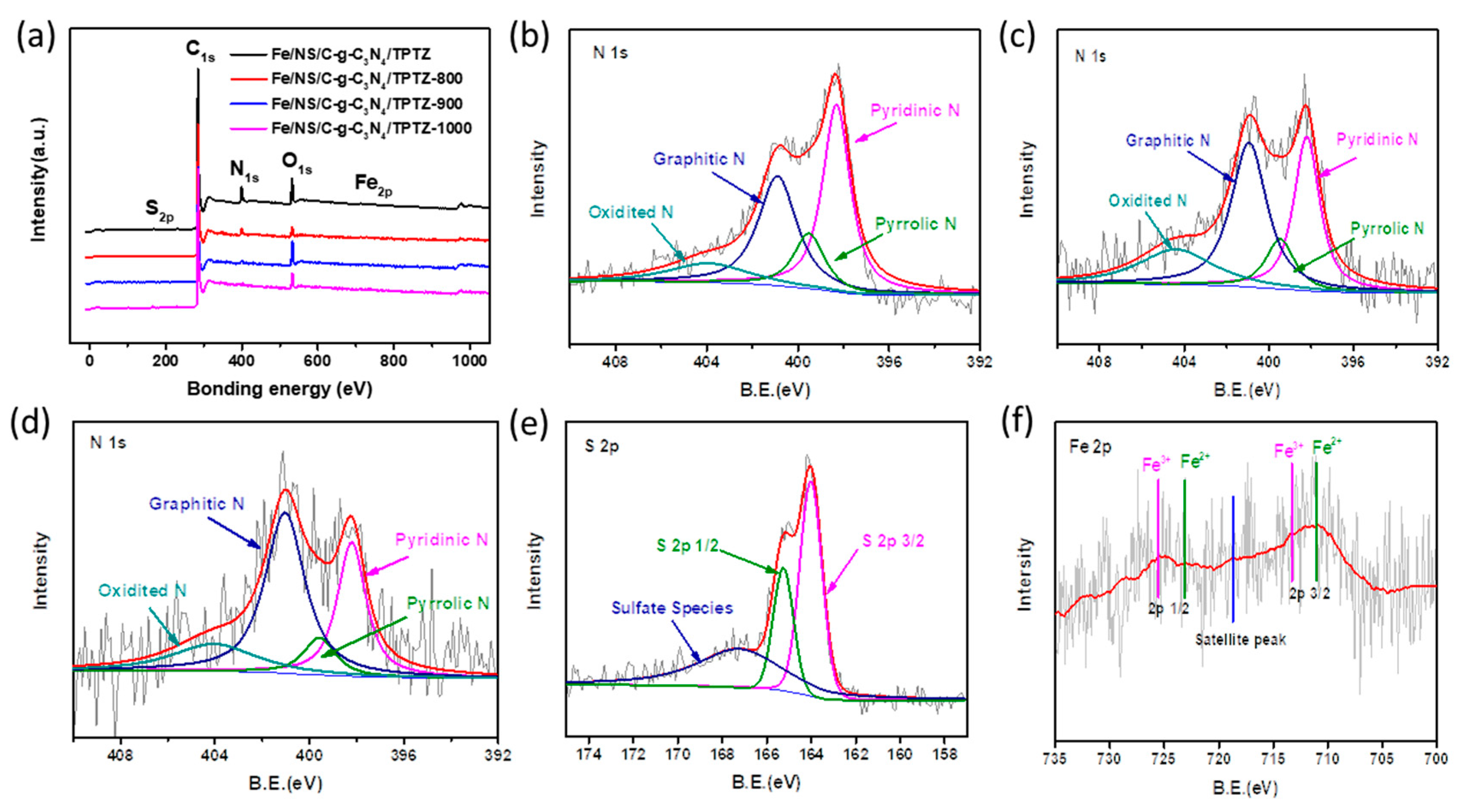

Figure 6. (a) XPS survey spectra of Fe/NS/C-g-C3N4/TPTZ and Fe/NS/C-g-C3N4/TPTZ-T (T = 800, 900, 1000); high-resolution N 1s spectra of (b) Fe/NS/C-g-C3N4/TPTZ-800, (c) Fe/NS/C-g-C3N4/TPTZ-900 and (d) Fe/NS/C-g-C3N4/TPTZ-1000; (e) high-resolution S 2p spectrum and (f) Fe 2p spectrum of Fe/NS/C-g-C3N4/TPTZ-1000.
Figure 6. (a) XPS survey spectra of Fe/NS/C-g-C3N4/TPTZ and Fe/NS/C-g-C3N4/TPTZ-T (T = 800, 900, 1000); high-resolution N 1s spectra of (b) Fe/NS/C-g-C3N4/TPTZ-800, (c) Fe/NS/C-g-C3N4/TPTZ-900 and (d) Fe/NS/C-g-C3N4/TPTZ-1000; (e) high-resolution S 2p spectrum and (f) Fe 2p spectrum of Fe/NS/C-g-C3N4/TPTZ-1000.
Catalysts 08 00158 g006

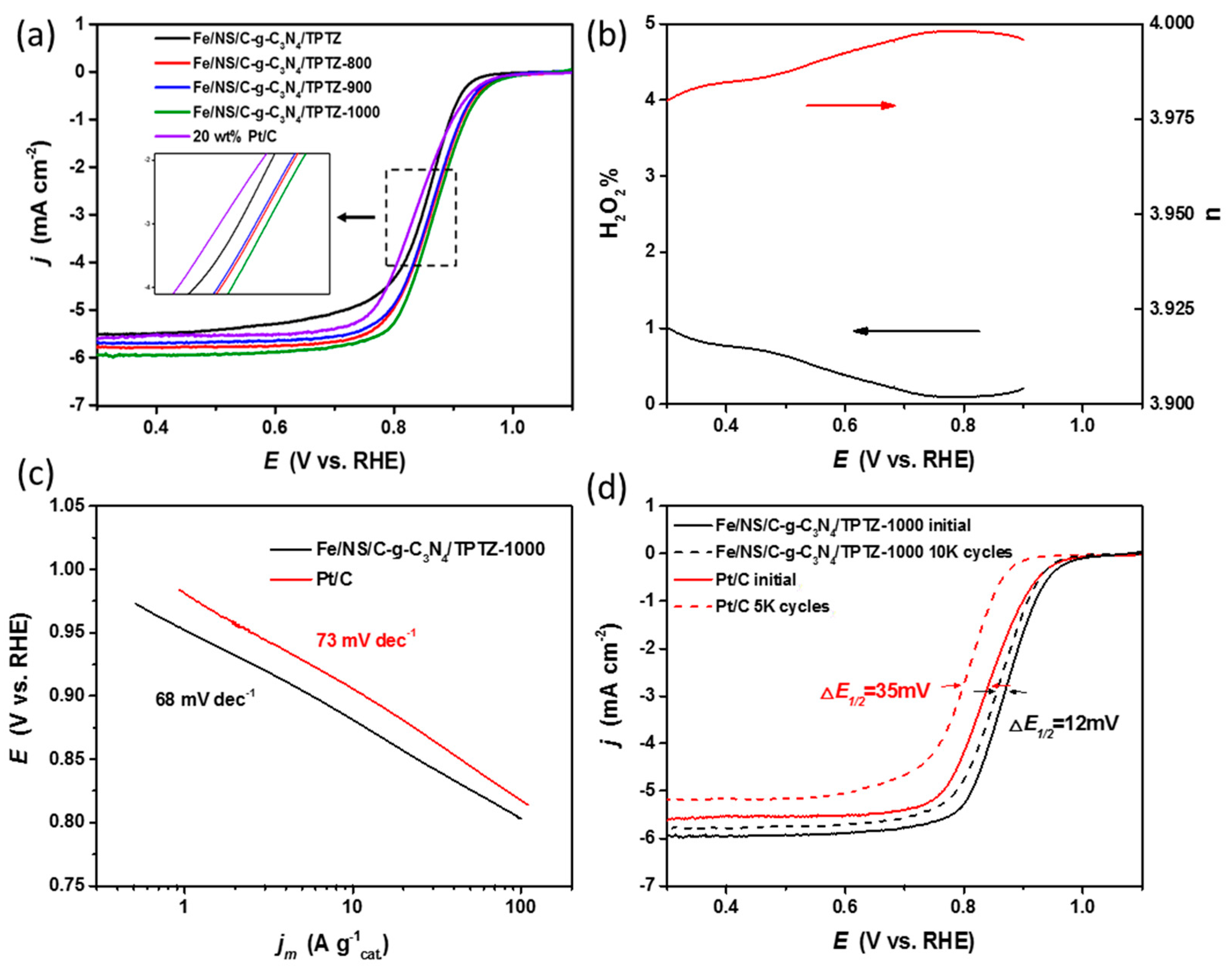

Figure 7. (a) ORR polarization curves of Fe/NS/C-g-C3N4/TPTZ, Fe/NS/C-g-C3N4/TPTZ-T (T = 800, 900, 1000) and Pt/C catalyst in O2-saturated 0.1 M KOH solution with a rotational speed of 1600 rpm and at a scan rate of 10 mV/s; (b) hydrogen peroxide yield and electron transfer number of Fe/NS/C-g-C3N4/TPTZ-1000 catalyst, (c) Tafel plots of Fe/NS/C-g-C3N4/TPTZ-1000 and Pt/C; and (d) ORR polarization curves of Fe/NS/C-g-C3N4/TPTZ-1000 (before and after 10,000 potential cycles) and Pt/C (before and after 5000 potential cycles).
Figure 7. (a) ORR polarization curves of Fe/NS/C-g-C3N4/TPTZ, Fe/NS/C-g-C3N4/TPTZ-T (T = 800, 900, 1000) and Pt/C catalyst in O2-saturated 0.1 M KOH solution with a rotational speed of 1600 rpm and at a scan rate of 10 mV/s; (b) hydrogen peroxide yield and electron transfer number of Fe/NS/C-g-C3N4/TPTZ-1000 catalyst, (c) Tafel plots of Fe/NS/C-g-C3N4/TPTZ-1000 and Pt/C; and (d) ORR polarization curves of Fe/NS/C-g-C3N4/TPTZ-1000 (before and after 10,000 potential cycles) and Pt/C (before and after 5000 potential cycles).
Catalysts 08 00158 g007

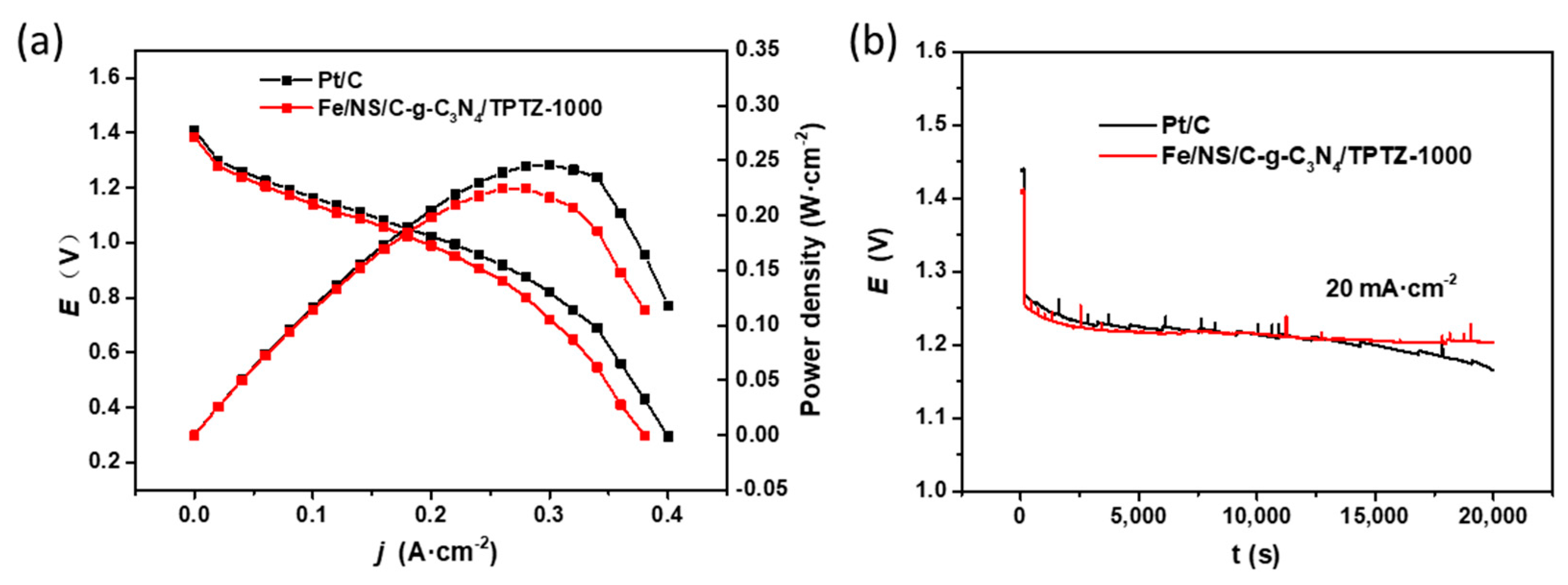

Figure 8. (a) Polarization curves and (b) discharge curves of Zn-air batteries with Fe/NS/C-g-C3N4/TPTZ-1000, and 20 wt % Pt/C as cathode catalysts at 298 K.
