WS2 as an Effective Noble-Metal Free Cocatalyst Modified TiSi2 for Enhanced Photocatalytic Hydrogen Evolution under Visible Light Irradiation
1
College of Chemistry, Chemical Engineering and Materials Science, Soochow University, Suzhou 215123, China
2
Department of Chemistry, University of Toronto, Toronto, ON M5S 3H6, Canada
*
Authors to whom correspondence should be addressed.
Academic Editors: Di-Jia Liu and Jianguo Liu
Received: 23 July 2016 / Accepted: 5 September 2016 / Published: 10 September 2016

Abstract

:
A noble-metal free photocatalyst consisting of WS2 and TiSi2 being used for hydrogen evolution under visible light irradiation, has been successfully prepared by in-situ formation of WS2 on the surface of TiSi2 in a thermal reaction. The obtained samples were characterized by X-ray diffraction (XRD), scanning electron microscopy (SEM), energy dispersive X-ray spectrometry (EDX), transmission electron microscopy (TEM), and X-ray photoelectron spectroscopy (XPS). The results demonstrate that WS2 moiety has been successfully deposited on the surface of TiSi2 and some kind of chemical bonds, such as Ti-S-W and Si-S-W, might have formed on the interface of the TiSi2 and WS2 components. Optical and photoelectrochemical investigations reveal that WS2/TiSi2 composite possesses lower hydrogen evolution potential and enhanced photogenerated charge separation and transfer efficiency. Under 6 h of visible light (λ > 420 nm) irradiation, the total amount of hydrogen evolved from the optimal WS2/TiSi2 catalyst is 596.4 μmol·g−1, which is around 1.5 times higher than that of pure TiSi2 under the same reaction conditions. This study shows a paradigm of developing the effective, scalable and inexpensive system for photocatalytic hydrogen generation.
Keywords:
WS2/TiSi2 composite; noble-metal free; visible light; photocatalyst; hydrogen evolution

1. Introduction

Due to growing environmental concerns and increasing energy demands, hydrogen, as the highest energy density carrier per unit weight and an environmentally friendly energy source, has attracted great attention [1,2,3,4,5,6]. Since the discovery of hydrogen evolution through the photoelectrochemical water splitting on the TiO2 electrode [7], photocatalytic water splitting to produce hydrogen under solar light irradiation has been considered as one of the most important approaches to meet the world energy demands and to solve environmental issues. However, TiO2 as a photocatalyst for practical use is restricted by the low visible-light absorption and fast photogenerated electron-hole recombination [7,8,9]. To develop a novel, efficient, and cost-effective visible-light-driven photocatalyst is indispensable to realize the aim of applicable solar energy conversion [10,11,12].
Titanium disilicide (TiSi2) is an excellent semiconductor material due to its high thermodynamic stability and excellent optical properties [13]. The band gap of TiSi2 is in the range of 1.5 to 3.4 eV, suggesting that the absorption spectrum of TiSi2 can cover almost the whole visible range and a part of the ultraviolet. The application of TiSi2 for photocatalytic water splitting was first reported by Demuth et al. [14]. Using co-catalysts, such as RuO2 and graphene, can further enhance the photocatalytic activity of TiSi2-based catalyst, since electron-hole recombination is retarded [15].
As it is well known, the photocatalytic hydrogen production systems generally have two serious limitations: a high electron-hole recombination rate and a large hydrogen production overpotential [7,8,9]. In order to overcome these limitations, the most widely used approach is to use noble metal nanoparticles such as Pt as a co-catalyst [16,17,18]. However, high cost and a limited source of noble metals may have an adverse effect on the practical applications. Therefore, it is critical to develop a noble-metal free system for efficient photocatalytic hydrogen generation.
Transition-metal dichalcogenides, such as molybdenum disulphide (MoS2) and tungsten disulphide (WS2), have been used as co-catalysts and charge-transfer facilitators to improve the photocatalytic hydrogen production, owing to their graphene-like layered structure, high electron mobility, moderate bandgap, and rich active sites [19,20,21,22,23]. Since Guo’s group first reported that WS2 could efficiently improve the rate of H2 evolution from TiO2 under visible light irradiation [24], considerable progress has been made toward developing the WS2-containing photocatalyst for H2 production from water [25,26,27,28,29]. However, their interactions with semiconductors are rarely discussed.
In this paper, WS2 modified TiSi2 hybrid composite (WS2/TiSi2) has been successfully fabricated via a two-step method: ultrasonic deposition and postcalcination. Postcalcination at a moderate temperature was found to be effective for forming the heterojunction structure between WS2 and TiSi2. Compared with TiSi2, the as-prepared WS2/TiSi2 hybrid exhibited a more negative conduction band level and better photoexcited-charge separation efficiency. The optimal WS2/TiSi2 composite was proved to be a robust and effective photocatalyst for water-reduction to produce hydrogen under visible light irradiation.

2. Results and Discussion

2.1. Morphology and Structure

For convenience, the prepared catalyst samples were labeled as WS2-x/TiSi2-y, where x is the weight percentage of WS2 in the sample and y stands for the calcination temperature. Figure 1 presents the XRD (X-ray diffraction) patterns of WS2-1/TiSi2 prepared at different calcination temperatures for 2 h. For comparison, the XRD pattern of commercial TiSi2 is also included in the figure. TiSi2 shows characteristic diffraction peaks at 39.2°, 42.3°, 43.2° and 49.8°, corresponding to the (311), (040), (022) and (331) orientations of the orthorhombic structure of TiSi2 (JCPDS: 35-0785) [30]. The X-ray diffraction patterns of the WS2-1/TiSi2 catalysts prepared at different temperatures demonstrate the same patterns as TiSi2, indicating that the TiSi2 moiety of the catalyst is stable and keeps the orthorhombic structure during the thermal treatment. Interestingly, the intensity of the diffraction peaks increases obviously as the calcination temperature increases, which demonstrates that the thermal-treatment increases the crystallinity of the TiSi2 moiety of the catalyst. However, no diffraction peaks can be assigned to the WS2 moiety of the catalyst, which may be due to the low content and high dispersity of WS2 on TiSi2.
Figure 2 shows the SEM images of the commercial TiSi2 and WS2-1/TiSi2-723. The ball-milled TiSi2 particles exhibit irregular shape with a size in the range of 0.5–2.5 μm (Figure 2A). The morphology of WS2-1/TiSi2-723 shows almost no change compared with that of TiSi2 and the size of WS2-1/TiSi2-723 is in the range of 0.5–3 μm (Figure 2B). The elemental distributions of Ti, Si, W and S at the micro scale were determined by SEM-EDX (energy dispersive X-ray spectrometry) mapping and the corresponding results are displayed in Figure 2C–F. From these figures we can see that Ti and Si are the main components of the sample and the content of the W and S elements are much lower than that of Ti and Si, which is ascribed to the low ratio of WS2 to TiSi2. In addition, it can also be clearly observed that WS2 is very uniformly dispersed on the surface of the TiSi2 moiety.
In order to further research the morphology of the samples and the interfacial junction structure between WS2 and TiSi2, TEM characterization was carried out on TiSi2 and WS2-1/TiSi2-723. As displayed in Figure 3, the surface of pure TiSi2 is smooth and clear; while for the WS2-1/TiSi2-723 sample, a layer of rough material is coated on the TiSi2 surface, which indicates that the layered WS2 particles are intimately covered on the surface of TiSi2.

2.2. TG-DTA (Thermogravimetric-Differential Thermal Analysis) and XPS Analysis

Since WS2 in the WS2/TiSi2 composite was converted from the precursor (NH4)2WS4, the thermal decomposition behaviour of (NH4)2WS4 was investigated by differential thermogravimetry under an N2 atmosphere. As Figure 4A shows, the thermal decomposition curves of (NH4)2WS4, presented as a TG curve, demonstrated two steps of weight loss. The first step of weight loss occurred at 473 K and ended at 573 K. The weight loss at this stage was 17.2%, demonstrating that (NH4)2WS4 decomposed to WS3, NH3 and H2S shown as Equation (1) (calc. 19.6 wt %). The intermediate product WS3 appeared to be stable between 573 K and 623 K. When the sample calcined at higher temperature (>623 K), the second weight loss step occurred, the experimental weight loss for the second step is 9.3%, implying that WS3 decomposed to WS2, shown as Equation (2) (calc. 9.2 wt %) [31]. Exceeding 673 K, the slight weight loss can still be observed, mainly due to the sluggish decomposition or condensation of WS2 at a high temperature.
(NH4)2WS4→WS3 + 2NH3↑ + H2S↑
WS3→WS2 + S
XPS spectra of the WS2-1/TiSi2 samples calcined at different temperatures are shown in Figure 4B. For both the samples calcined at 473 and 623 K, the W 4f peaks were observed at 35.7 and 37.9 eV, suggesting that tungsten existed as W6+ in the samples. When the calcination temperature increased to 673 and 723 K, the W 4f peaks shifted to 32.6 and 34.7 eV, indicating that tungsten transformed from W6+ to W4+ in the samples [26,32,33]. At a higher calcination temperature (~773 K), the XPS spectrum basically does not change, showing that W species loaded on TiSi2 is stable over a relatively wide temperature range. Combining the results of TG-DTA and XPS, we concluded that (NH4)2WS4 loaded on TiSi2 was first decomposed to WS3 and then to WS2 in the calcining process (>673 K). The XPS spectrum of the S 2p regions for WS2-1/TiSi2-723 demonstrated the peaks located at 162.4 and 163.6 eV, confirming that the S element existed as S2− in the sample (Figure S1). The Ti 2p high resolution XPS spectra of TiSi2 and WS2-1/TiSi2-723 are shown in Figure 4C. For the TiSi2 sample, the weak peak centred at 453.1 eV belongs to Ti0 2p3/2, indicating that trace metallic Ti exists on the surface of TiSi2. The other two strong peaks, centred at 458.95 and 464.75 eV, could be ascribed to Ti4+ 2p3/2 and 2p1/2, respectively, demonstrating that the surface layer of TiSi2 in the depth of XPS measurement (ca. 2.5–10 nm) is highly oxidized [14,15]. For the WS2-1/TiSi2-723 catalyst, the binding energy of Ti4+ 2p shifts slightly to the higher energy and the peak of Ti0 2p3/2 disappeared, indicating that the Ti metal in the surface of Ti-Si has been oxidized in the pyrolysis process. Si 2p high resolution XPS spectra of TiSi2 and WS2-1/TiSi2-723 are shown in Figure 4D. The TiSi2 sample shows two peaks centred at 98.65 and 102.59 eV, corresponding to Si0 2p3/2 and Si4+ 2p1/2, respectively [14]. The positive shift of the binding energies of Si0 2p3/2 and Si4+ 2p1/2 in WS2-1/TiSi2-723 was also observed. Meanwhile, the intensity of the peak corresponding to Si0 2p3/2 decreased greatly in WS2-1/TiSi2-723. The shifts of the binding energies of both Ti and Si indicate that some kind of chemical bonds, such as Ti-S-W and Si-S-W, might have formed at the interface of the TiSi2 and WS2 components.

2.3. Optical and Photoelectrochemical Properties

The results of the linear sweep voltammetry (LSV) for TiSi2 and WS2-1/TiSi2-723 electrodes are displayed in Figure 5A. The proton reduction potential of the TiSi2 electrode is ca. −0.20 V vs. RHE (reversible hydrogen electrode), but it changes to −0.13 V vs. RHE for the WS2-1/TiSi2-723 electrode, indicating that the introduction of WS2 can reduce the hydrogen evolution potential [34,35], which is a property that is usually demonstrated by the noble metal nanoparticles such as Pt [36]. The replacement of Pt by WS2 apparently can offer an opportunity to create an inexpensive photocatalyst system for H2 evolution. In order to further investigate the role of WS2, the flat band potentials of the TiSi2 and WS2-1/TiSi2-723 electrodes were measured respectively. The flat band potential (Efb) was determined by the onset potential of the Mott-Schottky (M-S) plots [37]. As demonstrated in Figure 5B, both TiSi2 and WS2-1/TiSi2-723 electrodes exhibit a positive slope, indicating an n-type semiconductor feature [38]. The Efb of the TiSi2 electrode estimated from the x intercepts of the linear region of the MS plot is ca. −0.39 V vs. RHE, while it is ca. −0.77 V vs. RHE for the WS2-1/TiSi2-723 electrode. The results show that combining of TiSi2 and WS2 may shift the flat potential of the composite to a more negative position. Since the flat band potential of an n-type semiconductor may be considered approximately as the conduction band edge, the shift of the flat potential of the composite indicates that WS2-1/TiSi2-723 has a higher electron donor level, which is beneficial for water reduction.
The optical band gap of semiconductors was determined by the Tauc equation [39]:
( α h v ) n = A ( h v E g )
where α is the measured absorption coefficient, hν is the photon energy, A and n are constant, and Eg is the optical band gap energy. The value of n is 0.5 and 2 for the indirect and direct band gap, respectively. Since both TiSi2 and WS2 have a direct band gap, the value of n is 2. Eg is estimated by the intercept of the photon energy axis, obtained by extrapolating the linear region of the plot [40]. The Tauc plots (Figure 5C,D) show that the optical band gaps are 2.41 for TiSi2 and 2.15 eV for WS2-1/TiSi2-723. The decrease of the optical band gap of WS2-1/TiSi2-723, which may be attributed to the interaction between TiSi2 and WS2, is beneficial for the composite photocatalyst to respond to the visible light in a wider range. From the discussion above, we can estimate the band levels of pure TiSi2 (EVB = 2.02, EC = −0.39 V vs. RHE) and the WS2-1/TiSi2-723 composite (EVB = 1.38, ECB = −0.77 V vs. RHE). The variation of the bandgap and the band edges indicates the strong interaction between TiSi2 and WS2 moieties, mostly occurred at the surface.
It is well known that the photoluminescence (PL) spectroscopy could be useful to reveal the photo-generated charge transfer process. The PL spectra of TiSi2 and WS2-1/TiSi2-723 excited at 532 nm are shown in Figure S2. Both TiSi2 and WS2-1/TiSi2-723 display an emission peak centred at 600 nm, however, the PL intensity of WS2-1/TiSi2-723 is much lower than that of TiSi2 and the calculated quenching efficiency for WS2-1/TiSi2-723 is 43.6%, indicating an efficient photoexcited electron transfer from TiSi2 to WS2.
A photoelectrochemical study was conducted to investigate the photoinduced charge separation and transfer processes at the electrode interface. As shown in Figure 6A, a prompt and reversible photocurrent response can be observed from both the TiSi2 and WS2-1/TiSi2-723 electrode under chopped light irradiation. The WS2-1/TiSi2-723 electrode shows higher photocurrent density than pure TiSi2, indicating that formation of the heterojunction structure in WS2-1/TiSi2-723 results in better charge separation, as well as excellent incident light harvesting. Figure 6B shows the electrochemical impedance spectra (EIS) of TiSi2 and WS2-1/TiSi2-723 electrodes presented as Nyquist plots. The radius of the plot of WS2-1/TiSi2-723 is much smaller than that of TiSi2. The fact demonstrates that the charge transfer resistance is significantly decreased on the WS2-1/TiSi2-723 interface [41,42], which is in agreement with the results of photocurrent responses measurements. The transfer resistance decreases, so the rate of charge separation is accelerated, and the photocurrent is enhanced.

2.4. Photocatalytic Hydrogen Evolution

Firstly, the influence of calcination temperature on H2 evolution rate of the WS2-1/TiSi2 sample was investigated. Figure 7A shows the influence of the catalysts calcined at different temperatures from 623 to 773 K on the rate of H2 evolution. With the increase of the calcination temperature, the H2 evolution rate of the catalyst increases gradually. The maximum H2 evolution rate was obtained from the WS2-1/TiSi2-723 catalyst (99.4 μmol·h−1·g−1). However, further increasing the calcination temperature, the rate of H2 evolution decreases instead. As discussed above, 623 K is the temperature starting to form WS2, and 773 K is the temperature at which WS2 gets stabilized. The influence of calcination temperature may be attributed to the fact that the catalyst calcined at proper temperature may strengthen the junction formation between TiSi2 and WS2, which is beneficial for the photocatalytic activity of the catalyst. However, higher calcination temperature may cause the surface areas of the catalyst to decrease or even the formed heterojunction to collapse, resulting in a photocatalytic efficiency decrease. Figure 7B shows the influence of the ratio of TiSi2 and WS2 of the composite catalyst on the photocatalytic activity. For comparison, the photocatalytic results of pure TiSi2 and 1 wt % Pt modified TiSi2 (Pt-1/TiSi2) are also included in the figure. The catalyst loading with ca. 1 wt % WS2 demonstrated the highest photocatalytic activity among all WS2/TiSi2-723 catalysts with various WS2 loading. In 6 h visible light irradiation, WS2-1/TiSi2-723 produced about 596.4 μmol·g−1 hydrogen, which was even higher than that of Pt-1/TiSi2 (532.9 μmol·g−1). However, further loading of WS2 on TiSi2 led to a catalytic efficiency decrease, which may be attributed to the fact that the excess WS2 on TiSi2 may produce a light shading effect or introduce charge recombination sites [27]. The similar phenomena were also found in several other photocatalyst composites [21,34].
The stability of the WS2-1/TiSi2-723 catalyst was estimated by performing recycling photocatalytic experiments and the results are shown in Figure 8. For comparison, the stability of pure TiSi2 was also estimated under the same reaction conditions. After 6 h of visible light irradiation, TiSi2 produced ca. 416.0 μmol·g−1 H2 in the first cycle, while WS2-1/TiSi2-723 produced ca. 596.4 μmol·g−1 H2. Both activities of TiSi2 and WS2-1/TiSi2-723 were slightly reduced (348.5 μmol·g−1 and 525.6 μmol·g−1) in the second cycle. In the next three cycles, the amount of H2 produced from TiSi2 was still reduced, which was mainly due to the surface oxidation of TiSi2 [14,43]. On the other hand, the amount of H2 produced from WS2-1/TiSi2-723 was basically unchanged. The above results demonstrate that the WS2/TiSi2 photocatalyst might be a promising candidate for photocatalytic water reduction to produce hydrogen under solar-light irradiation since it possesses higher photocatalytic activity, higher stability and lower fabrication cost.
The proposed mechanism of photocatalytic H2 evolution on the WS2/TiSi2 catalyst is shown in Scheme 1. Under visible-light irradiation, the electrons in the valence band (VB) of TiSi2 are stimulated to the conduction band (CB). Then, the photo-generated electrons transfer from the conduction band of TiSi2 to the WS2, where H+ is reduced to hydrogen. The holes that remained on the valence band of TiSi2 transfer to the surface and react with the oxalic acid in the solution. This process efficiently inhibits the photo-generated charges recombination, and significantly enhances the photocatalytic hydrogen evolution efficiency.

3. Materials and Methods

3.1. Synthesis

TiSi2 was purchased from the J&K Company (Shanghai, China) and other chemical reagents were purchased from the Sinopharm Chemical Reagent Company (Shanghai, China). The commercial TiSi2 powder was ball-milled for 4 h at the speed of 210 rpm (rotation per minute) in advance and other chemicals were used without further purification.
Ammonium tetrathiotungstate ((NH4)2WS4) was prepared using the method described in the literature [44]. In a typical experiment, 5 g of ammonium tungstate was dispersed in a 50 mL NH3 aqueous solution (6 M). H2S gas was then bubbled into the above dispersed solution at 333 K for 4 h. After being cooled to room temperature, the reaction solution was put into a refrigerator and maintained at 278 K overnight. The precipitate of orange-yellow (NH4)2WS4 crystals was isolated by filtration, rinsed with isopropanol and dried under vacuum.
The WS2/TiSi2 photocatalyst was prepared by ultrasonic deposition combined with postpyrolysis method. (NH4)2WS4 aqueous solution was mixed with the ball-milled TiSi2 powder under magnetic stirring, and then the mixture was ultra-sonicated for 5 h. The resulting (NH4)2WS4/TiSi2 precursor was dried in a vacuum oven at 323 K. Finally, the solid powder was calcined in Ar atmosphere at different temperatures in the range from 473 to 773 K for 2 h, resulting in WS2 modified TiSi2 photocatalyst, in which the content of WS2 could be adjusted by tuning the weight ratio of the precursors of (NH4)2WS4 and TiSi2. According to the decomposition process of (NH4)2WS4, the weight percentage of WS2 in the sample was calculated by supposing that the (NH4)2WS4 was completely converted to WS2.

3.2. Characterization

X-ray powder diffraction (XRD) measurements were carried out on a Philips diffractometer (X‘Pert-Pro MRD, Amsterdam, Netherland) using Ni-filtered Cu Kα radiation in the range 20°–80° (2θ). Scanning electron microscopy (SEM) and Energy dispersive X-ray spectrometry (EDX) mapping measurements were taken on a Hitachi S-4700 microscope (Hitachi Corporation, Tokyo, Japan). Transmission electron microscopy (TEM) studies were conducted using a transmission electron microscope (JEOL JEM-2100, JEOL Ltd., Tokyo, Japan) operating at an accelerating voltage of 200 kV. TG-TDA curves of the decomposition of (NH4)2WS4 were recorded by using differential thermal analysis/thermogravimetric equipment under a N2 flow with the heating rate of 10 K/min. X-ray photoelectron spectroscopy (XPS) of the samples was taken on a Thermo Scientific ESCALA 250Xi XPS spectrometer (Kratos Analytical Ltd., Manchester, UK). Room temperature UV-vis diffuse reflectance absorption spectra (DRS) were measured on a UV-1800 SPC spectrophotometer (Shimadzu, Kyoto, Japan). Photoluminescence (PL) spectra of the samples were recorded on an Edinburgh PLS920 fluorospectrophotometer (Edinburgh Instruments Ltd., Edinburgh, UK).

3.3. Photoelectrochemical Measurements

The measurements of photoelectrochemical properties of the samples were performed by dipping a clean indium tin oxide (ITO) glass (1 × 2.5 cm) into the ethanol suspension of the relative catalyst several times and drying under a vacuum at 323 K as a working electrode. The measurements were carried out on a CHI 660D potentiostat/galvanostat electrochemical analyser (CH Instruments Inc, Shanghai, China) in a three-electrode system consisting of the working electrode, a saturated calomel electrode (SCE) as a reference electrode and a platinum wire as a counter electrode. The electrodes were immersed in a 0.5 M Na2SO4 aqueous solution (pH ~ 6). During the measurement, the working electrode was irradiated by a GY-10 xenon lamp (150 W, Tian Jin Tuo Pu Instruments Co., Ltd, Tianjin, China). The electrochemical impedance spectra (EIS), displayed as a Nyquist plot, were carried out in the similar system except that the electrodes were immersed in a 5.0 mM solution of K3[Fe(CN)6]/K2[Fe(CN)6] (1:1). The Mott-Schottky (M-S) plots were measured with a frequency of 1000 Hz.

3.4. Photocatalytic Reaction

The photocatalytic reaction was carried out in a 70 mL quartz flask equipped with a flat optical entry window. In a typical photocatalytic experiment, 50 mg of the as-prepared photocatalyst and 60 mL of oxalic acid aqueous solution (0.005 M) were added into the quartz flask whilst stirring [45]. The system was deaerated by bubbling argon into the solution for 30 min before the reaction. A 150 W xenon lamp with a 420 nm cut-off filter was used as the visible light source. The lamp was positioned ca. 10 cm away from the optical entry window of the reactor. The produced hydrogen gas was analysed with an online gas chromatograph (GC1650) equipped with a thermal conductivity detector (TCD) (Ke Xiao Instruments Co., Ltd, Hangzhou, China) and 5 Å molecular sieve columns using argon as the carrier gas. The standard H2-Ar gas mixtures of known concentrations were used for GC signal calibration.

4. Conclusions

In summary, a novel WS2/TiSi2 hybrid composite has been successfully synthesized and used for photocatalytic hydrogen evolution. The photocatalytic activity of TiSi2 under visible light (λ > 420 nm) irradiation can be enhanced by loading WS2 as a cocatalyst, and the activity of optimal WS2/TiSi2 composite is even higher than that of platinized TiSi2 under the same reaction conditions. The junction formed between TiSi2 and surface WS2, together with the excellent H2 evolution property of WS2, is supposed to be responsible for the enhanced photocatalytic activity of the WS2/TiSi2 composite catalyst. This study shows a paradigm of developing the eco-friendly, cost-effective photocatalyst for hydrogen production from water.

Supplementary Materials

The following are available online at www.mdpi.com/2073-4344/6/9/136/s1, Figure S1: XPS (X-ray photoelectron spectroscopy) spectrum of the S 2p regions for the WS2-1/TiSi2-723 sample. (The blue lines: the deconvolved peaks for S 2p3/2 and S 2p1/2 of WS2-1/TiSi2-723; the red line: the fitted result of the blue lines.). Figure S2: Photoluminescence spectra of TiSi2 and WS2-1/TiSi2-723. Excited wavelength: 532 nm.

Acknowledgments

The authors gratefully acknowledge financial support of this research by the National Natural Science Foundation of China (21373143) and the Priority Academic Program Development of Jiangsu Higher Education Institutions (PAPD).

Author Contributions

The manuscript was written through contributions of all authors. All authors have given approval to the final version of the manuscript.

Conflicts of Interest

The authors declare no competing financial interest.

References

  1. Gratzel, M. Photoelectrochemical cells. Nature 2001, 414, 338–344. [Google Scholar] [CrossRef] [PubMed]
  2. Sato, J.; Kobayashi, H.; Ikarashi, K.; Saito, N.; Nishiyama, H.; Inoue, Y. Photocatalytic Activity for Water Decomposition of RuO2-Dispersed Zn2GeO4 with d10 Configuration. J. Phys. Chem. B 2004, 108, 4369–4375. [Google Scholar] [CrossRef]
  3. Ingler, W.B.; Baltrus, J.P.; Khan, S.U.M. Photoresponse of p-Type Zinc-Doped Iron(III) Oxide Thin Films. J. Am. Chem. Soc. 2004, 126, 10238–10239. [Google Scholar] [CrossRef] [PubMed]
  4. Liao, C.-H.; Huang, C.-W.; Wu, J.C.S. Hydrogen Production from Semiconductor-based Photocatalysis via Water Splitting. Catalysts 2012, 2, 490–516. [Google Scholar] [CrossRef]
  5. Lin, Y.J.; Xu, Y.; Mayer, M.T.; Simpson, Z.I.; McMahon, G.; Zhou, S.; Wang, D.W. Growth of p-Type Hematite by Atomic Layer Deposition and Its Utilization for Improved Solar Water Splitting. J. Am. Chem. Soc. 2012, 134, 5508–5511. [Google Scholar] [CrossRef] [PubMed]
  6. Mishra, G.; Parida, K.M.; Singh, S.K. Facile Fabrication of S-TiO2/β-SiC Nanocomposite Photocatalyst for Hydrogen Evolution under Visible Light Irradiation. ACS Sustain. Chem. Eng. 2015, 3, 245–253. [Google Scholar] [CrossRef]
  7. Fujishima, A.; Honda, K. Electrochemical Photolysis of Water at a Semiconductor Electrode. Nature 1972, 238, 37–38. [Google Scholar] [CrossRef] [PubMed]
  8. Woan, K.; Pyrgiotakis, G.; Sigmund, W. Photocatalytic Carbon-Nanotube—TiO2 Composites. Adv. Mater. 2009, 21, 2233–2239. [Google Scholar] [CrossRef]
  9. Yang, P.; Lu, C.; Hua, N.P.; Du, Y.K. Titanium dioxide nanoparticles co-doped with Fe3+ and Eu3+ ions for photocatalysis. Mater. Lett. 2002, 57, 794–801. [Google Scholar] [CrossRef]
  10. Maeda, K.; Takata, T.; Hara, M.; Saito, N.; Inoue, Y.; Kobayashi, H.; Domen, K. GaN:ZnO Solid Solution as a Photocatalyst for Visible-Light-Driven Overall Water Splitting. J. Am. Chem. Soc. 2005, 127, 8286–8287. [Google Scholar] [CrossRef] [PubMed]
  11. Pany, S.; Parida, K.M. Sulfate-Anchored Hierarchical Meso-Macroporous N-doped TiO2: A Novel Photocatalyst for Visible Light H2 Evolution. ACS Sustain. Chem. Eng. 2014, 2, 1429–1438. [Google Scholar] [CrossRef]
  12. Liu, J.; Liu, Y.; Liu, N.Y.; Han, Y.Z.; Zhang, X.; Huang, H.; Lifshitz, Y.; Lee, S.-T.; Zhong, J.; Kang, Z.H. Metal-free efficient photocatalyst for stable visible water splitting via a two-electron pathway. Science 2015, 347, 970–974. [Google Scholar] [CrossRef] [PubMed]
  13. Tedesco, J.L.; Rowe, J.E.; Nemanich, R.J. Titanium silicide islands on atomically clean Si(100): Identifying single electron tunneling effects. J. Appl. Phys. 2010, 107, 123715. [Google Scholar] [CrossRef]
  14. Ritterskamp, P.; Kuklya, A.; Wüstkamp, M.-A.; Kerpen, K.; Weidenthaler, C.; Demuth, M. A Titanium Disilicide Derived Semiconducting Catalyst for Water Splitting under Solar Radiation—Reversible Storage of Oxygen and Hydrogen. Angew. Chem. Int. Ed. 2007, 46, 7770–7774. [Google Scholar] [CrossRef] [PubMed]
  15. Mou, Z.G.; Yin, S.L.; Zhu, M.S.; Wang, X.M.; Zheng, J.W.; Lu, C.; Du, Y.K.; Yang, P. RuO2/TiSi2/graphene composite for enhanced photocatalytic hydrogen generation under visible light irradiation. Phys. Chem. Chem. Phys. 2013, 15, 2793–2799. [Google Scholar] [CrossRef] [PubMed]
  16. Lingampalli, S.R.; Gautam, U.K.; Rao, C.N.R. Highly efficient photocatalytic hydrogen generation by solution-processed ZnO/Pt/CdS, ZnO/Pt/Cd1−xZnxS and ZnO/Pt/CdS1-xSex hybrid nanostructures. Energy Environ. Sci. 2013, 6, 3589–3594. [Google Scholar] [CrossRef]
  17. Wang, Y.B.; Wang, Y.S.; Xu, R. Photochemical Deposition of Pt on CdS for H2 Evolution from Water: Markedly Enhanced Activity by Controlling Pt Reduction Environment. J. Phys. Chem. C 2013, 117, 783–790. [Google Scholar] [CrossRef]
  18. Zhang, Z.J.; Lu, Z-H.; Chen, X.S. Ultrafine Ni-Pt Alloy Nanoparticles Grown on Graphene as Highly Efficient Catalyst for Complete Hydrogen Generation from Hydrazine Borane. ACS Sustain. Chem. Eng. 2015, 3, 1255–1261. [Google Scholar] [CrossRef]
  19. Zong, X.; Yan, H.J.; Wu, G.P.; Ma, G.J.; Wen, F.Y.; Wang, L.; Li, C. Enhancement of Photocatalytic H2 Evolution on CdS by Loading MoS2 as Cocatalyst under Visible Light Irradiation. J. Am. Chem. Soc. 2008, 130, 7176–7177. [Google Scholar] [CrossRef] [PubMed]
  20. Liu, Y.Y.; Xie, S.F.; Li, H.; Wang, X.Y. A Highly Efficient Sunlight Driven ZnO Nanosheet Photocatalyst: Synergetic Effect of P-Doping and MoS2 Atomic Layer Loading. ChemCatChem 2014, 6, 2522–2526. [Google Scholar] [CrossRef]
  21. Chen, G.P.; Li, D.M.; Li, F.; Fan, Y.Z.; Zhao, H.F.; Luo, Y.H.; Yu, R.C.; Meng, Q.B. Ball-milling combined calcination synthesis of MoS2/CdS photocatalysts for high photocatalytic H2 evolution activity under visible light irradiation. Appl. Catal. A Gen. 2012, 443, 138–144. [Google Scholar] [CrossRef]
  22. Xiang, Q.J.; Yu, J.G.; Jaroniec, M. Synergetic Effect of MoS2 and Graphene as Cocatalysts for Enhanced Photocatalytic H2 Production Activity of TiO2 Nanoparticles. J. Am. Chem. Soc. 2012, 134, 6575–6578. [Google Scholar] [CrossRef] [PubMed]
  23. Lu, Y.T.; Wang, D.D.; Yang, P.; Du, Y.K.; Lu, C. Coupling ZnxCd1−xS nanoparticles with graphenelike MoS2: Superior interfacial contact, low overpotential and enhanced photocatalytic activity under visible-light irradiation. Catal. Sci. Technol. 2014, 4, 2650–2657. [Google Scholar] [CrossRef]
  24. Jing, D.W.; Guo, L.J. WS2 sensitized mesoporous TiO2 for efficient photocatalytic hydrogen production from water under visible light irradiation. Catal. Commun. 2007, 8, 795–799. [Google Scholar] [CrossRef]
  25. Zong, X.; Han, J.F.; Ma, G.J.; Yan, H.J.; Wu, G.P.; Li, C. Photocatalytic H2 Evolution on CdS Loaded with WS2 as Cocatalyst under Visible Light Irradiation. J. Phys. Chem. C 2011, 115, 12202–12208. [Google Scholar] [CrossRef]
  26. Wu, Z.Z.; Fang, B.Z.; Bonakdarpour, A.; Sun, A.K.; Wilkinson, D.P.; Wang, D.Z. WS2 nanosheets as a highly efficient electrocatalyst for hydrogen evolution reaction. Appl. Catal. B Environ. 2012, 125, 59–66. [Google Scholar] [CrossRef]
  27. Chen, G.P.; Li, F.; Fan, Y.Z.; Luo, Y.H.; Li, D.M.; Meng, Q.B. A novel noble metal-free ZnS-WS2/CdS composite photocatalyst for H2 evolution under visible light irradiation. Catal. Commun. 2013, 40, 51–54. [Google Scholar] [CrossRef]
  28. Cheng, L.; Huang, W.J.; Gong, Q.F.; Liu, C.H.; Liu, Z.; Li, Y.G.; Dai, H.J. Ultrathin WS2 Nanoflakes as a High-Performance Electrocatalyst for the Hydrogen Evolution Reaction. Angew. Chem. Int. Ed. 2014, 53, 7860–7863. [Google Scholar] [CrossRef] [PubMed]
  29. Adriano, A.; Zdenêk, S.; Martin, P. 2H→1T phase transition and hydrogen evolution activity of MoS2, MoSe2, WS2 and WSe2 strongly depends on the MX2 composition. Chem. Commun. 2015, 51, 8450–8453. [Google Scholar]
  30. Yen, B.K. X-ray diffraction study of solid-state formation of metastable MoSi2 and TiSi2 during mechanical alloying. J. Appl. Phys. 1997, 81, 7061–7063. [Google Scholar] [CrossRef]
  31. An, G.J.; Chai, Y.M.; Zhong, H.J.; Zhang, C.F.; Liu, C.G. Thermal decompositon behavior of ammonium tertrathiotungstate under nitrogen atmosphere. Abstr. Pap. Am. Chem. Soc. 2005, 230, U2321–U2322. [Google Scholar]
  32. Bhandavat, R.; David, L.; Singh, G. Synthesis of Surface-Functionalized WS2 Nanosheets and Performance as Li-ion Battery Anodes. J. Phys. Chem. Lett. 2012, 3, 1523–1530. [Google Scholar] [CrossRef] [PubMed]
  33. Zou, J.-P.; Ma, J.; Luo, J.-M.; Yu, J.; He, J.K.; Meng, Y.T.; Luo, Z.; Bao, S.-K.; Liu, H.-L.; Luo, S.-L.; et al. Fabrication of novel heterostructured few layered WS2-Bi2WO6/Bi3.84W0.16O6.24 composites with enhanced photocatalytic performance. Appl. Catal. B 2015, 179, 220–228. [Google Scholar] [CrossRef]
  34. Frame, F.A.; Osterloh, F.E. CdSe-MoS2: A Quantum Size-Confined Photocatalyst for Hydrogen Evolution from Water under Visible Light. J. Phys. Chem. C 2010, 114, 10628–10633. [Google Scholar] [CrossRef]
  35. Meng, F.K.; Li, J.T.; Cushing, S.K.; Zhi, M.J.; Wu, N.Q. Solar Hydrogen Generation by Nanoscale p-n Junction of p-type Molybdenum Disulfide/n-type Nitrogen-Doped Reduced Graphene Oxide. J. Am. Chem. Soc. 2013, 135, 10286–10289. [Google Scholar] [CrossRef] [PubMed]
  36. Huang, Q.; Li, Q.; Xiao, X.D. Hydrogen Evolution from Pt Nanoparticles Covered p-Type CdS:Cu Photocathode in Scavenger-Free Electrolyte. J. Phys. Chem. C 2014, 118, 2306–2311. [Google Scholar] [CrossRef]
  37. Cardo, F.; Gomes, W.P. On the determination of the flat-band potential of a semiconductor in contact with a metal or an electrolyte from the Mott-Schottky plot. J. Phys. D Appl. Phys. 1978, 11, L63–L67. [Google Scholar] [CrossRef]
  38. Zhang, L.-W.; Fu, H.-B.; Zhu, Y.-F. Efficient TiO2 Photocatalysts from Surface Hybridization of TiO2 Particles with Graphite-like Carbon. Adv. Funct. Mater. 2008, 18, 2180–2189. [Google Scholar] [CrossRef]
  39. Kaneka, H.; Nishimoto, S.; Miyake, K.; Suedomi, N. Physical and electrochemichromic properties of rf sputtered tungsten oxide films. J. Appl. Phys. 1986, 59, 2526–2534. [Google Scholar] [CrossRef]
  40. Al-Gaashani, R.; Radiman, S.; Tabet, N.; Daud, A.R. Rapid synthesis and optical properties of hematite (α-Fe2O3) nanostructures using a simple thermal decomposition method. J. Alloys Compd. 2013, 550, 395–401. [Google Scholar] [CrossRef]
  41. Park, Y.; Kang, S.-H.; Choi, W.Y. Exfoliated and reorganized graphite oxide on titania nanoparticles as an auxiliary co-catalyst for photocatalytic solar conversion. Phys. Chem. Chem. Phys. 2011, 13, 9425–9431. [Google Scholar] [CrossRef] [PubMed]
  42. He, B.-L.; Dong, B.; Li, H.-L. Preparation and electrochemical properties of Ag-modified TiO2 nanotube anode material for lithium-ion battery. Electrochem. Commun. 2007, 9, 425–430. [Google Scholar] [CrossRef]
  43. Li, Q.Y.; Lu, G.X. Significant Effect of Pressure on the H2 Releasing from Photothermal-Catalytic Water Steam Splitting over TiSi2 and Pt/TiO2. Catal. Lett. 2008, 125, 376–379. [Google Scholar] [CrossRef]
  44. Thomazeau, C.; Geantet, C.; Lacroix, M.; Harle, V.; Benazeth, S.; Marhic, C.; Danot, M. Two Cation Disulfide Layers in the WxMo(1−x)S2 Lamellar Solid Solution. J. Solid State Chem. 2001, 160, 147–155. [Google Scholar] [CrossRef]
  45. Liu, J.J.; Bai, Y.N.; Chen, P.W.; Cui, N.F.; Yin, H. Reaction synthesis of TiSi2 and Ti5Si3 by ball-milling and shock loading and their photocatalytic activities. J. Alloys Compd. 2013, 555, 375–380. [Google Scholar] [CrossRef]
Figure 1. XRD (X-ray diffraction) patterns of (a) commercial TiSi2 and WS2-1/TiSi2 samples prepared at (b) 623; (c) 673; (d) 723; and (e) 773 K for 2 h.
Figure 1. XRD (X-ray diffraction) patterns of (a) commercial TiSi2 and WS2-1/TiSi2 samples prepared at (b) 623; (c) 673; (d) 723; and (e) 773 K for 2 h.
Catalysts 06 00136 g001

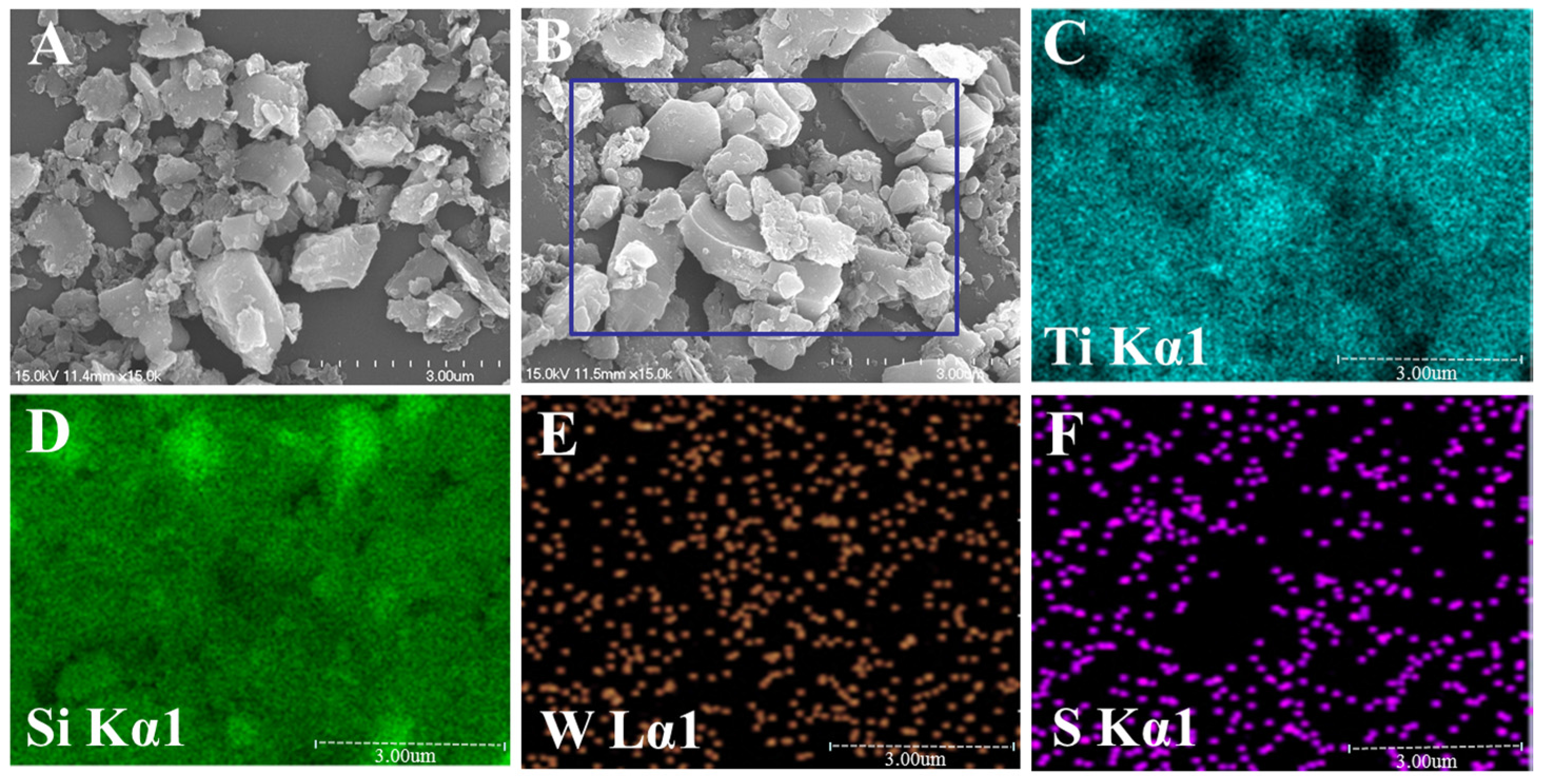

Figure 2. SEM (scanning electron microscopy) images of (A) TiSi2 and (B) WS2-1/TiSi2-723; (CF) the corresponding EDX (energy dispersive X-ray spectrometry) mapping of the WS2-1/TiSi2-723 sample at a highlighted region shown in (B).
Figure 2. SEM (scanning electron microscopy) images of (A) TiSi2 and (B) WS2-1/TiSi2-723; (CF) the corresponding EDX (energy dispersive X-ray spectrometry) mapping of the WS2-1/TiSi2-723 sample at a highlighted region shown in (B).
Catalysts 06 00136 g002

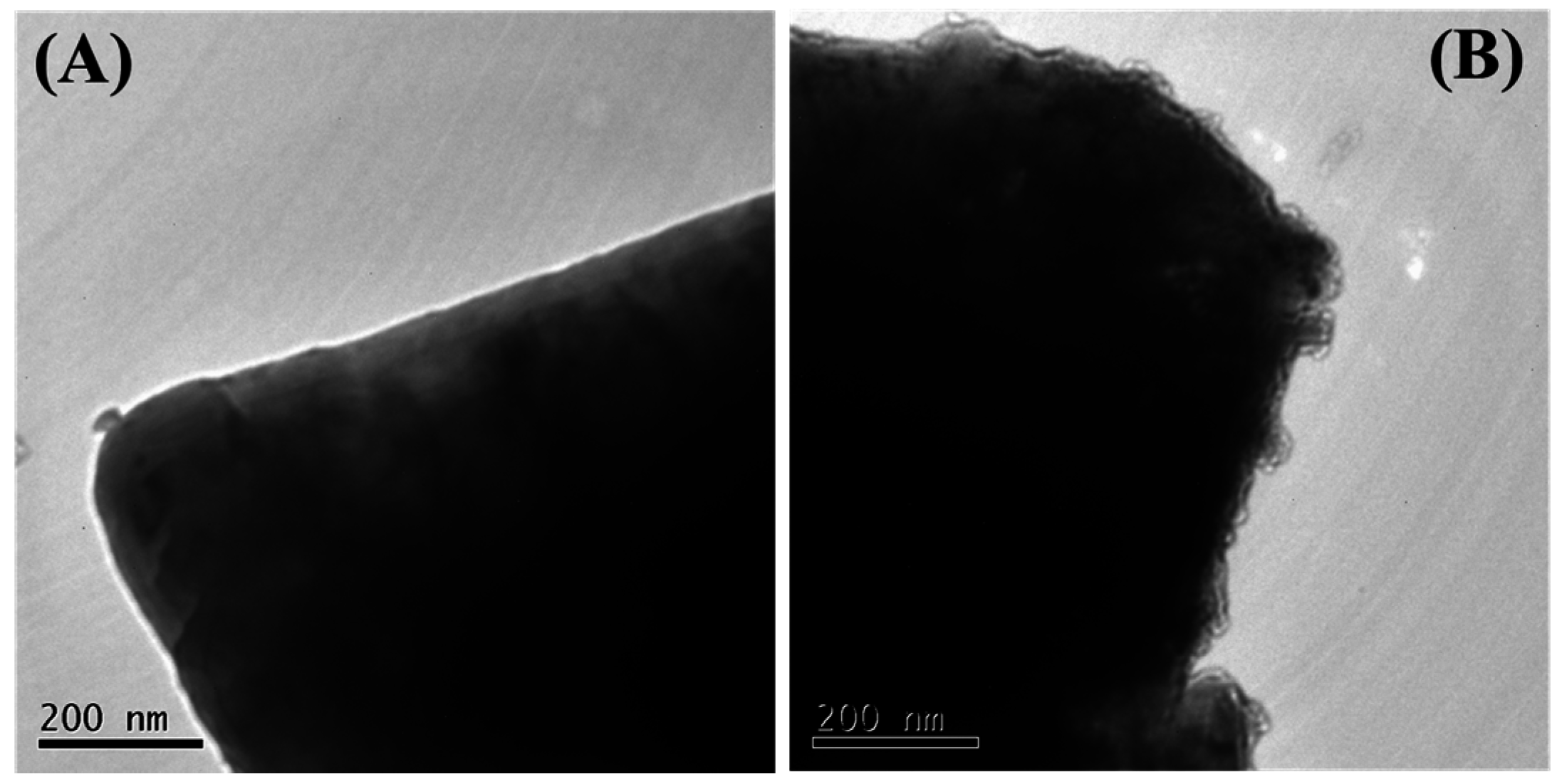

Figure 3. TEM (transmission electron microscopy) images of (A) TiSi2 and (B) WS2-1/TiSi2-723.
Figure 3. TEM (transmission electron microscopy) images of (A) TiSi2 and (B) WS2-1/TiSi2-723.
Catalysts 06 00136 g003
Figure 4. (A) TG-TDA (thermogravimetric-differential thermal analysis) curves of the decomposition of (NH4)2WS4; (B) XPS spectra of the W 4f regions for WS2-1/TiSi2 calcined at (a) 473, (b) 623, (c) 673, (d) 723 and (e) 773 K for 2 h; (C) High-resolution XPS (X-ray photoelectron spectroscopy) spectra of Ti 2p in (a) TiSi2 and (b) WS2-1/TiSi2-723; (D) High-resolution XPS spectra of Si 2p in (a) TiSi2 and (b) WS2-1/TiSi2-723.
Figure 4. (A) TG-TDA (thermogravimetric-differential thermal analysis) curves of the decomposition of (NH4)2WS4; (B) XPS spectra of the W 4f regions for WS2-1/TiSi2 calcined at (a) 473, (b) 623, (c) 673, (d) 723 and (e) 773 K for 2 h; (C) High-resolution XPS (X-ray photoelectron spectroscopy) spectra of Ti 2p in (a) TiSi2 and (b) WS2-1/TiSi2-723; (D) High-resolution XPS spectra of Si 2p in (a) TiSi2 and (b) WS2-1/TiSi2-723.
Catalysts 06 00136 g004
Figure 5. (A) The linear sweep voltammetry plots of the TiSi2 and WS2-1/TiSi2-723 electrodes scanning from −1.0 to 0 V vs. SCE (saturated calomel electrode) with a scan rate of 50 mV·s−1, the proton reduction potential at 0 mA is −0.20 V for TiSi2 and −0.13 V for WS2-1/TiSi2-723; (B) the Mott-Schottky plots of the TiSi2 and WS2-1/TiSi2-723 electrodes. Tauc plots of (C) TiSi2 and (D) WS2-1/TiSi2-723.
Figure 5. (A) The linear sweep voltammetry plots of the TiSi2 and WS2-1/TiSi2-723 electrodes scanning from −1.0 to 0 V vs. SCE (saturated calomel electrode) with a scan rate of 50 mV·s−1, the proton reduction potential at 0 mA is −0.20 V for TiSi2 and −0.13 V for WS2-1/TiSi2-723; (B) the Mott-Schottky plots of the TiSi2 and WS2-1/TiSi2-723 electrodes. Tauc plots of (C) TiSi2 and (D) WS2-1/TiSi2-723.
Catalysts 06 00136 g005

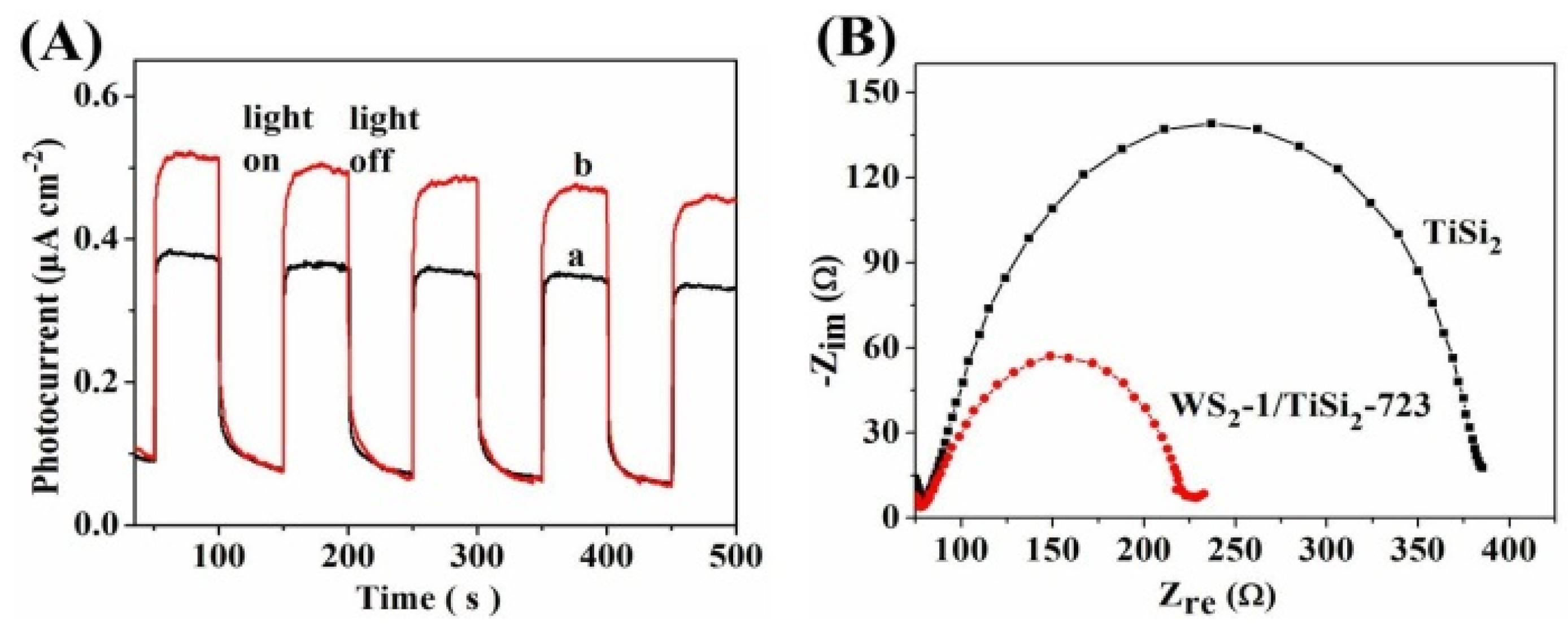

Figure 6. (A) Photocurrent of the electrodes made of (a) TiSi2 and (b) WS2-1/TiSi2-723 catalysts under UV-vis light irradiation at 0.5 V vs. SCE. The electrolyte was 0.5 M Na2SO4 aqueous solution. The illumination from a 150 W xenon lamp was interrupted every 50 s; (B) Nyquist plots of electrochemical impedance spectra (EIS) for TiSi2 and WS2-1/TiSi2-723 in 5.0 mM K3[Fe(CN)6]/K2[Fe(CN)6] (1:1) aqueous solution at a potential of 0.2 V vs. SCE.
Figure 6. (A) Photocurrent of the electrodes made of (a) TiSi2 and (b) WS2-1/TiSi2-723 catalysts under UV-vis light irradiation at 0.5 V vs. SCE. The electrolyte was 0.5 M Na2SO4 aqueous solution. The illumination from a 150 W xenon lamp was interrupted every 50 s; (B) Nyquist plots of electrochemical impedance spectra (EIS) for TiSi2 and WS2-1/TiSi2-723 in 5.0 mM K3[Fe(CN)6]/K2[Fe(CN)6] (1:1) aqueous solution at a potential of 0.2 V vs. SCE.
Catalysts 06 00136 g006

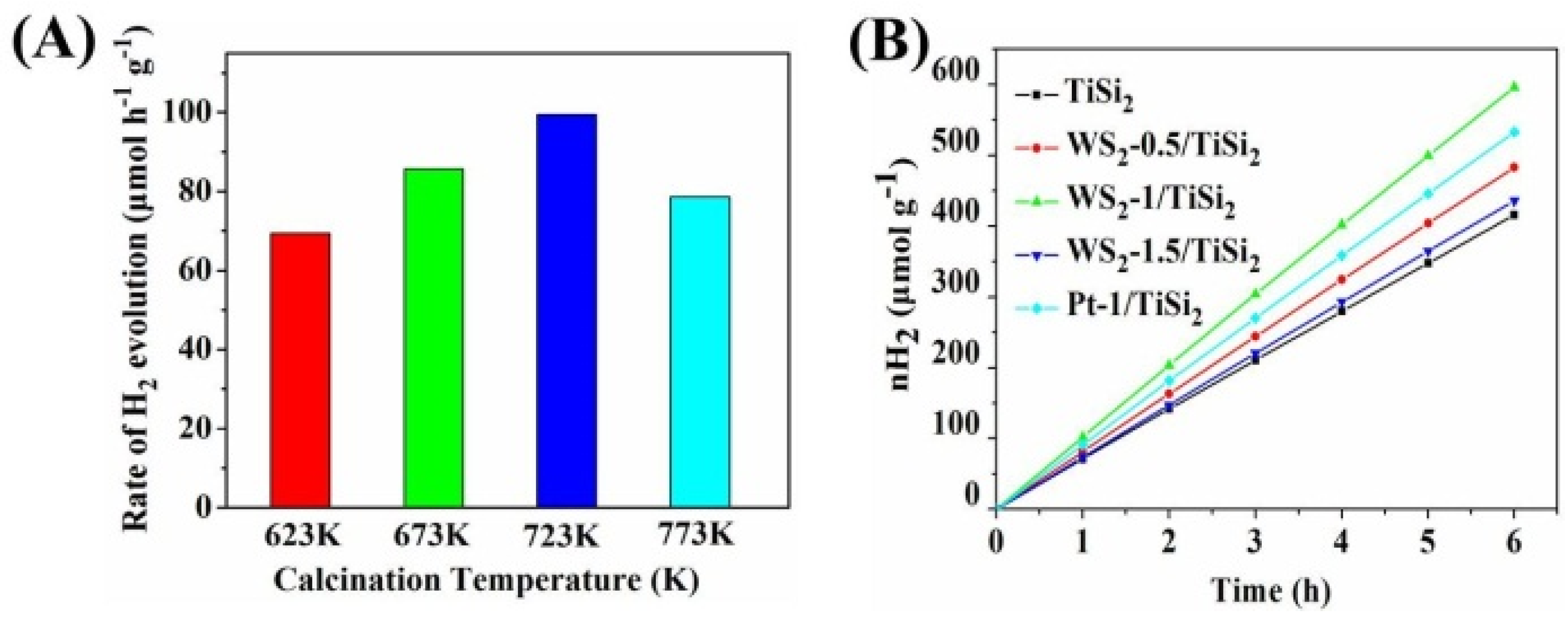

Figure 7. (A) The H2 evolution rates of WS2-1/TiSi2-y catalysts prepared at different temperatures; (B) the hydrogen production of TiSi2, WS2-x/TiSi2-723, and Pt-1/TiSi2 catalysts over 6 h. Reaction conditions: 50 mg catalysts, 60 mL 0.005 M oxalic acid aqueous solution, irradiation source: a 150 W Xe lamp equipped with a cut-off filter at 420 nm.
Figure 7. (A) The H2 evolution rates of WS2-1/TiSi2-y catalysts prepared at different temperatures; (B) the hydrogen production of TiSi2, WS2-x/TiSi2-723, and Pt-1/TiSi2 catalysts over 6 h. Reaction conditions: 50 mg catalysts, 60 mL 0.005 M oxalic acid aqueous solution, irradiation source: a 150 W Xe lamp equipped with a cut-off filter at 420 nm.
Catalysts 06 00136 g007

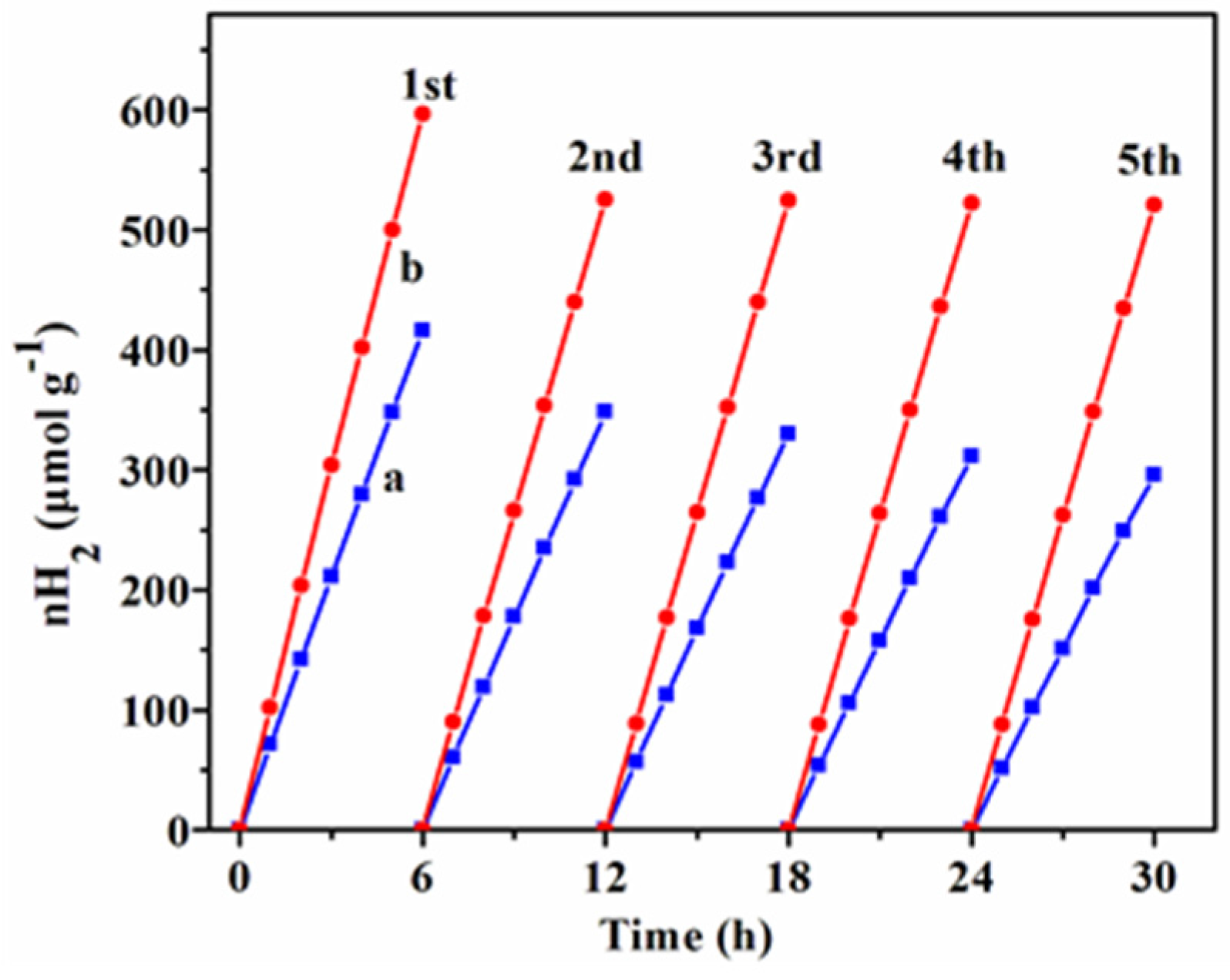

Figure 8. The recycling photocatalytic experiments of (a) TiSi2 and (b) WS2-1/TiSi2-723. Reaction conditions: 50 mg catalysts, 60 mL 0.005 M oxalic acid aqueous solution, a 150 W Xe lamp equipped with a cut-off filter at 420 nm.
Figure 8. The recycling photocatalytic experiments of (a) TiSi2 and (b) WS2-1/TiSi2-723. Reaction conditions: 50 mg catalysts, 60 mL 0.005 M oxalic acid aqueous solution, a 150 W Xe lamp equipped with a cut-off filter at 420 nm.
Catalysts 06 00136 g008

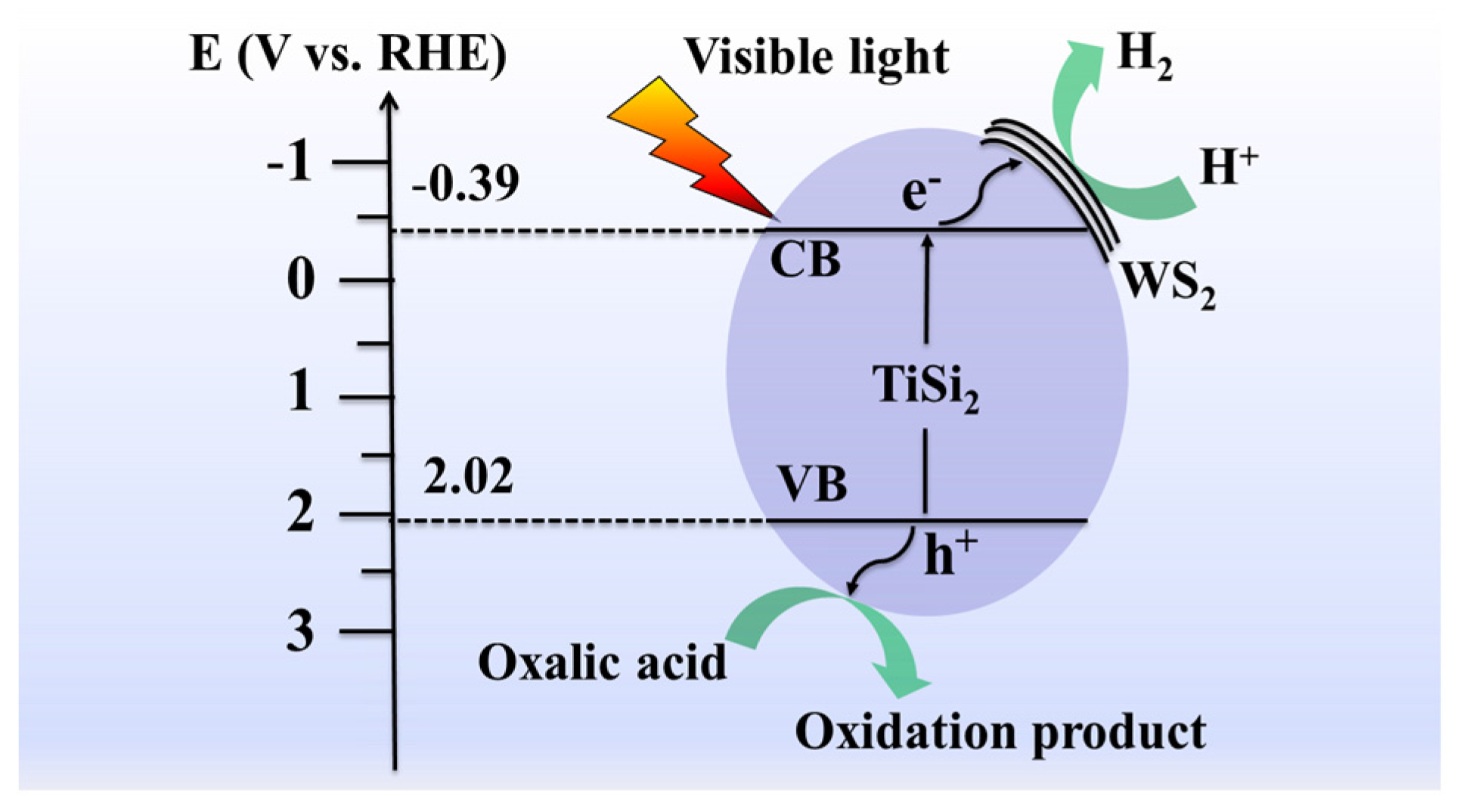

Scheme 1. A schematic illustration of the charge transfer for hydrogen evolution over the WS2-x/TiSi2-y photocatalyst under visible light irradiation.
