Catalysts 2016, 6(8), 126; https://doi.org/10.3390/catal6080126

Article
Highly Efficient One-Pot Synthesis of 2,4-Disubstituted Thiazoles Using Au(I) Catalyzed Oxidation System at Room Temperature
Department of Environment and Technology, Nanjing Institute of Technology, Nanjing 211167, China
*
Author to whom correspondence should be addressed.
Academic Editor: Xiao-Feng Wu
Received: 25 July 2016 / Accepted: 15 August 2016 / Published: 20 August 2016

Abstract

:
In the present work, gold complex catalysts with Mor-DalPhos ligands were successfully prepared using mesylates as counter ions. Seven ammonium sulfonates were synthesized to promote the production of intermediate sulfonyloxymethyl ketone. It was found that low-acidity N,N-dimethylbenzenaminium methanesulfonate showed excellent activity in the reaction. Furthermore, the catalysts effectively avoided the loss of activity due to the low acidity. Various thioamides were directly added to the resulting reaction mixture without the separation of intermediate product. Then, twenty kinds of 2,4-disubstituted thiazoles were efficiently synthesized at room temperature with the highest yield of 91%. This work provides an efficiency and mild gold-catalyzed oxidation system for the one-pot synthesis of thiazole and its derivatives.
Keywords:
thiazole; terminal alkyne; thioamide; Au(I) complexes; ammonium sulfonate

1. Introduction

Thiazole is an aromatic, five-membered heteroaromatic compound containing both a nitrogen and a sulfur atom. This special thiazole ring structure endows thiazoles with wide application in chemical, pharmaceutical, biological, and material sciences, etc. [1,2,3,4,5,6,7,8,9]. It was the derivatives of 2,4-disubstituted thiazole that acted as active ingredient in many bioactive natural products and pharmaceuticals, such as mycothiazole, sanguinamide B, and archazolid A (Figure 1) [5,6]. Much effort has been put into the preparation of thiazole compounds, which became a much-talked-about topic in recent years [10,11].
In the past two decades, homogenous gold complexes were gradually believed to be an active catalyst, and it had been used in many reactions, such as forming reactions for C–C and C–O bonds, hydrogenation, and oxidation [12,13]. Noticeably, various gold catalysts with different ligands and counter anions showed high efficiency in the activation of a C–C triple bond in alkyne via nucleophilic addition. Cationic phosphine Au(I) species were found to be excellent catalysts in the addition of alcohols to alkynes in 1998 [14]. Subsequently, gold(III) complexes were investigated as catalysts and used in the synthesis of five-membered rings with two heteroatoms [15,16,17,18]. Several years later, R3PAuX (X = trifluoromethanesulphonate, OTf) or other weakly coordinating counter ions) demonstrated excellent catalytic performance in Conia-ene [19,20] and hydroarylation [21,22,23] reactions, as well as several carbon–heteroatom bond-forming reactions [24,25,26]. Recently, Zhang's group designed a new complex with the ligand (1,1′-biphenyl)-2-ylphosphine, which was found to be effective in the reaction of acid and alkynes with a turnover number up to 99,000 [27]. In previous articles, we also reported gold complexes with Mor-Dalphos ligands, which show excellent catalytic performance in the synthesis of 2,4-disubstituted thiazoles from terminal alkynes and thioamides [10,11]. However, highly-acidic MsOH or Zinc salt were employed in the catalytic systems, and the oxidant of 8-Me-quinoline N-oxides had to be added slowly by syringe pump with specific molar ratio.
In this work, seven low-acidity ammonium sulfonates were used for the source of MsO in the catalytic oxidation of terminal alkynes into a sulfonyloxymethyl ketone intermediate. Except for thioamides, other substrates were added into the reactor by one time. The system employing A (N,N-dimethylbenzenaminium methanesulfonate) was found to be an optimized reaction system for the synthesis of various 2,4-disubstituted thiazoles. Moreover, reaction conditions, catalyst types, and solvents—which played important roles in catalytic result—were also investigated in detail.

2. Results and Discussion

2.1. Optimized Synthesis of Intermediate Product 2a

The effect of gold catalysts, solvents, and ammonium sulfonates on reaction results is listed in Table 1. It can be seen that Mor-DalPhosAuCl exhibited the good yield of 58% with the presence of AgNTf2, and Me-DalPhosAuCl showed the slightly inferior yield of 53%, due to the steric size of the pendant secondary amine [28]. These prospective results were consistent with our previous works, which further supported the accepted viewpoint that P,N-bidentate ligands could attenuate the strong electrophilicity of the a-oxo gold carbene via the formation of a tricoordinated metal center [29,30]. L1AuCl and L2AuCl, with the more rigid cyclic structure, displayed less-efficient yield in this reaction. Similarly, lower yields were obtained over the catalysts of L3AuCl and L4AuCl, due to larger steric hindrance in comparison with Mor-DalPhosAuCl. The catalytic results from L5AuCl to L8AuCl (entries 7 to 10) suggested that the gold complexes containing the (1,10-biphenyl)-2-ylphosphine framework were inefficient in this reaction. However, the yield was only 28% using high acid MsOH for the generation of intermediate product (entry 11). When AgNTf2 was replaced by AgOMs for gold catalysts, the exciting yield of 68% was obtained in the catalytic system of Mor-DalPhosAuCl/AgOMs (entry 12). Moreover, the prepared catalyst of Mor-DalPhosAuOMs showed the higher yield of 74% (entry 13). This result might be ascribed to the spatial proximity between MsO and 2a [11]. In addition, eight different solvents were selected to investigate the effect of solvent on the catalytic performance. To our delight, the yield increased to 82% when dichloromethane (DCM) was used. The seven as-prepared ammonium sulfonates were also investigated. The results show that 2 yield decreased over the structure of ammonium sulfonates: A > E > B ≈ C > F > D > G. It can be seen that A displayed the highest reaction activity due to the minimum steric hindrance. At the same time, all of the N,N-Dimethylamiline sulfonic salts exhibited higher activity than that of N,N-Diethylaniline sulfonic salts due to less steric hindrance. Additionally, methaneammonium sulfonates G showed the lowest yield of 43% in the presence of the Br electron withdraw group. Therefore, A, Mor-DalPhosAuOMs, and DCM were chosen as the optimum reaction factors for the synthesis of 2a in the following research (Scheme 1).
In order to obtain the optimized catalytic performance, the ratio of substrates, amount of catalyst, and reaction scale were intensively investigated at room temperature in 6 h (Figure 2). Firstly, Figure 2a displays the effect of A/1-dodecyne molar ratio on reaction results when 5 mmol 1-dodecyne, 1.2 eq. oxidants, 5 mL DCM, and 5% mol catalyst were used. It was found that a 2a yield of 80% was obtained with 1.2 molar ratio of A/1-dodecyne. During the course of the reaction in Scheme 2, it was OMs that reacted with intermediate H to afford intermediate I. The concentration of OMs play an important role in the generation of intermediate I, and the reaction would be accelerated by a high concentration of OMs. It was well known that there is an ionic equilibrium between the ammonium sulfonate and OMs. More OMs would be produced with the presence of more ammonium sulfonate. So, 1.2 eq. of ammonium sulfonate was employed in the catalytic system. However, with the increasing of the molar ratio in excess, 2a yield decreased sharply because the catalyst partly lost activity due to an excess of A. Then, the effect of oxidant/1-dodecyne molar ratio on the catalytic performance was also investigated when 5 mmol 1-dodecyne, 1.2 eq. A, 5 mL DCM, and 5% mol catalyst were used (see Figure 2b). It was suggested that 2a yield increased with the increasing of oxidant/1-dodecyne molar ratio up to 1.2. However, with the further increasing of oxidant, the 2a yield decreased remarkably because catalyst was poisoned by excess oxidant. Figure 2c shows that the dosage of catalyst obviously affects 2a yield when 5 mmol 1-dodecyne, 1.2 eq. oxidants, 5 mL DCM, and 1.2 eq. A were used. It can be seen that 2a yield increased obviously when the catalyst dosage increased from 1.25 to 5 mol %, while 2a yield increased slightly with catalyst amount increasing from 5 to 10 mol %. Last but not least, the effect of reaction scale on the results was also investigated in detail when 1.2 eq. A (base on 1a), 1.2 eq. oxidants, 5 mL DCM, and 5 mol % catalyst were used. The yield of 2a increased from 80% to 86% when the scale of 1a increased from 0.05 to 0.5 mmol. Remarkably, a 2a yield of 91% was obtained when 1a was in large amount of 5 mmol (see Figure 2d). In conclusion, the optimum 2a yield of 91% was obtained when the reaction ran for 6 h at 25 °C using 5 mmol 1-dodecyne, 1.2 eq. A, 1.2 eq. oxidant, 5% mol Mor-DalPhosAuOMs, and 5 mL DCM.

2.2. One-Pot Synthesis of 2,4-Disubstituted Thiazoles

On the basis of the optimized conditions and the previous work [11], the catalytic performance of the gold-catalyzed system was investigated in the one-pot synthesis of various 2,4-disubstituted thiazoles. It is worth mentioning that various thioamides were directly added to the as-obtained reaction mixture without isolation of intermediate product 2a (Figure 3). A range of thioamides were tested using 1-dodecyne as the alkyne component (entries 1–8). Thioamides with alkyl and phenyl groups underwent the reaction smoothly, affording 2,4-disubstituted thiazoles in acceptable-to-good yields (entries 1–5). Furan-2-thioamide and thiophene-2-thioamide gave the corresponding biheteroaryl products 4f and 4g in relative low yield (entries 6 and 7). The reaction worked with 3-phenyl-thioacrylamide with the yield of 78% (entry 8). So, the as-obtained gold-catalyzed system exhibited high catalytic performance for 1-dodecyne and eight representative thioamides.
With respect to alkynes, linear aliphatic terminal alkynes with remote functional groups such as NPhth (entry 9), chloro (entry 10), BnO (entry 11), TIPS protected HO (entry 12) were suitable substrates. The reaction proceeded efficiently with cyclopropylacetylene (entry 13), while 4n was isolated in only 53% yield using cyclohexylacetylene (entry 14). The alkyne with conjugated enone group did not appear to interfere with the thiazole formation (entries 15 and 16). Nevertheless, when a phenylacetylene was present (entry 17), the reaction still afforded an acceptable yield. Phenylallylene without (entry 18) and with (entries 19 and 20) an electron withdrawing group gave products in serviceable yields. Therefore, twenty kinds of 2,4-disubstituted thiazoles were synthesized smoothly by the as-obtained gold-catalyzed oxidation system.

2.3. Proposed Reaction Mechanism

In view of the reported literature [11,28] and the results we obtained (discussed above), a plausible mechanism was postulated, shown in Scheme 2. Using the 8-Methylquinoline N-oxide as oxidant, the alkyne can be oxidized into α-oxo gold carbene H in the presence of gold complexes. The gold carbene H abstracted the anion of OMs from A, which resulted in the formation of methanesulfonic intermediate I. With the split of cationic Au(I), methanesulfonic product J was generated and attacked by the thioamides. Then, internal dehydration took place in intermediate K, which led to the production of 2,4-disubstituted thiazoles.

3. Experimental Section

3.1. Preparation and Characterization of Catalyst

Homogeneous gold complexes were prepared by the ligand L (Scheme 3) and chloro(dimethylsulfide)gold(I) (AuCl·DMS), and then Cl was abstracted from LAuCl by AgX. The synthetic and characterization procedures have been described in detail in previous reports [11,27].

3.2. Preparations of Ammonium Sulfonates

Typically, sulfonic acid (25.0 mmol) was dropped to the solution of amines (25.0 mmol) in alcohol (50 mL) over 0.5 h. The reaction mixture was then stirred at room temperature for 0.5 h before the separation of precipitation. The obtained solids of ammonium sulfonate were further purified by recrystallizing in DCM. Their preparation is depicted in Scheme 4, and their similar structures are listed in Table 1.

3.3. Catalytic Test

3.3.1 General Procedure for the Synthesis of Mesylates 2

Typically, the terminal alkyne 1 (5 mmol), Mor-DalPhosAuOMs (0.188 g, 0.25 mmol, 5 mol %), 8-methylquinoline N-oxide (3a; 0.96 g, 6 mmol), and A (6 mmol) were added to a three-necked flask containing 5 mL of dichloromethane. The reaction mixture was stirred at room temperature over 6 h before concentration under vacuum. The resulting residue was purified by silica gel flash chromatography (Starlab Scientific Co., Ltd, xian, Shanxi, China) to give 2.

3.3.2 General Procedure for the One-Pot Synthesis of 2,4-Disubstituted Thiazoles 4

Typically, to a three-necked flask containing 5 mL of dichloromethane, the terminal alkyne 1 (5.0 mmol), Mor-DalPhosAuOMs (0.188 g, 0.25 mmol, 5 mol %), 8-methylquinoline N-oxide (3a, 0.96 g, 6 mmol), and A (6 mmol) were added in turn. The obtained mixture was stirred at room temperature for 6 h, and then thioamide (6 mmol) was further added. After another stirring for 6 h, the mixture was concentrated under vacuum. The resulting crude reaction mixture was purified by silica gel flash chromatography to afford 4. 1H, 13C NMR spectra, Fourier Transform infrared spectroscopy (FTIR), and Electrospray Ionization (ESI) for products 4 are consistent with the literature [10,11].

4. Conclusions

In summary, seven kinds of low-acidity ammonium sulfonates were prepared and reacted with terminal alkynes for the generation of intermediate products. It was found that A exhibited the optimized 2a yield of 91% using Mor-DalPhosAuOMs as catalyst. In the one-pot synthesis of 2,4-disubstituted thiazoles, twenty kinds of products were successfully prepared in a large-scale and high yield. We anticipate this gold-catalyzed oxidation system could provide important reference values for the industrial preparation of 2,4-disubstituted thiazoles and their derivatives.

Acknowledgments

The authors acknowledge the financial supports from the National Natural Science Foundation of China (21003073, 21203093), the Natural Science Foundation of Jiangsu Province (BK20141388, BK20161481), Industry University Research Prospective Joint Research Project of Jiangsu Province (BY2016008-03), the Qing Lan Project of Jiangsu Province, the Academic Talents Training Project of Nanjing Institute of Technology, and the College students practice innovation training program of Jiangsu Province.

Author Contributions

W.G.D. and W.X.L. designed the experiments; W.G.D. analyzed the data and wrote the paper; L.H. performed the experiments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Banothu, J.; Vaarla, K.; Bavantula, R.; Crooks, P.A. Sodium fluoride as an efficient catalyst for the synthesis of 2,4-disubstituted-1,3-thiazoles and selenazoles at ambient temperature. Chin. Chem. Lett. 2014, 25, 172–175. [Google Scholar]
  2. Siddiqui, N.; Arya, S.K.; Ahsan, W.; Azad, B. Diverse biological activities of Thiazoles: A Retrospect. Int. J. Drug Dev. Res. 2011, 3, 55–67. [Google Scholar]
  3. Gautam, D.; Gautam, P.; Chaudhary, R.P. N-Methylpyridinium tosylate catalyzed green and efficient synthesis of some novel 2,4-disubstituted thiazoles and 4-thiazolidinones. Chin. Chem. Lett. 2012, 23, 1221–1224. [Google Scholar] [CrossRef]
  4. Kushwaha, N.; Kushwaha, S.K.S.; Rai, A.K. Biological activities of thiadiazole derivatives: A review. Int. J. ChemTech Res. 2012, 4, 517–531. [Google Scholar]
  5. Jin, Z. Muscarine, imidaozle, oxazole and thiazole alkaloids. Nat. Prod. Rep. 2013, 30, 869–915. [Google Scholar] [CrossRef] [PubMed]
  6. Dondoni, A.; Marra, A. Thiazole-mediated synthetic methodology. Chem. Rev. 2004, 104, 2557–2599. [Google Scholar] [PubMed]
  7. Sadek, B.; Al-Tabakha, M.M.; Fahelelbom, K.M.S. Antimicrobial prospect of newly synthesized 1,3-thiazole derivatives. Molecules 2011, 16, 9386–9396. [Google Scholar] [PubMed]
  8. Reddy, M.R.D.; Prasad, A.R.G.; Spoorthy, Y.N.; Ravindranath, L.R.K.R. Synthesis, characterization and antimicrobial activity of certain novel aryl hydrazone pyrazoline-5-ones containing thiazole moiety. Adv. Pharm. Bull. 2013, 3, 153–159. [Google Scholar] [PubMed]
  9. Nielsen, D.S.; Hoang, H.N.; Lohman, R.; Diness, F.; Fairlie, D.P. Total synthesis, structure, and oral absorption of a thiazole cyclic peptide, Sanguinamide A. Org. Lett. 2012, 14, 5720–5723. [Google Scholar] [CrossRef] [PubMed]
  10. Wu, G.; Wang, X.; Zhang, L.; Zhang, F.; Liu, X.; Liu, C. One-step synthesis of 2,4-disubstituted thiazoles in Au(I) Complex/Zinc salt catalytic system. Chin. J. Org. Chem. 2015, 35, 2537–2544. [Google Scholar]
  11. Wu, G.; Zheng, R.; Nelson, J.; Zhang, L. One-step synthesis of methanesulfonyloxymethyl ketones via gold-catalyzed oxidation of terminal alkynes: A combination of ligand and counter anion enables high efficiency and a one-pot synthesis of 2,4-disubstituted thiazoles. Adv. Synth. Catal. 2014, 356, 1229–1234. [Google Scholar] [CrossRef]
  12. Rudolpha, M.; Hashmi, A.S.K. Gold catalysis in total synthesis—An update. Chem. Soc. Rev. 2012, 41, 2448–2462. [Google Scholar] [CrossRef] [PubMed]
  13. Alcaide, B.; Almendros, P.; Alonso, J.M. Gold-catalyzed cyclizations of alkynol-based compounds: synthesis of natural products and derivatives. Molecules 2011, 16, 7815–7843. [Google Scholar] [CrossRef] [PubMed]
  14. Teles, J.H.; Brode, S.; Chabanas, M. Cationic gold(I) complexes: Highly efficient catalysts for the addition of alcohols to alkynes. Angew. Chem. Int. Ed. 1998, 37, 1415–1418. [Google Scholar] [CrossRef]
  15. Hashmi, A.S.K.; Frost, T.M.; Bats, J.W. Highly selective gold-catalyzed arene synthesis. J. Am. Chem. Soc. 2000, 122, 11553–11554. [Google Scholar] [CrossRef]
  16. Hashmi, A.S.K.; Schwarz, L.; Choi, J.H.; Frost, T.M. A new gold-catalyzed C–C bond formation. Angew. Chem. Int. Ed. 2000, 39, 2285–2288. [Google Scholar] [CrossRef]
  17. Hashmi, A.S.K.; Weyrauch, J.P.; Frey, W.; Bats, J.W. Gold catalysis: Mild conditions for the synthesis of oxazoles from n-propargylcarboxamides and mechanistic aspects. Org. Lett. 2004, 6, 4391–4394. [Google Scholar] [CrossRef] [PubMed]
  18. Weyrauch, J.P.; Hashmi, A.S.K.; Schuster, A.; Hengst, T.; Schetter, S.; Littmann, A.; Rudolph, M.; Hamzic, M.; Visus, J.; Rominger, F.; et al. Cyclization of propargylic amides: Mild access to oxazole derivatives. Chem. Eur. J. 2010, 16, 956–963. [Google Scholar] [CrossRef] [PubMed]
  19. Kennedy-Smith, J.J.; Staben, S.T.; Toste, F.D. Gold(I)-catalyzed Conia-ene reaction of beta-ketoesters with alkynes. J. Am. Chem. Soc. 2004, 126, 4526–4527. [Google Scholar] [CrossRef] [PubMed]
  20. Staben, S.T.; Kennedy-Smith, J.J.; Toste, F.D. Gold-catalyzed 5-endo-dig carbocyclization of acetylenic dicarbonyl compounds. Angew. Chem. Int. Ed. 2004, 43, 5350–5352. [Google Scholar] [CrossRef] [PubMed]
  21. Jaimes, M.C.B.; Rominger, F.; Pereira, M.M.; Carrilho, R.M.B.; Carabineiro, S.A.C.; Hashmi, A.S.K. Highly active phosphite gold(I) catalysts for intramolecular hydroalkoxylation, enyne cyclization and furanyne cyclization. Chem. Commun. 2014, 50, 4937–4940. [Google Scholar] [CrossRef] [PubMed]
  22. Nevado, C.; Echavarren, A.M. Intramolecular hydroarylation of alkynes catalyzed by platinum or gold: Mechanism and endo selectivity. Chem. Eur. J. 2005, 11, 3155–3164. [Google Scholar] [CrossRef] [PubMed]
  23. Ferrer, C.; Echavarren, A.M. Gold-catalyzed intramolecular reaction of indoles with alkynes: Facile formation of eight-membered rings and an unexpected allenylation. Angew. Chem. Int. Ed. 2006, 45, 1105–1109. [Google Scholar] [CrossRef] [PubMed]
  24. Antoniotti, S.; Genin, E.; Michelet, W.; Genet, J.P. Highly efficient access to strained bicyclic ketals via gold-catalyzed cycloisomerization of bishomopropargylic diols. J. Am. Chem. Soc. 2005, 127, 9976–9977. [Google Scholar] [CrossRef] [PubMed]
  25. Buzas, A.; Gagosz, F. Gold(I)-catalyzed formation of 4-alkylidene-1,3-dioxolan-2-ones from propargylic tert-butyl carbonates. Org. Lett. 2006, 8, 515–518. [Google Scholar] [CrossRef] [PubMed]
  26. Mizushima, E.; Hayashi, T.; Tanaka, M. Au(I)-catalyzed highly efficient intermolecular hydroamination of alkynes. Org. Lett. 2003, 5, 3349–3352. [Google Scholar] [CrossRef] [PubMed]
  27. Wang, Y.; Wang, Z.; Li, Y.; Wu, G.; Cao, Z.; Zhang, L. A general ligand design for gold catalysis allowing ligand-directed anti-nucleophilic attack of alkynes. Nat. Commu. 2014, 5, 3470. [Google Scholar] [CrossRef] [PubMed]
  28. Ji, K.; Zhao, Y.; Zhang, L. Optimizing P,N-Bidentate ligands for oxidative gold catalysis: Efficient intermolecular trapping of α-oxo gold carbenes by carboxylic acids. Angew. Chem. Int. Ed. 2013, 52, 6508–6512. [Google Scholar] [CrossRef]
  29. Luo, Y.; Ji, K.; Li, Y.; Zhang, L. Tempering the reactivities of postulated α-oxo gold carbenes using bidentate ligands: Implication of tricoordinated gold intermediates and the development of an expedient bimolecular assembly of 2,4-disubstituted oxazoles. J. Am. Chem. Soc. 2012, 134, 17412–17415. [Google Scholar] [CrossRef] [PubMed]
  30. Khin, C.; Hashmi, A.S.K.; Rominger, F. Gold(I) complexes of P,N ligands and their catalytic activity. Eur. J. Inorg. Chem. 2010, 7, 1063–1069. [Google Scholar] [CrossRef]
Figure 1. The structure of mycothiazole, sanguinamide B, and archazolid A.
Figure 1. The structure of mycothiazole, sanguinamide B, and archazolid A.
Catalysts 06 00126 g001

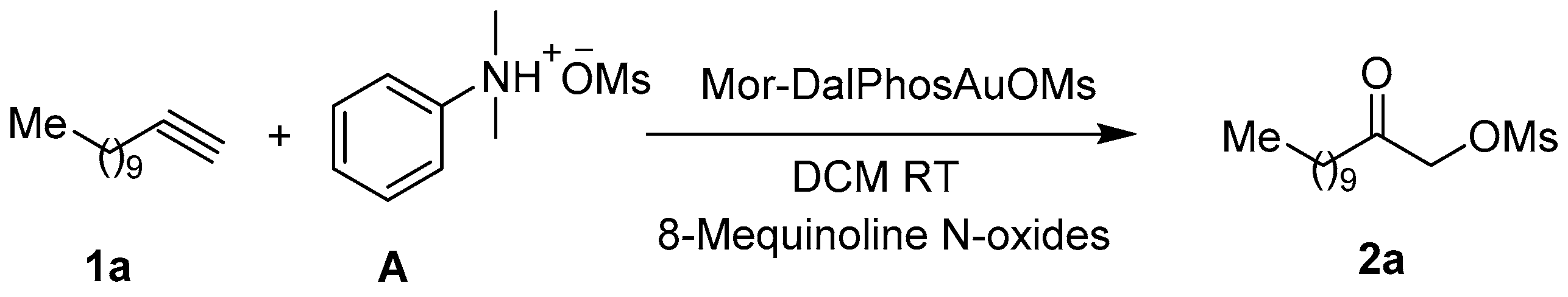

Scheme 1. The preparation of intermediate product 2a.
Scheme 1. The preparation of intermediate product 2a.
Catalysts 06 00126 sch001

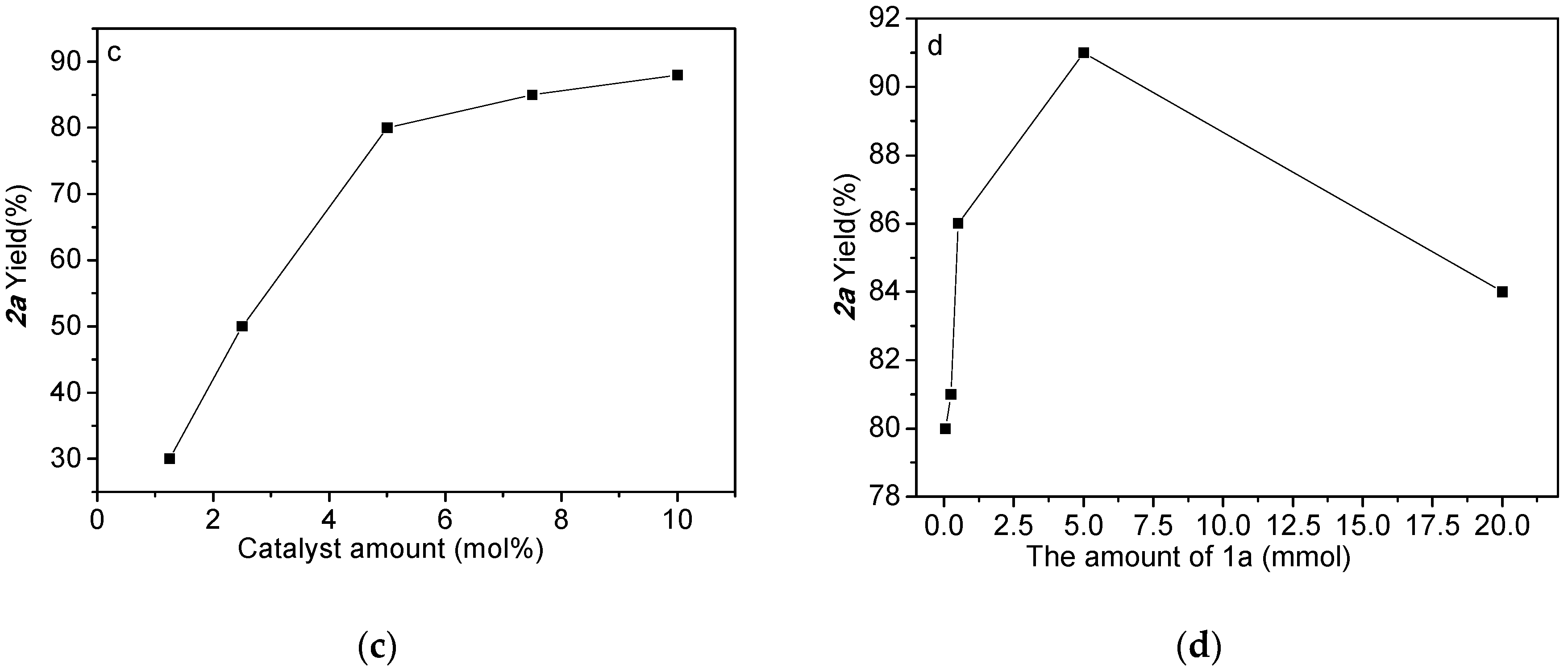

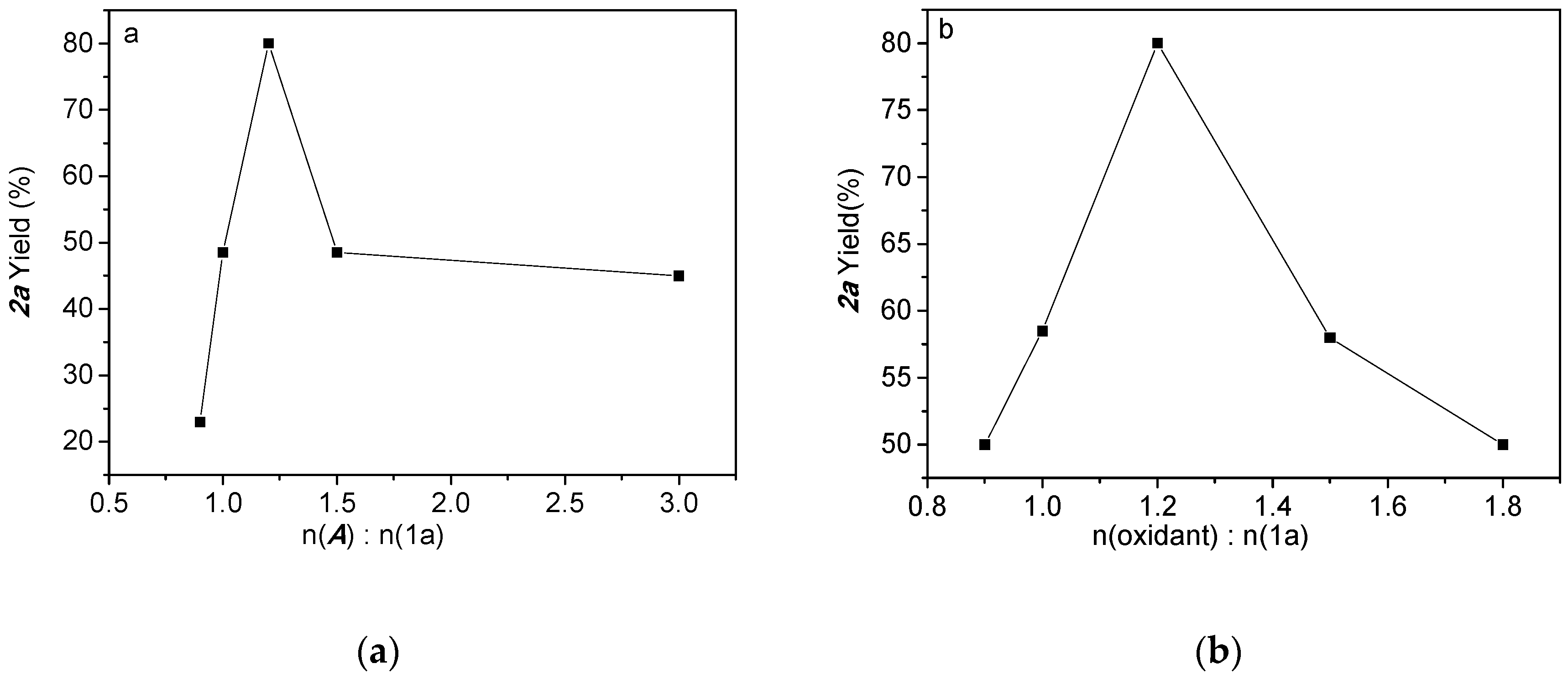

Figure 2. Effect of condition parameters on yield of intermediate product 2a; (a) Effect of A amount on 2a yield, (b) Effect of 8-Me-quinoline N-oxides amount on 2a yield, (c) Effect of catalysts amount on 2a yield, (d) Effect of 1a amount on 2a yield.
Figure 2. Effect of condition parameters on yield of intermediate product 2a; (a) Effect of A amount on 2a yield, (b) Effect of 8-Me-quinoline N-oxides amount on 2a yield, (c) Effect of catalysts amount on 2a yield, (d) Effect of 1a amount on 2a yield.
Catalysts 06 00126 g002aCatalysts 06 00126 g002b

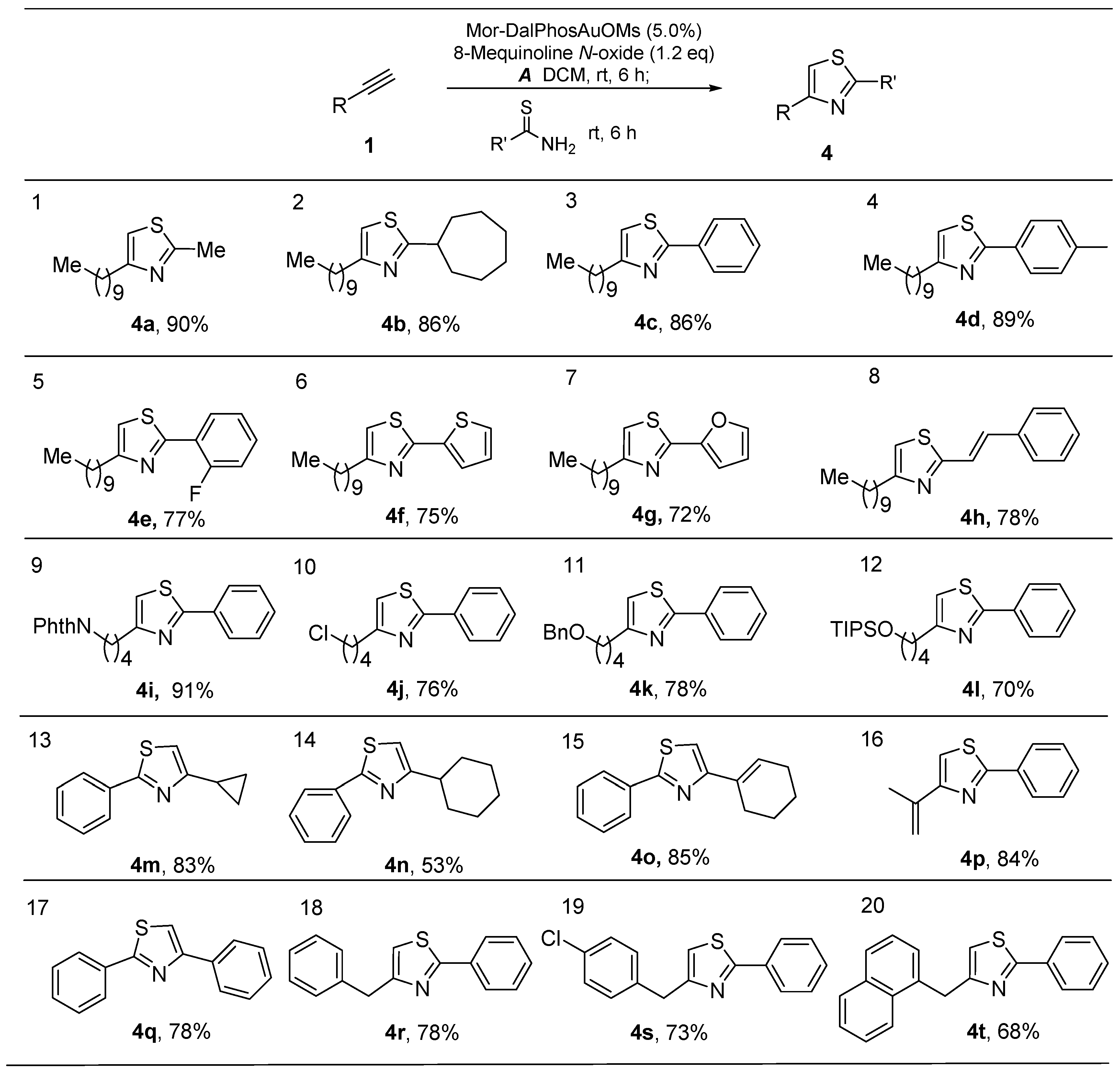

Figure 3. One-pot synthesis of 2,4-disubstituted thiazoles a. a Isolated yields; Reaction condition: 1-dodecyne, 5 mmol; A, 1.2 eq.; Oxidants, 1.2 eq.; thioamide, 1.2 eq.; DCM, 5 mL; Room temperature (25 °C).
Figure 3. One-pot synthesis of 2,4-disubstituted thiazoles a. a Isolated yields; Reaction condition: 1-dodecyne, 5 mmol; A, 1.2 eq.; Oxidants, 1.2 eq.; thioamide, 1.2 eq.; DCM, 5 mL; Room temperature (25 °C).
Catalysts 06 00126 g003

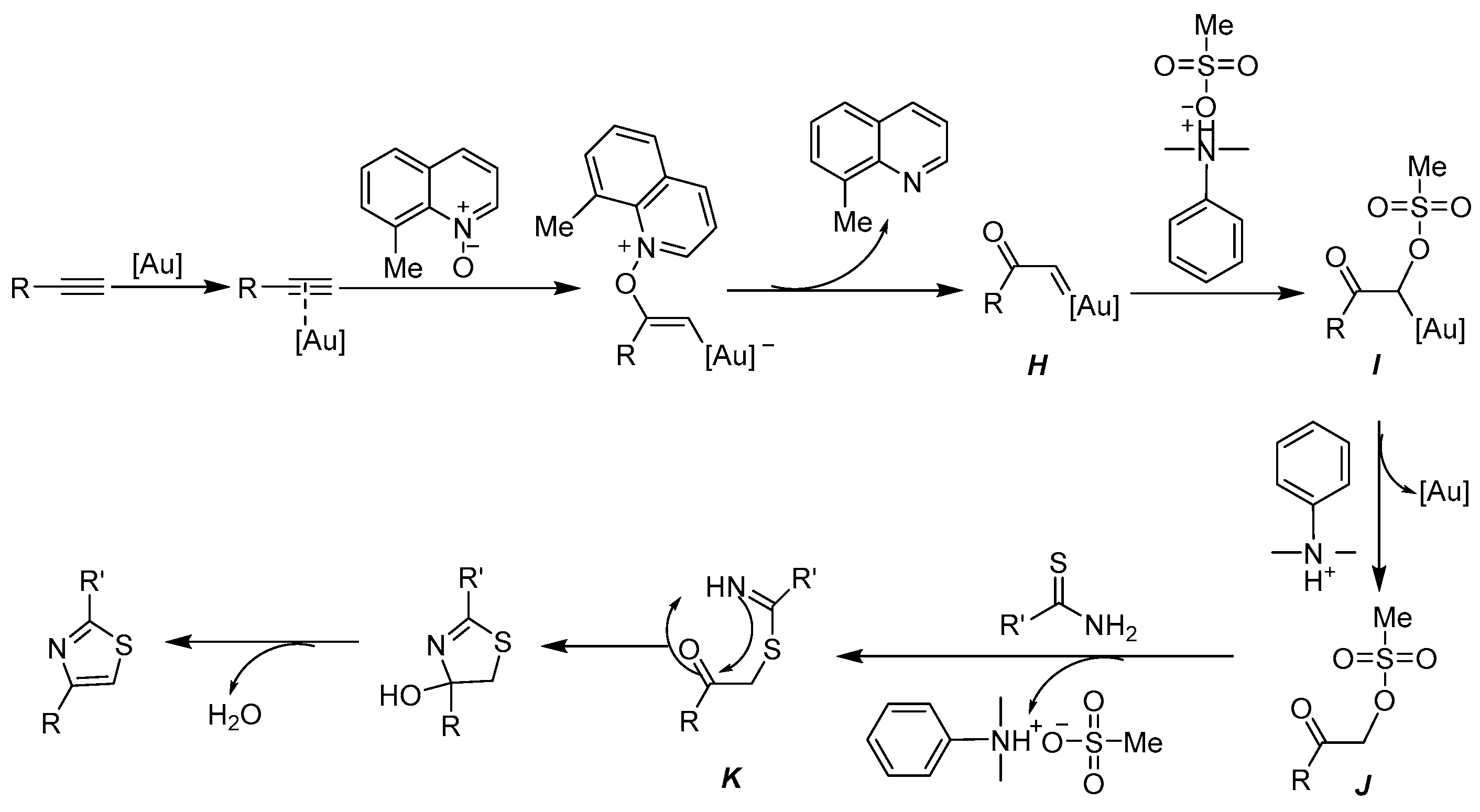

Scheme 2. Speculation of reaction mechanism.
Scheme 2. Speculation of reaction mechanism.
Catalysts 06 00126 sch002
Scheme 3. The structure of ligands.
Scheme 3. The structure of ligands.
Catalysts 06 00126 sch003

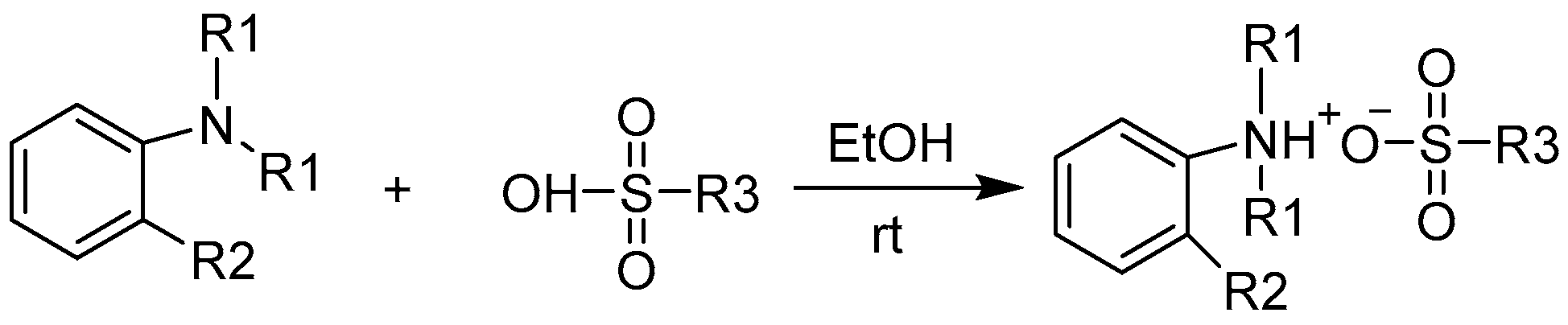

Scheme 4. The preparation of seven ammonium sulfonates.
Scheme 4. The preparation of seven ammonium sulfonates.
Catalysts 06 00126 sch004
Table 1. Screening gold catalysts, solvents, and ammonium sulfonates a.
Table 1. Screening gold catalysts, solvents, and ammonium sulfonates a.
Catalysts 06 00126 i001
EntryCatalystsSaltsSolvent2 Yield b (%)
1Me-DalPhosAuCl/AgNTf2 (5 mol %)ADCE53
2Mor-DalPhosAuCl/AgNTf2 (5 mol %)ADCE58
3L1AuCl/AgNTf2 (5 mol %)ADCE47
4L2AuCl/AgNTf2 (5 mol %)ADCE21
5L3AuCl/AgNTf2 (5 mol %)ADCE43
6L4AuCl/AgNTf2 (5 mol %)ADCE32
7L5AuCl/AgNTf2 (5 mol %)ADCE16
8L6AuCl/AgNTf2 (5 mol %)ADCE19
9L7AuCl/AgNTf2 (5 mol %)ADCE22
10L8AuCl/AgNTf2 (5 mol %)ADCE26
11Mor-DalPhosAuCl/AgNTf2 (5 mol %)MsOHDCE28
12Mor-DalPhosAuCl/AgOMs (5 mol %)ADCE68
13Mor-DalPhosAuOMsADCE74
14Mor-DalPhosAuOMsADCM82
15Mor-DalPhosAuOMsATHF36
16Mor-DalPhosAuOMsAFluorobenzene76
17Mor-DalPhosAuOMsAMeCN41
18Mor-DalPhosAuOMsAToluene56
19Mor-DalPhosAuOMsATrifluoromethyl-benzene67
20Mor-DalPhosAuOMsACholoride benzene61
21Mor-DalPhosAuOMsBDCM72
22Mor-DalPhosAuOMsCDCM72
23Mor-DalPhosAuOMsDDCM70
24Mor-DalPhosAuOMsEDCM75
25Mor-DalPhosAuOMsFDCM72
26Mor-DalPhosAuOMsGDCM43
a Reaction condition: 1-dodecyne, 0.25 mmol; Ammonium sulfonates, 1.2 eq.; Oxidants, 1.2 eq.; DCM 0.5 mL; Room temperature (25 °C); 6 h; Catalysts, 5% mmol. b Measured by 1H NMR using diethyl phthalate as the internal standard.
