Modeling and Optimization of Cumene Synthesis Using Zeolite-Catalyzed Alkylation

Abstract

This study focuses on simulating and optimizing cumene (isopropylbenzene) production via the alkylation of benzene with propylene using a beta zeolite catalyst. Two process configurations were evaluated: a conventional setup without a transalkylation reactor and an enhanced configuration incorporating a transalkylation unit to convert byproducts back into cumene. The process was modeled under steady-state conditions in Aspen HYSYS using plug flow reactors and the Peng–Robinson fluid package, with reaction kinetics derived from established literature on zeolite-catalyzed systems. Optimization studies examined the effects of reactor temperature, pressure, and the benzene-to-propylene molar ratio. Increasing the reactor temperature to 178 °C improved propylene conversion to 96.20%, while raising the pressure from 3540 kPa to 3600 kPa further enhanced it to 96.24%. By optimizing the benzene-to-propylene molar feed ratio to approximately 1.02:1 and increasing the fresh benzene feed to 138.5 kmol/h, cumene production reached 135.792 kmol/h while minimizing byproduct formation. Comparative analysis revealed that the configuration without a transalkylation reactor generated 4.171 kmol/h of diisopropylbenzene (DIPB) as waste, representing both economic loss and environmental concern due to its toxicity. In contrast, the integration of a transalkylation reactor enabled the conversion of DIPB into additional cumene, significantly improving process efficiency and sustainability. These findings demonstrate that optimizing reaction conditions and integrating a transalkylation step substantially enhances cumene yield and reduces waste, leading to a more viable and environmentally friendly industrial process.

1. Introduction

Cumene, also known as isopropyl benzene, is an aromatic organic compound that appears as a colorless, flammable liquid. It is volatile at room temperature and has a boiling point of 152 °C. Cumene is characterized by its sharp, aromatic odor. It is insoluble in water but dissolves in alcohol and many other organic solvents. Structurally, cumene belongs to the alkyl-aromatic hydrocarbon group, which includes compounds such as benzene, ethylbenzene, and toluene. It can be found in refined fuels, crude oil, and in small amounts in processed high-octane gasoline [1].

Industrially, cumene is produced on a large scale, with most of it being converted into cumene hydroperoxide. This compound serves as an essential intermediate in the production of other significant industrial chemicals, mainly phenol and acetone.

To optimize the process, three key variables were studied. The first is the effect of temperature on the conversion of propylene in the alkylation reactor. The second is the influence of pressure on the same conversion efficiency. Lastly, the fresh benzene feed flow rate is varied to determine its impact on cumene production in the final distillation column. These optimization efforts aim to improve the conversion rate, increase cumene purity, and minimize byproduct generation for both process configurations. While previous studies such as those by Lei et al. [2] and Sengupta et al. [3] have provided valuable simulations of cumene production processes, they did not place significant emphasis on detailed process optimization. This study distinguishes itself by addressing that gap through a focused simulation and improvement approach aimed at enhancing cumene yield and process efficiency. By integrating updated operating conditions, applying energy recovery strategies, and adopting kinetic modeling within Aspen HYSYS, this work offers a novel contribution to the ongoing development of more efficient cumene production systems.

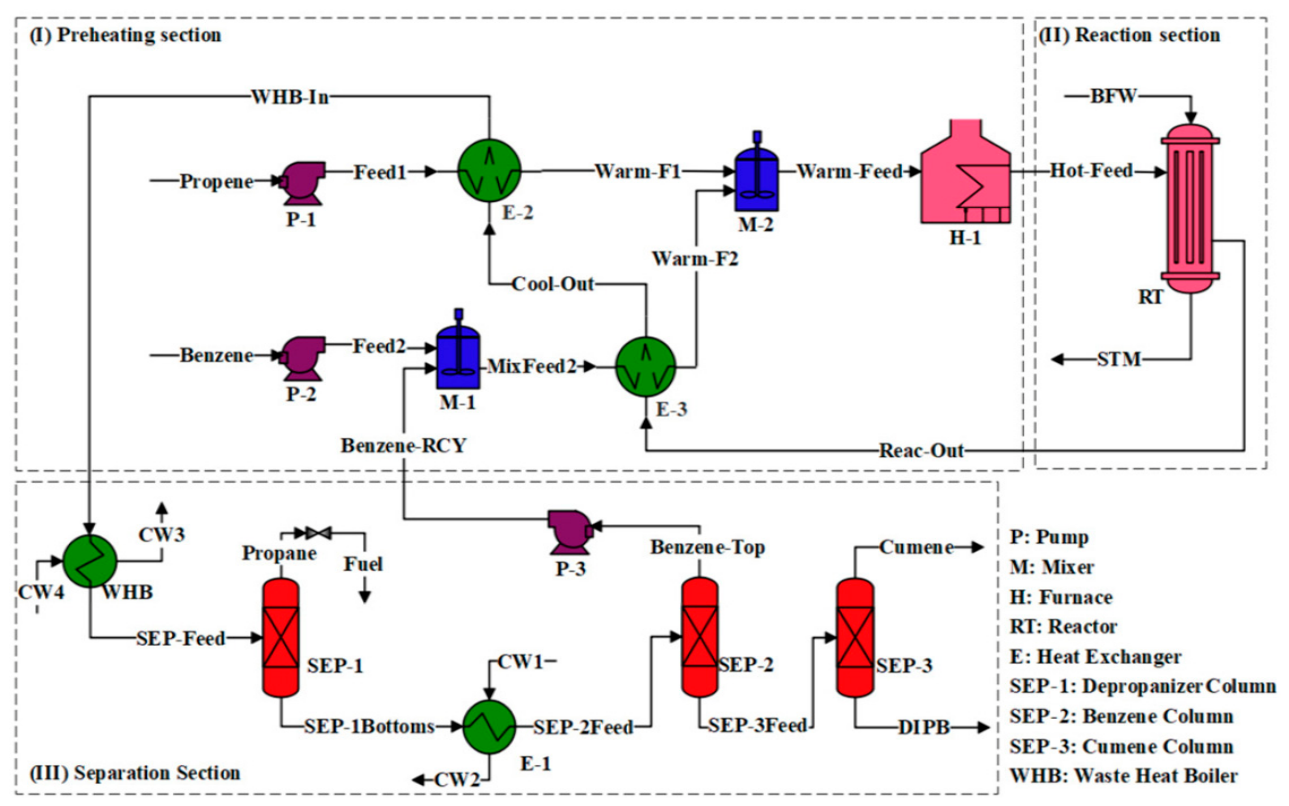

Several simulation studies have been conducted to model cumene production using different process configurations and catalysts. For instance, F. Flegiel et al. [4] conducted a detailed simulation of the cumene production process using Aspen HYSYS v7.2, where the Peng–Robinson equation of state was employed for thermodynamic property estimation. Their process design involved a packed-bed reactor operating at 24.9 bar and with an inlet temperature of 304.9 °C and an outlet temperature of 368.5 °C. The highly exothermic alkylation reactions were simulated over a solid acid catalyst, typically beta zeolite in industrial settings. The feed included pure benzene and propene containing 5% propane as an impurity. To enhance energy efficiency, the reactor effluent was passed through a feed-effluent heat exchanger (FEHE), followed by an expander that reduced the pressure to 11.97 bar for energy recovery. For separation, the system used either a two-stage flash (2.26 bar/80 °C and 2 bar/35 °C) or a six-stage purge column at 5 bars with a 33 °C overhead. Final purification was achieved through distillation: a benzene recycle column with a reflux ratio of 0.38–0.48, and a product column delivering 99.99% pure cumene, as shown in Figure 1. Mahmoudian et al. [5] conducted an extensive simulation and optimization study of the cumene production process using Aspen HYSYS v9. The research developed a hybrid approach combining statistical methods and artificial intelligence techniques to optimize the alkylation process, with particular focus on maximizing cumene yield. Key process parameters investigated included reactor temperature (160–240 °C), pressure (3300–4000 kPa), and reactor length (2–7 m). The simulation utilized the Chien–Null thermodynamic model and featured two adiabatic fixed-bed reactors containing zeolite-based catalysts, achieving a baseline cumene yield of 76.81%. The innovative methodology integrated response surface methodology (RSM) with artificial neural networks, showing exceptional predictive accuracy (R² = 0.9986) that surpassed conventional statistical models. Optimization results pinpointed ideal operating conditions at 160 °C temperature, 2 m reactor length, and 4000 kPa pressure, delivering maximum cumene production efficiency of 0.7771. This work offers significant contributions to enhancing industrial cumene production through process intensification and cost optimization strategies, as shown in Figure 2.

Ahmad et al. [6] proposed a comprehensive simulation and optimization framework for cumene production that integrates conventional process modeling with advanced machine learning methodologies. The study began with the development of a steady-state process model in Aspen Plus using the Chien–Null thermodynamic method. The simulated process included preheaters, fixed-bed reactors (operating at 3540 kPa and within a temperature range of 160–240 °C) utilizing zeolite catalysts, and separation columns. To account for process variability, a ±10% uncertainty was introduced across nine key operating parameters such as feed flow rates, pump pressures, and heater temperatures resulting in 200 distinct simulation scenarios. Exergy efficiency and destruction were then calculated for each case using MATLAB R2021a integrated with Aspen Plus V11, with the baseline exergy efficiency determined at 84.89%. A deep artificial neural network (ANN) model with five hidden layers (18-13-11-13-18 neurons) was trained using the Levenberg–Marquardt algorithm, achieving high prediction accuracy (R² = 0.996 for training, 0.923 for testing). Optimization was subsequently performed using particle swarm optimization (PSO) and genetic algorithm (GA), with the trained ANN serving as a surrogate model. The optimized results showed an improved exergy efficiency of 89.54% using PSO, along with a substantial reduction in exergy destruction compared to the base case. This work illustrates the potential of hybrid modeling techniques in enhancing energy efficiency and robustness in industrial-scale chemical processes, as shown in Figure 3.

In a study conducted by Luyben et al. [7], an integrated control system for the cumene production process was developed using Aspen Dynamics. The control strategy focused on maintaining process stability under varying operating conditions while ensuring final product quality. Key control elements included (1) fresh propylene flow control as the throughput manipulator, (2) regulation of total benzene feed (fresh + recycle) at a fixed ratio to propylene flow, and (3) reactor temperature control using feed-effluent heat exchange for the inlet and steam pressure for the outlet. Distillation columns employed stage temperature control (e.g., Stage 11 in Column C1 and Stage 16 in Column C2) to maintain separation efficiency. The system demonstrated robust performance during disturbance tests (±20% feed flow changes, 5–7% propane concentration variations, and ±8 °C reactor outlet temperature changes), maintaining cumene purity >99.9% while minimizing transient byproduct (PDIB) formation. This simulation highlights the critical integration of design and control for achieving operational and economic efficiency in complex chemical processes, as shown in Figure 4.

In recent years, artificial intelligence [8] and machine learning techniques [9] have increasingly been applied to optimize chemical processes [10], enabling enhanced efficiency, improved product yield, and reduced energy consumption in complex industrial systems such as cumene production.

Ayub et al. [11] applied ANN models to predict the quality and yield of cumene in the outlet stream using Aspen Plus and MATLAB. The models demonstrated high accuracy, with correlation coefficients of 0.99216 and 0.99412, respectively, showcasing the potential of ANN models for process optimization and control in cumene production.

Amooey et al. [12] enhanced the cumene production process by adding a transalkylation reactor and employed multi-objective optimization using PSO to improve process design. They applied seven multi-criteria decision-making methods to select the optimal solution from the Pareto-optimal front, considering conflicting objectives such as total capital cost, energy cost, wastage rate, and safety target.

In this work, the problem addressed is the need to improve industrial cumene production by simultaneously increasing propylene conversion and cumene yield, reducing the formation of diisopropylbenzene (DIPB) waste, and enhancing overall energy efficiency for both process configurations, with and without a transalkylation reactor. The novelty of the study lies in the combined use of detailed Aspen HYSYS v11 simulations for two realistic process schemes and a systematic optimization of key operating variables (temperature, pressure, and benzene-to-propylene molar ratio), explicitly quantifying their impact on cumene production, DIPB generation, and process performance under comparable conditions. Accordingly, the purpose of this research is to develop and validate a simulation-based methodology that compares these two configurations on a consistent basis, identifies the optimal operating window for each, and demonstrates how the integration of a transalkylation reactor and proper operating conditions can lead to higher cumene yield, lower waste, and a more energy-efficient and sustainable process.

2. Industrial Production of Cumene

Cumene is synthesized through an alkylation reaction between benzene and propylene using zeolite-based catalysts such as beta zeolite, ZSM-12, and MCM-22 [13]. In the primary reaction, benzene reacts with propylene to form cumene. However, a portion of the produced cumene may undergo an additional reaction with propylene in a side process, leading to the formation of diisopropylbenzene (DIPB).

2.1. Alkylation Reaction

Alkylation is a chemical process in which an alkyl group, such as methyl, ethyl, or propyl is added to an organic compound. In the first reactor, known as the alkylation reactor, the following reactions take place [13].

$${\mathrm{C}}_3{\mathrm{H}}_6+{\mathrm{C}}_6{\mathrm{H}}_6\stackrel{K1}{\to }{\mathrm{C}}_9{\mathrm{H}}_{12}$$

(1)

$${\mathrm{C}}_3{\mathrm{H}}_6+{\mathrm{C}}_9{\mathrm{H}}_{12}\stackrel{K2}{\to }{\mathrm{C}}_{12}{\mathrm{H}}_{18}$$

(2)

2.2. Transalkylation Reaction

The transalkylation reaction occurs when an alkyl group is transferred from one organic compound to another. The transalkylation of heavy aromatics is used in the production of various compounds, such as mixed xylene or p-xylene, and in the production of ethylbenzene and cumene in the second reactor, known as the alkylation reactor; the following reactions take place [13].

$${\mathrm{C}}_6{\mathrm{H}}_6+{\mathrm{C}}_{12}{\mathrm{H}}_{18}\stackrel{K3}{\to }{\mathrm{C}}_9{\mathrm{H}}_{12}$$

(3)

2.3. Reaction Kinetics

The kinetics of both the alkylation and transalkylation reactions involved in cumene production are summarized in

Table 1. Kinetics of alkylation and transalkylation reactions for cumene production over zeolite beta catalysts [14,15,16].

Reactor	Reaction	Rate Expression	Rate Constants
Alkylation	Cumene reaction	$K_1{C_{B}C}_p$	$K_1=6510exp\left({\displaystyle \frac{-52564}{RT}}\right)$
	DIPB reaction	$K_2{C}_C{C}_p$	$K_2=450exp\left({\displaystyle \frac{-55000}{RT}}\right)$
Transalkylation	Forward	$K_3{X}_B{X}_D$	$K_3=2.529\times {10}^{8}exp\left({\displaystyle \frac{-100000}{RT}}\right)$
	Backward	$K_4{X}_C^2$	$K_4=3.877\times {10}^{9}exp\left({\displaystyle \frac{-127240}{RT}}\right)$

E is in kJ/kmol, rate of reaction is in m³/(kmol·s), and concentration is in kmol/m³.

[14,15]. These reactions are typically catalyzed by solid acid catalysts such as zeolites, and flow rate expressions are dependent on the concentration of the reactants and catalyst properties. In this study, a typical zeolite beta catalyst is considered, which has a Si/Al ratio of 25, pellet size of 2 mm, and a bed density of 0.70 g/cm³ in the fixed-bed reactor. These specifications directly influence both the catalytic activity and the pressure drop across the reactor. The alkylation reaction primarily involves the reaction between benzene and propylene to form cumene, while the transalkylation reaction involves the conversion of heavier alkylated aromatics such as diisopropylbenzene (DIPB) back into cumene in the presence of benzene. In this study, a full second-order rate expression was adopted to ensure accuracy, as the benzene-to-propylene ratio at the reactor inlet, while in excess, does not fully justify a pseudo-first-order assumption. The rate of reaction is expressed as:

$$r=K_1{C_{Benzene}C}_{propylene}$$

(4)

Due to the high recycle flow, the total benzene-to-propylene molar ratio at the reactor inlet is maintained at 6:1, ensuring stable and efficient conversion.

It is important to clarify that the benzene-to-propylene ratio reported in the process description refers to fresh-feed only. To ensure high conversion and minimize side reactions, a significant benzene recycle stream is employed, maintaining a total benzene-to-propylene molar ratio of 6:1 at the alkylation reactor inlet. While this excess of benzene is substantial, a full second-order kinetic expression incorporating the concentrations of both benzene and propylene was implemented in the Aspen HYSYS simulation. This approach, following the rate constants provided in Table 1 (derived from Hazmi [14], Pathak et al. [15] and Turton et al. [16]), was chosen to provide higher predictive accuracy than a pseudo-first-order assumption, particularly for the optimization of the reactor’s thermal and pressure profiles.

2.4. Cumene Production with Transalkylation Reactor

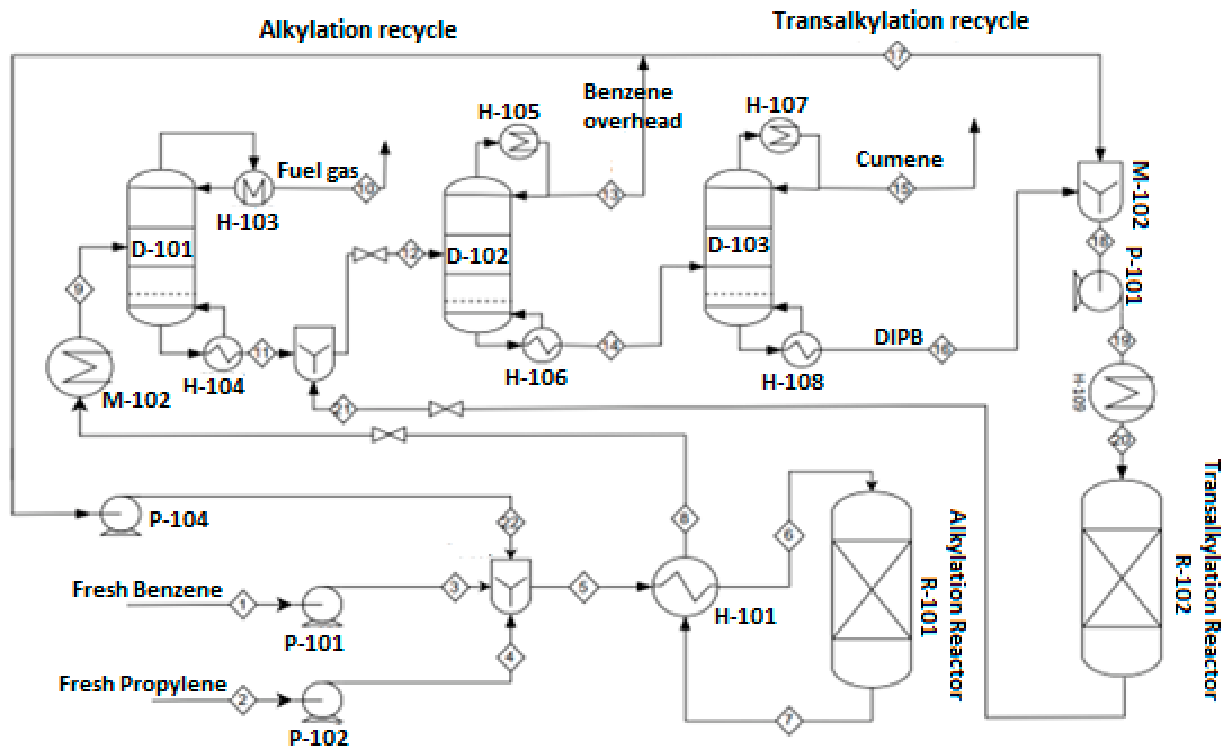

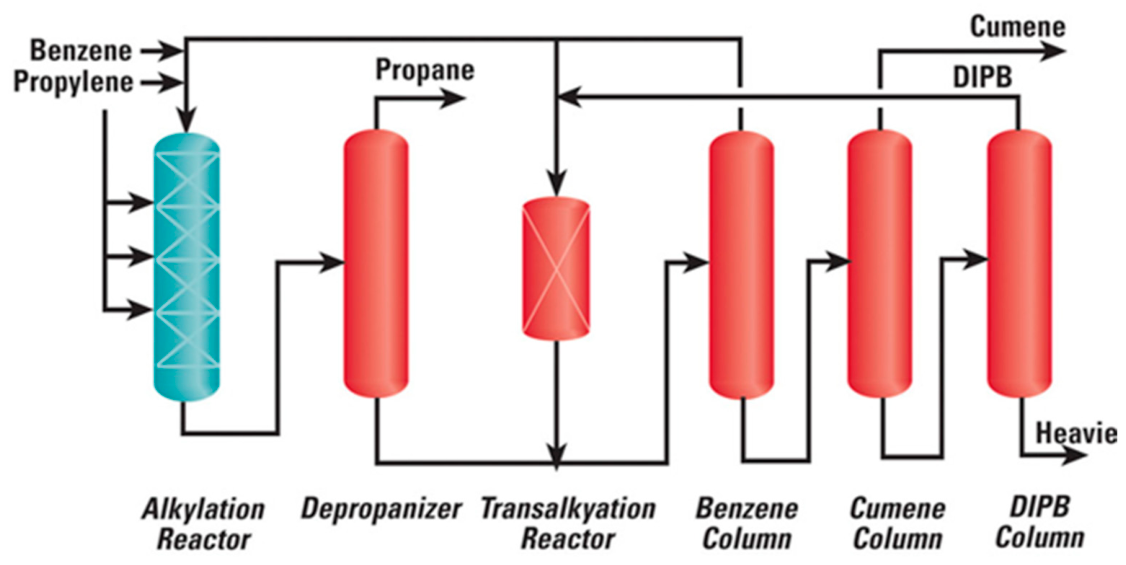

An advanced cumene production process produced high-quality cumene by alkylating benzene with propylene using a zeolite catalyst; benzene is alkylated to cumene over a zeolite catalyst in a fixed-bed, liquid-phase reactor. As shown in Figure 5, fresh benzene is combined with recycled benzene and fed to the alkylation reactor. The benzene feed flows in series through the beds, while the fresh propylene feed is distributed equally between the beds. This reaction is highly exothermic, and heat is removed by recycling a portion of reactor effluent to the reactor inlet and injecting cooled reactor effluent between the beds. Unreacted benzene is recovered from the overhead of the benzene column, the cumene product is taken as overhead from the cumene column. Diisopropylbenzene (DIPB) is recovered in the overhead of the DIPB column and fed back to the transalkylation reactor where it is transalkylated with benzene over a second zeolite catalyst to produce more cumene [17].

2.5. Cumene Production Without Transalkylation Reactor

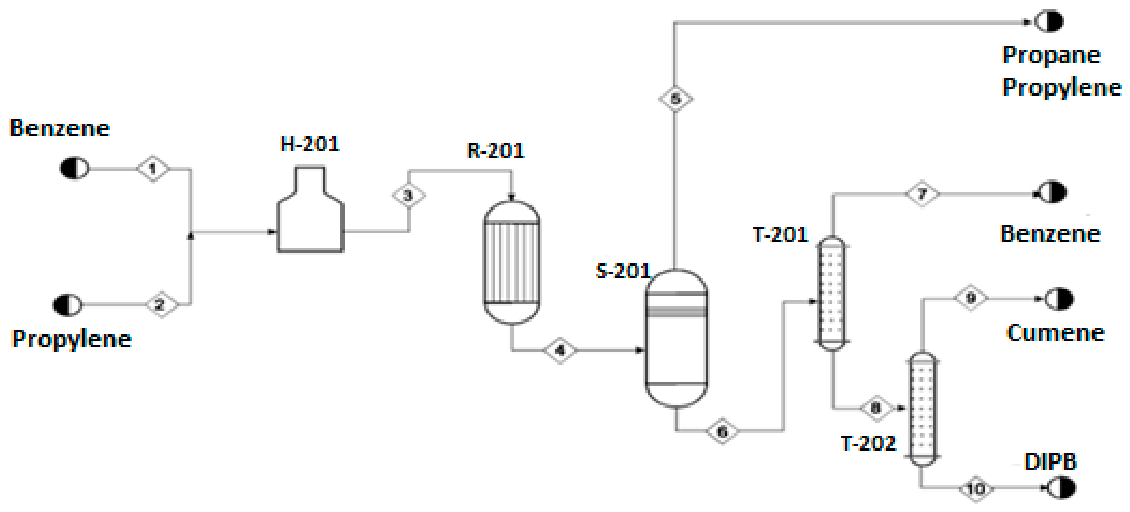

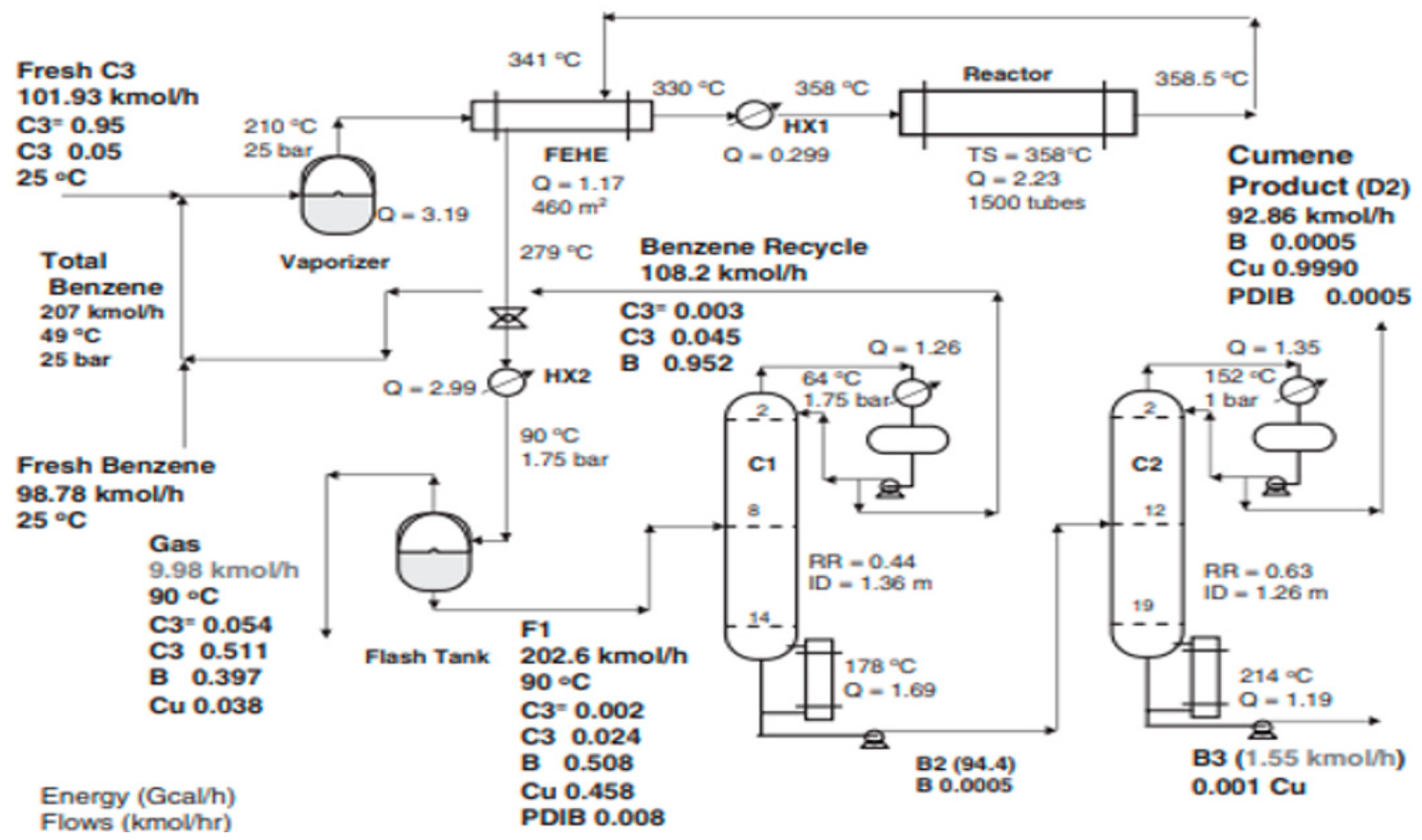

A typical process flow scheme to produce cumene without transalkylation reactor is shown in Figure 6. Fresh benzene is combined with propylene, heated, and then fed to alkylation reactor at the right condition using a zeolite catalyst. Unreacted propylene and propane along with a partial amount of benzene is separated into a flash unit. Benzene is separated in a distillation column overhead while cumene and DIPB are moved to another distillation column in which cumene is separated from DIPB in the column’s overhead. DIPB is considered a waste and is separated in the bottom of the last column.

3. Methodology

The production of cumene was simulated using Aspen HYSYS following a systematic methodology (Figure 7). Benzene and propylene were selected as the primary feedstocks. To provide an intrinsic characterization independent of plant size, the feed composition is reported in terms of molar ratio (benzene/propylene = 0.95) and mole fractions (benzene: 0.487, propylene: 0.513). The benzene stream to the alkylation reactor consists of fresh benzene combined with recycled benzene recovered from the separation section, ensuring excess benzene under reactor conditions. The reaction was modeled in a plug flow reactor (PFR) using beta zeolite as the catalyst due to its high selectivity and activity in promoting the alkylation reaction. To describe the reactor operation in an intrinsic manner, the gas hourly space velocity (GHSV) based on catalyst mass (kmol/mass_cat·h) and normalized molar fluxes (kmol/m²·h) were provided. Reaction kinetics were taken from published data related to beta zeolite-catalyzed systems. After the reaction, the product stream was sent to separation units to recover unreacted feedstocks and remove byproducts. The final product, cumene, was obtained with a purity of 99% through distillation. Simulation results, including material balances, energy consumption, and product specifications, were analyzed to evaluate the efficiency and technical feasibility of the process.

4. Different Simulation Approaches for Cumene Production

Jian Zhai et al. [18] studied the use of dividing wall columns (DWC) to improve cumene production. They simulated the conventional process, and then proposed alternative designs by replacing some of the distillation columns with DWC units. One design reduced both energy consumption and cost, while another led to an increase in both.

H. R. Norouzi et al. [15] optimized cumene production using zeolite catalysts. They redesigned the reactor and separation column to reduce energy use and applied factorial analysis to study key variables. An economic model evaluated cost and efficiency.

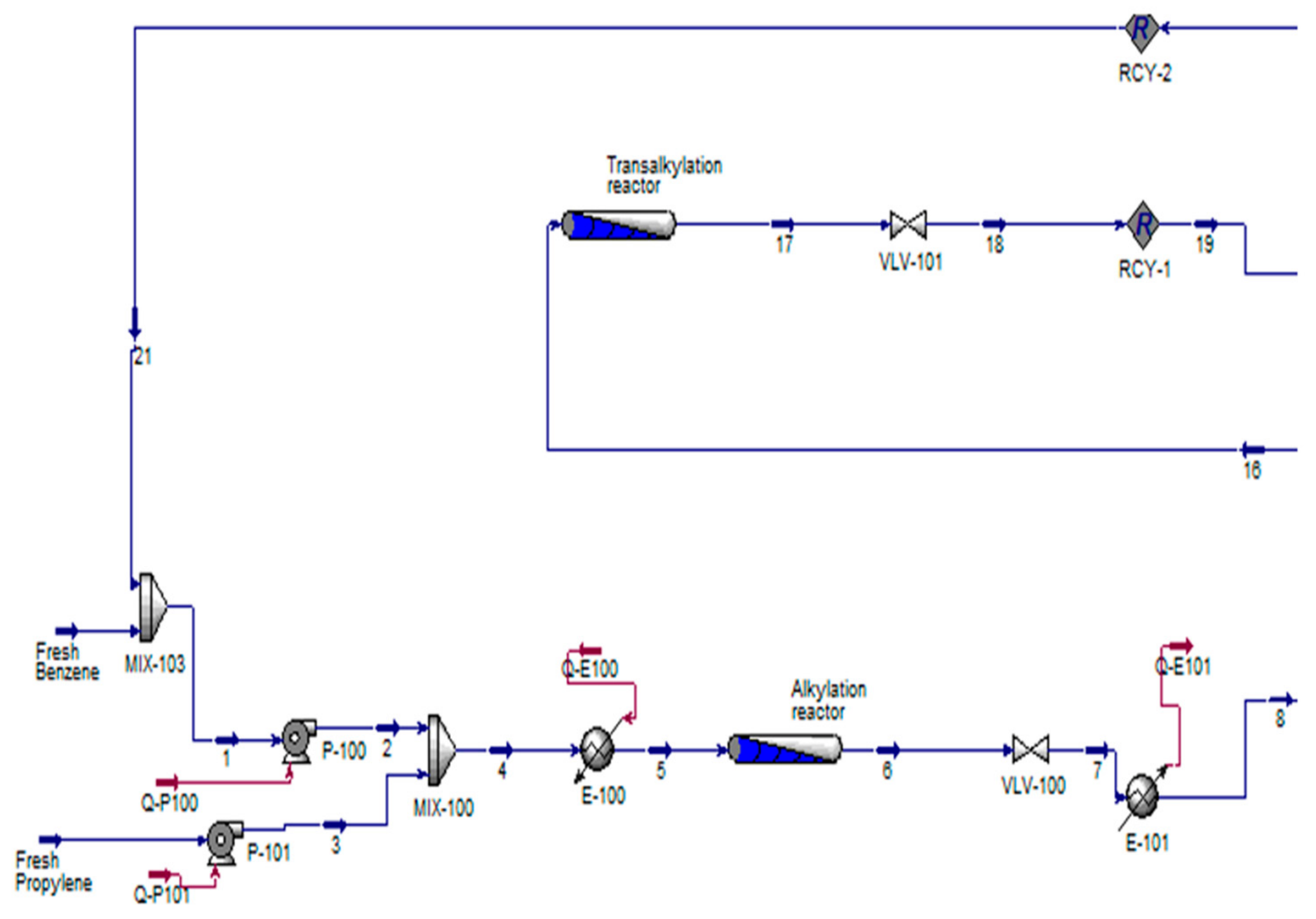

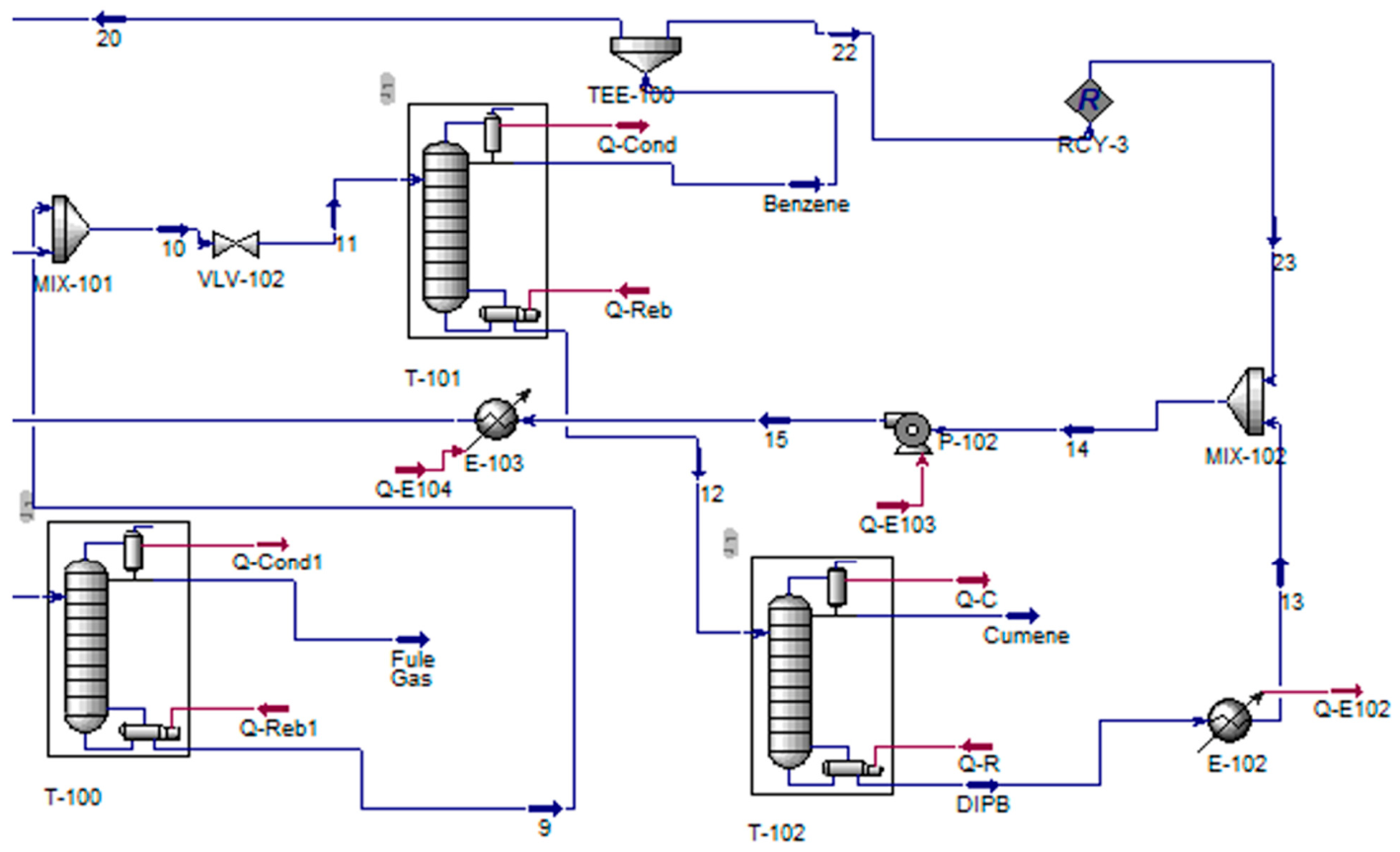

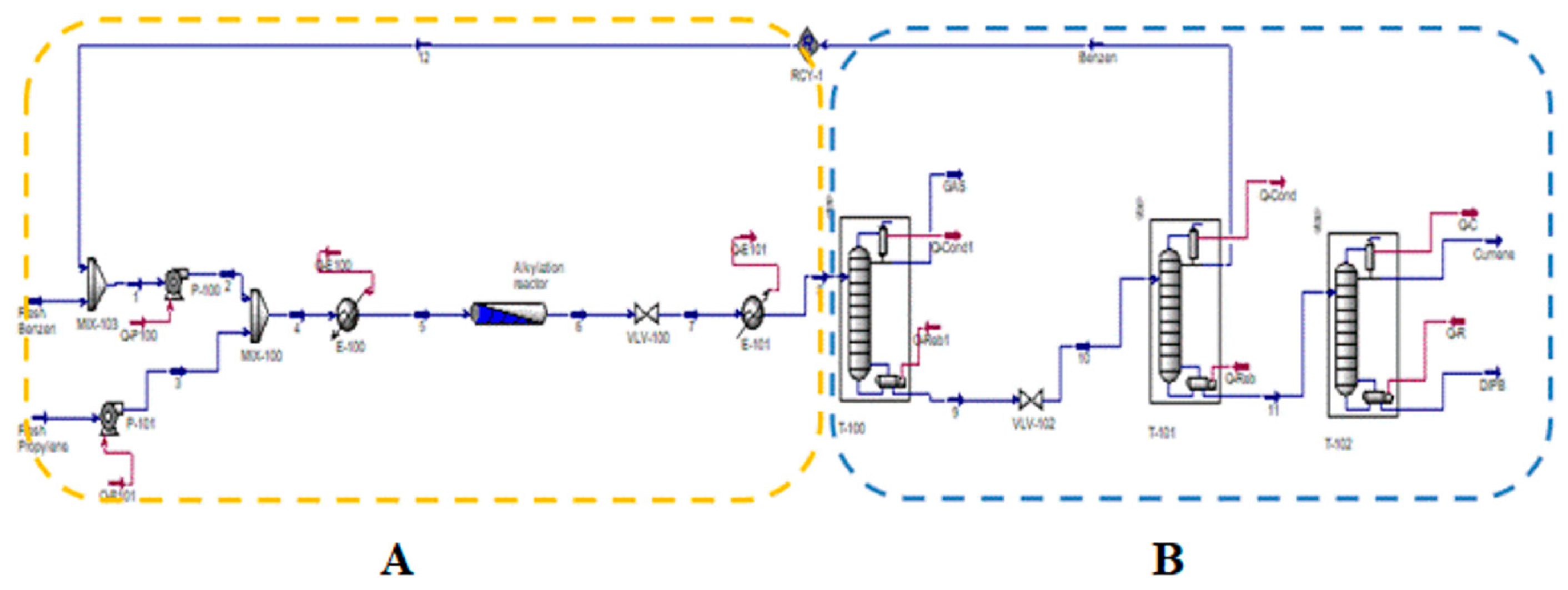

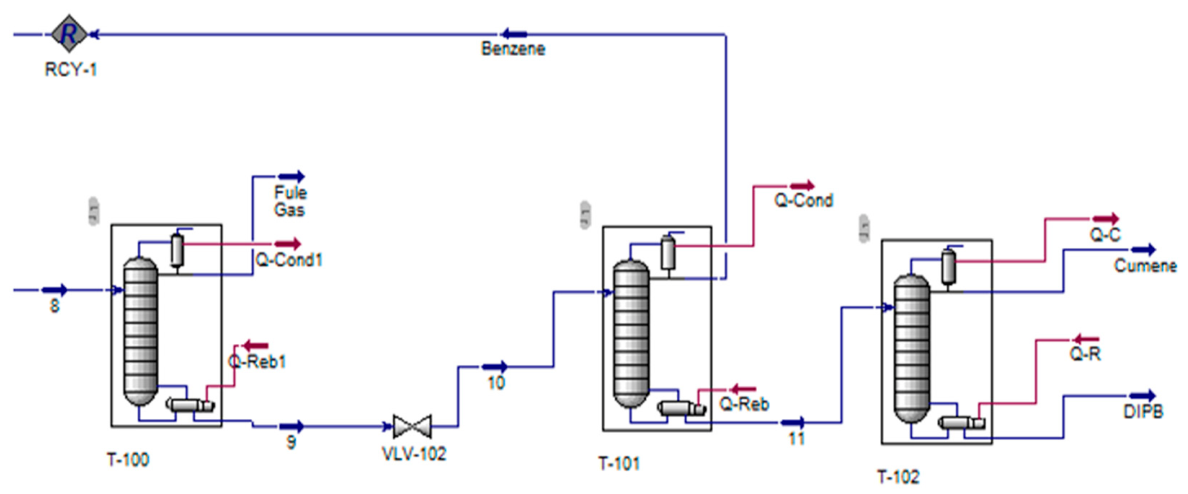

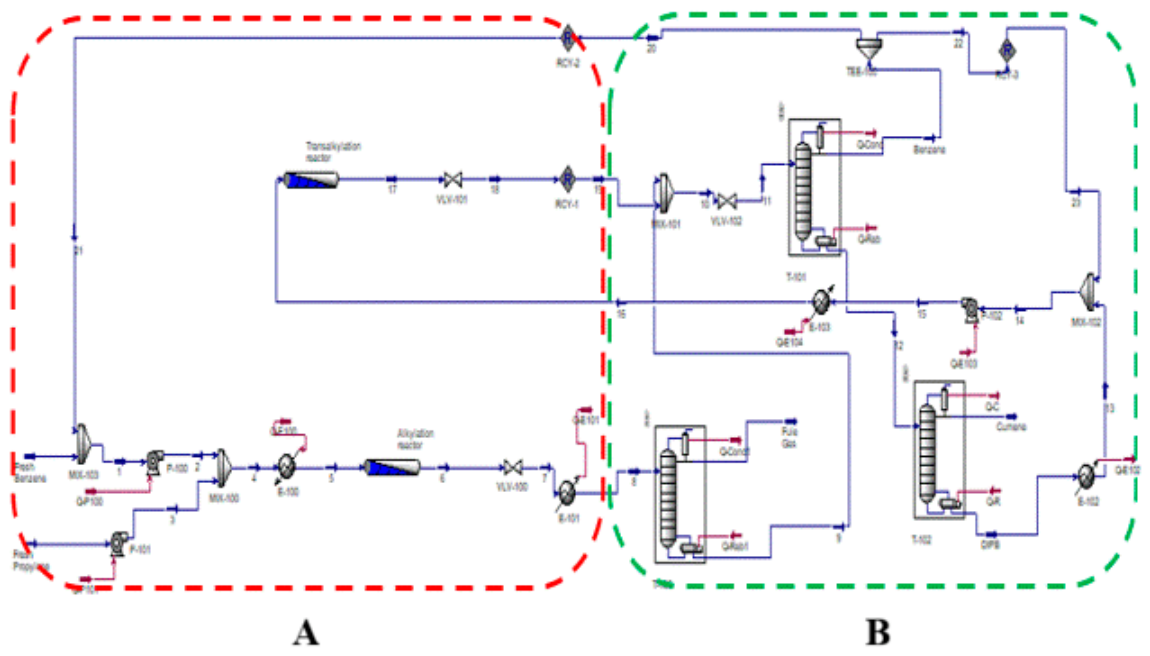

Building upon the insights from these studies, the current work involves simulating the cumene production process using Aspen HYSYS under two configurations: one with a transalkylation reactor and one without. The objective is to evaluate how the inclusion of the transalkylation reactor influences overall cumene yield and the formation of byproducts such as DIPB.

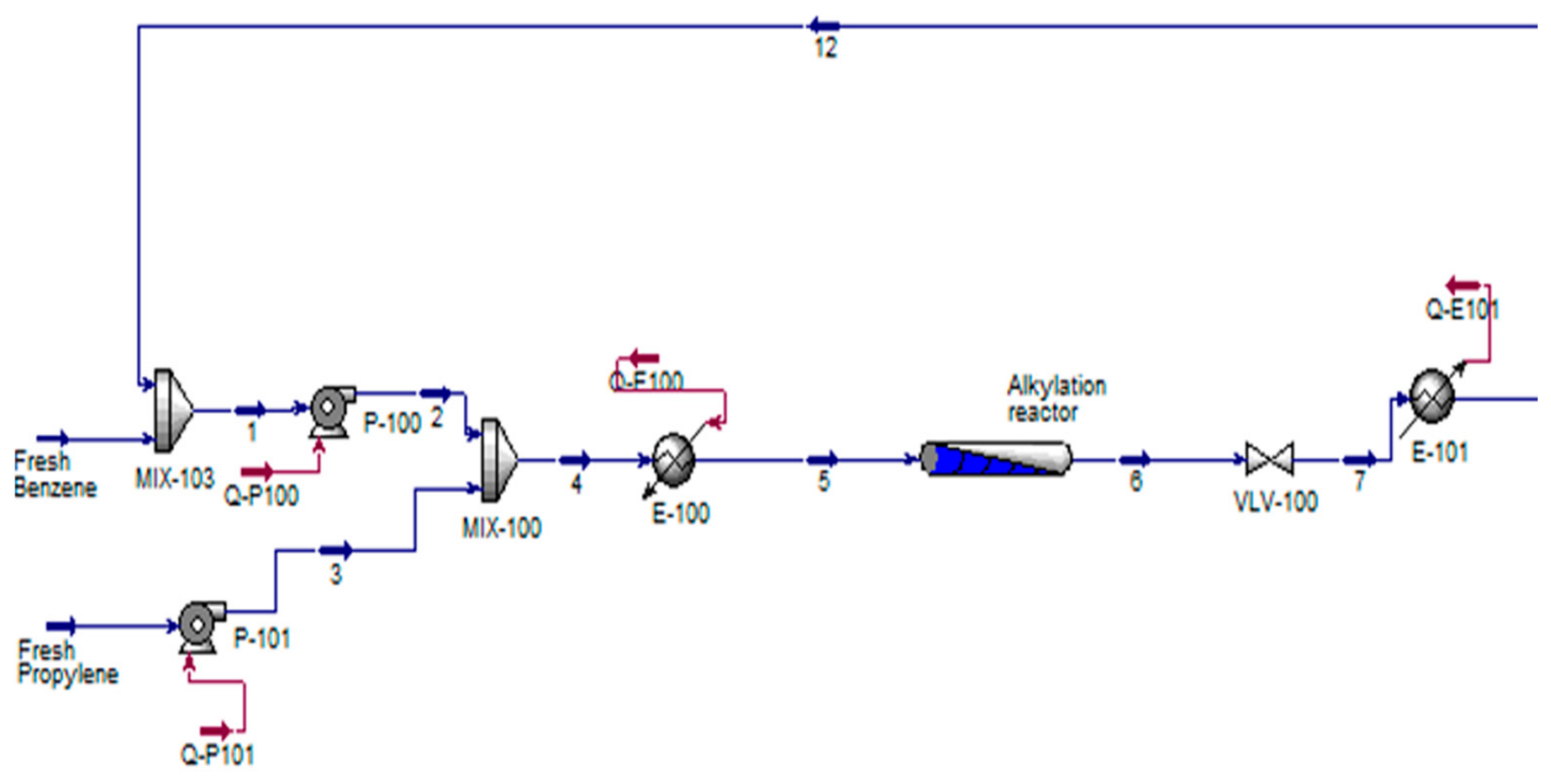

Based on the insights gained from previous simulation and optimization studies, an improved process simulation for cumene production was carried out using Aspen HYSYS V11, as illustrated in Figure 8, Figure 9, Figure 10, Figure 11, Figure 12 and Figure 13. The Peng–Robinson fluid package (Aspen HYSYS V11) was selected due to its high reliability and efficiency in handling vapor–liquid equilibria over a wide range of temperatures and pressures, including the maximum process conditions of 261.7 °C and 3540 kPa. The reaction system was modeled using two plug flow reactors (PFRs), since packed-bed reactor models were not available in the software. The PFRs were configured with specifications approximating the behavior of industrial packed-bed reactors. Kinetic data for the alkylation and transalkylation reactions were implemented accordingly. This simulation framework, based on the process flow diagram (PFD) described in the Methodology section, served as the foundation for performance evaluation and subsequent process improvement. The goal was to optimize key parameters such as temperature, pressure, and feed ratios to enhance cumene yield and overall energy efficiency.

5. Results and Discussion

In this part, process optimization was carried out by varying three key parameters: reaction temperature, benzene flow rate, and system pressure. The objective was to evaluate their impact on propylene conversion in the alkylation reactor. Through simulation and analysis, it was observed that each variable had a significant influence on the conversion rate, with temperature showing the most pronounced effect. Unless otherwise stated, all conversion values reported in this section refer to propylene conversion, as it is treated as the limiting reagent in the kinetic model and is the basis for assessing alkylation performance. The results are presented and discussed to identify the optimal operating conditions that maximize propylene conversion while maintaining process efficiency.

To improve the efficiency of the cumene production process, optimization studies were performed using Aspen HYSYS. These studies aimed to maximize the conversion of propylene in the alkylation reactor and enhance the production and purity of cumene.

5.1. Reactor Temperature Optimization

As part of the optimization study, a case study was conducted to evaluate the effect of feed temperature on the conversion of propylene in the alkylation reactor. The temperature range was initially set between 150 °C and 220 °C to identify the optimal temperature for maximum conversion. The results showed that the highest conversion of 96.20% was achieved at 180 °C. Before optimization, the reactor was operating at 170 °C, where the conversion was slightly lower at 96.13%. As shown in Figure 14, the simulation results at different temperatures are presented. It is evident from the figure that temperature has a significant impact on the conversion of propylene in the alkylation reactor. The conversion increases with rising temperature until it reaches an optimal value, after which it stabilizes or slightly decreases due to side reactions or thermal limitations.

To refine the results, a second case study was performed with a narrower temperature range between 170 °C and 180 °C (

Table 2. Summary of process optimization results.

Parameter	Before Optimization	After Optimization
Alkylation Reactor Temperature ($\mathrm{℃}$)	170	178
Fresh Benzene Feed (kmol/h)	127.7	138.5
Cumene Production (kmol/h)	127.8	135.792
Pressure (kPa)	3540	3600
Propylene Conversion (%)	96.13	96.24

) in order to determine the minimum temperature that still achieves the highest conversion. It was found that 178 °C also resulted in a conversion of 96.20%, making it a more energy-efficient option while maintaining optimal performance, as shown in Figure 14, the results of the second trial for studying the effect of temperature on propylene conversion.

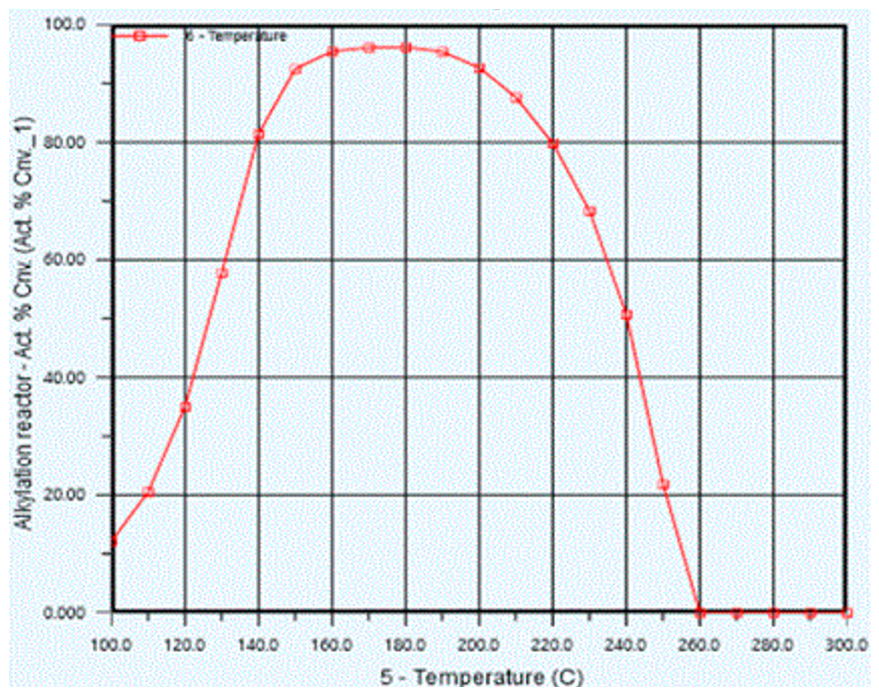

According to Figure 14, we see that the relationship between temperature and propylene conversion in the alkylation reactor shows an increase in conversion with temperature up to an optimal point.

5.2. Fresh Benzene Feed Optimization

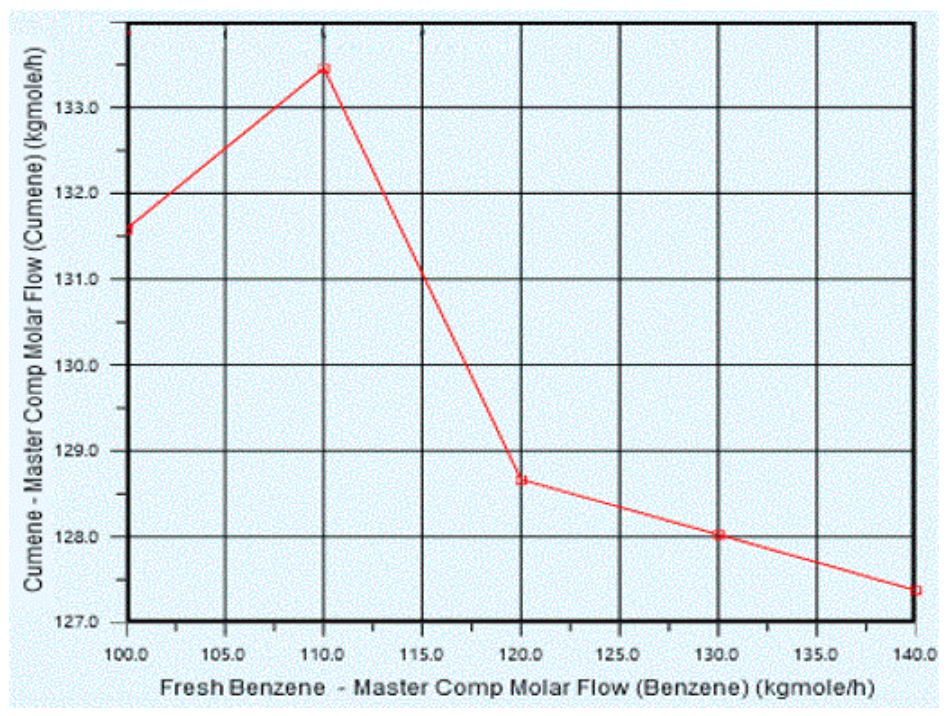

The effect of fresh benzene feed rate on cumene production in the final distillation column was investigated in the second optimization case study (Figure 8). Initially, the benzene feed rate was set at 127.7 kmol/h, which resulted in a cumene production rate of 127.8 kmol/h. A range from 100 to 140 kmol/h was tested to evaluate the impact on cumene yield. The results, shown in Figure 15, indicate that at a feed rate of 110 kmol/h, the cumene production increased to 133.458 kmol/h. According to Figure 15, we observe the relationship between fresh benzene flow rate and cumene production.

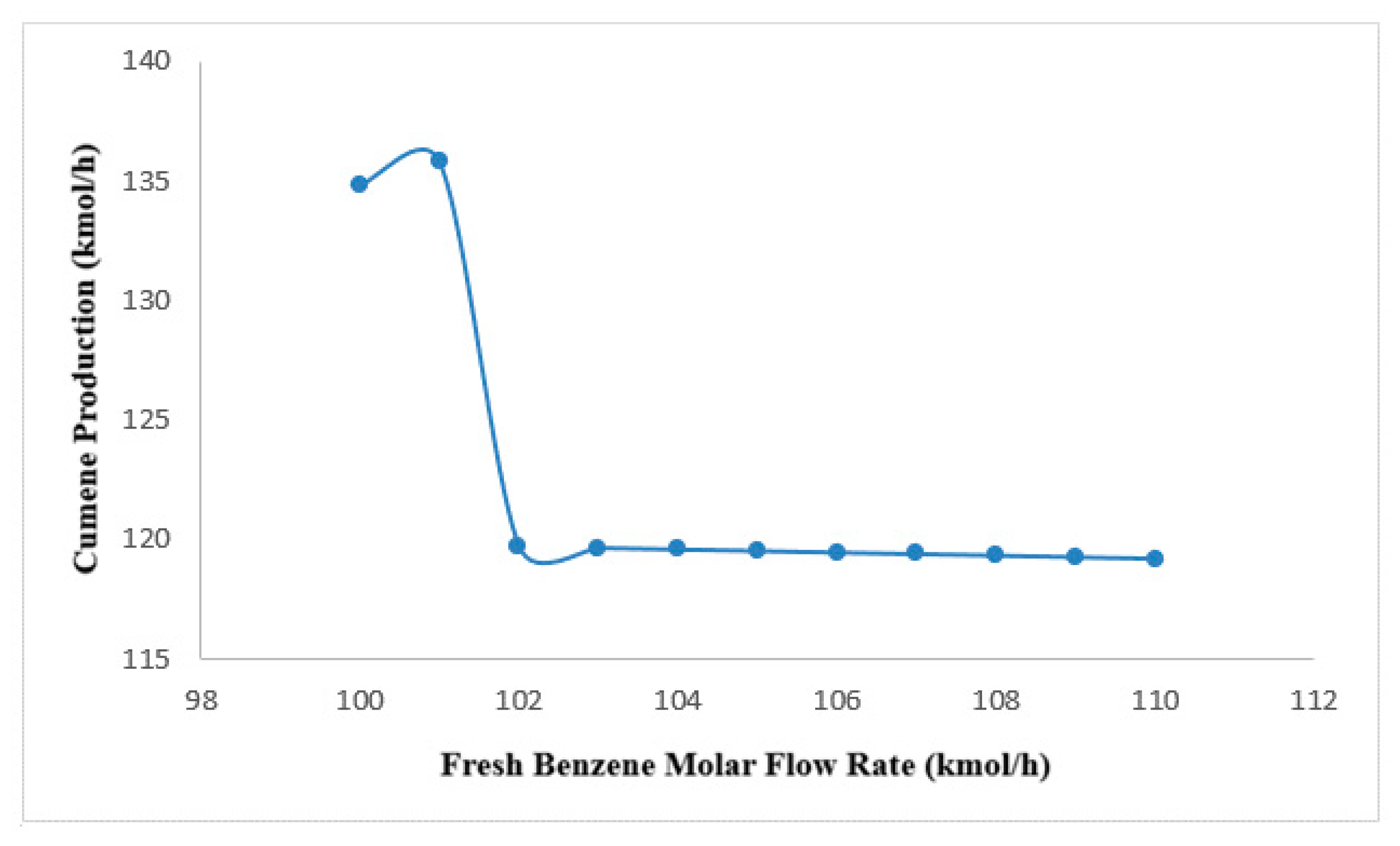

Figure 16 shows the cumene production according to fresh benzene molar flow rate. The increase in cumene production with lower benzene feed is attributed to a superior benzene–propylene molar ratio, which reduces the side reactions and enhances the alkylation efficiency.

5.3. Reactor Pressure Optimization

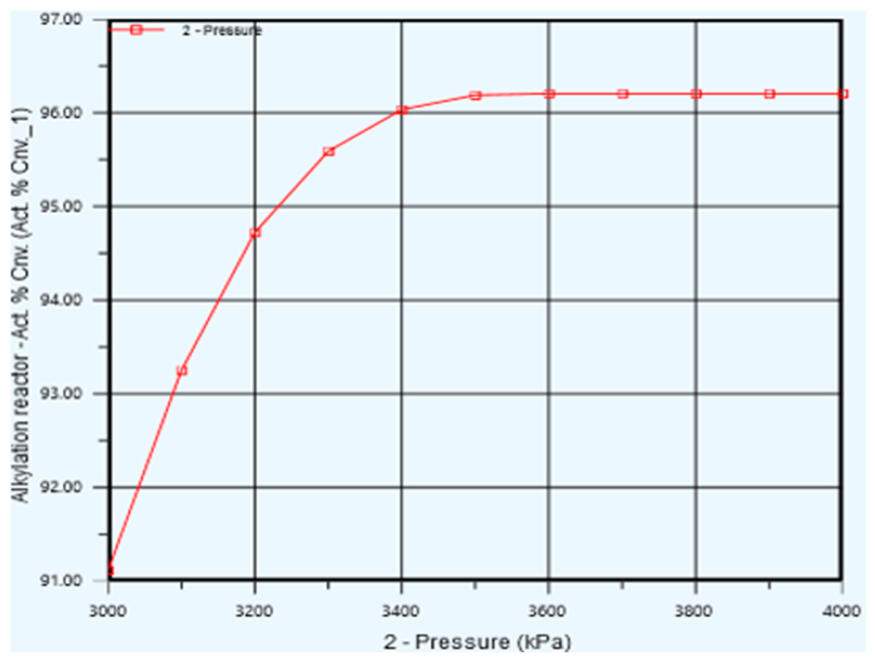

In the third optimization case study, the effect of inlet pressure to the alkylation reactor on the conversion of propylene was examined. Initially, the operating pressure was set at 3540 kPa, which resulted in a conversion of 96.20%. A pressure ranges from 3500 to 4000 kPa was tested to determine the optimal pressure for maximizing conversion. The results showed that at a pressure of 3600 kPa, as shown in Figure 17, the conversion increased slightly to 96.24%, indicating a small but measurable improvement in reactor performance by adjusting the operating pressure. The relationship between pressure and conversion in the alkylation reactor is also shown. Note that the alkylation reactor was modeled as a plug flow reactor due to software limitations, although the actual system would involve a zeolite-packed bed. While pressure drop across such beds is not explicitly included in the simulation, the use of relatively large (2 mm) catalyst pellets and operation in the liquid phase help maintain low pressure drop, estimated to be less than 100 kPa. The small increase in pressure from 3540 to 3600 kPa is within practical limits and serves to offset kinetic limitations more than mechanical losses.

All optimization studies were carried out on the process configuration that includes the transalkylation reactor. The aim was to enhance propylene conversion and maximize cumene production by adjusting various operating parameters. After identifying the optimal conditions, the same settings were applied to the simpler configuration without the transalkylation reactor for comparison. While the results were relatively similar in terms of propylene conversion and cumene yield, a significant difference was observed in the handling of DIPB. With the transalkylation reactor in place, DIPB is recovered and converted into additional cumene. However, in its absence, DIPB accumulates as a waste byproduct at a rate of 2.708 kmol/h. This highlights the critical role of the transalkylation reactor in improving process efficiency and reducing waste.

The optimization efforts focused on three key variables: temperature and pressure in the alkylation reactor, and the fresh benzene feed rate to the final distillation column. In the first study, increasing the alkylation reactor feed temperature from 170 °C to 180 °C raised the propylene conversion from 96.13% to 96.20%. Further analysis within a narrower range (170–180 °C) indicated that a temperature of 178 °C could maintain the same high conversion while being more energy efficient.

The second optimization explored the effect of benzene feed rate on cumene production. Interestingly, increasing the feed rate from 127.7 kmol/h to 138.5 kmol/h increased cumene production from 127.8 kmol/h to 135.792 kmol/h. This suggests that a high benzene-to-propylene ratio is not always beneficial and may negatively impact reaction efficiency or distillation performance.

In the third case, increasing the reactor pressure from 3540 kPa to 3600 kPa slightly improved conversion from 96.13% to 96.24%. Although the difference is small, it demonstrates that fine-tuning the pressure can still enhance reactor performance.

When these optimized conditions were applied to the configuration without the transalkylation reactor, conversion and cumene yield remained nearly consistent. However, the accumulation of DIPB as waste clearly emphasized the importance of including the transalkylation reactor to improve overall process sustainability and reduce byproducts.

Table 2 summarizes all results from the optimization of the process.

It should be noted that the optimized benzene flow rate of 138.5 kmol/h refers to the fresh benzene feed only. The total benzene entering the alkylation reactor includes both fresh and recycled benzene from the separation section. Therefore, the cumene production rate of 135.792 kmol/h is consistent with the overall mass balance and 1:1 reaction stoichiometry when recycle streams are considered. There is no stoichiometric inconsistency between benzene consumption and cumene production.

5.4. Effect of Temperature on Selectivity and DIPB Formation

In the configuration without the transalkylation reactor, increasing the alkylation reactor temperature from 170 °C to 178–180 °C slightly improves propylene conversion (96.13% to 96.24%), but it also promotes the secondary alkylation reaction responsible for DIPB formation. Since the formation of DIPB results from a consecutive reaction between cumene and propylene, higher temperature increases its kinetic rate constant, leading to a measurable increase in DIPB yield. In the absence of a recovery step, this additional DIPB accumulates as a waste stream, which reached 2.708 kmol/h under optimized conditions. In contrast, when the transalkylation reactor is included, the same temperature increase enhances primary alkylation while the additional reactor converts the formed DIPB back into cumene through reaction with benzene. As a result, the net DIPB leaving the process is significantly reduced, and overall cumene selectivity is maintained or slightly improved despite the higher temperature.

5.5. Effect of Pressure on Selectivity

Increasing the reactor pressure from 3540 to 3600 kPa slightly improves propylene conversion (96.13% to 96.24%) because the alkylation reactions involve a reduction in total molar volume and are therefore favored at higher pressures. However, in the configuration without transalkylation, this pressure increase marginally enhances both the desired cumene formation and the undesired DIPB formation. Since no downstream conversion of DIPB exists in this scheme, the higher pressure indirectly contributes to increased waste generation. In the integrated configuration, the transalkylation reactor compensates for this effect by converting the additional DIPB into cumene, thereby improving overall product recovery rather than increasing waste.

Under optimized conditions, the configuration without transalkylation results in significant DIPB accumulation as a waste stream, whereas the configuration with transalkylation internally recycles and converts this byproduct, increasing total cumene production to 135.792 kmol/h while minimizing waste. These results clearly demonstrate that although temperature and pressure adjustments produce modest changes in conversion and selectivity, the structural integration of the transalkylation reactor has a much stronger impact on overall selectivity, resource efficiency, and process sustainability.

6. Conclusions

This study demonstrated that process simulation and optimization of cumene production using Aspen HYSYS can provide valuable insights for improving industrial-scale operations. The optimization of key operating variables: temperature, pressure, and fresh benzene feed, enabled a higher propylene conversion of 96.24% at 178 °C and 3600 kPa, while simultaneously reducing byproduct (DIPB) generation and improving overall process efficiency. The introduction of a transalkylation reactor was shown to be a crucial design choice, enhancing sustainability by converting byproducts into valuable products and reducing environmental impact. Although the improvements in conversion appear incremental, they translate to significant energy savings, raw material efficiency, and cost reduction at large production scales, which is critical for industrial competitiveness. The unique contribution of this work lies in its comprehensive comparison of two process configurations (with and without transalkylation) combined with rigorous optimization. This provides a validated simulation-based methodology to guide decision-making in cumene plant design, enabling better resource utilization, enhanced sustainability, and reduced environmental footprint.

The main findings of this study follow:

• A maximum propylene conversion of 96.24% is achieved at an optimized temperature of 178 °C, pressure of 3600 kPa, and fresh benzene flow rate of 138.5 kmol/h.
• Reducing the reaction temperature from 180 °C to 178 °C maintains high conversion and leads to energy savings and improved efficiency.
• Increasing cumene production to 135.8 kmol/h through optimized operating conditions and the fresh benzene feed adjusted to 138.5 kmol/h ensures physically consistent material balance and enhanced productivity.
• Lower raw material consumption and waste generation contributes to better sustainability and reduced operational cost.
• The capability of Aspen HYSYS is demonstrated to predict process behavior and optimize key parameters prior to industrial implementation.

Future work should address dynamic simulation and advanced process control, techno-economic assessments to quantify financial benefits, pilot-scale validation of simulation findings, and AI-based optimization techniques for further process intensification. These efforts will build on this study to develop a robust, cost-effective, and environmentally responsible cumene production process.
