Article

Mixed Metal Oxide Derived from Polyoxometalate-Based Metal–Organic Framework as a Bi-Functional Heterogeneous Catalyst for Wastewater Treatment

by
Zi-Qing Liu
1,
Jian-Ying Long
2,
Xiang Mei
3,* and
Bao-Li Fei
1,4,*
1
College of Chemical Engineering, Nanjing Forestry University, Nanjing 210037, China
2
College of Science, Nanjing Forestry University, Nanjing 210037, China
3
College of Ecology and Environment, Nanjing Forestry University, Nanjing 210037, China
4
State Key Laboratory for Chemistry and Molecular Engineering of Medicinal Resources, Guangxi Normal University, Guilin 541004, China
*
Authors to whom correspondence should be addressed.
Catalysts 2025, 15(1), 76; https://doi.org/10.3390/catal15010076
Submission received: 21 December 2024 / Revised: 12 January 2025 / Accepted: 12 January 2025 / Published: 15 January 2025
(This article belongs to the Special Issue Advanced Oxidation Catalysis and Sustainable Technologies for Water Purification)
Browse Figures
Review Reports Versions Notes

Abstract

:
The efficient removal of dyes and Cr(VI) from wastewater is imperative. Therefore, a mixed metal oxide CuMoV(450) derived from a polyoxometalate-based metal–organic framework (POMOF) [Cu(2,2′-bipy)][Cu(2,2′-bipy)2]2[PMo8V6O42]•2H2O (CuMoV) was synthesized by calcination, fully characterized by XRD, XPS, FT-IR, and SEM methods, and explored for the heterogeneous catalytic degradation of methylene blue (MB) dye and the catalytic reduction of Cr(VI) in aqueous media over NaBH4 under mild conditions. The removal rates for MB and Cr(VI) were 95.9% (30 min) and 96.5% (2.0 min), respectively. The pseudo-first-order rate constants of MB degradation and Cr(VI) reduction were 0.093 min−1 and 1.536 min−1, respectively. The highly catalytic reusability of CuMoV(450) was confirmed by the recycling experiments. Moreover, the possible mechanisms of MB degradation and Cr(VI) reduction were proposed. The catalytic activities of CuMoV(450) were much better than those of its parent compound CuMoV, proving that POMOFs were good candidates for the preparation of mixed metal oxides with excellent catalytic performances. This work not only indicates that CuMoV(450) has the potential to be a satisfied catalyst for wastewater remediation via catalytic degradation and reduction, but also gives a clue to synthesize mixed metal oxides with excellent catalytic properties by the calcination of POMOFs.

Graphical Abstract

1. Introduction

Developing novel efficient technology to deal with wastewater containing various dyes including methylene blue (MB) is urgent, because such wastewater can bring about serious environmental and health problems. So far, a series of physical, chemical, and biological techniques, such as adsorption, photocatalysis, electrochemical degradation, biodegradation, and Fenton reaction, have been used to address the issue of dye wastewater treatment [1]. However, these techniques often require complex procedures, external energy, and stimulants [1]. Hence, exploring other simple and effective processes for dye wastewater treatment is more desirable in the field of environmental remediation.
Industrial wastewater with heavy metals composition is another source of water pollution [2]. Hexavalent chromium Cr(VI) is one of the most dangerous and ubiquitous metal environmental pollutants, which is highly toxic and carcinogenic to various living organisms [2]. Till now, adsorption, reduction, chemical precipitation, and membrane filtration and photocatalytic technology methods have been explored to remove Cr(VI) [2,3]. Among the various methods employed, the chemical reduction of Cr(VI) to Cr(III) was the most preferred and widely studied, because Cr(III) is relatively inert and non-toxic and a micro-nutrient for the human body [2,4]. To date, the dominant reductive catalysts are noble metal nanoparticles (NPs) [5]. It is an urgent task to find a noble-metal-free catalyst with high catalytic reduction activity because noble metals are too rare to be practically applied as catalysts.
Recently, heterogeneous catalysis, which can degrade organic pollutants including dyes under ambient conditions, has been regarded as a potential method to deal with dye wastewater [1]. This type of chemical catalysis is of great interest due to the easy operation without external energy or chemical stimulants. But reports about the degradation of environmental contaminants under ambient conditions are rare [6].
Metal oxides have been widely used in heterogeneous catalysis, energy storage and conversion, sensors, and biomedical fields [7]. Desirable metal oxides are expected to oxidize and remove organic compounds in the dark without adding external energy and chemical stimulants [6]. Metal oxides, especially perovskites with the formula of ABO3, are the most studied mixed oxides in heterogeneous catalysis [6,8]. But it is necessary to search for other types of catalysts due to the formation of a carbonate phase on perovskites and the structural collapse during the reaction [8].
Polyoxometalates (POMs) are a special class of metal (MoV, MoVI, NbV, TaV, VV, and WVI) oxide polyanion clusters with highly tunable functional characteristics, ranging in size from nanometer to micrometer, and they are explored in various areas such as medicine, catalysis, and electrochemistry [9]. POMs are excellent precursors to prepare well-dispersed, nanoscale, and porous metal composites, such as multi-metallic oxides and carbides [10].
Metal–organic frameworks (MOFs) are crystalline porous compounds composed of covalently bonded metal ions or metal clusters and organic ligands [11]. POM-based metal–organic frameworks (POMOFs) are composed of POM units and metal–organic fragments. POMOFs were usually synthesized by the self-assembly of POM precursors or simple salts, metal ions, and organic ligands under hydro-/solvo-/iono-thermal conditions or a conventional aqueous solution [12]. POMOFs integrate the advantages of both POMs and MOFs.
POMOFs have been widely investigated in the fields of acid catalysis, oxidation catalysis, photocatalysis, electrocatalysis, and others [12]. POMs are one branch of metal oxides, and thus POMOFs can be carbonized to obtain chemically doped porous carbon-coated nanosized transition-metal (Mo, W, V from POM) oxides or carbides. Lin et al. first synthesized MoO3@CuO material using the POMOFs precursor through a pyrolysis route [13]. Yu et al. prepared the MoO2@PC-RGO hybrid material from POMOFs/GO composite at a relatively low carbonization temperature [14]. The works of Lin and Yu prove that POMOFs could be transformed into metal oxides by calcination. In recent years, metal oxides as catalysts for the removal of wastewater pollutants have attracted extensive attention in the research community [15,16]. Metal nano-oxides formed by the elements titanium (Ti), manganese (Mn), copper (Cu), and zinc (Zn) with oxygen were obtained [10]. Mixed metal oxides exhibit more unique physicochemical properties than single metal oxides. The high specific surface area and excellent catalytic activity of mixed metal oxides were important for wastewater treatment [10]. Liu et al. prepared porous MnFe2O4 and CoFe2O4 nanocomposites to degrade MB with an efficiency of 99.7% [1]. Bhatia et al. synthesized ternary metal oxides Ag2O/NiO/ZnO to effectively catalyze the reduction of a variety of nitro phenols, dyes, and their mixtures [12].
The advantage of using POMOFs as precursors is that their pyrolysis products normally incorporate at least two metal oxide components with ideal dispersing homogeneity [11]. Literature research indicates that no mixed metal oxides derived from POMOFs were used in heterogeneous catalysis for the degradation of dye and catalytic reduction of Cr(VI) to Cr(III).
Inspired by the previous works, a POMOF precursor [Cu(2,2′-bipy)][Cu(2,2′-bipy)2]2[PMoVI8V1VV3IVO40(VIVO)2]•2H2O (CuMoV) was synthesized by hydrothermal technique. The target mixed metal oxide CuMoV(450) was obtained by the calcination of CuMoV at 450 °C. CuMoV(450) was studied as a heterogeneous catalyst for the removal of MB and Cr(VI). This is the first report about the dye and Cr(VI) removal performance of mixed metal oxides originating from POMOF. The results of this work provide the foundation for the development of mixed metal oxides arising from POMOFs as catalysts for the practical application of environmental remediation.

2. Results and Discussion

2.1. Characterization of CuMoV and CuMoV(450)

TG measurement was carried out to investigate the effect of calcination on the structure of CuMoV. The TG curve of CuMoV shows that the initial weight loss of 1.29% up to 310 °C was caused by the loss of six crystal water molecules; afterward, the rapid weight loss of 27.83% was due to the decomposition and extraction of 2,2′-bipy ligands up to 420 °C (Figure S1) [17]. Lastly, the POM sub-unit began to decompose above 450 °C [18]. The TG results confirm that the calcination temperature of 450 °C was enough to prepare mixed metal oxides.
The successful synthesis of CuMoV was solidified as shown in Figure S2. It can be seen that the XRD pattern of the prepared CuMoV was consistent with the simulated one according to CIF files (CCDC number: 656018), verifying that the CuMoV sample kept the single-crystal structure. The characteristic diffraction peaks of Keggin type POM unit appeared at 8.04° (1 0 0), 10.46° (1 1 1) and 19.56° (0 2 2), respectively [19]. Figure 1a displays that the XRD patterns of CuMoV and its calcined product CuMoV(450) were different. Figure 1b states that CuMoV(450) was composed of V2O5, VO2, α-MoO3, CuMoO4, (VO)MoO4, and Cu3(PO4)2. The diffraction peak located at 21.79° corresponded to the (1 1 0) crystal plane of V2O5 (PDF no. 76-1803). The diffraction peaks of VO2 (PDF no. 76-0673) were mainly distributed at 36.80° (−1 1 1) and 41.70° (−2 2 1). The peaks of α-MoO3 (PDF no. 05-0508) were located at 38.58° (1 3 1) and 42.38° (1 4 1) [13]. The diffraction peaks CuMoO4 (PDF no. 89-0228 were located at 25.08° (0 1 2), 29.30° (−1 −2 2), and 43.44° (1 −3 3), respectively [13]. Diffraction peaks were also observed for the mixtures (VO)MoO4 (PDF no. 74-1508), Cu3(PO4)2 (PDF no. 70-0494) at 26.96° (2 0 0), 28.31° (1 1 1), and 30.55° (0 1 2), and 32.20° (−1 1 0), respectively [20].
The FT-IR spectra of CuMoV and CuMoV(450) are shown in Figure 2. The FT-IR spectrum of CuMoV displays the characteristic peaks of the Keggin unit generated by (M-O)(M=Mo/V) (731 cm−1, 789 cm−1, and 937 cm−1), and P-O stretching vibrations (1030 cm−1 and 1050 cm−1), respectively. The series peaks in the range of 1100 cm−1–1600 cm−1 were attributed to the 2,2′-bipyridine ligand [21]. No peaks of the Keggin unit and 2,2′-bipyridine appeared in the FT-IR spectrum of CuMoV(450). Instead, the peaks derived from Cu-O, V-O-V, and V=O bonds were found at 613 cm−1, 770 cm−1, and 1053 cm−1, respectively [22,23]. The peaks at 871 cm−1 and 960 cm−1 belonged to the Mo=O bond in MoO3 [24]. The peaks at 745 cm−1 and 1112 cm−1 corresponded to the stretching vibration of νas(O-P-O) [25].
SEM analysis was carried out to check the effect of calcination on the morphology of CuMoV. Figure 3a shows that the morphology of CuMoV was block in shape, and the surface of CuMoV was smooth. Figure 3b reveals that the calcination promoted the partial collapse of the block morphology and the generation of the surface pores.
The chemical purity and stoichiometry of CuMoV and CuMoV(450) were also investigated by EDX analysis (Figure S3). The EDX spectra indicate the presence of C, N, P, Mo, O, V, and Cu elements in CuMoV, and CuMoV(450) was composed of P, Mo, O, V and Cu elements.
XPS analysis was performed to determine the elemental composition and chemical valences of CuMoV and CuMoV(450). The survey spectra given in Figure 4a suggest that both CuMoV and CuMoV(450) contained P, Mo, O, V, and Cu elements. The high-resolution XPS spectra of O 1s, P 2p, Cu 2p, Mo 3d, and V 2p are shown in Figure 4b–f. The O 1s spectrum shows three peaks with binding energy at 530.4 eV, 530.8 eV, and 531.6 eV, corresponding to O-V/O-Mo, O-P, and O-Cu bonds, respectively (Figure 4b) [26,27,28]. The peaks observed at 133.1 eV and 133.4 eV in the P 2p spectrum were attributed to the P-O bond (Figure 4c). There were some differences in the Cu 2p spectra of CuMoV and CuMoV(450), as indicated in Figure 4d. For CuMoV, the peaks corresponding to Cu 2p3/2 and Cu 2p1/2 of Cu2+ were located at 934.4 eV and 954.2 eV, respectively, with satellite peaks at 943.2 eV and 962.7 eV [29,30]. For CuMoV(450), the corresponding peaks were slightly shifted to 935.0 eV and 954.8 eV due to the existence of CuO. There were also differences in the Mo 3d spectra of CuMoV and CuMoV(450) (Figure 4e). For CuMoV, the two peaks that appeared at 232.3 eV and 235.4 eV belonged to Mo 3d5/2 and Mo 3d3/2 of Mo6+, respectively [31]. For CuMoV(450), the peaks attributed to Mo 3d5/2 and Mo 3d3/2 of Mo6+ were located at 232.8 eV and 236.0 eV, and the peaks assigned to Mo5+ were appeared at 232.4 eV and 235.1 eV. The existence of Mo5+ might be due to the capture of the trace oxygen vacancies during calcination by Mo6+ [32]. The V 2p spectra of CuMoV and CuMoV(450) in Figure 4f were basically the same. The peaks near 516 eV and 523 eV were assigned to V 2p3/2 and V 2p1/2 of V4+, and the peaks near 517 eV and 524 eV were assigned to V 2p3/2 and V 2p1/2 of V5+, respectively [33]. The binding energy, weight ratio, and atomic ratio of the above-mentioned elements for CuMoV and CuMoV(450) are listed in Table S1.

2.2. Degradation of MB

The heterogeneous catalytic activities of CuMoV(450) were evaluated through MB degradation, and CuMoV was used as a positive control. The MB degradation rates were 41.6% (CuMoV) and 95.9% (CuMoV(450)) in 30 min, respectively, and MB itself could not degrade under the same conditions (Figure 5a). It is evident that the catalytic activities of CuMoV(450) were far superior to that of CuMoV. Consequently, the following research was focused on CuMoV(450).
The dosage of CuMoV(450), the initial pH value of the MB solution, and the concentration of the MB solution all had a certain effect on MB degradation, and the corresponding results are illustrated in Figure S4. Figure 5b represents the plot of ln (Ct/C0) against time under the optimum conditions (0.01 mM MB, pH = 6.8, 80 mg CuMoV(450)). The calculated values of the rate constants Kapp and R2 were 0.093 min−1 and 0.955, respectively, confirming that MB degradation obeyed the pseudo-first-order reaction kinetics. The slight deviation of the linear fitting was caused by the different intervals of sampling time. The color of the MB solution changed from blue to colorless in 30 min, and the intensity of the characteristic peaks of MB at 292 nm and 664 nm gradually decreased they until disappeared, demonstrating that the MB molecule was degraded (Figure 5c).
To find the key reactive oxygen species (ROS) responsible for MB degradation, different radical scavengers were added to the reaction system. 1,4-benzoquinone (p-BQ), isopropanol (IPA), and L-histidine were used as •O2H/•O2−, •OH, and 1O2 scavengers, respectively [1,34].
The inhibitory effect of the added scavengers on MB degradation was in the following order IPA > L-histidine > p-BQ (Figure 6a). That is to say, all the examined active species played roles in MB degradation and followed the order of •OH > 1O2 > •O2−/•O2H, and the •OH radical was the most dominant. Furthermore, •OH-trapping photoluminescence (PL) spectra of the system in terephthalic acid (TA) solution were measured to confirm the formation of •OH radicals (Figure 6b) [35]. •OH can react with non-fluorescent TA to form highly fluorescent 2-hydroxyterephthalic acid [35]. The PL emission peak of the system in TA solution (0.5 M NaOH, 0.5 mM TA) at 425 nm stemmed from 2-hydroxyterephthalic acid increased with prolonging time, suggesting that the yield of •OH radicals increased over time during MB degradation.
Based on the above results, a possible MB degradation mechanism was proposed [36,37]. MB molecules firstly donated electrons into CuMoV(450) via active V5+ and Mo6+ (Equations (1) and (2)), then the generated V4+ and Mo5+ reacted with dissolved O2 to give birth to •O2− (Equations (4) and (5)), and the further reaction of •O2− produced diverse reactive oxygen species (Equations (6)–(8)). The possible reduction of Mo6+ by V4+ in Equation (3) might contribute to the increased production of e− and •O2−, and thus boost the degradation rate. More •OH radicals might be generated as shown in Equations (9) and (10). The disproportionation of •OH radicals should contribute to the yield of 1O2 (Equation (11)) [38]. Ultimately, MB/MB+ was degraded by •OH/•O2−/HO2•/1O2 (Equation (12)).
≡V5+ + MB → ≡V4+ + MB+ + e−
≡Mo6+ + MB → ≡Mo5+ + MB+ + e−
≡Mo6+ + ≡V4+ ↔ ≡Mo5+ + ≡V5+
≡V4+ + O2 → •O2− + ≡V5+
≡Mo5+ + O2 → •O2− + ≡Mo6+
•O2− + H+ → HO2•
2HO2• ↔ O2 + H2O2
•O2− + H2O2 → O2 + •OH + OH−
H2O2 + ≡V4+ → OH− + •OH + ≡V5+
H2O2 + ≡Mo5+ → OH− + •OH + ≡Mo6+
4•OH → 1O2 + 2H2O
MB/MB+ + •OH/•O2−/HO2•/1O2 → degradation products
The MB degradation intermediates were analyzed by the HPLC-MS technique. Twelve intermediates with m/z of 261, 249, 227, 198, 195, 174, 163, 157, 102, 106, 130, and 145 were found during the degradation process (Figure 7a). Such results imply that demethylation, deamination, and ring-opening reactions occurred during MB degradation [39,40]. The above analysis leads to the speculation of a possible degradation pathway of MB (Figure 7b).
Additionally, the efficiencies of MB degradation over CuMoV(450) and other metal oxides were compared, and the results are listed in Table 1. In terms of dosage, reaction time, and the efficiency of MB removal, CuMoV(450) exhibited the best degradation performance.

2.3. Reduction of Cr(VI)

The catalytic reduction activity of CuMoV(450) was investigated by using K2Cr2O7 as a Cr(Ⅵ) source and NaBH4 as a reducing agent. The reduction progress was judged by monitoring the UV–vis absorption changes at 370 nm, which is the characteristic peak of the Cr(Ⅵ) solution [44]. Figure 8a indicates that neither NaBH4 nor CuMoV/CuMoV(450) could reduce Cr(Ⅵ) to Cr(Ⅲ), and the best result could be only achieved on condition that CuMoV(450) and NaBH4 coexisted in the solution. In the NaBH4-CuMoV(450) system, the yellow color of the Cr(Ⅵ) solution transformed into colorless in 2.0 min, illustrating that all the Cr(Ⅵ) was completely reduced to Cr(Ⅲ) [44]. The stronger catalytic activity of CuMoV(450) indicates that the calcination treatment could evidently improve the catalytic activity of CuMoV.
The catalytic reduction of Cr(VI) was affected by the dosage of CuMoV(450), the initial concentration of Cr(VI) and NaBH4, and the corresponding experimental results are given in Figure S5. Under the optimum conditions, the reduction rate of Cr(VI) was 96.5% in 2 min. The pseudo-first-order reaction kinetic model was taken to calculate the Kapp and R2, and the dates were 1.536 min−1 and 0.958, respectively (Figure 8b). The changes in the UV–vis spectra indicate that the characteristic absorption peak of the Cr(VI) solution gradually weakened until it disappeared (Figure 8c). Furthermore, the colorless supernatant solution obtained after Cr(Ⅵ) reduction turned green with the treatment of NaOH, authenticating the production of the Cr(Ⅲ) complex (hexahydroxochromate(III)) [45]. The above-mentioned experimental phenomena confirmed the successful reduction of toxic Cr(VI) to nontoxic Cr(III).
The mechanism of the catalytic reduction was closely related to the electron donor (NaBH4) and electron acceptor (Cr(VI)). At first, NaBH4 disassociated to generate BH4− ions, which react with water to yield BO2−, H+, and e− (Equation (13)). Then, CuMoV(450) mediated the transport of H+ and e− to Cr(VI) and pushed the completion of the reduction [44]. CuMoV(450) accepted electrons from NaBH4 and then transferred to Cr(VI).
BH4− + 2H2O → BO2− + 8H+ + 8e−
Table 2 presents the catalytic reduction abilities of CuMoV(450) and other mixed metal oxides. It is obvious that CuMoV(450) was more efficient than other catalysts with respect to lower NaBH4 concentration and shorter time.

2.4. Recyclability

The recyclability of CuMoV(450) for MB degradation or catalytic reduction of Cr(VI) was investigated to assess its economic and practical value. It was tested three times consecutively and after each use, CuMoV(450) was simply filtered out from the reaction systems, washed with water and acetonitrile three times, and then dried overnight at room temperature. Figure 9a shows that CuMoV(450) could be reused for three cycles with a slight decrease in catalytic ability. Furthermore, the FT-IR spectra displayed in Figure 9b reveal that no observable change could be found in the FT-IR spectra of the freshly prepared and the recycled CuMoV(450). Such results not only confirm that CuMoV(450) is a stable and recyclable catalyst, but also suggest that CuMoV(450) has application potential in the field of environmental remediation.

3. Experimental

3.1. Chemicals and Reagents

All the chemicals were analytical grade and purchased from Nanjing Wanqing reagent company (Nanjing, China). The deionized water was used in all the catalytic experiments.

3.2. Synthesis of CuMoV and CuMoV(450)

CuMoV was synthesized according to the literature method [47]. Na2MoO4•2H2O (0.73 g, 3.0 mmol), NH4VO3 (0.35 g, 3.0 mmol), CuSO4•5H2O (0.75 g, 3.0 mmol), 2,2′-bipy (0.234 g, 1.5 mmol), H2C2O4•2H2O (0.19 g, 1.5 mmol), and H2O (13.5 mL, 750 mmol) were mixed in a molar ratio of 2:2:2:1:1:500 and stirred for 2 h. The pH of the mixture was then adjusted to 4 using a dilute H3PO4 solution. The mixture was sealed in a 25 mL Teflon-lined autoclave and heated at 180 °C for 72 h. CuMoV were obtained as black rhombic blocky crystals after natural cooling to room temperature.
CuMoV was calcined at 450 °C for 2 h in a muffle and the obtained material was denoted as CuMoV(450), where 450 indicated the calcination temperature.

3.3. Chemical Analysis

The chemical structures of CuMoV and CuMoV(450) were analyzed by X-ray photoelectron spectroscopy (AXIS UltraDLD, Shimadzu, Kyoto, Japan), Fourier infrared spectroscopy (Bruker Vertex 80 FTIR spectrometer, Billerica, MA, USA), Scanning electron microscope (FEI Quanta 200, Hillsboro, OR, USA), and energy dispersive X-ray spectroscopy (Oxford X-Act, Abingdon, UK). XRD analysis was performed using a Rigaku XRD Ultima IV diffractometer (Rigaku, Tokyo, Japan) employing nickel-filtered Cu Kα radiation (wavelength 1.5406 Å) over a range of 5°< 2θ < 50°. Thermogravimetric analysis was performed using a CHY-1200 box furnace (Henan Chengyi Equipment Technology Co., Ltd., Zhengzhou, China). Fluorescence analysis was run with LS55 (PerkinElmer, Waltham, MA, USA). The intermediates of MB degradation were detected by HPLC-MS (Agilent 5975c, Santa Clara, CA, USA) in positive ion mode with m/z ranging from 50 to 800 with acetonitrile as the mobile phase. The UV–vis spectra for monitoring MB degradation and Cr(VI) reduction were recorded on a TU-1901 UV–visible spectrophotometer (Beijing Purkinje General Instrument Co., Ltd., Beijing, China).

3.4. Catalytic Activities Evaluation

3.4.1. MB Degradation

The reaction was carried out by dispersing CuMoV(450) in an MB solution with the required dosage at 25 °C without external reagents or energy input. If necessary, the pH of the MB solution was adjusted by 0.1 M HCl or NaOH, and the original pH of the MB solution was 6.8. 3 mL samples were taken out at given time intervals, filtered with a 0.45 um filter, and immediately measured the temporal UV–vis spectral variations of the MB solution. The absorbance of the sample was monitored at 664 nm, and the degradation rate and the quasi-first-order rate constant Kapp were calculated by the following Equations (14) and (15), respectively.
Degradation rate = (Ct/C0) × 100%
ln (Ct/C0) = −Kappt
where C0 and Ct represent the initial concentration and the concentration at t time, respectively. All experiments were repeated three times and data were averaged.

3.4.2. Cr(VI) Reduction

After the specified quantity of CuMoV(450) and freshly prepared NaBH4 solution with a concentration of 10 mM were added to the K2Cr2O7 solution (0.1 mM, 50 mL), the reduction began. Then, 3 mL samples were taken out at given time intervals, filtered with a 0.45 um filter and immediately measured the temporal UV–vis spectral variations of the Cr(VI) solution. The reduction rate and the pseudo-first-order rate constant Kapp were calculated by the following Equations (16) and (17), respectively.
Reduction rate = (Ct/C0) × 100%
ln (Ct/C0) = −Kappt
where C0 and Ct represent the initial concentration and the concentration at t time, respectively. All experiments were repeated three times and data were averaged.

4. Conclusions

In summary, a mixed metal oxide CuMoV(450) built on a POMOF [Cu(2,2′-bipy)][Cu(2,2′-bipy)2]2[PMoVI8V1VV3IVO40(VIVO)2]•2H2O (CuMoV) by calcination at 450 °C was successfully yielded. CuMoV(450) showed significantly improved activities for the heterogeneous catalytic degradation of MB and catalytic reduction of Cr(VI) compared to the parent CuMoV. Whether in MB degradation or Cr(VI) reduction, only a slight loss in the catalytic activities occurred after the third cycle. The catalytic activities of CuMoV(450) were superior to the other corresponding metal oxide catalysts in the heterogeneous catalytic degradation of MB and catalytic reduction of Cr(VI). What is even more commendable is that CuMoV(450) possessed both catalytic activities and excellent performance. The easy preparation, good stability, reusability, and excellent multi-functional performances make CuMoV(450) promising from both environmental and economic aspects. This is the first mixed metal oxide derived from a POMOF that was used as a catalyst in both oxidation and reduction. Furthermore, this work provides a clue to design new green heterogeneous catalysts based on POMOF for wastewater treatment.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/catal15010076/s1, Figure S1: TG curves of CuMoV; Figure S2: Simulated and measured XRD data of CuMoV; Figure S3: EDS mapping for CuMoV (a) and CuMoV(450) (b); Figure S4: (a) Effect of CuMoV(450) dosage on the degradation process, [MB] = 0.01 mM (50 mL), [pH] = 6.8. (b) Effect of pH on the degradation process, [MB] = 0.01 mM (50 mL), CuMoV(450) dosage = 80 mg. (c) Effect of initial concentration of MB on the degradation process, CuMoV(450) dosage = 80 mg, [pH] = 6.8; Figure S5: (a) Effect of CuMoV(450) dosage on the reduction process, [Cr(VI)] = 0.1 mM (50 mL), [NaBH4] = 8 mM. (b) Effect of NaBH4 concentration on the reduction process, [Cr(VI)] = 0.1 mM (50 mL), CuMoV(450) dosage = 40 mg. (c) Effect of initial concentration of Cr(VI) on the reduction process, CuMoV(450) dosage = 40 mg, [NaBH4] = 8 mM; Table S1: XPS results of CuMoV and CuMoV(450): the surface element content, binding energy, weight ratio and atomic ratio.

Author Contributions

Investigation, Z.-Q.L.; data curation, J.-Y.L.; supervision, X.M.; project administration, B.-L.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the State Key Laboratory for Chemistry and Molecular Engineering of Medicinal Resources, Guangxi Normal University, project number (CMEMR 2022-B07).

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Chen, Y.H.; Liu, Z.L.; Liu, Z.S.; Feng, P.Z. Enhanced catalytic degradation of organic pollutant by AgBiO3 with metastable lattice. Mater. Res. Bull. 2022, 153, 111882. [Google Scholar] [CrossRef]
  2. Fu, B.; Sun, H.; Liu, J.; Zhou, T.; Chen, M.; Cai, Z.; Hao, D.; Zhu, X. Construction of MIL-125-NH2@BiVO4 composites for efficient photocatalytic dye degradation. ACS Omega 2022, 7, 26201–26210. [Google Scholar] [CrossRef] [PubMed]
  3. Liu, J.; Dai, Q.H.; Xiao, R.X.; Zhou, T.T.; Han, J.L.; Fu, B. Immobilization of ZnIn2S4 on sodium alginate foam for efficient hexavalent chromium removal. Int. J. Biol. Macromol. 2023, 236, 123848. [Google Scholar] [CrossRef] [PubMed]
  4. Akram, M.Y.; Hameed, M.U.; Akhtar, N.; Ali, S.; Maitlo, I.; Zhu, X.Q.; Nie, J. Synthesis of high performance Ni3C-Ni decorated thermally expanded reduced graphene oxide (TErGO/Ni3C-Ni) nanocomposite: A stable catalyst for reduction of Cr(VI) and organic dyes. J. Hazard. Mater. 2019, 366, 723–731. [Google Scholar] [CrossRef]
  5. Naz, M.; Rafiq, A.; Ikram, M.; Haider, A.; Ahmad, S.O.A.; Haider, J.; Naz, S. Elimination of dyes by catalytic reduction in the absence of light: A review. J. Mater. Sci. 2021, 56, 15572–15608. [Google Scholar] [CrossRef]
  6. Chen, H.H.; Motuzas, J.; Martens, W.; Costa, J.C.D. Degradation of orange II dye under dark ambient conditions by MeSrCuO (Me = Mg and Ce) metal oxides. Sep. Purif. Technol. 2018, 205, 293–301. [Google Scholar] [CrossRef]
  7. Leng, Y.; Liu, J.X.; Zhang, Z.H.; Chen, H.; Zhang, P.F.; Dai, S. Polyoxometalates as bifunctional templates: Engineering metal oxides with mesopores and reactive surfaces for catalysis. J. Mater. Chem. A. 2019, 7, 27297–27303. [Google Scholar] [CrossRef]
  8. Zhong, W.; Jiang, T.; Dang, Y.L.; He, J.K.; Chen, S.Y.; Kuo, C.H.; Kriz, D.; Meng, Y.T.; Meguerdichian, A.G.; Suib, S.L. Mechanism studies on methyl orange dye degradation by perovskite-type LaNiO3-δ under dark ambient conditions. Appl. Catal. A-Gen. 2018, 549, 302–309. [Google Scholar] [CrossRef]
  9. Recepoglu, Y.K.; Goren, A.Y.; Orooji, Y.; Vatanpour, V.; Kudaibergenov, N.; Khataee, A. Polyoxometalate-based hybrid composites in multi-functional wastewater treatment applications. J. Water Process. Eng. 2023, 53, 103863. [Google Scholar] [CrossRef]
  10. Huang, B.; Ma, Y.T.; Xiong, Z.L.; Xiao, Z.C.; Wu, P.F.; Jiang, P.; Liang, M.H. Polyoxometalate-derived Ir/WOx/rGO nanocomposites for enhanced electrocatalytic water splitting. Energy Environ. Mater. 2021, 4, 681–686. [Google Scholar] [CrossRef]
  11. Dai, D.L.; Qiu, J.H.; Xia, G.L.; Tang, Y.; Liu, Q.Y.; Li, Y.X.; Fang, B.Y.; Yao, J.F. Metal-organic framework templated Z-scheme ZnIn2S4/Bi2S3 hierarchical heterojunction for photocatalytic H2O2 production from wastewater. Small 2024, 20, 2403268. [Google Scholar] [CrossRef] [PubMed]
  12. Zhang, S.W.; Ou, F.X.; Ninga, S.; Cheng, P. Polyoxometalate-based metal-organic frameworks for heterogeneous catalysis. Inorg. Chem. Front. 2021, 8, 1865–1899. [Google Scholar] [CrossRef]
  13. Zhang, Y.D.; Lin, B.P.; Wang, J.C.; Han, P.; Xu, T.; Sun, Y.; Zhang, X.Q.; Yang, H. Polyoxometalates@metal-organic frameworks derived porous MoO3@CuO as electrodes for symmetric all-solid-state supercapacitor. Electrochim. Acta 2016, 191, 795–804. [Google Scholar] [CrossRef]
  14. Tang, Y.J.; Gao, M.R.; Liu, C.H.; Li, S.L.; Jiang, H.L.; Lan, Y.Q.; Han, M.; Yu, S.H. Porous molybdenum-based hybrid catalysts for highly efficient hydrogen evolution. Angew. Chem. Int. Ed. 2015, 54, 12928–12932. [Google Scholar] [CrossRef] [PubMed]
  15. Ma, W.J.; Li, Y.S.; Gao, S.T.; Cui, J.X.; Qu, Q.L.; Wang, Y.L.; Huang, C.B.; Fu, G.D. Self-healing and superwettable nanofibrous membranes with excellent stability toward multifunctional applications in water purification. ACS Appl. Mater. Inter. 2020, 12, 23644–23654. [Google Scholar] [CrossRef]
  16. Wang, Y.; Feng, Y.; Jiang, J.; Yao, J. Designing of recyclable attapulgite for wastewater treatments: A review. ACS Sustain. Chem. Eng. 2019, 7, 1855–1869. [Google Scholar] [CrossRef]
  17. Clarke, R.C.; Latham, K.; Rix, C.J.; Hobday, M. Heterocyclic amine derivatives of zinc organophosphonates. Chem. Mater. 2004, 16, 2463–2470. [Google Scholar] [CrossRef]
  18. Ibrahim, A.A.; Hassan, S.M.; Mannaa, M.A. Mesoporous tin oxide-supported phosphomolybdic acid as high performance acid catalysts for the synthesis of hydroquinone diacetate. Colloid. Surf. A 2020, 586, 124248. [Google Scholar] [CrossRef]
  19. Farhadi, S.; Zareisahamieh, R.; Zaidi, M. H6GeMo10V2O40•16H2O nanoparticles prepared by hydrothermal method: A new and reusable heteropoly acid catalyst for highly efficient acetylation of alcohols and phenols under solvent-free conditions. J. Brazil. Chem. Soc. 2011, 22, 1323–1332. [Google Scholar] [CrossRef]
  20. Fei, F.; Zhou, H.; Kang, M. POM-derived MoO3/CoMoO4 mixed oxides directed by glucose for high-performance supercapacitors. New J. Chem. 2022, 46, 16914–16921. [Google Scholar] [CrossRef]
  21. Akyüz, S.; Akyüz, T.; Ozer, N.M. FT-IR spectroscopic investigations of benzidine and bipyridyls adsorbed on diatomite from Anatolia. J. Mol. Struct. 2001, 565, 493–496. [Google Scholar] [CrossRef]
  22. Daichi, I.; Masaru, M. Characterization of magnesium-intercalated V2O5/carbon composites. Solid State Ionics 2003, 161, 173–180. [Google Scholar] [CrossRef]
  23. Guhergul, U.; Busra, Y.; Sevket, E.O.; Aktas, S. Double vanadyl-carrying phenanthroline complexes: Template synthesis and DFT study. Chem. Pap. 2020, 74, 1881–1889. [Google Scholar] [CrossRef]
  24. Li, Y.R.; Ren, H.; Jiao, Q.J. Preparation and characterization of MoO3 with different morphologies. Ferroelectrics 2018, 527, 113–118. [Google Scholar] [CrossRef]
  25. Abo-Naf, S.M.; El-Amiry, M.S.; Abdel-Khalek, A.A. FT-IR and UV-Vis optical absorption spectra of c-irradiated calcium phosphate glasses doped with Cr2O3, V2O5 and Fe2O3. Opt. Mater. 2008, 30, 900–909. [Google Scholar] [CrossRef]
  26. Singh, M.; Kumar, P.; Sharma, R.K.; Reddy, G.B. Plasma assisted synthesis and growth mechanism of rare V2O5 nanostructured thin films. J. Alloy. Compd. 2017, 690, 532–541. [Google Scholar] [CrossRef]
  27. Zhang, R.Y.; Zhang, A.L.; Cao, Y.H.; Wang, S.Y.; Dong, F.; Zhou, Y. Mo-doped carbon nitride homojunction to promote oxygen activation for enhanced photocatalytic performance. Chem. Eng. J. 2020, 401, 126028. [Google Scholar] [CrossRef]
  28. Guo, F.; Liu, J.M.; Zhang, W.G.; Yu, Z.B.; Liu, Y.M.; Liang, W.; Cu, S.O. N-doped TiO2 nanotube by a novel magnetron sputtering method and its photoelectric property. Vacuum 2019, 165, 223–231. [Google Scholar] [CrossRef]
  29. Lee, G.J.; Manivel, A.; Batalova, V.; Mokrousov, G.; Masten, S.; Wu, J. Mesoporous microsphere of ZnS photocatalysts loaded with CuO or Mn3O4 for the visible-light-assisted photocatalytic degradation of orange II dye. Ind. Eng. Chem. Res. 2013, 52, 11904–11912. [Google Scholar] [CrossRef]
  30. Periyayya, U.; Madhu, D.; Subramaniyam, K.; Son, H.; Lee, I.H. Enhanced cyclic performance initiated via an in situ transformation of Cu/CuO nanodisk to Cu/CuO/Cu2O nanosponge. Environ. Sci. Pollut. R. 2020, 28, 6459–6469. [Google Scholar] [CrossRef]
  31. Wu, Q.H.; Zhang, P.K.; Kuo, D.H.; Wu, B.H.; Abdeta, A.B.; Su, Z.J.; Chen, L.Y.; Zelekew, O.A.; Lin, J.G.; Chen, X.Y. Activation of Cu3(MoO4)2(OH)2 with the hydrazine-driven cation reduction into a highly efficient catalyst for the reduction of organic dyes and heavy metals ion Cu3(MoO4)2(OH)2. J. Environ. Chem. Eng. 2023, 11, 109974. [Google Scholar] [CrossRef]
  32. Jiang, W.; Xiao, J.; Dong, L.; Wang, C.; Li, H.P.; Luo, Y.P.; Zhu, W.S.; Li, H.M. Polyoxometalate-based poly(ionic liquid) as a precursor for superhydrophobic magnetic carbon composite catalysts toward aerobic oxidative desulfurization. Acs. Sustain. Chem. Eng. 2019, 7, 15755–15761. [Google Scholar] [CrossRef]
  33. Kumar, M.; Ansari, M.N.M.; Boukhris, I.; Al-Buriahi, M.S.; Alrowaili, Z.A.; Alfryyan, N.; Thomas, P.; Vaish, R. Sonophotocatalytic dye degradation using rGO-BiVO4 composites. Glob. Chall. 2022, 6, 2100132. [Google Scholar] [CrossRef] [PubMed]
  34. Wang, H.Q.; Liang, Z.D.; Liu, C.; Zhu, L.S.; Xu, Y.T.; Zhou, L.; Yan, B. Construction of K and Tb Co-doped MnO2 nanoparticles for enhanced oxidation and detoxication of organic dye waste. Chemosphere 2022, 297, 134104. [Google Scholar] [CrossRef]
  35. Zeng, C.; Hu, Y.M.; Huang, H.W. BiOBr0.75I0.25/BiOIO3 as a novel heterojunctional photocatalyst with superior visible-light-driven photocatalytic activity in removing diverse industrial pollutants. ACS Sustain. Chem. Eng. 2017, 5, 3897–3905. [Google Scholar] [CrossRef]
  36. Chen, H.H.; Fu, W.; Xing, Y.L.; Zhang, J.X.; Ku, J.G. Engineering SrCuxO composition to tailor the degradation activity toward organic pollutant under dark ambient conditions. Environ. Sci. Pollut. R. 2019, 26, 16449–16456. [Google Scholar] [CrossRef]
  37. Zhang, Y.M.; Zhang, N.S.; Wang, T.T.; Huang, H.T.; Chen, Y.; Li, Z.S.; Zou, Z.G. Heterogeneous degradation of organic contaminants in the photo-Fenton reaction employing pure cubic β-Fe2O3. Appl. Catal. B-Environ. 2019, 245, 410–419. [Google Scholar] [CrossRef]
  38. He, Q.; Liao, X.G.; Li, G.; He, Y.X.; Shen, J. Synthesis of cubic Mn2O3 and its catalytic performance in activating peroxymonosulfate for degradation of MB. Chem. Phys. 2023, 571, 111912. [Google Scholar] [CrossRef]
  39. Zhao, J.J.; Wang, X.X.; Dai, P. Syntheses, structures and photocatalysis properties of two Cu(II)-based coordination polymers based on flexible tricarboxylate ligand. J. Mol. Struct. 2021, 1235, 130220. [Google Scholar] [CrossRef]
  40. Hong, W.W.; Lu, L.; Yue, M.; Huang, C.C.; Muddassir, M.; Sakiyama, H.; Wang, J. A 3D 8-connected bcu topological metal-organic framework built by trinuclear Cd(II) units: Photocatalysis and LC-MS studies. Polyhedron 2021, 211, 115571. [Google Scholar] [CrossRef]
  41. Duan, Y.L.; Zhang, R.X.; Han, P.F.; Wong, N.H.; Sunarso, J.; Liu, S.M.; Yu, J. Fabricating an adsorbent and micro-nano bubble catalyst through confining maghemite in the β cage of NaY zeolite. Chemosphere 2024, 350, 141103. [Google Scholar] [CrossRef] [PubMed]
  42. Cui, X.D.; Li, P.C.; Lei, H.; Tu, C.; Wang, D.L.; Wang, Z.; Chen, W.P. Greatly enhanced tribocatalytic degradation of organic pollutants by TiO2 nanoparticles through efficiently harvesting mechanical energy. Separ. Purif. Technol. 2022, 289, 120814. [Google Scholar] [CrossRef]
  43. Zheng, J.Y.; He, J.D.; Han, C.B.; Huang, G.Y.; Sun, B.C.; Zhao, W.K.; Wen, K.; Wang, Y.S.; Sun, L.; Si, J.H.; et al. Adsorption-enhanced catalytic oxidation for long-lasting dynamic degradation of organic dyes by porous manganese-based biopolymeric catalyst. Int. J. Biol. Macromol. 2023, 237, 124152. [Google Scholar] [CrossRef] [PubMed]
  44. Abdeta, A.B.; Sun, H.Z.; Guo, Y.B.; Wu, Q.H.; Zhang, J.B.; Yuan, Z.H.; Lin, J.G.; Chen, X.Y. A novel AgMoOS bimetallic oxysulfide catalyst for highly efficiency catalytic reduction of organic dyes and chromium (VI). Adv. Powder. Technol. 2021, 32, 2856–2872. [Google Scholar] [CrossRef]
  45. Bashir, M.S. Benign fabrication process of hierarchal porous polyurea microspheres with tunable pores and porosity: Their Pd immobilization and use for hexavalent chromium reduction. Chem. Eng. Res. Des. 2021, 175, 102–114. [Google Scholar] [CrossRef]
  46. Zhang, P.K.; Lai, Y.J.; Dai, X.H.; Xu, Y.Z.; Wu, X.R.; Yang, B.Q.; Kuo, D.H.; Lu, D.F.; Wu, Q.H.; Mosisa, M.T.; et al. Hydrazine-driven cation valence regulation and defect engineering in CeVO4 for highly efficient reduction of organic dyes and heavy metal pollutants in the dark. J. Environ. Chem. Eng. 2024, 12, 111831. [Google Scholar] [CrossRef]
  47. Cui, J.W.; Cui, X.B.; Xu, J.N.; Yu, H.H.; Xu, J.Q.; Duan, W.J.; Wang, T.G. Two new polyoxometalate tri-supported transition metal complexes constructed from bi-capped Keggin molybdenum-vanadium clusters and copper complex fragments. J. Mol. Struct. 2008, 891, 35–39. [Google Scholar] [CrossRef]
Catalysts 15 00076 g001
Figure 1. (a) XRD patterns of CuMoV and CuMoV(450). (b) Analysis of XRD patterns of CuMoV(450).
Figure 1. (a) XRD patterns of CuMoV and CuMoV(450). (b) Analysis of XRD patterns of CuMoV(450).
Catalysts 15 00076 g001
Catalysts 15 00076 g002

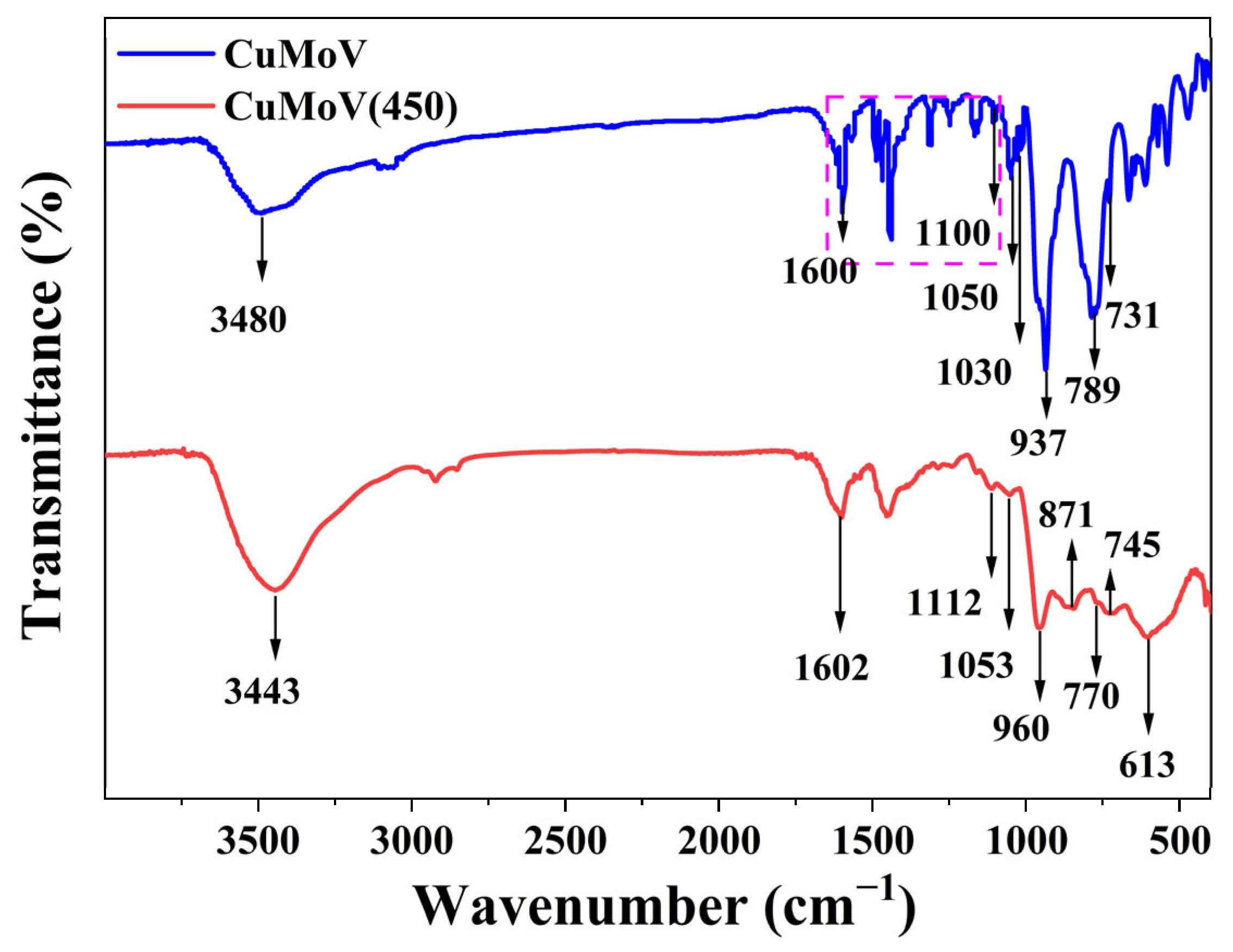

Figure 2. FT-IR spectra of CuMoV and CuMoV(450).
Figure 2. FT-IR spectra of CuMoV and CuMoV(450).
Catalysts 15 00076 g002
Catalysts 15 00076 g003

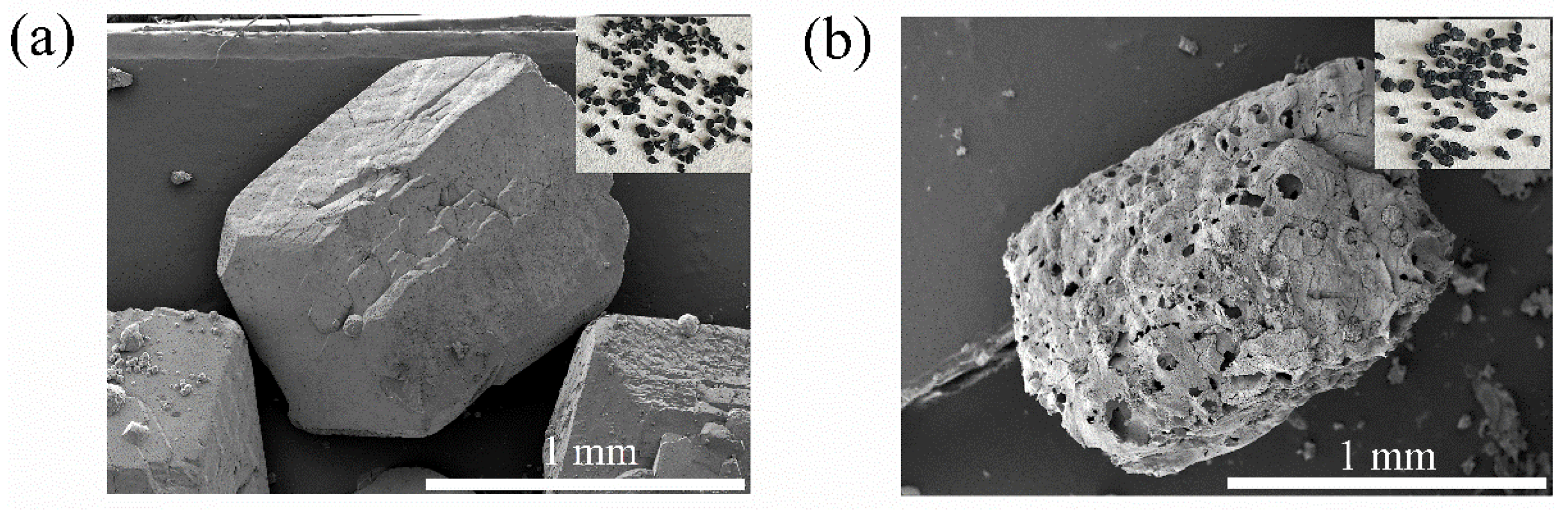

Figure 3. SEM images of CuMoV (a) and CuMoV(450) (b).
Figure 3. SEM images of CuMoV (a) and CuMoV(450) (b).
Catalysts 15 00076 g003
Catalysts 15 00076 g004

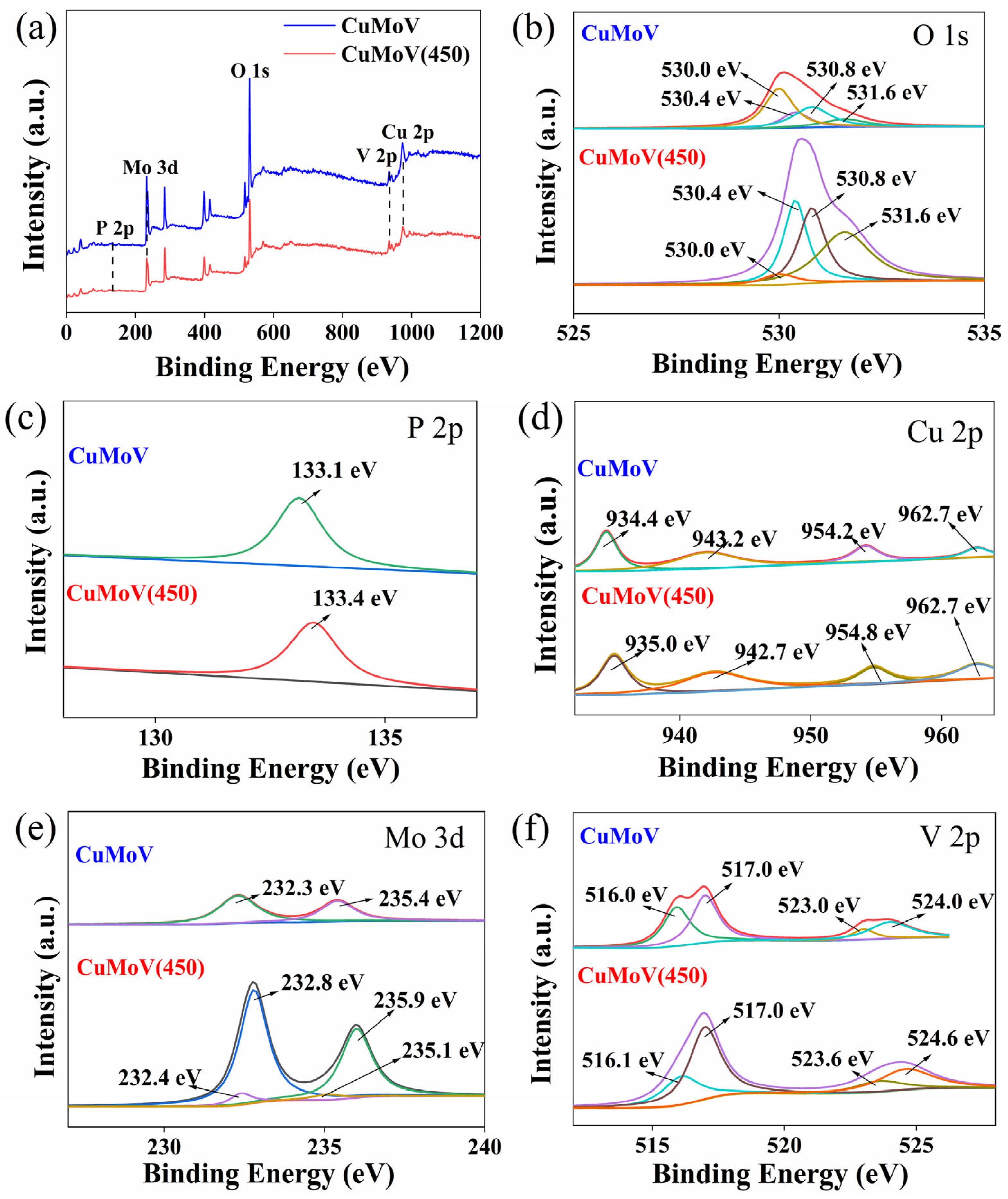

Figure 4. XPS spectra of CuMoV and CuMoV(450): (a) survey spectra; (b) O 1 s; (c) P 2p; (d) Cu 2p; (e) Mo 3d; (f) V2p.
Figure 4. XPS spectra of CuMoV and CuMoV(450): (a) survey spectra; (b) O 1 s; (c) P 2p; (d) Cu 2p; (e) Mo 3d; (f) V2p.
Catalysts 15 00076 g004
Catalysts 15 00076 g005

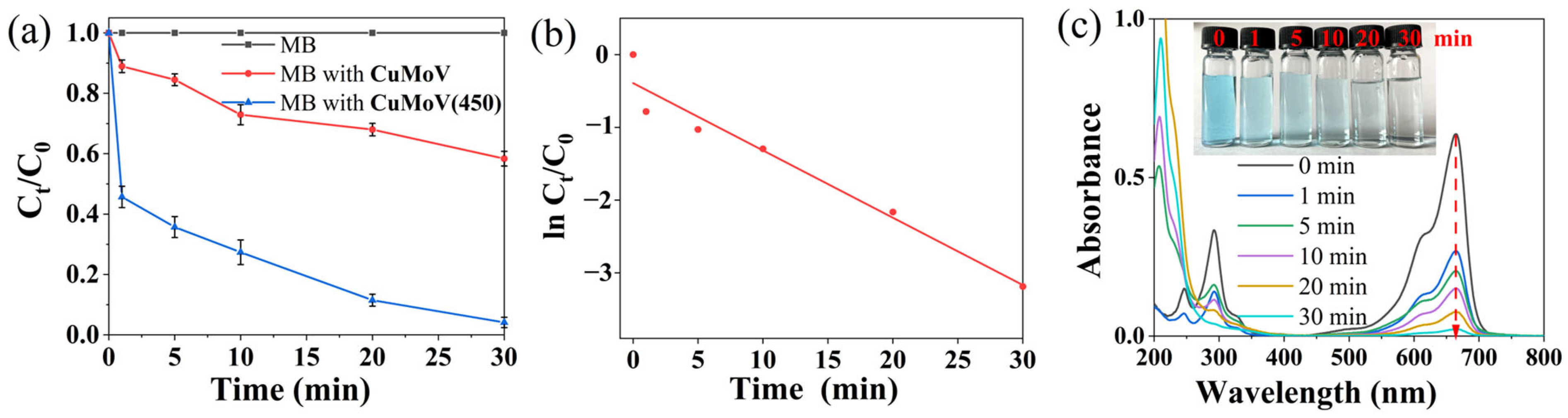

Figure 5. (a) Control experiments of MB degradation in 30 min, (b) ln (Ct/C0) as a function of time (t) for MB degradation in 30 min, (c) Changes in absorption spectra of MB solution during the degradation process. CuMoV(450) dosage = 80 mg, [MB] = 0.01 mM (50 mL), [pH] = 6.8.
Figure 5. (a) Control experiments of MB degradation in 30 min, (b) ln (Ct/C0) as a function of time (t) for MB degradation in 30 min, (c) Changes in absorption spectra of MB solution during the degradation process. CuMoV(450) dosage = 80 mg, [MB] = 0.01 mM (50 mL), [pH] = 6.8.
Catalysts 15 00076 g005
Catalysts 15 00076 g006

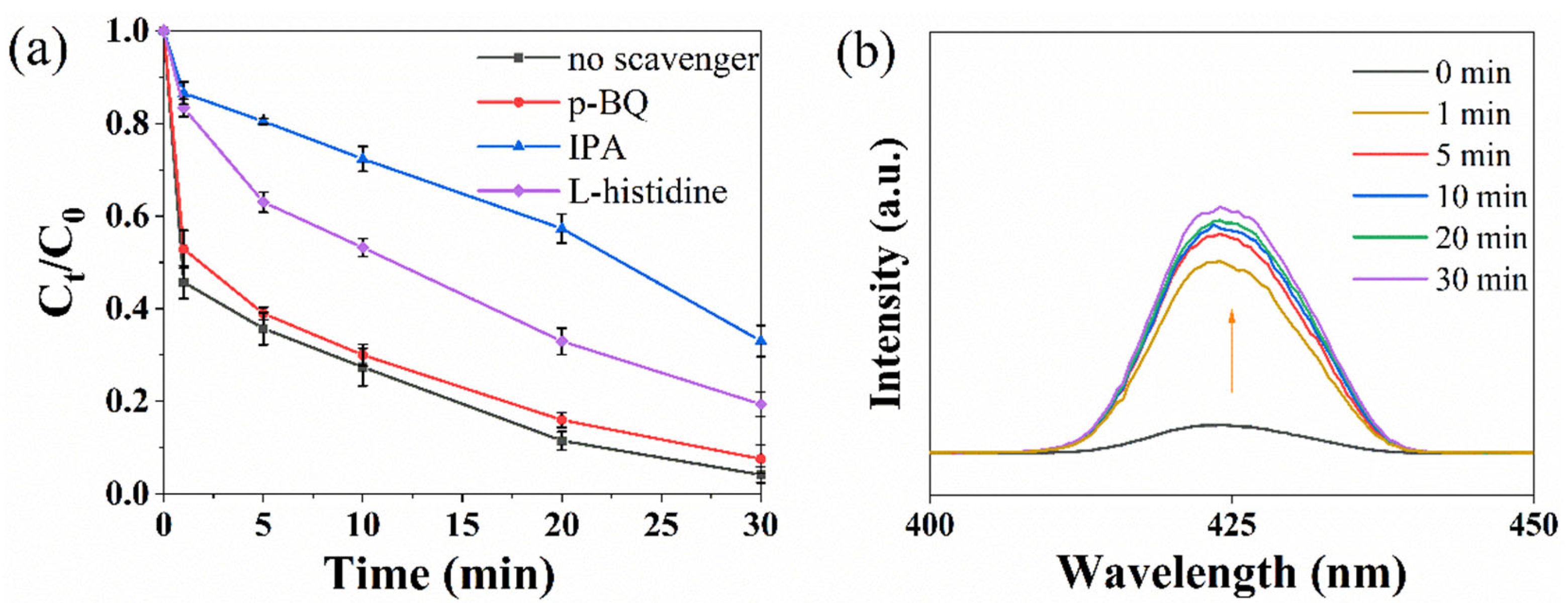

Figure 6. (a) Effect of different scavengers on MB degradation. (b) PL spectra of TAOH solutions in CuMoV(450)/MB system. CuMoV(450) dosage = 80 mg, [MB] = 0.01 mM (50 mL), [pH] = 6.8, [p-BQ] = 5 mM, [IPA] = 0.1 M, [L-histidine] = 0.1 M, [TAOH] = 0.5M NaOH + 0.5 mM TA.
Figure 6. (a) Effect of different scavengers on MB degradation. (b) PL spectra of TAOH solutions in CuMoV(450)/MB system. CuMoV(450) dosage = 80 mg, [MB] = 0.01 mM (50 mL), [pH] = 6.8, [p-BQ] = 5 mM, [IPA] = 0.1 M, [L-histidine] = 0.1 M, [TAOH] = 0.5M NaOH + 0.5 mM TA.
Catalysts 15 00076 g006
Catalysts 15 00076 g007

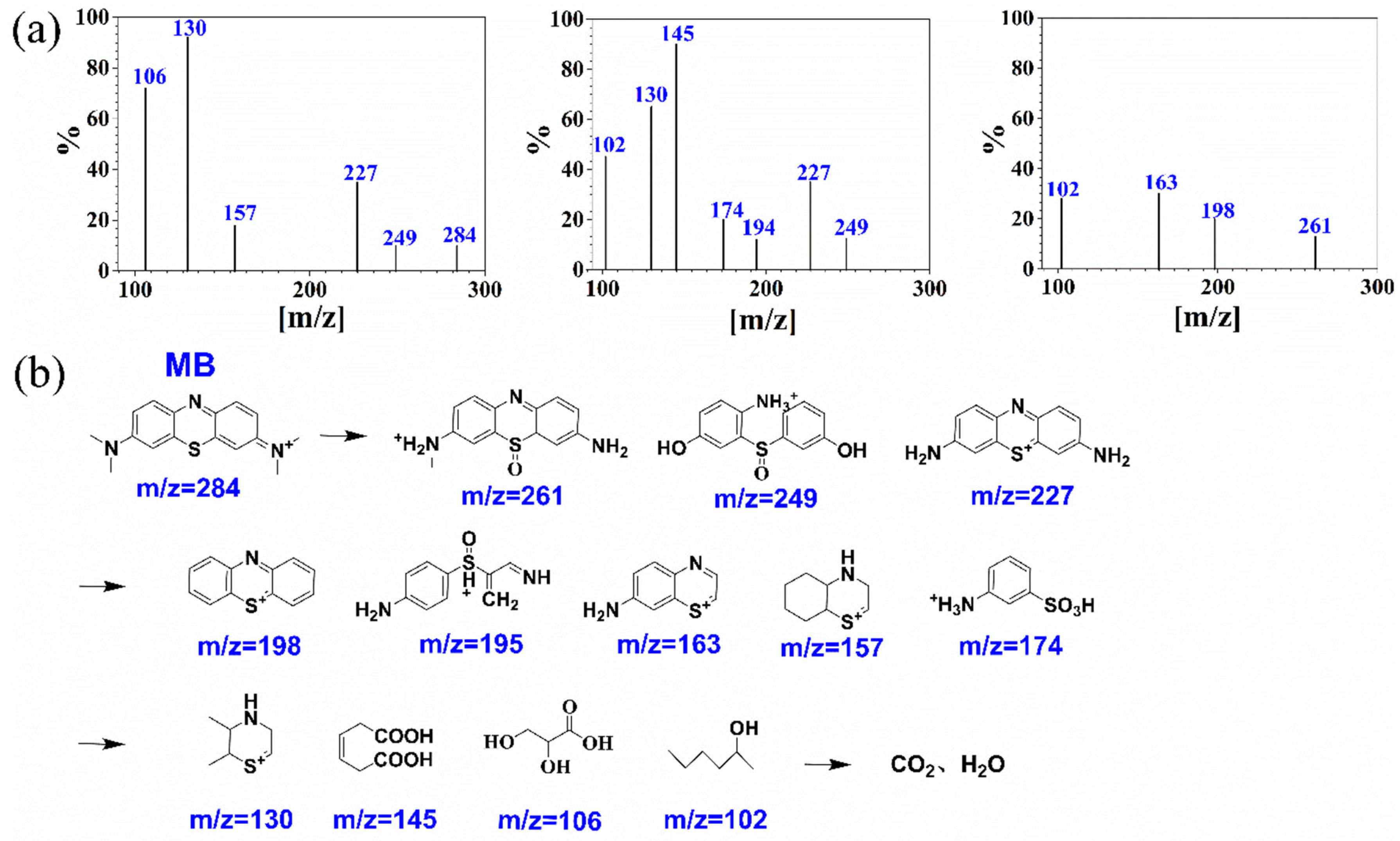

Figure 7. (a) Mass spectra of MB solutions at 30 min. (b) Proposed degradation pathway of MB.
Figure 7. (a) Mass spectra of MB solutions at 30 min. (b) Proposed degradation pathway of MB.
Catalysts 15 00076 g007
Catalysts 15 00076 g008
Figure 8. (a) Control experiments of Cr(VI) reduction, (b) The linear correlation between ln(Ct/C0) and reaction time for Cr(VI) reduction over CuMoV(450), (c) Time-varying UV–vis spectra of Cr(VI) reduction over CuMoV(450) under optimum conditions. [K2Cr2O7] = 0.1 mM, [NaBH4] = 8 mM, CuMoV/CuMoV(450) dosage = 40 mg, [NaOH] = 1 M.
Figure 8. (a) Control experiments of Cr(VI) reduction, (b) The linear correlation between ln(Ct/C0) and reaction time for Cr(VI) reduction over CuMoV(450), (c) Time-varying UV–vis spectra of Cr(VI) reduction over CuMoV(450) under optimum conditions. [K2Cr2O7] = 0.1 mM, [NaBH4] = 8 mM, CuMoV/CuMoV(450) dosage = 40 mg, [NaOH] = 1 M.
Catalysts 15 00076 g008
Catalysts 15 00076 g009

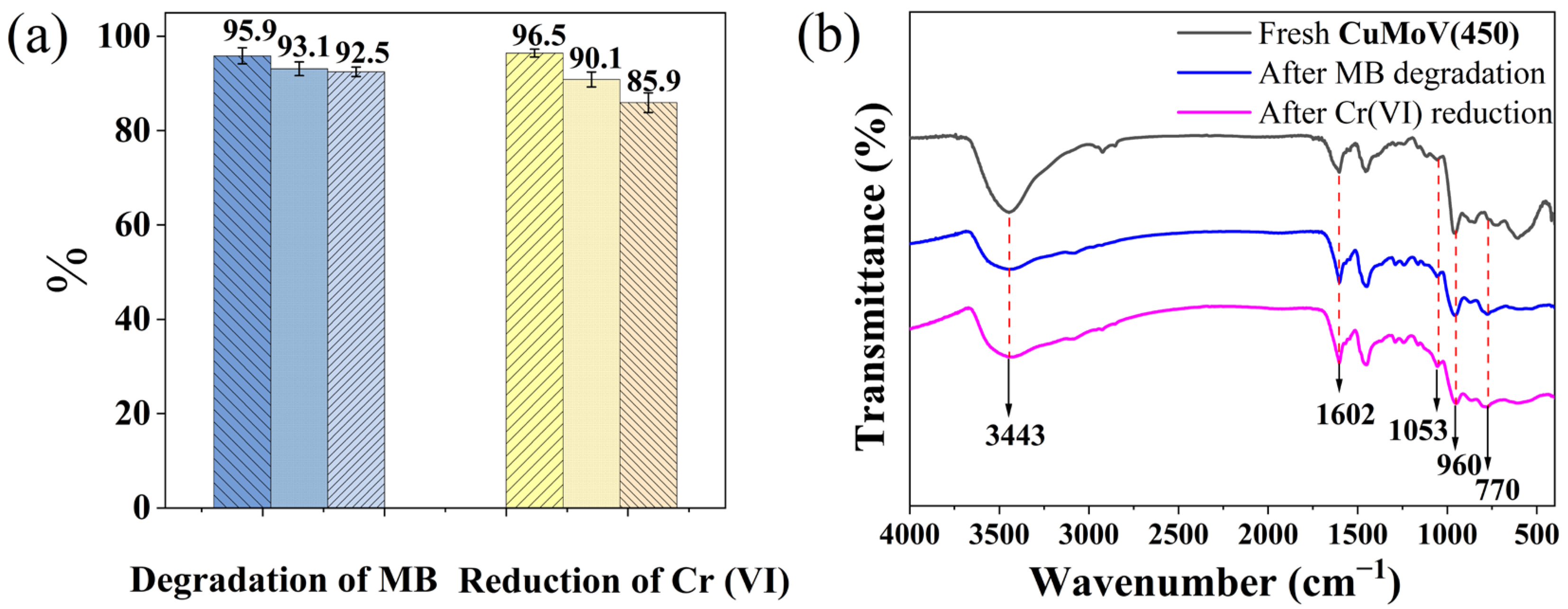

Figure 9. (a) MB degradation rate and Cr(VI) reduction rate in different recycle runs. (b) FT-IR spectra of CuMoV(450) before and after MB degradation/Cr(VI) reduction.
Figure 9. (a) MB degradation rate and Cr(VI) reduction rate in different recycle runs. (b) FT-IR spectra of CuMoV(450) before and after MB degradation/Cr(VI) reduction.
Catalysts 15 00076 g009
Table 1. Comparison of MB degradation efficiency over different metal oxides.
Table 1. Comparison of MB degradation efficiency over different metal oxides.
Catalyst Dosage (mg)[MB] (mM)Time (min)Efficiency (%)
Fe2O3@Y [41]1500.01 6061.5
TiO2 nanoparticles [42] 3000.06 25093.1
MnOx-PP [43]4000.05 6099.5
CuMoV(450)800.01 3095.9
Table 2. Comparison of Cr(VI) reduction over different catalysts.
Table 2. Comparison of Cr(VI) reduction over different catalysts.
CatalystDosage
(mg)		[Cr(VI)]
(mM)		[NaBH4]
(mM)		Time
(min)		Efficiency
(%)
CeVOS-3 [46]150.37 460.0
2-AgMoOS [44]400.12002496.6
CuMoV(450)400.18296.5
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Liu, Z.-Q.; Long, J.-Y.; Mei, X.; Fei, B.-L. Mixed Metal Oxide Derived from Polyoxometalate-Based Metal–Organic Framework as a Bi-Functional Heterogeneous Catalyst for Wastewater Treatment. Catalysts 2025, 15, 76. https://doi.org/10.3390/catal15010076

AMA Style

Liu Z-Q, Long J-Y, Mei X, Fei B-L. Mixed Metal Oxide Derived from Polyoxometalate-Based Metal–Organic Framework as a Bi-Functional Heterogeneous Catalyst for Wastewater Treatment. Catalysts. 2025; 15(1):76. https://doi.org/10.3390/catal15010076

Chicago/Turabian Style

Liu, Zi-Qing, Jian-Ying Long, Xiang Mei, and Bao-Li Fei. 2025. "Mixed Metal Oxide Derived from Polyoxometalate-Based Metal–Organic Framework as a Bi-Functional Heterogeneous Catalyst for Wastewater Treatment" Catalysts 15, no. 1: 76. https://doi.org/10.3390/catal15010076

APA Style

Liu, Z.-Q., Long, J.-Y., Mei, X., & Fei, B.-L. (2025). Mixed Metal Oxide Derived from Polyoxometalate-Based Metal–Organic Framework as a Bi-Functional Heterogeneous Catalyst for Wastewater Treatment. Catalysts, 15(1), 76. https://doi.org/10.3390/catal15010076

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
