Unraveling FeO_x Nanoparticles Confined on Fibrous Mesoporous Silica Catalyst Construction and CO Catalytic Oxidation Performance

Abstract

Catalytic oxidation is used to control carbon monoxide (CO) emissions from industrial exhaust. In this study, a mesoporous silica material, KCC-1, was synthesized and used as a carrier with a high specific surface area to confine active component FeO_x nanoparticles (NPs), and the CO catalytic oxidation performance of x%Fe@KCC-1 catalysts (x represents the mass loading of Fe) was studied. The experimental results showed that due to its large specific surface area and abundant mesopores, the FeO_x NPs were highly dispersed on the surface of the KCC-1 carrier. The particle size of FeO_x was very small, resulting in strong interactions between FeO_x NPs and KCC-1, which enhanced the catalytic oxidation reaction on the catalyst. The FeO_x loading improved the CO adsorption capability of the catalyst, which facilitated the catalytic oxidation of CO, with the 7%Fe@KCC-1 catalyst achieving 100% CO conversion at 160 °C. The CO catalytic removal mechanism was investigated by a combination of in-situ DRIFTS and DFT calculations. This study advances scientific understanding of the application potential of nano-catalysts in important oxidation reactions and provides valuable insights into the development of efficient CO oxidation catalysts.

1. Introduction

Carbon monoxide (CO) is one of the most high-priority pollutants in China’s environmental air quality standards. Vehicle exhaust emissions are one of the primary sources of urban air pollution and include CO, nitrogen oxides (NO_x), volatile organic compounds (VOCs), and particulate matters (PMs), all of which [1,2] pose risks to human health and the environment [3]. The preferred method of removing CO from the exhaust gas of diesel vehicles is generally through catalytic oxidation of the CO using a three-way catalyst. Currently, catalytic oxidation of CO using molecular O₂ as an oxidant (2CO + O₂ → 2CO₂) is recognized as the most energy-efficient method of CO removal. Furthermore, as a typical gas-solid heterogeneous reaction, catalytic oxidation of CO is regarded as an extremely important topic for fundamental research. CO can be used as a probe molecule to investigate catalyst structures, adsorption/desorption behaviors, metal-support interactions, and catalytic reaction mechanisms. Extensive efforts have been made in recent years to develop efficient catalysts for CO oxidation. Supported catalysts have received particular attention due to their enhanced catalytic activity, stability, and selectivity [4]. In this regard, KCC-1, a mesoporous silica material (KCC-1) with an imidazolate ligand, has emerged as a promising support for various catalysts.

KCC-1 possesses a range of desirable properties, including a high surface area, ordered porosity, and thermal stability [5,6]. These characteristics make it an attractive platform for the immobilization of catalytically active species, such as metal oxides. Moreover, the structural and textural tunability of KCC-1 allows for precise control over the dispersion and accessibility of active sites, which influences its overall catalytic performance. Previously, we found that Sn_x/KCC-1 catalysts with well-dispersed Sn atom clustering exhibited CO catalytic oxidation performance comparable to that of noble metal catalysts [7].

Noble metals, particularly platinum and gold, conventionally serve as pivotal components in catalytic systems for controlling carbon monoxide (CO) emissions via catalytic oxidation [8,9,10]. Although noble metal catalysts have excellent CO adsorption and activation capacity, they are dwindling and expensive resources. The non-noble metal catalyst FeO_x has shown remarkable catalytic activity for CO oxidation due to its unique redox behavior and high affinity for CO. Liu et al. [11] investigated the overlay adsorption of CO on a Pt (111) surface partially covered by FeO_x nanostructures and showed that FeO_x nanostructures are ideal catalysts for low temperature CO oxidation. The coverage structure of carbon monoxide on bare platinum is unaffected by FeO_x NPs due to strong chemisorption. The incorporation of FeO_x species onto a KCC-1 support can further enhance its catalytic properties by providing a highly dispersed and stabilized active phase. The structural features, surface chemistry, and interactions between FeO_x and KCC-1 are expected to play crucial roles in governing the catalytic performance and stability of supported catalysts. Bai et al. [12] found that Fe-KCC-1 has a large surface area (464.56 m²·g⁻¹) and that FeO_x NPs particles are well-dispersed on its surface.

Despite increasing interest in utilizing KCC-1 as a FeO_x catalyst carrier, there is still a need to comprehensively investigate the synthesis methods, characterization techniques, and catalytic mechanisms of these composites for CO oxidation. Understanding the structural and electronic properties of the catalyst and the nature of active sites will help elucidate the underlying catalytic mechanism to optimize the design of highly efficient catalysts. The utilization of a confinement strategy proves highly effective in minimizing the sintering of active component NPs, leading to a noteworthy enhancement in catalytic stability. However, conventional confinement techniques, such as porous structures or core shell arrangements, may hinder the transport of reactants to some extent or compromise certain active sites [13,14,15,16].

In this study, we synthesized and characterized KCC-1-supported FeO_x catalysts for CO oxidation. By employing various characterization techniques, including X-ray diffraction (XRD), scanning electron microscope (SEM), and HRTEM, we probed the structural integrity, textural properties, dispersion, and oxidation state of FeO_x on the KCC-1 carrier. In addition, catalytic activity measurements were carried out to assess the x%Fe@KCC-1 (x = 0, 1, 3, 5, 7 and 10) catalyst’s performance for CO oxidation. The insights gained from this research will provide a fundamental understanding of the KCC-1-supported FeO_x catalyst system, especially the synergistic effects between the support and active species. This knowledge can pave the way for the rational design and synthesis of high-performance catalysts for CO oxidation, leading to air quality improvements and sustainable development.

2. Discussion

2.1. Basic Morphological Characteristics

The morphology and pore structure of catalyst materials play crucial roles in heterogeneous catalysis. SEM images of x%Fe@KCC-1 (x = 0, 1, 3, 5, 7 and 10) catalysts are shown in Figure 1. This series of x%Fe@KCC-1 catalysts exhibited similar geomorphic features, all of which were hydrangea-like. These features facilitate heterogeneous catalytic reactions on the x%Fe@KCC-1 (x = 0, 1, 3, 5, 7 and 10) catalyst’s surface. The overall morphology of the catalysts was unaffected before and after loading the x%Fe active component, suggesting that it was well-dispersed on the KCC-1 carrier surface, thus providing abundant active sites.

The unique lattice structures of KCC-1, FeO_x, and Fe were not detected in the HRTEM of the 7%Fe@KCC-1 catalyst (Figure S1a,b), and were reduced in the 7%Fe@KCC-1 catalyst by H₂ (Figure S2a–d). The mesoporous KCC-1 exhibits a unique fibrous structure (hydrangea-like fibrous microspheres), which suggests that the active components of FeO_x NPs are uniformly dispersed on the surface of the KCC-1 carrier. This homogeneous dispersion effectively ensures the effective collision and interaction between the active components on the catalyst surface and the reactive gas molecules (CO and O₂). In addition, the results of high-angle annular dark-field scanning transmission electron microscopy and energy-dispersive X-ray spectroscopy (Figure S1c–f) showed that the FeO_x active component NPs were uniformly distributed on the KCC-1 without aggregation. This structure allows the FeO_x NPs’ active components to be supported on the surface of the fiber structure rather than in the pores, resulting in smaller particle sizes, which is an advantage of KCC-1 molecular sieves. Therefore, the x%Fe@KCC-1 (x = 0, 1, 3, 5, 7 and 10) catalyst is expected to exhibit excellent CO catalytic activity.

The crystal structures of the x%Fe@KCC-1 (x = 0, 1, 3, 5, 7 and 10) catalysts were characterized by XRD, and the obtained pattern is displayed in Figure S3. For the Fe₂O₃ catalyst samples, strong diffraction peaks appeared at 24.25°, 33.25°, 35.72°, 40.94°, 49.55°, 54.12°, 57.69°, 62.52°, 64.08°, and 72.01°, which corresponded to the (0 1 2), (1 0 4), (1 1 0), (1 1 3), (0 2 4), (1 1 6), (0 1 8), (2 1 4), (3 0 0), and (1 0 10) planes of α-Fe₂O₃ (JCPDS card: 1–089–0597), respectively [17]. Furthermore, the x%Fe@KCC-1 catalysts showed a broad diffraction peak at 2θ = 22.58, which was attributed to amorphous SiO₂ within the mesoporous molecular sieve of the KCC-1 [18]. This is an indication that the FeO_x NPs’ active component was present on the surface of the KCC-1 in an amorphous form, even with the highest Fe loading, namely that of the 10%Fe@KCC-1 catalyst. Thus, the x%Fe@KCC-1 (x = 0, 1, 3, 5, 7 and 10) catalysts may have excellent heterogeneous catalytic properties.

Nitrogen (N₂) adsorption–desorption isotherms were used to probe the specific surface area and pore structure data of x%Fe@KCC-1 (x = 0, 1, 3, 5, 7 and 10) and related catalyst materials. The resulting N₂ adsorption and desorption isotherms and corresponding BJH pore size distribution curves for the relative pressure (P/P₀) range of 0.05 to 0.25 can be seen in Figure S4. According to the classification of the International Union of Pure and Applied Chemistry (IUPAC), the adsorption-desorption isotherms of the catalyst materials belonged to type IV, with a typical hysteresis loop of the H3 type [19,20], caused by the capillary condensation of mesoporous structures. The data for the specific surface area and pore volume are given in

Table 1. Structural parameters for x%Fe@KCC-1 (x = 0, 1, 3, 5, 7 and 10) and related materials.

Catalysts	Specific Surface Area (m2∙g−1) a	Pore Volume (cm3∙g−1) b	Pore Sizes (nm) b
KCC-1	645	1.68	3.1
Fe2O3	4	0.11	31.7
1%Fe@KCC-1	576	1.52	3.1
3%Fe@KCC-1	550	1.45	3.1
5%Fe@KCC-1	520	1.33	3.1
7%Fe@KCC-1	479	1.21	3.1
10%Fe@KCC-1	397	0.67	3.1

^a: Calculated from the linear part of the BET formula (P/P₀ = 0.05–0.25). ^b: Calculated from the BJH Equation.

. Pure Fe₂O₃ was found to have a specific surface area of only 4 m²∙g⁻¹ and a pore volume of only 0.11 cm³∙g⁻¹. Fe₂O₃ is similarly porous, but has an almost nil pore diameter, suggesting large amounts of accumulated Fe₂O₃ particles. On the other hand, compared to pure Fe₂O₃, the KCC-1 carrier exhibits a significantly larger specific surface area of 645 m²∙g⁻¹ and a pore volume of 1.93 cm³∙g⁻¹. When doped with FeO_x NPs, x%Fe@KCC-1 showed lower specific surface areas, pore volumes, and pore sizes than their non-doped counterparts. In particular, the specific surface area of x%Fe@KCC-1 (x = 0, 1, 3, 5, 7 and 10) catalysts decreased from 645 m²∙g⁻¹ to 397 m²∙g⁻¹ and the pore volume decreased from 1.52 cm³∙g⁻¹ to 0.67 cm³∙g⁻¹ when the loading of the active component of FeO_x NPs was increased from 1% to 10%. However, the pore size of FeKCC-1 remained basically unchanged at about 3.1 nm, which means that the pore structure of KCC-1 was not disrupted after introducing FeO_x. Pore size distribution analysis of x%Fe@KCC-1 showed that mesopores 3.1 nm in size were embedded in the floral fiber microspheres of KCC-1 molecular sieves.

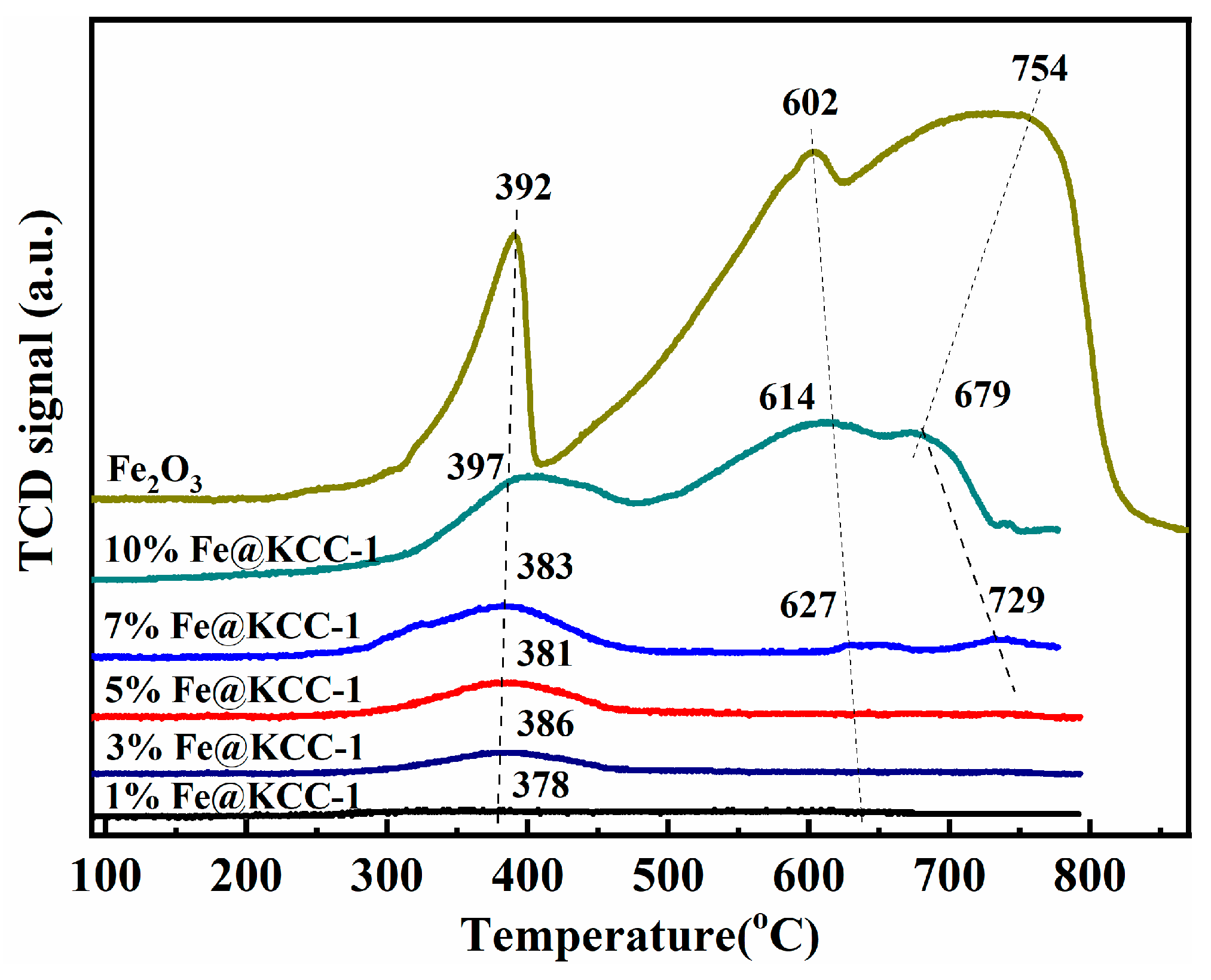

The reducibility of x%Fe@KCC-1 (x = 0, 1, 3, 5, 7 and 10) catalysts was investigated using H₂-TPR (Figure 2). There were three reduction peaks of Fe₂O₃ with relatively large peak areas at 392 °C, 602 °C, and 754 °C, respectively. The first peak at 392°C was attributed to the reduction of Fe₂O₃ to Fe₃O₄, the peak at 602 °C was owed to the reduction of Fe₃O₄ to FeO, and the peak at 754°C was attributed to the reduction of FeO to metal Fe. Overall, the total reduction process was: Fe₂O₃ → Fe₃O₄ → FeO → Fe. There was also a redox cycle of Fe³⁺ ↔ Fe²⁺ ↔ Fe [21,22]. As Fe was introduced, the temperatures corresponding to all the reduction processes remained almost unchanged. In addition, as the Fe content increased from 5% to 10%, the areas of the three reduction peaks gradually increased, indicating that the number of active oxygen species increased, which was favorable for CO catalytic elimination [18].

2.2. Catalytic Activity Assessment

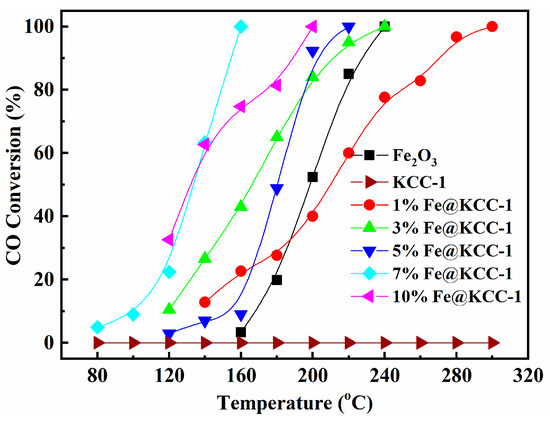

The CO catalytic activities of x%Fe@KCC-1 (x = 0, 1, 3, 5, 7 and 10) and related catalyst materials were evaluated, and the obtained results are displayed in Figure 3. Pure KCC-1 support showed negligible catalytic activity for CO oxidation under experimental conditions. After loading the x%Fe active component on the KCC-1 support, the CO conversion improved drastically. The x%Fe@KCC-1 (x = 0, 1, 3, 5, 7 and 10) catalysts exhibited better CO catalytic activity, and the following total CO conversion temperatures were obtained: 7%Fe@KCC-1 (158 °C) > 10%Fe@KCC-1 (197 °C) > 5%Fe@KCC-1 (218 °C) > 3%Fe@KCC-1 (239 °C) > 1%Fe@KCC-1 (298 °C). These results suggest that the morphological structure of the floral fiber microsphere mounts is conducive to the gas-solid heterogeneous catalytic oxidation reaction. It is noteworthy that the CO conversion of 10%Fe@KCC-1 is slightly lower than that of 7%Fe@KCC-1, which can be attributed to the higher content of the active component leading to its aggregation on the surface of KCC-1, resulting in a reduction of exposed Fe active sites, which is also observed in other reported catalysts [23,24]. The temperature-dependent reaction was calculated to estimate the apparent activation energy of the x%Fe@KCC-1 (x = 0, 1, 3, 5, 7 and 10) catalysts, and the CO conversion shown in Figure S5 was <20% to avoid diffusion limitations. Assuming that the combustion of CO in the presence of excess oxygen obeys a first-order reaction mechanism with respect to CO concentration (c): r = −kc = (−A exp(−E_A/RT))c, where r, k, A, and E_A are the reaction rate (mol·s⁻¹), rate constant (s⁻¹), pre-exponential factor, and apparent activation energy (kJ·mol⁻¹) [25,26], respectively. Arrhenius plots of different catalysts with CO conversion at <20% and GHSV at 960,000 h⁻¹ are shown in Figure S5. As calculated, the E_A values of the four catalysts are, in order: 7%Fe@KCC-1 < 10%Fe@KCC-1 < 5%Fe@KCC-1 < 3%Fe@KCC-1, in which the 7%Fe@KCC-1 catalyst has the lowest E_A value (96.2 kJ·mol⁻¹), indicating that the prepared x%Fe@KCC-1 catalysts have excellent CO oxidation ability.

2.3. Adsorption of CO and O₂ on Fe₂O₃ (001) Catalyst Surface

The optimized structure of the Fe₂O₃ (001) catalyst (Figure S6) revealed that the Fe₂O₃ (001) surfaces exhibited two potential adsorption sites (Fe-top and O-top), with advantageous compositional alterations and reconstructions [27]. To simulate these surfaces, a vacuum gap of 20 Å was introduced in the Z direction. According to the calculation results, Fe and O atoms on the surface of the modeled structures are most likely to be the adsorption sites for CO and O₂ gas molecules. Therefore, the use of non-precious metal oxides (Fe₂O₃) in the catalytic oxidation of CO is a design principle for the development of advanced catalytic systems with a wide range of applications.

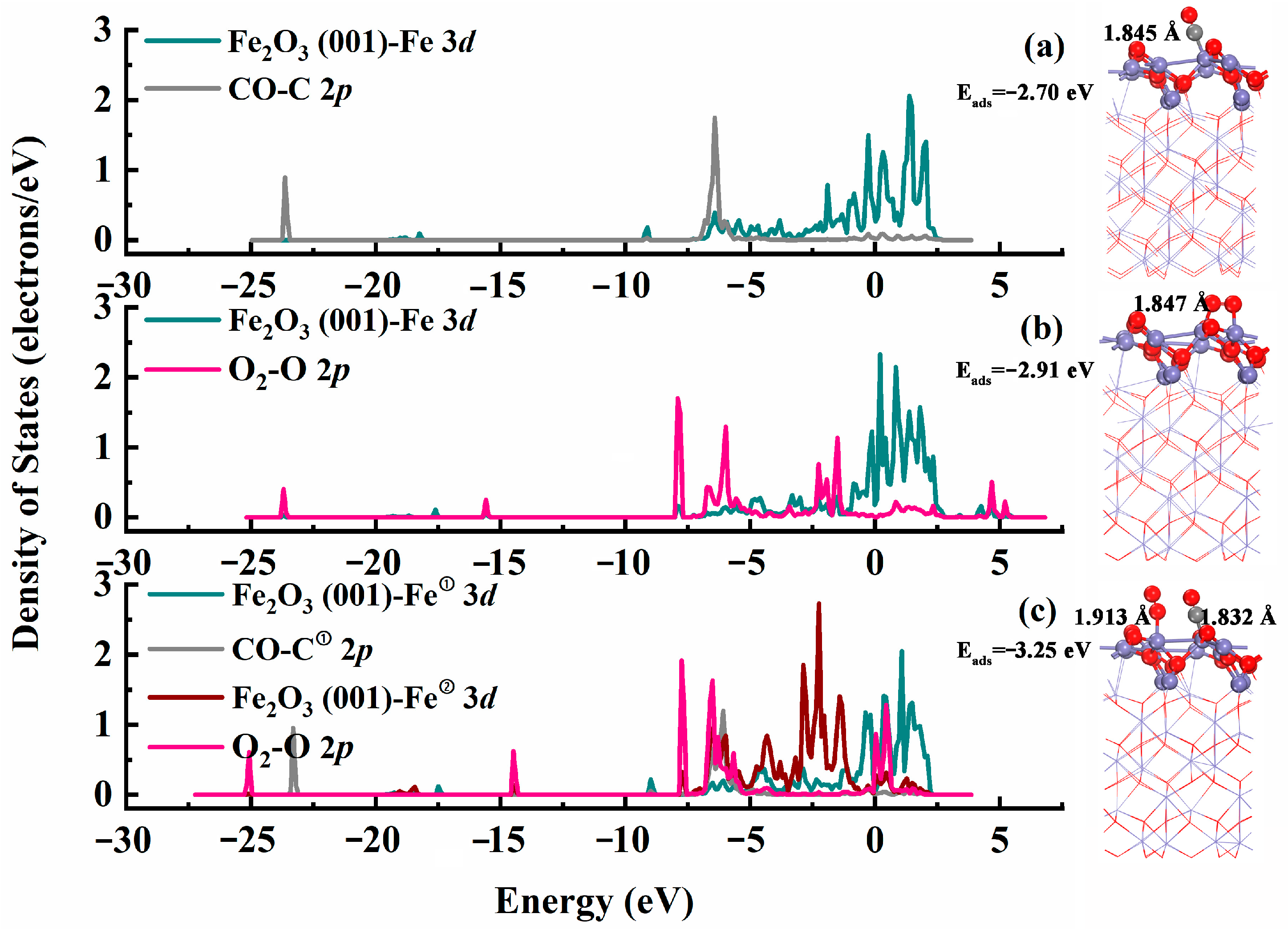

The adsorption of reaction (CO and O₂) gas molecules on a catalyst’s surface is a crucial step in the removal of CO from industrial exhaust. Therefore, single-adsorption and co-adsorption of these two gas molecules on the catalyst surface were separately investigated using density functional theory (DFT) calculations based on the optimized Fe₂O₃ (001) catalyst structure (Figure 4). The gas molecules were placed 3.5 Å above the Fe₂O₃ (001) surface, and then the structures were optimized. Figure 4a,b show the optimized single-adsorption configuration and projected density of states (PDOS) of O₂ and CO gas molecules on the Fe₂O₃ (001) catalyst’s surface, respectively. CO and O₂ gas molecules tended to selectively adsorb only on the Fe-top site. As shown in Figure 4a, the formed Fe–C bond length was 1.845 Å, with an adsorption energy of −2.70 eV. In Figure 4b, O₂ was the most important reactant in the catalytic reaction. The formed Fe–C bond length was 1.847 Å, with an adsorption energy of −2.91 eV on the Fe₂O₃ (001) catalyst surface, which exhibited bridging adsorption. According to the PDOS results, the highest occupied molecular orbitals of O₂ hybridize with the lowest unoccupied molecular orbitals of Fe on the catalyst’s surface in the adsorption configurations of CO and O₂. To further research the adsorption behavior of CO and O₂ gas molecules on Fe₂O₃ (001) surface, their co-adsorption on the catalyst’s surface was also studied via DFT calculations. The newly formed Fe–C and Fe–O bond lengths were 1.913 Å and 1.832 Å, respectively, with E_ads of −3.25 eV. The analysis of the PDOS results demonstrated that the adsorption of these reactive gas molecules on the Fe₂O₃ (110) surface all involved chemisorption, which indicated that they could be well activated by the catalyst surface. Therefore, carbon monoxide was efficiently converted on the Fe₂O₃ (110) catalyst surface.

2.4. Analysis of Reaction Transient Intermediates on Catalyst Surfaces

In order to study the transient intermediates of the CO catalytic removal reaction on the surface of the 7%Fe@KCC-1 catalyst more deeply, CO + O₂ transient adsorption experiments were carried out at 200 °C, and the detected results are presented in Figure 5. The peaks near 2119 cm⁻¹ and 2174 cm⁻¹ are attributed to CO species linearly adsorbed on the surface Fe³⁺ sites (Fe³⁺-CO) [28]. These results indicate that CO can be readily adsorbed on the surface active sites of the 7%Fe@KCC-1 catalyst, where it formed reactive intermediates. As O₂ was introduced into the system, these two peaks, corresponding to adsorbed state species of CO, disappeared rapidly. This suggests that the O₂ adsorption activation capacity of x%Fe@KCC-1 catalysts may be stronger than that for CO, which strongly supports the DFT calculations results (Figure 4). Species found on the surface of the 7%Fe@KCC-1 catalyst indicate that the catalytic oxidation of CO mainly follows the Langmuir-Hinshelwood (L-H) and/or Eley-Rideal (E-R) mechanisms [29].

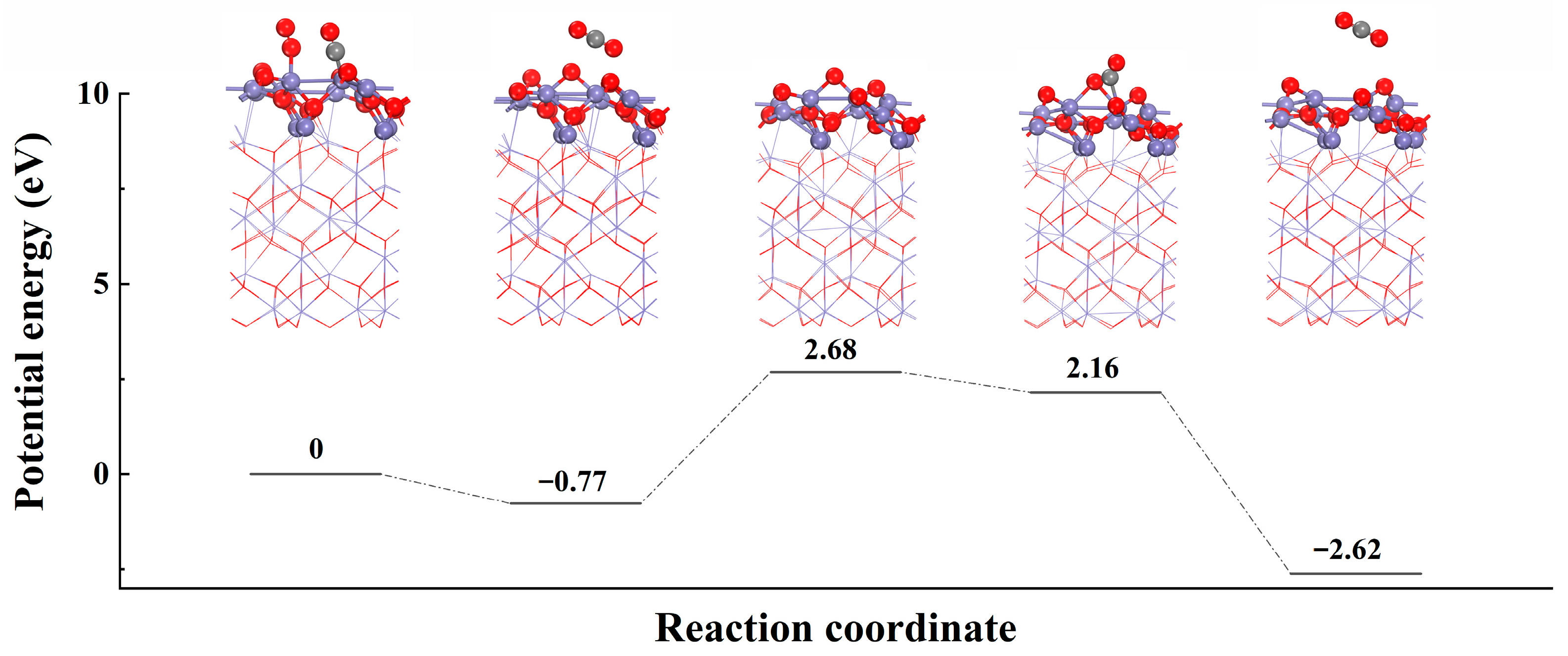

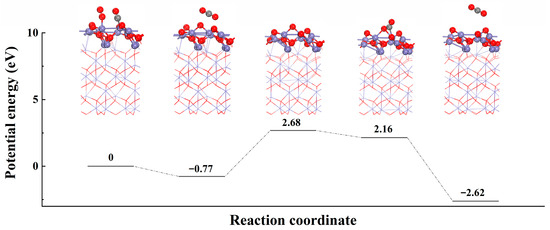

The catalytic oxidation mechanism of CO over the 7% Fe@KCC-1 catalyst under a dry reaction atmosphere (CO + O₂) was investigated using DFT calculations (Figure 6). Figure 5 shows the transient in-situ DRIFTs curves for CO + O₂ reactions over the 7% Fe@KCC-1 catalyst. The detailed analysis reaction path is: ① CO_gas → CO_ads and O_2gas → O_2ads, ② CO_ads + O_2ads → CO_2free + FeO_x+1, ③ FeO_x+1 + CO_ads → FeO_x+ CO_2ads, and ④ CO_2ads → CO_2gas. Doping Fe increased the CO catalytic oxidation activity of the 7% Fe@KCC-1 catalyst due to the formation of boundaries between KCC-1 and 7% FeO_x species, which led to the rapid reaction of CO adsorbed on FeO_x nanoparticles with oxygen species provided by the Fe²⁺↔Fe³⁺ redox cycle. As exhibited in Figure 5, CO and O₂ were simultaneously adsorbed on 7%Fe@KCC-1 catalyst surface. Reaction gas molecules were first co-adsorbed on the 7%Fe@KCC-1 catalyst surface to form transient intermediates species (such as CO_ads). Adsorbed reaction gas molecules (CO and O₂) were activated and converted to CO₂, which dissociated from the catalyst surface and formed a peroxide structure (FeO_x+1). The reaction energy (E_r) of this step was 2.68 eV, which may determine the overall rate of catalytic CO oxidation. Additional CO was adsorbed at the Fe sites on the catalyst surface and interacted with the generated perovskite structure to produce CO₂. During this catalytic elimination process, the physicochemical properties of the catalyst remained unchanged before and after the elimination reaction. Thus, the FeO_x−1 structure was recovered by oxidation of O₂ gas molecule (FeO_x−1 + O_2ads → FeO_x + O_ads). The CO catalytic oxidation on the 7%Fe@KCC-1 surface followed the E-R and L-H mechanisms. Adsorbed O₂ reacted with adsorbed or gaseous CO gas molecules to form CO_2ads species. Subsequently, the CO_2ads dissociated from the iron oxide (110) catalyst, and the catalyst was subsequently regenerated.

3. Conclusions

In this study, a mesoporous silica material, KCC-1, was synthesized and used as a support for the confinement of FeO_x nanoparticles (NPs). The performance of the x%Fe@KCC-1 catalysts obtained for the catalytic oxidation of CO was systematically investigated. The experimental results showed that due to the carrier’s large specific surface area and abundant mesopores, the FeO_x nanoparticles were widely dispersed on the KCC-1 support. The particle size of FeO_x was very small, resulting in excellent interactions between the FeO_x NP’s active component and the KCC-1 carrier, which improved the CO catalytic oxidation on the catalyst’s surface. Doping with Fe increased the CO catalytic oxidation activity of the 7% Fe@KCC-1 catalyst due to the formation of boundaries between KCC-1 and 7% FeO_x species, which led to the rapid reaction of CO adsorbed on FeO_x nanoparticles with oxygen species formed during the Fe²⁺↔Fe³⁺ redox cycle. FeO_x loading improved the CO adsorption capability of the catalyst, which facilitated the catalytic oxidation of CO, with the 7%FeO_x@KCC-1 catalyst achieving 100% CO conversion at 160 °C. A combination of in-situ DRIFTS and DFT calculations was used to establish the detailed catalytic CO removal pathway. The mechanism was as follows: ① CO_gas → CO_ads and O_2gas → O_2ads, ② CO_ads + O_2ads → CO_2free + FeO_x+1, ③ FeO_x+1 + CO_ads → FeO_x + CO_2ads, ④ CO_2ads → CO_2gas. This study holds significance for further understanding the application potential of nano-catalysts in important oxidation reactions and provides valuable insights for the development of efficient CO oxidation catalysts.

4. Experimental Procedure

4.1. Catalyst Preparation

Chemicals: All chemicals were of analytical grade and were used as received without further purification. Cyclohexane (AR), n-pentanol (AR), tetraethyl orthosilicate (TEOS, AR), cetyltrimethylammonium bromide (CTAB, AR), urea (AR), acetone, ethanol, ethylene glycol, ammonia (25–28 wt.%, AR) and Fe(NO₃)₃·6H₂O (AR) were provided by Sinopharm Chemical Reagent Co., Ltd. (Beijing, China).

Synthesis of KCC-1: The KCC-1 support was made in compliance with previously reported methods [30]. In a typical procedure, 60.00 mL of cyclohexane, 3.00 mL of n-pentanol, and 5.00 g of TEOS were mixed to obtain Liquid A. Liquid B was created by dissolving 2.00 g of CTAB and 1.20 g of urea in 60 mL of deionized water. Then, Liquid B was gradually added to Liquid A. After being stirred for about 30 min, the resultant solution was put into a stainless steel autoclave and held at 120 °C for 6 h while being continuously stirred. The solid product was filtered and washed with acetone and anhydrous ethanol several times. Finally, the solids were dried in oven at 80 °C for 12 h and calcined at 550 °C (2 °C min⁻¹) for 6 h in air.

Synthesis of x%Fe@KCC-1: The synthesis was performed in a beaker. In a typical procedure, 0.50 g of KCC-1 and an appropriate amount of Fe(NO₃)₃·6H₂O were dissolved in 10.00 mL of ethylene glycol. After being stirred for about 5 h, the resultant solid-liquid mixture was dried in a vacuum oven at 80 °C until the solvent completely evaporated. Finally, the solid was calcined in a tube furnace at 550 °C under N₂ and air atmosphere for 4 h and 2 h, respectively. The catalysts that generated were given the designation x%Fe@KCC-1 (x = 0, 1, 3, 5, 7, and 10), where x refers to the Fe mass loading.

Synthesis of Fe₂O₃: A precipitation process was used to create Fe₂O₃. In a typical procedure, a suitable quantity of Fe(NO₃)₃·6H₂O was dissolved in deionized water to give the final concentrations of 0.1 M. After being stirred for about 30 min, ammonia was added dropwise to the solution until the pH value equaled 10. For three hours, the mixture was agitated at 25 °C. The precipitate was filtered, washed, dried, and calcined using the procedure described above.

4.2. Evaluation of the Catalytic CO Oxidation Performance

All evaluation experiments of the catalysts for CO catalytic oxidation were measured in a continuous flow fixed-bed reactor. To evaluate the effectiveness of internal diffusion, the Weisz-Prater Criterion was utilized. The CO oxidation activity was assessed using the standard reaction conditions: 50 mg catalyst, 1 vol.% [CO], 21 vol.% [O₂], and N₂ as balance gas at a total flow rate of 30 mL min⁻¹. The reactants and products were collected and examined using an N-2000 workstation and a GC9310 gas chromatograph, which was outfitted with a TDX-01 column and a TCD detector. The conversion of CO ($X_{\mathrm{CO}}$) was calculated using Equation (1):

$$X_{\mathrm{CO}}=\left(1-\frac{S_{\mathrm{CO}-\mathrm{outlet}}}{S_{\mathrm{CO}-\mathrm{inlet}}}\right)\times 100\%$$

(1)

where $S_{\mathrm{CO}-\mathrm{outlet}}$ and $S_{\mathrm{CO}-\mathrm{inlet}}$ are the CO concentrations in the inlet and outlet gas streams.

4.3. Catalyst Characterization

The samples were analyzed by XRD testing in the range of 10–80° (2θ) using a Bruker D8 ADVANCE (Bruker, Karlsruhe, German) diffractometer. N₂ adsorption-desorption isotherms were measured by an automated analyzer (Micromeritics ASAP2460). SEM and transmission electron microscope (TEM) images were captured under a field GeminiSEM300 emission SEM (Zeiss, Jena, German) and a FEI-TALOS-F200X TEM (Thermo Fisher Scientific, Waltham, MA, USA), respectively.

An is50 spectrometer fitted with a Harrick Scientific DRIFTS catalyst sample cell and a liquid N₂ cooled mercury cadmium telluride A (MCT-A) detector was utilized to gather in-situ DRIFT spectra. Prior to every test, every sample had a 60 min pretreatment at 400 °C with a 30 mL·min⁻¹ N₂ flow. After pretreatment in an N₂ environment, the background spectrum at the target temperature was obtained and deducted from the sample spectra for every measurement. After pretreatment, the catalysts were subjected to 1% CO/N₂ (30 mL·min⁻¹) and subjected to undergo adsorption at 120 °C for the in-situ transient reactions of pre-adsorbed CO. After an hour, the sample was exposed to a 21% O₂/N₂ (30 mL·min⁻¹), and the reaction was tracked over time.

4.4. DFT Calculations

For the DFT calculations, the Vienna Ab-initio Simulation Package (VASP) was utilized [31,32,33]. The solution to the Kohn-Sham equations was obtained using the projector augmented wave (PAW) method [34]. The generalized gradient approximation and the Perdew-Burke-Ernzerhof (GGA-PBE) exchange correlation function were employed. A dipole correction was incorporated to account for the total energy and suppress the dipole moment arising from the adsorption of metal atoms [35]. Thus, in this paper, U = 4.0 eV was employed for the d-orbitals of Fe, demonstrating excellent agreement with experimental data [27,36].

The adsorption energy (E_ads) and reaction energy (E_r) are shown in the Supplementary Materials.
