Article

A Cu-SiO2 Catalyst for Highly Efficient Hydrogenation of Methyl Formate to Methanol

by
Jincheng Wu
1,2,
Guoguo Liu
1,2,*,
Qin Liu
1,2,
Yajing Zhang
1,2,
Fu Ding
1,2 and
Kangjun Wang
1,2,*
1
College of Chemical Engineering, Shenyang University of Chemical Technology, Shenyang 110142, China
2
Research Center for Green Catalytic Materials and Process Technology and Engineering, Shenyang 110142, China
*
Authors to whom correspondence should be addressed.
Catalysts 2023, 13(7), 1038; https://doi.org/10.3390/catal13071038
Submission received: 14 May 2023 / Revised: 18 June 2023 / Accepted: 22 June 2023 / Published: 26 June 2023
(This article belongs to the Special Issue Catalytic Transformation of Low-Carbon Resources)
Browse Figures
Review Reports Versions Notes

Abstract

The hydrogenation of methyl formate to methanol is considered one of the most effective methods for recycling methyl formate products. We recently developed a highly efficient and cost-effective Cu-SiO2 catalyst using the ammonia-evaporation (AE) method. The Cu-SiO2-AE catalyst demonstrated superior performance, achieving a methyl formate conversion of 94.2% and a methanol selectivity of 99.9% in the liquid product. The catalyst also displayed excellent stability over a durability test of 250 h. Compared to the commonly used Cu-Cr catalyst in the industry, the Cu-SiO2-AE catalyst exhibited higher conversion of methyl formate and methanol yield under the same reaction conditions. Characterization results revealed a significant presence of Si-OH groups in the Cu-SiO2-AE catalyst. These groups enhanced the hydrogen spillover effect and improved hydrogenation efficiency by preventing sintering during the reaction to stabilize the Cu species. The strategy employed in this study is applicable to the rational design of highly efficient catalysts for industrial applications.

Graphical Abstract

1. Introduction

Methyl formate (MF) is a major by-product of converting syngas to ethylene glycol. However, it is highly unfavored in industrial engineering due to its low-boiling point, high flammability, and high transportation cost [1,2,3]. Consequently, it is highly desirable to explore methods for converting MF into value-added commodities. One such method is the hydrogenation of methyl formate to produce methanol, which is a vital platform molecule in the modern chemical industry. Moreover, methanol is widely recognized as a hydrogen carrier for fuel cells, further highlighting its significance [4,5].
The Cu-Cr-based catalyst widely utilized in the industry has shown low MF conversion efficiency, typically below 80% [6]. Furthermore, the inclusion of Cr in this catalyst poses environmental concerns and potential health risks for operators involved in its production and usage. Additionally, the presence of Cr significantly increases the cost associated with catalyst recycling [7,8,9,10]. On the other hand, conventional copper-based catalysts suffer from rapid deactivation due to metal sintering. The abundance of Cu0 species in these Cu-based catalysts leads to the undesired decomposition of methanol into COx under an H2-rich atmosphere, resulting in reduced methanol selectivity [11,12]. Consequently, the productivity of methanol from MF using these catalysts is adversely affected.
To address the abovementioned issues, we have successfully developed a Cu-SiO2-AE catalyst using the ammonia-evaporation (AE) method, which offers high efficiency and low cost. This catalyst demonstrated exceptional performance in the hydrogenation of MF to methanol. Operating under the mild reaction condition of 140 °C and 1.5 MPa, the catalyst maintained a stable MF conversion of 94% with a methanol selectivity of over 99% during a durability test spanning 250 h. The Cu-SiO2-AE catalyst was characterized by a significant presence of Si-OH groups, playing a crucial role in dispersing and stabilizing the Cu species during the reaction. This feature improved the catalyst resistance against sintering, reducing the formation of Cu0 species responsible for methanol decomposition into COx. Consequently, the catalyst exhibited high activity, excellent selectivity, and durability [13,14]. Furthermore, the Si-OH groups promoted the generation of hydrogen spillover, greatly enhancing the concentration of hydrogen on the surface of the Cu-SiO2-AE catalyst, thereby improving the MF conversion and overall performance.

2. Results and Discussion

2.1. Characterization of the Catalysts

The X-ray diffraction (XRD) patterns are present in Figure 1A for as-calcined and in Figure 1B for the spent Cu-SiO2-CP, which was synthesized via the co-precipitation method and Cu-SiO2-AE catalysts. The diffraction peak at ~22.5° observed corresponds to amorphous SiO2 in the calcined catalysts [15]. The Cu-SiO2-CP exhibits distinct peaks at 35.45°, 38.74°, and 48.74°, which are attributed to the diffraction of the CuO phase (JCPDS 45-0937) [16,17,18]. The diffraction peaks at 36.4°, 61.4°, and 69.6° shown in Figure 1B indicate the presence of the Cu2O phase in the spent catalysts (JCPDS 34-1354). Moreover, the spent Cu-SiO2-CP catalyst displays additional peaks at 43.3°, 50.5°, and 74.1°, which correspond to the metallic Cu phase (JCPDS 04-0836) [19]. Notably, the absences of diffraction peaks corresponding to the Cu0 phase are absent in the Cu-SiO2-AE catalysts, indicating that the Cu nanoparticles in the catalyst are highly dispersed with sizes smaller than 2 nm [20,21].
The pore structure of Cu-SiO2-CP and Cu-SiO2-AE catalysts were characterized by N2 physisorption and the results are presented in Figure 2 and Table 1. As seen from Table 1, the Cu-SiO2-AE catalyst exhibited a specific surface area up to 350.8 m2/g. The Cu dispersion and surface area of Cu, crucial factors affecting the catalytic activity and stability of Cu-based catalysts, were measured by the N2O titration. As shown in Table 1, the Cu-SiO2-AE catalyst exhibited higher values of Cu dispersion (D) and Cu surface area (SCu) than the Cu-SiO2-CP catalyst.
Figure 3 shows the results of the temperature-programmed reduction test (H2-TPR) using hydrogen gas. Both the Cu-SiO2-CP and Cu-SiO2-AE catalysts exhibit reduction peaks during the H2-TPR analysis. The Cu-SiO2-CP catalyst displays a peal at 235 °C, indicating the reduction of the CuOx phase to Cu. In contrast, the Cu-SiO2-AE catalyst shows a peak at a lower reduction temperature of 212 °C. A lower reduction temperature indicates that the crystallite sizes are smaller on the metal surfaces of catalysts, which facilitates the diffusion of H2 [22]. Therefore, it is believed that the Cu-SiO2-AE has a high dispersion of Cu nanoparticles within the catalyst, leading to enhanced interaction between metal and support materials in the catalysis [23,24].
Figure 4 depicts the transmission electron microscope (TEM) images of the reduced Cu-SiO2-CP and Cu-SiO2-AE catalysts. The results show that the average size of the Cu nanoparticles is 11.0 nm for the reduced Cu-SiO2-CP catalyst, whereas it is significantly reduced to about 2.2 nm for the reduced Cu-SiO2-AE catalyst [25]. The decrease in the Cu nanoparticle size indicates that the Cu-SiO2-AE catalyst exhibits superior resistance to sintering during the reaction compared to the Cu-SiO2-CP catalyst. The enhanced interaction between the Cu metal and SiO2 support contributes to this improved sintering resistance, consistent with the results revealed by XRD and H2-TPR analyses [26,27].
Figure 5 presents the X-ray photoelectron spectroscopy (XPS) spectra of the reduced and spent Cu-SiO2-CP and Cu-SiO2-AE catalysts. Prior to analyzing the Cu 2p spectra, we carried out the charge correction of C 1s spectra at 284.8 eV. In the Cu 2p spectra, no satellite peaks are detected, indicating the complete reduction of Cu species. Both the reduced catalysts display broad peaks centered for the Cu 2p core-level spectrum at 933.0 eV, corresponding to the coexistence of Cu0 and Cuδ+ species. Additionally, a small, broad peak at 935.5 eV in the Cu 2p core-level spectrum suggests the presence of Cu2+ species originating from the CuSiO3 phase [28]. Comparing the Cu 2p3/2 peak in the Cu 2p core-level spectrum of the Cu-SiO2-AE catalyst to that of the Cu-SiO2-CP catalyst, the latter shows a shift towards lower binding energy, indicating a higher abundance of Cu species in a lower valence state, such as metallic copper [29]. These results are consistent with the findings from XRD and TEM analyses.
The XPS spectra of the spent catalysts show similar patterns to the reduced catalysts, with a shift of 0.5 eV towards lower binding energy compared to the reduced catalysts, indicating a further reduction of Cu species during the hydrogenation of MF to methanol reaction [30,31].

2.2. Catalytic Hydrogenation of Methyl Formate

The catalytic performance of the Cu-SiO2-CP and Cu-SiO2-AE catalysts was evaluated in the hydrogenation of MF to methanol using a fixed-bed reactor. The reaction was conducted under controlled conditions: a temperature of 140 °C, a pressure of 1.5 MPa, and a liquid-hourly space velocity (LHSVMF) of 2.4 h−1. The feed gas comprised an H2/MF molar ratio of 4:1. Table 2 and Figure 6 summarize the results of MF conversion, methanol selectivity, and methanol yield.
The results indicate that the Cu-SiO2-CP catalyst achieves an MF conversion of 83.9% and a methanol selectivity of 92.1%. The gas phase by-products mainly consist of COx, while DME formation is negligible. There are some unknown products in the liquid. The COx by-products are primarily generated through methanol decomposition. On the other hand, the Cu-SiO2-AE catalyst exhibits superior performance with an MF conversion of 95.3% and a methanol selectivity of 99.8%, resulting in a methanol yield of 95.1%. The results highlight the superiority of the Cu-SiO2-AE catalyst over the Cu-SiO2-CP catalyst yielding higher conversion of MF and excellent selectivity towards methanol.
In previous studies, we have investigated the catalytic performance of various catalysts in the hydrogenation reaction of MF to methanol. The results are summarized in Table 3. It is evident that the Cu-Cr and Cu-Cr-Mn catalysts perform unsatisfactorily [32], giving MF conversions at 73.1% and 76.2%, respectively, under the reaction conditions of 140 °C, 0.1 MPa, and GHSV of 1800 mL gcat−1 h−1. The Cu-SiO2 catalyst gave the MF conversion at only 51.5% under 180 °C at 0.5 MPa with LHSV of 10 h−1. Though the addition of Mn could promote the catalytic activity, the MF conversion over Cu-Mn-SiO2 was still unsatisfactory at 84.4% under equivalent conditions [33]. Moreover, the Cu-B2O3-SiO2 catalytic even gave MF conversion at 51.5% under 150 °C at 2.8 MPa [34]. In contrast, the Cu-SiO2-AE catalyst demonstrates superior performance, achieving an impressive MF conversion of as high as 95.3% and a methanol selectivity of nearly 100%.
We conducted the hydrogenation of MF to methanol reactions using the Cu-SiO2-CP and Cu-SiO2-AE catalysts over a temperature range of 120–160 °C. As illustrated in Figure 7B, the Cu-SiO2-AE catalyst achieves an MF conversion of 70.3% and selectivities of 82.6% for methanol, 7.4% for DME, and 10% for other by-products at the reaction temperature of 120 °C. Increasing the temperature to 140 °C, the MF conversion and methanol selectivity increase significantly to 95.3% and 99.8%, respectively. However, when the reaction temperature is further increased to 160 °C, the catalytic activity of the Cu-SiO2-AE declines, characterized by reductions in the MF conversion to 81.1% and the methanol selectivity to 86.2%. A similar tendency is also observed for the Cu-SiO2-CP catalyst, although the latter shows a significantly low catalytic activity under the same reaction conditions. Therefore, the optimal temperature for Cu-SiO2-CP and Cu-SiO2-AE catalysts is 140 °C.
Furthermore, we investigated the effect of reaction pressure on the hydrogenation of MF to methanol using the Cu-SiO2-AE and Cu-SiO2-CP catalysts with reaction pressure ranging from 0.1 to 2 MPa. At ambient pressure, the Cu-SiO2-AE catalyst yields an MF conversion of 50.4%, with corresponding selectivities for methanol, DME, and others of 75.1, 15.8, and 9.1%, respectively (Figure 8B). Increasing the reaction pressure to 1.5 MPa significantly elevates the MF conversion and methanol selectivity to 95.3% and 99.8%, respectively. However, further raising the reaction pressure to 2.0 MPa leads to a decline in the catalytic performance, reducing the MF conversion to 75% and the methanol selectivity to 88.3%. The Cu-SiO2-CP catalyst exhibits a similar trend but with catalytic activity under the same reaction conditions. Consequently, the optimal reaction pressure for both the Cu-SiO2-CP and Cu-SiO2-AE catalysts is determined to be 1.5 MPa.
Moreover, we conducted a durability test to evaluate the performance of the catalyst over a period of 250 h in the hydrogenation of MF to methanol at the optimized reaction conditions. Figure 9 depicts the results of MF conversion and methanol selectivity. As shown in Figure 9, the Cu-SiO2-AE catalyst demonstrates a gradual increase in the MF conversion over the course of the durability test, starting from approximately 86% and reaching 95% after 250 h of continuous operation. Notably, the methanol selectivity remains constantly high at 99% in the liquid product throughout the entire test duration. These results indicate the excellent stability of the Cu-SiO2-AE catalyst in the hydrogenation of MF to methanol reaction.
In addition, we conducted a comparison between the Cu-SiO2-AE and the industrial Cu-Cr catalysts in the hydrogenation of MF to methanol reaction. As shown in Figure 10, both catalysts yield similar methanol selectivity, ranging from 98% to 99% in the liquid products. However, there is a notable difference in the MF conversion between the two catalysts. The Cu-SiO2-AE catalyst demonstrates a remarkable increase in the MF conversion, from approximately 30% to 95%, within nine hours of reaction time. Conversely, the industrial Cu-Cr catalyst delivers a constantly low MF conversion of only 60% under the same reaction conditions. These results confirm the superior catalytic performance of the Cu-SiO2-AE catalyst in the hydrogenation of MF to methanol compared to the industrial Cu-Cr catalyst.
To elucidate the reaction mechanism of the hydrogenation of MF to methanol using the Cu-SiO2-CP and Cu-SiO2-AE catalysts, we carried out pyridine adsorption (Py-ADS) and pyridine desorption (Py-DES) Fourier transform infrared spectrometer (FT-IR) analyses. These analyses aimed to identify the presence of Lewis acid sites and Brønsted acid sites on the reduced and spent Cu-SiO2-CP and Cu-SiO2-AE catalysts [35]. As seen in Figure 11, the analyses reveal distinctive bands at approximately 1449 and 1540 cm−1, which correspond to the Lewis acid sites and Brønsted acid sites, respectively. Additionally, the bands at 1489 and 1610 cm−1 signify the coexistence of the Lewis acid sites and Brønsted acid sites [36]. Through careful analysis of the Py-ADS and Py-DES FT-IR spectra, we observe the presence of bands at approximately 1449, 1489, 1540, and 1610 cm−1 in both catalysts, confirming the existence of both Lewis acid sites and Brønsted acid sites [37]. Notably, the intensities of these bands are more pronounced in both reduced and spent Cu-SiO2-AE catalysts compared to the Cu-SiO2-CP catalyst. This observation indicates that the Cu-SiO2-AE catalyst possesses a higher density of acidic sites, including Brønsted acid sites (Si-OH) [38,39,40].
Figure 12 shows the FT–IR spectra obtained for the Si-OH over the Cu-SiO2-CP and Cu-SiO2-AE catalysts [41,42]. In the spectra, the bands observed at 3740, 3670, and 3646 cm−1 are attributed to vibrations of the Si-OH groups [43,44]. Upon comparison with the Cu-SiO2-CP catalyst, the Cu-SiO2-AE catalyst shows higher intensity for these bands, indicating the presence of a greater number of Si-OH groups on the Cu-SiO2-AE catalyst [45].
There is a hypothesis that the Si-OH species contribute to the dispersion and stabilization of Cu nanoparticles during the calcination, reduction, and reaction processes. This phenomenon leads to increases in the Cuδ+ species and sintering resistance [46,47,48,49]. To verify this hypothesis, we used the TEM technique to measure the size of the Cu nanoparticles in the spent Cu-SiO2-CP and Cu-SiO2-AE catalysts. As expected, the size of the Cu nanoparticles in the spent Cu-SiO2-CP catalyst is about 14 nm (Figure 13a), whereas it measures 2.4 nm in the Cu-SiO2-AE catalyst (Figure 13b). The significant difference in the size of Cu nanoparticles suggests that the Cu-SiO2-AE catalyst possesses higher sintering resistance than the Cu-SiO2-CP catalyst [50,51].
To further investigate the catalytic behavior, we conducted a methanol decomposition reaction. The results depicted in Figure 14 demonstrate that the methanol decomposition decreases from 25% to 20% over 6 h with the Cu-SiO2-CP catalyst. Conversely, the Cu-SiO2-AE catalyst exhibits a consistently low methanol decomposition of approximately 14%. Since Cu0 species act as the main active sites for methanol decomposition to COx, which is the main by-product of methanol decomposition in the gas phase, the observed decrease in methanol decomposition confirms a reduction in the Cu0 species and an increase in Cuδ+ species [52,53]. In contrast, the constantly low methanol decomposition observed with the Cu-SiO2-AE catalyst indicates a sustained presence of Cu0 species, which is consistent with the XRD and TEM results, showing a higher proportion of Cuδ+ species and smaller Cu nanoparticle size in the Cu-SiO2-AE catalyst. This behavior contributes to higher methanol selectivity and enhanced sintering resistance, thereby improving methanol selectivity and sintering resistance [54,55,56].
In addition to the dispersion and stabilization of Cu nanoparticles, the Cu-SiO2-AE catalyst benefits from the abundant Si-OH species, which promote hydrogen spillover, leading to a higher concentration of hydrogen on the catalyst surface. This increased hydrogen concentration has a significant impact on the catalytic activity in the hydrogenation of MF [57,58,59]. To investigate this effect, we conducted the hydroformylation of MF to methanol using feeds with various H2 to MF molar ratios, including 1:1, 2:1, and 4:1. Figure 15 summarizes the results. For the Cu-SiO2-CP catalyst, the MF conversion rates are 31.4%, 56.2%, and 83.9% for H2/MF molar rations of 1:1, 2:1, and 4:1, respectively. Comparatively, the Cu-SiO2-AE catalyst delivers higher MF conversion, particularly with the H2/MF molar ratio of 4:1 under the same reaction conditions. Notably, the MF conversions are comparable between the Cu-SiO2-CP catalyst with H2/MF at 4:1 and the Cu-SiO2-AE catalyst with the feed of H2/MF at 2:1. This observation can be attributed to the influence of surface hydrogen concentration, which plays a crucial role in the hydrogenation of MF. The Cu-SiO2-AE catalyst has a higher concentration of hydrogen on its surface facilitated by the abundant Si-OH species, which contributes significantly to its enhanced ability to hydrogenate MF to methanol [60,61].

3. Materials and Methods

3.1. Materials

Methyl formate (MF), and silica gel (30%) were purchased from Aladdin Chemical Reagent Company (Shanghai, China). Copper nitrate trihydrate [Cu(NO3)2·3H2O] (with a copper content of 15 wt%), ammonia solution (NH3·H2O, 28 wt%), ethanol, and urea were obtained from Sinopharm Chemical Reagent Co., Ltd. (Beijing, China). Feed gases containing pure hydrogen and nitrogen were supplied by Shenyang Hongsheng Gas Co., Ltd. (Shenyang, China).

3.2. Synthesis of Cu-SiO2

Synthesis of Cu-SiO2 by co-precipitation (Cu-SiO2-CP). To synthesize Cu-SiO2-CP, a typical run involved dissolving 30.37 g of Cu(NO3)2·3H2O and 40 g of silica gel in distilled water under stirring. The resulting solution was slowly added to a beaker while vigorously stirring at room temperature, with the addition of a 1 M Na2CO3 solution. The pH value of the mixture was maintained at around 9.0. The precipitates were aged at room temperature for three hours, filtered, and washed five times with deionized water. The obtained precipitate was dried at 120 °C for 12 h and subsequently calcined in air at 500 °C for 4 h.
Synthesis of Cu-SiO2 by ammonia-evaporation (Cu-SiO2-AE). For the synthesis of Cu-SiO2-AE, 30.37 g of Cu(NO3)2·3H2O was dissolved in 100 mL of deionized water, and 28% ammonia aqueous solution was slowly added to the solution. The mixture was stirred for 30 min to allow for the formation of a copper ammonia complex solution. Subsequently, 40 g of silica gel was added to the copper ammonia solution and stirred for another 30 min. The suspension was then heated at 80 °C to allow for evaporation of ammonia until the pH value dropped to 6~7, while the copper species were deposited on silica. The resulting precipitate was filtered and washed five times with deionized water, dried at 120 °C for 12 h, and calcined in air at 500 °C for 4 h.

3.3. Catalyst Characterization

The textural parameters of the catalysts were determined using N2 sorption isotherms measured with a BELSORP-miniX instrument (MicrotracBEL Japan, Inc. BELSORP-mini, Osaka, Japan). Before the measurements, all samples were pretreated at 200 °C under vacuum for ten hours to remove the surface contaminants. X-ray diffraction (XRD) patterns were obtained using a Rigaku Ultimate IV analyzer (Rigaku Japanese neo-Confucianism) with the radiation source of Cu Kα. The scanning rate was set at 10°/min in the range of 5~80°, with a voltage of 40 KV and a current of 15 mA. Transmission electron microscopy (TEM) images were acquired using an FEI Talos 200X microscope (Japan electronics JEM 2100F). Cu dispersion and the temperature-programmed reduction of hydrogen (H2-TPR) were performed on the BELCAT-B apparatus (MicrotracBEL Japan, Inc.) equipped with a thermal conductivity detector (TCD) (MicrotracBEL Japan, Inc.). X-ray photoelectron spectroscopy (XPS) analysis was conducted using a PHI 1600 ESCA spectrometer (American Perkin-Elmer company, Waltham, MA, USA). Titration of acid pyridine-infrared spectroscopy (pyridine FT-IR) (Shanghai Lairui Scientific Instrument Co., Ltd., Shanghai, China) was used to determine the acid-site concentrations of the catalyst. This analysis utilized pyridine as the probe molecule and was carried out on a Thermo IS50 analyzer (Shanghai Lairui Scientific Instrument Co., Ltd.).

3.4. Catalytic Reaction

The catalytic hydrogenation of MF was performed in a continuous-flow fixed-bed reactor (Zhi Xiang Lan Tian Instruments Inc., Beijing, China). In a typical experiment, 2.0 mL of the as-prepared catalyst was placed in the middle of the reactor. The catalyst was initially reduced in a flow of 50 vol% H2/N2 (40 mL/min) at 250 °C for four hours. Subsequently, pure hydrogen (120 mL/min) and MF (0.08 mL/min) were introduced into the reactor at a pressure of 1.5 MPa and a temperature of 140 °C to initiate the reaction. The liquid products were cooled, captured, and analyzed offline using a gas chromatograph with a flame ionization detector (FID, Zhe Jiang Fuli Analytical Instruments Inc. 7920Plus, Hangzhou, China).
The catalytic methanol decomposition reaction was conducted using a continuous-flow fixed-bed reactor. In a typical experiment, 0.5 g of the as-prepared catalyst was mixed with 2.0 g of quartz sand and positioned in the middle of the reactor. The catalyst was pre-reduced by passing a flow of 50 vol% H2/N2 mixture (40 mL min−1) through at 250 °C for four hours. After the reduction step, the gas flow was switched to a mixture of methanol, N2, and H2 at 250 °C and ambient pressure to initiate the reaction. The gaseous products generated during the reaction were continuously analyzed using an online gas chromatograph equipped with a flame ionization detector (FID, Zhe Jiang Fuli Analytical Instruments Inc. 7920Plus, Hangzhou, China).
The MF conversion, products selectivity, and yield of methanol were calculated according to the following formulas:
X(MF) = (nin(MF) − nout(MF))/nin(MF) × 100%
S(MeOH) = nout(MeOH)/(nin(MF) − nout(MF)) × 100%
Y(MeOH) = X(MF) × S(MeOH)
X(MeOH) = (nin(MeOH) − nout(MeOH))/nin(MeOH) × 100%
where n is the mole rate (mol h−1) of MF and MeOH.

4. Conclusions

In summary, the present study demonstrated the superior catalytic performance of the Cu-SiO2 catalyst synthesized via the ammonia-evaporation method in the hydrogenation of MF to methanol. The catalyst exhibited a remarkable MF conversion of 95.3% and methanol selectivity of 99.8% in the liquid product. Furthermore, the catalyst displayed excellent durability over a 250-h test, surpassing the performance of the industrial Cu/Cr catalyst. Mechanistic investigations revealed that the Cu-SiO2-AE catalyst possessed significant Si-OH groups, which played a crucial role in enhancing hydrogen spillover on the catalyst surface. This spillover effect contributed to the improved hydrogenation performance by increasing the concentration of hydrogen on the active sites.
Moreover, the presence of Si-OH groups facilitated the generation of Cuδ+ species, leading to higher methanol selectivity by preventing over-hydrogenation of methanol to COx. Additionally, the Si-OH played a vital role in stabilizing the Cu nanoparticle and inhibiting their sintering during the reaction. This resulted in a highly stable catalytic performance over the extended reaction times. The findings from this study provide valuable insights for catalyst design in the industry, particularly for hydrogenation reactions involving methyl formate. The strategy of using Si-OH groups to stabilize Cu nanoparticles holds great potential for developing efficient and durable catalysts in industrial applications.

Author Contributions

Conceptualization, J.W. and G.L.; methodology, J.W. and F.D.; formal analysis, J.W. and Y.Z.; data curation, J.W. and Q.L.; writing—original draft preparation, J.W.; supervision, G.L. and K.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Science Foundation of Liaoning Province (2021-NLTS-12-01, 2021-NLTS-12-03), Foundation of State Key Laboratory of High-efficiency Utilization of Coal and Green Chemical Engineering (2021-K64), Basic Research Project Educational Department of Liaoning Province (LJKZ0439, LJKQ2021068), Liaoning Innovation Talents Program in University (Liao [2020] 389), Shenyang Young and Middle-aged Science & Technology Talents Program (RC210365), Liaoning Revitalization Talents Program (XLYC1907029).

Data Availability Statement

Not applicable.

Acknowledgments

The authors would like to acknowledge the testing platform of the Analytical & Testing Center, Shenyang University of Chemical Technology for their help with characterizations.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ke, S.; Yang, J.; Wende, X. Intrinsic kinetic research on vapor-phase catalytic coupling of CO and methyl nitrite to DMO. Guangdong Chem. Ind. 2007, 34, 12–14+24. [Google Scholar] [CrossRef]
  2. Fan, C.; Luo, M.; Xiao, W. Reaction mechanism of methyl nitrite dissociation during co catalytic coupling to dimethyl oxalate: A density functional theory study. Chin. J. Chem. Eng. 2016, 24, 132–139. [Google Scholar] [CrossRef]
  3. Chuanhao, S. Process optimization of CO coupling production of dimethyl oxalate in the process of ethylene glycol production. Yunnan Chem. Technol. 2017, 44, 36–39. [Google Scholar] [CrossRef]
  4. Xu, Q.S.; Guo, M.; Xia, L. Temperature gradient analyses of a tubular solid oxide fuel cell fueled by methanol. Trans. Tianjin Univ. 2023, 29, 14–30. [Google Scholar] [CrossRef]
  5. Qijun, G.; Yuxin, W.; Li, X. Proton-exchange sulfonated poly (ether ether ketone)(SPEEK)/SiOx-S composite membranes in direct methanol fuel cells. Chin. J. Chem. Eng. 2009, 17, 207–213. [Google Scholar] [CrossRef]
  6. Monti, D.M.; Cant, N.W.; Trimm, D.L. Hydrogenolysis of methyl formate over copper on silica: II. Study of the mechanism using labeled compounds. J. Catal. 1986, 100, 28–38. [Google Scholar] [CrossRef]
  7. Zhao, H.; Lin, M.; Fang, K. Preparation and evaluation of Cu-Mn/Ca-Zr catalyst for methyl formate synthesis from syngas. Appl. Catal. A: Gen. 2016, 514, 276–283. [Google Scholar] [CrossRef]
  8. Liu, X.Q.; Wu, Y.T.; Chen, W.K. Concurrent synthesis of methanol and methyl formate catalyzed by copper-based catalysts in a slurry phase. Stud. Surf. Sci. Catal. 1998, 119, 557–560. [Google Scholar] [CrossRef]
  9. Wang, K.; Chu, W.; He, C. High activity Cu-Cr-Si catalysts for lower temperature liquid phase synthesis of methanol I. Influence of preparation parameters on catalysts activities. Petrochem. Technol. 2001, 30, 686–688. [Google Scholar] [CrossRef]
  10. Yi, L.; Wei, C.; Yanghong, Y. Study of the effect of additives on Cu-Cr-Si catalyst for methanol synthesis from the hydrogenolysis of methyl formate. Chem. Peking 2003, 6, 663–666. [Google Scholar] [CrossRef]
  11. Fan, Y.; Wu, S. Advances in copper-based catalyst for the methanol synthesis from CO2 hydrogenation. Chem. Indus. Engineer Pro. 2016, 35, 159–166. [Google Scholar] [CrossRef]
  12. Haiguang, G.; Wenfeng, H.; Huazhang, L. Study on copper-based catalysts for methanol synthesis. J. Zhejiang Univ. Technol. 2003, 31, 508–511. [Google Scholar] [CrossRef]
  13. Zu, Y.; Guo, Z.; Zheng, J. Investigation of Cu (I)-Y zeolites with different Cu/Al ratios towards the ultra-deep adsorption desulfurization: Discrimination and role of the specific adsorption active sites. Chem. Eng. J. 2020, 380, 122319. [Google Scholar] [CrossRef]
  14. Suzuki, N.; Asami, H.; Nakamura, T. Immobilization of a C2-symmetric ansa-zirconocene complex on silica surfaces using a Si-Cl Anchor: Catalysts for isospecific propene polymerization. Chem. Lett. 1999, 28, 341–342. [Google Scholar] [CrossRef]
  15. Zhang, H.; Tan, H.R.; Jaenicke, S. Highly efficient and robust Cu catalyst for non-oxidative dehydrogenation of ethanol to acetaldehyde and hydrogen. J. Catal. 2020, 389, 19–28. [Google Scholar] [CrossRef]
  16. Wu, L.; Li, B.; Zhao, C. Direct synthesis of hydrogen and dimethoxylmethane from methanol on copper/silica catalysts with optimal Cu+/Cu0 sites. ChemCatChem 2018, 10, 1140–1147. [Google Scholar] [CrossRef]
  17. Jinyong, L.; Ming, M.; Yuqing, Z. Characterization on the fine structures of the copper species in the highly dispersed CuO/CeO2-Al2O3 catalysts. Chin. J. Inorg. Chem. 2006, 22, 861–866. [Google Scholar] [CrossRef]
  18. Weng, Z.; Wu, Y.; Wang, M. Active sites of copper-complex catalytic materials for electrochemical carbon dioxide reduction. Nat. Commun. 2018, 9, 415. [Google Scholar] [CrossRef]
  19. Li, G. Catalytic property and reactional mechanism of Cu-ZnO-ZrO2/CFG for reaction of methanol dehydrogenation to methyl formate. J. Fushun Petrochem. Inst. 1995, 1, 1–6. [Google Scholar]
  20. Kannapu, H.P.R.; Neeli, C.K.P.; Rao, K.S.R. Unusual effect of cobalt on Cu-MgO catalyst for the synthesis of γ-butyrolactone and aniline via coupling reaction. Catal. Sci. Technol. 2016, 6, 5494–5503. [Google Scholar] [CrossRef]
  21. Yu, J.; Suocai, R.; Liu, B. Advances in deactivation and solutions of Cu-based methanol catalysts. Nat. Gas Chem. Ind. 2019, 44, 118–122. [Google Scholar] [CrossRef]
  22. Cho, J.M.; Lee, S.R.; Sun, J.; Tsubaki, N.; Jang, E.J.; Bae, J.W. Highly Ordered Mesoporous Fe2O3-ZrO2 Bimetal Oxides for an Enhanced CO Hydrogenation Activity to Hydrocarbons with Their Structural Stability. ACS Catal. 2017, 7, 5955–5964. [Google Scholar] [CrossRef]
  23. Yuanzhi, L.; Ergan, C. Inverstigation on Co-Fe-Cu/SiO2 Catalyst by Unsingtemperature Programmed Reduction. J. Jingzhou Teach. Coll. 1998, 21, 60–62. [Google Scholar]
  24. Zhang, C.; Peiyi, L.; Zhibiao, S. Preparation of Cu/ZnO/MCM-41 catalyst with double-solvent impregnation method and catalytic performance in methanol synthesis by CO2 hydrogenation. J. Shanghai Univ. Nat. Sci. 2019, 25, 109–119. [Google Scholar] [CrossRef]
  25. Ding, D.; Wang, Q.; Jin, F. Influences of the ammonia evaporation pressure on the structure of Cu-SiO2 catalysts and catalytic performances for dimethyl oxalate hydrogenation to ethylene glycol. Chin. J. Appl. Chem. 2016, 33, 466. [Google Scholar] [CrossRef]
  26. Siqi, B.; Renjiang, L.; Lidi, G. Synthesis and electrochemical study of Sn-Ni core-shell nanoparticles modified carbon one-dimensional nanostructures. Chem. Res. Appl. 2022, 34, 2920–2926. [Google Scholar] [CrossRef]
  27. Cui, A.L.; Bai, Y.; Yu, H.Y. Electrocatalytic “Volcano-Type” effect of Nano-TiO2 (A)/(R) phase content in Pt/TiO2-CNx catalyst. J. Electrochem. 2022, 28, 2110021. [Google Scholar] [CrossRef]
  28. Hou, S.; Zhang, X.; Mao, H. Photoluminescence and XPS investigations of Cu2+-doped ZnS quantum dots capped with polyvinylpyrrolidone. Phys. Status Solidi B 2009, 246, 2333–2336. [Google Scholar] [CrossRef]
  29. Hongfei, Y.; Yu, Z.; Guixian, L. Effect of carrier surface hydroxyl group on performance of Cu/SiO2 catalyst for DMO hydrogenation. Chem. Ind. Eng. Prog. 2022, 41, 6338–6349. [Google Scholar] [CrossRef]
  30. Bian, Z.; Zhong, W.; Yu, Y. Cu-SiO2 derived from copper phyllosilicate for low-temperature water-gas shift reaction: Role of Cu+ sites. Int. J. Hydrog. Energy 2020, 45, 27078–27088. [Google Scholar] [CrossRef]
  31. Yang, R.; Liu, Y.; Zhong, B. H2 and CO desorption properties of raney Cu-Nd catalysts and correlation with their catalytic activity. Petrochem. Technol. 1999, 28, 219–222. [Google Scholar] [CrossRef]
  32. Haiyan, L.; Hongbin, Z.; Guodong, L. Study of Promoted Cu based catalysts for hydrogenolysis of methyl formate to methanol. J. Xiamen Univ. Nat. Sci. 1997, 36, 381–387. [Google Scholar]
  33. Jitao, L.; Qiangu, Y.; Weide, Z. Synthesis methanol under low temperature and low pressure by two step process. Sci. Technol. Chem. Ind. 2000, 8, 17–19. [Google Scholar] [CrossRef]
  34. Chen, Y.Z.; Chung, B.Z.; Hsieh, C.R. An effective catalyst, Cu-B2O3/SiO2, for hydrogenolysis of methyl formate and one-step synthesis of methanol in slurry-phase with potassium methoxide. Catal. Lett. 1996, 41, 213–220. [Google Scholar] [CrossRef]
  35. Parry, E.P. An infrared study of pyridine adsorbed on acidic solids. Characterization of surface acidity. J. Catal. 1963, 2, 371–379. [Google Scholar] [CrossRef]
  36. Huang, F. Research for control the acidity of RFCC catalyst. Chem. Eng. Oil Gas 2001, 6, 287–289. [Google Scholar]
  37. Lu, S.; Fu, H.; Wang, L. Infrared spectroscopic study on the surface Bronsted and Lewis acidity of fluoridated hydrotreating catalysts F·N·W/Al2O3·SiO2. J. Mol. Catal. 1993, 7, 471–474. [Google Scholar] [CrossRef]
  38. Wang, J.; Shan, J.; Tian, Y. Catalytic cracking of n-heptane over Fe modified HZSM-5 nanosheet to produce light olefins. Fuel 2021, 306, 121725. [Google Scholar] [CrossRef]
  39. Kamiguchi, S.; Seki, Y.; Satake, A. Catalytic cracking of methyl tert-butyl ether to isobutene over Brønsted and Lewis acid sites on solid-state molybdenum sulfide clusters with an octahedral metal framework. J. Clust. Sci. 2015, 26, 653–660. [Google Scholar] [CrossRef]
  40. Yang, J.; Wu, X.; Cheng, Y. Novel solid acid with both Brønsted and Lewis acid sites for biodiesel synthesis. Kinet. Catal. 2013, 54, 703–708. [Google Scholar] [CrossRef]
  41. Jiang, W.; Gao, X.; Dong, L. Aerobic oxidative desulfurization via magnetic mesoporous silica-supported tungsten oxide catalysts. Pet. Sci. 2020, 17, 1422–1431. [Google Scholar] [CrossRef]
  42. Hu, Y.; Wang, Y.; Wang, Y. High performance of supported Cu-based catalysts modulated via phosphamide coordination in acetylene hydrochlorination. Appl. Catal. A Gen. 2020, 591, 117408. [Google Scholar] [CrossRef]
  43. Elgayyar, T.; Atwi, R.; Tuel, A. Contributions and limitations of IR spectroscopy of CO adsorption to the characterization of bimetallic and nanoalloy catalysts. Catal. Today 2021, 373, 59–68. [Google Scholar] [CrossRef]
  44. Niu, Y.; Li, F.; Yang, K. Preparation and characterization of sulfated TiO2 with rhodium modification used in esterification reaction and decomposition of methyl orange. Chin. J. Chem. Eng. 2016, 24, 767–774. [Google Scholar] [CrossRef]
  45. Moayedi, H.; Kazemian, S. Zeta potentials of suspended humus in multivalent cationic saline solution and its effect on electro-osomosis behavior. J. Dispers. Sci. Technol. 2013, 34, 283–294. [Google Scholar] [CrossRef]
  46. Song, M.; Zhang, B.; Zhai, Z.; Liu, S.; Wang, L.; Liu, G. Highly dispersed Pt stabilized by ZnOx-Si on self-pillared zeolite nanosheets for propane dehydrogenation. Ind. Eng. Chem. Res. 2023, 62, 3853–3861. [Google Scholar] [CrossRef]
  47. Ma, Z.; Wang, X.; Wei, S.; Yang, H.; Zhang, F.; Wang, P.; Xie, M.; Ma, J. Cu (I) immobilized on functionalized SBA-15: A recyclable catalyst for the synthesis of 1,3-diynes using terminal alkynes without base. Catal. Commun. 2013, 39, 24–29. [Google Scholar] [CrossRef]
  48. Liu, L.; Li, H.; Zhou, H.; Chu, S.; Liu, L.; Feng, Z.; Qin, X.; Qi, J.; Hou, J.; Li, H.; et al. Rivet of cobalt in siliceous zeolite for catalytic ethane dehydrogenation. Chem 2023, 9, 637–649. [Google Scholar] [CrossRef]
  49. Wang, L.; Cui, Y.; Meng, X.; Gates, B.C.; Xiao., F.; Guan, E.; Wang, Y. Silica accelerates the selective hydrogenation of CO2 to methanol on cobalt catalysts. Nat. Commun. 2020, 11, 1033. [Google Scholar] [CrossRef]
  50. Tehrani, S.; Irani, M.; Tavasoli, A. Studies on accelerated deactivation of ruthenium-promoted alumina-supported alkalized cobalt Fischer-Tropsch synthesis catalyst. J. Nat. Gas Chem. 2011, 20, 65–71. [Google Scholar] [CrossRef]
  51. Xie, Y.; Li, B.; Weng, W.Z. Mechanistic aspects of formation of sintering-resistant palladium nanoparticles over SiO2 prepared using Pd(acac)2 as precursor. Appl. Catal. A Gen. 2015, 504, 179–186. [Google Scholar] [CrossRef]
  52. Li, D.; Xu, F.; Tang, X.; Dai, S.; Pu, T.; Liu, X.; Tian, P.; Xuan, F.; Xu, Z.; Wachs, I.E.; et al. Induced activation of the commercial Cu/ZnO/Al2O3 catalyst for the steam reforming of methanol. Nat. Catal. 2022, 5, 99–108. [Google Scholar] [CrossRef]
  53. Li, H.; Fang, W.; Wang, L.; Liu, Y.; Liu, L.; Sun, T.; Liao, C.; Zhu, Y.; Wang, L.; Xiao, F. Physical regulation of copper catalyst with a hydrophobic promoter for enhancing CO2 hydrogenation to methanol. Innovation 2023, 4, 100445. [Google Scholar] [CrossRef]
  54. Shi, W.; Gao, T.; Zhang, L. Tailoring the surface structures of iron oxide nanorods to support Au nanoparticles for CO oxidation. Chin. J. Catal. 2019, 40, 1884–1894. [Google Scholar] [CrossRef]
  55. Xiao, P.; Zhao, Y.; Wang, T. Polymeric carbon nitride/mesoporous silica composites as catalyst support for Au and Pt nanoparticles. Chem. Eur. J. 2014, 20, 2872–2878. [Google Scholar] [CrossRef]
  56. Ewing, C.S.; Veser, G.; McCarthy, J.J. Effect of support preparation and nanoparticle size on catalyst-support interactions between Pt and amorphous silica. J. Phys. Chem. C 2015, 119, 19934–19940. [Google Scholar] [CrossRef]
  57. Lueking, A.D.; Yang, R.T. Hydrogen spillover to enhance hydrogen storage-study of the effect of carbon physicochemical properties. Appl. Catal. A Gen. 2004, 265, 259–268. [Google Scholar] [CrossRef]
  58. Kong, X.; Xiao, J.; Chen, A. Enhanced catalytic denitrification performance of ruthenium-based catalysts by hydrogen spillover from a palladium promoter. J. Colloid Interface Sci. 2022, 608, 2973–2984. [Google Scholar] [CrossRef] [PubMed]
  59. Lee, S.; Kim, H.; Ryoo, R. Hydrogen spillover in nonreducible oxides: Mechanism and catalytic utilization. Nano Res. 2022, 15, 10357–10365. [Google Scholar] [CrossRef]
  60. Lennon, D.; Kennedy, D.R.; Webb, G. Deactivation and selectivity: The effect of hydrogen concentration in propyne hydrogenation over a silica-supported palladium catalyst//studies in surface science and catalysis. In Studies in Surface Science and Catalysis; Elsevier: Amsterdam, The Netherlands, 1999; Volume 126, pp. 341–348. [Google Scholar] [CrossRef]
  61. Behrens, M. Chemical hydrogen storage by methanol: Challenges for the catalytic methanol synthesis from CO2. Recycl. Catal. 2015, 2, 78–86. [Google Scholar] [CrossRef]
Catalysts 13 01038 g001
Figure 1. XRD patterns of (A) as-calcined and (B) spent Cu-SiO2-CP and Cu-SiO2-AE catalysts.
Figure 1. XRD patterns of (A) as-calcined and (B) spent Cu-SiO2-CP and Cu-SiO2-AE catalysts.
Catalysts 13 01038 g001
Catalysts 13 01038 g002
Figure 2. (A) Nitrogen sorption isotherms and (B) pore diameter distribution of the as-synthesized catalysts.
Figure 2. (A) Nitrogen sorption isotherms and (B) pore diameter distribution of the as-synthesized catalysts.
Catalysts 13 01038 g002
Catalysts 13 01038 g003

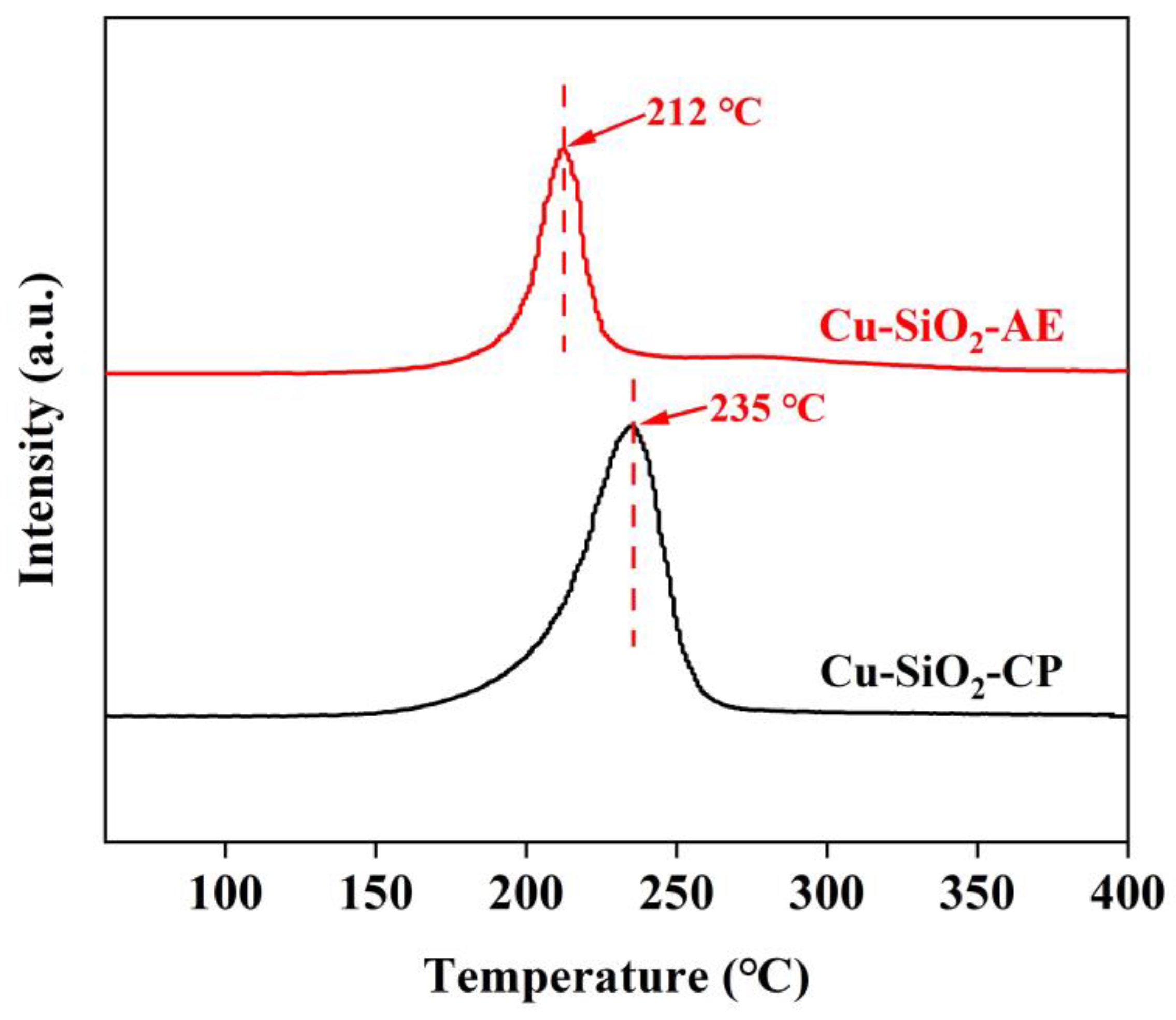

Figure 3. H2-TPR profiles of the Cu-SiO2-CP and Cu-SiO2-AE catalysts.
Figure 3. H2-TPR profiles of the Cu-SiO2-CP and Cu-SiO2-AE catalysts.
Catalysts 13 01038 g003
Catalysts 13 01038 g004

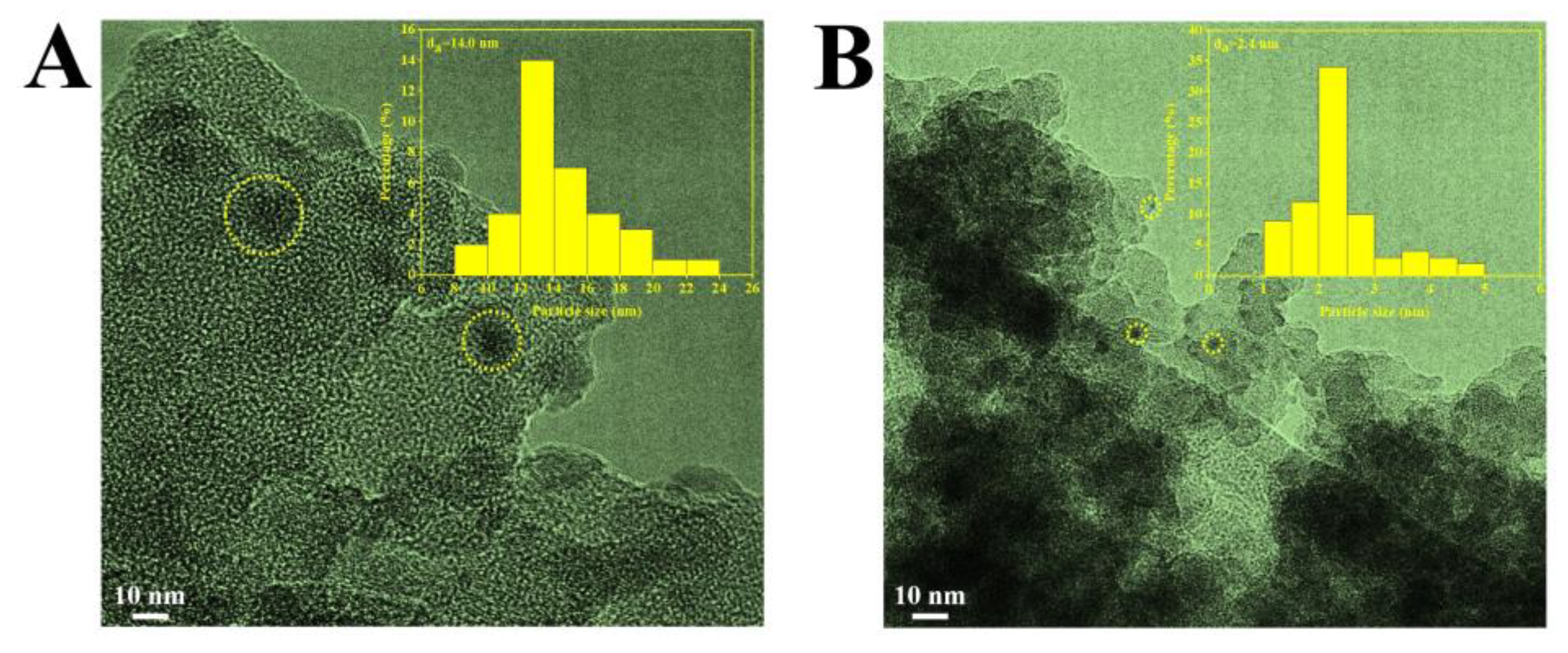

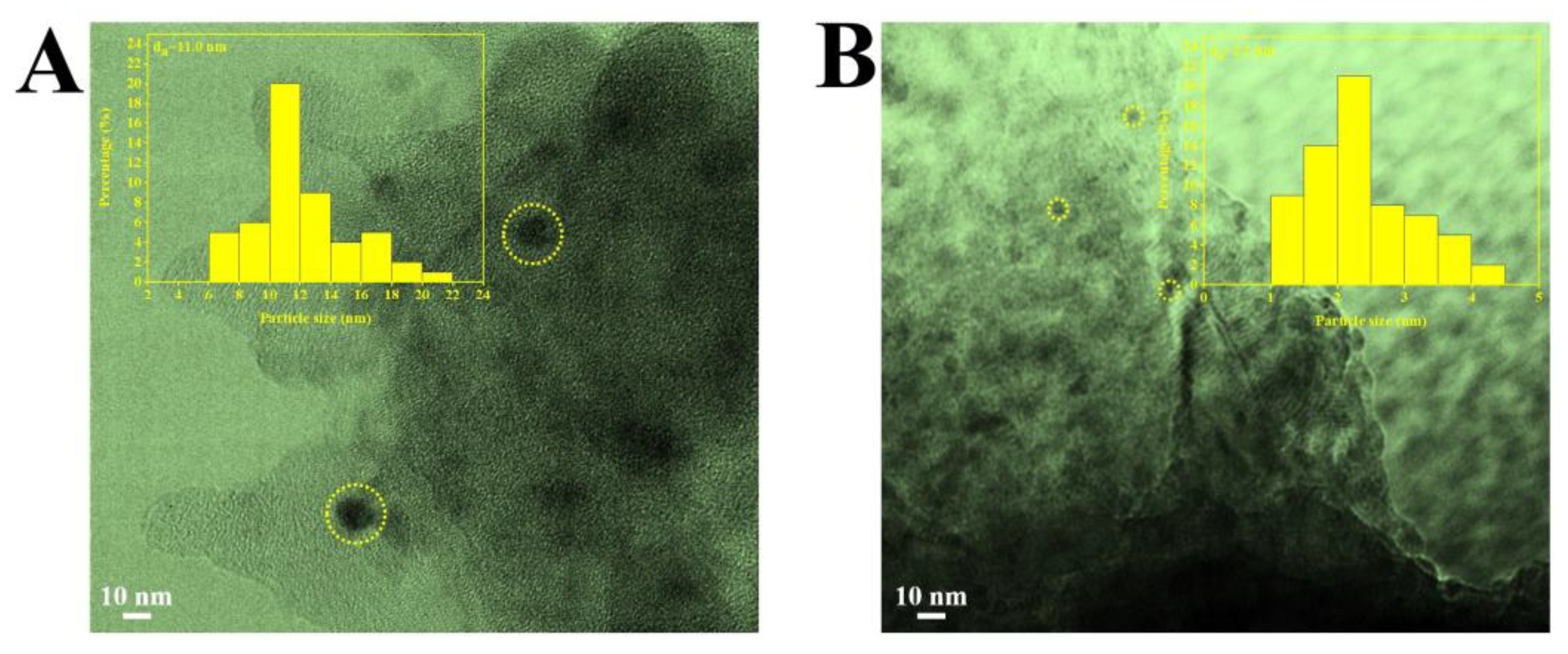

Figure 4. TEM images of reduced (A) Cu-SiO2-CP and (B) Cu-SiO2-AE catalysts with the pictures of Cu particle size distributions inset.
Figure 4. TEM images of reduced (A) Cu-SiO2-CP and (B) Cu-SiO2-AE catalysts with the pictures of Cu particle size distributions inset.
Catalysts 13 01038 g004
Catalysts 13 01038 g005aCatalysts 13 01038 g005b

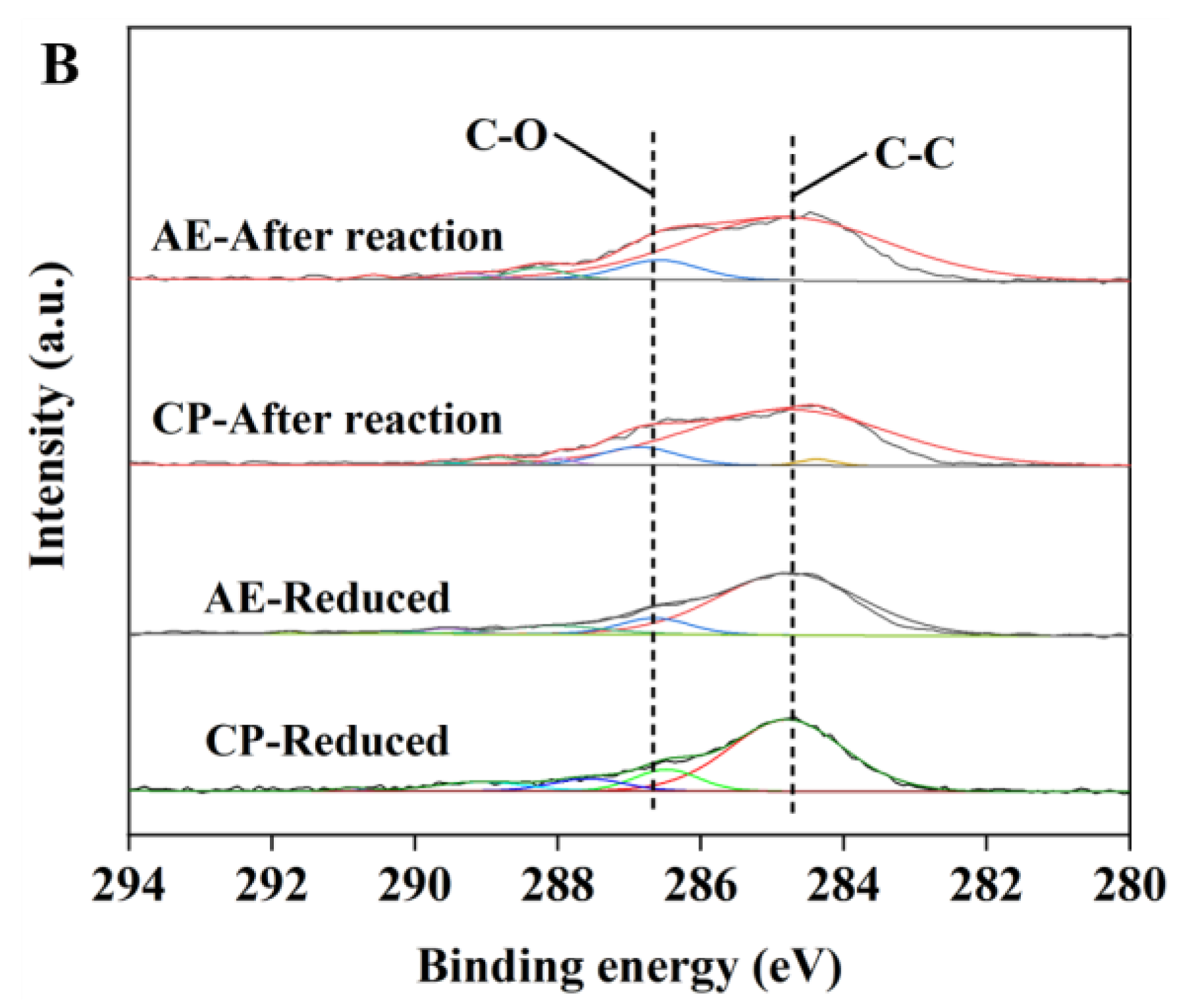

Figure 5. XPS spectra of the reduced and spent Cu-SiO2-CP and Cu-SiO2-AE catalysts of (A) Cu 2p and (B) C 1s.
Figure 5. XPS spectra of the reduced and spent Cu-SiO2-CP and Cu-SiO2-AE catalysts of (A) Cu 2p and (B) C 1s.
Catalysts 13 01038 g005aCatalysts 13 01038 g005b
Catalysts 13 01038 g006
Figure 6. Catalytic performance of the Cu-SiO2-CP and Cu-SiO2-AE catalysts in hydrogenation of MF to methanol reaction of (A) MF conversion, (B) methanol selectivity, and (C) methanol yield. (Reaction conditions: LHSVMF = 2.4 h−1, hydrogen-ester mole ratio is 4:1, reaction pressure at 1.5 MPa, reaction temperature of 140 °C).
Figure 6. Catalytic performance of the Cu-SiO2-CP and Cu-SiO2-AE catalysts in hydrogenation of MF to methanol reaction of (A) MF conversion, (B) methanol selectivity, and (C) methanol yield. (Reaction conditions: LHSVMF = 2.4 h−1, hydrogen-ester mole ratio is 4:1, reaction pressure at 1.5 MPa, reaction temperature of 140 °C).
Catalysts 13 01038 g006
Catalysts 13 01038 g007
Figure 7. Catalytic performance of (A) Cu-SiO2-CP catalyst and (B) Cu-SiO2-AE catalyst at different reaction temperatures. (Reaction conditions: LHSVMF = 2.4 h−1, hydrogen-ester mole ratio = 4:1, reaction pressure = 1.5 MPa).
Figure 7. Catalytic performance of (A) Cu-SiO2-CP catalyst and (B) Cu-SiO2-AE catalyst at different reaction temperatures. (Reaction conditions: LHSVMF = 2.4 h−1, hydrogen-ester mole ratio = 4:1, reaction pressure = 1.5 MPa).
Catalysts 13 01038 g007
Catalysts 13 01038 g008

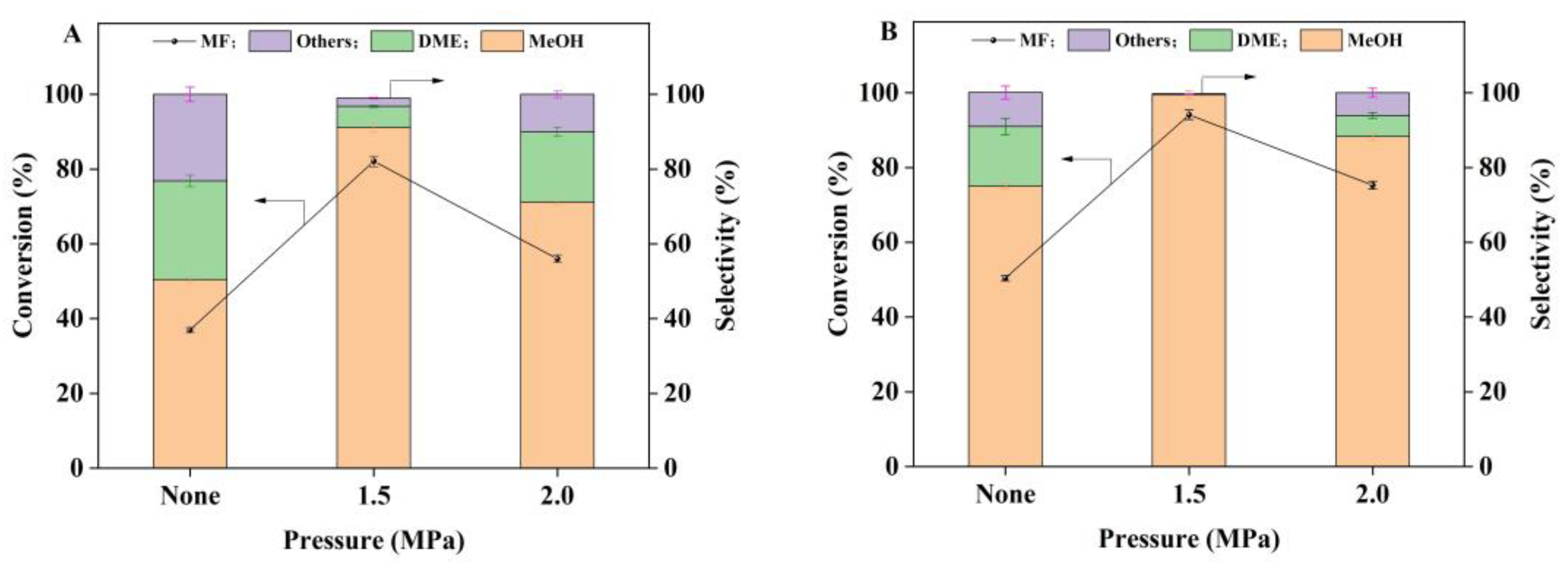

Figure 8. Catalytic performance of (A) the Cu-SiO2-AE catalyst and (B) the Cu-SiO2-CP catalyst at different reaction pressures. Reaction conditions: LHSVMF = 2.4 h−1, the hydrogen-ester mole ratio of 4:1, and the reaction temperature of 140 °C.
Figure 8. Catalytic performance of (A) the Cu-SiO2-AE catalyst and (B) the Cu-SiO2-CP catalyst at different reaction pressures. Reaction conditions: LHSVMF = 2.4 h−1, the hydrogen-ester mole ratio of 4:1, and the reaction temperature of 140 °C.
Catalysts 13 01038 g008
Catalysts 13 01038 g009
Figure 9. The durability test of Cu-SiO2-AE catalyst in the hydrogenation of MF to methanol for 250 h. Reaction conditions: LHSVMF = 2.4 h−1, the hydrogen-ester mole ratio of 4:1, the reaction pressure of 1.5 MPa, and the reaction temperature of 140 °C.
Figure 9. The durability test of Cu-SiO2-AE catalyst in the hydrogenation of MF to methanol for 250 h. Reaction conditions: LHSVMF = 2.4 h−1, the hydrogen-ester mole ratio of 4:1, the reaction pressure of 1.5 MPa, and the reaction temperature of 140 °C.
Catalysts 13 01038 g009
Catalysts 13 01038 g010

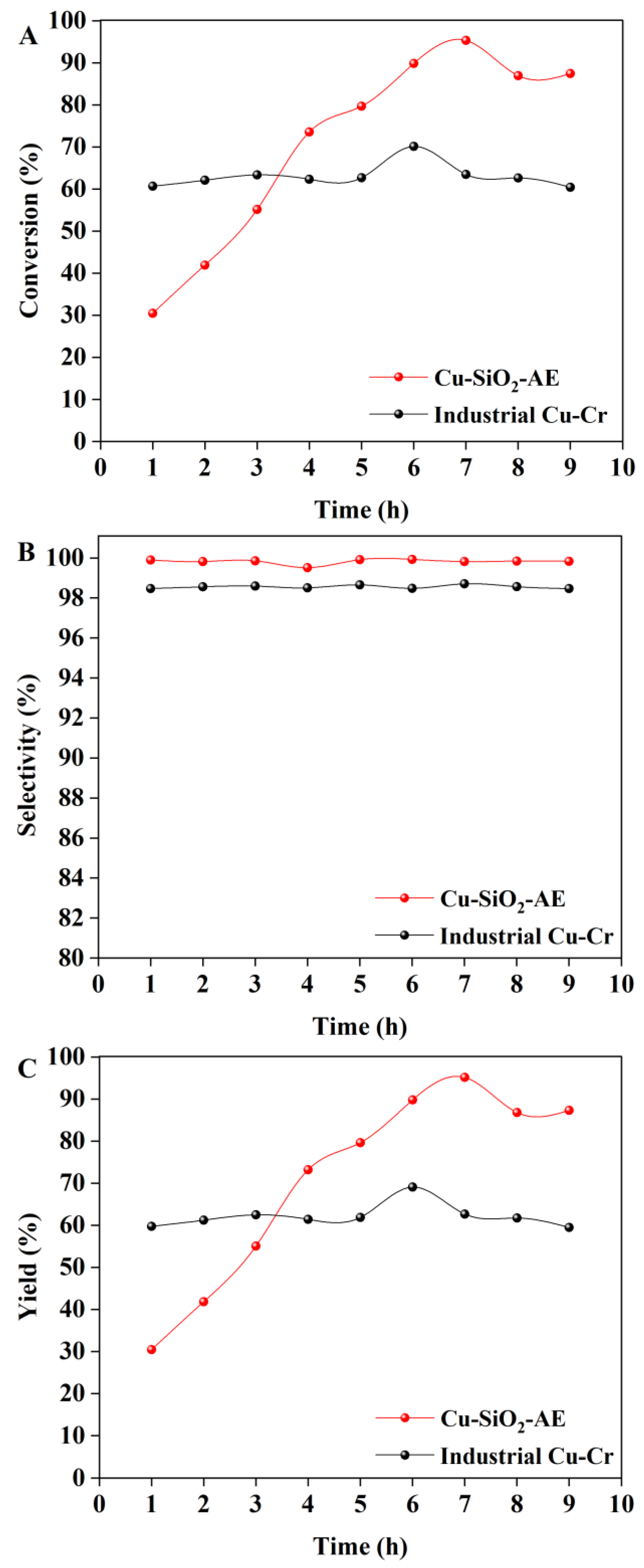

Figure 10. Comparison of the Cu-SiO2-AE and industrial Cu-Cr catalysts in the hydrogenation of methyl formate to methanol reaction of (A) conversion of MF, (B) selectivity of methanol, and (C) yield of methanol. Reaction conditions: LHSVMF = 2.4 h−1, the hydrogen-ester mole ratio of 4:1, the reaction pressure of 1.5 MPa, and the reaction temperature of 140 °C.
Figure 10. Comparison of the Cu-SiO2-AE and industrial Cu-Cr catalysts in the hydrogenation of methyl formate to methanol reaction of (A) conversion of MF, (B) selectivity of methanol, and (C) yield of methanol. Reaction conditions: LHSVMF = 2.4 h−1, the hydrogen-ester mole ratio of 4:1, the reaction pressure of 1.5 MPa, and the reaction temperature of 140 °C.
Catalysts 13 01038 g010
Catalysts 13 01038 g011

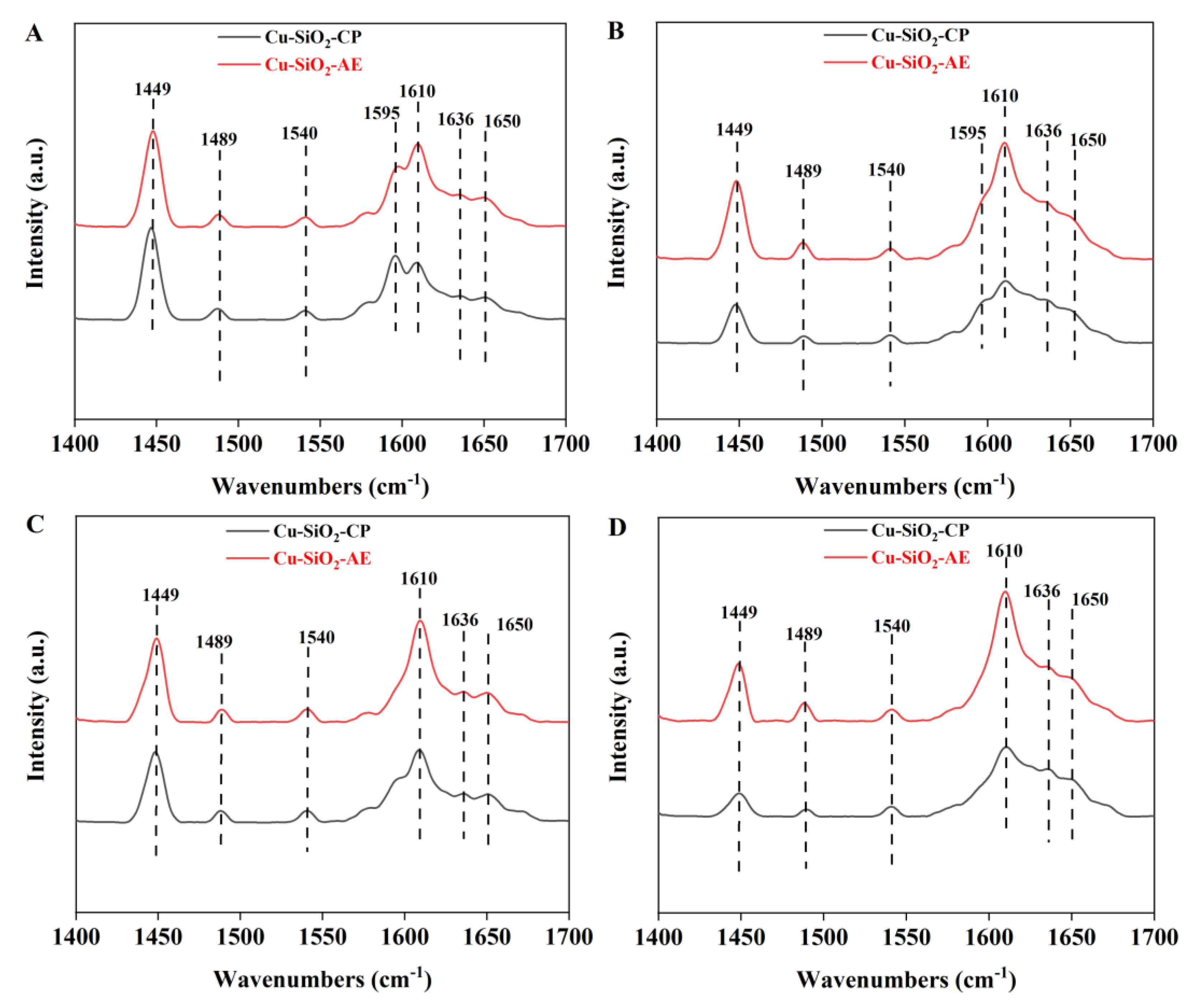

Figure 11. Pyridine–infrared spectra of Cu-SiO2-CP and Cu-SiO2-AE catalysts. (A,C) Reduced catalysts, (B,D) spent catalysts, (A,B) ADS, and (C,D) DES.
Figure 11. Pyridine–infrared spectra of Cu-SiO2-CP and Cu-SiO2-AE catalysts. (A,C) Reduced catalysts, (B,D) spent catalysts, (A,B) ADS, and (C,D) DES.
Catalysts 13 01038 g011
Catalysts 13 01038 g012
Figure 12. FT–IR spectra of Cu-SiO2-CP and Cu-SiO2-AE catalysts.
Figure 12. FT–IR spectra of Cu-SiO2-CP and Cu-SiO2-AE catalysts.
Catalysts 13 01038 g012
Catalysts 13 01038 g013
Figure 13. TEM images of (a) spent Cu-SiO2-CP and (b) Cu-SiO2-AE catalysts.
Figure 13. TEM images of (a) spent Cu-SiO2-CP and (b) Cu-SiO2-AE catalysts.
Catalysts 13 01038 g013
Catalysts 13 01038 g014
Figure 14. Catalytic performance of (A) Cu-SiO2-CP and (B) Cu-SiO2-AE catalysts in the decomposition of methanol reaction. Reaction conditions: 0.1 Mpa, 240 °C, 6000 mL g−1 h−1, MeOH/H2/N2 = 2/10/88 vol%.
Figure 14. Catalytic performance of (A) Cu-SiO2-CP and (B) Cu-SiO2-AE catalysts in the decomposition of methanol reaction. Reaction conditions: 0.1 Mpa, 240 °C, 6000 mL g−1 h−1, MeOH/H2/N2 = 2/10/88 vol%.
Catalysts 13 01038 g014
Catalysts 13 01038 g015
Figure 15. Catalytic performance of the (A) Cu-SiO2-CP and (B) Cu-SiO2-AE catalysts in hydrogenation of methyl formate to methanol reaction under the varied molar ratio of H2/MF. Reaction conditions: LHSVMF = 2.4 h−1, the hydrogen-ester ratios of 1:1, 2:1, and 4:1, reaction pressure of 1.5 MPa, and the reaction temperature of 140 °C.
Figure 15. Catalytic performance of the (A) Cu-SiO2-CP and (B) Cu-SiO2-AE catalysts in hydrogenation of methyl formate to methanol reaction under the varied molar ratio of H2/MF. Reaction conditions: LHSVMF = 2.4 h−1, the hydrogen-ester ratios of 1:1, 2:1, and 4:1, reaction pressure of 1.5 MPa, and the reaction temperature of 140 °C.
Catalysts 13 01038 g015
Table 1. Physicochemical properties of the catalysts prepared by different methods.
Table 1. Physicochemical properties of the catalysts prepared by different methods.
Samplesa SBET
(m2/g)		a V
(cm3/g)		a d
(nm)		b D
(%)		b SCu
(m2/g)		b dCu
(nm)
Cu-SiO2-CP208.30.818.450.0339.02.0
Cu-SiO2-AE350.80.718.4109.6742.90.9
a Determined by the N2-adsorption method and b by the N2O titration method.
Table 2. Catalytic performance of the Cu-SiO2-CP and Cu-SiO2-AE catalysts in the hydrogenation of MF to methanol reaction.
Table 2. Catalytic performance of the Cu-SiO2-CP and Cu-SiO2-AE catalysts in the hydrogenation of MF to methanol reaction.
CatalystMF Conversion/%Product Selectivity/%
MeOHDME aOthers b
Cu-SiO2-CP83.992.15.72.2
Cu-SiO2-AE95.399.80.10.1
a By-product ethylene glycol dimethyl ether; b The sum of other over-hydrogenated by-products. Reaction conditions: LHSVMF = 2.4 h−1, hydrogen-ester mole ratio = 4:1, reaction pressure = 1.5 MPa, reaction temperature = 140 °C, reaction time 9 h.
Table 3. A summary of catalytic performance of MF hydrogenation to MeOH over copper catalysts.
Table 3. A summary of catalytic performance of MF hydrogenation to MeOH over copper catalysts.
CatalystCu Loading
(wt%)		H2/MF
(v/v)		Temp. (°C)P (MPa)LHSV (h−1)MF Conv. (%)MeOH Sel. (%)Ref.
Cu-Cr234/11400.1180073.198.0[32]
Cu-Cr-Mn234/11400.1180076.1599.55[32]
Cu-Mn-SiO219.24/11800.51084.494.4[33]
Cu-SiO219.24/11800.51051.590.4[33]
Cu-B2O3/SiO2-3/11502.8-3999.8[34]
Cu-SiO2-AE154/11401.52.495.399.8This study
Cu-SiO2-CP154/11401.52.483.992.1This study
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wu, J.; Liu, G.; Liu, Q.; Zhang, Y.; Ding, F.; Wang, K. A Cu-SiO2 Catalyst for Highly Efficient Hydrogenation of Methyl Formate to Methanol. Catalysts 2023, 13, 1038. https://doi.org/10.3390/catal13071038

AMA Style

Wu J, Liu G, Liu Q, Zhang Y, Ding F, Wang K. A Cu-SiO2 Catalyst for Highly Efficient Hydrogenation of Methyl Formate to Methanol. Catalysts. 2023; 13(7):1038. https://doi.org/10.3390/catal13071038

Chicago/Turabian Style

Wu, Jincheng, Guoguo Liu, Qin Liu, Yajing Zhang, Fu Ding, and Kangjun Wang. 2023. "A Cu-SiO2 Catalyst for Highly Efficient Hydrogenation of Methyl Formate to Methanol" Catalysts 13, no. 7: 1038. https://doi.org/10.3390/catal13071038

APA Style

Wu, J., Liu, G., Liu, Q., Zhang, Y., Ding, F., & Wang, K. (2023). A Cu-SiO2 Catalyst for Highly Efficient Hydrogenation of Methyl Formate to Methanol. Catalysts, 13(7), 1038. https://doi.org/10.3390/catal13071038

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
