Heterogenization of a Tungstosilicic Acid Catalyst for Esterification of Bio-Oil Model Compound

by
Prapaporn Prasertpong
1,
Jeremiah Lipp
2,
Anhua Dong
2,
Nakorn Tippayawong
3,* and
John R. Regalbuto
2,*
1
Department of Mechanical Engineering, Rajamangala University of Technology Thanyaburi, Pathum Thani 12110, Thailand
2
Department of Chemical Engineering, University of South Carolina, Columbia, SC 29208, USA
3
Department of Mechanical Engineering, Faculty of Engineering, Chiang Mai University, Chiang Mai 50200, Thailand
*
Authors to whom correspondence should be addressed.
Catalysts 2023, 13(1), 38; https://doi.org/10.3390/catal13010038
Submission received: 28 November 2022 / Revised: 17 December 2022 / Accepted: 21 December 2022 / Published: 25 December 2022
(This article belongs to the Special Issue Catalysts in Thermo-Chemical Upcycling Solid Wastes to High-Value Products)
Browse Figures
Review Reports Versions Notes

Abstract

:
Based on a prior demonstration of the high activity of a homogeneous tungstosilicic acid catalyst for the esterification of acetic acid as bio-oil model compound, a further study has been undertaken in an attempt to heterogenize the catalyst. Tungsten oxide was supported on amorphous silica (W/A150) using incipient wetness impregnation and incorporated into the structure of structured silica (W-KIT-5) via a one-step hydrothermal synthesis. The catalysts were characterized by X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), physisorption (BET), and temperature-programmed desorption of ammonia (NH3-TPD). Both series were evaluated for the esterification of acetic acid with ethanol and compared with the homogeneous 12-tungstosilicic acid catalyst. The result of XRD analysis suggests the average crystallite size of the W oxide nanoparticles on both supports to be less than 2 nm, while XPS analysis revealed that all W existed in the W 6+ oxidation state. From the BET and NH3-TPD analyses, it was shown that the KIT-5 series had higher surface area and acidity than the W/A150 catalyst. The 10% W-KIT-5 was shown to be the best heterogeneous catalyst with the highest activity and acid conversion of about 20% and 93% of the homogeneous catalyst. Significant leaching of tungsten from both the supports occurred and will have to be solved in the future.

1. Introduction

Currently, clean renewable and sustainable energy has gained increasing attention due to the continuing concern over fossil fuel depletion and severe environmental problems [1,2]. Biomass is one of the promising alternative fuel sources due to its abundance, with low emission of greenhouse gases or other pollutants [3,4]. Biomass conversion with fast pyrolysis has gained attention in recent years as the conventional method for producing high yields of liquid fuel known as bio-oil [5,6,7]. Bio-oil has significantly different physical properties from petroleum-derived oils that come from the chemical composition of bio-oil [8]. This composition consists of water and a complex mixture of organic compounds, most of which consist of acids, alcohols, aldehydes, esters, ethers, furans, ketones, phenols, sugars, and oligomers derived from lignin [9,10,11]. Some of these compounds lead to poor fuel characteristics such as high moisture content, high viscosity, high oxygen content, high corrosiveness, low heating value, and thermal instability—all of which limit the direct use of bio-oil as a transportation fuel [12,13,14,15].
Because of these poor properties, bio-oil needs to be upgraded for its subsequent applications. Various upgrading techniques, such as catalytic pyrolysis, catalytic cracking, hydrodeoxygenation, hydrogenation, and steam reforming have been proposed to refine the bio-oil into utilizable liquid fuels [16]. However, bio-oil upgrading through this hydrotreating, and reforming processes still suffers from low yields of upgraded product and high yields of undesirable products such as char, coke, and tar, which can deposit on the surface of catalysts leading to an increased cost for product recovery [17,18,19]. Alternatively, esterification has been proposed by several research groups as a simple and effective upgrading technique that can convert acids in the bio-oil to their corresponding esters [20,21,22,23], which results in reduced acidity and increased heating value. Furthermore, the reduced acidity improves bio-oil stability since the oligomerization and polymerization reactions are acid catalyzed [24,25,26].
Mineral acids such as phosphoric acid and sulfuric acid have been regularly and widely used for esterification in industrial applications due to their lower sensitivity toward the presence of free acids and water [27]. However, challenges associated with these acids include equipment corrosion, high yields of byproducts, and environmental concerns [28]. Alternatively, heteropoly acids (HPAs) have gained increasing acceptance as promising alternative catalysts for esterification processes because of their low corrosiveness and low toxicity, as well as very strong Brønsted acidity that can increase the reaction rate under mild conditions [29,30,31,32]. For example, high acid conversion via esterification over heteropoly acid catalysts was reported for biodiesel production [32,33,34,35,36] and ethyl acetate synthesis [37]. Nowakowski et al. [38] have reported that bio-oil upgrading via esterification over an HPA catalyst is effective in converting the acids in bio-oil to their corresponding esters by reacting with n-butanol. We have recently reported that a similar process is also effective with ethanol [39,40].
It is generally known that HPA catalysts have a very high solubility in polar solvents such as alcohol and water which are a reactant and products in the esterification process [41]; this is consistent with our observations reported in Prasertpong et al. [40] for the esterification of bio-oil model compounds with ethanol. This can lead to difficulties in separating the HPA catalysts from the reacting mixture. Solid catalysts have also been used for esterification; the main benefit of these catalysts is the ease of separation after the reaction via filtration [42,43]. Moreover, the high catalytic activity of solid catalyst was reported by Embong et al. [44] for biodiesel production via esterification of palm fatty acid distillate catalyzed by rice husk ash (NiSO4)/SiO2 catalyst with 93% of methyl esters conversion. Tungsten supported by various materials is one of the solid catalysts considered as the catalytically active species for esterification. For example, Oliveira [45] reported that methyl esters conversion of 88% for biodiesel production was acquired via esterification with 12-tungstophosphoric acid supported on zirconia (H3PW/ZrO2 catalyst). Moreover, the ethyl acetate synthesis by esterification using heteropoly acid supported on montmorillonite K10 catalyst gave acid conversion of 90% and ethyl acetate selectivity of 100%, as reported by Gurav et al. [46]. Specifically, tungsten oxide supported material is one of the well-known catalysts for the acid catalyzed reaction. Mitran et al. [43] found that WO3/SiAl catalysts showed good selectivity and reusability for n-butyl acetate production through esterification of acetic acid with n-butanol.
Mesoporous silicates are promising support due to their pore structure which facilitates mass transport, high surface area, and pore volume [47]. The large surface area and high total acidity catalyst for biodiesel production were successfully synthesized by Patel [36] using anchoring 12-tungstophosphoric acid to SBA-15 mesoporous silica support. Similarly, Hu et al. [48] found that tungsten supported on SBA-15 mesoporous material provided 92.6% of conversion and 68.3% of selectivity for the conversion of 1-butene to olefins. Chen et al. [49] reported the esterification of oleic acid with methanol catalyzed by 12-silicotungstic acid supported on MCM-41 mesoporous catalyst (HSiW/MCM-41) producing 81.2 wt% yields of methyl oleate. The three-dimensional mesoporous silica support KIT-5 displays interesting properties due to its highly ordered cubic symmetry with tunable cage-type pores [50]. However, the high acidity and performance of the mesoporous silica-supported tungsten catalysts have not yet been widely investigated as the catalysts for bio-oil upgrading via esterification.
In this work, the synthesis and characterization of heterogeneous tungsten oxide catalysts supported on amorphous silica and mesoporous KIT-5 silica were carried out. In addition, the catalytic activities and effect of the synthesized heterogeneous catalysts on bio-oil model compound upgrading via esterification were investigated and compared with homogeneous tungstosilicic acid. Furthermore, the stability of the synthesized heterogeneous catalysts was examined.

2. Results and Discussion

2.1. Catalyst Characterization

2.1.1. Structural and W Species Characterization

The X-ray diffraction patterns of the W/A150 and W-KIT-5 samples are shown in Figure 1. The absence of sharp peaks indicates that the coherently diffracting crystallite sizes are very small and makes identification of the crystal phase and estimation of the particle size difficult. The patterns consist mainly of an amorphous silica signal with a broad peak centered around 21.4° (2θ) for the W/A150 samples and 22.4° (2θ) for the W-KIT-5 samples, with small contributions from the W-containing crystallites mainly visible at 26° and 53° (2θ). These contributions clearly increase in intensity in proportion to the W loading.
Further XRD analysis was undertaken for the W/A150 samples, utilizing reference samples to estimate the background, in a method similar to that to be reported by Prasertpong et al. [51]. The analysis suggests that each of the W/A150 samples consists of crystallites with particle sizes less than 2 nm and that fit best with a hexagonal form of WO3 [52]. More details are given in the supplementary information.

2.1.2. Chemical State of W Characterization

The chemical state of tungsten was probed by XPS. The spectra of the W 4f region of all catalysts were recorded and compared for the different metal loadings. The W 4f spectrum of both W/A150 and W-KIT-5 catalysts, displays two main doublet peaks at the binding energies of 36.0 eV and 35.3 eV and in some cases a smaller doublet at 34.4 eV. These W 4f peaks can be attributed to the oxidation states of 6+, 5+ and 4+, respectively, as shown in Figure 2 [53,54,55]. Plots of the relative amount of W 6+ from the deconvoluted peak areas are shown in Figure 3, where it is seen that the relative amount of W 6+ in the catalysts increases with W loading and is the main component of W/A150 and W-KIT-5 catalysts at higher loadings. It is expected from the literature that the W 6+ oxidation state is desired to achieve higher reactivity, but in some cases, high calcination temperature (~700 °C) is needed, in order to fully create the W 6+ state [56]. In the current study the calcination temperature (300 °C), used to prepare the catalysts yielded a mixture of W oxidation states as expected from similar studies in the past [57]. The O 1s XPS peak deconvolution showed that part of the W has reacted with the support creating W-OH and Si-O-W bonds, responsible for the 5+ and 4+ W oxidation states, present on the catalysts [53]. The W/Si atomic ratio as measured by XPS is shown in Table 1. The increase in the W/Si ratio follows an increase in the W loading for both series but the slightly higher ratios for the A150 series suggest that the W dispersion is slightly higher in that series. The same W/Si ratio between corresponding samples also indicates that the catalytic differences should be explained by the relative amount of W 6+ oxidation state in each sample.

2.1.3. Textural Characterization

The properties of the different catalysts are shown in Table 1. W-KIT-5 showed a decrease in surface area and increase in pore size with increasing tungsten oxide content that was consistent with the works reported for tungsten-containing hexagonal mesoporous silica (HMS) [58], tungsten-substituted mesoporous SBA-15 [48], and W-KIT-6 [59]. For W/A150, the pore size was decreased with increasing tungsten oxide content, while the highest surface area was found at 10 wt% tungsten content.

2.1.4. Acidity Characterization

The acid strengths of the catalysts were determined by ammonia-TPD analysis and are shown in the last column of Table 2. The acidity of the catalysts increased with increasing tungsten oxide content, which is consistent with that reported for tungsten containing MCM-41 and SBA-15 [60]. The maximum acidity was reached for 10 wt% W/A150 and 15 wt% W/A150. The total acidity of W-KIT-5 was obviously higher than W/A150 indicating the significantly higher acidity of the catalyst prepared with the one-step hydrothermal compared with the catalyst prepared with incipient wetness impregnation.

2.2. Catalytic Activity

The catalytic activities of the catalysts for the esterification of acetic with ethanol are shown in the conversion versus time plots, shown in Figure 4, and the reaction rates of all catalysts are summarized in Table 2. Reaction rates are quantified from the initial slopes of the conversion versus time plots, after the initial lag in reactivity observed in all the supported catalysts, during the diffusion and adsorption of the reactant [61]. It was found that the homogeneous tungstosilicic acid catalyst gave an order of magnitude higher reaction rate than the heterogeneous catalysts. This was possible because the homogeneous catalyst is intimately mixed with the acetic acid in the bulk of the liquid phase, whereas in the heterogeneous catalysts, the reaction rate is limited by mass transfer inside the pores of the catalyst [19]. The W-KIT5 series showed significantly higher activity than the W/A150 series despite the latter being slightly better dispersed and possessing higher pore volume and pore size (well in the mesoporous range) which would improve internal diffusion. The higher activity of the KIT-5 catalysts can therefore be attributed to the higher acidity of the KIT-5 material [26,62].

2.3. Esterification of Bio-Oil Model Compound

For bio-oil upgrading via esterification process, acetic acid was used as the bio-oil model compound and ethanol was used as the reactant. The conversion of acetic acid over different catalysts was studied and shown in Table 3. The tungstosilicic acid exhibited the highest catalytic activity with 87% of acetic acid conversion into esters due to the association of the catalyst with acid in the liquid phase. The higher acid conversion of W-KIT-5 series compared with the W/A150 series was observed as their higher acidity and active size which is consistent with the work reported for HPW/SBA-15 catalyst synthesis via impregnation method [63] and direct synthesis route [63,64]. The maximum acid conversion of 81% and 59% was observed over 10 wt% W-KIT5 and 5 wt% W/A150, respectively. However, all two heterogeneously catalyzed reactions were an order of magnitude higher in activity than the reaction without catalyst.

2.4. Reusability of the Catalyst

In order to investigate the stability and recyclability of the W/A150 and W-KIT-5 catalysts, additional runs were performed with recovered catalyst as shown in Figure 5. It was observed that both the W-KIT-5 and W/A150 catalysts showed a prominent decrease in conversion with successive cycles. One reason for the deactivation of the catalyst may be the leaching of tungsten from the supporting material, which is shown by ICP analysis in Figure 6. It was found that roughly half of the tungsten leaches from the support into the solution after each experimental run; this leads to a decreasing amount of tungsten in the reaction flask during successive experimental runs. Moreover, it was observed that the leaching of the catalyst was increasing with the catalyst concentration (Figure 6). The catalyst deactivation through leaching of the catalyst precursor was also reported for sulfated ZrO2/TiO2 nanocomposite synthesized by a hydrothermal synthesis approach [65]. However, the stable catalysts for esterification were reported for WO3/SiAl [43] and ZrO2/SBA-15 [66] which were prepared by precipitation and impregnation processes, respectively. Hence, suitable synthesis method for W-KIT-5 and W/A150 should be further investigated to improve the stability of these catalysts.

3. Materials and Methods

3.1. Materials

Ammonium metatungstate hydrate was purchased from Sigma-Aldrich (St. Louis, MI, USA). The amorphous silica powder was supplied by Evonik (Aerosil 150 or A150). Acetic acid (99% purity), ethanol (99.5% purity), and dioxane (99.8% purity) were purchased from Alpha Aesar (Haverhill, MA, USA), EMD Millipore (Burlingtonm, MA, USA), and Sigma Aldrich, respectively. WO3 (99.995% trace metal basis) was purchased from Sigma Aldrich.

3.2. Catalyst Preparation

W/A150 was synthesized by incipient wetness impregnation. The required amount of ammonium metatungstate hydrate as the catalyst precursor was dissolved in 4 mL of deionized water and the mixture was well stirred. Then, 3 g of amorphous silica powder was added gradually to the solution to obtain a homogeneous paste. The paste was dried overnight on a vacuum filter at room temperature and then ground with a mortar and pestle. The impregnated samples were calcined at 300 °C for 2 h. Reference XRD samples for the W/A150 samples were prepared by physically mixing (via mortar and pestle) Aerosil 150 and crystalline WO3 (WO3 + A150) in calculated ratios to give W loadings equal to the W/A150 samples. KIT-5 and W-KIT-5 were provided by the University of Kansas. KIT-5 was prepared according to the procedure for high quality siliceous KIT-5 material synthesis reported by Kleitz et al. [50]. W-KIT-5 was prepared using a one-step hydrothermal synthesis procedure for synthesizing siliceous KIT-5 material reported by Ramanathan et al. [47]. The only difference was that the tungsten was sourced from ammonia metatungstate (Sigma Aldrich). The W/A150 catalyst system was synthesized with three different W concentrations: namely 5, 10, and 15 wt%. W-KIT-5 tungsten loadings were 4.9%, 10.7%, and 15.8%.

3.3. Catalyst Characterization

3.3.1. X-ray Diffraction

X-ray diffraction (XRD) was used to investigate the crystalline size and structure of the samples. The XRD diffractograms were obtained using a Rigaku Miniflex II Powder X-ray diffractometer with a high sensitivity D/tex Ultra detector operating at 30 kV and 15 mA. The patterns were recorded in the angular range of 2θ = 10–80° using a 0.05° sampling interval and a counting time of 2.0° per min.

3.3.2. X-ray Photoelectron Spectroscopy

X-ray photoelectron spectroscopy (XPS) analyses were performed using a Kratos AXIS Ultra DLD XPS system, with a monochromatic Al Kα source, operated at 15 keV and 150 W and a hemispherical energy analyzer. The X-rays were incident at an angle of 45° with respect to the surface normal and analysis was performed at a pressure below 1 × 10−9 mbar. High resolution core level spectra were measured with a pass energy of 40 eV and survey scans with a pass energy of 160 eV. The analyses of the XPS spectra were performed with XPSPEAK 4.1 software. Each dataset was shifted according to the C-C bond known to exist at 284.6 eV.

3.3.3. Brunauer–Emmett–Teller and Barrett–Joyner–Halenda Analyses

For physisorption characterization, the catalysts’ surface area and pore size distribution were measured with the Brunauer–Emmett–Teller (BET) method using a Micromeritics ASAP 2020 instrument. The catalysts were degassed at 150 °C for 180 min, then analyzed with nitrogen adsorption and desorption isotherms. The desorption branch of the isotherms with the Barrett–Joyner–Halenda (BJH) method was used for the pore size distribution calculation.

3.3.4. Temperature-Programmed Desorption of Ammonia Analysis

The acidity of the catalysts was performed by temperature-programmed desorption of ammonia (NH3-TPD) method using a custom TPx with Inficon Transpector 2 Mass Spectrometer. Approximately 0.1 g of sample was pretreated in He for 1 h at 200 °C. The sample was then saturated with ammonia by flowing 2% NH3/He at room temperature for about 40 min. The sample was further treated in pure He flows for about 30 min at room temperature to remove any physisorbed ammonia, before ramping at 10 °C/min in pure He flows to 600 °C. All total flow rates were 58 mL/min.

3.3.5. Inductively Coupled Plasma Analysis

For inductively coupled plasma (ICP) analysis, the collected reaction mixtures were heated in an oil bath at 100 °C to evaporate the organic liquid. A 10 mL of sample was mixed with 6 mL of 14.8 M lab grade NH4OH by shaking, then heated to a boil to dissolve any WO3. The samples were then filtered with a 0.45 μm filter paper and diluted 10 times with deionized water before analysis in the ICP (Perkin-Elmer AVIO 200 ICP-OES).

3.4. Activity Evaluation of the Catalysts

The activity of W/A150, W-KIT-5, and tungstosilicic acid was evaluated for the esterification of acetic acid with ethanol. Typically, the reactions were carried out in a three-necked flask equipped with a thermometer, reflux condenser, and magnetic stir bar. The reaction mixture of acetic acid and ethanol with a molar ratio of 1:5 and dioxane as the internal standard (1000 µL: 1 g of acid) was mixed in the flask and then heated in a constant temperature bath [40]. The magnetic stirring rate was set at 500 rpm. A measure of 3 g of W catalyst per 100 g of acetic acid was added to the flask. The start time was set when the system reached the reaction temperature of 77 °C. The reaction solution was sampled from the flask every 15 min from start up to 1 h, and then every 60 min from 1 to 8 h. The samples were filtered to remove the catalyst and the composition was analyzed with an HP 5890 series II gas chromatograph. A Stabilwax column (30 m × 0.25 mm × 0.25 mm film thickness) was used to carry out the chromatographic separation. The injector and detector temperatures were set at 250 and 270 °C, respectively. The column temperature was programmed from 40 °C (held for 5 min) to 280 °C (held for 10 min) at a heating rate of 10 °C/min. The measurement of acetic acid was based on the internal standard of dioxane and reported as the average value of four independent replicates [67]. The conversion of acetic acid to ethyl acetate was calculated from the following formula: conversion = (1 − ACf/ACp), in which ACf and ACp are the acid content of the feed and the final products, respectively.

3.5. Experiment of Model Bio-Oil Upgrading by Catalytic Esterification

Bio-oil upgrading with esterification process with W/A150, W-KIT-5, and tungstosilicic acid was studied and compared. In this work, acetic acid was used as the bio-oil model compound for study upgrading. The esterification was carried out in the three-necked flask equipped with a thermometer, a reflux condenser, and a magnetic stirrer heated in a constant temperature bath. In a typical reaction, the model reaction with acetic acid and ethanol by molar ratio of 1:5 was mixed in the flask. The catalyst used by 3 g of W per 100 g of acetic acid. The experiments were performed at the temperature of 77 °C for 8 h and 15 min with a stirring speed of 500 rpm [40]. After that, the catalyst was filtered and removed from the reacting mixture. The composition of both feed and product reaction mixtures and acid conversion were determined by the method previously proposed in this paper.

3.6. Evaluation of Catalyst Reusability

The reusability of W/A150 and W-KIT-5 catalysts was evaluated in sequential batch runs under the same operating condition with the esterification of bio-oil model compound as mentioned above. After each run, the catalyst was removed from the reaction mixture by filtration and washed with ethyl acetate, dried overnight on a vacuum filter at room temperature, and then ground with a mortar and pestle before adding it to the next reaction mixture. Five cycles were tested.

4. Conclusions

Tungsten oxides supported on amorphous silica (W/A150) and structured silica (W-KIT-5) were prepared by incipient wetness impregnation and a one-step hydrothermal method, respectively. All the synthesized catalysts had crystalline sizes less than 2.0 nm. The W/A150 catalysts were the best fit, with a hexagonal form of WO3. XPS analysis suggested the predominance of W 6+ species on higher loading W/A150 and W-KIT-5 catalysts. The W-KIT-5 catalysts appeared to have higher surface area and acidity than W/A150. The synthesized catalysts exhibited catalytic activity for the esterification of model bio-oil. The acid value of the bio-oil model compound was reduced by 59% and 81% using the 5% W/A150 and 10% W-KIT-5, respectively. This acid value reduction in W-KIT-5 was 93% of the homogeneous catalyst which demonstrated exceptional heterogeneous catalyst for bio-oil model compound upgrading via esterification. However, the significant leaching of tungsten from the support is the main issue that needs further improvement.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/catal13010038/s1, Figure S1: 15%, 10%, and 5% W/A150 XRD patterns showing for each sample the raw XRD pattern (W/A150), the raw reference pattern (WO3 + A150) showing sharp peaks, and the background (sample holder plus A150 support) which was refined from the reference pattern and then used as the background for the analysis of the W/A150 samples.; Figure S2: W/A150 diffraction patterns after subtracting the background and silica support signals; Figure S3:15% W/A150: fit to hexagonal WO3 (ICSD 32001); Figure S4: 10% W/A150: fit to hexagonal WO3 (ICSD 32001); Figure S5: 5% W/A150: fit to hexagonal WO3 (ICSD 32001); Table S1: Crystal Structures used to fit the isolated crystallite XRD signals for the WO3/A150 samples. Quality of fit (Rwp) values are given for each individual structure’s best fit to each of the W/A150 samples (smaller Rwp = better fit) [47,52].

Author Contributions

Conceptualization, P.P., J.L. and J.R.R.; methodology, P.P. and J.L.; formal analysis, P.P., J.L. and A.D.; investigation, P.P., J.L. and A.D.; writing—original draft preparation, P.P. and J.L.; writing—review and editing, J.R.R. and N.T.; supervision, J.R.R. and N.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partially funded by Thailand Research Fund, the Royal Golden Jubilee program, grant no. PHD 560651033, National Research Council of Thailand and Chiang Mai University.

Data Availability Statement

All relevant data are included in the paper and supplementary materials.

Acknowledgments

The authors were grateful for the kind support from Rajamangala University of Technology Thanyaburi, the University of South Carolina’s SmartState Center of Catalysis for Renewable Fuels (CReF) and Catalysis for Renewables: Applications, Fundamentals and Technologies (CRAFT) collaboration. We also gratefully acknowledge John Monnier for reactor consulting, Stavros Karakalos for running the XPS and mentoring the XPS analysis, and Frank Girgsdies for mentoring the X-ray diffraction analysis.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Alsultan, A.G.; Asikin-Mijan, N.; Ibrahim, Z.; Yunus, R.; Razali, S.Z.; Mansir, N.; Islam, A.; Seenivasagam, S.; Taufiq-Yap, Y.H. A Short Review on Catalyst, Feedstock, Modernised Process, Current State and Challenges on Biodiesel Production. Catalysts 2021, 11, 1261. [Google Scholar] [CrossRef]
  2. Phromphithak, S.; Tippayawong, N.; Onsree, T.; Lauterbach, J. Pretreatment of corncob with green deep eutectic solvent to enhance cellulose accessibility for energy and fuel applications. Energy Rep. 2022, 8, 579–585. [Google Scholar] [CrossRef]
  3. Dai, L.; Wang, Y.; Liu, Y.; He, C.; Ruan, R.; Yu, Z.; Jiang, L.; Zeng, Z.; Wu, Q. A review on selective production of value-added chemicals via catalytic pyrolysis of lignocellulosic biomass. Sci. Total Environ. 2020, 749, 142386. [Google Scholar] [CrossRef] [PubMed]
  4. He, Y.; Liu, R.; Yellezuome, D.; Peng, W.; Tabatabaei, M. Upgrading of biomass-derived bio-oil via catalytic hydrogenation with Rh and Pd catalysts. Renew. Energy 2022, 184, 487–497. [Google Scholar] [CrossRef]
  5. Jaroenkhasemmeesuk, C.; Tippayawong, N. Technical and economic analysis of a biomass pyrolysis plant. Energy Procedia 2015, 79, 950–955. [Google Scholar] [CrossRef] [Green Version]
  6. Zhu, L.; Li, K.; Ding, H.; Zhu, X. Studying on properties of bio-oil by adding blended additive during aging. Fuel 2018, 211, 704–711. [Google Scholar] [CrossRef]
  7. Khuenkaeo, N.; MacQueen, B.; Onsree, T.; Daiya, S.; Tippayawong, N.; Lauterbach, J. Bio-oils from vacuum ablative pyrolysis of torrefied tobacco residues. RSC Adv. 2020, 10, 34986–34995. [Google Scholar] [CrossRef]
  8. Xiu, S.; Shahbazi, A. Bio-oil production and upgrading research: A review. Renew. Sustain. Energy Rev. 2012, 16, 4406–4414. [Google Scholar] [CrossRef]
  9. Yang, Z.; Kumar, A.; Huhnke, R.L. Review of recent developments to improve storage and transportation stability of bio-oil. Renew. Sustain. Energy Rev. 2015, 50, 859–870. [Google Scholar] [CrossRef]
  10. Prasertpong, P.; Jaroenkhasemmeesuk, C.; Tippayawong, N.; Thanmongkhon, Y. Characterization of bio-oils from jatropha residues and mixtures of model compounds. Chiang Mai Univ. J. Nat. Sci. 2017, 16, 135–144. [Google Scholar] [CrossRef]
  11. Maree, D.C.; Heydenrych, M. Development of a Mesoporous Silica-Supported Layered Double Hydroxide Catalyst for the Reduction of Oxygenated Compounds in E. grandis Fast Pyrolysis Oils. Catalysts 2021, 11, 1527. [Google Scholar] [CrossRef]
  12. Zhang, L.; Liu, R.; Yin, R.; Mei, Y. Upgrading of bio-oil from biomass fast pyrolysis in China: A review. Renew. Sustain. Energy Rev. 2013, 24, 66–72. [Google Scholar] [CrossRef]
  13. Li, X.; Gunawan, R.; Wang, Y.; Chaiwat, W.; Hu, X.; Gholizadeh, M.; Mourant, D.; Bromly, J.; Li, C.Z. Upgrading of bio-oil into advanced biofuels and chemicals. Part III. Changes in aromatic structure and coke forming propensity during the catalytic hydrotreatment of a fast pyrolysis bio-oil with Pd/C catalyst. Fuel 2014, 116, 642–649. [Google Scholar] [CrossRef]
  14. Chong, Y.Y.; Thangalazhy-Gopakumar, S.; Gan, S.; Lee, L.Y.; Ng, H.K. Esterification and neutralization of bio-oil from palm empty fruit bunch fibre with calcium oxide. Bioresour. Technol. Rep. 2020, 12, 100560. [Google Scholar] [CrossRef]
  15. Osatiashtiani, A.; Zhang, J.; Stefanidis, S.D.; Zhang, X.; Bridgwater, A.V. The mechanism for catalytic fast pyrolysis of levoglucosan, furfural and furan over HZSM-5: An experimental and theoretical investigation. Fuel 2022, 328, 125279. [Google Scholar] [CrossRef]
  16. Lian, X.; Xue, Y.; Zhao, Z.; Xu, G.; Han, S.; Yu, H. Progress on upgrading methods of bio-oil: A review. Int. J. Energy Res. 2017, 41, 1798–1816. [Google Scholar] [CrossRef]
  17. Demirbas, M.F.; Balat, M. Recent advances on the production and utilization trends of bio-fuels: A global perspective. Energy Convers. Manag. 2006, 47, 2371–2381. [Google Scholar] [CrossRef]
  18. Song, M.; Zhong, Z.; Dai, J. Different solid acid catalysts influence on properties and chemical composition change of upgrading bio-oil. J. Anal. Appl. Pyrolysis 2010, 89, 166–170. [Google Scholar] [CrossRef]
  19. Weerachanchai, P.; Tangsathitkulchai, C.; Tangsathitkulchai, M. Effect of reaction conditions on the catalytic esterification of bio-oil. Korean J. Chem. Eng. 2012, 29, 182–189. [Google Scholar] [CrossRef]
  20. Hu, X.; Gunawan, R.; Mourant, D.; Lievens, C.; Li, X.; Zhang, S.; Chaiwat, W.; Li, C.Z. Acid-catalysed reactions between methanol and the bio-oil from the fast pyrolysis of mallee bark. Fuel 2012, 97, 512–522. [Google Scholar] [CrossRef]
  21. Hu, X.; Mourant, D.; Wang, Y.; Wu, L.; Chaiwat, W.; Gunawan, R.; Gholizadeh, M.; Lievens, C.; Garcia-Perez, M.; Li, C.Z. Acid-catalysed treatment of the mallee leaf bio-oil with methanol: Effects of molecular structure of carboxylic acids and esters on their conversion. Fuel Process. Technol. 2013, 106, 569–576. [Google Scholar] [CrossRef]
  22. Xu, Y.; Zheng, X.; Hu, X.; Dearn, K.D.; Xu, H. Effect of catalytic esterification on the friction and wear performance of bio-oil. Wear 2014, 311, 93–100. [Google Scholar] [CrossRef]
  23. Zhang, X.; Zhang, Q.; Wang, T.; Li, B.; Xu, Y.; Ma, L. Efficient upgrading process for production of low quality fuel from bio-oil. Fuel 2016, 179, 312–321. [Google Scholar] [CrossRef]
  24. Diebold, J.P. A review of the chemical and physical mechanisms of the storage stability of fast pyrolysis bio-oils. In Fast Pyrolysis of Biomass: A Handbook; Bridgwater, A.V., Ed.; CPL Press: Newbury, UK, 2002; pp. 243–292. [Google Scholar]
  25. Zhang, Q.; Xu, Y.; Li, Y.; Wang, T.; Zhang, Q.; Ma, L.; He, M.; Li, K. Investigation on the esterification by using supercritical ethanol for bio-oil upgrading. Appl. Energy 2015, 160, 633–640. [Google Scholar] [CrossRef]
  26. Liu, Y.; Li, Z.; Leahy, J.J.; Kwapinski, W. Catalytically upgrading bio-oil via esterification. Energy Fuels 2015, 29, 3691–3698. [Google Scholar] [CrossRef]
  27. Morin, P.; Hamad, B.; Sapaly, G.; Rocha, M.C.; de Oliveira, P.P.; Gonzalez, W.A.; Sales, E.A.; Essayem, N. Transesterification of rapeseed oil with ethanol: I. Catalysis with homogeneous Keggin heteropolyacids. Appl. Catal. A Gen. 2007, 330, 69–76. [Google Scholar] [CrossRef]
  28. Zhang, L.; Xian, M.; He, Y.; Li, L.; Yang, J.; Yu, S.; Xu, X. A Brønsted acidic ionic liquid as an efficient and environmentally benign catalyst for biodiesel synthesis from free fatty acids and alcohols. Bioresour. Technol. 2009, 100, 4368–4373. [Google Scholar] [CrossRef]
  29. Okuhara, T.; Mizuno, N.; Misono, M. Catalytic chemistry of heteropoly compounds. Adv. Catal. 1996, 41, 113–252. [Google Scholar]
  30. Öztürk, G.; Gümgüm, B.; Akba, O. Synthesis of esters under microwave irradiation using heteropoly acids as catalysts. Catal. Lett. 2002, 82, 233–235. [Google Scholar] [CrossRef]
  31. Timofeeva, M.N. Acid catalysis by heteropoly acids. Appl. Catal. A: Gen. 2003, 256, 19–35. [Google Scholar] [CrossRef]
  32. Cardoso, A.L.; Augusti, R.; Da Silva, M.J. Investigation on the esterification of fatty acids catalyzed by the H3PW12O40 heteropolyacid. J. Am. Oil Chem. Soc. 2008, 85, 555–560. [Google Scholar] [CrossRef]
  33. Sharma, Y.C.; Singh, B.; Korstad, J. Advancements in solid acid catalysts for ecofriendly and economically viable synthesis of biodiesel. Biofuels Bioprod. Biorefining 2011, 5, 69–92. [Google Scholar] [CrossRef]
  34. Fernandes, S.A.; Cardoso, A.L.; da Silva, M.J. A novel kinetic study of H3PW12O40-catalyzed oleic acid esterification with methanol via 1H NMR spectroscopy. Fuel Process. Technol. 2012, 96, 98–103. [Google Scholar] [CrossRef]
  35. Talebian-Kiakalaieh, A.; Amin, N.A.S.; Zarei, A.; Noshadi, I. Transesterification of waste cooking oil by heteropoly acid (HPA) catalyst: Optimization and kinetic model. Appl. Energy 2013, 102, 283–292. [Google Scholar] [CrossRef]
  36. Patel, A.; Brahmkhatri, V. Kinetic study of oleic acid esterification over 12-tungstophosphoric acid catalyst anchored to different mesoporous silica supports. Fuel Process. Technol. 2013, 113, 141–149. [Google Scholar] [CrossRef]
  37. Lu, X.; Yin, H.; Shen, L.; Feng, Y.; Wang, A.; Shen, Y.; Hang, H.; Mao, D. Reaction kinetics of the esterification reaction between ethanol and acetic acid catalyzed by Keggin heteropolyacids. React. Kinet. Mech. Catal. 2014, 111, 15–27. [Google Scholar] [CrossRef]
  38. Nowakowski, D.J.; Baronetti, G.; Bridgwater, T.; Romanelli, G.; Vázquez, P. Esterification of fast pyrolysis bio-oil using heteropoly-acid catalyst with Wells–Dawson structure. In Proceedings of the 19th International Symposium on Analytical and Applied Pyrolysis, Linz, Austria, 21–25 May 2012. [Google Scholar]
  39. Prasertpong, P.; Tippayawong, N. Upgrading of biomass pyrolysis oil model compound via esterification: Kinetic study using heteropoly acid. Energy Procedia 2019, 160, 253–259. [Google Scholar] [CrossRef]
  40. Prasertpong, P.; Jaroenkhasemmeesuk, C.; Regalbuto, J.R.; Lipp, J.; Tippayawong, N. Optimization of process variables for esterification of bio-oil model compounds by a heteropolyacid catalyst. Energy Rep. 2020, 6, 1–9. [Google Scholar] [CrossRef]
  41. Kozhevnikov, I.V. Catalysis by heteropoly acids and multicomponent polyoxometalates in liquid-phase reactions. Chem. Rev. 1998, 98, 171–198. [Google Scholar] [CrossRef]
  42. Ma’arof, N.A.N.B.; Hindryawati, N.; Khazaai, S.N.M.; Bhuyar, P.; Rahim, M.H.A.; Maniam, G.P. Exploitation of cost-effective renewable heterogeneous base catalyst from banana (Musa paradisiaca) peel for effective methyl ester production from soybean oil. Appl. Nanosci. 2021. [Google Scholar] [CrossRef]
  43. Mitran, G.; Yuzhakova, T.; Popescu, I.; Marcu, I.C. Study of the esterification reaction of acetic acid with n-butanol over supported WO3 catalysts. J. Mol. Catal. A: Chem. 2015, 396, 275–281. [Google Scholar] [CrossRef]
  44. Embong, N.H.; Hindryawati, N.; Bhuyar, P.; Govindan, N.; Rahim, M.H.A.; Maniam, G.P. Enhanced biodiesel production via esterification of palm fatty acid distillate (PFAD) using rice husk ash (NiSO4)/SiO2 catalyst. Appl. Nanosci. 2021. [Google Scholar] [CrossRef]
  45. Oliveira, C.F.; Dezaneti, L.M.; Garcia, F.A.; de Macedo, J.L.; Dias, J.A.; Dias, S.C.; Alvim, K.S. Esterification of oleic acid with ethanol by 12-tungstophosphoric acid supported on zirconia. Appl. Catal. A: Gen. 2010, 372, 153–161. [Google Scholar] [CrossRef]
  46. Gurav, H.; Bokade, V.V. Synthesis of ethyl acetate by esterification of acetic acid with ethanol over a heteropolyacid on montmorillonite K10. J. Nat. Gas Chem. 2010, 19, 161–164. [Google Scholar] [CrossRef]
  47. Ramanathan, A.; Maheswari, R.; Grady, B.P.; Moore, D.S.; Barich, D.H.; Subramaniam, B. Tungsten-incorporated cage-type mesoporous silicate: W-KIT-5. Microporous Mesoporous Mater. 2013, 175, 43–49. [Google Scholar] [CrossRef]
  48. Hu, J.C.; Wang, Y.D.; Chen, L.F.; Richards, R.; Yang, W.M.; Liu, Z.C.; Xu, W. Synthesis and characterization of tungsten-substituted SBA-15: An enhanced catalyst for 1-butene metathesis. Microporous Mesoporous Mater. 2006, 93, 158–163. [Google Scholar] [CrossRef]
  49. Chen, Y.; Zhang, X.; Dong, M.; Wu, Y.; Zheng, G.; Huang, J.; Guan, X.; Zheng, X. MCM-41 immobilized 12-silicotungstic acid mesoporous materials: Structural and catalytic properties for esterification of levulinic acid and oleic acid. J. Taiwan Inst. Chem. Eng. 2016, 61, 147–155. [Google Scholar] [CrossRef]
  50. Kleitz, F.; Liu, D.; Anilkumar, G.M.; Park, I.S.; Solovyov, L.A.; Shmakov, A.N.; Ryoo, R. Large cage face-centered-cubic Fm 3 m mesoporous silica: Synthesis and structure. J. Phys. Chem. B 2003, 107, 14296–14300. [Google Scholar] [CrossRef]
  51. Prasertpong, P.; Lipp, J.; Ramanathan, A.; Tippayawong, N.; Regalbuto, J.R. Tungsten/silica materials for bio-oil upgrading. In Proceedings of the 2019 North American Catalysis Society Meeting, Chicago, IL, USA, 25 June 2019. [Google Scholar]
  52. Gerand, B.; Nowogrocki, G.; Guenot, J.; Figlarz, M. Structural study of a new hexagonal form of tungsten trioxide. J. Solid State Chem. 1979, 29, 429–434. [Google Scholar] [CrossRef]
  53. Adam, F.; Iqbal, A. The liquid phase oxidation of styrene with tungsten modified silica as a catalyst. Chem. Eng. J. 2011, 171, 1379–1386. [Google Scholar] [CrossRef]
  54. Moulder, J.F. Handbook of X-ray Photoelectron Spectroscopy: A Reference Book of Standard Spectra for Identification and Interpretation of XPS Data; Chastain, J., Ed.; Perkin-Elmer Corporation: Eden Prairie, MN, USA, 1992. [Google Scholar]
  55. Sohn, J.R.; Park, M.Y. Preparation and characterization of tungsten oxide-zirconia catalyst. J. Ind. Eng. Chem. 1998, 4, 84–93. [Google Scholar]
  56. Jiménez-Morales, I.; Santamaría-González, J.; Maireles-Torres, P.; Jiménez-López, A. Zirconium doped MCM-41 supported WO3 solid acid catalysts for the esterification of oleic acid with methanol. Appl. Catal. A Gen. 2010, 379, 61–68. [Google Scholar] [CrossRef]
  57. Yang, X.; Wong, C.W. Stimulated Raman amplification and lasing in silicon photonic band gap nanocavities. Sens. Actuators A Phys. 2007, 133, 278–282. [Google Scholar] [CrossRef]
  58. Yang, X.L.; Dai, W.L.; Chen, H.; Xu, J.H.; Cao, Y.; Li, H.; Fan, K. Novel tungsten-containing mesoporous HMS material: Its synthesis, characterization and catalytic application in the selective oxidation of cyclopentene to glutaraldehyde by aqueous H2O2. Appl. Catal. A Gen. 2005, 283, 1–8. [Google Scholar] [CrossRef]
  59. Ramanathan, A.; Subramaniam, B.; Badloe, D.; Hanefeld, U.; Maheswari, R. Direct incorporation of tungsten into ultra-large-pore three-dimensional mesoporous silicate framework: W-KIT-6. J. Porous Mater. 2012, 19, 961–968. [Google Scholar] [CrossRef]
  60. Bhuiyan, T.I.; Arudra, P.; Akhtar, M.N.; Aitani, A.M.; Abudawoud, R.H.; Al-Yami, M.A.; Al-Khattaf, S.S. Metathesis of 2-butene to propylene over W-mesoporous molecular sieves: A comparative study between tungsten containing MCM-41 and SBA-15. Appl. Catal. A: Gen. 2013, 467, 224–234. [Google Scholar] [CrossRef]
  61. Klaewkla, R.; Arend, M.; Hoelderich, W.F. A review of mass transfer controlling the reaction rate in heterogeneous catalytic systems. In Mass Transfer-Advanced Aspects; Nakajima, H., Ed.; Intech Open Publisher: London, UK, 2011; Volume 5, pp. 667–684. [Google Scholar]
  62. Trejda, M.; Nurwita, A.; Kryszak, D. Synthesis of solid acid catalysts for esterification with the assistance of elevated pressure. Microporous Mesoporous Mater. 2019, 278, 115–120. [Google Scholar] [CrossRef]
  63. Hoo, P.Y.; Abdullah, A.Z. Direct synthesis of mesoporous 12-tungstophosphoric acid SBA-15 catalyst for selective esterification of glycerol and lauric acid to monolaurate. Chem. Eng. J. 2014, 250, 274–287. [Google Scholar] [CrossRef]
  64. Gagea, B.C.; Lorgouilloux, Y.; Altintas, Y.; Jacobs, P.A.; Martens, J.A. Bifunctional conversion of n-decane over HPW heteropoly acid incorporated into SBA-15 during synthesis. J. Catal. 2009, 265, 99–108. [Google Scholar] [CrossRef]
  65. Li, Z.; Wnetrzak, R.; Kwapinski, W.; Leahy, J.J. Synthesis and characterization of sulfated TiO2 nanorods and ZrO2/TiO2 nanocomposites for the esterification of biobased organic acid. ACS Appl. Mater. Interfaces 2012, 4, 4499–4505. [Google Scholar] [CrossRef]
  66. Li, L.; Yan, B.; Li, H.; Yu, S.; Ge, X. Decreasing the acid value of pyrolysis oil via esterification using ZrO2/SBA-15 as a solid acid catalyst. Renew. Energy 2020, 146, 643–650. [Google Scholar] [CrossRef]
  67. Ye, J.; Liu, C.; Fu, Y.; Peng, S.; Chang, J. Upgrading bio-oil: Simultaneous catalytic esterification of acetic acid and alkylation of acetaldehyde. Energy Fuels 2014, 28, 4267–4272. [Google Scholar] [CrossRef]
Catalysts 13 00038 g001 550

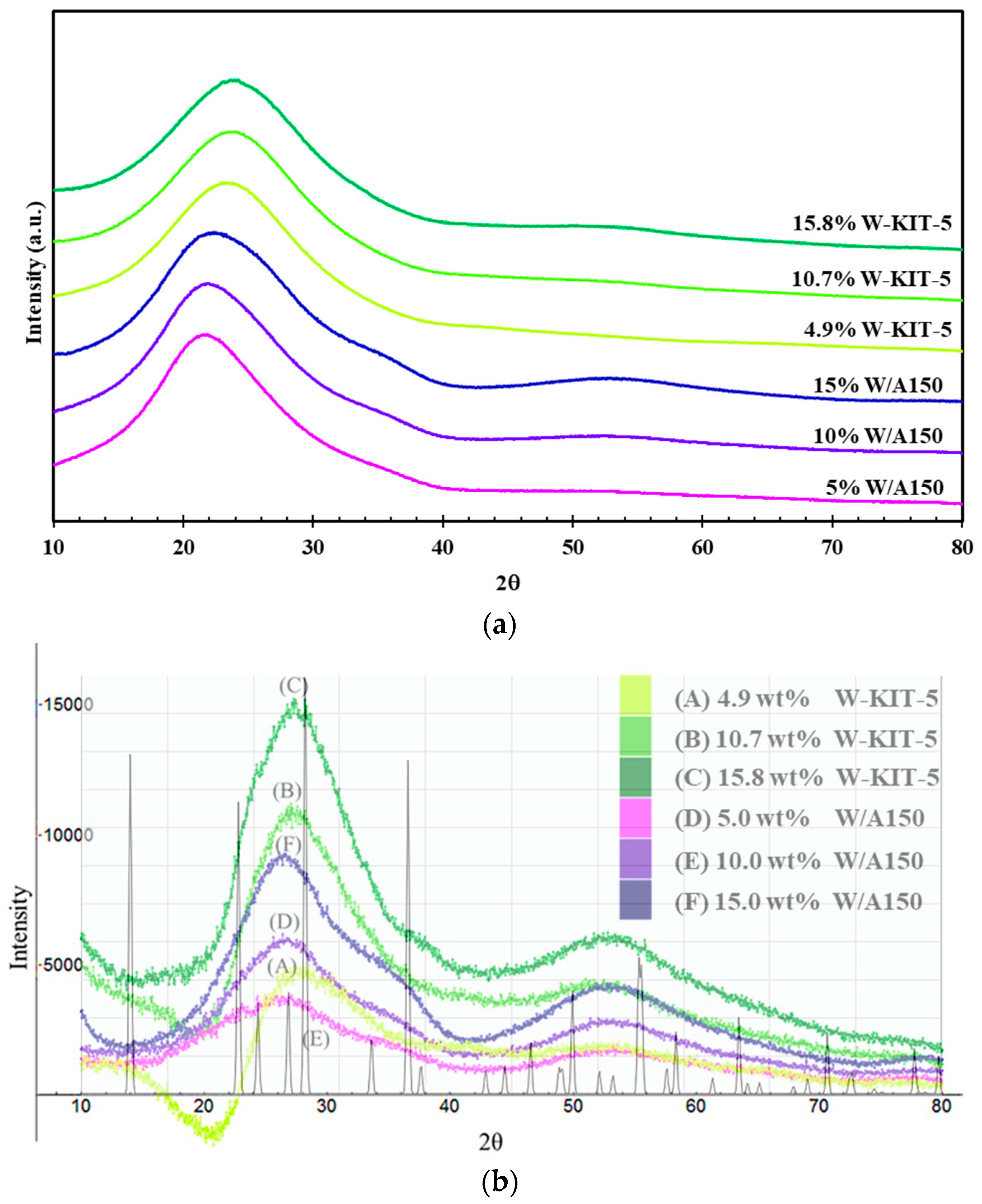

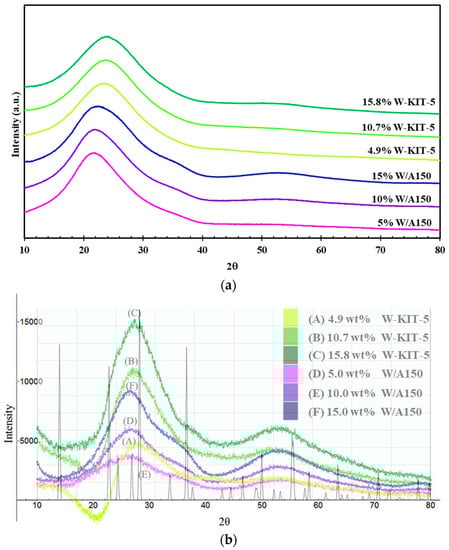

Figure 1. X-ray diffraction results of synthesized W/A150 and W-KIT-5 catalysts; (a) raw X-ray diffraction patterns; (b) background-subtracted patterns.
Figure 1. X-ray diffraction results of synthesized W/A150 and W-KIT-5 catalysts; (a) raw X-ray diffraction patterns; (b) background-subtracted patterns.
Catalysts 13 00038 g001
Catalysts 13 00038 g002 550

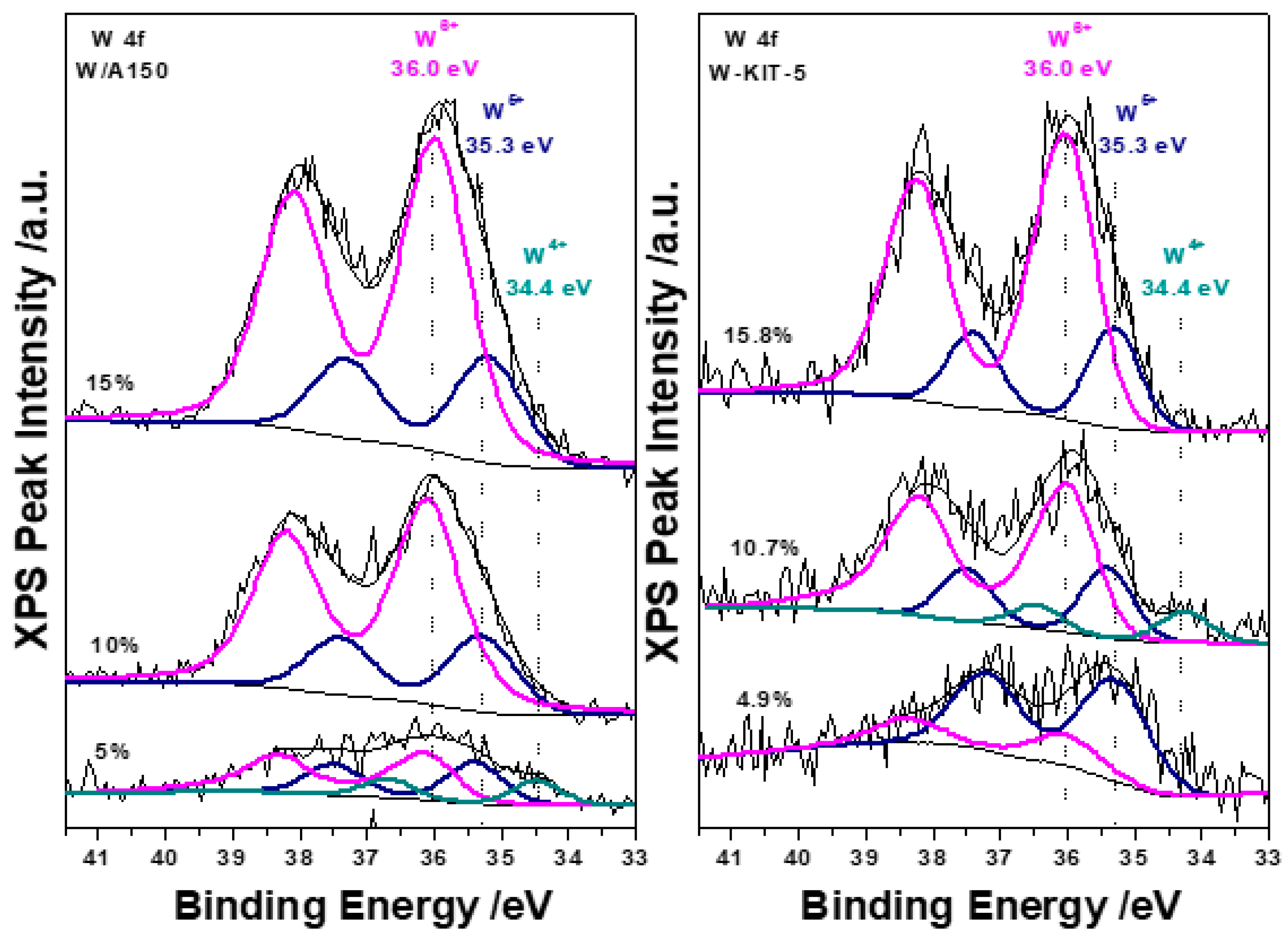

Figure 2. XPS spectra of the W 4f photoelectron peak for W/A150 and W-KIT-5, showing the 6+, 5+, and 4+ oxidation states of W that are present on the catalysts.
Figure 2. XPS spectra of the W 4f photoelectron peak for W/A150 and W-KIT-5, showing the 6+, 5+, and 4+ oxidation states of W that are present on the catalysts.
Catalysts 13 00038 g002
Catalysts 13 00038 g003 550

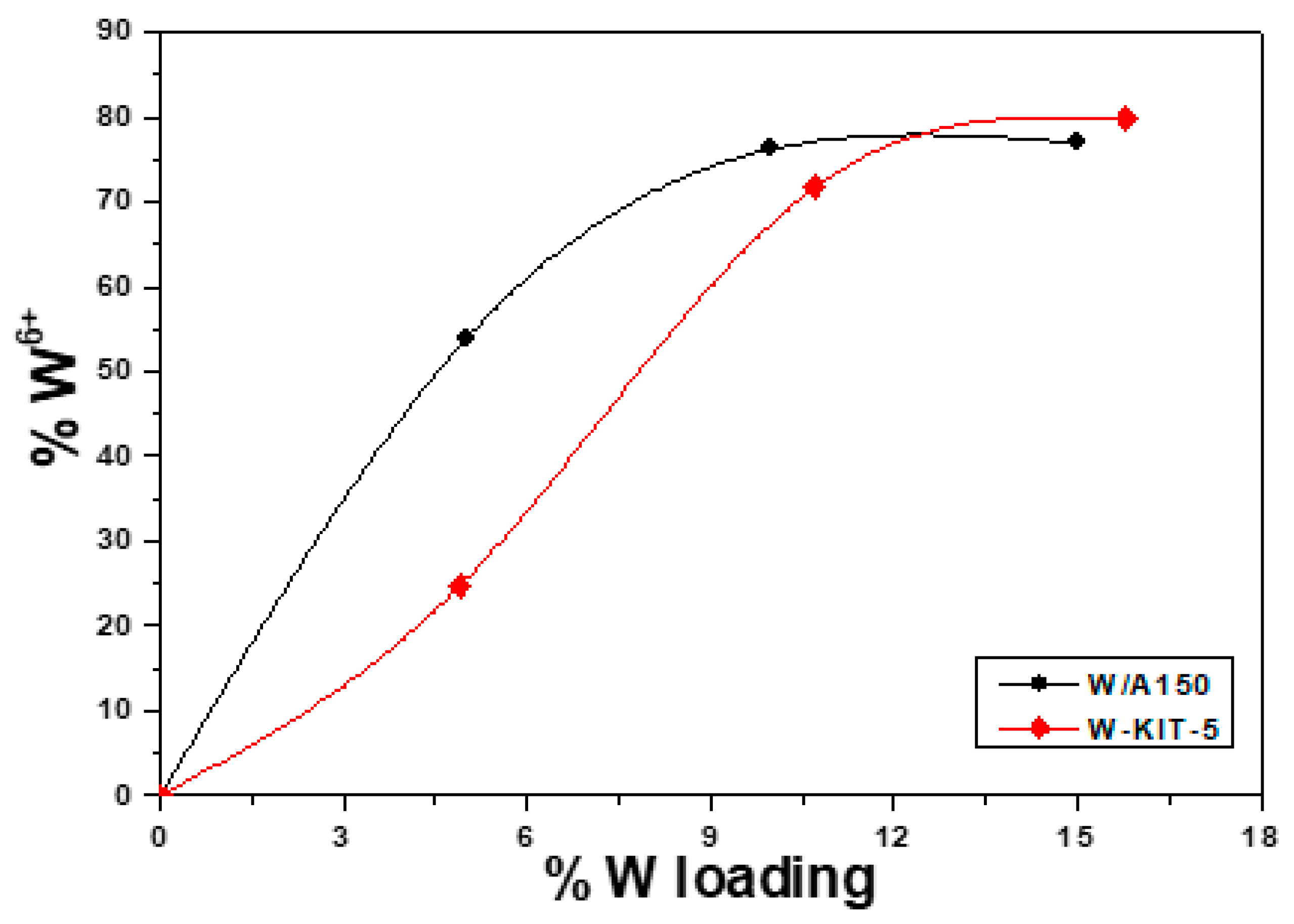

Figure 3. The % relative amount of W 6+ oxidation state detected in each catalyst, as a function of the % W loading.
Figure 3. The % relative amount of W 6+ oxidation state detected in each catalyst, as a function of the % W loading.
Catalysts 13 00038 g003
Catalysts 13 00038 g004a 550Catalysts 13 00038 g004b 550

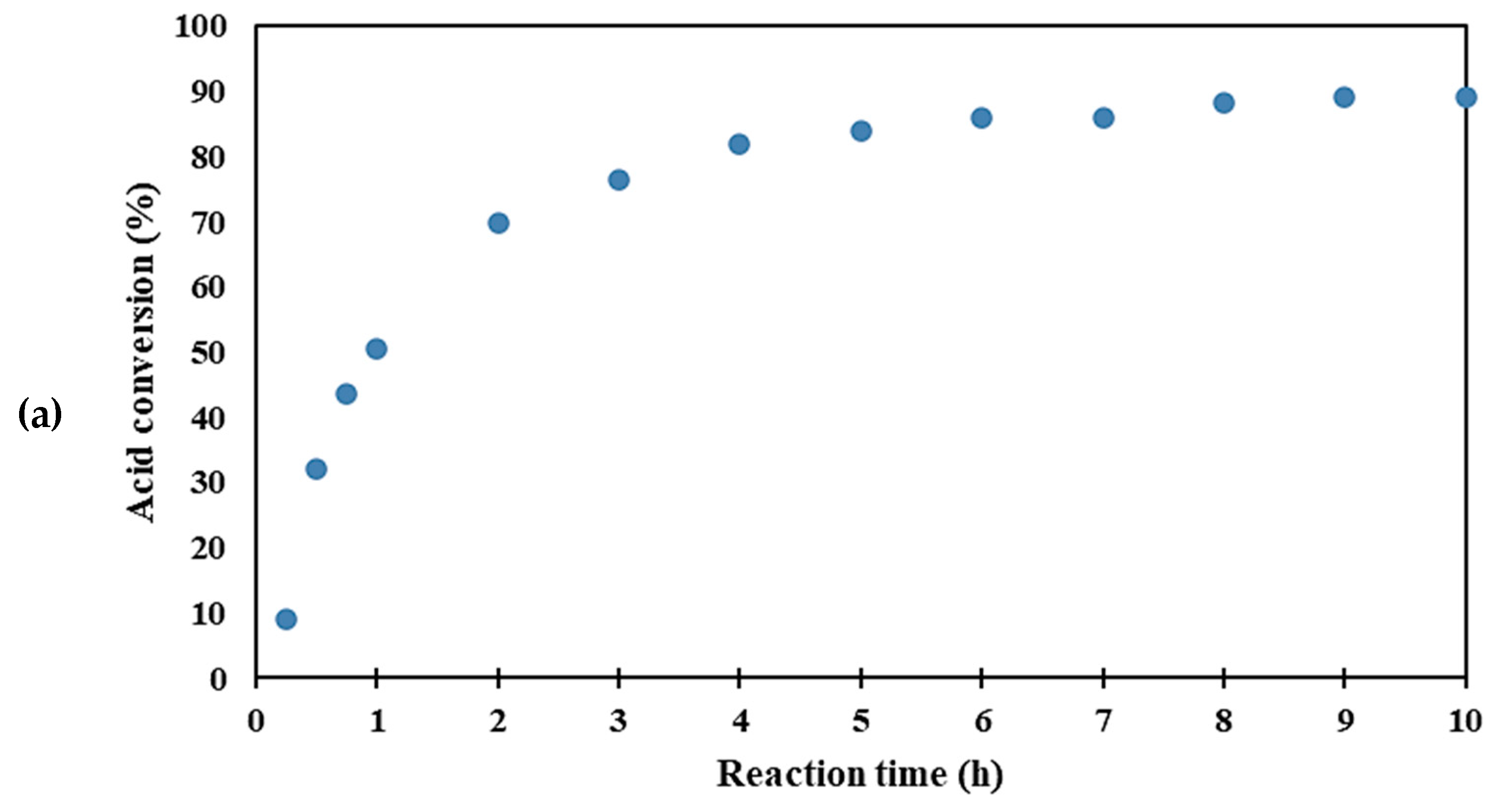

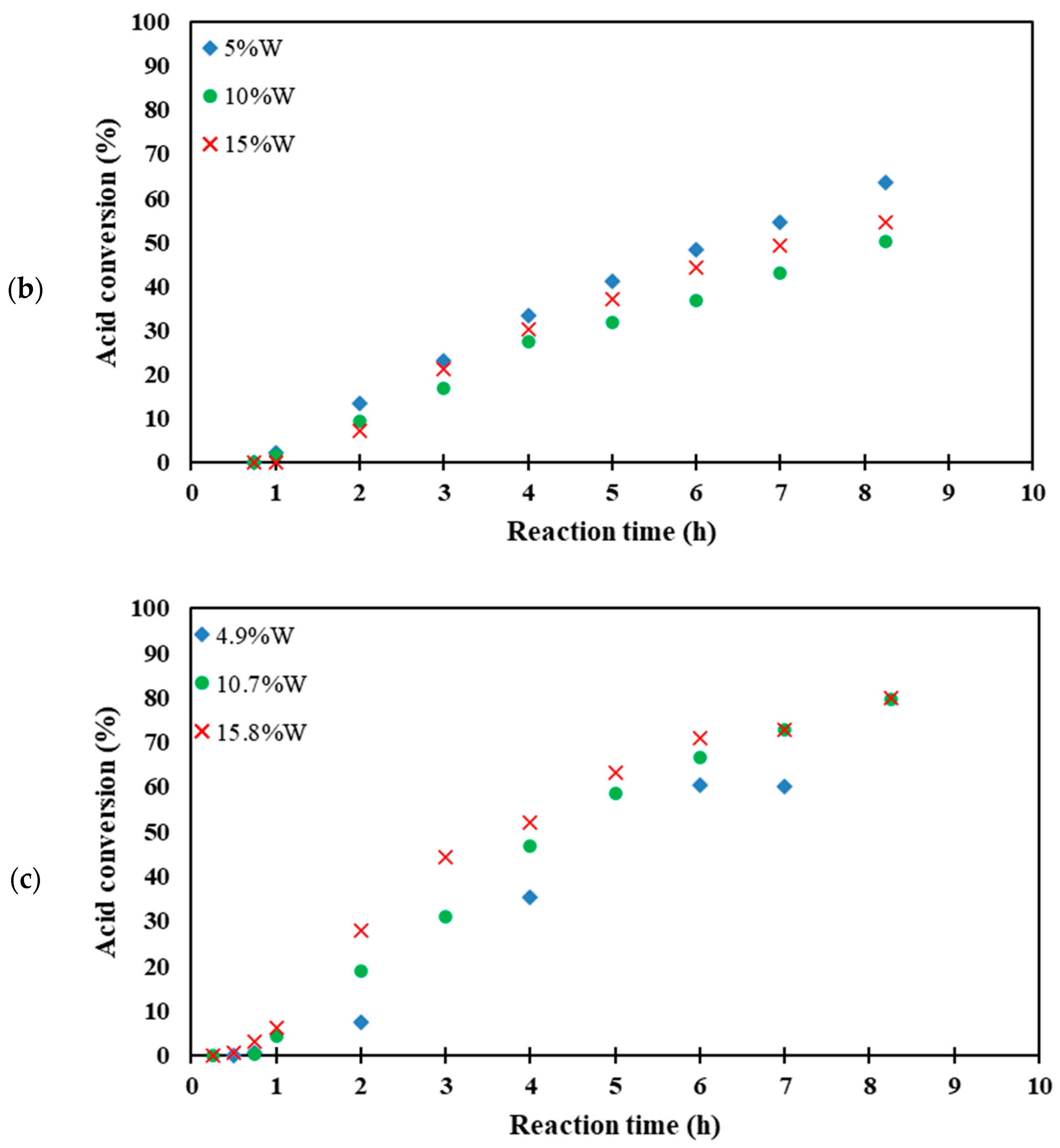

Figure 4. The esterification reaction rate with (a) tungstosilicic acid, (b) W/A150, and (c) W-KIT-5.
Figure 4. The esterification reaction rate with (a) tungstosilicic acid, (b) W/A150, and (c) W-KIT-5.
Catalysts 13 00038 g004aCatalysts 13 00038 g004b
Catalysts 13 00038 g005 550

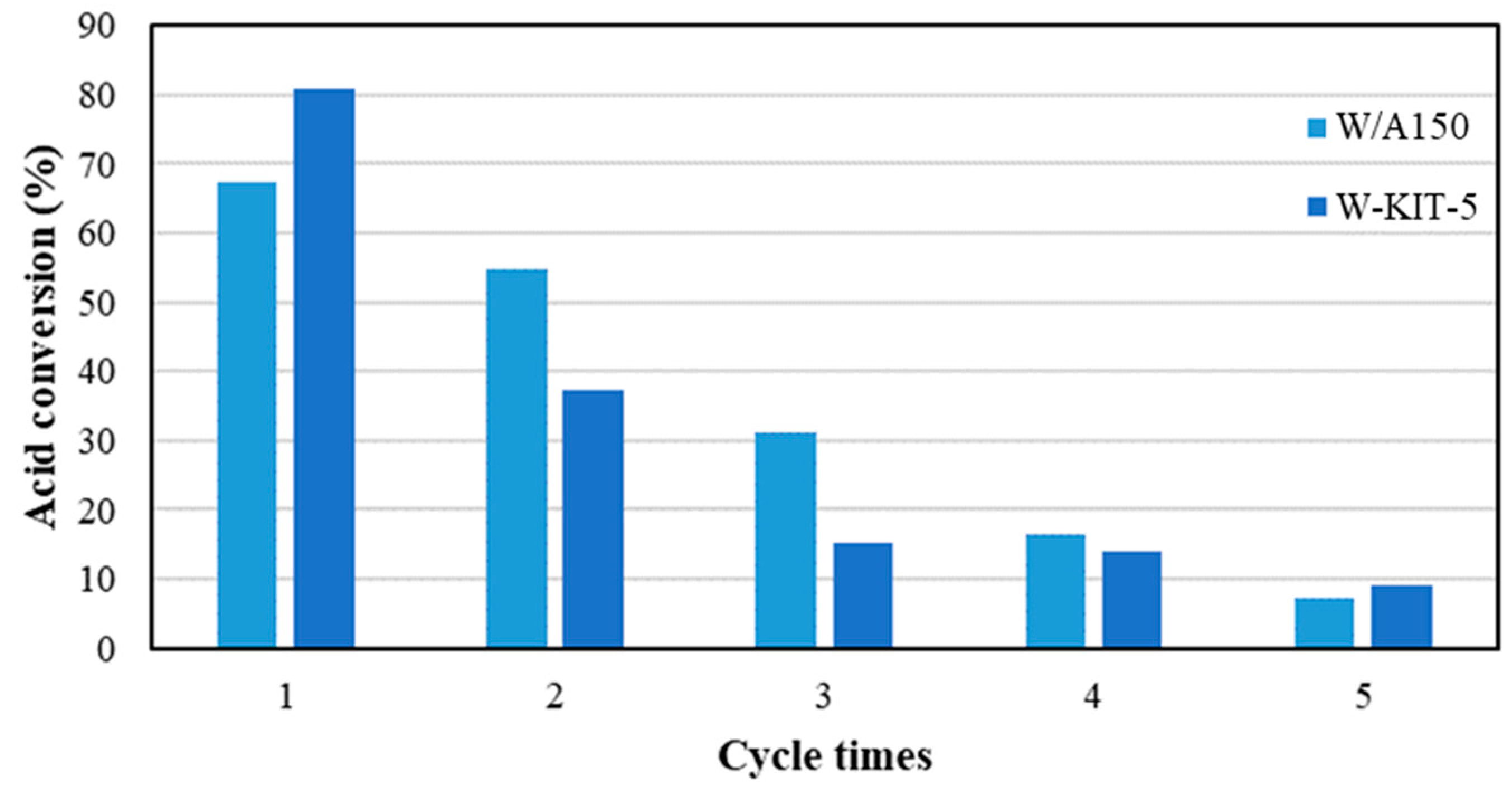

Figure 5. Reusability of the catalyst.
Figure 5. Reusability of the catalyst.
Catalysts 13 00038 g005
Catalysts 13 00038 g006 550

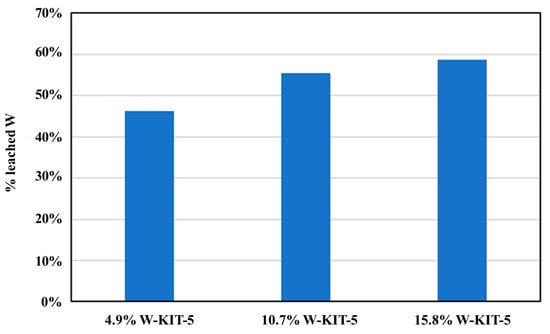

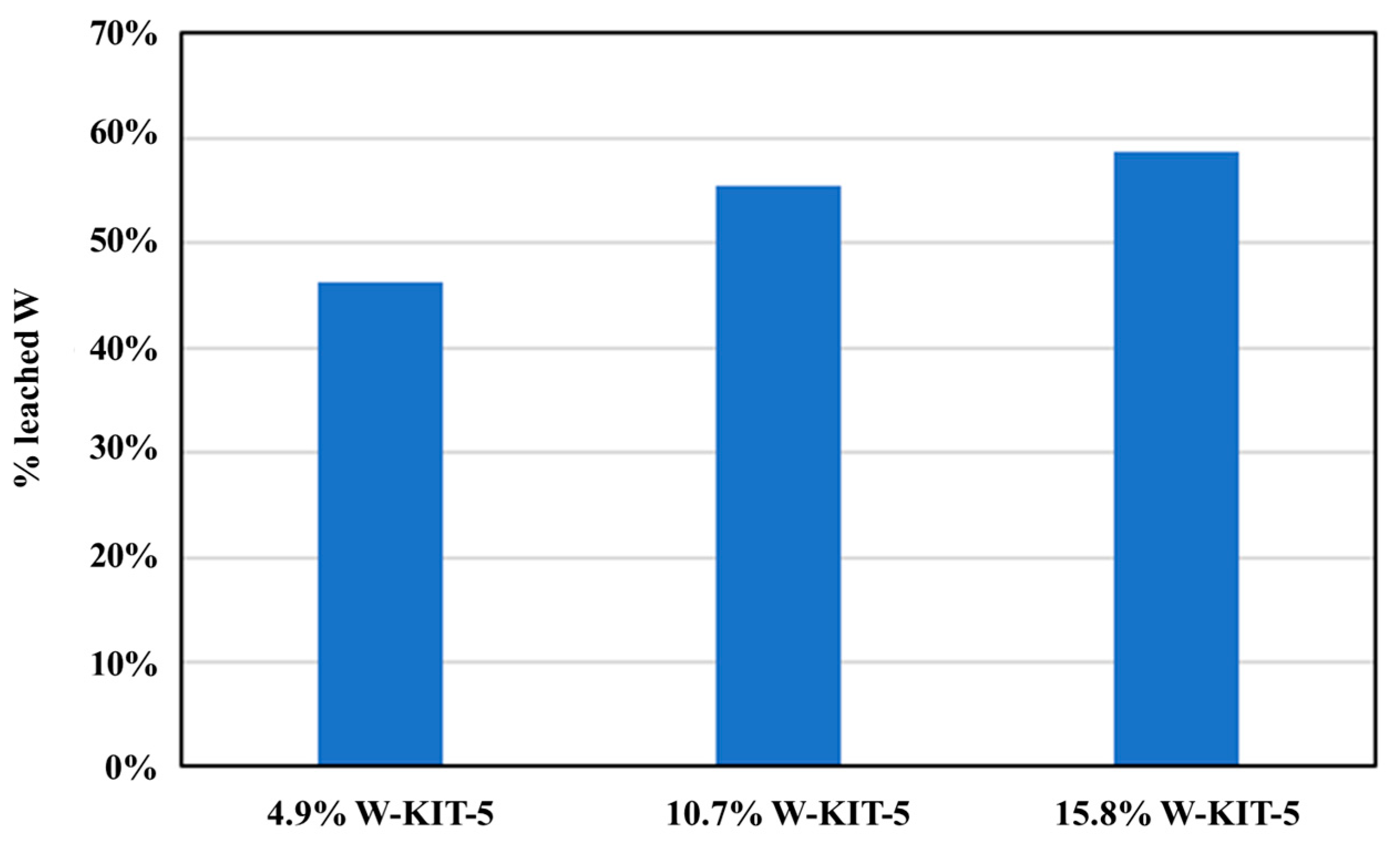

Figure 6. ICP analysis results of the W-KIT-5 catalysts after one use.
Figure 6. ICP analysis results of the W-KIT-5 catalysts after one use.
Catalysts 13 00038 g006
Table
Table 1. Chemical characteristics, textural properties, and acidity of the synthesized catalysts.
Table 1. Chemical characteristics, textural properties, and acidity of the synthesized catalysts.
Catalyst
(wt% of W)		Calculated W/Si
(Atomic Ratio)		Surface Area
(m2/g)		Pore Volume
(cm3/g)		Pore Size
(nm)		Total Acidity
(mmol NH3/g)
A150-1531.2131.60.6
W/A150 (5%)0.004 1291.0131.41.4
W/A150 (10%)0.011 1401.0830.92.4
W/A150 (15%)0.0221130.7928.12.4
KIT-5-6730.402.410.5
W-KIT-5 (4.9%)0.0047950.552.711.6
W-KIT-5 (10.7%)0.0097430.522.816.5
W-KIT-5 (15.8%)0.0197020.543.116.0
Table
Table 2. Reaction rate of tungstosilicic acid and synthesized catalysts.
Table 2. Reaction rate of tungstosilicic acid and synthesized catalysts.
Catalyst (wt% of W)Reaction Rate (mol/gW/h)
Tungstosilicic acid0.50
W/A150 (5%)0.06
W/A150 (10%)0.05
W/A150 (15%)0.07
W-KIT-5 (4.9%)0.08
W-KIT-5 (10.7%)0.07
W-KIT-5 (15.8%)0.10
Table
Table 3. Catalytic esterification of the bio-oil model.
Table 3. Catalytic esterification of the bio-oil model.
Catalyst (wt% of W)Acid Conversion (%)
Without catalyst8
Tungstosilicic acid87
W/A150 (5%)59
W/A150 (10%)52
W/A150 (15%)50
W-KIT-5 (4.9%)76
W-KIT-5 (10.7%)81
W-KIT-5 (15.8%)80
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Prasertpong, P.; Lipp, J.; Dong, A.; Tippayawong, N.; Regalbuto, J.R. Heterogenization of a Tungstosilicic Acid Catalyst for Esterification of Bio-Oil Model Compound. Catalysts 2023, 13, 38. https://doi.org/10.3390/catal13010038

AMA Style

Prasertpong P, Lipp J, Dong A, Tippayawong N, Regalbuto JR. Heterogenization of a Tungstosilicic Acid Catalyst for Esterification of Bio-Oil Model Compound. Catalysts. 2023; 13(1):38. https://doi.org/10.3390/catal13010038

Chicago/Turabian Style

Prasertpong, Prapaporn, Jeremiah Lipp, Anhua Dong, Nakorn Tippayawong, and John R. Regalbuto. 2023. "Heterogenization of a Tungstosilicic Acid Catalyst for Esterification of Bio-Oil Model Compound" Catalysts 13, no. 1: 38. https://doi.org/10.3390/catal13010038

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
