Article

5-Hydroxymethylfurfural Oxidation to 2,5-Furandicarboxylic Acid on Noble Metal-Free Nanocrystalline Mixed Oxide Catalysts

by
Atif Emre Demet
1,2,3,
Olinda Gimello
2,
Rossella Arletti
4,
Nathalie Tanchoux
2,
Moulay Tahar Sougrati
2,
Lorenzo Stievano
2,
Françoise Quignard
2,
Gabriele Centi
5,
Siglinda Perathoner
1 and
Francesco Di Renzo
2,*
1
Department ChiBioFarAm, Università di Messina, 98166 Messina, Italy
2
ICGM, Université de Montpellier, CNRS, ENSCM, 34090 Montpellier, France
3
Energy System Engineering, Necmettin Erbakan University, Köyceğiz Mah. Demeç Sok. No:42/A Meram, Konya 42090, Turkey
4
Department Chemical and Geological Sciences, Università di Modena e Reggio Emilia, 41125 Modena, Italy
5
MIFT, Università di Messina, 98166 Messina, Italy
*
Author to whom correspondence should be addressed.
Catalysts 2022, 12(8), 814; https://doi.org/10.3390/catal12080814
Submission received: 19 June 2022 / Revised: 20 July 2022 / Accepted: 22 July 2022 / Published: 25 July 2022
(This article belongs to the Special Issue Catalytic Conversion of Biomass to Added Value Chemicals)

Abstract

:
Noble metal-free catalysts based on earth-abundant and inexpensive mixed oxides are active catalysts of all steps of the reaction cascade leading from 5-hydroxymethylfurfural (HMF) to 2,5-furandicarboxylic acid (FDCA) using tert-butyl hydroperoxide (TBHP) as oxidation agent. Catalysts covering the whole range of composition in the Cu-Mn and Co-Fe series have been prepared and characterised. The nature and composition of the catalyst strongly affect conversion and selectivity. The distribution of products indicates that radical-type oxygen species, deriving from the activation of TBHP, play a determining role in the reaction. The early steps of reaction mainly follow the pattern expected for heterogeneous Fenton catalysts. Mixed oxide catalysts are the most effective in further oxidation steps, leading to the formation of FDCA, both in the Cu-Mn and Co-Fe systems. This behaviour can be related to the distribution of charge in the mixed oxides, suggesting a possible implication of the lattice oxygen in the last reaction steps. The results provide indications on how to optimize the reaction and minimize the formation of byproducts (humins and oligomers).

Graphical Abstract

1. Introduction

The synthesis of FDCA (2,5-furandicarboxylic acid) is at the center of a wide research effort as one of the most promising high-added-value biorefinery products [1]. FDCA, together with ethylene glycol, allows the production of PEF (polyethylene furanoate), a bio-based alternative to fossil-fuel-based PET (polyethylene terephthalate), one of the largest volume polymers [2]. Its catalytic synthesis from HMF (5-hydroxymethylfurfural), a platform molecule derived from renewable resources [3,4,5], is one of the main ways for the introduction of renewable feedstocks in polymer production [6,7].

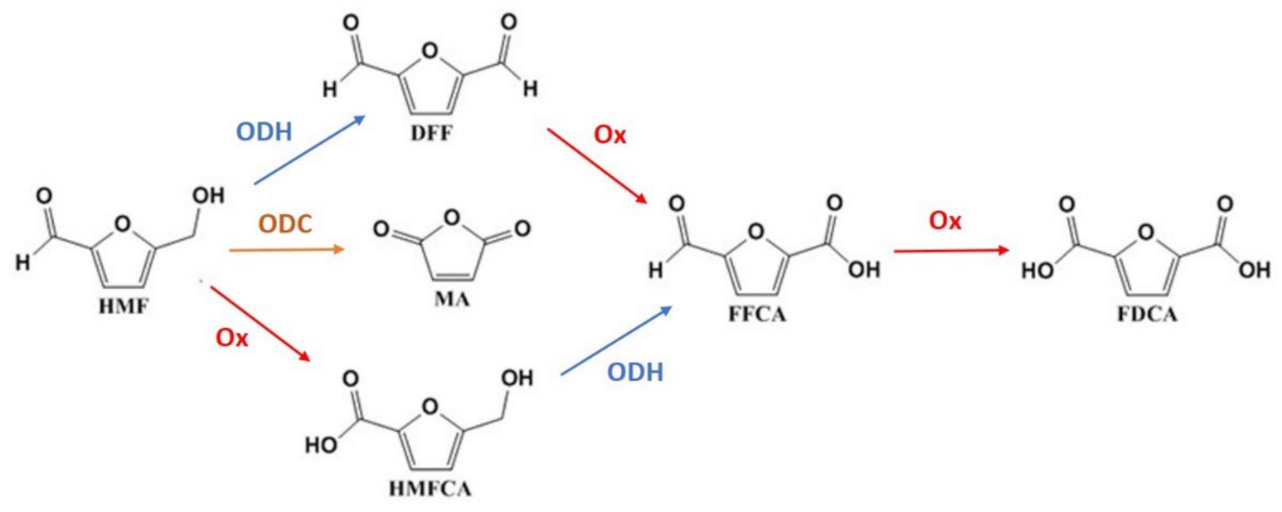

The oxidation of HMF to FDCA is a complex cascade process involving several intermediates in parallel or successive reactions (Figure 1) [8]. The first step of the process can imply either the oxydehydrogenation of the alcohol group of HMF to aldehyde, forming 2,5-diformylfuran (DFF), or the oxidation of the carbonyl group to carboxylic acid into 5-hydroxymethyl-2-furancarboxylic acid (HMFCA). The successive steps are the oxidation of a carbonyl group of DFF or the oxydehydrogenation of the alcohol group of HMFCA, both reactions forming 5-formyl-2-furancarboxylic acid (FFCA), which is later oxidised to FDCA. This reaction mechanism, already quite complex from a kinetic point of view, can be further complexified by several reactions in competition with the oxidation to FDCA, such as the formation of maleic anhydride by oxydecarboxylation [9], the condensation to oligomers and humins [10,11], or the opening of the furanic ring by overoxidation [12,13,14,15].
The largest majority of the catalysts proposed for this process are based on supported noble metals [16,17,18,19,20]: Pt [21,22,23,24,25,26,27,28,29,30,31], Pd or Pd-alloys [13,32,33,34,35,36,37,38,39,40], Au or gold-alloys [41,42,43,44,45,46,47,48], Ru [49,50,51,52,53,54,55], and Ag oxide [56,57,58]. A selection of literature results, presented in Table 1, provides some indication of the effectiveness of noble metal catalysts and on their different behaviours. The reaction is usually performed in water under an oxygen atmosphere. The availability of an oxidant depends on the solubility of oxygen. The time course of the reaction presents an initial phase of faster oxidation of HMF to FFCA through DFF or HMFCA intermediates, followed by a phase of slower oxidation of FFCA to FDCA. The nature of the catalyst and the support affect the relative relevance of the two possible paths to FFCA, through either DFF or HMFCA. Basic supports are nearly always used. Hydroxide supports especially affect the reaction pathway. DFF intermediates are mainly observed on Pt, Ru, and AuPd alloys on supports without structural hydroxide groups, like doped carbon or carbon nanotubes. HMFCA is the main intermediate observed on hydroxide-supported catalysts and on Au, Pd, and Ag catalysts. It can be remarked that the observation of an intermediate, either DFF or HMFCA, does not prove that FFCA is mostly formed through the most observed intermediate, which can just be accumulated by a very slow rate of reaction towards the final product.
In a general way, the use of hydroxide supports significantly increased the rate of oxidation. This effect has been attributed to the nucleophilic addition of a surface hydroxide to the aldehyde group of HMF, allowing the formation of a gem-diol intermediate, which can be oxydehydrated to form the carboxylic group of HMFCA [23,36]. A potential drawback of several layered double hydroxide (LDH) supports is the poor reusability, due to Mg leaching in the reaction solution [13,59]. The use of MgCaAl LDH or the incorporation of other basic oxides has been proposed to improve the reusability of the catalyst [33]. On the basis of this role of the hydroxide, it is not surprising that dissolved alkalis were widely used to sustain the activity of HMF oxidation catalysts [12,25,28,39,44,60,61,62]. Selected literature results are reported in Table 2.
The use of a dissolved base has clearly brought an increase in productivity. The absence of detected DFF indicates that the aldehyde oxidation reaction Ox1 has prevailed on the alcohol oxydehydrogenation ODH1 (see Figure 1). Despite the observed increase in productivity, the use of alkaline solutions requires special care in order to balance the effects of the oxidation catalyst with the base-catalysed degradation of HMF, leading to ring-opening and condensation products, with a significant worsening of the carbon balance [29,60,61]. The base-induced Cannizzaro disproportionation of aldehydes to alcohols and acids can introduce reaction pathways in competition with oxidation, with the formation of BHMF (2,5-bis(hydroxymethyl)furan) and HMFCA by disproportionation of HMF [63], the formation of FFCA and HMF by disproportionation of DFF, or the disproportionation of FFCA and HMF to FDCA and BHMF [39]. The esterification of aldehyde groups by Tishchenko coupling [64] can contribute to the formation of condensation products by a pathway different from the acid-catalysed aldol condensation to humins [10,65]. The realisation of the superposition of so different reaction pathways has relegated several interpretations of the kinetics of HMF oxidation to obsolescence.
The intrinsic reactivity of the substrate and the different possible reaction pathways under comparable reaction conditions question the specific role of the catalyst in the reaction mechanism, for example, the reactivity of surface oxygens as Me-OH sites as indicated by Davis et al. [42], or the specific activation of the reactants over the metal surface [33,58]. An alternative interpretation is based on the generation of the peroxo species by oxygen activation (which is less dependent on the nature of the noble metal particles), these species being then responsible for the catalytic transformation. This second interpretation is supported by some studies which use (i) H2O2 or organic peroxides as the oxidant [15,66] or (ii) typical systems for homogeneous catalytic oxidation in the liquid phase (Co/Mn/Br catalyst) [67,68,69,70], where a radical mechanism is prevailing.
Understanding whether a radical-type mechanism activated from the generation of a peroxo-type oxygen species is present is a relevant question not only from a fundamental perspective but also for the possible development of novel, noble-metal free, catalysts for this reaction. There are, in fact, various motivations to develop this type of catalyst, the main one being related to the prevention of the use of critical and expensive raw materials (such as noble metals) to develop environmentally friendly catalysts, an aspect particularly relevant in the production of bio-based chemicals where societal and environmental impacts are determining factors. This has motivated the existing studies on catalysts for FDCA synthesis not containing noble metals. However, some of them contain other critical raw materials such as cerium [12,62,71,72]. A limited number of studies were based on mixed oxides of widely available transition metals such as Mn, Fe, Co, or Cu [73,74,75,76]. Some selected literature results are reported in Table 3. The productivity of mixed oxide systems was largely comparable with the results obtained on supported noble metal catalysts in the absence of bases (Table 1). Transition metals were also incorporated in porous matrices [77,78], and especially high productivity was measured on very low-density porous organic polymers or graphene, which could require further support for scaled-up use [79,80].
Tert-butyl hydroperoxide (TBHP) was extensively used as the oxidant, providing higher oxidation yields than molecular oxygen [73,75,81], essentially due to the limited solubility of the latter. However, it was observed that TBHP could easily lead to the degradation and condensation of furanic compounds [82]. In several cases, also on this kind of catalyst, dissolved bases were used to foster the aldehyde oxidation [83,84].
The performances of the catalysts should still be improved. A better understanding of the mechanism and the role of the catalysts, innovative processes, and the direct injection of energy into the reaction system [54,61,85,86,87], can enhance selectivity and productivity. Another motivation to develop novel catalysts for HMF oxidation derives from an aspect that is not extensively investigated in the literature but instead is a critical question from an industrial perspective: the formation of products of poly-condensation during the liquid phase catalytic oxidation of HMF to FDCA. These products are difficult to analyse and thus they are often not considered in reporting the catalytic performances, especially when a careful carbon balance is not considered. However, in the industrial process, they represent a major problem, because they are responsible for carbon loss and catalyst deactivation by fouling. These products, in addition to humins formed by acid-catalysed reactions followed by aldol addition and condensation [10], likely derive from radical-type reactions and it is important to understand the role of these reactions in the FDCA synthesis. Limiting these reactions is thus both relevant from the environmental perspective (to limit waste products) and to improve the stability of the catalyst.
In order to obtain information on these aspects and develop environmentally friendly catalysts, this work will investigate noble-metal-free mixed spinels of the Cu-Mn and Co-Fe series, not yet extensively investigated in the HMF oxidation to FDCA. Tert-butyl hydroperoxide is used as an oxidant because the aim is to understand the role of the peroxo species in the reaction mechanism. The comparison of the behaviour in the two series of spinel-type catalysts, with respect to their structural and redox characteristics, provides indications regarding the role of the radical-type species in the different steps of the reaction network. Together with the analysis of the effect of the reaction conditions, it is also possible to obtain an indication of how to minimize side reactions and maximize FDCA formation.

2. Results

2.1. Characterisation of Catalysts

2.1.1. Copper-Manganese Oxides

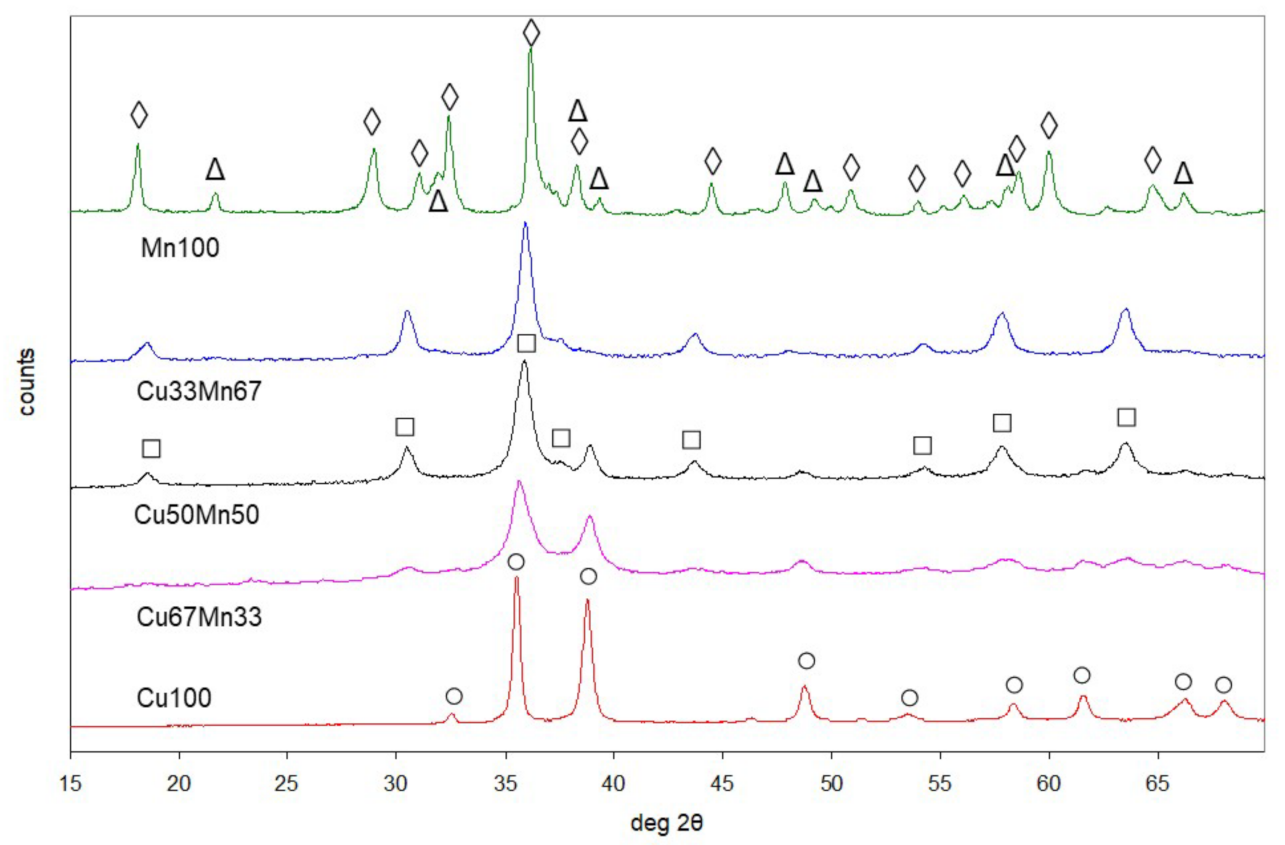

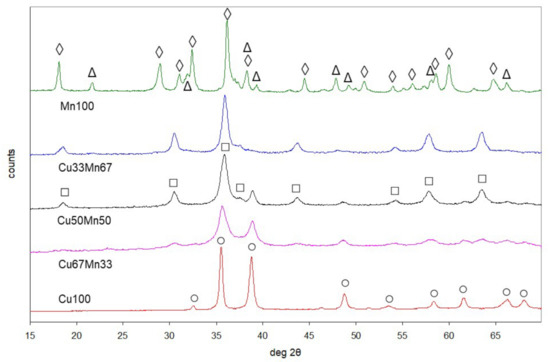

Cu-Mn catalysts in the field of the atomic ratio Mn/(Cu + Mn) between 0 and 1 were prepared by coprecipitation and were calcined at 450 °C. The X-ray diffraction patterns of the catalysts are reported in Figure 2, the samples being called by their cation percent atomic ratio, for instance, Mn33Cu67. The formation of solid solutions with an extended field of continuous variation of composition is not favoured in the copper-manganese system [88]. The phase ratios observed for different global compositions of the samples are reported in Table S1. In the sample Cu100, the only observed phase is CuO tenorite. For Cu67Mn33 and Cu50Mn50, the phases observed are CuO and a cubic spinel. The increase of the manganese content brings about an increase in the fraction of spinel until the cubic spinel is the only observed phase for the sample Cu33Mn67. The phases observed in Mn100 are tetragonal haussmannite Mn3O4 and Mn5O8.
It is worth recalling that the cation distribution in copper-manganese spinels represents a special case of internal redox equilibrium between Cu+tetr + Mn4+oct and Mn3+tetr + Cu2+oct [89]. This equilibrium is shifted as a function of the Mn/Cu ratio and copper becomes virtually completely oxidized to Cu2+ for Mn/Cu ratios lower than 1 [88,90]. However, copper-rich samples retain a significant amount of Mn4+ along Mn3+, which will correspond to the creation of cation defects in the spinel structure [90,91]. The cell parameter of spinel, reported in Table 4, increases with manganese content but the less-than-expected increase corresponds to the presence of cation defects [92,93].
The surface area and grain size of the Cu-Mn samples are reported in Table 4. Further data from N2 sorption are reported in Table S2 and Figure S1. In this system, the mixed oxides present a higher surface area than the copper and manganese end-terms. However, the surface area significantly varies with the composition of the oxides. The surface area features a maximum of more than 100 m2 g−1 for Cu67Mn33 and steadily decreases for higher Mn contents. It is remarkable that the grain size of tenorite is much smaller in the mixed samples than for CuO crystallised alone in Cu100 and is comparable to the grain size of spinel. This strongly suggests that the presence of foreign cations increases the ratio between nucleation and growth rates of the oxide. The grain size of each phase of the mixed samples slightly increases with the Mn content.

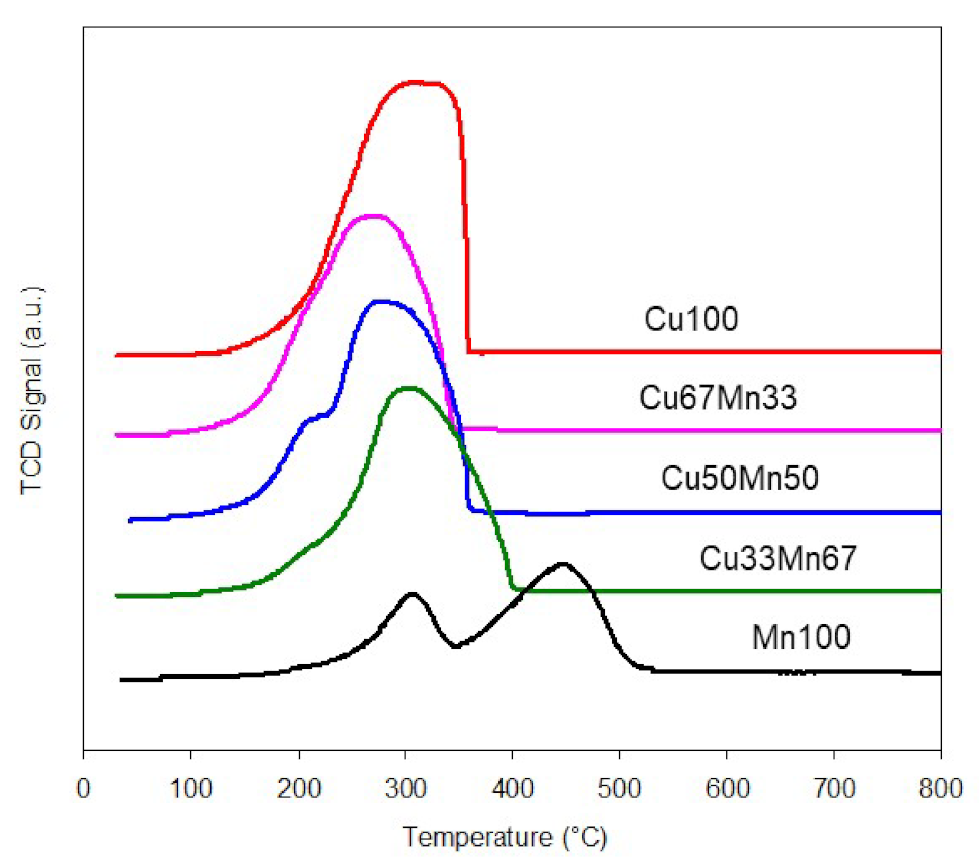

The TPR profiles of the Cu-Mn catalysts are reported in Figure 3. The consumption of H2 in the tests is reported in Table S3. The reduction of the CuO sample to metallic Cu begins at nearly 125 °C and is completed at 365 °C after a highly skewed peak with a maximum of 310 °C. In the case of the mixed Cu-Mn samples, the onset of the reduction is always observed at nearly 125 °C and develops into a shoulder at about 220 °C, with intensities decreasing as the copper content decreases. This initial reduction signal probably corresponds to the fast reduction of small-crystal CuO (see Table 4). The main reduction peak corresponds to the reductive decomposition of spinel. The maximum temperature of the main peak of the reduction of spinel increases from 275 to 305 °C at the increase of the manganese fraction. It seems likely that the presence of metallic copper catalyzes a faster reduction of the manganese species to metal [94]. The reduction of the Mn100 sample, in the absence of copper, begins at nearly 160 °C and is composed of two peaks with maximums at 315 and 455 °C, which can be attributed to the reduction of Mn4+ and Mn3+ cations to Mn2+, respectively.

2.1.2. Cobalt-Iron Oxides

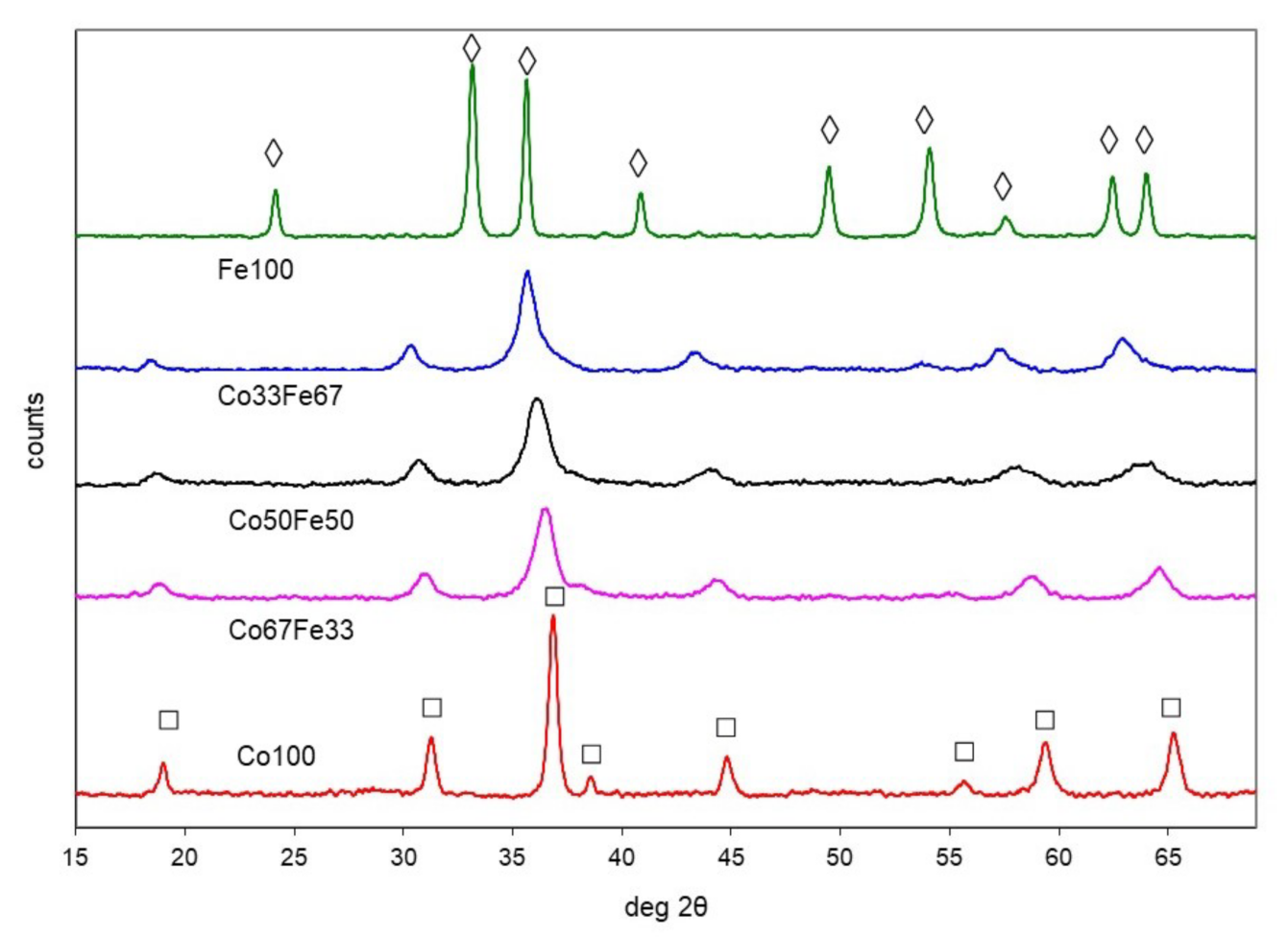

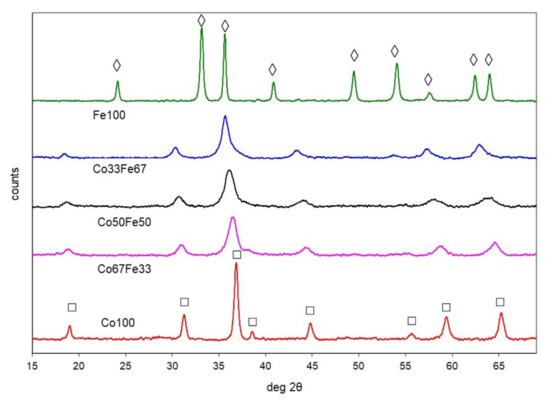

The X-ray diffraction patterns of the Co-Fe catalysts in the field of the atomic ratio Fe/(Fe + Co) between 0 and 1 are reported in Figure 4. Data from the textural and phase characterisation of the catalysts are summarized in Table 5. Further data from N2 sorption are reported in Table S2 and Figure S2. The formation of cubic spinel solid solutions on the whole composition domain can be evidenced, with the only exception of the all-iron sample. The cell parameter of spinel changes with the iron content from 8.09 Å for Co3O4 direct spinel to 8.36 Å for the mostly inverted cobalt ferrite CoFe2O4. The all-iron sample contains only hematite (α-Fe2O3), as expected from the phase diagram in oxidising conditions. The surface area of the mixed spinels, reported in Table 5, is about 80 m2 g−1, nearly twice the surface area of the cobalt and iron oxides end-terms.

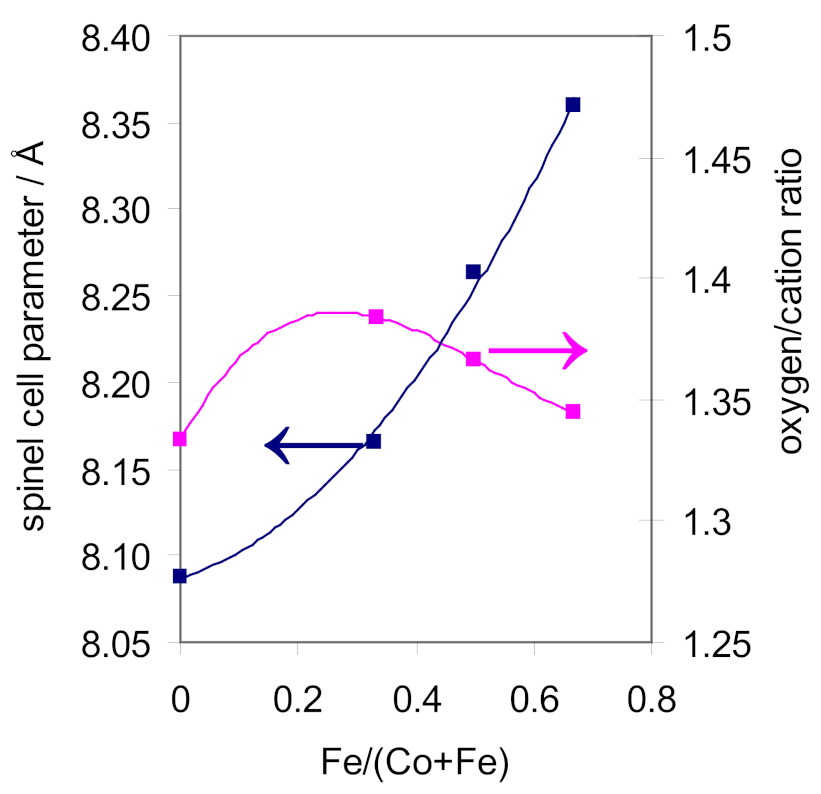

The increase of the cell parameter is not linear with the iron fraction, as indicated in Table 5 and highlighted in Figure 5. The cell size of the samples Fe33Co67 and Fe50Co50 is smaller than the value expected for a Vegard’s law solid solution between cobalt spinel Co3O4 and cobalt ferrite CoFe2O4.

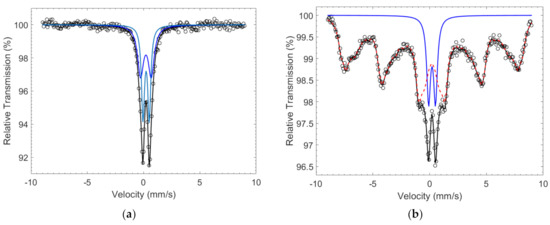

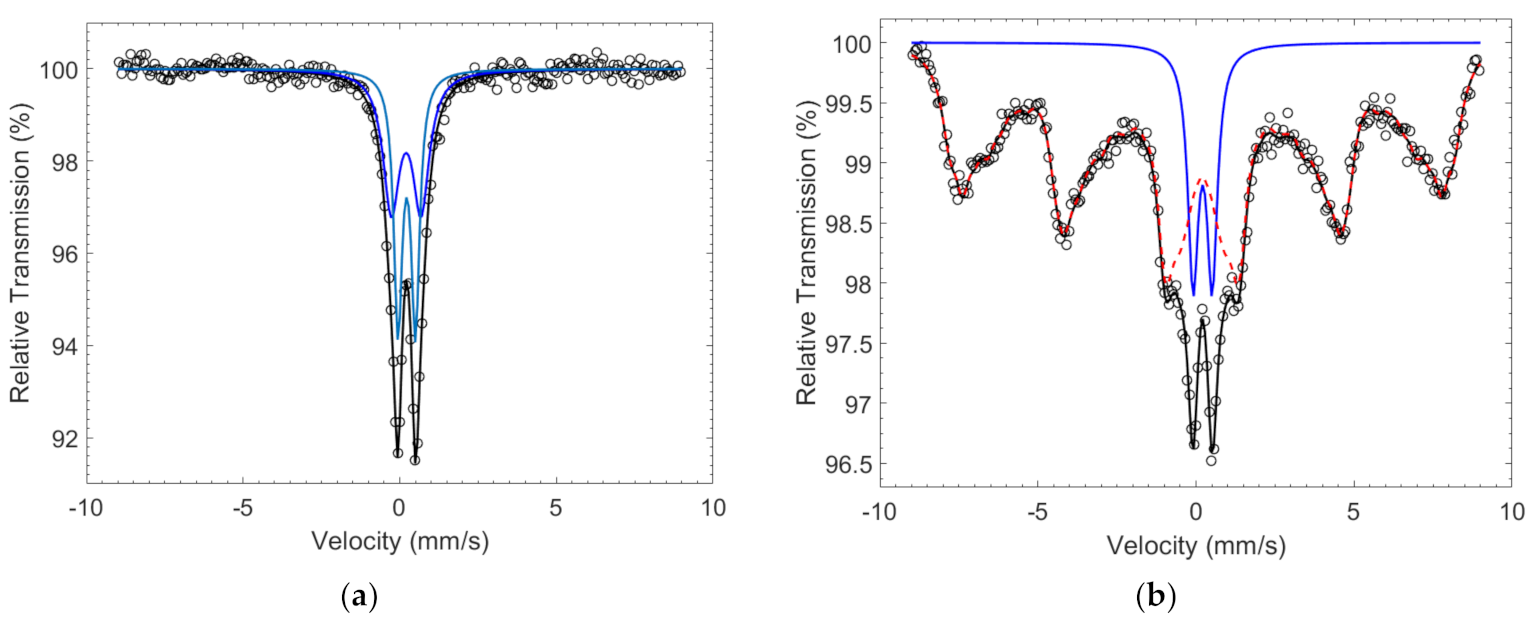

57Fe Mössbauer spectra of two mixed oxides are shown in Figure 6, while the corresponding hyperfine parameters are reported in Table 6. The spectrum of the sample Co67Fe33 is a large quadrupole doublet typical of trivalent iron which can be simply fitted using two spectral components, whereas one of the samples of Co50Fe50 consists of a dominant magnetic distribution component with hyperfine parameters in the typical range of spinels [95], accompanied by a trivalent iron quadrupole doublet. In both cases, they correspond to the typical signature of Fe3+ and no distinctive signals of Fe2+ or interchange between Fe2+ and Fe3+ are detected. Taking into account the absence of Fe2+, the anomalous cell parameters of mixed spinels can be accounted for by the cation distributions reported in Table 7, which imply a substoichiometric cation content. Cation vacancies in non-stoichiometric spinels are known to account for smaller than expected unit cells [96]. The amount of cation vacancies, also reported in Table 7, is a non-linear function of the composition and reaches a maximum for the sample Co67Fe33, viz. the sample with the higher deviation from Vegard’s law.
Cation vacancies imply an increase in the oxygen/cation ratio, reported in Figure 5, and the corresponding increase in the average charge of the cations. The increase of the average cation charge brings about a significant decrease in the cell size because trivalent cations are significantly smaller than divalent cations, as is the case for magnetite Fe3O4 and maghemite γ-Fe2O3, sharing the same spinel structure with cell size 8.39 and 8.34, respectively.
The strong preference for divalent Co2+ over trivalent Co3+ in the tetrahedral site [97] is an important factor in the variation of the number of vacancies with the Fe/(Fe + Co) ratio. In the case of the direct cobalt spinel sample, the energy expenses of introducing Co3+ in the tetrahedral site render any increase of the average cation charge difficult as the octahedral site is already completely occupied by Co3+. For samples of different compositions, the introduction of iron in the material allows the incorporation of trivalent Fe3+ in the tetrahedral site. The corresponding increase of the inversion degree and the retention of Co3+ in the octahedral site make possible the increase of the average charge of cations and the corresponding formation of cation vacancies, as observed in the sample Co67Fe33. Further increases in the amount of iron correspond to a decrease of the Co3+ content and a corresponding decrease in average cation charge and amount of cation vacancies.

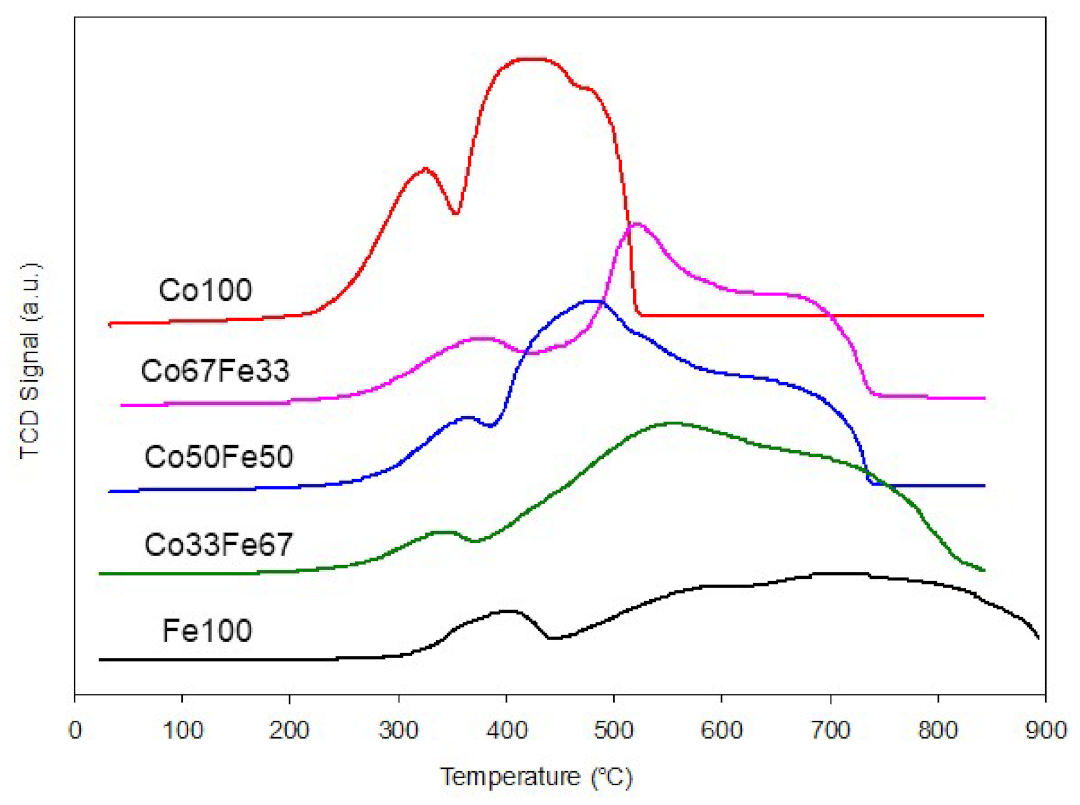

The TPR profiles of the Co-Fe catalysts are reported in Figure 7. The consumption of H2 in the tests is reported in Table S3. The Co100 sample presents a first reduction peak with onset at 225 °C and maximum at 325 °C. This first reduction corresponds to 22% of the hydrogen demand for total reduction and corresponds to the reduction of the cobalt spinel to CoO. The reduction of CoO to cobalt metal is completed in a second peak with a maximum of 425 °C.
The three mixed spinel samples present an initial reduction step with an onset at about 260 °C, corresponding to the reduction of Co3+ to Co2+. It is interesting to observe that the delayed onset of reduction of the mixed spinels is similar to what was observed for maghemite-like phases [98]. The temperature of the maximum of this first peak decreases and the corresponding fraction of consumed H2 decreases from 14 to 5% with the decrease of the amount of cobalt in the sample. The reduction of Co3+ and the exsolution of CoO destabilize the charge balance of the mixed spinel phase, which decomposes to CoO and an iron spinel phase [94]. The reduction of CoO to metallic Co and that of the iron spinel to FeO are superposed in a complex way and contribute to a signal with a maximum between 480 and 560 °C. The reduction of FeO is completed between 740 and 840 °C.
The reduction of the Fe100 oxide follows the literature pattern [99]. The first peak with an onset at 300° and a maximum at 400 °C consumes 13% of the total hydrogen and corresponds to the reduction of Fe2O3 to Fe3O4. A second broad peak with a maximum of 590 °C corresponds to the reduction of Fe3O4 to FeO and is partially superposed with the subsequent reduction of FeO to metallic iron. The reduction of the sample is not completed at the final temperature of 900 °C.

2.2. HMF Oxidation

2.2.1. Blank Tests in the Absence of Catalyst

HMF is very slowly oxidized in aerobic conditions, a degradation rate of about 1% per hour having been observed in aqueous solution at 100 °C under 4 MPa air in the absence of a catalyst [25]. A higher reactivity is observed in the presence of hydroperoxides: HMF in a tert-butyl alcohol solution was converted at 45% by TBHP (molar ratio TBHP/HMF 60) in 12 h at 80 °C, with the formation of DFF, FFCA, DFCA with selectivity, respectively, 23, 60, and 15% [81]. The reactivity was highly solvent-dependent: HMF conversion in DMSO (DMSO/HMF 70) was 8.5% in 12 h at 80 °C, with a selectivity of 15% in DFF and 5% in FDCA.
In our experiments without a catalyst, HMF in the CH3CN solution was converted at 61% in 3 h at 60 °C at TBHP/HMF ratio 14. In Figure 8, the conversion of HMF and the selectivity of products are reported at 1 and 3 h reaction times. The conversion increased with reaction time from 39 to 61%. The main products were DFF and HMFCA, the latter with a selectivity slightly higher than the former, 44 and 36%, respectively. The selectivity of both primary oxidation products decreased with the increase of conversion. At the same time, the selectivity of FFCA increased from 9 to 14%, and the selectivity of MA from 2.5 to 5%. The carbon balance correspondingly decreased from 98 to 91%.

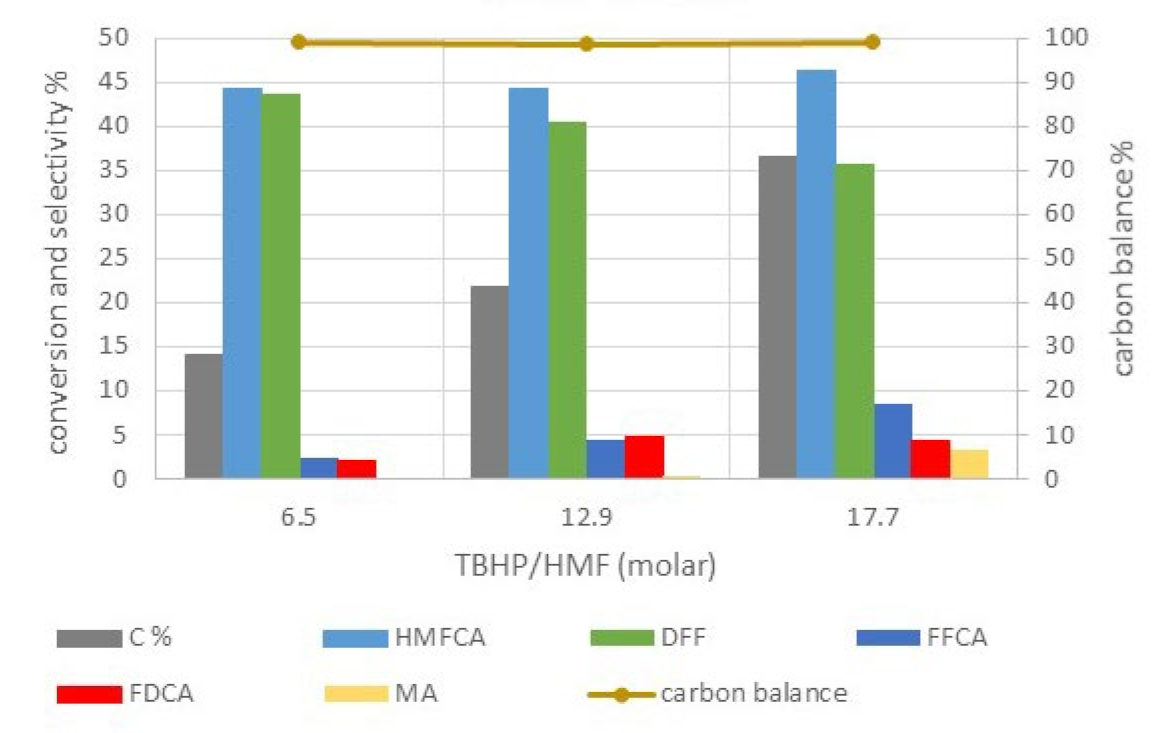

The dependence of HMF conversion by the amount of oxidant in the absence of a catalyst has been investigated at 40 °C (Figure 9). The conversion steadily increases with the TBHP/HMF ratio, suggesting an order of reaction from TBHP near 1. At the lowest oxidant amount, DFF and HFMCA present a nearly identical 44% selectivity. FFCA and FDCA are present with about 2% selectivity. In increasing oxidative conditions, the selectivity of HMFCA remains virtually constant, whereas the selectivity of DFF decreases, and the selectivity of FFCA and FDCA increases. This behaviour could be attributed to a moderately higher order in the oxidant of the rate of oxidation of DFF (Ox2 in Figure 1) than the rate of oxydehydrogenation of HMFCA (ODH2 in Figure 1). However, it has to be taken into account that the measured amount of primary intermediates, DFF and HMFCA, is the result of the sum of the rates of formation and the further conversion of each of them. A lower order in the oxidant of ODH1 than Ox1 reaction in Figure 1 could also justify the observed trend.

2.2.2. Catalytic Tests on Copper-Manganese Oxides

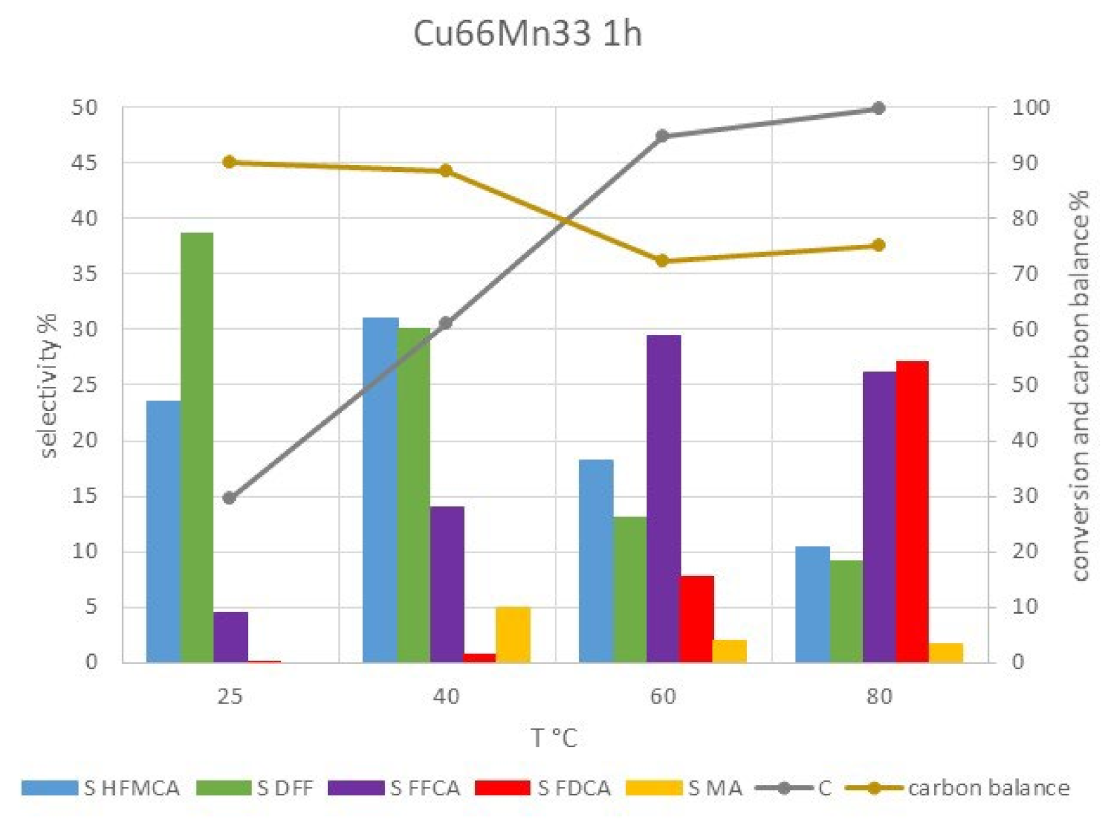

Before comparing the catalytic activity of Cu-Mn catalysts with different compositions, it is useful to follow the temperature dependence of the activity on a typical catalyst, Cu67Mn33, the acronym of the catalyst indicating the cation percent ratio. At TBHP/HMF ratio 7 and 1 h reaction time, conditions milder than the ones used in most tests, the conversion of HMF rises from 15% at room temperature to 95% at 60 °C and 100% at 80 °C (Figure 10).
At 25 °C, the selectivity of DFF and HMFCA are, respectively, 38 and 23%, and only 5% for further oxidation products. At increasing temperature, the selectivity of DFF decreases, and the selectivity of HFMCA increases, in parallel with the increase of FFCA selectivity to 14%. This trend allows several interpretations, differing by the step of oxidation, which is considered prevalent. On one hand, the higher activation energy of the formation of FFCA by Ox2 reaction of DFF than by ODH2 reaction of HMFCA could justify the data. On the other hand, the higher activation energy of the Ox1 formation of HMFCA than ODH1 formation of DFF could also account for the observed trend. Indeed, the higher activation energy for the oxidation of aldehyde than for the oxidation of alcohol was classically observed in the gas phase [100].
The selectivity of FFCA increases with temperature from 5% at 25 °C to 30% at 60 °C. It starts to decrease when it is overcome by its conversion to FDCA, whose selectivity increases from 1% at 40 °C to 27% at 80 °C. The sequential nature of the reactions depicted in Figure 1 is clearly shown by the comparison of the results at an increasing temperature in Figure 10. It also appears that the activation energies of the Ox1 and ODH1 reactions of HMF oxidation are lower than the activation energies of FFCA formation, which is itself lower than the activation energy of the Ox3 oxidation of FFCA to FDCA.
The carbon balance is 90% for reaction temperatures up to 40 °C and worsens to 72–75% at 60 or 80 °C. Humins, oligomers, or products deriving from condensation/transformation of the reaction intermediates are critical by-products in most processes involving HMF. Some of these by-products form by a complex mechanism involving the hydration of the carbon in α to the enol group of HMF, followed by the opening of the furanic ring with the formation of 2,5-dioxo-6-hydroxy-hexanal (DHH) and keto-enol condensation [101,102]. It has been suggested that the propagation of the oligomers can occur by condensation of the enol groups of DHH or of the oligomers themselves with any ketone or aldehyde present in the system. However, the unclear question is whether these by-products form only from HMF, or from also the reaction intermediates and whether the generation of radical-type oxygen species promotes their formation. Indeed, in our experiments, oligomers are more and more formed from the onset of the reaction up to a high degree of advancement of the oxidation, when the concentration of HMF is no more significant. This suggests that they are formed by condensation not just of HMF, but also of all carbonyl-bearing molecules involved in the process, namely HMF, DFF, and FFCA.

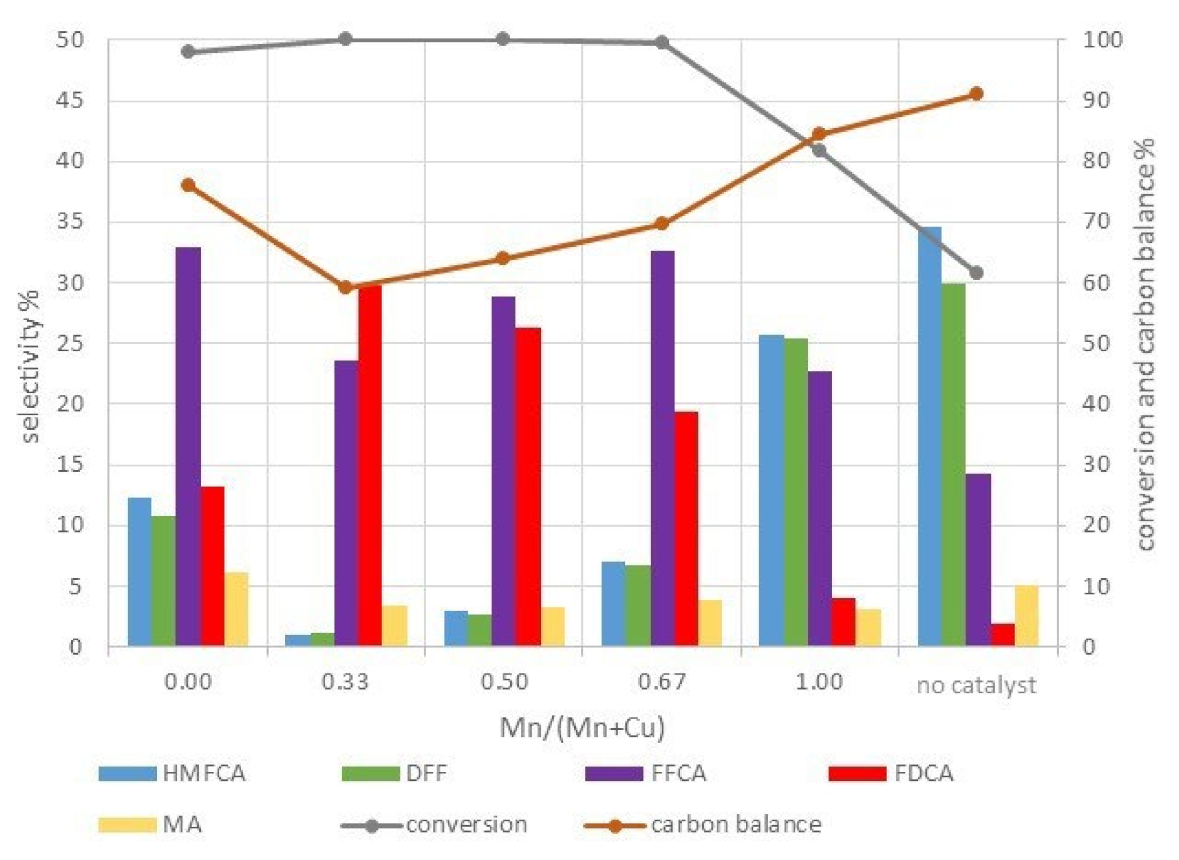

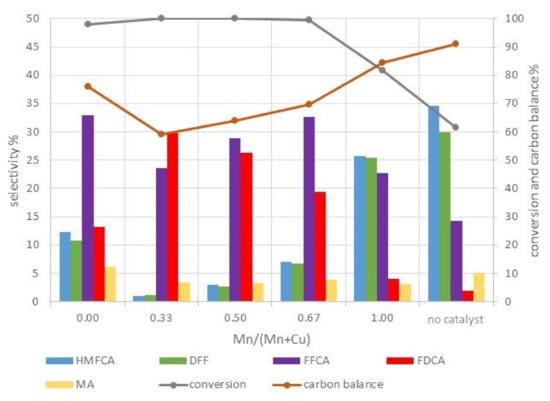

The dependence of the activity on the composition of the catalyst in the Cu-Mn series is shown in Figure 11 for 3 h conversion of HMF at 60 °C with TBHP/HMF ratio 13. In these conditions, all the copper-bearing catalysts present a conversion near 100%. The Cu100 catalyst, with only the CuO phase, is highly active despite its low surface area of 11 m2 g−1, the lowest among our catalysts. The oxidation ratios (FFCA + FDCA)/(HMFCA + DFF) and FDCA/FFCA, reported in Table 8, are two useful tools for a first-glance evaluation of the oxidation activity. In the reaction scheme of Figure 1, the two ratios are related to the degree of advancement of, respectively, the conversion of the primary oxidation products to FFCA and the conversion of FFCA to FDCA. Among the Cu-bearing catalysts, the two ratios evolve with the composition of the catalyst in a parallel way, the lowest for Cu100 and the highest for Cu67Mn33. The oxidation ratios of Cu50Mn50 and Cu33Mn67 progressively decrease with the decrease of the copper content (Table 8), accompanied by a decrease in the specific surface area of the samples, from 106 m2 g−1 for Cu67Mn33 to 51 m2 g−1 for Cu33Mn67 (Table 4).
The definition of a correlation between the composition of the catalyst and the activity is complicated by the polyphasic nature of the samples. In the case of the only monophasic catalyst, CuO, high activity as a Fenton catalyst is not unexpected [103,104]. Significant fractions of CuO with grain sizes much smaller than in Cu100 are present in Cu67Mn33 and Cu50Mn50 samples. However, the pattern of activity of these catalysts is very different from Cu100, with the (FFCA + FDCA)/(HMFCA + DFF) ratio up to an order of magnitude higher.
The carbon balance is quite poor on all Cu-bearing samples, following a trend inversely proportional to the trend of the oxidation ratios, with the worse value on Cu67Mn33, the most FDCA-producing catalyst. This strongly suggests attributing most of the deficit of carbon balance to the condensation or conversion of highly oxidized products. The Mn100 catalyst presents a lower activity (81%) and lower oxidation ratios than any Cu-bearing catalyst (Table 8). It is indeed known that manganese oxides are quite effective Fenton catalysts but they can also lead to a decrease in the availability of the oxidant by unselective degradation of the hydroperoxide [105,106,107].
It can also be observed that, at 60 °C and a high oxidant ratio, HMFCA and DFF were measured in similar amounts on all our catalysts, despite minor variations. This behaviour, which suggests a similar rate between reactions of aldehyde oxidation and alcohol oxydehydrogenation, is relatively uncommon in HMF oxidation catalysis and has already been observed only on mixed oxide catalysts [73,76,81]. The observation of relatively similar amounts of HMFCA and DFF also in the blank tests could suggest an important radical contribution to the first steps of oxidation, unhindered by the presence of the catalyst. It has been observed that the adsorption of organic acids has an inhibiting effect on the activity of heterogeneous Fenton catalysts [108]. This could justify the poor oxidation ratios in the blank and on the CuO and manganese oxides, the Fenton catalysts are expected to be the best. Conversely, this could suggest a direct implication of the oxygen of the catalyst in the mixed oxides, the most effective FDCA producers.

2.2.3. Catalytic Tests on Cobalt-Iron Oxides

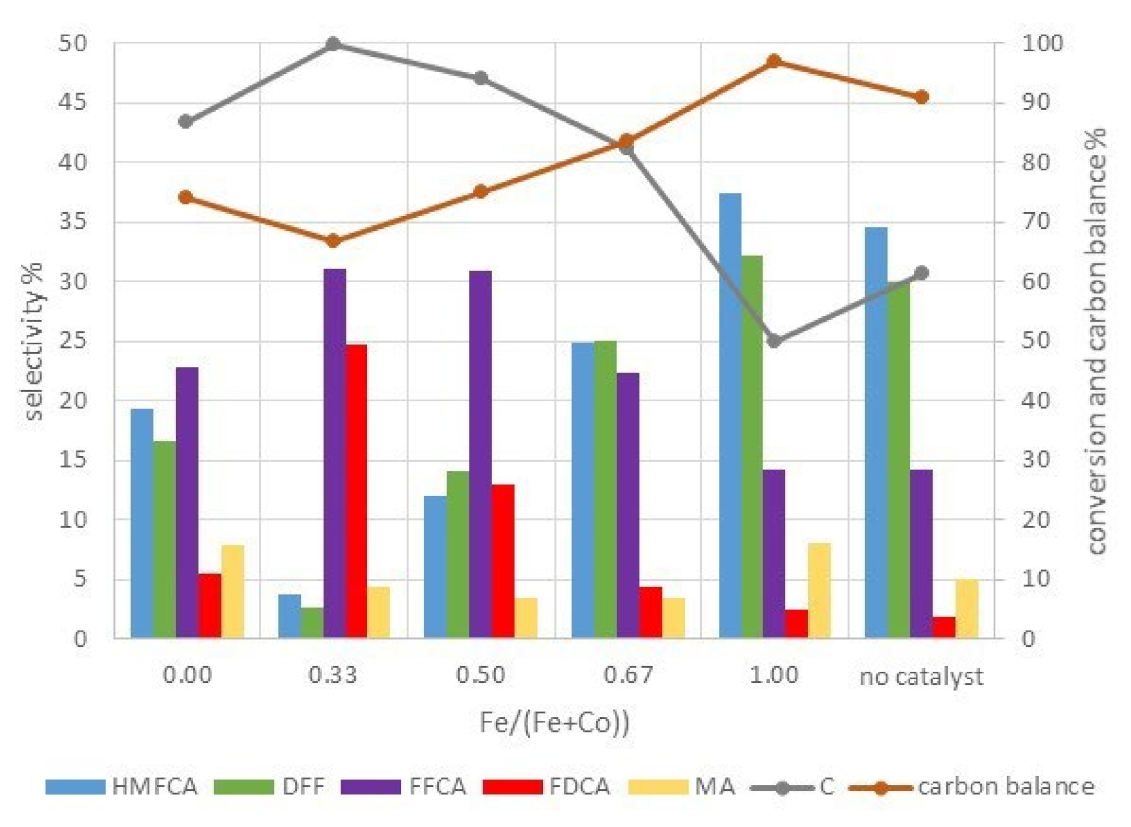

The dependence of the activity on the composition of the catalyst in the Co-Fe series is shown in Figure 12. The change of the activity with the composition of the catalyst follows a volcano-type trend, with a low activity of the single-cation end-term oxides and higher activity of the intermediate mixed oxides, featuring a maximum for an iron fraction of 0.33. The carbon balance follows a trend opposite to the conversion, confirming the implication of oxidation products in the formation of converted species. The comparison of the activities of the three mixed Co-Fe spinels suggests some peculiarities of the Co-Fe system. Indeed, the three solid solution materials present nearly identical surface areas (see Table 5), but very different activities. A sharp decrease in conversion, with a corresponding improvement of the carbon balance, is observed for Fe fractions higher than 0.33, interestingly following the same trend of variation in the number of cation vacancies (see Figure 5).
Fe100, the Fe end-member of the series of catalysts with α-hematite structure, presents the same product distribution as the blank test, with a 10% lower conversion. Hematite has been used as a cheap Fenton catalyst [109], and its anti-catalytic behaviour could be attributed to unselective hydroperoxide degradation.

3. Discussion

The importance of blank tests in the evaluation of HMF oxidation by TBHP has to be stressed. In the absence of catalysts, HMF conversion as high as 60% has been observed (Figure 8). The products formed were essentially HMFCA and DFF, while few FFCA and virtually no FDCA were observed. This suggests that HMF is a more effective substrate for alcohol oxidation or aldehyde oxydehydrogenation than, respectively, HMFCA or DFF (see Figure 1). Another possible interpretation is that the formation of acid groups by the initial oxydehydrogenation reaction decreases the pH of the solution and stabilizes TBHP in the absence of a catalyst.
The presence of oxide catalysts affected the oxidation reactions in a way highly dependent on the nature of the oxide. In the case of the Fe100 catalyst (α-hematite), the most acidic of our catalysts [110], conversion and selectivity were comparable to the blank test results (Figure 12). For other single-cation oxides, like Co100 and Mn100, the activity was slightly higher than the blank, a result already observed in aerobic oxidation of HMF on Co and Mn oxides [111].
It has to be remarked that the patterns of variation of the catalytic activity with the composition of the mixed oxides are very similar in the two different systems, Cu-Mn and Fe-Co. The Co-Fe catalysts present a lower activity compared to the Cu-Mn ones but the two systems present a maximum of oxidation activity for a 0.33 fraction of the more charged cation, with a decrease of activity when this fraction increases. In the case of the Cu-Mn system, this pattern could be tentatively justified by a different surface area and tenorite content in the samples. In the case of the Co-Fe system, however, the samples from Co33Fe67 to Co67Fe33 are monophasic spinels and present the same surface area. In this case, no other factors beyond the pattern of cation vacancies seem to affect the trend of oxidation activity. Quite interestingly, the literature on the site occupancy in the Cu-Mn spinels suggests a pattern of cation vacancies similar to the one observed in the Co-Fe spinels [90].
The increase of oxidation activity with the number of cation defects is not suggestive of a radical mechanism, as more cation defects in a spinel structure correspond to a higher oxidation state of the cations. In these conditions, it seems unlikely that the reaction rates, at least for the oxidation of DFF and HMFCA, depend on a surface radical mechanism. It has been shown that maghemite γ-Fe2O3, with only Fe3+ cation, is less active in radical promotion than magnetite α-Fe2O3, with both Fe2+ and Fe3+ cations [112,113,114].
The implication of lattice oxygen in the mechanism is a tempting alternative hypothesis. Admittedly, the onset of catalyst reduction, as derived from TPR experiments (see Figure 3 and Figure 7), is virtually constant with the composition of the mixed spinels, either in the Cu-Mn or Co-Fe systems. It is evident that no simple specific relation could be observed between catalyst redox properties and the catalytic behaviour. Indeed, the role of cation vacancies in oxidation catalysts has been evocated several times but never solidly established. Cation defects have been related to the formation of peroxo and superoxo species at the surface of spinels and have been suggested to favour the implication of lattice oxygen in oxidation reactions at relatively high temperatures [115,116]. Cation vacancies in mixed scheelite have been suggested to favour the extraction of olefin α-hydrogens, but this effect has been seriously questioned [117]. Interestingly, cation vacancies in FeV spinel catalysts for methanol oxidation have been shown to increase the selectivity of formaldehyde by increasing the basicity of the catalyst [118]. The possible role of spinel cation vacancies in the oxidation of HMF seems clearly worthy of further investigation. Indeed, a mixed spinel usually presents both higher basicity and higher acidity than their single-oxide end-terms [119,120].
HMF oxidation rate in our tests was systematically higher than in experiments on other unsupported oxide catalysts (see Table 3 and Table 8). In the cases in the literature, high conversion was reached at a higher temperature than in our reaction conditions [73,75,76,81,121], suggesting that a relatively low reaction temperature represents an optimum between oxygen development from TBHP and catalytic activity. However, the carbon balance of our tests at high conversion was definitely poor (Figure 11 and Figure 12). The carbon balance presented an inverse correlation with the conversion and selectivity of FDCA. It is likely that most loss of carbon has to be attributed to consecutive reactions of condensation or overoxidation of the analysed oxidation products [122,123,124]. Reports in the literature indicate that most condensation products from HMF oxidation can be removed from mixed oxide catalysts by solvent washing, providing satisfactory recyclability of the catalysts [73,75,81,125].
The observed unfavourable selectivity-conversion correlation suggests that better results could be obtained by a moderation of the reaction conditions. Dong observed a significant decrease in the formation of coproducts with a decrease in the surface area and the oxygen adsorption of the biphasic (Cu, Mn)3O4 and MnO2 catalyst [125]. In our system, a possible pathway to improve selectivity could be a change of oxidant from TBHP to molecular O2. TBHP has been systematically shown to increase the reaction rate of oxidation by comparison with the use of dissolved oxygen [73,75,81]. An expected decrease of conversion with a shift to aerobic oxidation could be compensated by the introduction of a dissolved hydroxide [83,84], despite that it could be difficult to foresee in which way an added base could influence the properties of the surface sites of the catalyst [126].

4. Materials and Methods

4.1. Synthesis of Catalysts

Two series of mixed oxide catalysts with nominal composition MA3−xMBxO4 have been prepared, with MA = Co and MB = Fe or MA = Cu and MB = Mn. In each series, cation fractions MB/(MA + MIB) were targeted as 0.00, 0.33, 0.50, 0.67, and 1.00. The catalysts were named from their cation percent ratio, for instance, Cu67Mn33. The reagents used were Fe(NO3)3·9H2O, CoCl2, CuCl2·H2O, Mn(NO3)2·4H2O, and NaOH from Sigma-Aldrich (Saint Louis, MI, USA).
Nanoparticulate oxide catalysts were prepared by coprecipitation in an alkaline solution [127,128]. In total, 0.5 M aqueous solutions of MI salt and 1 M aqueous solutions of MII salt in the stoichiometric desired ratio were mixed and added dropwise into 0.8 M aqueous solution of NaOH at room temperature in 2 h of stirring with a pH kept at 12. The precipitate was isolated by vacuum filtration and washed with demineralized water to remove Na+ and anions, then dried overnight in the air at 120 °C and calcined in flowing air at 450 °C for 6 h.

4.2. Characterisation Methods

The solids were characterised by X-ray powder diffraction (Bragg-Brentano θ-θ Bruker D8 Advance diffractometer, Bruker Lynx Eye detector, Cu Kα radiation), energy-dispersive X-ray analysis (Quanta 200F SEM EDS FEI, 15 kV accelerating voltage), H2 temperature programmed reduction (TPR, Micromeritics AutoChem-II 2920 equipped with a TCD detector), and N2 physisorption (Micromeritics Tristar apparatus with improved vacuum system, samples preactivated at 250 °C under vacuum).
57Fe Mössbauer spectra were measured with a 57Co source embedded in a rhodium matrix. The measurements were performed keeping the source at room temperature while the absorber temperature has been varied between 5 and 300 K using a helium-flow cryostat. The spectrometer was operated with a triangular velocity waveform, and a gas-filled proportional counter was used for the detection of the gamma rays. Velocity calibration was performed with an α-Fe foil. The spectra were fitted with an appropriate combination of Lorentzian lines. In this way, spectral parameters such as the isomer shift (δ), the electric quadrupole splitting (Δ), the linewidth at half maximum ( Γ), the hyperfine fields (BHF), and the relative absorption areas (Area) of the different components were determined.
For all samples, the elemental analysis indicated a composition within 1% of the expected cation ratio. The surface area of the samples was evaluated by the BET method, grain size from Williamson–Hall plots for monophasic samples, and the Scherrer method for multiphasic samples.
The cation distribution in the spinel phases was evaluated by best-fitting the cell parameter by the formula a = (8/(11.30.5))(5dA-O + (33dB-O2 − 8dA-O2)0.5 [93,129,130]. The A-O bond lengths of the tetrahedral site were assumed as 1.865 and 1.975 Å, respectively, for Fe3+ and Co2+. The B-O bond lengths of the octahedral site were assumed as 1.9, 2.025, 2.1, and 2.12 Å, respectively, for Co3+, Fe3+, Co2+, and Fe2+ [93,131]. The parameters of Lavina et al. [86] have been used for the influence of cation vacancies on cell size. Redox properties were evaluated by H2-TPR, for which 50 mg of catalyst in 200 mg of SiC was pretreated with He at 150 °C for 90 min prior to the analysis in 5% H2 in Ar from room temperature to 850 °C with a ramp of 20 °C/min.
The surface area was evaluated by the BET method. Pore size distribution was determined by a DFT kernel [132]. Pore volume was measured by the αS method when a defined adsorption plateau was present. In other rare cases, the pore volume was assumed as the adsorbed amount at p/p° 0.975, corresponding to the adsorbed amount in pores with a diameter of 50 nm.

4.3. Catalytic Tests

The reagents and standards used were HMF, tert-butyl hydroperoxide (t-BuOOH, 5.5 M in decane), acetonitrile (MeCN), decane, methanol (MeOH), maleic anhydride (MA), FDCA, 2,5-diformylfuran (DFF) from Sigma-Aldrich (Saint Louis, Missouri, USA), 5-hydroxymethyl-2-furancarboxylic acid (HMFCA) from abcr (Karlsruhe, Germany), and 5-formyl-2-furancarboxylic acid (FFCA) from TCI Chemicals (Tokyo, Japan), respectively.
The oxidation of HMF was carried out in a Parr 5000 Multiple Reactor System (Parr Instrument Company, Moline, Illinois, USA) equipped with 6 autoclave reactors (75 cm3 stainless steel T316), each with a mechanical stirrer and measurement tools for temperature and pressure. In a typical activity test, 126 mg of HMF (1 mmol) was dissolved in 2 mL of MeCN. Subsequently, a catalyst (30 mg, about 0.1 mmol of MI3−xMIIxO4) and 1.3 or 2.6 mL of t-BuOOH solution (respectively 7 or 14 mmol) were added to the reactor. Reactions were conducted for 1 to 3 h at a temperature from 20 to 60 °C under constant magnetic stirring (450 rpm). Blank tests were carried out in the same conditions in the absence of a catalyst. At the end of the reaction, 1.7 mL of MeOH was injected in order to dissolve the precipitated FDCA [133]. The catalyst was separated by centrifugation and the recovered solutions were analysed by HPLC on a Shimadzu (Kyoto, Japan) LC-20AD apparatus equipped with Bio-Rad (Hercules, CA, USA) 125-0131 Cartridge Holder (30 mm x 4.6 mm) and Bio-Rad Aminex HPX-87H (300 mm × 7.8 mm) pre-packed column and UV detector at 254 nm. A 0.005 M H2SO4 mobile phase was employed as eluent at 30 °C with a flow rate of 0.6 mL/min for 60 min.
The average standard error between duplicated activity tests was lower than 1%. The species analysed were HMF, DFF, HMFCA, FFCA, FDCA, and MA. Part of maleic anhydride formed methylated species during the recovery of the products by methanol washing. This amount was taken into account in the evaluation of maleic anhydride. The conversion was measured from measured concentrations as (CHMFinitial − CHMFfinal)/CHMFinitial and selectivity as Cproductfinal/(CHMFfinal − CHMFinitial). The carbon balance was evaluated as the difference between the conversion of HMF and the sum of analysed products.

5. Conclusions

Noble metal-free catalysts based on earth-abundant and inexpensive mixed oxides are active catalysts of all steps of the reaction cascade leading from HMF to FDCA using TBHP as an oxidation agent. The nature and composition of the catalyst significantly affect the reactivity and the distribution of the products. In most cases, the analysis of the results provides evidence that radical-type oxygen species, deriving from the t-BuOOH activation, play a determining role in the performances. The role of the catalysts is thus mainly to promote the activation of t-BuOOH and the generation of active oxidizing species. However, beyond the initial steps of HMF oxidation, the trend of reactivity with the degree of oxidation of the material does not correspond to the expected behaviour of a heterogeneous Fenton mechanism, and some implications of the lattice oxygen in the reaction mechanism can be postulated.
The similar rate of oxidation of the alcohol and aldehyde groups of HMF, both in the presence and the absence of the catalyst, indicates that the oxides do not significantly affect the selectivity of the early steps of HMF oxidation. The examined mixed oxides do not appear as effective catalysts for the selective formation of DFF. Degradation and condensation of the oxidation products remain an important issue, which is to be mainly dealt with by the choice of process conditions. The increase of the activation energy of oxidation with the advancement of the reaction cascade suggests temperature as a valuable tool to control the relative selectivity of the formation of FFCA and FDCA.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/catal12080814/s1, Figure S1: N2 sorption isotherms at 77 K and pore size distribution for samples of the Cu-Mn series; Figure S2: N2 sorption isotherms at 77 K and pore size distribution for samples of the Co-Fe series; Table S1: Phase composition of Cu-Mn oxide catalysts; Table S2: Textural data from N2 sorption experiments; Table S3: Uptake of H2 in TPR tests.

Author Contributions

Conceptualization, F.Q., G.C. and F.D.R.; methodology, O.G. and R.A.; validation, R.A., N.T. and S.P.; formal analysis, L.S. and F.D.R.; investigation, A.E.D. and M.T.S.; resources, N.T.; writing—original draft preparation, A.E.D. and G.C.; writing—review and editing, L.S. and F.D.R.; supervision, S.P. and F.D.R. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Erasmus Mundus Action 1 Programme Joint Doctorate SINCHEM (Sustainable INdustrial CHEMistry) (FPA 2013-0037) and by the COST Action CA18220 European network Fur4Sustain (FURan based chemicals and materials FOR a SUSTAINable development).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are provided within the article and in Supplementary Materials.

Acknowledgments

Thanks are due to Thomas Cacciaguerra and Géraldine Layrac for technical support in the characterisation of the catalysts.

Conflicts of Interest

The authors declare no conflict of interest.
