Computational Insight into Defective Boron Nitride Supported Double-Atom Catalysts for Electrochemical Nitrogen Reduction
Abstract

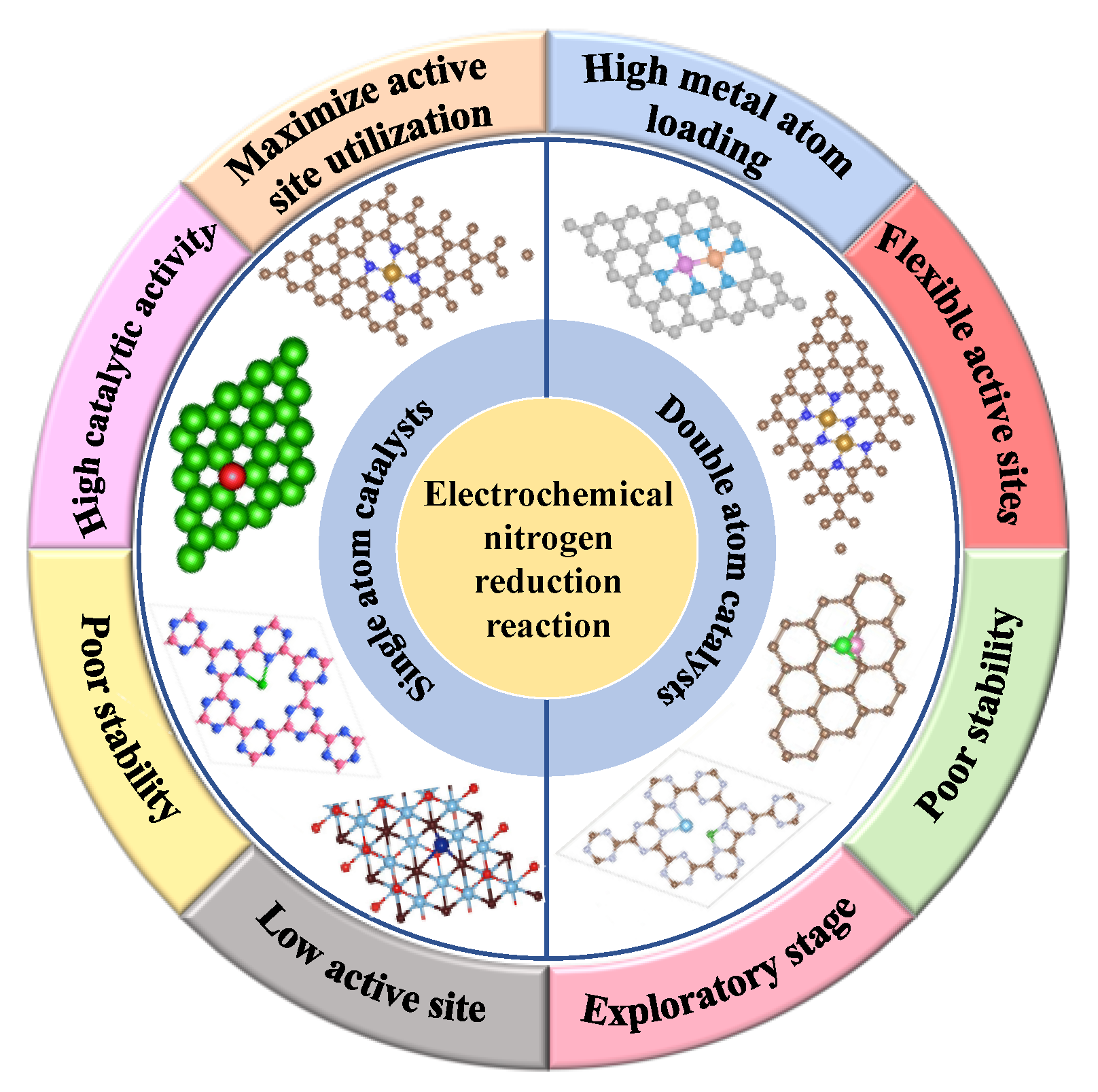

:1. Introduction
2. Results and Discussion

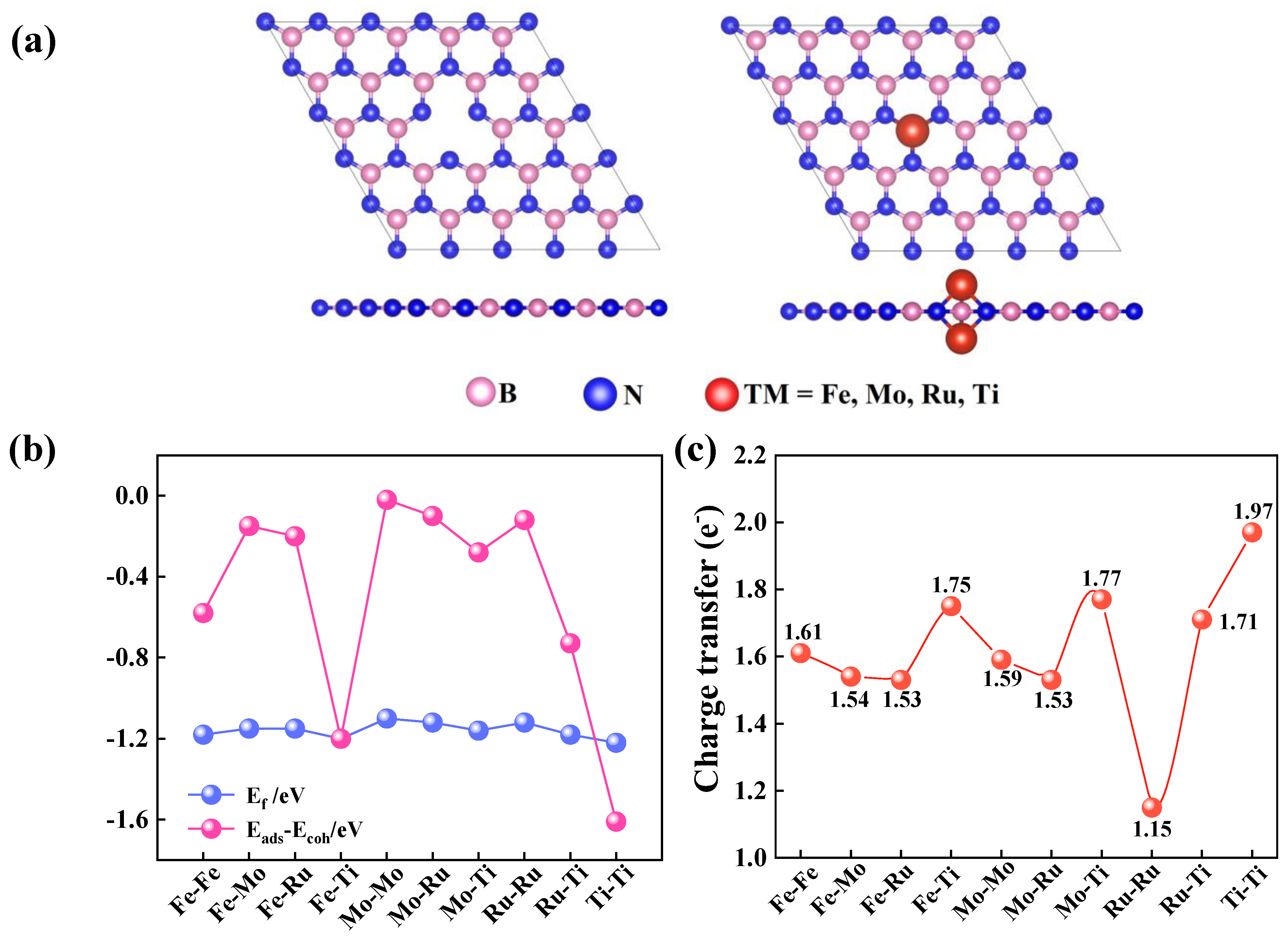

2.1. Structural and Electronic Properties of TM1-TM2@VB-BN
2.2. N2 Adsorption and Selectivity on TM1-TM2@VB-BN
2.3. Catalytic Activity of TM1-TM2@VB-BN

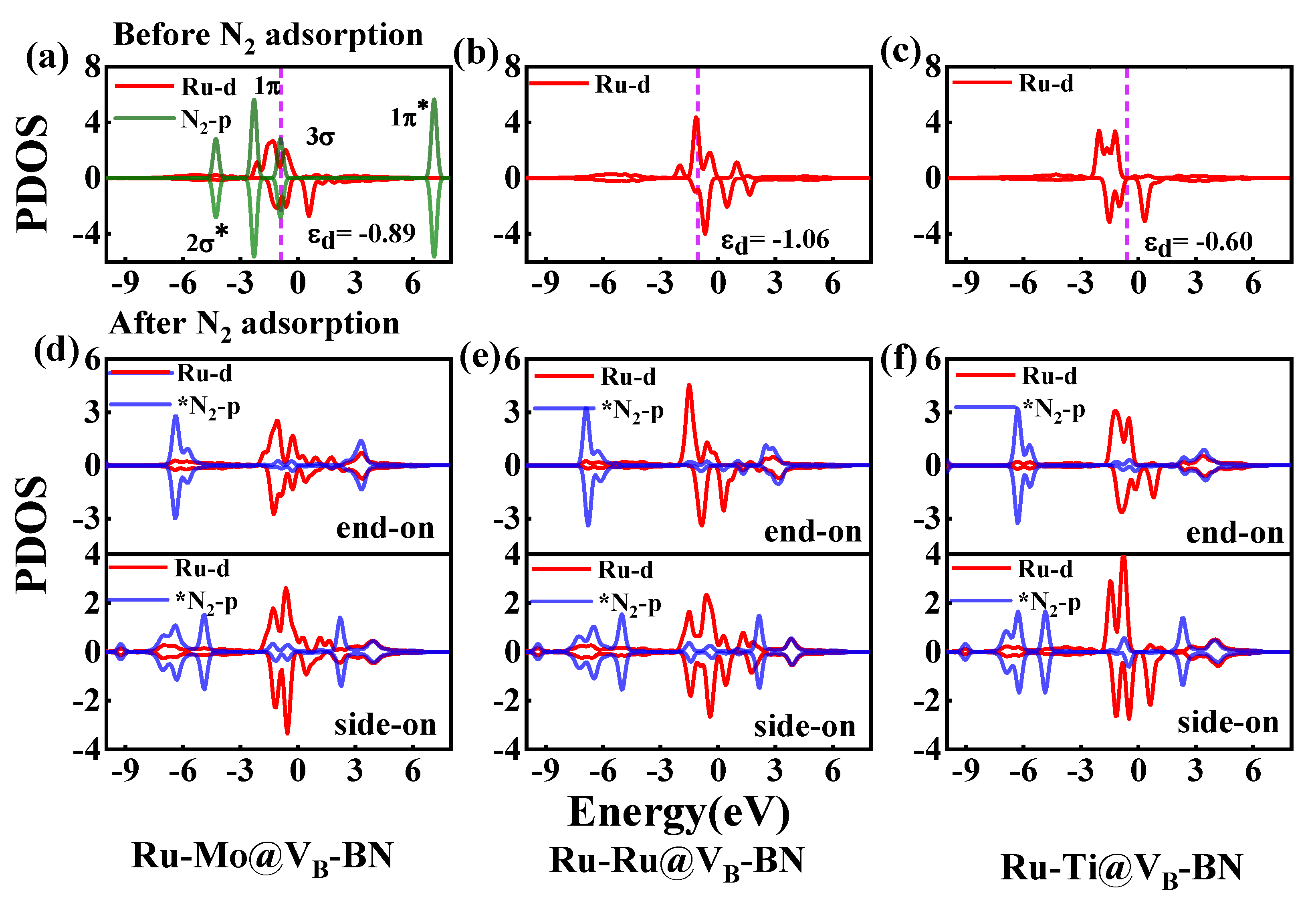

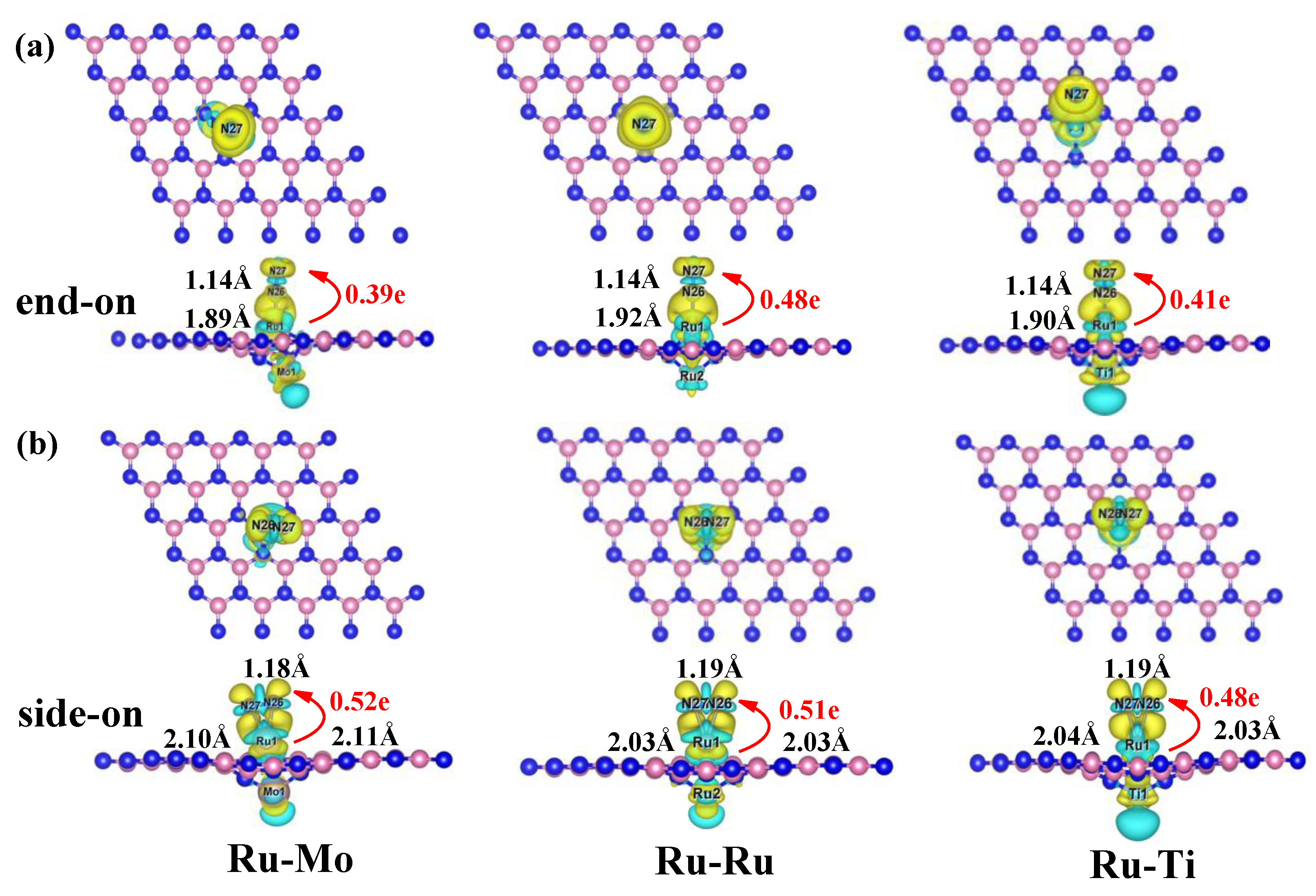

2.4. Activation Mechanisms of N2 on Ru-Mo/Ru/Ti@VB-BN

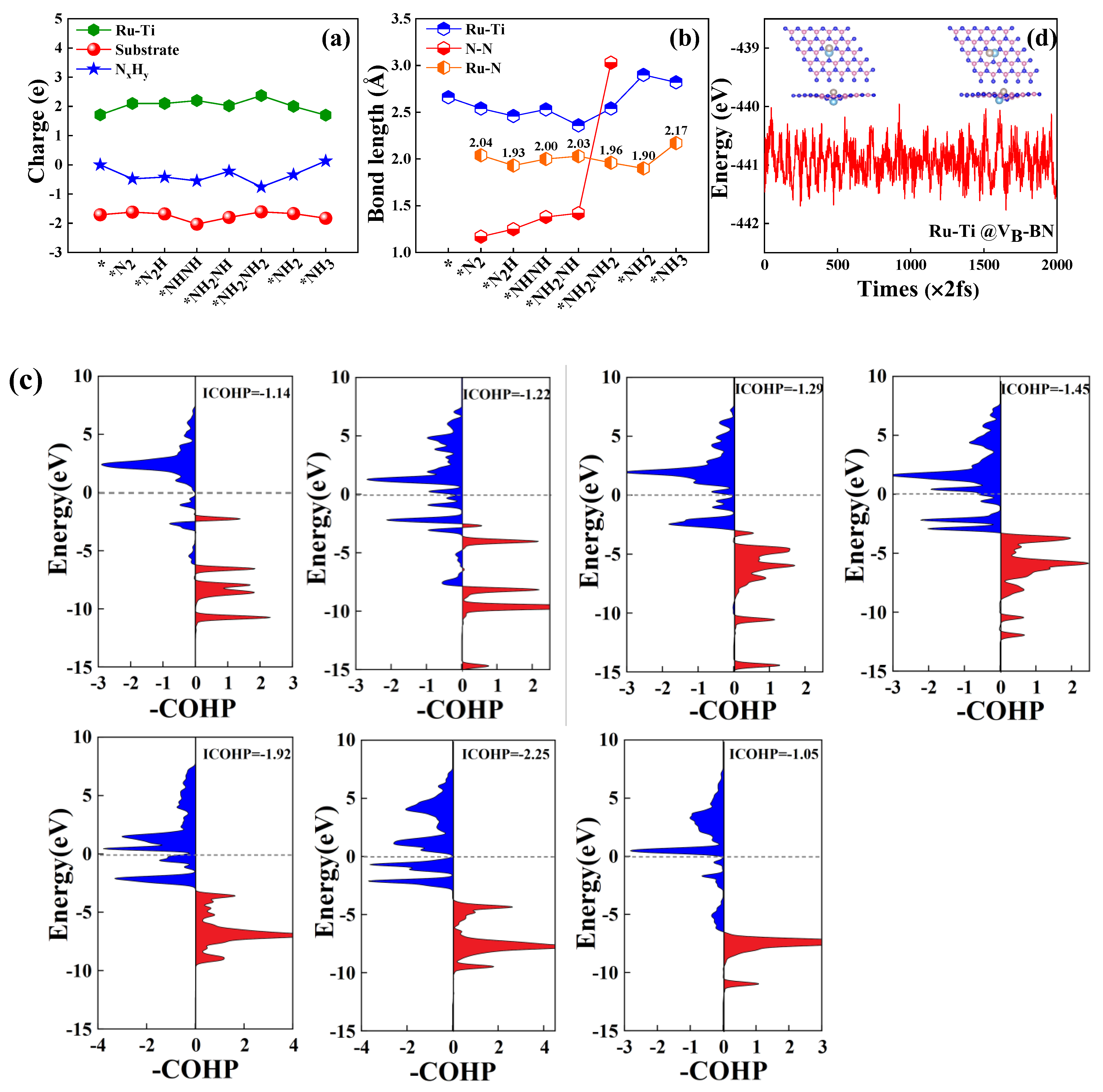

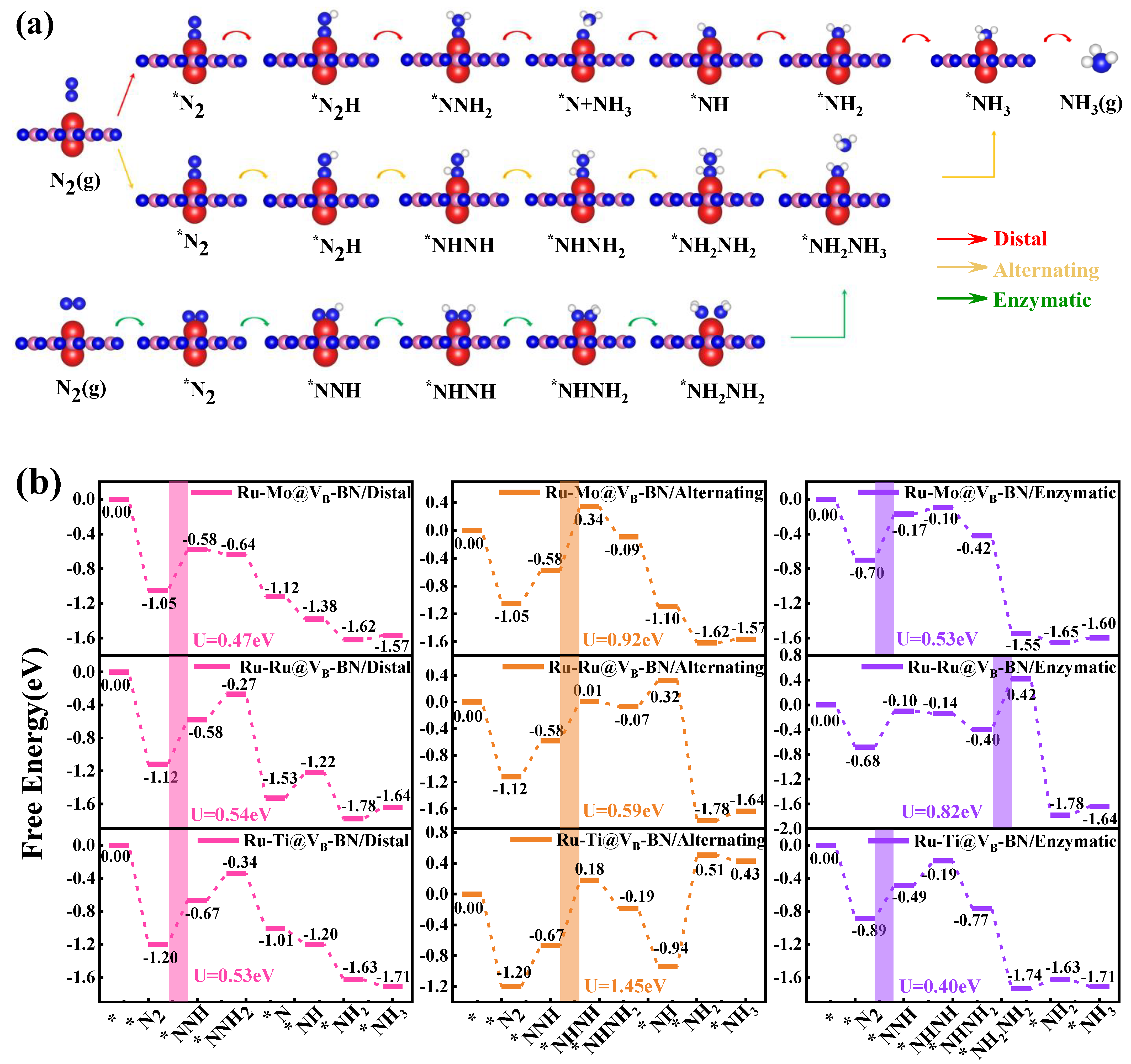

2.5. Full Conversion of N2 to NH3 on Ru-Mo/Ru/Ti @VB-BN
3. Materials and Methods
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
