Preparation of Eggshell-Type Ru/Al₂O₃ Catalysts for Hydrogen Production Using Steam-Methane Reforming on PEMFC

Abstract

Ru-based eggshell-type catalysts, in which Ru is located at the outer region of the pellet, were prepared by the impregnation method, using spherically shaped γ-Al₂O₃ pellets for steam-methane reforming (SMR). Ru was only supported on the external region of the pellet because of the strong interaction between its precursor and the alumina pellet. The Ru precursor penetrated the inside of the pellet by adding nitric acid to the impregnation solution. The distribution and thickness of the Ru layer in the catalyst can be controlled using the HNO₃/Ru molar ratio and contact time at the impregnation step. Among the catalysts, the graded eggshell-type catalyst showed the highest activity and long-term stability in the SMR reaction. In addition, in the daily startup and shutdown (DSS) operation, similar to the hydrogen production environment for domestic polymer electrolyte membrane fuel cells (PEMFC), the graded eggshell-type catalyst showed high activity and stability after multiple cycles. Based on the experimental studies, it was confirmed that Ru-based catalysts are suitable for steam-methane reforming for PEMFC.

1. Introduction

Hydrogen is a prospective energy carrier and it has attracted attention because it can be stored and transported, efficiently, and burns to produce only water as a byproduct. Among the various ways of using hydrogen, polymer electrolyte membrane fuel cells (PEMFCs) are employed in residential fuel cells due to their large energy density, high calorific value, and abundant resources [1]. Residential fuel cells are designed to operate with city gas supplied through well-developed pipeline infrastructures. Thus, the H₂ gas will be generated onsite by reforming available fuels, such as natural gas (mostly methane), before the fuel gas enters the fuel cell stack. Several processes for producing hydrogen using methane reforming are available: steam reforming, dry reforming, partial oxidation, etc. [2,3,4]. Steam-methane reforming (SMR) is the most commonly used process, described by Equation (1). The reformer operates at high temperatures (1073 K–1373 K) because SMR is an endothermic reaction, and the steam is fed more than CH₄ to avoid coke formation, based on methane decomposition (2) and the Boudouard reaction (3).

$${\mathrm{CH}}_4+H_{2}O\to CO+3H_2,\Delta H_{298k}=206{ \mathrm{kJ}\mathrm{mol}}^{-1}$$

(1)

$${\mathrm{CH}}_4\to 2H_2+C,\Delta H_{298k}=75.3{ \mathrm{kJ}\mathrm{mol}}^{-1}$$

(2)

$$2\mathrm{CO}\to C{O}_2+C,\Delta H_{298k}=-172.3{ \mathrm{kJ}\mathrm{mol}}^{-1}$$

(3)

Various types of catalysts are used to increase the efficiency of this process [4,5,6,7,8,9,10,11,12]. Noble metals, such as Ru, Rh, and Pt catalysts, show high catalytic activity, even at a low concentration, and have resistance to coking or active metal oxidation, which is a disadvantage of nickel catalysts. Experimental and kinetic studies on various noble metal catalysts have been reported. In particular, Ru has displayed a high reforming activity compared to other noble metals, such as Ir and Pt [9,10,11,12,13]. This indicated that Ru is a promising catalyst for methane reforming.

To operate in a fixed-bed configuration, on an industrial scale, catalytically active components should be supported on an inert porous pellet to avoid the pressure drop inside the fixed-bed reactors. In addition, in the case of a catalyst using pellet-type support, the distribution of catalytically active components is various such as eggshell, egg-yolk, and homogeneous type [14,15,16,17]. This difference in the distribution of catalytically active components depends on the strength of the metal precursor–support interactions and may appear as a difference in activity in the reaction. In the platinum catalyst on alumina, where the interaction between the platinum precursor and aluminum is strong, the distribution of the platinum precursor has been adjusted using various additives [14,15]. The generally accepted description of the strong metal precursor–support interaction is the revised physical adsorption model provided by Spieker and Regalbuto [18]. Porta et al. reported that varied distributions of a metal precursor, which interact strongly with the support, can be obtained through the addition of an inorganic acid to the impregnating solution. This is because the acid addition is expected to decrease the pH of the impregnating solution, thereby reducing the surface potential of the alumina. Consequently, it reduces the interaction between the negatively charged Ru complex and the support [16].

In this study, Ru catalysts supported on spherical-shaped γ-Al₂O₃ pellets were prepared using the impregnation method. They showed various distributions of Ru by controlling the HNO₃/Ru molar ratio and impregnating contact time in the catalyst-synthesizing process. The effect of Ru distribution on catalytic activity in the SMR reaction was investigated. The catalytic activity and stability, in daily startup and shutdown (DSS) operation, of the selected eggshell-type catalyst was evaluated. Moreover, the Ru/γ-Al₂O₃ was analyzed using Brunauer–Emmett–Teller (BET) analysis, X-ray diffraction (XRD), scanning electron microscopy (SEM) with energy-dispersive X-ray spectroscopy (EDS), and wavelength-dispersive X-ray fluorescence spectrometry (XRF).

2. Results and Discussion

2.1. Characteristics of the Ru/γ-Al₂O₃ Catalysts

Prepared catalysts are designated as RA (a, b h), where “RA” indicates “Ru/Al₂O₃” catalysts, “a” designates the HNO₃/Ru molar ratio, and “b” indicates the contact time (e.g., RA (10, 1 h) is a catalyst with an HNO₃/Ru molar ratio of 10 and a contact time of 1 h.)

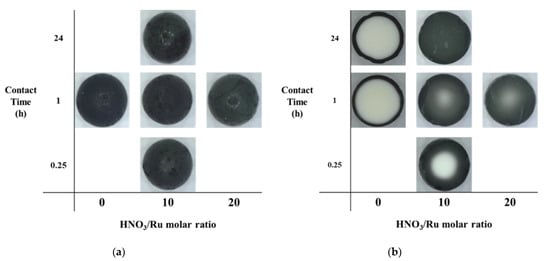

Figure 1 shows (a) external surface and (b) cross-sectional images of prepared catalysts using a digital microscope, based on the HNO₃/Ru molar ratio and contact time. All pellets had a black color due to Ru oxide, and the surface increased in brightness with the HNO₃/Ru molar ratio when the contact time was 1 h. This is because alumina can be redeposited on the catalyst surface, in highly acidic environments, during the precipitation and Ru can be covered [19]. Figure 1b shows that, in the absence of HNO₃, Ru was loaded only on the external surface of the pellet because of the strong metal precursor–support interaction, regardless of the contact time (delimited eggshell-type catalyst). In the presence of HNO₃, Ru for catalysts penetrated the pellet.

In addition, the Ru distribution in the pellet interior was different, depending on the HNO₃/Ru molar ratio and the contact time. Ru penetrated the pellets better as the HNO₃/Ru molar ratio increased. The difference in contact time exhibited a notable difference inside the pellet when the HNO₃/Ru molar ratio was fixed at 10. The RA (10, 0.25 h) showed the eggshell profile, indicating that the concentration of Ru was low in the center of the pellet. When the contact time reached 1 h, i.e., (RA (10, 1 h)), the boundary became more blurred. RA (10, 24 h) with sufficient contact time showed a uniform color distribution (homogeneous type). The shell thickness of the eggshell layer could be effectively adjusted by controlling the HNO₃/Ru molar ratio and contact time until a homogeneously impregnated pellet was obtained.

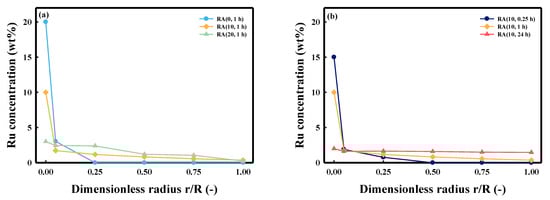

To investigate the distribution of the pellets inside the Ru, the concentration of Ru was measured using SEM-EDS in the cross-section of the catalysts from the edge to the center (Figure 2). Figure 2a shows the difference in Ru distribution based on the HNO₃/Ru molar ratio. For the RA (0, 1 h) catalyst, a high concentration of Ru was detected only on the external surface of the catalyst (r/R of ~0.05). This is because the strong metal precursor–support interaction prevented the Ru precursor from penetrating the pellet. However, Ru was found inside the pellet when HNO₃ was added. The concentration of the Ru inside the pellet gradually increased as the amount of the HNO₃ added in the impregnation solution increased, whereas the concentration of Ru on the external surface of the pellet decreased. In addition, we confirmed the relationship between the distribution of Ru and contact time in Figure 2b. The total Ru concentration of RA (10, 0.25 h) inside a pellet was less than those of the others. For the homogeneous catalyst (RA (10, 24 h)), the concentration of Ru was similar (~2 wt%) in all regions, including the external surface of the pellet. The change in Ru concentration, on the external surface, decreased with the contact time.

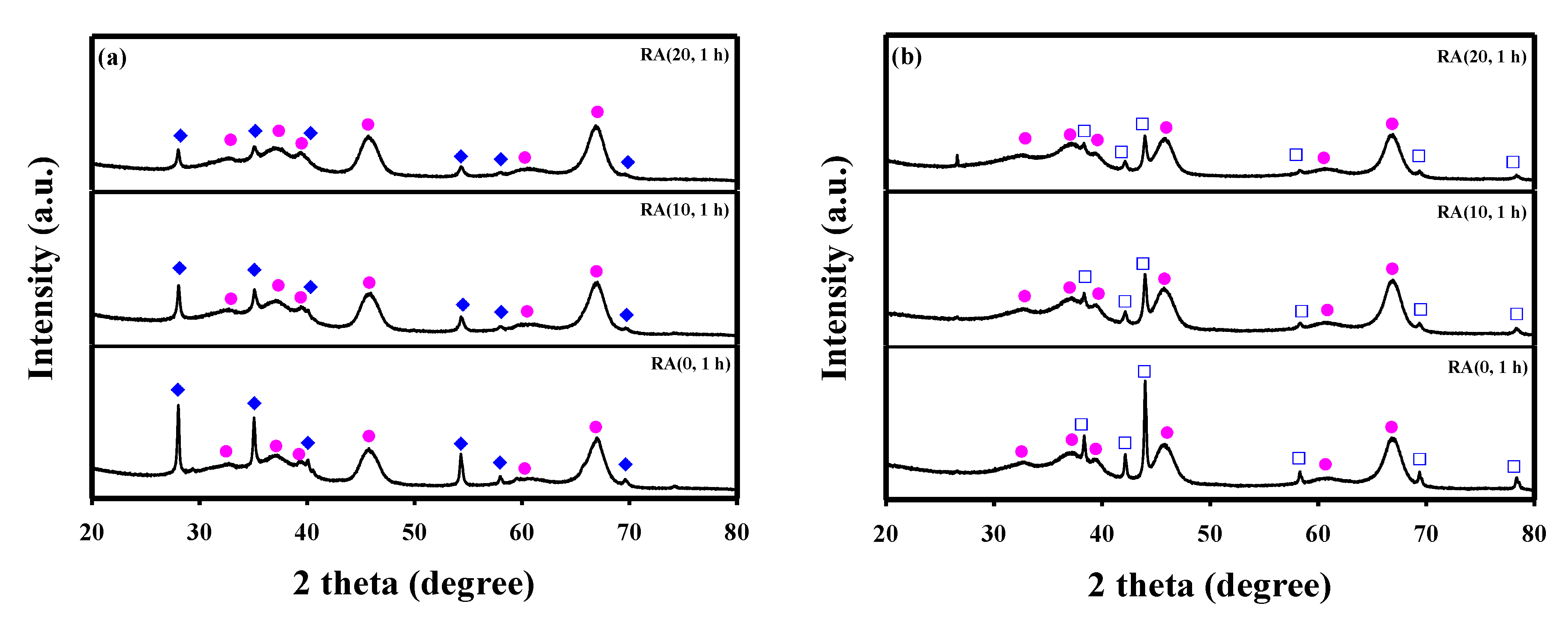

Figure 3a shows the XRD patterns of calcined Ru/γ-Al₂O₃ catalysts with different HNO₃/Ru molar ratios. In addition to the γ-alumina peaks (JCPDS No. 04-0875), the catalysts showed RuO₂ peaks (JCPDS No. 73-1469); their intensity decreased with HNO₃/Ru molar ratio. After the reduction, the peaks corresponding to RuO₂ disappeared, and peaks of Ru metal (JCPDS No. 07-0274) were observed, which means that all Ru oxide was reduced through a reduction process. The calculated RuO₂ and Ru crystallite sizes decreased with the increase in the amount of nitric acid (Table S1). In the absence of HNO₃, the crystallite sizes of RuO₂ and Ru metal were larger than the others. In addition, the XRD patterns were almost the same, regardless of the contact time, when HNO₃/Ru molar ratio was 10 (Figure S1). In contrast to RuO₂ and Ru, no change in the γ-alumina peaks was observed based on the differences in reduction, contact time, and amount of nitric acid. The BET surface area, pore size, pore volume, and Ru content of Ru/Al₂O₃ catalysts in the calcined and reduced states were almost the same, regardless of the molar ratio or contact time (Table S1).

2.2. Catalytic Performance of the Ru/γ-Al₂O₃ Catalysts

2.2.1. Catalytic Test in Long-Term Stability Test

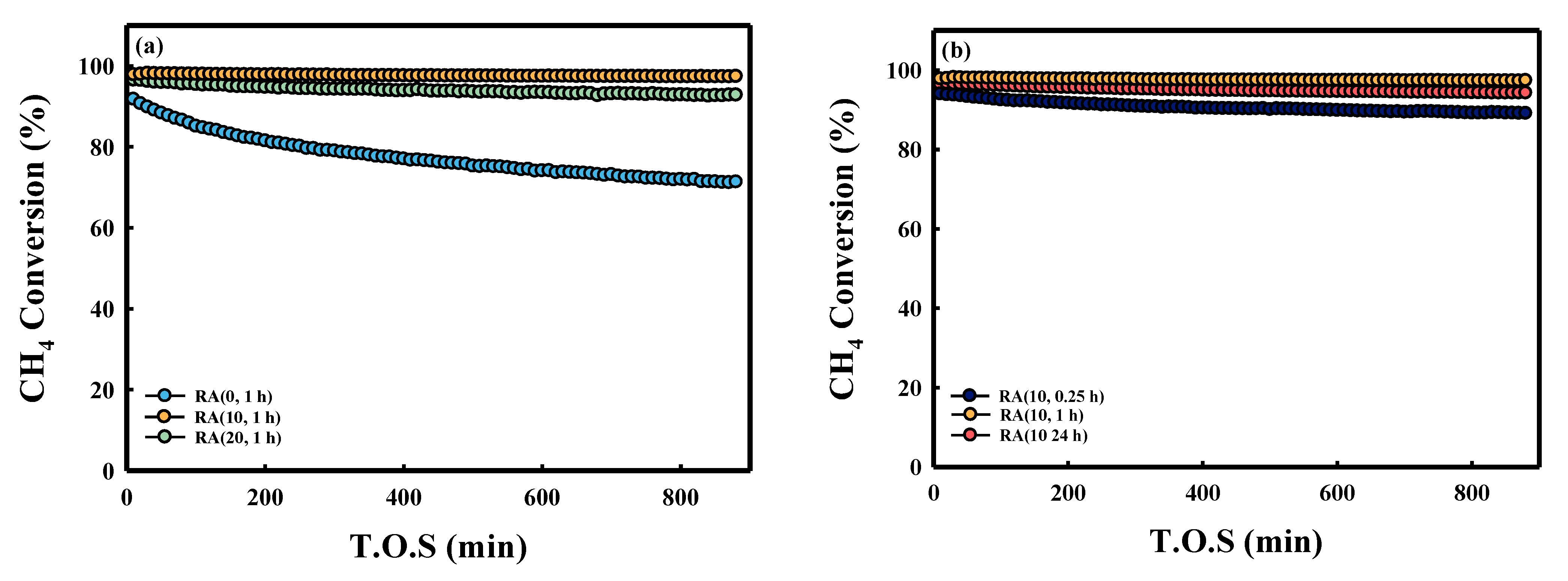

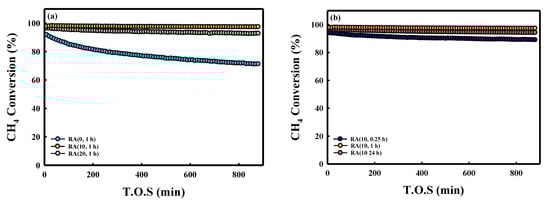

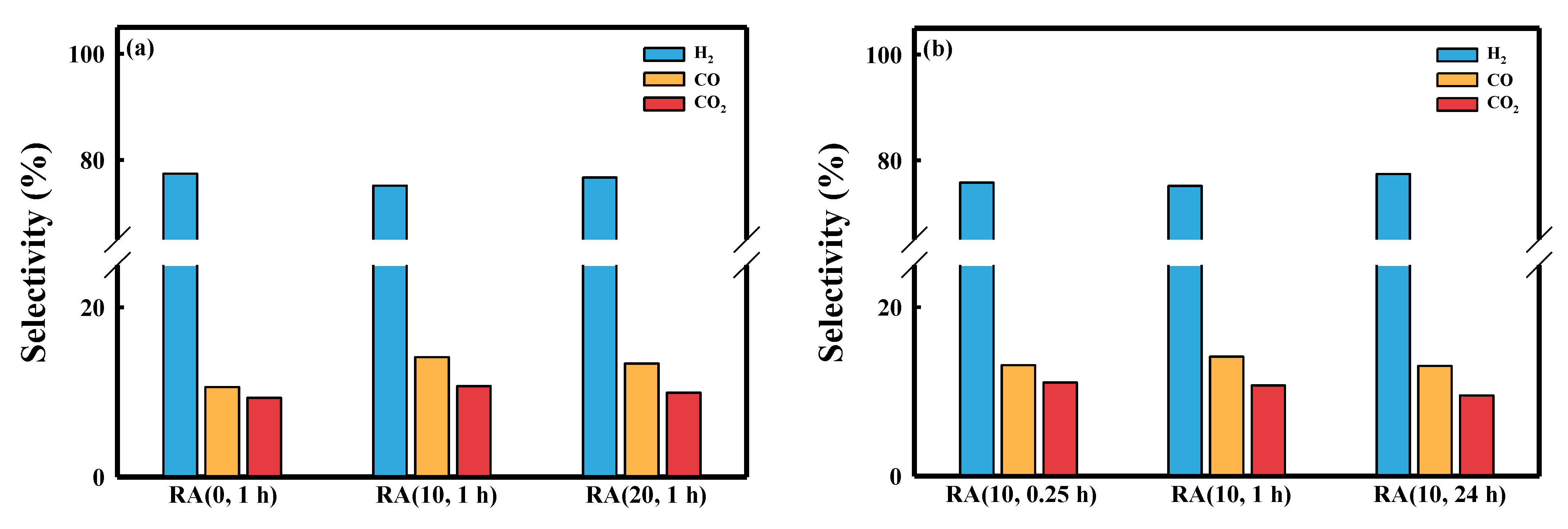

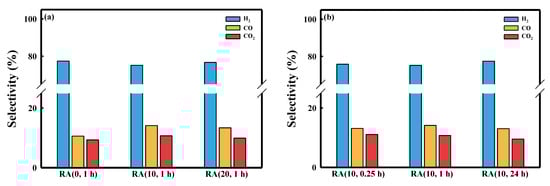

Figure 4 shows the CH₄ conversion as a function of time on stream (T.O.S) for five kinds of Ru/Al₂O₃ catalysts. Figure 4a shows that RA (0, 1 h) exhibited the lowest initial XCH₄ (~91%). On the other hand, RA (10, 1 h) and RA (20, 1 h) showed higher catalytic activities than RA (0, 1 h) did. The RA (10, 1 h) catalyst showed the highest XCH₄ (98%), close to the equilibrium conversion (98%). The RA (20, 1 h) catalyst showed slightly lower XCH₄ because RA (10, 1 h) showed a higher Ru concentration on the external surface of pellets. In the absence of HNO₃, the catalyst (RA (0, 1 h)) was deactivated (from 91% to 72%) due to the poisoning of NH₃ by the byproduct of the reaction (N₂ + 3H₂ = 2NH₃) [20]. The RA (0, 1 h) catalyst did not show deactivation when nitrogen was replaced with argon (Figure S2). Deactivation was not observed with RA (10, 1 h), even in a nitrogen atmosphere, and this difference seemed to be due to the smaller Ru crystallite size. From these results, we confirmed that the addition of HNO₃ increased the Ru dispersion, but not the methane conversion [21]. The CO selectivity of RA (0, 1 h) was lower than those of other catalysts, attributed to the water–gas shift reaction (WGS, CO + H₂O = CO₂ + H₂) (Figure 5a) [22]. During the SMR reaction using the RA (0, 1 h) catalyst, more water was available because of the lower CH₄ conversion, thus increasing the H₂O/CO ratio, favoring WGS equilibrium. In the case of RA (10, 1 h), the CO, CO₂ carbon-based selectivity did not change over time; however, the CO selectivity of RA (0, 1 h) decreased because the methane conversion rate decreased with T.O.S. (Figure S3). For this reason, the H₂/CO ratio of the RA (0, 1 h) catalyst was higher than those of other catalysts (Table S2). When the HNO₃/Ru molar ratio was 10, the activity of the SMR reaction was similar for all catalysts because of the similar Ru crystallite size (Figure 4b). In addition, Figure 5b shows that the selectivity of catalysts with a fixed HNO₃/Ru molar ratio at 10 was not significantly different.

In the long-term stability test, the catalytic activity was slightly different, depending on the Ru distribution on pellets. The RA (0, 1 h) catalyst showed a lower SMR activity than the other catalysts did due to the poisoning of NH₃. This is a disadvantage because the H₂ gas entering the fuel cell will be generated onsite by reforming natural gas, including N₂ gas. The homogeneous catalysts (RA (10, 24 h)) showed a similar catalytic activity to graded eggshell-type catalysts (RA (10, 1 h)); however, it required longer preparation times.

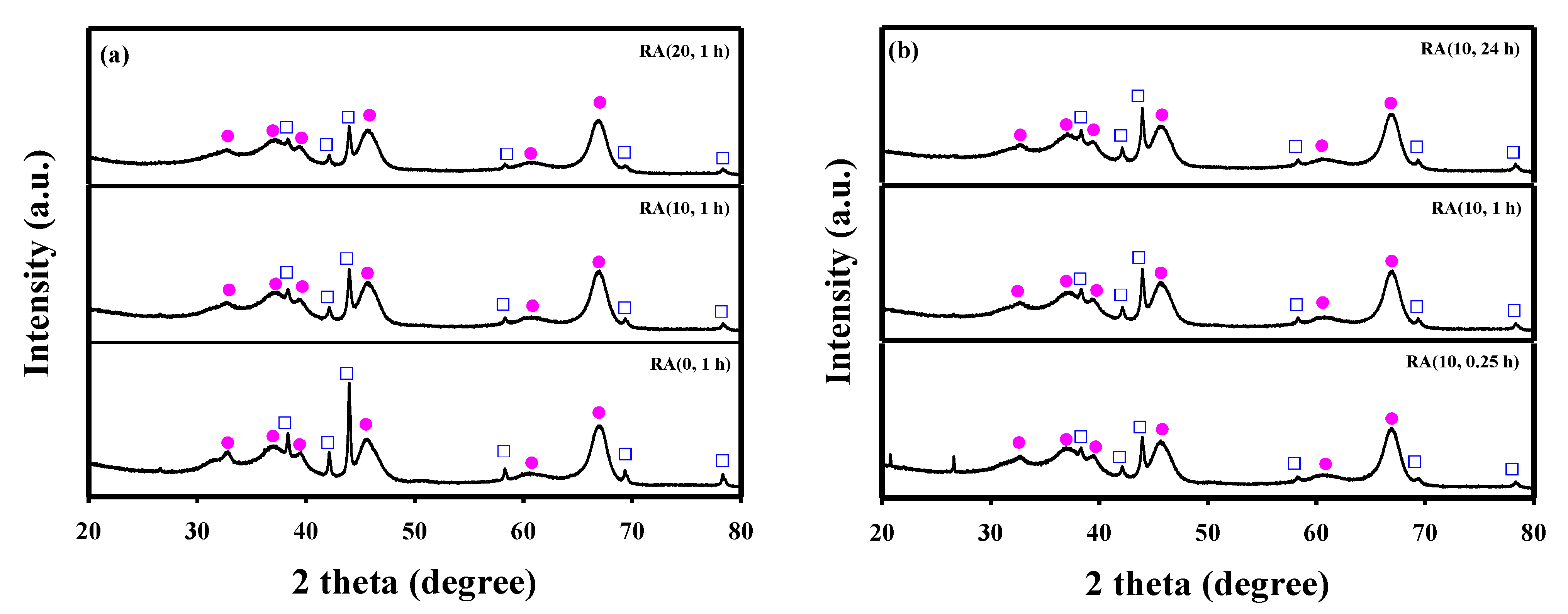

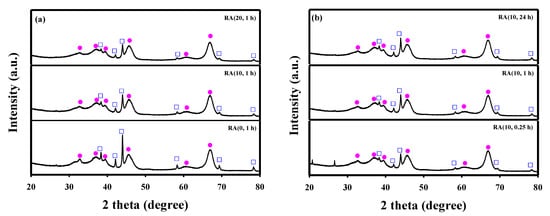

Figure 6 shows the XRD patterns of spent Ru/γ-Al₂O₃ catalysts. No difference was observed between the reduced and spent catalysts in any catalyst. In addition, no coke diffraction peaks in the XRD patterns of the catalysts were observed. The BET surface areas and average pore sizes of spent catalysts changed after 15 h of reaction (

Table 1. BET surface area, pore volume, average pore size, and Ru crystallite size of Ru/Al₂O₃ catalysts in their spent states.

Sample	BET Surface Area (m2/g)	Pore Volume (cm3/g)	Average Pore Size (nm)	Ru Crystallite Size (nm)
RA (0, 1 h)	143	0.50	10.2	43.8
RA (10, 0.25 h)	153	0.49	9.4	25.7
RA (10, 1 h)	156	0.49	9.5	27.2
RA (10, 24 h)	151	0.49	9.5	27.5
RA (20, 1 h)	154	0.50	9.8	23.5

). However, compared to the reduced catalysts, the Ru crystallite sizes of all catalysts did not change after the reaction. Figure S4 shows the SEM images of the prepared and the spent Ru/γ-Al₂O₃ catalysts with a fixed contact time at 1 h. For all catalysts, there was no significant difference between the prepared and the spent catalysts.

2.2.2. Catalytic Test in DSS Operation

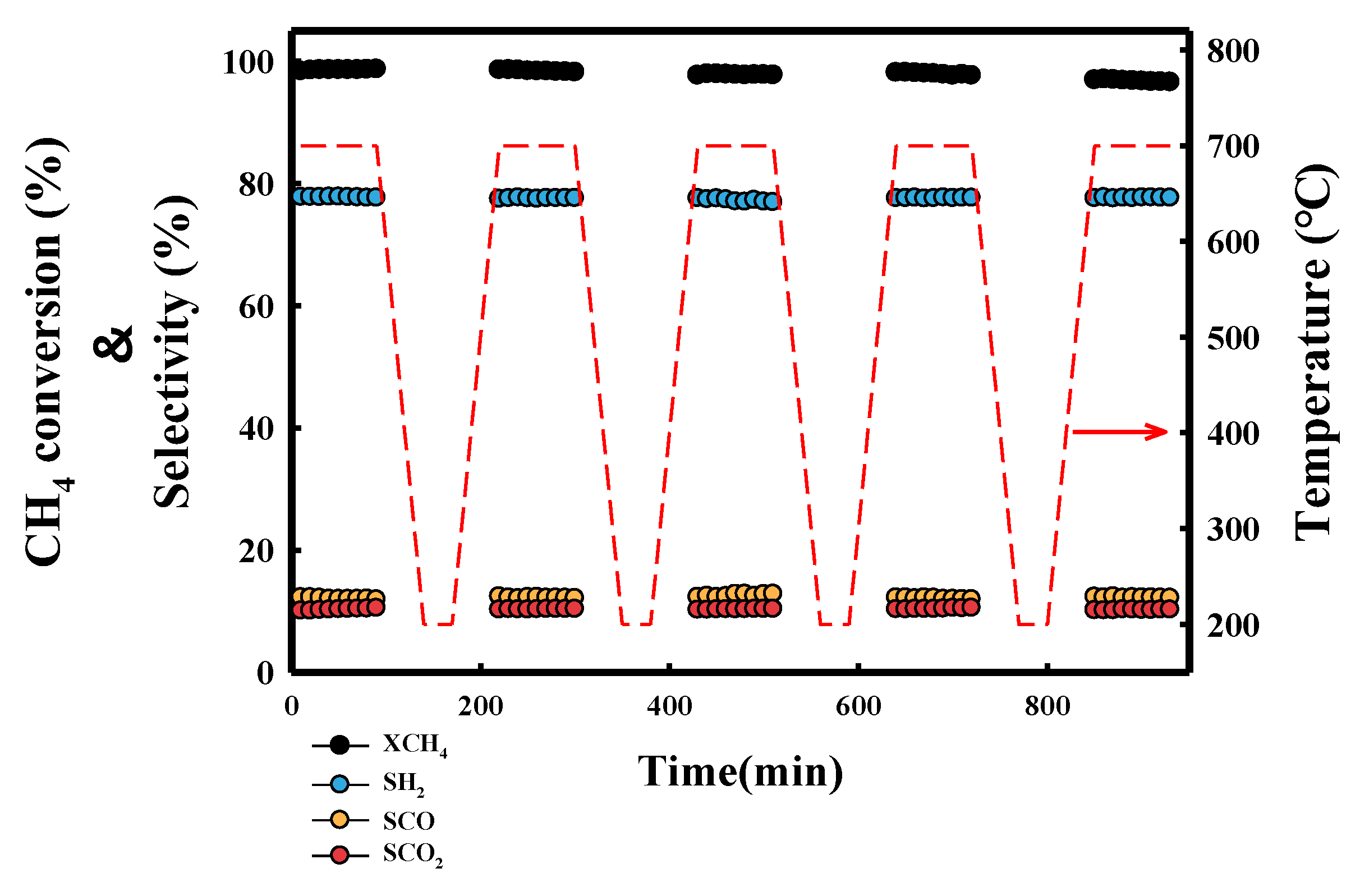

To confirm the efficiency of the actual fuel cell, the RA (10, 1 h) catalyst showing the best activity and stability was tested in DSS operation [23]. Before the catalytic test, the catalyst was reduced in an H₂/N₂ gas mixture (10/90 mL/min) for 3 h at 800 °C. After the reduction, the catalysts were cooled to 700 °C under N₂ gas, and then the reaction was started in a CH₄/H₂O/N₂ (10/30/60 mL/min). After a 90 min reaction, the catalysts were cooled to 200 °C at a rate of 10 °C/min under purge conditions. The purge condition consisted of H₂O/N₂ (30/60 mL/min) in which only the CH₄ supply was stopped under reaction conditions. After the catalysts bed temperature was maintained at 200 °C for 30 min, the temperature was increased to 700 °C under purge conditions. CH₄ gas was added to start the reaction; the reaction was held for 90 min. To perform the DSS operation, this reaction was repeated 5 times. The results of the DSS operation are shown in Figure 7. RA (10, 1 h) showed no significant deactivation during the 5 cycles of DSS operation. The catalyst prepared using an appropriate HNO₃/Ru molar ratio and contact time was suitable for SMR reaction.

3. Materials and Methods

3.1. Materials

The Ru(III) nitrosyl nitrate (Ru(NO₃)₃(NO), Ru 31.3% min) was purchased from Alfa-Aesar (Ward Hill, MA, USA). Spherical-shaped γ-Al₂O₃ pellets were purchased from SASOL (Sandton, South Africa). HNO₃ (64–66 wt%) was purchased from DUKSAN (An-San, Korea).

3.2. Catalysts Preparation

All catalysts were synthesized using impregnation methods. Before preparation, the pellet was dried at 150 °C for 2 h. The Ru concentration was 2 wt% based on Ru/γ-Al₂O₃, and the nitric acid was added based on the molar ratio of Ru. The desired amount of pellets, Ru(III) nitrosyl nitrate, and HNO₃ were dispersed in deionized water, and the mixture was stirred at different contact times, for each catalyst. The mixed solution was evaporated in an oven at 150 °C for 5 h and calcined in a muffle furnace, under air, at 700 °C for 4 h; the temperature ramp rate was 10 °C/min.

3.3. Characterization

Cross-sectional images of the catalysts after preparation were observed using a Dino-Lite Premier Digital Microscope (AM3113T, AnMo Electronics Corp., New Taipei City, Taiwan). The change in the Ru concentrations inside the alumina pellet was measured using scanning electron microscopy (FE-SEM, SU-8230, Hitachi, Tokyo, Japan) with EDS (Oxford Instruments, Abingdon, UK). The crystal structure of the catalysts was analyzed using a Cu Kα radiation source in a Phillips X’PERT X-ray diffractometer (PANalytical, Amsterdam, Netherlands) located at the Korea Basic Science Institute, Daegu. The surface area, pore volume, and pore size were measured by the BET method, using ASAP2020 (Norcross, GA, USA). The chemical composition of catalysts was measured using a wavelength-dispersive X-ray fluorescence spectrometer (XRF, Bruker Corp., Billerica, MA, USA).

3.4. Steam-Methane Reforming Tests

The SMR tests were determined using gas chromatography (GC). The Ru/Al₂O₃ pellets (0.5 g) were packed into a fixed-bed reactor with a diameter of ½ inch (1.27 cm), and the reactor was placed in an electric furnace at atmospheric pressure. The thermocouple was placed at the center of the catalyst bed. Before the SMR, 10 vol% H₂ and N₂ balance at 100 mL/min (WHSV: 12,000 mL/g/h) were passed through the packed bed at 800 °C for 3 h to reduce the catalysts. After purging the reactor with N₂, the reaction temperature was fixed at 700 °C, and the gas composition was changed to 30 vol% H₂O, 10 vol% CH₄ (steam/carbon ratio: 3), and N₂ balance at 100 mL/min. To prevent the condensation of water vapor, the inlet and outlet lines of the reactor were maintained at 120 °C using heating tape. In addition, the reactor outlet stream was passed through a condenser to capture water before entering the reactor and GC column. The dried gases were analyzed using a gas chromatograph (Agilent 6890, Agilent Technologies, Inc., Santa Clara, CA, USA), equipped with two thermal conductivity detectors (TCDs). The first Carboxen 1000-packed column was connected to one TCD for analysis of the N₂, CO, CH₄, and CO₂ gases, and the second Carboxen 1000-packed column was connected to the other TCD for analysis of the H₂ gas.

The conversion of CH₄ (XCH₄) and selectivity of the products (CO, CO₂, and H₂) were calculated using Equations (4)–(7)

$$X_{{\mathrm{CH}}_4}= \frac{F_{C{H}_4}^{in}-F_{C{H}_4}^{out}}{F_{C{H}_4}^{in}} \times 100$$

(4)

$$S_{CO}= \frac{F_{CO}^{out}}{F_{CO}^{out}+ F_{C{O}_2}^{out} + F_{H_2}^{out}} \times 100$$

(5)

$$S_{C{O}_2}= \frac{F_{C{O}_2}^{out}}{F_{CO}^{out}+ F_{C{O}_2}^{out} + F_{H_2}^{out}} \times 100$$

(6)

$$S_{H_2}= \frac{F_{H_2}^{out}}{F_{CO}^{out}+ F_{C{O}_2}^{out} + F_{H_2}^{out}} \times 100$$

(7)

4. Conclusions

In this study, Ru/Al₂O₃ catalysts were prepared using the impregnation method at various HNO₃/Ru molar ratios and contact times. HNO₃ was added to reduce the strength of the metal precursor–support interactions. In the presence of HNO₃, at the impregnation step, Ru penetrated the pellet. Therefore, it is possible to make various types, from delimited eggshell type to homogenous type, by controlling the HNO₃/Ru molar ratio and contact time. Ru/Al₂O₃ catalysts showed a similar CH₄ conversion in the SMR reaction except for RA (0, 1 h), which showed a low CH₄ conversion due to the poisoning of NH₃. Among them, the graded eggshell-type RA (10, 1 h) catalyst showed the best activity (98%) and stability in the long-term test. In addition, the RA (10, 1 h) catalyst needed shorter preparation times than the homogeneous-type catalysts that showed similar catalytic activity. Therefore, the RA (10, 1 h) catalyst was selected as the optimal catalyst in our study. In the DSS operation, which was tested under conditions similar to those of an actual fuel cell, the catalytic activity of the graded eggshell-type RA (10, 1 h) catalyst was maintained for five cycles. Based on the experimental studies, it was confirmed that Ru-based catalysts are suitable for SMR for PEMFC.
