Influence of Phase Composition and Pretreatment on the Conversion of Iron Oxides into Iron Carbides in Syngas Atmospheres

Department of Chemistry, Technische Universität Berlin, Strasse des 17. Juni 124, D-10623 Berlin, Germany
BasCat—UniCat BASF JointLab, Technische Universität Berlin, Hardenbergstraße 36, D-10623 Berlin, Germany
Author to whom correspondence should be addressed.
Catalysts 2021, 11(7), 773;
Submission received: 20 May 2021 / Revised: 23 June 2021 / Accepted: 24 June 2021 / Published: 25 June 2021
(This article belongs to the Special Issue Surface Design of Metal Oxide Catalysts)


CO2 Fischer–Tropsch synthesis (CO2–FTS) is a promising technology enabling conversion of CO2 into valuable chemical feedstocks via hydrogenation. Iron–based CO2–FTS catalysts are known for their high activities and selectivities towards the formation of higher hydrocarbons. Importantly, iron carbides are the presumed active phase strongly associated with the formation of higher hydrocarbons. Yet, many factors such as reaction temperature, atmosphere, and pressure can lead to complex transformations between different oxide and/or carbide phases, which, in turn, alter selectivity. Thus, understanding the mechanism and kinetics of carbide formation remains challenging. We propose model–type iron oxide films of controlled nanostructure and phase composition as model materials to study carbide formation in syngas atmospheres. In the present work, different iron oxide precursor films with controlled phase composition (hematite, ferrihydrite, maghemite, maghemite/magnetite) and ordered mesoporosity are synthesized using the evaporation–induced self–assembly (EISA) approach. The model materials are then exposed to a controlled atmosphere of CO/H2 at 300 °C. Physicochemical analysis of the treated materials indicates that all oxides convert into carbides with a core–shell structure. The structure appears to consist of crystalline carbide cores surrounded by a partially oxidized carbide shell of low crystallinity. Larger crystallites in the original iron oxide result in larger carbide cores. The presented simple route for the synthesis and analysis of soft–templated iron carbide films will enable the elucidation of the dynamics of the oxide to carbide transformation in future work.

1. Introduction

The ongoing increase in atmospheric levels of CO2 is one of the major reasons for pronounced global warming and climate change over the last decades on earth [1,2]. Thus, great efforts were recently made to develop technologies for CO2 reduction [3,4,5]. CO2 Fischer–Tropsch synthesis (CO2–FTS) is a promising approach to convert CO2 with hydrogen (H2) into olefins (C2–C4 alkenes), which are important feedstocks for the chemical industry [6,7]. The reaction has been reported to proceed in two steps: the reverse water gas shift reaction (RWGS), which reduces CO2 to CO, and a subsequent hydrogenation of CO, i.e., a typical CO Fischer–Tropsch synthesis (CO–FTS). Iron–based catalysts, such as hematite (α–Fe2O3), are able to catalyze both reactions under similar reaction conditions and show high selectivities toward higher hydrocarbons [6,7,8]. Therefore, it is of great importance to develop stable and highly efficient iron–based CO2–FTS catalysts.
Iron–based catalysts were shown to undergo a complex dynamic structural change during the CO2–FTS process. α–Fe2O3, a typical starting material, can be converted under the employed reducing conditions into many different phases under the conditions of the CO2–FTS—such as wustite (FeO), maghemite (γ–Fe2O3), magnetite (Fe3O4), elemental iron (Fe), and iron carbides. Each of these phases may potentially form species which affect both activity and selectivity of the catalyst [8,9,10,11].
Previous studies indicate that iron carbides are favorable for the formation of higher hydrocarbons [12]. Schroff et al. investigated Fe3O4 catalysts in the CO2–FTS. In their study, pristine Fe3O4 was observed to show hardly any catalytic activity for the CO–FTS. More importantly, the formation of a carbide phase turned out to be of pivotal importance to obtain high catalytic activities [13]. Herranz et al. used pure hematite catalysts, tracing the formation of cementite (θ–Fe3C) and Hägg iron (χ–Fe5C2) during a pretreatment in a mixture of gaseous CO/H2. Beyond that, the authors revealed the formation of carbonaceous intermediate species on the surface of Hägg iron (χ–Fe5C2) carbides, which are claimed to be more active for the CO2–FTS [9]. Moreover, Yao et al., reported the use of syngas treatments prior to CO2–FTS as an elegant way to activate the catalysts [14]. A comprehensive review on syngas–induced carbide formation, related iron oxide and carbide phases, challenges in material characterization, and deactivation mechanisms has been reported by de Smit and Weckhuysen in 2008 [11].
Additionally, the structure of the catalyst has a great impact on catalytic performance and carbide formation. Galvis et al., reported significant particle size effects for supported iron carbides [15]. Different studies focused on the addition of promotors. Alkali metals e.g., potassium were reported to enhance the catalytic performance [11,16]. Galvis et al., studied sodium and/sulfur promoted catalysts and observed increased carbide contents depending on the sodium/sulfur concentration. The results showed that not necessarily the highest carbide content results in the best performing catalyst [17].
In the recent years, sophisticated characterization techniques in the field of surface analysis led to an identification of formed iron carbide phases and other carbonaceous intermediate species on iron–based catalysts in CO2–FTS [18]. Nonetheless, understanding the carbide formation process under the CO2–FTS reaction conditions still remains a challenge. Iron oxides can show various crystal structures and different phases, which, accordingly, obstruct clear conclusions due to the heterogeneity of the studied catalysts [8,9]. Moreover, these materials are sensitive to changes in temperature, time on stream, applied pressure, humidity, gases (air, H2, CO, CO2) during CO2–FTS [6,7,8]. Beyond that, rather low crystallinities of the intermediate phases and complex nature of the surface species on iron–based catalysts in CO2–FTS process make a clear identification of the carbide phases among other possible intermediate phases difficult. Therefore, in order to develop an efficient guideline for designing high performance iron–based CO2–FTS catalysts, a fundamental understanding for the dynamic and mechanistic behavior has to be achieved. In a first step, we investigate the formation of carbides in CO/H2 mixtures, i.e., treatments that favor rapid carbide formation and can be used to activate CO2–FTS catalysts.
Herein, we introduce an approach to use model–type iron oxide films with a well–defined mesoporous structure to shed light on the formation of carbides upon exposure to synthesis gas on different length scales. Physicochemical properties were assessed by complementary bulk– and surface–sensitive analysis techniques. The mesoporous iron oxide films can be synthesized with different initial phase composition as established in our previous work, i.e., hematite [19], ferrihydrite, [19] maghemite [20] as well as a maghemite partially converted into magnetite [20]. We previously employed this approach to investigate phase transformation and crystallization behavior of iron oxides and/or –oxohydroxides upon exposure to air, [19] N2, [20] Ar/H2 [20] as well as the role of water [21] in oxide phase transformations.
Briefly, the model–type oxide films are prepared using the well–established EISA approach with block–copolymer micelles as soft template for the introduction of a mesoporous structure [22,23]. It enables synthesis of well–ordered mesoporous thin films with tunable composition, crystallite size and wall thickness [24,25]. The as–synthesized ordered mesoporous films enable a precise investigation of bulk–averaged information (e.g., XRD) and study of local changes in the phase composition, i.e., domain growth on the nanometer scale using microscope methods such as SEM, TEM, and SAED. Beyond that, thin mesoporous iron oxide films can avoid the shortcomings of typical nanoparticles such as low accessibility, pronounced agglomeration or ill–defined particle shapes which were shown to cause difficulties in the studies of in situ surface reactions [14,15,26,27,28].
In this work, different iron oxide phases with template–controlled mesopore structure, i.e., hematite (HEM), ferrihydrite (FH), maghemite (MAGH), and maghemite/magnetite (MAGH/MAGN) were exposed to syngas and studied via different analytical methods prior and after syngas treatment to understand the phase transformation and crystallization into carbides. To the best of our knowledge no mesoporous carbide films have been reported. The developed models present a powerful tool for mechanistic studies also under conditions of the CO2–FTS.

2. Results

The preparation of the mesoporous iron oxide films via the EISA approach is outlined in Scheme 1, including the syngas treatment applied to the precursor films in the right column. Typically, the fresh iron oxide samples were prepared based on a previous report [19,20]. Briefly, as a first step, a low crystalline mesophase is produced via dip–coating in argon atmosphere and stabilization at 250 °C in air. Calcination in air at 400 °C for 10 min yields ferrihydrite films (FH) with a well–ordered mesoporous structure and low crystallinity, whereas calcination at 550 °C for 10 min forms a highly crystalline hematite film (HEM). Maghemite films (MAGH) are obtained after a heat treatment of the mesophase in N2 at 350 °C for 5 h. Partial reduced maghemite/magnetite films (MAGH/MAGN) form after a heat treatment in N2 at 400 °C for 2 h followed by a reduction in H2/Ar at 350 °C for 1 h.
In order to study the impact of the phase composition on the carbide formation, all oxide films were exposed to syngas (66% CO, 33% H2) at 300 °C for 20 h at atmospheric pressure.
In order to study the formation of iron carbides during the aforementioned process, scanning electron microscopy (SEM), transmission electron microscopy (TEM), and selected area electron diffraction (SAED) were performed and presented alongside results from X–ray diffraction measurements in gracing–incidence geometry for the incoming beam (GI–XRD) of the fresh hematite (HEM), ferrihydrite (FH), maghemite (MAGH), and maghemite/magnetite (MAGH/MAGN) films are presented in Figure 1.
Fresh hematite (HEM) samples (Figure 1a) present a mesoporous–templated film with a grid–like morphology according to SEM imaging (Figure 1(aI)), which can be explained by sintering processes of neighboring crystallites. Such grid–like structures have already been observed in our previous work [21] and for other systems (e.g., TiO2, Nb2O5) [29,30]. Representative TEM images (Figure 1(aII,III)) reveal partially sintered crystallites and an average pore wall thickness of 11 ± 3 nm. Compared to the SEM top view images the pore walls appear to be thinner in the bulk indicating a higher degree of sintering on the surface. The recorded SAED pattern can be assigned to hematite (Figure 1(aIV)) and shows only few spots instead of homogeneous diffraction rings observed for polycrystalline materials. These patterns have been recorded for spots larger than 100 nm, indicating crystallites sharing a nearly identical orientation [30]. The GI–XRD pattern (Figure 1(aV)) shows narrow reflections for a pure hematite phase and crystallite size of 18 nm determined using the Debye–Scherrer equation for the strongest reflection at 2θ = 33.153°.
Ferrihydrite (FH) precursor films are fine–grained, low crystalline materials with a well–ordered mesoporosity (SEM Figure 1(bI)). The absence of any clear lattice fringes in the corresponding TEM images confirms a low crystallinity (Figure 1(bII,III)), which is further corroborated by SAED analysis (Figure 1(bIV)). Evidently, the SAED pattern only shows signals stemming from the carbon film of the TEM grid. The formation of larger crystallites was ruled out using GI–XRD analysis (Figure 1(bV)).
Maghemite (MAGH) precursor films feature a well–defined pore structure with a pore diameter of 7 ± 1 nm (Figure 1(cI)). Lattice fringes observed in representative TEM images can be assigned to the maghemite phase and the pore walls have an average thickness of 7 ± 1 nm (Figure 1(cII,III)). Several rings can be observed in the SAED pattern, which can be assigned to maghemite (Figure 1(cIV)). The GI–XRD pattern (Figure 1(cV)) recorded for maghemite features reflections corresponding to either maghemite or magnetite. Due to the structural similarity of maghemite and magnetite, it is not possible to distinguish between both crystal phases. Using the Scherrer equation for the strongest reflection at 2θ = 35.7°, an average crystallite size of 7 nm was determined which correspond well to the wall thickness determined by TEM.
Maghemite films that have been partially transformed into magnetite by reductive treatment (MAGH/MAGN) show signs of grain coarsening and the formation of a grid–like structure (Figure 1(dI)). SAED (Figure 1(dV)) and GI–XRD (Figure 1(dV)) results are similar to the MAGH film. As mentioned above, it is not possible to clearly assign the maghemite or magnetite phase. With 8 nm, a similar value for the average crystallite size can be obtained.
In general, the properties of all precursor films are consistent with results from previously reported studies [19,20,21].
In order to study the precursor films’ tendencies to form carbides, all iron oxide films were treated in CO/H2 at 300 °C for 20 h. Figure 2 displays the corresponding (I) SEM, (II, III) TEM, (IV) SAED, and (V) GI–XRD analysis results.
HEM precursor films show well–preserved mesopores after the treatment, as evidenced by top–view SEM imaging (Figure 2(aI)). Yet, there are indications for a swelling of the pore walls. TEM images (Figure 2(aII,III)) illustrate the formation of a core–shell structure of the carburized materials. Lattice fringes of 0.20 nm matching to (510) lattice planes of Fe5C2 can be observed in the core indicating the full transformation of the initial hematite to a carbide phase. The shell appears to consist of a low–crystallinity material with no lattice fringes. Diffraction spots in the SAED pattern (Figure 2(aIV)) are also consistent with the formation of iron carbides. However, assignment of carbides is challenging due to the great number of possible diffraction rings. The GI–XRD pattern (Figure 2(aV)) features three reflections that nicely match to reflections of Fe5C2. An average crystallite size of 8 nm can be determined, indicating a significant decrease in crystallite size compared to the corresponding oxide phase.
FH precursor films treated in CO/H2 feature a grid–like structure (SEM, Figure 2(bI)). Similar to HEM, the analysis via TEM imaging indicates a core–shell structure consisting of a crystalline carbide core (lattice fringes of 0.21 nm corresponding to (021) lattice planes) with a shell of low crystallinity (TEM, Figure 2(bII,III)). The SAED pattern consists of comparably few diffraction spots (Figure 2(bIV)), indicating domains with crystallites that share a similar orientation. The most intense reflections in the GI–XRD pattern (Figure 2(bV)) indicate the formation of iron carbide with a comparably small average crystallite size of 4 nm.
MAGH films exposed to CO/H2 still feature a mesoporous structure with pore walls that appear much thicker than in the original oxide film (Figure 2(cI)). TEM analysis shows the formation of a core/shell structure with a carbide core. The shell shows in some areas in the shell with lattice fringes of 0.25 nm, which could either correspond to oxide or carbide phase. SAED (Figure 2(cIV)) and GI–XRD (Figure 2(cV)) both provide clear evidence for the formation of Fe5C2. The observed average crystallite size of 5 nm after is smaller than in the original oxide (7 nm).
SEM images indicate for MAGH/MAGN films after CO/H2 exposure a similar sintered appearance as for treated FH films (Figure 2d). This material also features a morphology consisting of carbide cores which are surrounded by a shell of low crystallinity (TEM). Again, a small crystallite size of 4 nm can be calculated (XRD), highlighting the nano–crystallinity of the formed carbide cores.
In brief, the reaction conditions of 300 °C for 20 h in a mixture of CO/H2 with a ratio of 2 to 1 lead to a conversion of all presented precursor films to carbides. Despite the high reduction strength of the syngas atmosphere, the initial soft–templated mesoporous structure is mainly preserved. TEM analyses for HEM and MAGH indicate that crystalline oxide walls transform into carbides with a distinct structure. The formed walls contain crystalline particles, each of them surrounded by a layer of lower crystallinity. Apparently, the oxide crystallites are transformed into a carbidic core–shell structure made up of crystalline cores and low–crystallinity shells. Moreover, exposure of the materials to air appears to induce a partial surface oxidation of the carbide shell. Depending on the initial precursor oxide phase, different degrees of crystallinity can be observed for the carbide films, i.e., a different width of the signals in the GI–XRD patterns (HEM > MAGH/MAGN > MAGH > FH).
Surface–analysis of the CO/H2–treated HEM, FH, MAGH, and MAGH/MAGN precursor films treated in a mixture of CO/H2 was performed via XPS (Figure 3). In a typical Fe 2p spectrum, iron carbides usually depict a sharp doublet peak, whose 2p3/2 peak locates at 707.9 eV and a Fe–C contribution around 284.1 eV in the C 1s spectrum [20]. Both contributions can be found in all CO/H2 treated films, indicating that regardless of the initial iron oxide phase, a significant contribution of a carbide phase in the surface region can be deduced.
Among the samples, the carburized MAGH film features a very weak signal for the carbide phase in the corresponding Fe 2p and C 1s spectra. Instead, the main contributions in the Fe 2p spectrum can be assigned to a typical Fe2+ spectrum, with an asymmetric peak located at 710.8 eV, and a broad satellite feature at 716.1 eV [31,32]. Meanwhile, a strong Fe–O contribution can be found at 529.8 eV in the O 1s spectrum [33], further supporting that the surface of the CO/H2–treated MAGH sample is partly oxidized. A similar feature can also be observed in the CO/H2–treated HEM film. These results suggest the formation of an iron carbide during the treatment, which shows a crystalline core surrounded by a low–crystallinity carbide shell. Due to subsequent exposure of the films to air, the surface of that weakly crystalline shell undergoes partial oxidation. Carburized MAGH/MAGN films also provide evidence for iron carbide species close to the surface, yet with a lower degree of surface oxidation after exposure to air. Similarly, strong iron carbide features can be observed in the carburized FH samples, with relatively weak surface oxidation.
Except for the contributions assigned to iron carbides and iron oxide, several prominent features in the spectra can be assigned to graphitic carbon (284.8 eV), surface hydroxylated carbon (286.3 eV) and surface oxidation (298.1 eV) in every C 1s spectra [34,35]. In the O 1s spectrum, two peaks assignable to C–O (531.9 eV) and –OH (533.1 eV) can be observed and are well–known from other iron oxide materials [36]. These peaks originate from the inevitable adventitious carbon species adsorbed on the material’s surface or from the surface oxidation caused by exposure to air. It should be noted that these peaks do not correlate with the chemical structure of the bulk material of the films [37].
The study presents a simple approach for the synthesis of ordered mesoporous iron carbide films using iron oxide precursor films of different phase, composition and crystallinity, yet with similar morphology. By a carburization reaction under rather mild conditions, i.e., 300 °C, 20 h, CO/H2 (ratio of 2/1), a bulk conversion to the Fe5C2 carbide phase can be achieved, independent of the initial bulk phase or composition of the precursor films. Due to the mild conditions in the carburization step, the mesoporous structure is kept intact for all films.
Accordingly, the initial phase and composition of different iron oxides do not significantly affect the preferred reaction product. Yet, initial crystallite sizes affect the grain size of the formed carbide. For instance, HEM shows the biggest crystallite sizes prior to and after CO/H2 treatment compared to the other materials. Moreover, we observed the formation of a low–crystallinity shell with only a few lattice fringes that can be assigned to either iron carbides or oxides.
Core–shell structures have been observed in previous studies for catalysts with a carbide phase, where the presence of an oxide shell has been related to air exposure prior to sample analysis [38,39,40]. From our findings, we propose a structure of highly crystalline iron carbide cores surrounded by a thin shell of partially surface–oxidized, weakly crystalline carbide. In this context, signals for both oxidic and carbidic species can be detected in the XPS spectra, indicating a partially oxidized carbide shell that, most likely, results from exposure to air after carburization. Depending on the initial phase, a different degree of surface oxidation can be detected. Overall, the phase assignment proofs to be difficult for the observed shell due to its low crystallinity and limitations of the employed methods with respect to the analysis of iron–carbon compounds.

3. Conclusions

In summary, soft–templated mesoporous iron oxide films with different oxidation states and phase composition were successfully transformed into iron carbides. Under the chosen conditions (300 °C, 20 h, CO/H2 2 to 1) all samples form carbides independent of the initial oxide phase. SAED patterns indicate a local ordering of crystallites. We propose the formation of carbide phases with core–shell structure, in which the core consists of a crystalline carbide and the shell consists of a low–crystallinity partially surface–oxidized carbide. The degree of oxidation appears to depend on the initial phase composition. Swelling of the structure observed in the top view SEM is most likely the results of the formed low–crystallinity carbide shell. However, other methods are required to fully resolve the phase information of the shell.
This work reveals the phase transformation of iron oxides to iron carbides with different initial phase compositions into carbides upon controlled exposure to syngas atmospheres, leading the field one step further towards understanding the intermediate phase transformation of during the complicated CO2–FT reaction.

4. Materials and Methods

For this study a selection of iron oxide films have been prepared with different oxidation degree by controlled thermal treatment of a stabilized mesophase obtained by dip coating on silicon substrates.
Iron nitrate nonahydrate from (99+%) was purchased from Acros Organics (Acros Organics, Fair Lawn, NJ, USA), Ethanol (99.9+%, ACS grade) was obtained from VWR (Radnor, PA, USA). 2–Methoxyethanol (99.3+%, ACS grade) was obtained from Alfa Aesar (Alfa Aesar, Haverhill, MA, USA). The soft template was a copolymer (PEO104b–PB92b–PEO104) was synthesized by Polymer Service GmbH Merseburg (Polymer Service GmbH, Merseburg, Germany) [24]. All chemicals were used without further purification.
The stabilized mesophase was prepared analogue to previous works [19]. Adapted from Brezesinski at al. [41], a dip coating solution was prepared by dissolving PEO104b–PB92b–PEO104 (109 mg) in a mixture of ethanol (4.36 mL) and 2–methoxyethanol (4.64 mL) for 20 min at 40 °C yielding a colorless solution. Fe(NO3)3·9H2O (1173 mg) was added and stirred for an additional hour resulting in a solution with orange–red color. Si(100)–wafers were used as substrate.
Film deposition and thermal treatment were similar to previous works [19,20]. An essential step during film synthesis is a controlled low humidity that can be ensured in a glove box with an argon atmosphere. Substrates were dip coated with a withdrawal rate of 400 mm/min and dried in argon for 10 min. Afterwards, the films were transferred under inert conditions into an oven and calcined at 250 °C in air for 1 h forming the mesophase. Calcination of the mesophase at 400 °C for 10 min in air forms FH, at 550 °C for 10 min HEM as reported in earlier studies [19,21]. Treatment in nitrogen for 5 h at 350 °C forms MAGH, whereas treatment at 400 °C in nitrogen for 2 h and subsequent treatment in H2 (4%)/Ar at 350 °C for 1h forms a partially reduced MAGH/MAGN phase [20].
For the CO/H2 experiments HEM, FH, MAGH, and MAGH/MAGN films were wrapped in quartz wool and placed in a tube reactor. The reactor was first flushed with He (372 mL/min) for 1 h and then in CO (248 mL/min) and H2 (124 mL/min) for an additional hour. Thereafter, the samples were heated to 300 °C with 10 K/min and kept at 300 °C for 20 h. The samples were then cooled down in CO/H2 to 80 °C in a time frame of 1.5 h followed by a change of the gas feed to He (372 mL/min). The samples were removed after a cool down in He to 50 °C.
TEM analysis was conducted on a Tecnai G 2 20 S–TWIN (FEI, Hilsboro, OR, USA) instrument that was operated at 200 kV. The films were scraped off from the substrates transferred onto copper grids coated with a carbon–film. Before installment of the samples a second copper grid with a carbon film placed on top to ensure that no material can escape the sample holder. To ensure that no sample SAED was performed on the same instrument using an aperture resulting in an investigated sample area with a diameter of 180 nm.
SEM imaging was performed using a JEOL 7401F (JEOL, Tokyo, Japan) instrument at an acceleration voltage of 10 kV and a working distance of approximately 4.5 mm. ImageJ (National Institutes of Health, Bethesda, MD, USA) was employed to analyze the SEM images [42].
XRD was measured on a Bruker D8 Advance instrument (Cu Kα radiation, λ = 1.5409 Å) with a grazing incident beam (1°). Reflections were assigned using PDFMaintEx library version 9.0.133 (Bruker, Billerica, MA, USA). Crystallite sizes were estimated by applying the Scherrer equation to the most intense signal ((104)–reflection).
XPS spectra were obtained via Thermo Fisher Scientific ESCALAB 250Xi (Thermo Fischer Scientific, Waltham, MA, USA), with the spot size 400 µm. Avantage was used as XPS data processing software. Shirley background was used with an additional constraint that the background intensity does not exceed the data at any point in the region. Samples were measured as–is, i.e., without removing the Si substrates. Only minor contributions from the Si substrate (<2%) were detected in the spectra.

Author Contributions

A.A. and M.G. contributed to experimental aspects of data analysis, evaluation, and interpretation. A.A. and M.-Y.Y. both contributed to the writing and editing of manuscript. M.-Y.Y. performed XPS measurements and interpretation of the acquired data. M.F. contributed to the XRD measurements and interpretation of the acquired data. R.K. and M.-Y.Y. conceived the study, contributed to the writing and editing of the manuscript. All authors have read and agreed to the published version of the manuscript.


Aleks Arinchtein and Ralph Kraehnert greatly acknowledge the generous fund of the SPP2080 under the DFG–Project 406695057. Marvin Frisch and Meng-Yang Ye appreciate financial support via BMBF ATO–KAT (03EK3052A).

Data Availability Statement

Original data are available from the authors upon request.


The authors thank ZELMI (TU Berlin) for access to TEM analysis.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Anderson, T.R.; Hawkins, E.; Jones, P.D. CO2, the greenhouse effect and global warming: From the pioneering work of Arrhenius and Callendar to today’s Earth System Models. Endeavour 2016, 40, 178–187. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Peters, G.P.; Andrew, R.M.; Canadell, J.G.; Friedlingstein, P.; Jackson, R.B.; Korsbakken, J.I.; le Quéré, C.; Peregon, A. Carbon dioxide emissions continue to grow amidst slowly emerging climate policies. Nat. Clim. Chang. 2020, 10, 3–6. [Google Scholar] [CrossRef]
  3. Kemper, J. Biomass and carbon dioxide capture and storage: A review. Int. J. Greenh. Gas Control 2015, 40, 401–430. [Google Scholar] [CrossRef]
  4. Gulzar, A.; Gulzar, A.; Ansari, M.B.; He, F.; Gai, S.; Yang, P. Carbon dioxide utilization: A paradigm shift with CO2 economy. Chem. Eng. J. Adv. 2020, 3, 100013. [Google Scholar] [CrossRef]
  5. Schoedel, A.; Ji, Z.; Yaghi, O.M. The role of metal–organic frameworks in a carbon-neutral energy cycle. Nat. Energy 2016, 1, 16034. [Google Scholar] [CrossRef]
  6. Jiang, X.; Nie, X.; Guo, X.; Song, C.; Chen, J.G. Recent Advances in Carbon Dioxide Hydrogenation to Methanol via Heterogeneous Catalysis. Chem. Rev. 2020, 120, 7984–8034. [Google Scholar] [CrossRef]
  7. Kondratenko, E.V.; Mul, G.; Baltrusaitis, J.; Larrazábal, G.O.; Pérez–Ramírez, J. Status and perspectives of CO2 conversion into fuels and chemicals by catalytic, photocatalytic and electrocatalytic processes. Energy Environ. Sci. 2013, 6, 3112. [Google Scholar] [CrossRef] [Green Version]
  8. Skrypnik, A.S.; Yang, Q.; Matvienko, A.A.; Bychkov, V.Y.; Tulenin, Y.P.; Lund, H.; Petrov, S.A.; Kraehnert, R.; Arinchtein, A.; Weiss, J.; et al. Understanding reaction-induced restructuring of well-defined FexOyCz compositions and its effect on CO2 hydrogenation. Appl. Catal. B Environ. 2021, 291, 120121. [Google Scholar] [CrossRef]
  9. Herranz, T.; Rojas, S.; Pérez–Alonso, F.J.; Ojeda, M.; Terreros, P.; Fierro, J.L.G. Genesis of iron carbides and their role in the synthesis of hydrocarbons from synthesis gas. J. Catal. 2006, 243, 199–211. [Google Scholar] [CrossRef]
  10. Ding, M.; Yang, Y.; Xu, J.; Tao, Z.; Wang, H.; Wang, H.; Xiang, H.; Li, Y. Effect of reduction pressure on precipitated potassium promoted iron–manganese catalyst for Fischer–Tropsch synthesis. Appl. Catal. A Gen. 2008, 345, 176–184. [Google Scholar] [CrossRef]
  11. De Smit, E.; Weckhuysen, B.M. The renaissance of iron-based Fischer–Tropsch synthesis: On the multifaceted catalyst deactivation behaviour. Chem. Soc. Rev. 2008, 37, 2758–2781. [Google Scholar] [CrossRef] [PubMed]
  12. Tian, Z.; Wang, C.; Yue, J.; Zhang, X.; Ma, L. Effect of a potassium promoter on the Fischer–Tropsch synthesis of light olefins over iron carbide catalysts encapsulated in graphene-like carbon. Catal. Sci. Technol. 2019, 9, 2728–2741. [Google Scholar] [CrossRef]
  13. Shroff, M.D.; Kalakkad, D.S.; Coulter, K.E.; Kohler, S.D.; Harrington, M.S.; Jackson, N.B.; Sault, A.G.; Datye, A.K. Activation of Precipitated Iron Fischer-Tropsch Synthesis Catalysts. J. Catal. 1995, 156, 185–207. [Google Scholar] [CrossRef]
  14. Yao, B.; Xiao, T.; Makgae, O.A.; Jie, X.; Gonzalez–Cortes, S.; Guan, S.; Kirkland, A.I.; Dilworth, J.R.; Al–Megren, H.A.; Alshihri, S.M.; et al. Transforming carbon dioxide into jet fuel using an organic combustion-synthesized Fe-Mn-K catalyst. Nat. Commun. 2020, 11, 6395. [Google Scholar] [CrossRef]
  15. Galvis, H.M.T.; Bitter, J.H.; Davidian, T.; Ruitenbeek, M.; Dugulan, A.I.; de Jong, K.P. Iron Particle Size Effects for Direct Production of Lower Olefins from Synthesis Gas. J. Am. Chem. Soc. 2012, 134, 16207–16215. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Petersen, M.A.; Cariem, M.J.; Claeys, M.; van Steen, E. A DFT perspective of potassium promotion of χ-Fe5C2(1 0 0). Appl. Catal. A Gen. 2015, 496, 64–72. [Google Scholar] [CrossRef]
  17. Galvis, H.M.T.; Koeken, A.C.J.; Bitter, J.H.; Davidian, T.; Ruitenbeek, M.; Dugulan, A.I.; de Jong, K.P. Effects of sodium and sulfur on catalytic performance of supported iron catalysts for the Fischer–Tropsch synthesis of lower olefins. J. Catal. 2013, 303, 22–30. [Google Scholar] [CrossRef]
  18. Davis, B.H. Fischer–Tropsch synthesis: Current mechanism and futuristic needs. Fuel Process. Technol. 2001, 71, 157–166. [Google Scholar] [CrossRef]
  19. Schulz, K.; Schmack, R.; Klemm, H.W.; Kabelitz, A.; Schmidt, T.; Emmerling, F.; Kraehnert, R. Mechanism and kinetics of hematite crystallization in air: Linking bulk and surface models via mesoporous films with defined nanostructure. Chem. Mater. 2017, 29, 1724–1734. [Google Scholar] [CrossRef]
  20. Kraffert, K.; Kabelitz, A.; Siemensmeyer, K.; Schmack, R.; Bernsmeier, D.; Emmerling, F.; Kraehnert, R. Nanocasting of Superparamagnetic Iron Oxide Films with Ordered Mesoporosity. Adv. Mater. Interfaces 2018, 5, 1700960. [Google Scholar] [CrossRef]
  21. Arinchtein, A.; Schmack, R.; Kraffert, K.; Radnik, J.; Dietrich, P.; Sachse, R.; Kraehnert, R. Role of Water in Phase Transformations and Crystallization of Ferrihydrite and Hematite. ACS Appl. Mater. Interfaces 2020, 12, 38714–38722. [Google Scholar] [CrossRef] [PubMed]
  22. Grosso, D.; Cagnol, F.; Soler-Illia, G.J.d.A.; Crepaldi, E.L.; Amenitsch, H.; Brunet-Bruneau, A.; Bourgeois, A.; Sanchez, C. Fundamentals of Mesostructuring through Evaporation-Induced Self-Assembly. Adv. Funct. Mater. 2004, 14, 309–322. [Google Scholar] [CrossRef]
  23. Yan, M.; Henderson, M.J.; Gibaud, A. Grating induced micelle alignment of mesostructured silica films. Appl. Phys. Lett. 2007, 91, 023104. [Google Scholar] [CrossRef]
  24. Strasser, P.; Polte, J.; Kraehnert, R.; Görke, O.; Ortel, E.; Bernsmeier, D.; Eckhardt, B. Micelle-Templated Mesoporous Films of Magnesium Carbonate and Magnesium Oxide. Adv. Mater. 2012, 24, 3115–3119. [Google Scholar]
  25. Frisch, M.; Laun, J.; Marquardt, J.; Arinchtein, A.; Bauerfeind, K.; Bernsmeier, D.; Bernicke, M.; Bredow, T.; Kraehnert, R. Bridging experiment and theory: Enhancing the electrical conductivities of soft-templated niobium-doped mesoporous titania films. Phys. Chem. Chem. Phys. 2021, 23, 3219–3224. [Google Scholar] [CrossRef]
  26. Brezesinski, T.; Fattakhova Rohlfing, D.; Sallard, S.; Antonietti, M.; Smarsly, B.M. Highly Crystalline WO3 Thin Films with Ordered 3D Mesoporosity and Improved Electrochromic Performance. Small 2006, 2, 1203–1211. [Google Scholar] [CrossRef] [PubMed]
  27. Bernicke, M.; Eckhardt, B.; Lippitz, A.; Ortel, E.; Bernsmeier, D.; Schmack, R.; Kraehnert, R. Synthesis and OER activity of NiO coatings with micelle–templated mesopore structure. ChemistrySelect 2016, 1, 482–489. [Google Scholar] [CrossRef]
  28. Bernsmeier, D.; Ortel, E.; Polte, J.; Eckhardt, B.; Nowag, S.; Haag, R.; Kraehnert, R. Versatile control over size and spacing of small mesopores in metal oxide films and catalytic coatings via templating with hyperbranched core–multishell polymers. J. Mater. Chem. A 2014, 2, 13075–13082. [Google Scholar] [CrossRef] [Green Version]
  29. Sakatani, Y.; Grosso, D.; Nicole, L.; Boissière, C.; Soler-Illia, G.J.D.A.A.; Sanchez, C. Optimised photocatalytic activity of grid-like mesoporous TiO2 films: Effect of crystallinity, pore size distribution, and pore accessibility. J. Mater. Chem. 2006, 16, 77–82. [Google Scholar]
  30. Brezesinski, T.; Groenewolt, M.; Pinna, N.; Amenitsch, H.; Antonietti, M.; Smarsly, B. Surfactant-Mediated Generation of Iso-Oriented Dense and Mesoporous Crystalline Metal-Oxide Layers. Adv. Mater. 2006, 18, 1827–1831. [Google Scholar] [CrossRef]
  31. Lv, H.; Zhao, H.; Cao, T.; Qian, L.; Wang, Y.; Zhao, G. Efficient degradation of high concentration azo-dye wastewater by heterogeneous Fenton process with iron-based metal-organic framework. J. Mol. Catal. A Chem. 2015, 400, 81–89. [Google Scholar] [CrossRef]
  32. Grosvenor, A.P.; Kobe, B.A.; Biesinger, M.C.; McIntyre, N.S. Investigation of multiplet splitting of Fe 2p XPS spectra and bonding in iron compounds. Surf. Interface Anal. 2004, 36, 1564–1574. [Google Scholar] [CrossRef]
  33. Wang, W.; Niu, Q.; Zeng, G.; Zhang, C.; Huang, D.; Shao, B.; Zhou, C.; Yang, Y.; Liu, Y.; Guo, H.; et al. 1D porous tubular g-C3N4 capture black phosphorus quantum dots as 1D/0D metal-free photocatalysts for oxytetracycline hydrochloride degradation and hexavalent chromium reduction. Appl. Catal. B Environ. 2020, 273, 119051. [Google Scholar] [CrossRef]
  34. Gupta, A.; Mittal, M.; Singh, M.K.; Suib, S.L.; Pandey, O.P. Low temperature synthesis of NbC/C nano-composites as visible light photoactive catalyst. Sci. Rep. 2018, 8, 1–17. [Google Scholar] [CrossRef] [Green Version]
  35. Bourlier, Y.; Bouttemy, M.; Patard, O.; Gamarra, P.; Piotrowicz, S.; Vigneron, J.; Aubry, R.; Delage, S.; Etcheberry, A. Investigation of InAlN Layers Surface Reactivity after Thermal Annealings: A Complete XPS Study for HEMT. ECS J. Solid State Sci. Technol. 2018, 7, P329–P338. [Google Scholar] [CrossRef] [Green Version]
  36. Kwan, Y.C.G.; Ng, G.M.; Huan, C.H.A. Identification of functional groups and determination of carboxyl formation temperature in graphene oxide using the XPS O 1s spectrum. Thin Solid Films 2015, 590, 40–48. [Google Scholar] [CrossRef]
  37. Miller, D.J.; Biesinger, M.C.; McIntyre, N.S. Interactions of CO2 and CO at fractional atmosphere pressures with iron and iron oxide surfaces: One possible mechanism for surface contamination? Surf. Interface Anal. 2002, 33, 299–305. [Google Scholar] [CrossRef]
  38. Oschatz, M.; Krans, N.; Xie, J.; de Jong, K.P. Systematic variation of the sodium/sulfur promoter content on carbon-supported iron catalysts for the Fischer-Tropsch to olefins reaction. J. Energy Chem. 2016, 25, 985–993. [Google Scholar] [CrossRef]
  39. Janbroers, S.; Louwen, J.N.; Zandbergen, H.W.; Kooyman, P.J. Insights into the nature of iron-based Fischer–Tropsch catalysts from quasi in situ TEM-EELS and XRD. J. Catal. 2009, 268, 235–242. [Google Scholar] [CrossRef]
  40. Shroff, M.D.; Datye, A.K. The importance of passivation in the study of iron Fischer-Tropsch catalysts. Catal. Lett. 1996, 37, 101–106. [Google Scholar] [CrossRef]
  41. Brezesinski, K.; Haetge, J.; Wang, J.; Mascotto, S.; Reitz, C.; Rein, A.; Tolbert, S.H.; Perlich, J.; Dunn, B.; Brezesinski, T. Ordered Mesoporous α-Fe2O3 (Hematite) Thin-Film Electrodes for Application in High Rate Rechargeable Lithium Batteries. Small 2011, 7, 407–414. [Google Scholar] [CrossRef] [PubMed]
  42. Schneider, C.A.; Rasband, W.S.; Eliceiri, K.W. NIH Image to ImageJ: 25 years of image analysis. Nat. Methods 2012, 9, 671–675. [Google Scholar] [CrossRef]

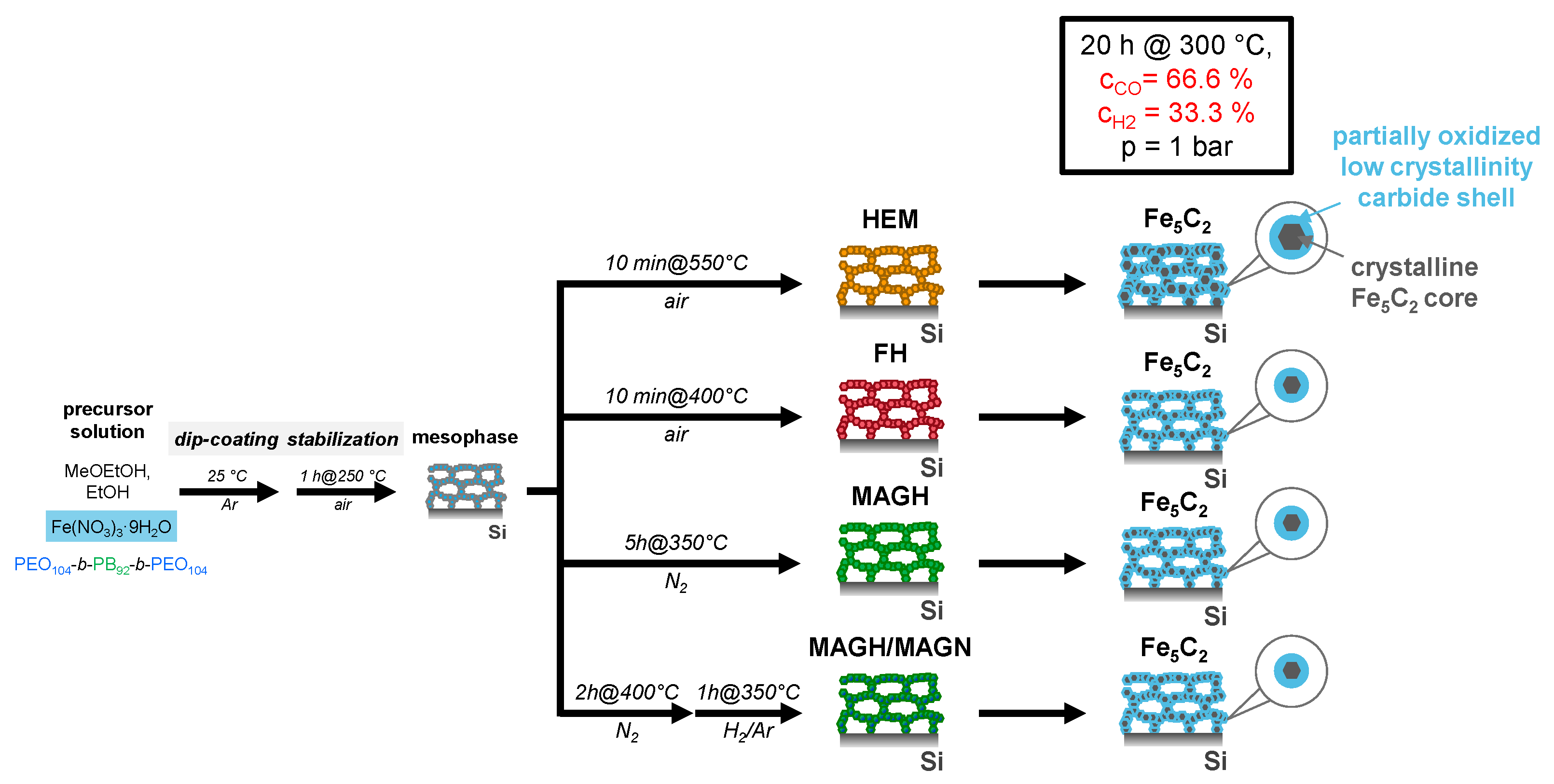

Scheme 1. Synthetic approach for mesoporous iron oxide films with different initial phases and subsequent controlled exposure to syngas atmospheres. The mesophase is obtained after dip–coating and mild calcination at 250 °C. Further thermal treatment enables the formation of different iron oxide phases: air forms HEM, FH; nitrogen forms MAGH which can be partially reduced to MAGH/MAGN. All films were treated in CO/H2 (2 to 1, 1 bar) for 20 h at 300 °C leading to the formation of iron carbides while retaining the mesoporous structure. The carbides appear to consist of core–shell structures with highly crystalline Fe5C2 cores surrounded by partially oxidized low–crystallinity carbide shell.
Scheme 1. Synthetic approach for mesoporous iron oxide films with different initial phases and subsequent controlled exposure to syngas atmospheres. The mesophase is obtained after dip–coating and mild calcination at 250 °C. Further thermal treatment enables the formation of different iron oxide phases: air forms HEM, FH; nitrogen forms MAGH which can be partially reduced to MAGH/MAGN. All films were treated in CO/H2 (2 to 1, 1 bar) for 20 h at 300 °C leading to the formation of iron carbides while retaining the mesoporous structure. The carbides appear to consist of core–shell structures with highly crystalline Fe5C2 cores surrounded by partially oxidized low–crystallinity carbide shell.
Catalysts 11 00773 sch001

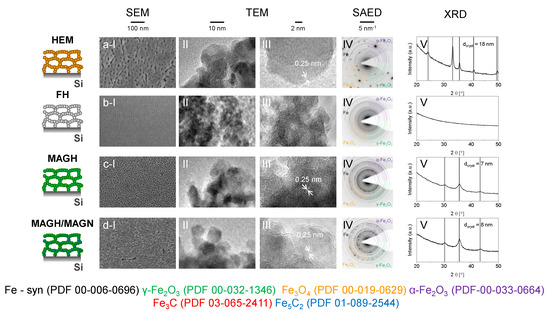

Figure 1. Fresh iron oxide films obtained after controlled exposure of the mesophase to different gas atmospheres. 550 °C air for 10 min forms (a) HEM and 400 °C air for 10 min (b) FH. 350 °C in N2 for 5 h forms (c) MAGH. 400 °C in N2 for 2 h → 350 °C in H2/Ar for 1 h (d) MAGH/MAGN. All samples were characterized by (I) SEM, (II/III) TEM, (IV) SAED and (V) GI−XRD.
Figure 1. Fresh iron oxide films obtained after controlled exposure of the mesophase to different gas atmospheres. 550 °C air for 10 min forms (a) HEM and 400 °C air for 10 min (b) FH. 350 °C in N2 for 5 h forms (c) MAGH. 400 °C in N2 for 2 h → 350 °C in H2/Ar for 1 h (d) MAGH/MAGN. All samples were characterized by (I) SEM, (II/III) TEM, (IV) SAED and (V) GI−XRD.
Catalysts 11 00773 g001

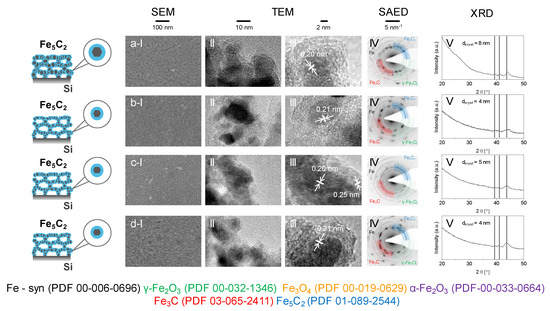

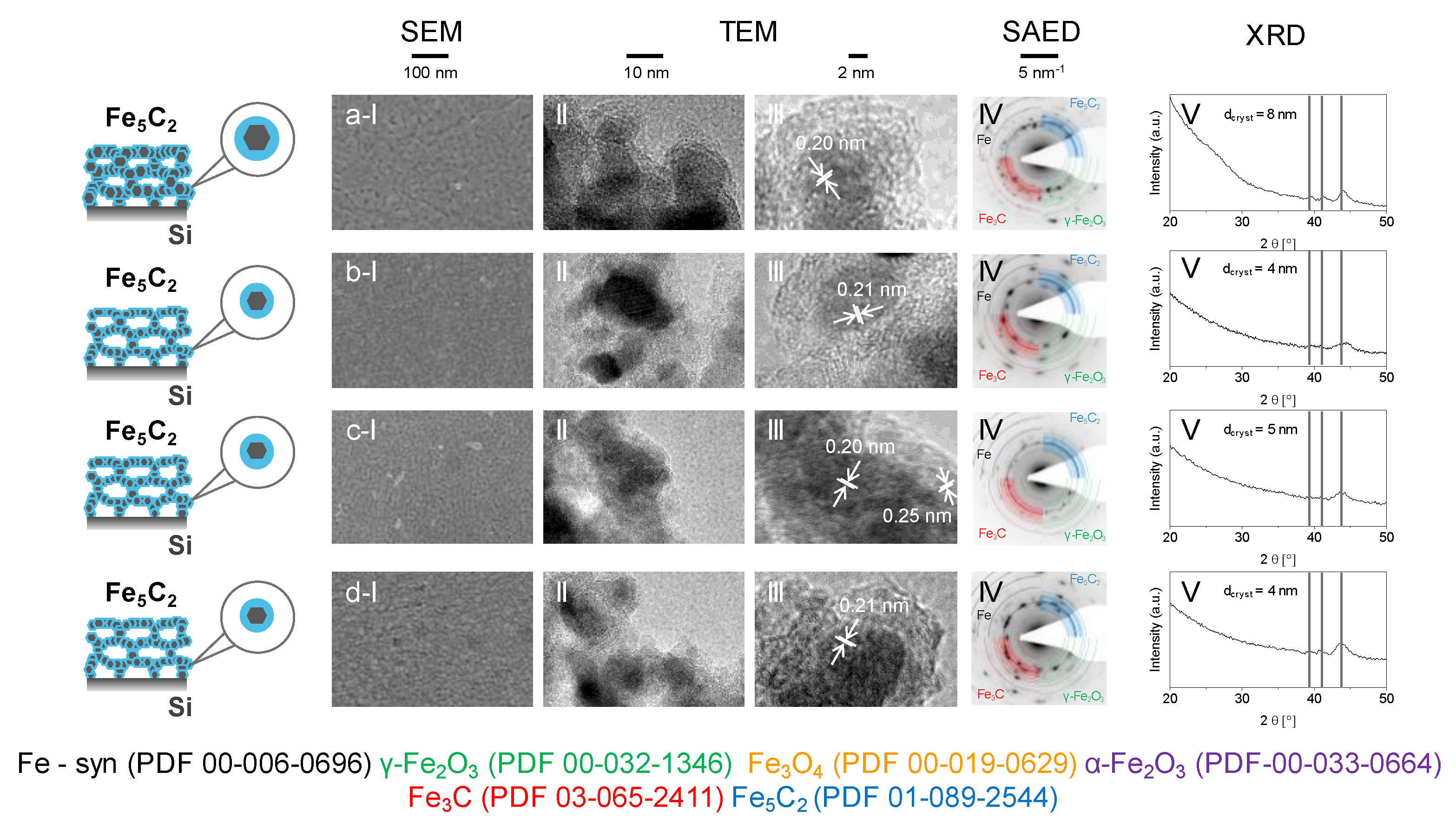

Figure 2. Physicochemical analysis for mesoporous iron oxide films after treatment in CO/H2 (2 to 1) flowrate 372 mL/min at 300 °C for 20 h. (a) HEM, (b) FH, (c) MAGH, and (d) MAGH/MAGN. All samples were characterized by (I) SEM, (II/III) TEM, (IV) SAED, and (V) GI–XRD.
Figure 2. Physicochemical analysis for mesoporous iron oxide films after treatment in CO/H2 (2 to 1) flowrate 372 mL/min at 300 °C for 20 h. (a) HEM, (b) FH, (c) MAGH, and (d) MAGH/MAGN. All samples were characterized by (I) SEM, (II/III) TEM, (IV) SAED, and (V) GI–XRD.
Catalysts 11 00773 g002

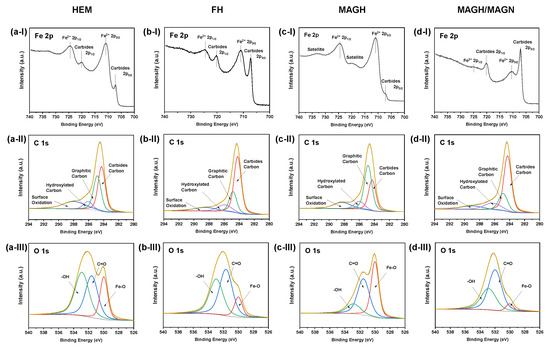

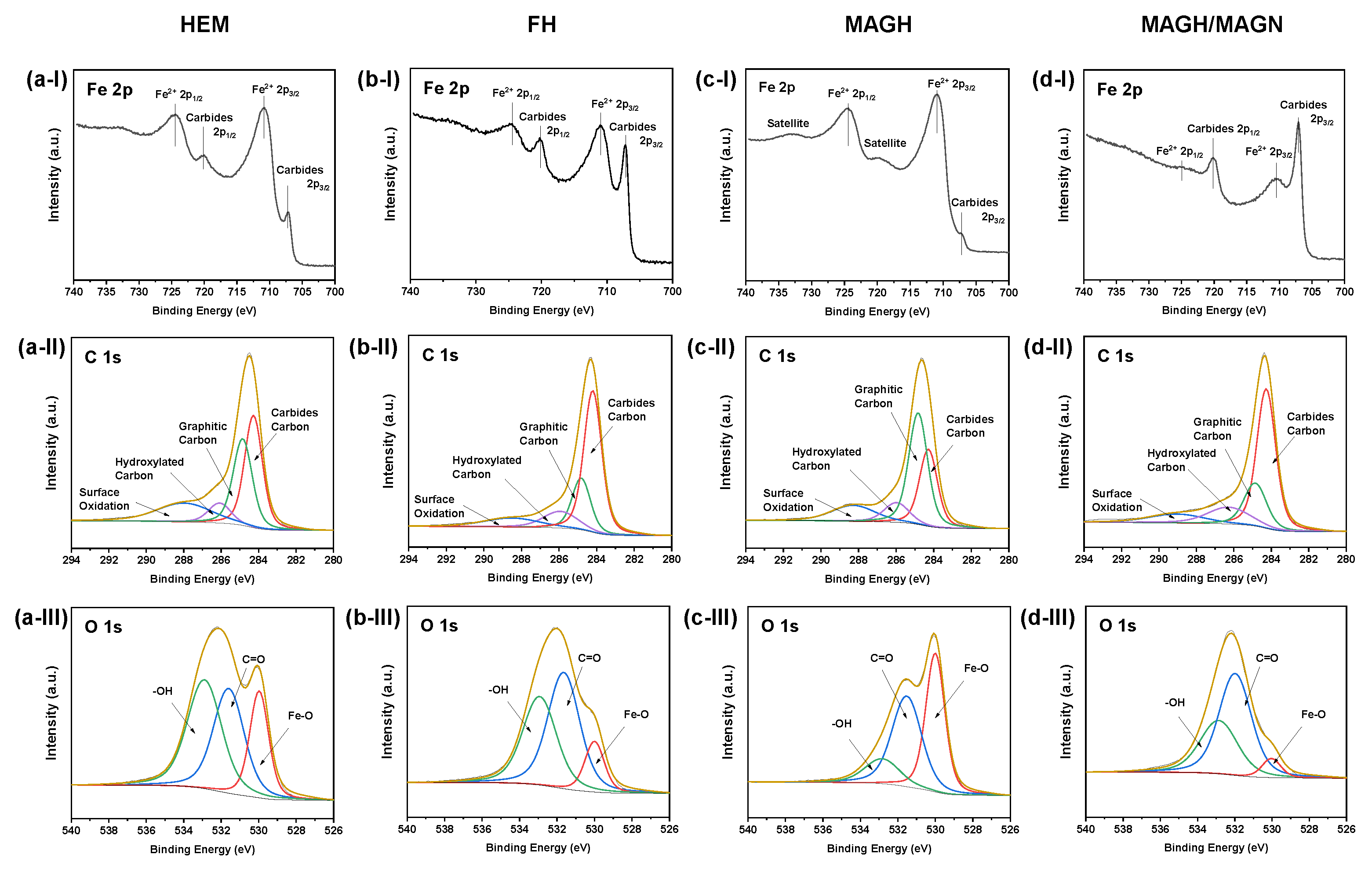

Figure 3. XPS spectra of ((a) I–III HEM), ((b) I–III) FH), ((c) I–III) MAGH), ((d) I–III)) MAGH/MAGN samples after the CO/H2 syngas treatment.
Figure 3. XPS spectra of ((a) I–III HEM), ((b) I–III) FH), ((c) I–III) MAGH), ((d) I–III)) MAGH/MAGN samples after the CO/H2 syngas treatment.
Catalysts 11 00773 g003
