Development of a Mesoporous Silica-Supported Layered Double Hydroxide Catalyst for the Reduction of Oxygenated Compounds in E. grandis Fast Pyrolysis Oils

Abstract

Biomass fast pyrolysis oil is a potential renewable alternative to fossil fuels, but its viability is constrained by its corrosiveness, low higher heating value and instability, caused by high oxygenate concentrations. A few studies have outlined layered double hydroxides (LDHs) as possible catalysts for the improvement of biomass pyrolysis oil characteristics. In this study, the goal was to reduce the concentration of oxygen-rich compounds in E. grandis fast pyrolysis oils using CaAl- and MgAl- LDHs. The LDHs were supported by mesoporous silica, synthesised at different pHs to obtain different pore sizes (3.3 to 4.8 nm) and surface areas (up to 600 m${}^2$/g). The effects of the support pore sizes and use of LDHs were investigated. GC/MS results revealed that MgAl-LDH significantly reduced the concentrations of ketones and oxygenated aromatics in the electrostatic precipitator oils and increased the concentration of aliphatics. CaAl-LDH had the opposite effect. There was little effect on the oxygenate concentrations of the heat exchanger oils, suggesting that there was a greater extent of conversion of the lighter oil compounds. Bomb calorimetry also showed a marked increase in higher heating values (16.2 to 22.5 MJ/kg) in the electrostatic precipitator oils when using MgAl-LDH. It was also found that the mesoporous silica support synthesised at a pH of 7 was the most effective, likely due to the intermediate average pore width (4 nm).

1. Introduction

The US Energy Information Administration predicts that the global consumption of liquid fuels will rise by 28% by 2040, due to an increase in population and industrial expansion [1]. Due to concerns over meeting the world’s future energy demands, there is an increased drive to find more sustainable liquid fuel resources. One resource which is a promising biofuel feedstock due to its renewability and low greenhouse emissions is biomass [2]. Woody biomass can be converted to pyro-oil via a process called fast pyrolysis, in which the feedstock is heated to above 400 ${}^{°}$C, at a heating rate of more than 1000 ${}^{°}$C/s, in an inert atmosphere [3]. The oils produced contain a variety of chemicals that can be separated and sold for value, refined in petrochemical refineries, or combusted as low-grade fuels for various applications [4].

The most prominent challenge in the manufacturing of pyrolysis oil from woody biomass is the chemical complexity of the oils produced [5]. Wood is composed of cellulose, hemicellulose and lignin, with each of these being composed of a high oxygen content [6]. During pyrolysis, these three units primarily convert into oxygenated compounds, such as organic acids, aldehydes, ketones, alcohols, esters, etc., constituting a significant fraction of the resultant pyro-oils [7]. Due to the presence of carbon–oxygen double bonds in these functional groups, the oils are corrosive, polar and susceptible to thermal degradation [3]. More notably, high oxygen content gives the oils heating values which are approximately half that of conventional liquid fuels [8]. This is motivated by the fact that the most important route to improving the use of the oil as a fuel and biorefinery feedstock is reducing its oxygen content. Increased pyrolysis oil oxygen content was found to be linked to a decrease in HHV and increase in viscosity over increased storage time [9,10]. Pyrolysis oils are also corrosive as a result of a high concentration of carbonyl bonds, and the instability of these bonds are also responsible for the change in the chemical composition of the oil over time [11]. For these reasons, high oxygen content also creates limitations and concerns in the design of biorefinery processes, especially regarding economic feasibility and risks [12].

One way to improve the quality of biomass fast pyrolysis bio-oils is through the use of an effective catalyst. In a thermochemical process such as fast pyrolysis, the catalyst needs to be thermally stable and have adequate surface area and porosity [13]. Additionally, the selectivity of pyrolysis products varies with catalyst pore size and chemical properties of the active sites [14]. When pore sizes are too small, larger molecules undergo catalytic conversion on external sites of the catalyst, where catalytic sites are considerably fewer and weaker, producing more undesired products in the heavier fractions [15]. When they are too large, there may be more oxygenated products because of fewer overall catalytic sites [16]. Therefore, the ability to tune the morphologies of these materials is of interest in catalysis. There are a number of minerals and nanostructured materials known for their abilities to improve pyrolysis products, including zeolites [17], mesoporous aluminosilicates [18] and alkaline compounds [19]. A nanostructured material that has gained recent interest in biomass pyrolysis due to deoxygenation capabilities is layered double hydroxides (LDHs) [20]. LDHs are a group of anionic clay compounds consisting of layers of metal hydroxides with negatively charged ions and water molecules in the interlamellar spaces. LDHs have the formula ${\left[M_{x-1}^{2+}{N}_x^{3+}{\left(OH\right)}_2\right]}^{x+}{\left(A^{m-}\right)}_{x/m}·n{H}_2{O}^{X-}$, where M, N and A are 2+ metal ions, 3+ metal ions and 1- ions, respectively, and x and m define the ratios of the respective ions [21]. The chemical and physical behaviours, molar masses, charge densities and equivalent surface areas of LDHs are adjustable based on the M${}^{2+}$ and M${}^{3+}$ ions used, the ratios of these ions and the choice of interlamellar anions. LDHs have been reported to facilitate oxygen-removing reactions such as aldol condensation [22] and decarbonylation [23]. LDHs that are of interest to this study are CaAl-LDH, due to its reported aldol condensation ability [24], and MgAl-LDH, due to its popularity in catalytic biomass pyrolysis studies.

Another consideration is the catalyst support material. The catalyst support considered in this study is mesoporous silica, due to its high surface area per unit mass (500 m${}^2$/g) [25] and the ability to control its morphology during synthesis [26]. Other literature has reported the use of MgAl- and CaAl-LDHs, but without the use of a mesoporous silica support [27]. Core–shell-structured mesoporous silica-supported MgAl-LDH has previously been manufactured, but this method uses a surfactant to obtain its structure and was not investigated for biomass valorisation [28]. Another study has reported the use of tunable mesoporous silica supports for glycerol transesterification [29], but there was also little relation to biomass pyrolysis. There is a need to investigate the use of mesoporous silica-supported LDH for the reduction in oxygen content in biomass fast pyrolysis oils, because of the tunability of the support pore sizes. Producing the catalyst support through sol–gel synthesis, instead of through the combination of mesoporous silica powder and the active catalyst using a binder chemical, has the advantage of embedding the catalyst within the silica matrix. This, and the absence of a binder, may also increase the support total surface area. These two qualities can be seen in a graphical model of the comparison between the two catalyst support production methods, shown in Figure 1.

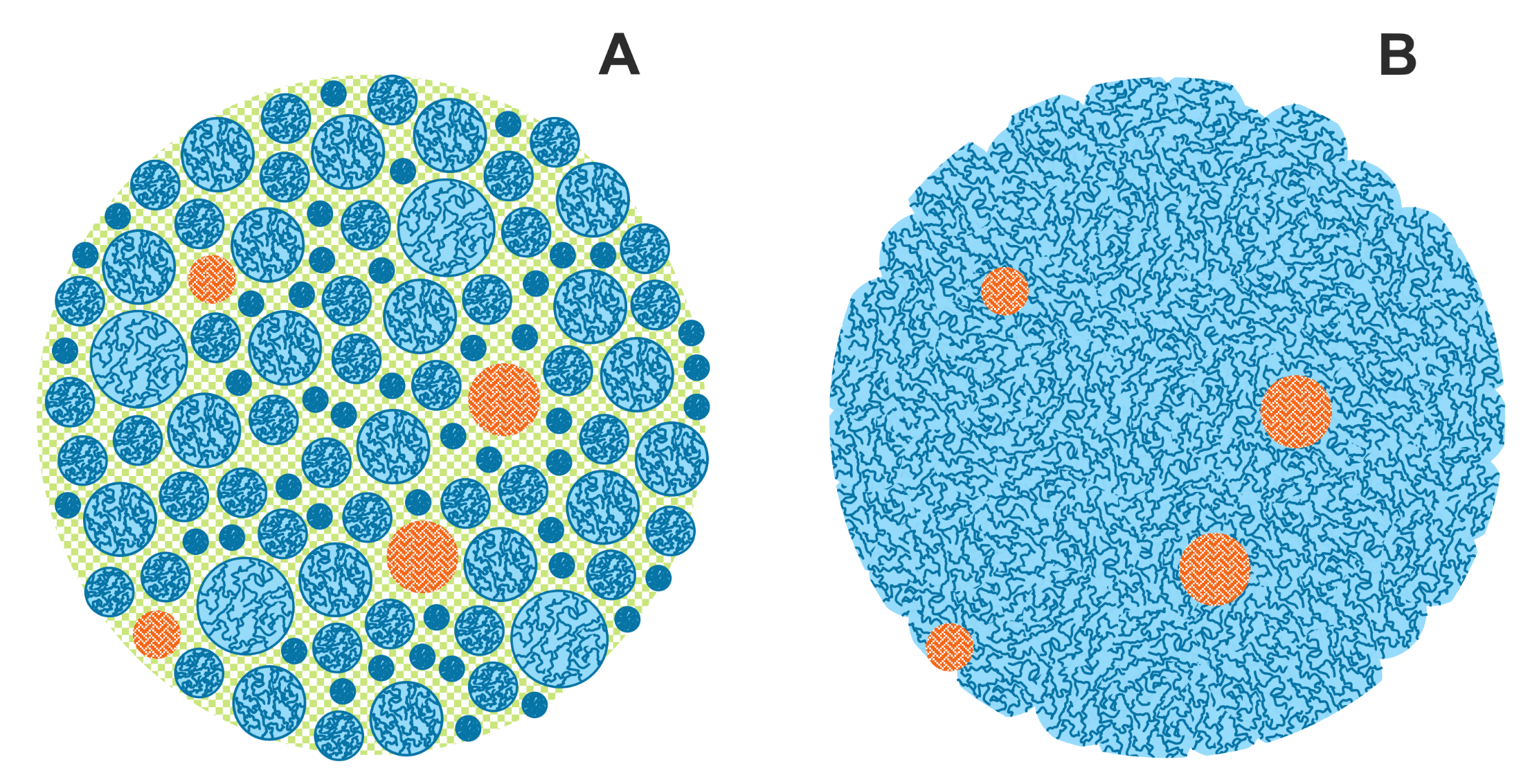

The morphology of mesoporous silica is sensitive to its reaction conditions. This is as a result of the two mechanisms that occur during the polymerisation reaction to form mesoporous silica, namely condensation (the combination of silicate ions to form siloxane chains) and hydrolysis (the termination of silicate ions to form silanol groups) [30]. The rates of the respective reaction mechanisms are dependent on the synthesis pH. At low pH, a hydrogen atom is donated by the SiO or SiOH oxygen atom to form a stable leaving group such as water or alcohol in a hydrolysis reaction. At low pH, a hydroxide ion (during hydrolysis, formed by deprotonation of a water molecule) or a SiO ion (during condensation, also formed via deprotonation) bonds to the Si atom of a Si-OR group to form a negatively charged ion. When the mixture pH is lower, more Si-OH (silanol) groups are produced by this mechanism, because hydrolysis is favoured. This results in the formation of more new monomers. When the pH is higher, these silanol groups are more readily used in condensation reactions, forming more siloxane groups and thus longer branches. Therefore, siloxane bonds are more readily broken. On a three-dimensional scale, polymerisation begins with the creation of cyclic particles, which act as nuclei. At high pH, the network continues to grow around a nuclei, and at low pH, more nuclei are created which agglomerate. The gel morphology thus changes with pH. This results in varying material properties, including surface areas and pore sizes [31]. Although silica has been reported to show some catalytic activity as a result of weak acidic sites [5], its effect on pyrolysis products is small, and it can therefore be used as a catalyst support to investigate the catalytic effects of LDHs. The variation in the product distribution of lignocellulosic biomass fast pyrolysis oils, with the use of LDH-doped mesoporous silica catalyst synthesised at different pHs, can thus be assessed to find the optimal mesoporous silica catalyst support for LDHs in similar systems.

2. Materials and Methods

2.1. Materials

Materials for catalyst development included sodium silicate pentahydrate and sulfuric acid purchased from Chem Lab Supplies (Johannesburg, South Africa), MgAl-LDH with a 2:1 Mg/Al ratio with CO${}_3^{-}$ interlamellar ions sourced from the Institute of Applied Materials at the University of Pretoria (Pretoria, South Africa) and CaAl-LDH with a 2:1 Ca/Al ratio with CO${}_3^{-}$ interlamellar ions sourced from Greenfield Additives (Pretoria, South Africa). Mixed E. grandis waste chips were sourced from SAPPI South Africa.

2.2. Catalyst Preparation

The CaAl- and MgAl-LDHs were sieved to below 32 µm. A sodium silicate solution was prepared by mixing 70 g of sodium silicate pentahydrate with 725 g of deionised water and stirred vigorously using a magnetic hotplate stirrer until it was dissolved. Amounts of 0.4 g, 1 g or 2 g of sieved LDH were added and the mixture was stirred vigorously for 5 min to ensure an even suspension; while stirring vigorously and monitoring the pH, a 1:4 solution of sulfuric acid was slowly added to the mixture. At a pH of around 9.4, the mixture began to polymerise and was stirred until a smooth slurry was formed. Acid was then added slowly until pHs of 9, 7 and 5 were achieved, storing thirds of the slurry in Schott bottles at the respective pHs. The slurries were stored for 30 min and then filtered and washed 5 times with deionised water. The paste-like slurries were stored in open tins to air dry in a temperature- and humidity-controlled laboratory for 4 days, with five rounds of washing with deionised water taking place every second day to remove remaining water-soluble salts.

Overall, 7 catalysts were produced: 10% MgAl-LDH supported by mesoporous silica synthesised at pHs of 5, 7 and 9, 10% percent CaAl-LDH supported by mesoporous silica synthesised at pHs of 5, 7 and 9, and mesoporous silica reference catalyst containing no LDH, synthesised at a pH of 7. On the 4th day of drying, the slightly soft gels were broken into small sizes (approximately 4 mm), placed on 3 mm, 1.5 mm and 0.5 µm sieves stacked on one another, and the sieves were secured on a rotary shaker. The shaker was operated at 290 rpm for one minute or until the gel pellets were roughly spherical. The pellets were then set to air dry in the laboratory until completely hardened and stored in containers to await characterisation.

2.3. Catalyst Characterisation

2.3.1. Scanning Electron Microscopy

A small amount of powdered sample, sieved to below 75 µm, was pressed onto double-sided tape and the excess was blown off using a high-pressure nitrogen nozzle. Each piece of sample tape was pressed onto a metal plate and coated with carbon. The coated plate was placed in a Zeiss 540 Ultra FEGSEM. Images were captured at various zoom and focus settings.

2.3.2. Basicity Measurement

LDH catalyst basic sites were determined using the benzoic acid titration method [32]. An amount of 1.5 g of solid catalyst was mixed with 20 mL of methanol containing 0.6 g of dissolved phenolphthalein indicator, which is colourless below a pH of 8.2, and stirred continuously. A 0.01 M solution of benzoic acid was dissolved in methanol and used as the titrant. The addition of the titrant was carried out until there was no pink colour remaining in the suspension. The amount of titrant required to neutralise the catalyst sample was used to calculate the basic site concentration of the catalyst.

2.3.3. Nitrogen Physisorption

A Micromeritics TriStar II Plus BET Surface Area Analyser was used for nitrogen physisorption testing. Each set of catalyst particles was sieved to between 0.8 mm and 1.2 mm, the size range required for the spouted bed reactor. Approximately 2.5 mL of each sample was placed in a BET analyser tube. The tubes were placed in the degasser at 110 ${}^{°}$C and under vacuum until a full vacuum was established (approximately 10 h) to remove water, volatiles and organic impurities. The tubes were then connected to the analyser, and a holder containing liquid nitrogen was placed over the tubes. Weighing of the tubes took place before sample addition, after sample addition and after degassing. The instrument software was then used to run the analysis, and the BET surface areas and BJH adsorption average pore diameters were determined using the software. Samples synthesised under the same conditions were tested in triplicate to ensure repeatability of data.

2.3.4. X-ray Diffraction (XRD)

X-ray diffraction was carried out at the University of Pretoria’s Geology Department. A PANalytical X’Pert Pro powder diffractometer in $\theta -\theta$ configuration with an X’Celerator detector and variable divergence was used for analysis. The ICSD database was used to identify the mineralogy using the X’Pert Highscore Plus software (Version 5.0, Malvern Panalytical, Malvern, UK).

2.4. Fast Pyrolysis

2.4.1. Reactor Preparation

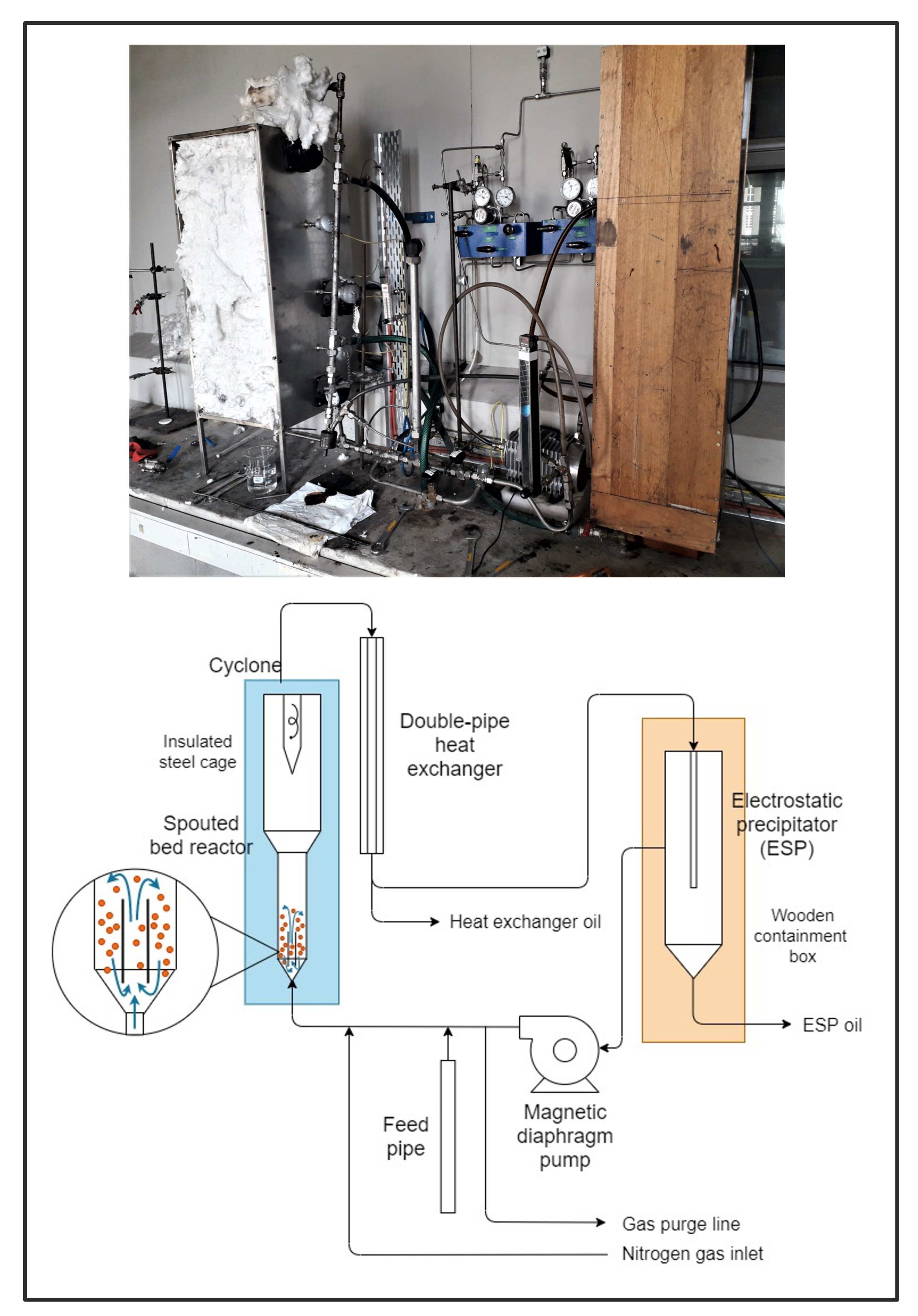

Mixed E. grandis sawdust sieved to between 150 µm and 300 µm was dried in a convection oven at 105 ${}^{°}$C for one hour. A tail-gas recirculation fast pyrolysis reactor, as shown in Figure 2, was used to investigate the effects of each catalyst. To prepare the reactor system, the piping and process equipment internal surfaces were cleaned using acetone and soap water. Both 250 mL and 150 mL Schott bottles were screwed onto the oil collection ports of the heat exchanger and electrostatic precipitator (ESP), respectively. The reactor base was screwed open and the previous heat transfer medium and/or catalyst particles were allowed to pour out and were stored, after which, the reactor base was screwed closed. A 1:4 ratio of catalyst particles to heat transfer medium (sand) totalling 100 mL, both of which were sieved to between 0.8 mm and 1.2 mm, were poured into the top of the reactor, and the top of the reactor was closed. The pump was switched on to ensure that the reactor was fluidising, as indicated by a negligible pressure increase on the pressure gauge before the feed pipe. A flowmeter reading of at least 50 L/min before the feed pipe was required. Soap water spray was used to ensure that the system was free of leaks. The reactor top and bottom heating elements were then switched on and set to 600 ${}^{°}$C, and the reactor was purged with nitrogen gas.

2.4.2. Reactor Operation

Once the temperatures had stabilised at 600 ${}^{°}$C, the nitrogen purge gas was closed and the ESP was switched on. The feed pipe was filled with the dried sawdust, screwed closed, and the downward tilt of the pipe was adjusted to approximately 45${}^{°}$. The pump was switched on, and the sawdust was allowed to fall into the process line via vacuum. The sawdust continued into the fluidised bed, where it was pyrolysed. The pyrolysis vapours flowed through the double pipe heat exchanger, where those vapours condensed at above 70 ${}^{°}$C were collected in the 250 mL Schott bottle. Char was collected in the cyclone, which was located in the reactor disengagement zone. A small amount of fine char estimated at 3 g gathered in the piping between the reactor and the heat exchanger and was taken into account in yields calculations. The remaining condensable vapours travelled through the ESP and were collected in the 150 mL Schott bottle. Non-condensable gases travelled out of the gas purge line and through a ventilation line. Once the sawdust was depleted, as evidenced by no more smoke flowing into the 250 mL Schott bottle, the pump was switched off, the feed pipe was refilled and closed, and the pump was switched on. The process was repeated until a total of 100 g of sawdust had been used. In total, 100 g sawdust was used per run, and 3 runs were completed per catalyst to ensure repeatibility of data. Three runs without a catalyst were also completed to provide a reference.

2.5. Analysis of Pyrolysis Oils

2.5.1. Fourier-Transform Infrared Spectroscopy (FTIR)

A PerkinElmer FTIR spectrometer was used for the analysis. The FTIR software was used to run a background test, and a drop of oil sample was placed on the analyser crystal. The arm was placed over the crystal and fastened. Wavenumbers 4000 cm${}^{-1}$ through 400 cm${}^{-1}$ were analysed using the software, and this provided a spectrum of peaks. The respective peak intensities of each sample were compared to those of the reference samples (heat exchanger and ESP oils using no catalyst, and silica catalyst support).

2.5.2. Gas Chromatography-Mass Spectrometry (GC/MS)

ESP oils did not require sample preparation for GC/MS, as they were already in the organic phase. Organic constituents in the heat exchanger oils underwent liquid–liquid extraction using a 1:2 ratio by mass of oil to ethyl acetate, 15 min of vigorous stirring and two days of phase separation. The ESP oils and ethyl acetate phases of the heat exhanger oils were used for GC/MS analysis. GC/MS was performed on the pyrolysis oils using a PerkinElmer Clarus 600 Gas Chromatograph and a PerkinElmer Clarus 600T Mass Spectrometer. A sample around 2 µL in size was injected into each sample cup, and the injector temperature was set to 250 ${}^{°}$C. The initial oven temperature was set to 50 ${}^{°}$C for 5 min and then rose to 250 ${}^{°}$C over 10 min, held at 250 ${}^{°}$C for a further 5 min. Mass spectra were gathered in total ion current (TIC) mode for molar masses from 30 to 300. Compounds were determined using the NIST11 library.

2.5.3. Bomb Calorimetry

The samples were prepared by mixing a 4:1 ratio of ESP oil samples with ethanol to aid combustion. A Parr Calorimeter 6200 was used with a 1104 Oxygen Combustion Bomb. The instrument water bucket was filled with the required amount of distilled water, and the sample was poured into a crucible and the mass of both the sample and the added ethanol was measured. A nichrome fuse wire was threaded through the instrument sample holder and through the sample, ensuring that the wire did not make contact with the surfaces of the crucible. After the holder was placed in the bomb, it was pressurised with oxygen at 3 MPa. The bomb was then placed in the water bucket, the wires were connected and the program was run. After running, the instrument determined the higher heating value (HHV) of the sample in MJ/kg, taking into account the energy released by the nichrome wire. The HHVs of the ethanol fractions were taken into account in the calculation of the final oil HHVs.

3. Results and Discussion

3.1. Catalyst Characterisation

3.1.1. Scanning Electron Microscopy

Figure 3 shows the morphology of LDH as well as flakes of LDH embedded in the catalyst support. The mesoporous silica has a rough but homogenous texture, while the LDH consists of relatively smooth, rounded flakes. It should be noted that the pores of the mesoporous silica support are several orders of magnitude smaller than what is visible in the figure. Before the LDH is suspended in the sol–gel, the flakes form agglomerates, as can be seen in the figure. Even if these agglomerates were large enough to be suitable for use in a fluidised bed reactor, they would be extxremely friable, resulting in the entrainment of flakes and clogging of the reactor. If the LDH powder was to be combined with a support such as diatomaceous earth powder, the flakes would still be too large to enter the mesopores. This would result in the LDH being adhered to the outer surfaces of the support particles, necessitating a binder chemical. Depending on the binder used, the catalyst could still be friable, or there could be a reduction in surface area as a result of the pores being filled by the binder. Figure 3B clearly shows how manufacturing the support using sol–gel synthesis as opposed to support powder and a binder is advantageous in this regard. The LDH flakes are directly embedded in the mesoporous silica matrix when the silicate solution polymerises. This means that the LDH flakes are less likely to come loose, the catalyst pore sizes can be tuned, a high surface area can be achieved and no binder is required.

3.1.2. Basicity Measurement

Pure MgAl-LDH and CaAl-LDH yielded basic site concentrations of 0.32 and 0.43 mmol/g catalyst, respectively, comparable to the literature-reported value range of 0.39 and 0.5 [33]. This confirms that the CaAl-LDH is the more basic of the two LDHs. The basicities of other representative heterogenous basic catalysts are 0.49, 0.38, 0.29 and 0.3 for CaO, aluminosilicate-supported platinum, palladium and ruthenium, respectively, [34]. Mesoporous zeolite, which has both acidic and basic sites, has a total basicity of 0.27 mmol/g catalyst [35]. The basicity of MgAl-LDH supported by mesoporous silica synthesised at a pH of 9 was 0.2 mmol/g catalyst, compared to those synthesised at pHs of 7 and 5, which resulted in values of 0.11 and 0.06 mmol/g catalyst, respectively. These values are lower than literature results of 0.53 mmol/g [29]. However, this is the basicity of mesoporous silica-supported MgAl-LDH with the same Mg/Al ratio and similar support BET surface area, but produced using a suspension of mesoporous silica powder rather than sol–gel synthesis. Although the nitrogen physisorption results showed an increase in surface area with decreasing synthesis pH, the decrease in basic sites is likely due to the neutralisation of basic sites by protons during support sol–gel synthesis at increasing pHs. This was also observed for CaAl-LDH supported by mesoporous silica, with decreasing basicity values of 0.29, 0.15 and 0.07 mmol/g catalyst for synthesis pHs of 9, 7 and 5, respectively.

3.1.3. Nitrogen Physisorption

After the quantification of the BET surface area and BJH adsorption average pore diameter of each of the 10% LDH catalyst samples, it was found that the average BET surfaces areas were 609.5, 521.5 and 380.8 m${}^2$/g for catalysts synthesised at pHs of 5, 7 and 9, respectively. This is shown in Figure 4. The downward trend in surface area is contrasted by an upward trend in BJH average pore diameters, shown by values of 3.3, 4.0, and 4.8 nm for the respective synthesis pHs. This relationship is shown in Figure 4. The higher proportion of condensation reactions and thus silica chain growth at higher pH, and lower proportion of hydrolysis reactions and thus silica branch formation at lower pH, are likely to be contributing factors for the differing material characteristics.

3.1.4. X-ray Diffraction (XRD)

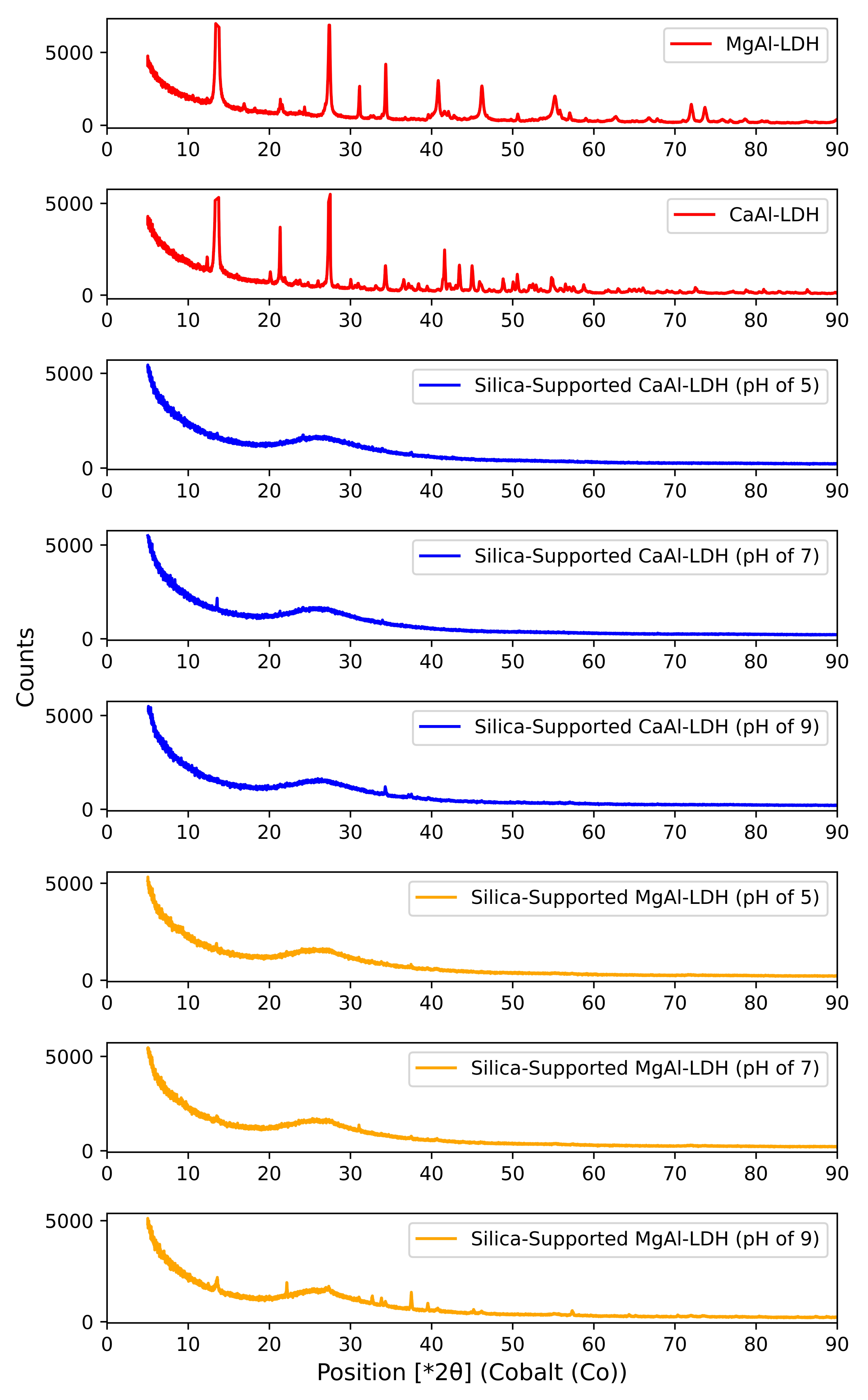

XRD analysis was performed on each of the supported LDH samples, as well as the pure LDH catalysts. The results of this analysis is shown in Figure 5. Quantitative XRD confirmed that the MgAl-LDH is mainly composed of synthetic hydrotalcite (2:1 Mg/Al ratio), and the CaAl-LDH is mainly composed of synthetic hydrocalumite (2:1 Ca/Al ratio). The analysis also showed the presence of small amounts of calcite (CaCO${}_3$), quartz (SiO${}_2$) and katoite (Ca${}_3$Al${}_2$(SiO${}_4$)${}^3$−x(OH)${}_{4x}$, x = 1.5–3). From the XRD graphs of the silica-supported LDH catalysts, the most significant observation is that there is little difference. In general, the large, broad peak is caused by the presence of amorphous silica (which is the main constituent in the catalyst support, as it is ≈90% of the catalyst mass). The major concern in the support synthesis was the formation of crystalline silica, or quartz, which is not porous. The XRD results confirm that if quartz is present, it is only present in trace amounts. Small peaks are visible for the respective LDHs. Trace amounts of sodium sulphate were also found, as it is formed as a side-product during the sol–gel synthesis. Sodium sulphate can behave as a catalyst, so the importance of washing the gels after synthesis is emphasised. Although the LDH peaks are small in comparison to those of the amorphous silica peaks, the LDH peaks appear to be larger in the catalysts supports synthesised at a pH of 9. Like the basicity measurements, this could be due to a breakdown, and a loss in crystallinity, of the LDHs supported by silica synthesised at lower pHs.

3.2. Catalytic Activity

3.2.1. Pyrolysis Products Distribution

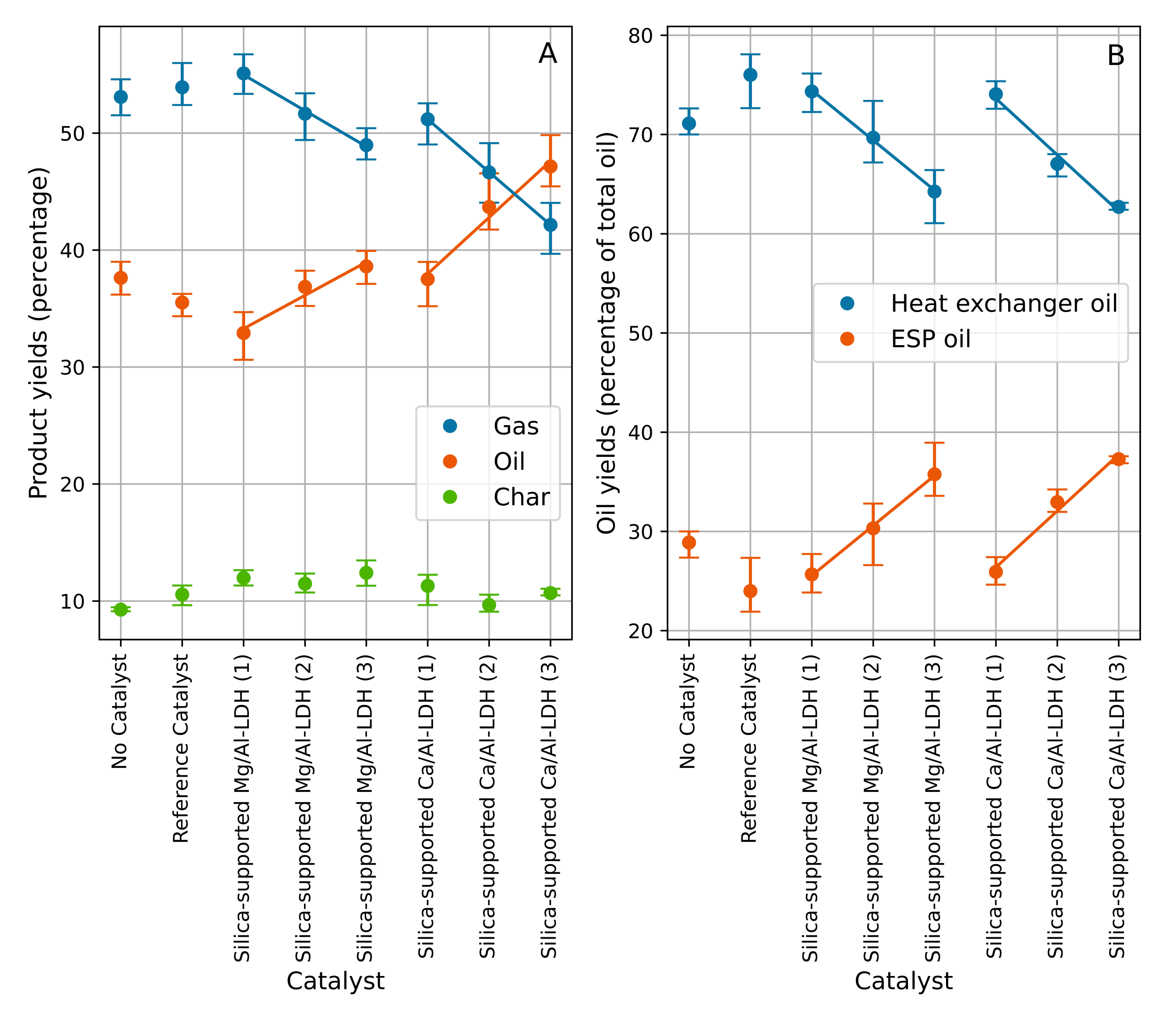

Figure 6 shows the change in oil, gas and char yields, as well as the change in heat exchanger and ESP oil yields, with the use of the different catalysts. The average total oil yield of runs without catalyst was 37.6%, while that of runs with the catalyst support was 35.5%. The total oil yields for MgAl-LDH catalysts were 32.9, 36.9 and 38.6% for a support synthesis pHs of 5, 7 and 9, respectively. CaAl-LDH catalysts produced higher total oil yields of 37.5, 43.7 and 47.2% for the respective support synthesis pHs. The same trend was observed for the fractions of ESP oil that make up the total oil yields, with ESP oil portions of 25.7, 30.3 and 35.8% for increasing catalyst synthesis pHs. The increase in yields for each type of LDH correspond to decreasing BET surface areas and increasing BJH average pore diameters.

3.2.2. FTIR Spectra

The most notable differences in the FTIR spectra, as shown in Figure 7, are in the peak around 3200 cm${}^{-1}$. With the peaks around 1600 cm${}^{-1}$, the intensities of these peaks are likely to be attributed to high water contents. There is a noticeable decrease in the peak intensity around 3200 cm${}^{-1}$ with the catalyst support alone compared to no catalyst, for both the heat exchanger and ESP oils. For the heat exchanger oils, the decrease in intensity is even more prominent for all three MgAl-LDH catalysts, where the opposite effect is seen for the CaAl-LDH catalysts.

For the ESP oils, the intensities of the 3200 cm${}^{-1}$ peak of the MgAl-LDH catalysed oils lie between that of the catalyst support and no catalyst. The same is observed for the CaAl-LDH catalysed oils, but the peak intensities are larger. These results indicate that the catalyst support itself contributes to a significantly lower concentration of -OH stretching vibrations, likely to be indicative of water, but also partly because of carboxylic acids, alcohols and phenolic groups. This trend is evident in both the heat exchanger and ESP oils. Oils catalysed by MgAl-LDH further decreased these levels in the heat exchanger oils, but not the ESP oils. Oils catalysed by CaAl-LDH increased the concentration of -OH stretching vibrations in both the heat exchanger and ESP oils. For all three catalyst support synthesis pHs of each LDH catalyst, the results were similar.

Other changes in the heat exchanger oil FTIR spectra included an increase in the peak intensity around 1450 cm${}^{-1}$, indicating carbon double bond stretching such as those present in aromatic rings, as a result of the silica support. Doping of the support with MgAl-LDH increased the intensity of this peak, while CaAl-LDH decreased this peak. The same effect was observed for the peak around 1250 cm${}^{-1}$, indicating alkane deformation. In the ESP oils, the catalyst support and MgAl-LDH catalysts resulted in a decrease in the peak intensity around 1050 cm${}^{-1}$, indicating ethers and alcohols. This peak increased in intensity with the CaAl-LDH catalysts.

While there were noticeable differences in the peak intensities produced with LDH-catalysed oils, there was very little difference in the same LDHs with supports catalysed at different pHs. This indicates that surface areas and average pore widths do not play a significant role in the sizes of -OH stretching peaks.

3.2.3. Gas Chromatography/Mass Spectrometry

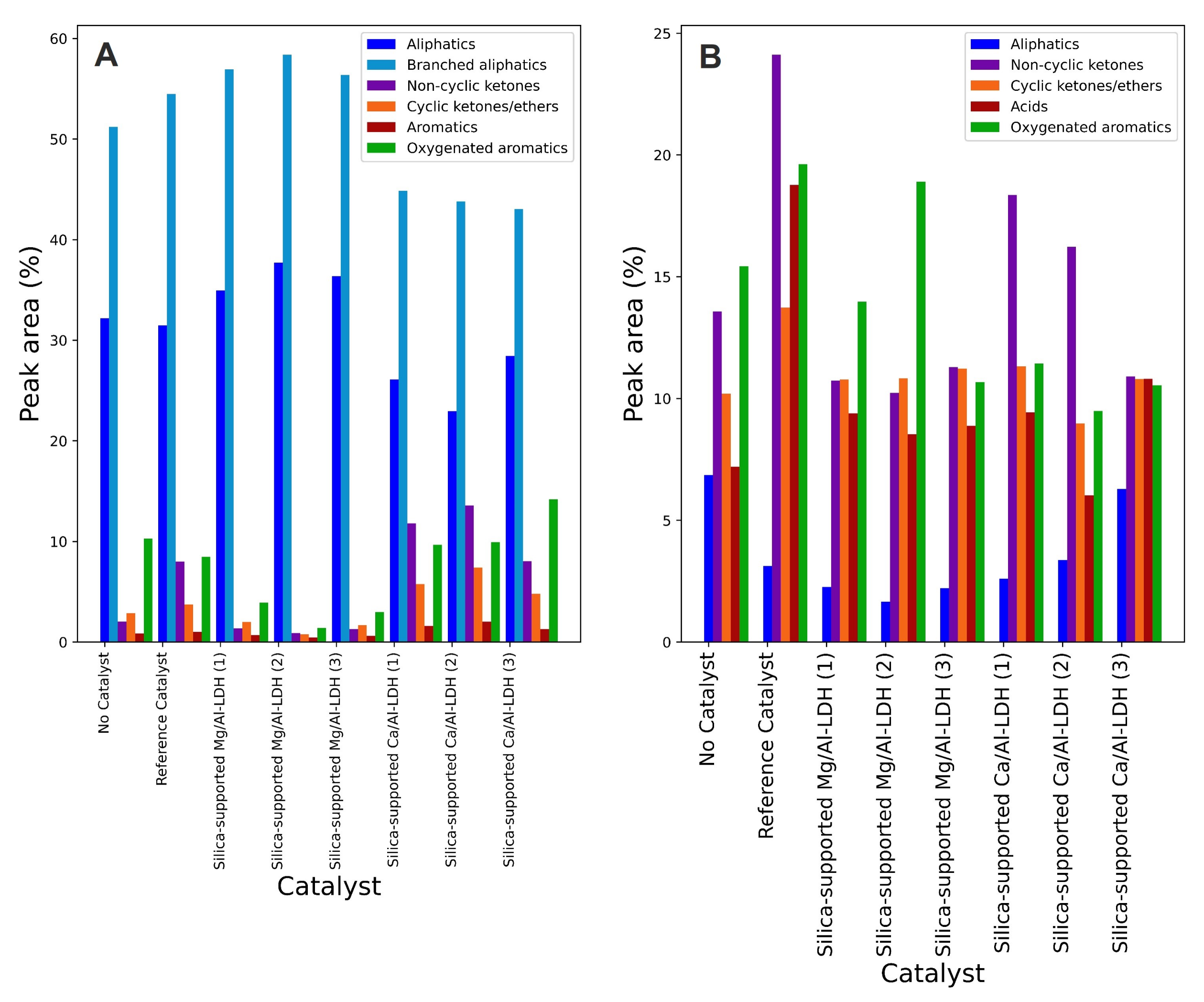

Figure 8 shows the effect of the reference catalyst (mesoporous silica support) on the compositions of the heat exchanger oil organic fractions and ESP oils in comparison to the uncatalysed oils. The results showed that there was a small amount of catalytic activity in the catalyst support alone. The heat exchanger oil organic fraction compositions in peak area percents showed a decrease in aliphatics from 6.9% to 3.1% with the use of the reference catalyst. There was a rise in oxygenates, such as non-cyclic ketones, aldehydes and esters including methyl glyoxal, isopropyl acetate and succinaldehyde, from 13% to 24.1%. Carboxylic acids such as acetic and octanoic acids also rose from 7.2% to 18.8%. The ESP oil compositions of aliphatics such as hexane and heptane, cyclic ethers and ketones such as furfural, 3-furaldehyde, butyrolactone and benzaldehyde, and non-oxygenated aromatics such as toluene, xylene and naphthalene were similar (31.47%, 3.73% and 1%, respectively). However, the support resulted in a small increase in branched aliphatics such as methyl-pentane and methyl-hexane (51.22% to 54.47%), a small decrease in oxygenated aromatics such as phenol, methyl-, dimethyl- and trimethyl-phenol (10.27% to 8.47%), and a more notable increase in non-cyclic ketones such as acetone and hydrazinecarboxamide (2.02% to 8%). These small catalytic effects are likely a result of the slightly acidic properties of exposed silanol groups present in the support. The overall effect of the silica support alone on the quantity of oxygenated compounds is very small. However, the silica support appears to favour the formation of heavier oxygenates, as evidenced by the larger proportion of oxygenates in the heat exchanger oil fractions.

MgAl-LDH catalysts resulted in lower oxygenate compositions in the heat exchanger organic fractions compared to the reference catalyst, with a composition similar to that of the non-catalysed heat exchanger oils. The changes in compositions of the ESP oils are more apparent. The most notable change is the decrease in ketones, ethers, non-oxygenated and oxygenated aromatics throughout all three catalyst support synthesis pHs. There was very little change in the compositions of the heat exchanger organic fractions throughout all three MgAl-LDH catalysts, except for an increase (to 18.9%) in oxygenated aromatics in catalyst 2. All three MgAl-LDH catalysts also displayed an increase in aliphatics and branched aliphatics in the ESP oils. The catalyst synthesised at a pH of 7 appears to have the lowest amount of oxygenates (3.06%) and aromatics (0.46%), as well as the highest amount of aliphatics (96.07%). MgAl-LDH catalysts synthesised at pHs of 5 and 9 contain almost identical compositions (91.88%, 3.35%, 3.91% and 0.7% for aliphatics, ketones and ethers, oxygenated aromatics and non-oxygenated aromatics, respectively). The results for the MgAl-LDH catalysts show that the catalyst support synthesis pH, and thus the catalyst pore width, plays a small role in the compositions of the oils produced. MgAl-LDH supported by mesoporous silica with an intermediate pore size of around 4 nm produces more heavy oxygenated aromatics and more light aromatics.

CaAl-LDH catalysts had the opposite effect on the ESP oils to the MgAl-LDH catalysts. The concentrations of aliphatics and branched aliphatics decreased (26.09% and 44.85%, respectively), while the concentrations of oxygenates and aromatics increased (27.23% and 1.61%, respectively). The increase in oxygenates as a result of CaAl-LDH compared to MgAl-LDH is likely as a result of the differences in acid–base properties between the two catalysts. CaAl-LDH contains stronger basic sites than MgAl-LDH [36]. An increased effect was also observed in the CaAl-LDH catalyst synthesised at a pH of 7, similar but opposite to the effect noticed in the Mg-Al LDH catalyst. With the exception of higher non-cyclic ketones, aldehydes and esters compositions (above 15%), the compositions of heat exchanger oil organic fractions did not vary significantly with the use of CaAl-LDH catalysts. This indicates that CaAl-LDH catalysts results in little change to the heavier fraction, but notable change to the lighter fraction.

There appeared to be a link between the catalyst basic sites concentrations and the FTIR and GC/MS results. Lower average ESP oil oxygenate concentrations (4%) were produced using MgAl-LDH catalysts with basicity values between 0.1 and 0.2 mmol/g catalyst, while higher average ESP oil oxygenate concentrations (30%) were produced using CaAl-LDH catalysts with basicity values between 0.1 and 0.3 mmol/g catalyst. The extent to which the catalyst BJH adsorption average pore diameters influenced the product compositions is unknown, but there does appear to be a link. Where it is expected that there would be fewer oxygenates in the ESP oils catalysed by MgAl-LDH supported by silica synthesised at a pH of 5, due to a low basicity of 0.1 mmol/g catalyst, the oxygenate concentration is higher compared to the other MgAl-LDH-catalysed ESP oils. This is likely because of the small pore size (3.3 nm), reducing the catalytic conversion of medium-sized oxygen-rich organic compounds such as furfural and larger compounds such as levoglucosan (kinetic diameters of 0.55 and 6.7 nm, respectively, [37]) due to diffusion limitations. Larger pore sizes (4.0 nm and 4.8 nm) are more likely to allow for increased diffusion of these molecules through the catalyst.

With the low organic fractions in the heat exchanger oils as a result of high water content, as well as the lack of useful GC/MS data for these fractions, there is not enough evidence from analysis of the heat exchanger oils to confirm catalytic activity. However, similar trends in the MgAl- and CaAl- LDHs, synthesis pHs and ESP oil compositions suggest that a catalyst support synthesis pH of 7 has the highest catalytic activity. A synthesis pH of 7 correlates to an intermediate BET surface area and pore size of around 520 m${}^2$/g and 4 nm, respectively. The pronounced difference in the compositions of the ESP oils with the different catalysts, as well as the small difference in the composition of the heat exchanger oil fractions, suggests that the current catalyst pore size range is better suited for improving the lighter pyrolysis oil fractions as opposed to the heavier fractions. Larger pore sizes should be investigated to assess differences in the heavier fractions.

3.2.4. Thermal Properties

Dried E. grandis biomass was found to have an average HHV of $15.9\pm 3.9$ MJ/kg. The HHV of the pyrolysis ESP oils without the use of a catalyst improved slightly to $16.2\pm 2.2$ MJ/kg, and the reference catalyst produced ESP oils with a higher HHV of $19.6\pm 1.9$ MJ/kg.

Use of the Mg-Al LDH catalysts yielded improved ESP oil HHVs of $21.7\pm 0.9$ MJ/kg, $21.3\pm 2.6$ MJ/kg and $22.5\pm 1.0$ MJ/kg, respectively. The increases may be as a result of larger aliphatics concentrations in the Mg-Al LDH catalysed ESP oils. However, there was no significant difference in the HHV values between the three mesoporous silica supports, likely as a result of the similar compositions.

All three Ca-Al LDH catalysts also produced lower ESP oil HHVs of $16.94\pm 2.46$ MJ/kg, $15.7\pm 0.8$ MJ/kg and $15.0\pm 0.4$ MJ/kg, respectively. The lower HHVs are likely due to the higher oxygenate concentration and higher FTIR -OH peaks.

The HHV values achieved for the E. grandis fast pyrolysis oils are lower than those reported for similar feedstocks at similar reaction conditions (24.5 MJ/kg) [38,39,40]. This is likely as a result of inefficiencies in the reactor system used in the investigation. The HHVs of pyrolysis oils can be improved using an optimised system and are expected to be higher as a result of MgAl-LDH catalysts.

4. Conclusions

Biomass fast pyrolysis oil is being investigated as an alternative to fossil fuels because it is renewable, and the combustion thereof produces less greenhouse gas emissions. Fast pyrolysis of E. grandis in a tail-gas recirculating spouted bed reactor system gives good pyro-oil yields, but the oils are unstable, corrosive and have low higher heating values as a result of elemental oxygen contents. This study investigated the use of mesoporous silica-supported layered double hydroxide catalysts to decrease the oxygen contents in pyro-oils produced in the fast pyrolysis of E. grandis sawdust in the aforementioned system.

Mesoporous silica catalyst supports with good surface areas (up to 600 m${}^2$/g) were produced using sol–gel synthesis, and nitrogen physisorption tests showed an increase in BJH average adsorption diameters with an increase in sol–gel synthesis pH. The effects of the different support pore sizes, as well as the LDH catalysts, on the pyrolysis oil products were studied. The LDHs embedded within the supports also appeared to experience some loss in structure and basicity as a result of the increased support synthesis pHs, as demonstrated by XRD and basicity measurements. The results suggest that a link can be drawn between the support pore sizes and LDH basicity, and the concentration of oxygenated compounds in the oil.

FTIR analysis of the heat exchanger and electrostatic precipitator (ESP) oils showed that the MgAl-LDH catalysts appeared to reduce the intensities of -OH peaks mostly caused by high water contents, and CaAl-LDH catalysts had little influence on these peaks. The GC/MS results of the ESP and heat exchanger oils showed that the MgAl-LDH catalyst supported by mesoporous silica synthesised at a pH of 7 produced an ESP oil with the lowest oxygenate concentration, while the CaAl-LDH catalyst with a silica gel support synthesised at a pH of 7 yielded the greatest increase in the oxygen contents of ESP oils. The organic fraction compositions of the heat exchanger oils did not change significantly with the use of the LDH catalysts. This indicates that the catalyst supports were more suited for improving the lighter pyrolysis oil fractions than the heavier fractions, as a result of the pore widths. Future studies should be conducted on catalyst supports with larger pore sizes to see clearer differences in the heat exchanger oil fractions.

The higher heating values of ESP oils produced using MgAl-LDH catalysts supported by mesoporous silica were significantly higher than that of the non-catalysed oils. Overall, the contents of oxygenated compounds in the pyro-oils, and especially the ESP oils, were reduced by MgAl-LDH and increased by CaAl-LDH. The mesoporous silica supports synthesised at a pH of 7 appeared to yield the greatest catalytic activities for both LDHs.

The study confirmed that synthetic mesoporous silica can be successfully used to support powdered catalysts for fast pyrolysis, and that MgAl-LDH can be used to reduce oxygenated compounds in pyrolysis oils. Additionally, the morphology of the support can easily be tailored to the application, and the sol–gel synthesis method described does not require the use of a binder.
