Abstract

High temperature water-gas shift (HT-WGS) is an industrially highly relevant reaction. Moreover, climate change and the resulting necessary search for sustainable energy sources are making WGS and reverse-WGS catalytic key reactions for synthetic fuel production. Hence, extensive research has been done to develop improved or novel catalysts. An extremely promising material class for novel highly active HT-WGS catalysts with superior thermal stability are perovskite-type oxides. With their large compositional flexibility, they enable new options for rational catalyst design. Particularly, both cation sites (A and B in ABO3) can be doped with promoters or catalytically active elements. Additionally, B-site dopants are able to migrate to the surface under reducing conditions (a process called exsolution), forming catalytically active nanoparticles and creating an interface that can strongly boost catalytic performance. In this study, we varied A-site composition and B-site doping (Ni, Co), thus comparing six novel perovskites and testing them for their HT-WGS activity: La0.9Ca0.1FeO3-δ, La0.6Ca0.4FeO3-δ, Nd0.9Ca0.1FeO3-δ, Nd0.6Ca0.4FeO3-δ, Nd0.6Ca0.4Fe0.9Ni0.1O3-δ and Nd0.6Ca0.4Fe0.9Co0.1O3-δ. Cobalt and Nickel doping resulted in the highest activity observed in our study, highlighting that doped perovskites are promising novel HT-WGS catalysts. The effect of the compositional variations is discussed considering the kinetics of the two partial reactions of WGS-CO oxidation and water splitting.
Keywords: water gas shift; perovskites; exsolution; nanoparticles; doping; catalyst design; tailored surfaces water gas shift; perovskites; exsolution; nanoparticles; doping; catalyst design; tailored surfaces

1. Introduction

Water gas shift (WGS) is an industrially highly relevant catalytic reaction, with major applications for hydrogen production via steam reforming of methane [1,2] or from renewable sources like biomass and carbonaceous solid wastes [3,4,5], and for coal-to-liquid processes via Fischer–Tropsch synthesis [6]. Additionally, the reaction is involved in many processes as a partial reaction step, e.g., for ammonia or methanol synthesis. Especially due to the current need for renewable fuels, WGS is involved in many processes producing these fuels. Therefore, WGS has received considerable attention from researchers for a long time, primarily for developing more efficient and cheaper catalysts, both for high- and low-temperature WGS reactions [7,8,9,10]. The reaction
CO + H 2 O   H 2 + CO 2      Δ r H ° 298 = 42.09   kJ   mol 1
is thermodynamically favoured at low temperatures, however, kinetics improves at higher temperatures (see also Figure S1, Supporting Info) [11]. Several groups have focused on the thermodynamic and kinetic aspects of the reaction [12,13]. Since there is virtually no change in volume from reactants to products, the reaction is not affected by pressure. The WGS reaction can be catalysed by both metals and metal oxides, and classical industrial reactions are typically run in two-step processes, with first a high-temperature step, and then a low-temperature step. The classical catalysts utilized for HT-WGS are iron-based [1], for example, Fe3O4/Cr2O3, with Cr2O3 used for stabilization to prevent catalyst sintering [14]. However, environmental concerns about chromium compounds have prompted the search for replacements for chromium in high-temperature catalysts [15]. Catalyst poisons for the iron–chromium catalyst are inorganic salts, boron, oils, phosphorus compounds, liquid water, and sulphur compounds [16]. For low-temperature WGS, the most widely used catalyst material is a mixture of CuO, ZnO, and Al2O3/Cr2O3 [17]. These catalysts have, however, the drawbacks of a lower thermal stability and their intolerance towards sulphur, halogens, and unsaturated hydrocarbons.
Due to the above-mentioned drawbacks of industrial WGS catalysts, extensive research is still being carried out to develop alternatives [18,19,20,21]. Promising materials are ceria- and noble-metal-based compounds [22], carbon-based WGS catalysts [23] or specially designed nanomaterials. For the latter, most of the recent research is focussed on fabricating nanostructured composite catalysts involving ceria supports along with transition or noble metals, with the aim of generating stable structures with extremely high surface areas [11]. A further interesting class of catalytically versatile and highly active materials are perovskites, which have been already tested for both low and high temperature WGS [24,25,26].
The general structure of perovskite type oxides is ABO3, with A and B being a large and small cation, respectively. The huge compositional flexibility of perovskite structures (different combinations of A and B cations), and the various options of doping A- and B-sites with promoting or catalytically highly active elements open up uncountable possibilities of rational catalyst design [24]. Furthermore, properties of many perovskites were extensively characterized by numerous groups, especially due to their broad application in catalysis, solid-state electrochemistry and fuel cell technology [27,28,29,30,31,32,33]. They exhibit excellent thermal stability (e.g., application temperatures in solid oxide fuel cells usually lie between 600 and 1000 °C), they are known to be resistant against catalyst poisons at higher operating temperatures, and catalyst regeneration is possible via redox cycling. Moreover, their improved thermal stability is making them resistant against temporary overheating in an industrial WGS process. Perovskites are beneficial for HT-WGS reactivity due to their reducibility and the resulting capability to provide lattice oxygen for the reaction (i.e., for the redox mechanism) [34,35]. Thereby, the created oxygen vacancies improve the water-splitting capability of the surface [36].
The advantages of perovskite-based HT-WGS catalysts outlined above were our motivation to synthesise novel materials and to study their catalytic performance in the temperature range from 300 to 600 °C. The novel perovskite catalysts are La0.9Ca0.1FeO3-δ, La0.6Ca0.4FeO3-δ, Nd0.9Ca0.1FeO3-δ, Nd0.6Ca0.4FeO3-δ, Nd0.6Ca0.4Fe0.9Ni0.1O3-δ and Nd0.6Ca0.4Fe0.9Co0.1O3-δ. The respective compositions were chosen in accordance with recent findings for highly active WGS materials. The catalytic activity of all novel materials was compared to and benchmarked against the commercially available perovskite La0.6Sr0.4FeO3-δ (LSF).

2. Results and Discussions

2.1. Novel Perovskite Materials

Six novel perovskite materials were synthesised for this study. A judicious choice of composition of the perovskite lattice was made (i.e., to use a ferrite perovskite as base material), enabling usage of the already present, catalytically active iron as B-site cation. Fe is well known as an active material for the high temperature WGS reaction [37,38]. With this, the support material already provides catalytic activity. Furthermore, the B-site can be doped with additional easily reducible catalytically active elements. In this study we used 10% of Co or Ni, leading to catalyst materials that have an active base material with highly active elements embedded [39]. In reducing conditions and at a high temperature (e.g., HT-WGS conditions), these elements exsolve and migrate to the surface, where they form nanometre-sized particles, as we have shown in a previous study [24]. Moreover, numerous studies showed that the thereby exsolved particles are anchored and exhibit excellent morphological stability at a high temperature [40,41,42]. Ni is reported to promote methanation as a side reaction, but solid solutions of Fe and Ni in combination with a reducible oxide are reported to exhibit high activity and selectivity [15]. Co has also been studied as a WGS catalyst, e.g., in carbide-based catalysts [39].
For the A-site, Nd and Ca have been chosen with two different ratios: 6:4 and 9:1. Usually, La is one of the most common A-site elements. However, to avoid XPS peak overlap in future studies with dopant elements (especially Ni) Nd was used instead. Furthermore, rare earth materials are generally known for their catalytic activity, and both elements were reported in the literature to have a promotional effect on the WGS activity [2]. Acceptor-doping of the A-site with Ca introduces electronic defects (holes) and oxygen vacancies, which improves the electron and oxygen anion conductivities and reactivity of the material. Improved reactivity with Ca doping for WGS was previously shown by Maluf et al. for La2−xCaxCuO4 [26]. In their study, a Ca content of 5% to 10% was reported to have the highest promotional effect. Furthermore, variation in the A-site dopant concentration (in our case Ca) allows additional fine-tuning of the lattice stability, and therefore the exsolution properties [43]. For the doped perovskites, we decided to increase the stability of the host lattice by increasing the amount of Ca A-site doping from 10% to 40%. This results in a Goldschmidt tolerance factor closer to 1, which means that the perovskite structure is closer to the ideal cubic structure [24,44]. At the same time, the electronic structure is also changed, with more Fe4+ present in the lattice, which raises the exsolution temperature [45]. With a more stable perovskite host lattice, it can be ensured that primarily dopant ions are exsolved into the particles decorating the surface under reducing conditions, and the Fe ions remain in the perovskite lattice [24].
To summarize, the novel perovskite materials La0.9Ca0.1FeO3-δ, La0.6Ca0.4FeO3-δ, Nd0.9Ca0.1FeO3-δ, Nd0.6Ca0.4FeO3-δ, Nd0.6Ca0.4Fe0.9Ni0.1O3-δ and Nd0.6Ca0.4Fe0.9Co0.1O3-δ were investigated, particularly chosen for their high amount of catalytically active elements, thermochemical stability and capability of exsolution. Furthermore, the commercially available perovskite La0.6Sr0.4FeO3-δ (LSF) was tested as a reference material (unfortunately, benchmark experiments with a commercial Fe/Cr HT-WGS catalyst were not successful because of stability issues, particularly due to sintering and severe loss of BET surface area at high reaction temperatures). After synthesis, all novel perovskite powders were characterized with X-ray diffraction (XRD, cf. Figure 1) to check their crystal structure, and with BET (Brunauer–Emmett–Teller method) to obtain their surface area, Table 1 [46,47]. In Figure 1, stick patterns of reference structures with the same or similar composition are displayed as well (taken from the ICDD PDF-4 + 2019 database [48]; their PDF-Numbers are listed in Table 1).
A comparison of the measured patterns with these stick patterns shows that all materials were phase pure, except for the Ni-doped perovskite, proving that the syntheses were successful. For the Ni-doped material, trace amounts of NiO were visible in the XRD pattern, indicating that not all Ni could be incorporated on the B-site of the perovskite lattice. In contrast, Co dopants were successfully integrated in the perovskite structure. Slight modifications in mean height width of the XRD patterns (Figure 1) suggest small differences in crystallinity between the materials. All materials were treated equally during synthesis (especially during the calcination step, cf. Section 3.1) to achieve a crystallinity as similar as possible, and thus achieve comparability of the catalysts. Therefore, the contribution of different crystallinity to varying exsolution behaviour and catalytic activity should be negligible. The BET analysis revealed surface areas between 1.13 and 5.07 m2 g−1 for the perovskites. These values are needed for the calculation of the specific activity of the catalysts (see Section 3.3).

2.2. High Temperature Water Gas Shift Reactivity

Prior to catalytic reaction, all novel perovskites were oxidized for 30 min at 600 °C in pure O2 (what is comparable to calcination at high temperatures). This guarantees identical initial conditions for all materials and helps for comparison of the results for the HT-WGS reaction. Following oxidation, all catalysts were cooled to 300 °C in O2, and then the gas atmosphere was changed to the reaction environment. For all experiments, the water vapour to CO ratio was 1:1 with Ar as carrier gas (i.e., Ar was bubbled through a humidifier to obtain the correct H2O partial pressure). The total flow was 12 mL min−1. The perovskite powder samples were directly used without further dilution and held in position by a quartz wool bed. The amount of catalyst was chosen such that the thermodynamic equilibrium (60% conversion at 600 °C) of the reaction was not reached. This is important, since WGS is an equilibrium reaction—at high temperatures and high conversions, the back reaction via reverse-WGS (r-WGS) starts being more and more dominant [49]. After changing to the reaction environment, the temperature was gradually raised to 600 °C, with every temperature step of 100 °C being held for approximate 60 min. During reaction, the catalytic reactivity was monitored via a micro-GC that was sampling continuously every 2 to 3 min.
Figure 2 displays the results for HT-WGS on the undoped perovskite La0.6Ca0.4FeO3-δ. When changing to the reaction environment at 300 °C, a short steep peak in CO2 formation and an accompanying drop in the CO signal is visible, followed by steady state reaction conditions (with a lower CO2 signal and a higher CO signal than during the initial phase). Similar behaviour can be observed when increasing the temperature to 400 and 500 °C, respectively. When the reaction conditions become more reducing (either switching from O2 to CO+H2O, or increasing temperature), the amount of oxygen vacancies in the perovskite increases due to the reaction of CO with lattice oxygen, forming CO2. This leads to the initial CO2 production spikes and CO drops at the respective steps. The vacancy formation is reversible and temperature-dependent and the overall perovskite structure stays intact during this process.
Figure 3 proves the reactivity of a perovskite (exemplary for Nd0.9Ca0.1FeO3-δ) by a simple experiment, where in the fed gas only CO was present (no water, 0.70 mL min−1 CO and 11.75 mL min−1 Ar as carrier gas). After oxidation, the perovskite was exposed to the dry reaction atmosphere at 300 °C. Immediately, a strong increase in the CO2 production could be seen that was dropping rapidly. As mentioned, this is because lattice oxygen is reacting with CO. When increasing the reaction temperature to 600 °C, the same effect could be seen again. As the starting point was a fully oxidized perovskite, the lattice acts as an oxygen reservoir until an equilibrium state is reached (i.e., no further reduction of the material is possible at the specific reaction conditions). With a higher temperature, the equilibrium oxygen vacancy concentration and the ion mobility increase (i.e., more oxygen vacancies can be formed, and faster) [50]. This explains why the CO2 production spikes occur repeatedly when increasing the temperature (both in Figure 2 and Figure 3). However, for real WGS and higher temperatures, this effect diminishes, as the reducibility of the perovskite reaches a limit and water vapour in the fed gas is re-oxidizing oxygen vacancies more effectively. Similar observations were reported by Sun et al. for La0.9−xCexFeO3-δ perovskite catalysts, where Ce improves the reducibility of the perovskite lattice, thus enhancing catalytic activity [25].
The highest reactivity of the material La0.6Ca0.4FeO3-δ was reached at 600 °C with a CO conversion of around 46% (thermodynamic limit 60%). H2 formation started at 400 °C, but at a lower level than CO2 formation. Maybe the lattice oxygen content is slowly changing isothermally, which leads to increased CO2 production. This would mean that equilibration of the perovskite stoichiometry is (after a first quick convergence, resulting in the CO2 spikes) a relatively slow process at 300 to 400 °C. This hypothesis is supported by Figure 3, where the initial high CO2 formation rate was, after a sudden drop, slowly decreasing over time and did not fully vanish. At 600 °C, H2 and CO2 production reach the expected stoichiometric ratio of 1:1 (H2:CO2), indicating that the oxygen stoichiometry of the perovskite has reached its equilibrium due to increased kinetics. The reason for this is that, at higher reaction temperatures, the water-splitting kinetics of the perovskite strongly improve [51], providing as much oxygen for the redox mechanism as is consumed for CO2 formation [34].
All other novel perovskites (including LSF as a reference) were tested in the same way. Figure 4 summarizes the results of these measurements. To be able to directly compare our different materials, the CO2 formation rate is displayed as area-specific activity in mol m−2 s−1. In order to get these values, catalytic activity was normalized by active surface area of the respective perovskites; see Section 3.3 for details. As perovskites exhibit a rich and highly dynamic surface chemistry, which is strongly dependent on gas environment and reaction temperature, it was decided to use a specific activity instead of a turnover frequency (TOF). The average specific activity at 600 °C is given in Table 1 for all materials.
The two La-based and B-site undoped perovskites La0.9Ca0.1FeO3-δ and La0.6Ca0.4FeO3-δ showed the lowest activity for the HT-WGS reaction, which was comparable to commercial LSF at 600 °C.
Variation of A-site composition by increasing the Ca concentration increased the reactivity at 600 °C slightly. This is in contrast to previous studies that reported better reactivity with lower Ca content [26]. When exchanging La with Nd, reactivity of the perovskites for HT-WGS increases significantly (cf. Table 1)—by a factor of about 3 for 10% Ca doping. For Nd0.9Ca0.1FeO3-δ and Nd0.6Ca0.4FeO3-δ an opposite trend with respect to the Ca content was found. With lower Ca content the reactivity was higher, which is in line with previous studies [26]. At 400 °C, Nd0.9Ca0.1FeO3-δ even had the highest activity of all tested undoped materials. However, while there was still a strong increase in activity when changing to 500 °C, increasing reaction temperature from 500 to 600 °C did not significantly increase the reactivity anymore (note: thermodynamic limitations could be excluded, as conversion was at roughly 40%, while the thermodynamic limit is at 60% at 600 °C). A qualitatively similar behaviour can be observed for La0.9Ca0.1FeO3-δ, while both La0.6Ca0.4FeO3-δ and Nd0.6Ca0.4FeO3-δ have a stronger reactivity increase from 500 to 600 °C than from 400 to 500 °C.
A possible reason may be related to a difference in the oxygen vacancy formation energies, depending on the amount of Ca doping (10% vs. 40%). Thus, the perovskites with lower Ca doping would reach their limit of formed oxygen vacancies, which play an essential role in WGS activity (cf. Section 2.4), faster and already at a lower temperature (i.e., 500 °C) than those with more Ca. After reaching this limit, there is no more strong increase in activity. On the other hand, the perovskites with higher Ca doping can still increase the amount of oxygen vacancies and the WGS reactivity at 600 °C. To really understand this different behaviour, further in situ studies would be needed.
This reducing behaviour is also supported by the occurrence of the initial CO2 formation spikes previously discussed, which are visible in Figure 4 as well. However, their interpretation has to be done carefully, as, due to the sampling interval of 2 to 3 min, the peaks (especially small ones) might not be fully resolved. Nevertheless, for Nd0.9Ca0.1FeO3-δ a strong initial spike can be observed after increasing the reaction temperature to 400 °C. This indicates the easy reducibility of the material at these reaction conditions, resulting in a high amount of oxygen vacancies and enhanced WGS reactivity [34]. These effects are further discussed in Section 2.4.
Results for the Ni-doped perovskite Nd0.6Ca0.4Fe0.9Ni0.1O3-δ in Figure 4 (blue curve) show that doping increased the reactivity towards CO2 compared to the similar undoped material (Nd0.6Ca0.4FeO3-δ). In contrast to reports in the literature, we did not observe any methanation as a side reaction [11,15]. For Co-doped Nd0.6Ca0.4Fe0.9Co0.1O3-δ a huge initial CO2 peak was visible when changing to reaction conditions at 300 °C. Again, this is interpreted as an indication of the easier reducibility of the material compared to the other perovskites, and therefore the easier formation of oxygen vacancies. This interpretation is also in accordance with the defect chemical behaviour of the similar material family La1-xSrxCo1-yFeyO3-δ (typically used as solid oxide fuel cell cathodes) where the reducibility is also increased by cobalt addition [52]. Generally, weakly bound oxygen atoms in highly reducible materials (i.e., materials with a higher oxygen storage capacity) have been reported in the literature to be critical to the performance efficiency of the WGS reaction [53].
While for the undoped materials the activity is stable after the first initial spike in a step, both the Ni- and the Co-doped perovskite show slowly increasing reactivity after the spike at 500 °C. This can be attributed to the formation of catalytically active nanoparticles (cf. Section 2.4). This process is slower than the formation of oxygen vacancies and takes place during the whole temperature step. For Nd0.6Ca0.4Fe0.9Co0.1O3-δ, it even continues at 600 °C, visible by the slow signal increase.
At 600 °C, Ni-doped Nd0.6Ca0.4Fe0.9Ni0.1O3-δ exhibited the best reactivity of all novel perovskites with a specific activity of 3.69·10−6 mol m−2 s−1, followed by the Co-doped perovskite with a specific activity of 2.84·10−6 mol m−2 s−1. We also checked for all tested materials if any side reactions were occurring (e.g., the formation of methane) but only the expected reaction educts and products could be detected.

2.3. Electron Microscopy

Before and after HT-WGS reaction, scanning electron microscopy (SEM) images of the used catalysts were recorded (see also Supporting Information, Figure S2). Whereas undoped Nd0.9Ca0.1FeO3-δ still retained its crystalline surface structure after reaction, cf. Figure 5b, the surface of the doped perovskite Nd0.6Ca0.4Fe0.9Co0.1O3-δ changed, cf. Figure 5a. The formation of well dispersed nanoparticles during the catalytic reaction could be observed (i.e., by exsolution) [42,54]. The particle size ranges from 30 to 65 nm, and during reaction conditions the particles are most probably composed of metallic or oxidized cobalt, owing to the easy reducibility of the Co dopant element and its resulting preferential exsolution. Unfortunately, the particles were too small for an elemental analysis with energy dispersive X-ray spectroscopy (EDX), but in own previous work on reverse WGS on the same material [24] (including in-situ XRD measurements), formation of cobalt oxide (CoO) was found.
Nevertheless, since the experimental system was defined in a way so as to not reach thermodynamic equilibrium, the redox state of the particles may also be different in the present case. Furthermore, no sintering of the nanoparticles was observed at a high reaction temperature.

2.4. Discussion of WGS Activity of the Catalyst Materials

As shown in the results above, the variation oin catalyst composition resulted in a relatively complex change in the catalytic behaviour. While on some materials, only the WGS shift reactivity was improved, others showed an increase in the CO2 spike at the beginning of the temperature plateaus, often coinciding with an enhanced WGS reaction rate. To interpret this, we need to have a closer look at the reactions occurring on the perovskite catalysts.
As already mentioned above, the spike is a result of CO oxidation by the pre-oxidised perovskite catalyst via the reaction
CO + O O × + 2   h     CO 2 + V O
where O O × ,   h ,   and   V O (in Kröger–Vink notation) denote regular lattice oxygen, electron hole, and oxygen vacancy, respectively. Assuming the WGS reaction on the perovskite oxides to proceed via a redox mechanism [1], Equation (2) is also the first step of WGS. In this case, the WGS reaction is then completed by refilling the lattice oxygen (i.e., re-oxidising the perovskite) by splitting water
H 2 O + V O   H 2 + O O × + 2   h
Previous studies indicate that Equation (2) proceeds entirely on the oxide surface with an electron transfer to the perovskite; the presence of metal particles has virtually no effect on the CO oxidation and CO2 reduction reaction rate on perovskite-type oxides [54,55]. Improving the reducibility of the perovskite—e.g., by introducing elements allowing an easier valence change and thus easier electron transfer—is expected to enhance the reaction rate of Equation (2). The equilibrium reaction rate of water splitting on the oxide surface (Equation (3)) is somewhat higher than the rate of Equation (2), but of the same order of magnitude [56,57]. However, in contrast to Equation (2) the water-splitting reaction can be enhanced by the presence of metallic particles on the perovskite surface, which allow circumventing its rate-limiting step [51,58,59,60].
Considering these facts, the following explanation is suggested for the observed effects of compositional variation in the perovskite-type catalysts: on the oxide surface, both reactions (Equations (2) and (3)) limit the rate of WGS to a similar extent [56,57]. Changing the composition from the La-based materials to the Nd-containing ones increased the redox activity of the material.
Probably, either Nd has higher redox activity (mixed 2+/3+ surface valence) compared to La or helps in mitigating the surface segregation of Ca [61]. Consequently, the rate of Equation (2) is enhanced, which results in a larger CO2 spike and enhanced WGS activity (see Figure 4). Similarly, Equation (3) may be affected, but since here the recombination of adsorbed hydrogen is discussed to be involved in the rate determining step, we expect only a rather small (if any) effect on Equation (3).
Doping the B-site with Co had a large effect on both the CO2 spike and the WGS activity, which can be explained by an enhanced reaction rate of Equation (2), since especially Co is known to provide a very high redox activity in perovskites [62,63]. In addition, the existence of exsolved particles on the surface was proved with SEM, which—especially if present in metallic form—may catalyse Equation (3). This is supported by the increase in the CO2 signal during the 500 °C step, a temperature where we expect exsolution to occur. Since the oxidation state of these exsolved particles is not clarified yet, further (in-situ) experiments are needed to definitely answer this question.
The doping with Ni greatly increased the WGS activity, but without affecting the CO2 spike at the beginning of the temperature steps (compare Nd0.6Ca0.4FeO3-δ and Nd0.6Ca0.4Fe0.9Ni0.1O3-δ in Figure 4). Since Ni is not as redox active in the oxide as Co (Ni is expected to only be stable in oxidation state of +2 in the used reaction atmosphere), the enhancement of the WGS activity cannot be caused by increasing the rate of Equation (2)—thus Ni doping is not causing a larger CO2 spike. Instead, Ni mainly affects the WGS reaction by enhancing the water-splitting reaction (Equation (3)) upon providing metallic (exsolved) particles at the perovskite surface [64]. As the Ni-doped material was not phase pure, the particles were probably partly (or maybe even fully) not exsolved, but just a result of the reduced NiO, migrating to the surface. This process ought to be faster than pure exsolution as in Nd0.6Ca0.4Fe0.9Co0.1O3-δ, explaining why Nd0.6Ca0.4Fe0.9Ni0.1O3-δ has the largest activity increase from 400 to 500 °C and only a smaller one from 500 to 600 °C. On the other hand, the Co-doped material still shows a large increase at the last step, due to improved exsolution at a higher temperature.
From these thoughts, a strategy to further enhancing WGS activity of perovskite-type catalysts can be deduced. For maximising the WGS reaction rate, both reactions—Equations (2) and (3)—need to be fast. This can be achieved by a redox active perovskite oxide and simultaneously providing metallic particles at the surface (e.g., Ni). Testing this hypothesis will be performed in a forthcoming study. As can be seen in Figure 4 and Table 1, especially the latter effect greatly enhanced the catalytic activity of the materials. Therefore, considerable attention will be given to the exsolution process.

2.5. Stability of Novel Perovskite Catalysts

To obtain initial insights into reaction stability of the novel perovskites, isothermal reactions were performed at 600 °C. This high temperature was chosen to check if any rapid deactivation occurs. Here, the results for Nd0.6Ca0.4FeO3-δ and Co-doped Nd0.6Ca0.4Fe0.9Co0.1O3-δ are displayed. Results for all other materials can be found in the Supporting Information (Figures S3–S7).
For the experiments, all materials were first oxidized for 30 min in pure O2 at 600 °C to have a defined starting point. During the next steps, the catalysts were cooled to 300 °C in O2, and the gas atmosphere was switched to the reaction environment. Afterwards, the reaction temperature was rapidly increased to 600 °C. This was done in order to be able to observe any strong initial activation/deactivation phenomena, which we did not find. In summary, all novel materials showed quite stable reactivity within the investigated timeframe. The results for Nd0.6Ca0.4FeO3-δ are displayed in Figure 6.
After a slight deactivation in the first hour, stable CO2 and H2 formation was observed. This initial decrease in reactivity could be attributed to a depletion of available lattice oxygen atoms that react with CO to CO2. After this period, a steady state is reached, where re-oxidation of the lattice by oxygen from water splitting and the reaction of lattice oxygen with CO are in equilibrium. For Co-doped Nd0.6Ca0.4Fe0.9Co0.1O3-δ, a slight increase in reactivity over time could be observed (Figure 7, CO2 signal).
This slight increase could be caused by a proceeding surface modification by still ongoing nanoparticle exsolution. To prove this, however, further long-term measurements would be needed. In conclusion, these results highlight that these novel materials are promising candidates for the further development of perovskite-based HT-WGS catalysts.

3. Materials and Methods

3.1. Synthesis of Novel Perovskites

As in previous work [24], the Pechini synthesis [65] was used to prepare the investigated perovskite powders. The following chemicals were used as starting materials to synthesise the materials with the wanted compositions: La(CH3COO)3·1.5H2O (99.9 %, Alfa Aesar, Haverhill, MA, USA), Nd2O3 (99.9 %, Strategic Elements, Deggendorf, Germany), CaCO3 (99.95 %, Sigma-Aldrich, St. Louis, MO, USA), Fe (99.5 %, Sigma-Aldrich, St. Louis, MO, USA), Co(NO3)3·6H2O (99.999 %, Sigma-Aldrich, St. Louis, MO, USA), and Ni(NO3)3·6H2O (98 %, Alfa Aesar, Haverhill, MA, USA). Solutions of the appropriate amounts of the compounds were prepared in HNO3 (doubly distilled, 65%, Merck, Darmstadt, Germany). Subsequent steps included the addition of citric acid (99.9998% trace metals pure, Fluka, Honeywell International, Charlotte, NC, USA) in excess of 20% to form cation complexes, removing H2O by evaporation, and heating of the resulting gel until self-ignition. Then, the formed powders underwent heat treatment (calcination at 1350 °C for 3 h) and were ground with a mortar to achieve homogeneity for better characterisation. The fine powder was then used for BET analysis and catalytic testing. The commercially available perovskite material La0.6Sr0.4FeO3-δ (LSF, Sigma Aldrich, St. Louis, MO, USA) was catalytically tested for comparison as well.

3.2. Materials Characterisation

Powder XRD measurements and SEM experiments were carried out as described by Lindenthal et al. [24]
The powder XRD measurements were done at room temperature in air on a PANalytical X’Pert Pro diffractometer (Malvern Panalytical, Malvern, UK) in Bragg–Brentano geometry using a mirror for separating the Cu Kα1,2 radiation and an X’Celerator linear detector (Malvern Panalytical, Malvern, UK). Data analysis was conducted with the HighScore Plus software (Malvern Panalytical, Malvern, UK) [66] and the PDF-4+ 2019 database (ICDD—International Centre for Diffraction Data, Newtown Square, PA, USA). [48] The database entries were used to ascribe the reflexes in the diffractograms.
The SEM images were recorded using secondary electrons on a Quanta 250 FEGSEM (FEI Company, Hillsboro, OR, USA) using an Octane Elite X-ray detector (EDAX Inc., Mahwah, NJ, USA) with an acceleration voltage of 5 kV for sufficient surface-sensitivity. Additionally, specific surface areas were assessed according to the Brunauer–Emmet–Teller (BET) method by fitting measured adsorption isotherms to a BET model. The isotherms were recorded using a Micrometrics ASAP 2020 system. The samples were degassed at 300 °C under vacuum for 4 h, followed by the measuring of full N2 adsorption–desorption isotherms at −196 °C (liquid N2).

3.3. Catalytic Testing

Similar to tests presented in [24], catalytic tests for HT-WGS reaction (CO + H2O ↔ CO2 + H2) were carried out in a tubular flow reactor (quartz glass, outer diameter 6mm, inner diameter 4 mm) at atmospheric pressure. A Micro-GC (Fusion 3000A, Inficon, Bad Ragaz, Switzerland), taking a sample every 2–3 min was used for online gas analysis. The total flow was set to 12 mL min−1, with a CO flow of 0.70 mL min−1 and an Ar flow of 11.3 mL min−1 (all gases provided by Messer Group GmbH, Bad Soden, Germany). The Ar, which also acts as a carrier gas, was passed through a humidifier filled with water at room temperature. This leads to a CO/H2O partial pressure of 1:1 in the educt gas flow. To assess the catalytic activity of the reactor, a run without catalyst was performed (resulting in an activity below 0.05 Mol% for CO2 at 600 °C). The catalytic reactions were done with pure powder catalyst (50–70 mg) on a glass wool bed as support. The amounts of catalyst material for the respective experiments were chosen such that, during the reaction, the thermodynamic limit of the WGS reaction was not reached. The reactor heater was controlled by a PID controller (EMSR EUROTHERM GmbH, Vienna, Austria). To do so, a K-type thermocouple was reaching directly into the catalyst bed. Prior to all catalytic testing, each catalyst was oxidized for 30 min in O2 at 600 °C to ensure the same starting point for all materials (i.e., a fully oxidized perovskite).
To be able to directly compare the different perovskite catalysts, it was decided to calculate a specific activity. Usually, turnover frequencies (TOF) are given in the catalysis community, but this would require exact knowledge of the nature of an active site and also of the number of active sites on the surface. Perovskites are rather dynamic materials with a temperature (and reaction environment) dependent amount of vacancies that influence the nature of the surface reactivity. Different surface terminations are possible with different lattice elements (i.e., A- or B-cation, doping elements) exposed to the reaction environment. Furthermore, metal nanoparticle exsolution can occur (i.e., the formation of well-dispersed small metal nanoparticles on the surface) that enhances the reactivity and changes the number of active sites on the surface. Therefore, it is not scientifically sound to give a TOF value.
Instead, a specific activity (mol m−2 s−1) was calculated to directly compare the novel perovskite materials (which are all from a similar type). For this, the BET surface areas of the materials were measured (see Table 1). Using also the known amount of used catalyst material and the total gas flow, we normalized the CO2 formation to the catalyst surface area, giving a specific activity, i.e., how many mol of product (e.g., CO2) were formed per m2 surface and s.

4. Conclusions

It has been demonstrated that the novel perovskites are suitable catalyst materials for HT-WGS reactions. Whereas La0.9Ca0.1FeO3-δ and La0.6Ca0.4FeO3-δ show similar activity to the reference material LSF, changing the A-site cation from La to Nd significantly increased the catalytic reactivity of the perovskites. At 600 °C, the specific activity of Nd0.9Ca0.1FeO3-δ (18.7·10−7 mol m−2 s−1) was roughly three times higher than for La0.9Ca0.1FeO3-δ (5.7·10−7 mol m−2 s−1). Furthermore, the B-site of the perovskite was doped with catalytically highly active Ni or Co. Ni doping was not fully successful, as not all Ni could be incorporated in the perovskite lattice and trace amounts of NiO were observed in the XRD pattern. In contrast, Co doping was successful, leading to phase pure Nd0.6Ca0.4Fe0.9Co0.1O3-δ. The Co- and Ni-doped perovskites exhibited the highest HT-WGS reactivity at 600 °C, with specific activities of 28.4·10−7 and 36.9·10−7 mol m−2 s−1 respectively. Additionally, the formation of nanoparticles on the surface by exsolution could be observed during reaction. The stability of the novel materials over longer periods of time was also tested, showing that all materials did not deactivate over the whole duration of the test.
The WGS activity is discussed to be improved by two factors: first, the kinetics of CO oxidation, which proceeds on the oxide surface and is enhanced by an increased redox activity of the oxide (e.g., by using Nd instead of La as A-site cation). Second, the water-splitting kinetics can be accelerated by providing metallic particles on the catalyst surface. This can be achieved by doping the B-site of the perovskite with easily reducible cations (e.g., Co or Ni) that exsolve under reaction conditions. Therefore, perovskites are an ideal material class to handle this “job sharing”—perovskite backbone for CO oxidation and exsolved nanoparticles for water splitting—and to optimize both reactions at the same time. Furthermore, their properties are easily adjustable—by choosing the elemental composition of A- and B-site, introducing doping and varying stoichiometry. Our results highlight that doped perovskites are promising candidates for the further development of novel HT-WGS catalysts and provide all the tools needed for high activity and stable operation.

Supplementary Materials

The following figures are available online at https://www.mdpi.com/2073-4344/10/5/582/s1, Figure S1: thermodynamic limitation of the WGS reaction and reaction equilibrium; Figure S2: SEM images of Nd0.6Ca0.4Fe0.9Ni0.1O3-δ and Nd0.9Ca0.1FeO3-δ prior to reaction; Figures S3–S7: Stability tests for WGS reaction on La0.9Ca0.1FeO3-δ, La0.6Ca0.4FeO3-δ, Nd0.9Ca0.1FeO3-δ, Nd0.6Ca0.4Fe0.9Ni0.1O3-δ, and LSF.

Author Contributions

Conceptualization: C.R.; Validation: L.L., R.R., J.P., A.N., and S.L.; Formal analysis: L.L., J.P., and T.R.; Investigation: L.L., R.R., J.P., and S.L.; Resources: L.L.; Data curation: L.L., R.R., J.P., and T.R.; Writing—original draft preparation: C.R.; Writing—review and editing: C.R., A.K.O., A.N., L.L. and T.R.; Visualization: L.L., T.R. and R.R.; Supervision: C.R.; Project administration: C.R.; Funding acquisition: C.R. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the European Research Council (ERC) under the European Union′s Horizon 2020 research and innovation programme, grant agreement no. 755744/ERC—Starting Grant TUCAS.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhu, M.H.; Wachs, I.E. Iron-Based Catalysts for the High-Temperature Water Gas Shift (HT-WGS) Reaction: A Review. ACS Catal. 2016, 6, 722–732. [Google Scholar] [CrossRef]
  2. LeValley, T.L.; Richard, A.R.; Fan, M.H. The progress in water gas shift and steam reforming hydrogen production technologies—A review. Int. J. Hydrog. Energy 2014, 39, 16983–17000. [Google Scholar] [CrossRef]
  3. Chen, C.C.; Tseng, H.H.; Lin, Y.L.; Chen, W.H. Hydrogen production and carbon dioxide enrichment from ethanol steam reforming followed by water gas shift reaction. J. Clean. Prod. 2017, 162, 1430–1441. [Google Scholar] [CrossRef]
  4. Hosseini, S.E.; Wahid, M.A. Hydrogen production from renewable and sustainable energy resources: Promising green energy carrier for clean development. Renew. Sustain. Energy Rev. 2016, 57, 850–866. [Google Scholar] [CrossRef]
  5. Guczi, L.; Stefler, G.; Geszti, O.; Sajo, I.; Paszti, Z.; Tompos, A.; Schay, Z. Methane dry reforming with CO2: A study on surface carbon species. Appl. Catal. A Gen. 2010, 375, 236–246. [Google Scholar] [CrossRef]
  6. Bukur, D.B.; Todic, B.; Elbashir, N. Role of water-gas-shift reaction in Fischer-Tropsch synthesis on iron catalysts: A review. Catal. Today 2016, 275, 66–75. [Google Scholar] [CrossRef]
  7. Zhu, M.H.; Tian, P.F.; Kurtz, R.; Lunkenbein, T.; Xu, J.; Schlogl, R.; Wachs, I.E.; Han, Y.F. Strong Metal-Support Interactions between Copper and Iron Oxide during the High-Temperature Water-Gas Shift Reaction. Angew. Chem. Int. Ed. 2019, 58, 9083–9087. [Google Scholar] [CrossRef]
  8. Polo-Garzon, F.; Fung, V.; Nguyen, L.; Tang, Y.; Tao, F.; Cheng, Y.Q.; Daemen, L.L.; Ramirez-Cuesta, A.J.; Foo, G.S.; Zhu, M.H.; et al. Elucidation of the Reaction Mechanism for High-Temperature Water Gas Shift over an Industrial-Type Copper-Chromium-Iron Oxide Catalyst. J. Am. Chem. Soc. 2019, 141, 7990–7999. [Google Scholar] [CrossRef]
  9. Pastor-Perez, L.; Gu, S.; Sepulveda-Escribano, A.; Reina, T.R. Bimetallic Cu-Ni catalysts for the WGS reaction—Cooperative or uncooperative effect? Int. J. Hydrog. Energy 2019, 44, 4011–4019. [Google Scholar] [CrossRef]
  10. Liu, N.; Xu, M.; Yang, Y.S.; Zhang, S.M.; Zhang, J.; Wang, W.L.; Zheng, L.R.; Hong, S.; Wei, M. Auδ--Ov-Ti3+ Interfacial Site: Catalytic Active Center toward Low-Temperature Water Gas Shift Reaction. ACS Catal. 2019, 9, 2707–2717. [Google Scholar] [CrossRef]
  11. Pal, D.B.; Chand, R.; Upadhyay, S.N.; Mishra, P.K. Performance of water gas shift reaction catalysts: A review. Renew. Sustain. Energy Rev. 2018, 93, 549–565. [Google Scholar] [CrossRef]
  12. Ovesen, C.V.; Stoltze, P.; Norskov, J.K.; Campbell, C.T. A Kinetic-Model of the Water Gas Shift Reaction. J. Catal. 1992, 134, 445–468. [Google Scholar] [CrossRef]
  13. Koryabkina, N.A.; Phatak, A.A.; Ruettinger, W.F.; Farrauto, R.J.; Ribeiro, F.H. Determination of kinetic parameters for the water-gas shift reaction on copper catalysts under realistic conditions for fuel cell applications. J. Catal. 2003, 217, 233–239. [Google Scholar] [CrossRef]
  14. Rhodes, C.; Williams, B.P.; King, F.; Hutchings, G.J. Promotion of Fe3O4/Cr2O3 high temperature water gas shift catalyst. Catal. Commun. 2002, 3, 381–384. [Google Scholar] [CrossRef]
  15. Lee, D.W.; Lee, M.S.; Lee, J.Y.; Kim, S.; Eom, H.J.; Moon, D.J.; Lee, K.Y. The review of Cr-free Fe-based catalysts for high-temperature water-gas shift reactions. Catal. Today 2013, 210, 2–9. [Google Scholar] [CrossRef]
  16. Liu, B.N.; Zhao, L.; Wu, Z.J.; Zhang, J.; Zong, Q.Y.; Almegren, H.; Wei, F.; Zhang, X.H.; Zhao, Z.; Gao, J.S.; et al. Recent Advances in Industrial Sulfur Tolerant Water Gas Shift Catalysts for Syngas Hydrogen Enrichment: Application of Lean (Low) Steam/Gas Ratio. Catalysts 2019, 9. [Google Scholar] [CrossRef]
  17. Jeong, D.W.; Jang, W.J.; Shim, J.O.; Han, W.B.; Roh, H.S.; Jung, U.H.; Yoon, W.L. Low-temperature water-gas shift reaction over supported Cu catalysts. Renew. Energy 2014, 65, 102–107. [Google Scholar] [CrossRef]
  18. Damma, D.; Smirniotis, P.G. Recent advances in iron-based high-temperature water-gas shift catalysis for hydrogen production. Curr. Opin. Chem. Eng. 2018, 21, 103–110. [Google Scholar] [CrossRef]
  19. Damma, D.; Boningari, T.; Smirniotis, P.G. High-temperature water-gas shift over Fe/Ce/Co spinel catalysts: Study of the promotional effect of Ce and Co. Mol. Catal. 2018, 451, 20–32. [Google Scholar] [CrossRef]
  20. Oemar, U.; Bian, Z.; Hidajat, K.; Kawi, S. Sulfur resistant LaxCe1-xNi0.5Cu0.5O3 catalysts for an ultra-high temperature water gas shift reaction. Catal. Sci. Technol. 2016, 6, 6569–6580. [Google Scholar] [CrossRef]
  21. Saw, E.T.; Oemar, U.; Tan, X.R.; Du, Y.; Borgna, A.; Hidajat, K.; Kawi, S. Bimetallic Ni-Cu catalyst supported on CeO2 for high-temperature water-gas shift reaction: Methane suppression via enhanced CO adsorption. J. Catal. 2014, 314, 32–46. [Google Scholar] [CrossRef]
  22. Roh, H.S.; Potdar, H.S.; Jeong, D.W.; Kim, K.S.; Shim, J.O.; Jang, W.J.; Koo, K.Y.; Yoon, W.L. Synthesis of highly active nano-sized (1 wt% Pt/CeO2) catalyst for water gas shift reaction in medium temperature application. Catal. Today 2012, 185, 113–118. [Google Scholar] [CrossRef]
  23. Buitrago, R.; Ruiz-Martinez, J.; Silvestre-Albero, J.; Sepulveda-Escribano, A.; Rodriguez-Reinoso, F. Water gas shift reaction on carbon-supported Pt catalysts promoted by CeO2. Catal. Today 2012, 180, 19–24. [Google Scholar] [CrossRef]
  24. Lindenthal, L.; Rameshan, R.; Summerer, H.; Ruh, T.; Popovic, J.; Nenning, A.; Löffler, S.; Opitz, A.K.; Blaha, P.; Rameshan, C. Modifying the Surface Structure of Perovskite-Based Catalysts by Nanoparticle Exsolution. Catalysts 2020, 10, 268. [Google Scholar] [CrossRef]
  25. Sun, Y.; Hla, S.S.; Duffy, G.J.; Cousins, A.J.; French, D.; Morpeth, L.D.; Edwards, J.H.; Roberts, D.G. Effect of Ce on the structural features and catalytic properties of La(0.9-x)CexFeO3 perovskite-like catalysts for the high temperature water-gas shift reaction. Int. J. Hydrog. Energy 2011, 36, 79–86. [Google Scholar] [CrossRef]
  26. Maluf, S.S.; Nascente, P.A.P.; Afonso, C.R.M.; Assaf, E.M. Study of La2-xCaxCuO4 perovskites for the low temperature water gas shift reaction. Appl. Catal. A Gen. 2012, 413, 85–93. [Google Scholar] [CrossRef]
  27. Hwang, J.; Rao, R.R.; Giordano, L.; Katayama, Y.; Yu, Y.; Shao-Horn, Y. Perovskites in catalysis and electrocatalysis. Science 2017, 358, 751–756. [Google Scholar] [CrossRef]
  28. Nishihata, Y.; Mizuki, J.; Akao, T.; Tanaka, H.; Uenishi, M.; Kimura, M.; Okamoto, T.; Hamada, N. Self-regeneration of a Pd-perovskite catalyst for automotive emissions control. Nature 2002, 418, 164–167. [Google Scholar] [CrossRef]
  29. Shin, T.H.; Myung, J.H.; Verbraeken, M.; Kim, G.; Irvine, J.T.S. Oxygen deficient layered double perovskite as an active cathode for CO2 electrolysis using a solid oxide conductor. Faraday Discuss. 2015, 182, 227–239. [Google Scholar] [CrossRef]
  30. Stöger, B.; Hieckel, M.; Mittendorfer, F.; Wang, Z.M.; Fobes, D.; Peng, J.; Mao, Z.Q.; Schmid, M.; Redinger, J.; Diebold, U. High Chemical Activity of a Perovskite Surface: Reaction of CO with Sr3Ru2O7. Phys. Rev. Lett. 2014, 113. [Google Scholar] [CrossRef]
  31. Katz, M.B.; Zhang, S.Y.; Duan, Y.W.; Wang, H.J.; Fang, M.H.; Zhang, K.; Li, B.H.; Graham, G.W.; Pan, X.Q. Reversible precipitation/dissolution of precious-metal clusters in perovskite-based catalyst materials: Bulk versus surface re-dispersion. J. Catal. 2012, 293, 145–148. [Google Scholar] [CrossRef]
  32. Thalinger, R.; Opitz, A.K.; Kogler, S.; Heggen, M.; Stroppa, D.; Schmidmair, D.; Tappert, R.; Fleig, J.; Klotzer, B.; Penner, S. Water-Gas Shift and Methane Reactivity on Reducible Perovskite-Type Oxides. J. Phys. Chem. C 2015, 119, 11739–11753. [Google Scholar] [CrossRef] [PubMed]
  33. Mueller, D.N.; Machala, M.L.; Bluhm, H.; Chueh, W.C. Redox activity of surface oxygen anions in oxygen-deficient perovskite oxides during electrochemical reactions. Nat. Commun. 2015, 6. [Google Scholar] [CrossRef] [PubMed]
  34. Wheeler, C.; Jhalani, A.; Klein, E.J.; Tummala, S.; Schmidt, L.D. The water-gas-shift reaction at short contact times. J. Catal. 2004, 223, 191–199. [Google Scholar] [CrossRef]
  35. Wang, X.Q.; Rodriguez, J.A.; Hanson, J.C.; Gamarra, D.; Martinez-Arias, A.; Fernandez-Garcia, M. In situ studies of the active sites for the water gas shift reaction over Cu-CeO2 catalysts: Complex interaction between metallic copper and oxygen vacancies of ceria. J. Phys. Chem. B 2006, 110, 428–434. [Google Scholar] [CrossRef]
  36. Gibbons, W.T.; Liu, T.H.; Gaskell, K.J.; Jackson, G.S. Characterization of palladium/copper/ceria electrospun fibers for water-gas shift catalysis. Appl. Catal. B Environ. 2014, 160, 465–479. [Google Scholar] [CrossRef]
  37. Keiski, R.L.; Salmi, T.; Niemisto, P.; Ainassaari, J.; Pohjola, V.J. Stationary and transient kinetics of the high temperature water-gas shift reaction. Appl. Catal. A Gen. 1996, 137, 349–370. [Google Scholar] [CrossRef]
  38. Natesakhawat, S.; Wang, X.Q.; Zhang, L.Z.; Ozkan, U.S. Development of chromium-free iron-based catalysts for high-temperature water-gas shift reaction. J. Mol. Catal. A Chem. 2006, 260, 82–94. [Google Scholar] [CrossRef]
  39. Nagai, M.; Matsuda, K. Low-temperature water-gas shift reaction over cobalt-molybdenum carbide catalyst. J. Catal. 2006, 238, 489–496. [Google Scholar] [CrossRef]
  40. Neagu, D.; Oh, T.S.; Miller, D.N.; Menard, H.; Bukhari, S.M.; Gamble, S.R.; Gorte, R.J.; Vohs, J.M.; Irvine, J.T.S. Nano-socketed nickel particles with enhanced coking resistance grown in situ by redox exsolution. Nat. Commun. 2015, 6. [Google Scholar] [CrossRef]
  41. Oh, T.S.; Rahani, E.K.; Neagu, D.; Irvine, J.T.S.; Shenoy, V.B.; Gorte, R.J.; Vohs, J.M. Evidence and Model for Strain-Driven Release of Metal Nanocatalysts from Perovskites during Exsolution. J. Phys. Chem. Lett. 2015, 6, 5106–5110. [Google Scholar] [CrossRef] [PubMed]
  42. Neagu, D.; Tsekouras, G.; Miller, D.N.; Menard, H.; Irvine, J.T.S. In situ growth of nanoparticles through control of non-stoichiometry. Nat. Chem. 2013, 5, 916–923. [Google Scholar] [CrossRef] [PubMed]
  43. Lee, W.; Han, J.W.; Chen, Y.; Cai, Z.; Yildiz, B. Cation Size Mismatch and Charge Interactions Drive Dopant Segregation at the Surfaces of Manganite Perovskites. J. Am. Chem. Soc. 2013, 135, 7909–7925. [Google Scholar] [CrossRef] [PubMed]
  44. Geller, S. Crystallographic Studies of Perovskite-like Compounds V: Relative Ionic Sizes. Acta Crystallogr. 1957, 10, 248–251. [Google Scholar] [CrossRef]
  45. Nenning, A.; Opitz, A.K.; Rameshan, C.; Rameshan, R.; Blume, R.; Haevecker, M.; Knop-Gericke, A.; Rupprechter, G.; Kloetzer, B.; Fleigt, J. Ambient Pressure XPS Study of Mixed Conducting Perovskite-Type SOFC Cathode and Anode Materials under Well-Defined Electrochemical Polarization. J. Phys. Chem. C 2016, 120, 1461–1471. [Google Scholar] [CrossRef]
  46. Lorenz, H.; Zhao, Q.A.; Turner, S.; Lebedev, O.I.; van Tendeloo, G.; Klotzer, B.; Rameshan, C.; Penner, S. Preparation and structural characterization of SnO2 and GeO2 methanol steam reforming thin film model catalysts by (HR) TEM. Mater. Chem. Phys. 2010, 122, 623–629. [Google Scholar] [CrossRef]
  47. Brunauer, S.; Emmett, P.H.; Teller, E. Adsorption of gases in multimolecular layers. J. Am. Chem. Soc. 1938, 60, 309–319. [Google Scholar] [CrossRef]
  48. ICDD. PDF-4 + 2019; Kabekkodu, S., Ed.; International Centre for Diffraction Data: Newtown Square, PA, USA, 2018. [Google Scholar]
  49. Yablonsky, G.S.; Pilasombat, R.; Breen, J.P.; Burch, R.; Hengrasmee, S. Cycles Across an Equilibrium: A Kinetic Investigation of the Reverse and Forward WGS Reaction over a 2% Pt/CeO2 Catalyst (Experimental Data and Qualitative Interpretation). Chem. Eng. Sci. 2010, 65, 2325–2332. [Google Scholar] [CrossRef]
  50. Kuhn, M.; Hashimoto, S.; Sato, K.; Yashiro, K.; Mizusaki, J. Oxygen nonstoichiometry, thermo-chemical stability and lattice expansion of La0.6Sr0.4FeO3-δ. Solid State Ion. 2011, 195, 7–15. [Google Scholar] [CrossRef]
  51. Opitz, A.K.; Nenning, A.; Rameshan, C.; Rameshan, R.; Blume, R.; Haevecker, M.; Knop-Gericke, A.; Rupprechter, G.; Fleig, J.; Kloetzer, B. Enhancing Electrochemical Water-Splitting Kinetics by Polarization-Driven Formation of Near-Surface Iron (0): An In Situ XPS Study on Perovskite-Type Electrodes. Angew. Chem. Int. Ed. 2015, 54, 2628–2632. [Google Scholar] [CrossRef]
  52. Kuhn, M.; Fukuda, Y.; Hashimoto, S.; Sato, K.; Yashiro, K.; Mizusaki, J. Oxygen Nonstoichiometry and Thermo-Chemical Stability of Perovskite-Type La0.6Sr0.4Co1-yFeyO3-δ (y = 0, 0.2, 0.4, 0.5, 0.6, 0.8, 1) Materials. J. Electrochem. Soc. 2013, 160, F34–F42. [Google Scholar] [CrossRef]
  53. Dutta, G.; Waghmare, U.V.; Baidya, T.; Hegde, M.S.; Priolkar, K.R.; Sarode, P.R. Reducibility of Ce1-xZrxO2: Origin of enhanced oxygen storage capacity. Catal. Lett. 2006, 108, 165–172. [Google Scholar] [CrossRef]
  54. Opitz, A.K.; Nenning, A.; Rameshan, C.; Kubicek, M.; Goetsch, T.; Blume, R.; Haevecker, M.; Knop-Gericke, A.; Rupprechter, G.; Kloetzer, B.; et al. Surface Chemistry of Perovskite-Type Electrodes During High Temperature CO2 Electrolysis Investigated by Operando Photoelectron Spectroscopy. ACS Appl. Mater. Interfaces 2017, 9, 35847–35860. [Google Scholar] [CrossRef]
  55. Hwang, J.; Rao, R.R.; Katayama, Y.; Lee, D.; Wang, X.R.; Crumlin, E.; Venkatesan, T.; Lee, H.N.; Shao-Horn, Y. CO2 Reactivity on Cobalt-Based Perovskites. J. Phys. Chem. C 2018, 122, 20391–20401. [Google Scholar] [CrossRef]
  56. Wu, X.Y.; Ghoniem, A.F. Hydrogen-assisted Carbon Dioxide Thermochemical Reduction on La0.9Ca0.1FeO3-δ Membranes: A Kinetics Study. Chemsuschem 2018, 11, 483–493. [Google Scholar] [CrossRef] [PubMed]
  57. Dimitrakopoulos, G.; Ghoniem, A.F. Developing a multistep surface reaction mechanism to model the impact of H-2 and CO on the performance and defect chemistry of La0.9Ca0.1FeO3-δ mixed-conductors. J. Membr. Sci. 2017, 529, 114–132. [Google Scholar] [CrossRef]
  58. Shen, P.J.; Ding, W.Z.; Zhou, Y.D.; Huang, S.Q. Reaction mechanism on reduction surface of mixed conductor membrane for H2 production by coal-gas. Appl. Surf. Sci. 2010, 256, 5094–5101. [Google Scholar] [CrossRef]
  59. Dimitrakopoulos, G.; Ghoniem, A.F.; Yildiz, B. In situ catalyst exsolution on perovskite oxides for the production of CO and synthesis gas in ceramic membrane reactors. Sustain. Energy Fuels 2019, 3, 2347–2355. [Google Scholar] [CrossRef]
  60. Zhu, T.L.; Fowler, D.E.; Poeppelmeier, K.R.; Han, M.F.; Barnett, S.A. Hydrogen Oxidation Mechanisms on Perovskite Solid Oxide Fuel Cell Anodes. J. Electrochem. Soc. 2016, 163, F952–F961. [Google Scholar] [CrossRef]
  61. Koo, B.; Kim, K.; Kim, J.K.; Kwon, H.; Han, J.W.; Jung, W. Sr Segregation in Perovskite Oxides: Why It Happens and How It Exists. Joule 2018, 2, 1476–1499. [Google Scholar] [CrossRef]
  62. Rupp, G.M.; Limbeck, A.; Kubicek, M.; Penn, A.; Stoger-Pollach, M.; Friedbacher, G.; Fleig, J. Correlating surface cation composition and thin film microstructure with the electrochemical performance of lanthanum strontium cobaltite (LSC) electrodes. J. Mater. Chem. A 2014, 2, 7099–7108. [Google Scholar] [CrossRef]
  63. Rupp, G.M.; Opitz, A.K.; Nenning, A.; Limbeck, A.; Fleig, J. Real-time impedance monitoring of oxygen reduction during surface modification of thin film cathodes. Nat. Mater. 2017, 16, 640–645. [Google Scholar] [CrossRef] [PubMed]
  64. Tsekouras, G.; Neagu, D.; Irvine, J.T.S. Step-change in high temperature steam electrolysis performance of perovskite oxide cathodes with exsolution of B-site dopants. Energy Environ. Sci. 2013, 6, 256–266. [Google Scholar] [CrossRef]
  65. Pechini, M.P. Method of Preparing Lead and Alkaline Earth Titanates and Niobates and Coating Method Using the Same to Form a Capacitor. U.S. Patent 3,330,697, 11 July 1967. [Google Scholar]
  66. Degen, T.; Sadki, M.; Bron, E.; König, U.; Nénert, G. The HighScore suite. Powder Diffr. 2014, 29, S13–S18. [Google Scholar] [CrossRef]

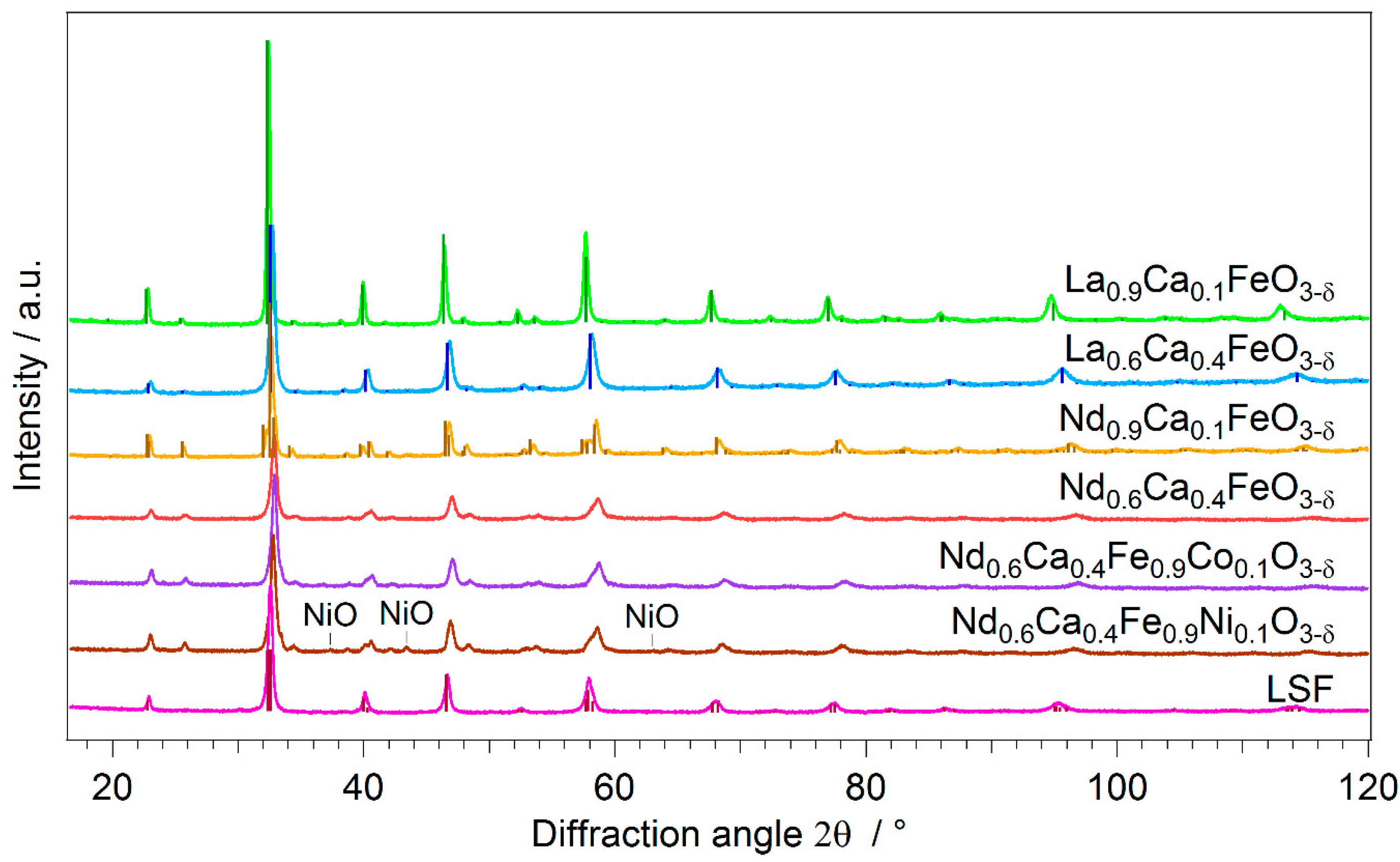

Figure 1. XRD patterns of the novel perovskites after synthesis and of La0.6Sr0.4FeO3-δ (LSF) as reference material. The bars are indicating the reflex positions of reference structures obtained from database entries for the respective materials. All perovskites were phase pure, except for the Ni-doped one, which showed trace amounts of NiO.
Figure 1. XRD patterns of the novel perovskites after synthesis and of La0.6Sr0.4FeO3-δ (LSF) as reference material. The bars are indicating the reflex positions of reference structures obtained from database entries for the respective materials. All perovskites were phase pure, except for the Ni-doped one, which showed trace amounts of NiO.
Catalysts 10 00582 g001

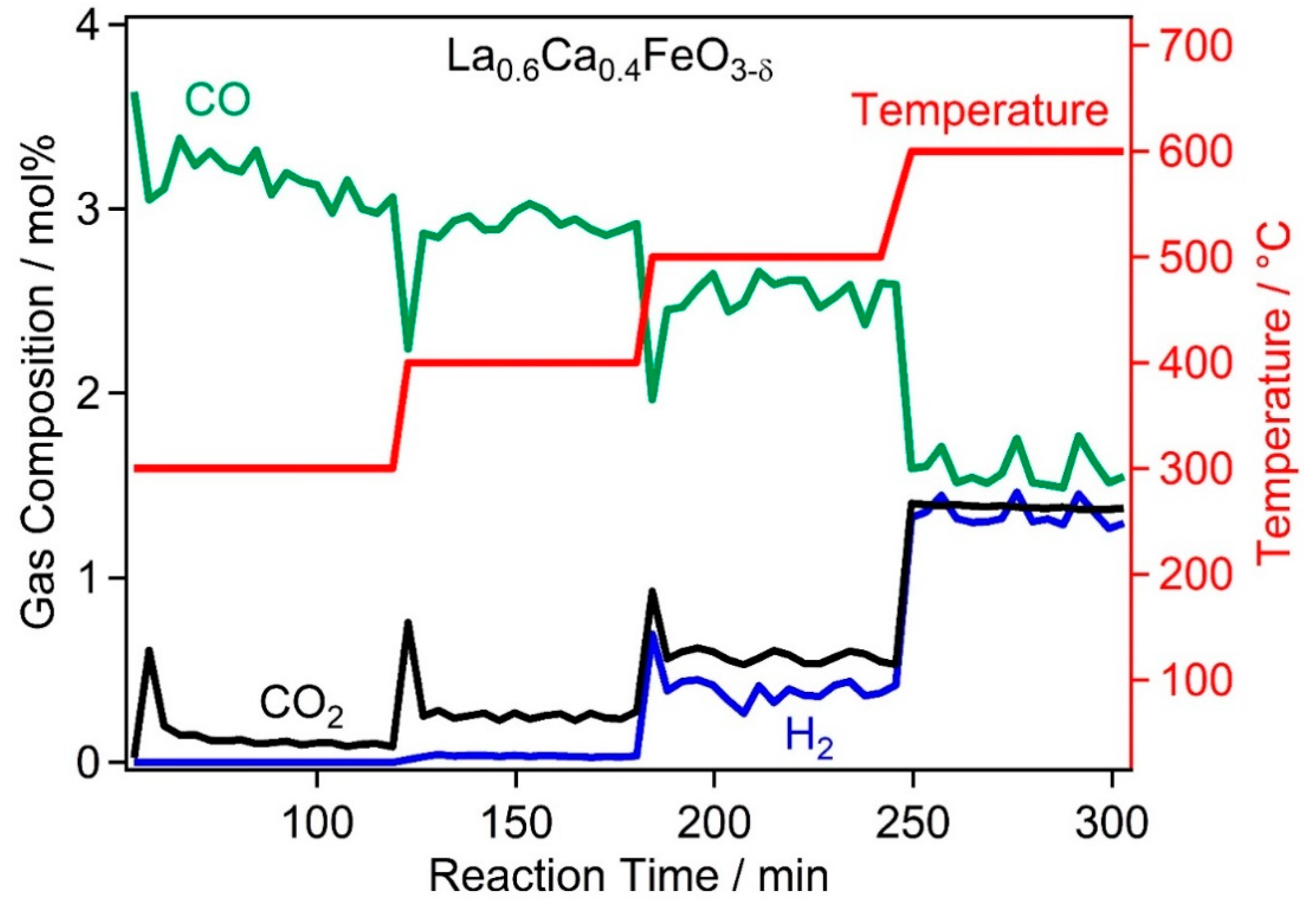

Figure 2. WGS reaction on La0.6Ca0.4FeO3-δ. The reaction temperature was gradually increased from 300 to 600 °C. Signals for CO (orange), CO2 (black) and H2 (blue) are displayed. During the initial temperature steps, short spikes in the CO2 production are visible, originating from lattice oxygen reacting with CO.
Figure 2. WGS reaction on La0.6Ca0.4FeO3-δ. The reaction temperature was gradually increased from 300 to 600 °C. Signals for CO (orange), CO2 (black) and H2 (blue) are displayed. During the initial temperature steps, short spikes in the CO2 production are visible, originating from lattice oxygen reacting with CO.
Catalysts 10 00582 g002

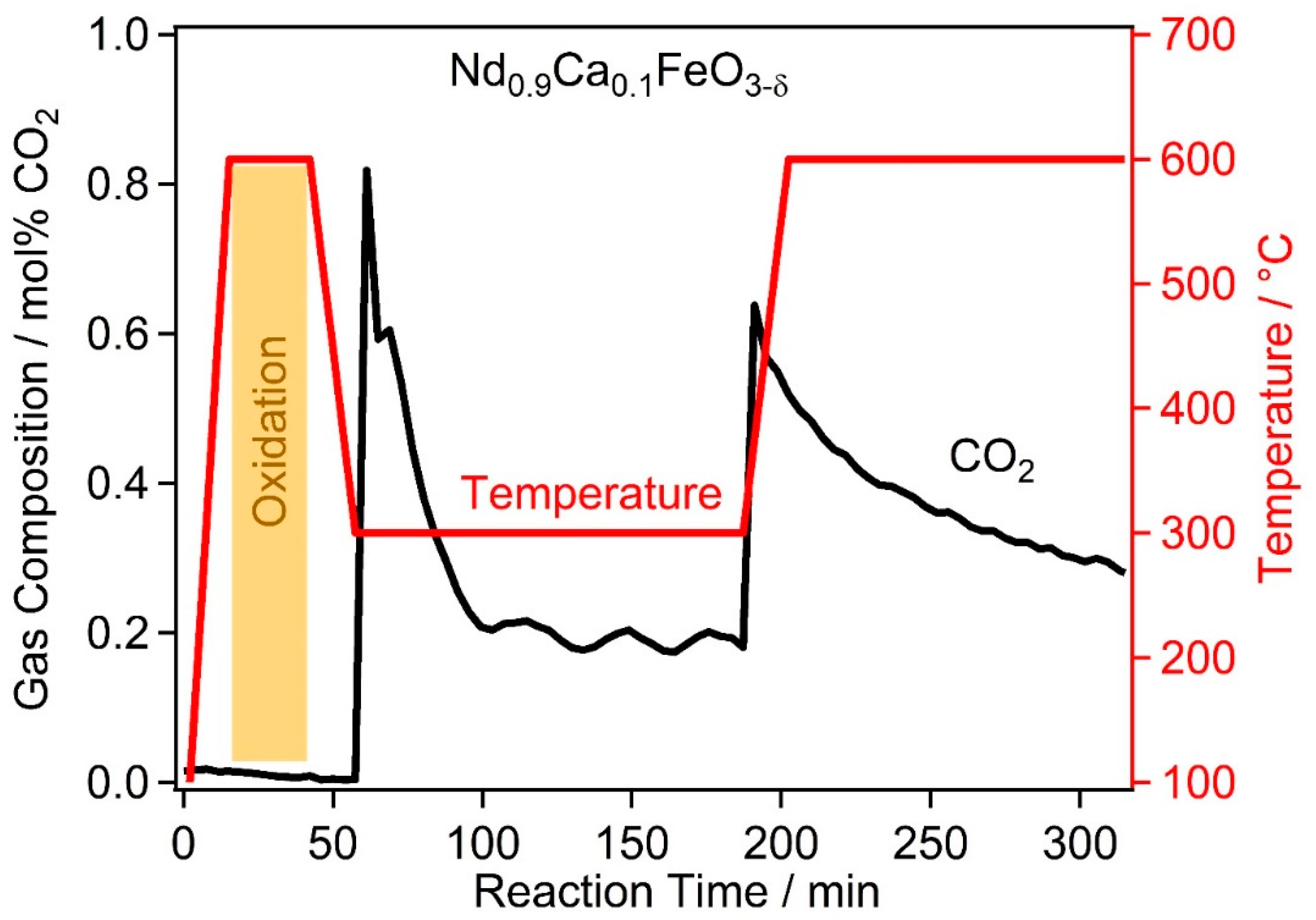

Figure 3. Reaction of pure CO with the Nd0.9Ca0.1FeO3-δ perovskite. After oxidation at 600 °C and cooling to 300 °C, the gas flow was switched to CO/Ar (0.70 and 11.3 mL min−1, respectively). The conditions were held for 2 h and then the temperature was raised from 300 to 600 °C. Increased formation of CO2 could be observed at the beginning of each phase (both after switching the atmosphere and after increasing the temperature), which was then dropping rapidly.
Figure 3. Reaction of pure CO with the Nd0.9Ca0.1FeO3-δ perovskite. After oxidation at 600 °C and cooling to 300 °C, the gas flow was switched to CO/Ar (0.70 and 11.3 mL min−1, respectively). The conditions were held for 2 h and then the temperature was raised from 300 to 600 °C. Increased formation of CO2 could be observed at the beginning of each phase (both after switching the atmosphere and after increasing the temperature), which was then dropping rapidly.
Catalysts 10 00582 g003
Figure 4. Comparison of HT-WGS activity of the novel perovskites. For this, the CO2 formation rate is given as surface specific activity in mol m−2 s−1. For comparison, the reactivity of LSF is shown as well (black line). The reaction environment consisted of a 1:1 mixture of H2O and CO, and temperature was increased gradually from 300 to 600 °C. The Co- and Ni-doped perovskites were the most active materials at the highest reaction temperature.
Figure 4. Comparison of HT-WGS activity of the novel perovskites. For this, the CO2 formation rate is given as surface specific activity in mol m−2 s−1. For comparison, the reactivity of LSF is shown as well (black line). The reaction environment consisted of a 1:1 mixture of H2O and CO, and temperature was increased gradually from 300 to 600 °C. The Co- and Ni-doped perovskites were the most active materials at the highest reaction temperature.
Catalysts 10 00582 g004

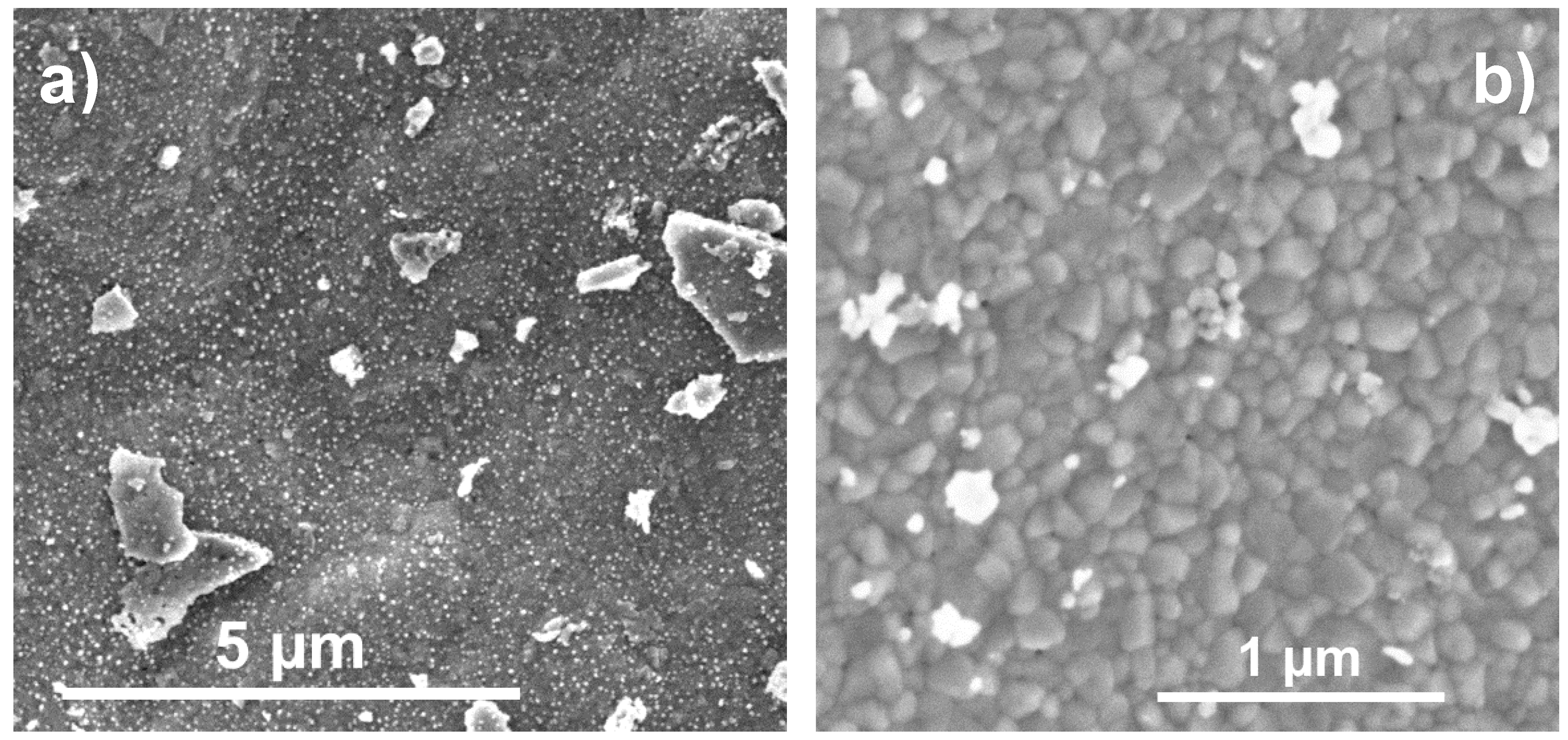

Figure 5. SEM image of (a) Nd0.6Ca0.4Fe0.9Co0.1O3-δ and (b) Nd0.9Ca0.1FeO3-δ after HT-WGS reaction. Formation of finely dispersed nanoparticles on the surface is visible in (a). The average size of the nanoparticles is between 30 and 65 nm. In image (b), only the crystallite structure of the perovskite is visible, but no exsolved nanoparticles can be observed for the undoped material.
Figure 5. SEM image of (a) Nd0.6Ca0.4Fe0.9Co0.1O3-δ and (b) Nd0.9Ca0.1FeO3-δ after HT-WGS reaction. Formation of finely dispersed nanoparticles on the surface is visible in (a). The average size of the nanoparticles is between 30 and 65 nm. In image (b), only the crystallite structure of the perovskite is visible, but no exsolved nanoparticles can be observed for the undoped material.
Catalysts 10 00582 g005
Figure 6. Isothermal HT-WGS reaction at 600 °C for Nd0.6Ca0.4FeO3-δ. The dashed line serves as a horizontal guide for the eye. During the duration of the reaction (about 5 h), the catalyst exhibited stable reactivity.
Figure 6. Isothermal HT-WGS reaction at 600 °C for Nd0.6Ca0.4FeO3-δ. The dashed line serves as a horizontal guide for the eye. During the duration of the reaction (about 5 h), the catalyst exhibited stable reactivity.
Catalysts 10 00582 g006
Figure 7. Isothermal HT-WGS reaction at 600 °C for Nd0.6Ca0.4Fe0.9Co0.1O3-δ. The dashed line serves as a horizontal guide for the eye. During the duration of the reaction (about 5 h), the catalyst was slightly increasing its reactivity.
Figure 7. Isothermal HT-WGS reaction at 600 °C for Nd0.6Ca0.4Fe0.9Co0.1O3-δ. The dashed line serves as a horizontal guide for the eye. During the duration of the reaction (about 5 h), the catalyst was slightly increasing its reactivity.
Catalysts 10 00582 g007
Table 1. PDF-numbers of the reference structures used in Figure 1, BET surface areas of the different perovskite materials and average specific activities calculated for CO2 production during high temperature water–gas shift (HT-WGS) at 600 °C.
Table 1. PDF-numbers of the reference structures used in Figure 1, BET surface areas of the different perovskite materials and average specific activities calculated for CO2 production during high temperature water–gas shift (HT-WGS) at 600 °C.
CatalystPDF-Nr.BET Area ( m 2   g 1 ) Specific Activity ( 10 7   m o l   m 2   s 1 )
La0.9Ca0.1FeO3-δ01-082-92723.775.7
La0.6Ca0.4FeO3-δ04-017-97722.769.1
Nd0.9Ca0.1FeO3-δ04-014-54302.2218.5
Nd0.6Ca0.4FeO3-δ-1.4313.9
Nd0.6Ca0.4Fe0.9Ni0.1O3-δ-1.5736.9
Nd0.6Ca0.4Fe0.9Co0.1O3-δ-1.2428.4
LSF04-007-65175.078.5
Back to TopTop
