Current State of the Art of the Solid Rh-Based Catalyzed Hydroformylation of Short-Chain Olefins

Abstract

The hydroformylation of olefins is one of the most important homogeneously catalyzed processes in industry to produce bulk chemicals. Despite the high catalytic activities and selectivity’s using rhodium-based homogeneous hydroformylation catalysts, catalyst recovery and recycling from the reaction mixture remain a challenging topic on a process level. Therefore, technical solutions involving alternate approaches with heterogeneous catalysts for the conversion of olefins into aldehydes have been considered and research activities have addressed the synthesis and development of heterogeneous rhodium-based hydroformylation catalysts. Different strategies were pursued by different groups of authors, such as the deposition of molecular rhodium complexes, metallic rhodium nanoparticles and single-atom catalysts on a solid support as well as rhodium complexes present in supported liquids. An overview of the recent developments made in the area of the heterogenization of homogeneous rhodium catalysts and their application in the hydroformylation of short-chain olefins is given. A special focus is laid on the mechanistic understanding of the heterogeneously catalyzed reactions at a molecular level in order to provide a guide for the future design of rhodium-based heterogeneous hydroformylation catalysts.

1. Introduction

Since its discovery by Otto Roelen in 1938 [1,2], hydroformylation has become one of the most important homogeneously catalyzed processes to produce bulk chemicals, such as high-value aldehydes and alcohols [3]. Based on the initial findings of Roelen, up to now cobalt carbonyl complexes are still in use as catalysts for the hydroformylation of mid- and long-chain olefins [4]. One of the main advantages of cobalt catalysts is their robustness towards catalyst poisons in the feedstock. Most modern hydroformylation catalysts are applied to short-chain olefins (<C5), however, which are comprised of far more active rhodium complexes, inspired by the Wilkinson catalyst [RhCl(PPh₃)₃] [5,6], with different types of phosphite and phosphine ligands [3]. Due to the presence of phosphorus containing ligands, the electronic and steric properties of catalysts can be tuned and a high level of understanding on a molecular level has been achieved [7,8,9]. Most importantly, industrial processes based on Rh hydroformylation catalysts, can be operated at much lower pressures in comparison to cobalt catalyzed hydroformylation reactions—a fact that has large implications on the economics of the process (

Table 1. Comparison of the industrial hydroformylation processes. TPPTS = tri-(sodium-meta-sulfonatophenyl)-phosphine [10].

Catalyst	[Co (CO)4H]	[Co(PBu3)(CO)3H]	[Rh(PPh3)3(CO)H]	[Rh(TPPTS)3(CO)H]
T [K]	383–457	433–473	358–388	323–423
p [MPa]	20–35	3–10	1.5–2	1–10
n:iso	4	7.3	11.5	19
Olefins	C2–C20	Long-chain olefins	Small-chain olefins	Small-chain olefins
Process	Ruhrchemie BASF Kuhlmann	Shell	Low Pressure Oxo	Ruhrchemie/Rhone Polenc

) [10].

As mentioned before, ligand design allows a facile modification of the catalyst. The resulting catalyst properties regarding activity and selectivity behavior can be altered and adapted to process demands or demands of the specific chemistry involved [11]. Selectivity in the context of this review refers to side reactions, such as hydrogenation, isomerization and aldol condensation reactions, but most importantly to the regioselectivity, since during the hydroformylation of terminal olefins, linear (n) and branched (iso) aldehydes can be obtained (Scheme 1). The aldehyde products that can be obtained through “oxo-chemistry” are valuable products for the synthesis of bulk chemicals, e.g., alcohols, esters and amines, and depending on the application, linear [12,13] or branched [14] aldehydes are more preferred. From this perspective the need of highly selective hydroformylation catalysts can we well understood. Most elegant solutions are catalyst systems that allow altering of the n/iso ratio depending on the reaction conditions and/or adjustable processes depending on the reaction conditions [15,16].

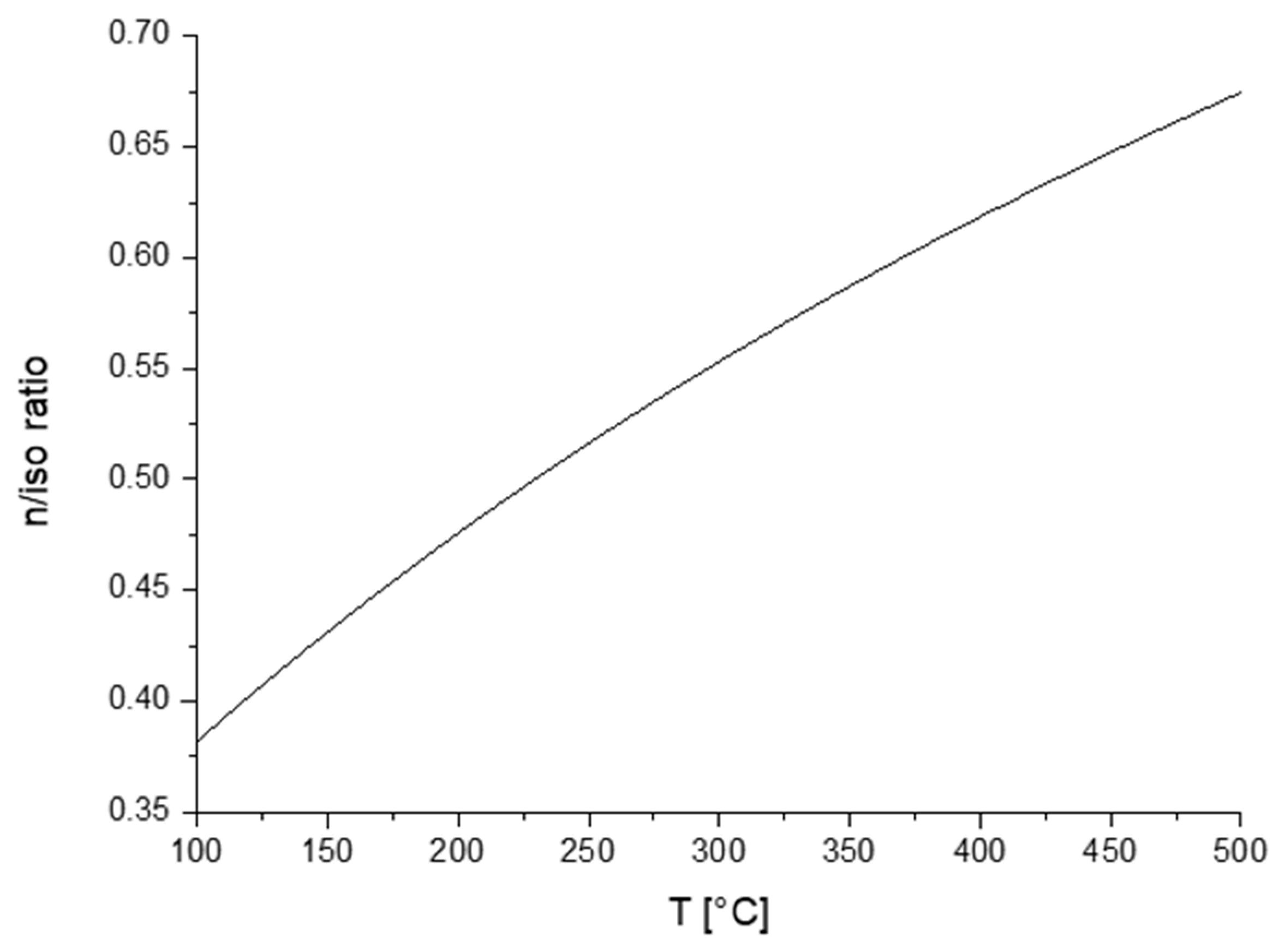

A major point in the context of selectivity, which is in our opinion often not discussed in the open literature, is the thermodynamic limitation of the hydroformylation reaction. As seen in Figure 1, which shows the equilibrium conversion of propylene to the corresponding aldehydes at a molar inlet composition H₂/CO/propylene = 1:1:1, hydroformylation is highly selective at low temperatures and selectivity can be improved for a given temperature by elevated pressures. Additionally, from the equilibrium curves it becomes obvious that iso-butanal is thermodynamically preferred over the n isomer, with the n/iso ratio being temperature dependent (Figure 2) [17]. Another point to mention in the context of selectivity is the fact that the most dominant side reaction, namely the hydrogenation of the olefin to the corresponding alkane, is thermodynamically preferred over the hydroformylation reaction, which explains the need for highly selective hydroformylation catalysts.

Although high chemoselectivity in the light of the hydroformylation reaction can already be achieved through the use of a variety of homogeneous hydroformylation catalysts, the technical hurdles involved with catalyst recovery and recycling of metal and ligand from the reaction mixture are a major hurdle in the technical implementation [18]. The term chemoselectivity refers hereby to the selectivity towards hydroformylation products. Since catalyst losses, especially precious metal losses, must be avoided even in the ppm range, technical solutions involving heterogeneous hydroformylation catalysis, with the catalyst being in the solid phase and the reactants and products in the gas or liquid phase, have attracted significant attention.

In this review we cover the progress made in the area of the heterogenization approaches in the field of rhodium catalysts with the aim of developing stable, active and selective hydroformylation catalysts from the 1970s up to now. An overview of different approaches for obtaining useful Rh-based materials is given and recent developments in their application are discussed to show the potentials and limitations of this not yet commercial process technology. Hereby, the focus of this article is on the hydroformylation of short-chain olefins in the gas phase. The advantage of this focus on gas-solid reactions lies in the fact that via proper experimental setup, condensed educts or products on the catalyst surface can be avoided. We assume that therefore, a clearer picture of the reaction mechanism and the underlying kinetics can be obtained, both of which are a major aspect discussed in this review.

2. Mechanistic Considerations

In order to control the chemo- and regio-selectivity of rhodium catalyzed hydroformylation reactions, a detailed mechanistic understanding is crucial. Therefore, we discuss the current state of the discourse in the well-studied field of homogeneous catalysis to gain a better understanding and abstract which factors may also play a role in heterogeneous hydroformylation reactions.

The generally accepted dissociative hydroformylation mechanism for the formation of the linear n-aldehydes using homogenous Rh based catalysts is shown in Figure 3 [19]. Through the loss of CO from the pre-catalyst complex [HRh(L)₂(CO)₂] (L = phosphine ligand or CO), in-situ the electron-deficient 16-electron [HRh(L)₂(CO)] complex is formed. Whether mono- [HRh(L)(CO)₂] or disubstituted complexes [HRh(L)₂(CO)] are the catalytically active species depends strongly on the nature of the phosphine ligand and is still matter of discussion and ongoing research. However, kinetic modelling using PPh₃ under industrial conditions, suggests that the dominating catalytically active species are monosubstituted by the phosphine ligand [20]. Olefin coordination occurs via TS-1 (TS = transition state), which is thermodynamically favored through decreasing basicity of the phosphine ligands [21]. This step is followed by hydrometallation towards the branched or the linear alkyl complex 4. The formation of the alkyl complex is considered as the regioselectivity determining step, as the the n/iso ratio is influenced by the steric and electronic properties of the catalyst and the substrate [11,22]. Since the carbon atom of the substrate coordinated to Rh has a partially negative charge, the electronic character of the organic groups bound to it either stabilize the branched or the linear isomer. Whereas R groups with π-accepting character, such as aryl and alkoxy groups, can stabilize the charge distribution better for the branched alkyl intermediates, σ donating groups, such as alkyl groups, lead to the stabilization of the linear alkyl species [22]. The alkylation is followed by CO coordination and leads to the formation of the saturated complex [(Alkyl)Rh(L)₂(CO)₂] (5), which is then acylated via TS-3 and results in the formation of 6. Depending on the CO pressure, 6 can be converted into the resting state 7, which is also considered as a dead end with respect to the catalytic reaction. However, 6 can also undergo oxidative addition of hydrogen to yield 8. The reductive elimination via TS-5 leads to the product formation and the regeneration of the catalytically active complex 2.

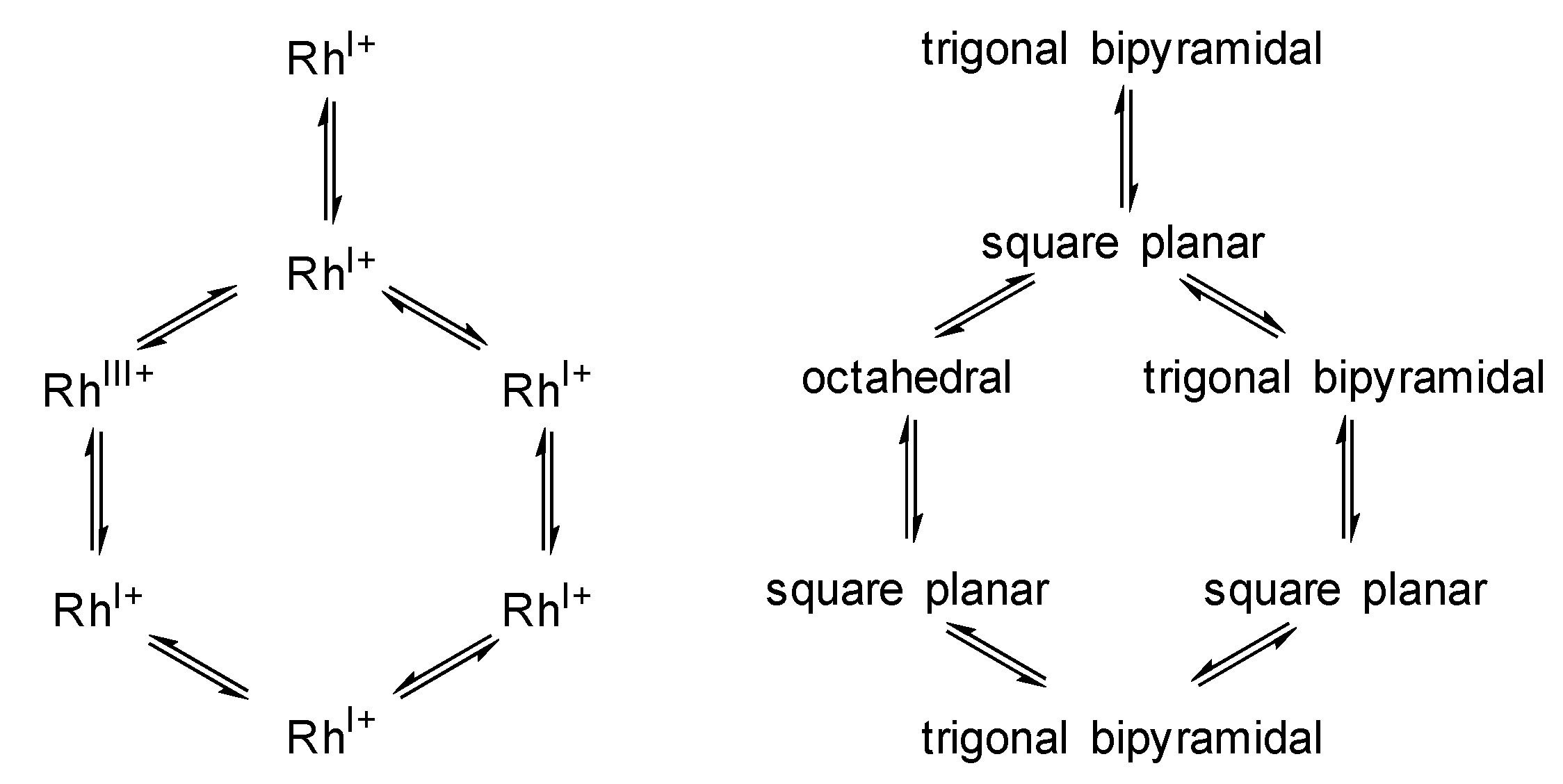

The oxidation states of the rhodium center and the corresponding coordination geometries during the catalytic hydroformylation cycle are depicted in Scheme 2. During the catalytic cycle a shuffle between Rh^I and Rh^III occurs and coordination numbers of 4 (square planar geometry), 5 (trigonal bipyramidal geometry) and 6 (octahedral geometry) have been determined.

In hydroformylation reactions generally two types of formal kinetics are topics of discussion. Whereas in “type-1” kinetics, 1 is regarded as the resting state and TS-1 or TS-2 as the rate determining transition state, in “type-2” kinetics 6 is referred to as the resting state and TS-4 is assumed to be the rate determining transition state. For “type-1” kinetics a first order dependency of the reaction rate on the olefin concentration and an inverse first order dependency concerning the CO partial pressure are characteristic. In “type-2” kinetic reactions, there is a first order dependency on the hydrogen concentration [23].

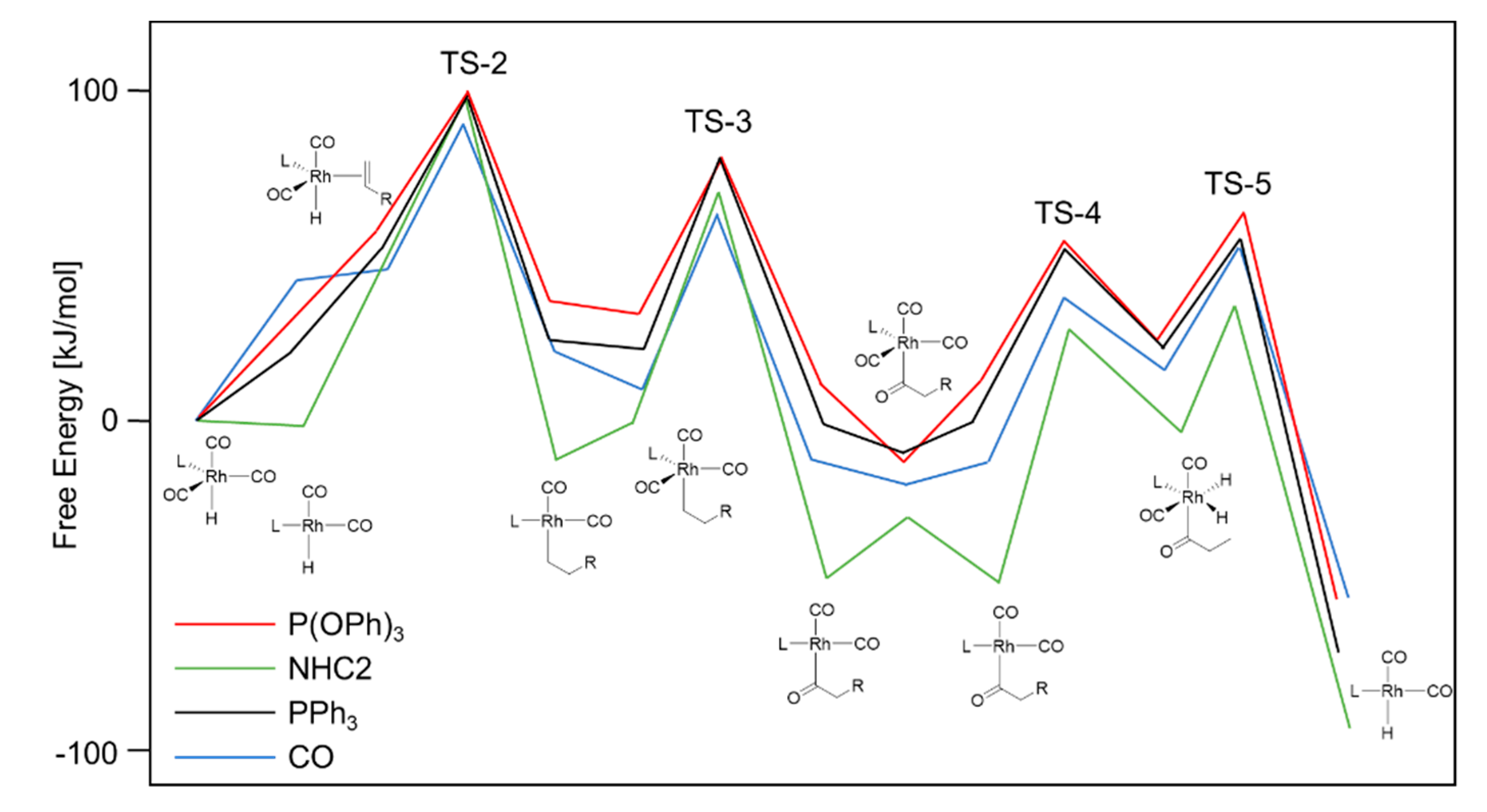

Theoretical investigations of the hydroformylation of ethylene using [HRh(CO)₃L] (L = P(OMe)₃, P(OPh)₃, PMe₃, PPh₃ or a N-heterocyclic carbene) have shown the dependency of the rate determining step on the nature of the ligand coordinating the rhodium metal center (Figure 4). In agreement with experimental results, it could be verified via theoretical models that for electron donating ligands the rate determining step is the olefin coordination/insertion, whereas for electron withdrawing or good π-acceptor ligands the rate determining step was identified to be the hydrogenolysis. This is due to the dependency of the olefin insertion on the donor properties of the ligand. A high energy barrier was computed for σ-donating phosphines, whereas π-accepting ligands were found to have lower energy barriers for olefin insertion [24].

In contrast to the classical views on the formal hydroformylation kinetics and the determination of a single rate determining step, recent studies using a self-assembling 6-diphenylphosphinopyridone ligand by Gellrich et al. have shown, that not only one decisive step governs the hydroformylation reaction. Gellrich et al. could show that several intermediates and transition states control the apparent reaction rate and the selectivity. Moreover in the most extended scheme of the authors 24 species were reported to play a role, with CO being included as ligating species in five of them [25,26]. This complex interplay of kinetic and thermodynamic factors was also reported by Gleich and Hutter based on static and dynamic quantum-mechanical approaches [27]. It is therefore very challenging to postulate a generalized catalytic cycle and to exactly pinpoint the rate determining step, due to the fact that hydroformylation reactions are also extremely sensitive towards to the catalyst structure, the reactions conditions and the nature of the olefin substrate and finally also on a technical scale the impurity level of the technical process involved [28].

However, based on the literature several common crucial requirements for a homogeneous Rh hydroformylation catalyst can be summarized:

• The catalytically active species is an in-situ formed unsaturated 16e- Rh hydride complex
• At least one CO ligand must be present within the catalytically active Rh complex
• The coordination number around the Rh center alters between 4 and 6 within the catalytic cycle
• A change in oxidation state of the Rh center from +I to +III (and back to +I) occurs during the catalytic cycle

3. Heterogenization of Rh Hydroformylation Catalysts

With the aim to combine the activity and selectivity of molecular hydroformylation catalysts and the advantages in terms of catalyst stability and eased recovery, research has been directed towards heterogenized rhodium hydroformylation catalysts. We developed a scheme to group the different efforts made which is summarized in Figure 5. The attempts can be roughly divided into four categories, namely the deposition of molecular rhodium complexes, metallic rhodium nanoparticles and single-atom catalysts on a solid support as well as rhodium complexes present in supported liquids.

The first reports tackling the heterogenization of catalysts with respect to hydroformylation reactions included the deposition of molecular rhodium complexes, such as metal carbonyl complexes, on metal oxides as support materials. This approach has been reviewed perfectly by Lenarda et al. in 1996, showing the progresses made in this field and the challenges that have been encountered, such as the low catalytic activity of the materials and the leaching of Rh, especially when applied in liquid phase catalysis [29]. In subsequent publications also the deposition of metallic nanoparticles and modified metallic nanoparticles on solid supports has been investigated. Although the supported metal nanoparticles do not show leaching of Rh only low activities and selectivity’s have been achieved. In this context, also so-called “single-atom” catalysts and supported rhodium phosphides have attracted a great deal of attention in the hydroformylation community. A completely different approach reported has been pursued by the coverage and stabilization of molecular rhodium phosphite and phosphine complexes onto solid support materials via embedding in ionic liquids.

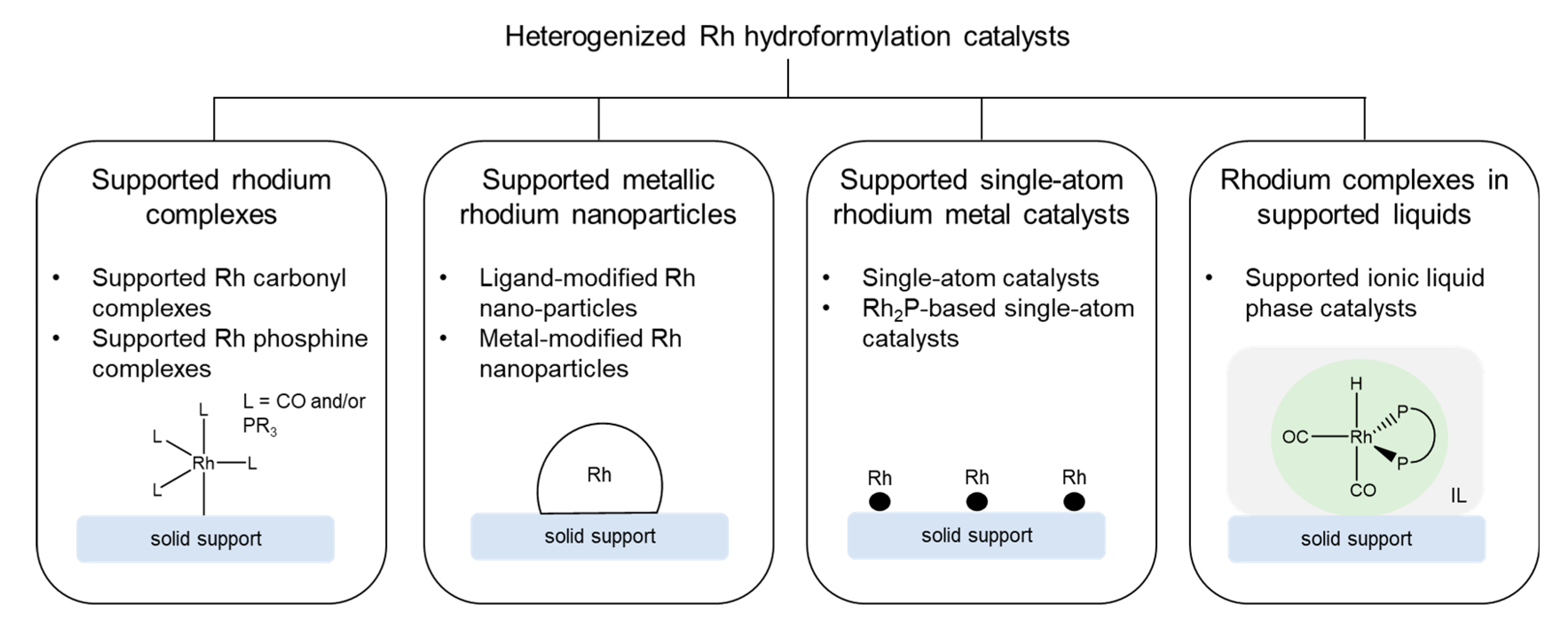

In this review the recent advances in the heterogenization of homogeneous rhodium catalysts are presented with a focus is being laid on the four different approaches mentioned before (Figure 5). The current developments concerning porous organic ligand-supported catalysts will not be discussed in the context of this review [30,31].

3.1. Supported Rhodium Complexes

As mentioned before, early attempts in the heterogenization of hydroformylation catalysts were based on molecular metal complexes immobilized to a solid support system and an overview of the efforts made in this field was given by Neves et al. [32]. Suitable supports must exhibit a high chemical, thermal and mechanical stability as well as an appropriate surface area and/or fitting pore size in order to ensure efficient substrate diffusion and to avoid mass transport limitations.

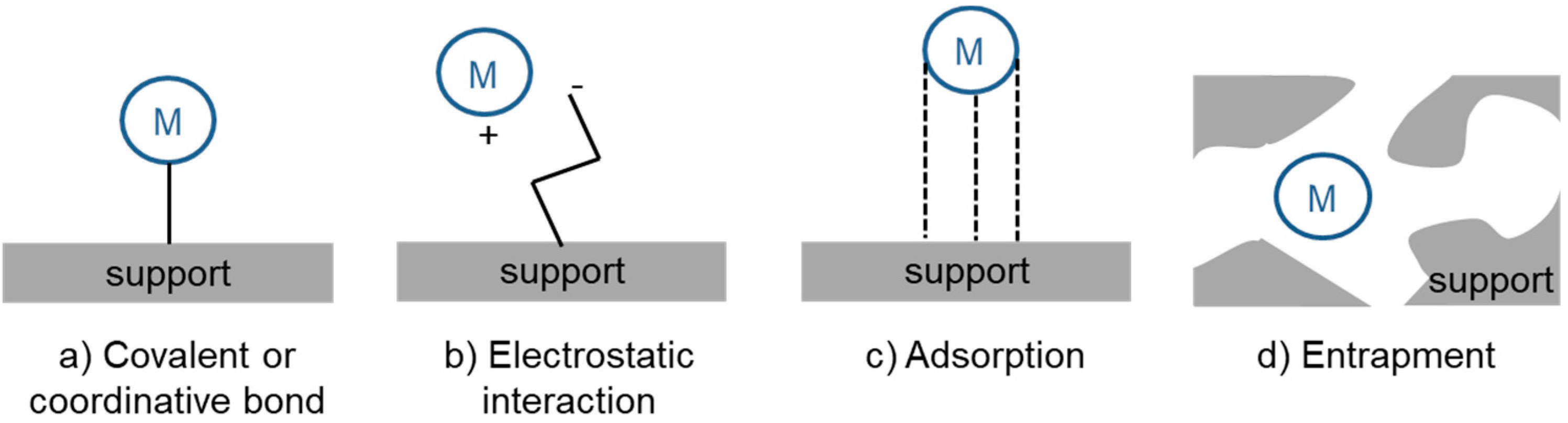

In order to immobilize molecular rhodium complexes on a solid support different approaches can be utilized (Figure 6). Covalent/coordinative bonding is the most frequently pursued approach, since strong complex–support interactions are formed. Hereby the linkage can occur between the support and ligand, or the support and the rhodium center. In addition, both parts can be connected to a solid support [33]. Since the covalent/coordinate linkage requires a special functionalization of the ligand or the support, which is synthetically demanding, non-covalent approaches have attracted great deal of attention. In this context the immobilization via electrostatic interactions is a common and conceptually simple technique, in which the ionic catalytically active species is attached to anionic or cationic supports, such as ion exchange resins, inorganic clays and zeolites. A drawback of this method is the competition with other ionic species present in the reaction mixture, which lead to catalyst leaching. Another facile immobilization method is the adsorption of catalytically active species on a solid support. However, due to the weak van-der-Waals interactions, catalyst instability can be a problematic topic to be solved. Finally, metal complexes can be entrapped in the pores of a solid support. Using this approach, special attention must be paid towards the size of the metal complex and the substrate relative to the pores of the support, in order to achieve acceptable anchoring properties and still avoiding mass transport limitations [34].

3.1.1. Supported Rhodium Carbonyl Complexes

In the past a number of groups have pursued the strategy of attachment of metal carbonyl complexes on solid support materials via impregnation or reactive deposition; good examples are known from the group of Ichikawa [35,36,37]. Such catalysts have been investigated the gas phase hydroformylation of ethylene and propylene, with catalysts derived from Rh and Co carbonyl complexes supported on metal oxides. It was shown that higher turnover frequencies (TOFs, throughout the review the turnover frequency is given in mol_aldehyde∙h⁻¹∙mol⁻¹_Rh; hereby, the total rhodium amount within the catalysts is considered) were obtained for supported Rh carbonyl complexes, such as ZnO, MgO, TiO₂, La₂O₃, compared to carbonyl complexes attached to SiO₂ and Al₂O₃. While the specific rates for propylene hydroformylation could be achieved with [Rh₄(CO)₁₂]/ZnO (w_Rh = 0.28 wt %, T = 431 K, p = 7.8 MPa, C₃H₆:CO:H₂ = 9:9:10) where as high as 2.1 h⁻¹ that, only a specific rate of formation of 0.04 h⁻¹ could be achieved with the silica supported catalyst [Rh₄(CO)₁₂]/SiO₂ (w_Rh = 2.24 wt %, T = 428 K, p = 7.8 MPa, C₃H₆:CO:H₂ = 9:9:10). The authors explain this finding in the light of the acidity/basicity of the support materials. They propose a scheme that according to which the metal carbonyl complexes supported on silica or alumina lose their cluster structure and the low valent oxidation state due to strong interactions with the acidic surfaces of the supports [35]. Looking at the points of zero charges for the reported metal oxides [38], it can be debated whether this correlation of the catalytic activity with the acid/base properties of the support materials is self-evident.

Huang et al. investigated the catalytic activity of carbonyl complexes derived rhodium catalysts in hydroformylation and hydrogenation reactions on a very detailed level [39]. A key finding of the study was the dependency of the specific activity as function of rhodium dispersion. It could be shown that ethylene hydroformylation appears to be structure sensitive whereas ethylene hydrogenation is structure insensitive. This structural dependency and comprehensive IR spectroscopic studies led to the conclusion that Rh⁰ is active site for the hydroformylation reaction. In this context, Huang et al. also examined the rhodium interactions with the silica surface. Using IR spectroscopy, it could be shown that Rh is partially oxidized to Rh⁺ by the acidic OH^- groups of partially dehydroxylated silica (Equation (1). An obvious conclusion made is that the more dispersed the metal centers are, the easier the oxidation takes place. This can be explained by the fact, that the surface–particle interaction is restricted to their interface only and by the limited number of OH^- groups around a Rh particle [39].

2Rh⁰ + 2H⁺ → 2Rh⁺ + H₂

(1)

Of course, this finding appears contradictory to the assumption made that Rh⁰ is the catalytically active rhodium species. The authors argue that the rhodium centers are only partially oxidized and that under hydroformylation reaction conditions only Rh⁰-adsorbed CO can be monitored by IR spectroscopy. Studies by Basu et al. support this assumption, since the group delivered evidence for the inverse reaction of Equation (1) to take place if hydrogen is present. Therefore, hydrogen is thought to quench the surface-induced oxidation of Rh⁰ to Rh⁺ [40].

As part of these investigations also the role of the CO coordination was elaborated and discussed. Whereas linear CO adsorbed on Rh was consumed during the formation of propanal from ethylene, the coordinated CO molecules in [Rh₆(CO)₁₆]/SiO₂ did not participate in CO insertion. Furthermore, analytical evidence points to the fact that the catalytic activity of the [Rh₆(CO)₁₆]/SiO₂ catalyst can be increased with a reduced number of coordinating CO molecules (induced by heat treatment under vacuum), which demonstrates the need for unsaturated Rh centers during the hydroformylation reaction [39]. This observation would be in complete agreement with the dissociative reaction mechanism in homogenously catalyzed hydroformylation reactions.

Besides the use of monometallic Rh carbonyl complexes as precursors for deposition, also bimetallic catalysts have been used and investigated. Ichikawa et al. for example examined the incorporation bimetallic Rh-Co cluster-derived catalysts on a NaY-zeolite support for the hydroformylation of ethylene and propylene. It was shown that that the n/iso aldehyde ratio could be enhanced depending on the presence of cobalt; a possible explanation is given by the electron donating effect of the cobalt, which stabilizes the linear rhodium alkyl complex critical for the formation of the n-product 4 [35]. In the context of bimetallic catalysts, Rh/Fe carbonyl complexes, such as [NMe]₂[FeRh₄(CO)₁₅], [TMBA][FeRh₅(CO)₁₆] (TMBA = trimethyl benzylammonium), [TMBA]₂[Fe₂Rh₄(CO)₁₆] and Fe₃Rh₂(CO)₁₄C have been in the center of interest as precursors for supported catalyst materials (NaY-Zeolite [36] and SiO₂ [37] as supports) in the hydroformylation of propylene. It has been shown that catalysts prepared from [TMBA]₂[Fe₂Rh₄(CO)₁₆] precursors impregnated on SiO₂ exhibit a very high specific rate for aldehyde formation (5.04 h⁻¹). In contrast, the tetranuclear rhodium precursor [Rh₄(CO)₁₂] supported on SiO₂ shows only half the rate of 2.28 h⁻¹ under the same reaction conditions (w_Rh = 0.5 wt %, T = 437 K, p = 1.0 MPa, C₃H₆:CO:H₂ = 1:1:1, GHSV = 670 h⁻¹). The higher specific rate of aldehyde formation was explained by the presence of the iron centers, or more precisely the presence of contiguous Rh-Fe units, on the catalyst surface. From IR-spectroscopic data, it could be concluded that the electropositive Fe³⁺ cations adjacent to atoms of noble metals such as Rh, form bimetallic sites, e.g., Rh-Fe³⁺-O, which are claimed to enhance the migratory CO insertion into the Rh–alkyl bond [37].

Further investigations of the hydroformylation of ethylene and propylene with SiO₂-supported bimetallic carbonyl complexes, e.g., [RhCo₃(CO₁₂)], [Rh₂Co₂(CO₁₂)] were carried out by Huang et al. [41,42]. [RhCo₃(CO)₁₂] deposited on SiO₂ showed the highest catalytic activity in the hydroformylation of ethylene and propylene compared to monometallic carbonyl clusters, such as [Co₂(CO)₈] and [Rh₄(CO)₁₂]. With the [RhCo₃(CO)₁₂] impregnated on SiO₂ catalyst a specific rate of propylene hydroformylation of 396.0 h⁻¹ (w_Rh = 0.5 wt %, T = 443 K, p = 0.1 MPa, C₃H₆:CO:H₂ = 1:1:1) could be achieved whereas almost no activity was observed for [Co₂(CO)₈] and [Rh₄(CO)₁₂]. From IR spectroscopic analyses it was suggested that the sub-carbonyl cluster, [RhCo₃(CO)_{12 − x}], physiosorbed on the surface is the actual active catalyst, which is formed in-situ during the reaction [41]. Huang et al. further investigated the bimetallic RhCo₃ cluster supported on SiO₂ derived from [Rh₄(CO)₁₂] and [Co₂(CO)₈] in the hydroformylation of ethylene at atmospheric pressure and 423 K. The bimetallic RhCo₃ catalyst showed a higher catalytic activity than catalysts prepared from inorganic rhodium and cobalt salts or the monometallic Rh and Co catalysts themselves. These results show that an increase in activity can be attributed to a structurally defined bimetallic RhCo₃ catalyst-entity and not only due to the synergistic effects of rhodium and cobalt sites [42], which is accordance with the observations made by Ichikawa et al. for the Rh-Fe bimetallic catalysts [37].

3.1.2. Other Supported Rhodium Complexes

Besides the use of rhodium carbonyl complexes, various other approaches using molecular rhodium complexes as precursors being anchored to solid supports are reported. De Munk et al., for example, anchored [HRhCO(PPh₃)₃] complexes to the surface of polystyrene divinylbezene via phosphine and phosphonite ligands. The complex was chemically attached to the support via a molecular bond using chlorophosphonation and chloromethylation routes. The activity and regioselectivity towards n-butanal of the prepared catalyst could be enhanced by the additional supporting two to three equivalents of triphenylphosphine with respect to rhodium. The authors contribute this effect to the additional coordinating phosphine ligands, which alter the steric and electronic structure of the rhodium complex [43]. Similar work was carried out by Yoneda et al., who used a vinyl pyridine copolymer (VPC) crosslinked with divinylbenzene as support material. Here the catalysts were prepared by the simultaneous reaction of vinyl pyridine-divinylbenzene copolymers with rhodium acetate, the required phosphine ligand, the olefin reactant and the solvent. It was shown that with the VCP-supported material hydroformylation rates appear to be similar to homogeneous molecular catalyst systems, if excess PPh₃ was present in the liquid phase of the molecular catalyst. The authors claim that the high excess triphenylphosphine is necessary for ligand coordination to occur on the catalyst surface. Unfortunately, high Rh leaching rates were detected for the system [44].

Bando et al. explored the catalytic activity of defined Rh dimer-entities attached to inorganic oxide supports in the hydroformylation of ethylene [45]. The Rh dimer trans-[(RhCp*CH₃)₂(CH₂)₂] (Cp* = pentamethyl cyclopentadienyl) were attached to inorganic oxides such as SiO₂, Al₂O₃, TiO₂, and MgO via a covalent bonding. The rhodium complexes attached to silica system were found to be the most catalytically active catalyst systems and surface analyses have shown that the dimeric Rh structure is retained after the deposition to SiO₂. It was shown that during the hydroformylation reaction a Rh–Rh bond is alternately broken and formed. The anchoring reaction of the complex to the solid support is supposed to occur by the reaction of a methyl and a Cp* ligand with the surface OH groups of the metal oxide, which leads to the formation of Rh–O bonds (Scheme 3). The strength of the Rh–O bonds was found to depend on the acid-base properties or rather the electronegativity of the support system and the reactivity of the systems was thought to be influenced by the Rh–O bond strength, the space between the oxygen linkage atoms and the electronic state of the Rh atoms [45].

Table 2. Overview of different supported molecular rhodium complexes investigated in the gas phase hydroformylation of short olefins.

Catalyst Precursor	Support	Substrate	TOFbulk [h−1]	Sum-sel.a [%]	n-Regio-sel. [%]	Ref.
[Rh6(CO)16]	MgO	propylene	0.720	78	32	[35]
	TiO2	propylene	0.154	86	62	[35]
	La2O3	propylene	0.038	50	75	[35]
	ZnO	ethylene propylene	3.60 1.23	- -	- 70	[35] [35]
	NaY	ethylene propylene	1.32b 0.23c	96 92	- 57	[36] [36]
[Rh4(CO)12]	TiO2	propylene	0.41	70	56	[35]
	La2O3	propylene	0.77	45	68	[35]
	SiO2	ethylene propylene	78b 0.04	66d 75	- 63	[41] [35,37,42]
	Al2O3 ZnO	propylene ethylene propylene	0 9.79 2.05	- - -	- - 58	[35] [35] [35]
[Fe3Rh2(CO)14C]	SiO2	propylene	5.04c	-	-	[37]
[RhCo3(CO)12]	SiO2 ZnO	ethylene propylene propylene	1152b 396c 0.92	80d 67e -	- - 80	[41,42] [41] [35]
[Rh2Co2(CO)12]	SiO2 ZnO	ethylene propylene propylene -	504b 252c 1.34	74d 80e -	- - 70	[41] [41] [35]
[(RhCp*CH3)2(CH2)2]	SiO2	ethylene	0.192	89	-	[45]
[HRhCO(PPh3)]f	VPC	propylene	2700	100	60	[44]

^a Sum-selectivity towards hydroformylation. ^b TOF calculated for C₂H₅CHO + C₃H₇OH. ^c TOF calculated for C₃H₇CHO + C₄H₉OH. ^d Selectivity calculated for C₂H₅CHO + n-C₃H₇OH. ^e Selectivity calculated for C₃H₇CHO + n-C₄H₉OH. ^f PPh₃ was added.

gives a performance-oriented overview of the before-mentioned different supported rhodium catalysts, which were explored with regard to the gas-solid hydroformylation of short-chain olefins, such as ethylene and propylene.

For long-chain olefins also a range of mono- and bimetallic rhodium complexes supported on organic and inorganic materials, such as alumina, silica, magnesium silicate, zeolites or MOFs, have been investigated. Since the focus of this review is on the gas-solid hydroformylation of short-chain olefins, the results concerning longer olefins are only shortly mentioned in the following table for the sake of completeness (

Table 3. Overview of different supported molecular rhodium complexes investigated in the liquid phase hydroformylation of longer olefins. TPPTS = 3,3′,3″-phosphanetriyltris(benzenesulfonic acid) trisodium salt, SPION = superparamagnetic iron oxide nanoparticles.

Catalyst Precursor	Support	Ligand	Substrate	Ref.
[Rh2Co2(CO)12]	SiO2	Amines	1-hexene	[47]
	Al2O3	Amines	1-hexene	[47]
	MgOx SiO2	-	1-hexene	[47]
	zeolites	-	1-hexene	[47]
[Rh(acac)(cod)]	MOF	-	C6–C16 olefins	[48,49]
[HRh(CO)(PPh3)3]	Hydrotalcite	TPPTS	1-hexene	[50,51,52]
	VPC	PPh3	octene	[44]
	SPION	PPh3	styrene	[53]

) [46,47,48,49,50,51,52,53].

3.2. Supported Metallic Rhodium Nanoparticles

Besides the immobilization of molecular Rh catalysts on solid supports, supported rhodium nanoparticles have been in the focus of interest as heterogeneous catalysts for hydroformylation reactions. The materials discussed in the open literature can be classified according to whether organic ligands (phosphine, phosphites or bi-phosphites) are present within the mixture (ligand-modified Rh nanoparticles) or if additional metals were added (metal-modified Rh nanoparticles) to enhance the catalytic activity.

Chuang and Pien pioneered the development of ligand- and metal-modified nanoparticles by investigating the hydroformylation of ethylene over a pure Rh/SiO₂ system [54,55]. The catalysts were prepared via an impregnation method, followed by calcination and reduction of the impregnated support. Prior to the hydroformylation tests the materials were: 1) reduced in a H₂ stream (240 °C in H₂ for 1 h) and 2) oxidized under air (240 °C, under air, 1 h). XPS analyses of the materials have shown that the amount of Rh⁺ species on the surface of the material, which was oxidized under air, is higher, than on the reduced material. Further results from CO absorption experiments showed that the oxidized sample coordinates the CO preferably linearly, while on the reduced sample more bridging CO could be observed. The different CO coordination behavior was attributed to the presence of differing rhodium species on the surface of the materials. Whereas Rh⁺ species coordinate CO in a linear fashion, for Rh⁰ species a bridging CO coordination is preferred. The different rhodium species on the catalyst surface are discussed to have major influence on the catalytic activity; whereas the oxidized samples show a higher propanal formation rate compared to other samples, the reduced material exhibits a higher chemoselectivity for the formation of ethane [55].

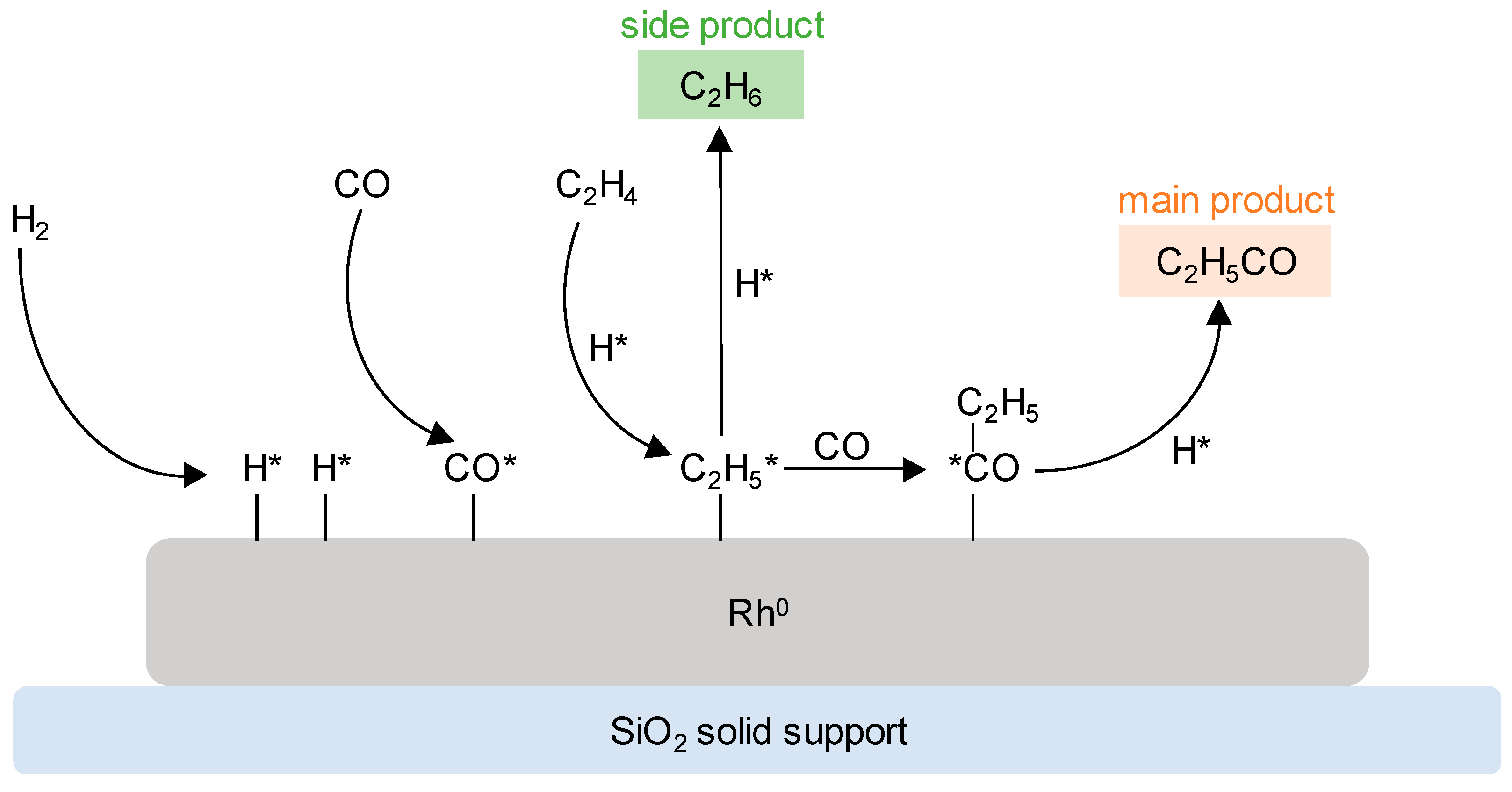

Based on these results, Chuang et al. [54,55] formulated the following reaction mechanism for the hydroformylation of ethylene over the above mentioned materials: 1) through hydrogenation of C₂H₄ with an absorbed ^*H species an hydrogenated alkyl species is created, 2) CO insertion into the C–Rh bond of an absorbed alkyl takes place, and 3) hydrogenation of the absorbed alkyl leads to the aldehyde formation. The CO insertion step is favored by the linearly coordinated CO, which preferably forms on Rh⁺ species on the surface (Figure 7).

A comprehensive study of the structure-activity behavior of a Rh/SiO₂ system in the hydroformylation of ethylene was reported by McClure et al. and from the data it can be concluded that the CO insertion activity reaches an optimum for a Rh particle size of ∼2.5 nm (TOF = 0.4 molecules_C3H6O∙site⁻¹∙s⁻¹, T = 500 K, p = 0.05 MPa, C₂H₄:CO:H₂ = 1:1:8). Kinetic and spectroscopic data suggested that the particle size affects the CO insertion step by two factors: 1) promotion of the CO insertion reaction on low coordinated Rh surface sites, and 2) small particles lead to a decrease in TOF, probably due to the formation of dispersed Rh carbonyl hydride species [56].

Besides silica supported rhodium nanoparticles, also graphite nanofibers have been used as support materials. The performance of these systems in the hydroformylation of ethylene was compared to silica-supported Rh catalysts, at a similar metal loading. Although the activity of the Rh/SiO₂ system was higher compared to the graphite nanofiber supported material (T = 240 °C, CO/H₂/C₂H₄/He = 1:1:1:1, flow rate = 120 mL∙min⁻¹, time = 2h, ethylene conversion_graphite = 10%, versus ethylene conversion_SiO2 = 20%), the selectivity towards propanal was increased. It was shown that the graphite nanofiber material exhibits a higher selectivity of about 50% for the formation of propanal than the corresponding silica system with which only a selectivity of 6% towards the aldehyde could be achieved at identical reaction conditions (T = 240 °C, CO/H₂/C₂H₄/He = 1:1:1:1, flow rate = 120 mL∙min⁻¹). Based on an experimental study, in which the partial pressure was varied systematically, it was concluded that high partial pressures of CO and C₂H₄, and a concomitant low partial pressure of H₂ gave the optimum performance of the Rh catalyst [57].

3.2.1. Supported Ligand-Modified Rhodium Nanoparticles

Yan et al. prepared rhodium nanoparticles on SiO₂ by impregnation of the support with an aqueous solution of rhodium chloride using the incipient wetness method. Afterwards the samples were dried, calcined at 673 K in a quartz tube and finally reduced under an H₂ atmosphere. The Rh/SiO₂ precursor was then treated with a PPh₃ solution. Subsequent drying under vacuum lead to the formation of PPh₃-Rh/SiO₂ (molar ratio L:Rh = 10:1) material, which was tested in the hydroformylation of propylene in a fixed bed reactor system (T = 393 K, 4 h, p = 1 MPa, H₂:CO:C₃H₆ = 1:1:1, GHSV = 2000 h⁻¹). The performance tests have shown that the PPh₃-Rh/SiO₂ system is by far more reactive than the unmodified Rh/SiO₂ counterpart (131 h⁻¹ vs. 1.2 h⁻¹) [58]. The higher TOF values of the modified catalysts were attributed to the formation of [HRh(CO)₂(PPh₃)₂] on the surface of the Rh nanoparticles after syngas treatment (Figure 8). Very similar observations were made for Rh carbonyl complexed on solid supports [39]. The assumption was confirmed by solid-state ³¹P NMR and XPS measurements. Using FT IR techniques, the presence of three different carbonyl species could be shown, that correspond most likely to [HRh(CO)(PPh₃)₃], [Rh(CO)₂(PPh₃)₃]₂ and [HRh(CO)₂(PPh₃)₂] [58,59]. The addition of PPh₃ was shown to reduce the Rh leaching, which was monitored in an aqueous solution, since products were captured in an aqueous solution, significantly by direct attachment of the Rh nanoparticles to the support material and a strong bonding of the catalytically active Rh species via metal–metal bonds [59]. During the hydroformylation tests no deactivation of the catalyst was observed over a period of more than 1000 h under the provision that PPh₃ was added at 300–350 h of time on stream [58].

Further studies concerning the hydroformylation of propylene using PPh₃-modified Rh nanoparticles on SiO₂ have shown similar apparent activation energies and pressure dependencies as homogeneous catalysts. A 100% selectivity towards C₄ aldehydes and a high n/iso ratio of 14 could be achieved with this materials class under the best reaction conditions (m_catalyst = 0.6 g, T = 393 K, p = 2 MPa, PPh₃/Rh ratio of 15, H₂:CO:C₃H₆ = 1:1:1, flow rate = 120 mL∙min⁻¹). Again, the catalytically active component was probably formed in-situ on the surface of the support and, since there is no evidence for interactions with the support surface such as formation of chemical bonds, is probably a Rh species dissolved in molten PPh₃, such as [HRh(CO)_n(PPh₃)_{4 − n}].This assumption was supported by the similar formal kinetics observed in comparison with the kinetic behavior of molecular catalysts in a homogeneous medium [60].

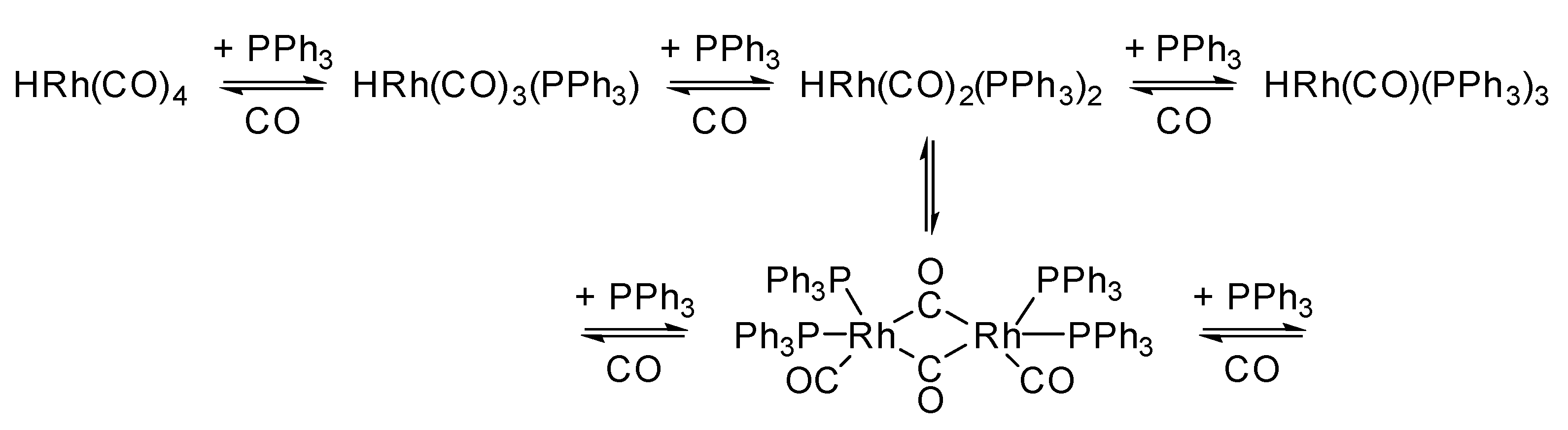

Further investigations of the in-situ formation of a Wilkinson-type catalyst within phosphine-modified Rh/SiO₂ catalysts have focused on the ligand dependency of the hydroformylation of propylene. The selected ligands included triphenylphosphine, triphenylphosphite, fluorinated triphenylphosphine, methoxytriphenylphosphine, and the bidentate Xantphos. The catalytic results under identical conditions (w_Rh = 0.2 wt % and a molar ligand-to-metal ratio of L/Rh = 15, T = 393 K, p = 20 MPa, C₃H₆/H₂/CO = 1:1:1) showed, that the Xantphos-modified Rh/SiO₂ catalysts exhibits the highest TOF values and the highest n/iso ratio in the hydroformylation of propylene. The TOF value was doubled up to 78 h⁻¹ in comparison with the TOF of the PPh₃-modified catalyst (35 h⁻¹) [61]. In accordance with other reporting’s [58,59,60], the authors contributed the high catalytic activity of the system to the formation of Rh(I)(CO)₂ species via an oxidative chemisorption process of Rh nanoparticles by CO and the subsequent ligation of phosphine ligands to the dicarbonyl species (Figure 8).

The higher catalytic activity of the bidentate Xantphos-modified Rh/SiO₂ system compared to the PPh₃-modified Rh/SiO₂ system was related to the chelating ability of Xantphos, which yields a higher concentration of coordinated Rh species. Various possible Rh-containing species, which might be formed under hydroformylation reaction conditions, were proposed by the authors (Scheme 4) [61].

In a comprehensive study by Li et al. Rh/SiO₂ catalysts were developed by attaching both the organic ligand and the metal directly on the surface of the support material. The tethered-ligand sets were synthesized by either mixing 2-(diphenylphosphino)ethyltriethoxysilane (DPPTS) or diphenylethylphosphine (DPEP) in a slurry with the before prepared Rh/SiO₂ material (w_Rh = 1 wt %). From thermogravimetric, NMR and FT-IR measurements it was concluded that both DPPTS or DPEP ligands and Rh were attached directly onto the support (Figure 9) [62]. According to the authors, the Rh species are bound by the Rh–O bonds and the metal–metal bonds [58].

The tethered ligand-based catalysts were tested in the hydroformylation of ethylene, where the DPPTS modified Rh/SiO₂ materials reached TOF values as high as 55 h⁻¹. The material has proven to be stable for over 1000 h, while the DPEP modified Rh/SiO₂ material quickly deactivates under the reaction conditions (T = 393 K, p = 1.0 MPa, C₂H₄:CO:H₂ = 1:1:1, GHSV = 2000 h⁻¹) [62]. Later on it was shown that the alkyl spacer lengths of the tethered-phosphine ligands influence the catalytic activity. Lengthening of the spacer lead to an enhanced activity, probably due to an improved flexibility and promotion of the formation of the active species [63].

Further the effect of doping with an Al³⁺ promoter on the catalytic activity of the DPPTS modified Rh/SiO₂ materials has been investigated. The Al³⁺ promoted Rh/SiO₂ catalyst was synthesized by co-impregnation of SiO₂ with RhCl₃∙xH₂O and Al(NO₃)₃ and subsequent addition to the DPPTS ligand. The presence of Al³⁺ has a pronounced effect on the catalytic activity in the hydroformylation of ethylene. Whereas materials with a Rh/Al molar ratio of 1 achieved the highest TOF values during the hydroformylation of ethylene (TOF_AlRh=1 = 105 h⁻¹), catalysts with higher or lower Rh/Al ratios showed lower TOF values (TOF_AlRh=0 = 22 h⁻¹, TOF_AlRh=0,2 = 50 h⁻¹, TOF_AlRh=3 = 77 h⁻¹) under identical reaction conditions (m_catalyst = 0.3 g, T = 393 K, p = 1.0 MPa, C₂H₄:CO:H₂ = 1:1:1, GHSV = 2000 h⁻¹, P/Rh = 2.2). With a combination of analytical techniques, such as N₂ sorption, TEM, pyridine adsorbed FT-IR, FT IR, NH₃-TPD and solid-state NMR measurements, it could be shown that the Al-promoting inhibited the growth of metallic Rh particles, increased the dispersion and number of exposed Rh atoms and enhance the number of Bronsted as well as Lewis acid sites on the catalyst surface. Based on the results of solid-state ³¹P NMR and ²⁷Al NMR spectroscopy, the authors attribute the enhanced catalytic activity of the catalyst to the electronic interaction of the aluminum cations with the ligand molecules causing a higher electron density at the phosphorus bridgehead [64].

Interestingly, triphenylphosphine was not only used as functional ligand for the synthesis of ligand-modified rhodium nanoparticles, but also as reducing agent to reduce graphene oxide. With this method a reduced graphene oxide supported rhodium-ligand complex catalysts could be obtained. This system was applied in the hydroformylation of long-chain olefins in liquid phase and will therefore not be further discussed [65].

3.2.2. Supported Metal-Modified Rhodium Nanoparticles

Beside the modification of rhodium nanoparticles with organic ligands, research has gone to explore metal- or metal oxide-modified Rh nanoparticles as hydroformylation catalysts. Already before, in the case of the supported molecular rhodium complexes, it has been shown that catalysts, containing two different metals, such as Rh-Fe or Rh-Co systems, can be superior over their monometallic counterparts in terms of their overall activity and chemoselectivity [37,46]. This concept has been transferred to rhodium nanoparticles and various elements have been employed as promotors, such as main group elements, alkali and transition metals.

Trunschke et al. investigated the hydroformylation of ethylene and propylene as well as the hydrogenation of aldehydes with Mo-promoted Rh catalysts supported on SiO₂. The catalysts were prepared from the heteronuclear cluster [(C₅H₅)₃RhMo₂(CO)₅], which was deposited on silica by wet impregnation. The deposition of a cluster compound ensured the metallic components being in proximity. The addition of Mo increased the rate of hydroformylation but also the rate of the hydrogenation and no specific influence on the CO insertion reaction was observed [66]. These results suggest that the formation of the intermediate surface alkyl group on the Rh surface is the rate determining step in the hydroformylation, which corresponds to a “type-I” kinetic behavior.

Lenarda et al. examined the hydroformylation of ethylene and propylene over a rhodium-containing aluminum pillared smectite clay. The material was prepared by treatment of the commercially available Na⁺ bentonite pillared with aluminum poly-oxocations and subsequent ion exchange with a RhCl₃ solution. A clay material with 0.46 wt % of rhodium was obtained after thermal treatment and activation under syngas. The hydroformylation to hydrogenation ratio under the test conditions (m_catalyst = 350 mg, w_Rh = 0.46 wt %, CO/H₂/C₂H₄/N₂ = 5/15/5/75, flow rate = 26 mL∙min⁻¹), reached a maximum of 86% at 373 K and decreased with enhanced reaction temperature in the hydroformylation of ethylene. Propane, n- and iso-butanal were the main products from the propylene hydroformylation. An overall decrease of one order of magnitude of reaction rate compared to ethylene is observed for both the hydroformylation and the hydrogenation of propylene. The value observed for linear to branched aldehyde regioselectivity at 398 K is 78.5% and decreases as the temperature increases [67].

Further, Rh/Al and Rh/B system were prepared by reducing rhodium trichloride supported on silica with lithium aluminum hydride or sodium borohydride at low temperatures [68,69,70]. It was shown that the nature of the catalyst strongly depends on the conditions of thermal pre-treatment. For the hydroformylation reactions performed, catalysts were treated thermally under argon at 543 K for 24 h and under syngas atmosphere (CO/H₂ = 1, flow rate = 20 mL∙min⁻¹) for 24 h at 453 K. The typical hydroformylation conditions applied were: mixture of CO/H₂/C₂H₄/N₂ = 1/1/1/15 flowing at 26 mL∙min⁻¹, total pressure 1.0 MPa, space velocity 3100 h⁻¹. The selectivity for the hydroformylation of 79% of propanal using the Rh/B/SiO₂ material reached its maximum at 398 K with a CO/H₂ = 2 and was found to increase with increasing CO partial pressure and to decrease with increasing reaction temperature [70]. The Al promoted material was prepared in a similar manner and tested in the hydroformylation of propylene. The highest hydroformylation rates were achieved with a sample treated in air flow at 723 K, then reduced in H₂ at 623 K and finally treated in CO/H₂ flow at 453 K for 24 h. The selectivity towards the sum of C₄ aldehydes (75% at 393 K, and 16% at 453 K) decreased with increasing reaction temperature while the regioselectivity of 62 % towards linear aldehydes did not change with the reaction temperature [68].

In addition to these main group-promoted rhodium nanoparticles, also preparation of catalysts via the reduction of rhodium and cobalt salts on SiO₂ with NaBH₄ was investigated. The Rh–Co/B systems on silica were inactive for the hydroformylation of propylene under atmospheric pressure, what the authors attribute this fact to the obscuring of the active metal centers by large amounts of cobalt oxide. However, higher pressures lead to an enhanced activity, probably because inaccessible catalytic sites become liberated, presumably via cobalt carbonyl formation. A high selectivity towards hydroformylation products of 75% and regioselectivity towards linear aldehydes of 95% could be achieved at 1.0 MPa, with a Rh/Co/B/SiO₂ catalysts at 403 K. As explanation for the high regioselectivity towards the n-aldehyde the authors proposed a model, in which a thick polyatomic and irregular cobalt oxide layer covers almost all the rhodium surface leaving only few windows available for the chemisorption of the reactant molecules. The constrained environment of the active sites probably hinders the formation of the bulkier branched isomer, which explains the regioselectivity [70].

In order to compare the activity of bimetallic and monometallic systems, Rh, Co and Rh-Co on Al₂O₃ were tested in the hydroformylation of ethylene in a temperature range from 448 to 498 K and pressures between 1–3 MPa. It was found that finely dispersed Rh particles were most active and selective (up to 45% to hydroformylation products) for the hydroformylation of ethylene to propanal and the subsequent hydrogenation product propanol. An explicit structure sensitivity in ethylene hydroformylation has been observed for Co based catalysts, with smaller Co particles being more active and selective [71].

The effect of different promotors on SiO₂-supported Rh catalysts for the hydroformylation of ethylene and CO hydrogenation was also investigated by Hanaoka et al. (Figure 10). It was shown that in their experiments both hydroformylation of ethylene and CO hydrogenation occurred concurrently to produce propanal. CO hydrogenation to form C₂-oxygenates and the ethylene hydroformylation have several steps in common, such as the CO insertion and metal–carbon bond hydrogenation. However, in the case of the CO hydrogenation the initial CO dissociation is required before the reaction can proceed [72].

The desired hydroformylation could be enhanced over highly dispersed Rh particles with maximum activity observed at a particle diameter of 3.5 nm (TOF = 126 h⁻¹) at 180 °C (p = 2.0 MPa, C₂H₄:CO:H₂:Ar = 3:4:2:1, flow rate = 100 mL∙min⁻¹), whereas CO hydrogenation was favoured over large particles. The particle sizes were calculated from Rh dispersion measured by H₂ chemisorption and XRD measurements. These experimental findings indicated that the hydroformylation is enhanced over highly dispersed Rh/SiO₂ catalysts and suggest that hydroformylation occurs preferably at the edge and corner Rh sites [72]. Site-dependent chemoselectivity and catalytic activity of certain catalysts has already been studies by various groups for other catalytic reactions using analytical techniques at the atomic resolution level as well as computational methods [73,74,75,76,77]. The addition of transition metal oxides, such as MoO₃, Sc₂O₃, TiO₂, V₂O₅, and Mn₂O₃, which are expected to enhance CO dissociation only slowed down the hydroformylation process without any effect on the chemoselectivity. The addition of alkali metals reduces generally the catalytic activity but leads to increased chemoselectivity of the reaction towards hydroformylation products. The chemoselectivity of the catalysts towards propanal decreased in the order: Li > Na > K > Cs, which correlates well with the electronegativity of the alkali metal cations [72].

The influence of cationic alkali promoters on catalyst systems similar to the ones descried above was also investigated by Sordelli et al. The catalysts were prepared by co-impregnation of RhCl₃∙3H₂O and the corresponding alkali metal chloride salt in a 1:1 ratio. Under the conditions of the reaction of the hydroformylation of propylene, small Rh metal particles are formed, with a mean diameter of 3.2 nm obtained from HR TEM measurements. As discussed before [72], the activity of the different materials reflects the trend of the polarizing power, which can also be associated with the size of the cation and the corresponding electronegativity, of the cation within Group 1. The lower the polarizing effect of the metal, the smaller is the promoting effect for the hydroformylation reaction. The presence of Li, in a molar ratio of 1:1, promoted mainly the hydroformylation reaction and the n-aldehyde formation rate on the Li-containing sample was six times higher than the non-promoted counterpart (TOF_Rh/Li = 462 h⁻¹ vs. TOF_Rh = 69.6 h⁻¹) and also the selectivity was higher for the Li promoted material (59% vs. 42%) under identical test conditions (w_Rh = 2.0 wt %, T = 413 K, p = 0.1 MPa, C₃H₆:CO:H₂ = 0.5:1:1, flow rate = 15 mL∙min⁻¹). From these observations in can be concluded that Li enhances the selectivity towards aldehydes but does not suppress the hydrogenation reaction. An excess of promoting metal caused a decrease of the total activity, as shown from a sample with a Li/Rh ratio = 5, which was completely inactive towards the hydroformylation. On the opposite, the addition of Cs resulted in a deactivation of both the hydrogenation and hydroformylation activity. The hydroformylation rate of the alkali promoted catalysts has the following order: Li > Na > K > Rb >> Cs. Sordelli et al. suggested that the alkali metal promoter cations are present as “patches” of oxide at the surface of the rhodium particles, where the hydroformylation process occurs at the metal/oxide interface [78].

3.3. Supported Single-Atom Rhodium Metal Catalysts

3.3.1. Supported Single-Atom Catalysts

After Zhang et al. pioneering work on single-atom catalysts (SACs, Pt1/FeO_x) for carbon monoxide oxidation [79], various types of SACs have been employed in catalytic reactions and have shown remarkable activity and selectivity. In this context the term “single-atom catalyst” was first reported and the concept was then further developed in the following years [80,81]. Only very recently, comprehensive reviews about SACs and their applications were given by Chen et al. [82] and Liu. [83].

The term single-atom catalyst is used to describe materials, which contain isolated, highly dispersed single-atoms on a solid support. These isolated and individual atoms enhance the metals atomic efficiency and provide uniform active sites, which is not a typical feature for conventionally prepared heterogeneous catalysts. The reported performance of SACs can be attributed to the unique features of single-atoms on a solid support in comparison with bulk or even nanomaterials (Figure 11) [84].

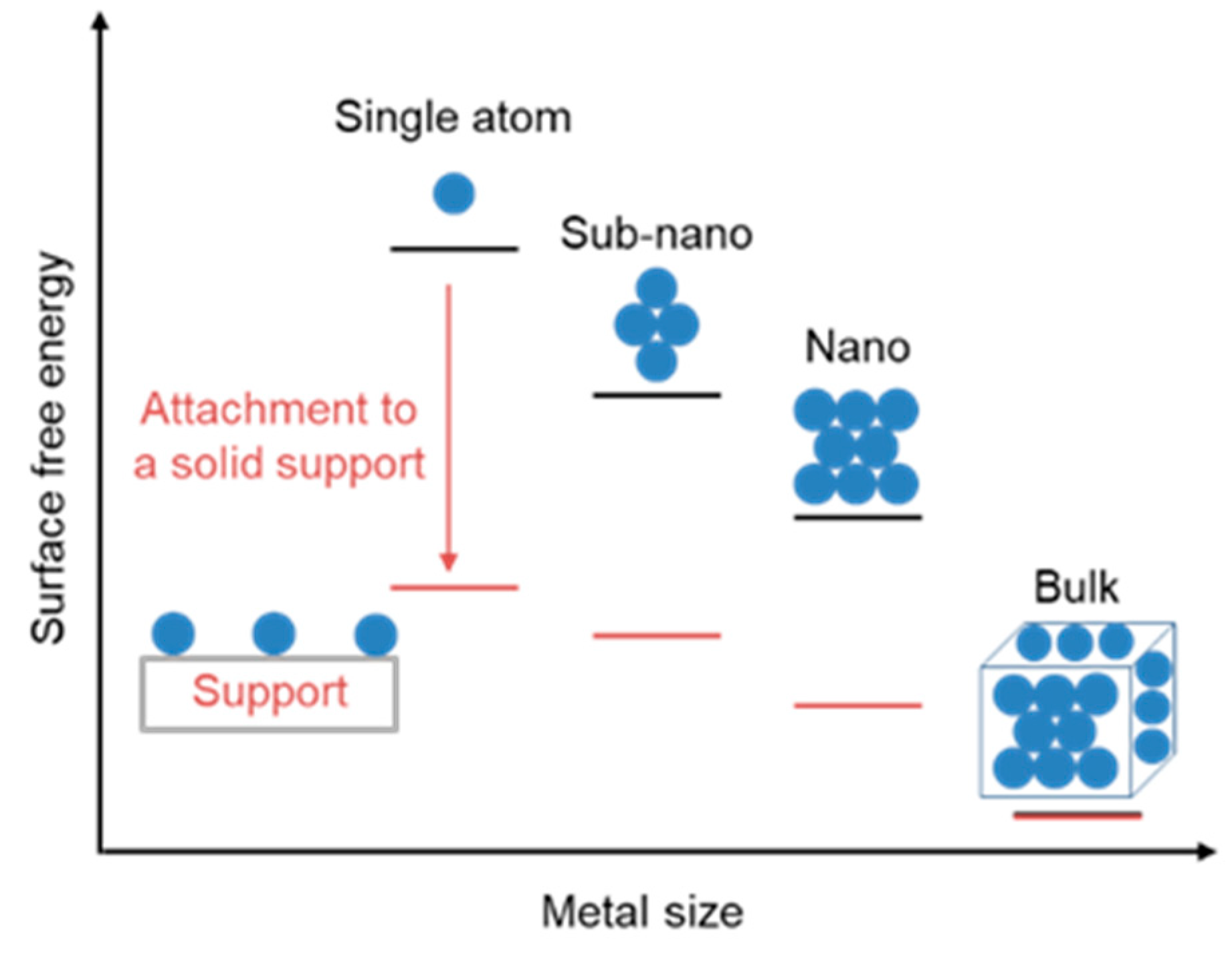

The high surface free energy is said to be responsible for the catalytic properties, but also results in the instability of the supported single-atoms, which can lead to aggregation and the formation of nanoparticles, especially under harsh preparation and reaction conditions [85]. To address this key problem, metal loadings are typically kept low, or approaches to enhance the metal–support interactions, such as the utilization of defects in metal oxide supports (FeO_x, CeO₂ and TiO₂), are utilized [86]. Another strategy to enhance the metal–support interactions is the introduction of additives or dopants to create nonoxygen binding motifs, such as M–N_x or M–S_x [87]. This leads to an enhanced stability of doped SACs [88], and also allows altering of the electronic properties of the single-metal atom.

Since SACs have the potential to combine the advantages of homogeneous catalysts (define active sites) and heterogeneous catalysts (catalysts recovery) within one system and are therefore being considered as bridge between homogeneous and heterogeneous catalysts, they also have attracted a great deal of attention in the development of novel heterogeneous hydroformylation catalysts.

Lang et al. for example reported the hydroformylation of different olefins using a Rh SAC supported on ZnO nanowires. HAADF-STEM (high-angle annular dark-field scanning transmission electron microscopy) and infrared CO chemisorption experiments showed the presence of isolated Rh atoms on the solid support and XPS and XANES spectra indicated the metallic electronic state of rhodium. From this it could be assumed that the Rh atoms occupy the O vacancies of ZnO, thus, electron transfer from Zn to Rh is enabled. This leads to a strong interaction between rhodium and the support material and explains the excellent recyclability in liquid phase reactions. For all substrates, such as styrene, hexene and propylene an excellent chemoselectivity in the hydroformylation reaction could be achieved, and no hydrogenation product was observed. In the case of propylene, a selectivity of 99% and TON of 15000 was reported under mild conditions (w_Rh = 0.006 wt %, T = 100 °C, p = 0.8 MPa CO, 0.8 MPa H₂). Under similar reaction conditions the homogeneous Wilkinson catalysts achieved TONs of 37000. In the case of the hydroformylation of styrene or styrene derivates the Rh SAC catalysts was superior over two orders of magnitude over the Wilkinson catalyst [89].

Almost concurrently, Wang et al. reported a CoO-supported Rh single-atom catalyst. It was found that an increase in Rh mass loading leads to the formation of aggregated metallic rhodium clusters on the support. In the reaction of the hydroformylation of propylene, a regioselectivity of 94.4% towards n-butanal and TOF of 2065 h⁻¹ could be achieved using the 0.2% Rh/CoO catalyst. Mechanistic studies indicated that a structural rearrangement of the Rh single atoms occurred during the catalytic process. Surprisingly, by XPS spectroscopy it was found that the Rh atoms on CoO were present in the +3 oxidation state and not in the +1 oxidation state which is commonly found in homogenous counterparts. The authors state that this higher valence state might be an essential factor for the high selective of the Rh-based SAC catalyst towards linear aldehyde [90].

3.3.2. Supported Rh₂P-Based Catalysts

In the context of supported rhodium-containing hydroformylation catalysts, transition metal phosphides are also discussed as alternative candidate materials. These heterogeneous catalysts [91,92,93,94] show high activities not only in hydrotreating reactions, such as the hydrodesulphurization [95,96,97,98,99] hydrodeoxygenation [91,100] or hydrodenitrogenation [91,101] but also in CO activation reactions, such as hydroformylation reactions [102,103,104]. Moreover, rhodium phosphides have also been employed as electrocatalyst for water splitting [105].

Among the platinum group metal phosphides, rhodium phosphides have been the most investigated compounds in the field of heterogeneous catalysis, with five different phosphides (Rh₂P, Rh₃P₂, Rh₄P₃, RhP₂, RhP_3,

Table 4. Structure, space group and bravais lattice of the five different rhodium phosphides. Right: solid-state structure of Rh₂P. Rh = grey, P = red.

Phase	Space Group	Bravais Lattice	Structure	Ref.	Unit Cell of Rh2P
Rh2P	Fm$\overline{3}$m	Cubic	Anti-CaF2	[106]
Rh3P	P$\overline{4}$m2	Cubic	Anti-PbFCl	[107]
Rh4P3	Pnma	Orthorhombic	Rn4P3	[108]
RhP2	P21/c	Monoclinic	CoSb2	[109]
RhP3	Im$\overline{3}$	Cubic	CoAs3	[110]

) being reported in the literature. Hereby, only the metal rich Rh₂P has been identified as suitable catalyst for hydrotreating reactions [103].

Whereas the Rh₃P₂ structure comprises phosphorus atoms coordinating to tetrahedrons and square pyramids, in the Rh₄P₃ structure the phosphorus atoms are only coordinated to square pyramids. The RhP₂ phosphide crystallizes in the CoSb₂ structure and the metal-rich phosphide Rh₂P in the anti-CaF₂ structure (Table 4, right). In general, it has been found that with increasing metal to phosphorus ratio the metallic properties of the phosphide increase [111]. This also becomes obvious from the band structure and density of state diagram of Rh₂P (Figure 12) [112].

Already in 1971 Muetterties and Sauer prepared a broad range of different metal phosphides, including rhodium phosphide, supported on Al₂O₃ and tested them as catalysts in hydrogenation, isomerization and hydroformylation reactions of olefins. The catalysts were prepared by a slurry impregnation of the alumina support in a metal precursor containing solution. The treatment of the supported precursor in a PH₃ stream for 2 h at a temperature between 250 and 300 °C lead to the formation of the corresponding transition metal phosphides. Although some materials were active as hydrogenation catalysts, attempts to perform the hydroformylation of propylene with metal phosphides were unsuccessful at 150 °C, 3.5 MPa and an olefin:H₂:CO (1:1:1) feed mixture, which the authors attribute to the low density of coordination sites [113].

The successful application of Rh₂P as a catalyst for the hydroformylation of short-chain olefins was reported by Rupflin et al. [102,103]. The catalysts were prepared from SiO₂, Rh(NO₃)₃ and phosphoric acid via the incipient wetness impregnation method to obtain supported phosphate precursors, which were then converted into phase pure Rh₂P on SiO₂ under reductive thermal treatment (250–900 °C). The formation of phase pure Rh₂P was confirmed by PXRD, TEM and HR TEM measurements. It has been shown that the reductive thermal treatment strongly influences the hydroformylation activity of the catalyst, with the catalyst reduced at the highest temperature (900 °C) being the most active and selective material for the hydroformylation of ethylene and propylene and the formation of the aldehyde. The best hydroformylation results were achieved at low H₂:CO ratios (T = 170–240 °C, p = 5.0 MPa, 10% C₂H₄, 10% H₂, 70% CO, 10% Ar, GHSV = 2773 h⁻¹). A high CO partial pressure was necessary to suppress the olefin hydrogenation as side reaction. In the case of the hydroformylation of propylene with Rh₂P supported on SiO₂ a selectivity of over 90% towards butanal and an n/iso ratio of 2.4 could be achieved. By adding water to the feed an increase of the selectivity towards the aldehyde could be observed and the formation of hydrogenation and aldol condensation products could be reduced. Up to 200 °C, the formation of ethane and condensation products could even be completely suppressed during the hydroformylation of ethylene. Simultaneously, no activity of the catalyst in the water-gas shift reaction was observed. The authors attributed the selectivity enhancing effect of water to the blocking of unselective surface sites that are mainly active in the hydrogenation of the olefin by H₂O molecules [103].

3.3.3. Investigation of The Surface Properties of Rh₂P-Based Catalysts

Based on the findings of Schunk and Rupflin et al., we are discussing the catalytic activity of rhodium phosphide Rh₂P in the hydroformylation of olefins on a mechanistic level. Therefore, a detailed analysis of the surface constitution of the Rh₂P catalysts is of importance.

As mentioned before, the reduction temperature of the phosphide has a major influence on the catalytic activity, with the catalyst being reduced at 900 °C showing the best performance in the hydroformylation of ethylene and propylene. To further investigate this finding, the dispersion of the phosphides, reduced at different temperatures, were evaluated via CO chemisorption measurements. As shown in Figure 13 (left) the dispersion only drops from 16% to 11% despite increasing the reduction temperature from 250 to 900 °C [114].

The influence of the reduction temperature was also investigated using XPS measurements. It could be shown that the sample being reduced at 900 °C exhibits the highest Rh:P ratio, as depicted in Figure 13 (right). The more pronounced metallic character of the surface gives evidence for rhodium being the surface terminating species, with Rh adopting a non-zero δ⁺ valence state, which is caused by the electron donation towards the phosphine atoms [114].

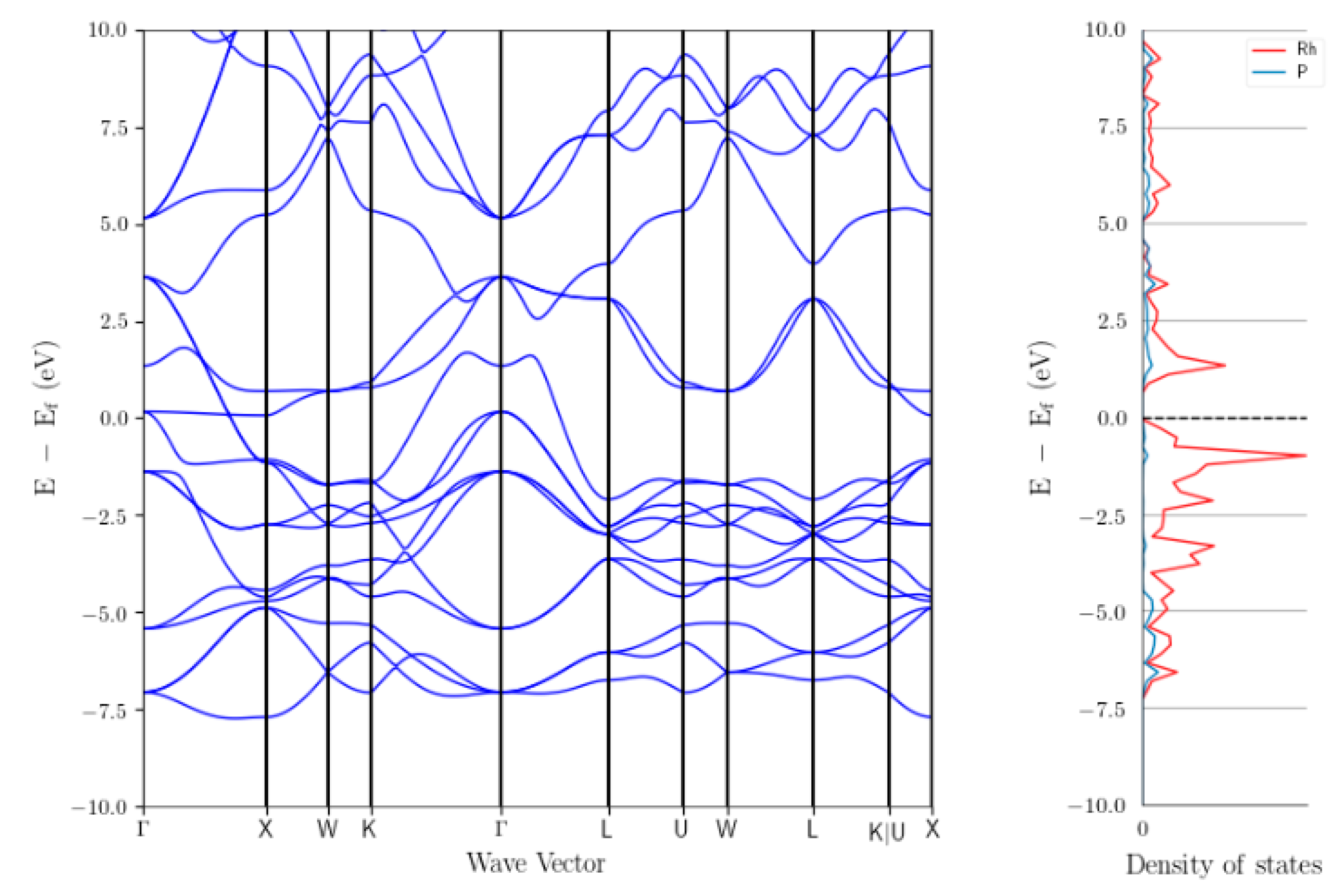

The fact that Rh is surface terminating is a crucial point for the mechanistic understanding and was also verified by IR spectroscopic measurements of the catalysts after CO adsorption experiments, which did not show the formation of any P=C=O surface species. The IR spectra of the catalysts reduced at 500 and 900 °C showed the occurrence of Rh–CO bands. Whereas the 500 °C catalyst exhibits signals around 2000 cm⁻¹ that correspond to both linearly and bridging CO atoms, as shown by Chuang [55] and Yan [58,59], the 900 °C catalyst showed one single signal at 2070 cm⁻¹, which is assigned to CO groups that coordinate Rh in a linear fashion. Since Chuang and Pien reported that linear CO coordination is beneficial for hydroformylation reactions; the higher activity and selectivity observed for catalysts reduced at the highest temperature can therefore be explained [54,55]. The absence of bridging CO molecules also rules out the existence of Rh cluster compounds [103].

Based on these findings, the authors suggested that Rh₂P, in the form of highly crystalline-supported nanoparticles, feature surface sites that are different from the metallic anti-CaF₂ structured bulk of the phosphide, in which each Rh is surrounded by four P centers in a tetrahedral fashion. In contrast, at the surface of the phosphide the bonding situation has most likely similarities to phosphine or phosphite rhodium complexes applied in homogeneous catalysis. To further elucidate this assumption, cuts through the cubic phase of the prototype are examined. As shown in Figure 14, cuts through the cubic phase, even along high indices surfaces, always result in a separation of the rhodium sites and phosphorus. This leads to the conclusion that the surface of highly crystalline Rh₂P nanoparticles can be defined as single-atom catalysts with frustrated single catalytic sites [103,104]. If cuts through the surface are made, surface terminations can easily be found where Rh is coordinated by three P atoms. Through the elevated sintering temperatures and the thereof resulting high crystallinity of the nanoparticles, an enhanced number of step sites, in which each Rh is only surrounded by two phosphorus centers and therefore coordinatively unsaturated, can be assumed to be present [77]. The importance of undercoordinated Rh sites present in Rh nanoparticles on oxide supports for the hydroformylation of olefins was already mentioned by McClure et al. [56].

Hypothesis for a reaction mechanism for the hydroformylation of short-chain olefins over supported Rh₂P nanoparticles

• Based on the experimental and analytical data mentioned before, we extracted the following characteristic features of Rh₂P catalysts, which are crucial for the hypothetic hydroformylation reaction mechanism shown in Figure 15.
• Surface of Rh₂P is Rh terminated
• Site separation of Rh and P occurs
• Undercoordinated Rh sites are present, which are similar to Rh phosphine complexes
• Rh₂P reduced at 900 °C coordinates CO in a linear fashion via Rh

As mentioned before, the surface sites on Rh₂P have similarities to the environment in molecular rhodium phosphine or phosphite complexes and the high crystallinity of the nanoparticles points towards the fact that each Rh center at the surface is coordinated to two phosphorus centers. We therefore assume that a reaction mechanism in line with the basic assumptions accepted in the field of homogeneous catalysis is plausible. Under syngas treatment the Rh centers at the surface can then either undergo oxidative addition of H₂ to form an active hydrogenation catalyst [H₂RhP₂] or coordination of a two CO molecules can occur to form [Rh(CO)₂P₂] which represents a resting state and is not active in the hydroformylation of an olefin. Further, the coordination of one CO molecule and addition of an hydride can occur, which leads to the formation of an active hydroformylation catalyst [HRh(CO)P₂]. Depending on the feed gas composition a statistical distribution of the three species [H₂RhP₂], [Rh(CO)₂P₂] and [HRh(CO)P₂] can be assumed. This explains also the hydroformylation activity enhancing effect of the high CO partial pressure. Logically, higher coordinated species might also be present. Assuming that each rhodium centre can adopt oxidation states between 0 and +1, four different Rh complexes can be formed with a coordination number of 5 and also with a coordination number of 6. However, higher coordinated Rh species are less relevant to the catalytically active hydrogenation or hydroformylation species considered here. Whereas the distribution of three relevant species in our case might only be the result of statistical distribution, in homogeneous catalysis further effects, such as solvents effects, the different gas solubilities in various solvents, the different diffusion coefficients of the gases as well as the different solubilities of the Rh species have to be taken into consideration [115,116].

Since Rh–CO bonds are quite labile, there is most likely an equilibrium between [H₂RhP₂], [HRh(CO)P₂] and [Rh(CO)₂P₂], as shown in Figure 15 (right), which is enabled through a hydrogen spillover to neighboring Rh sites. After the formation of the catalytically active [HRh(CO)P₂] hydroformylation catalyst, the coordination of the olefin occurs, to form a π-complex, which is followed by migratory insertion of the H into the Rh–C bond. Subsequently, CO coordination leads to the acyl-complex, which after oxidative addition of hydrogen and reductive elimination of the aldehyde, can be converted into the active hydroformylation catalyst.

3.3.4. Potential Role of Water in The Reaction

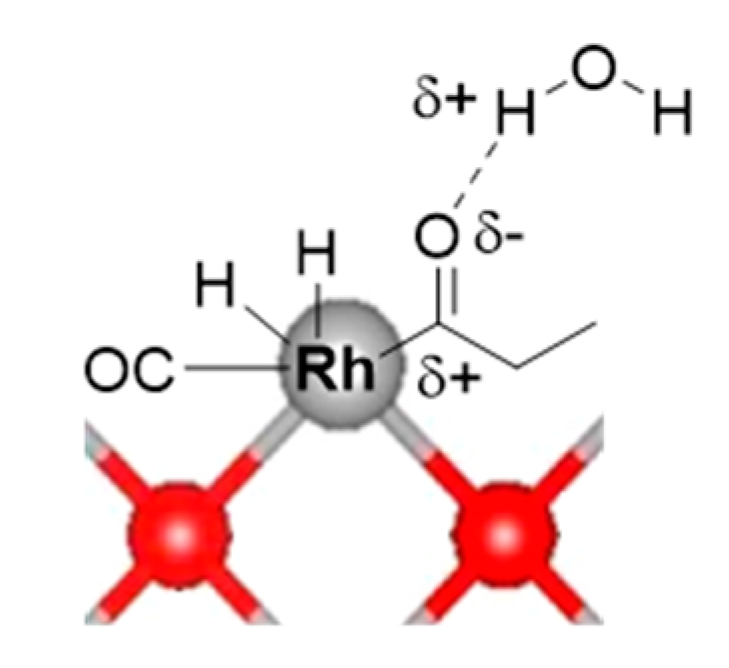

As Rupflin et al. stated before, the role of water in suppressing olefin hydrogenation can probably be attributed to the blocking of surface sites, that are mainly active in the hydrogenation [103]. This is plausible since the nature of the chemical substrate bond that is activated during the catalytic reaction has an enormous influence on the surface atom arrangement of the catalyst that provides the lowest action energy. These particle-dependent reactivity changes in heterogeneous catalytic systems have extensively been studies by Murzin [76] and van Santen [77]. It has been shown that reactions that involve activation of π-bonds, as in CO, can be distinguished from reactions that involve σ bonds, such as H₂ dissociation. More precisely, whereas the activation of molecular π-bonds requires catalytic centers, which consist of several metal atoms and step-edge sites, hydrogenation reactions are typically particle-size independent [77]. Since through the addition of water to the stream, the chemoselectivity of towards the aldehyde products can be enhanced and the unwanted hydrogenation can be suppressed, it is plausible to assume that water preferably blocks the terrace Rh sites. However, studies by Bazhenov et al. have shown that water adsorption of Rh and Pt nanoparticles is also preferred over unsaturated edge and corner sites of the particle, which is in contradiction with our assumption [117]. Therefore, another explanation for the chemoselectivity enhancing effect and the suppression of the formation of condensation products through the addition of water, might be a facilitated product elimination. This can seamlessly be explained by the formation of hydrogen bonds between the carbonyl oxygen atom of the acyl complex and water, which renders the carbonyl carbon atom more electropositive and therefore more active for the nucleophilic attack of the hydride (Figure 16).

3.4. Rhodium Complexes in Supported Liquids

An alternative approach in the heterogenization of Rh based catalysts, deals with the anchoring of molecular rhodium complexes to solid supports via a mediating liquid. In this context, ionic liquids (IL), which can be defined as organic salts being present as liquids below 100 °C [118], and subsequently supported ionic liquid phase (SILP) catalysts have been investigated. ILs can be constituted of a wide range of organic cations, such as imidazolium, pyridinium or morpholinium among others as well as of inorganic or organic anions like halogenides, perfluorinated borates and phosphates, and carboxylates etc. Such SILP catalysts combine the advantages of homogeneous (high activity and selectivity) and heterogeneous catalysts (manageable catalysts recycling) and several reviews point out the successful catalytic application of SILPs [119,120,121,122,123]. De Vos and co-workers have, for example, given a great overview of SILP applications in hydroformylation, metathesis, carbonylation, hydrogenation, hydroamination, C–C coupling and various enantioselective reactions [122].

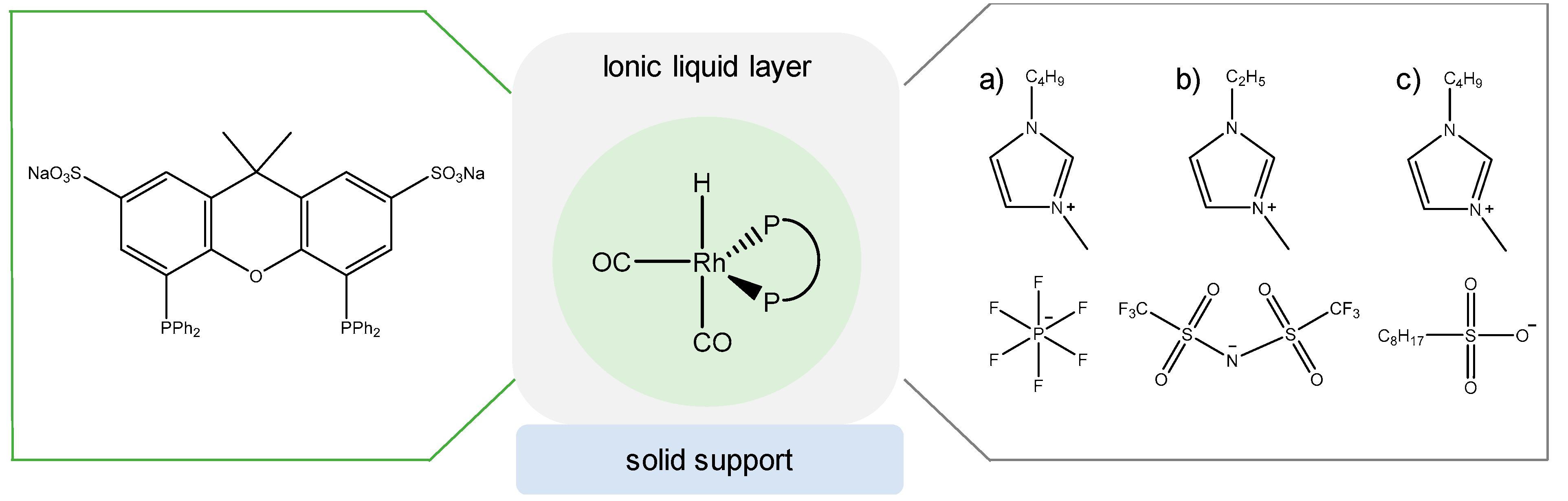

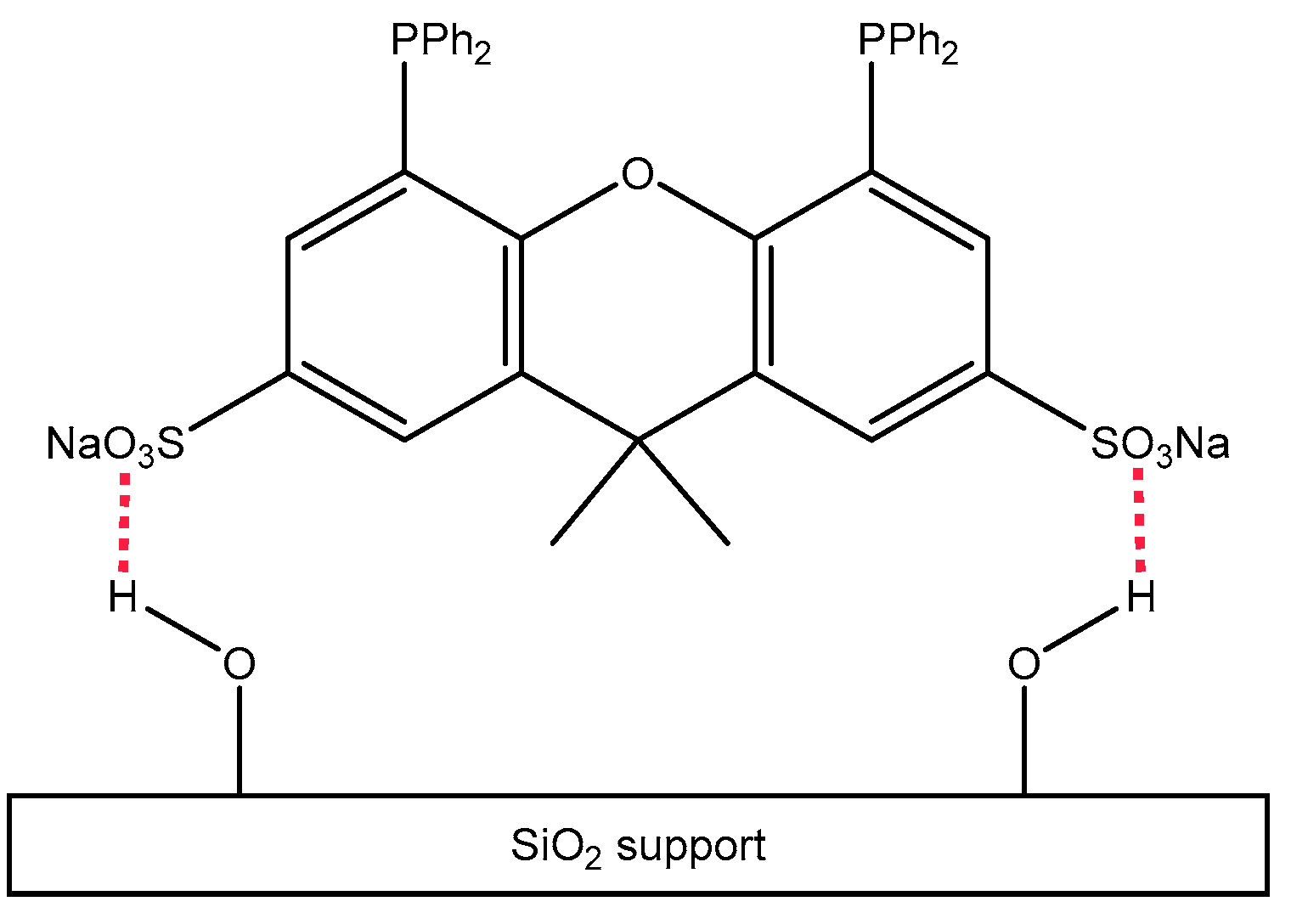

In a SILP catalyst, the ligand, such as the sulfonated Xantphos phosphine ligand (Sulphoxantphos, Figure 17), and the transition metal precursor, for example rhodium carbonyl complexes, are dissolved in an ionic liquid, which is impregnated on a support material (Figure 17). In an ideal system, a thin film of the catalyst/ionic liquid solution can be immobilized on a highly porous material via physisorption, tethering or covalent anchoring of ionic liquid fragments. The film thickness, which can be very well-controlled by physical vapor deposition, is a crucial point to consider, since during the catalytic reaction the reactants have to reach the active metal species through the film surface and the product has to diffuse back and pass through the surface [123].

Riisager et al. first reported the gas phase hydroformylation of propylene with a SILP catalyst consisting of 1-butyl-3-methylimidazol-3-ium hexafluorophosphat [BMIM][PF₆] or the halogen-free 1-n-butyl-3-methylimidazolium n-octylsulfate [BMIM][OctSO₄] as an ionic liquid supported on SiO₂ in a fixed bed reactor. [Rh(CO)₂(acac)] was used in combination with the Sulphoxantphos ligand. The materials prepared from [BMIM][PF₆] exhibited TOFs of up to 37 h⁻¹ and regioselectivity’s for the n-aldehyde of up to 96% under propylene hydroformylation conditions (w_Rh = 0.2 wt %, T = 373 K, p = 1.0 MPa, C₃H₆:CO:H₂ = 1:1:1, GHSV = 7000 h⁻¹_, performing the experiments at a propylene conversion of X ≈ 1%). The effect of the variation of the [BMIM] ionic liquid anions from [PF₆] to [OctSO₄] on the catalytic performance of the catalysts was not significant, and both catalysts show similar activity and selectivity values under identical conditions [124]. The Rh-Sulphoxantphos /[BMIM][OctSO₄] system has a fair long-term stability evaluated from data of 60 h on stream under hydroformylation conditions [125].

Kinetic studies of the Rh-Sulphoxantphos/[BMIM][OctSO₄]/SiO₂ SILP catalyst in the hydroformylation of propylene in a fixed bed reactor have shown that TOF values of up to 500 h⁻¹ under the best reaction conditions (n_Rhodium = 8.17∙10⁻⁵ mol, T = 413 K, p = 1.0 MPa, p_C3H6 = 0.32 MPa, H₂:CO = 1:1, τ = 0.9 s) could be achieved. The regioselectivity toward n-butanal was shown to be 87%. Nevertheless, an activity loss of approximately 17% of the catalyst occurred within 180 h on stream, which was attributed to the formation and absorption of high-boiling side products through aldol condensation within the ionic liquid. Extraction of the side products with cyclohexane and characterization of the species by gas chromatography confirmed the formation of 2-butanol, 2-ethyl-hexanal and 2-ethyl-hexanol, which could also alternatively be removed by evacuation of the reactor. This enabled a full restorage of the catalyst activity. From these data an apparent activation energy for the hydroformylation of propylene was estimated to be 63 kJ∙mol⁻¹, which is in the range of the activation energies obtained with molecular hydroformylation catalysts. This comparison, and the fact that Rh-SILP catalyst perform very similar compared to homogeneous catalysts regarding variations in the syngas composition, provides additional evidence that the Rh-SILP catalyst are present as a homogeneous catalyst in the ionic film immobilized on silica [126].

The effect of temperature on the kinetics of the hydroformylation of propylene using SILP catalysts (Rh-Sulphoxantphos/[BMIM][OctSO₄] on SiO₂) were studied by Hanna et al. It was found that elevated temperatures have profound effects on the regioselectivity and the nature of the rate-determining step as seen in the field of homogenous catalysts. At low temperatures the RDS is the olefin insertion into a Rh–H bond, whereas at higher temperatures the oxidative addition of H₂ becomes rate determining. The variation of the RDS was explained by looking at the elementary reaction steps with the largest Gibbs free energy of activation. The enthalpic energy barrier for olefin insertion is greater than for the oxidative addition step, which causes the olefin insertion to be the RDS at low temperature. At high temperature, however, the enhanced entropy loss leads to the oxidative addition being the RDS of the hydroformylation reaction [127].

Characterization techniques, such as in-situ FT IR, solid-state ³¹P and ²⁹Si MAS NMR of the SILP catalyst (Rh-Sulphoxantphos/[BMIM][OctSO₄] on SiO₂) have suggested that the active form of the catalyst consists of [HRh(CO)₂(Sulphoxantphos)] complexes stabilized through interactions of the sulfonate groups of the ligand with silanol groups of the support (Figure 18) [128].

This assumption was supported by the findings of Riisager et al. since a color change was observed from light red to yellow during the catalytic reaction, which is an indicator for the formation of the [HRh(CO)₂(Sulphoxantphos)] complex [124,125]. The pre-treatment of SiO₂ at temperatures above 373 K decreased the surface density of the silanol groups and increased the acidity of these groups. Consequently, the Sulphoxantphos–support interaction was enhanced, which led to a reduced electron density of the phosphorous lone pairs and consequently a weakened Rh–P coordinative bond. This causes the catalytic activity of the SILP catalyst to drop [125,128].

Haumann et al. extended the application of Rh-containing SILP catalyst to the hydroformylation of 1-butene. A rhodium Sulfoxantphos complex was dissolved in [BMIM][OctSO₄] and this solution was supported on silica. A kinetic study in a fixed bed reactor revealed that SILP catalysts are highly active, selective and long-term stable for 120 h on stream in the hydroformylation of butene. The most active SILP catalyst (w_Rh = 0.3 wt %, L/Rh = 10, IL loading = 0.1 (IL volume/support pore volume), supported on SiO₂) achieved TOF values of up to 563.5 h⁻¹ with a pentanal chemoselectivity of 97.1% under following reaction conditions: p = 1.0 MPa, p_1-butene = 0.24 MPa, H₂:CO = 1:1, τ = 17 s. The first order dependency with respect to rhodium indicated that the reaction was not limited by mass transport effects. The hydrogen partial pressure was found to have a positive effect on the reaction rate, whereas the carbon monoxide partial pressure had a slightly negative one [129]. The results from the fixed bed reactor were later on compared to a gradient-free gas-phase loop reactor (Berty type) using the same SILP catalyst (Rh-Sulphoxantphos/[BMIM][OctSO₄] on SiO₂) [130]. The apparent activation energy has been determined between 80 °C and 110 °C at low conversions (10%) and was found to be 64.1 kJ∙mol⁻¹. This value matched the results obtained from the fixed bed reactor studies under similar conditions and is large enough to assume that the SILP catalyst operates under no mass transport diffusion at the conditions applied [126,129]. Stability tests of the catalyst have shown that no ligand degradation took place after 120 h time on stream [130].

Jakuttis et al. further expanded the application of SILP catalysts for the hydroformylation of a mixture of C₄ olefins. The effect of the ligand is studied by preparing and testing SILP catalysts with two different ligands: the well-studied Sulphoxanthphos ligand (Figure 17) and a complex diphosphite ligand (Figure 19). 1-Ethyl-3-methylimidazolium bis(trifluoro-methylsulfonyl)amide ([EMIM][NTf₂]) was used as ionic liquid and SiO₂ as support material [w_Rh = 0.2 wt %, L/Rh = 10, IL loading = 0.1 (IL volume/support pore volume)]. With the diphosphite SILP catalyst a chemoselectivity of more than 99% towards n-pentanal in the hydroformylation of a simulated industrial C₄ mixture (m_catalyst = 3 g, p =1.0 MPa, p_C4 = 0.2 MPa, H₂:CO = 1, flow rate = 13.8 mL∙min⁻¹, 500 ppm of H₂O) could be achieved. The high regioselectivity indicated that the diphosphite SILP catalyst is a very active isomerization catalyst that selectively catalyzes the hydroformylation of 1-butene. No reaction with 2-butenes or the large amounts of isobutene present occurred [131].

Weiß et al. reported the application of nitrogen doped carbon materials as support for SILP catalysts (Rh-Xantphos, [EMIM][NTf₂]) for the hydroformylation of ethylene. Whereas the catalytic activity of SILP catalysts dispersed on commercially available activated carbon was very low, the incorporation of nitrogen functionalities into the surface lead to an enhanced catalytic activity and the suppression of aldol condensation product formation. The nitrogen doped material was obtained by oxidation of the original carbon support followed by functionalization using urea or ammonia [132].

Table 5. Overview of performance data for rhodium based SILP catalysts employed in the hydroformylation reaction of short-chain olefins. TPPTS-Cs1 = tri(m-sulfonyl)triphenyl phosphine tricesium salt.

Support	Ionic Liquid	Ligand	Substrate	TOF (h−1)	Sum-sel.a (%)	n-Regio-sel. (%)	Ref.
SiO2	[BMIM][OctSO4]	TPPTS-Cs	ethylene	800	90	-	[133]
SiO2	[BMIM][OctSO4]	Sulpho- xantphos	propylene butylene	60–500 564	- -	88–96 91	[124,125,126,127,128]

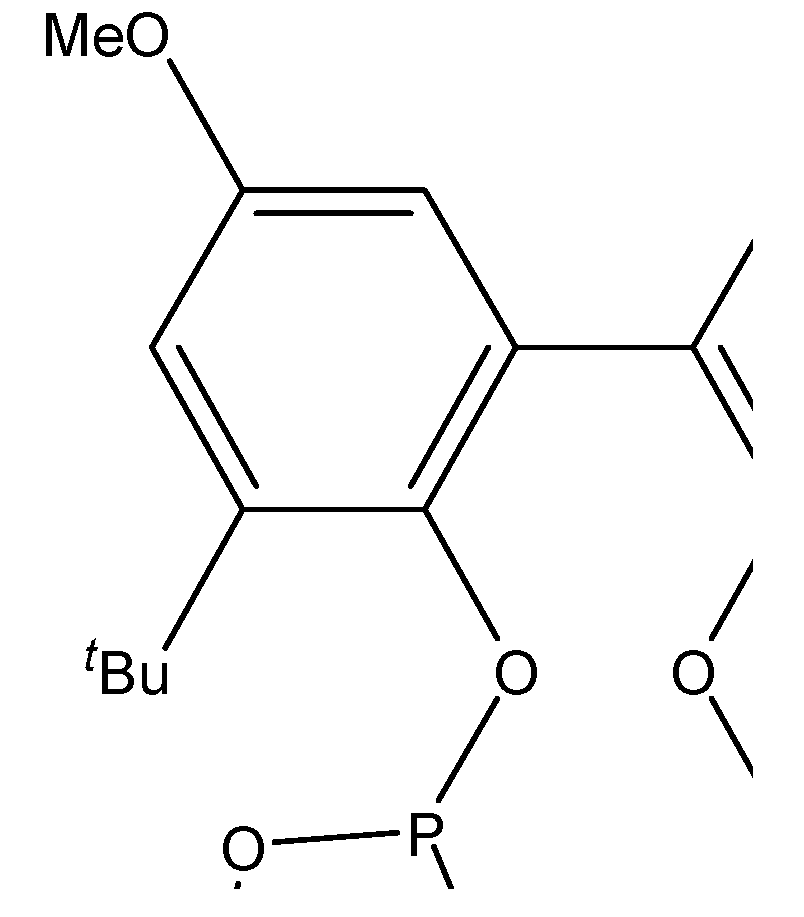

SiO2	[EMIM][NTf2]	Sulpho- xantphos Diphos- phite	C4-mixture	3600	-	99	[130]
N-doped carbon	[EMIM][NTf2]	Xantphos	ethylene	650	95	-	[131]

^a Sum-selectivity towards aldehyde.

gives an overview of the before mentioned rhodium complexes in supported ionic liquids, which were applied in gas liquid hydroformylation.

3.5. Comparison of The Different Heterogeneous Hydroformylation Rh Catalysts with Regard to Performance

In

Table 6. Comparison of performance data for heterogeneous rhodium-based catalysts on SiO₂ mentioned in this review in the hydroformylation of propylene.

Section	Section 3.1	Section 3.2	Section 3.2	Section 3.3	Section 3.4
Catalyst	[Rh4(CO)12]	Rh	PPh3-Rh	Rh2Pb	Rh SILPc
Rh [wt %]	2.24	1.0	1.0	5.07	0.2
C3H6 [%]	32	33.33	33.33	10	32
CO [%]	32	33.33	33.33	50	34
H2 [%]	36	33.33	33.33	10	34
H2O [%]	-	-	-	20	-
Ar [%]	-	-	-	10	-
p [MPa]	0.07	1	1.0	2.0	1.0
T [K]	428	393	393	503	413
GHSV	-	2000	2000	3000	462
Sum-sel.a [%]	75	-	100	87	88
Conv. [%]	-	0.12	27.1	7.3	28.1
TOFbulk [h−1]	0.04	1.2	131	3.5	500
TOFsurf [h−1]	-	-	-	31.8	-
Ref.	[35]	[58]	[58]	[114]	[126]

^a Sum-selectivity towards hydroformylation. ^b Rhodiumphosphide catalyst was reduced at 1173 K. ^c Ionic liquid = 1-butyl-3-methylimidazoliumoctylsulfat (50 wt %), ligand = TPPS, L:Rh = 5.

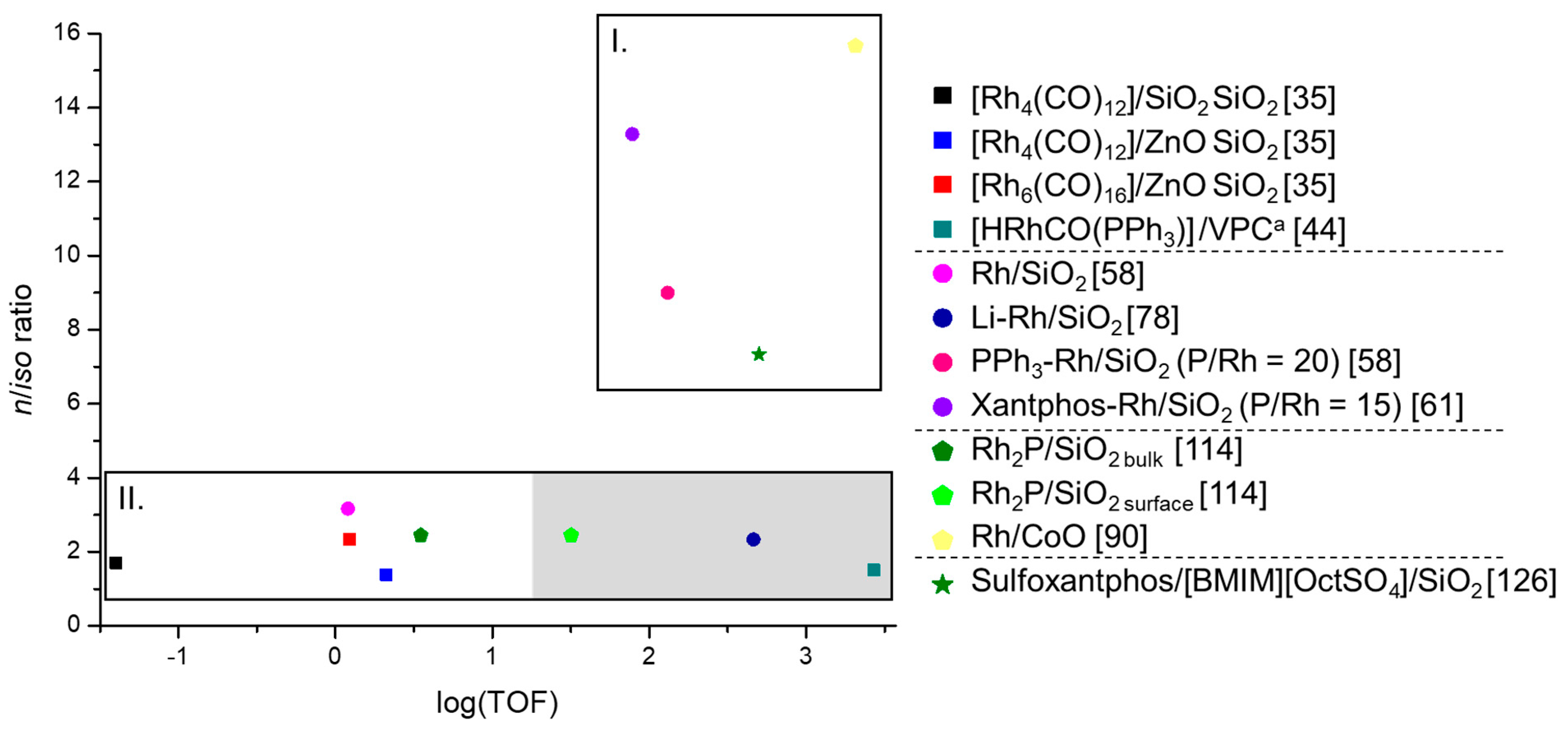

a comparison of the heterogenized Rh-based catalysts from the scientific and patent literature all with SiO₂ as solid supports in the hydroformylation of propylene is shown. One candidate out of each section in this review was selected to pinpoint the performance differences.

The highest turnover frequencies of 500 h⁻¹ could be achieved using a Rh SILP catalyst, reported by Riisager et al. [126], whereas the second highest TOF of 131 h⁻¹ was reported for the ligand-modified Rh nanoparticles (PPh₃ -Rh) [58]. With the rhodium phosphide on SiO₂ a bulk TOF of 3.5 h⁻¹ could be achieved, which corresponds to a surface normalized TOF of 31.8 h⁻¹_. The number of surface-active Rh centers was in this case determined from CO absorption measurements [114]. Wit rhodium nanoparticles on SiO₂ a TOF of 1.2 h⁻¹ was obtained in the hydroformylation of propylene [58]. whereas the rhodium carbonyl clusters Rh₄(CO)₁₂ deposited on SiO₂ only exhibited a TOF of 0.04 h⁻¹ [35]. Despite the very high TOF values that could be achieved using Rh SILP catalysts, one major disadvantage is the formation of condensation products. Up to now no technical measures have been found to avoid this side-product channel, causing severe deactivation of the SILP catalyst.

A broader overview of the performance and selectivity of the before mentioned solid Rh-based catalysts is given in Figure 20, Figure 21,

Table A1. Overview of the heterogenized rhodium-based catalysts mentioned in this review in the hydroformylation of propylene.

Section	Section 3.1
Catalyst	[Rh4(CO)12]	[Rh4(CO)12]	[Rh6(CO)16]	[RhCo3(CO)12]	[Rh2Co2(CO)12]	[HRhCO(PPh3)]c
Rh [wt %]	2.24	0.3	0.3	-	-	-
Support	SiO2	ZnO	ZnO	SiO2	SiO2	VPC
C3H6 [%]	32	32	32	33.33	33.33	33.33
CO [%]	32	32	32	33.33	33.33	33.33
H2 [%]	36	36	36	33.33	33.33	33.33
H2O [%]	-	-	-	-	-	-
Ar [%]	-	-	-	-	-	-
p [MPa]	0.07	0.07	0.07	0.1	0.1	2.9
T [K]	428	423	423	443	443	393
GHSV	-	-	-	-	-	-
Sum-sel.a [%]	75	-	-	67b	80b	100
Conv. [%]	-	-	-	12.6	6.9	-
n/iso ratio	1.7	1.4	2.33	-	-	1.5
TOFbulk [h−1]	0.04	2.1	1.23	396b	252b	2700
TOFsurf [h−1]	-	-	-	-	-	-
Ref.	[35]	[35]	[35]	[41]	[41]	[44]

^a Sum-selectivity towards hydroformylation. ^b TOF calculated for C₃H₇CHO + C₄H₉OH and sum-selectivity calculated for C₃H₇CHO + n-C₄H₉OH. ^c PPh₃ was added.

and

Table A2. Overview of the heterogenized rhodium-based catalysts mentioned in this review in the hydroformylation of propylene.

Section	Section 3.2				Section 3.3		Section 3.4
Catalyst	Rh	Li-Rh	PPh3-Rh	Xantphos-Rh	Rh2Pa	Rh SAC	Rh SILPb
Rh [wt %]	1.0	2	1.0	0.2	5.07	0.2	0.5
Support	SiO2	SiO2	SiO2	SiO2	SiO2	CoO	SiO2
C3H6 [%]	33.33	20	33.33	33.33	10	6	24
CO [%]	33.33	40	33.33	33.33	50	47	38
H2 [%]	33.33	40	33.33	33.33	10	47	38
H2O [%]	-	-	-	-	20	-	-
Ar [%]	-	-	-	-	10	-	-
p [MPa]	1	0.1	1.0	0.2	2.0	1.66	1.32
T [K]	393	413K	393	398	503	373	413
GHSV	2000	-	2000	-	3000	-	-
Sum-sel.a [%]	-	59	100	100	87	-	-
Conv. [%]	0.12	0.85	27.1	<1	7.3	94.6	28.1
n/iso ratio	3.17	2.33	9	13.29	2.45	15.67	7.13
TOFbulk [h−1]	1.2	462	131	78	3.5	2065	500
TOFsurf [h−1]	-	-	-	-	31.8	-	-
Ref.	[58]	[78]	[58]	[61]	[114]	[90]	[126]

^a Sum-selectivity towards hydroformylation. ^b Ionic liquid = 1-butyl-3-methylimidazoliumoctylsulfat, ligand = Sulphoxantphos.

. From Figure 20, which shows the sum-selectivity towards hydroformylation versus the logarithm of the TOF, it becomes obvious that the catalysts can roughly be grouped into four categories. The supported rhodium carbonyl complexes (category I) show a quite low catalytic activity with arbitrarily normalized sum-selectivity’s of 100%, whereas the supported Rh₂P-based catalyst is a candidate, which offers a very good compromise between catalytic activity and selectivity (category II). Higher TOFs can be achieved using Rh-Co based supported catalysts as well as lithium-modified Rh nanoparticles (category III). However, these catalysts only show sum-selectivity’s between 65% and 80% towards butanal. The highest sum-selectivity’s as well as a good catalytic performance can be achieved using Rh-based catalysts in the presence of organic, more precisely phosphine, ligands (category IV), such as Xantphos-Rh/SiO₂, PPh₃-Rh/SiO₂ and [HRhCO(PPh₃)]/VPC.

A similar effect can be observed for the n/iso ratio of butanal depending on the TOF. As seen before, the presence of phosphine ligands is found to lead to an enhanced regioselectivity towards n-butanal and therefore to an increased n/iso ratio. However, not only phosphine ligands may have a positive effect on the regioselectivity in the hydroformylation of propylene, but also the coordinating oxygen atoms, as seen in the case of the single-atom catalyst Rh/CoO (category I). Apart from the ligand nature, in all of these cases a Rh oxidation state greater than 0 (Rh^δ+, 0 < δ) seems to play an important role in improving the activity and selectivity of olefin hydroformylation. This finding is in accordance with the mechanistic considerations in the area of homogeneous catalysis and shows that heterogenized Rh-based catalysts have the potential to bridge the gap between homogeneous and heterogeneous catalysis. Rh-based catalysts without the presence of phosphine ligands tend to show a lower regioselectivity (category II). However, Rh₂P/SiO₂, Li-Rh/SiO₂ and [HRh(CO)(PPh₃)]/VPC, marked in grey in Figure 21, exhibit similar TOF values to highly active and selective category I catalysts. Hereby it must be mentioned that the TOF for the Rh₂P-based catalyst is calculated based on the accessible surface Rh atoms determined by CO adsorption.

4. Conclusions

Over the last 40 years, various studies on different material classes concerning the catalytic hydroformylation of olefins using heterogenized catalysts have been published. The main driving force for this ongoing research has been the need for highly active and selective catalysts with an easily manageable catalyst recovery in order to avoid losses of precious metals and potentially expensive ligand materials.

In this review we have discussed four different systematic material approaches for the heterogenization of hydroformylation catalysts. Firstly, the deposition of molecular rhodium complexes, such as carbonyl complexes, on various support materials was described. As additional ligands mainly phosphine and phosphite ligands have been utilized in the past. Additionally, a large amount of research efforts has been invested to develop various nanoparticle-based materials. In order to enhance the activity and selectivity of catalysts ligand- and metal-modified nanoparticles have been explored. Most recently, single-atom catalysts have been employed in the hydroformylation of short-chain olefins. A very interesting material in this context is the supported rhodium phosphide Rh₂P on SiO₂. Furthermore, rhodium complexes in supported liquids have been investigated and show high catalytic activities. As part of this review we gave a broad overview of the performance of different catalysts and compared sum-selectivity’s as well as n/iso ratios of the hydroformylation of propylene depending on the catalytic activity. This will give a solid basis for the performance evaluation and classification of novel heterogenized Rh-based catalysts in comparison with already existing materials.

Overall, we can state that the kinetic and mechanistic evaluation using heterogenized Rh-based catalysts in the field of hydroformylation is a very demanding topic. However, recently much insight into this came from the progresses made in the field of sophisticated computational methods and the enhanced availability of computing power. Also, the development of spectroscopic and X-ray based techniques as well as electron microscopy enables a detailed catalyst characterization on an atomic level even under reaction conditions. We emphasized the importance of the interplay of various analytic techniques for the in-depth investigation of the hydroformylation reaction mechanism using the Rh₂P-based catalyst.

Despite the challenges encountered in the determination of the reaction mechanism and the catalytically active species, there are common issues that have been discussed in the literature. For example, the solid support and the interaction of the support with the Rh metal species deposited on it has a huge influence on the catalytic performance. In this context, also the oxidation of Rh(0) to Rh(I) by the solid support has been described in various publications. However, there is still no clear answer for all of the materials reported to the question of whether Rh(0) or Rh(I) is responsible for the catalytic activity towards the hydroformylation of short-chain olefins. Our catalytic performance and selectivity evaluation of various Rh-based catalysts has shown that the surrounding atoms of the Rh centers definitely play a major role in this context and that a Rh oxidation state greater than 0 seems to have an activity and selectivity enhancing effect in the hydroformylation of propylene. Another point to mention is the fact that the CO adsorption mode on the catalytically surface is a crucial point to consider when discussing activity and selectivity behavior of the materials. A common general finding has been shown that linear bound CO appears to be more reactive in hydroformylation reactions that other surface coordination geometries, such as gem-dicarbonyl species or bridging CO molecules for example.

We believe that in the next years the field of heterogeneous hydroformylation catalysis will grow further and attract attention not only in an academic environment but also in an industrial context. Since the synthetic toolbox for the heterogenization of rhodium-based catalysts is very extensive and continuously expands, through the use of different Rh precursors, additional ligands or coordinating matrices, as well as the application of various liquid and solid support materials, new directions for the development of novel catalysts are opened. In this context advanced analytic techniques and computational methods will be of major importance and may provide further insights as well as additional options. We hope that this review gave an overview of the available synthetic strategies and enhances the understanding of heterogeneous hydroformylation catalysis also on an atomic level. At this point we would like to emphasize the importance of a detailed mechanistic and kinetic knowledge of the hydroformylation catalysts is for the future tailor-made development of more advanced catalysts.
