Electrocatalytic Degradation of Azo Dye by Vanadium-Doped TiO₂ Nanocatalyst

Abstract

In this work, nano V/TiO₂ catalysts at different molar ratios were prepared and fabricated as the electrocatalytic electrodes for electrocatalytic degradation. The effect of the vanadium doping on the surface morphology, microstructural, and specific surface area of V/TiO₂ catalysts was probed by field emission scanning electron microscope (FESEM) x-ray diffractometer (XRD), and Brunauer–Emmett–Teller (BET), respectively. Afterward, the solution of Acid Red 27 (AR 27, one kind of azo dye) was treated by an electrocatalytic system in which the nano V/TiO₂ electrode was employed as the anode and graphite as the cathode. Results demonstrate that AR 27 can be effectively degraded by the nano V/TiO₂ electrodes; the highest removal efficiency of color and total organic carbon (TOC) reached 99% and 76%, respectively, under 0.10 VT (molar ratio of vanadium to titanium) condition. The nano V/TiO₂ electrode with high specific surface area facilitated the electrocatalytic degradation. The current density of 25 mA cm⁻² was found to be the optimum operation for this electrocatalytic system whereas the oxygen was increased with the current density. The electricity consumption of pure TiO₂ and nano V/TiO₂ electrode in this electrocatalytic system was around 0.11 kWh L⁻¹ and 0.02 kWh L⁻¹, respectively. This implies that the nano V/TiO₂ electrode possesses both high degradation and energy saving features. Moreover, the nono V/TiO₂ electrode shows its possible repeated utilization.

1. Introduction

Textile wastewater containing dyes possesses some undesirable qualities such as high color, extreme pH variation, high temperature, high chemical oxygen demand (COD), and low biodegradability. These characteristics make wastewater more complicated, which results in a highly difficult treatment to meet discharge standards [1,2]. The quantity of dyes produced in the world is about 800,000 tons each year, in which half of these are azo dyes. Azo dyes are not only widely used in the textiles industry, but are also used in printing and cosmetics manufacturing [3]. Unfortunately, 15–25% of the dye will be lost during the dying process and maybe directly released into the environment. Once the high color wastewater is accidentally discharged into natural water bodies such as rivers and lakes, the biological self-purification of the water body will be disturbed and cause damage to the ecological environment [4,5].

To effectively remediate such wastewater, advanced oxidation processes (AOPs) have been widely employed. AOP techniques include photocatalysis, Fenton oxidation, electrocatalytic oxidation, and a combination of the above processes [6,7,8,9]. Among these AOPs, the electrocatalytic technique presents several advantages including easy operation, simple instrumentation, and little sludge generation [10,11]. In an electrocatalytic system, the direct current is applied to the catalytic material (usually served as the anode) to produce strong oxidants (i.e., •OH), which effectively destroys organic contaminants by the oxidation reaction [8]. The electrocatalytic oxidation mainly depends on the process of electron transfer to yield such “clean” oxidants (water molecule spilt) [12]. Based on our previous research, the production rates of •OH per unit area and power was 4.5 × 10⁻⁵ M/W cm² and 3.9 × 10⁻⁵ M/W cm² by the electrocatalytic and photocatalytic systems, respectively [13]. Accordingly, the electrocatalytic oxidation demonstrates better •OH production rates under the same applied energy and catalyst surface area. The research also suggests that an electrocatalytic system executes better organic pollutant degradation for wastewater treatment.

The electrode material plays a key role in the electrocatalytic process, and many materials such as TiO₂, PbO₂, SnO₂, and boron-doped diamond (BDD) have been investigated for decades. Among the many kinds of electrocatalysts, TiO₂ is relatively cheap and has the properties of strong oxidation capacity, high chemical stability, and high energy gap [14,15], therefore, it has been widely used in the treatment of various organic pollutants. In order to enhance the photocatalytic degradation, TiO₂ has been doped with transition metal ions such as V, Fe, Mo, Pd, and Nb to reduce the optical energy gap [16]. In particular, vanadium-doped TiO₂ can significantly reduce the energy gap from 3.0–3.2 eV to 2.5–2.7 eV [17,18]. The decrease in the bandgap of the vanadium doped TiO₂ results in visible range excitation and hydroxyl radical generation with low energy. Such vanadium-doped catalysts are usually applied for photocatalytic degradation and the adsorption of pollutants [19,20]. Compared to the photocatalysis, the electrocatalyst can also produce •OH with high oxidation capacity. As such, the vanadium-doped TiO₂ catalyst used in the electrocatalytic technique has potential not only to produce •OH under a lower electric field, but to also enhance the electrochemical reaction of pollutants. To further obtain high effectiveness of application, the high specific surface area of the catalyst (i.e., nano size particle) is a useful approach. Accordingly, the vanadium-doped TiO₂ nanocatalyst used for electrocatalytic treatment is an innovative approach compared to the currently well-known electrocatalysts.

AR 27 is carcinogenic and classified as an endocrine-disrupting substance [21], which is widely used in food, cosmetic, and pharmaceutical products. It typically causes some adverse effects on the natural environment [22], moreover, its inadvertent ingestion induces various health problems. AR 27 is an anionic monoazo dye that has good solubility in water and is not easily handled by traditional physical and chemical wastewater processes [23]. In this work, the nano-vanadium-doped TiO₂ (nano V/TiO₂) electrode was manufactured by a sol-gel dip-coating method. The effects of manufacturing parameters on catalyst properties including the microstructure, crystal structure, and specific surface area, etc. were investigated respectively. The degradation efficiency of AR 27 dye in an electrocatalytic system by nano V/TiO₂ electrodes was evaluated to find the optimal operational parameters.

2. Results and Discussion

2.1. Surface Characteristics of Nano Vanadium-Doped TiO₂ (V/TiO₂₎ Electrode

Figure 1 shows the field emission scanning electron microscope (FESEM) images of different electrodes. From Figure 1a, it was observed that the TiO₂ particles could effectively be coated on the titanium substrate by this experimental method. The catalyst mainly exists in the form of round shape particles and has an average size of about 30 nm. Although these particles were arranged in an orderly manner, it had a few impurities on the surface of the catalyst. Figure 1b shows that the particle size of the 0.05 VT catalyst was slightly larger than TiO₂ due to the doping of vanadium metal, and the average particle size was about 50–80 nm. Meanwhile, the surface of the catalyst was uneven and some particles accumulated into clumps. Figure 1c shows that the particle arrangement of 0.10 VT is regular and catalysts surface also gradually even; with the average particle size of about 50–100 nm. The particle size of the 0.30 VT catalyst was changed insignificantly and the particle accumulation also became dense (Figure 1d). The real difference is that many long column structures had been produced on the 0.30 VT surface. A similar result was also found by Li et al., whose results showed that the catalysts appeared rod-like shape under the doping of different vanadium weight percentages [24]. From the microstructure observed, the particle accumulation increased with the molar ratio of V to Ti, and the catalyst surface became even. Furthermore, many similar columnar structures appeared on the catalyst surface when the vanadium doped was increased to 0.30 VT. To understand the difference of the vanadium–titanium molar ratios of the prepared catalysts between the theoretical and real, the element ratio of vanadium to titanium atoms in different catalysts was analyzed by energy-dispersive x-ray spectroscopy. It was found that the atomic percentage of titanium in the 0.05 VT, 0.10 VT, and 0.30 VT catalysts were 35.43%, 33.88%, and 28.39%, whereas that of vanadium was 1.45%, 3.40%, and 7.71%, respectively. After conversion, the actual V/Ti ratios were 0.041, 0.10, and 0.27, which was very close to the prepared catalysts in this study.

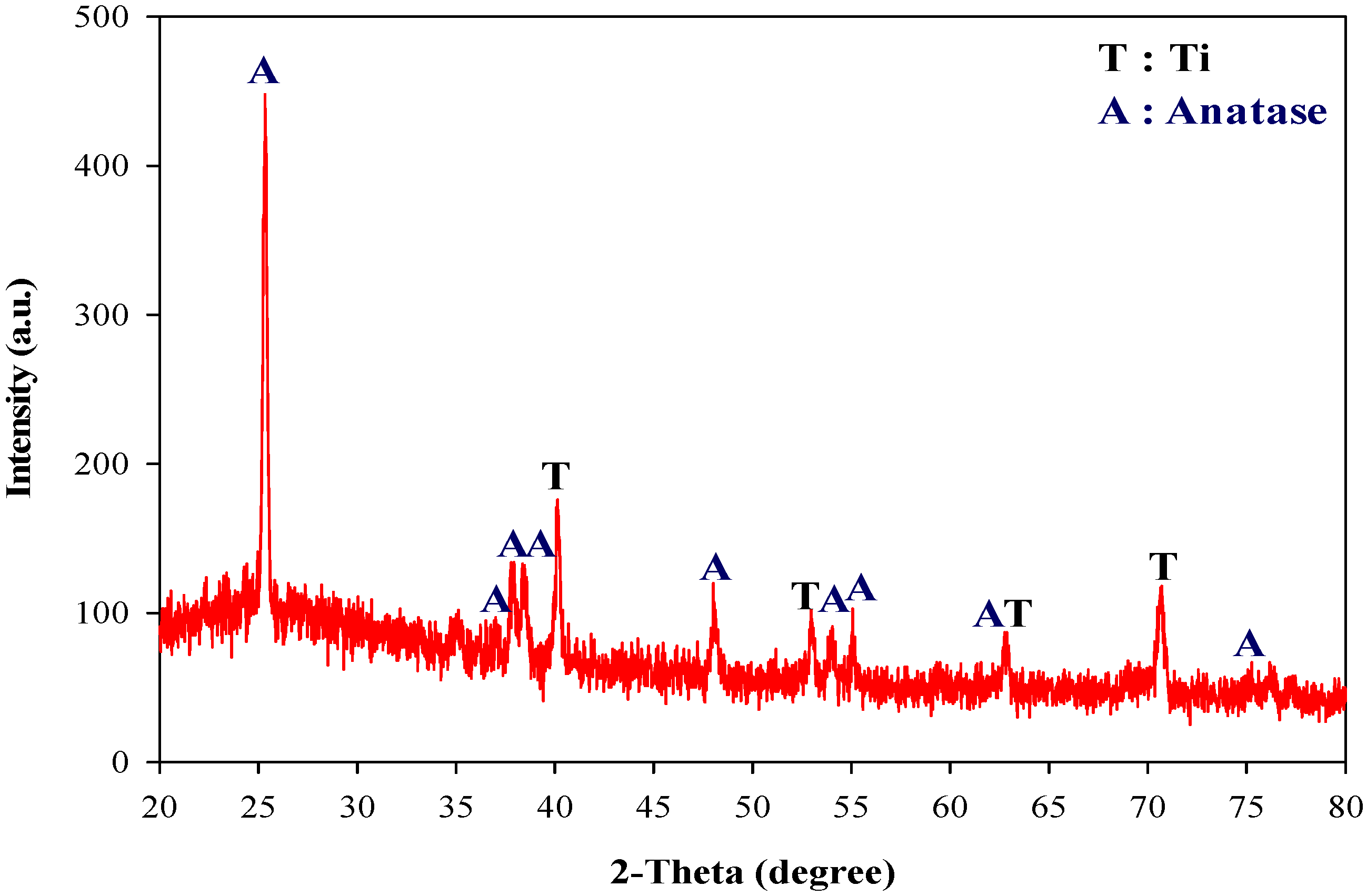

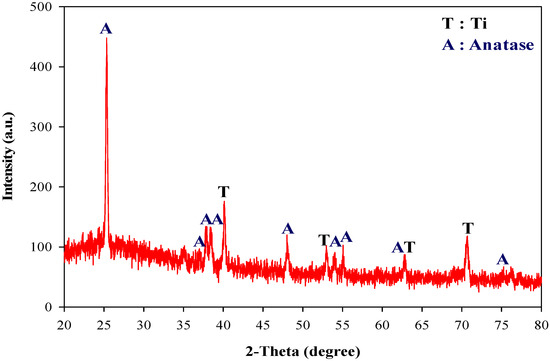

The crystal structure of the different electrodes identified by the x-ray diffraction analyzer and the resultant peaks were well-matched with the JCPDS (Joint Committee on Powder Diffraction Standards) database. Figure 2 shows the XRD pattern of the 0.1 VT electrode. Along with the Ti peak generated from the substrate, diffraction peaks observed at 25.3°, 37°, 37.8°, 48°, 53.8°, 55°, and 75° belonged to the anatase of titanium dioxide [25,26]. Compared to the pure TiO₂ electrode, the ratio of the anatase crystal was insignificantly decreased (89.6% of pure TiO₂ and 86% of 0.10 VT), however, the crystal ratio significantly changed when the molar ratio of V to Ti was increased to 0.30. Although the anatase crystal still dominated (about 56.6%), the peak of rutile found at 27.4°, 36.1°, and 54.3° of 2θ [27], and the peaks of V₂O₅ crystals were also produced (data not shown).

The specific surface areas of all electrodes in this study are shown in

Table 1. The specific surface area of all electrodes.

Electrode	Specific Surface Area (SBET) (m2 g−1)
Pure TiO2	38
Nano V/TiO2 (0.05 VT)	51
Nano V/TiO2 (0.10 VT)	96
Nano V/TiO2 (0.30 VT)	79

. The vanadium-metal increased the specific surface area of the electrode, especially in a 0.10 molar ratio of V to T. The result shows that the specific surface area of the pure TiO₂ electrode was about 38 m² g⁻¹ and the highest was obtained with the 0.10 VT electrode, which was about 96 m² g⁻¹. The high specific surface area of 0.10 VT was attributed to the evenly arranged particles and an increase in the number of catalyst particles. Although 0.30 VT was similar in particle size to 0.10 VT, many columnar structures were produced on the surface, which resulted in a decrease in the specific surface area from 96 to 79 m² g⁻¹. Shee et al. observed that the changes took placed in the specific surface area when 2–10 wt% V₂O₅ was added to the composite oxide of TiO₂–Al₂O₃. The specific surface area of 2 wt% V₂O₅ was 91 m² g⁻¹ and it was significantly decreased to 73 m² g⁻¹ at 10 wt% of V₂O₅. The result suggests that the addition of V₂O₅ of more than a certain amount resulted in a reduction of the specific surface area [28]. Hence, the appropriate doping of vanadium ions can increase the specific surface area of the catalyst, with more reactive sites to degrade the dye.

2.2. Variation of the Color and Total Organic Carbon (TOC) under Different Electrodes

This study investigated the color degradation and the TOC mineralization of AR 27 dye by the electrocatalytic system. To clarify the effect of the laboratory fluorescent light in the degradation process, the dye was tested by stirring under the fluorescent light of wavelengths 435 nm, 545 nm, and 611 nm with the light intensity less than 1 mW cm⁻². The whole experiment was performed without a catalytic electrode and controlled at different pH values (3, 6, and 9). The results showed that the dye color and TOC were almost unchanged and the removal efficiencies were lower than 2.2% and 1%, respectively. This indicates that the effect of fluorescent light could be ignored in the degradation of AR 27 dye.

Furthermore, the adsorption efficiency of AR 27 dye in different catalytic electrodes was carried out. The results showed that the adsorption efficiency of the pure TiO₂ electrode at pH 3 was slightly higher than that of the vanadium-doped electrode. The color removal efficiency of the pure TiO₂ electrode was about 8%, while the other electrodes were lower than 2% at 120 min of reaction time. In general, the pHzpc value of the TiO₂ catalyst is about 5.8. As the pH value of the solution is lower than the pHzpc of TiO₂, the catalyst surface will carry a positive charge (Equations (1) and (2)) [27]. The status makes it easier for the anionic dye molecules to become adsorbed on the surface of the pure TiO₂ catalyst. In contrast, the vanadium-doped catalytic electrodes (0.05 VT, 0.10 VT, and 0.30 VT) adsorption effect was insignificant, and the removal efficiencies were less than 2%. Therefore, the influence of the adsorption reaction in the degradation of the AR 27 dye can be excluded.

pH < pH_zpc → TiOH + H⁺ ↔ TiOH₂⁺

(1)

pH > pH_zpc → TiOH + OH⁻ ↔ TiO⁻ + H₂O

(2)

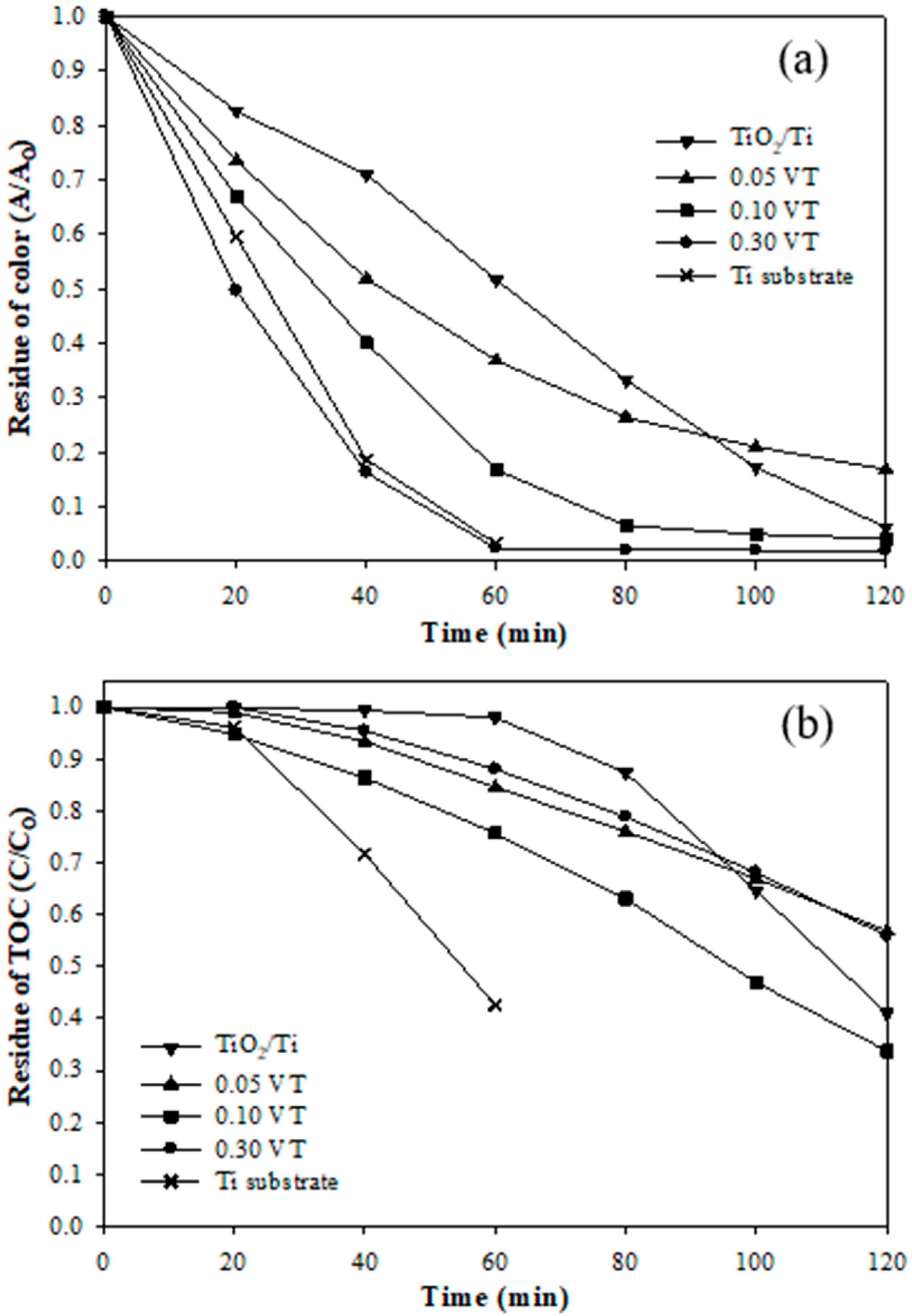

Figure 3 shows the residue of color and TOC at the different catalytic electrodes with operating time. The color removal efficiencies of the TiO₂, 0.05 VT, 0.10 VT, and 0.30 VT electrodes were 94%, 83%, 96%, and 98%, respectively. This result indicated that dye color can effectively be removed by the electrocatalytic process. It can be observed that in the 60 min degradation reaction, the removal efficiency of the vanadium-doped catalyst was significantly better than that of the TiO₂ electrode, with the removal efficiency of 97%, 83%, 63%, and 48%, respectively (0.30 VT > 0.10 VT > 0.05 VT > TiO₂). This phenomenon is most evident that the removal efficiency increased with the vanadium concentration and indicates that the vanadium metal doping to TiO₂ can effectively increase the color removal. Figure 3b shows the TOC residue of the AR 27 dye in different catalytic electrodes. The TOC removal efficiencies of 0.10 VT, TiO₂, 0.30 VT, and 0.05 VT were 66%, 59%, 44%, and 43%, respectively in the treatment time of 120 min. The 0.10 VT had the best TOC mineralization, which was due to the significant effect of the particle arrangement, crystal composition, and the specific surface area.

From the surface structure of the 0.10 VT electrode, the catalyst particles were arranged neatly and uniformly, with no apparent hole produced, which may have a better electron transfer rate for degrading the AR 27 dye. Additionally, the high specific surface area of the catalyst possessed more active sites, which enhanced the contact area between the pollutants and catalyst surface, and hence the degradation efficiency was increased. The 0.10 VT catalytic electrode had the highest specific surface area (96 m² g⁻¹), which is consistent with the degradation efficiency of the AR 27 dye.

It was observed that the Ti substrate in the color removal and TOC mineralization had specific effects. The removal efficiencies of color and TOC by the Ti substrate were 96.7% and 57.5%, respectively, at an operating time of 60 min. The removal efficiency of the Ti substrate was much higher than that of the other electrodes at the same operation time. Considering the voltage trend of the system, the voltage variation of the Ti substrate rose to 146 V for 20 min operation and the voltage reached 160 V at 60 min operation. At the same time, the temperature was raised to about 90 °C. Such conditions are not suitable in practical application. In addition, the TOC removal efficiency of the pure TiO₂ electrode could reach 59% at 120 min of operation time, and the voltage rose significantly after 60 min of operation. These results indicate that the TOC removal has a substantial correlation with the reaction voltage. In contrast, the catalytic electrode after vanadium doped not only had a positive effect on the degradation of pollutants, but also required a relatively small reaction voltage in this electrocatalytic system operation. We speculate that the voltage drop was due to the addition of transition metal to the titanium dioxide, which increased additional charge carriers and effectively reduced the electrical resistance of the material, thereby changing the electronic structure of the original titanium dioxide [29].

According to the x-ray photoelectron spectroscopy (XPS) analysis, the catalyst electrodes doped with vanadium metal at different ratios in this study showed the existence of two bands in the V 2p single-element energy spectrum, which were 513.2~518.9 eV (V 2p_3/2) and 520.4~525.5 eV (V 2p_1/2). For Supplementary Figure S1, the V 2p_3/2 diffraction peak of 0.05 VT was 516.2 eV, for 0.10 VT it was 516.6 eV, and 0.30 VT was 517 eV. In addition, the V 2p_1/2 diffraction peak of 0.05 VT was 523.6 eV, for 0.10 VT it was 523.8 eV, and the 0.30 VT was 524.4 eV. Since the diffraction peak of V 2p_3/2 was between 516.6 eV and 517.3 eV, it indicates that both V⁴⁺ and V⁵⁺ exist [30]. In addition, when the diffraction peak of V 2p_3/2 was between 516.8 eV and 516.9 eV or 516.4 eV and 517.4 eV, V⁵⁺ was present, and between 515.4 eV and 515.7 eV or 516.3 eV was V⁴⁺ [31,32]; for the V 2p_1/2 diffraction peak at 523.6 eV, it was V⁴⁺ and at 524.5 eV it was V⁵⁺ [33]. The results confirmed that V had been doped on the surface of the catalyst, which mainly existed in the form of V⁴⁺ and V⁵⁺ bonds. At the nano V/TiO₂ catalyst anode, the V⁴⁺ was oxidized to form V⁵⁺ (Equation (3)). Then, the V⁵⁺ reacted with the hydroxide ion to form hydroxide radicals (Equation (4)) [34], or the hydroxide ions carried out electrochemical oxidation (Equation (5)), which promoted the degradation of the AR 27 dye. Considering the pH trend of the wastewater, the vanadium doped catalyst electrode increased the initial value of 5.9 to a maximum of 7.1 (data not shown) while the pure titanium dioxide was increased to 10. The vanadium doped electrode changed the pH value to a small extent, which met the results of Equations (4) and (5).

V⁴⁺ → V⁵⁺ + e⁻

(3)

V⁵⁺ + OH⁻ → V⁴⁺ + •OH

(4)

OH⁻ → •OH + e⁻

(5)

As far as the conductivity of the wastewater was concerned, the titanium dioxide electrode increased from 4650 µS cm⁻¹ to 4930 µS cm⁻¹. The remaining doped catalyst electrodes increased the value to the highest of 4821 µs cm⁻¹. The results show that the variation of conductivity remained relatively stable in this electrocatalytic system. The temperature change in water quality is also an important environmental indicator. According to the changing trend, it can be seen that the titanium dioxide electrode increased the temperature from 23 °C to 80 °C, and the other vanadium-doped catalyst electrodes to 60 °C, indicating that vanadium-doped electrodes can reduce the temperature of the system. The electrocatalytic technique is suitable for advanced wastewater treatment after biological treatment, where the color remains sustained in the pollutants, even when the organic matter has been decomposed. The current electrocatalytic technique can quickly decolorize the dye. According to the results of this study, the color can be effectively removed under the vanadium-doped electrode at 1 h of operation time. At this time, the increase in temperature remains relatively gentle (increased about 38 °C). Therefore, the vanadium-doped electrode can achieve color removal with less energy consumption.

In the current electrocatalytic system, dye decolorization occurs through anodic oxidation [35], partial cathodic reduction [36], and some other complex procedures. The research on the degradation and decolorization of pollutants caused by oxidation or reduction will be discussed in subsequent studies. AR 27 dye is mainly composed of the azo bond (N=N), naphthalene ring, and sulfonic groups (SO₃H), in which the azo bond has the most active site in the degradation reaction. The first step of degradation of the AR 27 dye takes place by an oxidant (•OH) carrying out N–N bond cleavage, which leads to quick decolorization of the dye. Then, the amine’s aromatic compound is produced [37], followed by further oxidation. After the successful cleavage of the azo bond, the sulfuric acid group in the amines is removed and the two isomers are generated. After a series of oxidation reactions by the oxidants, the isomers are converted into phthalic anhydride and subsequently transferred into benzoic acid derivate and phenol products. In the next step, the oxidation of the aromatic ring through •OH takes place to form the phenol hydroxyl derivatives, which are subsequently converted into aliphatic acid intermediates by the breakdown of the aromatic ring structure. The intermediate products include m-hydroxy-benzoic acid, malonic, and oxalic acid, and the final mineralized to CO₂ and H₂O. A detailed degradation pathway of AR 27 has been published by Steter et al. [35]. This experimental result shows that the nano V/TiO₂ electrode can effectively mineralize AR 27 with a high removal efficiency of TOC.

2.3. Variation of the Color and TOC under a Different Current Density

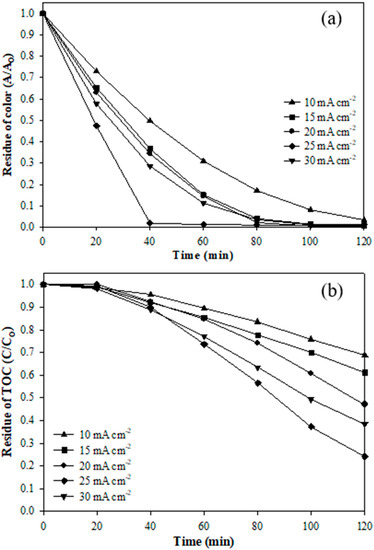

Figure 4 shows the color and TOC residues of the 0.10 VT catalytic electrode at different current density. Figure 4a indicates that the color was stably removed under the current density of 10 mA cm⁻², for which the removal efficiency was about 97%. When the current density was controlled at 15 and 20 mA cm⁻², the removal efficiency reached 96% and 98%, respectively. As the current density was increased to 25 mA cm⁻², the color removal efficiency rapidly reached 98% at 40 min treatment, which showed a significant reduction in the operating time. The degradation of dye was attributed to the generation of a high concentration of hydroxyl radicals under a high current density, which destroys the chromogen to achieve fast color removal [4]. Figure S2 shows the color change of the AR 27 dye with a current density of 25 mA cm⁻². It was observed that the original color of AR 27 was purple-red and the water sample became almost transparent and colorless after 40 min of treatment, indicating that the 0.10 VT electrode can rapidly and effectively remove the AR 27 dye in the wastewater. Figure 4b shows the TOC residue of the 0.10 VT electrode at different current densities. It was found that the removal efficiencies of TOC were 31% and 38% when the electrocatalytic system was provided with a relatively low current density (10 and 15 mA cm⁻²). The degradation mechanism of pollutants by the electrocatalyst is divided into direct oxidation of the electrode and the indirect oxidation of organic matter by hydroxyl radicals [38]. As the current density is lower, not only is the ability of direct oxidation limited, but also the generation of hydroxyl radicals.

The removal efficiency of TOC in the dye was significantly improved under the current density of 25 mA cm⁻², where the highest was reached at around 76%. Theoretically, the electron transfer rate of pollutants increased with the current density, resulting in higher removal efficiency [38]. However, the hydrolysis reaction was intense when the current density increased to 30 mA cm⁻² and the by-product oxygen was also produced rapidly due to the high current density [39,40]. Oxygen will take part in a competitive reaction with the pollutants, resulting in a decrease in hydroxyl radicals to degrade the TOC. Therefore, the 25 mA cm⁻² current density is the most suitable operation for this experiment. Additionally, this study evaluated the kinetic mode for degrading the AR 27 dye. The TOC mineralization was more consistent with the zero-order reaction kinetic, and the 0.10 VT had the maximum reaction rate constant (k = 1.06 × 10⁻⁶ M min⁻¹). Furthermore, the color removal with different catalytic electrodes was more consistent with the first-order reaction kinetic.

To understand the cost of electrocatalytic degradation, the energy consumption of different electrodes was calculated. The electrical consumption of dye decolorization was evaluated by the overall electrocatalytic reaction as well as the oxidation, reduction, and other electrochemical reactions. Since the color removal efficiency of the 0.05 VT catalytic electrode was about 80% at 120 min of treatment, it was used as a calculation standard.

Table 2. The electricity consumption of all electrodes for the decolorization of AR 27.

Item	Pure TiO2	0.05 VT	0.10 VT	0.30 VT
Average voltage (V)	74	46	48	39
Treatment time (min)	100	120	60	40
Electrical consumption (kWh L−1)	0.11	0.08	0.04	0.02

shows the electrical consumption of different catalytic electrodes. The electrical consumptions of pure TiO₂, 0.05 VT, 0.10 VT, and 0.30 VT were 0.11, 0.08, 0.04, and 0.02 kWh L⁻¹, respectively. Considering the reaction voltage of TiO₂ was much higher than that of the vanadium-doped catalytic electrodes and the operation time was longer, the energy consumption was 2.75 and 5.5 times for the 0.10 VT and 0.30 VT, respectively. A small amount of V₂O₅ (vanadium oxide) was produced after doping the vanadium metal to TiO₂ in this study. Based on the electrical conductivity of the material, the TiO₂ and V₂O₅ were noted to be 10⁻⁵~10⁻⁸ S m⁻¹ and 10⁻³~10⁻⁵ S m⁻¹, respectively [41]. This confirms that the change in the conductivity of the electrocatalytic system takes place with the formation of vanadium oxide. Moreover, in the analysis of the electrochemical with voltage–current response curve in this study, the maximum current density of TiO₂ was 7.27 mA and 0.30 VT was 12.2 mA under the fixed voltage of 3.0 V (data not shown), which shows that the vanadium doped electrode has a relatively high response current. Therefore, the vanadium doped electrode can save the cost of electricity consumption in this electrocatalytic system.

Karkmaz et al. used the Degussa P-25 titanium dioxide powder to degrade AR 27 (TOC of 17 mg L⁻¹), and irradiated it with a 125 W high-pressure mercury lamp with a photon flux of 6 × 10⁻⁶ mol photons s⁻¹. The report showed that the color of the dye could be completely removed under UV light for 2.5 h and the removal efficiencies of COD and TOC were 65% and 30%, respectively [42]. In the electrochemical degradation, the 100 mg L⁻¹ of AR 27 dye was tested on the boron-doped diamond electrode (BDD) at a current density of 35 mA cm⁻². The data indicated that a TOC removal efficiency of 92% could be obtained after 90 min of operation [35]. According to their results, the electrocatalytic system possessed higher treatment efficiency than the photocatalyst due to the advantage of treatment time and TOC mineralization. Additionally, the cost of the vanadium doped TiO₂ catalytic electrode is relatively low when compared with the BDD electrode, which increases the potential of practical application.

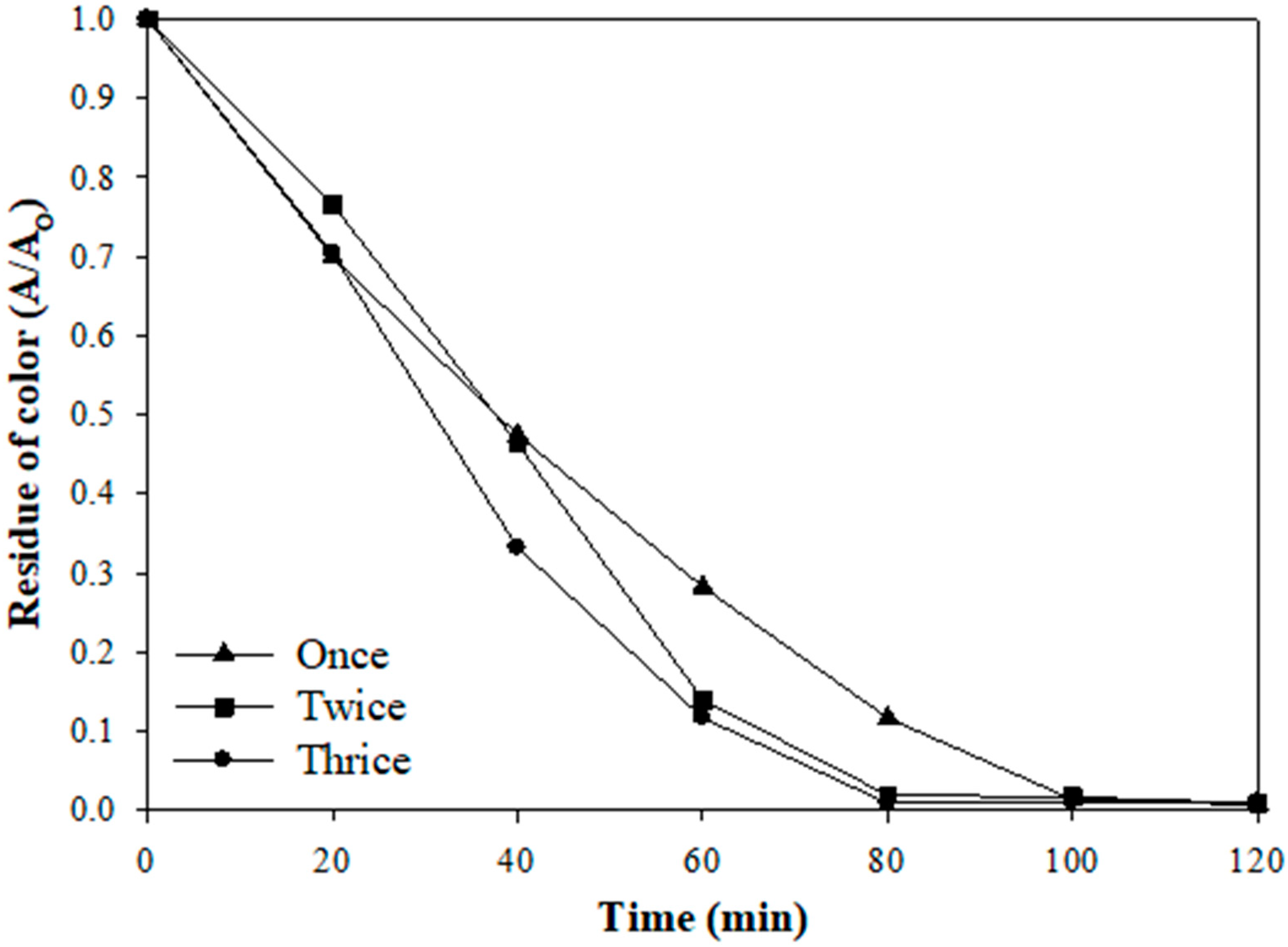

To consider the electrode’s long-term use, the 0.10 VT electrode was tested to observe the removal efficiency of the dye color during reuse. Figure 5 shows the residue of the color for the 0.10 VT electrode with different operation times. The result shows that the color removal efficiency could reach about 99% under the electrode repeated usage. Meanwhile, the catalysts were not peeled off significantly under repeated use; the weight loss of the catalyst was only about 3% and 5% under one time and three times of usage, respectively. The results indicate that the nano V/TiO₂ electrode did not only effectively degrade the AR 27 dye, but also could be used repeatedly.

3. Experimental

3.1. Preparation of Nano V/TiO₂ Electrode

Vanadyl acetylacetonate (VO(C₅H₇O₂)₂; purity of 98%; Aldrich) was the vanadium precursor and other chemicals included titanium (IV) isopropoxide (Ti(OC₃H₇)₄; purity > 98%; ACROS, Geel, Belgium), acetic acid (CH₃COOH; purity > 99.9%; JT Baker, Phillipsburg, NJ, USA), and isopropyl alcohol (CH₃CHOCH₃; purity of 99.5%; JT Baker, Phillipsburg, NJ, USA). The preparation steps of the V/TiO₂ electrode are shown in Figure S3. In the beginning, a certain amount of vanadium precursor was directly added to the TiO₂ catalyst sol. The molar ratio of vanadium to titanium was 0.05, 0.10, and 0.30, and named as 0.05 VT, 0.10 VT, and 0.30 VT, respectively. Then, the mixed solution was stirred with 600 rpm for 15 h to obtain the fine suspended sol. Subsequently, the prepared sol was poured into a 100 mL graduated cylinder, and the titanium substrate was slowly immersed in the sol. After 60 s of impregnation, the vanadium doped TiO₂ electrode was pulled up at a rate of 45 cm min⁻¹, and the volatile solvents and moisture were removed by an oven at 105 °C for 15 min. Finally, the electrode was calcined at 500 °C for 1.5 h in a high-temperature furnace.

The above impregnating, drying, and calcining steps were repeated six times while the sixth time was calcined at 500 °C for 24 h. Finally, the V/TiO₂ electrode was ultrasonicated for 15 min to remove the catalyst with weak surface adhesion. The prepared V/TiO₂ electrode was observed by field emission scanning electron microscope (FESEM, JEOL-JSM-6700F, Tokyo, Japan) and energy-dispersive x-ray spectroscopy (EDS, OXFORD INCA ENERGY 400, Britain) to obtain the surface morphology and chemical composition. A powder x-ray diffractometer (MXP18 diffractometer with Cu Kα radiation, λ = 1.54056 Å, MAC Science Co., Ltd, Tokyo, Japan) was used to identify the crystal structure. The specific surface area was measured using a Brunauer–Emmett–Teller (BET) technique (PMI BET 201 AC, Germany).

3.2. Degradation of AR 27 Dye

The AR 27 dye was the target pollutant in this study, in which the chemical structure and other properties are listed in Table S1. In this experiment, sodium sulfate (Na₂SO₄, 98%, Merck, Darmstadt, Germany) was used as the electrolyte and the pH of the wastewater containing dye was adjusted with 0.01 M nitric acid and sodium hydroxide. Figure S4 shows the electrocatalytic system for treating the AR 27 dye. The glass reactor with a 9 cm diameter and 18 cm in height was used and the wastewater volume was around 1 L. The reactor included a pair of electrodes, and the different molar ratios of V/TiO₂ served as anodes while graphite was used as the cathode for all experiments. The distance between the cathode and anode was 6.0 cm, and all electrodes had the same size (16 cm length × 2.5 cm width × 0.3 cm thickness). DC power supply was used (GW Instek, GPR-20H20D, Taiwan) to provide constant current for the electrocatalytic system. An electromagnetic stirrer (Corning, PC420D, Stirrer/Hot, New York, USA) promoted the uniformity of the AR 27 dye.

Table S2 lists the operating parameters of the electrocatalytic experiment. All degradation experiments were carried out in 22.5 mM Na₂SO₄ electrolyte for 120 min of operation. The color measurement of the AR 27 dye was conducted by a UV–Visible spectrophotometer (JASCO, V-650, Tokyo, Japan) operating at the maximum absorption wavelength (521 nm). In addition, the TOC variation of AR 27 dye in fixed time intervals was analyzed according to the Taiwan Environmental Protection Agency (EPA) method (NIEA W530.51C). In this study, a 10 mL sample was collected each time and filtered through 0.22 μm filter paper, then analyzed by a total organic carbon analyzer (TOC-VCSN, Shimadzu, Japan). The flow rate of the sample was controlled at 130 mL min⁻¹ and the gas pressure was 200 KPa. After the automatic suction device drew the sample, 2 N HCl was added to acidify the sample to attain a pH value less than 2, in which the inorganic carbon in the sample becomes CO₂. Then, the CO₂ was removed by zero-level air to complete the pre-treatment of the sample. Finally, 50 μL of the sample was drawn for analysis.

Apart from the color and TOC analysis, the pH, conductivity, and temperature were also measured under electrocatalytic experiments at every 20 min time interval. Moreover, electrical energy consumption was also studied to estimate the economical competency of the nano V/TiO₂ electrode in treating the AR 27 dye. The formula for energy consumption is as shown in Equation (6) [43] and the calculated result takes per kWh (kilowatt-hour) as the unit.

$$\mathrm{Energy}\mathrm{consumption}\left({\mathrm{kWh}\mathrm{L}}^{-1}\right)=\frac{\mathrm{UIT}}{\mathrm{V}}$$

(6)

where U is the average voltage (V); I is the current (A); T is the operation time (h); and V is the reaction volume (L).

4. Conclusions

After discussing and explaining the experimental results, several conclusions can be drawn:

• The AR 27 dye was effectively degraded by the different molar ratios of nano V/TiO₂ electrodes; the color and total organic carbon (TOC) removal efficiencies of the 0.10 VT electrode reached to 99% and 76%, respectively.
• The high specific surface area (38 m² g⁻¹ to 96 m² g⁻¹) of the nano V/TiO₂ electrode facilitated the electrocatalytic degradation.
• The current density of 25 mA cm⁻² was the optimal operation for this electrocatalytic system; the production of oxygen as a by-product was more pronounced when the current density was increased to 30 mA cm⁻².
• The electricity consumption of the pure TiO₂ and nano V/TiO₂ electrode in the electrocatalytic system was 0.11 kWh L⁻¹ and 0.02 kWh L⁻¹, respectively.
• The results indicate that the nano V/TiO₂ electrode not only effectively degraded the AR 27, but could also be used repeatedly; the dye removal efficiency attained 99% even with repeated usage.
