# Statistical Model-Based Classification to Detect Patient-Specific Spike-and-Wave in EEG Signals

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Database

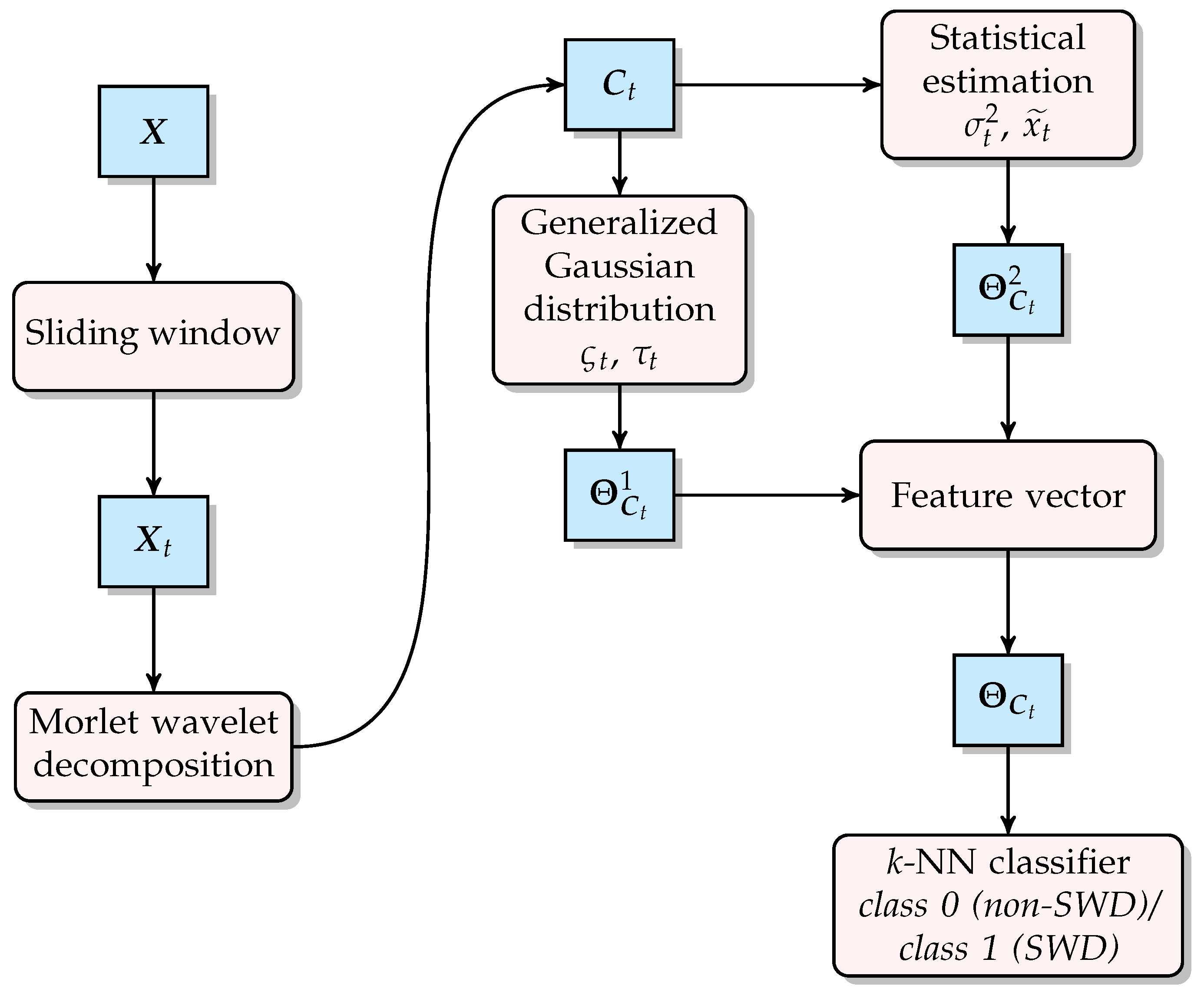

#### 2.2. Methodology

#### 2.2.1. Morlet Wavelet

#### 2.2.2. Generalized Gaussian Distribution

#### 2.2.3. Feature Parameters

#### 2.2.4. k-Nearest Neighbors Classification

## 3. Results

- Scale parameter $\left({\varsigma}_{t}\right)$ vs. variance $\left({\sigma}_{t}^{2}\right)$: for class 1 (SWD), one observes a direct relationship between the variance and sigma, where both parameters grow proportionally. For class 0 (non-SWD), both sigma and variance remain in a limited range of values.
- Scale parameter $\left({\varsigma}_{t}\right)$ vs. median $\left(\tilde{{x}_{t}}\right)$: as sigma grows, median increases then decreases for both SWD and non-SWD, but is larger for SWD. A cone-shaped pattern can be observed.
- Variance $\left({\sigma}_{t}^{2}\right)$ vs. median $\left(\tilde{{x}_{t}}\right)$: as the variance grows, the median increases then decreases for SWD, while it remains in a small range (cluster) for non-SWD.

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Abbreviations

EEG | Electroencephalography |

FLENI | Fight against Pediatric Neurological Disease |

GGD | Generalized Gaussian distribution |

k-NN | k-nearest neighbors |

SWD | Spike-and-wave discharge |

## References

- Schomer, D.L.; da Silva, F.H.L. Niedermeyer’s Electroencephalography Basic Principles, Clinical Applications, and Related Fields; LWW: Philadelphia, PA, USA, 2010. [Google Scholar]
- Bergstrom, R.; Choi, J.; Manduca, A.; Shin, H.; Worrell, G.; Howe, C. Automated identification of multiple seizure-related and interictal epileptiform event types in the EEG of mice. Sci. Rep.
**2013**, 3, 1483. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Bhuyan, R.; Jahan, W.; Upadhyaya, N. Interictal wave pattern study in EEG of epilepsy patients. Int. J. Res. Med. Sci.
**2013**, 5, 3378–3384. [Google Scholar] [CrossRef] [Green Version] - Quintero-Rincón, A.; Pereyra, M.; D’Giano, C.; Batatia, H.; Risk, M. A new algorithm for epilepsy seizure onset detection and spread estimation from EEG signals. J. Phys. Conf. Ser.
**2016**, 705, 12032. [Google Scholar] [CrossRef] - Gajic, D.; Djurovic, Z.; Gennaro, S.D.; Gustafsson, F. Classification of EEG signals for detection of epileptic seizures based on wavelets and statistical pattern recognition. Biomed. Eng. Appl. Basis Commun.
**2014**, 26, 1450021. [Google Scholar] [CrossRef] [Green Version] - Navakatikyan, M.; Colditz, P.; Burke, C.; Inder, T.; Richmond, J.; Williams, C. Seizure detection algorithm for neonates based on wave-sequence analysis. Clin. Neurophysiol.
**2006**, 117, 1190–1203. [Google Scholar] [CrossRef] - Siuly, S.; Kabir, E.; Wang, H.; Zhang, Y. Exploring sampling in the detection of multicategory EEG signals. Comput. Math. Methods Med.
**2015**, 2015, 576437. [Google Scholar] [CrossRef] - Subasi, A.; Ercelebi, E. Classification of EEG signals using neural network and logistic regression. Comput. Methods Programs Biomed.
**2005**, 78, 87–99. [Google Scholar] [CrossRef] - Quintero-Rincón, A.; Alanis, M.; Muro, V.; D’Giano, C. Spike-and-Wave detection in epileptic signals using cross-correlation and decision trees. Rev. Argent. BioingenierÍa Bioeng. Argent. Soc.
**2018**, 21, 1–4. [Google Scholar] - Donos, C.; Dumpelmann, M.; Schulze-Bonhage, A. Early Seizure Detection Algorithm Based on Intracranial EEG and Random Forest Classification. Int. J. Neural Syst.
**2015**, 5, 1550023. [Google Scholar] [CrossRef] - Fu, R.; Tian, Y.; Shi, P.; Bao, T. Automatic Detection of Epileptic Seizures in EEG Using Sparse CSP and Fisher Linear Discrimination Analysis Algorithm. J. Med. Syst.
**2020**, 4, 1–13. [Google Scholar] [CrossRef] - Ossadtchi, A.; Greenblatt, R.E.; Towle, V.L.; Kohrman, M.H.; Kamada, K. Inferring spatiotemporal network patterns from intracranial EEG data. Clin. Neurophysiol.
**2010**, 121, 823–835. [Google Scholar] [CrossRef] [Green Version] - Wilson, S.B.; Emerson, R. Spike detection: A review and comparison of algorithms. Clin. Neurophysiol.
**2002**, 113, 1873–1881. [Google Scholar] [CrossRef] - Hese, P.V.; Martens, J.; Waterschoot, L.; Boon, P.; Lemahieu, I. Automatic detection of spike and wave discharges in the EEG of genetic absence epilepsy rats from Strasbourg. IEEE Trans. Biomed. Eng.
**2009**, 56, 706–717. [Google Scholar] [CrossRef] [PubMed] - Pearce, P.; Friedman, D.; Lafrancois, J.; Iyengar, S.; Fenton, A.; Maclusky, N.; Scharfman, H. Spike wave discharges in adult Sprague Dawley rats and their implications for animal models of temporal lobe epilepsy. Epilepsy Behav.
**2014**, 32, 121–131. [Google Scholar] [CrossRef] [PubMed] [Green Version] - M Le Van Quyen, J.F.; Lachaux, J.; Rodriguez, E.; Lutz, A.; Martinerie, J.; Varela, F.J. Comparison of Hilbert transform and wavelet methods for the analysis of neuronal synchrony. J. Neurosci. Methods
**2001**, 111, 83–98. [Google Scholar] [CrossRef] - Puspita, J.W.; Gunadharma, A.I.J.S. Classification of epileptiform and wicket spike of EEG pattern using backpropagation neural network. AIP Conf. Proc.
**2017**, 1825, 020018. [Google Scholar] - Gupta, A.; Singh, P.; Karlekar, M. A Novel Signal Modeling Approach for Classification of Seizure and Seizure-Free EEG Signals. IEEE Trans. Neural Syst. Rehabil. Eng.
**2018**, 5, 925–935. [Google Scholar] [CrossRef] - Quintero-Rincón, A.; D’Giano, C.; Batatia, H. A quadratic linear-parabolic model-based EEG classification to detect epileptic seizures. J. Biomed. Res.
**2020**, 3, 203–210. [Google Scholar] [CrossRef] - Quintero-Rincón, A.; Prendes, J.; Muro, V.; D’Giano, C. Study on Spike-and-wave detection in epileptic signals using t-location-scale distribution and the k-nearest neighbors classifier. IEEE URUCON Congr. Electron. Electr. Eng. Comput.
**2017**, 2017, 1–4. [Google Scholar] - Li, P.; Karmakar, C.; Yearwood, J.; Venkatesh, S.; Palaniswami, M.; Liu, C. Detection of epileptic seizure based on entropy analysis of short-term EEG. PLoS ONE
**2018**, 3, e0193691. [Google Scholar] [CrossRef] [Green Version] - Jirka, J.; Prauzek, M.; Krejcar, O.; Kuca, K. Automatic epilepsy detection using fractal dimensions segmentation and GP-SVM classification. Neuropsychiatr. Dis. Treat.
**2018**, 14, 2439–2449. [Google Scholar] [CrossRef] [Green Version] - Paul, Y. Various epileptic seizure detection techniques using biomedical signals: A review. Brain Inform.
**2018**, 5, 1–19. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Subasi, A.; Alkana, A.; Koklukayab, E.; Kiymik, M.K. Analysis of Epileptic Seizure. Detection Methods Based on Parameter Estimation, Power Spectrum Density And Morlet Wavelet Transform. Neural Netw.
**2005**, 18, 985–997. [Google Scholar] [CrossRef] - Xanthopoulos, P.; Liu, C.C.; Zhang, J.; Miller, E.R.; Nair, S.P.; Uthman, B.M.; Kelly, K.; Pardalos, P.M. A robust spike and wave algorithm for detecting seizures in a genetic absence seizure model. In Proceedings of the Annual International Conference of the IEEE Engineering in Medicine and Biology Society, Minneapolis, MN, USA, 3–6 September 2009; pp. 2184–2187. [Google Scholar]
- Sitnikova, E.; Hramov, A.E.; Koronovsky, A.A.; van Luijtelaar, G. Sleep spindles and spike-wave discharges in EEG: Their generic features, similarities and distinctions disclosed with Fourier transform and continuous wavelet analysis. J. Neurosci. Methods
**2009**, 180, 304–316. [Google Scholar] [CrossRef] - Richard, C.D.; Tanenbaum, A.; Audit, B.; Arneodo, A.; Khalil, A.; Frankel, W. SWDreader A Wavelet-Based Algorithm Using Spectral Phase to Characterize Spike-Wave Morphological Variation in Genetic Models of Absence Epilepsy. J. Neurosci. Methods
**2014**, 242, 127–140. [Google Scholar] [CrossRef] [Green Version] - Pollen, D.A. Intracellular studies of cortical neurons during thalamic induced wave and spike. Electroencephalogr. Clin. Neurophysiol.
**1964**, 17, 398–404. [Google Scholar] [CrossRef] - Ovchinnikov, A.; Luttjohann, A.; Hramov, A.; van Luijtelaar, G. An algorithm for real-time detection of spike-wave discharges in rodents. J. Neurosci. Methods
**2010**, 94, 172–178. [Google Scholar] [CrossRef] [PubMed] - Rodgers, K.; Dudek, F.; Barth, D. 2. Progressive, Seizure-Like, Spike-Wave Discharges Are Common in Both Injured and Uninjured Sprague-Dawley Rats: Implications for the Fluid Percussion Injury Model of Post-Traumatic Epilepsy. J. Neurosci.
**2015**, 35, 9194–9204. [Google Scholar] [CrossRef] [Green Version] - Blumenfeld, H. Cellular and Network Mechanisms of Spike-Wave Seizures. Epilepsia
**2005**, 46, 21–33. [Google Scholar] [CrossRef] [PubMed] - Avoli, M. A brief history on the oscillating roles of thalamus and cortex in absence seizures. Epilepsia
**2012**, 53, 779–789. [Google Scholar] [CrossRef] [Green Version] - Puspita, J.W.; Gunadharma, S.; Indratno, S.W.; Soewono, E. Bayesian approach to identify spike and sharp waves in EEG data of epilepsy patients. Biomed. Signal Process. Control
**2017**, 35, 63–69. [Google Scholar] [CrossRef] - Zhu, J.D.; Lin, C.F.; Chang, S.H.; Wang, J.H.; Peng, T.I.; Chien, Y.Y. Analysis of spike waves in epilepsy using Hilbert-Huang transform. J. Med. Syst.
**2014**, 39, 1–13. [Google Scholar] [CrossRef] [PubMed] - Medvedeva, T.M.; Sysoeva, M.V.; Luijtelaa, G.; Sysoev, I.V. Modeling spike-wave discharges by a complex network of neuronal oscillators. Arch. Psychiatry Clin. Neurosci.
**2018**, 98, 271–282. [Google Scholar] [CrossRef] [Green Version] - Olejarczyk, E.; Rudner, R.; Marciniak, R.; Wartak, M.; Stasiowski, M.; Jalowiecki, P.; Sobieszek, A. Detection of the EEG spike-wave patterns evoked by volatile anaesthetics. IFMBE Proc.
**2009**, 25, 407–409. [Google Scholar] - Zibrandtsen, I.C.; Nielsen, J.M.; Kjaer, T.W. Quantitative characteristics of spike-wave paroxysms in genetic generalized epilepsy. Clin. Neurophysiol.
**2020**, 131, 1230–1240. [Google Scholar] [CrossRef] - Haghighi, H.S.; Markazi, A.H. Dynamic origin of spike and wave discharges in the brain. NeuroImage
**2019**, 197, 69–79. [Google Scholar] [CrossRef] - Quintero-Rincón, A.; Carenzo, C.; Ems, J.; Hirschson, L.; Muro, V.; D’Giano, C. Spike-and-wave epileptiform discharge pattern detection based on Kendall’s Tau-b Coefficient. Appl. Med. Inform.
**2019**, 1, 1–8. [Google Scholar] - Tenneti, S.V.; Vaidyanathan, P.P. Absence Seizure Detection Using Ramanujan Filter Banks. In Proceedings of the 52nd Asilomar Conference on Signals, Systems, and Computers, Pacific Grove, CA, USA, 28–31 October 2018; pp. 1913–1917. [Google Scholar]
- Polivannyi, F.; Igasaki, T.; Neshiger, N.M.R. Wavelet Transform-Based Algorithm for Single Spike-and-Wave Discharges Detection in Epileptic Patients’ Electroencephalogram. In Proceedings of the 8th International Conference on BioMedical Engineering and Informatics, Shenyang, China, 14–16 October 2015; pp. 255–259. [Google Scholar]
- Quintero-Rincón, A.; Prendes, J.; Pereyra, M.; Batatia, H.; Risk, M. Multivariate Bayesian Classification of Epilepsy EEG Signals. In Proceedings of the IEEE 12th Image, Video, and Multidimensional Signal Processing Workshop (IVMSP), Bordeaux, France, 11–12 July 2016; pp. 1–5. [Google Scholar]
- Quintero-Rincón, A.; Pereyra, M.; D’Giano, C.; Batatia, H.; Risk, M. A visual EEG epilepsy detection method based on a wavelet statistical representation and the Kullback-Leibler divergence. In IFMBE Proceedings; Springer: Singapore, 2017; Volume 60, pp. 13–16. [Google Scholar]
- Quintero-Rincón, A.; Pereyra, M.; D’Giano, C.; Risk, M.; Batatia, H. Fast statistical model-based classification of epileptic EEG signals. Biocybern. Biomed. Eng.
**2018**, 38, 877–889. [Google Scholar] [CrossRef] [Green Version] - Ahuja, N.; Lertrattanapanich, S.; Bose, N. Properties determining choice of mother wavelet. IEE Proc. Vis. Image Signal Process.
**2005**, 152, 659–664. [Google Scholar] [CrossRef] - Abry, P. Ondelettes et Turbulence. Multirésolutions, Algorithmes de Décomposition, Invariance D’échelles; Diderot Editeur: Paris, France, 1997. [Google Scholar]
- Do, M.N.; Vetterli, M. Wavelet-Based Texture Retrieval Using Generalized Gaussian Density and Kullback-Leibler Distance. IEEE Trans. Image Process.
**2002**, 11, 146–158. [Google Scholar] [CrossRef] [Green Version] - Quintero-Rincón, A.; D’Giano, C.; Risk, M. Epileptic seizure prediction using Pearson’s product-moment correlation coefficient of a linear classifier from generalized Gaussian modeling. Neurol. Argent.
**2018**, 10, 201–217. [Google Scholar] - Bishop, C.M. Pattern Recognition and Machine Learning (Information Science and Statistics); Springer: New York, NY, USA, 2006. [Google Scholar]
- Barber, D. Bayesian Reasoning and Machine Learning; Cambridge University Press: Cambridge, UK, 2012. [Google Scholar]
- van der Maaten, L.; Hinton, H. Visualizing Data using t-SNE. J. Mach. Learn. Res.
**2008**, 9, 2579–2605. [Google Scholar] - Zemouri, R.; Lévesque, M.; Amyot, N.; Hudon, C.; Kokoko, O. Deep Variational Autoencoder: An efficient tool for PHM frameworks. In Proceedings of the Prognostics and Health Management Conference (PHM-Besancon), Besancon, France, 4–7 May 2020; pp. 235–240. [Google Scholar]

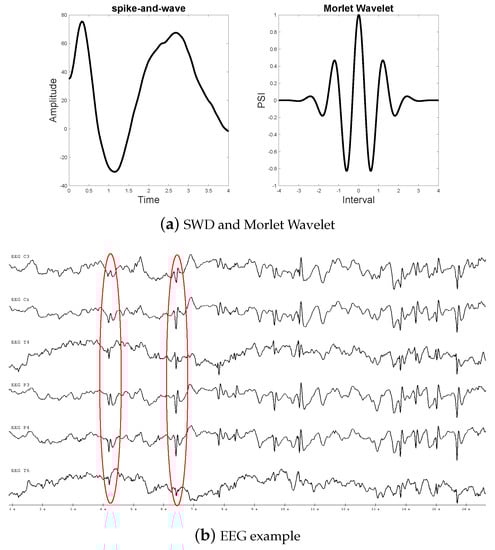

**Figure 1.**(

**a**) A sample SWD signal and the Morlet wavelet. Note that the scales are different. (

**b**) Example of 6 channels of one monopolar raw EEG, with SWD patterns in all channels.

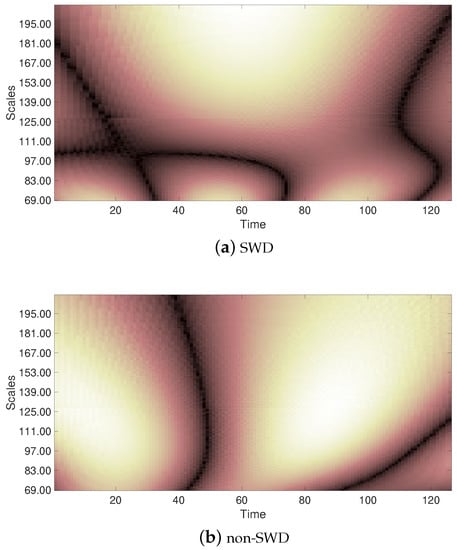

**Figure 3.**Illustration of the variation of time-scale for Morlet continuous wavelet (

**a**) for SWD with ${f}_{c}=1.2308$ Hz, and (

**b**) for non-SWD with ${f}_{c}=0.8125$. Note that, the energy distribution pattern is different when comparing SWD and non-SWD.

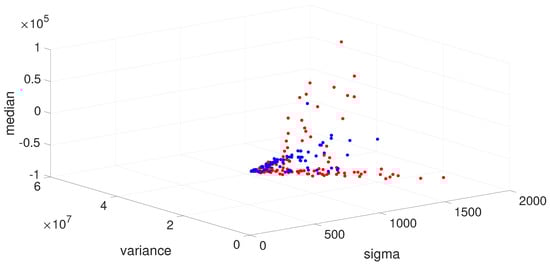

**Figure 4.**3D scatter plot of the feature vector $[\varsigma ,{\sigma}_{t}^{2},\tilde{{x}_{t}}]$ for class 0 (non-spike-and-waves events, blue dots), and class 1 (spike-and-waves events, red dots). The SWD events tend to be more dispersed than non-SWD events.

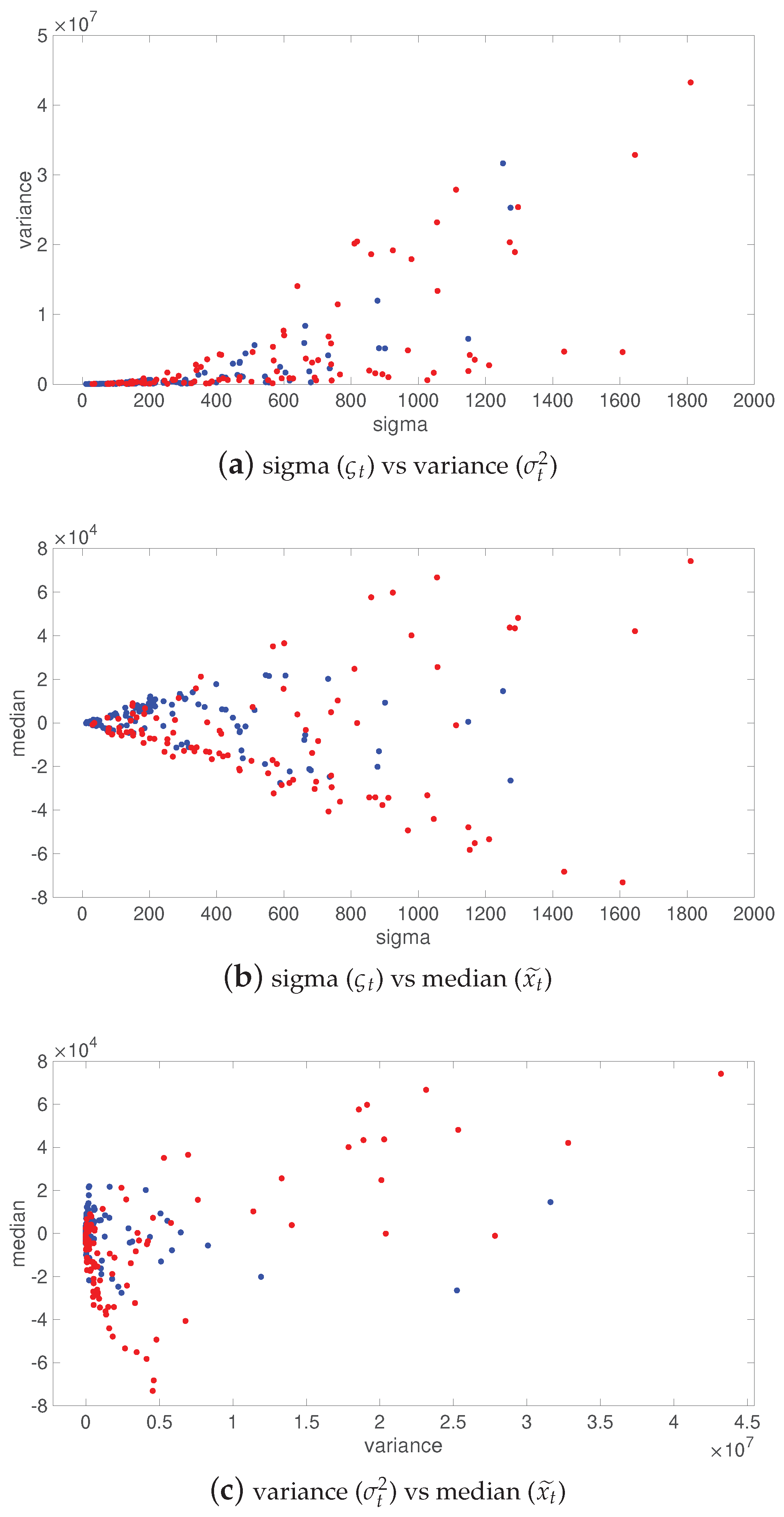

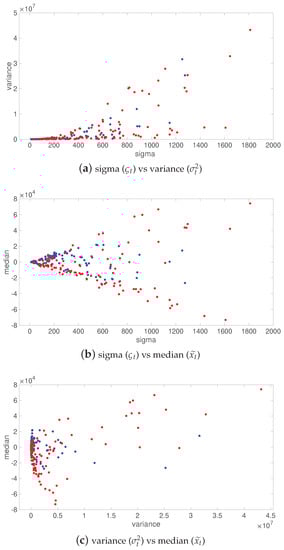

**Figure 5.**Scatter plots of the signals used for training, with ${\varsigma}_{t}$, ${\sigma}_{t}^{2}$, and $\tilde{{x}_{t}}$ parameters class 0 (non-spike-and-waves events, blue dots), and class 1 (spike-and-waves events, red dots), showing the data dispersion of the proposed approach. In (

**a**) Scale parameter (${\varsigma}_{t}$) vs. variance (${\sigma}_{t}^{2}$). For class 1 (SWD), we can see the direct relationship between the variance and sigma, both grow proportionally, while for class 0 (non-SWD) both sigma and variance remain in a range of values. (

**b**) Scale parameter (${\varsigma}_{t}$) vs. median ($\tilde{{x}_{t}}$). As sigma grows, the median increases then decreases for both SWD and non-SWD, but is larger for SWD. (

**c**) variance (${\sigma}_{t}^{2}$) vs. median ($\tilde{{x}_{t}}$). As variance grows, the median increases then decreases for SWD, while it remains in a small range for non-SWD.

**Table 1.**Some state-of-the-art methods for the spike-and-wave discharge (SWD) estimation in electroencephalography (EEG) signals in humans, compared in terms of classification techniques, features, and reported performance.Abbreviations are as follows: high Specificity, rule in (SpPIn), According to the frequency and magnitude weighted average (WA), According to an estimated threshold (AET).

Method | Features | Classifier | Accuracy in % | Ref. |
---|---|---|---|---|

Generalized Gaussian distribution (GGD) | GGD parameters, variance and median from time–frequency Morlet decomposition | 10-NN | 92 | our |

Kendall’s Tau-b Coefficient | Kendall’s Tau-b coefficient significance | SpPIn | 94 | [39] |

Ramanujan Filter Bank (RFB) | Spectrum from RFB | Empirical | >80 | [40] |

t-location-scale distribution (TLS) | TLS parameters | 1-NN | 100 | [20] |

Cross-correlation | Correlation coefficient | Decision trees | 97 | [9] |

Walsh transformation (WT) | First and second orden from WT | Bayesian | >70 | [33] |

Hilbert–Huang transform | Intrinsic mode functions energy | WA | - | [34] |

Cross-correlation | Wavelet spectrum correlation | AET | 100 | [41] |

**Table 2.**Mean, standard deviation, variance and bound values for sigma parameter $\left(\varsigma \right)$ for class 0 (non-spike-and-wave) and class 1 (spike-and-wave).

Mean | std | Variance | Bounds | |
---|---|---|---|---|

Class 0 | 293 | 267.8017 | 71,718 | [12, 1275] |

Class 1 | 542 | 406.2597 | 165,047 | [31, 1811] |

**Table 3.**Mean, standard deviation, variance and bound values for the variance $\left({\sigma}_{t}^{2}\right)$ for class 0 (non-spike-and-wave) and class 1 (spike-and-wave).

Mean | std | Variance | Bounds | |
---|---|---|---|---|

Class 0 | 1.446 × 10${}^{6}$ | 4.235 × 10${}^{6}$ | 1.794 × 10${}^{13}$ | [9.46 × 10${}^{2}$, 3.162 × 10${}^{7}$] |

Class 1 | 4.32 × 10${}^{6}$ | 7.892 × 10${}^{6}$ | 6.228 × 10${}^{13}$ | [2.715 × 10${}^{3}$, 4.321 × 10${}^{7}$] |

**Table 4.**Mean, standard deviation, variance and bound values for median $\left(\tilde{{x}_{t}}\right)$ for class 0 (non-spike-and-wave) and class 1 (spike-and-wave).

Mean | std | Variance | Bounds | |
---|---|---|---|---|

Class 0 | 1.089 × 10${}^{3}$ | 1.002 × 10${}^{4}$ | 1.004 × 10${}^{8}$ | [−2.769 × 10${}^{4}$, 2.179 × 10${}^{4}$] |

Class 1 | −6.125 × 10${}^{3}$ | 2.672 × 10${}^{4}$ | 7.140 × 10${}^{8}$ | [−7.325 × 10${}^{4}$, 7.406 × 10${}^{4}$] |

**Table 5.**Results form other methods applied to the same dataset in percent (%), in terms of TPR = True Positives Rate or Sensitivity; TNR = True Negative Rate or Specificity; FPR = False positive Rate; ACC = Accuracy: and high Specificity, rule in (SpPIn). Training and testing have different numbers of patients due to different research settings.

Method | Features | Classifier | TPR | TNR | ACC | Training | Testing | Ref. |
---|---|---|---|---|---|---|---|---|

GGD | GGD parameters, variance and median from time-frequency Morlet wavelet decomposition | 10-NN | 95 | 87 | 92 | 212 | 96 | Actual |

Kendall’s Tau-b Coefficient | Kendall’s Tau-b coefficient significance in time domain | SpPIn | - | 94 | 94 | 300 | 300 | [39] |

TLS | TLS parameters in time domain | 1-NN | 100 | 100 | 100 | 192 | 46 | [20] |

Cross-correlation | Correlation coefficient in time domain | Decision trees | 86 | 98 | 97 | 96 | 46 | [9] |
