Computers 2019, 8(1), 10; https://doi.org/10.3390/computers8010010

Generalized Majority Voter Design Method for N-Modular Redundant Systems Used in Mission- and Safety-Critical Applications

1
Department of Computer Science and Engineering, Maulana Azad National Institute of Technology, Bhopal 462003, India
2
School of Computer Science and Engineering, Nanyang Technological University, 50 Nanyang Avenue, Singapore 639798, Singapore
*
Authors to whom correspondence should be addressed.
Received: 12 December 2018 / Revised: 13 January 2019 / Accepted: 22 January 2019 / Published: 28 January 2019
  |
PDF [2520 KB, uploaded 28 January 2019]
  |

Abstract

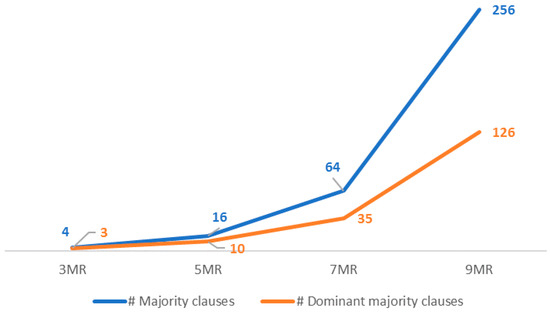

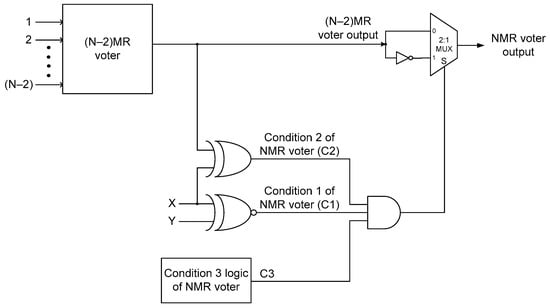

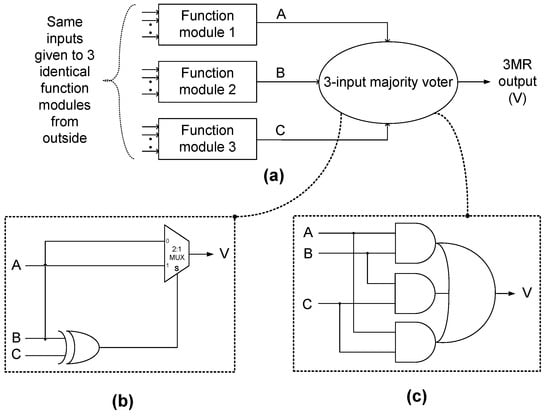

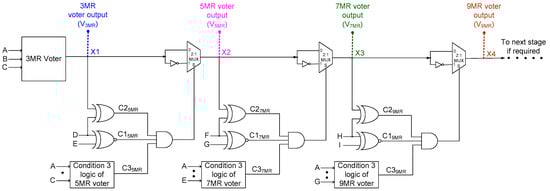

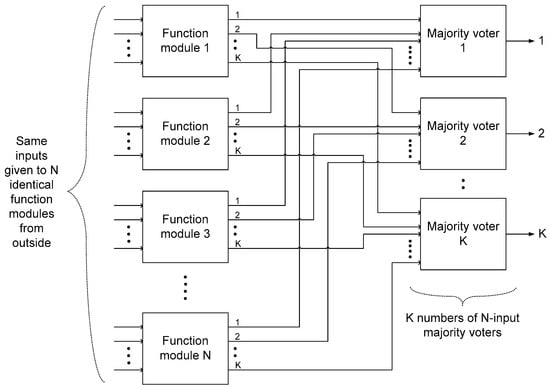

Mission- and safety-critical circuits and systems employ redundancy in their designs to overcome any faults or failures of constituent circuits and systems during the normal operation. In this aspect, the N-modular redundancy (NMR) is widely used. An NMR system is comprised of N identical systems, the corresponding outputs of which are majority voted to generate the system outputs. To perform majority voting, a majority voter is required, and the sizes of majority voters tend to vary depending on an NMR system. Majority voters corresponding to NMR systems are physically realized by enumerating the majority input clauses corresponding to an NMR system and then synthesizing the majority logic equation. The issue is that the number of majority input clauses corresponding to an NMR system is governed by a mathematical combination, the complexity of which increases substantially with increases in the level of redundancy. In this context, the design of a majority voter of any size corresponding to an NMR specification based on a new, generalized design approach is described. The proposed approach is inherently hierarchical and progressive since any NMR majority voter can be constructed from an (N − 2)MR majority voter along with additional logic corresponding to the two extra inputs. Further, the proposed approach paves the way for simultaneous production of the NMR system outputs corresponding to different degrees of redundancy, which is not intrinsic to the existing methods. This feature is additionally useful for any sharing of common logic with diverse degrees of redundancy in appropriate portions of an NMR implementation. View Full-Text
Keywords: redundancy; fault tolerance; majority voter; N-modular redundancy (NMR); ASIC; CMOS; standard cells redundancy; fault tolerance; majority voter; N-modular redundancy (NMR); ASIC; CMOS; standard cells
Figures

Figure 1
