Antineoplastic Drug Synergy of Artesunate with Navitoclax in Models of High-Grade Serous Ovarian Cancer

by
J. Robert McCorkle
1,
Rebecca Ahn
2,
Connie D. Cao
3,
Kristen S. Hill
1,
Charles S. Dietrich
1,3 and
Jill M. Kolesar
1,4,5,*
1
Markey Cancer Center, University of Kentucky, Lexington, KY 40536, USA
2
University of Kentucky College of Medicine, Lexington, KY 40536, USA
3
Division of Gynecologic Oncology, Department of Obstetrics and Gynecology, University of Kentucky, Lexington, KY 40536, USA
4
Department of Pharmacy Practice and Science, University of Kentucky College of Pharmacy, Lexington, KY 40536, USA
5
Department of Clinical Research, University of Kentucky Markey Cancer Center, Lexington, KY 40536, USA
*
Author to whom correspondence should be addressed.
Cancers 2024, 16(7), 1321; https://doi.org/10.3390/cancers16071321
Submission received: 4 March 2024 / Revised: 22 March 2024 / Accepted: 25 March 2024 / Published: 28 March 2024
(This article belongs to the Section Cancer Therapy)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

Modern ovarian cancer treatment has not substantially improved outcomes, and superior therapeutic strategies are needed. The aim of this study was to evaluate the efficacy of artesunate and navitoclax drug combination in ovarian cancer. We determined the combination of these two drugs was extraordinarily effective in multiple models of ovarian cancer, in vitro, inhibiting cancer cell proliferation more than expected based on single-agent activities. Unfortunately, we were unable to validate these findings using a mouse model of metastatic ovarian cancer. These data provide valuable information regarding the potential utility and challenges associated with the artesunate/navitoclax drug combination for ovarian cancer therapy.

Abstract

Artesunate belongs to a class of medications derived from the sweet wormwood plant (Artemisia annua) known as artemisinins. Artesunate has traditionally been used as a frontline treatment for severe malaria but has also demonstrated antineoplastic activity against various malignancies, including ovarian cancer. Data suggest that artesunate exacerbates cellular oxidative stress, triggering apoptosis. In the current study, we investigated the ability of navitoclax, an inhibitor of the antiapoptotic Bcl-2 protein family, to enhance artesunate efficacy in ovarian cancer cells. Artesunate and navitoclax both demonstrated antiproliferative effects on 2D and 3D ovarian cancer cell models as single agents. Upon combination of navitoclax with artesunate, antineoplastic drug synergy was also observed in each of the 2D cell lines and ovarian tumor organoid models tested. Further investigation of this drug combination using intraperitoneal CAOV3 xenograft models in BALB/scid mice showed that the artesunate/navitoclax doublet was superior to single-agent artesunate and vehicle control treatment. However, it did not outperform single-agent navitoclax. With optimization, this drug combination could provide a new therapeutic option for ovarian cancer and warrants further preclinical investigation.

1. Introduction

Ovarian cancer is the deadliest gynecologic malignancy, accounting for an estimated 13,270 deaths in the United States in 2023 [1]. Although ovarian cancer makes up only 1% of all new cancer cases, the estimated annual death rate from ovarian cancer is 2.2% [1]. With death rates higher than occurrences and five-year overall survival rates near 50%, it is crucial to find improved therapeutic strategies for ovarian cancer.
First-line therapy for ovarian cancer includes cytoreduction surgery and adjuvant chemotherapy with a taxane and platinum doublet, a regimen that has been largely unchanged for 30 years [2]. More recently, select patients have received maintenance therapy with either bevacizumab and/or a PARP inhibitor, the latter of particular benefit for BRCA-mutated ovarian cancers, which account for approximately 15% of all cases [3,4,5,6]. However, more than 70% of patients have advanced-stage cancer at diagnosis [7], and up to 80% of these patients develop recurrence and ultimately die of their disease [8], highlighting the need for novel treatments.
Artesunate is a semisynthetic derivative of artemisinin, an extract from the sweet wormwood plant, Artemisia annua [9], which has been used as an antipyretic in Chinese herbal medicine for over 2000 years [8]. Artesunate is currently used to treat malaria but has also demonstrated antineoplastic activity across a broad spectrum of cancer cell lines, including ovarian cancer [8,10,11]. The primary mechanism of anticancer activity for artesunate is thought to be generation of reactive oxygen species (ROS), leading to oxidative damage of DNA and proteins resulting in apoptosis [11,12,13,14,15,16,17]. Forty years of use as malaria therapy and cancer clinical trials have demonstrated that artesunate is also well tolerated [12,18].
Navitoclax is a small-molecule inhibitor of the Bcl-2 family (i.e., BCL2, BCL2L1, BCL2L2) of antiapoptotic proteins with demonstrated activity in preclinical ovarian cancer models, including an ex vivo model of 25 high-grade serous ovarian cancers [19]. Based on promising preclinical data, navitoclax as a single agent was assessed in a phase 2 trial that included 45 heavily pretreated women with high-grade serous, platinum-resistant, or refractory ovarian cancer. In this trial, navitoclax showed limited activity, with only one patient achieving a partial response, although adverse effects were acceptable, with thrombocytopenia the major toxicity [19,20,21]. In other cancers, navitoclax in combination with chemotherapy has been effective, although limited by toxicity [22,23].
Given that artesunate induces apoptosis, assessing potential drug synergy utilizing an inhibitor of Bcl-2 proteins is a plausible route of investigation, which could also improve the single-agent activity of navitoclax. Moreover, the acceptable toxicity profiles of both drugs make them attractive candidates for clinical investigation. Although artemisinins have been preclinically evaluated in combination with Bcl-2 inhibitors in leukemia and non-small-cell lung cancer cells [24,25,26], the use of artesunate with navitoclax has not been investigated in ovarian cancer. We examined antitumor efficacy of this regimen using 2D and 3D human ovarian tumor models, both in vitro and in vivo.

2. Materials and Methods

2.1. 2D Cell Culture

Four high-grade serous ovarian carcinoma cell lines, OVCAR3, UWB1.289, CAOV3, and OV-90, were purchased from ATCC. Cells were cultured under constant conditions of 37 °C and 5% CO2 and passaged 2 to 3 times per week. OVCAR3 cells were grown in RPMI-1640 base medium with 20% fetal bovine serum and 0.01 mg/mL bovine insulin; UWB1.289 cells were grown in a 1:1 ratio of RPMI-1640 and Mammary Epithelial Growth Medium (MEGM) supplemented with 3% fetal bovine serum; CAOV3 cells were grown in DMEM with 10% fetal bovine serum; and OV-90 cells were grown in a 1:1 mixture of MCDB 105 and Medium 199 supplemented with 15% fetal bovine serum.

2.2. 2D Cell Viability Assay

Cells (3 × 103) were seeded in 96-well white-walled microplates in 100 μL growth media and allowed to attach for 24 h at 37 °C, 5% CO2. Growth media were then removed and replaced with drug containing media or blank media for negative controls. Each cell line was grown in the presence of serially diluted navitoclax or artesunate for 72 h. Drug concentrations of artesunate ranged from 0.05 μM to 100 μM (12 concentrations; 4-fold dilutions); navitoclax concentrations ranged from 0.01 μM to 25 μM (12 concentrations; 2-fold dilutions). Following treatment, cell viability (%) was measured using CellTiter-Glo 2.0 Cell Viability Assay (Promega, Chūō, Tokyo) with a Varioskan LUX multimode microplate reader (ThermoFisher Scientific, Waltham, MA, USA) and normalized to untreated control cells (drug-treated luminescence/mean untreated luminescence × 100). Four-parameter log-logistic nonlinear models were used to determine the IC50 for each drug in each cell line using package drc [27] within R statistical software (version 4.1.1).

2.3. 2D Drug Combination/Synergy Analysis

Cell viability was measured following 72 h of treatment using CellTiter-Glo 2.0 cell proliferation assays, as described above. Artesunate and navitoclax were tested alone and in combination in a 6 × 6 full factorial synergy study design with at least 3 independent experiments per cell line. The tested concentrations of artesunate ranged from 0 μM to 200 μM and navitoclax ranged from 0 μM to 40 μM. Drug synergy was analyzed using the synergyfinder package within R statistical software (version 4.1.1) [28]. Synergy scoring was implemented using the Loewe additivity model [29].

2.4. 3D Tumor Organoid Culture

Tumor organoid cell line, UK1254, was established from a pathologically confirmed advanced-stage epithelial ovarian cancer, originating in the ovary of a 49-year-old patient treated at the Markey Cancer Center [8,30]. Organoids were cultured under constant conditions of 37 °C and 5% CO2, passaged once a week with 2 media changes per week. Cells were grown in Corning® Matrigel® Growth Factor Reduced Basement Membrane Matrix. Base medium used was Advanced DMEM/F12 with additives of R-Spondin-1(RSPO-1) conditioned media from HEK293 RSPO-1 expressing cells (20% vol/vol), Wnt-3A (50 ng/mL), FGF10 (100 ng/mL), Noggin (100 ng/mL), EGF (10 ng/mL), A83-01 (500 nM), Y-27632 (9 uM), B27 supplement (2% vol/vol), N2 supplement (1% vol/vol), nicotinamide (1 mM), Glutamax (2mM), HEPES (10 mM), and primocin (50 ug/mL).

2.5. Organoid Viability Assay

UK1254 organoids were grown in the presence of serially diluted navitoclax or artesunate for 72 h. Cell viability was measured using CellTiter-Glo 3D Cell Viability Assay (Promega). Cell viability was assessed using high-throughput imaging and compared to untreated control cells to determine response at each drug concentration. Four-parameter log-logistic nonlinear regression models were used to determine the IC50 for each drug. A total of 6 concentrations ranging from 0 μM to 16 μM (10-fold dilutions) were tested for artesunate, and 6 concentrations ranging from 0 μM to 12.5 μM (2-fold dilutions) were tested for navitoclax.

2.6. Drug Combination/Synergy Analysis in Organoids

Dose–response data were produced using cell proliferation assays, as described above. Pairs of drugs were tested in combination with each of five serially diluted concentrations in a full factorial synergy study design, with a sixth concentration serving as the control. The percentage of viable cells relative to untreated control cells was assayed for drug–drug interactions using the Bioconductor synergyfinder package within R statistical software (version 4.1.1) [28,31]. Synergy scoring was implemented using the Loewe additivity [29], Bliss independence [32], highest single agent (HSA) [33], and zero interaction potency (ZIP) models [34]. Synergy scores = 0 indicated additivity; scores > 0 indicated synergy; scores < 0 represented antagonism. The concentration range for artesunate was 0 μM to 50 μM (4-fold dilutions) and 0 μM to 12.5 μM for navitoclax (2-fold dilutions).

2.7. Apoptosis Assay

CAOV3 and OVCAR3 ovarian cancer cells (4 × 105) were plated in 60 mm dishes and incubated at 37 °C, 5% CO2 for 24 h. Cells were then treated with 10 μM navitoclax, 25 μM artesunate (OVCAR3), or 50 μM artesunate (CAOV3) for 48 h. To assess drug combination, cells were also treated with 10 μM artesunate and/or 10 μM navitoclax for 48 h. Media were removed and cells were washed with D-PBS and detached using Accutase cell detachment solution (BD Biosciences). Cells were collected, centrifuged for 5 min at 300× g, washed twice with ice-cold D-PBS, then resuspended in 1X Annexin V Binding Buffer (BD Biosciences). Cells were passed through a 70 μm mesh filter then labeled for 15 min with FITC-Annexin V and propidium iodide using the FITC Annexin V Apoptosis Detection Kit I (BD Biosciences). Cells were subsequently analyzed by flow cytometry.

2.8. In Vivo Xenograft Mouse Models

Animal studies were approved by the University of Kentucky Institutional Animal Care and Use Committee. BALB/c scid (CBySmn.Cg-Prkdcscid/J) mice were purchased from The Jackson Laboratory and maintained in barrier cages under pathogen-free conditions.
Luciferase and GFP-positive CAOV3 cells (CAOV3-luc) were generated by lentiviral transduction using pLL-CMV-rFLuc-GFP-mPGK-Puro Lenti-Labeler lentivirus (System Biosciences) at a multiplicity of infection (MOI) of 15. Transduced cells were selected in CAOV3 culture media containing 1 μg/mL puromycin for 2 weeks. Luciferase/GFP-positive cells were further enriched by FACS, collecting the 25% of cells with highest GFP expression. Sorted cells were maintained in 1 μg/mL puromycin.
Six-week old female BALB/c scid mice were injected intraperitoneally with 1.25 × 107 CAOV3-luc cells. To monitor cell engraftment, mice were administered 150 mg/kg IVISbrite D-luciferin potassium salt (PerkinElmer) by intraperitoneal injection. Mice were anesthetized using 3% isoflurane inhalation and imaged once weekly using a Lago optical imaging system (Spectral Instruments) to assess peak whole-body bioluminescence 5–15 min post-injection. Bioluminescence was quantified using Aura image analysis software (version 4.0.7) (Spectral Instruments).
Evaluation of treatment efficacy was conducted using groups of eight tumor-bearing mice randomly assigned to receive vehicle, artesunate alone, navitoclax alone, or artesunate in combination with navitoclax. Groups had equivalent mean tumor burden based on bioluminescence measurement at the start of treatment. Artesunate and navitoclax were purchased from MedChemExpress and prepared in 10% DMSO, 40% PEG-300, 5% Tween-80, and 45% saline. Treatment was given once daily for 5 days (Monday–Friday) for 8 weeks. Navitoclax was given at 50 mg/kg. Artesunate was administered at 50 mg/kg for the first 4 weeks of treatment, then was increased to 100 mg/kg for the subsequent 4 weeks. Bioluminescence imaging was conducted weekly during treatment as described.

2.9. Statistical Analysis

Statistical analyses were performed using R (version 4.0.1) or GraphPad Prism. Statistical significance was designated as * p < 0.05, ** p < 0.01, and *** p < 0.001.

3. Results

3.1. Single-Agent Sensitivity Analyses

Relative de novo sensitivity to artesunate was evaluated in a panel of human high-grade serous ovarian cancer cell lines including CAOV3, OVCAR3, OV-90, and BRCA1-null UWB1.289 cells. Due to time-dependent effects of artesunate on ovarian cancer cell proliferation, we chose to assess cell viability following 72 h of treatment, consistent with previous studies [8,11]. Cell viability assays were performed and IC50 values were calculated. Relative artesunate sensitivity differed by approximately 10-fold across cell lines (Figure 1A). Mean artesunate IC50 for OVCAR3, UWB1.289, CAOV3, and OV-90 measured 5.95 μM (standard deviation (SD) = 3.25), 17.95 μM (SD = 8.34), 26.73 μM (SD = 9.89), and 61.00 μM (SD = 18.40), respectively. Artesunate IC50 was significantly higher in OV-90 cells compared to CAOV3, UWB1.289, and OVCAR3 cells (one-way ANOVA p = 2.0 × 10−4; Tukey’s multiple comparison p < 0.01). Previous studies have shown that artesunate exposure induces apoptosis in cancer cells [10,15,17,35,36,37]; therefore, we aimed to determine if inhibiting antiapoptotic Bcl-2 family proteins could enhance artesunate efficacy in ovarian cancer cells. Navitoclax belongs to a class of BH3-only mimetic small molecule inhibitors of Bcl-2, Bcl-xL, and Bcl-w. Sensitivity to navitoclax was evaluated in the ovarian cancer cell line panel where the mean IC50 values were 3.33 μM (SD = 1.20), 3.53 μM (SD = 1.47), 7.93 μM (SD = 3.24), and 13.33 μM (SD = 1.21) for CAOV3, UWB1.289, OV-90, and OVCAR3, respectively (Figure 1B). Navitoclax IC50 was significantly higher in OVCAR3 cells compared to UWB1.289, CAOV3, and OV-90 cells (one-way ANOVA p = 7.8 × 10−4; Tukey’s p < 0.05).
The novel epithelial ovarian cancer organoid line, UK1254 [8,30], was also assessed for artesunate and navitoclax sensitivity (Figure 1C). The mean artesunate IC50 for UK1254 organoids was 4.15 μM (SD = 0.59) and the mean navitoclax IC50 was 3.80 μM (SD = 0.84), comparable to values observed in the 2D cell lines.

3.2. Artesunate in Combination with Navitoclax

To confirm that the observed artesunate-mediated loss of cell viability was indeed due to apoptosis in our model systems, artesunate-sensitive CAOV3 and OVCAR3 cells were treated with 50 μM and 25 μM artesunate for 48 h, respectively. Apoptosis was measured using FITC-Annexin V and propidium iodide staining with flow cytometry analysis. After normalizing to untreated controls, a 9.3% (SD = 1.4) increase in apoptosis was observed in CAOV3 cells while apoptosis was induced in 23.5% (SD = 1.3) of OVCAR3 cells (Figure 2A) by artesunate. In CAOV3 (p < 0.05) and OVCAR3 cells (p < 0.001), rates of apoptosis were significantly higher than basal rates observed in untreated cells. Next, apoptosis was examined following combination treatment using moderately cytotoxic single-agent concentrations of artesunate and navitoclax at a 1:1 molar ratio. CAOV3 and OVCAR3 cells were treated with 10 μM each of artesunate and navitoclax, alone and in combination, for 48 h. As shown in Figure 2B, 10 μM navitoclax induced apoptosis in 43.1% (SD = 2.3) of CAOV3 (p < 0.05) and 16.1% (SD = 9.2) of OVCAR3 cells (p < 0.05). Artesunate alone triggered apoptosis in 6.7% (SD = 4.2) and 17.4% (SD = 3.9) of CAOV3 (p > 0.05) and OVCAR3 cells (p < 0.05), respectively. Upon combination, apoptosis increased to 68.3% (SD = 1.6) of CAOV3 cells (p < 0.001) and 54.4% (SD = 6.0) of OVCAR3 cells (p < 0.001).
A formal analysis of drug synergy in the full ovarian cancer cell line panel followed. After 72 h of treatment, cytotoxic drug synergy was observed at clinically relevant concentrations in all ovarian cancer cell lines tested (Figure 3A–D), including artesunate-resistant OV-90 cells. Using the Loewe additivity model [29] to evaluate synergy, we found that the combination significantly outperformed the null model of noninteraction in CAOV3 (p = 3.58 × 10−48), OVCAR3 (p = 2.73 × 10−3), UWB1.289 (p = 6.87 × 10−7) and OV-90 cells (p = 8.99 × 10−8). Moreover, potent drug synergy was seen in the UK1254 organoid line (p = 3.99 × 10−41) (Figure 3E). To ensure that the apparent synergism for artesunate and navitoclax was not model dependent, we analyzed our data using Bliss independence, zero interaction potency (ZIP), and highest single agent (HSA) models, as well (Table S1). Artesunate and navitoclax was deemed synergistic under each model for all cell lines tested, with the exception of UWB1.289 cells, where the combination was classified as additive in two of four models.

3.3. Artesunate with Navitoclax in Ovarian Cancer Xenografts

Drug synergy observed in vitro prompted further investigation of the artesunate plus navitoclax combination in vivo using orthotopic mouse xenografts. CAOV3-luc cells were generated to monitor intraperitoneal tumor growth in mice using whole-body bioluminescence imaging. Briefly, CAOV3 cells were labeled with a green fluorescent protein (GFP) and firefly luciferase (rFLuc) coexpression lentiviral vector, and cells with stable genomic integration were selected using FACS and puromycin (CAOV3-luc). Intraperitoneal tumor xenografts were established in 6-week-old female BALB/c scid mice and engraftment was monitored weekly with bioluminescence imaging.
Five weeks post-implantation, engraftment was established and 32 CAOV3-luc tumor-bearing mice were randomized into four treatment groups of equivalent numbers, weights, and tumor burdens: vehicle control, artesunate alone, navitoclax alone, and combination. A dosing regimen was developed based on previous studies demonstrating efficacy with minimal toxicities in mouse xenograft models [38,39,40,41,42,43,44,45]. Treatment was administered via oral gavage 5 days per week for 8 weeks with navitoclax given at 50 mg/kg. Artesunate was given at 50 mg/kg for the first 4 weeks then escalated to 100 mg/kg for weeks 5–8 due to lack of apparent efficacy at the lower dose. Treatment was well tolerated, with minimal drug-related toxicities observed. There were three instances of epistaxis in two mice in the navitoclax alone group, which resolved without intervention.
Figure 4A shows representative images of tumor xenograft bioluminescence among each treatment group at the beginning and end of treatment. Quantitation of the change in total emissions over time relative to pretreatment levels (mean % ± SEM) is summarized in Figure 4B. A higher rate of tumor progression became apparent in the vehicle and artesunate alone groups compared to navitoclax alone and combination treatment groups during weeks 4–8 of treatment. During treatment, one mouse within the vehicle control group died due to apparent isoflurane overexposure on day 10 and was censored from the study. Another vehicle-treated mouse succumbed to disease during week 6 of treatment. The remaining 30 mice survived the entirety of the study. One week following conclusion of treatment, bioluminescence was measured and median total emissions were significantly lower in the combination treatment group compared to the vehicle and single-agent artesunate-treated mice (6.30 × 1010 photons/second (vehicle) versus 2.96 × 1010 p/s (artesunate) versus 1.15 × 1010 p/s (combination); p < 0.05; Figure 4C). No significant difference was seen in median bioluminescence between single-agent navitoclax (1.38 × 1010 p/s) and other treatment groups or between vehicle and artesunate alone groups.

4. Discussion

Ovarian cancer remains the most lethal gynecologic malignancy, yet development of new treatment modalities has been limited. Contemporary frontline treatment consisting of a platinum/taxane doublet has not significantly changed in nearly three decades, despite limited improvement in outcomes. Clearly, identifying better therapeutic strategies for ovarian cancer is of the utmost importance.
Artesunate is a water-soluble, orally bioavailable, semisynthetic derivative of artemisinin that has demonstrated cytotoxic activity against a variety of cancer cells [10,18]. Our present and prior work shows that artesunate inhibits cell proliferation and induces apoptosis in human ovarian cancer cell lines and tumor organoids [8]. Artemisinins have also shown the ability to enhance the cytotoxic effects of platinum agents in ovarian cancer cells [46,47,48]. While most evidence of anticancer efficacy comes from preclinical studies, artesunate has exhibited clinical activity in early-phase clinical trials [18,49,50]. Moreover, artemisinins, including artesunate, are well tolerated, having been widely used throughout the world as frontline treatment for malaria without reports of any serious adverse events [51]. Taken together, these data support further clinical investigation of artesunate for cancer treatment.
Navitoclax belongs to a class of drugs known as BH3 mimetics, which augment the induction of apoptosis [52]. Upon binding the BH3 domain of Bcl-2 proteins, navitoclax disrupts the sequestration of the proapoptotic BIM protein, causing its release and eventually apoptosis. Clinical evaluation of single-agent navitoclax has been met with limited success, with activity falling short of expectations and significant dose-limiting but manageable thrombocytopenia. In a phase II study with small-cell lung cancer patients (SCLC), Rudin et al. reported a partial response in 2.6% of patients, stable disease in 23.1% of patients, and progression in 41% of patients [53]. Furthermore, grade III–IV thrombocytopenia occurred in 41% of those on study. The MONAVI-GINECO study evaluated navitoclax monotherapy in recurrent epithelial ovarian cancer [19]. Like outcomes in SCLC, a partial response was observed in 2.2% of patients, stable disease in 32.6% of patients, and progressive disease in 65.2% of patients. Grade III–IV thrombocytopenia occurred in 26% of patients, resulting in discontinuation of treatment in 25% of affected individuals. Consistent failure of navitoclax monotherapy to produce acceptable outcomes has prompted a shift in focus to combination treatment strategies which could enhance efficacy and avoid dose-limiting toxicities.
Both chemotherapy and targeted agents, including rituximab, dasatinib, vemurafenib, vorinostat, and tamoxifen, have demonstrated enhanced efficacy when combined with navitoclax in solid tumors and hematologic cancers [54,55,56,57,58,59]. Navitoclax enhanced the in vitro activity of carboplatin and paclitaxel in 2D and 3D ovarian cancer cell cultures and was synergistic with rucaparib in HRD ovarian cancer cells [60,61]. Our own work shows that navitoclax in combination with artesunate is synergistic in 2D human ovarian cancer cell lines as well as in a novel high-grade serous ovarian cancer organoid model.
Artemisinins combined with navitoclax have demonstrated enhanced benefit over monotherapy in several cancer models, including leukemia and non-small-cell lung cancer [24,26,62,63]. We aimed to show that artesunate with navitoclax is a promising treatment strategy for metastatic ovarian cancer. As presented in Figure 3, in vitro drug synergy was significant and consistent across various ovarian cancer cell models. This included an artesunate-resistant cell line, OV-90, a BRCA1-mutant cell line, UWB1.289, and a patient-derived tumor organoid line (UK1254). Unfortunately, the in vitro results did not translate to animal models. While the in vivo study did demonstrate that combination therapy was superior to the vehicle control and artesunate monotherapy, it did not outperform single-agent navitoclax. This suggests that navitoclax is driving the observed combination treatment benefit.
The failure of combination treatment to outperform single-agent navitoclax was unexpected; however, there are several possible explanations. First, the route of drug administration may not have been optimal to maximize the bioavailability of artesunate. Thus, artesunate concentrations could have been below the threshold needed to achieve drug synergy with navitoclax at the tumor site. In healthy individuals, the absolute bioavailability of oral artesunate was estimated only to be 21.6% [64]. It is possible that navitoclax combination treatment using intravenous artesunate is more effective. Second, the frequency of artesunate dosing may have been insufficient. Reported artesunate half-life estimates in humans indicates a relatively short half-life. A review of the available literature found that nearly all studies estimated artesunate half-life to be less than 1 h following oral treatment [65]. The short elimination half-life was further supported by a reportedly small volume of distribution [64]. Our in vivo study may have required increased frequency of oral artesunate dosing to achieve intratumoral concentrations necessary for navitoclax drug synergy. Lastly, tumors may have been allowed to progress to a point where they were no longer responsive to artesunate treatment. As indicated by the small volume of distribution, artesunate may have limited distribution into tissues that are not well perfused. The peritoneum and omentum are highly vascularized, providing ample opportunity for perfusion of artesunate from the plasma into the peritoneal space. Although we used an orthotopic intraperitoneal model of metastatic ovarian cancer that should have enabled sufficient drug exposure, CAOV3-luc cells were allowed to engraft for >4 weeks prior to treatment. This may have permitted establishment of macro-metastases, hindering penetration of artesunate into larger tumor nodules. An alternative strategy in which combination treatment was initiated much sooner, targeting micro-metastases and circulating tumor cells, may have produced the expected synergistic effect. Consequently, this could suggest that artesunate with navitoclax holds greater future clinical benefit if used as adjuvant treatment in patients that have yet to develop distant metastases.

5. Conclusions

As discussed, navitoclax synergizes with artesunate to kill ovarian cancer cells at clinically achievable concentrations in both artesunate-sensitive and resistant cells, in vitro. This drug combination could help fulfill the urgent need for new therapeutic options in ovarian cancer; however, preclinical optimization is required. Clinically, the lack of consensus for effective doses and method(s) of administration for artesunate hinders its advancement as a practical cancer therapy. However, decades of use for malaria treatment have demonstrated a favorable safety profile for artesunate which may translate to advantageous therapeutic indexes when combined with suitable drugs, like navitoclax. Continued preclinical investigation of this treatment combination is critical for realizing its therapeutic potential in ovarian cancer.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cancers16071321/s1, Table S1: Artesunate and navitoclax synergy scores using various synergy models.

Author Contributions

Conceptualization, J.R.M., R.A. and J.M.K.; methodology, J.R.M., R.A. and K.S.H.; formal analysis, J.R.M., R.A. and K.S.H.; investigation, J.R.M., R.A., C.D.C. and K.S.H.; writing—original draft preparation, J.R.M. and R.A.; writing—review and editing, J.R.M., R.A., C.D.C., K.S.H., C.S.D. and J.M.K.; supervision, C.S.D. and J.M.K.; funding acquisition, J.M.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Cancer Institute at the National Institutes of Health at the University of Kentucky Markey Cancer Center, grant number P30CA177558.

Institutional Review Board Statement

The animal study protocol was approved by the Institutional Animal Care and Use Committee of University of Kentucky (protocol 2017-2674 approved 1 December 2022).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

This research was supported by the Biospecimen Procurement and Translational Pathology and Flow Cytometry and Immune Monitoring Shared Resources of the University of Kentucky Markey Cancer Center (P30CA177558). The University of Kentucky Division of Laboratory Animal Resources provided additional support.

Conflicts of Interest

Jill M. Kolesar has received grant support to the institution from Loxo@Lilly and Artemilife, and is a founder and has ownership in VesiCure Technologies and Helix Diagnostics. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Cancer Stat Facts: Ovarian Cancer. Available online: https://seer.cancer.gov/statfacts/html/ovary.html (accessed on 19 July 2023).
  2. Rose, P.G. First-Line Chemotherapy for Ovarian Cancer: Inferences from Recent Studies. Oncologist 2016, 21, 1286–1290. [Google Scholar] [CrossRef] [PubMed]
  3. Moore, K.; Colombo, N.; Scambia, G.; Kim, B.G.; Oaknin, A.; Friedlander, M.; Lisyanskaya, A.; Floquet, A.; Leary, A.; Sonke, G.S.; et al. Maintenance Olaparib in Patients with Newly Diagnosed Advanced Ovarian Cancer. N. Engl. J. Med. 2018, 379, 2495–2505. [Google Scholar] [CrossRef] [PubMed]
  4. Ray-Coquard, I.; Pautier, P.; Pignata, S.; Perol, D.; Gonzalez-Martin, A.; Berger, R.; Fujiwara, K.; Vergote, I.; Colombo, N.; Maenpaa, J.; et al. Olaparib plus Bevacizumab as First-Line Maintenance in Ovarian Cancer. N. Engl. J. Med. 2019, 381, 2416–2428. [Google Scholar] [CrossRef]
  5. Gonzalez-Martin, A.; Pothuri, B.; Vergote, I.; DePont Christensen, R.; Graybill, W.; Mirza, M.R.; McCormick, C.; Lorusso, D.; Hoskins, P.; Freyer, G.; et al. Niraparib in Patients with Newly Diagnosed Advanced Ovarian Cancer. N. Engl. J. Med. 2019, 381, 2391–2402. [Google Scholar] [CrossRef]
  6. Coleman, R.L.; Fleming, G.F.; Brady, M.F.; Swisher, E.M.; Steffensen, K.D.; Friedlander, M.; Okamoto, A.; Moore, K.N.; Efrat Ben-Baruch, N.; Werner, T.L.; et al. Veliparib with First-Line Chemotherapy and as Maintenance Therapy in Ovarian Cancer. N. Engl. J. Med. 2019, 381, 2403–2415. [Google Scholar] [CrossRef]
  7. Lee, M.W.; Ryu, H.; Song, I.C.; Yun, H.J.; Jo, D.Y.; Ko, Y.B.; Lee, H.J. Efficacy of cisplatin combined with topotecan in patients with advanced or recurrent ovarian cancer as second- or higher-line palliative chemotherapy. Medicine 2020, 99, e19931. [Google Scholar] [CrossRef] [PubMed]
  8. McDowell, A., Jr.; Hill, K.S.; McCorkle, J.R.; Gorski, J.; Zhang, Y.; Salahudeen, A.A.; Ueland, F.; Kolesar, J.M. Preclinical Evaluation of Artesunate as an Antineoplastic Agent in Ovarian Cancer Treatment. Diagnostics 2021, 11, 395. [Google Scholar] [CrossRef]
  9. Golenser, J.; Waknine, J.H.; Krugliak, M.; Hunt, N.H.; Grau, G.E. Current perspectives on the mechanism of action of artemisinins. Int. J. Parasitol. 2006, 36, 1427–1441. [Google Scholar] [CrossRef]
  10. Efferth, T.; Sauerbrey, A.; Olbrich, A.; Gebhart, E.; Rauch, P.; Weber, H.O.; Hengstler, J.G.; Halatsch, M.E.; Volm, M.; Tew, K.D.; et al. Molecular modes of action of artesunate in tumor cell lines. Mol. Pharmacol. 2003, 64, 382–394. [Google Scholar] [CrossRef]
  11. Greenshields, A.L.; Shepherd, T.G.; Hoskin, D.W. Contribution of reactive oxygen species to ovarian cancer cell growth arrest and killing by the anti-malarial drug artesunate. Mol. Carcinog. 2017, 56, 75–93. [Google Scholar] [CrossRef]
  12. Wang, J.; Xu, C.; Wong, Y.K.; Li, Y.; Liao, F.; Jiang, T.; Tu, Y. Artemisinin, the Magic Drug Discovered from Traditional Chinese Medicine. Engineering 2019, 5, 32–39. [Google Scholar] [CrossRef]
  13. Hill, K.S.; McDowell, A.; McCorkle, J.R.; Schuler, E.; Ellingson, S.R.; Plattner, R.; Kolesar, J.M. KEAP1 Is Required for Artesunate Anticancer Activity in Non-Small-Cell Lung Cancer. Cancers 2021, 13, 1885. [Google Scholar] [CrossRef]
  14. Chen, Y.; Tao, H.; Wang, F.; Wu, P.; Gao, J.; Zhang, X.; He, Z.; Zhou, Z.; Jia, Y. Artesunate synergistically promotes sorafenib-induced apoptosis and ferroptosis in non-Hodgkin lymphoma cells through inhibition of the STAT3 pathway. Oncol. Rep. 2023, 50, 147. [Google Scholar] [CrossRef] [PubMed]
  15. Chen, Y.; Wang, F.; Wu, P.; Gong, S.; Gao, J.; Tao, H.; Shen, Q.; Wang, S.; Zhou, Z.; Jia, Y. Artesunate induces apoptosis, autophagy and ferroptosis in diffuse large B cell lymphoma cells by impairing STAT3 signaling. Cell Signal. 2021, 88, 110167. [Google Scholar] [CrossRef] [PubMed]
  16. Okamoto, H.; Yoshikawa, K.; Shimada, A.; Sano, R.; Inukai, D.; Yamanaka, S.; Suzuki, S.; Ueda, R.; Ueda, H.; Fujimoto, Y.; et al. Artesunate and cisplatin synergistically inhibit HNSCC cell growth and promote apoptosis with artesunate-induced decreases in Rb and phosphorylated Rb levels. Oncol. Rep. 2023, 50, 154. [Google Scholar] [CrossRef]
  17. Yang, Y.; Wu, N.; Wu, Y.; Chen, H.; Qiu, J.; Qian, X.; Zeng, J.; Chiu, K.; Gao, Q.; Zhuang, J. Artesunate induces mitochondria-mediated apoptosis of human retinoblastoma cells by upregulating Kruppel-like factor 6. Cell Death Dis. 2019, 10, 862. [Google Scholar] [CrossRef] [PubMed]
  18. Deeken, J.F.; Wang, H.; Hartley, M.; Cheema, A.K.; Smaglo, B.; Hwang, J.J.; He, A.R.; Weiner, L.M.; Marshall, J.L.; Giaccone, G.; et al. A phase I study of intravenous artesunate in patients with advanced solid tumor malignancies. Cancer Chemother Pharmacol. 2018, 81, 587–596. [Google Scholar] [CrossRef] [PubMed]
  19. Joly, F.; Fabbro, M.; Follana, P.; Lequesne, J.; Medioni, J.; Lesoin, A.; Frenel, J.S.; Abadie-Lacourtoisie, S.; Floquet, A.; Gladieff, L.; et al. A phase II study of Navitoclax (ABT-263) as single agent in women heavily pretreated for recurrent epithelial ovarian cancer: The MONAVI-GINECO study. Gynecol. Oncol. 2022, 165, 30–39. [Google Scholar] [CrossRef]
  20. Lheureux, S.; N’Diaye, M.; Blanc-Fournier, C.; Dugue, A.E.; Clarisse, B.; Dutoit, S.; Giffard, F.; Abeilard, E.; Briand, M.; Labiche, A.; et al. Identification of predictive factors of response to the BH3-mimetic molecule ABT-737: An ex vivo experiment in human serous ovarian carcinoma. Int. J. Cancer 2015, 136, E340–E350. [Google Scholar] [CrossRef]
  21. Jebahi, A.; Villedieu, M.; Petigny-Lechartier, C.; Brotin, E.; Louis, M.H.; Abeilard, E.; Giffard, F.; Guercio, M.; Briand, M.; Gauduchon, P.; et al. PI3K/mTOR dual inhibitor NVP-BEZ235 decreases Mcl-1 expression and sensitizes ovarian carcinoma cells to Bcl-xL-targeting strategies, provided that Bim expression is induced. Cancer Lett. 2014, 348, 38–49. [Google Scholar] [CrossRef]
  22. Nor Hisam, N.S.; Ugusman, A.; Rajab, N.F.; Ahmad, M.F.; Fenech, M.; Liew, S.L.; Mohamad Anuar, N.N. Combination Therapy of Navitoclax with Chemotherapeutic Agents in Solid Tumors and Blood Cancer: A Review of Current Evidence. Pharmaceutics 2021, 13, 1353. [Google Scholar] [CrossRef] [PubMed]
  23. Mohamad Anuar, N.N.; Nor Hisam, N.S.; Liew, S.L.; Ugusman, A. Clinical Review: Navitoclax as a Pro-Apoptotic and Anti-Fibrotic Agent. Front. Pharmacol. 2020, 11, 564108. [Google Scholar] [CrossRef]
  24. Budhraja, A.; Turnis, M.E.; Churchman, M.L.; Kothari, A.; Yang, X.; Xu, H.; Kaminska, E.; Panetta, J.C.; Finkelstein, D.; Mullighan, C.G.; et al. Modulation of Navitoclax Sensitivity by Dihydroartemisinin-Mediated MCL-1 Repression in BCR-ABL(+) B-Lineage Acute Lymphoblastic Leukemia. Clin. Cancer Res. 2017, 23, 7558–7568. [Google Scholar] [CrossRef] [PubMed]
  25. Moses, B.S.; McCullough, S.; Fox, J.M.; Mott, B.T.; Bentzen, S.M.; Kim, M.; Tyner, J.W.; Lapidus, R.G.; Emadi, A.; Rudek, M.A.; et al. Antileukemic efficacy of a potent artemisinin combined with sorafenib and venetoclax. Blood Adv. 2021, 5, 711–724. [Google Scholar] [CrossRef] [PubMed]
  26. Yan, X.; Li, P.; Zhan, Y.; Qi, M.; Liu, J.; An, Z.; Yang, W.; Xiao, H.; Wu, H.; Qi, Y.; et al. Dihydroartemisinin suppresses STAT3 signaling and Mcl-1 and Survivin expression to potentiate ABT-263-induced apoptosis in Non-small Cell Lung Cancer cells harboring EGFR or RAS mutation. Biochem. Pharmacol. 2018, 150, 72–85. [Google Scholar] [CrossRef] [PubMed]
  27. Ritz, C.; Baty, F.; Streibig, J.C.; Gerhard, D. Dose-Response Analysis Using R. PLoS ONE 2015, 10, e0146021. [Google Scholar] [CrossRef] [PubMed]
  28. He, L.; Kulesskiy, E.; Saarela, J.; Turunen, L.; Wennerberg, K.; Aittokallio, T.; Tang, J. Methods for High-throughput Drug Combination Screening and Synergy Scoring. Methods Mol. Biol. 2018, 1711, 351–398. [Google Scholar] [CrossRef] [PubMed]
  29. Loewe, S.; Muischnek, H. Über kombination swirkungen. Archiv. Experiment. Pathol. Pharmakol. 1926, 114, 313–326. [Google Scholar] [CrossRef]
  30. Gorski, J.W.; Zhang, Z.; McCorkle, J.R.; DeJohn, J.M.; Wang, C.; Miller, R.W.; Gallion, H.H.; Dietrich, C.S.; Ueland, F.R.; Kolesar, J.M. Utilizing Patient-Derived Epithelial Ovarian Cancer Tumor Organoids to Predict Carboplatin Resistance. Biomedicines 2021, 9, 1021. [Google Scholar] [CrossRef]
  31. Zheng, S.; Wang, W.; Aldahdooh, J.; Malyutina, A.; Shadbahr, T.; Tanoli, Z.; Pessia, A.; Tang, J. SynergyFinder Plus: Toward Better Interpretation and Annotation of Drug Combination Screening Datasets. Genom. Proteom. Bioinform. 2022, 20, 587–596. [Google Scholar] [CrossRef]
  32. Bliss, C.I. The toxicity of poisons applied jointly. Ann. Appl. Biol. 1939, 26, 585–615. [Google Scholar] [CrossRef]
  33. Berenbaum, M.C. What is synergy? Pharmacol. Rev. 1989, 41, 93–141. [Google Scholar] [PubMed]
  34. Yadav, B.; Wennerberg, K.; Aittokallio, T.; Tang, J. Searching for Drug Synergy in Complex Dose-Response Landscapes Using an Interaction Potency Model. Comput. Struct. Biotechnol. J. 2015, 13, 504–513. [Google Scholar] [CrossRef] [PubMed]
  35. Beccafico, S.; Morozzi, G.; Marchetti, M.C.; Riccardi, C.; Sidoni, A.; Donato, R.; Sorci, G. Artesunate induces ROS- and p38 MAPK-mediated apoptosis and counteracts tumor growth in vivo in embryonal rhabdomyosarcoma cells. Carcinogenesis 2015, 36, 1071–1083. [Google Scholar] [CrossRef] [PubMed]
  36. Drenberg, C.D.; Buaboonnam, J.; Orwick, S.J.; Hu, S.; Li, L.; Fan, Y.; Shelat, A.A.; Guy, R.K.; Rubnitz, J.; Baker, S.D. Evaluation of artemisinins for the treatment of acute myeloid leukemia. Cancer Chemother Pharmacol. 2016, 77, 1231–1243. [Google Scholar] [CrossRef]
  37. Zhang, P.; Luo, H.S.; Li, M.; Tan, S.Y. Artesunate inhibits the growth and induces apoptosis of human gastric cancer cells by downregulating COX-2. Onco. Targets Ther. 2015, 8, 845–854. [Google Scholar] [CrossRef] [PubMed]
  38. Ma, H.; Yao, Q.; Zhang, A.M.; Lin, S.; Wang, X.X.; Wu, L.; Sun, J.G.; Chen, Z.T. The effects of artesunate on the expression of EGFR and ABCG2 in A549 human lung cancer cells and a xenograft model. Molecules 2011, 16, 10556–10569. [Google Scholar] [CrossRef] [PubMed]
  39. Li, Z.J.; Dai, H.Q.; Huang, X.W.; Feng, J.; Deng, J.H.; Wang, Z.X.; Yang, X.M.; Liu, Y.J.; Wu, Y.; Chen, P.H.; et al. Artesunate synergizes with sorafenib to induce ferroptosis in hepatocellular carcinoma. Acta Pharmacol. Sin. 2021, 42, 301–310. [Google Scholar] [CrossRef] [PubMed]
  40. Roh, J.L.; Kim, E.H.; Jang, H.; Shin, D. Nrf2 inhibition reverses the resistance of cisplatin-resistant head and neck cancer cells to artesunate-induced ferroptosis. Redox Biol. 2017, 11, 254–262. [Google Scholar] [CrossRef]
  41. Dell’Eva, R.; Pfeffer, U.; Vene, R.; Anfosso, L.; Forlani, A.; Albini, A.; Efferth, T. Inhibition of angiogenesis in vivo and growth of Kaposi’s sarcoma xenograft tumors by the anti-malarial artesunate. Biochem. Pharmacol. 2004, 68, 2359–2366. [Google Scholar] [CrossRef]
  42. Faber, A.C.; Farago, A.F.; Costa, C.; Dastur, A.; Gomez-Caraballo, M.; Robbins, R.; Wagner, B.L.; Rideout, W.M., 3rd; Jakubik, C.T.; Ham, J.; et al. Assessment of ABT-263 activity across a cancer cell line collection leads to a potent combination therapy for small-cell lung cancer. Proc. Natl. Acad. Sci. USA 2015, 112, E1288–E1296. [Google Scholar] [CrossRef]
  43. Estepa-Fernandez, A.; Garcia-Fernandez, A.; Lerida-Viso, A.; Blandez, J.F.; Galiana, I.; Sancenon-Galarza, F.; Orzaez, M.; Martinez-Manez, R. Combination of palbociclib with navitoclax based-therapies enhances in vivo antitumoral activity in triple-negative breast cancer. Pharmacol. Res. 2023, 187, 106628. [Google Scholar] [CrossRef] [PubMed]
  44. Ju, W.; Zhang, M.; Wilson, K.M.; Petrus, M.N.; Bamford, R.N.; Zhang, X.; Guha, R.; Ferrer, M.; Thomas, C.J.; Waldmann, T.A. Augmented efficacy of brentuximab vedotin combined with ruxolitinib and/or Navitoclax in a murine model of human Hodgkin’s lymphoma. Proc. Natl. Acad. Sci. USA 2016, 113, 1624–1629. [Google Scholar] [CrossRef]
  45. Shoemaker, A.R.; Mitten, M.J.; Adickes, J.; Ackler, S.; Refici, M.; Ferguson, D.; Oleksijew, A.; O’Connor, J.M.; Wang, B.; Frost, D.J.; et al. Activity of the Bcl-2 family inhibitor ABT-263 in a panel of small cell lung cancer xenograft models. Clin. Cancer Res. 2008, 14, 3268–3277. [Google Scholar] [CrossRef] [PubMed]
  46. Wang, B.; Hou, D.; Liu, Q.; Wu, T.; Guo, H.; Zhang, X.; Zou, Y.; Liu, Z.; Liu, J.; Wei, J.; et al. Artesunate sensitizes ovarian cancer cells to cisplatin by downregulating RAD51. Cancer Biol. Ther. 2015, 16, 1548–1556. [Google Scholar] [CrossRef] [PubMed]
  47. Chen, T.; Li, M.; Zhang, R.; Wang, H. Dihydroartemisinin induces apoptosis and sensitizes human ovarian cancer cells to carboplatin therapy. J. Cell Mol. Med. 2009, 13, 1358–1370. [Google Scholar] [CrossRef]
  48. Feng, X.; Li, L.; Jiang, H.; Jiang, K.; Jin, Y.; Zheng, J. Dihydroartemisinin potentiates the anticancer effect of cisplatin via mTOR inhibition in cisplatin-resistant ovarian cancer cells: Involvement of apoptosis and autophagy. Biochem. Biophys. Res. Commun. 2014, 444, 376–381. [Google Scholar] [CrossRef]
  49. Krishna, S.; Ganapathi, S.; Ster, I.C.; Saeed, M.E.; Cowan, M.; Finlayson, C.; Kovacsevics, H.; Jansen, H.; Kremsner, P.G.; Efferth, T.; et al. A Randomised, Double Blind, Placebo-Controlled Pilot Study of Oral Artesunate Therapy for Colorectal Cancer. EBioMedicine 2015, 2, 82–90. [Google Scholar] [CrossRef] [PubMed]
  50. Michener, C.M.; Ricci, S.; AlHilli, M.; Beffa, L.; Debernardo, R.; Waggoner, S.E.; Brainard, J.; Plesa, M.; Belinson, J.L.; Trimble, C.L. Safety and efficacy of topical artesunate for the treatment of vulvar intraepithelial neoplasia 2/3. Gynecol. Oncol. 2023, 178, 102–109. [Google Scholar] [CrossRef]
  51. Barradell, L.B.; Fitton, A. Artesunate. A review of its pharmacology and therapeutic efficacy in the treatment of malaria. Drugs 1995, 50, 714–741. [Google Scholar] [CrossRef]
  52. Townsend, P.A.; Kozhevnikova, M.V.; Cexus, O.N.F.; Zamyatnin, A.A., Jr.; Soond, S.M. BH3-mimetics: Recent developments in cancer therapy. J. Exp. Clin. Cancer Res. 2021, 40, 355. [Google Scholar] [CrossRef] [PubMed]
  53. Rudin, C.M.; Hann, C.L.; Garon, E.B.; Ribeiro de Oliveira, M.; Bonomi, P.D.; Camidge, D.R.; Chu, Q.; Giaccone, G.; Khaira, D.; Ramalingam, S.S.; et al. Phase II study of single-agent navitoclax (ABT-263) and biomarker correlates in patients with relapsed small cell lung cancer. Clin. Cancer Res. 2012, 18, 3163–3169. [Google Scholar] [CrossRef] [PubMed]
  54. Jeong, J.H.; Oh, J.M.; Jeong, S.Y.; Lee, S.W.; Lee, J.; Ahn, B.C. Combination Treatment with the BRAF(V600E) Inhibitor Vemurafenib and the BH3 Mimetic Navitoclax for BRAF-Mutant Thyroid Carcinoma. Thyroid 2019, 29, 540–548. [Google Scholar] [CrossRef] [PubMed]
  55. Nakajima, W.; Sharma, K.; Hicks, M.A.; Le, N.; Brown, R.; Krystal, G.W.; Harada, H. Combination with vorinostat overcomes ABT-263 (navitoclax) resistance of small cell lung cancer. Cancer Biol. Ther. 2016, 17, 27–35. [Google Scholar] [CrossRef] [PubMed]
  56. Kivioja, J.L.; Thanasopoulou, A.; Kumar, A.; Kontro, M.; Yadav, B.; Majumder, M.M.; Javarappa, K.K.; Eldfors, S.; Schwaller, J.; Porkka, K.; et al. Dasatinib and navitoclax act synergistically to target NUP98-NSD1(+)/FLT3-ITD(+) acute myeloid leukemia. Leukemia 2019, 33, 1360–1372. [Google Scholar] [CrossRef] [PubMed]
  57. Kipps, T.J.; Eradat, H.; Grosicki, S.; Catalano, J.; Cosolo, W.; Dyagil, I.S.; Yalamanchili, S.; Chai, A.; Sahasranaman, S.; Punnoose, E.; et al. A phase 2 study of the BH3 mimetic BCL2 inhibitor navitoclax (ABT-263) with or without rituximab, in previously untreated B-cell chronic lymphocytic leukemia. Leuk. Lymphoma 2015, 56, 2826–2833. [Google Scholar] [CrossRef]
  58. Roberts, A.W.; Advani, R.H.; Kahl, B.S.; Persky, D.; Sweetenham, J.W.; Carney, D.A.; Yang, J.; Busman, T.B.; Enschede, S.H.; Humerickhouse, R.A.; et al. Phase 1 study of the safety, pharmacokinetics, and antitumour activity of the BCL2 inhibitor navitoclax in combination with rituximab in patients with relapsed or refractory CD20+ lymphoid malignancies. Br. J. Haematol. 2015, 170, 669–678. [Google Scholar] [CrossRef] [PubMed]
  59. Langendonk, M.; Smit, N.A.M.; Plattel, W.; Diepstra, A.; Meerten, T.V.; Visser, L. Navitoclax Most Promising BH3 Mimetic for Combination Therapy in Hodgkin Lymphoma. Int. J. Mol. Sci. 2022, 23, 13751. [Google Scholar] [CrossRef]
  60. Stamelos, V.A.; Robinson, E.; Redman, C.W.; Richardson, A. Navitoclax augments the activity of carboplatin and paclitaxel combinations in ovarian cancer cells. Gynecol. Oncol. 2013, 128, 377–382. [Google Scholar] [CrossRef]
  61. Lui, G.Y.L.; Shaw, R.; Schaub, F.X.; Stork, I.N.; Gurley, K.E.; Bridgwater, C.; Diaz, R.L.; Rosati, R.; Swan, H.A.; Ince, T.A.; et al. BET, SRC, and BCL2 family inhibitors are synergistic drug combinations with PARP inhibitors in ovarian cancer. EBioMedicine 2020, 60, 102988. [Google Scholar] [CrossRef]
  62. Moses, B.S.; Fox, J.; Chen, X.; McCullough, S.; Kirkpatrick, A.; Kumar, K.; Tyner, J.W.; Posner, G.H.; Civin, C.I. Artemisinins Synergize with BCL2 Inhibitors By Reducing MCL1 Protein Levels in Leukemia Cells. Blood 2017, 130, 3827. [Google Scholar] [CrossRef]
  63. Smith, K.H.; Budhraja, A.; Lynch, J.; Roberts, K.; Panetta, J.C.; Connelly, J.P.; Turnis, M.E.; Pruett-Miller, S.M.; Schuetz, J.D.; Mullighan, C.G.; et al. The Heme-Regulated Inhibitor Pathway Modulates Susceptibility of Poor Prognosis B-Lineage Acute Leukemia to BH3-Mimetics. Mol. Cancer Res. 2021, 19, 636–650. [Google Scholar] [CrossRef] [PubMed]
  64. Ma, Z.; Woon, C.Y.; Liu, C.G.; Cheng, J.T.; You, M.; Sethi, G.; Wong, A.L.; Ho, P.C.; Zhang, D.; Ong, P.; et al. Repurposing Artemisinin and its Derivatives as Anticancer Drugs: A Chance or Challenge? Front. Pharmacol. 2021, 12, 828856. [Google Scholar] [CrossRef] [PubMed]
  65. Morris, C.A.; Duparc, S.; Borghini-Fuhrer, I.; Jung, D.; Shin, C.S.; Fleckenstein, L. Review of the clinical pharmacokinetics of artesunate and its active metabolite dihydroartemisinin following intravenous, intramuscular, oral or rectal administration. Malar. J. 2011, 10, 263. [Google Scholar] [CrossRef]
Cancers 16 01321 g001

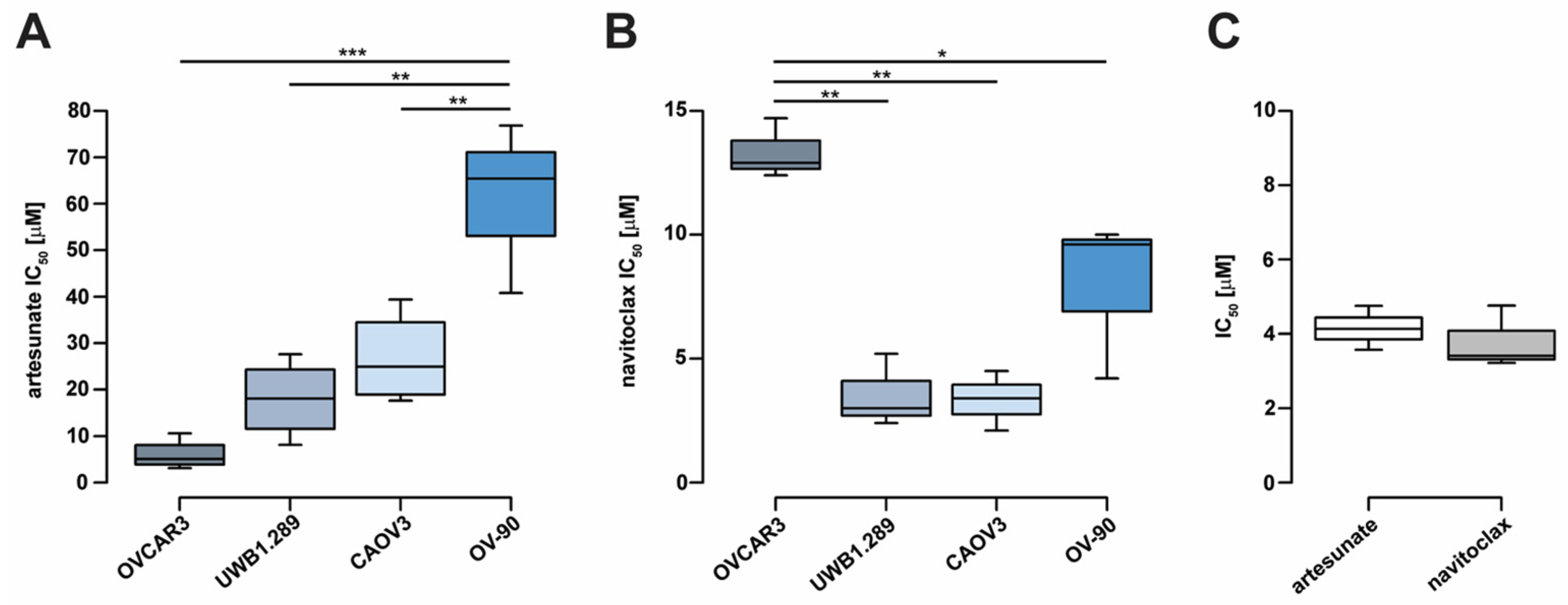

Figure 1. Ovarian cancer cell line sensitivity to single-agent artesunate and navitoclax treatment. (A) Ovarian cancer cell line IC50 values estimated following 72 h of artesunate treatment or (B) navitoclax treatment. (C) IC50 values for artesunate and navitoclax similarly determined in novel ovarian tumor organoid line, UK1254. Box and whiskers depict interquartile ranges and minimum/maximum values, respectively, with median values shown as lines within boxes. Statistical analyses were conducted with one-way analysis of variance and Tukey’s multiple comparisons post hoc tests (* p < 0.05; ** p < 0.01; *** p < 0.001).
Figure 1. Ovarian cancer cell line sensitivity to single-agent artesunate and navitoclax treatment. (A) Ovarian cancer cell line IC50 values estimated following 72 h of artesunate treatment or (B) navitoclax treatment. (C) IC50 values for artesunate and navitoclax similarly determined in novel ovarian tumor organoid line, UK1254. Box and whiskers depict interquartile ranges and minimum/maximum values, respectively, with median values shown as lines within boxes. Statistical analyses were conducted with one-way analysis of variance and Tukey’s multiple comparisons post hoc tests (* p < 0.05; ** p < 0.01; *** p < 0.001).
Cancers 16 01321 g001
Cancers 16 01321 g002

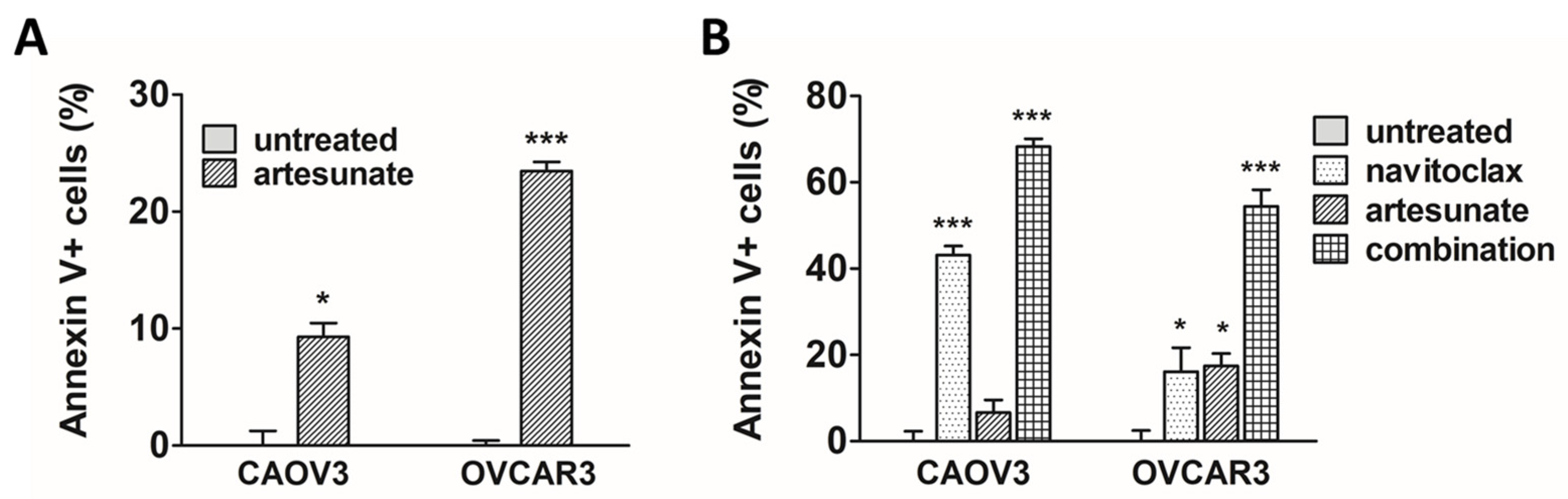

Figure 2. Apoptosis induction following treatment with artesunate and navitoclax. (A) CAOV3 and OVCAR3 cells were treated for 48 h with artesunate, and apoptosis was analyzed. Mean percentage of apoptotic cells (error bars = SEM) depicted relative to untreated controls. Statistical analyses conducted with unpaired, two-tailed t-tests. (B) Ovarian cancer cells treated for 48 h with artesunate and navitoclax, alone and in combination, were analyzed for apoptosis induction. Mean percentage of apoptotic cells (error bars = SEM) depicted relative to untreated controls. Statistical analyses conducted with one-way analysis of variance and Dunnett’s multiple comparisons tests (vs. untreated control) (* p < 0.05; *** p < 0.001).
Figure 2. Apoptosis induction following treatment with artesunate and navitoclax. (A) CAOV3 and OVCAR3 cells were treated for 48 h with artesunate, and apoptosis was analyzed. Mean percentage of apoptotic cells (error bars = SEM) depicted relative to untreated controls. Statistical analyses conducted with unpaired, two-tailed t-tests. (B) Ovarian cancer cells treated for 48 h with artesunate and navitoclax, alone and in combination, were analyzed for apoptosis induction. Mean percentage of apoptotic cells (error bars = SEM) depicted relative to untreated controls. Statistical analyses conducted with one-way analysis of variance and Dunnett’s multiple comparisons tests (vs. untreated control) (* p < 0.05; *** p < 0.001).
Cancers 16 01321 g002
Cancers 16 01321 g003

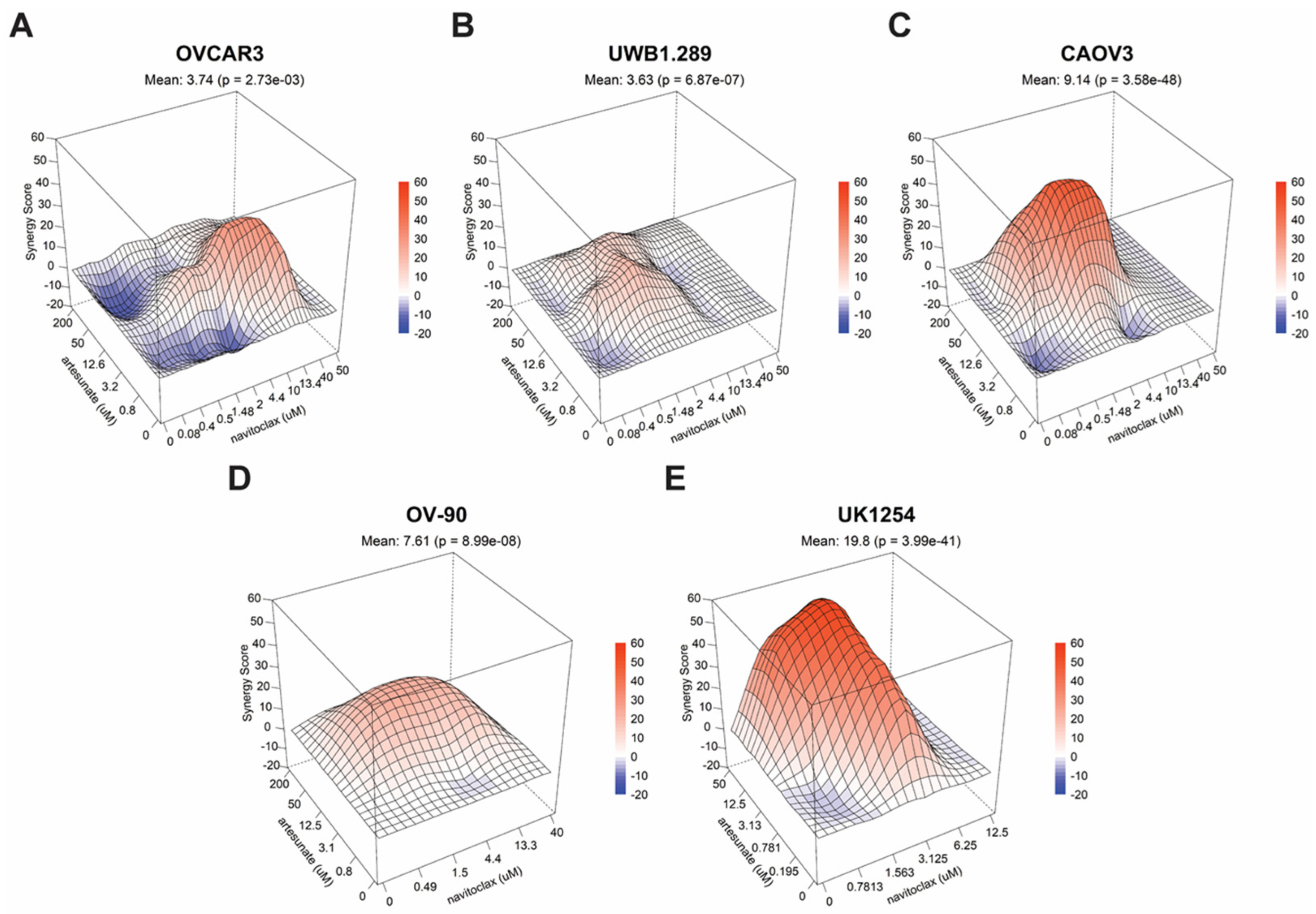

Figure 3. Drug synergy in ovarian cancer cells treated with artesunate with navitoclax. 3D surface plots of Loewe synergy scores across a range of combinations of artesunate and navitoclax drug concentrations in (A) OVCAR3, (B) UWB1.289, (C) CAOV3, (D) OV-90, and (E) UK1254 cells. Mean synergy scores for all values in the matrix and associated p-values are shown.
Figure 3. Drug synergy in ovarian cancer cells treated with artesunate with navitoclax. 3D surface plots of Loewe synergy scores across a range of combinations of artesunate and navitoclax drug concentrations in (A) OVCAR3, (B) UWB1.289, (C) CAOV3, (D) OV-90, and (E) UK1254 cells. Mean synergy scores for all values in the matrix and associated p-values are shown.
Cancers 16 01321 g003
Cancers 16 01321 g004

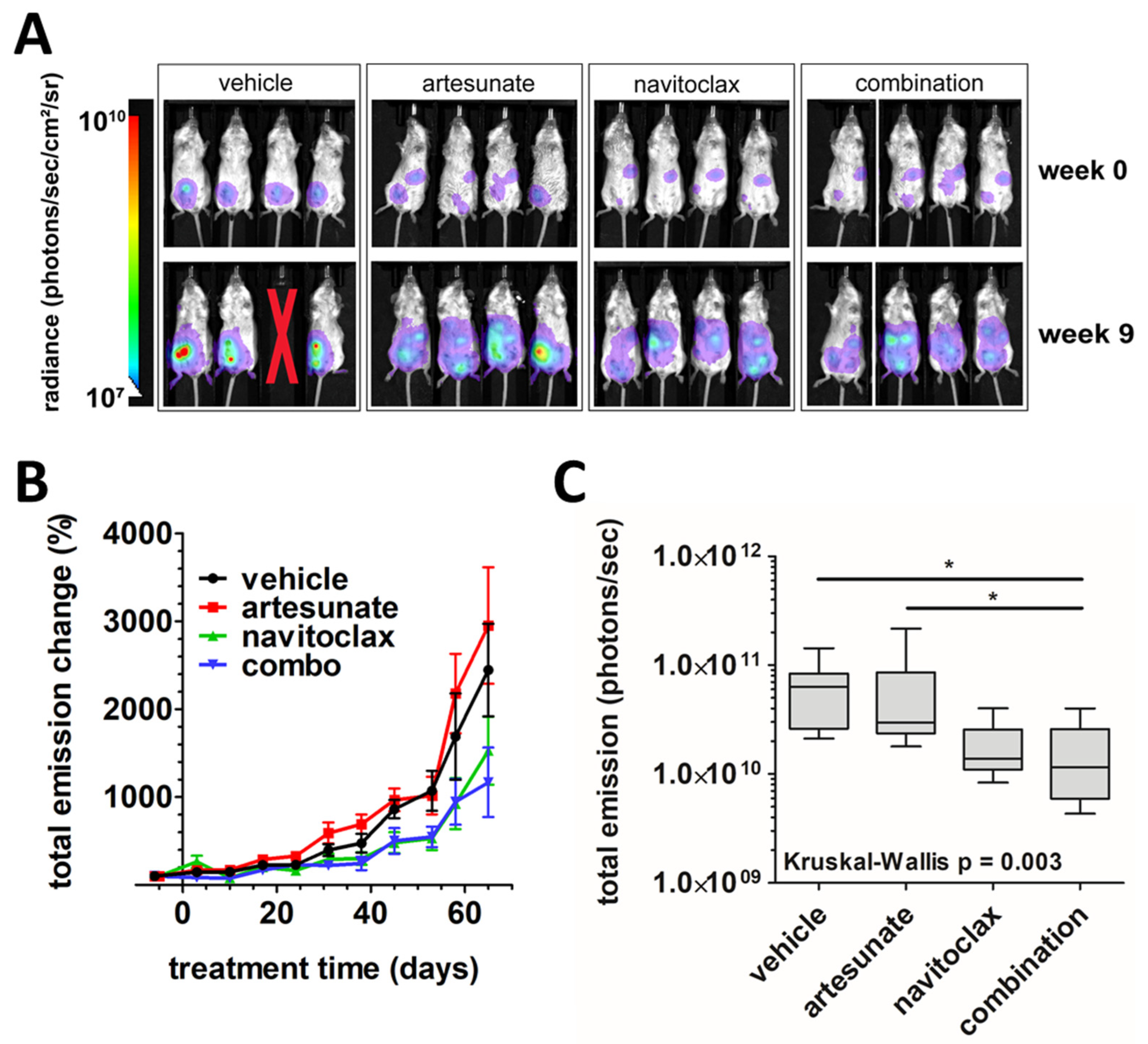

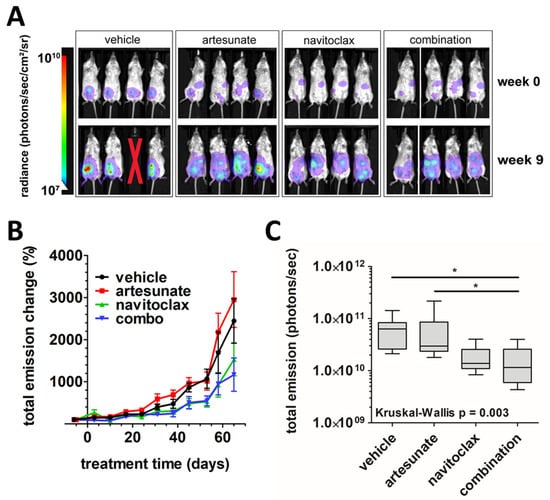

Figure 4. In vivo analysis of artesunate and navitoclax, alone and in combination, in ovarian cancer xenografts. (A) Representative images of tumor xenograft bioluminescence in mice treated with vehicle, artesunate alone, navitoclax alone, or combination at beginning (week 0) and end (week 9) of treatment. Red X indicates a mouse that died during treatment. (B) The mean percent change (error bars = SEM) in total emissions from the week prior to treatment to 1 week post-treatment plotted versus time for vehicle (black), artesunate alone (red), navitoclax alone (green), and combination (blue) treatment groups. (C) Box and whisker plots of total emissions from tumor xenograft bioluminescence 1 week post-treatment. Lines indicate median values within treatment groups. Kruskal–Wallis test (p = 0.003) and Dunn’s multiple comparison tests were used for statistical analysis (* p < 0.05).
Figure 4. In vivo analysis of artesunate and navitoclax, alone and in combination, in ovarian cancer xenografts. (A) Representative images of tumor xenograft bioluminescence in mice treated with vehicle, artesunate alone, navitoclax alone, or combination at beginning (week 0) and end (week 9) of treatment. Red X indicates a mouse that died during treatment. (B) The mean percent change (error bars = SEM) in total emissions from the week prior to treatment to 1 week post-treatment plotted versus time for vehicle (black), artesunate alone (red), navitoclax alone (green), and combination (blue) treatment groups. (C) Box and whisker plots of total emissions from tumor xenograft bioluminescence 1 week post-treatment. Lines indicate median values within treatment groups. Kruskal–Wallis test (p = 0.003) and Dunn’s multiple comparison tests were used for statistical analysis (* p < 0.05).
Cancers 16 01321 g004
