Article

Non-Contrast-Enhanced Multiparametric MRI of the Hypoxic Tumor Microenvironment Allows Molecular Subtyping of Breast Cancer: A Pilot Study

1
Department of Biomedical Imaging and Image-Guided Therapy, Division of Structural and Molecular Preclinical Imaging, Medical University of Vienna, 1090 Vienna, Austria
2
Department of Experimental and Laboratory Animal Pathology, Clinical Institute of Pathology, Medical University of Vienna, 1090 Vienna, Austria
3
Unit of Laboratory Animal Pathology, University of Veterinary Medicine Vienna, 1210 Vienna, Austria
4
Department of Internal Medicine III, Division of Endocrinology and Metabolism, Medical University of Vienna, 1090 Vienna, Austria
5
Computational Imaging Research Laboratory, Department of Biomedical Imaging and Image-Guided Therapy, Medical University of Vienna, 1090 Vienna, Austria
6
Comprehensive Cancer Center, Medical University Vienna, 1090 Vienna, Austria
7
Christian Doppler Laboratory for Applied Metabolomics, Medical University Vienna, 1090 Vienna, Austria
8
Center for Biomarker Research in Medicine (CBmed), 8010 Graz, Austria
9
Breast Imaging Service, Department of Radiology, Memorial Sloan Kettering Cancer Center, New York, NY 10065, USA
*
Author to whom correspondence should be addressed.
Cancers 2024, 16(2), 375; https://doi.org/10.3390/cancers16020375
Submission received: 5 December 2023 / Revised: 5 January 2024 / Accepted: 12 January 2024 / Published: 16 January 2024
(This article belongs to the Special Issue Regulation of HIFs in Cancer Cells)

Abstract

:

Simple Summary

Breast cancer, the second-leading cause of mortality among women worldwide, is often diagnosed through invasive tissue sampling. This method may not fully represent the tumor’s overall physiology, potentially leading to suboptimal treatment strategies and tumor recurrence. A non-invasive approach using MRI to quantify the hypoxic environment within the tumor could significantly enhance the accuracy of breast-cancer-subtype prediction. Our study introduces non-invasive imaging markers for hypoxia and related angiogenesis, utilizing hyperoxic-blood-oxygen-level-dependent (BOLD)-MRI and intravoxel-incoherent-motion (IVIM)-MRI techniques. These markers correlate with microvessel density and maturity as assessed by histology, enabling the distinction between the less aggressive luminal A and the more aggressive triple-negative breast cancers.

Abstract

Tumor neoangiogenesis is an important hallmark of cancer progression, triggered by alternating selective pressures from the hypoxic tumor microenvironment. Non-invasive, non-contrast-enhanced multiparametric MRI combining blood-oxygen-level-dependent (BOLD) MRI, which depicts blood oxygen saturation, and intravoxel-incoherent-motion (IVIM) MRI, which captures intravascular and extravascular diffusion, can provide insights into tumor oxygenation and neovascularization simultaneously. Our objective was to identify imaging markers that can predict hypoxia-induced angiogenesis and to validate our findings using multiplexed immunohistochemical analyses. We present an in vivo study involving 36 female athymic nude mice inoculated with luminal A, Her2+, and triple-negative breast cancer cells. We used a high-field 9.4-tesla MRI system for imaging and subsequently analyzed the tumors using multiplex immunohistochemistry for CD-31, PDGFR-β, and Hif1-α. We found that the hyperoxic-BOLD-MRI-derived parameter ΔR2* discriminated luminal A from Her2+ and triple-negative breast cancers, while the IVIM-derived parameter fIVIM discriminated luminal A and Her2+ from triple-negative breast cancers. A comprehensive analysis using principal-component analysis of both multiparametric MRI- and mpIHC-derived data highlighted the differences between triple-negative and luminal A breast cancers. We conclude that multiparametric MRI combining hyperoxic BOLD MRI and IVIM MRI, without the need for contrast agents, offers promising non-invasive markers for evaluating hypoxia-induced angiogenesis.

1. Introduction

Breast cancer is recognized for its significant intratumoral heterogeneity, driven by high phenotypic plasticity and dynamic selective pressures from the hypoxic tumor microenvironment [1,2,3]. In 2022, phenotypic plasticity was identified as a central hallmark of cancer progression [4,5]. Despite this heterogeneity, treatment decisions often rely on invasive tissue sampling, which does not necessarily capture the biology of the entire tumor, therefore leading to inadequate treatment plans [6].
Hypoxia, or the insufficient supply of oxygen within certain tumor regions, is a key factor in the tumor microenvironment that drives the malignant potential of the tumor [7,8,9]. From the need to react to alternating selective pressures of the hypoxic tumor microenvironment, breast cancers invoke the co-adaptive angiogenic switch, characterized by the growth of microvessels to counteract hypoxic conditions [10]. Hypoxia-induced angiogenesis and increased microvessel density are recognized as crucial prognostic biomarkers in breast cancer [11,12]. The accumulation of hypoxia-inducible factor 1 (Hif1-α), a primary driver of angiogenesis through the activation of factors like vascular endothelial growth factors (VEGFs), is associated with tumor progression and the emergence of aggressive, treatment-resistant breast cancers of the triple-negative breast-cancer molecular subtype [13,14,15,16,17,18,19].
Efforts have been made to develop imaging markers of hypoxia-induced angiogenesis that are prognostic of the breast-cancer malignant potential and that allow the non-invasive characterization of breast cancers in its entirety [20,21]. Multiparametric MRI (mpMRI), utilizing various functional parameters, offers detailed insights into cancer hallmarks [21,22,23,24]. The development of novel mpMRI protocols using techniques that are independent of the application of gadolinium-based contrast agents (GBCA) may promote the use of non-contrast-enhanced mpMRI protocols for breast-cancer characterization.
In this study, we combined two non-invasive, non-contrast-enhanced MRI techniques, blood-oxygen-level-dependent (BOLD) MRI and intravoxel-incoherent-motion (IVIM) MRI, into an mpMRI protocol to investigate the potential of imaging parameters from both techniques to map the delivery of oxygen within breast cancers [25,26,27]. BOLD MRI is dependent on the ratio of oxygenized and deoxygenized hemoglobin, which induces susceptibility gradients and alters the transverse relaxation rate R2* of nearby protons [28]. The dependency of BOLD-MRI signal on blood oxygenation is most frequently associated with brain functional MRI studies, where a signal change is associated with regional brain activity [29,30]. To introduce diagnostic variation into the measurement of tumor R2*, so-called “hyperoxic gas challenges” are performed. The decrease in R2* following a hyperoxic gas challenge with up to 100% oxygen in the breathing gas is proportional to the increased oxygenation of hemoglobin and therefore highlights tumor regions with functional blood oxygen delivery. Meanwhile, IVIM MRI, a diffusion-weighted-imaging (DWI) technique, distinguishes between extravascular and intravascular proton diffusion [31,32]. Routinely used DWI protocols, which include b-values between 300 s/mm2 and 1000 s/mm2, enable a quantification of the apparent diffusion coefficient, a surrogate marker of tissue cellularity, via the signal decrease due to random proton diffusion. Following the measurement of b-values lower than 300 s/mm2 in IVIM-MRI protocols, the non-random, microvascular diffusion contributes predominantly to the signal loss, and the perfusion-related IVIM fraction fIVIM and perfusion coefficient D* can be estimated. IVIM MRI has been used to differentiate malignant breast lesions from healthy tissue [33,34,35,36] and appears to provide promising imaging markers of angiogenesis in breast cancer.
Of note, the validation of in vivo imaging markers obtained through mpMRI can be enhanced by further comparing MRI parameter maps with fluorescent multiplexed immunohistochemistry (mpIHC). Unlike traditional singleplex immunohistochemistry, mpIHC can display up to ten histological markers on the same tissue section [37]. In our study, we therefore selected CD31 and PDGFR-β as microvasculature-specific mpIHC markers and Hif1-α as a hypoxia-specific mpIHC marker to validate our findings concerning in vivo imaging markers.
Our specific aim in this study was to identify prognostic imaging markers of hypoxia-induced angiogenesis in xenograft mouse models of three breast-cancer molecular subtypes and to compare these findings with mpIHC staining. More generally, we introduce a novel approach for non-contrast-enhanced mpMRI, sensitive to both the oxygen delivery to tumor subregions and hypoxia-induced neoangiogenesis. This approach may provide predictive insights into breast-cancer molecular subtypes.

2. Materials and Methods

2.1. Breast-Cancer Xenograft Model

This preclinical investigation received approval from the Austrian Federal Ministry of Education, Science and Research under the project number BMFWF-66.009/0284-WF/V/3b/2017. All procedures in this study adhered to the guidelines outlined in the European Community’s Council Directive of 22 September 2010 (2010/63/EU). Breast cancer cell lines representing different molecular subtypes, including luminal A (MCF-7), Her2+ (SKBR-3), and triple-negative (MDA-MB-231), were obtained from the American Type Culture Collection in Manassas, VA, USA. These cell lines were cultured in a controlled environment at 37 °C, 95% humidity, and 5% atmospheric CO2. The aggressiveness of these breast cancer cell lines was categorized as low (MCF-7, luminal A), medium (SKBR-3, Her2-neu positive non-luminal), or high (MDA-MB-231, triple-negative). MCF-7 cells were maintained in RPMI medium from Thermo Fisher Scientific, Waltham, MA, USA, while SKBR-3 and MDA-MB-231 cells were cultured in Dulbecco’s Modified Eagle Medium (DMEM) from the same supplier. All cell culture media were supplemented with 10% fetal bovine serum and 2% penicillin/streptomycin.
For the animal study, BALB/c mice (n = 36), aged approximately 4–6 weeks, were obtained from Charles River in Wilmington, MA, USA. Female mice were inoculated with 2 × 107 breast cancer cells representing the three molecular subtypes (MCF-7, n = 16; SKBR-3, n = 10; MDA-MB-231, n = 10) into their flank. To support the growth of luminal A breast cancer cells in the mice, estrogen pellets (0.72 g/60-day release, Innovative Research of America, Sarasota, FL, USA) were implanted in the neck area. Tumors were allowed to grow for 1–2 weeks until they reached suitable volumes for mpMRI analysis, with a maximum tumor diameter of 1.0 cm.
Since some mpMRI data had to be excluded due to motion artifacts and since mpIHC data were not available for all mice due to processing issues, the sample sizes for BOLD MRI, IVIM MRI, and mpIHC varied.

2.2. Experimental Setup

All mpMRI examinations were performed using a 9.4-tesla Bruker BioSpec 94/30 USR system (Bruker, Ettlingen, Germany). Anesthesia, as well as vital parameter monitoring, were performed as described previously [27]. For oxygen-enhanced BOLD-MR images, the fraction of oxygen in the anesthetic gas was elevated to 100% using an air–oxygen blender (Sensor Medics Corporation, Yorba Lina, CA, USA). After the MRI experiments, mice were euthanized via cervical dislocation, and tumors were harvested for histological analyses.

2.3. mpMRI Protocol

T1 mapping was performed to obtain anatomical reference images of the breast cancer xenografts using a 2D RARE sequence with variable repetition times (VTR: 1472 ms, 2000 ms, 3000 ms, 4000 ms, 5000 ms, 7000 ms, 8000 ms, and 9000 ms; echo time (TE): 21.0 ms, matrix size: 128 × 128 pixels; number of slices: 10; slice thickness: 1 mm; spatial resolution: 0.278 × 0.222 mm; acquisition time: 16 min).
For BOLD MRI, T2* maps were acquired using a multi-gradient echo sequence (TR: 850 ms; TE: 14 echoes from 7–34.47 ms with an interval of 2.11 ms; matrix size: 128 × 128; number of slices: 10; slice thickness: 1 mm; spatial resolution: 0.278 × 0.222 mm; acquisition time for 3 cycles: 4 min). The measurement cycles were repeated three times for baseline BOLD acquisitions (using 21% oxygen) and challenged BOLD measurements (using 100% oxygen). Using the built-in image-sequence-analysis tool of the ParaVision 7 software suite (Bruker, Ettlingen, Germany), T2* maps were obtained.
IVIM-MRI measurements were conducted using a series of echo-planar-imaging (EPI)-based scan acquisitions (TR: 3200 ms; TE: 19.0 ms; matrix size: 81 × 154 pixels; slice thickness: 1 mm) at 16 different diffusion weightings, i.e., b-values (0, 68, 85, 117, 132, 189, 332, 520, 615, 709, 803, 897, 993, 1093, 1193, 1492, and 1791 s/mm2). The b-values were chosen to homogenously spread a range of b-values capturing, on one end, the non-linear signal decrease at low b-values (for the calculation of IVIM-related parameters D* and fIVIM) and, on the other end, the linear signal decrease at intermediate diffusion weightings (for the calculation of the diffusion coefficient D).

2.4. Tumor Resection and Fluorescent mpIHC

Following excision, to maintain the exact anatomical position of breast cancer tumors, the left, right, and dorsal sides of each breast cancer tumor were marked using different-colored tissue dyes (Epredia™ Shandon™ Tissue-Marking Dyes, Fisher Scientific, Hampton, NH, USA). Then, the breast cancer tumors were cut in halves matching the same axial cutting plane that was measured on mpMRI. Sliced breast cancer tumors were then fixed in 4% formaldehyde (ROTI® Histofix, Roth, Karlsruhe, Germany) for 24 h before being placed in 70% EtOH for storage at 4 °C. Subsequently, the fixed samples were paraffin-embedded and cut in 3 µm slice thickness. Fluorescent mpIHC was performed by CBmed, Graz, Austria. The slices were stained for CD31 PDGFR-β and Hif1-α. CD-31 is an established staining target of vessel-forming endothelial cells that has previously been used as an ex vivo biomarker for microvessel density in breast cancer [38,39]. PDGFR-β plays a pivotal role in the maturation of blood vessels: endothelial cells presenting PDGFR-like receptors are involved in the recruitment of pericytes, increasing pericyte density at newly formed blood vessels, which increases blood-vessel contractility to allow continuous blood flow [40,41,42,43,44]. Lastly, Hif1-α was included in the staining protocol as a direct ex vivo biomarker of hypoxia [45,46].

2.5. Imaging Post-Processing

2.5.1. BOLD MRI

A detailed description of the results for BOLD MRI in this sample of mice has been published previously by our group [27]. BOLD parameter maps for baseline (21% O2) and challenged (100% O2) calculations were generated using MATLAB code (MATLAB version R2018a) developed in-house. Firstly, parameter maps for the T2* relaxation rate, R2*, were calculated as the inverse of T2*. Secondly, average parameter maps ( R 2 a v g ( b a s e l i n e ) ) over three baseline scans were generated. Thirdly, the voxel-wise difference between the challenged and the averaged baseline scans was calculated for each challenged measurement cycle separately using the following equation:
R 2 * = R 2 * ( 100 ) R 2 * a v g ( b a s e l i n e )
where R 2 ( 100 ) corresponds to the challenged BOLD measurement at 100% oxygen, while R 2 a v g ( b a s e l i n e ) corresponds to the averaged baseline measurement.
Lastly, in order to discriminate responsive from non-responsive voxels, R 2 parameter maps were filtered according to the following equation proposed by Yang et al. 2020:
| R 2 | < 2 S D R 2 21 % :   n o n r e s p o n s i v e > 2 S D R 2 21 % :   r e s p o n s i v e
where S D R 2 21 % refers to the standard deviation of R2* in each voxel over the three measurement cycles during baseline image acquisition. Following these calculations, only responsive voxels were included in the subsequent analyses, which were performed using the ITK-SNAP (version 3.6.0) software. Regions of interest (ROIs) were drawn on the slice including the largest tumor diameter and the least artifacts from breathing motion, while avoiding obvious necrotic tumor regions identified on the corresponding slice in anatomical reference images.

2.5.2. IVIM MRI

Bruker raw image datasets of IVIM-MRI acquisitions were converted into an FMRIB Software Library (FSL) dataset using the MRIcroGL (version 1.2.20210317) tool. DWI data were analyzed using the MITKdiffusion (version 1.2.0, German Cancer Research Center, Heidelberg, Germany) tool. To generate IVIM-MRI parameter maps, data were fitted using a segmented fitting approach: All signal values above a b-value of 350 s/mm2 were used in an initial fit to obtain parameter maps for the diffusion coefficient D, as well as the IVIM fraction fIVIM. Next, signal values below 350 s/mm2 were fitted to obtain the perfusion coefficient D*. Then, two-dimensional ROIs were placed onto the parameter maps in the center of the tumor, excluding cystic and necrotic areas identified on reference T1-weighted anatomical reference images. The selection of the respective slice was based on the slice selection on the BOLD-MRI images. For visualization, IVIM- and BOLD-MRI parameter maps were coregistered with the T2-weighted anatomical reference image using the pmod (version 4.3) tool.

2.5.3. Fluorescent mpIHC

Histological sections that were multiplex-stained for CD31, PDGFR-β, and Hif1-α were analyzed using the Halo module HighPlex FL (version 3.2.1, Indica Labs, Albuquerque, NM, USA). The total number of cells and the number of stained cells were quantified to calculate the fraction of positively stained cells for each histological marker.

2.6. Statistical Analysis

All statistical analyses were performed using the RStudio (version 1.2.5033) software. To assess differences among breast-cancer molecular subtypes for each in vivo and ex vivo imaging parameter, Kruskal–Wallis inferential testing was applied, followed by Benjamini–Hochberg post hoc p-value adjustment. Comparisons with a p-value < 0.05 were considered statistically significant. Multiparametric analysis of histological and MRI parameters was conducted using principal-component analysis (PCA).

3. Results

3.1. IVIM-MRI and BOLD-MRI Parameter Maps

Breast cancer xenograft tumors grew to an average maximal diameter of 7.1 ± 1.9 mm in luminal A breast cancers, 7.8 ± 2.3 mm in Her2+ breast cancers, and 7.9 ± 1.6 mm in triple-negative breast cancers.
An exemplary illustration of IVIM-MRI and BOLD-MRI parameter maps for a luminal A breast cancer xenograft tumor, as well as the corresponding hematoxylin-and-eosin (H&E)-stained histological section, are shown in Figure 1. Note that the IVIM-MRI parameter maps were prone to distortion because of the EPI sequence used for their measurement. The BOLD-MRI parameter map only shows pixels that were identified as responsive to the hyperoxic gas challenge according to the classification described above.

3.2. mpMRI

Table 1 presents the summary statistics of BOLD-MRI and IVIM-MRI parameters (all values in median, interquartile range) across breast-cancer molecular subtypes.

3.2.1. BOLD-MRI

The BOLD-MRI-related parameter ΔR2*, a surrogate marker for oxygen delivery via the blood, exhibited significant differences between luminal A and triple-negative breast cancers, as well as between Her2+ and triple-negative breast cancers (both p < 0.001; see Table 1). Figure 2d illustrates the differences in ΔR2* between breast-cancer molecular subtypes, incorporating data from all three BOLD-MRI measurement cycles in the form of a boxplot.

3.2.2. IVIM MRI

Differences in fIVIM, a surrogate marker for the fraction of microvessel perfusion within a respective voxel, were statistically significant (p = 0.04) between Her2+ and triple-negative breast cancers. Additionally, the comparison of fIVIM between luminal A and triple-negative breast cancers approached statistical significance (p = 0.05). However, the comparison of D, representing extravascular diffusion, and D*, representing intravascular perfusion, did not reveal any significant differences among the breast-cancer molecular subtypes. Figure 2a–c illustrate the differences of the IVIM-MRI-related parameters D, fIVIM, and D* between breast-cancer molecular subtypes.

3.2.3. Multivariate Analysis

The outcomes of PCA integrating all mpMRI parameters (D, fIVIM, D*, and ΔR2*) in this study are illustrated in Figure 3. PCA revealed a distinct segregation between triple-negative and luminal A breast cancers and between Her2+ and triple-negative molecular breast cancers, primarily along the first principal component (PC1). The segregation was influenced predominantly by variations in the parameters fIVIM and ΔR2*, both of which contributed significantly to PC1 in terms of absolute values. Of note, for the comparison shown in Figure 3, ΔR2* measurements from the first BOLD measurement cycle (of three BOLD measurement cycles) were used. Table 2 gives a detailed overview on the loadings of each principal component.

3.3. Fluorescent mpIHC

Table 3 details summary statistics (median, interquartile range) of the fraction of cytoplasms stained for CD31, PDGFR-β, and Hif1-α. Statistically significant differences in CD31 staining were observed between luminal A and Her2+ breast cancers (p < 0.05), as well as between luminal A and triple-negative breast cancers (p < 0.005, Figure 4).
The outcomes of PCA integrating CD31, PDGFR-β, and Hif1-α parameters derived from ex vivo fluorescent mpIHC are summarized in Figure 5. Luminal A breast cancers were differentiated from Her2+ and triple-negative subtypes primarily along an axis defined by the first and second principal components. Clusters were mainly characterized by differences in the expression levels of CD31 and PDGFR-β. Table 4 gives a detailed overview on the contributions of each target protein to the principal components.

4. Discussion

Our study shows that mpMRI of hypoxia and hypoxia-induced neoangiogenesis without the application of GBCA allows clear separation of triple-negative breast cancers from other breast-cancer molecular subtypes. The results are complemented by a multivariate analysis of mpIHC-based biomarkers for hypoxia and hypoxia-induced neoangiogenesis, in which luminal A breast cancers were clearly separated from Her2+ and triple-negative breast cancers.
To our knowledge, this preclinical pilot study is the first to highlight that breast cancers of different molecular subtypes can be differentiated based on differences in hypoxia and hypoxia-induced neoangiogenesis derived from non-invasive, non-contrast-enhanced mpMRI. Of note, despite the high sensitivity of dynamic contrast-enhanced (DCE) MRI for breast-cancer detection, its utility for molecular subtyping remains limited. In addition, the use of GBCA has recently been questioned over the associated costs and logistics, risk for hypersensitivity reactions, systemic nephrogenic fibrosis, and potential for accumulation in the brain [47]. Of note, no clinical symptoms have been associated with the deposition of macrocyclic GBCA [48,49]. Nevertheless, the identification of new imaging markers that can exploit endogenous contrast instead of relying on GBCA for improved breast-cancer characterization is desirable. Non-contrast-enhanced alternatives continue to be explored, exemplified most successfully by DWI with apparent diffusion coefficient mapping, which provides a surrogate marker of increased tissue density in cancers [33,34,50]. The addition of DWI to standard DCE-MRI protocols has been shown to increase the specificity of breast-cancer molecular subtyping as well as of the prediction of treatment response, therefore demonstrating the potential of non-contrast-enhanced mpMRI-based imaging biomarkers over DCE-MRI imaging biomarkers alone [23,50].
Technological improvements in hardware and software have spurred investigations of non-contrast-enhanced imaging biomarkers beyond those of DWI that are highly sensitive to the physiological changes involved in breast-cancer progression and in the development of aggressive breast-cancer molecular subtypes. For instance, extending routine DWI measurements to include low b-values enables the quantification of the microvasculature-specific IVIM effect. The IVIM-MRI-related parameters D* and fIVIM have previously been explored in breast cancer xenografts as well as in clinical studies [35,36,51,52,53,54]. Our study indicates that fIVIM can be used to differentiate triple-negative from Her2+, as well as luminal A, breast cancers. Triple-negative breast cancers have the lowest fIVIM values among the investigated breast-cancer molecular subtypes in our study, reflecting their compromised microvascular blood flow. In agreement with previous studies that found that the quantification of D* is particularly challenging, we did not find the parameter D useful for the characterization of molecular subtypes of breast cancers, although it may be useful for the discrimination of malignant and benign breast lesions in a clinical setting [53].
Another non-contrast-enhanced MRI parameter explored in this study is the BOLD-MRI-related ΔR2* parameter, which utilizes blood as an endogenous contrast agent. This parameter depends on the oxygenation of erythrocyte-bound hemoglobin, creating local susceptibility gradients detectable as MRI contrast. The decrease in R2* following a hyperoxic gas challenge, indicative of increased oxygenated blood flow, was most pronounced in luminal A breast cancers, as previously demonstrated by our group [27].
In this preliminary preclinical study, we explored novel non-invasive non-contrast-enhanced MRI markers for hypoxia and hypoxia-induced angiogenesis. Clear distinctions were observed between luminal A and triple-negative breast cancers, while there was overlap between intermediate Her2+ and the luminal A breast cancers. These differences were mainly rooted in the significant differences between breast-cancer molecular subtypes in the IVIM-MRI-related parameter fIVIM and the BOLD-MRI-related parameter ΔR2*, as shown by the parameters’ loadings on the first principal component. Unlike single-parametric analyses, PCA-based clustering of breast cancer xenograft data revealed no overlap between luminal A and triple-negative breast cancers. These findings suggest that this novel non-contrast-enhanced mpMRI approach integrating both IVIM MRI and BOLD MRI may enhance the specificity of breast-cancer molecular subtyping in clinical investigations and allow a more comprehensive characterization of the heterogeneous hypoxic tumor microenvironment [21,54].
Furthermore, we compared mpMRI analyses with mpIHC stainings of breast cancer xenografts to validate the performance of the imaging parameters. The mpIHC approach enabled the assessment of multiple markers (CD31, PDGFR-β, and Hif1-α) on the same tissue slice as that of the imaging slice. While CD31 levels were higher in Her2+ and triple-negative cancers, indicating increased microvessel density, the low PDGFR-β presence suggested limited blood-vessel maturation. In contrast, luminal A cancers exhibited fewer CD31-positive cells and higher PDGFR-β levels, implying more efficient oxygen delivery. However, differences in Hif1-α expression were not statistically significant between breast-cancer molecular subtypes. Additionally, multivariate analysis of mpIHC data showed clear separation between luminal A and triple-negative breast cancers, with Her2+ breast cancers largely overlapping with triple-negative breast cancers. These differences were driven by differences in CD31 and PDGFR-β expression. Overall, the findings from mpIHC analysis corroborate those from mpMRI, indicating that while triple-negative cancers may have higher microvessel density, their vascular maturity is insufficient for effective oxygen delivery. In contrast, the higher fIVIM and more pronounced ΔR2* in luminal A breast cancers suggest better oxygen delivery compared to triple-negative breast cancers.
In regard to the limitations in this study, corresponding mpIHC data were not available for all imaging data, and therefore, insights into the correlations between histological and MRI parameters are limited. In addition, our study relied on data from xenograft tumors only. For a more in-depth assessment of tumor hypoxia, longitudinal studies that capture the dynamic changes in the hypoxic tumor microenvironment and include inter-observer reliability assessment should be performed, which was beyond the scope of the currently presented project. Future translational studies should investigate further whether a non-contrast-enhanced mpMRI approach using hyperoxic BOLD MRI and IVIM MRI is also useful for the discrimination of breast cancers in patients.

5. Conclusions

A non-contrast-enhanced mpMRI protocol combing hyperoxic-BOLD-MRI and IVIM-MRI measurements was shown to allow the discrimination of triple-negative from luminal A and Her2+ breast cancers and the assessment of hypoxia and hypoxia-induced angiogenesis in xenograft models of breast cancer, with mpIHC data supporting mpMRI findings. Larger-scale preclinical and translational future studies should investigate correlations between mpIHC-based and mpMRI-based biomarkers of hypoxia and hypoxia-induced angiogenesis.

Author Contributions

Conceptualization, S.J.B., T.H.H. and K.P.; methodology, S.J.B., K.B., V.E., J.F. and D.L.-G.; software, S.J.B., V.E., J.F. and C.F.; validation, S.J.B., K.B. and J.F.; formal analysis, S.J.B.; investigation, J.F. and K.B.; resources, T.H.H. and L.K.; data curation, S.J.B. and J.F.; writing—original draft preparation, S.J.B.; writing—review and editing, K.B., V.E., J.F., C.F., L.K., D.L.-G., T.H.H. and K.P.; visualization, S.J.B. and K.B.; supervision, T.H.H., L.K. and K.P.; project administration, T.H.H., L.K. and K.P.; funding acquisition, T.H.H., L.K. and K.P. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Vienna Science and Technology Fund (WWTF), grant no. LS19–018, and K.P. was supported by the National Institutes of Health/National Cancer Institute, grant number P30 CA008748. L.K. was supported by funds from a European Union Horizon 2020 Marie Sklodowska-Curie Innovative Training Network grant, n. 675712 (ALKATRAS) and (FANTOM) n. P101072735, award. L.K. is member of the European Research Initiative for ALK-Related Malignancies (www.erialcl.net, accessed on 29 April 2023). L.K. was supported by the BM Fonds (n. 15142), the Margaretha Hehberger Stiftung (n. 15142), the COMET Competence Center CBmed—Center for Biomarker Research in Medicine (n. FA791A0906.FFG), the Christian Doppler Lab for Applied Metabolomics, and the Austrian Science Fund (grants FWF: P26011, P29251, and P34781).

Institutional Review Board Statement

The animal study protocol was approved by the Austrian Federal Ministry of Education, Science and Research (project number BMFWF-66.009/0284-WF/V/3b/2017; date of approval: 17 October 2017).

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

We are grateful for the support from Bruker, Ettlingen, Germany, in the course of a collaboration agreement. The authors are grateful to the support of the preclinical imaging group and the Medical Imaging Cluster of the Medical University of Vienna, Austria. We are grateful to Vanessa Fröhlich for her assistance in MRI data collection and Barbara Dekan for her assistance in cell cultivation. The authors further acknowledge Joanne Chin for proofreading of the final manuscript.

Conflicts of Interest

Katja Pinker declares being part of speakers bureaus for the European Society of Breast Imaging (EUSOBI) (active), Bayer (ended), Siemens Healthineers (ended), DKD 2019 (ended), Olea Medical (ended), and Roche (ended) and consulting for Genentech, Merantix Healthcare, AURA Health Technologies, Guerbet, and Bayer. The remaining authors declare no conflicts of interest.

References

  1. Haynes, B.; Sarma, A.; Nangia-Makker, P.; Shekhar, M.P. Breast cancer complexity: Implications of intratumoral heterogeneity in clinical management. Cancer Metastasis Rev. 2017, 36, 547–555. [Google Scholar] [CrossRef]
  2. Lüönd, F.; Tiede, S.; Christofori, G. Breast cancer as an example of tumour heterogeneity and tumour cell plasticity during malignant progression. Br. J. Cancer 2021, 125, 164–175. [Google Scholar] [CrossRef]
  3. Turashvili, G.; Brogi, E. Tumor Heterogeneity in Breast Cancer. Front. Med. 2017, 4, 227. [Google Scholar] [CrossRef]
  4. Hanahan, D. Hallmarks of Cancer: New Dimensions. Cancer Discov. 2022, 12, 31–46. [Google Scholar] [CrossRef]
  5. Hanahan, D.; Weinberg, R.A. Hallmarks of cancer: The next generation. Cell 2011, 144, 646–674. [Google Scholar] [CrossRef]
  6. Tatum, J.L.; Kelloff, G.J.; Gillies, R.J.; Arbeit, J.M.; Brown, J.M.; Chao, K.S.; Chapman, J.D.; Eckelman, W.C.; Fyles, A.W.; Giaccia, A.J.; et al. Hypoxia: Importance in tumor biology, noninvasive measurement by imaging, and value of its measurement in the management of cancer therapy. Int. J. Radiat. Biol. 2006, 82, 699–757. [Google Scholar] [CrossRef]
  7. Semenza, G.L. HIF-1 and tumor progression: Pathophysiology and therapeutics. Trends Mol. Med. 2001, 8, S62–S67. [Google Scholar] [CrossRef] [PubMed]
  8. Semenza, G.L. Targeting HIF-1 for cancer therapy. Nat. Rev. Cancer 2003, 3, 721–732. [Google Scholar] [CrossRef] [PubMed]
  9. Ruan, K.; Song, G.; Ouyang, G. Role of hypoxia in the hallmarks of human cancer. J. Cell. Biochem. 2009, 107, 1053–1062. [Google Scholar] [CrossRef]
  10. Bergers, G.; Benjamin, L.E. Tumorigenesis and the angiogenic switch. Nat. Rev. Cancer 2003, 3, 401–410. [Google Scholar] [CrossRef] [PubMed]
  11. Uzzan, B.; Nicolas, P.; Cucherat, M.; Perret, G.-Y. Microvessel Density as a Prognostic Factor in Women with Breast Cancer: A Systematic Review of the Literature and Meta-Analysis. Cancer Res. 2004, 64, 2941–2955. [Google Scholar] [CrossRef]
  12. Tsutsui, S.; Kume, M.; Era, S. Prognostic value of microvessel density in invasive ductal carcinoma of the breast. Breast Cancer 2003, 10, 312–319. [Google Scholar] [CrossRef] [PubMed]
  13. Denko, N.C. Hypoxia, HIF1 and glucose metabolism in the solid tumour. Nat. Rev. Cancer 2008, 8, 705–713. [Google Scholar] [CrossRef]
  14. Ajduković, J. HIF-1—A big chapter in the cancer tale. Exp. Oncol. 2016, 38, 9–12. [Google Scholar] [CrossRef]
  15. de Heer, E.C.; Jalving, M.; Harris, A.L. HIFs, angiogenesis, and metabolism: Elusive enemies in breast cancer. J. Clin. Investig. 2020, 130, 5074–5087. [Google Scholar] [CrossRef]
  16. Jarman, E.J.; Ward, C.; Turnbull, A.K.; Martinez-Perez, C.; Meehan, J.; Xintaropoulou, C.; Sims, A.H.; Langdon, S.P. HER2 regulates HIF-2alpha and drives an increased hypoxic response in breast cancer. Breast Cancer Res. 2019, 21, 10. [Google Scholar] [CrossRef]
  17. Yang, J.; AlTahan, A.; Jones, D.T.; Buffa, F.M.; Bridges, E.; Interiano, R.B.; Qu, C.; Vogt, N.; Li, J.L.; Baban, D.; et al. Estrogen receptor-alpha directly regulates the hypoxia-inducible factor 1 pathway associated with antiestrogen response in breast cancer. Proc. Natl. Acad. Sci. USA 2015, 112, 15172–15177. [Google Scholar] [CrossRef] [PubMed]
  18. Ribatti, D.; Nico, B.; Ruggieri, S.; Tamma, R.; Simone, G.; Mangia, A. Angiogenesis and Antiangiogenesis in Triple-Negative Breast cancer. Transl Oncol 2016, 9, 453–457. [Google Scholar] [CrossRef]
  19. Vaupel, P. Hypoxia and aggressive tumor phenotype: Implications for therapy and prognosis. Oncologist 2008, 13 (Suppl. S3), 21–26. [Google Scholar] [CrossRef]
  20. Pinker, K.; Bogner, W.; Baltzer, P.; Karanikas, G.; Magometschnigg, H.; Brader, P.; Gruber, S.; Bickel, H.; Dubsky, P.; Bago-Horvath, Z.; et al. Improved differentiation of benign and malignant breast tumors with multiparametric 18fluorodeoxyglucose positron emission tomography magnetic resonance imaging: A feasibility study. Clin. Cancer Res. 2014, 20, 3540–3549. [Google Scholar] [CrossRef] [PubMed]
  21. Pinker, K.; Helbich, T.H.; Morris, E.A. The potential of multiparametric MRI of the breast. Br. J. Radiol. 2017, 90, 20160715. [Google Scholar] [CrossRef]
  22. Bennani-Baiti, B.; Pinker, K.; Zimmermann, M.; Helbich, T.H.; Baltzer, P.A.; Clauser, P.; Kapetas, P.; Bago-Horvath, Z.; Stadlbauer, A. Non-Invasive Assessment of Hypoxia and Neovascularization with MRI for Identification of Aggressive Breast Cancer. Cancers 2020, 12, 2024. [Google Scholar] [CrossRef]
  23. Pinker, K.; Bickel, H.; Helbich, T.; Gruber, S.; Dubsky, P.; Pluschnig, U.; Rudas, M.; Bago-Horvath, Z.; Weber, M.; Trattnig, S. Combined contrast-enhanced magnetic resonance and diffusion-weighted imaging reading adapted to the “Breast Imaging Reporting and Data System” for multiparametric 3-T imaging of breast lesions. Eur. Radiol. 2013, 23, 1791–1802. [Google Scholar] [CrossRef]
  24. Rahbar, H.; Partridge, S.C. Multiparametric Breast MRI of Breast Cancer. Magn. Reson. Imaging Clin. N. Am. 2016, 24, 223–238. [Google Scholar] [CrossRef]
  25. Liu, M.; Guo, X.; Wang, S.; Jin, M.; Wang, Y.; Li, J.; Liu, J. BOLD-MRI of breast invasive ductal carcinoma: Correlation of R2* value and the expression of HIF-1alpha. Eur. Radiol. 2013, 23, 3221–3227. [Google Scholar] [CrossRef] [PubMed]
  26. Rakow-Penner, R.; Daniel, B.; Glover, G.H. Detecting blood oxygen level-dependent (BOLD) contrast in the breast. J. Magn. Reson. Imaging 2010, 32, 120–129. [Google Scholar] [CrossRef] [PubMed]
  27. Bartsch, S.J.; Ehret, V.; Friske, J.; Frohlich, V.; Laimer-Gruber, D.; Helbich, T.H.; Pinker, K. Hyperoxic BOLD-MRI-Based Characterization of Breast Cancer Molecular Subtypes Is Independent of the Supplied Amount of Oxygen: A Preclinical Study. Diagnostics 2023, 13, 2946. [Google Scholar] [CrossRef] [PubMed]
  28. O’Connor, J.P.B.; Robinson, S.P.; Waterton, J.C. Imaging tumor hypoxia with oxygen-enhanced MRI and BOLD MRI. Br. J. Radiol. 2019, 92, 20180642. [Google Scholar] [CrossRef]
  29. Ogawa, S.; Lee, T.M.; Kay, A.R.; Tank, D.W. Brain magnetic resonance imaging with contrast dependent on blood oxygenation. Proc. Natl. Acad. Sci. USA 1990, 87, 9868–9872. [Google Scholar] [CrossRef]
  30. Raichle, M.E. Behind the scenes of functional brain imaging: A historical and physiological perspective. Proc. Natl. Acad. Sci. USA 1998, 95, 765–772. [Google Scholar] [CrossRef]
  31. Le Bihan, D. What can we see with IVIM MRI? NeuroImage 2019, 187, 56–67. [Google Scholar] [CrossRef] [PubMed]
  32. Le Bihan, D.; Breton, E.; Lallemand, D.; Aubin, M.-L.; Vignaud, J.; Laval-Jeantet, M. Separation of diffusion and perfusion in intravoxel incoherent motion MR imaging. Radiology 1988, 168, 497–505. [Google Scholar] [CrossRef]
  33. Fusco, R.; Granata, V.; Mattace Raso, M.; Vallone, P.; De Rosa, A.P.; Siani, C.; Di Bonito, M.; Petrillo, A.; Sansone, M. Blood Oxygenation Level Dependent Magnetic Resonance Imaging (MRI), Dynamic Contrast Enhanced MRI, and Diffusion Weighted MRI for Benign and Malignant Breast Cancer Discrimination: A Preliminary Experience. Cancers 2021, 13, 2421. [Google Scholar] [CrossRef]
  34. Fusco, R.; Granata, V.; Pariante, P.; Cerciello, V.; Siani, C.; Di Bonito, M.; Valentino, M.; Sansone, M.; Botti, G.; Petrillo, A. Blood oxygenation level dependent magnetic resonance imaging and diffusion weighted MRI imaging for benign and malignant breast cancer discrimination. Magn. Reson. Imaging 2021, 75, 51–59. [Google Scholar] [CrossRef] [PubMed]
  35. Iima, M. Perfusion-driven Intravoxel Incoherent Motion (IVIM) MRI in Oncology: Applications, Challenges, and Future Trends. Magn. Reson. Med. Sci. 2021, 20, 125–138. [Google Scholar] [CrossRef]
  36. Iima, M.; Honda, M.; Sigmund, E.E.; Ohno Kishimoto, A.; Kataoka, M.; Togashi, K. Diffusion MRI of the breast: Current status and future directions. J. Magn. Reson. Imaging 2020, 52, 70–90. [Google Scholar] [CrossRef] [PubMed]
  37. Harms, P.W.; Frankel, T.L.; Moutafi, M.; Rao, A.; Rimm, D.L.; Taube, J.M.; Thomas, D.; Chan, M.P.; Pantanowitz, L. Multiplex immunohistochemistry and immunofluorescence: A practical update for pathologists. Mod. Pathol. 2023, 36, 100197. [Google Scholar] [CrossRef]
  38. Toi, M.; Tominaga, T.; Kashitani, J. Tumor angiogenesis is an independent prognostic indicator in primary breast carcinoma. Int. J. Cancer 1993, 55, 371–374. [Google Scholar] [CrossRef]
  39. Zaha, D.C. Significance of immunohistochemistry in breast cancer. World J. Clin. Oncol. 2014, 5, 382–392. [Google Scholar] [CrossRef] [PubMed]
  40. Carmeliet, P.; Jain, R.K. Angiogenesis in cancer and other diseases. Nature 2000, 407, 249–257. [Google Scholar] [CrossRef]
  41. Hellström, M.; Gerhardt, H.; Kalén, M.; Li, X.; Eriksson, U.; Wolburg, H.; Betsholtz, C. Lack of pericytes leads to endothelial hyperplasia and abnormal vascular morphogenesis. J. Cell Biol. 2001, 153, 543–554. [Google Scholar] [CrossRef] [PubMed]
  42. Bergers, G.; Song, S. The role of pericytes in blood-vessel formation and maintenance. Neuro-Oncology 2005, 7, 452–464. [Google Scholar] [CrossRef]
  43. Carvalho, I.; Milanezi, F.; Martins, A.; Reis, R.M.; Schmitt, F. Overexpression of platelet-derived growth factor receptor alpha in breast cancer is associated with tumour progression. Breast Cancer Res. 2005, 7, R788–R795. [Google Scholar] [CrossRef]
  44. Gehmert, S.; Gehmert, S.; Prantl, L.; Vykoukal, J.; Alt, E.; Song, Y.H. Breast cancer cells attract the migration of adipose tissue-derived stem cells via the PDGF-BB/PDGFR-beta signaling pathway. Biochem. Biophys. Res. Commun. 2010, 398, 601–605. [Google Scholar] [CrossRef]
  45. Chiavarina, B.; Whitaker-Menezes, D.; Migneco, G.; Martinez-Outschoorn, U.E.; Pavlides, S.; Howell, A.; Tanowitz, H.B.; Casimiro, M.C.; Wang, C.; Pestell, R.G.; et al. HIF1-alpha functions as a tumor promoter in cancer associated fibroblasts, and as a tumor suppressor in breast cancer cells: Autophagy drives compartment-specific oncogenesis. Cell Cycle 2010, 9, 3534–3551. [Google Scholar] [CrossRef]
  46. Vleugel, M.M.; Greijer, A.E.; Shvarts, A.; van der Groep, P.; van Berkel, M.; Aarbodem, Y.; van Tinteren, H.; Harris, A.L.; van Diest, P.J.; van der Wall, E. Differential prognostic impact of hypoxia induced and diffuse HIF-1alpha expression in invasive breast cancer. J. Clin. Pathol. 2005, 58, 172–177. [Google Scholar] [CrossRef]
  47. Fraum, T.J.; Ludwig, D.R.; Bashir, M.R.; Fowler, K.J. Gadolinium-based contrast agents: A comprehensive risk assessment. J. Magn. Reson. Imaging 2017, 46, 338–353. [Google Scholar] [CrossRef]
  48. Weinreb, J.C.; Rodby, R.A.; Yee, J.; Wang, C.L.; Fine, D.; McDonald, R.J.; Perazella, M.A.; Dillman, J.R.; Davenport, M.S. Use of Intravenous Gadolinium-based Contrast Media in Patients with Kidney Disease: Consensus Statements from the American College of Radiology and the National Kidney Foundation. Radiology 2021, 298, 28–35. [Google Scholar] [CrossRef]
  49. Van der Molen, A.J.; Quattrocchi, C.C.; Mallio, C.A.; Dekkers, I.A.; European Society of Magnetic Resonance in Medicine, Biology Gadolinium Research, Educational Committee (ESMRMB-GREC). Ten years of gadolinium retention and deposition: ESMRMB-GREC looks backward and forward. Eur Radiol. 2023, 1–12, Erratum in Eur. Radiol. 2023. [Google Scholar] [CrossRef]
  50. Baltzer, A.; Dietzel, M.; Kaiser, C.G.; Baltzer, P.A. Combined reading of contrast enhanced and diffusion weighted magnetic resonance imaging by using a simple sum score. Eur. Radiol. 2016, 26, 884–891. [Google Scholar] [CrossRef] [PubMed]
  51. Baltzer, P.; Mann, R.M.; Iima, M.; Sigmund, E.E.; Clauser, P.; Gilbert, F.J.; Martincich, L.; Partridge, S.C.; Patterson, A.; Pinker, K. Diffusion-weighted imaging of the breast—A consensus and mission statement from the EUSOBI International Breast Diffusion-Weighted Imaging working group. Eur. Radiol. 2020, 30, 1436–1450. [Google Scholar] [CrossRef] [PubMed]
  52. Honda, M.; Iima, M.; Kataoka, M.; Fukushima, Y.; Ota, R.; Ohashi, A.; Toi, M.; Nakamoto, Y. Biomarkers predictive of distant disease-free survival derived from diffusion-weighted imaging of breast cancer. Magn. Reson. Med. Sci. 2022, 22, 469–476. [Google Scholar] [CrossRef] [PubMed]
  53. Iima, M.; Kataoka, M.; Kanao, S.; Onishi, N.; Kawai, M.; Ohashi, A.; Sakaguchi, R.; Toi, M.; Togashi, K. Intravoxel incoherent motion and quantitative non-Gaussian diffusion MR imaging: Evaluation of the diagnostic and prognostic value of several markers of malignant and benign breast lesions. Radiology 2018, 287, 432–441. [Google Scholar] [CrossRef] [PubMed]
  54. Iima, M.; Nobashi, T.; Imai, H.; Koyasu, S.; Saga, T.; Nakamoto, Y.; Kataoka, M.; Yamamoto, A.; Matsuda, T.; Togashi, K. Effects of diffusion time on non-Gaussian diffusion and intravoxel incoherent motion (IVIM) MRI parameters in breast cancer and hepatocellular carcinoma xenograft models. Acta Radiol Open 2018, 7, 2058460117751565. [Google Scholar] [CrossRef]

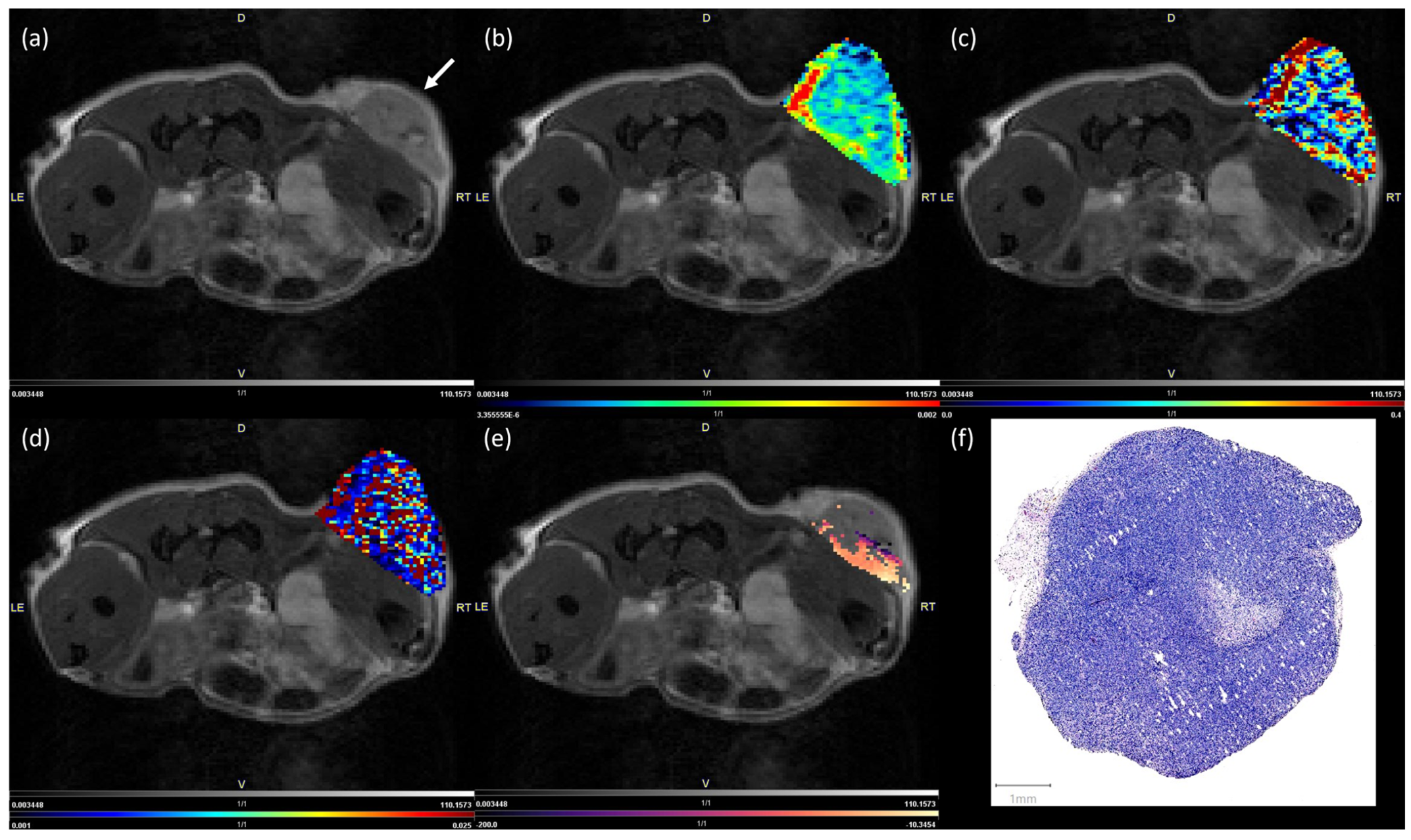

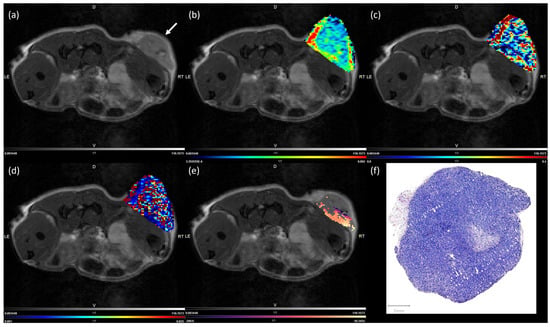

Figure 1. Exemplary parameter maps and a hematoxylin-and-eosin (H&E)-stained tissue section of a luminal A breast cancer xenograft tumor. T2-weighted image used for anatomical reference. The white arrow indicates the location of the tumor (a). Parameter maps of the IVIM-MRI-derived diffusion coefficient D (b), the IVIM-MRI fraction fIVIM (c), and the perfusion coefficient D* (d), masked onto the anatomical reference image. The BOLD-MRI-related parameter map for ΔR2* during the first of three measurement cycles, masked onto the anatomical reference image (e). An H&E-stained tissue section of the tumor (f).
Figure 1. Exemplary parameter maps and a hematoxylin-and-eosin (H&E)-stained tissue section of a luminal A breast cancer xenograft tumor. T2-weighted image used for anatomical reference. The white arrow indicates the location of the tumor (a). Parameter maps of the IVIM-MRI-derived diffusion coefficient D (b), the IVIM-MRI fraction fIVIM (c), and the perfusion coefficient D* (d), masked onto the anatomical reference image. The BOLD-MRI-related parameter map for ΔR2* during the first of three measurement cycles, masked onto the anatomical reference image (e). An H&E-stained tissue section of the tumor (f).
Cancers 16 00375 g001

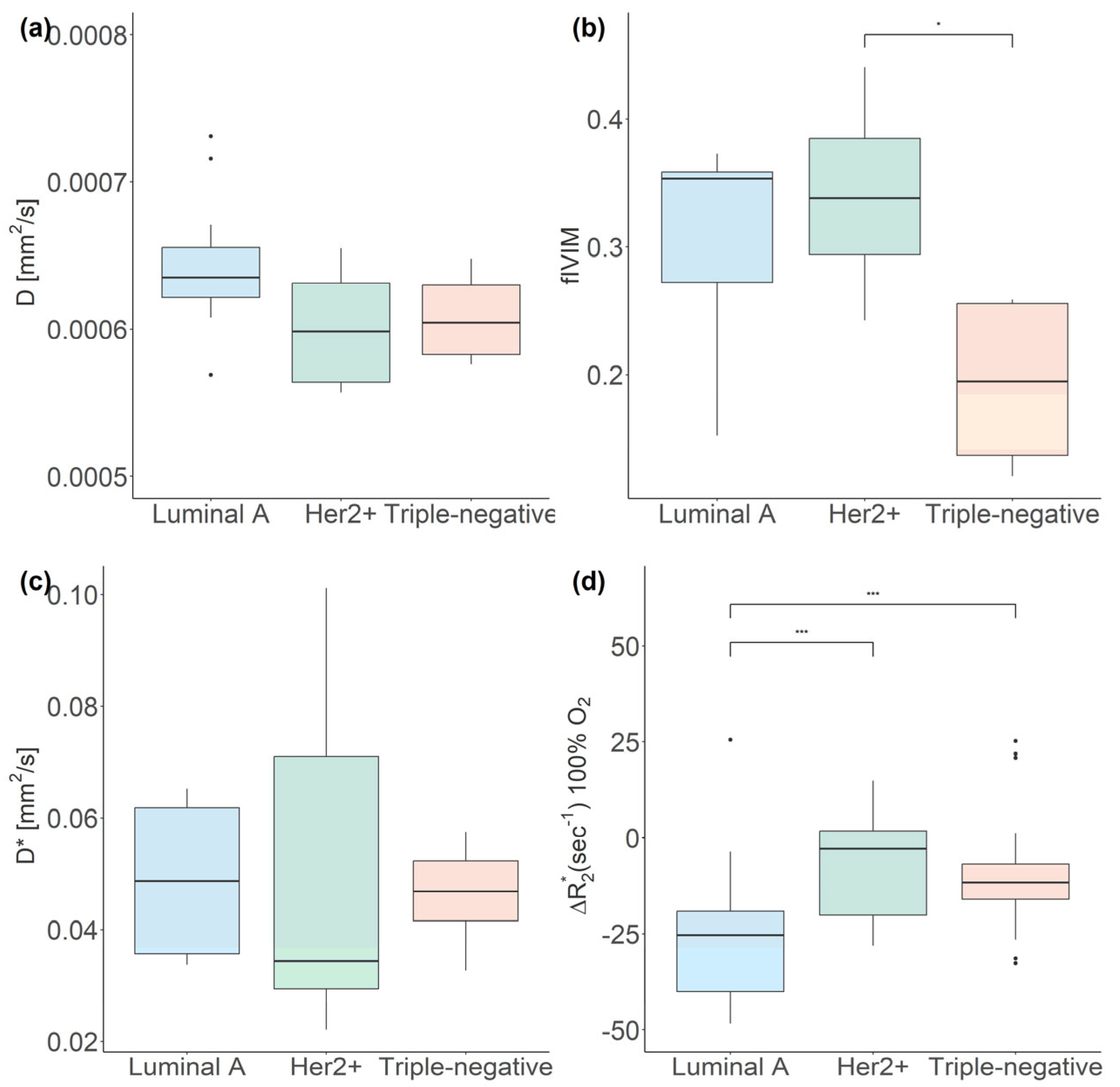

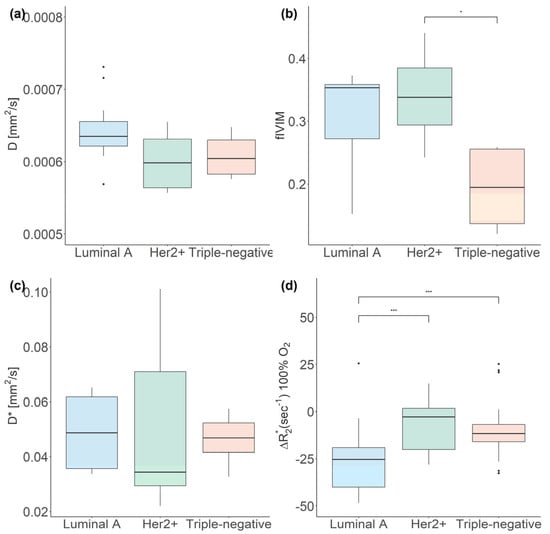

Figure 2. Boxplots illustrating the median and interquartile range of the IVIM-MRI-related parameters D (a), fIVIM (b), and D* (c), as well as the BOLD-MRI-related parameter ΔR2* (d), across breast-cancer molecular subtypes. (* p < 0.05; *** p < 0.001).
Figure 2. Boxplots illustrating the median and interquartile range of the IVIM-MRI-related parameters D (a), fIVIM (b), and D* (c), as well as the BOLD-MRI-related parameter ΔR2* (d), across breast-cancer molecular subtypes. (* p < 0.05; *** p < 0.001).
Cancers 16 00375 g002

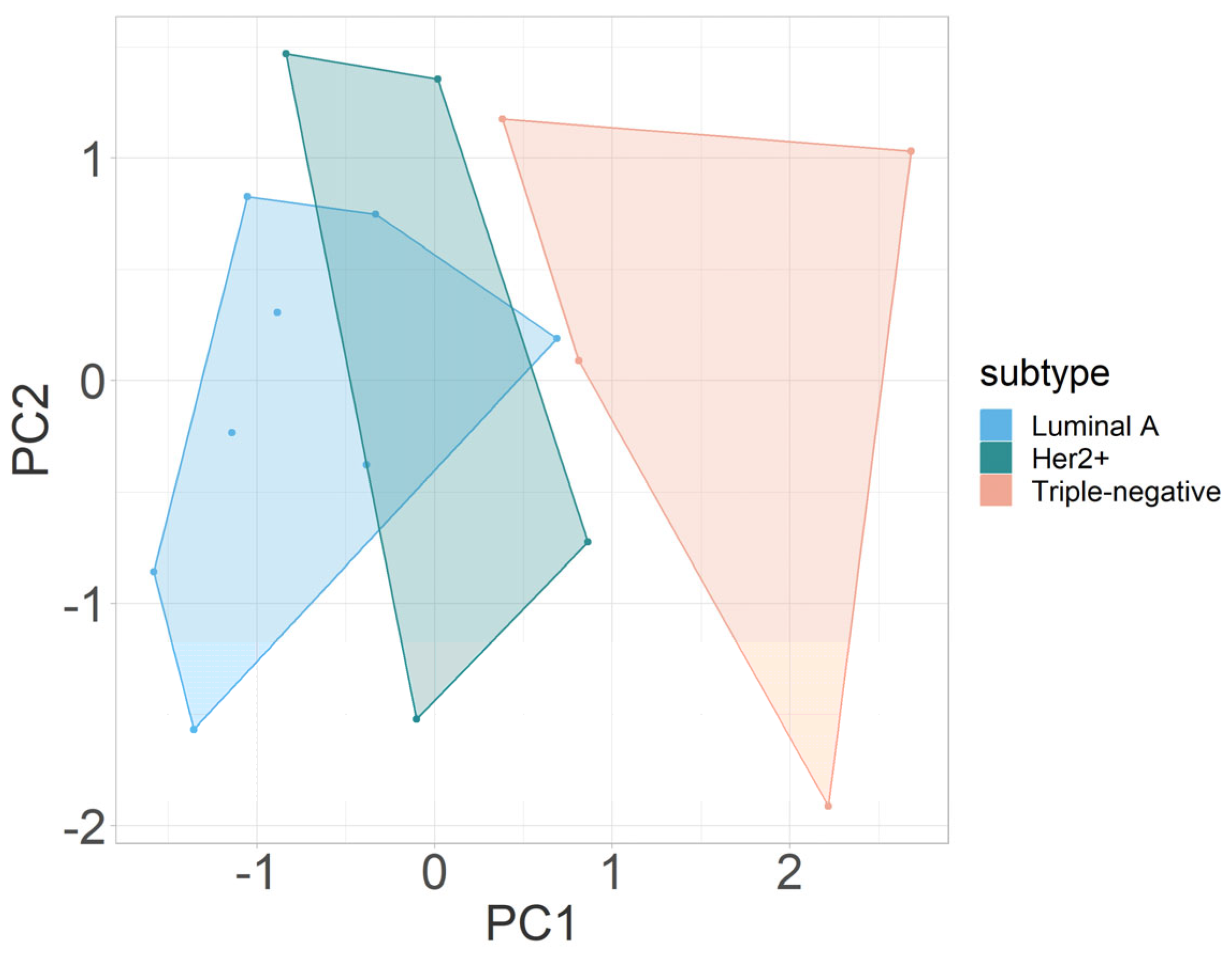

Figure 3. Principal-component analysis of multiparametric MRI parameters D, fIVIM, D*, and ΔR2* to distinguish between luminal A, Her2+, and triple-negative breast cancers. Abbreviations: PC, principal component.
Figure 3. Principal-component analysis of multiparametric MRI parameters D, fIVIM, D*, and ΔR2* to distinguish between luminal A, Her2+, and triple-negative breast cancers. Abbreviations: PC, principal component.
Cancers 16 00375 g003

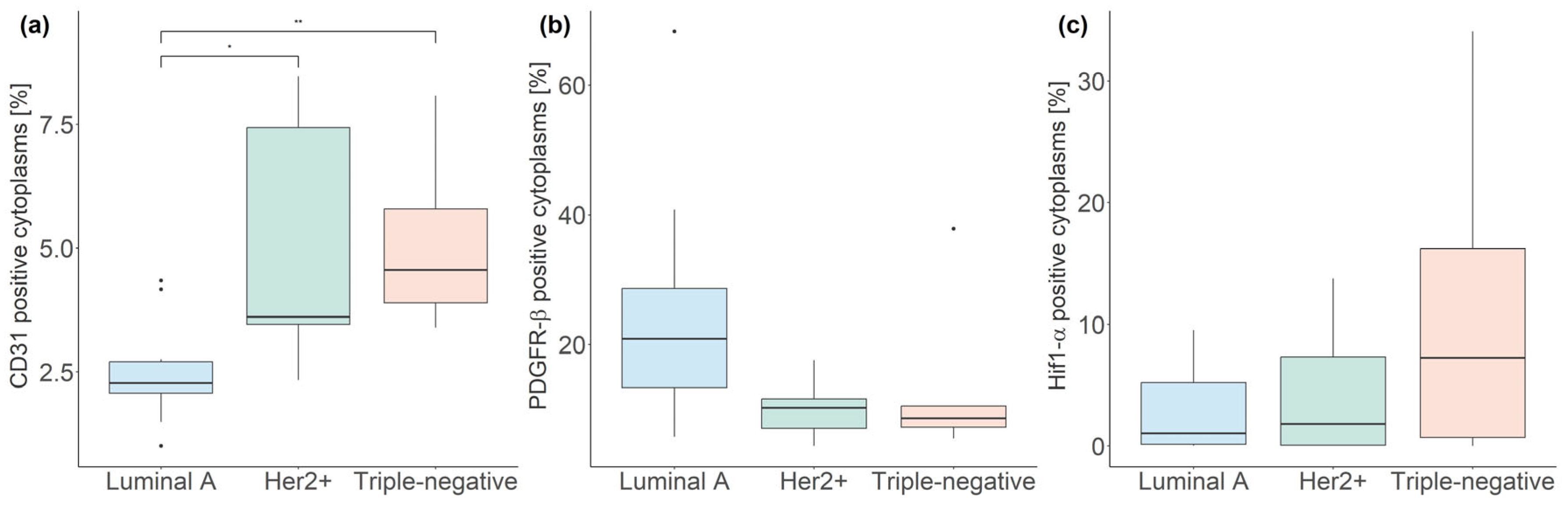

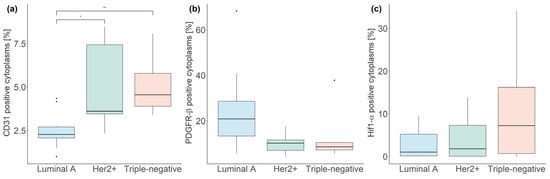

Figure 4. Boxplots illustrating the median and interquartile range of multiplexed immunohistochemistry stains for CD31 (a), PDGFR-β (b), and Hif1-α (c) across breast-cancer molecular subtypes. (* p < 0.05; ** p < 0.005).
Figure 4. Boxplots illustrating the median and interquartile range of multiplexed immunohistochemistry stains for CD31 (a), PDGFR-β (b), and Hif1-α (c) across breast-cancer molecular subtypes. (* p < 0.05; ** p < 0.005).
Cancers 16 00375 g004

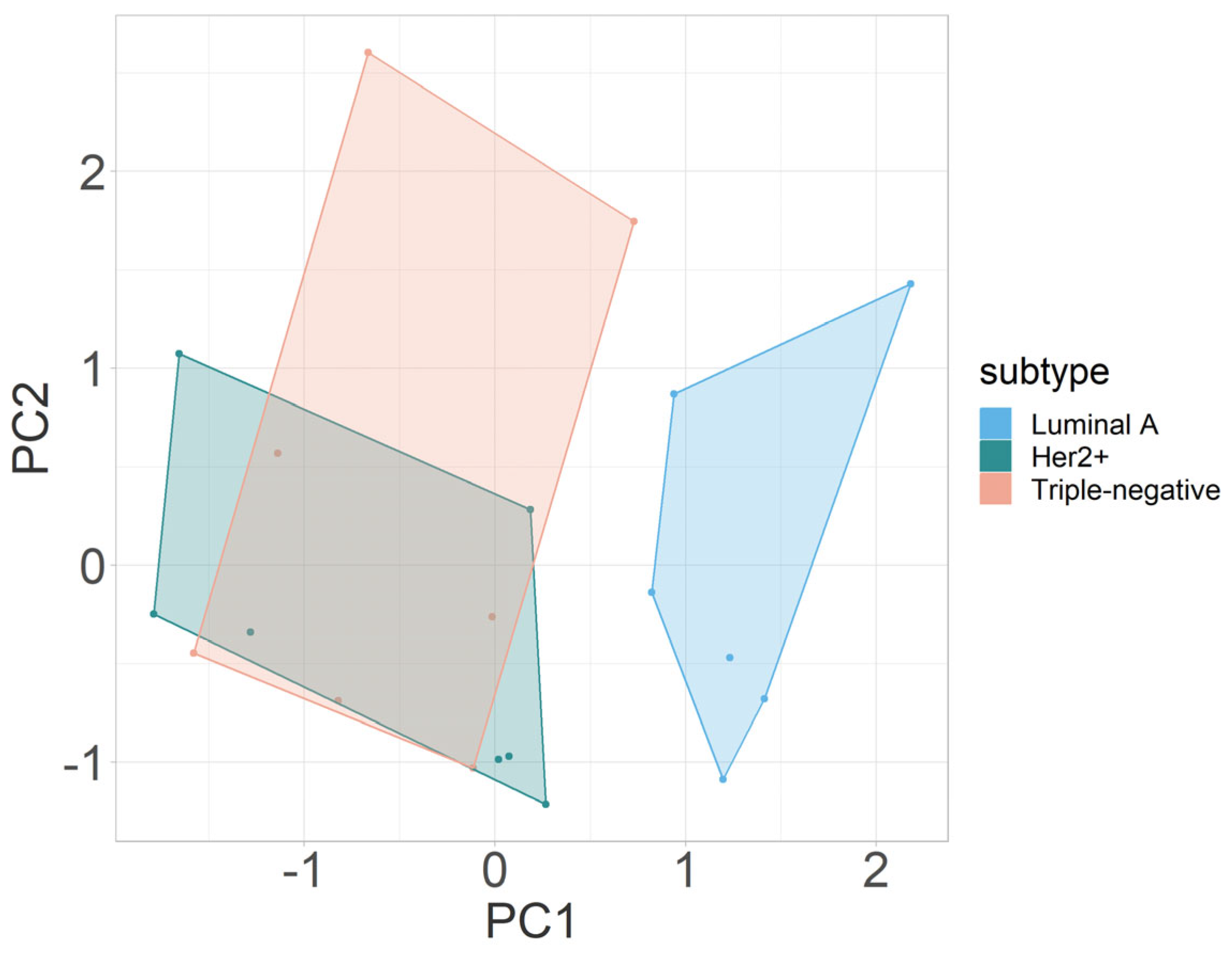

Figure 5. Principal-component analysis of multiplexed immunohistochemistry parameters CD31, PDGFR-β, and Hif1-α. Abbreviations: PC, principal component.
Figure 5. Principal-component analysis of multiplexed immunohistochemistry parameters CD31, PDGFR-β, and Hif1-α. Abbreviations: PC, principal component.
Cancers 16 00375 g005
Table 1. Summary statistics (median, interquartile range) for multiparametric MRI (BOLD-MRI and IVIM-MRI) parameters (D, fIVIM, D*, and ΔR2*) for luminal A, Her2+, and triple-negative breast cancers.
Table 1. Summary statistics (median, interquartile range) for multiparametric MRI (BOLD-MRI and IVIM-MRI) parameters (D, fIVIM, D*, and ΔR2*) for luminal A, Her2+, and triple-negative breast cancers.
SubtypeIVIM MRIBOLD MRI
D (10−3 mm2/s)fIVIM (%)D* (mm2/s)ΔR2*
Luminal A0.6350, 0.03435.3, 8.60.0487, 0.026−28.42, 24.35
Her2+0.5985, 0.0067333.8, 9.1 a0.0343, 0.042−2.85, 21.95 †
Triple-negative0.6240, 0.006319.5, 11.90.0468, 0.011−11.64, 9.15 †
a Within a column, superscripts indicate statistically significant differences from triple-negative breast cancers (p < 0.05). † within a column, a dagger indicates statistically significant differences from luminal A breast cancers (p < 0.001).
Table 2. Loadings for principal-component analysis on the multiparametric MRI parameters D, fIVIM, D*, and ΔR2* to distinguish between luminal A, Her2+, and triple-negative breast cancers.
Table 2. Loadings for principal-component analysis on the multiparametric MRI parameters D, fIVIM, D*, and ΔR2* to distinguish between luminal A, Her2+, and triple-negative breast cancers.
ParameterPC1PC2PC3PC4
fIVIM0.6716729−0.3464966−0.22240060.6159007
D*−0.1683178−0.7922028−0.4168883−0.4126595
D−0.4323694−0.46928900.63424360.4365314
ΔR2*−0.57756500.1792278−0.61194540.5097243
Abbreviations: PC, principal component.
Table 3. Summary statistics (median, interquartile range) for fluorescent multiplexed immunohistochemistry stains of CD31, PDGFR-β, and Hif1-α for luminal A, Her2+, and triple-negative breast cancers.
Table 3. Summary statistics (median, interquartile range) for fluorescent multiplexed immunohistochemistry stains of CD31, PDGFR-β, and Hif1-α for luminal A, Her2+, and triple-negative breast cancers.
SubtypeCD31 (%)PDGFR-β (%)Hif1 (%)
Luminal A2.27, 0.6420.89, 15.291.04, 5.07
Her2+3.61, 3.97 *10.25, 4.511.82, 7.28
Triple-negative4.56, 1.89 **8.59, 3.247.26, 15.51
* Within a column, asterisks indicate statistically significant differences from luminal A breast cancers (* p < 0.05; ** p < 0.005).
Table 4. Loadings for principal-component analysis on the multiplexed immunohistochemistry parameters CD31, PDGFR-β, and Hif1-α to distinguish between luminal A, Her2+, and triple-negative breast cancers.
Table 4. Loadings for principal-component analysis on the multiplexed immunohistochemistry parameters CD31, PDGFR-β, and Hif1-α to distinguish between luminal A, Her2+, and triple-negative breast cancers.
ParameterPC1PC2PC3
PDGFR-β0.67917990.4102400.608620
Hif1-α−0.08638860.868131−0.488759
CD31−0.72887010.2793780.625057
Abbreviations: PC, principal component.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Bartsch, S.J.; Brožová, K.; Ehret, V.; Friske, J.; Fürböck, C.; Kenner, L.; Laimer-Gruber, D.; Helbich, T.H.; Pinker, K. Non-Contrast-Enhanced Multiparametric MRI of the Hypoxic Tumor Microenvironment Allows Molecular Subtyping of Breast Cancer: A Pilot Study. Cancers 2024, 16, 375. https://doi.org/10.3390/cancers16020375

AMA Style

Bartsch SJ, Brožová K, Ehret V, Friske J, Fürböck C, Kenner L, Laimer-Gruber D, Helbich TH, Pinker K. Non-Contrast-Enhanced Multiparametric MRI of the Hypoxic Tumor Microenvironment Allows Molecular Subtyping of Breast Cancer: A Pilot Study. Cancers. 2024; 16(2):375. https://doi.org/10.3390/cancers16020375

Chicago/Turabian Style

Bartsch, Silvester J., Klára Brožová, Viktoria Ehret, Joachim Friske, Christoph Fürböck, Lukas Kenner, Daniela Laimer-Gruber, Thomas H. Helbich, and Katja Pinker. 2024. "Non-Contrast-Enhanced Multiparametric MRI of the Hypoxic Tumor Microenvironment Allows Molecular Subtyping of Breast Cancer: A Pilot Study" Cancers 16, no. 2: 375. https://doi.org/10.3390/cancers16020375

APA Style

Bartsch, S. J., Brožová, K., Ehret, V., Friske, J., Fürböck, C., Kenner, L., Laimer-Gruber, D., Helbich, T. H., & Pinker, K. (2024). Non-Contrast-Enhanced Multiparametric MRI of the Hypoxic Tumor Microenvironment Allows Molecular Subtyping of Breast Cancer: A Pilot Study. Cancers, 16(2), 375. https://doi.org/10.3390/cancers16020375

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
