Article

SOCS1 Deficiency Promotes Hepatocellular Carcinoma via SOCS3-Dependent CDKN1A Induction and NRF2 Activation

by
Md Gulam Musawwir Khan
1,†,
Nadia Boufaied
2,
Mehdi Yeganeh
1,
Rajani Kandhi
1,
Stephanie Petkiewicz
3,
Ankur Sharma
4,
Akihiko Yoshimura
5,
Gerardo Ferbeyre
6,
David P. Labbé
2,7,
Sheela Ramanathan
1,8 and
Subburaj Ilangumaran
1,7,*
1
Department of Immunology and Cell Biology, Faculty of Medicine and Health Sciences, Université de Sherbrooke, Sherbrooke, QC J1H 5N4, Canada
2
Cancer Research Program, Research Institute of the McGill University Health Centre, Montréal, QC H4A 3J1, Canada
3
Department of Pathology and Laboratory Medicine, University of Ottawa, Ottawa, ON K1N 6N5, Canada
4
Harry Perkins Institute of Medical Research, QEII Medical Centre and Centre for Medical Research, Perth 6009, Australia
5
Department of Microbiology and Immunology, Keio University School of Medicine, Tokyo 160-8582, Japan
6
Department of Biochemistry, Université de Montréal, Montreal, QC H3T 1J4, Canada
7
Division of Urology, Department of Surgery, McGill University, Montréal, QC H3A 0G4, Canada
8
Centre de Recherche, Centre Hospitalier Universitaire de Sherbrooke, Sherbrooke, QC J1G 2E8, Canada
*
Author to whom correspondence should be addressed.
†
Current address: Radiobiology and Health Branch, Canadian Nuclear Laboratories, Chalk River, ON K0J 1J0, Canada.
Cancers 2023, 15(3), 905; https://doi.org/10.3390/cancers15030905
Submission received: 21 December 2022 / Revised: 25 January 2023 / Accepted: 29 January 2023 / Published: 31 January 2023
(This article belongs to the Special Issue Translational Research of Liver Cancer)
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

Gene coding for the SOCS1 protein is frequently inactivated in liver cancer, suggesting that SOCS1 protects liver cells from becoming cancerous. This notion is supported by the increased susceptibility of mice lacking SOCS1 to develop liver cancer. Understanding how the SOCS1 protein protects from liver cancer could help in the development of new treatment strategies. CDKN1A is another protein that protects against many cancers including liver cancer. However, under certain unknown circumstances, CDKN1A can play a completely opposite role in promoting cancer growth. When CDKN1A gains such an undesirable function is not clear. Our findings on mouse models of liver cancer, and data from human liver cancer patients, show that SOCS1 suppresses the expression of CDKN1A, and in doing so, prevents the ability of liver cells to withstand the stress associated with cancer growth. This stress reduction pathway represents a potential therapeutic target in SOCS1-less liver cancers.

Abstract

SOCS1 deficiency, which increases susceptibility to hepatocellular carcinoma (HCC), promotes CDKN1A expression in the liver. High CDKN1A expression correlates with disease severity in many cancers. Here, we demonstrate a crucial pathogenic role of CDKN1A in diethyl nitrosamine (DEN)-induced HCC in SOCS1-deficient mice. Mechanistic studies on DEN-induced genotoxic response revealed that SOCS1-deficient hepatocytes upregulate SOCS3 expression, SOCS3 promotes p53 activation, and Cdkn1a induction that were abolished by deleting either Socs3 or Tp53. Previous reports implicate CDKN1A in promoting oxidative stress response mediated by NRF2, which is required for DEN-induced hepatocarcinogenesis. We show increased induction of NRF2 and its target genes in SOCS1-deficient livers following DEN treatment that was abrogated by the deletion of either Cdkn1a or Socs3. Loss of SOCS3 in SOCS1-deficient mice reduced the growth of DEN-induced HCC without affecting tumor incidence. In the TCGA-LIHC dataset, the SOCS1-low/SOCS3-high subgroup displayed increased CDKN1A expression, enrichment of NRF2 transcriptional signature, faster disease progression, and poor prognosis. Overall, our findings show that SOCS1 deficiency in hepatocytes promotes compensatory SOCS3 expression, p53 activation, CDKN1A induction, and NRF2 activation, which can facilitate cellular adaptation to oxidative stress and promote neoplastic growth. Thus, the NRF2 pathway represents a potential therapeutic target in SOCS1-low/SOCS3-high HCC cases.

Graphical Abstract

1. Introduction

The Suppressor of cytokine signaling 1 (SOCS1) gene is frequently repressed by CpG methylation in up to 65% of primary hepatocellular carcinoma (HCC) [1,2], suggesting that SOCS1 functions as a tumor suppressor in hepatocytes. Supporting this notion, mice lacking SOCS1 in hepatocytes show increased susceptibility to diethyl nitrosamine (DEN)-induced HCC [3,4]. SOCS3 is also repressed in HCC albeit to a lower extent than SOCS1 (up to 33%), and hepatocyte-specific SOCS3-deficient mice show increased DEN-induced HCC [5,6]. Even though SOCS1 and SOCS3 show close structural similarity, increased HCC development in mice lacking either SOCS1 or SOCS3 indicates their non-overlapping tumor suppressor functions [7].
SOCS1 and SOCS3 generally function as negative feedback regulators of cytokine and growth factor signaling pathways [7]. IL-6, hepatocyte growth factor (HGF), and epidermal growth factor (EGF) are critical for liver regeneration [7]. Mice lacking either Socs1 or Socs3 show accelerated liver regeneration, indicating that SOCS1 and SOCS3 play key roles in regulating hepatocyte proliferation [6,7,8]. Whereas SOCS3 controls IL-6 signaling, and SOCS1 regulates HGF signaling during liver regeneration [6,8,9]. As cytokines and growth factors that facilitate physiological hepatocyte proliferation also drive hepatocarcinogenesis [7], SOCS1 and SOCS3 likely mediate their tumor suppressor functions, at least partly, via attenuating HGF and IL-6 signaling, respectively.
Studies on oncogene-induced senescence implicated SOCS1 in activating p53 [10], suggesting that SOCS1 deficiency may compromise p53-mediated tumor suppression. However, SOCS1 deficiency did not diminish the induction of p53 target genes in the liver following genotoxic stress [4]. Contrarily, SOCS1 deficiency increased the expression of Cdkn1a, a p53 target gene, and regulated CDKN1A (p21) protein stability [4]. As a cyclin-dependent kinase (CDK) inhibitor, CDKN1A generally functions as a tumor suppressor [11]. Paradoxically, many tumors including HCC show elevated CDKN1A expression that correlates with high malignancy, poor prognosis, and drug resistance [11,12,13]. Deregulated growth factor signaling in SOCS1-deficient hepatocytes promotes AKT-mediated phosphorylation of CDKN1A, retaining it in the cytosol, where it could exert pro-tumorigenic effects [4,11].
Cancer growth is associated with increased cellular metabolism and oxidative stress [14]. Cancer cells escape oxidative damage by upregulating NRF2 (NFE2L2), a transcriptional activator that induces several genes including its own (Nfe2l2) [15,16]. The NRF2-induced proteins detoxify reactive oxygen radicals and reduce oxidative damage to macromolecules. NRF2 activity in normal cells is regulated by KEAP1, which promotes ubiquitination and proteasomal degradation of NRF2 [16]. During oxidative stress, conformational changes in KEAP1 prevent NRF2 ubiquitination, enabling newly synthesized NRF2 to escape repression by KEAP1 and induce target genes [17,18,19]. NRF2 can also be activated by proteins that interact with KEAP1 or NRF2. Notable among them are the selective autophagy substrate SQSTM1 (p62) and CDKN1A [16,20,21,22]. Here, we investigated whether CDKN1A is essential for hepatocarcinogenesis in SOCS1-deficient mice and how SOCS1 deficiency upregulates CDKN1A and promotes oncogenesis in the liver.

2. Materials and Methods

2.1. Mouse Strains

Hepatocyte-specific SOCS1-deficient mice (Socs1fl/flAlbCre) were previously described [4]. Socs3fl/fl, AlbCre, Cdkn1a−/−, and p53−/− mice were purchased from the Jackson Laboratory. Mice lacking SOCS3, SOCS1, and SOCS3 in hepatocytes (Socs3fl/fAlbCre; Socs1fl/flSocs3fl/flAlbCre) were generated for this study. Socs1fl/flAlbCre mice were crossed with Cdkn1a−/− or Tp53−/− to generate SOCS1-deficient mice also lacking CDKN1A (Socs1fl/flAlbCreCdkn1a−/−) or p53 (Socs1fl/flAlbCreTp53−/−) in hepatocytes. All mice strains used in this study are in C57BL/6N background and are listed in Supplementary Table S1. Control mice were derived from littermates. Mice were housed in ventilated cages with 12 h day/night cycle and fed with normal chow ad libitum. All experiments on mice were carried out during the daytime with the approval of the Université de Sherbrooke Ethics Committee for Animal Care and Use (Protocol ID 226-17B; 2017-2043).

2.2. Experimental HCC

To induce HCC, DEN was administered via the intraperitoneal (i.p.) route (25 mg/kg bodyweight) into two weeks-old male mice as females are resistant to DEN-induced HCC [4,23]. All reagents and their sources are listed in Supplementary Table S2. Treated mice were sacrificed 10 months later and visible tumor nodules were counted. Tumor dimensions were measured using a digital Vernier caliper. Tumor volume was calculated in mm3 using the formula: (length × width2)/2. Liver tissues were collected in buffered formalin for histology.

2.3. Induction of Genotoxic and Oxidative Stress

To induce oxidative and genotoxic stress in the liver, 6-8 weeks-old male mice were injected DEN (100 mg/kg bodyweight, i.p.) [4]. At the indicated time points, liver tissues were fixed in buffered formalin, preserved in RNAlater® for gene expression analysis, or snap-frozen and stored at −80 °C to evaluate protein expression.

2.4. Immunofluorescence Staining of Liver Sections

To assess cell proliferation within tumor nodules, liver sections were immunostained for Ki67, and immunofluorescence (IF) images were captured by NanoZoomer and analyzed by NanoZoomer Digital Pathology (NDP) view2 software (Hamamatsu Photonics, Shizuoka, Japan). Software sources and versions are listed in Supplementary Table S3, and antibodies used for IF are in Supplementary Table S4. The number of Ki67+ nuclei were counted in 8–10 random fields for each specimen. Lipid peroxidation in DEN-treated liver tissues was evaluated by IF staining of 4-hydroxynonenol (4-HNE). Images were captured using the Axioskop 2 microscope (Carl Zeiss Canada Ltd., Toronto, Canada), and mean fluorescence intensity (MFI) was quantified (8–10 random fields/section; 3–5 mice per genotype) using the Image J software (National Institutes of Health, Bethesda, MD, USA).

2.5. Gene and Protein Expression Analysis

Total RNA was isolated using an RNeasy® kit from liver tissues fixed in RNAlater®. Real-time quantitative PCR analysis was conducted as described [4] using primers listed in Supplementary Table S5. Gene expression in each DEN-treated mouse was normalized to the reference gene Rplp0 and mRNA fold-induction was calculated relative to the expression in untreated mice of the same genotype. Preparation of cell and liver tissue lysates and western blot have been previously described [4]. Antibodies used for western blotting are listed in Table S4.

2.6. TCGA-LIHC Dataset and Analyses

Transcriptomic data on The Cancer Gene Atlas-liver HCC (TCGA-LIHC) study cohort and the associated clinicopathological information [24] were downloaded (http://tcga-data.nci.nih.gov/tcga/ accessed on 3 March 2021) using a Bioconductor package TCGAbiolinks_2.14.1. [25] TCGA level 3 data comprised of 50 normal tissue, and 371 primary tumors were used after excluding three recurrent tumors.
Gene expression analysis: RNAseq read counts downloaded from TCGA-LIHC were normalized for sequencing depth using the size factor method implemented in a Deseq2_1.26.0 package [26]. Log2 normalized read counts were used to show gene expression levels. The significant difference in gene expression between groups was measured by the Wilcoxon test at p < 0.05.
Survival analysis: To conduct survival analysis, SOCS1 and SOCS3 expressions were converted to z-score and used to divide patients into high-expression and low-expression groups. Patients were further stratified into four groups combing SOCS1 and SOC3 expression. Kaplan-Meir survival plots were generated using the R packages survival_3.1-12 and survminer_0.4.6 [27,28]. Disease-free survival was compared between the four groups using a log-rank test. The hazard ratio was calculated via the Cox regression model using survival_3.1-12 [27].
Pathway analysis: “Oxygen” and “oxidant” related gene sets in the gene ontology Biological process (GO: BP) were downloaded from the Molecular Signatures Database (MsigDB) [29] using msigdbr_7.2.1 package [30]. A mod.t.test function (MKmisc 1.6 R package) [31] was used to compare each of the four patient groups (segregated based on the expression levels of SOCS1 and SOCS3) to benign samples and to score genes. Genes were then rank-ordered and gene enrichment analysis was performed using clusterProfiler_3.14.3 R package [32]. Gene sets were considered enriched with a Benjamini-Hochberg (BH) adjustment <0.05. The enrichment of the NRF2 gene, signature benchmarked by Polonen and colleagues [26], was analyzed using the Singscore 1.6.0_R package [33]. All data analysis and statistical tests were performed in R version 3.6.2 (2019-12-12).

2.7. Statistical Analysis

Data were analyzed using the GraphPad Prism (San Diego, CA, USA) and represented as mean ± standard error of mean (SE). Statistical significance was calculated by one-way or two-way ANOVA with Tukey’s multiple comparison test, and p values are represented by asterisks: * <0.05, ** <0.01, *** <0.001, **** <0.001.

3. Results

3.1. SOCS1-Mediated Tumor Suppression in the Liver Requires CDKN1A

To genetically test the potential oncogenic role of CDKN1A in SOCS1-deficient livers, we ablated Cdkn1a in Socs1fl/flAlb-Cre mice and evaluated DEN-induced HCC incidence and disease severity. All Socs1fl/flAlb-Cre mice developed numerous and large tumor nodules and showed increased liver-to-bodyweight ratio compared to Socs1fl/fl control mice (Figure 1a–e; Supplementary Figure S1), confirming the tumor suppressor role of SOCS1 in hepatocytes. Mice lacking CDKN1A alone (Socs1fl/flCdkn1a−/−) also showed an increased incidence and tumor volume (Figure 1a–e; Supplementary Figure S1), supporting the tumor suppressor function of CDKN1A in the liver. However, Socs1fl/flAlb-CreCdkn1a−/− mice showed reduced HCC incidence with significantly fewer and smaller tumor nodules compared to Socs1fl/flAlb-Cre or Socs1fl/flCdkn1a−/− mice (Figure 1a–e; Supplementary Figure S1). These findings indicated that even though SOCS1 and CDKN1A independently function as tumor suppressors in the liver, CDKN1A promotes oncogenesis in SOCS1-deficient hepatocytes.

3.2. Cdkn1a Induction in SOCS1-Deficient Livers Is Driven by p53

Next, we examined the mechanisms underlying the increased expression of CDKN1A in SOCS1-deficient livers following genotoxic stress induced by DEN [4]. CDKN1A is a transcriptional target of p53 and mediates its tumor suppressor functions [11]. DEN has been reported to induce oxidative stress, DNA damage, and sustained p53 activation in the liver [34,35]. To determine whether increased Cdkn1a induction in SOCS1-deficient livers required p53, we generated Socs1fl/flAlb-CreTp53−/− mice and evaluated DEN-induced Cdkn1a expression. Cdkn1a was induced in Socs1fl/flAlb-Cre mice several hundred-fold more strongly than in control mice and this induction was abrogated by p53 deficiency (Figure 1f). Other p53 target genes such as Mdm2, Gadd45a, Sesn1, and Sesn2 were also strongly upregulated in SOCS1-deficient livers, and this increase was also abolished by the loss of p53 (Figure 1g). These findings indicated that the increased induction of Cdkn1a in SOCS1 deficient livers is dependent on p53 activation.

3.3. SOCS3 Activates p53 in SOCS1-Deficient Livers

We have shown that SOCS1 promotes the activation of p53 [10,36]. SOCS3 has also been reported to activate p53 in hepatic stellate cells [37]. We have observed an upregulation of the Socs3 gene in the regenerating livers of SOCS1-deficient mice [4]. To determine whether SOCS3 could compensate for SOCS1 deficiency in promoting p53-mediated Cdkn1a induction, we first evaluated DEN-induced Socs1 and Socs3 gene expression in mice lacking either SOCS1 or SOCS3. Socs3 was upregulated nearly 16-fold in Socs1fl/flAlb-Cre mice, whereas Socs1 induction in Socs3fl/flAlb-Cre mice was comparable to control mice (Figure 2a). A previous study has reported increased HCC incidence in SOCS3-deficient livers [6]. However, the increased susceptibility of Socs1fl/flAlb-Cre mice to HCC despite elevated Socs3 expression indicates that SOCS3 does not compensate for the loss of SOCS1 in conferring protection against HCC. Therefore, we postulated that the upregulation of SOCS3 might underlie the p53-dependent induction of Cdkn1a and promote its oncogenic activity in SOCS1-deficient livers.
To test the above hypothesis, we generated mice lacking both SOCS1 and SOCS3 in hepatocytes and examined hepatic Cdkn1a expression following DEN treatment. Cdkn1a induction in SOCS1-deficient mice was completely abrogated in Socs1fl/flSocs3fl/flAlb-Cre mice (Figure 2b). Even though Socs3fl/flAlb-Cre mice showed significant induction of Cdkn1a, it occurred at a much lower magnitude than in Socs1fl/flAlb-Cre mice (Figure 2b). SOCS3 deficiency also abrogated the induction of several other p53 targets in SOCS1-deficient livers (Supplementary Figure S2). Consistent with these findings, DEN-treated Socs1fl/flAlb-Cre mice displayed increased p53 phosphorylation and increased expression of CDKN1A (p21) protein, which were abrogated in Socs1fl/flSocs3fl/flAlb-Cre mice (Figure 2c). However, STAT3 phosphorylation, presumably resulting from IL-6 signaling, was augmented by the loss of SOCS1, SOCS3, or both (Figure 2c). These findings indicate that SOCS3 is the critical mediator of the p53-dependent Cdkn1a upregulation caused by genotoxic stress in SOCS1-deficient hepatocytes.

3.4. SOCS3 Promotes HCC Progression in SOCS1-Deficient Livers

To test whether elevated SOCS3 expression underlies the increased susceptibility of SOCS1-deficient mice to develop HCC, we evaluated DEN-induced HCC in Socs1fl/flSocs3fl/flAlb-Cre mice. Similar to Socs1fl/flAlb-Cre mice, Socs3fl/flAlb-Cre mice developed HCC with 100% penetrance and showed more tumor nodules than Socs3fl/fl controls (Figure 2d–h, Supplementary Figure S1), confirming the non-overlapping tumor suppressor functions of SOCS1 and SOCS3 [4,6]. However, Socs1fl/flSocs3fl/flAlb-Cre mice showed significantly reduced tumor volume and liver-to-bodyweight ratio when compared to Socs1fl/flAlb-Cre mice, even though the incidence and the number of tumor nodules were comparable between these two groups (Figure 2d–h). These data suggested that in SOCS1-deficient livers, SOCS3 does not impact tumor incidence but promotes tumor growth. In support of this notion, tumor nodules in Socs1fl/flSocs3fl/flAlb-Cre mice showed fewer Ki67-positive proliferating cells than Socs1fl/flAlb-Cre mice (Figure 2i, Supplementary Figure S3). These data indicated that SOCS3 promotes HCC progression in SOCS1-deficient hepatoma cells, possibly via the induction of p21.

3.5. SOCS1 Deficiency Promotes NFR2 Activation in a SOCS3 and CDKN1A Dependent Manner

Previously we have shown that SOCS1 deficiency promotes cytosolic accumulation of CDKN1A [4]. Cytosolic p21 has been implicated in activating NRF2, [20] a transcriptional activator of antioxidant response genes, and is exploited by cancer cells to counter the oxidative stress associated with neoplastic growth [16,38]. Indeed, NRF2 promotes hepatocarcinogenesis, as NRF2 deficiency in mice has been shown to confer resistance to DEN-induced HCC [39,40]. Therefore, we examined the expression of NRF2 in SOCS1-deficient mice following treatment with DEN, which induces oxidative stress in hepatocytes [41]. DEN treatment markedly increased Nfe2l2 mRNA coding for NRF2 and its protein expression in Socs1fl/flAlb-Cre mice which coincided with elevated p21 expression (Figure 3a,b). The increased NRF2 expression in SOCS1-deficient livers was associated with the induction of many NRF2 target genes, whereas the expression of Keap1 was not altered (Figure 3a,c). As the upregulation of CDKN1A SOCS1-deficient livers required SOCS3, we examined whether SOCS3 promotes hepatic antioxidant response in SOCS1-deficient livers. SOCS3 deletion in Socs1flflAlb-Cre mice abolished the DEN-induced Nfe2l2 mRNA and NRF2 protein expression and NRF2 target gene expression in the liver (Figure 3a–c). Furthermore, HCC nodules resected from Socs1fl/flAlb-Cre mice showed increased expression of Cdkn1a, Nfe2l2, and the NRF2 target genes Gstm4, Gclc, and Nqo1, all of which showed lower expression in HCC nodules from Socs1fl/flSocs3fl/flAlb-Cre mice (Figure 3d). These findings indicate that SOCS3 upregulates NRF2 expression and its transcriptional activity in SOCS1-deficient hepatocytes under conditions of increased oxidative stress.
Next, we examined whether SOCS3-dependent NRF2 activation in SOCS1-deficient hepatocytes required CDKN1A. DEN-induced upregulation of NRF2 mRNA and protein expression and the induction of most of the NRF2 target genes were significantly diminished in Socs1fl/flAlb-CreCdkn1a−/− mice compared to Socs1fl/flAlb-Cre mice (Figure 3e,f). Liver sections from DEN-treated wildtype mice displayed increased 4-HNE staining indicative of lipid peroxidation, which was significantly increased by SOCS1 deficiency (Figure 3g,h), reflecting the ability of SOCS1-deficient hepatocytes to withstand increased oxidative stress. CDKN1A plays a key role in this process as the increased 4-HNE staining in SOCS1-deficient hepatocytes was attenuated by simultaneous ablation of Cdkn1a (Figure 3g,h). These findings indicate that activation of the SOCS3-CDKN1A axis in SOCS1-deficient hepatocytes promotes NRF2-mediated antioxidant response that can increase tolerance to oxidative stress and tumor growth.

3.6. SOCS1-Low/SOCS3-High HCC Cases Display Enrichment of NRF2 Signature Genes and Predict Poor Progression-Free Survival

To study the relationship between the expression levels of SOCS1, SOCS3, and CDKN1A in human HCC, we analyzed the TCGA-LIHC transcriptomic data [24]. The dichotomization of the TCGA-LIHC cohort based on SOCS1 or SOCS3 expression revealed an elevated level of CDKN1A expression in both SOCS1-high and SOCS3-high groups (Supplementary Figure S4a). As Cdkn1a induction in SOCS1-deficient hepatocytes required SOCS3, we stratified HCC patients based on both SOCS1 (low, high) and SOCS3 (low, high) expression. The SOCS1-low/SOCS3-high group represented about 15% of SOCS1-low HCC cases (Supplementary Figure S4b) and showed a significantly elevated CDKN1A expression compared to the SOCS1-low/SOCS3-low group (Figure 4a).
Next, we performed gene set enrichment analysis (GSEA) for gene ontology (GO) terms containing ‘oxygen’ and ‘oxidant’ for each of the HCC groups compared to normal liver tissues (Figure 4b and Supplementary Figure S4c). The SOCS1-low/SOCS3-low group showed significant negative enrichment for the GO term ‘antioxidant activity’ (GO: 0016209) with a normalized enrichment score (NES) of −1.6588757 (p 3 × 10−4; p.adjusted = 7 × 10−4) (Figure 4c). The positive enrichment scores of SOCS1-low/SOCS3-high and SOCS1-high/SOCS3-low groups for antioxidant activity were not significant (Figure 4c, Supplementary Figure S4d). Curiously, the SOCS1-high/SOCS3-high group also showed a negative enrichment (Supplementary Figure S4d), although it was not significant. Notably, for the GO term ‘cellular response to increased oxygen levels’ (GO:00366296), only the SOCS1-low/SOCS3-high group showed a positive enrichment (NES = 1.7385050; p = 1 × 10−4; p.adjusted = 0.0011) (Figure 4d, Supplementary Figure S4e). Importantly, the benchmark NRF2 signature curated by Polonen and colleagues [42] revealed a highly significant enrichment in the SOCS1-low/SOCS3-high HCC group (NES = 1.4661141; p = 1 × 10−4; p.adjusted = 5 × 10−4) (Figure 4e). The SOCS1-high/SOCS3-high group also showed enrichment for this gene set (NES = 1.471197; p = 0.021; p.adjusted = 0.0104) (Supplementary Figure S4f). The SOCS1-low/SOCS3-high group showed a significantly higher enrichment of the Polonen gene signature than the SOCS1-low/SOCS3-low group (Figure 4f). These data indicate that increased SOCS3 expression in SOCS1-low human HCC is associated with elevated expression of NRF2 signature genes.
Next, we evaluated the impact of high SOCS3 expression on disease severity in SOCS1-low human HCC. Whereas the low SOCS1 expression level predicted poor disease-free survival, the SOCS3 expression level did not correlate with patient survival (Supplementary Figure S4g). On the other hand, high SOCS3 expression among the low SOCS1 expressing HCC cases predicted a shorter progression-free survival, suggesting a faster disease progression in the SOCS1-low/SOCS3-high patient group (Figure 4g). This notion is further strengthened by a trend towards a higher hazard ratio (HR) for this group in the univariate analysis (HR = 1.80, 95% confidence interval (CI) 0.99–3.3; p = 0.053; Figure 4h). These findings corroborate with the adverse impact of high SOCS3 expression on tumor progression in SOCS1-low HCC, as seen in the genetically engineered Socs1fl/flSocs3fl/flAlb-Cre mouse model (Figure 2d–h).

4. Discussion

In this study, we show that SOCS1 and SOCS3 function as independent tumor suppressors in the liver, however, SOCS1 deficiency in hepatocytes renders SOCS3 oncogenic in a mouse genetic model. We also provide evidence for the oncogenic role of SOCS3 in SOCS1-low HCC patients. Our findings show that SOCS3-mediated induction of CDKN1A contributes to NRF2 activation and cellular adaptation to increased oxidative stress associated with neoplastic growth of SOCS1-deficient HCC (Figure 5).
Clinical data and genetic models support independent tumor suppressor functions of SOCS1 and SOCS3 in the liver [1,2,3,5,6]. SOCS3 is crucial to control IL-6 signaling, whereas SOCS1 regulates HGF signaling in the liver [6,7,8,9]. SOCS1 and SOCS3 promote transcriptional activation of p53 [10,36,37], suggesting that loss of SOCS1 or SOCS3 could impact the tumor suppressor functions of p53. However, SOCS1 deficiency did not attenuate p53 activation by DEN [4]. In the present study, we show that the combined loss of SOCS1 and SOCS3 compromises the induction of p53 target genes following genotoxic stress. An additional tumor suppressor mechanism of SOCS1 could be the attenuation of the oncogenic potential of CDKN1A [4]. The current investigation, aimed to determine whether CDKN1A is essential or dispensable for HCC induction in SOCS1-deficient mice, revealed an intricate interplay between SOCS3, p53, and CDKN1A that contributes to oncogenic NRF2 activation in SOCS1-deficient hepatocytes.
CDKN1A functions as a tumor suppressor by blocking cell cycle progression via inhibiting CDK1 and CDK2, and CDKN1A-deficiency promotes spontaneous and induced tumors in different tissues [11,43,44,45]. Ablation of Cdkn1a in hepatocyte-specific NEMO-deficient mice, which develop chronic hepatitis, leads to spontaneous HCC [46]. We show that CDKN1A deficiency increases DEN-induced HCC (Figure 1a–e). However, elevated CDKN1A expression occurs in many cancers including HCC that correlates with poor prognosis, suggesting an oncogenic role of CDKN1A [11,47,48,49]. Indeed, CDKN1A is needed for HCC development under conditions of mild inflammation in Fah−/− mice and chronic cholestatic liver injury in Mdr2−/− mice [39,49]. These findings confirm that CDKN1A is an ‘oncojanus’ that can either inhibit or promote HCC in different contexts. CDKN1A gains oncogenic potential when retained in the cytosol via AKT-dependent phosphorylation where it interferes with apoptotic mediators [11]. CDKN1A can also promote CDK4 activity and facilitate the cell cycle progression through the G1 phase [50]. Indeed, CDKN1A promotes HCC in Mdr2−/− mice, via facilitating CyclinD-CDK4 complex formation and cell cycle progression [49]. Even though the oncojanus role of CDKN1A has been firmly established, conditions that promote its oncogenic potential remain poorly understood. Epigenetic repression of SOCS1 in HCC can contribute to CDKN1A-mediated oncogenesis by at least two mechanisms. Increased AKT activation downstream of deregulated growth factor signaling in SOCS1-deficient livers results in CDKN1A phosphorylation and cytosolic retention [4]. As shown in the present study, a compensatory increase in SOCS3 expression can lead to increased CDKN1A expression via p53 activation. Even though disabling p53 mutations occur in a third of non-aflatoxin-induced HCC [51], the oncogenic pathway driven by SOCS3-p53-CDKN1A axis could still occur in a considerable proportion of HCC cases with low SOCS1 and intact SOCS3 expression. In support of this notion, SOCS1-low/SOCS3-high cases in the TCGA-LIHC cohort show poor progression-free survival.
Cytosolic CDKN1A can bind NRF2 and relieve the inhibitory KEAP1-NRF2 interaction leading to its activation [16,20]. NRF2 is another oncojanus that enables cancer cells to cope with oxidative stress during cancer progression [16]. NRF2 is also activated by the selective autophagy substrate p62 (SQSTM1), which interrupts NRF2-KEAP1 interaction [21]. Reduced HCC development in Fah−/− mice was attributed to compensatory induction of Sestrin2, which promotes p62-dependent autophagic degradation of KEAP1, leading to NRF2 activation, protection from oxidative damage, and neoplastic transformation [39]. Contrary to the induction of NRF2 target genes in Cdkn1a−/−Fah−/− mice, Cdkn1a−/−Socs1−/− mice showed impaired induction of NRF2 target genes. While CDKN1A attenuates the antitumor functions of NRF2 in FAH-deficient livers [39], our findings indicate that CDKN1A promotes the oncogenic potential of NRF2 in SOCS1-deficient livers. These contrasting effects of CDKN1A-mediated NRF2 activation likely reflect the duality of NRF2 functions, being protective in normal and preneoplastic stages but detrimental in transformed hepatocytes [52,53].
NRF2-deficient mice have clearly established an oncogenic role for NRF2 activation in DEN-induced HCC [40]. Studies have reported that NRF2-high HCC patients show poor survival [54,55]. Even though mutations that disrupt KEAP-NRF2 interactions contribute to NRF2 activation in human and rodent HCC [56,57], NRF2 activation in HCC can also occur by other mechanisms such as elevated expression of p62 [58]. Our findings add CDKN1A induced by SOCS1 deficiency to this list of NRF2 activators in cancer cells. In addition to conferring protection from oxidative stress, NRF2 activation in hepatocytes can also provide growth stimuli via AKT activation and induction of PDGF and EGF that could promote carcinogenesis [59]. As growth factor-induced AKT activation contributes to CDKN1A phosphorylation and its cytosolic retention [4]. NRF2 can establish a positive feedback loop in CDKN1A-overexpressing cancers. SOCS1 deficiency can amplify this loop by upregulating CDKN1A expression and increasing AKT activation through increased growth factor signaling [4,9].
Overall, we have discovered an unexpected oncogenic role for SOCS3 in SOCS1-deficient HCC using mouse genetic models, for which we also found evidence in the TCGA-LIHC cohort. Targeting the pro-tumorigenic potential of SOCS3 or CDKN1A in HCC without compromising their antitumor activities will be as challenging as targeting NRF2 [52]. However, anticancer drugs activated by NRF2-induced enzymes such as NQO1 [60] could be exploited in SOCS1-low/SOCS3-high HCC and other instances of NRF2-mediated cancer progression.

5. Conclusions

SOCS1 and SOCS3 function as independent tumor suppressors in hepatocytes. However, in the absence of SOCS1, compensatory SOCS3 expression promotes p53 activation, CDKN1A induction, and NRF2 activation, facilitating cellular adaptation to oxidative stress that accompanies neoplastic growth. Thus, a key tumor suppression mechanism of SOCS1 is to prevent the tumor suppressors SOCS3 and CDKN1A from gaining oncogenic potential. The NRF2-mediated oxidative stress response induced by CDKN1A could be a potential therapeutic target in SOCS1-deficient HCC.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cancers15030905/s1, Table S1. List of Mouse strains used in this study; Table S2. List of reagents used in this study; Table S3. List of software used; Table S4. List of antibodies used in this study; Table S5. List of RT-qPCR primers used in this study; Figure S1: Increased susceptibility of SOCS1-deficient mice to HCC requires CDKN1A and SOCS3; Figure S2. Increased induction of p53 target genes in SOCS1-deficient livers following genotoxic stress requires SOCS3; Figure S3. Ki67 immunostaining in DEN-induced HCC; Figure S4. Supplementary data on TCGA-LIHA transcriptomic data analyses.

Author Contributions

Conceptualization, M.Y., G.F. and S.I.; Data curation, M.G.M.K., N.B. and S.I.; Formal analysis, M.Y., M.G.M.K., N.B., R.K., S.P., D.P.L. and S.I.; Funding acquisition, S.I.; Investigation, G.F., S.R. and S.I.; Methodology, M.Y., M.G.M.K., R.K., S.P. and S.R.; Project administration, S.I.; Resources, A.Y. and S.R.; Software, N.B.; Supervision, S.R. and S.I.; Validation, M.G.M.K., N.B., D.P.L. and S.I.; Visualization, D.P.L.; Writing—original draft, M.G.M.K. and S.I.; Writing—review & editing, M.G.M.K., A.S., A.Y., G.F., D.P.L., S.R. and S.I. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Canadian Institutes of Health Research (CIHR) project grants PJT-153174 to SI and PJT-162246 to DPL, and JSPS KAKENHI 19K07514, 21H05044 AMED-CREST 21gm1110009, AMED-Moonshot 21zf0127003h0001 for AY. MGMK and MY were supported by graduate scholarships from the FRQNT. RK received graduate scholarship from the Fonds de Recherche du Québec—Santé (FRQS). DPL is a William Dawson Scholar of McGill University, a Lewis Katz—Young Investigator of the Prostate Cancer Foundation and is also a Research Scholar—Junior 2 from the FRQS. CR-CHUS is an FRQS-funded research center.

Institutional Review Board Statement

The animal study protocol was approved by the Université de Sherbrooke Ethics Committee for Animal Care and Use (Protocol ID 226-17B; 2017-2043).

Informed Consent Statement

Not applicable.

Data Availability Statement

The materials and the data that support the findings of this study are available from the authors upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yoshikawa, H.; Matsubara, K.; Qian, G.S.; Jackson, P.; Groopman, J.D.; Manning, J.E.; Harris, C.C.; Herman, J.G. SOCS-1, a negative regulator of the JAK/STAT pathway, is silenced by methylation in human hepatocellular carcinoma and shows growth-suppression activity. Nat. Genet. 2001, 28, 29–35. [Google Scholar] [CrossRef]
  2. Yang, B.; Guo, M.; Herman, J.G.; Clark, D.P. Aberrant promoter methylation profiles of tumor suppressor genes in hepatocellular carcinoma. Am. J. Pathol. 2003, 163, 1101–1107. [Google Scholar] [CrossRef] [Green Version]
  3. Yoshida, T.; Ogata, H.; Kamio, M.; Joo, A.; Shiraishi, H.; Tokunaga, Y.; Sata, M.; Nagai, H.; Yoshimura, A. SOCS1 is a suppressor of liver fibrosis and hepatitis-induced carcinogenesis. J. Exp. Med. 2004, 199, 1701–1707. [Google Scholar] [CrossRef] [Green Version]
  4. Yeganeh, M.; Gui, Y.; Kandhi, R.; Bobbala, D.; Tobelaim, W.S.; Saucier, C.; Yoshimura, A.; Ferbeyre, G.; Ramanathan, S.; Ilangumaran, S. Suppressor of cytokine signaling 1-dependent regulation of the expression and oncogenic functions of p21(CIP1/WAF1) in the liver. Oncogene 2016, 35, 4200–4211. [Google Scholar] [CrossRef] [PubMed]
  5. Niwa, Y.; Kanda, H.; Shikauchi, Y.; Saiura, A.; Matsubara, K.; Kitagawa, T.; Yamamoto, J.; Kubo, T.; Yoshikawa, H. Methylation silencing of SOCS-3 promotes cell growth and migration by enhancing JAK/STAT and FAK signalings in human hepatocellular carcinoma. Oncogene 2005, 24, 6406–6417. [Google Scholar] [CrossRef] [Green Version]
  6. Riehle, K.J.; Campbell, J.S.; McMahan, R.S.; Johnson, M.M.; Beyer, R.P.; Bammler, T.K.; Fausto, N. Regulation of liver regeneration and hepatocarcinogenesis by suppressor of cytokine signaling 3. J. Exp. Med. 2008, 205, 91–103. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Khan, M.G.M.; Ghosh, A.; Variya, B.; Santharam, M.A.; Kandhi, R.; Ramanathan, S.; Ilangumaran, S. Hepatocyte growth control by SOCS1 and SOCS3. Cytokine 2019, 121, 154733. [Google Scholar] [CrossRef]
  8. Gui, Y.; Yeganeh, M.; Ramanathan, S.; Leblanc, C.; Pomerleau, V.; Ferbeyre, G.; Saucier, C.; Ilangumaran, S. SOCS1 controls liver regeneration by regulating HGF signaling in hepatocytes. J. Hepatol. 2011, 55, 1300–1308. [Google Scholar] [CrossRef]
  9. Gui, Y.; Yeganeh, M.; Donates, Y.C.; Tobelaim, W.S.; Chababi, W.; Mayhue, M.; Yoshimura, A.; Ramanathan, S.; Saucier, C.; Ilangumaran, S. Regulation of MET receptor tyrosine kinase signaling by suppressor of cytokine signaling 1 in hepatocellular carcinoma. Oncogene 2015, 34, 5718–5728. [Google Scholar] [CrossRef] [PubMed]
  10. Calabrese, V.; Mallette, F.A.; Deschenes-Simard, X.; Ramanathan, S.; Gagnon, J.; Moores, A.; Ilangumaran, S.; Ferbeyre, G. SOCS1 links cytokine signaling to p53 and senescence. Mol. Cell 2009, 36, 754–767. [Google Scholar] [CrossRef]
  11. Abbas, T.; Dutta, A. p21 in cancer: Intricate networks and multiple activities. Nat. Rev. Cancer 2009, 9, 400–414. [Google Scholar] [CrossRef] [PubMed]
  12. Gartel, A.L. p21(WAF1/CIP1) and cancer: A shifting paradigm? Biofactors 2009, 35, 161–164. [Google Scholar] [CrossRef] [PubMed]
  13. Koster, R.; di Pietro, A.; Timmer-Bosscha, H.; Gibcus, J.H.; van den Berg, A.; Suurmeijer, A.J.; Bischoff, R.; Gietema, J.A.; de Jong, S. Cytoplasmic p21 expression levels determine cisplatin resistance in human testicular cancer. J. Clin. Investig. 2010, 120, 3594–3605. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Hanahan, D.; Weinberg, R.A. Hallmarks of cancer: The next generation. Cell 2011, 144, 646–674. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Kansanen, E.; Kuosmanen, S.M.; Leinonen, H.; Levonen, A.L. The Keap1-Nrf2 pathway: Mechanisms of activation and dysregulation in cancer. Redox Biol. 2013, 1, 45–49. [Google Scholar] [CrossRef] [Green Version]
  16. Menegon, S.; Columbano, A.; Giordano, S. The Dual Roles of NRF2 in Cancer. Trends Mol. Med. 2016, 22, 578–593. [Google Scholar] [CrossRef]
  17. Eggler, A.L.; Liu, G.; Pezzuto, J.M.; van Breemen, R.B.; Mesecar, A.D. Modifying specific cysteines of the electrophile-sensing human Keap1 protein is insufficient to disrupt binding to the Nrf2 domain Neh2. Proc. Natl. Acad. Sci. USA 2005, 102, 10070–10075. [Google Scholar] [CrossRef] [Green Version]
  18. Baird, L.; Lleres, D.; Swift, S.; Dinkova-Kostova, A.T. Regulatory flexibility in the Nrf2-mediated stress response is conferred by conformational cycling of the Keap1-Nrf2 protein complex. Proc. Natl. Acad. Sci. USA 2013, 110, 15259–15264. [Google Scholar] [CrossRef] [Green Version]
  19. Baird, L.; Dinkova-Kostova, A.T. Diffusion dynamics of the Keap1-Cullin3 interaction in single live cells. Biochem. Biophys. Res. Commun. 2013, 433, 58–65. [Google Scholar] [CrossRef]
  20. Chen, W.; Sun, Z.; Wang, X.J.; Jiang, T.; Huang, Z.; Fang, D.; Zhang, D.D. Direct interaction between Nrf2 and p21(Cip1/WAF1) upregulates the Nrf2-mediated antioxidant response. Mol. Cell 2009, 34, 663–673. [Google Scholar] [CrossRef] [Green Version]
  21. Komatsu, M.; Kurokawa, H.; Waguri, S.; Taguchi, K.; Kobayashi, A.; Ichimura, Y.; Sou, Y.S.; Ueno, I.; Sakamoto, A.; Tong, K.I.; et al. The selective autophagy substrate p62 activates the stress responsive transcription factor Nrf2 through inactivation of Keap1. Nat. Cell Biol. 2010, 12, 213–223. [Google Scholar] [CrossRef] [PubMed]
  22. DeNicola, G.M.; Karreth, F.A.; Humpton, T.J.; Gopinathan, A.; Wei, C.; Frese, K.; Mangal, D.; Yu, K.H.; Yeo, C.J.; Calhoun, E.S.; et al. Oncogene-induced Nrf2 transcription promotes ROS detoxification and tumorigenesis. Nature 2011, 475, 106–109. [Google Scholar] [CrossRef] [Green Version]
  23. Naugler, W.E.; Sakurai, T.; Kim, S.; Maeda, S.; Kim, K.; Elsharkawy, A.M.; Karin, M. Gender disparity in liver cancer due to sex differences in MyD88-dependent IL-6 production. Science 2007, 317, 121–124. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Cancer Genome Atlas Research Network. Comprehensive and Integrative Genomic Characterization of Hepatocellular Carcinoma. Cell 2017, 169, 1327–1341.e23. [Google Scholar] [CrossRef] [Green Version]
  25. Colaprico, A.; Silva, T.C.; Olsen, C.; Garofano, L.; Cava, C.; Garolini, D.; Sabedot, T.S.; Malta, T.M.; Pagnotta, S.M.; Castiglioni, I.; et al. TCGAbiolinks: An R/Bioconductor package for integrative analysis of TCGA data. Nucleic Acids Res. 2016, 44, e71. [Google Scholar] [CrossRef] [PubMed]
  26. Love, M.I.; Huber, W.; Anders, S. Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2. Genome Biol. 2014, 15, 550. [Google Scholar] [CrossRef] [Green Version]
  27. Therneau, T.M. A Package for Survival Analysis in R. Available online: https://CRAN.R-project.org/package=survival (accessed on 3 March 2021).
  28. Kassambara, A. Drawing Survival Curves Using ‘ggplot2’. R Package Version 0.4.6. Available online: https://CRAN.r-project.org/web/packages/survminer (accessed on 3 March 2021).
  29. Liberzon, A.; Subramanian, A.; Pinchback, R.; Thorvaldsdottir, H.; Tamayo, P.; Mesirov, J.P. Molecular signatures database (MSigDB) 3.0. Bioinformatics 2011, 27, 1739–1740. [Google Scholar] [CrossRef] [PubMed]
  30. Dolgalev, I. msigdbr: MSigDB Gene Sets for Multiple Organisms in a Tidy Data Format. Available online: https://CRAN.R-project.org/package=msigdbr (accessed on 3 March 2021).
  31. Kohl, M. MKmisc: Miscellaneous Functions from M. Kohl_. Available online: https://www.stamats.de (accessed on 3 March 2021).
  32. Yu, G.; Wang, L.G.; Han, Y.; He, Q.Y. clusterProfiler: An R package for comparing biological themes among gene clusters. OMICS A J. Integr. Biol. 2012, 16, 284–287. [Google Scholar] [CrossRef]
  33. Foroutan, M.; Bhuva, D.D.; Lyu, R.; Horan, K.; Cursons, J.; Davis, M.J. Single sample scoring of molecular phenotypes. BMC Bioinform. 2018, 19, 404. [Google Scholar] [CrossRef] [Green Version]
  34. Fausto, N.; Campbell, J.S. Mouse models of hepatocellular carcinoma. Semin. Liver Dis. 2010, 30, 87–98. [Google Scholar] [CrossRef]
  35. Yan, H.X.; Wu, H.P.; Zhang, H.L.; Ashton, C.; Tong, C.; Wu, J.; Qian, Q.J.; Wang, H.Y.; Ying, Q.L. DNA damage-induced sustained p53 activation contributes to inflammation-associated hepatocarcinogenesis in rats. Oncogene 2013, 32, 4565–4571. [Google Scholar] [CrossRef] [Green Version]
  36. Saint-Germain, E.; Mignacca, L.; Huot, G.; Acevedo, M.; Moineau-Vallee, K.; Calabrese, V.; Bourdeau, V.; Rowell, M.C.; Ilangumaran, S.; Lessard, F.; et al. Phosphorylation of SOCS1 Inhibits the SOCS1-p53 Tumor Suppressor Axis. Cancer Res. 2019, 79, 3306–3319. [Google Scholar] [CrossRef] [PubMed]
  37. Kong, X.; Feng, D.; Wang, H.; Hong, F.; Bertola, A.; Wang, F.S.; Gao, B. Interleukin-22 induces hepatic stellate cell senescence and restricts liver fibrosis in mice. Hepatology 2012, 56, 1150–1159. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Kwak, M.K.; Itoh, K.; Yamamoto, M.; Kensler, T.W. Enhanced expression of the transcription factor Nrf2 by cancer chemopreventive agents: Role of antioxidant response element-like sequences in the nrf2 promoter. Mol. Cell Biol. 2002, 22, 2883–2892. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Buitrago-Molina, L.E.; Marhenke, S.; Longerich, T.; Sharma, A.D.; Boukouris, A.E.; Geffers, R.; Guigas, B.; Manns, M.P.; Vogel, A. The degree of liver injury determines the role of p21 in liver regeneration and hepatocarcinogenesis in mice. Hepatology 2013, 58, 1143–1152. [Google Scholar] [CrossRef]
  40. Ngo, H.K.C.; Kim, D.H.; Cha, Y.N.; Na, H.K.; Surh, Y.J. Nrf2 Mutagewwnic Activation Drives Hepatocarcinogenesis. Cancer Res. 2017, 77, 4797–4808. [Google Scholar] [CrossRef] [Green Version]
  41. Sakurai, T.; He, G.; Matsuzawa, A.; Yu, G.Y.; Maeda, S.; Hardiman, G.; Karin, M. Hepatocyte necrosis induced by oxidative stress and IL-1 alpha release mediate carcinogen-induced compensatory proliferation and liver tumorigenesis. Cancer Cell 2008, 14, 156–165. [Google Scholar] [CrossRef] [Green Version]
  42. Polonen, P.; Jawahar Deen, A.; Leinonen, H.M.; Jyrkkanen, H.K.; Kuosmanen, S.; Mononen, M.; Jain, A.; Tuomainen, T.; Pasonen-Seppanen, S.; Hartikainen, J.M.; et al. Nrf2 and SQSTM1/p62 jointly contribute to mesenchymal transition and invasion in glioblastoma. Oncogene 2019, 38, 7473–7490. [Google Scholar] [CrossRef] [Green Version]
  43. Topley, G.I.; Okuyama, R.; Gonzales, J.G.; Conti, C.; Dotto, G.P. p21(WAF1/Cip1) functions as a suppressor of malignant skin tumor formation and a determinant of keratinocyte stem-cell potential. Proc. Natl. Acad. Sci. USA 1999, 96, 9089–9094. [Google Scholar] [CrossRef] [Green Version]
  44. Martin-Caballero, J.; Flores, J.M.; Garcia-Palencia, P.; Serrano, M. Tumor susceptibility of p21(Waf1/Cip1)-deficient mice. Cancer Res. 2001, 61, 6234–6238. [Google Scholar]
  45. Poole, A.J.; Heap, D.; Carroll, R.E.; Tyner, A.L. Tumor suppressor functions for the Cdk inhibitor p21 in the mouse colon. Oncogene 2004, 23, 8128–8134. [Google Scholar] [CrossRef] [Green Version]
  46. Ehedego, H.; Boekschoten, M.V.; Hu, W.; Doler, C.; Haybaeck, J.; Gabetaler, N.; Muller, M.; Liedtke, C.; Trautwein, C. p21 ablation in liver enhances DNA damage, cholestasis, and carcinogenesis. Cancer Res. 2015, 75, 1144–1155. [Google Scholar] [CrossRef] [Green Version]
  47. Wagayama, H.; Shiraki, K.; Sugimoto, K.; Ito, T.; Fujikawa, K.; Yamanaka, T.; Takase, K.; Nakano, T. High expression of p21WAF1/CIP1 is correlated with human hepatocellular carcinoma in patients with hepatitis C virus-associated chronic liver diseases. Hum. Pathol. 2002, 33, 429–434. [Google Scholar] [CrossRef]
  48. Shiraki, K.; Wagayama, H. Cytoplasmic p21(WAF1/CIP1) expression in human hepatocellular carcinomas. Liver Int. 2006, 26, 1018–1019. [Google Scholar] [CrossRef]
  49. Marhenke, S.; Buitrago-Molina, L.E.; Endig, J.; Orlik, J.; Schweitzer, N.; Klett, S.; Longerich, T.; Geffers, R.; Sanchez Munoz, A.; Dorrell, C.; et al. p21 promotes sustained liver regeneration and hepatocarcinogenesis in chronic cholestatic liver injury. Gut 2014, 63, 1501–1512. [Google Scholar] [CrossRef] [PubMed]
  50. LaBaer, J.; Garrett, M.D.; Stevenson, L.F.; Slingerland, J.M.; Sandhu, C.; Chou, H.S.; Fattaey, A.; Harlow, E. New functional activities for the p21 family of CDK inhibitors. Genes Dev. 1997, 11, 847–862. [Google Scholar] [CrossRef] [Green Version]
  51. Shiraha, H.; Yamamoto, K.; Namba, M. Human hepatocyte carcinogenesis (review). Int. J. Oncol. 2013, 42, 1133–1138. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Milkovic, L.; Zarkovic, N.; Saso, L. Controversy about pharmacological modulation of Nrf2 for cancer therapy. Redox Biol. 2017, 12, 727–732. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Orru, C.; Giordano, S.; Columbano, A. Nrf2 in Neoplastic and Non-Neoplastic Liver Diseases. Cancers 2020, 12, 2932. [Google Scholar] [CrossRef] [PubMed]
  54. Zhang, M.; Zhang, C.; Zhang, L.; Yang, Q.; Zhou, S.; Wen, Q.; Wang, J. Nrf2 is a potential prognostic marker and promotes proliferation and invasion in human hepatocellular carcinoma. BMC Cancer 2015, 15, 531. [Google Scholar] [CrossRef] [Green Version]
  55. Lee, K.; Kim, S.; Lee, Y.; Lee, H.; Lee, Y.; Park, H.; Nahm, J.H.; Ahn, S.; Yu, S.J.; Lee, K.; et al. The Clinicopathological and Prognostic Significance of Nrf2 and Keap1 Expression in Hepatocellular Carcinoma. Cancers 2020, 12, 2128. [Google Scholar] [CrossRef]
  56. Guichard, C.; Amaddeo, G.; Imbeaud, S.; Ladeiro, Y.; Pelletier, L.; Maad, I.B.; Calderaro, J.; Bioulac-Sage, P.; Letexier, M.; Degos, F.; et al. Integrated analysis of somatic mutations and focal copy-number changes identifies key genes and pathways in hepatocellular carcinoma. Nat. Genet. 2012, 44, 694–698. [Google Scholar] [CrossRef] [PubMed]
  57. Zavattari, P.; Perra, A.; Menegon, S.; Kowalik, M.A.; Petrelli, A.; Angioni, M.M.; Follenzi, A.; Quagliata, L.; Ledda-Columbano, G.M.; Terracciano, L.; et al. Nrf2, but not beta-catenin, mutation represents an early event in rat hepatocarcinogenesis. Hepatology 2015, 62, 851–862. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Umemura, A.; He, F.; Taniguchi, K.; Nakagawa, H.; Yamachika, S.; Font-Burgada, J.; Zhong, Z.; Subramaniam, S.; Raghunandan, S.; Duran, A.; et al. p62, Upregulated during Preneoplasia, Induces Hepatocellular Carcinogenesis by Maintaining Survival of Stressed HCC-Initiating Cells. Cancer Cell 2016, 29, 935–948. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. He, F.; Antonucci, L.; Yamachika, S.; Zhang, Z.; Taniguchi, K.; Umemura, A.; Hatzivassiliou, G.; Roose-Girma, M.; Reina-Campos, M.; Duran, A.; et al. NRF2 activates growth factor genes and downstream AKT signaling to induce mouse and human hepatomegaly. J. Hepatol. 2020, 72, 1182–1195. [Google Scholar] [CrossRef] [Green Version]
  60. Parkinson, E.I.; Hergenrother, P.J. Deoxynyboquinones as NQO1-Activated Cancer Therapeutics. ACC Chem. Res. 2015, 48, 2715–2723. [Google Scholar] [CrossRef]
Cancers 15 00905 g001 550

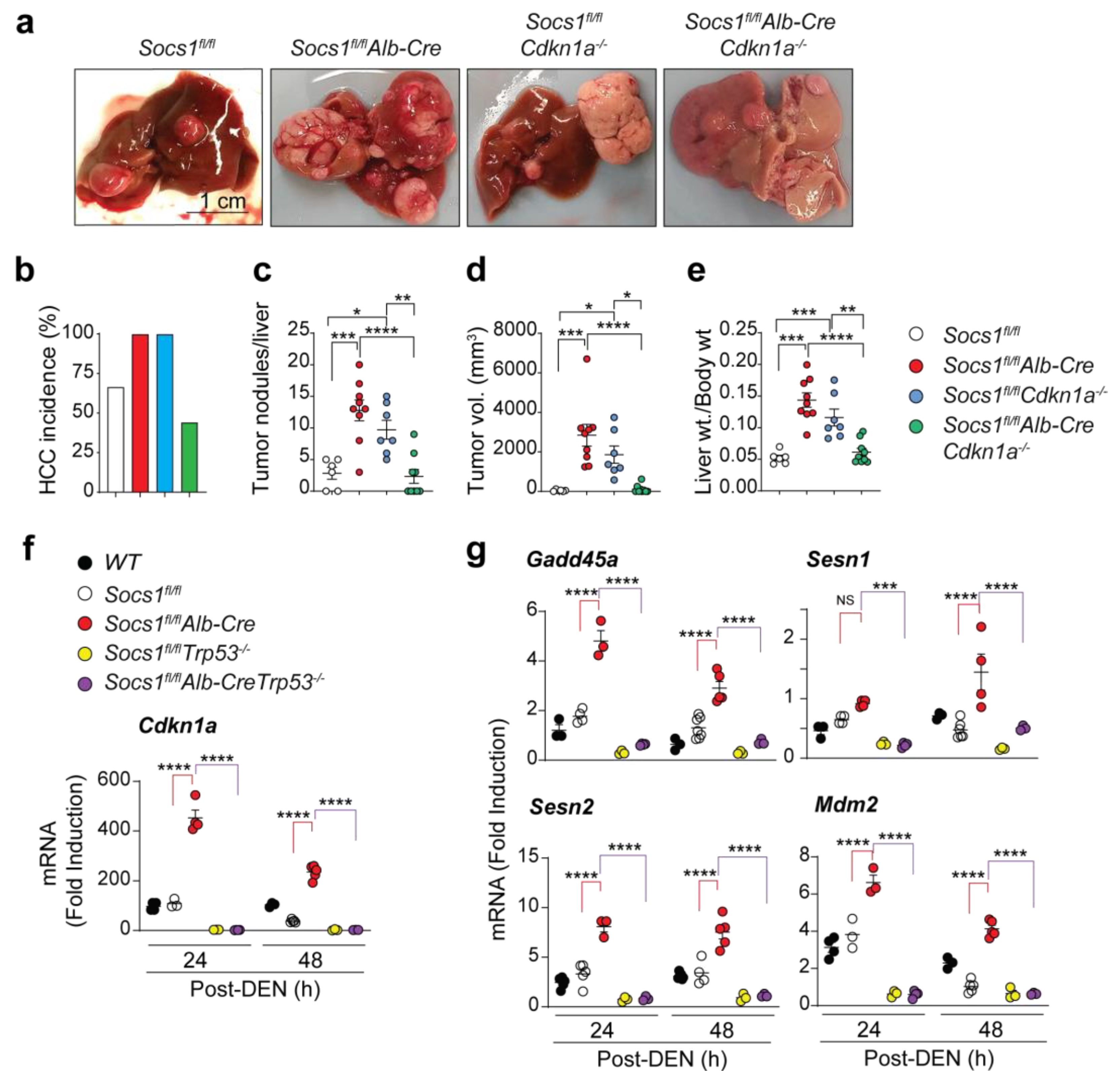

Figure 1. Increased HCC susceptibility of SOCS1-deficient mice requires CDKN1A induced by p53. (a) Two weeks-old mice of the indicated genotypes were treated with DEN (25 mg/kg bodyweight). HCC development was evaluated 10 months later. (a) Macroscopic liver images from representative mice for each genotype are shown (n = 5–8 mice/group). Additional data are shown in Supplementary Figure S1. (b–e) Cumulative data on HCC incidence (b), the number of visible tumors per liver (c), tumor volume (sum of all tumors ≥ 2 mm in diameter; (d) and the liver to bodyweight ratio €. (f,g) Eight weeks-old mice (n = 3–6/group) were treated with DEN (100 mg/kg bodyweight). After 24 h and 48 h, induction of Cdkn1a (f) and the indicated p53 target genes (g) in the liver was evaluated by RT-qPCR. Mean ± SE; One-way (c–e) or two-way (f,g) ANOVA with Tukey’s multiple comparison tests: * p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001; NS, not significant. The statistical differences are indicated to highlight the comparisons between control, SOCS1 knockout, and SOCS1p53 double knockout mice.
Figure 1. Increased HCC susceptibility of SOCS1-deficient mice requires CDKN1A induced by p53. (a) Two weeks-old mice of the indicated genotypes were treated with DEN (25 mg/kg bodyweight). HCC development was evaluated 10 months later. (a) Macroscopic liver images from representative mice for each genotype are shown (n = 5–8 mice/group). Additional data are shown in Supplementary Figure S1. (b–e) Cumulative data on HCC incidence (b), the number of visible tumors per liver (c), tumor volume (sum of all tumors ≥ 2 mm in diameter; (d) and the liver to bodyweight ratio €. (f,g) Eight weeks-old mice (n = 3–6/group) were treated with DEN (100 mg/kg bodyweight). After 24 h and 48 h, induction of Cdkn1a (f) and the indicated p53 target genes (g) in the liver was evaluated by RT-qPCR. Mean ± SE; One-way (c–e) or two-way (f,g) ANOVA with Tukey’s multiple comparison tests: * p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001; NS, not significant. The statistical differences are indicated to highlight the comparisons between control, SOCS1 knockout, and SOCS1p53 double knockout mice.
Cancers 15 00905 g001
Cancers 15 00905 g002 550

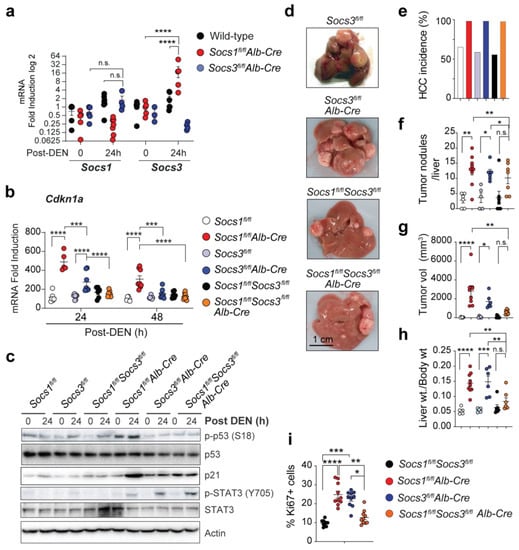

Figure 2. Increased HCC susceptibility of SOCS1-deficient mice requires SOCS3-dependent upregulation of CDKN1A. (a) Hepatic Socs1 and Socs3 gene expression in hepatocyte-specific SOCS1- or SOCS3- deficient mice (n = 5 mice/group). (b) RT-qPCR evaluation of hepatic Cdkn1a expression in DEN-treated mice (n = 3–8/group). (c) Immunoblot analysis of phospho-p53, total p53, p21, phospho-STAT3, total STAT3, and α-tubulin in control and DEN-treated mice livers (n > 3). (d–h) Two weeks-old mice of the indicated genotypes were treated with DEN (25 mg/Kg bodyweight). HCC development was evaluated 10 months later. (d) Representative macroscopic liver images (n = 5–9 mice/group). Cumulative data on the incidence rate of HCC (e), the number of visible tumor nodules (f), tumor volume (g) and the liver-to-bodyweight ratio (h). To facilitate comparison, HCC data for Socs1fl/fl and Socs1fl/flAlb-Cre mice are duplicated from (b–e). (i) Increased cell proliferation within SOCS1 deficient HCC tumor nodules is driven by SOCS3. Proportions of Ki67+ nuclei over Hoechst-stained nuclei (10 randomly selected areas from 3 mice/group) are shown. Mean ± SE; Two-way (a,b) or one-way (f–i) ANOVA with Tukey’s multiple comparison test; * p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001; n.s. not significant.
Figure 2. Increased HCC susceptibility of SOCS1-deficient mice requires SOCS3-dependent upregulation of CDKN1A. (a) Hepatic Socs1 and Socs3 gene expression in hepatocyte-specific SOCS1- or SOCS3- deficient mice (n = 5 mice/group). (b) RT-qPCR evaluation of hepatic Cdkn1a expression in DEN-treated mice (n = 3–8/group). (c) Immunoblot analysis of phospho-p53, total p53, p21, phospho-STAT3, total STAT3, and α-tubulin in control and DEN-treated mice livers (n > 3). (d–h) Two weeks-old mice of the indicated genotypes were treated with DEN (25 mg/Kg bodyweight). HCC development was evaluated 10 months later. (d) Representative macroscopic liver images (n = 5–9 mice/group). Cumulative data on the incidence rate of HCC (e), the number of visible tumor nodules (f), tumor volume (g) and the liver-to-bodyweight ratio (h). To facilitate comparison, HCC data for Socs1fl/fl and Socs1fl/flAlb-Cre mice are duplicated from (b–e). (i) Increased cell proliferation within SOCS1 deficient HCC tumor nodules is driven by SOCS3. Proportions of Ki67+ nuclei over Hoechst-stained nuclei (10 randomly selected areas from 3 mice/group) are shown. Mean ± SE; Two-way (a,b) or one-way (f–i) ANOVA with Tukey’s multiple comparison test; * p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001; n.s. not significant.
Cancers 15 00905 g002
Cancers 15 00905 g003 550

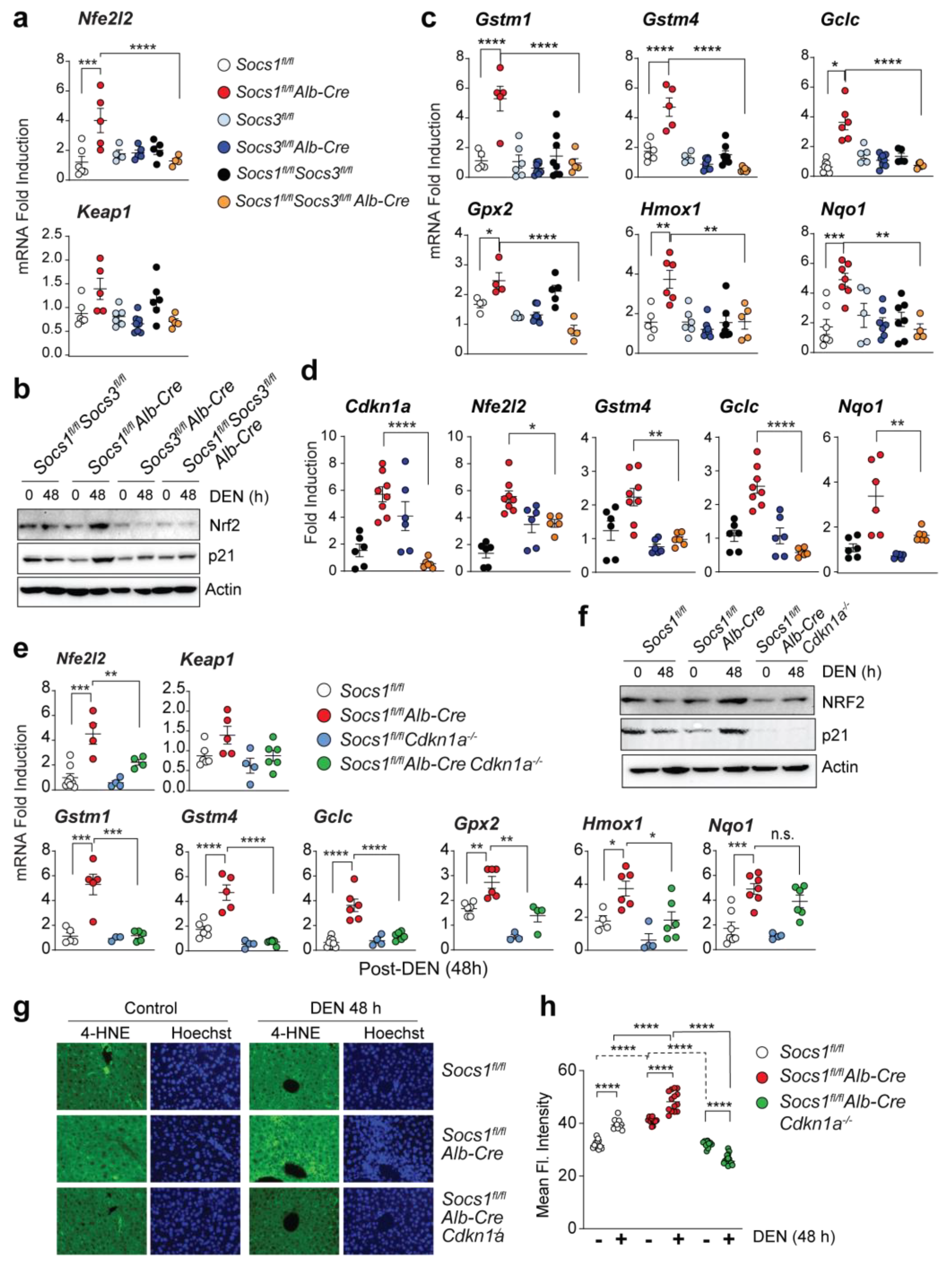

Figure 3. SOCS1 deficiency upregulates NRF2 and its target genes in a SOCS3 and CDKN1A-dependent manner. (a,b) Induction of the Nfe2l2 gene (a) and NRF2 protein (b) in the liver tissues of mice lacking SOCS1, SOCS3, or both in hepatocytes 48 h after DEN treatment. Cumulative data from 3–8 mice/group are shown in (a). For (b), representative data from more than two experiments are shown. (c) Induction of NRF2 target genes in mice lacking SOCS1, SOCS3, or both in hepatocytes 48 h after DEN treatment (n = 3–8 mice per group). (d) Expression of Cdkn1a, Nfe2l2, and NRF2 target genes in microscopically dissected DEN-induced HCC tumor nodules resected from the indicated genotypes of mice (n = 5–8 mice/group). (e) DEN-induced Nfe2l2 and NRF2 target gene expression in SOCS1-deficient mice lacking CDKN1A. Gene expression data for Socs1fl/fl and Socs1fl/flAlb-Cre are duplicated from (a,c) for comparison. (f) Immunoblot analysis of NRF2, p21, and actin in the livers of DEN-treated mice of the indicated genotypes (n > 3). (g) 4-HNE staining for lipid peroxidation in DEN-treated mice livers (40× magnification). Representative images from more than 3-4 mice per group are shown. (h) Quantification of 4-HNE staining from 3–4 mice/group. (a,c,d,e,h) Mean ± SE; One-way or two-way ANOVA with Tukey’s multiple comparison test; * p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001.
Figure 3. SOCS1 deficiency upregulates NRF2 and its target genes in a SOCS3 and CDKN1A-dependent manner. (a,b) Induction of the Nfe2l2 gene (a) and NRF2 protein (b) in the liver tissues of mice lacking SOCS1, SOCS3, or both in hepatocytes 48 h after DEN treatment. Cumulative data from 3–8 mice/group are shown in (a). For (b), representative data from more than two experiments are shown. (c) Induction of NRF2 target genes in mice lacking SOCS1, SOCS3, or both in hepatocytes 48 h after DEN treatment (n = 3–8 mice per group). (d) Expression of Cdkn1a, Nfe2l2, and NRF2 target genes in microscopically dissected DEN-induced HCC tumor nodules resected from the indicated genotypes of mice (n = 5–8 mice/group). (e) DEN-induced Nfe2l2 and NRF2 target gene expression in SOCS1-deficient mice lacking CDKN1A. Gene expression data for Socs1fl/fl and Socs1fl/flAlb-Cre are duplicated from (a,c) for comparison. (f) Immunoblot analysis of NRF2, p21, and actin in the livers of DEN-treated mice of the indicated genotypes (n > 3). (g) 4-HNE staining for lipid peroxidation in DEN-treated mice livers (40× magnification). Representative images from more than 3-4 mice per group are shown. (h) Quantification of 4-HNE staining from 3–4 mice/group. (a,c,d,e,h) Mean ± SE; One-way or two-way ANOVA with Tukey’s multiple comparison test; * p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001.
Cancers 15 00905 g003
Cancers 15 00905 g004 550

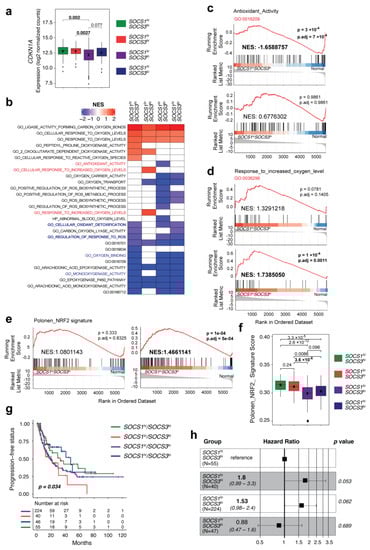

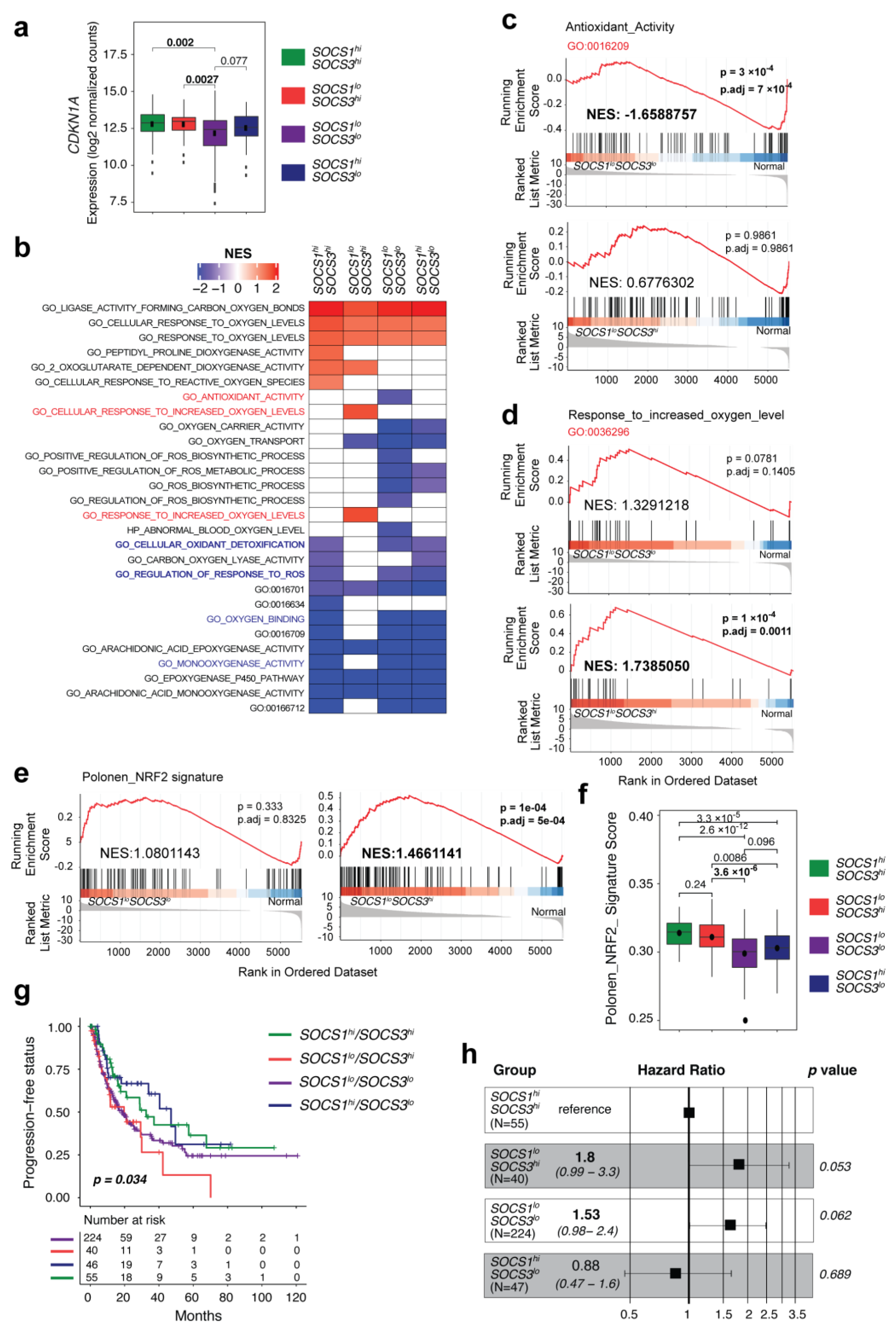

Figure 4. High SOCS3 expression in SOCS1-low human HCC cases is associated with elevated CDKN1A expression, enrichment of NRF2 signature genes, and fast disease progression. (a) Increased CDKN1A expression in SOCS1-low/SOCS3-high HCC than in SOCS1-low/SOCS3-low group. (b) Gene set enrichment analysis (GSEA) for biological pathways containing the term ‘oxygen’ and ‘oxidant’ in the indicated HCC groups compared to normal liver tissues. GO terms that are indicated only by numbers are given names in Supplementary Figure S4c. (c–e) GSEA plots showing negative enrichment of Antioxidant_Activity’ pathway genes in SOCS1-low/SOCS3-low group (c) and positive enrichment of ‘Response_to_increased_oxygen_level’ pathway (d) and ‘Polonen_NRF2 Signature’ genes (e) in the SOCS1-low/SOCS3-high group. (f) Comparison of the enrichment of Polonen_NRF2 Signature genes in the indicated HCC subgroups. (g) Kaplan-Meier survival plot of the TCGA-LIHC cohort grouped based on SOCS1 and SOCS3 expression levels. (h) Univariate analysis showing an increased hazard ratio for the SOCS1-low/SOCS3-high HCC group within the TCGA-LIHC cohort.
Figure 4. High SOCS3 expression in SOCS1-low human HCC cases is associated with elevated CDKN1A expression, enrichment of NRF2 signature genes, and fast disease progression. (a) Increased CDKN1A expression in SOCS1-low/SOCS3-high HCC than in SOCS1-low/SOCS3-low group. (b) Gene set enrichment analysis (GSEA) for biological pathways containing the term ‘oxygen’ and ‘oxidant’ in the indicated HCC groups compared to normal liver tissues. GO terms that are indicated only by numbers are given names in Supplementary Figure S4c. (c–e) GSEA plots showing negative enrichment of Antioxidant_Activity’ pathway genes in SOCS1-low/SOCS3-low group (c) and positive enrichment of ‘Response_to_increased_oxygen_level’ pathway (d) and ‘Polonen_NRF2 Signature’ genes (e) in the SOCS1-low/SOCS3-high group. (f) Comparison of the enrichment of Polonen_NRF2 Signature genes in the indicated HCC subgroups. (g) Kaplan-Meier survival plot of the TCGA-LIHC cohort grouped based on SOCS1 and SOCS3 expression levels. (h) Univariate analysis showing an increased hazard ratio for the SOCS1-low/SOCS3-high HCC group within the TCGA-LIHC cohort.
Cancers 15 00905 g004
Cancers 15 00905 g005 550

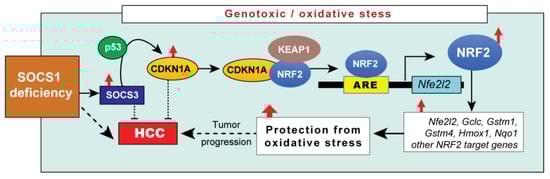

Figure 5. Mechanisms underlying increased HCC development in SOCS1-deficient hepatocytes. Under conditions of genotoxic and oxidative stress, SOCS1-deficient hepatocytes upregulate SOCS3, presumably to compensate for the loss of certain SOCS1-dependent functions. However, SOCS3 promotes p53 activation and induces CDKN1A, which interacts with NRF2, leading to NRF2 activation and induction of NRF2 target genes. As protein products of these genes confer protection from oxidative stress, they could facilitate the adaptation of SOCS1-deficient HCC to increased cancer cell metabolism and disease progression.
Figure 5. Mechanisms underlying increased HCC development in SOCS1-deficient hepatocytes. Under conditions of genotoxic and oxidative stress, SOCS1-deficient hepatocytes upregulate SOCS3, presumably to compensate for the loss of certain SOCS1-dependent functions. However, SOCS3 promotes p53 activation and induces CDKN1A, which interacts with NRF2, leading to NRF2 activation and induction of NRF2 target genes. As protein products of these genes confer protection from oxidative stress, they could facilitate the adaptation of SOCS1-deficient HCC to increased cancer cell metabolism and disease progression.
Cancers 15 00905 g005
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Khan, M.G.M.; Boufaied, N.; Yeganeh, M.; Kandhi, R.; Petkiewicz, S.; Sharma, A.; Yoshimura, A.; Ferbeyre, G.; Labbé, D.P.; Ramanathan, S.; et al. SOCS1 Deficiency Promotes Hepatocellular Carcinoma via SOCS3-Dependent CDKN1A Induction and NRF2 Activation. Cancers 2023, 15, 905. https://doi.org/10.3390/cancers15030905

AMA Style

Khan MGM, Boufaied N, Yeganeh M, Kandhi R, Petkiewicz S, Sharma A, Yoshimura A, Ferbeyre G, Labbé DP, Ramanathan S, et al. SOCS1 Deficiency Promotes Hepatocellular Carcinoma via SOCS3-Dependent CDKN1A Induction and NRF2 Activation. Cancers. 2023; 15(3):905. https://doi.org/10.3390/cancers15030905

Chicago/Turabian Style

Khan, Md Gulam Musawwir, Nadia Boufaied, Mehdi Yeganeh, Rajani Kandhi, Stephanie Petkiewicz, Ankur Sharma, Akihiko Yoshimura, Gerardo Ferbeyre, David P. Labbé, Sheela Ramanathan, and et al. 2023. "SOCS1 Deficiency Promotes Hepatocellular Carcinoma via SOCS3-Dependent CDKN1A Induction and NRF2 Activation" Cancers 15, no. 3: 905. https://doi.org/10.3390/cancers15030905

APA Style

Khan, M. G. M., Boufaied, N., Yeganeh, M., Kandhi, R., Petkiewicz, S., Sharma, A., Yoshimura, A., Ferbeyre, G., Labbé, D. P., Ramanathan, S., & Ilangumaran, S. (2023). SOCS1 Deficiency Promotes Hepatocellular Carcinoma via SOCS3-Dependent CDKN1A Induction and NRF2 Activation. Cancers, 15(3), 905. https://doi.org/10.3390/cancers15030905

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
