The Diagnostic and Predictive Value of 18F-Fluorodeoxyglucose Positron Emission Tomography/Computed Tomography in Laryngeal Squamous Cell Carcinoma
Abstract
:Simple Summary
Abstract
1. Introduction
2. Materials and Methods
2.1. Patients
2.2. Neck MR Imaging and Interpretation
2.3. 18F-FDG PET/CT Imaging Protocol
2.4. Image Analysis and PET Parameter Quantification
2.5. Statistical Analyses
2.6. Reference Standard
3. Results
3.1. Patients
3.2. Patient-Based Analysis: Diagnostic Accuracy
3.3. Lesion-Based Analysis
3.3.1. Metabolic and Morphologic Parameters
3.3.2. PET/CT Parameters’ Association with Metastatic Lymph Nodes
3.3.3. Optimal Cutoffs of PET/CT Parameters
3.3.4. Logistic Regression Analysis

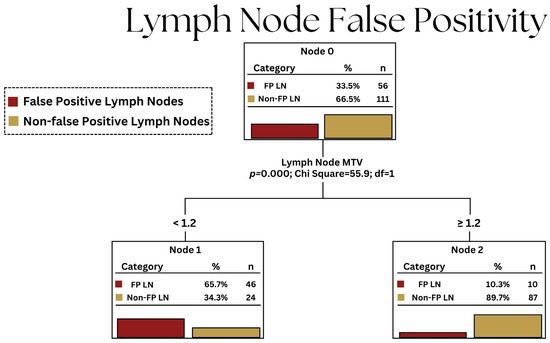

3.3.5. Lymph Node False-Positivity Rate
4. Discussion
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Suman, A. A Clinicopathological Study on Laryngeal Cancer; Madurai Medical College: Madurai, India, 2015. [Google Scholar]
- Caudell, J.J.; Gillison, M.L.; Maghami, E.; Spencer, S.; Pfister, D.G.; Adkins, D.; Birkeland, A.C.; Brizel, D.M.; Busse, P.M.; Cmelak, A.J. NCCN Guidelines® insights: Head and neck cancers, version 1.2022: Featured updates to the NCCN guidelines. J. Natl. Compr. Cancer Netw. 2022, 20, 224–234. [Google Scholar] [CrossRef] [PubMed]
- Wippold, F.J. Head and neck imaging: The role of CT and MRI. J. Magn. Reson. Imaging Off. J. Int. Soc. Magn. Reson. Med. 2007, 25, 453–465. [Google Scholar] [CrossRef] [PubMed]
- Al-Ibraheem, A.; Abdlkadir, A.S.; Al-Adhami, D.; Hejleh, T.A.; Mansour, A.; Mohamad, I.; Juweid, M.E.; Al-Rasheed, U.; Al-Hajaj, N.; Laban, D.A. The Prognostic and Diagnostic Value of [18F] FDG PET/CT in Untreated Laryngeal Carcinoma. J. Clin. Med. 2023, 12, 3514. [Google Scholar] [CrossRef] [PubMed]
- Argiris, A.; Karamouzis, M.; Raben, D.; Ferris, R.L. Head and neck cancer. Lancet 2008, 371, 1695–1709. [Google Scholar] [CrossRef]
- Nakagawa, T.; Yamada, M.; Suzuki, Y. 18F-FDG uptake in reactive neck lymph nodes of oral cancer: Relationship to lymphoid follicles. J. Nucl. Med. 2008, 49, 1053–1059. [Google Scholar] [CrossRef] [PubMed]
- Murakami, R.; Uozumi, H.; Hirai, T.; Nishimura, R.; Shiraishi, S.; Ota, K.; Murakami, D.; Tomiguchi, S.; Oya, N.; Katsuragawa, S. Impact of FDG-PET/CT imaging on nodal staging for head-and-neck squamous cell carcinoma. Int. J. Radiat. Oncol. Biol. Phys. 2007, 68, 377–382. [Google Scholar] [CrossRef]
- Bianchini, C.; Caracciolo, M.; Urso, L.; Ciorba, A.; Bonsembiante, A.; Migliorelli, A.; Corazzi, V.; Carandina, I.; Ortolan, N.; Cittanti, C. Role of 18F-FDG PET/CT in evaluating lymph node status in patients with head and neck squamous cell carcinoma. ACTA Otorhinolaryngol. Ital. 2023, 43, 235–244. [Google Scholar] [CrossRef]
- Amin, M.B.; Edge, S.B.; Greene, F.L.; Byrd, D.R.; Brookland, R.K.; Washington, M.K.; Gershenwald, J.E.; Compton, C.C.; Hess, K.R.; Sullivan, D.C. AJCC Cancer Staging Manual; Springer: Berlin/Heidelberg, Germany, 2017; Volume 1024. [Google Scholar]
- Som, P.M.; Curtin, H.D.; Mancuso, A.A. Imaging-based nodal classification for evaluation of neck metastatic adenopathy. Am. J. Roentgenol. 2000, 174, 837–844. [Google Scholar] [CrossRef] [PubMed]
- Chong, V. Cervical lymphadenopathy: What radiologists need to know. Cancer Imaging 2004, 4, 116. [Google Scholar] [CrossRef]
- Boellaard, R.; Delgado-Bolton, R.; Oyen, W.J.; Giammarile, F.; Tatsch, K.; Eschner, W.; Verzijlbergen, F.J.; Barrington, S.F.; Pike, L.C.; Weber, W.A. FDG PET/CT: EANM procedure guidelines for tumour imaging: Version 2.0. Eur. J. Nucl. Med. Mol. Imaging 2015, 42, 328–354. [Google Scholar] [CrossRef]
- Giammarile, F.; Schilling, C.; Gnanasegaran, G.; Bal, C.; Oyen, W.J.; Rubello, D.; Schwarz, T.; Tartaglione, G.; Miller, R.N.; Paez, D. The EANM practical guidelines for sentinel lymph node localisation in oral cavity squamous cell carcinoma. Eur. J. Nucl. Med. Mol. Imaging 2019, 46, 623–637. [Google Scholar] [CrossRef] [PubMed]
- Chu, E.A.; Kim, Y.J. Laryngeal cancer: Diagnosis and preoperative work-up. Otolaryngol. Clin. N. Am. 2008, 41, 673–695. [Google Scholar] [CrossRef] [PubMed]
- Al-Ibraheem, A.; Buck, A.; Krause, B.J.; Scheidhauer, K.; Schwaiger, M. Clinical applications of FDG PET and PET/CT in head and neck cancer. J. Oncol. 2009, 2009, 208725. [Google Scholar] [CrossRef] [PubMed]
- Hoang, J.K.; Vanka, J.; Ludwig, B.J.; Glastonbury, C.M. Evaluation of cervical lymph nodes in head and neck cancer with CT and MRI: Tips, traps, and a systematic approach. Am. J. Roentgenol. 2013, 200, W17–W25. [Google Scholar] [CrossRef] [PubMed]
- Curtin, H.D.; Ishwaran, H.; Mancuso, A.A.; Dalley, R.W.; Caudry, D.J.; McNeil, B.J. Comparison of CT and MR imaging in staging of neck metastases. Radiology 1998, 207, 123–130. [Google Scholar] [CrossRef]
- Braams, J.W.; Pruim, J.; Freling, N.J.; Nikkels, P.G.; Roodenburg, J.L.; Boering, G.; Vaalburg, W.; Vermey, A. Detection of lymph node metastases of squamous-cell cancer of the head and neck with FDG-PET and MRI. J. Nucl. Med. 1995, 36, 211–216. [Google Scholar] [PubMed]
- Anzai, Y.; Blackwell, K.E.; Hirschowitz, S.L.; Rogers, J.W.; Sato, Y.; Yuh, W.; Runge, V.M.; Morris, M.R.; McLachlan, S.J.; Lufkin, R.B. Initial clinical experience with dextran-coated superparamagnetic iron oxide for detection of lymph node metastases in patients with head and neck cancer. Radiology 1994, 192, 709–715. [Google Scholar] [CrossRef]
- Feinmesser, R.; Freeman, J.; Noyek, A.; Birt, D.; Gullane, P.; Mullen, J. MRI and neck metastases: A clinical, radiological, pathological correlative study. J. Otolaryngol. 1990, 19, 136–140. [Google Scholar] [PubMed]
- Sigal, R.; Vogl, T.; Casselman, J.; Moulin, G.; Veillon, F.; Hermans, R.; Dubrulle, F.; Viala, J.; Bosq, J.; Mack, M. Lymph node metastases from head and neck squamous cell carcinoma: MR imaging with ultrasmall superparamagnetic iron oxide particles (Sinerem MR)–results of a phase-III multicenter clinical trial. Eur. Radiol. 2002, 12, 1104–1113. [Google Scholar] [CrossRef]
- Van den Brekel, M.; Castelijns, J.; Stel, H.; Golding, R.; Meyer, C.; Snow, G. Modern imaging techniques and ultrasound-guided aspiration cytology for the assessment of neck node metastases: A prospective comparative study. Eur. Arch. Oto-Rhino-Laryngol. 1993, 250, 11–17. [Google Scholar] [CrossRef]
- Ng, S.-H.; Yen, T.-C.; Liao, C.-T.; Chang, J.T.-C.; Chan, S.-C.; Ko, S.-F.; Wang, H.-M.; Wong, H.-F. 18F-FDG PET and CT/MRI in oral cavity squamous cell carcinoma: A prospective study of 124 patients with histologic correlation. J. Nucl. Med. 2005, 46, 1136–1143. [Google Scholar] [PubMed]
- Albano, D.; Dondi, F.; Paderno, A.; Nocivelli, G.; Maddalo, M.; Magrini, S.M.; Nicolai, P.; Maroldi, R.; Giubbini, R.; Bertagna, F. 18F-FDG-PET/CT in laryngeal cancer: Comparison with conventional imaging and prognostic role. Rev. Española Med. Nucl. E Imagen Mol. (Engl. Ed.) 2021, 40, 229–238. [Google Scholar] [CrossRef]
- Rohde, M.; Dyrvig, A.-K.; Johansen, J.; Sørensen, J.A.; Gerke, O.; Nielsen, A.L.; Høilund-Carlsen, P.F.; Godballe, C. 18F-fluoro-deoxy-glucose-positron emission tomography/computed tomography in diagnosis of head and neck squamous cell carcinoma: A systematic review and meta-analysis. Eur. J. Cancer 2014, 50, 2271–2279. [Google Scholar] [CrossRef] [PubMed]
- Yoon, S.; Ryu, K.H.; Baek, H.J.; Kim, T.H.; Moon, J.I.; Choi, B.H.; Park, S.E.; Ha, J.Y.; Song, D.H.; An, H.J. Cervical lymph nodes detected by F-18 FDG PET/CT in oncology patients: Added value of subsequent ultrasonography for determining nodal metastasis. Medicina 2019, 56, 16. [Google Scholar] [CrossRef] [PubMed]
- Plaxton, N.A.; Brandon, D.C.; Corey, A.S.; Harrison, C.E.; Karagulle Kendi, A.T.; Halkar, R.K.; Barron, B.J. Characteristics and limitations of FDG PET/CT for imaging of squamous cell carcinoma of the head and neck: A comprehensive review of anatomy, metastatic pathways, and image findings. Am. J. Roentgenol. 2015, 205, W519–W531. [Google Scholar] [CrossRef] [PubMed]
- Slevin, F.; Subesinghe, M.; Ramasamy, S.; Sen, M.; Scarsbrook, A.; Prestwich, R. Assessment of outcomes with delayed 18F-FDG PET-CT response assessment in head and neck squamous cell carcinoma. Br. J. Radiol. 2015, 88, 20140592. [Google Scholar] [CrossRef]
- Wiggins, R.H.; Hoffman, J.M.; Fine, G.C.; Covington, M.F.; Salem, A.E.; Koppula, B.R.; Morton, K.A. PET-CT in clinical adult oncology—V. head and neck and neuro oncology. Cancers 2022, 14, 2726. [Google Scholar] [CrossRef] [PubMed]
- Kau, R.J.; Alexiou, C.; Laubenbacher, C.; Werner, M.; Schwaiger, M.; Arnold, W. Lymph node detection of head and neck squamous cell carcinomas by positron emission tomography with fluorodeoxyglucose F 18 in a routine clinical setting. Arch. Otolaryngol. Head Neck Surg. 1999, 125, 1322–1328. [Google Scholar] [CrossRef] [PubMed]
- Eisenhauer, E.A.; Therasse, P.; Bogaerts, J.; Schwartz, L.H.; Sargent, D.; Ford, R.; Dancey, J.; Arbuck, S.; Gwyther, S.; Mooney, M. New response evaluation criteria in solid tumours: Revised RECIST guideline (version 1.1). Eur. J. Cancer 2009, 45, 228–247. [Google Scholar] [CrossRef]
- Schaefferkoetter, J.D.; Carlson, E.R.; Heidel, R.E. Can 3′-Deoxy-3′-(18F) Fluorothymidine Out Perform 2-Deoxy-2-(18F) Fluoro-d-Glucose Positron Emission Tomography/Computed Tomography in the Diagnosis of Cervical Lymphadenopathy in Patients with Oral/Head and Neck Cancer? J. Oral Maxillofac. Surg. 2015, 73, 1420–1428. [Google Scholar] [CrossRef]
- Pietrzak, A.; Kazmierska, J.; Cholewinski, W. Sequential 18F-FDG PET/CT imaging parameters for differentiating benign from malignant lymph nodes in head and neck carcinoma. Hell. J. Nucl. Med. 2017, 20, 80–92. [Google Scholar] [PubMed]
Demographics | |
---|---|
Age (Years) | |
Median (Interquartile Range) | 55 (49–63) |
Gender (Number, Percentage) | |
Male | 63 (95.5%) |
Female | 3 (4.5%) |
Histopathologic Characteristics | |
Tumor Site (Number, Percentage) | |
Glottic | 29 (44%) |
Supraglottic | 13 (19.8%) |
Glottic with supraglottic extension | 10 (15%) |
Glottic with subglottic extension | 3 (4.5%) |
Subglottic | 3 (4.5%) |
Extensive (all compartments involved) | 8 (12.2%) |
Tumor Size (cm, median and interquartile range) | 4 cm (2.5–5 cm) |
N-staging | |
N0 | 33 (50%) |
N1 | 13 (19.6%) |
N2a | 1 (1.5%) |
N2b | 7 (10.7%) |
N2c | 6 (9.1%) |
N3 | 6 (9.1%) |
Tumor Staging | |
Stage III | 5 (7.6%) |
Stage IVA | 53 (80.3%) |
Stage IVB | 8 (12.1%) |
Tumor Grade (Number, Percentage) | |
Well-differentiated (G1) | 6 (9.1%) |
Moderately differentiated (G2) | 40 (60.6%) |
Poorly differentiated (G3) | 20 (30.3%) |
Neck dissection | |
Bilateral | 47 (71.2%) |
Unilateral | 19 (28.8%) |
18F-FDG PET/CT | Neck MRI |
---|---|
- TP 1: 26 | - TP: 19 |
- FN 2: 3 | - FN: 10 |
- TN 3: 24 | - TN: 23 |
- FP 4: 13 | - FP: 14 |
- Sensitivity: 89% | - Sensitivity: 66% |
- Specificity: 65% | - Specificity: 62% |
- Accuracy: 77% | - Accuracy: 64% |
McNemar Test | |
0.03 |
Characteristics | Total | Non-Metastatic n. (%) | Metastatic n. (%) | |
---|---|---|---|---|
Anatomic Features for the Lymph Nodes (LNs) | ||||
Total LNs | 167 | 56 (33.5%) | 111 (66.5%) | |
Right-sided | 83 | 26 (31.3%) | 57 (68.7%) | |
Left-sided | 84 | 30 (35.7%) | 54 (64.3%) | |
PET/CT Parameters (median and interquartile range) | ||||
Parameter | Total | Negative | Positive | p-Value |
SUVmax 1 | 2.7 (1.9–4.6) | 1.9 (1.4–2.4) | 4.8 (4–7.9) | <0.0001 |
MTV 2 | 1.9 (0.9–3.5) | 0.7 (0.4–1) | 3.1 (2–4.5) | <0.0001 |
TLG 3 | 3.6 (1.3–10.6) | 1.2 (0.7–1.7) | 8.9 (4.6–17.2) | <0.0001 |
LN Size | 1.2 (0.7–1.6) | 0.7 (0.6–0.9) | 1.5 (1.3–2) | <0.0001 |
LN Parameter | Cutoff | AUC 1 (95% CI 2) | p-Value | Sensitivity | Specificity |
---|---|---|---|---|---|
SUVmax 3 | 3.2 | 0.77 (0.71–0.83) | <0.001 | 67.1% | 80% |
MTV 4 | 1.2 | 0.89 (0.83–0.93) | <0.001 | 97% | 76.8% |
TLG 5 | 2.8 | 0.85 (0.81–0.91) | <0.001 | 85.1% | 81.7% |
LN Size | 1.1 | 0.87 (0.82–0.92) | <0.001 | 87.1% | 81.9% |
Univariate Analysis | |||
---|---|---|---|
LN Parameter | Odds Ratio | 95% Confidence Interval | p-Value |
SUVmax 1 | 9.1 | 4.5–18.7 | <0.0001 |
MTV 2 | 137.6 | 30.9–612.6 | <0.0001 |
TLG 3 | 1.2 | 1.1–1.3 | <0.0001 |
LN Size | 32.7 | 13.8–76.9 | <0.0001 |
Multivariate Analysis | |||
LN Parameter | Odds Ratio | 95% Confidence Interval | p-Value |
SUVmax | 2.3 | 0.8–7 | <0.0001 |
MTV | 57.5 | 12–280 | <0.0001 |
LN Size | 8.6 | 2.7–26.5 | <0.0001 |
LN Parameter | Odds Ratio | 95% Confidence Interval | p-Value |
---|---|---|---|
LN MTV | 1.2 | 0.4–4 | <0.0001 |
LN Size | 0.2 | 0.1–0.5 | <0.0001 |
