Development of a Machine Learning Model to Predict Recurrence of Oral Tongue Squamous Cell Carcinoma

by
Yasaman Fatapour
1,
Arash Abiri
1,2,
Edward C. Kuan
2 and
James P. Brody
1,*
1
Department of Biomedical Engineering, University of California, Irvine, CA 92617, USA
2
Department of Otolaryngology-Head and Neck Surgery, University of California, Irvine, CA 92604, USA
*
Author to whom correspondence should be addressed.
Cancers 2023, 15(10), 2769; https://doi.org/10.3390/cancers15102769
Submission received: 12 April 2023 / Revised: 10 May 2023 / Accepted: 12 May 2023 / Published: 16 May 2023
(This article belongs to the Section Cancer Therapy)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

In this study, we developed a generic framework to analyze the Surveillance, Epidemiology, and End Results (SEER) database to generate reliable machine learning (ML) prediction models for cancer recurrence. As a proof-of-concept, using 130,979 oral tongue squamous cell carcinoma patients, we generated ML models to predict 5- and 10-year recurrence with high accuracy, recall, and precision. Thus, we demonstrate an effective framework for guiding future ML efforts in predicting cancer recurrence using the SEER database, with implications for the guidance of patient management and follow-up care.

Abstract

Despite diagnostic advancements, the development of reliable prognostic systems for assessing the risk of cancer recurrence still remains a challenge. In this study, we developed a novel framework to generate highly representative machine-learning prediction models for oral tongue squamous cell carcinoma (OTSCC) cancer recurrence. We identified cases of 5- and 10-year OTSCC recurrence from the SEER database. Four classification models were trained using the H2O ai platform, whose performances were assessed according to their accuracy, recall, precision, and the area under the curve (AUC) of their receiver operating characteristic (ROC) curves. By evaluating Shapley additive explanation contribution plots, feature importance was studied. Of the 130,979 patients studied, 36,042 (27.5%) were female, and the mean (SD) age was 58.2 (13.7) years. The Gradient Boosting Machine model performed the best, achieving 81.8% accuracy and 97.7% precision for 5-year prediction. Moreover, 10-year predictions demonstrated 80.0% accuracy and 94.0% precision. The number of prior tumors, patient age, the site of cancer recurrence, and tumor histology were the most significant predictors. The implementation of our novel SEER framework enabled the successful identification of patients with OTSCC recurrence, with which highly accurate and sensitive prediction models were generated. Thus, we demonstrate our framework’s potential for application in various cancers to build generalizable screening tools to predict tumor recurrence.

1. Introduction

Oral tongue squamous cell carcinoma (OTSCC) is a common head and neck neoplasm that accounts for approximately 1% of new cancer cases diagnosed in the United States each year [1]. Despite advancements in cancer therapeutics and surgical techniques, the worldwide incidence of OTSCC is on the rise, and adequate OTSCC management still remains a challenge, with 5-year survival rates for patients averaging at about 50% [2,3,4,5]. With recent studies reporting recurrence rates as high as 32.7%, further investigations aimed at optimizing treatment regimens and post-therapy follow-up are critical for enhancing patient outcomes [6,7,8].
The advent of machine learning (ML) and its adoption by the medical community has enabled unique perspectives and solutions for numerous medical challenges. Over the past decade, scientific efforts have demonstrated the utility of machine learning in guiding cancer diagnosis and management in a variety of medical fields, including general surgery, neurosurgery, and otolaryngology [9,10,11,12,13]. Specifically, many studies have applied machine learning techniques for predicting tumor diagnosis, tumor recurrence, and patient survival in the context of various cancers [14,15,16,17,18,19,20,21]. Recently, Alabi et al. and Karadaghy et al. demonstrated the capacity for ML to elucidate models and predict recurrence and survival, respectively, in OTSCC patients [22,23]. However, as with many of their predecessors, these studies are limited by the small samples of patients from which their models were trained.
Over the past two decades, a widespread shift toward the use of electronic medical records has resulted in a rapid accumulation of digital medical data, from which large administrative registries have been formed. The Surveillance, Epidemiology, and End Results (SEER) program, in particular, provides one of the largest cancer databases in the United States and represents nearly 48% of the national population. Recently, ML experts have been able to leverage the expansive nature of the SEER database to generate more precise and representative models to predict patient survival. However, to date, there is a paucity of studies that have attempted to utilize this database for predicting the recurrence of cancer following treatment and complete remission.
Thus, in this study, we developed a novel algorithm to identify cases of cancer recurrence in the SEER database, from which we generated ML models to accurately predict 5- and 10-year locoregional OTSCC recurrence. By using simple and commonly acquired prognostic markers as the basis of our models, we enabled our system to be more accessible and easily adoptable by a wide range of practitioners. Furthermore, we leveraged our nationally representative ML models to accurately classify patients into low- and high-risk categories. Hence, our system not only lays a foundation for future ML efforts in predicting cancer recurrence using the SEER database but also serves as an accurate data-driven tool for the prediction of OTSCC recurrence, with implications for the guidance of cancer management and follow-up medical care.

2. Methods

A novel strategy was implemented for extracting cases from the SEER database with the goal of identifying the locoregional recurrence of cancer within 5-year and 10-year periods. As further detailed in the sections below, SEER*Stat version 8.3.9 (Surveillance Research Program, National Cancer Institute, Bethesda, MD, USA) was used to extract data from 18 SEER registries from 2000 to 2018. After processing the data and extracting variables of interest, the dataset grouping, feature extraction, and training and validation of the model were performed (Figure 1).

2.1. Seer Database Query (Data Source)

The 2000–2018 SEER database is a deidentified registry that reports cancer incidence and survival data on approximately 48% of the national population, serving as one of the largest and most comprehensive efforts for tracking oncological cases within the U.S. Due to the massive scale of available data, this work utilized SEER as its target database. Due to the anonymized and public nature of the SEER database, this study was exempt from the University of California Irvine Institutional Review Board’s approval.
The database was queried for patients diagnosed with OTSCC using the International Classification of Disease for Oncology, 3rd Edition (ICD-O-3) topography codes for the oral tongue (C02.0-C02.9) and histology/behavior codes for squamous cell carcinoma (SCC; 8010/3, 8020/3, 8021/3, 8070/3, 8071/3, 8072/3, 8073/3, 8074/3, 8082/3). The following demographic and clinical variables of interest were used to train our machine learning models for age, sex, race, marital status, year of diagnosis, the number of prior tumors, tumor site (e.g., ventral surface of the tongue, dorsal surface of the tongue, border of the tongue), histology, tumor grade, T/N/M stage, and administered treatments (i.e., surgery, radiation, chemotherapy). To account for variant-specific OTSCC behavior, histology was stratified into the following prognostic categories: nonkeratinizing SCC with maturation, undifferentiated nonkeratinizing SCC, differentiated nonkeratinizing SCC, and keratinizing SCC [24]. Furthermore, each case contained a sequence number that provided information on the number of all reportable primary tumors that occurred over the lifetime of a patient. This variable was used to calculate the “Number of prior tumors”, which was defined as the sequence number minus one. All cases with unknown or missing sociodemographic or outcome variables were excluded.

2.2. Patient Grouping and Feature Extraction

Each individual case in the SEER dataset was defined by a unique patient identification number. The cases were first grouped according to their patient IDs before being subsequently sorted within their groups using their sequence numbers. Next, a series of validations were performed for all patients and their respective cases. These validations focused on minimizing errors in later classification steps by eliminating conditions where the “state of recurrence” (recurrence = true/false) could not be determined with absolute confidence based on the available SEER data. The following validations were implemented:
  • The oral tongue should be the primary site of the first case for each patient.
  • All cases corresponding to patients with missing or unknown values for any variable critical for analysis, including the Total Number of Malignant Tumors, Sequence Number, Survival Months, and Year of Diagnosis, were filtered out.
In the final step of the algorithm, we computed the target outcome variable, “Will Recure”. This variable, which was computed for each individual case, defined whether or not a case would recure in locoregional sites within the defined period of time (5 and 10 years). Of note, due to SEER coding guidelines, a recurrence that occurred at the exact same topographical code as its prior incident case was not reported in the database and, thus, was unavailable for analysis. A non-recurrence was defined as a patient that had only one primary tumor and survived longer than the target window (e.g., 5 years). Conversely, if there was another recurrence of cancer within the target window and in the same region as the initial tumor, then the case was marked “Will Recur” = true. It is worth noting that, based on the algorithm above, the last case for a patient with multiple primary tumors (i.e., multiple cases) would be marked as will not recur if the patient survived longer than the target window without another recurrence of cancer. This is critical as it tends to indicate successful treatment.

2.3. ML Training & Validation (Balancing, under Sampling, Number of Runs and Distribution of Data)

We used the H2O AI platform (H2O.ai, Inc., Mountain View, CA, USA) in conjunction with an R statistical computing environment (version 3.6.1; The R Foundation for Statistical Computing) to train and test numerous machine learning models with the goal of identifying the best model for the prediction of the locoregional recurrence of OTSCC. In order to properly validate and test each model, the dataset was split into training (80%) and test (20%) sets. H2O’s Automl function was used to run through different machine learning algorithms and evaluate various hyperparameters for each algorithm [25]. Using the H2O Automl function, we trained and evaluated various machine learning algorithms, including the gradient boosting machine (GBM), distributed random forest (DRF), deep learning, logistics regression, and generalized linear model (GLM) [25,26,27,28,29,30,31]. To prevent overfitting during the training phase, we initially assessed the performance of these models using a 5-fold cross-validation technique. The trained models were ranked based on their AUC values, and we selected the top four models for further evaluation on an unseen data split.
The evaluation metrics, accuracy, precision, recall (sensitivity), and area under the curve (AUC) for the receiver operating characteristic (ROC) were computed for the top four predictive models on a separate 20% test set. The method to compute these hyperparameters is presented in Equations (1)–(3).
A c c u r a c y = ( T P + T N ) ( T P + T N + F P + F N )
P r e c i s i o n = T P ( T P + F P )
R e c a l l = T P T P + F N
Due to the unbalanced nature of the dataset, with fewer recurrence cases compared to non-recurrence cases (13,873 non-recurrence vs. 657 recurrence cases for 5 years and 6129 non-recurrences vs. 971 recurrence cases for 10 years), we evaluated two approaches for balancing the data. The first was oversampling, which involved synthesizing new examples from the existing samples for the minority class [22]. The downside of oversampling is that it introduces the risk of overfitting and/or introducing mathematically valid yet logically non-sensical sample sets. The second approach was under-sampling, which involved randomly selecting examples from the majority class to remove from the training dataset. In general, under-sampling is the preferred method, particularly for a large dataset [32,33]. In this case, the application of the massive SEER dataset helped make the utilization of the under-sampling approach a reality, further strengthening the accuracy of the final model. H2O was executed with a 5-fold cross-validation, which was configured for a maximum runtime of 600 s. For each ML model, 5 different runs were executed, and the average performances of the top four ML models were compared using the areas under the curves (AUCs) for the receiver operating characteristic (ROC) curves.

3. Results

3.1. Study Population Characteristics and Cancer Recurrence Information

A total of 136,826 cases were extracted from the SEER dataset, which represented 130,979 unique patients. Two models were trained: one focusing on the locoregional recurrence of OTSCC in a 5-year period and the other in a 10-year period. In the 5-year analysis, 14,530 patients met the inclusion criteria, of which 657 suffered from a locoregional recurrence. For the 10-year analysis, 7100 patients met the inclusion criteria, of which 971 experienced a locoregional recurrence. It is worth noting that only patients alive within the follow-up period (5- or 10 years) were considered in our analyses. Table 1 shows a summary of predictors that were used to train the machine learning model.

3.2. Model Prediction and Development (Performance Metric for the Algorithm)

To identify the most predictive model, the AUC of the ROC curve was used as a metric to compare the performance of four machine learning algorithms: Generalized Linear Model (GLM), Gradient Boosting Machine (GBM), Distributed Random Forest (DRF), and deep learning (artificial neural network, Figure 2) on the test split.
The performance metrics of the top four ML models are shown and compared in Table 2. The GBM classification model with an AUC of 0.75 (0.01) and 0.74 (0.02) outperformed all other models for both the 5-year prediction and 10-year prediction, respectively. Of note, the accuracy, recall, and precision of the model could be calculated at different thresholds within the graph of the ROC curve. Thus, the optimum threshold for each model varied depending on the definition and application of the classification problem. For example, a screening tool may require high recall and precision. For this proof-of-concept effort, we focused on using the model as a screening tool and, therefore, aimed to increase recall without a major sacrifice of accuracy. Therefore, the best overall performance for predicting OTSCC recurrence was achieved by the GBM model with 81.8% accuracy, 83.0% recall, and 97.7% precision for a 5-year prediction, and 80.0% accuracy, 82.8% recall, and 94.0% accuracy for 10-year prediction.
In addition to the performance metrics of the model, we were also interested in the impact of each individual feature on the predictive outcome. The Shapley Additive exPlanations contribution plot (SHAP) illustrated how the GBM model arrived at its results (Figure 3) and explored the non-linearity effects on the features of this model [34]. It ranked (from top to bottom) the importance of each feature in a predictive model based on all the possible pairs of coalitions between predictors of the model. A higher importance score was indicative of a higher contribution to the model’s predictive ability. As shown, the number of prior tumors, age, and tumor site were the most important factors for determining the probability of the locoregional recurrence of OTSCC.

4. Discussion

In this study, we developed a novel framework with which to identify cases of cancer recurrence from the SEER database alongside generalizable and highly representative machine-learning models that could be generated. We demonstrated the utility of this framework by developing ML models that predicted 5- and 10-year cancer recurrence with high accuracy and precision using a large population-based cohort of OTSCC patients. Specifically, of the four ML algorithms that we employed, the GBM-based model showed the most promise, demonstrating accuracies of 82% and 80% for 5-year and 10-year recurrence, respectively. Of note, we observed a recurrence rate of ~5%, which was lower than the 16–33% recurrence rate that has been previously reported [8,35,36]. This was due to the stringent exclusion criteria that we applied, which required that patients with certain missing or unknown case information were excluded from the analysis. However, we do not anticipate this lower prevalence to have influenced our findings since, unlike traditional regression techniques that compute likelihood or risk scores based on a sample’s observed event rate, our machine learning model was trained using an under-sampling approach on the majority class (non-recurrence) in order to be tolerant of deviations from true population prevalence rates. Ultimately, by using simple and widely accessible demographic and clinical variables as the basis for model training, our sensitive prediction model showed promise in serving as a screening tool with which to assist clinicians in managing OTSCC patients during and after their treatment course.
Although significant progress has been made in cancer diagnostics and treatment, the prognosis of OTSCC is still poor, with many patients experiencing cancer recurrence and surviving less than 10 years after their initial diagnosis [23,37]. By developing a predictive screening tool, treatment teams can be better informed of a patient’s risk for cancer recurrence and modify their management strategy accordingly. Additionally, the mortality rate in recurrent cases of OTSCC is highly dependent on the time of diagnosis, with the early detection of recurrence being associated with reduced mortality [38,39]. By using our highly representative and sensitive classification models, clinicians can be better informed of which patients are at a higher risk of OTSCC recurrence and cater to their management and follow-up to ensure timely diagnosis if a recurrence were to occur.
In our analysis, we used SHAP to explain the predictions made by the Gradient Boosting model and interpret the tangled nonlinear relationships between the features and local regional recurrence of OTSCC. Consequently, we found that the number of prior tumors, patient age, tumor site, chemotherapy, tumor histology, and tumor grade were consistently the most influential features when predicting cancer recurrence. Thus, by developing an artificial intelligence (AI) model in the context of a highly representative population for cancer recurrence and analyzing the nonlinear effect of features through the SHAP method, we found some of the features to be more prognostic compared to those that were traditionally considered major prognostic factors in oral tongue cancer recurrence, such as lymphatic invasion or the T-stage [8,36]. Importantly, these findings do not discount the prognostic importance of previously reported clinical factors but rather highlight certain factors that may be generally considered highly prognostic across a more diverse and heterogeneous patient population.
In a recent institutional study, Alabi et al. similarly demonstrated success in predicting locoregional recurrence in OTSCC. However, despite their impressive results, their models were trained using only 217 cases of early-stage OTSCC, which largely limited their system’s applicability to more advanced tumors alongside its external validity against the general population, where the spectrum of disease behavior and progression is much more diverse than what is experienced at a single institution. Interestingly, the authors found that certain specialized histopathological parameters, such as lymphocyte host response, the pattern of invasion, depth of invasion, and perineural invasion, were particularly important features in their prediction models. Owing to the limitations of the SEER database, our models were trained without using these clinical features. While the lack of dependence on these specialized histopathological parameters expanded the accessibility of our system to a broader range of clinical facilities where such information may not be readily available, the consideration of these features may be warranted in future generations of ML models where a higher prediction accuracy in lieu of increased accessibility is desired.
Previous studies have reported on the significance of genetic predisposition in head and neck squamous cell carcinoma (HNSCC) [40,41]. Moreover, genetic and environmental factors, including a history of prior head and neck cancer, have been shown to be associated with the recurrence of HNSCC [42,43]. The influence of patient age on prognosis has also been previously established. In a large retrospective study of OTSCC patients, Mukdad et al. demonstrated that older patients were associated with more advanced disease and worse survival [5]. It was hypothesized that this worse prognosis was partly due to a tendency for clinicians to treat younger patients more aggressively with multimodality therapy. Interestingly, younger patients were also observed to less frequently present with metastatic lymph nodes. Indeed, survival and recurrence rates have been reported to be largely influenced by the presence of nodal disease [44]. As such, cancer recurrence at a regional site can be suggestive of a more aggressive disease with a tendency to recur following treatment. In a cohort study, Wolfer et al. suggested that aggressive neoplastic behavior is strongly dictated by tumor histology [45]. Specifically, the degree of keratinization in oral squamous cell carcinoma was demonstrated to be an important prognostic factor for recurrence and survival. Other recent studies have reached similar conclusions and have even created recurrence risk models on the sole basis of histological parameters [46,47,48,49].
To our knowledge, this is one of the first studies to develop an algorithm that can identify cases of cancer recurrence from the expansive and widely used SEER database, laying a basis for future investigations across a variety of medical fields. Through the use of this novel framework, we also present one of the first machine learning-based classification models that can accurately predict 5- and 10-year recurrence in OTSCC patients using only commonly available demographic and clinical features.
There are, however, limitations to this study that are worth mentioning. Since patients were extracted from a de-identified national database, these data might be susceptible to information bias. Additionally, despite including a number of sociodemographic and clinical variables in our models, we would like to point out that certain potentially valuable histopathological (e.g., lymphocyte host response, perineural invasion, depth of invasion, tumor budding, and worst pattern of invasion) and clinical features (e.g., the timing of treatments, radiation dose, HPV status, neck dissection) were not accounted for due to the limitations of the SEER database. Despite these constraints, we were able to develop a model with high predictability for the locoregional recurrence of OTSCC. We believe that incorporating these site-specific variables along with other clinical and sociodemographic variables can only enhance the predictive power of these models [6,8,22,42,50]. We hope that this study will encourage the inclusion of such variables in future updates to SEER and other large-scale clinical datasets. Furthermore, we hope that this work will encourage future studies that focus on additional enhancements, such as hyperparameter tuning, increasing the training time, and utilizing alternative decision tree-based models such as xGBoost [51,52,53].

5. Conclusions

In this study, we developed a novel framework that could identify cases of cancer recurrence from the SEER database. Using a population-based sample of over 130,979 patients, we developed several highly accurate and sensitive machine-learning models to predict OTSCC recurrence. Despite the use of simple and commonly available prognostic markers as the sole features for our model training, the GBM-based model was nonetheless able to achieve prediction accuracies of 82% and 80% for 5- and 10-year cancer recurrence, respectively. With our framework’s ability to be applied to a wide variety of cancers, we believe that this tool can have significant implications in future oncologic research efforts that are aimed toward improving disease management and optimizing patient outcomes.

Author Contributions

Conceptualization, Y.F. and J.P.B.; methodology, Y.F.; software, Y.F.; formal analysis, Y.F. and A.A.; data curation, Y.F. and A.A.; writing—original draft preparation, Y.F. and A.A.; writing—review and editing, Y.F., A.A., E.C.K. and J.P.B.; visualization, Y.F.; supervision, E.C.K. and J.P.B.; project administration, J.P.B. All authors have read and agreed to the published version of the manuscript.

Funding

The research reported in this publication was supported in part by the National Institute of General Medical Sciences of the National Institutes of Health under award number T32GM008620. The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Institutes of Health.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available from the corresponding author (JPB) upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Noone, A.M.; Howlader, N.; Krapcho, M.; Miller, D.; Brest, A.; Yu, M.; Cronin, K.A. SEER Cancer Statistics Review; National Cancer Institute: Bethesda, MD, USA, 2018; pp. 1975–2015. [Google Scholar]
  2. Kim, Y.-J.; Kim, J.H. Increasing Incidence and Improving Survival of Oral Tongue Squamous Cell Carcinoma. Sci. Rep. 2020, 10, 7877. [Google Scholar] [CrossRef]
  3. Patel, S.C.; Carpenter, W.R.; Tyree, S.; Couch, M.E.; Weissler, M.; Hackman, T.; Hayes, D.N.; Shores, C.; Chera, B.S. Increasing Incidence of Oral Tongue Squamous Cell Carcinoma in Young White Women, Age 18 to 44 Years. J. Clin. Oncol. Off. J. Am. Soc. Clin. Oncol. 2011, 29, 1488–1494. [Google Scholar] [CrossRef] [PubMed]
  4. Warnakulasuriya, S. Global Epidemiology of Oral and Oropharyngeal Cancer. Oral Oncol. 2009, 45, 309–316. [Google Scholar] [CrossRef]
  5. Mukdad, L.; Heineman, T.E.; Alonso, J.; Badran, K.W.; Kuan, E.C.; St John, M.A. Oral Tongue Squamous Cell Carcinoma Survival as Stratified by Age and Sex: A Surveillance, Epidemiology, and End Results Analysis. Laryngoscope 2019, 129, 2076–2081. [Google Scholar] [CrossRef] [PubMed]
  6. Camisasca, D.R.; Silami, M.A.N.C.; Honorato, J.; Dias, F.L.; de Faria, P.A.S.; Lourenço, S. de Q.C. Oral Squamous Cell Carcinoma: Clinicopathological Features in Patients with and without Recurrence. ORL J. Oto-Rhino-Laryngol. Its Relat. Spec. 2011, 73, 170–176. [Google Scholar] [CrossRef] [PubMed]
  7. Ermer, M.A.; Kirsch, K.; Bittermann, G.; Fretwurst, T.; Vach, K.; Metzger, M.C. Recurrence Rate and Shift in Histopathological Differentiation of Oral Squamous Cell Carcinoma—A Long-Term Retrospective Study over a Period of 13.5 Years. J. Cranio-Maxillo-Facial Surg. Off. Publ. Eur. Assoc. Cranio-Maxillo-Facial Surg. 2015, 43, 1309–1313. [Google Scholar] [CrossRef] [PubMed]
  8. Wang, B.; Zhang, S.; Yue, K.; Wang, X.-D. The Recurrence and Survival of Oral Squamous Cell Carcinoma: A Report of 275 Cases. Chin. J. Cancer 2013, 32, 614–618. [Google Scholar] [CrossRef]
  9. Yuan, Q.; Cai, T.; Hong, C.; Du, M.; Johnson, B.E.; Lanuti, M.; Cai, T.; Christiani, D.C. Performance of a Machine Learning Algorithm Using Electronic Health Record Data to Identify and Estimate Survival in a Longitudinal Cohort of Patients with Lung Cancer. JAMA Netw. Open 2021, 4, e2114723. [Google Scholar] [CrossRef] [PubMed]
  10. Ko, C.; Brody, J.P. A Genetic Risk Score for Glioblastoma Multiforme Based on Copy Number Variations. Cancer Treat. Res. Commun. 2021, 27, 100352. [Google Scholar] [CrossRef]
  11. Karatza, P.; Dalakleidi, K.; Athanasiou, M.; Nikita, K.S. Interpretability Methods of Machine Learning Algorithms with Applications in Breast Cancer Diagnosis. In Proceedings of the Annual International Conference of the IEEE Engineering in Medicine & Biology Society, Virtual, 1–5 November 2021; Volume 2021, pp. 2310–2313. [Google Scholar] [CrossRef]
  12. Howard, F.M.; Kochanny, S.; Koshy, M.; Spiotto, M.; Pearson, A.T. Machine Learning-Guided Adjuvant Treatment of Head and Neck Cancer. JAMA Netw. Open 2020, 3, e2025881. [Google Scholar] [CrossRef] [PubMed]
  13. Yang, C.Q.; Gardiner, L.; Wang, H.; Hueman, M.T.; Chen, D. Creating Prognostic Systems for Well-Differentiated Thyroid Cancer Using Machine Learning. Front. Endocrinol. 2019, 10, 288. [Google Scholar] [CrossRef] [PubMed]
  14. Toh, C.; Brody, J.P. Genetic Risk Score for Ovarian Cancer Based on Chromosomal-Scale Length Variation. BioData Min. 2021, 14, 18. [Google Scholar] [CrossRef]
  15. Zhou, C.; Hu, J.; Wang, Y.; Ji, M.-H.; Tong, J.; Yang, J.-J.; Xia, H. A Machine Learning-Based Predictor for the Identification of the Recurrence of Patients with Gastric Cancer after Operation. Sci. Rep. 2021, 11, 1571. [Google Scholar] [CrossRef]
  16. Zhao, M.; Tang, Y.; Kim, H.; Hasegawa, K. Machine Learning with K-Means Dimensional Reduction for Predicting Survival Outcomes in Patients with Breast Cancer. Cancer Inform. 2018, 17, 1176935118810215. [Google Scholar] [CrossRef]
  17. Lynch, C.M.; Abdollahi, B.; Fuqua, J.D.; de Carlo, A.R.; Bartholomai, J.A.; Balgemann, R.N.; van Berkel, V.H.; Frieboes, H.B. Prediction of Lung Cancer Patient Survival via Supervised Machine Learning Classification Techniques. Int. J. Med. Inform. 2017, 108, 1–8. [Google Scholar] [CrossRef]
  18. Chu, C.S.; Lee, N.P.; Adeoye, J.; Thomson, P.; Choi, S.-W. Machine Learning and Treatment Outcome Prediction for Oral Cancer. J. Oral Pathol. Med. Off. Publ. Int. Assoc. Oral Pathol. Am. Acad. Oral Pathol. 2020, 49, 977–985. [Google Scholar] [CrossRef]
  19. Sarkar, S.; Min, K.; Ikram, W.; Tatton, R.W.; Riaz, I.B.; Silva, A.C.; Bryce, A.H.; Moore, C.; Ho, T.H.; Sonpavde, G.; et al. Performing Automatic Identification and Staging of Urothelial Carcinoma in Bladder Cancer Patients Using a Hybrid Deep-Machine Learning Approach. Cancers 2023, 15, 1673. [Google Scholar] [CrossRef] [PubMed]
  20. O’Donnell, A.; Wolsztynski, E.; Cronin, M.; Moghaddam, S. Improving the Post-Operative Prediction of BCR-Free Survival Time with MRNA Variables and Machine Learning. Cancers 2023, 15, 1276. [Google Scholar] [CrossRef] [PubMed]
  21. Umer, M.; Naveed, M.; Alrowais, F.; Ishaq, A.; Hejaili, A.A.; Alsubai, S.; Eshmawi, A.; Mohamed, A.; Ashraf, I. Breast Cancer Detection Using Convoluted Features and Ensemble Machine Learning Algorithm. Cancers 2022, 14, 6015. [Google Scholar] [CrossRef]
  22. Alabi, R.O.; Elmusrati, M.; Sawazaki-Calone, I.; Kowalski, L.P.; Haglund, C.; Coletta, R.D.; Mäkitie, A.A.; Salo, T.; Almangush, A.; Leivo, I. Comparison of Supervised Machine Learning Classification Techniques in Prediction of Locoregional Recurrences in Early Oral Tongue Cancer. Int. J. Med. Inform. 2020, 136, 104068. [Google Scholar] [CrossRef]
  23. Karadaghy, O.A.; Shew, M.; New, J.; Bur, A.M. Development and Assessment of a Machine Learning Model to Help Predict Survival Among Patients with Oral Squamous Cell Carcinoma. JAMA Otolaryngol.–Head Neck Surg. 2019, 145, 1115–1120. [Google Scholar] [CrossRef] [PubMed]
  24. Chernock, R.D. Morphologic Features of Conventional Squamous Cell Carcinoma of the Oropharynx: “keratinizing” and “Nonkeratinizing” Histologic Types as the Basis for a Consistent Classification System. Head Neck Pathol. 2012, 6 (Suppl. S1), S41–S47. [Google Scholar] [CrossRef] [PubMed]
  25. Gijsbers, P.; LeDell, E.; Thomas, J.; Poirier, S.; Bischl, B.; Vanschoren, J. An Open Source AutoML Benchmark. arXiv 2019, arXiv:1907.00909. [Google Scholar]
  26. Caruana, R.; Niculescu-Mizil, A. An Empirical Comparison of Supervised Learning Algorithms. In Proceedings of the 23rd International Conference on Machine Learning, New York, NY, USA, 25–29 June 2006; pp. 161–168. [Google Scholar]
  27. H2O.ai Generalized Linear Model (GLM)–H2O Documentation. Available online: https://docs.h2o.ai/h2o/latest-stable/h2o-docs/data-science/glm.html (accessed on 12 February 2021).
  28. H2O.ai Distributed Random Forest (DRF)–H2O Documentation. Available online: https://docs.h2o.ai/h2o/latest-stable/h2o-docs/data-science/drf.html (accessed on 12 February 2021).
  29. H2O.ai Deep Learning Neural Networks–H2O Documentation. Available online: https://docs.h2o.ai/h2o/latest-stable/h2o-docs/data-science/deep-learning.html%0A (accessed on 12 February 2021).
  30. H2O.ai Gradient Boosting Machine (GBM)–H2O Documentation. Available online: https://docs.h2o.ai/h2o/latest-stable/h2o-docs/data-science/gbm.html (accessed on 12 February 2021).
  31. Friedman, J.H. Greedy Function Approximation: A Gradient Boosting Machine. Ann. Stat. 2001, 29, 1189–1232. [Google Scholar] [CrossRef]
  32. Chawla, N.V.; Bowyer, K.W.; Hall, L.O.; Kegelmeyer, W.P. SMOTE: Synthetic Minority over-Sampling Technique. J. Artif. Intell. Res. 2002, 16, 321–357. [Google Scholar] [CrossRef]
  33. Garcia-Pedrajas, N.; Herrera, F.; Fyfe, C.; Sánchez, J.M.B.; Ali, M. Trends in Applied Intelligent Systems. In Proceedings of the 23rd International Conference on Industrial Engineering and Other Applications of Applied Intelligent Systems, IEA/AIE 2010, Cordoba, Spain, 1–4 June 2010; Volume 6097. [Google Scholar]
  34. Lundberg, S.M.; Lee, S.-I. A Unified Approach to Interpreting Model Predictions. In Proceedings of the 31st International Conference on Neural Information Processing Systems, Long Beach, CA, USA, 4–9 December 2017; pp. 4768–4777. [Google Scholar]
  35. An, S.-Y.; Jung, E.-J.; Lee, M.; Kwon, T.-K.; Sung, M.-W.; Jeon, Y.K.; Kim, K.H. Factors Related to Regional Recurrence in Early Stage Squamous Cell Carcinoma of the Oral Tongue. Clin. Exp. Otorhinolaryngol. 2008, 1, 166–170. [Google Scholar] [CrossRef]
  36. Sharma, P.; Shah, S.V.; Taneja, C.; Patel, A.M.; Patel, M.D. A Prospective Study of Prognostic Factors for Recurrence in Early Oral Tongue Cancer. J. Clin. Diagn. Res. JCDR 2013, 7, 2559–2562. [Google Scholar] [CrossRef]
  37. Berdugo, J.; Thompson, L.D.R.; Purgina, B.; Sturgis, C.D.; Tuluc, M.; Seethala, R.; Chiosea, S.I. Measuring Depth of Invasion in Early Squamous Cell Carcinoma of the Oral Tongue: Positive Deep Margin, Extratumoral Perineural Invasion, and Other Challenges. Head Neck Pathol. 2019, 13, 154–161. [Google Scholar] [CrossRef]
  38. Safi, A.-F.; Kauke, M.; Grandoch, A.; Nickenig, H.-J.; Zöller, J.E.; Kreppel, M. Analysis of Clinicopathological Risk Factors for Locoregional Recurrence of Oral Squamous Cell Carcinoma–Retrospective Analysis of 517 Patients. J. Cranio-Maxillo-Facial Surg. Off. Publ. Eur. Assoc. Cranio-Maxillo-Facial Surg. 2017, 45, 1749–1753. [Google Scholar] [CrossRef]
  39. Vázquez-Mahía, I.; Seoane, J.; Varela-Centelles, P.; Tomás, I.; Álvarez García, A.; López Cedrún, J.L. Predictors for Tumor Recurrence after Primary Definitive Surgery for Oral Cancer. J. Oral Maxillofac. Surg. Off. J. Am. Assoc. Oral Maxillofac. Surg. 2012, 70, 1724–1732. [Google Scholar] [CrossRef]
  40. Lacko, M.; Braakhuis, B.J.M.; Sturgis, E.M.; Boedeker, C.C.; Suárez, C.; Rinaldo, A.; Ferlito, A.; Takes, R.P. Genetic Susceptibility to Head and Neck Squamous Cell Carcinoma. Int. J. Radiat. Oncol. Biol. Phys. 2014, 89, 38–48. [Google Scholar] [CrossRef]
  41. Copper, M.P.; Jovanovic, A.; Nauta, J.J.P.; Braakhuis, B.J.M.; de Vries, N.; van der Waal, I.; Snow, G.B. Role of Genetic Factors in the Etiology of Squamous Cell Carcinoma of the Head and Neck. Arch. Otolaryngol.–Head Neck Surg. 1995, 121, 157–160. [Google Scholar] [CrossRef]
  42. Matthias, C.; Harréus, U.; Strange, R. Influential Factors on Tumor Recurrence in Head and Neck Cancer Patients. Eur. Arch. Oto-Rhino-Laryngol. Head Neck 2006, 263, 37–42. [Google Scholar] [CrossRef] [PubMed]
  43. Heroiu Cataloiu, A.-D.; Danciu, C.E.; Popescu, C.R. Multiple Cancers of the Head and Neck. Maedica 2013, 8, 80–85. [Google Scholar] [PubMed]
  44. Jerjes, W.; Upile, T.; Petrie, A.; Riskalla, A.; Hamdoon, Z.; Vourvachis, M.; Karavidas, K.; Jay, A.; Sandison, A.; Thomas, G.J.; et al. Clinicopathological Parameters, Recurrence, Locoregional and Distant Metastasis in 115 T1-T2 Oral Squamous Cell Carcinoma Patients. Head Neck Oncol. 2010, 2, 9. [Google Scholar] [CrossRef]
  45. Wolfer, S.; Elstner, S.; Schultze-Mosgau, S. Degree of Keratinization Is an Independent Prognostic Factor in Oral Squamous Cell Carcinoma. J. Oral Maxillofac. Surg. 2018, 76, 444–454. [Google Scholar] [CrossRef]
  46. Sinha, N.; Rigby, M.H.; McNeil, M.L.; Taylor, S.M.; Trites, J.R.B.; Hart, R.D.; Bullock, M.J. The Histologic Risk Model Is a Useful and Inexpensive Tool to Assess Risk of Recurrence and Death in Stage I or II Squamous Cell Carcinoma of Tongue and Floor of Mouth. Mod. Pathol. 2018, 31, 772–779. [Google Scholar] [CrossRef]
  47. Brandwein-Gensler, M.; Teixeira, M.S.; Lewis, C.M.; Lee, B.; Rolnitzky, L.; Hille, J.J.; Genden, E.; Urken, M.L.; Wang, B.Y. Oral Squamous Cell Carcinoma: Histologic Risk Assessment, but Not Margin Status, Is Strongly Predictive of Local Disease-Free and Overall Survival. Am. J. Surg. Pathol. 2005, 29, 167–178. [Google Scholar] [CrossRef] [PubMed]
  48. Chaturvedi, A.; Husain, N.; Misra, S.; Kumar, V.; Gupta, S.; Akhtar, N.; Lakshmanan, M.; Garg, S.; Arora, A.; Jain, K. Validation of the Brandwein Gensler Risk Model in Patients of Oral Cavity Squamous Cell Carcinoma in North India. Head Neck Pathol. 2020, 14, 616–622. [Google Scholar] [CrossRef]
  49. El-Mofty, S.K. Histopathologic Risk Factors in Oral and Oropharyngeal Squamous Cell Carcinoma Variants: An Update with Special Reference to HPV-Related Carcinomas. Med. Oral Patol. Oral Y Cir. Bucal 2014, 19, e377–e385. [Google Scholar] [CrossRef]
  50. O-charoenrat, P.; Pillai, G.; Patel, S.; Fisher, C.; Archer, D.; Eccles, S.; Rhys-Evans, P. Tumour Thickness Predicts Cervical Nodal Metastases and Survival in Early Oral Tongue Cancer. Oral Oncol. 2003, 39, 386–390. [Google Scholar] [CrossRef] [PubMed]
  51. H2O.ai XGBoost–H2O Documentation. Available online: https://docs.h2o.ai/h2o/latest-stable/h2o-docs/data-science/xgboost.html (accessed on 12 February 2021).
  52. Chen, T.; Guestrin, C. XGBoost: A Scalable Tree Boosting System. arXiv 2016, arXiv:1603.02754. [Google Scholar]
  53. Wang, C.; Deng, C.; Wang, S. Imbalance-XGBoost: Leveraging Weighted and Focal Losses for Binary Label-Imbalanced Classification with XGBoost. Pattern Recognit. Lett. 2020, 136, 190–197. [Google Scholar] [CrossRef]
Cancers 15 02769 g001 550
Figure 1. Schematic of data processing and model development. The model development process, data cleaning, and machine learning steps were performed in the R studio and H2O.ai tool.
Figure 1. Schematic of data processing and model development. The model development process, data cleaning, and machine learning steps were performed in the R studio and H2O.ai tool.
Cancers 15 02769 g001
Cancers 15 02769 g002 550
Figure 2. ROC plots of four developed ML models. Performance of Gradient Boosting Machine (GBM), Generalized Linear Model (GLM), Distributed Random Forest (DRF), and deep learning (artificial neural network) models in predicting (A) 5-year and (B) 10-year OTSCC recurrence. Patient’s data were split into an 80% training set and a 20% test set and 5-fold cross-validation was performed in each run.
Figure 2. ROC plots of four developed ML models. Performance of Gradient Boosting Machine (GBM), Generalized Linear Model (GLM), Distributed Random Forest (DRF), and deep learning (artificial neural network) models in predicting (A) 5-year and (B) 10-year OTSCC recurrence. Patient’s data were split into an 80% training set and a 20% test set and 5-fold cross-validation was performed in each run.
Cancers 15 02769 g002
Cancers 15 02769 g003 550

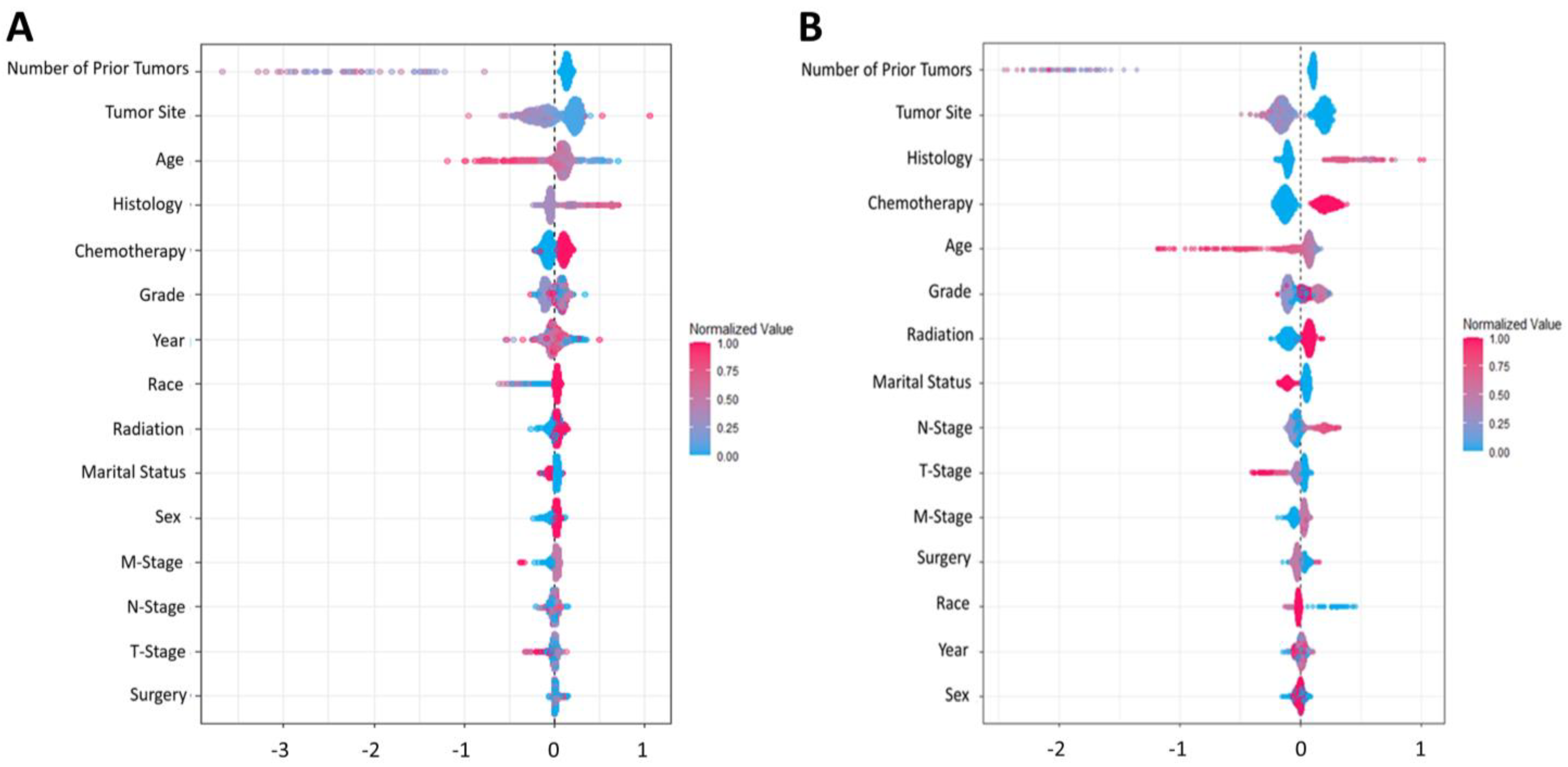

Figure 3. The Shapley Additive exPlanations contribution plots (SHAP) for the GBM model. SHAP plots of (A) 5-year and (B) 10-year prediction models. All pairs of coalitions between features of the ML model were calculated, and the feature’s importance was ranked from top to bottom.
Figure 3. The Shapley Additive exPlanations contribution plots (SHAP) for the GBM model. SHAP plots of (A) 5-year and (B) 10-year prediction models. All pairs of coalitions between features of the ML model were calculated, and the feature’s importance was ranked from top to bottom.
Cancers 15 02769 g003
Table
Table 1. Summary of the sociodemographic and clinical predictors used in developing ML models for the prediction of OTSCC recurrence.
Table 1. Summary of the sociodemographic and clinical predictors used in developing ML models for the prediction of OTSCC recurrence.
Variable5-Year (N = 14,995)10-Year (N = 7342)
No. (%)No. (%)
Mean Age, years (SD)58.4 (11.5)56.2 (11.5)
Sex
Male10,636 (72.0)4075 (67.7)
Female4129 (28.0)1943 (32.3)
Race
White13,261 (89.8)5991 (90.1)
Black706 (4.8)270 (4.1)
Asian798 (5.4)387 (5.8)
Marital Status
Single5056 (34.2)2040 (30.7)
Married9709 (65.8)4608 (69.3)
Number of Prior Tumors
014,051 (95.2)6324 (95.1)
1496 (3.4)232 (3.5)
2161 (1.1)77 (1.2)
346 (0.3)14 (0.2)
4+11 (0.1)1 (0.0)
Histology
Nonkeratinizing SCC with maturation11,468 (77.7)5276 (79.4)
Undifferentiated nonkeratinizing SCC86 (0.6)39 (1.0)
Differentiated nonkeratinizing SCC824 (5.6)288 (4.3)
Keratinizing SCC2286 (15.5)993 (15.0)
SCC NOS101 (0.7)52 (1.0)
Tumor Grade
Well-differentiated2262 (18.8)1067 (19.7)
Moderately differentiated 5752 (47.8)2585 (47.6)
Poorly differentiated3896 (32.4)1710 (31.5)
Undifferentiated117 (1.0)64 (1.2)
T-Stage
T14443 (46.7)1594 (50.0)
T23274 (34.4)1109 (34.8)
T31013 (10.6)262 (8.2)
T4784 (8.2)221 (6.9)
N-Stage
N05110 (45.5)1918 (48.3)
N11968 (17.5)764 (19.2)
N23847 (34.3)1187 (29.9)
N3296 (2.6)102 (2.6)
M-Stage
M011,200 (99.3)3913 (99.2)
M175 (0.7)30 (0.8)
Surgery
Yes6125 (41.8)2506 (37.5)
No8519 (58.2)4185 (62.5)
Radiation
Yes8965 (60.7)3811 (57.3)
No5800 (39.3)2837 (42.7)
Chemotherapy
Yes6598 (44.7)2632 (39.6)
No8167 (55.3)4016 (60.4)
SCC: Squamous Cell Carcinoma; NOS: Not Otherwise Specified; values are based on the number of cases.
Table
Table 2. Performance metrics of the top 4 machine learning models for predicting 5- and 10-year cancer recurrence. The GBM model exhibited the highest AUC and accuracy for both prediction windows.
Table 2. Performance metrics of the top 4 machine learning models for predicting 5- and 10-year cancer recurrence. The GBM model exhibited the highest AUC and accuracy for both prediction windows.
Prediction WindowClassification ModelAUC
(SD)		Accuracy %
(95% CI)		Recall %
(SD)		Precision %
(SD)
5 YearsGBM0.75 (0.01)81.8 (79.7–83.9)83.0 (0.02)97.7 (0.002)
GLM0.73 (0.02)77.4 (74.5–80.2)78.1 (0.03)98.0 (0.002)
DRF0.73 (0.03)72.8 (69.8–75.7))73.3 (0.02)97.8 (0.003)
Deep Learning0.70 (0.04)82.1 (74.7–89.6)83.5 (0.06)97.6 (0.002)
10 YearsGBM0.74 (0.02)80.0 [75.3, 84.1]82.8 (0.04)94.0 (0.004)
GLM0.73 (0.02)78.4 [74.2, 82.7]81.0 (0.04)94.3 (0.002)
Deep Learning 0.71 (0.02)74.4 [70.1, 78.8]76.6 (0.04)94.0 (0.002)
DRF0.69 (0.01)70.6 [68.0, 73.3]72.2 (0.02)93.8 (0.004)
AUC: Area Under Curve; GBM: Gradient Boosting Machine; GLM: Generalized Linear Model; DRF: Distributed Random Forest; performance metrics were reported as an average of five runs.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Fatapour, Y.; Abiri, A.; Kuan, E.C.; Brody, J.P. Development of a Machine Learning Model to Predict Recurrence of Oral Tongue Squamous Cell Carcinoma. Cancers 2023, 15, 2769. https://doi.org/10.3390/cancers15102769

AMA Style

Fatapour Y, Abiri A, Kuan EC, Brody JP. Development of a Machine Learning Model to Predict Recurrence of Oral Tongue Squamous Cell Carcinoma. Cancers. 2023; 15(10):2769. https://doi.org/10.3390/cancers15102769

Chicago/Turabian Style

Fatapour, Yasaman, Arash Abiri, Edward C. Kuan, and James P. Brody. 2023. "Development of a Machine Learning Model to Predict Recurrence of Oral Tongue Squamous Cell Carcinoma" Cancers 15, no. 10: 2769. https://doi.org/10.3390/cancers15102769

APA Style

Fatapour, Y., Abiri, A., Kuan, E. C., & Brody, J. P. (2023). Development of a Machine Learning Model to Predict Recurrence of Oral Tongue Squamous Cell Carcinoma. Cancers, 15(10), 2769. https://doi.org/10.3390/cancers15102769

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
