Functional Drug Screening of Small Molecule Inhibitors of Epigenetic Modifiers in Refractory AML Patients

by
Jessica L. Dennison
1,2,
Hassan Al-Ali
3,4,
Claude-Henry Volmar
1,2,5,
Shaun Brothers
1,2,5,
Justin Watts
6,
Claes Wahlestedt
1,2,*,† and
Ines Lohse
1,2,5,*,†
1
Center for Therapeutic Innovation, Miller School of Medicine, University of Miami, Miami, FL 33136, USA
2
Department of Psychiatry and Behavioral Sciences, Miller School of Medicine, University of Miami, Miami, FL 33136, USA
3
Miami Project to Cure Paralysis, Department of Neurological Surgery, Miller School of Medicine, University of Miami, Miami, FL 33136, USA
4
Peggy and Harold Katz Family Drug Discovery Center, Department of Medicine, Miller School of Medicine, University of Miami, Miami, FL 33136, USA
5
Molecular Therapeutics Shared Resource, Sylvester Comprehensive Cancer Center, University of Miami, Miami, FL 33136, USA
6
Division of Hematology, Sylvester Comprehensive Cancer Center, University of Miami, Miami, FL 33136, USA
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Cancers 2022, 14(17), 4094; https://doi.org/10.3390/cancers14174094
Submission received: 14 July 2022 / Revised: 13 August 2022 / Accepted: 20 August 2022 / Published: 24 August 2022
(This article belongs to the Section Cancer Therapy)
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

Acute myeloid leukemia is a cancer originating in the bone marrow and peripheral blood. Genetic mutations observed with the disease are difficult to target therapeutically and patients often have different treatment responses to the standard of care. By finding epigenetic compounds that work in a variety of patients, we could discover better therapies to treat the disease apart from the current standard of care. Here we present an unbiased drug screen of a variety of epigenetic compounds, with some showing effective responses in all or most patient samples.

Abstract

The use of inhibitors of epigenetic modifiers in the treatment of acute myeloid leukemia (AML) has become increasingly appealing due to the highly epigenetic nature of the disease. We evaluated a library of 164 epigenetic compounds in a cohort of 9 heterogeneous AML patients using an ex vivo drug screen. AML blasts were isolated from bone marrow biopsies according to established protocols and treatment response to the epigenetic library was evaluated. We find that 11 histone deacetylase (HDAC) inhibitors, which act upon mechanisms of cell cycle arrest and apoptotic pathways through inhibition of zinc-dependent classes of HDACs, showed efficacy in all patient-derived samples. Other compounds, including bromodomain and extraterminal domain (BET) protein inhibitors, showed efficacy in most samples. Specifically, HDAC inhibitors are already clinically available and can be repurposed for use in AML. Results in this cohort of AML patient-derived samples reveal several epigenetic compounds with high anti-blast activity in all samples, despite the molecular diversity of the disease. These results further enforce the notion that AML is a predominantly epigenetic disease and that similar epigenetic mechanisms may underlie disease development and progression in all patients, despite differences in genetic mutations.

1. Introduction

Acute myeloid leukemia (AML) is a heterogeneous malignant disorder that arises from the clonal growth of myeloblasts in the bone marrow and peripheral blood. AML is characterized by a well-defined genetic landscape and a relatively low mutational burden [1]. The genomic alterations observed in AML patients, however, do not account for the heterogeneity observed clinically. Large-scale sequencing projects have revealed several potential AML driver genes, including NPM1, CEBPA, DNMT3A, TET2, RUNX1, ASXL1, IDH2, and MLL, and have identified critical mutations in FLT3, IDH1, KIT, and RAS. However, many patients have either driver mutations that cannot be directly clinically targeted or co-occurring mutations that drive resistance to available targeted therapies such as FLT3 and IDH inhibitors [2,3,4,5].
Recent studies have demonstrated the epigenetic nature of AML [6] and opened the door for therapies targeting epigenetic modifiers. Indeed, the majority of AML patients harbor somatic mutations in enzymes involved in either DNA methylation and histone modification and chromatin remodeling [7], and a hypermethylation pattern in the promoters of tumor suppressor genes is commonly observed [8]. While the role of aberrant methylation in leukemogenesis has been evaluated in depth [8,9], changes in histone acetylation and their impact on AML development are less clearly understood [10,11,12,13].
Histone acetylation is a dynamic process involved in the regulation of gene expression in response to intracellular and extracellular stimuli and is tightly controlled by the competing effects of histone lysine acetyltransferases (HATs) and histone deacetylases (HDACs). Histone acetylation generally leads to accessible chromatin structure facilitating gene transcription, while deacetylation results in gene silencing. Altered expression of both HATs and HDACs has been associated with abnormal DNA methylation and DNA hydroxymethylation and the silencing of tumor suppressor genes, a process facilitating malignant transformation [14]. DNA methyltransferase (DNMT) inhibitors such as 5-azacytidine (5-AZA) and 5-aza-2′deoxycytidine (decitabine) have been used for more than a decade in the treatment of AML patients with varying success rates and rapid development of treatment resistance [15]. HDAC inhibitors have been shown to upregulate the expression of regulatory genes involved in cell cycle arrest and apoptosis, such as p53, STAT, and MAPK/ERK, which are commonly silenced during cancer development and progression [11]. HDACs not only act upon histones, but they also have a variety of non-histone protein targets, including tumor suppressor genes and transcription factors [12]. Specific HDAC inhibitors have been shown to disrupt cancer cell proliferation through processes including interruption of DNA repair through non-homologous end-joining (NHEJ) [13], upregulation of pro-apoptotic Bcl2-member (BIM) [16], and degradation of FLT3 signaling in Akt, ERK, and STAT5 pathways. Although several HDAC inhibitors have been evaluated in clinical trials, none are clinically approved for myeloid neoplasms.

2. Material and Methods

2.1. Patient-Derived AML Samples

Patients with relapsed and refractory AML receiving standard-of-care bone marrow biopsies were recruited and written consent was obtained from all patients. All patients had exhausted standard-of-care treatment options at the time of enrollment. Bone marrow aspirates superfluous to clinical diagnosis were purified as described previously [16]. The study was approved by the University of Miami institutional review board (protocol numbers 20060858 and 20150989) and conducted in accordance with Good Clinical Practice guidelines.
Bone marrow aspirates from 9 patients with relapsed/refractory AML were collected and the treatment response to a library of inhibitors of epigenetic modifiers was evaluated. Patients ranged in age from 26 to 83 years and were mixed with respect to ethnicity and gender, as prevalent in the south Florida catchment area. All patients had been treated and failed standard of care-intensive or non-intensive chemotherapy regimens. Apart from patient 7, all patients were analyzed by conventional G-band karyotyping, fluorescence in situ hybridization (FISH), and targeted sequencing for AML-relevant genes as part of the clinical routine. All patients previously failed or relapsed after receiving a standard-of-care chemotherapy regimen (3 + 7 chemotherapy consisting of the nucleoside analog cytarabine combined with a topoisomerase II inhibitor) and were exposed to multiple cycles of chemotherapy prior to recruitment.

2.2. Drug Screening

We tested a 164-compound epigenetic library that consists of inhibitors and activators of epigenetic modifying enzymes (writers, erasers, and readers) (Table 1). The epigenetics compound library contains compounds approved for the treatment of various cancers and diseases, tool compounds, and investigational compounds currently in preclinical or clinical development. Small molecule inhibitors targeting all major classes of histone modifiers are included (Histone deacetylase (HDAC) inhibitors (n = 51), Histone acetylase inhibitors (n = 6), Bromodomain and Extra-Terminal motif (BET) inhibitors (n = 11), Isocitrate dehydrogenase (IDH) inhibitors (n = 3), Methyltransferase inhibitors (n = 28), Demethylase inhibitors (n = 12), Sirtuin (SIRT) inhibitors (n = 11), poly ADP ribose polymerase (PARP) inhibitors (n = 3), p300/ CREB-binding protein (p300/CBP) inhibitors) (n = 3). Bone marrow aspirates were obtained, and mononuclear cells were isolated by Ficoll density gradient (Ficoll-Paque PREMIUM; Cytiva, Marlborough, MA, USA). Cells were washed, counted, and cultured in Mononuclear Cell Medium (MCM, PromoCell, Heidelberg, Germany) for 24 h. All stock compounds were dissolved in 100% DMSO and tested in duplicate at a nominal test concentration of 1 μM. Wells with assay buffer containing 0.1% DMSO served as negative controls. One thousand exponentially growing cells were seeded per well in 384-well micro-titer plates and incubated in the presence of compounds in a humidified environment at 37 °C and 5% CO2. After 72 h of treatment, cell viability was assessed by measuring ATP levels via bioluminescence (CellTiter-Glo, Promega, Madison, WI, USA). Positive hits were defined as any compound that showed cell killing higher than three standard deviations of the negative control.

2.3. Drug Sensitivity Testing

Sixteen of the epigenetic compounds which showed activity in tested samples were chosen for drug sensitivity testing (DST) in two samples (Patient 8 and Patient 9), which was performed as described previously [16].

3. Results

3.1. Patients

Karyotyping and molecular analysis showed large genetic variation within the patient cohort that was representative of the general AML patient population.
Patient 1 presented with AML characterized by t(8; 21) translocation (AML1-ETO), as well as TET2, RAD21, and ETV6 mutations. Patient 2 presented with a history of prostate cancer treated with radiation therapy and AML with normal cytogenetics and CEBPA (monoallelic), CSF3R, and TET2 mutations. Patient 3 displayed complex cytogenetics, including del(5q), trisomy 8, monosomy 7, deletion of chromosome 17, and a TP53 missense mutation. Patient 4 had normal cytogenetics, four trisomies, including +8, and NPM1, DNMT3A, KIT, SETBP1, and TET2 mutations. Patient 5 presented with complex cytogenetics, including del(5q), monosomy 3, and monosomy 12. Patient 6 presented with AML characterized by t(9;11) translocation [KMT2A]. Patient 8 had normal cytogenetics with mutations in ASXL1, RUNX1, STAG2, and TET2. Patient 9 presented with AML characterized by trisomy 8, mosaicism, 47, XY, +8 [14]/46, XY [6], and BCOR, NRAS, SF3B1, TET2, DDX41, ETV6, and PDGFRA mutations. Cytogenic data was not available for patient 7. All patients had relapsed/refractory disease after standard-of-care treatment, except patient 8, who did not receive treatment pre-biopsy.

3.2. Drug Sensitivity Profiles Differ between AML Samples

To identify epigenetic compounds that showed efficacy in this heterogeneous population of patient-derived AML samples, an ex vivo screen of 164 epigenetic compounds was performed. The epigenetics compound library contains a wide variety of FDA-approved and investigational compounds as well as tool compounds targeting epigenetic readers, writers, and erasers (Table 1).
The number of positive hits varied from 15 in sample 7 to 18 in sample 3, 19 in sample 5, 23 in sample 8, 26 in sample 6, 38 in sample 4, 40 in sample 1, and 58 positive hits in patient 9. Eleven compounds showed efficacy in all 9 patients and all of these were HDAC inhibitors. An additional four compounds showed efficacy in 8 of the 9 samples. These included 2 HDAC inhibitors and 2 BET inhibitors (Table 2, Figure 1).
While HDAC inhibitors represent the compound class with the most positive hits overall (n = 34), BET inhibitors are the second largest group of positive hits (n = 7). Of interest, although the use of methyltransferase inhibitors, such as Aza, is standard of care for AML [17], methyltransferase inhibitors did not have an effect in cell lines from 6 of the 9 patient-derived samples. Two methyltransferase inhibitors displayed activity in two samples, while five methyltransferase inhibitors displayed activity in only one sample (patient 9). This is likely as most patients received, and failed, standard-of-care regimens prior to the screen. Similarly, only a single demethylase inhibitor (JIB 04) displayed activity in more than one sample on the screen. Four additional demethylase inhibitors showed activity in a single sample (patient 9). One PARP inhibitor (OLAPAR 1B) displayed activity in 2 samples, while 3 SIRT inhibitors displayed activity in a single sample (patient 9). IDH inhibitors (n = 3), p300/CBP inhibitors (n = 3), and histone acetylase inhibitors (n = 6), displayed no activity in any of the evaluated samples.
Although this sample population displayed common responses to a subset of compounds, drug sensitivity profiles in response to the tested library differed between individual patients (Table 2).
Sample 9 had the highest number of positive hits candidates (n = 58), which included 26 HDAC inhibitors, 5 BET inhibitors, 7 methyltransferase inhibitors, 5 demethylase inhibitors, 3 SIRT inhibitors, 1 PARP inhibitor, and several other miscellaneous epigenetic inhibitors/activators. Twenty-one compounds showed efficacy in sample 9 only, including 5 methyltransferase inhibitors, 4 HDAC inhibitors, 4 demethylase inhibitors, 3 SIRT inhibitors, and 1 HAT activator. Sample 1 had the second highest number of positive hits candidates (n = 40), which included 27 HDAC inhibitors, 5 BET inhibitors, 1 methyltransferase inhibitor, and 1 demethylase inhibitor, amongst other miscellaneous epigenetic inhibitors. Four compounds showed efficacy in sample 1 alone, which were all HDAC inhibitors. Of the 28 compounds that worked in sample 2, 21 were HDAC inhibitors, and 4 were BET inhibitors. Sample 3 had 18 viable compounds, including 16 HDAC inhibitors, one histone demethylase inhibitor, and one proteasome inhibitor. Thirty-eight compounds showed efficacy in sample 4, including 25 HDAC inhibitors, 6 BET inhibitors, 1 methyltransferase inhibitor, 1 demethylase inhibitor, and several other miscellaneous inhibitors. One compound, a BET inhibitor (EP-336), showed efficacy in sample 4 alone. Sample 5 had 19 compound hits consisting of 13 HDAC inhibitors and 4 BET inhibitors. Sample 6 had 26 viable compound hits, including 17 HDAC inhibitors, 5 BET inhibitors, a demethylase inhibitor, and several miscellaneous inhibitors. Sample 7 had the least number of viable compound hits (15) and included 12 HDAC inhibitors, 2 BET inhibitors, and a dual PLK1 and BRD4 inhibitor. Sample 8 had 23 positive hits candidates, including 18 HDAC inhibitors, 3 BET inhibitors, 1 PARP inhibitor, and an adenosine kinase inhibitor. Two of the samples with the least number of hits, samples 3 and 5, present with complex karyotypes.

3.3. HDAC Inhibitors Display Activity in All AML Samples

Eleven of the tested compounds displayed activity in all seven samples. All 11 of these effective compounds were zinc-dependent HDAC inhibitors. Compounds that can be described as strong hits (i.e., ≥6 standard deviations) in six of the samples (Samples 1, 2, 4, 5, 6, and 9) include the HDAC inhibitors (S)-HDAC-42, Entinostat (MS-275), Quisinostat (JNJ-26481585), Dacinostat (LAQ824), NSC-3852, Belinostat (PXD101), and Trichostatin A. There were no active compounds (“strong hits”) when subject to a higher standard deviation in samples 2, 7, and 8.
A select number of HDAC (n = 11) and BET (n = 5) inhibitors were used to establish drug sensitivity profiles in two samples (Samples 8 and 9) to validate the single hit screen and evaluate sample-specific differences in drug efficacy. Results are represented as the Drug Sensitivity Score (DSSmod), which incorporates information on drug potency, efficacy, effect range, and therapeutic index. Compounds showed similar sensitivity scores and EC50 values between samples (Figure 2). Seven of the screened HDAC inhibitors displayed DSSmod scores above 50 in both samples, including (S)-HDAC-42, Belinostat, Dacinostat, Fimepinostat, Quisinostat, Trapoxin A, and Trichostatin A. Quisinostat displayed the highest activity in both screened sample-derived cells with DSSmod of 85.16 in sample 8 and 74.24 in sample 9. All screened BET inhibitors showed lower activities compared to the HDAC inhibitors displaying an EC50 between 0.21 nM (CPI203) and 2.48 nM (I-BET 762) (Figure 2).
Of the 11 HDAC inhibitors that showed efficacy in all 9 samples, 3 compounds have completed or are currently undergoing Phase I and II clinical trials in AML patients (Table 3), while two of the tested compounds that showed efficacy in some of the patients (SAHA and SB 939) have reached Phase III trials for AML.
HDAC inhibitors are a relatively novel class of compounds. Of the 11 HDAC inhibitors that showed efficacy in all 9 samples, the specific HDAC targets and potency, i.e., IC50 values, are only known for some. There is a lack of consensus on the selectivity and IC50 of each of these compounds towards HDAC enzymes, making it difficult to determine the commonality between the 11 HDAC inhibitors. Eight of the compounds have reported enzymatic targets, and of those 8 compounds, all are reported to inhibit HDAC1 (Table 4). However, many of the other HDAC inhibitors that did not show efficacy in all patients also inhibit HDAC1. HDAC2 and HDAC6 are also common targets of many of the compounds.
Trichostatin A, Belinostat (PXD101), and Quisinostat (JNJ-26481585) are all structurally related to the commonly known pan-HDAC inhibitor SAHA, with slightly differing isoform selectivity. Trichostatin A and Belinostat (PXD101) are all reported to have the highest affinities for HDACs 1, 2, 3, and 6, with different selectivity for other class I and II HDACs [33]. Quisinostat (JNJ-2648158) is reported to be most selective for HDACs 1, 2, 4, 10, and 11 but also inhibits other zinc-dependent HDACs [33]. Entinostat (MS-275) is a member of the ortho-aminoanilide family of HDAC inhibitors and acts selectively on Class I HDACs 1, 2, and 3 [33]. Dacinostat (LAQ824) is known to inhibit HDAC1 but is also reported as a potent HDAC inhibitor and was shown to be effective against myeloid leukemia cells in vitro and in vivo [34]. Trapoxin A is reported to be an irreversible inhibitor of class I HDACs but may act on other classes of HDACs as well [35]. LMK-235 most selectively inhibits HDAC4 and HDAC5 but also acts on other zinc-dependent HDACs [36]. Fimepinostat (CUDC-907) potently inhibits class I and II HDACs and also inhibits class I phosphoinositide 3-kinases (PI3Ks), which are involved in cancer cell proliferation and survival [37]. M-344 targets HDACs 1, 2, 3, 6, 8, and 10 [38]. The specific HDAC targets of Oxamflatin [39], (S)-HDAC-42 (AR-42) [40], and NSC-3852 [41] are not currently known.
Out of the select compounds that showed efficacy in our screen, only a handful are currently in clinical trials (Table 3), potentially supporting the future development of these compounds clinically.

4. Discussion

The standard-of-care backbone for younger patients with AML using the combination of the nucleoside analog cytarabine and an anthracycline has changed little over the last decade, with the exception of adding midostaurin in FLT3-mutated patients, and is only moderately effective in the majority of patients (~40–50% 5-year OS) [42]. In older or unfit patients, HMA-based therapy, typically in combination with venetoclax, has emerged as the new standard of care over the last five years, with variable success (median OS ~15 months) [43,44]. The limited success of these treatment regimens has been attributed to high levels of heterogeneity found in these patients with respect to disease progression and treatment response, a phenotype that is further attenuated in patients with relapsed/refractory disease. Indeed, we have recently shown that patients with relapsed/refractory AML display vastly different drug sensitivity profiles in response to treatment with a library of 215 FDA-approved compounds [16], with no single compound exhibiting activity above the threshold in all patients. In that study, clinically relevant mutations failed to predict treatment responses, similar to what has been observed clinically.
An increased understanding of the impact of epigenetic dysregulation on AML development and progression has resulted in the development of novel therapeutics targeting epigenetic modifiers.
Aberrant DNA methylation has been described as an essential step in AML development and progression, in part due to a high rate of mutations in DNMT3A and TET2 [2,45]. Single-agent DNMT inhibitors, such as 5-azacytidine (5-AZA) and 5-aza-2′deoxycytidine (decitabine, DAC), have been used to treat AML patients. While these compounds displayed promising results in clinical trials, treatment failure is observed in most patients [46,47].
Despite the promising pre-clinical activity, single-agent HDAC1/2 inhibitors have had limited clinical success to date in myeloid neoplasms. Although no mutations in HDAC genes have been described, HDAC proteins have been shown to be aberrantly recruited to specific gene promoters [48]. The chimeric fusion protein AML1-ETO, for example, recruits HDAC1, HDAC2, and HDAC3, thereby silencing AML1 target genes, which results in differentiation arrest and leukemic transformation [48]. Although a number of HDAC inhibitors are currently being evaluated preclinically and in clinical trials, real-world evidence of clinical success is lacking [49]. This may be because 5-AZA is not the best combination partner for use with an HDAC inhibitor in myelodysplastic syndrome (MDS) or AML. 5-AZA’s anti-tumor activity is dependent on cell cycling, and HDAC inhibitors down-regulate or arrest the cell cycle.
We have evaluated a large and diverse library of 164 inhibitors of epigenetic modifiers in a small cohort of samples derived from patients with relapsed/refractory AML. In contrast to our previous observation in a cohort of relapsed/refractory AML patients where drug sensitivity profiles differed widely between patients in response to treatment with FDA-approved agents, our results showed a different pattern in response to treatment with the epigenetic library, where a few HDAC inhibitors displayed activity in all of the samples, irrespective of cytogenetic or molecular drivers. HDAC inhibitors were the only class of epigenetic compounds that displayed activity in all samples. Although the specificity towards HDAC family members has not been described for all the compounds, most of them display a common affinity towards HDAC1, suggesting an underlying dependency on histone or protein acetylation that needs to be investigated.
Additionally, 11 of the HDAC inhibiting compounds we selected to perform a DST screen validated the efficacy of these compounds against our AML blasts. Both of the tested samples responded well to these HDAC inhibitors, although at varying multitudes, which is expected given the heterogeneity of the disease. Our data add to the large body of preclinical evidence supporting the further development of HDAC inhibitors in AML. While many of the compounds represented in the screening library are indeed tool compounds, the activity profiles can be used as a foundation for future drug development efforts and suggest efficacious combination therapies. As new compounds are being continuously developed and evaluated first as monotherapy and then in combination with established treatment regimens, novel chemotherapy or venetoclax-based regimens that include an HDAC inhibitor may enhance efficacy, particularly in the relapsed/refractory setting where resistance to standard agents is high.
BET inhibitors have shown promise in preclinical and clinical studies in a number of malignancies and are currently being investigated for use in AML in early-phase clinical trials [50]. Patients with myeloid malignancies that harbor ASXL1 mutations may be selectively sensitive to BET inhibitors [51]. This compound class represented the second largest number of effective compounds in this sample cohort, validating our screening results. Although most of these compounds are either tool compounds or compounds in the early stages of pre-clinical and clinical development, our results further support the clinical exploration of this compound class.
Notably, our screen identified only one compound that inhibits DNMT from being effective in a single sample, suggesting that these aberrations may be patient-specific. It has been demonstrated, however, that HDAC inhibition can alter DNMT levels and, subsequently, DNA methylation [14].
Despite the genetic diversity observed in the sample cohort, our results suggest a potential role for epigenetic aberrations, specifically in histone acetylation, in AML disease progression. Novel, more selective HDAC inhibitors and novel HDAC combination therapies should be further explored in myeloid malignancies.

5. Conclusions

In summary, HDAC inhibiting compounds showed the most widespread efficacy in our AML sample population despite the heterogeneity of their cytogenic and molecular signatures. Our data support the rationale for the further assessment of epigenetic compounds, especially HDAC inhibitors, for AML therapeutics.

Author Contributions

Conceptualization, J.W., C.W. and I.L.; data curation, J.L.D., H.A.-A. and I.L.; formal analysis, J.L.D., H.A.-A. and I.L.; funding acquisition, C.W. and I.L.; methodology, J.L.D., H.A.-A., C.-H.V., S.B. and I.L.; project administration, I.L.; resources, S.B., J.W. and C.W.; supervision, C.W. and I.L.; writing—original draft, J.L.D. and I.L.; writing—review and editing, J.L.D., H.A.-A., C.-H.V., J.W., C.W. and I.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the University of Miami Sylvester Comprehensive Cancer Center Molecular Therapeutics Shared Resource (MTSR) and the Sylvester Comprehensive Cancer Center Support Grant, 1P30CA240139-01. S.B. received support from the National Institutes of Health (P30CA240139, R01NS092671, R01MH110441). I.L. is supported through grants from the Hyundai Hope on Wheels foundation, the Sebastian Strong foundation, and the Woman’s Cancer Association of the University of Miami. C.W.’s laboratory is currently publicly funded by NIH grants DA035592, DA035055, and AA023781, Florida Department of Health grants 6AZ08, 7AZ26, and 21L01, and the Wallace H. Coulter foundation.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki and approved by the University of Miami Institutional Review Board (protocol number 20060858, effective date 6 March 2022, and protocol number 20150989, effective date 3 September 2020) and conducted in accordance with Good Clinical Practice guidelines.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Data is contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

5-AZA: 5-aza-2′deoxycytidine; AML: Acute myeloid leukemia; BET: Bromodomain and extra terminal; CBP: CREB-binding protein; DNMT: DNA Methyltransferase; DSS: Drug Sensitivity Score; DST: Drug sensitivity testing; FISH: Fluorescence in situ hybridizations; HAT: Histone acetyltransferase; HDAC: Histone deacetylase; IDH: Isocitrate dehydrogenase; MDS: Myelodysplastic syndrome; NHEJ: Non-homologous end-joining; PARP: Poly ADP ribose polymerase; SIRT: Sirtuin.

References

  1. Mrózek, K.; Heerema, N.A.; Bloomfield, C.D. Cytogenetics in Acute Leukemia. Blood Rev. 2004, 18, 115–136. [Google Scholar] [CrossRef]
  2. Cancer Genome Atlas Research Network. Genomic and Epigenomic Landscapes of Adult De Novo Acute Myeloid Leukemia. N. Engl. J. Med. 2013, 368, 2059–2074. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Welch, J.S.; Ley, T.J.; Link, D.C.; Miller, C.A.; Larson, D.E.; Koboldt, D.C.; Wartman, L.D.; Lamprecht, T.L.; Liu, F.; Xia, J.; et al. The Origin and Evolution of Mutations in Acute Myeloid Leukemia. Cell 2012, 150, 264–278. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Welch, J.S.; Westervelt, P.; Ding, L.; Larson, D.E.; Klco, J.M.; Kulkarni, S.; Wallis, J.; Chen, K.; Payton, J.E.; Fulton, R.S.; et al. Use of Whole-Genome Sequencing to Diagnose a Cryptic Fusion Oncogene. JAMA 2011, 305, 1577–1584. [Google Scholar] [CrossRef] [Green Version]
  5. Döhner, H.; Gaidzik, V.I. Impact of Genetic Features on Treatment Decisions in AML. Hematol. Am. Soc. Hematol. Educ. Program 2011, 2011, 36–42. [Google Scholar] [CrossRef] [Green Version]
  6. Goldman, S.L.; Hassan, C.; Khunte, M.; Soldatenko, A.; Jong, Y.; Afshinnekoo, E.; Mason, C.E. Epigenetic Modifications in Acute Myeloid Leukemia: Prognosis, Treatment, and Heterogeneity. Front. Genet. 2019, 10, 133. [Google Scholar] [CrossRef] [Green Version]
  7. Plass, C.; Oakes, C.; Blum, W.; Marcucci, G. Epigenetics in Acute Myeloid Leukemia. Semin. Oncol. 2008, 35, 378–387. [Google Scholar] [CrossRef] [Green Version]
  8. Spencer, D.H.; Russler-Germain, D.A.; Ketkar, S.; Helton, N.M.; Lamprecht, T.L.; Fulton, R.S.; Fronick, C.C.; O’Laughlin, M.; Heath, S.E.; Shinawi, M.; et al. CpG Island Hypermethylation Mediated by DNMT3A Is a Consequence of AML Progression. Cell 2017, 168, 801–816.e13. [Google Scholar] [CrossRef] [Green Version]
  9. Yang, X.; Wong, M.P.M.; Ng, R.K. Aberrant DNA Methylation in Acute Myeloid Leukemia and Its Clinical Implications. Int. J. Mol. Sci. 2019, 20, 4576. [Google Scholar] [CrossRef] [Green Version]
  10. Spreafico, M.; Gruszka, A.M.; Valli, D.; Mazzola, M.; Deflorian, G.; Quintè, A.; Totaro, M.G.; Battaglia, C.; Alcalay, M.; Marozzi, A.; et al. HDAC8: A Promising Therapeutic Target for Acute Myeloid Leukemia. Front. Cell Dev. Biol. 2020, 8, 844. [Google Scholar] [CrossRef]
  11. He, T.; Wildey, G.; McColl, K.; Savadelis, A.; Spainhower, K.; McColl, C.; Kresak, A.; Tan, A.C.; Yang, M.; Abbas, A.; et al. Identification of RUNX1T1 as a Potential Epigenetic Modifier in Small-Cell Lung Cancer. Mol. Oncol. 2021, 15, 195–209. [Google Scholar] [CrossRef] [PubMed]
  12. Yu, X.; Li, H.; Hu, P.; Qing, Y.; Wang, X.; Zhu, M.; Wang, H.; Wang, Z.; Xu, J.; Guo, Q.; et al. Natural HDAC-1/8 Inhibitor Baicalein Exerts Therapeutic Effect in CBF-AML. Clin. Transl. Med. 2020, 10, e154. [Google Scholar] [CrossRef] [PubMed]
  13. Xu, Q.-Y.; Yu, L. Epigenetic Therapies in Acute Myeloid Leukemia: The Role of Hypomethylating Agents, Histone Deacetylase Inhibitors and the Combination of Hypomethylating Agents with Histone Deacetylase Inhibitors. Chin. Med. J. 2020, 133, 699–715. [Google Scholar] [CrossRef] [PubMed]
  14. Arzenani, M.K.; Zade, A.E.; Ming, Y.; Vijverberg, S.J.H.; Zhang, Z.; Khan, Z.; Sadique, S.; Kallenbach, L.; Hu, L.; Vukojević, V.; et al. Genomic DNA Hypomethylation by Histone Deacetylase Inhibition Implicates DNMT1 Nuclear Dynamics. Mol. Cell. Biol. 2011, 31, 4119–4128. [Google Scholar] [CrossRef] [Green Version]
  15. Derissen, E.J.B.; Beijnen, J.H.; Schellens, J.H.M. Concise Drug Review: Azacitidine and Decitabine. Oncologist 2013, 18, 619–624. [Google Scholar] [CrossRef] [Green Version]
  16. Swords, R.T.; Azzam, D.; Al-Ali, H.; Lohse, I.; Volmar, C.-H.; Watts, J.M.; Perez, A.; Rodriguez, A.; Vargas, F.; Elias, R.; et al. Ex-Vivo Sensitivity Profiling to Guide Clinical Decision Making in Acute Myeloid Leukemia: A Pilot Study. Leuk. Res. 2018, 64, 34–41. [Google Scholar] [CrossRef]
  17. Pleyer, L.; Döhner, H.; Dombret, H.; Seymour, J.F.; Schuh, A.C.; Beach, C.L.; Swern, A.S.; Burgstaller, S.; Stauder, R.; Girschikofsky, M.; et al. Azacitidine for Front-Line Therapy of Patients with AML: Reproducible Efficacy Established by Direct Comparison of International Phase 3 Trial Data with Registry Data from the Austrian Azacitidine Registry of the AGMT Study Group. Int. J. Mol. Sci. 2017, 18, 415. [Google Scholar] [CrossRef] [Green Version]
  18. Newman, E.M.; Morgan, R.J.; Kummar, S.; Beumer, J.H.; Blanchard, M.S.; Ruel, C.; El-Khoueiry, A.B.; Carroll, M.I.; Hou, J.M.; Li, C.; et al. A Phase I, Pharmacokinetic, and Pharmacodynamic Evaluation of the DNA Methyltransferase Inhibitor 5-Fluoro-2′-Deoxycytidine, Administered with Tetrahydrouridine. Cancer Chemother. Pharmacol. 2015, 75, 537–546. [Google Scholar] [CrossRef] [Green Version]
  19. Vey, N.; Prebet, T.; Thalamas, C.; Charbonnier, A.; Rey, J.; Kloos, I.; Liu, E.; Luan, Y.; Vezan, R.; Graef, T.; et al. Phase 1 Dose-Escalation Study of Oral Abexinostat for the Treatment of Patients with Relapsed/Refractory Higher-Risk Myelodysplastic Syndromes, Acute Myeloid Leukemia, or Acute Lymphoblastic Leukemia. Leuk. Lymphoma 2017, 58, 1880–1886. [Google Scholar] [CrossRef]
  20. Kirschbaum, M.H.; Foon, K.A.; Frankel, P.; Ruel, C.; Pulone, B.; Tuscano, J.M.; Newman, E.M. A Phase 2 Study of Belinostat (PXD101) in Patients with Relapsed or Refractory Acute Myloid Leukemia or Patients Over 60 with Newly-Diagnosed Acute Myloid Leukemia: A California Cancer Consortium Study. Leuk. Lymphoma 2014, 55, 2301–2304. [Google Scholar] [CrossRef]
  21. Müller-Tidow, C.; Bug, G.; Lübbert, M.; Krämer, A.; Krauter, J.; Valent, P.; Nachbaur, D.; Berdel, W.E.; Ottmann, O.G.; Fritsch, H.; et al. A Randomized, Open-Label, Phase I/II Trial to Investigate the Maximum Tolerated Dose of the Polo-like Kinase Inhibitor BI 2536 in Elderly Patients with Refractory/Relapsed Acute Myeloid Leukaemia. Br. J. Haematol. 2013, 163, 214–222. [Google Scholar] [CrossRef] [PubMed]
  22. Fandy, T.E.; Herman, J.G.; Kerns, P.; Jiemjit, A.; Sugar, E.A.; Choi, S.-H.; Yang, A.S.; Aucott, T.; Dauses, T.; Odchimar-Reissig, R.; et al. Early Epigenetic Changes and DNA Damage Do Not Predict Clinical Response in an Overlapping Schedule of 5-Azacytidine and Entinostat in Patients with Myeloid Malignancies. Blood 2009, 114, 2764–2773. [Google Scholar] [CrossRef] [PubMed]
  23. Prebet, T.; Sun, Z.; Figueroa, M.E.; Ketterling, R.; Melnick, A.; Greenberg, P.L.; Herman, J.; Juckett, M.; Smith, M.R.; Malick, L.; et al. Prolonged Administration of Azacitidine With or Without Entinostat for Myelodysplastic Syndrome and Acute Myeloid Leukemia With Myelodysplasia-Related Changes: Results of the US Leukemia Intergroup Trial E1905. J. Clin. Oncol. 2014, 32, 1242–1248. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Zhang, M.; Xu, C.; Ma, L.; Shamiyeh, E.; Yin, J.; von Moltke, L.L.; Smith, W.B. Effect of Food on the Bioavailability and Tolerability of the JAK2-Selective Inhibitor Fedratinib (SAR302503): Results from Two Phase I Studies in Healthy Volunteers. Clin. Pharmacol. Drug Dev. 2015, 4, 315–321. [Google Scholar] [CrossRef] [PubMed]
  25. Abaza, Y.; Kadia, T.; Jabbour, E.; Konopleva, M.; Borthakur, G.; Ferrajoli, A.; Estrov, Z.; Wierda, W.; Alfonso, A.; Chong, T.H.; et al. Phase I Dose Escalation Multicenter Trial of Pracinostat Alone and in Combination with Azacitidine in Patients with Advanced Hematologic Malignancies. Cancer 2017, 123, 4851–4859. [Google Scholar] [CrossRef] [Green Version]
  26. Garcia-Manero, G.; Montalban-Bravo, G.; Berdeja, J.G.; Abaza, Y.; Jabbour, E.; Essell, J.; Lyons, R.M.; Ravandi, F.; Maris, M.; Heller, B.; et al. Phase II Randomized Double-Blinded Study of Pracinostat in Combination with Azacitidine in Patients with Untreated Higher-Risk Myelodysplastic Syndromes. Cancer 2017, 123, 994–1002. [Google Scholar] [CrossRef] [Green Version]
  27. Garcia-Manero, G.; Fong, C.Y.; Venditti, A.; Mappa, S.; Spezia, R.; Ades, L. A Phase 3, Randomized Study of Pracinostat (PRAN) in Combination with Azacitidine (AZA) versus Placebo in Patients ≥18 Years with Newly Diagnosed Acute Myeloid Leukemia (AML) Unfit for Standard Induction Chemotherapy (IC). J. Clin. Oncol. 2018, 36, TPS7078. [Google Scholar] [CrossRef]
  28. Kirschbaum, M.; Gojo, I.; Goldberg, S.L.; Bredeson, C.; Kujawski, L.A.; Yang, A.; Marks, P.; Frankel, P.; Sun, X.; Tosolini, A.; et al. A Phase 1 Clinical Trial of Vorinostat in Combination with Decitabine in Patients with Acute Myeloid Leukaemia or Myelodysplastic Syndrome. Br. J. Haematol. 2014, 167, 185–193. [Google Scholar] [CrossRef] [Green Version]
  29. Holkova, B.; Supko, J.G.; Ames, M.M.; Reid, J.M.; Shapiro, G.I.; Tombes, M.B.; Honeycutt, C.; McGovern, R.M.; Kmieciak, M.; Shrader, E.; et al. A Phase I Trial of Vorinostat and Alvocidib in Patients with Relapsed, Refractory or Poor Prognosis Acute Leukemia, or Refractory Anemia with Excess Blasts-2. Clin. Cancer Res. Off. J. Am. Assoc. Cancer Res. 2013, 19, 1873–1883. [Google Scholar] [CrossRef] [Green Version]
  30. Garcia-Manero, G.; Tambaro, F.P.; Bekele, N.B.; Yang, H.; Ravandi, F.; Jabbour, E.; Borthakur, G.; Kadia, T.M.; Konopleva, M.Y.; Faderl, S.; et al. Phase II Trial of Vorinostat With Idarubicin and Cytarabine for Patients With Newly Diagnosed Acute Myelogenous Leukemia or Myelodysplastic Syndrome. J. Clin. Oncol. 2012, 30, 2204–2210. [Google Scholar] [CrossRef]
  31. Walter, R.B.; Medeiros, B.C.; Powell, B.L.; Schiffer, C.A.; Appelbaum, F.R.; Estey, E.H. Phase II Trial of Vorinostat and Gemtuzumab Ozogamicin as Induction and Post-Remission Therapy in Older Adults with Previously Untreated Acute Myeloid Leukemia. Haematologica 2012, 97, 739–742. [Google Scholar] [CrossRef] [PubMed]
  32. Sayar, H.; Cripe, L.D.; Saliba, A.N.; Abu Zaid, M.; Konig, H.; Boswell, H.S. Combination of Sorafenib, Vorinostat and Bortezomib for the Treatment of Poor-Risk AML: Report of Two Consecutive Clinical Trials. Leuk. Res. 2019, 77, 30–33. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Wagner, F.F.; Weїwer, M.; Lewis, M.C.; Holson, E.B. Small Molecule Inhibitors of Zinc-Dependent Histone Deacetylases. Neurotherapeutics 2013, 10, 589–604. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Weisberg, E.; Catley, L.; Kujawa, J.; Atadja, P.; Remiszewski, S.; Fuerst, P.; Cavazza, C.; Anderson, K.; Griffin, J.D. Histone Deacetylase Inhibitor NVP-LAQ824 Has Significant Activity against Myeloid Leukemia Cells in Vitro and in Vivo. Leukemia 2004, 18, 1951–1963. [Google Scholar] [CrossRef]
  35. Porter, N.J.; Christianson, D.W. Binding of the Microbial Cyclic Tetrapeptide Trapoxin A to the Class I Histone Deacetylase HDAC8. ACS Chem. Biol. 2017, 12, 2281–2286. [Google Scholar] [CrossRef]
  36. Marek, L.; Hamacher, A.; Hansen, F.K.; Kuna, K.; Gohlke, H.; Kassack, M.U.; Kurz, T. Histone Deacetylase (HDAC) Inhibitors with a Novel Connecting Unit Linker Region Reveal a Selectivity Profile for HDAC4 and HDAC5 with Improved Activity against Chemoresistant Cancer Cells. J. Med. Chem. 2013, 56, 427–436. [Google Scholar] [CrossRef]
  37. Qian, C.; Lai, C.-J.; Bao, R.; Wang, D.-G.; Wang, J.; Xu, G.-X.; Atoyan, R.; Qu, H.; Yin, L.; Samson, M.; et al. Cancer Network Disruption by a Single Molecule Inhibitor Targeting Both Histone Deacetylase Activity and Phosphatidylinositol 3-Kinase Signaling. Clin. Cancer Res. 2012, 18, 4104–4113. [Google Scholar] [CrossRef] [Green Version]
  38. Volmar, C.-H.; Salah-Uddin, H.; Janczura, K.J.; Halley, P.; Lambert, G.; Wodrich, A.; Manoah, S.; Patel, N.H.; Sartor, G.C.; Mehta, N.; et al. M344 Promotes Nonamyloidogenic Amyloid Precursor Protein Processing While Normalizing Alzheimer’s Disease Genes and Improving Memory. Proc. Natl. Acad. Sci. USA 2017, 114, E9135–E9144. [Google Scholar] [CrossRef] [Green Version]
  39. Kim, Y.B.; Lee, K.H.; Sugita, K.; Yoshida, M.; Horinouchi, S. Oxamflatin Is a Novel Antitumor Compound That Inhibits Mammalian Histone Deacetylase. Oncogene 1999, 18, 2461–2470. [Google Scholar] [CrossRef] [Green Version]
  40. Kulp, S.K.; Chen, C.-S.; Wang, D.-S.; Chen, C.-Y.; Chen, C.-S. Antitumor Effects of a Novel Phenylbutyrate-Based Histone Deacetylase Inhibitor, (S)-HDAC-42, in Prostate Cancer. Clin. Cancer Res. 2006, 12, 5199–5206. [Google Scholar] [CrossRef] [Green Version]
  41. Wiggers, C.R.M.; Govers, A.M.A.P.; Lelieveld, D.; Egan, D.A.; Zwaan, C.M.; Sonneveld, E.; Coffer, P.J.; Bartels, M. Epigenetic Drug Screen Identifies the Histone Deacetylase Inhibitor NSC3852 as a Potential Novel Drug for the Treatment of Pediatric Acute Myeloid Leukemia. Pediatr. Blood Cancer 2019, 66, e27785. [Google Scholar] [CrossRef] [PubMed]
  42. Stone, R.M.; Mandrekar, S.J.; Sanford, B.L.; Laumann, K.; Geyer, S.; Bloomfield, C.D.; Thiede, C.; Prior, T.W.; Döhner, K.; Marcucci, G.; et al. Midostaurin plus Chemotherapy for Acute Myeloid Leukemia with a FLT3 Mutation. N. Engl. J. Med. 2017, 377, 454–464. [Google Scholar] [CrossRef] [PubMed]
  43. De Kouchkovsky, I.; Abdul-Hay, M. Acute Myeloid Leukemia: A Comprehensive Review and 2016 Update. Blood Cancer J. 2016, 6, e441. [Google Scholar] [CrossRef]
  44. DiNardo, C.D.; Jonas, B.A.; Pullarkat, V.; Thirman, M.J.; Garcia, J.S.; Wei, A.H.; Konopleva, M.; Döhner, H.; Letai, A.; Fenaux, P.; et al. Azacitidine and Venetoclax in Previously Untreated Acute Myeloid Leukemia. N. Engl. J. Med. 2020, 383, 617–629. [Google Scholar] [CrossRef] [PubMed]
  45. Gebhard, C.; Glatz, D.; Schwarzfischer, L.; Wimmer, J.; Stasik, S.; Nuetzel, M.; Heudobler, D.; Andreesen, R.; Ehninger, G.; Thiede, C.; et al. Profiling of Aberrant DNA Methylation in Acute Myeloid Leukemia Reveals Subclasses of CG-Rich Regions with Epigenetic or Genetic Association. Leukemia 2019, 33, 26–36. [Google Scholar] [CrossRef]
  46. Fenaux, P.; Mufti, G.; Hellstrom-Lindberg, E.; Santini, V.; Finelli, C.; Giagounidis, A.; Schoch, R.; Gattermann, N.; Sanz, G.; List, A.; et al. Efficacy of Azacitidine Compared with That of Conventional Care Regimens in the Treatment of Higher-Risk Myelodysplastic Syndromes: A Randomised, Open-Label, Phase III Study. Lancet Oncol. 2009, 10, 223–232. [Google Scholar] [CrossRef] [Green Version]
  47. Stahl, M.; DeVeaux, M.; Montesinos, P.; Itzykson, R.; Ritchie, E.K.; Sekeres, M.A.; Barnard, J.D.; Podoltsev, N.A.; Brunner, A.M.; Komrokji, R.S.; et al. Hypomethylating Agents in Relapsed and Refractory AML: Outcomes and Their Predictors in a Large International Patient Cohort. Blood Adv. 2018, 2, 923–932. [Google Scholar] [CrossRef] [Green Version]
  48. Gelmetti, V.; Zhang, J.; Fanelli, M.; Minucci, S.; Pelicci, P.G.; Lazar, M.A. Aberrant Recruitment of the Nuclear Receptor Corepressor-Histone Deacetylase Complex by the Acute Myeloid Leukemia Fusion Partner ETO. Mol. Cell. Biol. 1998, 18, 7185. [Google Scholar] [CrossRef] [Green Version]
  49. San José-Enériz, E.; Gimenez-Camino, N.; Agirre, X.; Prosper, F. HDAC Inhibitors in Acute Myeloid Leukemia. Cancers 2019, 11, 1794. [Google Scholar] [CrossRef] [Green Version]
  50. Braun, T.; Gardin, C. Investigational BET Bromodomain Protein Inhibitors in Early Stage Clinical Trials for Acute Myelogenous Leukemia (AML). Expert Opin. Investig. Drugs 2017, 26, 803–811. [Google Scholar] [CrossRef]
  51. Yang, H.; Kurtenbach, S.; Guo, Y.; Lohse, I.; Durante, M.A.; Li, J.; Li, Z.; Al-Ali, H.; Li, L.; Chen, Z.; et al. Gain of Function of ASXL1 Truncating Protein in the Pathogenesis of Myeloid Malignancies. Blood 2018, 131, 328–341. [Google Scholar] [CrossRef] [PubMed]
Cancers 14 04094 g001 550

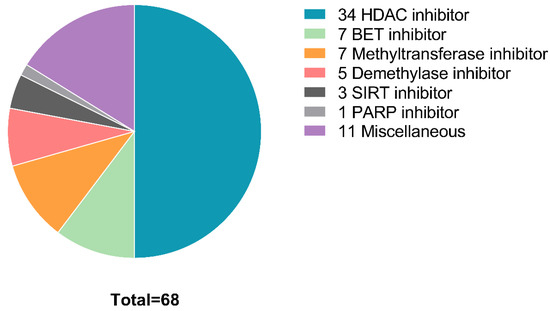

Figure 1. Distribution of compound types that showed efficacy in at least one sample. BET, bromodomain and extra-terminal motif; HDAC, histone deacetylase; SIRT, surtuin; PARP, poly (ADP-ribose) polymerase.
Figure 1. Distribution of compound types that showed efficacy in at least one sample. BET, bromodomain and extra-terminal motif; HDAC, histone deacetylase; SIRT, surtuin; PARP, poly (ADP-ribose) polymerase.
Cancers 14 04094 g001
Cancers 14 04094 g002 550

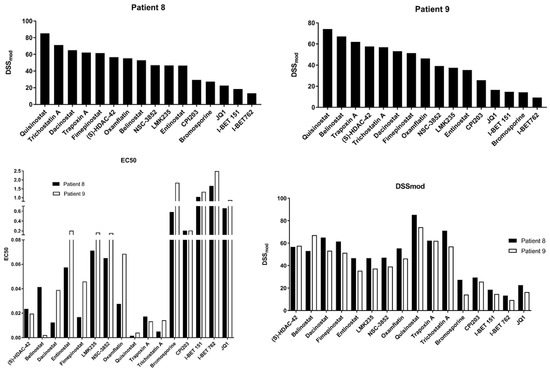

Figure 2. EC50 and drug sensitivity scoring for 16 select compounds in two patient-derived cell lines.
Figure 2. EC50 and drug sensitivity scoring for 16 select compounds in two patient-derived cell lines.
Cancers 14 04094 g002
Table
Table 1. Compound list of the Epigenetics modifier library.
Table 1. Compound list of the Epigenetics modifier library.
ClassCompounds
HDAC inhibitors (n = 51)(S)-HDAC-42, ACY-1215 (Rocilinostat), Apicidin, BATCP, BML-210, BML-281, CAY10398, CAY10603, CBHA, Chidamide, CI-994, CUDC-101, CUDC-907, Droxinostat, Entinostat (MS-275), Fluoro-SAHA, Givinostat (ITF2357), ITSA-1, JNJ-26481585, KD 5170, LAQ824, LMK 235, M-344, MC 1568, MC-1293, NCH-51, Nexturastat A, NSC-3852, Nullscript, Oxamflatin, PCI 34051, PCI-24781 (Abexinostat), Phenylbutyrate·Na, PXD101, Pyroxamide, RG2833 (RGFP109), RGFP966, SAHA, SB 939, SBHA, Scriptaid, Sodium 4-Phenylbutyrate, Suberoyl bis-hydroxamic acid, TC-H 106, TCS HDAC6 20b, TMP269, Trapoxin A, Trichostatin A, Tubastatin A, Valproic acid, Valproic acid hydroxamate
Histone acetylase inhibitors (n = 6)Butyrolactone 3, CPTH2, Delphinidin chloride, Garcinol, MB-3, NU 9056
BET inhibitors (n = 11)(+)-JQ1, Bromosporine, CPI203, EP-313, EP-336, GSK2801, I-BET 151, I-BET762 (GSK525762), PFI 1, PFI-3, RVX-208
IDH inhibitor (n = 3)(R)-2-HG, AGI-5198 (IDH-C35), AGI-6780,
Methyltransferase inhibitors (n = 28)(R)PFI-2, 2′-Deoxy-5-fluorocytidine, 5-Aza-2′-deoxycytidine, A-366, BIX-01294·3HCl, DZNep, Entacapone, EPZ005687, EPZ-5676, EPZ-6438, GSK126, GSK343, LLY-507, Lomeguatrib, MM-102, RG 108, SGC0946, SGI-1027, Sinefungin, UNC 0224, UNC 0638, UNC 0646, UNC 926, UNC0321, UNC0642, UNC1215, UNC1999, UNC669, Zebularine
Demethylase inhibitors (n = 12)2,4-Pyridinedicarboxylic Acid, GSK-J1, GSK-J2, GSK-J4, GSK-J5, IOX 1, IOX 2, JIB 04, OG-L002, PBIT, RN-1, Tranylcypromine hemisulfate
Sirt inhibitor (n = 11)AGK2, AK-7, BML-266, CAY10591, EX-527, Nicotinamide, Salermide, Sirtinol, Splitomicin, SRT1720, Tenovin-1
PARP inhibitors (n = 3)BYK 204165, OLAPAR 1B, PJ 34
P300/CBP inhibitors (n = 3)C 646, I-CBP 112, SGC-CBP30
Miscellaneous activators and inhibitors (n = 35)5-Iodotubercidin, 6-Thioguanine, Aminoresveratrol sulfate, Anacardic acid, APHA, B2, BI-2536, BML-278, Cl-Amidine, CTPB, Curcumin, Daminozide, Disulfiram, Ebselen, Ellagic Acid, Hydralazine, Isonicotinamide, LSD1-C12, LSD1-C76, LY294002, MI-2, P22077, Piceatannol, Plumbagin, PTC-209, Resveratrol, SBI-7406, SBI-7673, SBI-8162, Suramin·6Na, TG101348 (SAR302503), Triacetylresveratrol, UPF 1069, WDR5-C47, β-Lapachone
Compounds are ordered based on the mechanism of action.
Table
Table 2. Treatment responses in individual patients.
Table 2. Treatment responses in individual patients.
SamplesHit Compounds
Sample 1(+)-JQ1, (S)-HDAC-42 (AR-42), 2′-Deoxy-5-fluorocytidine, 5-Iodotubercidin, ACY-1215 (Rocilinostat), Apicidin, BI-2536, BML-281, Bromosporine, CAY10603, CBHA, Chidamide, CPI203, CUDC-101, CUDC-907 (Fimepinostat), Disulfiram, Entinostat (MS-275), Fluoro-SAHA, Givinostat (ITF2357), I-BET 151, I-BET62 (GSK525762), JIB 04, JNJ-26481585, KD 5170, LAQ824 (Dacinostat), LMK 235, LSD1-C12, M-344, NSC-3852, Oxamflatin, PXD101 (Belinostat), Pyroxamide, SAHA, SB 939 (Pracinostat), Scriptaid, Suberoyl bis-hydroxamic acid, TG101348 (SAR302503), Trapoxin A, Trichostatin A, β-Lapachone
Sample 2(+)-JQ1, (S)-HDAC-42 (AR-42), 5-Iodotubercidin, Apicidin, BI-2536, CBHA, CPI203, CUDC-907 (Fimepinostat), Entinostat (MS-275), Fluoro-SAHA, Givinostat (ITF2357), I-BET 151, I-BET62 (GSK525762), JNJ-26481585, LAQ824 (Dacinostat), LMK 235, M-344, Nexturastat A, NSC-3852, Oxamflatin, PCI-24781 (Abexinostat), PXD101 (Belinostat), SAHA, SB 939 (Pracinostat), Scriptaid, Trapoxin A, Trichostatin A, β-Lapachone
Sample 3(S)-HDAC-42 (AR-42), CUDC-907 (Fimepinostat), Disulfiram, Entinostat (MS-275), Givinostat (ITF2357), JIB 04, JNJ-26481585, LAQ824 (Dacinostat), LMK 235, M-344, NSC-3852, Oxamflatin, PCI-24781 (Abexinostat), PXD101 (Belinostat), SAHA, SB 939 (Pracinostat), Trapoxin A, Trichostatin A
Sample 4(+)-JQ1, (S)-HDAC-42 (AR-42), 5-Iodotubercidin, ACY-1215 (Rocilinostat), Apicidin, BI-2536, Bromosporine, CBHA, Chidamide, CI-994, CPI203, CUDC-101, CUDC-907 (Fimepinostat), Disulfiram, DZNep, Entinostat (MS-275), EP-336, Fluoro-SAHA, Givinostat (ITF2357), I-BET 151, I-BET62 (GSK525762), JIB 04, JNJ-26481585, LAQ824 (Dacinostat), LMK 235, M-344, Nexturastat A, NSC-3852, Oxamflatin, PCI-24781 (Abexinostat), PXD101 (Belinostat), SAHA, SB 939 (Pracinostat), Scriptaid, TG101348 (SAR302503), Trapoxin A, Trichostatin A, β-Lapachone
Sample 5(+)-JQ1, (S)-HDAC-42 (AR-42), BI-2536, CPI203, CUDC-907 (Fimepinostat), Disulfiram, Entinostat (MS-275), Givinostat (ITF2357), I-BET62 (GSK525762), JNJ-26481585, LAQ824 (Dacinostat), LMK 235, NSC-3852, Oxamflatin, PXD101 (Belinostat), SB 939 (Pracinostat), Trapoxin A, Trichostatin A
Sample 6(+)-JQ1, (S)-HDAC-42 (AR-42), 5-Iodotubercidin, Apicidin, BI-2536, CPI203, CUDC-907, Disulfiram, Entinostat (MS-275), EP670, Fluoro-SAHA, Givinostat (ITF2357), -BET 151, I-BET62 (GSK525762), JIB 04, JNJ-26481585, LAQ824 (Dacinostat), LMK 235, M-344, NSC-3852, Oxamflatin, PXD101 (Belinostat), SB 939 (Pracinostat), Scriptaid, Trapoxin A, Trichostatin A
Sample 7(+)-JQ1, (S)-HDAC-42 (AR-42), Apicidin, BI-2536, CPI203, CUDC-907, Entinostat (MS-275), JNJ-26481585, LAQ824 (Dacinostat), LMK 235, M-344, NSC-3852, Oxamflatin, PXD101 (Belinostat), Trapoxin A, Trichostatin A
Sample 8(+)-JQ1, (S)-HDAC-42 (AR-42), 5-Iodotubercidin, Apicidin, CBHA, CPI203, CUDC-907, Entinostat (MS-275), EP670, Givinostat (ITF2357), JNJ-26481585, LAQ824, LMK235, M-344, Nexturastat A, NSC-3852, OLAPAR 1B, Oxamflatin, PXD101 (Belinostat), SB 939 (Pracinostat), Scriptaid, Trapoxin A, Trichostatin A
Sample 9(+)-JQ1, (S)-HDAC-42 (AR-42), 2′-Deoxy-5-fluorocytidine, 5-Iodotubercidin, AK-7, Apicidin, BI-2536, BML-266, CBHA, CI-994, CPI203, CTPB, CUDC-907, Disulfiram, DZNep, Entinostat (MS-275), EP670, EPZ-5676, Fluoro-SAHA, Givinostat (ITF2357), GSK126, GSK-J1, I-BET 151, I-BET762 (GSK525762), JIB 04, JNJ-26481585, LAQ824, LMK 235, LSD1-C12, LY294002, M-344, MM-102, Nexturastat A, Nicotinamide, NSC-3852, OG-L002, OLAPAR 1B, Oxamflatin, P22077, PBIT, PTC-209, Piceatannol, PXD101 (Belinostat), Pyroxamide, RG 108, RGFP966, RN-1, SAHA, SB 939 (Pracinostat), SBHA, SBI-7673, Scriptaid, SGI-1027, TC-H 106, TCS HDAC6 20b, TG101348 (SAR302503), Trapoxin A, Trichostatin A
Table
Table 3. Efficacious epigenetic compounds in clinical evaluation for AML.
Table 3. Efficacious epigenetic compounds in clinical evaluation for AML.
CompoundNMode of ActionClinical Trial for AML
2′-Deoxy-5-fluorocytidine2DNMT inhibitorPhase I [18]
Abexinostat (PCI-24781)3HDAC inhibitorPhase I [19]
Belinostat (PXD101)9HDAC inhibitorPhase I, Phase II [20]
BI-25367PLK and BRD4 inhibitorPhase I/II [21]
Chidamide2HDAC inhibitorPhase I and II
Entinostat (MS-275)9HDAC inhibitorPhase I [22], Phase II [23]
Fedratinib (TG101348/SAR302503)3JAK2-selective inhibitorPhase I [24], Phase II
Pracinostat (SB 939)8HDAC inhibitorPhase I [25], Phase II [26], Phase III [27]
Pyroxamide2HDAC inhibitorPhase I
SAHA (Vorinostat)5HDAC inhibitorPhase I [28,29]; Phase II [30,31,32]; Phase III
Trichostatin A9HDAC inhibitorPhase I
Table
Table 4. Known HDAC targets for HDAC inhibitors that showed efficacy in all patients.
Table 4. Known HDAC targets for HDAC inhibitors that showed efficacy in all patients.
CompoundsClass IClass IIaClass IIbClass IV
HDAC1HDAC2HDAC3HDAC8HDAC4HDAC5HDAC7HDAC9HDAC6HDAC10HDAC11
(S)-HDAC-42UNKNOWN
CUDC-907 (Fimepinostat)XXXXXXXXXXX
Entinostat (MS-275)XXX
JNJ-26481585 (Quisinostat)XXXXXXXXXX
LAQ824 (Dacinostat)X
LMK 235XX XXX X X
NSC-3852UNKNOWN
OXamflatinUNKNOWN
PXD101 (Belinostat)XXX X
TrapoXin AXXXX
Trichostatin AXXX X
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Dennison, J.L.; Al-Ali, H.; Volmar, C.-H.; Brothers, S.; Watts, J.; Wahlestedt, C.; Lohse, I. Functional Drug Screening of Small Molecule Inhibitors of Epigenetic Modifiers in Refractory AML Patients. Cancers 2022, 14, 4094. https://doi.org/10.3390/cancers14174094

AMA Style

Dennison JL, Al-Ali H, Volmar C-H, Brothers S, Watts J, Wahlestedt C, Lohse I. Functional Drug Screening of Small Molecule Inhibitors of Epigenetic Modifiers in Refractory AML Patients. Cancers. 2022; 14(17):4094. https://doi.org/10.3390/cancers14174094

Chicago/Turabian Style

Dennison, Jessica L., Hassan Al-Ali, Claude-Henry Volmar, Shaun Brothers, Justin Watts, Claes Wahlestedt, and Ines Lohse. 2022. "Functional Drug Screening of Small Molecule Inhibitors of Epigenetic Modifiers in Refractory AML Patients" Cancers 14, no. 17: 4094. https://doi.org/10.3390/cancers14174094

APA Style

Dennison, J. L., Al-Ali, H., Volmar, C. -H., Brothers, S., Watts, J., Wahlestedt, C., & Lohse, I. (2022). Functional Drug Screening of Small Molecule Inhibitors of Epigenetic Modifiers in Refractory AML Patients. Cancers, 14(17), 4094. https://doi.org/10.3390/cancers14174094

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
