Micromachines 2018, 9(6), 296; https://doi.org/10.3390/mi9060296

Review
Progress in Photo-Responsive Polypeptide Derived Nano-Assemblies
by Lu Yang 1, Houliang Tang 2 and Hao Sun 1,*
1
Department of Chemistry, University of Florida, Gainesville, FL 32611, USA
2
Department of Chemistry, Southern Methodist University, Dallas, TX 75275, USA
*
Author to whom correspondence should be addressed.
Received: 25 May 2018 / Accepted: 11 June 2018 / Published: 13 June 2018

Abstract

:
Stimuli-responsive polymeric materials have attracted significant attention in a variety of high-value-added and industrial applications during the past decade. Among various stimuli, light is of particular interest as a stimulus because of its unique advantages, such as precisely spatiotemporal control, mild conditions, ease of use, and tunability. In recent years, a lot of effort towards the synthesis of a biocompatible and biodegradable polypeptide has resulted in many examples of photo-responsive nanoparticles. Depending on the specific photochemistry, those polypeptide derived nano-assemblies are capable of crosslinking, disassembling, or morphing into other shapes upon light irradiation. In this review, we aim to assess the current state of photo-responsive polypeptide based nanomaterials. Firstly, those ‘smart’ nanomaterials will be categorized by their photo-triggered events (i.e., crosslinking, degradation, and isomerization), which are inherently governed by photo-sensitive functionalities, including O-nitrobenzyl, coumarin, azobenzene, cinnamyl, and spiropyran. In addition, the properties and applications of those polypeptide nanomaterials will be highlighted as well. Finally, the current challenges and future directions of this subject will be evaluated.
Keywords:
stimuli-responsive polymers; synthetic polypeptide; photo-sensitive; self-assembly; morphological transformation

1. Introduction

Stimuli-responsive or ‘Smart’ polymers are capable of changing their physical and/or chemical properties upon receiving external triggers, such as temperature, pH, redox, mechanical forces, and light [1,2,3,4,5,6,7,8,9]. These tailor-made polymers are receiving significant interest in the fields of drug delivery, biosensor, tissue engineering, coatings, and self-healing materials [10,11,12,13,14]. In particular, light has recently garnered tremendous attention as a stimulus, as it can be not only triggered remotely but also provides spatiotemporal control [15,16,17,18,19,20,21,22,23]. Moreover, irradiation parameters, including wavelength, power, and time, can be easily tuned to fit the system (e.g., on-demand and controllable drug release rate) [24,25,26,27]. Typically, the ability of smart polymers to respond to light stems from the incorporation of photo-sensitive chemical structures [28,29,30]. Those moieties can be classified into three general categories based on their specific photo-chemistry (Scheme 1A–C). In the first category, represented by cinnamyl and coumarin, photo-induced dimerization of those groups takes place upon irradiation at a certain wavelength, while the dimer can undergo a reversal reaction at another wavelength with a higher energy (i.e., shorter wavelength). The second (e.g., O-nitrobenzyl) involves irreversible photo-triggered degradation, which can liberate the unprotected functionality, leading to a dramatic change in solvability. The last subset includes functional groups, such as azobenzene and spiropyran, which are capable of reversibly isomerizing under different wavelengths. By taking advantage of the above-mentioned photo-chemistry, various light-triggered morphological transformations (e.g., crosslinking, dissociation, and shape change) of polypeptide nano-assemblies have been achieved (Scheme 1D).
Inspired by natural protein, synthetic polypeptides or poly(amino acids) based nanomaterials are receiving increasing interest in the field of polymer science because of their inherent biocompatibility and biodegradability [31,32]. Furthermore, synthetic polypeptides have exhibited their unique ability to form higher order secondary structures, including α-helix, β-sheet, and β-turn, thanks to non-covalent interactions (i.e., hydrogen bonds, pi–pi stacking, and hydrophobic interaction) between amino acids side chains [33,34]. Those non-covalent interactions are highly sensitive to local environments, such as temperature, pH, the presence and concentration of reducing agent, ionic strength, and even light. A small change in the local environment could have a noticeable impact on non-covalent interactions, resulting in the transformation of secondary structures and concomitant change in bio-activity and function of polypeptides [35].
The rapid development of polymerization methodology has empowered polymer chemists with the ability to easily prepare unique polypeptides with diverse architecture and functionalities [36,37,38,39]. Numerous polypeptides have been successfully prepared via various living polymerization approaches, such as ring-opening polymerization of N-carboxyanhydrides (NCA) [40,41,42,43], reversible addition-fragmentation polymerization [38], atom transfer radical polymerization [44,45], and ring-opening metathesis polymerization [46,47,48,49,50]. In a typical case, living or controlled polymerization techniques are capable of producing polymers with precise chain lengths, excellent functionalities tolerance, and narrow polydispersity [51,52,53,54,55]. In addition, complicated architectures, such as block, cyclic, brush, and star, which were previously inaccessible, can now easily be made via living polymerization techniques [56,57,58,59,60,61,62,63,64]. Owing to those features arising from the living polymerizations (vide supra), one can design and tune the hydrophobic to hydrophilic balance, which dictates the critical packing parameters and give rise to nanoparticles with predictable morphologies (Scheme 2) [65].
With the recent success of light-responsive amphiphilic polypeptides in nanotechnology and nanomedicine, we believe it is necessary to assess the current state of those smart nanomaterials. In this review, the main focus will be placed on the photo-chemistry of various light-sensitive functional groups that are incorporated into the polypeptide nanoparticles. Furthermore, we will discuss the influence on the size or morphologies of nano-assemblies as a consequence of light treatment and how this may assist the prediction of potential applications of those materials. Recent examples of photo-responsive polypeptide deriving nanoparticles are summarized in Table 1. Finally, we believe it is crucial to evaluate the current challenges and future directions of this field.

2. Photo-Chemistry of Light-Responsive Polypeptide Nanoparticles

2.1. Photo-Crosslinkable Nanoparticles

Photo-dimerizable or crosslinkable groups including cinnamic, coumarin, and anthracene can undergo a crosslinking reaction via [2+2] cycloaddition of the carbon-carbon double bonds after UV-irradiation [79,80,81]. They have been mainly utilized for the photo-crosslinking of micelles, leading to micelles or nanogels with enhanced colloidal stability, even in very dilute condition [82,83,84]. Compared with traditional crosslinking methods such as ‘click’ chemistry and carbodiimide coupling, the photo-crosslinking approach is relatively inexpensive, rapid, and highly efficient at room temperature. Furthermore, no byproduct is generated during the photo-dimerization process, rendering a final product with a high purity [85].
Chen et al. demonstrated the first example of photo-crosslinkable polypeptide based micelle [66]. In their work, diblock copolymer poly(ethylene glycol)-b-poly(l-glutamic acid) was synthesized by ring-opening polymerization (ROP) of l-glutamate-NCA monomer in the presence of PEG-amine macroinitiator. The resulting diblock copolymer further underwent deprotection and subsequent modification with cinnamyl alcohol, yielding amphiphilic PEG-b-polypeptide, containing pendent cinnamyl functionalities. A core-shell micellar structure was formed by the self-assembly of the PEG-b-polypeptide into water. Moreover, UV-irradiation at 254 nm led to photo-crosslinking of the micellar core, which was directly proven by dynamic light scattering (DLS), showing a decreased size of the nanoparticle after core-crosslinking. Jing and coworkers reported the synthesis and ROP of a functional NCA monomer bearing a cinnamyl moiety [67]. Water soluble PEG-amine macroinitiator was utilized during the polymerization process, leading to well-defined PEG-b-polypeptide copolymers, which possess cinnamyl groups in the side chains of hydrophobic polypeptide (Figure 1A). The block copolymer was capable of self-assembling into micelles that could be core-crosslinked under UV light (Figure 1B,C). It is noteworthy to mention that Jing’s direct polymerization approach achieved full functionalization of cinnamyl in the repeating units of the polypeptide chain. However, in the case of Chen’s post-modification method, only a partial functionalization of repeating units with cinnamyl could be realized because of the low efficiency of esterification under steric environment of the polypeptide.
Beyond cinnamyl photo-chemistry, coumarin based reversible dimerization has also been illustrated in the fabrication of photo-crosslinkable polypeptide micelles. In a pioneering work by Luo, solution-phase peptide synthesis (PPS) was employed to obtain a linear-dendritic block copolymer composed of hydrophilic PEG (5 KDa) and hydrophobic branched polylysine containing peripheral coumarin groups (Figure 2A) [68]. As the block copolymer was amphiphilic, micellar nanoparticles were observed in water as a result of self-assembly (Figure 2B). When long-wavelength UV irradiation (>310 nm) was applied to micelle solutions, the core-crosslinking event was rapidly completed within 400 seconds, as indicated by UV-Vis spectra. More interestingly, photo-induced decrosslinking occurred upon exposure to a short wavelength UV light (254 nm), elucidating the reversibility of this process. Notably, the decrosslinking reaction of coumarin dimer underwent a significantly slower kinetics (over 100 min) compared with that of crosslinking process.

2.2. Photo-Cleavable Nano-Objects

While polypeptide derived diblock copolymer micelles can acquire enhanced stability through the photo-crosslinking process, the concern regarding the lack of degradability still remains, especially in biomedical applications [86,87]. In view of this, photo-cleavage chemistry has emerged as an alternative approach to photo-sensitive polypeptide nanoparticles [13,69,70,71,72,74,88]. More importantly, photo-cleavage reactions are typically accompanied by a dramatic increase in the water-solubility of the hydrophobic segment, which could promote either a disassembly or morphological transformation of nano-objects.
Several illustrative examples of photo-cleavable polypeptide nanoparticles involving O-nitrobenzyl groups have been reported by Dong et al. In their first work, a photo-sensitive S-(O-nitrobenzyl)-l-cysteine NCA monomer (abbreviated as NBC) was designed and polymerized with PEG-amine as macroinitiator, giving rise to a diblock copolymer PNBC-b-PEG [69]. Since the NBC repeating units are hydrophobic because of the presense of O-nitrobenzyl moieties in the side chains, the amphiphilic block copolymer is able to form micelles with a size of 79 nm. This approach conferred photo-degradability to the micelles, because the hydrophobic core consists of numerous UV-labile O-nitrobenzyl groups. Transmission electron microscopy (TEM) and dynamic light scattering demonstrated that the block copolymer micelles were capable of dissociating into smaller nanoparticles (44 nm) upon UV irradiation at 365 nm. The reduction in particle size is because of the photo-cleavage of O-nitrobenzyl groups, producing free thiols with enhanced water solubility. A later report described the photo-induced shape transformation of polypeptide-containing vesicles (Figure 3A) [70]. In that work, PNBC56-b-PEG114 (the subscript stands for the number of repeating units) was synthesized and used for constructing a vesicle morphology in an aqueous solution. The vesicle solution was subsequently exposed to 365 nm UV light, promoting the cleavage of O-nitrobenzyl groups and a concomitant increment in hydrophilicity of PNBC block. As the ratio of hydrophilicity to hydrophobicity increased, the critical packing parameters of the nano-assemblies decreased, inducing a morphological transition from vesicle to micelles (Figure 3B–D). In addition, the free thiol inside the micellar core can be further oxidized in the presence of an oxidizer (i.e., hydrogen peroxide), resulting in formation of disulfide linkages, which prompt the aggregation of the micelles.
Very recently, the same group invented NIR-responsive PNBC-b-PEG upconversion composite micelles (Figure 4) [13]. During the block copolymer self-assembly process, upconversion nanoparticles (UCNP) were encapsulated inside the PNBC core. The composite micelles were capable of disassembling with the help of UCNP, converting NIR light (980 nm) to UV light (365 nm). Moreover, Zhao and coworkers reported a novel NIR light-sensitive micellar system based on a diblock copolymer, consisting of PEG and poly(l-glutamic acid) bearing pendent 6-bromo-7-hydroxycoumarin-4-ylmethyl groups, an efficient NIR two-photon-absorbing chromophore (Figure 5) [74]. Upon irradiation with 794 nm of NIR light, the chromophores were gradually removed from the polypeptide chain, shifting the hydrophilic–hydrophobic balance toward a disassembly of micelles in water. Notably, nearly 200 min of irradiation was needed to fully cleave the side chain groups, demonstrating the potential of controlled release kinetics.

2.3. Photo-Isomerizable Nano-Assemblies

According to the properties of the aforementioned photo-crosslinkable and photo-cleavable polypeptide nanoparticles (vide supra), we can easily draw the conclusion that the photo-induced shape transformation or micellar disruption based on those functionalities are non-reversible under common conditions. While the de-crosslinking reaction of coumarin dimer can be literally achieved, the condition (i.e., 254 nm) is harsh and the slow reaction could cause the decomposition of coumarin and lead to undesired side reactions [89]. In the case of O-nitrobenzyl, the UV-induced photo-redox cleavage would generate O-nitrosobenzaldehyde that cannot reform the original O-nitrobenzyl moiety. To further pursue efficient and reversible photo-responsiveness of polypeptide nano-assemblies, some research groups have designed smart nanoparticle systems, which rely on photo-isomerizable functionalities, such as azobenzene and spiropyran [40,75,76,77,78,90,91,92].
Azobenzene is capable of transitioning between two isomers (i.e., cis and trans) through manipulation of UV light (365 nm) and visible light. When UV light is present, a polar cis-isomer is favorably formed. On the other hand, visible light or heat can promote the shift of isomerization towards thermodynamically favored non-polar trans-isomer. To date, azobenzene derivatives have been extensively incorporated into many peptides, either in the side chains or in the backbone. In a report by Moretto, azobenzene served as a central linker for diblock poly(γ-benzyl-l-glutamate) (PBLG) (Figure 6A,B) [76]. Before UV irradiation, diblock PBLG trans-isomer vesicles were observed, as evidenced by TEM and SEM (Figure 6C,D). After exposure to UV light, a rapid and gradual collapse of those ordered vesicles was observed, probably owing to trans-to-cis azobenzene transformation, which induced change in 3D geometry of diblock polypeptide (Figure 6F–I). Lu and coworkers were able to synthesize photo-responsive polypeptides via ROP of NCA monomers that consisted of pendent azobenzene and oligoethylene glycol (OEG), affording P(OEG-Azo) [40]. Because of the presence of both hydrophobic azobenzene and hydrophilic OEG, P(PEG-Azo) can self-assemble into nanoparticles in an aqueous solution. Moreover, a α-helical conformation of polypeptide was observed in the case of azobenzene trans-isomer. Upon UV treatments, trans-cis isomerization occurred and forced the polypeptides to adopt a disordered conformation, as evidenced by the circular dichroism spectroscopy. Importantly, a reversible conformation switch was found when heating the UV-treated cis-polypeptides at 70 °C.
Spiropyran (SP) is a widely-used photochromic molecule, thanks to light-induced spiropyran-to-merocyanine (SP–MC) isomerization [93,94]. Original SP derivatives, in their closed form, appear as colorless, nonpolar, and hydrophobic compounds. Isomerization toward MC (open form) occurred under UV treatment, leading to MC derivatives, which are colored, polar, and hydrophilic. Mezzenga et al. presented an excellent example of photo-reversible micelle system, based on spiropyran-containing polypeptide-b-PEG diblock copolymer (Figure 7A) [78]. Firstly, they performed a kinetic study of SP–MC and MC–SP isomerization, using UV-Vis spectroscopy. Before UV irradiation (365 nm), the solution was colorless, suggesting the absence of the MC form. After UV irradiation, the absorption peak at 544 nm progressively increased and reached maximum value within 5 min, indicative of fast and complete SP–MC isomerization. Nevertheless, MC–SP isomerization happened much slower and reached full conversion after 180 min in the presence of visible light (590 nm). After demonstrating the photo-regulated reversibility of SP–PC isomerization, the authors further utilized TEM to observe the reversible aggregation–dissolution–aggregation process of block copolymers in water. According to their results, original SP isomer containing polymers were capable of self-assembling into micelles (Figure 7B). UV irradiation fully disrupted the micellar structure after 5 min, because of the formation of hydrophilic MC moieties (Figure 7C). Interestingly, micelles were successfully recovered as a consequence of visible light treatment for 3 h (Figure 7D).

3. Properties and Applications

Apparently, polypeptide derived nanoparticles hold great potential to serve as excellent drug delivery systems because of their biocompatibility and biodegradability. Moreover, the aforementioned photo-chemistry confers those nanoparticles with attractive properties, such as enhanced colloidal stability and on-demand drug release. Jing and coworkers investigated in vitro paclitaxel (PTX) release from two batches of PTX-loaded peptide micelles, with one batch treated with UV light [67]. According to their results, the drug release from the crosslinked micelles was significantly slower than that from the non-crosslinked micelle. For instance, only 20% of the drug was leaked from a crosslinked micelle during 55 h incubation in a phosphate buffered saline (PBS) buffer, while almost 100% of the drug was released from a non-crosslinked micelle under same condition (Figure 8). In Zhao’s study, NIR-responsive Rifampicin-encapsulated polypeptide micelles showed a neglectable release after 55 h in the absence of NIR irradiation. When the NIR laser was turned on, a progressive drug release was observed, demonstrating the feasibility of this drug delivery system to achieve on-demand drug release.
Very recently, Mandal and coworkers employed ROP to prepare a cationic block copolymer consisting of poly(2-ethyl-2-oxazoline) and positively charged O-nitrobenzyl modified polymethionine (P[MetNB][Br]) [73]. This cationic polypeptide was capable of forming an electrostatic complex with negatively charged calf thymus DNA (ctDNA). When UV-light was applied to the polypeptide-DNA complex, a photo-driven cleavage of O-nitrobenzyl moieties occurred, resulting in neutral polypeptides, which had no binding affinity with ctDNA (Figure 9A). According to the gel electrophoresis, free ctDNA was rapidly released from the complex after irradiation with UV light. Those results demonstrated the potential of using photo-responsive cationic polypeptide as a DNA delivery platform (Figure 9B,C).
In addition to biomedical applications, photo-responsive polypeptides have been used in the field of catalysis as well. He and coworkers designed a peptide-based artificial hydrolase, which consisted of a catalytic histidine residue and a photo-responsive azobenzene group in the peptide chain (Figure 10) [77]. Before UV irradiation, the peptide exhibited an antiparallel β-sheet conformation, enabling self-assembly into a peptide fibril. An enhanced catalytic activity on p-nitrophenyl acetate was observed, because of the hydrophobic environment of peptide fibril and proximity effect of histidine groups. However, a significant reduction in catalytic efficiency occurred upon exposure to UV-light, which caused a conformational conversion of peptide from β-sheet to random coil and thus disrupted the supramolecular fibril structure. Most importantly, the authors were able to demonstrate that the activity of the peptide-based artificial hydrolase could be reversibly controlled using visible and UV light.
Finally, the application of photo-sensitive polypeptides was successfully translated into macroscopic materials involving reversible sol-gel process, as described by Hu and Li (Figure 11) [40]. In their study, an organogel was formulated by dissolving azo-bearing polypeptide-b-PEG-b-polypeptide triblock copolymer in THF (Figure 11A). Interestingly, the gel was capable of switching physical states between gel and solution upon alternating the visible and UV treatment. According to the atom force microscope images, the gel revealed a densely crosslinked fibrous network, while the solution exhibited a much smaller degree of crosslinking after UV irradiation (Figure 11B,C).

4. Current Challenges and Prospective

Many relatively recent developments in photo-responsive polypeptides have greatly expanded the scope of smart nanomaterials, providing us with many new possibilities and opportunities in various applications, such as drug delivery, self-healing materials, and catalysis. Indeed, the marriage of polypeptide and photo-chemistry not only confer biocompatibility to the nanomaterials, but also facilitate the structural control of peptide chains or nano-assemblies because of the ease of using light. In view of photo-chemistry relying on different light-sensitive functionalities, a number of photo-sensitive peptide nanoparticles with distinct properties have been accomplished.
Despite the tremendous success that has been described above, many challenges still remain. One significant barrier is the translation of light-responsive polypeptide drug delivery system into clinical use. Indeed, the majority of examples in this review involve the use of UV light or visible light, which has a poor penetration depth into human tissue. Moreover, UV light has been shown to be detrimental to healthy cells and tissues [95,96,97,98,99]. Because of these downsides of using UV/Vis light, NIR-responsive polypeptide nanoparticles represent a more promising platform for nanomedicine [100]. However, the current NIR-responsive polypeptide derived drug delivery systems suffer from either slow drug release kinetics or an introduction of cytotoxic UCNP [13,74]. Therefore, more careful design and study are essential in order to translate those nanomaterials into biomedical applications. Moreover, photo-responsive polypeptide nano-objects have not yet been reported by means of controlled radical polymerization (CRP) and ring-opening metathesis polymerization (ROMP). Considering the robustness of CRP and ROMP techniques to prepare polymers with complex architectures and functions, we envision that one of the next directions for photo-responsive polypeptides will be updating the synthetic toolbox, in order to achieve more sophisticated polypeptide structures. According to the above-mentioned examples illustrated in Table 1, photo-responsive polypeptide deriving nanomaterials have been overwhelmingly exploited for potential biomedicine use, such as drug delivery and gene release. However, only a few reports demonstrated the promise of those materials in other utilities, such as switchable catalysis and reversible macroscopic gel materials. Since light can be easily used to dictate when and where the photo-reaction happens, it can be anticipated that the significant attention on photo-responsive polypeptides will be shifted to some other applications, including self-healing materials, lithography or 3D-printing technology, which may exhibit excellent performance with the help of light-stimulus. Given the considerable success of traditional stimuli-responsive materials in biomedicine and manufacturing, we believe that photo-responsive polypeptide nanomaterials will take on more important roles to next generation of supramolecular peptide nanotechnology and material science.

Author Contributions

Conceptualization: H.S. and L.Y.; literature research: L.Y.; writing (original draft preparation): H.S.; writing (review and editing): H.S., L.Y., and H.T.; supervision: H.S.; and funding acquisition: H.S.

Funding

This research received no external funding.

Acknowledgments

H.S. gratefully acknowledges the fellowship support from EASTMAN Chemical Company and the Chinese government award for out-standing self-financed students abroad.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sun, H.; Kabb, C.P.; Dai, Y.; Hill, M.R.; Ghiviriga, I.; Bapat, A.P.; Sumerlin, B.S. Macromolecular metamorphosis via stimulus-induced transformations of polymer architecture. Nat. Chem. 2017, 9, 817–823. [Google Scholar] [CrossRef] [PubMed]
  2. Wei, M.; Gao, Y.; Li, X.; Serpe, M. Stimuli-responsive polymers and their applications. Polym. Chem. 2017, 8, 127–143. [Google Scholar] [CrossRef][Green Version]
  3. Herbert, K.M.; Schrettl, S.; Rowan, S.J.; Weder, C. 50th anniversary perspective: Solid-state multistimuli, multiresponsive polymeric materials. Macromolecules 2017, 50, 8845–8870. [Google Scholar] [CrossRef]
  4. Rowan, S.; Cantrill, S.; Cousins, G.; Sanders, J.; Stoddart, J. Dynamic covalent chemistry. Angew. Chem. Int. Ed. 2002, 41, 898–952. [Google Scholar] [CrossRef]
  5. Stuart, M.; Huck, W.; Genzer, J.; Muller, M.; Ober, C.; Stamm, M.; Sukhorukov, G.; Szleifer, I.; Tsukruk, V.; Urban, M.; et al. Emerging applications of stimuli-responsive polymer materials. Nat. Mater. 2010, 9, 101–113. [Google Scholar] [CrossRef] [PubMed]
  6. Alfurhood, J.A.; Sun, H.; Kabb, C.P.; Tucker, B.S.; Matthews, J.H.; Luesch, H.; Sumerlin, B.S. Poly(n-(2-hydroxypropyl)-methacrylamide)-valproic acid conjugates as block copolymer nanocarriers. Polym. Chem. 2017, 8, 4983–4987. [Google Scholar] [CrossRef] [PubMed]
  7. Tang, H.L.; Tsarevsky, N.V. Preparation and functionalization of linear and reductively degradable highly branched cyanoacrylate-based polymers. J. Polym. Sci. Part A Polym. Chem. 2016, 54, 3683–3693. [Google Scholar] [CrossRef]
  8. Tang, H.L.; Tsarevsky, N.V. Lipoates as building blocks of sulfur-containing branched macromolecules. Polym. Chem. 2015, 6, 6936–6945. [Google Scholar] [CrossRef]
  9. Wan, S.; Zhang, L.Q.; Wang, S.; Liu, Y.; Wu, C.C.; Cui, C.; Sun, H.; Shi, M.L.; Jiang, Y.; Li, L.; et al. Molecular recognition-based DNA nanoassemblies on the surfaces of nanosized exosomes. J. Am. Chem. Soc. 2017, 139, 5289–5292. [Google Scholar] [CrossRef] [PubMed]
  10. Sun, H.; Dobbins, D.J.; Dai, Y.; Kabb, C.P.; Wu, S.; Alfurhood, J.A.; Rinaldi, C.; Sumerlin, B.S. Radical departure: Thermally-triggered degradation of azo-containing poly(β-thioester)s. ACS Macro Lett. 2016, 5, 688–693. [Google Scholar] [CrossRef]
  11. Dai, Y.; Sun, H.; Pal, S.; Zhang, Y.; Park, S.; Kabb, C.; Wei, W.; Sumerlin, B. Near-ir-induced dissociation of thermally-sensitive star polymers. Chem. Sci. 2017, 8, 1815–1821. [Google Scholar] [CrossRef] [PubMed]
  12. Alfurhood, J.A.; Sun, H.; Bachler, P.R.; Sumerlin, B.S. Hyperbranched poly(n-(2-hydroxypropyl)methacrylamide) via raft self-condensing vinyl polymerization. Polym. Chem. 2016, 7, 2099–2104. [Google Scholar] [CrossRef]
  13. Liu, G.; Liu, N.; Zhou, L.Z.; Su, Y.; Dong, C.M. Nir-responsive polypeptide copolymer upconversion composite nanoparticles for triggered drug release and enhanced cytotoxicity. Polym. Chem. 2015, 6, 4030–4039. [Google Scholar] [CrossRef]
  14. Liu, Y.; Hou, W.J.; Sun, H.; Cui, C.; Zhang, L.Q.; Jiang, Y.; Wu, Y.X.; Wang, Y.Y.; Li, J.; Sumerlin, B.S.; et al. Thiol-ene click chemistry: A biocompatible way for orthogonal bioconjugation of colloidal nanoparticles. Chem. Sci. 2017, 8, 6182–6187. [Google Scholar] [CrossRef] [PubMed]
  15. Chen, M.; Zhong, M.; Johnson, J. Light-controlled radical polymerization: Mechanisms, methods, and applications. Chem. Rev. 2016, 116, 10167–10211. [Google Scholar] [CrossRef] [PubMed]
  16. Tan, J.B.; Li, X.L.; Zeng, R.M.; Liu, D.D.; Xu, Q.; He, J.; Zhang, Y.X.; Dai, X.C.; Yu, L.L.; Zeng, Z.H.; et al. Expanding the scope of polymerization-induced self-assembly: Z-raft-mediated photoinitiated dispersion polymerization. ACS Macro Lett. 2018, 7, 255–262. [Google Scholar] [CrossRef]
  17. Yeow, J.; Boyer, C. Photoinitiated polymerization-induced self-assembly (photo-pisa): New insights and opportunities. Adv. Sci. 2017, 4, 1700137. [Google Scholar] [CrossRef] [PubMed]
  18. Tan, J.B.; Huang, C.D.; Liu, D.D.; Zhang, X.C.; Bai, Y.H.; Zhang, L. Alcoholic photoinitiated polymerization-induced self-assembly (photo-pisa): A fast route toward poly(isobornyl acrylate)-based diblock copolymer nano-objects. ACS Macro Lett. 2016, 5, 894–899. [Google Scholar] [CrossRef]
  19. Tan, J.B.; Sun, H.; Yu, M.G.; Sumerlin, B.S.; Zhang, L. Photo-pisa: Shedding light on polymerization-induced self-assembly. ACS Macro Lett. 2015, 4, 1249–1253. [Google Scholar] [CrossRef]
  20. Niu, J.; Lunn, D.J.; Pusuluri, A.; Yoo, J.I.; O'Malley, M.A.; Mitragotri, S.; Soh, H.T.; Hawker, C.J. Engineering live cell surfaces with functional polymers via cytocompatible controlled radical polymerization. Nat. Chem. 2017, 9, 537–545. [Google Scholar] [CrossRef] [PubMed]
  21. Treat, N.; Sprafke, H.; Kramer, J.; Clark, P.; Barton, B.; de Alaniz, J.; Fors, B.; Hawker, C. Metal-free atom transfer radical polymerization. J. Am. Chem. Soc. 2014, 136, 16096–16101. [Google Scholar] [CrossRef] [PubMed]
  22. Goetz, A.E.; Boydston, A.J. Metal-free preparation of linear and cross-linked polydicyclopentadiene. J. Am. Chem. Soc. 2015, 137, 7572–7575. [Google Scholar] [CrossRef] [PubMed]
  23. Ogawa, K.A.; Goetz, A.E.; Boydston, A.J. Metal-free ring-opening metathesis polymerization. J. Am. Chem. Soc. 2015, 137, 1400–1403. [Google Scholar] [CrossRef] [PubMed]
  24. Blasco, E.; Sims, M.B.; Goldmann, A.S.; Sumerlin, B.S.; Barner-Kowollik, C. 50th anniversary perspective: Polymer functionalization. Macromolecules 2017, 50, 5215–5252. [Google Scholar] [CrossRef]
  25. Xu, J.; Shanmugam, S.; Fu, C.; Aguey-Zinsou, K.; Boyer, C. Selective photoactivation: From a single unit monomer insertion reaction to controlled polymer architectures. J. Am. Chem. Soc. 2016, 138, 3094–3106. [Google Scholar] [CrossRef] [PubMed]
  26. Kottisch, V.; Michaudel, Q.; Fors, B.P. Photocontrolled interconversion of cationic and radical polymerizations. J. Am. Chem. Soc. 2017, 139, 10665–10668. [Google Scholar] [CrossRef] [PubMed]
  27. Michaudel, Q.; Chauvire, T.; Kottisch, V.; Supej, M.J.; Stawiasz, K.J.; Shen, L.X.; Zipfel, W.R.; Abruna, H.D.; Freed, J.H.; Fors, B.P. Mechanistic insight into the photocontrolled cationic polymerization of vinyl ethers. J. Am. Chem. Soc. 2017, 139, 15530–15538. [Google Scholar] [CrossRef] [PubMed]
  28. Rwei, A.Y.; Wang, W.P.; Kohane, D.S. Photoresponsive nanoparticles for drug delivery. Nano Today 2015, 10, 451–467. [Google Scholar] [CrossRef] [PubMed][Green Version]
  29. Zhao, Y.; Tremblay, L.; Zhao, Y. Doubly photoresponsive and water-soluble block copolymers: Synthesis and thermosensitivity. J. Polym. Sci. Part A Polym. Chem. 2010, 48, 4055–4066. [Google Scholar] [CrossRef]
  30. Fomina, N.; McFearin, C.L.; Sermsakdi, M.; Morachis, J.M.; Almutairi, A. Low power, biologically benign nir light triggers polymer disassembly. Macromolecules 2011, 44, 8590–8597. [Google Scholar] [CrossRef] [PubMed]
  31. Bauri, K.; Nandi, M.; De, P. Amino acid-derived stimuli-responsive polymers and their applications. Polym. Chem. 2018, 9, 1257–1287. [Google Scholar] [CrossRef]
  32. Gradisar, H.; Bozic, S.; Doles, T.; Vengust, D.; Hafner-Bratkovic, I.; Mertelj, A.; Webb, B.; Sali, A.; Klavzar, S.; Jerala, R. Design of a single-chain polypeptide tetrahedron assembled from coiled-coil segments. Nat. Chem. Biol. 2013, 9, 362–366. [Google Scholar] [CrossRef] [PubMed][Green Version]
  33. Franco, L.; del Valle, L.J.; Puiggali, J. Smart systems related to polypeptide sequences. AIMS Mater. Sci. 2016, 3, 289–323. [Google Scholar] [CrossRef]
  34. Ashkenasy, N.; Schneider, J. Functional peptide and protein nanostructures. Isr. J. Chem. 2015, 55, 621. [Google Scholar] [CrossRef]
  35. Aemissegger, A.; Hilvert, D. Synthesis and application of an azobenzene amino acid as a light-switchable turn element in polypeptides. Nat. Protoc. 2007, 2, 161–167. [Google Scholar] [CrossRef] [PubMed]
  36. Ungerleider, J.L.; Kammeyer, J.K.; Braden, R.L.; Christman, K.L.; Gianneschi, N.C. Enzyme-targeted nanoparticles for delivery to ischemic skeletal muscle. Polym. Chem. 2017, 8, 5212–5219. [Google Scholar] [CrossRef] [PubMed]
  37. Carlini, A.S.; Adamiak, L.; Gianneschi, N.C. Biosynthetic polymers as functional materials. Macromolecules 2016, 49, 4379–4394. [Google Scholar] [CrossRef] [PubMed]
  38. Chen, C.; Thang, S.H. Raft polymerization of a rgd peptide-based methacrylamide monomer for cell adhesion. Polym. Chem. 2018, 9, 1780–1786. [Google Scholar] [CrossRef]
  39. Wang, Z.; Li, Y.W.; Huang, Y.R.; Thompson, M.P.; LeGuyader, C.L.M.; Sahu, S.; Gianneschi, N.C. Enzyme-regulated topology of a cyclic peptide brush polymer for tuning assembly. Chem. Commun. 2015, 51, 17108–17111. [Google Scholar] [CrossRef] [PubMed]
  40. Xiong, W.; Fu, X.H.; Wan, Y.M.; Sun, Y.L.; Li, Z.B.; Lu, H. Synthesis and multimodal responsiveness of poly(alpha-amino acid)s bearing oegylated azobenzene side-chains. Polym. Chem. 2016, 7, 6375–6382. [Google Scholar] [CrossRef]
  41. Deming, T.J. Synthesis of side-chain modified polypeptides. Chem. Rev. 2016, 116, 786–808. [Google Scholar] [CrossRef] [PubMed]
  42. Zou, J.; Fan, J.W.; He, X.; Zhang, S.Y.; Wang, H.; Wooley, K.L. A facile glovebox-free strategy to significantly accelerate the syntheses of well-defined polypeptides by n-carboxyanhydride (nca) ring-opening polymerizations. Macromolecules 2013, 46, 4223–4226. [Google Scholar] [CrossRef] [PubMed]
  43. Song, Z.Y.; Han, Z.Y.; Lv, S.X.; Chen, C.Y.; Chen, L.; Yin, L.C.; Cheng, J.J. Synthetic polypeptides: From polymer design to supramolecular assembly and biomedical application. Chem. Soc. Rev. 2017, 46, 6570–6599. [Google Scholar] [CrossRef] [PubMed]
  44. Le Droumaguet, B.; Nicolas, J. Recent advances in the design of bioconjugates from controlled/living radical polymerization. Polym. Chem. 2010, 1, 563–598. [Google Scholar] [CrossRef]
  45. Ayres, L.; Koch, K.; Adams, P.H.H.M.; van Hest, J.C.M. Stimulus responsive behavior of elastin-based side chain polymers. Macromolecules 2005, 38, 1699–1704. [Google Scholar] [CrossRef][Green Version]
  46. Blum, A.P.; Kammeyer, J.K.; Gianneschi, N.C. Activating peptides for cellular uptake via polymerization into high density brushes. Chem. Sci. 2016, 7, 989–994. [Google Scholar] [CrossRef] [PubMed][Green Version]
  47. Gianneschi, N. Peptide-polymer amphiphiles as programmable synthons for biologically-responsive nanomaterials. Abstr. Pap. Am. Chem. Soc. 2015, 249, 317. [Google Scholar]
  48. Blum, A.P.; Kammeyer, J.K.; Rush, A.M.; Callmann, C.E.; Hahn, M.E.; Gianneschi, N.C. Stimuli-responsive nanomaterials for biomedical applications. J. Am. Chem. Soc. 2015, 137, 2140–2154. [Google Scholar] [CrossRef] [PubMed]
  49. Baumgartner, R.; Fu, H.L.; Song, Z.Y.; Lin, Y.; Cheng, J.J. Cooperative polymerization of alpha-helices induced by macromolecular architecture. Nat. Chem. 2017, 9, 614–622. [Google Scholar] [CrossRef] [PubMed]
  50. Fan, J.W.; Borguet, Y.P.; Su, L.; Nguyen, T.P.; Wang, H.; He, X.; Zou, J.; Wooley, K.L. Two-dimensional controlled syntheses of polypeptide molecular brushes via n-carboxyanhydride ring-opening polymerization and ring-opening metathesis polymerization. ACS Macro Lett. 2017, 6, 1031–1035. [Google Scholar] [CrossRef] [PubMed]
  51. Sun, H.; Kabb, C.P.; Sumerlin, B.S. Thermally-labile segmented hyperbranched copolymers: Using reversible-covalent chemistry to investigate the mechanism of self-condensing vinyl copolymerization. Chem. Sci. 2014, 5, 4646–4655. [Google Scholar] [CrossRef]
  52. Dong, P.; Sun, H.; Quan, D.P. Synthesis of poly(l-lactide-co-5-amino-5-methyl-1,3-dioxan-2-ones) [p(l-la-co-tac)] containing amino groups via organocatalysis and post-polymerization functionalization. Polymer 2016, 97, 614–622. [Google Scholar] [CrossRef]
  53. Perrier, S. 50th anniversary perspective: Raft polymerization—A user guide. Macromolecules 2017, 50, 7433–7447. [Google Scholar] [CrossRef]
  54. Grubbs, R.B.; Grubbs, R.H. 50th anniversary perspective: Living polymerization-emphasizing the molecule in macromolecules. Macromolecules 2017, 50, 6979–6997. [Google Scholar] [CrossRef]
  55. Tan, J.B.; He, J.; Li, X.L.; Xu, Q.; Huang, C.D.; Liu, D.D.; Zhang, L. Rapid synthesis of well-defined all-acrylic diblock copolymer nano-objects via alcoholic photoinitiated polymerization-induced self-assembly (photo-pisa). Polym. Chem. 2017, 8, 6853–6864. [Google Scholar] [CrossRef]
  56. Ren, J.; McKenzie, T.; Fu, Q.; Wong, E.; Xu, J.; An, Z.; Shanmugam, S.; Davis, T.; Boyer, C.; Qiao, G. Star polymers. Chem. Rev. 2016, 116, 6743–6836. [Google Scholar] [CrossRef] [PubMed]
  57. Kerr, A.; Hartlieb, M.; Sanchis, J.; Smith, T.; Perrier, S. Complex multiblock bottle-brush architectures by raft polymerization. Chem. Commun. 2017, 53, 11901–11904. [Google Scholar] [CrossRef] [PubMed]
  58. Matyjaszewski, K. Atom transfer radical polymerization (atrp): Current status and future perspectives. Macromolecules 2012, 45, 4015–4039. [Google Scholar] [CrossRef]
  59. Matyjaszewski, K. Architecturally complex polymers with controlled heterogeneity. Science 2011, 333, 1104–1105. [Google Scholar] [CrossRef] [PubMed]
  60. Bapat, A.; Roy, D.; Ray, J.; Savin, D.; Sumerlin, B. Dynamic-covalent macromolecular stars with boronic ester linkages. J. Am. Chem. Soc. 2011, 133, 19832–19838. [Google Scholar] [CrossRef] [PubMed]
  61. Sumerlin, B.; Vogt, A. Macromolecular engineering through click chemistry and other efficient transformations. Macromolecules 2010, 43, 1–13. [Google Scholar] [CrossRef]
  62. Aoki, D.; Aibara, G.; Uchida, S.; Takata, T. A rational entry to cyclic polymers via selective cyclization by self-assembly and topology transformation of linear polymers. J. Am. Chem. Soc. 2017, 139, 6791–6794. [Google Scholar] [CrossRef] [PubMed]
  63. Yamamoto, T.; Yagyu, S.; Tezuka, Y. Light- and heat-triggered reversible linear-cyclic topological conversion of telechelic polymers with anthryl end groups. J. Am. Chem. Soc. 2016, 138, 3904–3911. [Google Scholar] [CrossRef] [PubMed]
  64. Bielawski, C.; Benitez, D.; Grubbs, R. An “endless” route to cyclic polymers. Science 2002, 297, 2041–2044. [Google Scholar] [CrossRef] [PubMed]
  65. Feng, H.B.; Lu, X.Y.; Wang, W.Y.; Kang, N.G.; Mays, J.W. Block copolymers: Synthesis, self-assembly, and applications. Polymers 2017, 9, 494. [Google Scholar] [CrossRef]
  66. Ding, J.X.; Zhuang, X.L.; Xiao, C.S.; Cheng, Y.L.; Zhao, L.; He, C.L.; Tang, Z.H.; Chen, X.S. Preparation of photo-cross-linked ph-responsive polypeptide nanogels as potential carriers for controlled drug delivery. J. Mater. Chem. 2011, 21, 11383–11391. [Google Scholar] [CrossRef]
  67. Yan, L.S.; Yang, L.X.; He, H.Y.; Hu, X.L.; Xie, Z.G.; Huang, Y.B.; Jing, X.B. Photo-cross-linked mpeg-poly(gamma-cinnamyl-l-glutamate) micelles as stable drug carriers. Polym. Chem. 2012, 3, 1300–1307. [Google Scholar] [CrossRef]
  68. Shao, Y.; Shi, C.Y.; Xu, G.F.; Guo, D.D.; Luo, J.T. Photo and redox dual responsive reversibly cross-linked nanocarrier for efficient tumor-targeted drug delivery. ACS Appl. Mater. Interfaces 2014, 6, 10381–10392. [Google Scholar] [CrossRef] [PubMed]
  69. Liu, G.; Dong, C.M. Photoresponsive poly(s-(o-nitrobenzyl)-l-cysteine)-b-peo from a l-cysteine n-carboxyanhydride monomer: Synthesis, self-assembly, and phototriggered drug release. Biomacromolecules 2012, 13, 1573–1583. [Google Scholar] [CrossRef] [PubMed]
  70. Liu, G.; Zhou, L.Z.; Guan, Y.F.; Su, Y.; Dong, C.M. Multi-responsive polypeptidosome: Characterization, morphology transformation, and triggered drug delivery. Macromol. Rapid Commun. 2014, 35, 1673–1678. [Google Scholar] [CrossRef] [PubMed]
  71. Negri, G.E.; Deming, T.J. Triggered copolypeptide hydrogel degradation using photolabile lysine protecting groups. ACS Macro Lett. 2016, 5, 1253–1256. [Google Scholar] [CrossRef]
  72. Li, P.; Zhang, J.C.; Dong, C.M. Photosensitive poly(o-nitrobenzyloxycarbonyl-l-lysine)-b-peo polypeptide copolymers: Synthesis, multiple self-assembly behaviors, and the photo/ph-thermo-sensitive hydrogels. Polym. Chem. 2017, 8, 7033–7043. [Google Scholar] [CrossRef]
  73. Jana, S.; Biswas, Y.; Mandal, T.K. Methionine-based cationic polypeptide/polypeptide block copolymer with triple-stimuli responsiveness: DNA polyplexation and phototriggered release. Polym. Chem. 2018, 9, 1869–1884. [Google Scholar] [CrossRef]
  74. Kumar, S.; Allard, J.F.; Morris, D.; Dory, Y.L.; Lepage, M.; Zhao, Y. Near-infrared light sensitive polypeptide block copolymer micelles for drug delivery. J. Mater. Chem. 2012, 22, 7252–7257. [Google Scholar] [CrossRef]
  75. Mba, M.; Mazzier, D.; Silvestrini, S.; Toniolo, C.; Fatas, P.; Jimenez, A.I.; Cativiela, C.; Moretto, A. Photocontrolled self-assembly of a bis-azobenzene-containing alpha-amino acid. Chemistry 2013, 19, 15841–15846. [Google Scholar] [CrossRef] [PubMed]
  76. Mazzier, D.; Maran, M.; Perucchin, O.P.; Crisma, M.; Zerbetto, M.; Causin, V.; Toniolo, C.; Moretto, A. Photoresponsive supramolecular architectures based on polypeptide hybrids. Macromolecules 2014, 47, 7272–7283. [Google Scholar] [CrossRef]
  77. Zhao, Y.A.; Lei, B.Q.; Wang, M.F.; Wu, S.T.; Qi, W.; Su, R.X.; He, Z.M. A supramolecular approach to construct a hydrolase mimic with photo-switchable catalytic activity. J. Mater. Chem. B 2018, 6, 2444–2449. [Google Scholar] [CrossRef]
  78. Kotharangannagari, V.K.; Sanchez-Ferrer, A.; Ruokolainen, J.; Mezzenga, R. Photoresponsive reversible aggregation and dissolution of rod-coil polypeptide diblock copolymers. Macromolecules 2011, 44, 4569–4573. [Google Scholar] [CrossRef]
  79. Bhola, R.; Payamyar, P.; Murray, D.J.; Kumar, B.; Teator, A.J.; Schmidt, M.U.; Hammer, S.M.; Saha, A.; Sakamoto, J.; Schluter, A.D.; et al. A two-dimensional polymer from the anthracene dimer and triptycene motifs. J. Am. Chem. Soc. 2013, 135, 14134–14141. [Google Scholar] [CrossRef] [PubMed]
  80. He, J.; Tremblay, L.; Lacelle, S.; Zhao, Y. Preparation of polymer single chain nanoparticles using intramolecular photodimerization of coumarin. Soft Matter 2011, 7, 2380–2386. [Google Scholar] [CrossRef]
  81. Inkinen, J.; Niskanen, J.; Talka, T.; Sahle, C.J.; Muller, H.; Khriachtchev, L.; Hashemi, J.; Akbari, A.; Hakala, M.; Huotari, S. X-ray induced dimerization of cinnamic acid: Time-resolved inelastic X-ray scattering study. Sci. Rep. 2015, 5, 15851. [Google Scholar] [CrossRef] [PubMed]
  82. Wei, J.; Yu, Y.L. Photodeformable polymer gels and crosslinked liquid-crystalline polymers. Soft Matter 2012, 8, 8050–8059. [Google Scholar] [CrossRef]
  83. Jamroz-Piegza, M.; Walach, W.; Dworak, A.; Trzebicka, B. Polyether nanoparticles from covalently crosslinked copolymer micelles. J. Colloid Interface Sci. 2008, 325, 141–148. [Google Scholar] [CrossRef] [PubMed]
  84. Liu, Y.; Chang, H.; Jiang, J.Q.; Yan, X.Y.; Liu, Z.T.; Liu, Z.W. The photodimerization characteristics of anthracene pendants within amphiphilic polymer micelles in aqueous solution. RSC Adv. 2014, 4, 25912–25915. [Google Scholar] [CrossRef]
  85. Jiang, J.Q.; Qi, B.; Lepage, M.; Zhao, Y. Polymer micelles stabilization on demand through reversible photo-cross-linking. Macromolecules 2007, 40, 790–792. [Google Scholar] [CrossRef]
  86. Tardy, A.; Nicolas, J.; Gigmes, D.; Lefay, C.; Guillaneuf, Y. Radical ring-opening polymerization: Scope, limitations, and application to (bio)degradable materials. Chem. Rev. 2017, 117, 1319–1406. [Google Scholar] [CrossRef] [PubMed]
  87. Yu, B.; Jiang, X.S.; Yin, J. Responsive fluorescent core-crosslinked polymer particles based on the anthracene-containing hyperbranched poly(ether amine) (hPEA-An). Soft Matter 2011, 7, 6853–6862. [Google Scholar] [CrossRef]
  88. Xie, X.Y.; Yang, Y.F.; Yang, Y.; Zhang, H.; Li, Y.; Mei, X.G. A photo-responsive peptide- and asparagine-glycine-arginine (NGR) peptide-mediated liposomal delivery system. Drug Deliv. 2016, 23, 2445–2456. [Google Scholar] [CrossRef] [PubMed]
  89. Chen, Y.; Chou, C.F. Reversible photodimerization of coumarin derivatives dispersed in poly(vinyl acetate). J. Polym. Sci. Part A Polym. Chem. 1995, 33, 2705–2714. [Google Scholar] [CrossRef]
  90. Flint, D.G.; Kumita, J.R.; Smart, O.S.; Woolley, G.A. Using an azobenzene cross-linker to either increase or decrease peptide helix content upon trans-to-cis photoisomerization. Chem. Biol. 2002, 9, 391–397. [Google Scholar] [CrossRef]
  91. Kinoshita, T.; Sato, M.; Takizawa, A.; Tsujita, Y. Photocontrol of polypeptide membrane functions by cis-trans isomerization in side-chain azobenzene groups. Macromolecules 1986, 19, 51–55. [Google Scholar] [CrossRef]
  92. Li, Y.F.; Niu, Y.L.; Hu, D.; Song, Y.W.; He, J.W.; Liu, X.Y.; Xia, X.N.; Lu, Y.B.; Xu, W.J. Preparation of light-responsive polyester micelles via ring-opening polymerization of o-carboxyanhydride and azide-alkyne click chemistry. Macromol. Chem. Phys. 2015, 216, 77–84. [Google Scholar] [CrossRef]
  93. Klajn, R. Spiropyran-based dynamic materials. Chem. Soc. Rev. 2014, 43, 148–184. [Google Scholar] [CrossRef] [PubMed][Green Version]
  94. Ciardelli, F.; Fabbri, D.; Pieroni, O.; Fissi, A. Photomodulation of polypeptide conformation by sunlight in spiropyran-containing poly(l-glutamic acid). J. Am. Chem. Soc. 1989, 111, 3470–3472. [Google Scholar] [CrossRef]
  95. Yin, R.; Dai, T.H.; Avci, P.; Jorge, A.E.S.; de Melo, W.C.M.A.; Vecchio, D.; Huang, Y.Y.; Gupta, A.; Hamblin, M.R. Light based anti-infectives: Ultraviolet c irradiation, photodynamic therapy, blue light, and beyond. Curr. Opin. Pharmacol. 2013, 13, 731–762. [Google Scholar] [CrossRef] [PubMed]
  96. Bertrand, O.; Gohy, J. Photo-responsive polymers: Synthesis and applications. Polym. Chem. 2017, 8, 52–73. [Google Scholar] [CrossRef]
  97. Zhao, Y. Rational design of light-controllable polymer micelles. Chem. Rec. 2007, 7, 286–294. [Google Scholar] [CrossRef] [PubMed]
  98. Jackson, J.; Chen, A.; Zhang, H.B.; Burt, H.; Chiao, M. Design and near-infrared actuation of a gold nanorod-polymer microelectromechanical device for on-demand drug delivery. Micromachines 2018, 9, 28. [Google Scholar] [CrossRef]
  99. Qiu, M.; Wang, D.; Liang, W.Y.; Liu, L.P.; Zhang, Y.; Chen, X.; Sang, D.K.; Xing, C.Y.; Li, Z.J.; Dong, B.Q.; et al. Novel concept of the smart NIR-light-controlled drug release of black phosphorus nanostructure for cancer therapy. Proc. Natl. Acad. Sci. USA 2018, 115, 501–506. [Google Scholar] [CrossRef] [PubMed]
  100. Linsley, C.S.; Wu, B.M. Recent advances in light-responsive on-demand drug- delivery systems. Ther. Deliv. 2017, 8, 89–107. [Google Scholar] [CrossRef] [PubMed]

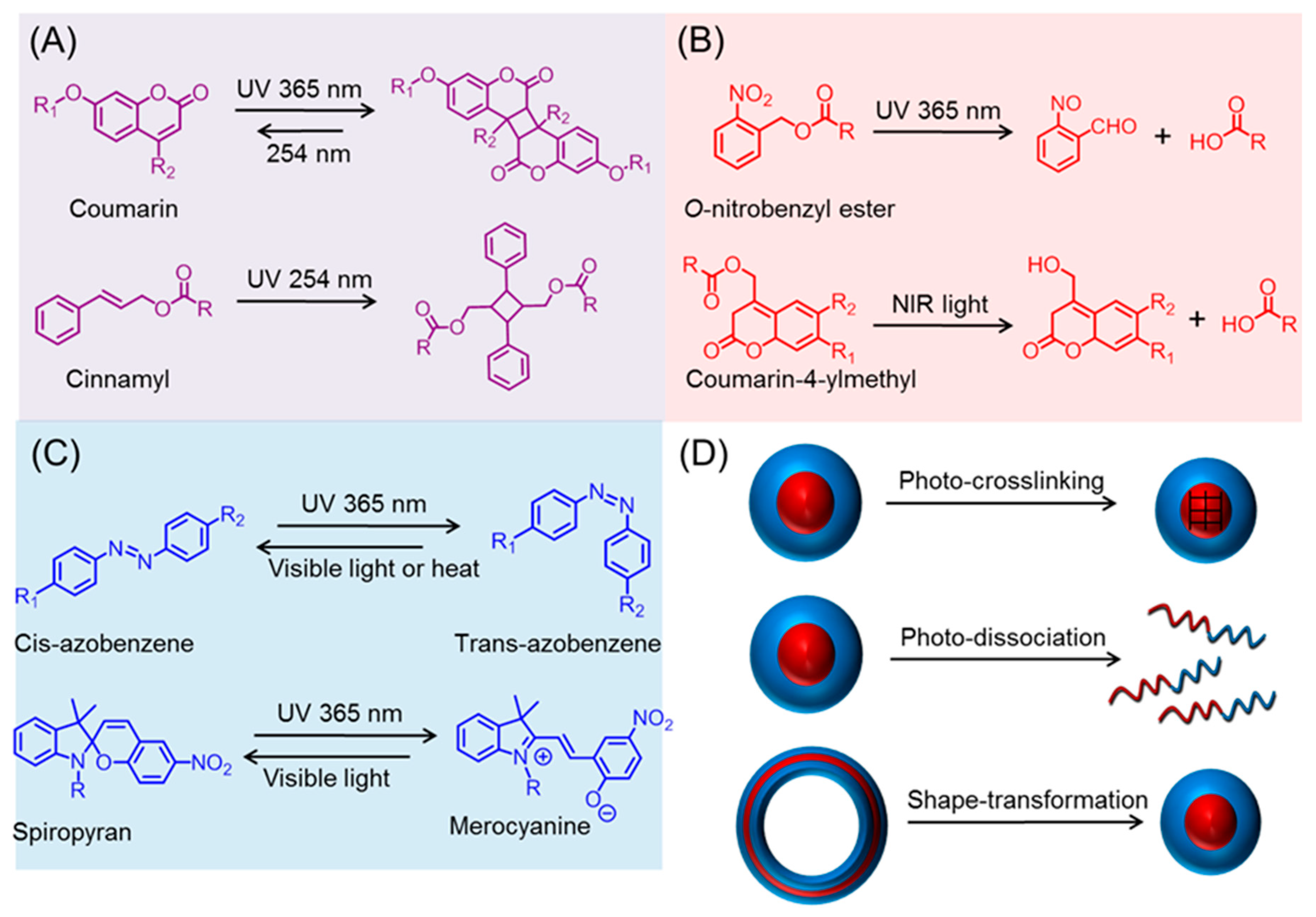

Scheme 1. Photo-chemistry of various functional groups. (A) Ultraviolet (UV)-induced dimerization; (B) UV or near infrared (NIR) promoted cleavage; (C) reversible isomerization by UV and visible light; and (D) photo-triggered metamorphosis of polypeptide derived nano-objects.
Scheme 1. Photo-chemistry of various functional groups. (A) Ultraviolet (UV)-induced dimerization; (B) UV or near infrared (NIR) promoted cleavage; (C) reversible isomerization by UV and visible light; and (D) photo-triggered metamorphosis of polypeptide derived nano-objects.
Micromachines 09 00296 sch001

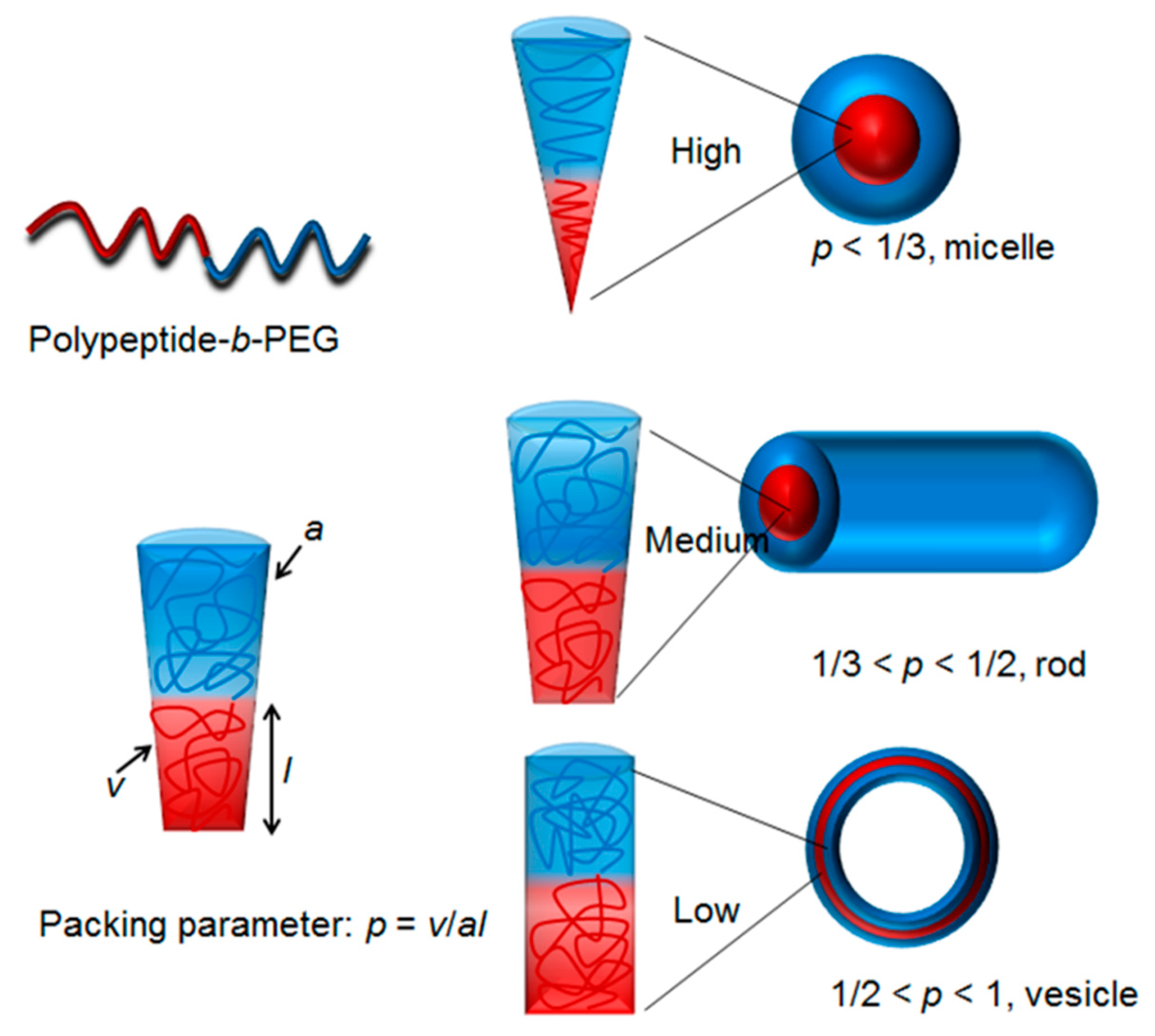

Scheme 2. The shapes of polypeptide derived nano-objects are dictated by critical packing parameters [65]. Diblock copolymer polypeptide-b-PEG exemplifies amphiphilic polypeptide based copolymers.
Scheme 2. The shapes of polypeptide derived nano-objects are dictated by critical packing parameters [65]. Diblock copolymer polypeptide-b-PEG exemplifies amphiphilic polypeptide based copolymers.
Micromachines 09 00296 sch002

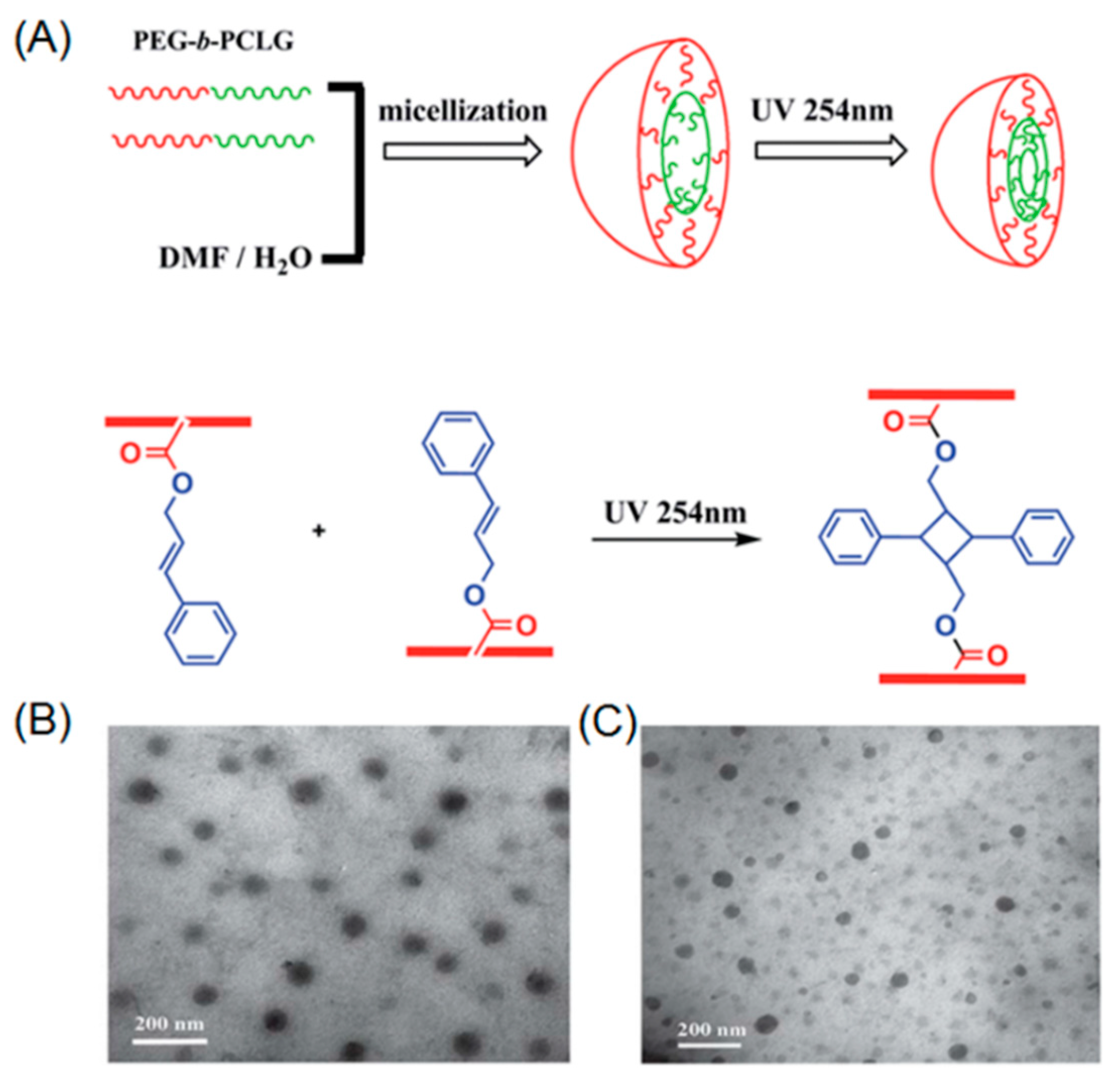

Figure 1. (A) Self-assembly of PEG-b-polypeptide and subsequent photo-induced core-crosslinking; (B) Transmission electron microscopy (TEM) image before UV irradiation; and (C) TEM image after UV irradiation. Reproduced with permission from [67].
Figure 1. (A) Self-assembly of PEG-b-polypeptide and subsequent photo-induced core-crosslinking; (B) Transmission electron microscopy (TEM) image before UV irradiation; and (C) TEM image after UV irradiation. Reproduced with permission from [67].
Micromachines 09 00296 g001

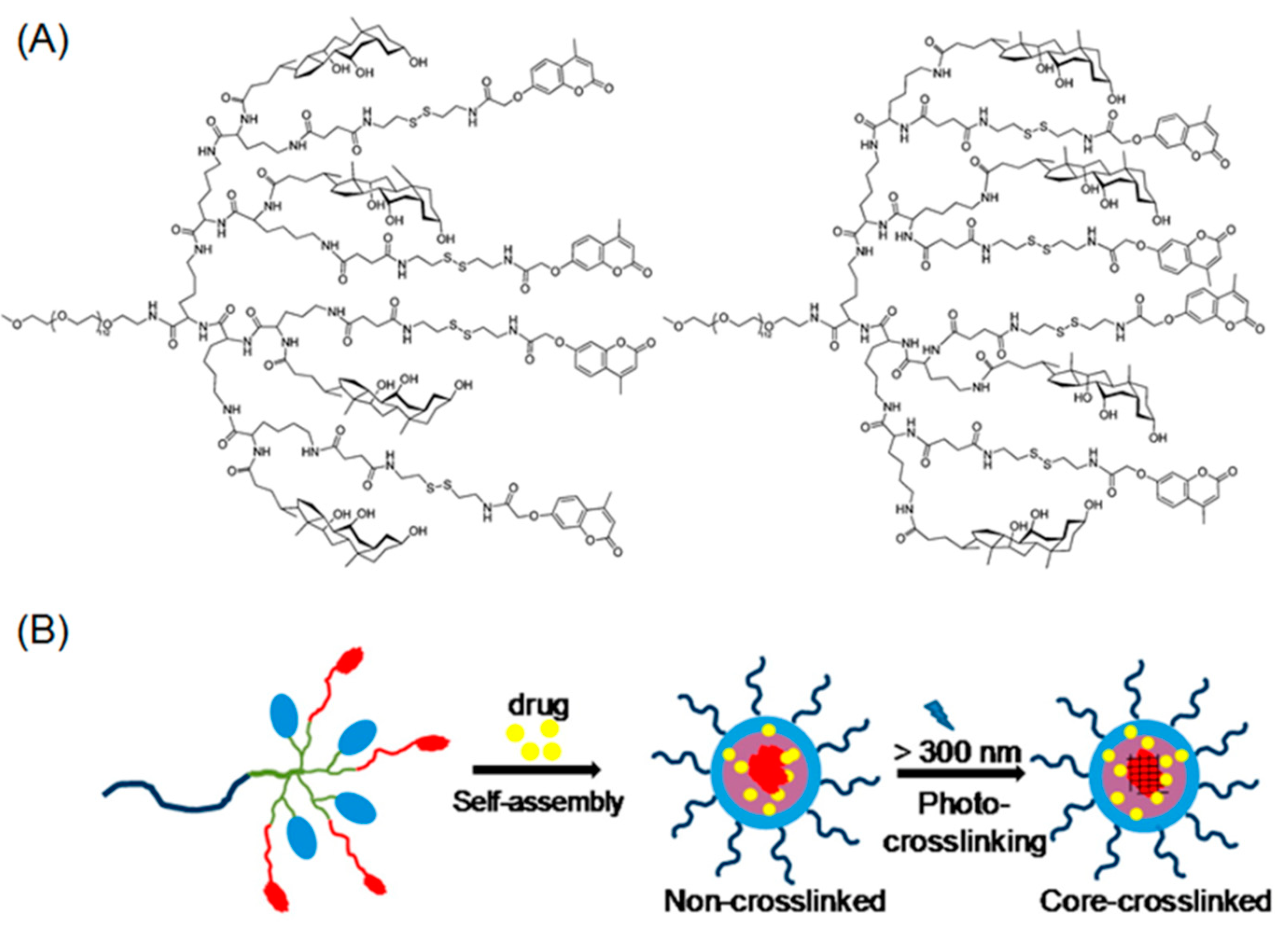

Figure 2. (A) Chemical structures of linear-dendritic PEG-b-polylysine containing coumarin moieties at their periphery; (B) light-triggered photo crosslinking of drug-loaded micelles. Reproduced with permission from [68].
Figure 2. (A) Chemical structures of linear-dendritic PEG-b-polylysine containing coumarin moieties at their periphery; (B) light-triggered photo crosslinking of drug-loaded micelles. Reproduced with permission from [68].
Micromachines 09 00296 g002

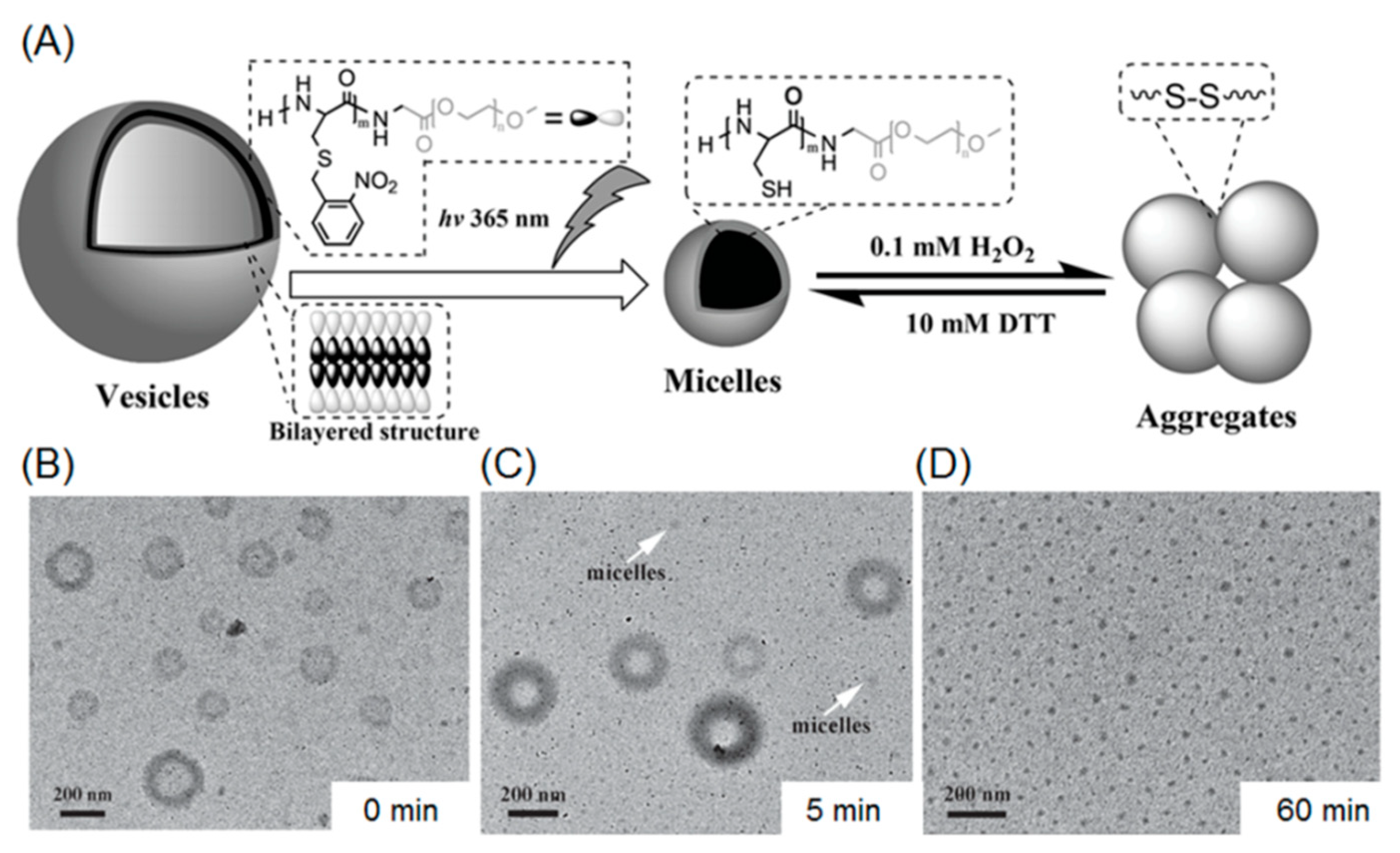

Figure 3. (A) Shape programming of polypeptide based nanoparticles through photo-regulation and redox process; (B) vesicular structures before UV treatment; (C) a mixture of vesicles and micelles after UV irradiation for 5 mintes; and (D) after UV-irradiation for 1 h, the vesicles were fully transformed to micelles. Reproduced with permission from [70].
Figure 3. (A) Shape programming of polypeptide based nanoparticles through photo-regulation and redox process; (B) vesicular structures before UV treatment; (C) a mixture of vesicles and micelles after UV irradiation for 5 mintes; and (D) after UV-irradiation for 1 h, the vesicles were fully transformed to micelles. Reproduced with permission from [70].
Micromachines 09 00296 g003

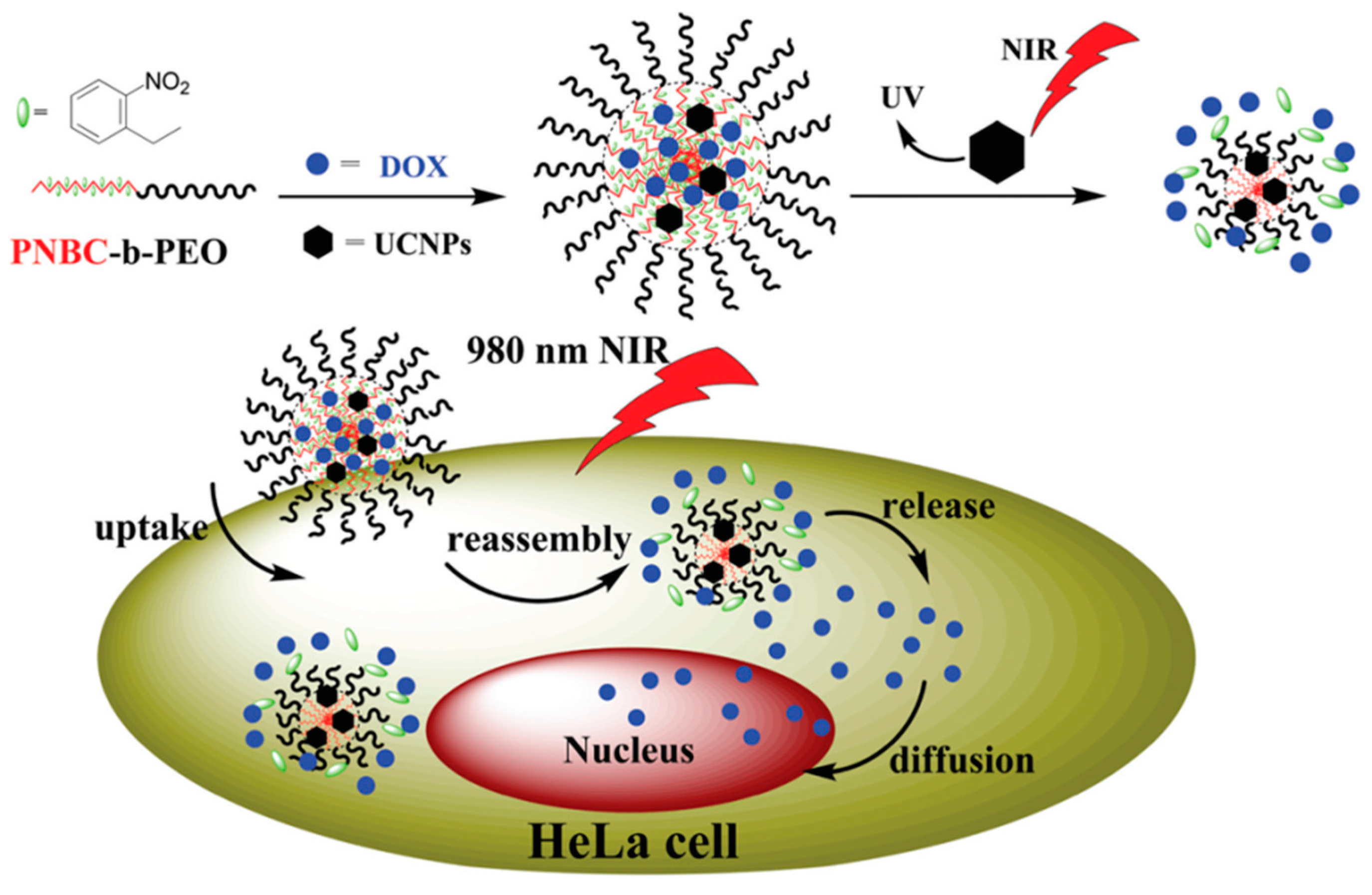

Figure 4. Fabrication of NIR-responsive polypeptide micelles via encapsulation of upconversion nanoparticles (UCNP) into block copolymer micellar core. Upon NIR irradiation, UCNP converts NIR into UV light, which further cleaves O-nitrobenzyl moieties and induces disassembly of micelles. Reproduced with permission from [13].
Figure 4. Fabrication of NIR-responsive polypeptide micelles via encapsulation of upconversion nanoparticles (UCNP) into block copolymer micellar core. Upon NIR irradiation, UCNP converts NIR into UV light, which further cleaves O-nitrobenzyl moieties and induces disassembly of micelles. Reproduced with permission from [13].
Micromachines 09 00296 g004

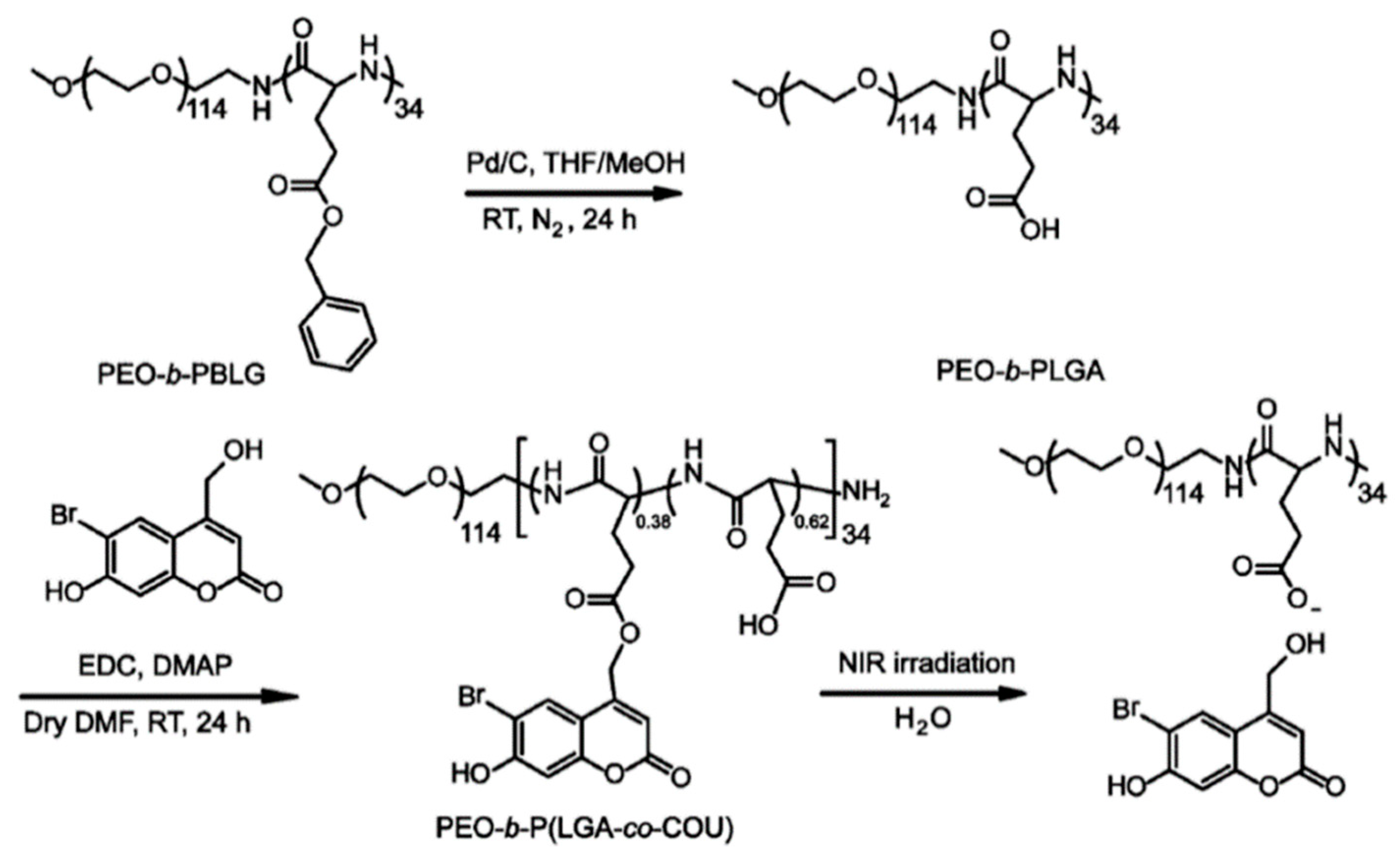

Figure 5. Synthetic route to NIR-responsive diblock copolymer consisting of PEG and polypeptide bearing coumarin groups. Reproduced with permission from [74].
Figure 5. Synthetic route to NIR-responsive diblock copolymer consisting of PEG and polypeptide bearing coumarin groups. Reproduced with permission from [74].
Micromachines 09 00296 g005

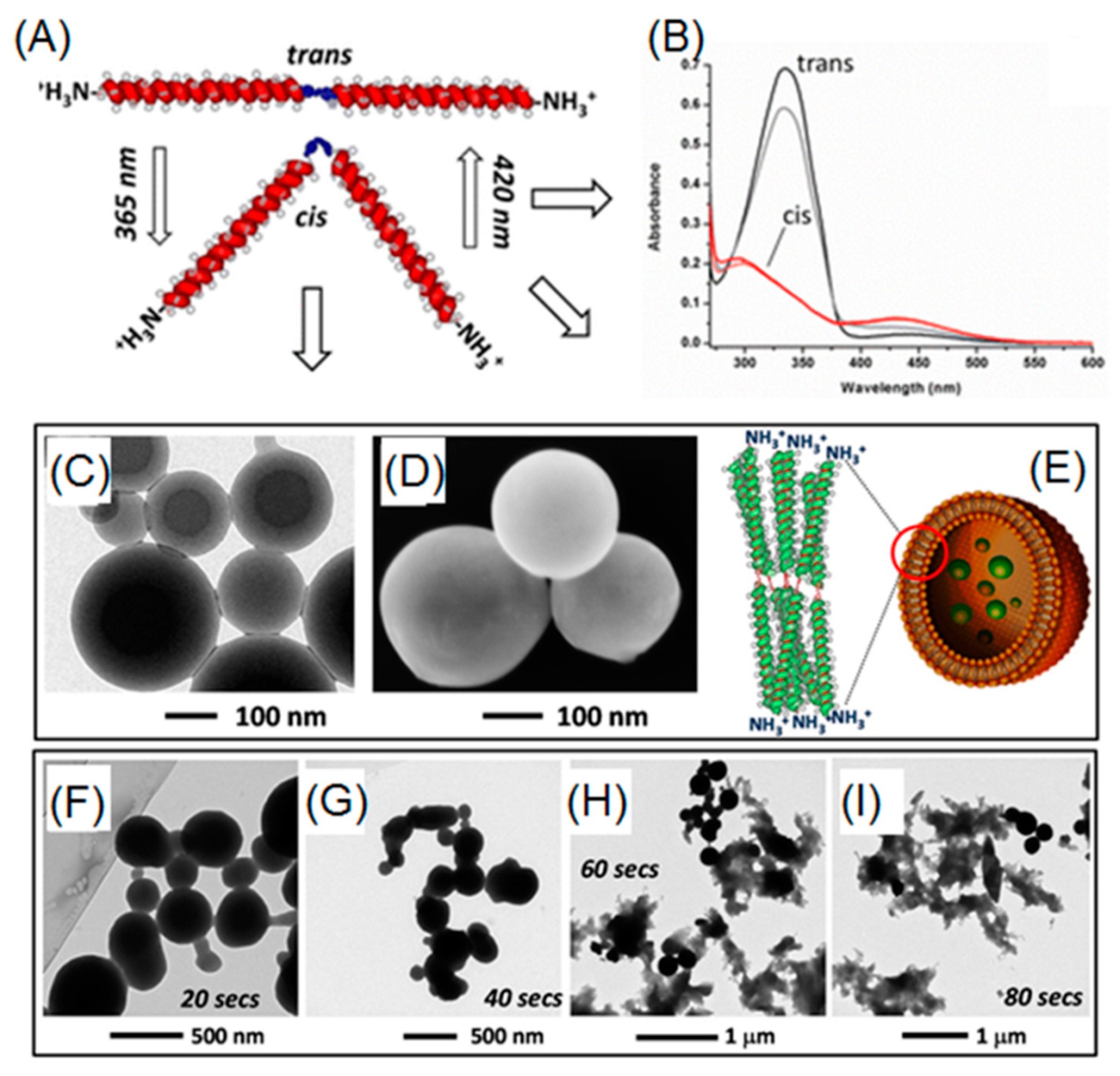

Figure 6. (A) Reversible geometry change of azobenzene-containing polypeptide via UV and visible light; (B) UV-Vis absorptions of cis- and trans-isomers; (C,D) TEM and SEM images of vesicles arising from self-assembly of trans-isomer of polypeptides; (E) cartoon representation of vesicular structure based on trans-polypeptide; and (FI) time-dependent UV-induced degradation of vesicles. Reproduced with permission from [76].
Figure 6. (A) Reversible geometry change of azobenzene-containing polypeptide via UV and visible light; (B) UV-Vis absorptions of cis- and trans-isomers; (C,D) TEM and SEM images of vesicles arising from self-assembly of trans-isomer of polypeptides; (E) cartoon representation of vesicular structure based on trans-polypeptide; and (FI) time-dependent UV-induced degradation of vesicles. Reproduced with permission from [76].
Micromachines 09 00296 g006
Figure 7. (A) Synthetic route to spiropyran-bearing polypeptide-b-PEG diblock copolymer; (B) TEM image of polymer nano-objects before UV treatment; (C) TEM image after UV irradiation; and (D) TEM image of regenerated micelles after applying visible light to UV-treated polymer solution. Reproduced with permission from [78].
Figure 7. (A) Synthetic route to spiropyran-bearing polypeptide-b-PEG diblock copolymer; (B) TEM image of polymer nano-objects before UV treatment; (C) TEM image after UV irradiation; and (D) TEM image of regenerated micelles after applying visible light to UV-treated polymer solution. Reproduced with permission from [78].
Micromachines 09 00296 g007

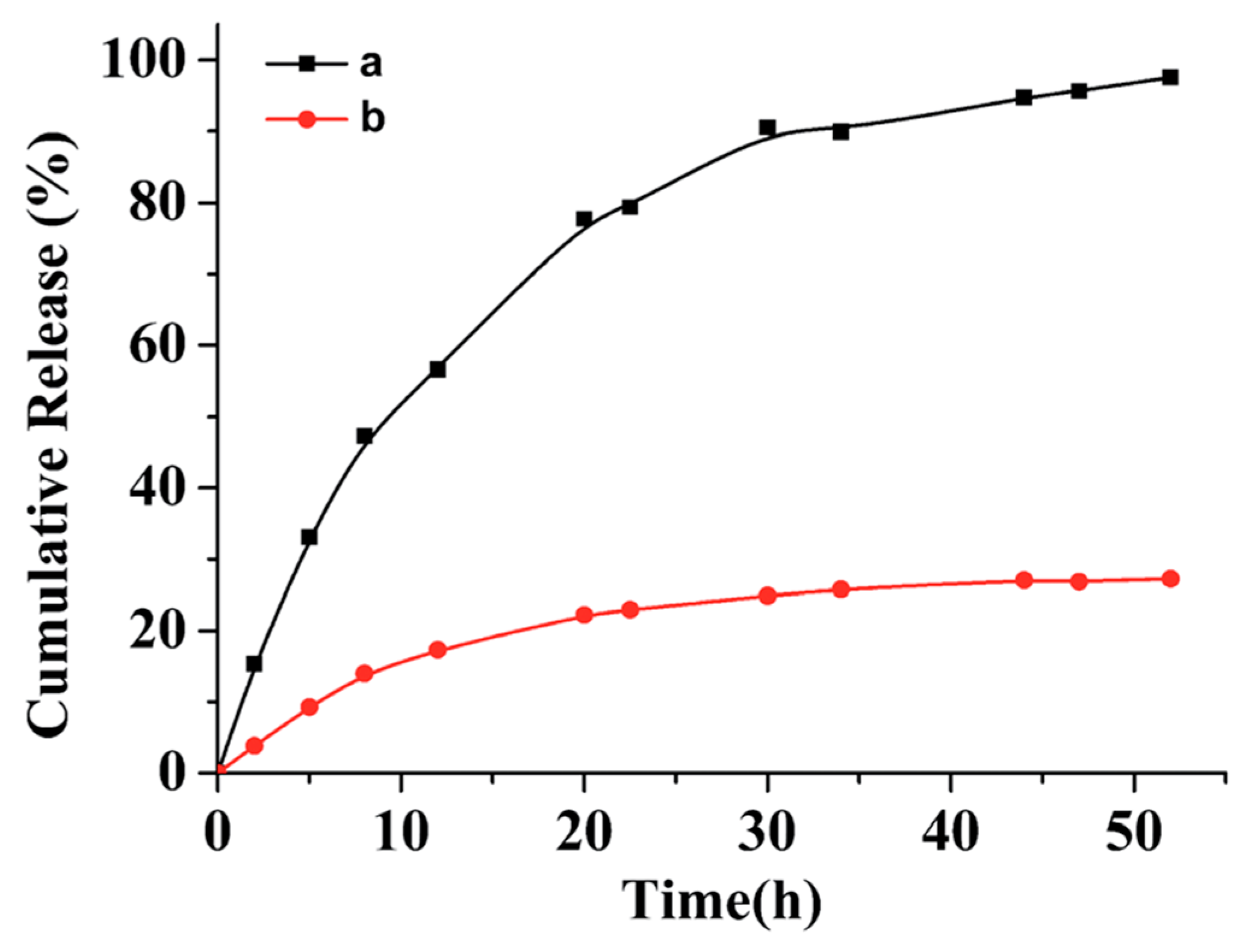

Figure 8. Cumulative release of drugs from non-crosslinked polypeptide micelle (black square) and photo-crosslinked polypeptide micelle (red dots). Reproduced with permission from [67].
Figure 8. Cumulative release of drugs from non-crosslinked polypeptide micelle (black square) and photo-crosslinked polypeptide micelle (red dots). Reproduced with permission from [67].
Micromachines 09 00296 g008

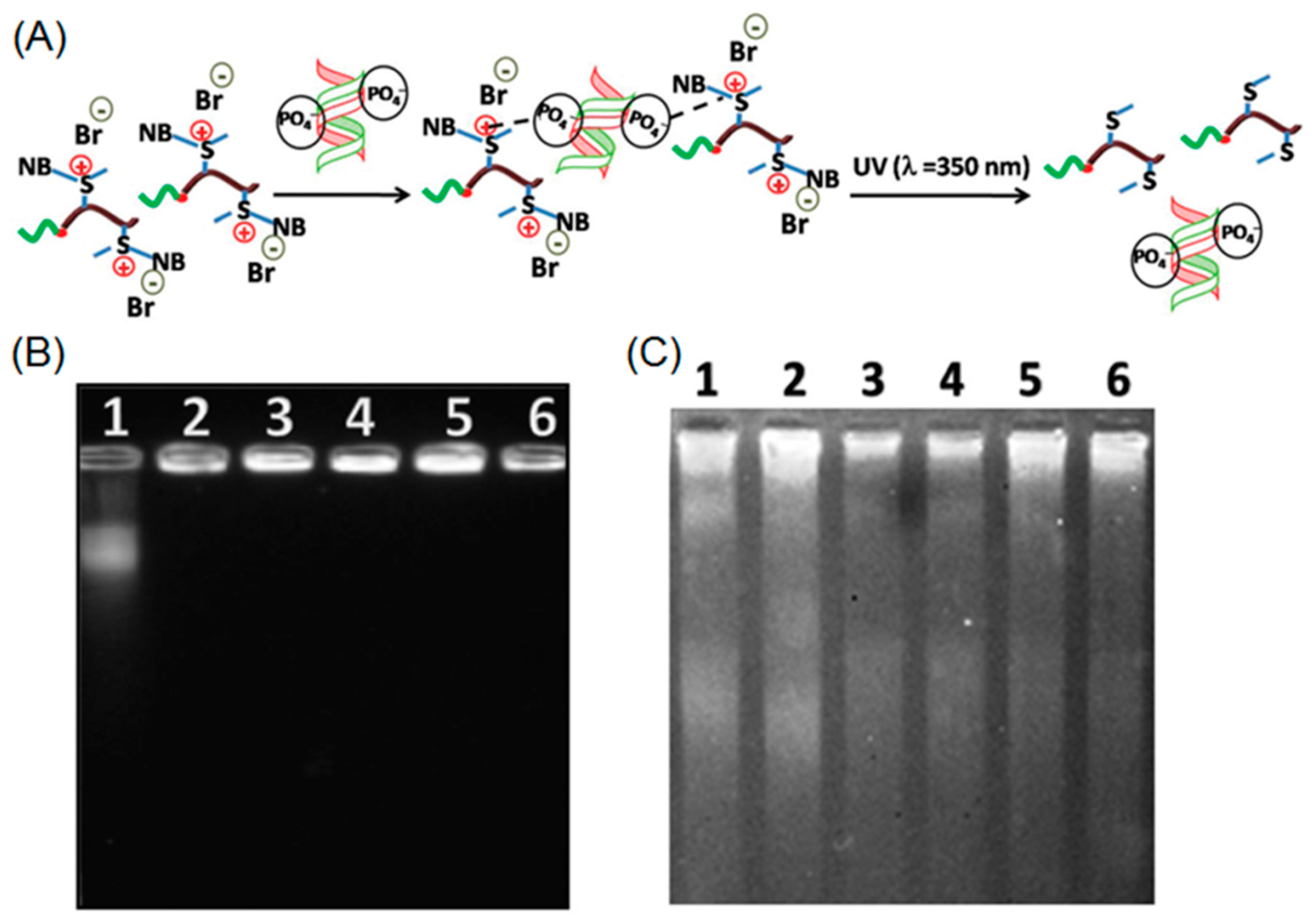

Figure 9. (A) Schematic illustration of polypeptide-DNA complexation and UV-induced release of DNA; (B) electrophoretic mobility of polypeptide-DNA conjugates at different concentrations of cationic polypeptide before UV irradiation; and (C) electrophoretic mobility of polypeptide-DNA conjugates upon UV treatment. Note: lanes 1–6 correspond to 12.7 mM ctDNA complexing with polypeptide at 0, 0.2, 0.4, 0.6, 0.8, and 1.0 mM, respectively. Reproduced with permission from [73].
Figure 9. (A) Schematic illustration of polypeptide-DNA complexation and UV-induced release of DNA; (B) electrophoretic mobility of polypeptide-DNA conjugates at different concentrations of cationic polypeptide before UV irradiation; and (C) electrophoretic mobility of polypeptide-DNA conjugates upon UV treatment. Note: lanes 1–6 correspond to 12.7 mM ctDNA complexing with polypeptide at 0, 0.2, 0.4, 0.6, 0.8, and 1.0 mM, respectively. Reproduced with permission from [73].
Micromachines 09 00296 g009

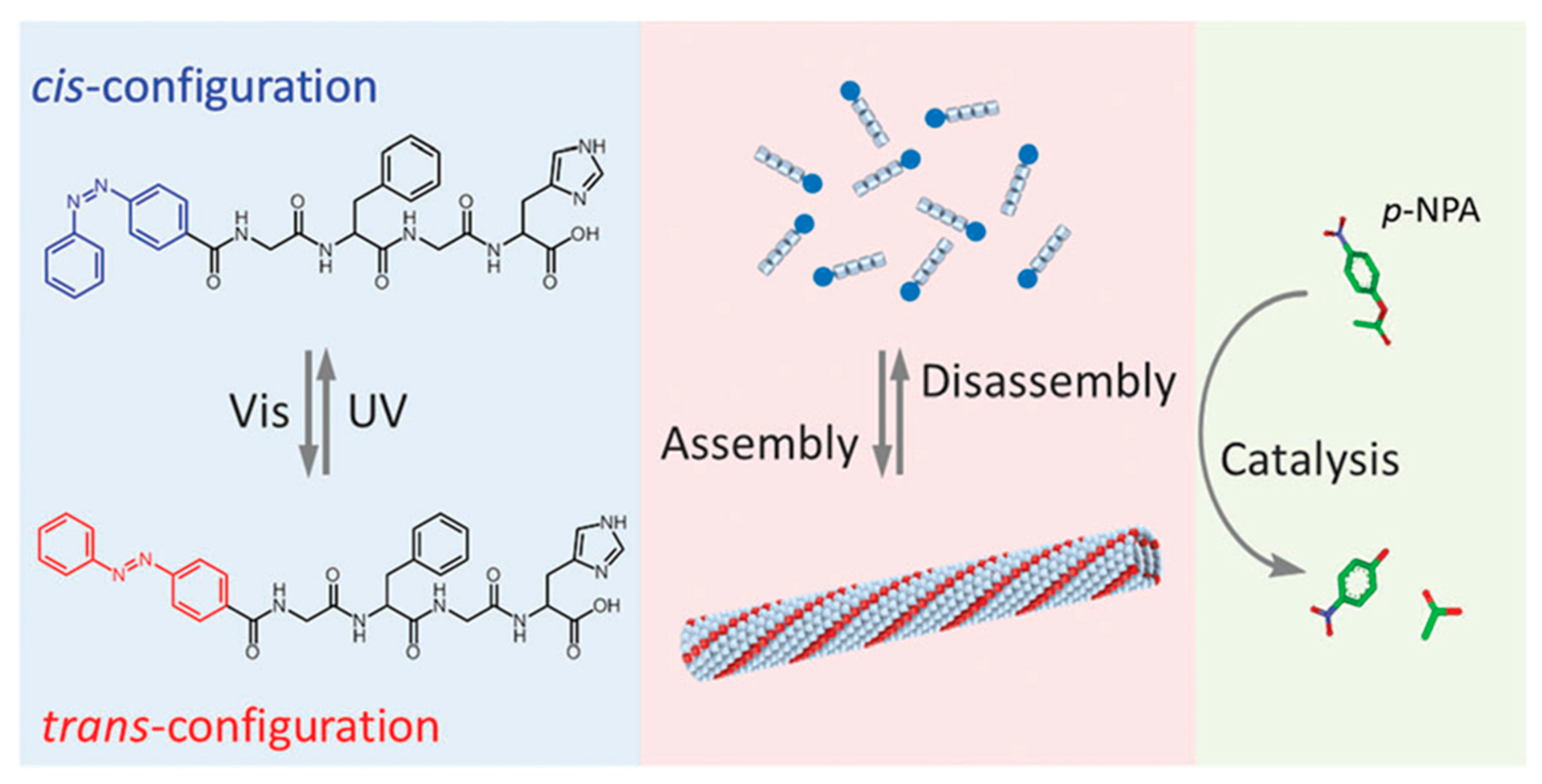

Figure 10. Molecular structures of azobenzene-terminated peptide and photo-switchable assembly and catalytic activities of the peptide, based artificial hydrolase. Reproduced with permission from [77].
Figure 10. Molecular structures of azobenzene-terminated peptide and photo-switchable assembly and catalytic activities of the peptide, based artificial hydrolase. Reproduced with permission from [77].
Micromachines 09 00296 g010

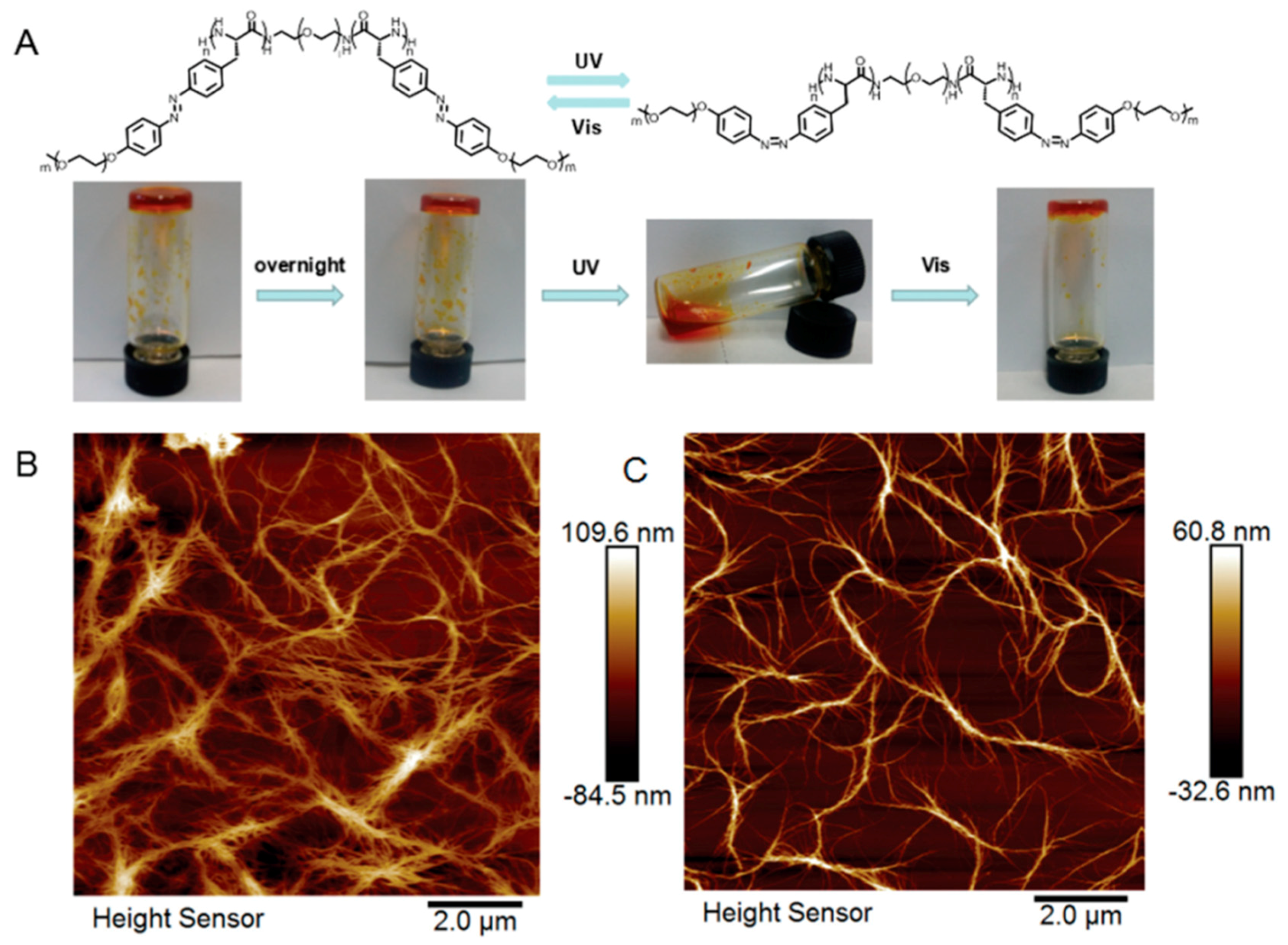

Figure 11. (A) Reversible sol-gel process by switching light wavelength between UV and visible; (B) atomic force microscopy (AFM) image of polymer solution before UV treatment; and (C) AFM image of polymer solution after UV irradiation. Reproduced with permission from [40].
Figure 11. (A) Reversible sol-gel process by switching light wavelength between UV and visible; (B) atomic force microscopy (AFM) image of polymer solution before UV treatment; and (C) AFM image of polymer solution after UV irradiation. Reproduced with permission from [40].
Micromachines 09 00296 g011
Table 1. Summary of photo-responsive polypeptide nano-assemblies.
Table 1. Summary of photo-responsive polypeptide nano-assemblies.
PolypeptideSynthetic MethodPhoto-Responsive MoietyLight-Triggered EventsApplicationRef.
PEG-b-P(LGA/CLG)ROP aCinamylMicellar Core-CrosslinkDrug Delivery[66]
PEG-b-PCLGROPCinamylMicellar Core-CrosslinkDrug Delivery[67]
PEG-CA4LS4Co4Solution-PPS bCoumarinMicellar Core-CrosslinkDrug Delivery[68]
PNBC-b-PEOROPO-nitrobenzylMicellar DisassemblyDrug Delivery[69]
PNBC-b-PEOROPO-nitrobenzylVesicle to MicelleN/A[70]
PNBC-b-PEOROPO-nitrobenzylComposite Nanoparticle Drug Delivery[13]
PNBL-b-PLLROPO-nitrobenzylSol-Gel TransitionN/A[71]
PNBL-b-PEOROPO-nitrobenzylSol-Gel TransitionN/A[72]
PEtOx-b-P[MetNB][Br]ROPO-nitrobenzylComposite NanoparticleGene Delivery[73]
PEO-b-P(LGA-co-COU)ROP6-Bromo-7-hydroxyl-coumarineMicellar DisassemblyDrug Delivery[74]
Fmoc-Phe-pazoDbgSolution-PPSAzobenzeneMicelle to FiberN/A[75]
PBLG-azobenzeneROPAzobenzeneVesicle DisruptionCargo Release[76]
P(OEG-Azo)ROPAzobenzeneSol-Gel TransitionN/A[40]
Azo-GFGHSolid-PPSAzobenzeneNanofiber AssemblyCatalysis[77]
PLGASP-b-PEOROPSpiropyranMicellar DisassemblyDrug Delivery[78]
Note: a ROP—ring-opening polymerization; b PPS—phase peptide synthesis.

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
