Acceleration Sensitivity in Bulk-Extensional Mode, Silicon-Based MEMS Oscillators

1
Department of Electrical and Computer Engineering, University of Central Florida, Orlando, FL 32816, USA
2
School of Electrical and Computer Engineering, Oklahoma State University, Tulsa, OK 74074, USA
*
Author to whom correspondence should be addressed.
Micromachines 2018, 9(5), 233; https://doi.org/10.3390/mi9050233
Received: 31 March 2018 / Revised: 8 May 2018 / Accepted: 9 May 2018 / Published: 12 May 2018
(This article belongs to the Special Issue Micro-Resonators: The Quest for Superior Performance)
  |
PDF [6922 KB, uploaded 15 May 2018]
  |

Abstract

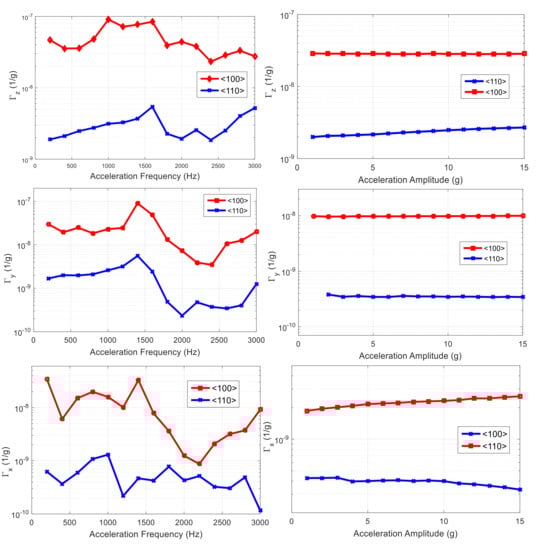

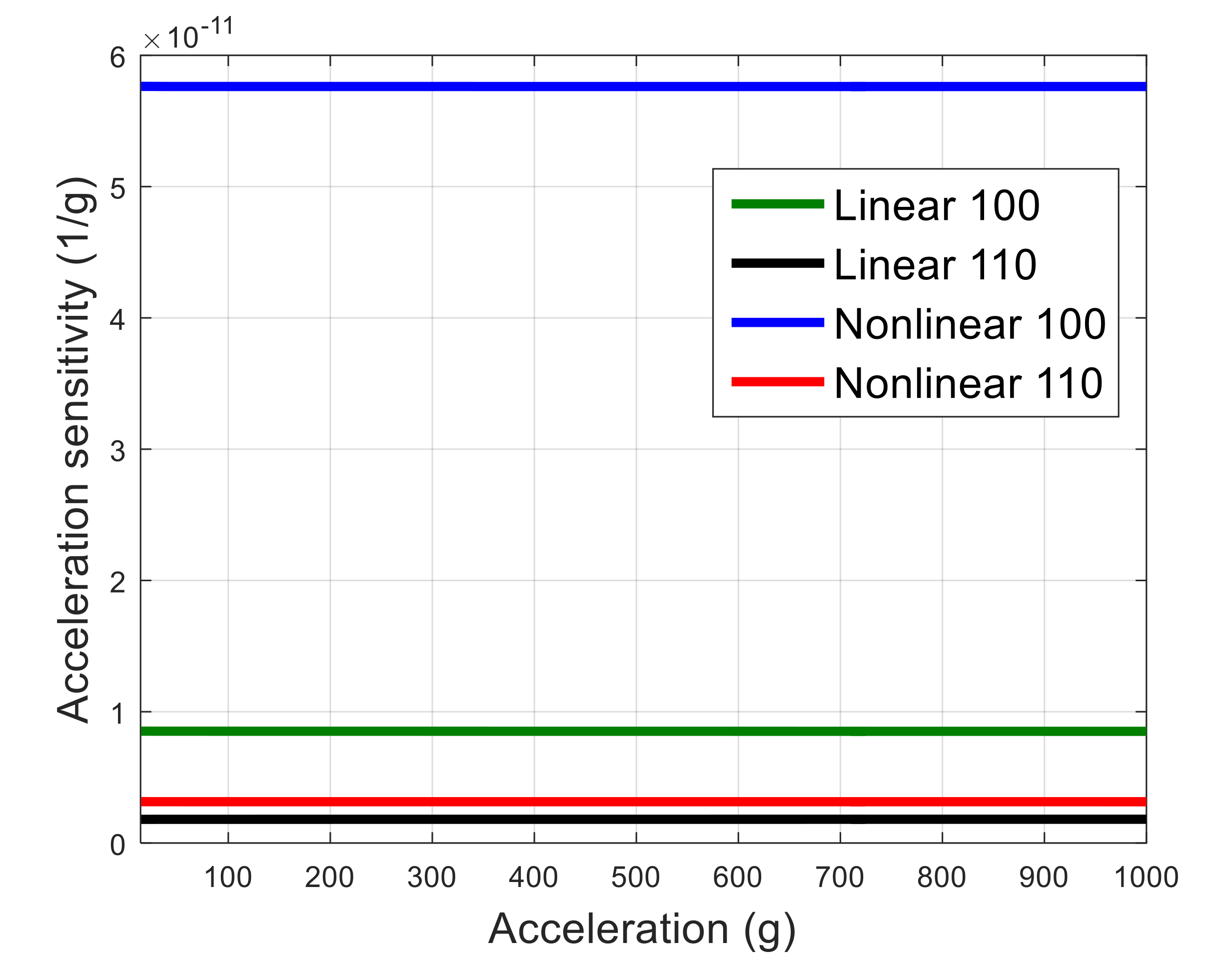

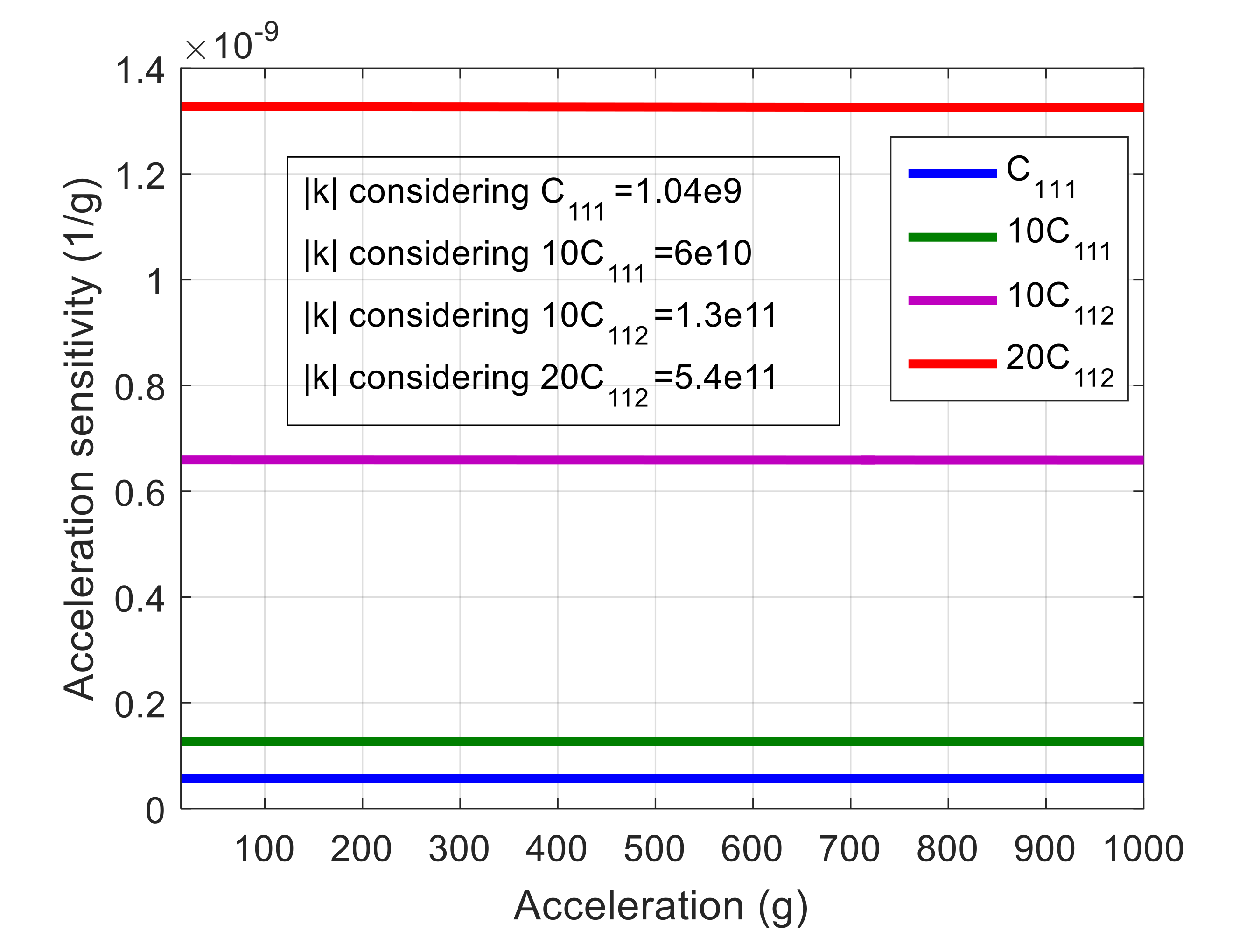

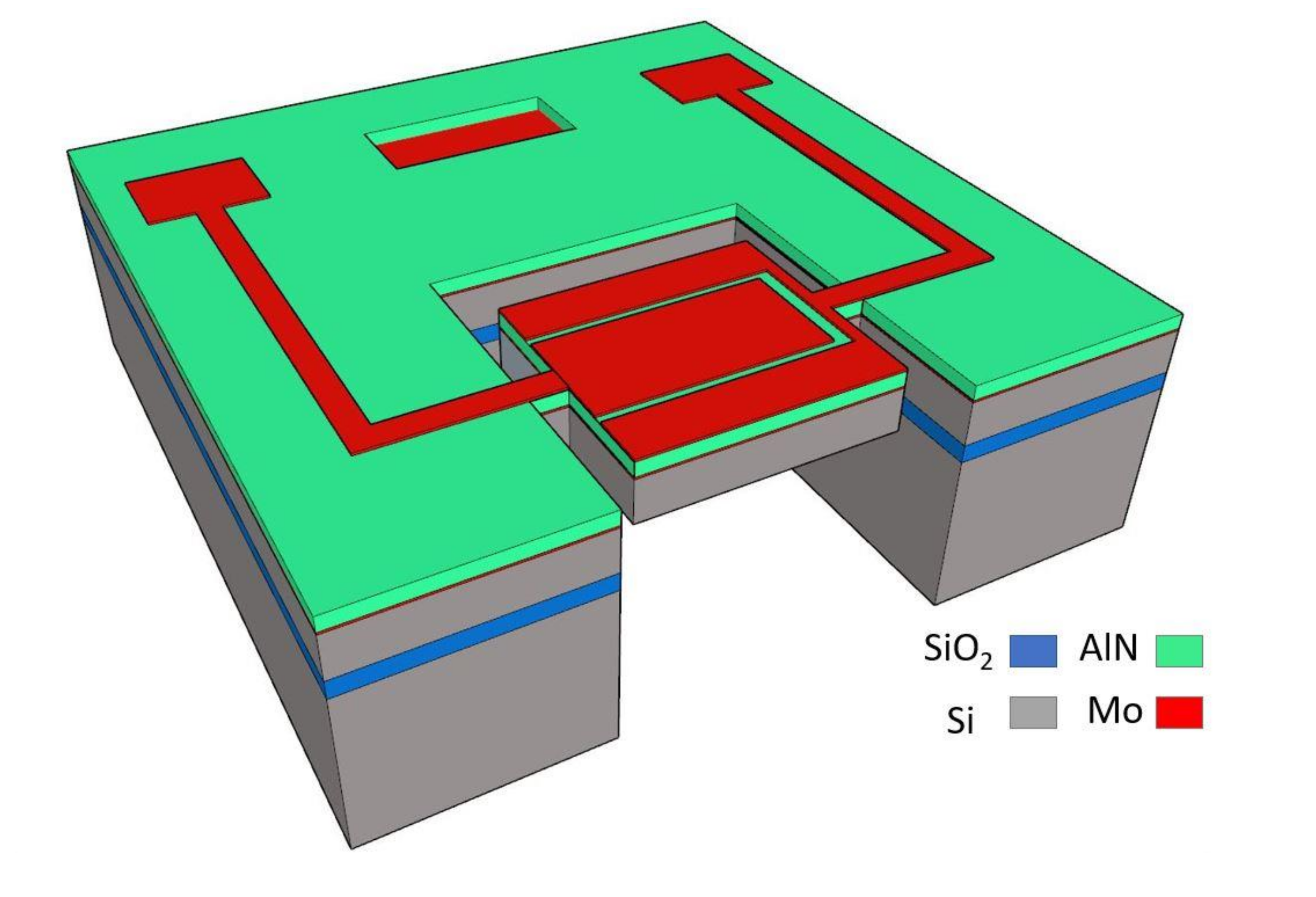

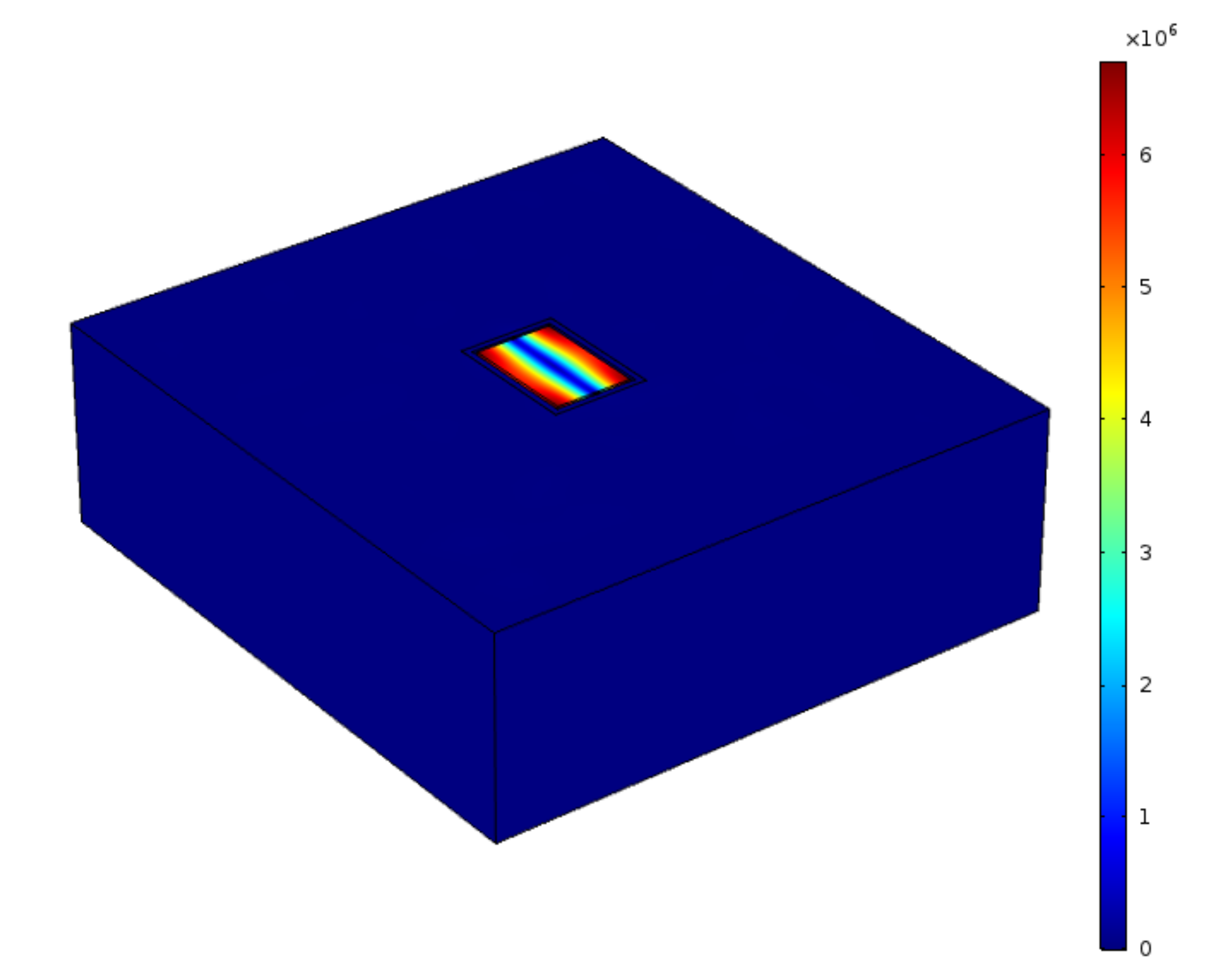

Acceleration sensitivity in silicon bulk-extensional mode oscillators is studied in this work, and a correlation between the resonator alignment to different crystalline planes of silicon and the observed acceleration sensitivity is established. It is shown that the oscillator sensitivity to the applied vibration is significantly lower when the silicon-based lateral-extensional mode resonator is aligned to the <110> plane compared to when the same resonator is aligned to <100>. A finite element model is developed that is capable of predicting the resonance frequency variation when a distributed load (i.e., acceleration) is applied to the resonator. Using this model, the orientation-dependent nature of acceleration sensitivity is confirmed, and the effect of material nonlinearity on the acceleration sensitivity is also verified. A thin-film piezoelectric-on-substrate platform is chosen for the implementation of resonators. Approximately, one order of magnitude higher acceleration sensitivity is measured for oscillators built with a resonator aligned to the <100> plane versus those with a resonator aligned to the <110> plane (an average of ~5.66 × 10−8 (1/g) vs. ~3.66 × 10−9 (1/g), respectively, for resonators on a degenerately n-type doped silicon layer). View Full-Text
Keywords: MEMS resonators; acceleration sensitivity; vibration sensitivity; nonlinearity MEMS resonators; acceleration sensitivity; vibration sensitivity; nonlinearity

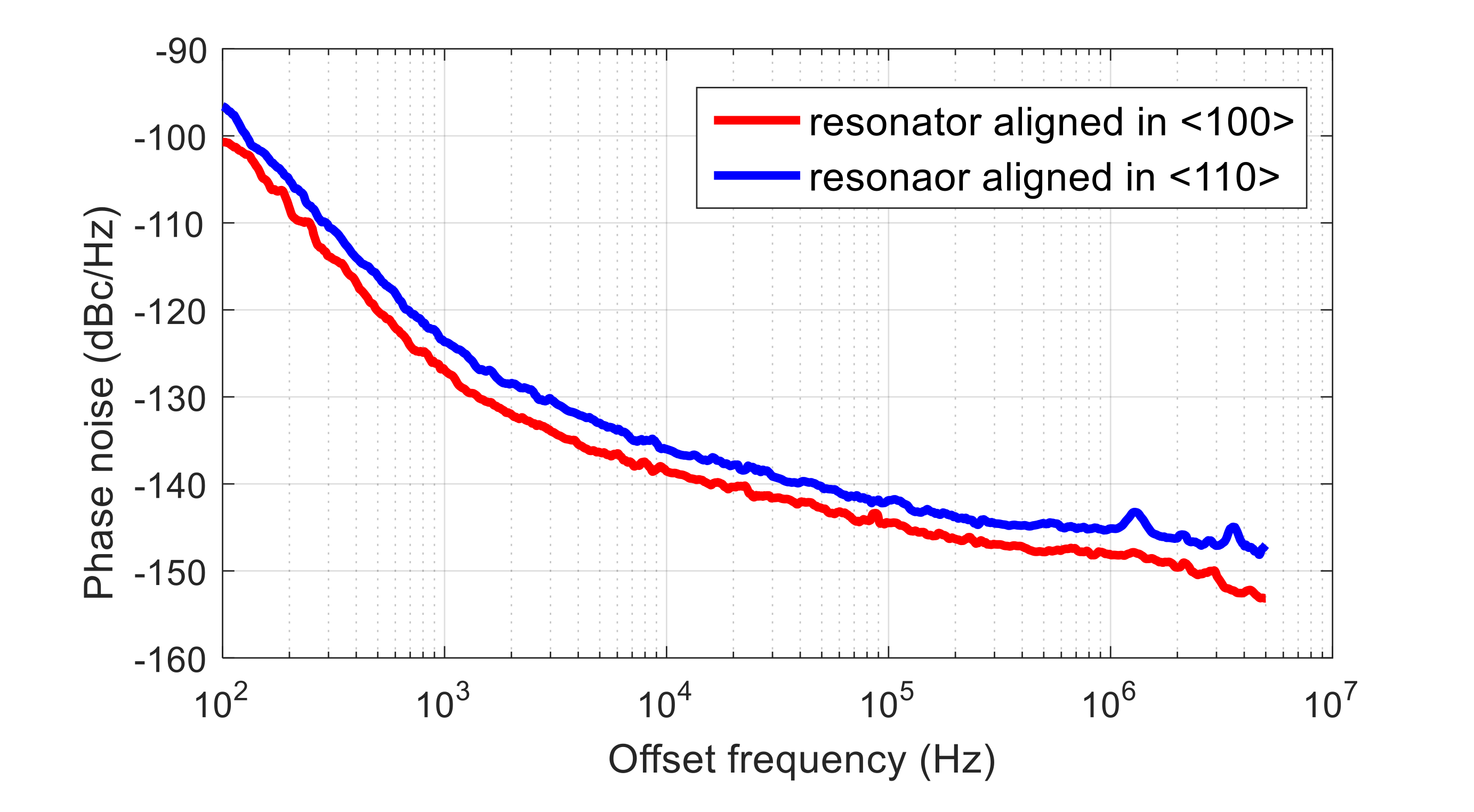

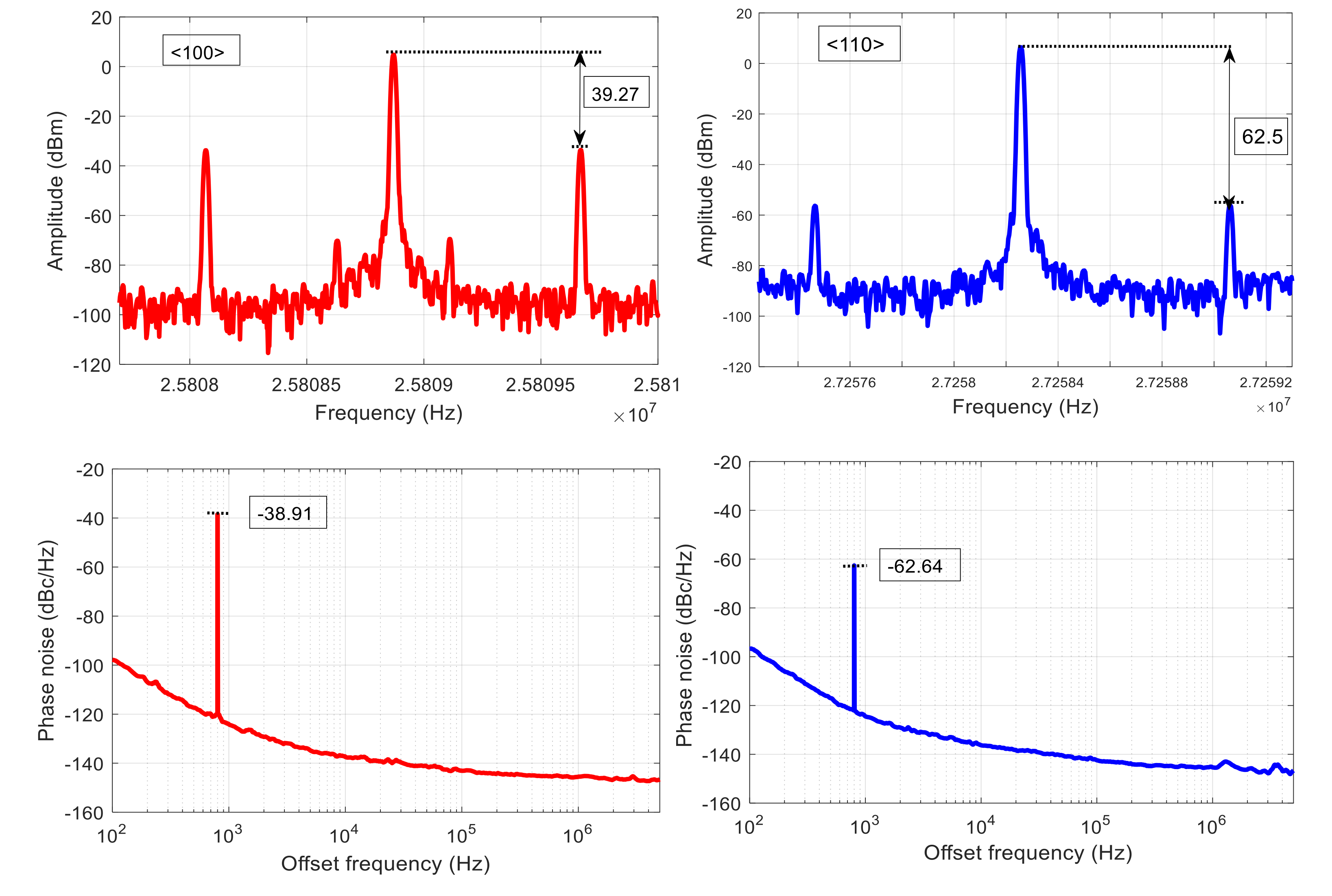

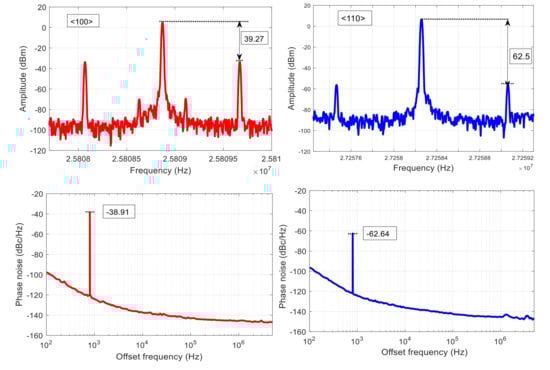

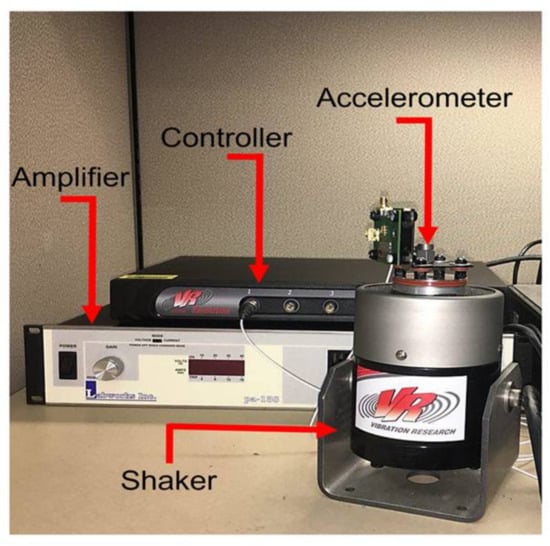

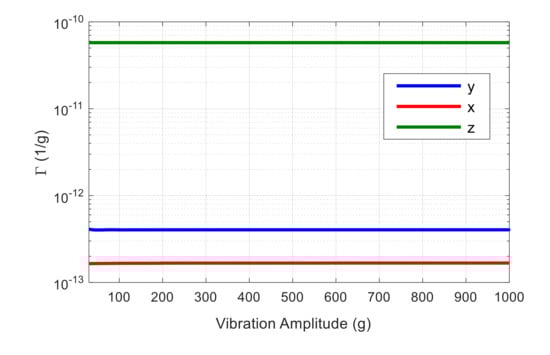

Figures

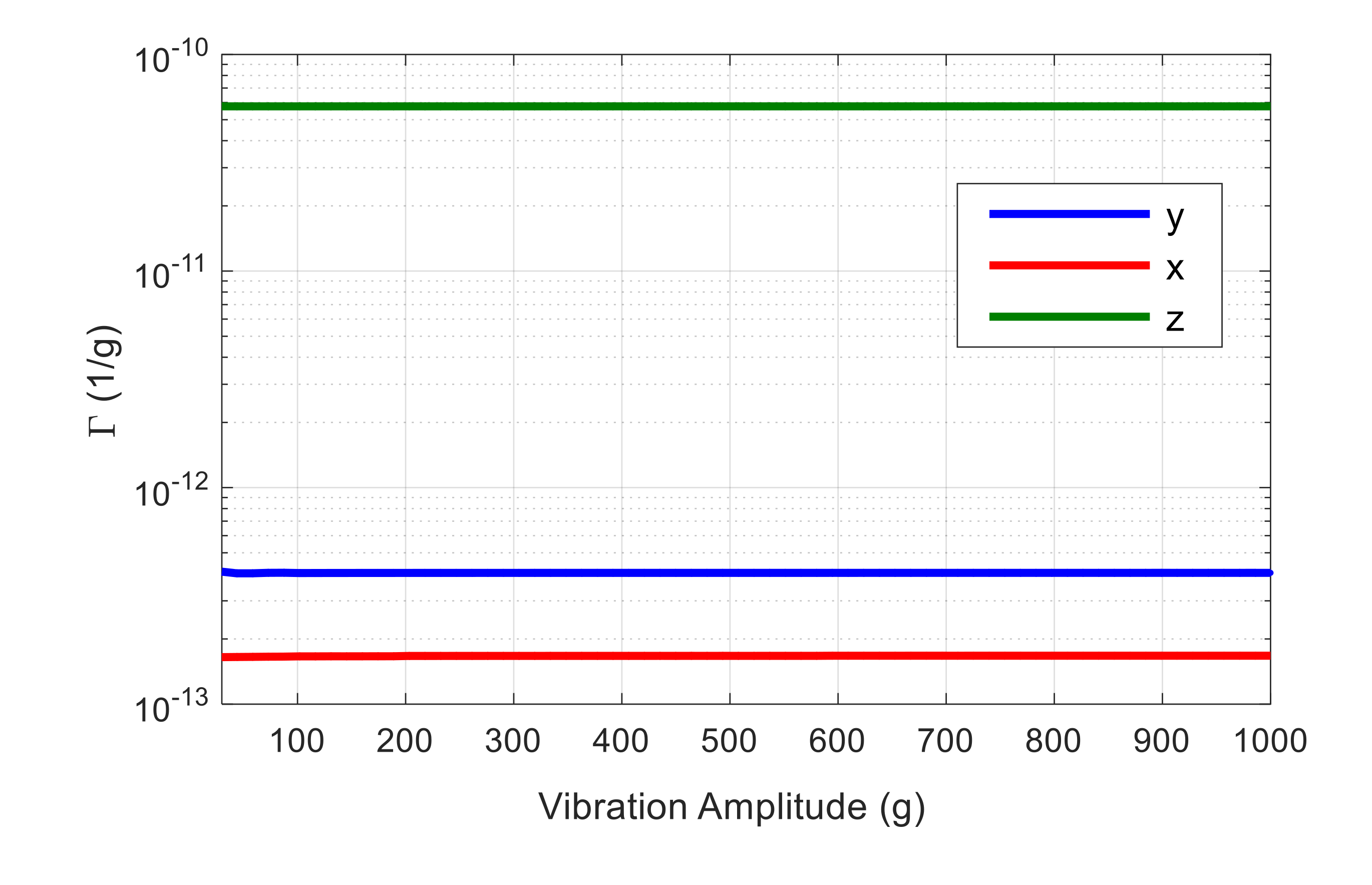

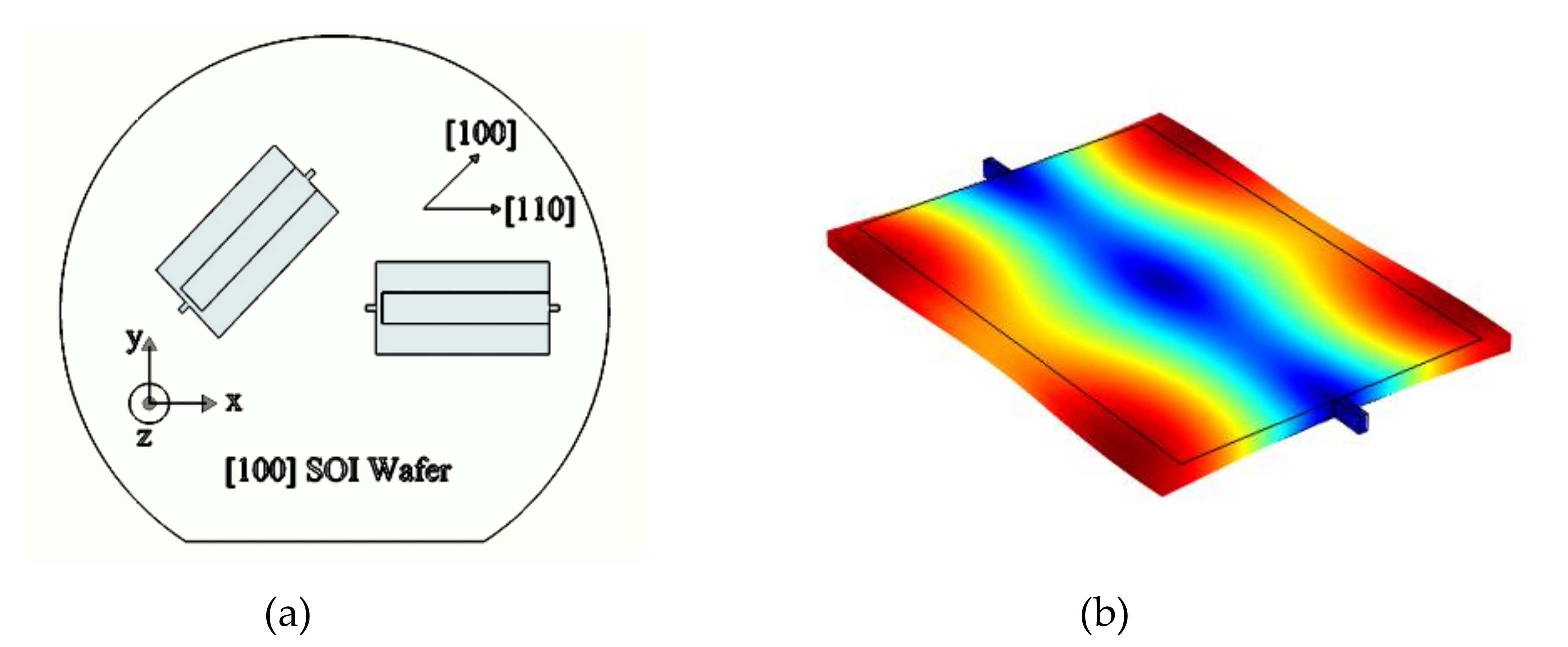

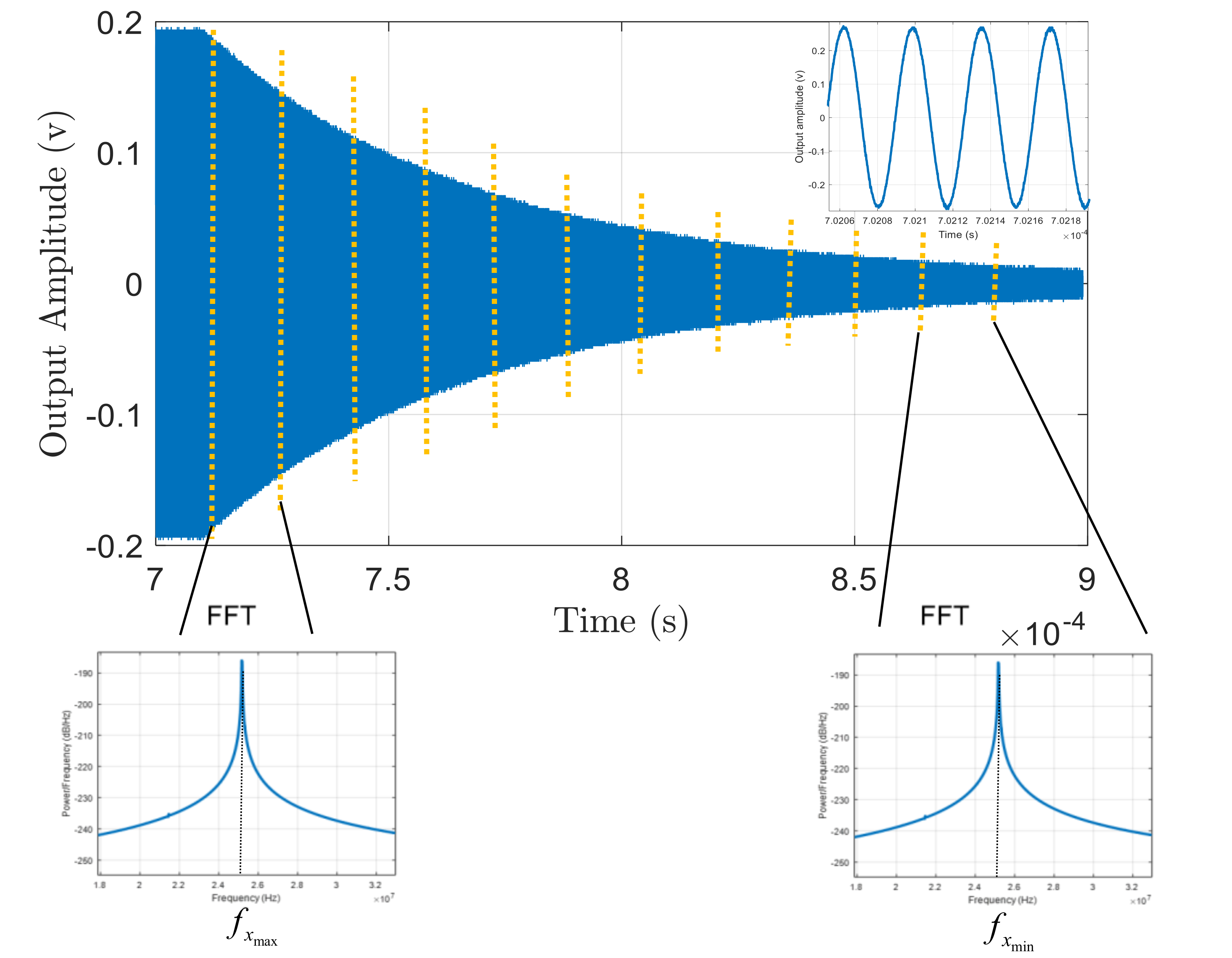

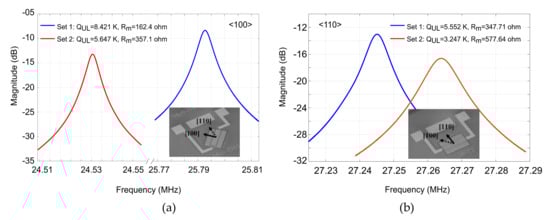

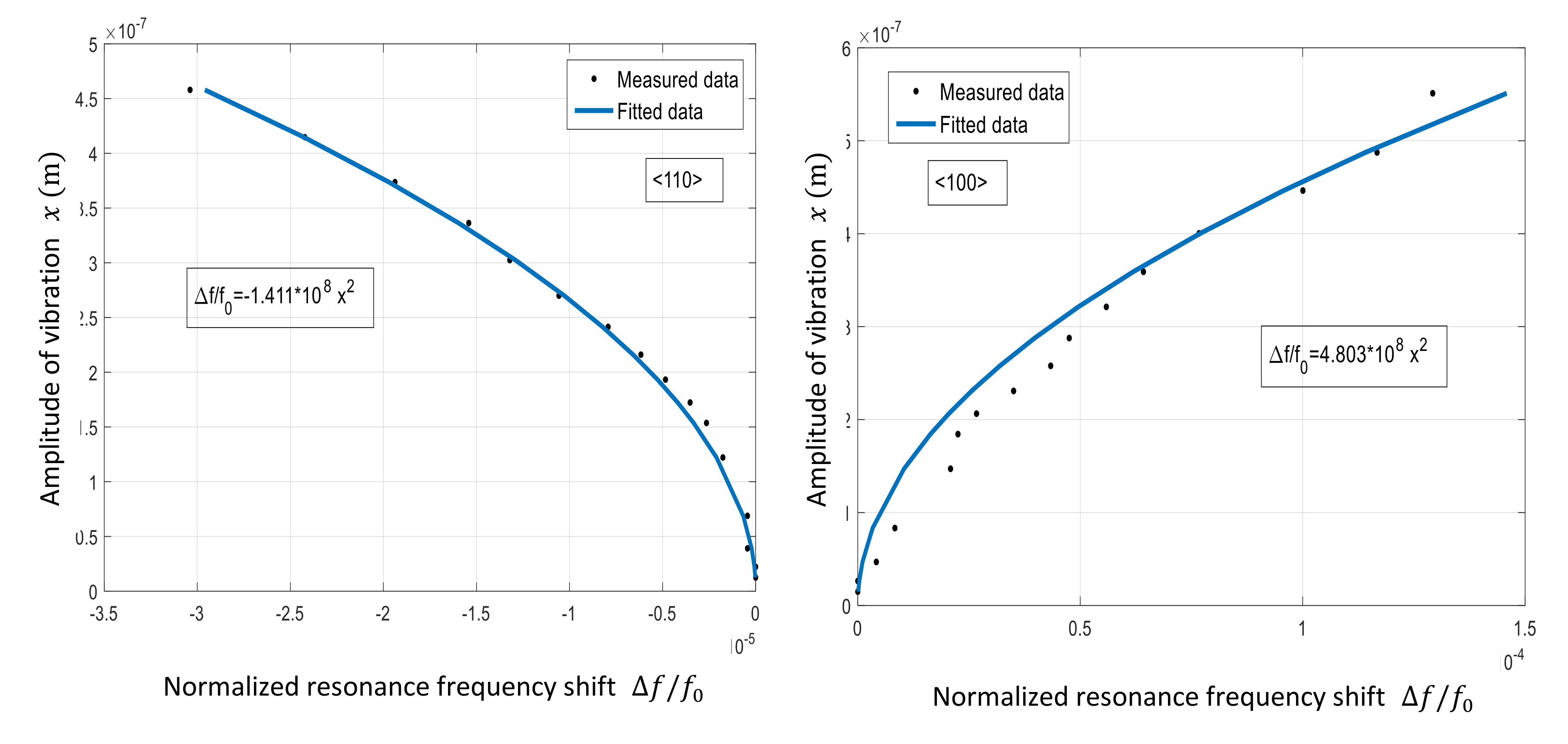

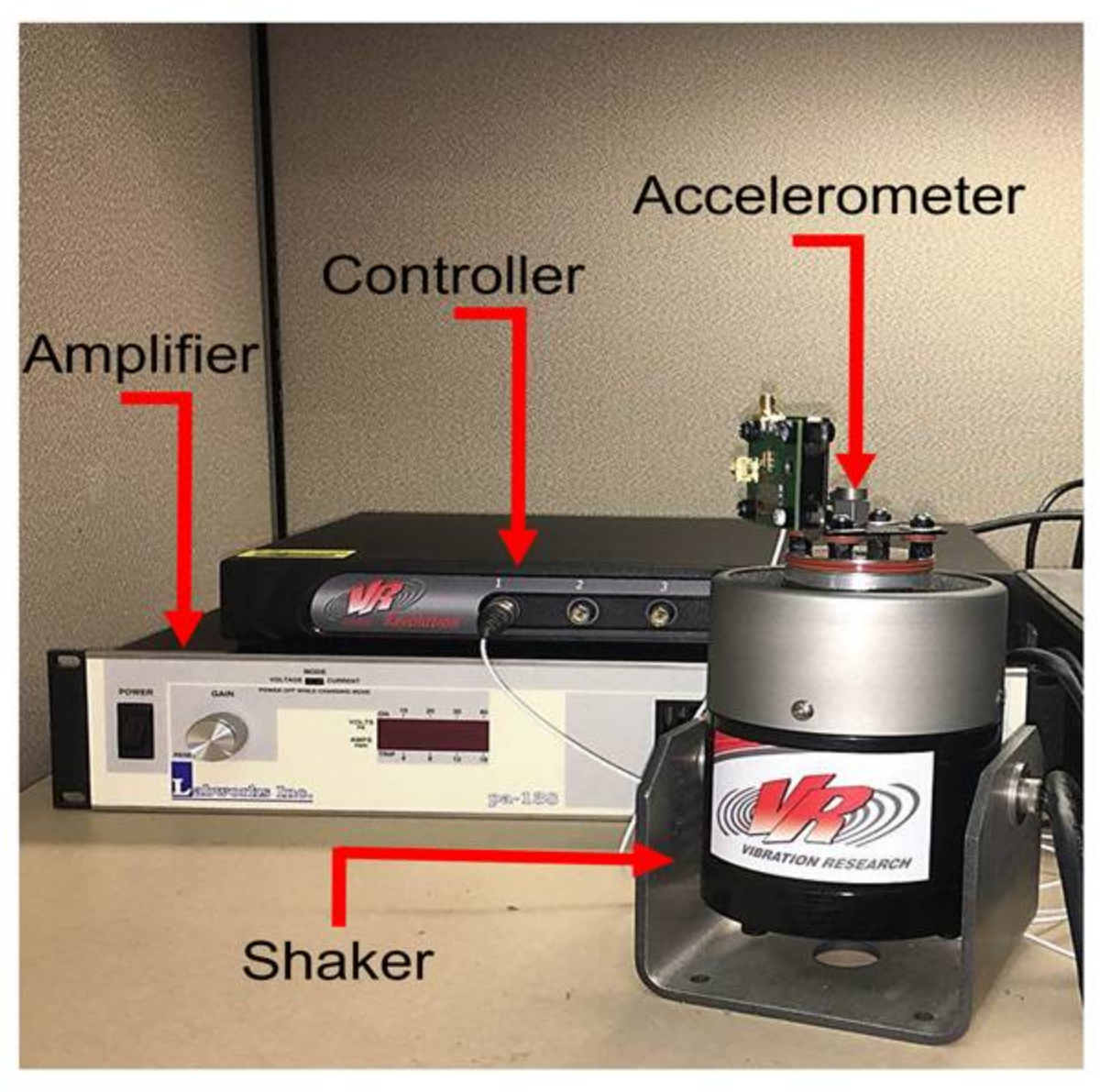

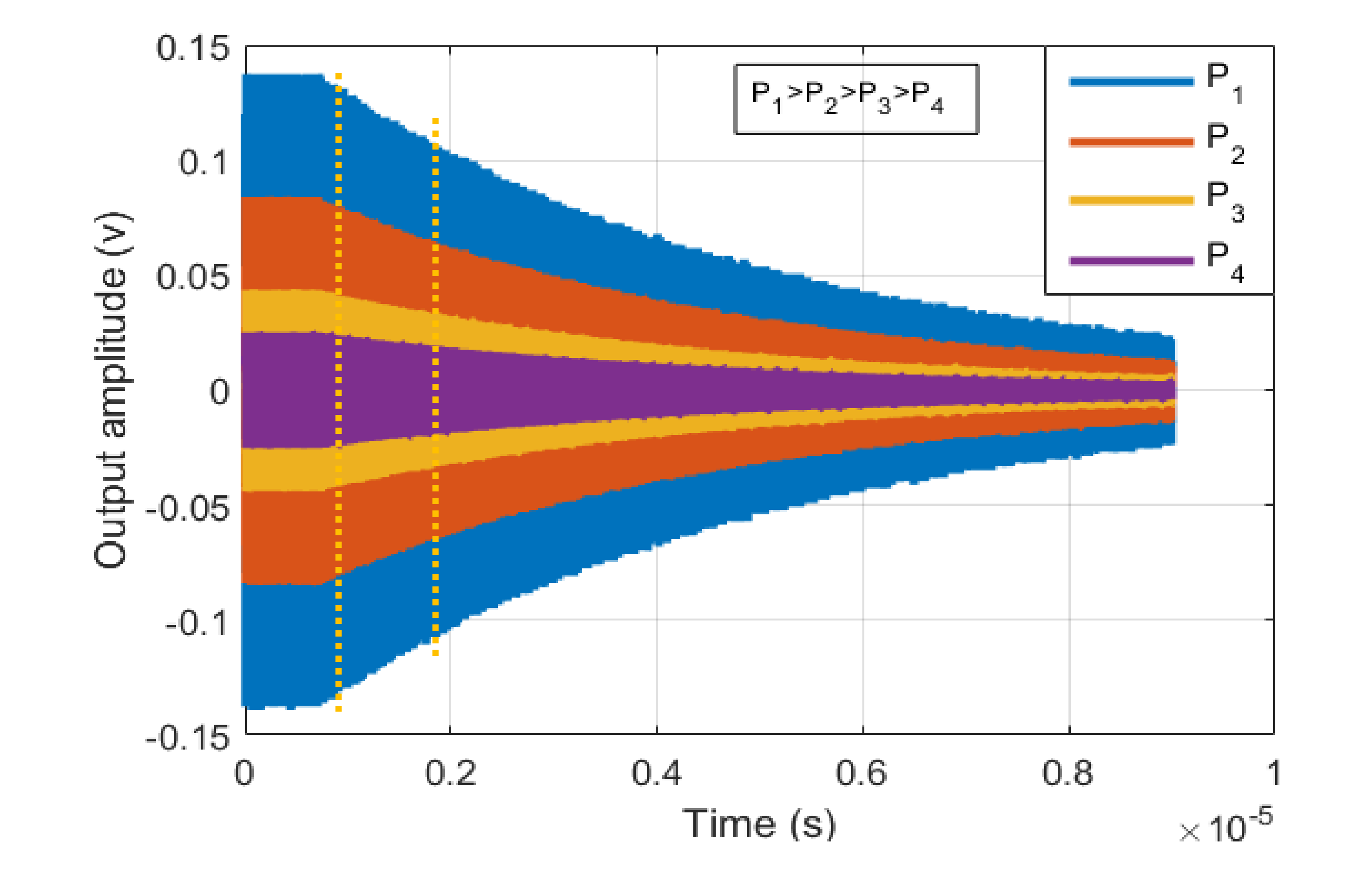

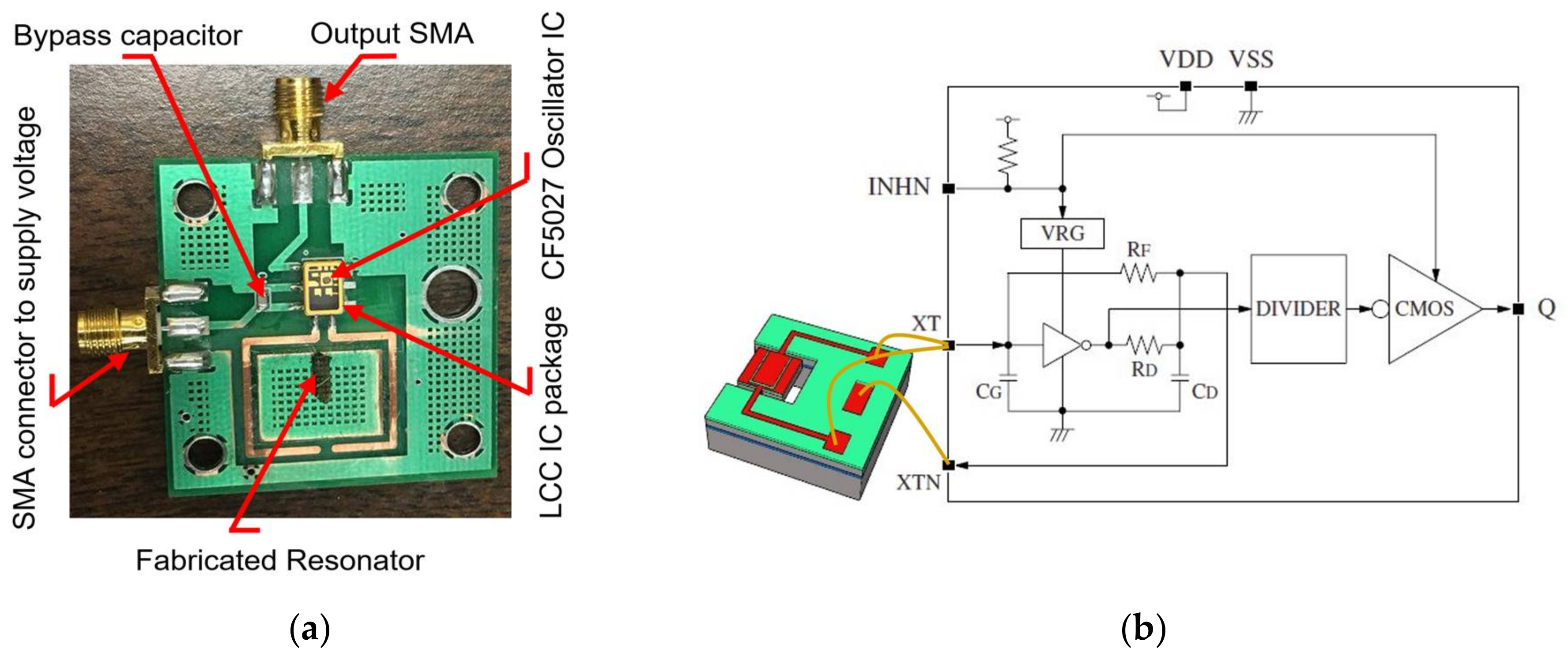

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed
Printed Edition Available!
A printed edition of this Special Issue is available here.

Share & Cite This Article

MDPI and ACS Style

Khazaeili, B.; Gonzales, J.; Abdolvand, R. Acceleration Sensitivity in Bulk-Extensional Mode, Silicon-Based MEMS Oscillators. Micromachines 2018, 9, 233.
