Numerical and Experimental Study on Mixing Performances of Simple and Vortex Micro T-Mixers

1
Department of Mechanical Engineering, Zakir Husain College of Engineering and Technology, Aligarh Muslim University, Aligarh 202001, India
2
Department of Mechanical Engineering, Inha University, Incheon 22212, Korea
3
WCSL of Integrated Human Airway-on-a-Chip, Inha University, Incheon 22212, Korea
*
Authors to whom correspondence should be addressed.
Micromachines 2018, 9(5), 204; https://doi.org/10.3390/mi9050204
Received: 30 March 2018 / Revised: 18 April 2018 / Accepted: 25 April 2018 / Published: 27 April 2018
(This article belongs to the Special Issue Passive Micromixers)

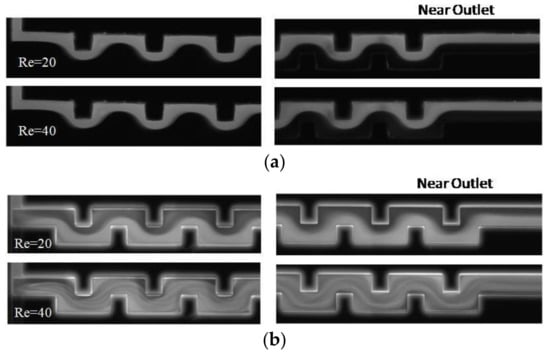

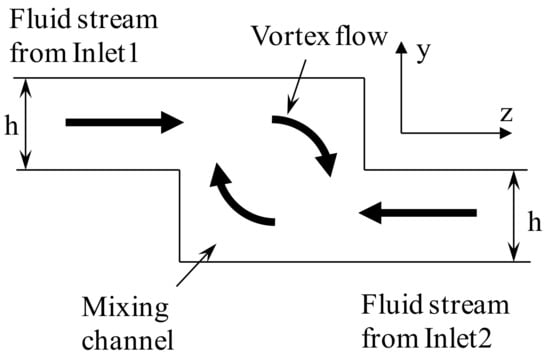

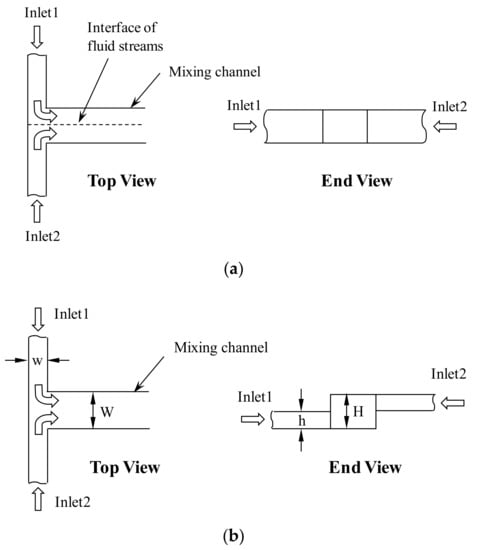

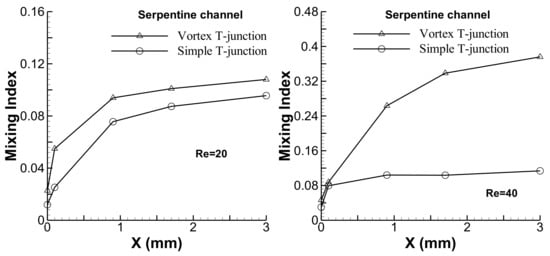

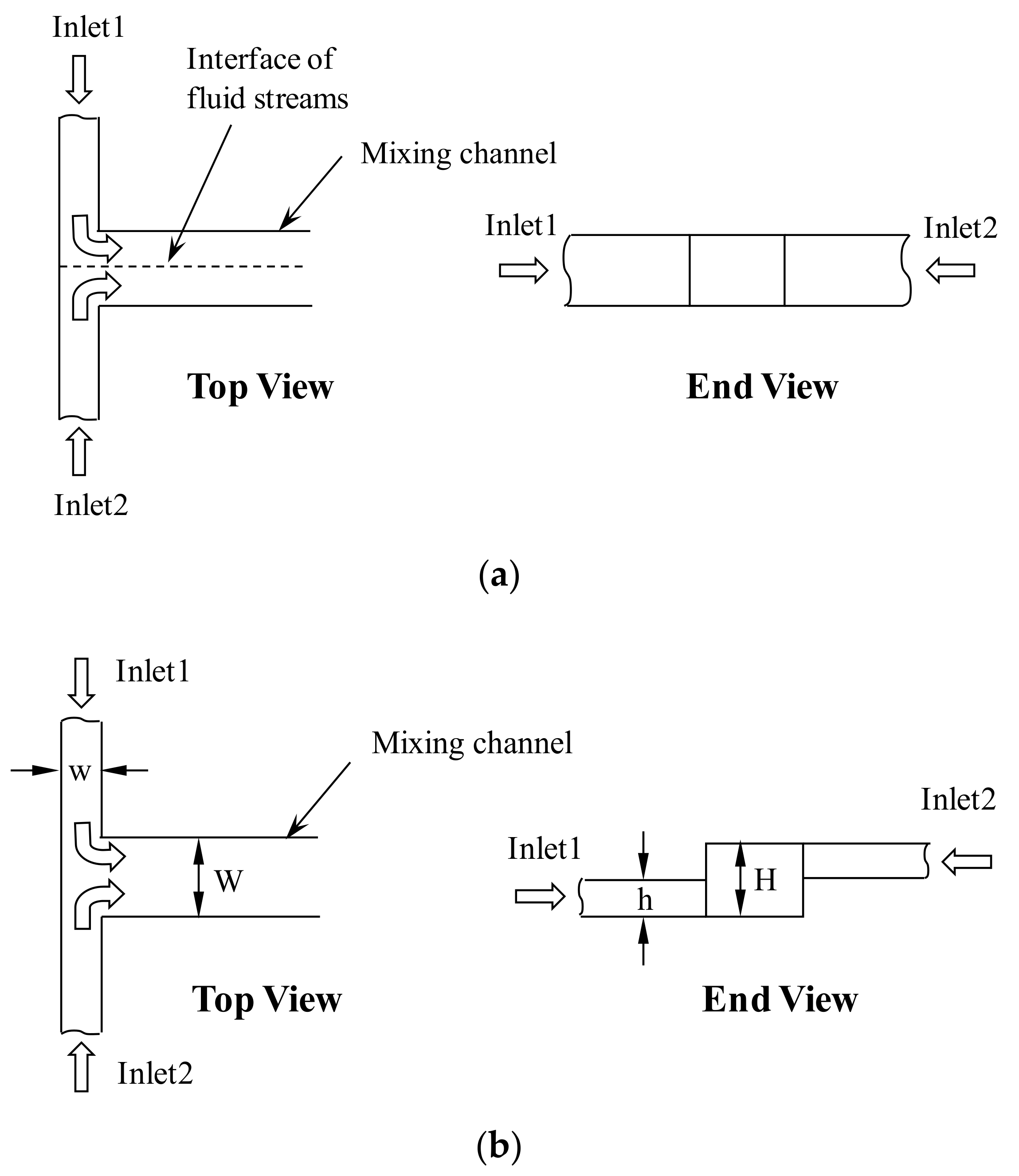

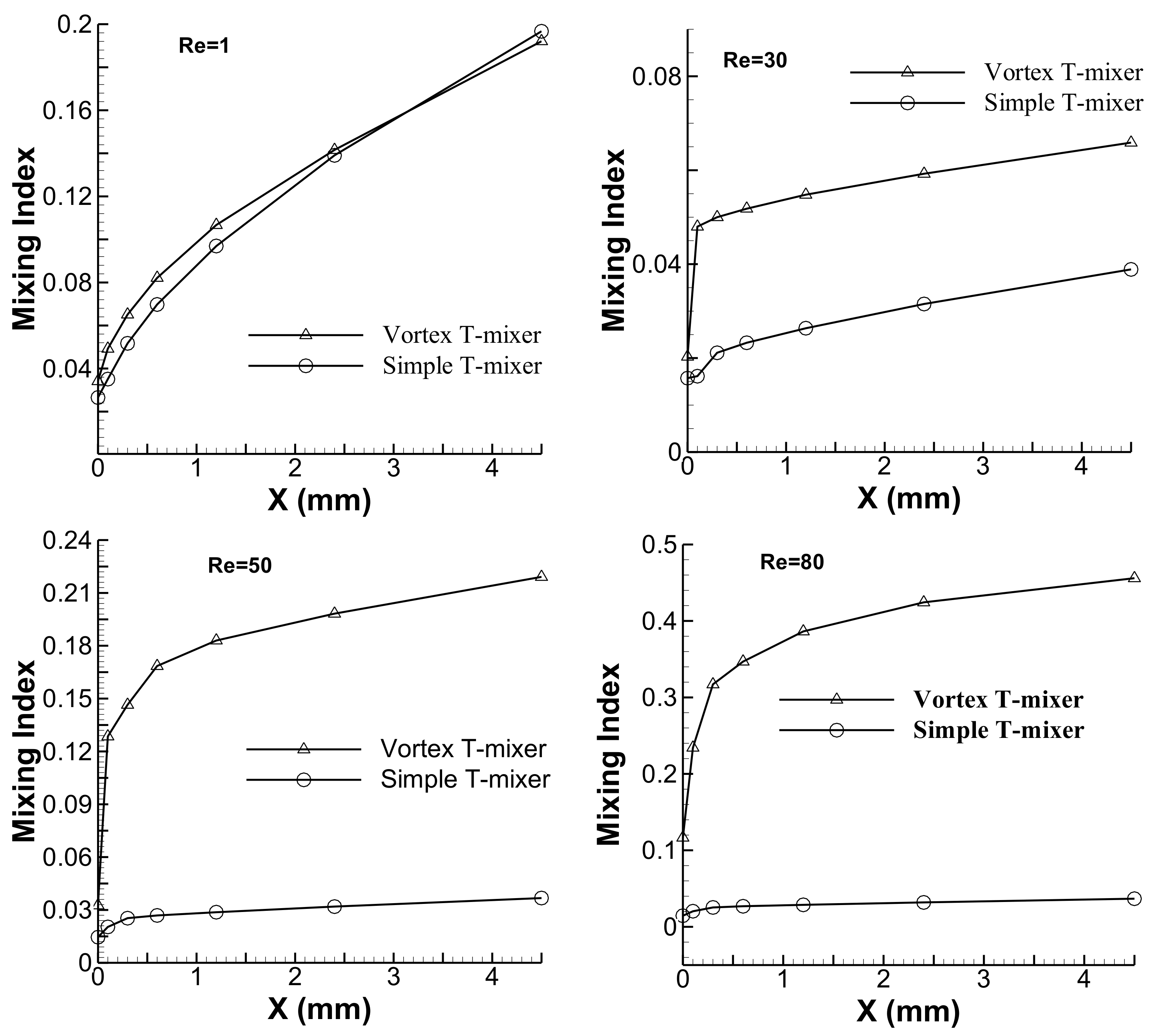

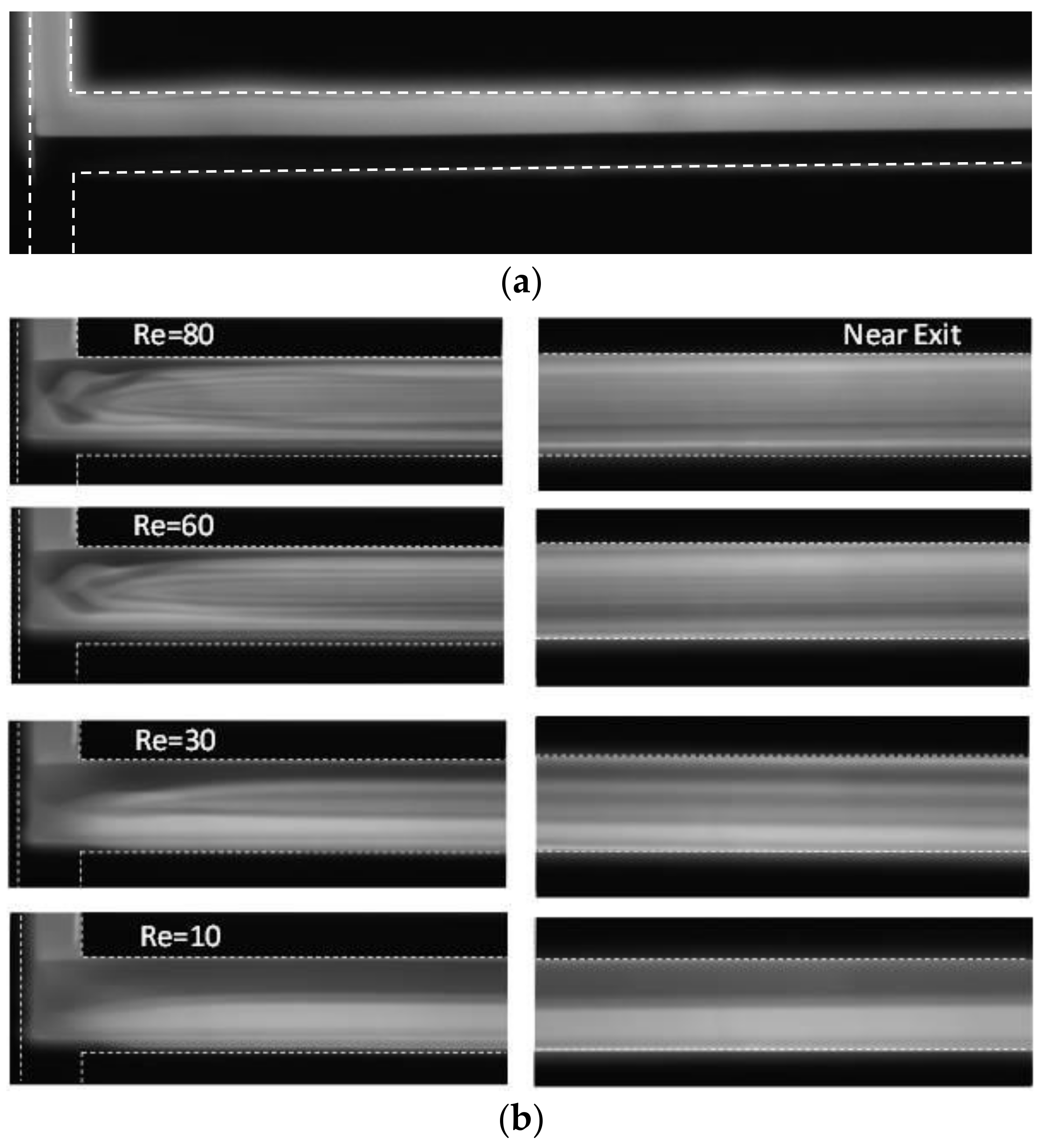

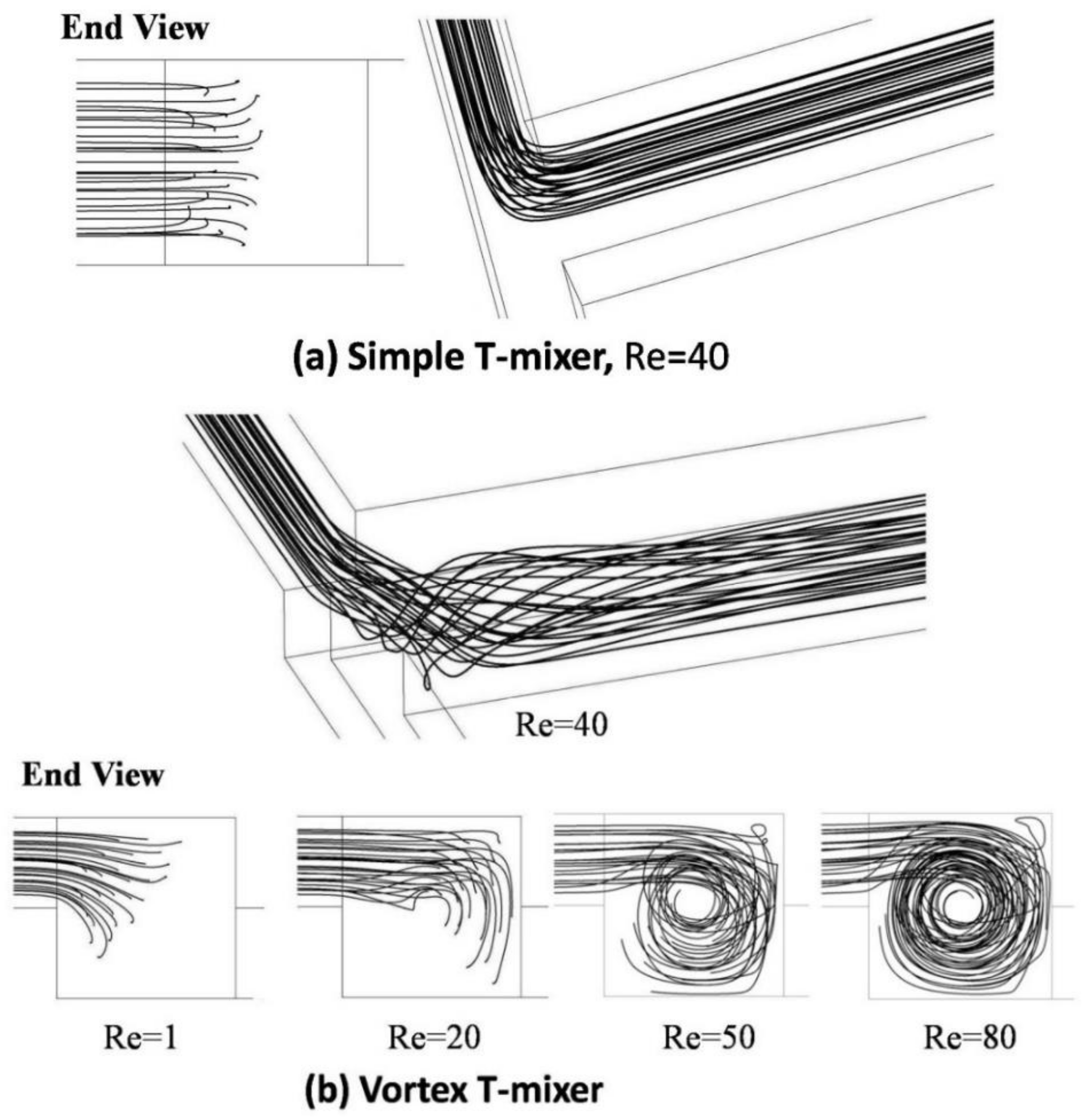

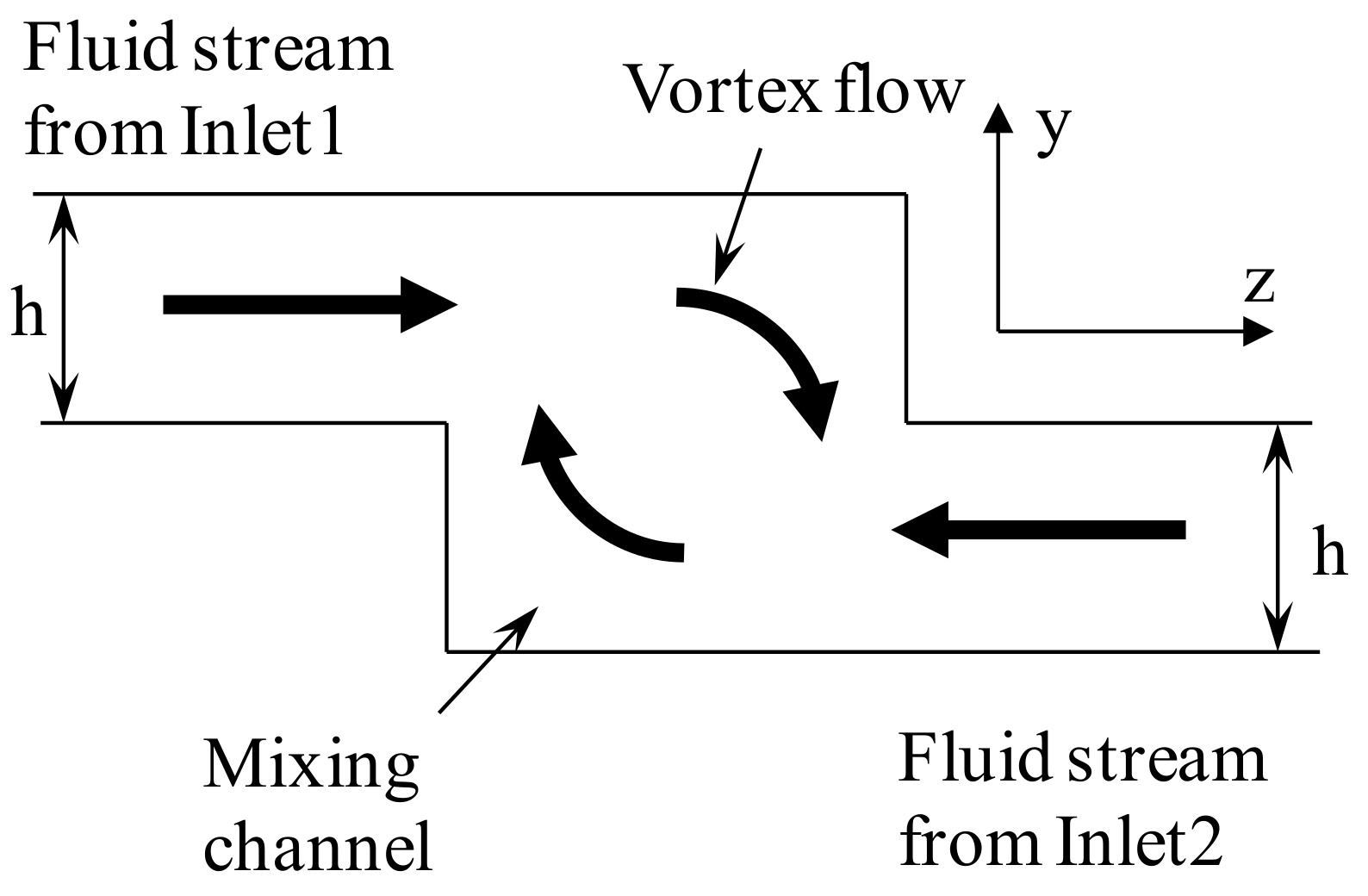

Vortex flow increases the interface area of fluid streams by stretching along with providing continuous stirring action to the fluids in micromixers. In this study, experimental and numerical analyses on a design of micromixer that creates vortex flow were carried out, and the mixing performance was compared with a simple micro T-mixer. In the vortex micro T-mixer, the height of the inlet channels is half of the height of the main mixing channel. The inlet channel connects to the main mixing channel (micromixer) at the one end at an offset position in a fashion that creates vortex flow. In the simple micro T-mixer, the height of the inlet channels is equal to the height of the channel after connection (main mixing channel). Mixing of fluids and flow field have been analyzed for Reynolds numbers in a range from 1–80. The study has been further extended to planar serpentine microchannels, which were combined with a simple and a vortex T-junction, to evaluate and verify their mixing performances. The mixing performance of the vortex T-mixer is higher than the simple T-mixer and significantly increases with the Reynolds number. The design is promising for efficiently increasing mixing simply at the T-junction and can be applied to all micromixers. View Full-Text
Keywords: micromixer; vortex micro T-mixer; planar serpentine microchannel; microfluidics micromixer; vortex micro T-mixer; planar serpentine microchannel; microfluidics
Show Figures

Figure 1

MDPI and ACS Style

Ansari, M.A.; Kim, K.-Y.; Kim, S.M. Numerical and Experimental Study on Mixing Performances of Simple and Vortex Micro T-Mixers. Micromachines 2018, 9, 204.
