Microfluidic Analyzer Enabling Quantitative Measurements of Specific Intracellular Proteins at the Single-Cell Level

Liu, Lixing; Fan, Beiyuan; Wang, Diancan; Li, Xiufeng; Song, Yeqing; Zhang, Ting; Chen, Deyong; Wang, Yixiang; Wang, Junbo; Chen, Jian

doi:10.3390/mi9110588

Open AccessArticle

Microfluidic Analyzer Enabling Quantitative Measurements of Specific Intracellular Proteins at the Single-Cell Level

by

Lixing Liu

^1,2,†

,

Beiyuan Fan

^1,2,†

,

Diancan Wang

^3,†,

Xiufeng Li

^1,2

,

Yeqing Song

³,

Ting Zhang

^1,2,

Deyong Chen

^1,2,

Yixiang Wang

^3,*,

Junbo Wang

^1,2,* and

Jian Chen

^1,2,*

¹

State Key Laboratory of Transducer Technology, Institute of Electronics, Chinese Academy of Sciences, Beijing 100190, China

²

University of Chinese Academy of Sciences, Beijing 100190, China

³

Peking University School of Stomatology, Beijing 10081, China

^*

Authors to whom correspondence should be addressed.

^†

These authors contributed equally to this work.

Micromachines 2018, 9(11), 588; https://doi.org/10.3390/mi9110588

Submission received: 12 October 2018 / Revised: 2 November 2018 / Accepted: 8 November 2018 / Published: 12 November 2018

(This article belongs to the Special Issue Microfluidics for Cells and Other Organisms)

Download

Browse Figures

Versions Notes

Abstract

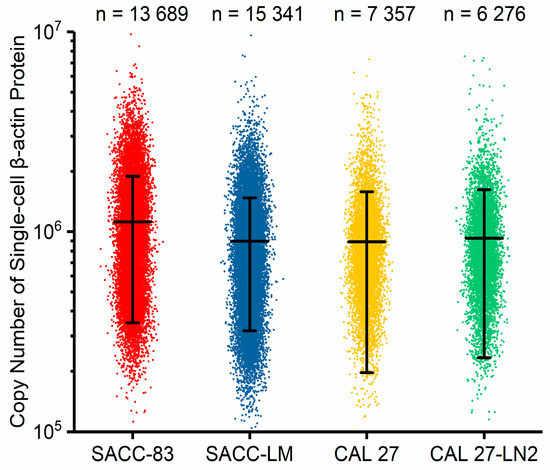

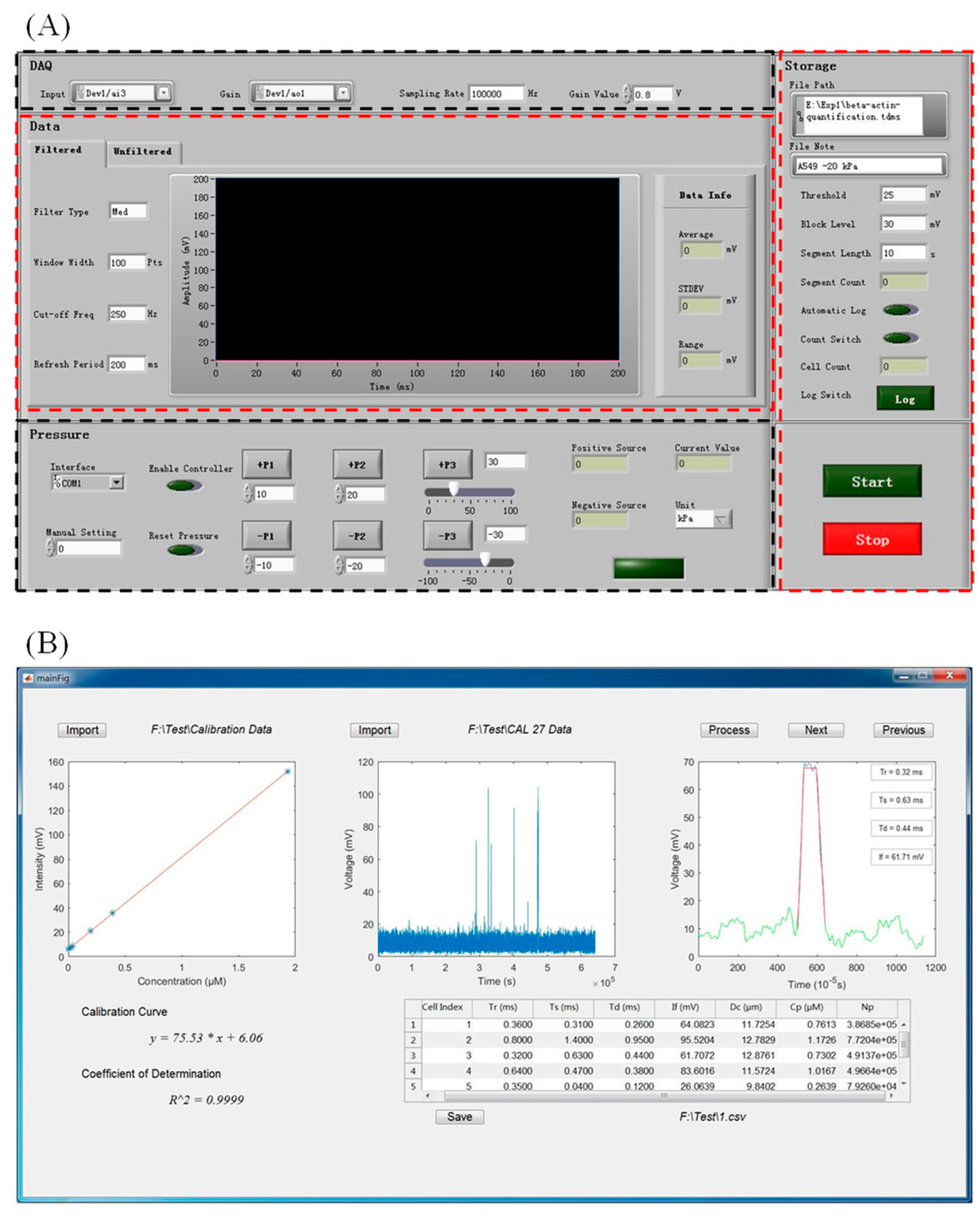

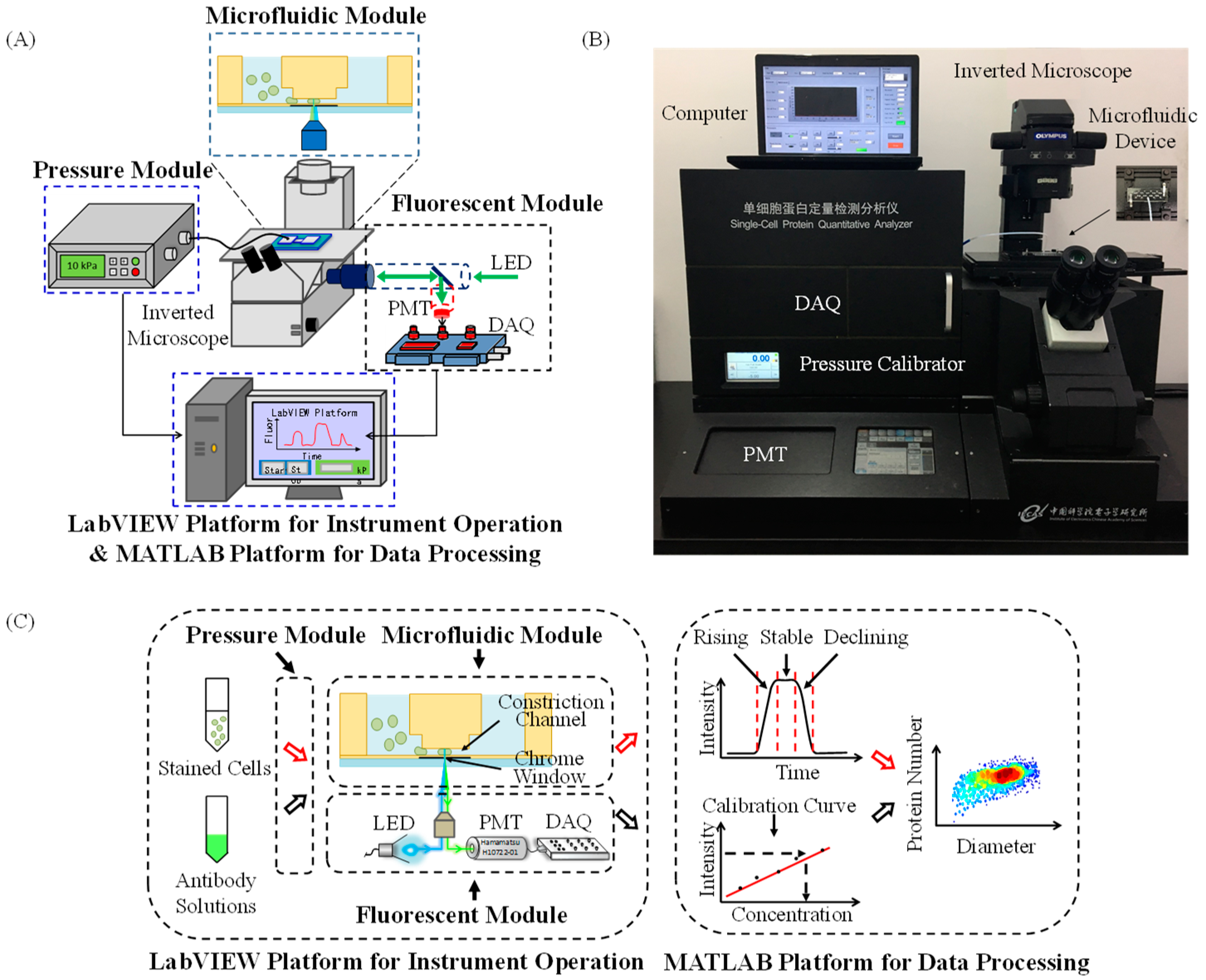

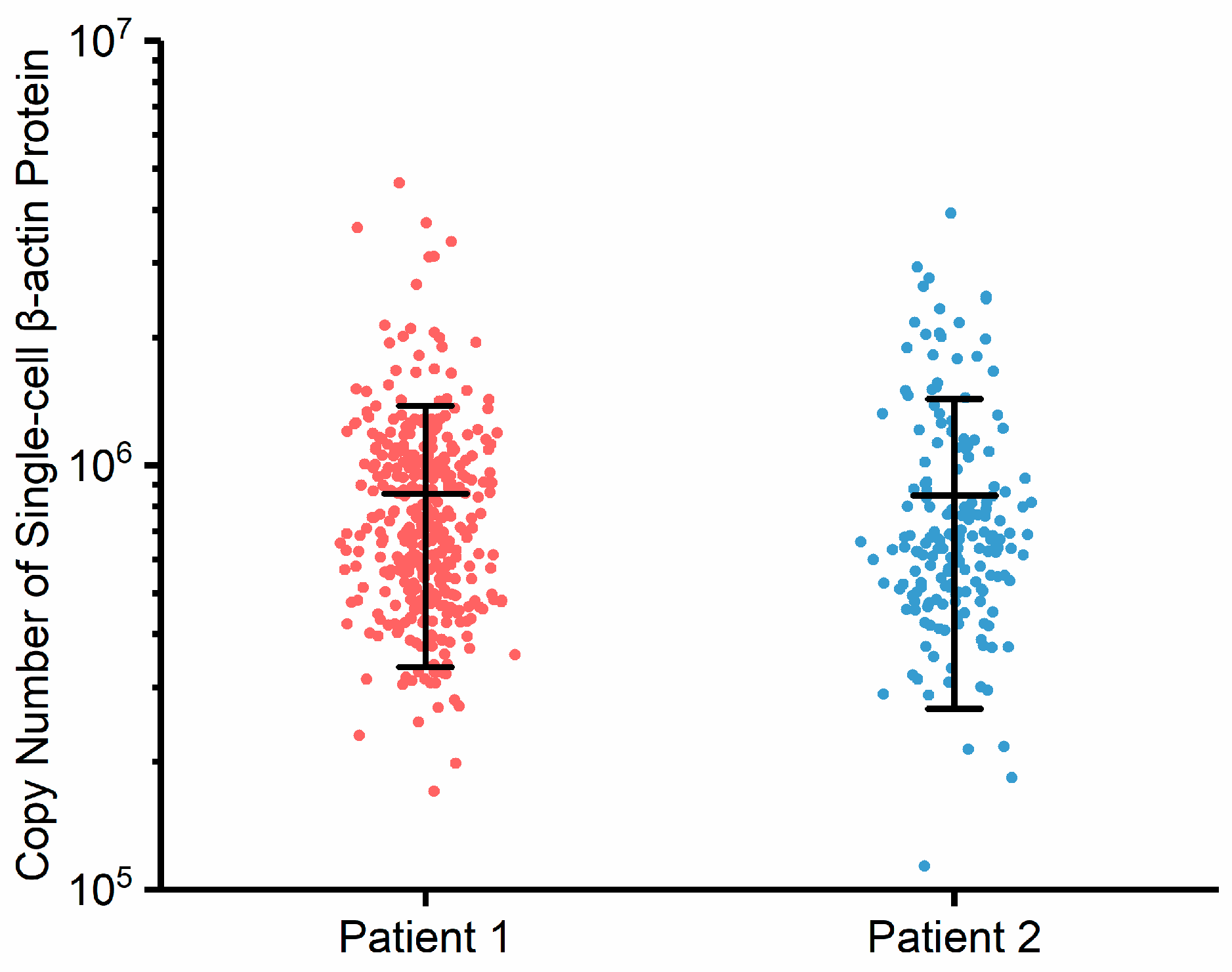

This paper presents a microfluidic instrument capable of quantifying single-cell specific intracellular proteins, which are composed of three functioning modules and two software platforms. Under the control of a LabVIEW platform, a pressure module flushed cells stained with fluorescent antibodies through a microfluidic module with fluorescent intensities quantified by a fluorescent module and translated into the numbers of specific intracellular proteins at the single-cell level using a MATLAB platform. Detection ranges and resolutions of the analyzer were characterized as 896.78–6.78 × 10⁵ and 334.60 nM for Alexa 488, 314.60–2.11 × 10⁵ and 153.98 nM for FITC, and 77.03–5.24 × 10⁴ and 37.17 nM for FITC-labelled anti-beta-actin antibodies. As a demonstration, the numbers of single-cell beta-actins of two paired oral tumor cell types and two oral patient samples were quantified as: 1.12 ± 0.77 × 10⁶/cell (salivary adenoid cystic carcinoma parental cell line (SACC-83), n_cell = 13,689) vs. 0.90 ± 0.58 × 10⁵/cell (salivary adenoid cystic carcinoma lung metastasis cell line (SACC-LM), n_cell = 15,341); 0.89 ± 0.69 × 10⁶/cell (oral carcinoma cell line (CAL 27), n_cell = 7357) vs. 0.93 ± 0.69 × 10⁶/cell (oral carcinoma lymphatic metastasis cell line (CAL 27-LN2), n_cell = 6276); and 0.86 ± 0.52 × 10⁶/cell (patient I) vs. 0.85 ± 0.58 × 10⁶/cell (patient II). These results (1) validated the developed analyzer with a throughput of 10 cells/s and a processing capability of ~10,000 cells for each cell type, and (2) revealed that as an internal control in cell analysis, the expressions of beta-actins remained stable in oral tumors with different malignant levels.

Keywords: instrumentation; microfluidic flow cytometry; intracellular proteins; absolute quantification
