# Fabrication of Micro-Scale Gratings by Nanosecond Laser and Its Applications for Deformation Measurements

^{1}

^{2}

^{*}

## Abstract

**:**

^{2}with the waist radius of the laser beam 25.7 μm. With the optimal parameters, experimental results indicate that the highest frequency of parallel gratings is about 30 lines/mm, with a line width of 29 μm, and the distance between two adjacent laser pulses being of 10 μm. By performing tensile tests, micro-scale gratings fabricated on specimens are experimentally verified. The verification tests prove that the proposed fabrication method for the micro-scale gratings in GPA measurements is reliable and applicable, and the micro-scale gratings can be fabricated in many areas of interest, such as the crack tip, for deformation measurements. Furthermore, the adhesion between the Al film and the tested sample is strong enough so that the pattern sticks well to the sample.

## 1. Introduction

## 2. Methodology

#### 2.1. Nanosecond Laser Processing and Gratings

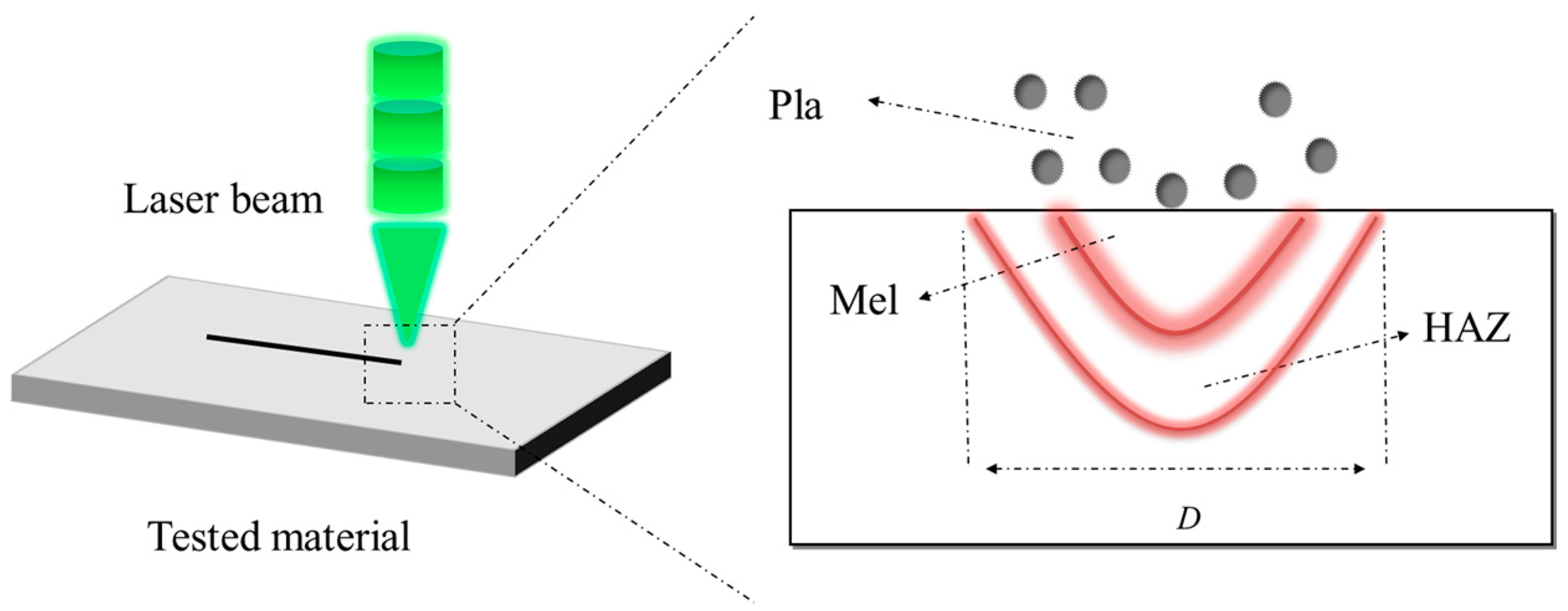

_{0}) on the surface of the specimen and its single-pulse energy E is [32],

_{0}is the waist radius of the laser beam (μm). And the etching diameter can be determined as,

_{th}is the threshold of energy fluence (J/cm

^{2}). Substituting Equation (1) into Equation (2) gives,

#### 2.2. GPA

_{f}represents the Fourier component. To describe the variations of contrast and fringe position in the image, the Fourier component A

_{f}is related to the position r,

_{f}is therefore given by,

_{f}(r) is directly related to the component of the displacement field u(r) in the direction of the reciprocal lattice vector f,

## 3. Experimental Setup and Tested Samples

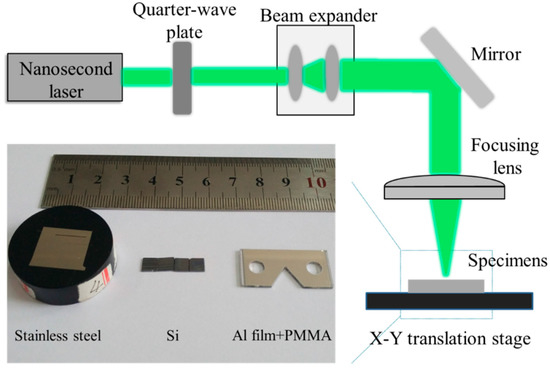

_{4}laser (Continuum, PPII8000, Felles Photonic, Tianjin, China), a quarter-wave plate, a beam expander, a focusing lens, and an X-Y translation stage. The nanosecond laser has a wavelength of 532 nm, pulse width of 500 ns, pulse frequency of 1 kHz, and maximum pulse energy of 1 J. During the experiment, the laser beam first passes through a quarter-wave plate to enable circular polarization and then is expanded by a beam expander before it is reflected by a mirror. Subsequently, the laser beam is guided by a focusing lens to reach the test specimen. The laser frequency and scanning speed are constant, being 1 kHz and 10 mm/s, respectively.

## 4. Experimental Results and Discussion

#### 4.1. Parameter Studying of Single-Line Etching

_{th}) can be obtained when D = 0 based on Equation (3). Thus, the threshold of energy density (I

_{th}) can be calculated according to Equation (1). The calculated results of Si, stainless steel, and Al film are listed in Table 1.

^{2}with the waist radius of the laser beam 25.7 μm). Therefore, the above optimum parameters are recommended for line etching of 2 μm thickness Al film. The line width is 29 μm.

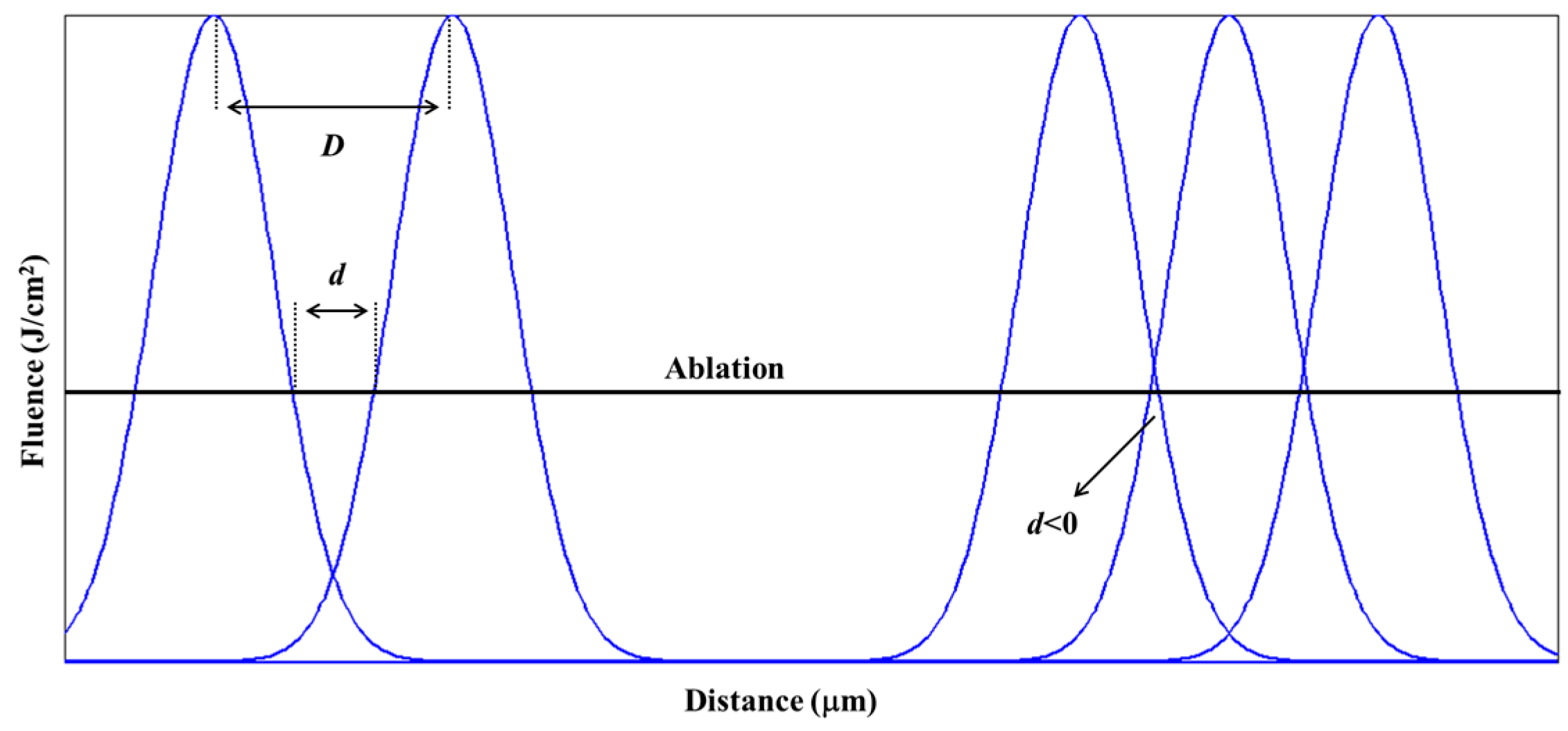

#### 4.2. Gratings

## 5. Applications

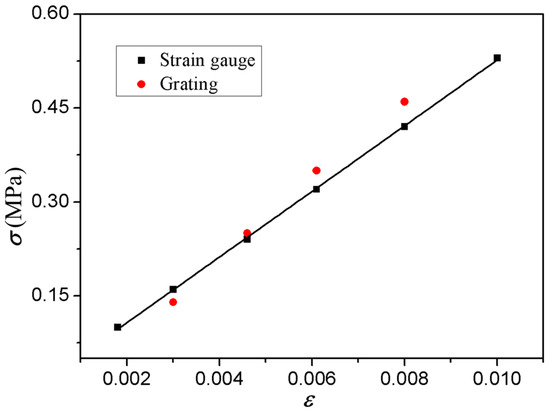

#### 5.1. Deformation Measurement during a Tensile Test

#### 5.2. Deformation Measurement of the Crack Tip

## 6. Conclusions

- (1)
- Al film deposition on specimen before laser processing is proposed for fabrication of micro-scale gratings with three main benefits. First, easy operation with the same processing parameters and without a mask. Second, wide applicability to different materials, such as Si, metal, ceramic, composite, etc. Third, high-quality of gratings with high contrast, small HAZ and small roughness.
- (2)
- The energy of laser pulse is optimized for clear line etching on the Al film. The optimal energy of laser pulse is 9.8 μJ, and the optimum fluence is 9.5 J/mm
^{2}with the waist radius of the laser beam 25.7 μm. Parallel gratings are fabricated. The results indicate that gratings of parallel lines fabricated by nanosecond laser will affect each other if the distance between adjacent lines is too small. The highest frequency of parallel gratings is about 30 lines/mm with line width of 29 μm, and the distance between two adjacent laser pulses being of 10 μm. - (3)
- The verification tests prove that the applicability of the proposed fabrication method for the micro-scale gratings in GPA measurements. Moreover, the micro-scale gratings can be fabricated on areas of interest, such as the crack tip, for deformation measurements. The adhesion between the Al film and the tested sample is good enough to ensure that the pattern sticks well to the sample.
- (4)
- The proposed fabrication method of gratings suffers from a few defects. For instance, the minimum line width of gratings is about 10 μm due to the spatial resolution of the nanosecond laser, and thus the frequency of fabricated gratings is relatively low, typically 10–30 lines/mm. If a femtosecond laser is used, higher frequency of gratings can be fabricated since it has higher spatial resolution and pulse energy.

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Hao, W.F.; Ge, D.Y.; Ma, Y.J.; Yao, X.F.; Shi, Y. Experimental investigation on deformation and strength of carbon/epoxy laminated curved beams. Polym. Test.
**2012**, 31, 520–526. [Google Scholar] [CrossRef] - Hao, W.F.; Guo, G.P.; Zhang, Y.; Chen, X.W. Characterizing thermo-mechanical behavior of superalloy using the eigenfunction virtual fields method. Adv. Eng. Softw.
**2016**, 93, 22–29. [Google Scholar] [CrossRef] - Pan, B.; Qian, K.M.; Xie, H.M.; Asundi, A. Two-dimensional digital image correlation for in-plane displacement and strain measurement: A review. Meas. Sci. Technol.
**2009**, 20, 062001. [Google Scholar] [CrossRef] - Guo, Y.; Chen, W.T.; Lin, C.K. Experimental deformation of thermal strains in semiconductor packaging using Moiré interferometry. In Proceedings of the 1992 Joint ASME/JSME Conference on Electronic Packaging, Milpitas, CA, USA, 9–12 April 1992; pp. 779–784. [Google Scholar]
- Rouviere, J.L.; Sarigiannidou, E. Theoretical discussions on the geometrical phase analysis. Ultramicroscopy
**2005**, 106, 1–17. [Google Scholar] [CrossRef] [PubMed] - Liu, Z.W.; Xie, H.M.; Fang, D.N.; Shang, H.X.; Dai, F.L. A novel nano-Moiré method with scanning tunneling microscope (STM). J. Mater. Process. Technol.
**2004**, 148, 77–82. [Google Scholar] [CrossRef] - Hytch, M.J.; Snoeck, E.; Kilaas, R. Quantitative measurement of displacement and strain fields form HREM micrographs. Ultramicroscopy
**1998**, 74, 131–146. [Google Scholar] [CrossRef] - Huee, F.; Hytch, M.; Bender, H.; Houdellier, F.; Claverie, A. Direct mapping of strain in a strained silicon transistor by high-resolution electron microscopy. Phys. Rev. Lett.
**2008**, 100, 156602. [Google Scholar] [CrossRef] [PubMed] - Zhao, C.W.; Xing, Y.M. Nanoscale deformation analysis of a crack-tip in silicon by geometric phase analysis and numerical Moiré method. Opt. Lasers Eng.
**2010**, 48, 1104–1107. [Google Scholar] [CrossRef] - Shi, W.X.; Huang, X.F.; Liu, Z.W. Transmission-lattice based geometric phase analysis for evaluating the dynamic deformation of a liquid surface. Opt. Express
**2014**, 22, 10559–10569. [Google Scholar] [CrossRef] [PubMed] - Liu, Z.W.; Xie, H.M.; Gu, C.Z.; Meng, Y.G. The digital geometric phase technique applied to the deformation evaluation of MEMS devices. J. Micromech. Microeng.
**2009**, 19, 015012. [Google Scholar] [CrossRef] - Wang, Q.H.; Xie, H.M.; Liu, Z.W.; Lou, X.H.; Wang, J.F.; Xu, K.W.; Zhang, Z.H.; Liao, J.H.; Gu, C.Z. Residual stress assessment of interconnects by slot milling with FIB and geometric phase analysis. Opt. Lasers Eng.
**2010**, 48, 1113–1118. [Google Scholar] [CrossRef] - Dai, X.L.; Xie, H.M.; Wang, H.X.; Li, C.W.; Liu, Z.W.; Wu, L.F. The geometric phase analysis method based on the local high resolution discrete Fourier transform for deformation measurement. Meas. Sci. Technol.
**2014**, 25, 025402. [Google Scholar] [CrossRef] - Dai, X.L.; Xie, H.M.; Wang, Q.H. Geometric phase analysis based on the windowed Fourier transform for the deformation field measurement. Opt. Laser Technol.
**2014**, 58, 119–127. [Google Scholar] [CrossRef] - Anderson, E.H.; Horwitz, C.M.; Smith, H.I. Holographic lithography with thick photoresist. Appl. Phys. Lett.
**1983**, 43, 874–875. [Google Scholar] [CrossRef] - Zhu, J.G.; Xie, H.M.; Hu, Z.X.; Chen, P.W.; Zhang, Q.M. Cross-sectional residual stresses in thermal spray coatings measured by Moiré interferometry and nanoindentation technique. J. Therm. Spray Technol.
**2012**, 21, 810–817. [Google Scholar] [CrossRef] - Hao, W.F.; Zhang, Y.; Yuan, Y.N. Eigenfunction virtual fields method for thermo-mechanical parameters identification of composite materials. Polym. Test.
**2016**, 50, 224–234. [Google Scholar] [CrossRef] - Ritucci, A.; Reale, A.; Zuppella, P.; Reale, L.; Tucceri, P.; Tomassetti, G.; Bettotti, P.; Pavesi, L. Interference lithography by a soft X-ray laser beam: Nanopatterning on photoresists. J. Appl. Phys.
**2007**, 102, 034313. [Google Scholar] [CrossRef] - Xie, H.M.; Kishimoto, S.; Shinya, N. Fabrication of high-frequency electron beam Moiré grating using multi-deposited layer techniques. Opt. Laser Technol.
**2000**, 32, 361–367. [Google Scholar] [CrossRef] - Xie, H.M.; Li, B.; Geer, R.; Xu, B.; Castracane, J. Focused ion beam Moiré method. Opt. Lasers Eng.
**2003**, 40, 163–177. [Google Scholar] [CrossRef] - Chou, S.Y.; Krauss, P.R.; Renstrom, P.J. Imprint of sub-25 nm vias and trenches in polymers. Appl. Phys. Lett.
**1995**, 67, 3114–3116. [Google Scholar] [CrossRef] - Chou, S.Y.; Krauss, P.R.; Renstrom, P.J. Imprint lithography with 25-nanometer resolution. Science
**1996**, 272, 85–87. [Google Scholar] [CrossRef] - Tang, M.J.; Xie, H.M.; Xie, H.M.; Zhu, J.G.; Li, X.J. Study of Moiré grating fabrication on metal samples using nanoimprint lithography. Opt. Express
**2012**, 20, 2942–2955. [Google Scholar] [CrossRef] [PubMed] - Zhu, J.G.; Xie, H.M.; Tang, M.J.; Li, X.J. Optimum design of processing condition and experimental investigation of grating fabrication with hot embossing lithography. Acta Mech. Solida Sin.
**2009**, 22, 665–671. [Google Scholar] [CrossRef] - Lee, Y.C.; Chen, C.M.; Wu, C.Y. A new excimer laser micromachining method for axially symmetric 3D micro-structures with continuous surface profiles. Sens. Actuators A Phys.
**2005**, 117, 349–355. [Google Scholar] [CrossRef] - Gedvilas, M.; Raciukaitis, G.; Regelskis, K.; Gecys, P. Formation of gratings by self-organization of the chromium thin film on the glass substrate under irradiation with laser pulses. J. Laser Micro Nanoeng.
**2008**, 3, 58–62. [Google Scholar] [CrossRef] - Luo, Y.H.; Zhang, Q.J.; Liu, H.Y.; Peng, G.D. Gratings fabrication in benzildimethylketal doped photosensitive polymer optical fibers using 355 nm nanosecond pulsed laser. Opt. Lett.
**2010**, 35, 751–753. [Google Scholar] [CrossRef] [PubMed] - Xia, Z.; Chen, C.; Fang, H.; Chen, S. The mechanism and process of nanosecond pulsed-laser induced subwavelength periodic ripples on silica films. Appl. Surf. Sci.
**2015**, 337, 151–157. [Google Scholar] [CrossRef] - Tanaka, Y.; Naito, K.; Kishimoto, S.; Kagawa, Y. Development of a pattern to measure multiscale deformation and strain distribution via in situ FE-SEM observations. Nanotechnology
**2011**, 22, 115704. [Google Scholar] [CrossRef] [PubMed] - Shen, Z.H.; Zhang, S.Y.; Lu, L.; Ni, X.W. Mathematical modeling of laser induced heating and melting in solids. Opt. Laser Technol.
**2001**, 33, 533–537. [Google Scholar] [CrossRef] - Felter, T.E.; Hrubesh, L.; Kubota, A.; Davila, L.; Caturla, M. Laser damage probability studies of fused silica modified by MeV ion implantation. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At.
**2003**, 207, 72–79. [Google Scholar] [CrossRef] - Liu, J.M. Simple technique for measurements of pulsed Gaussian-beam spot sizes. Opt. Lett.
**1982**, 7, 196–198. [Google Scholar] [CrossRef] [PubMed] - Gross, D.; Seelig, T. Fracture Mechanics, with an Introduction to Micromechanics, 2rd ed.; Springer: Berlin, Germany, 2011; pp. 63–70. [Google Scholar]

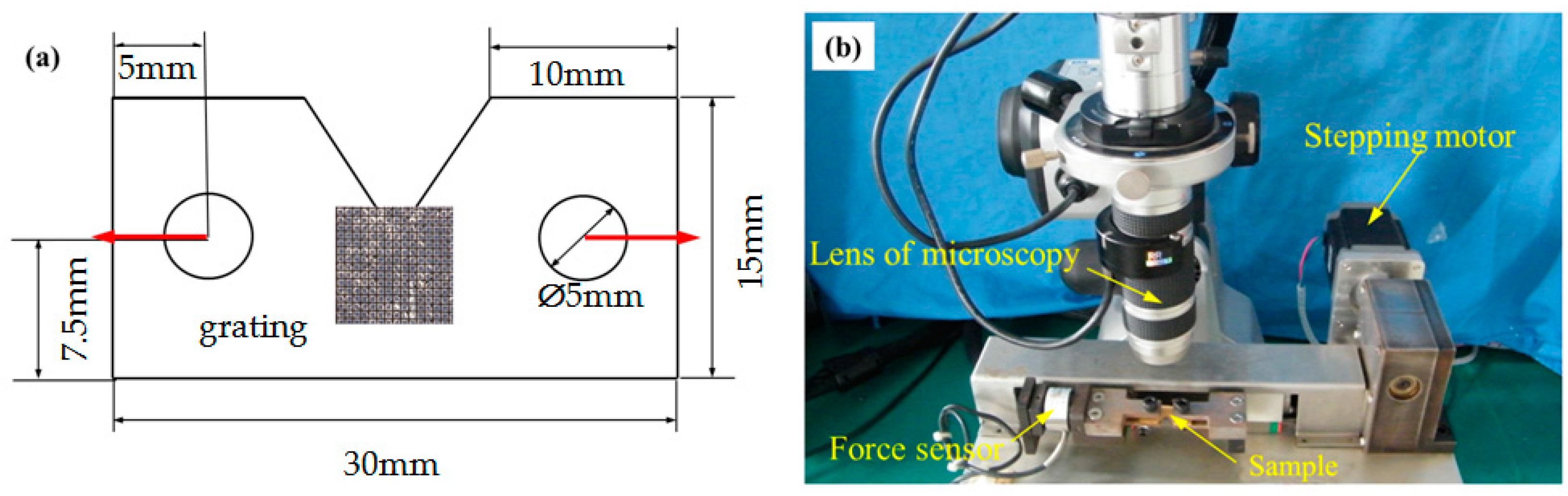

**Figure 3.**(

**a**) Schematic of the polymethyl methacrylate (PMMA) specimen and (

**b**) the experimental setup including an optical microscope and a tensile loading stage.

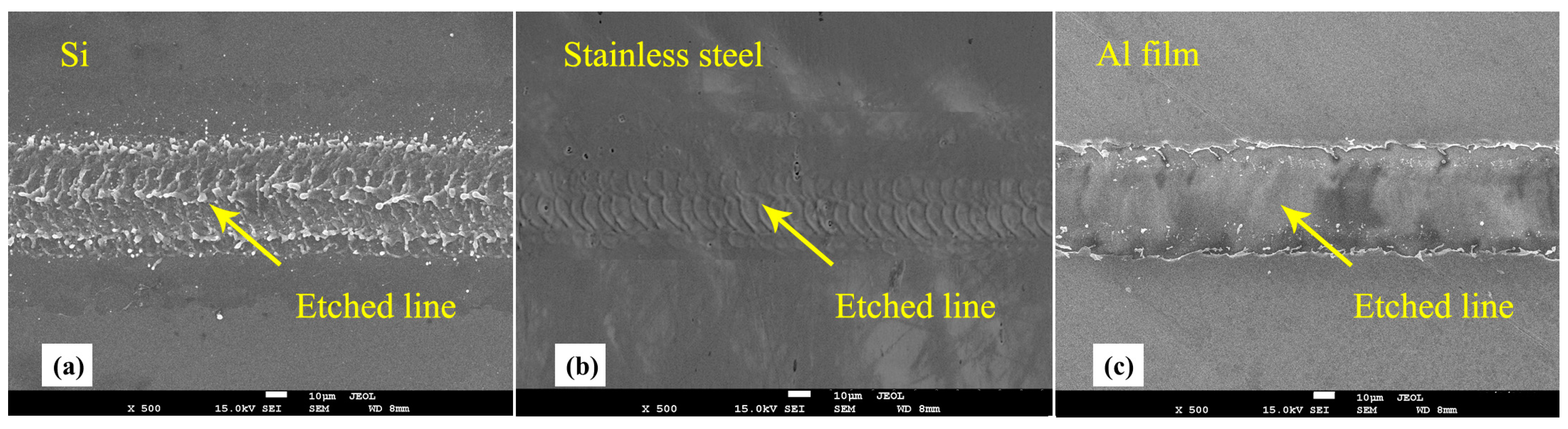

**Figure 4.**Scanning electron microscopy (SEM) images of single line etched by nanosecond laser: (

**a**) Si, (

**b**) stainless steel and (

**c**) Al film on quartz glass. The etching energy is 38.6 μJ, 20.0 μJ, and 31.5 μJ.

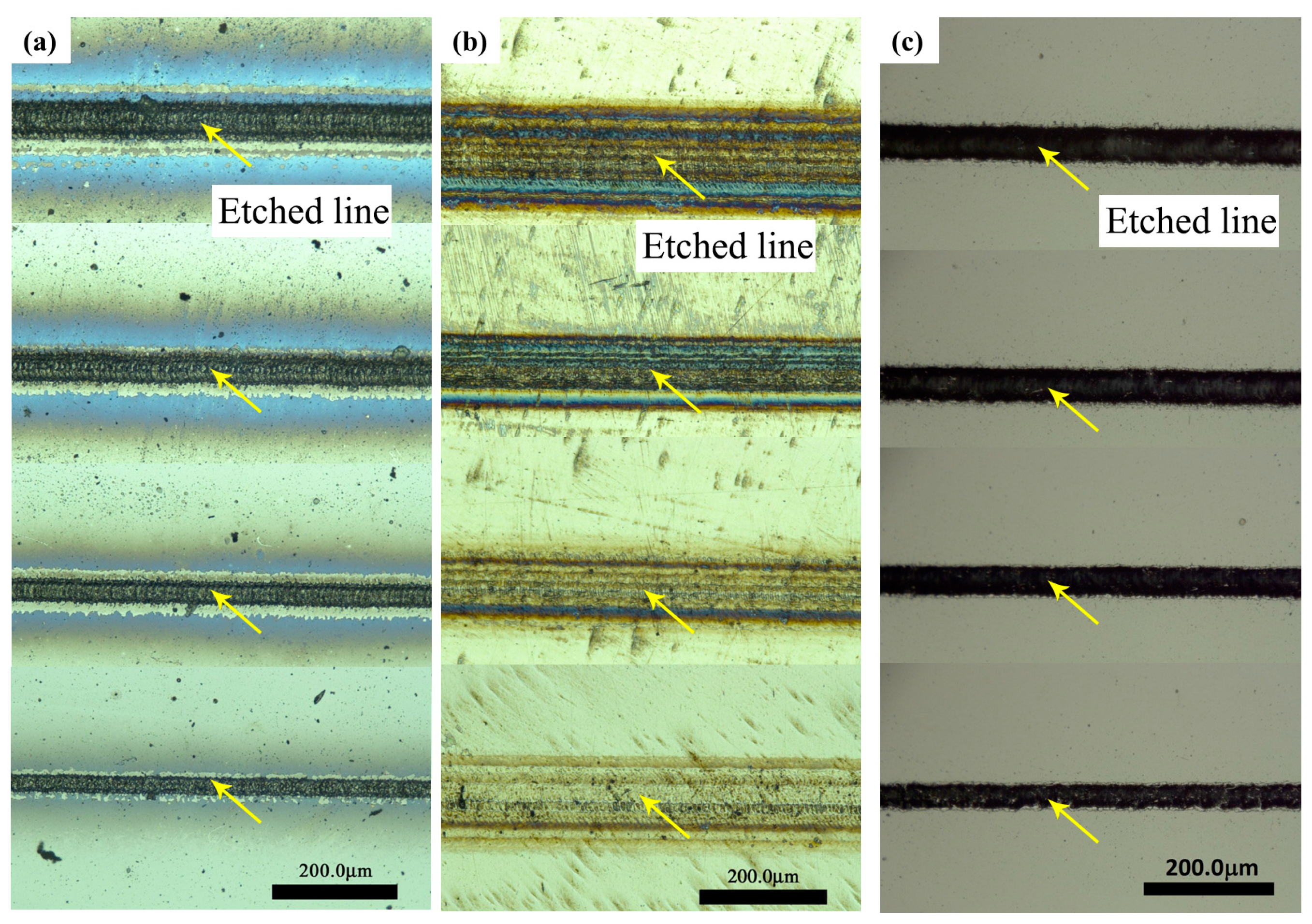

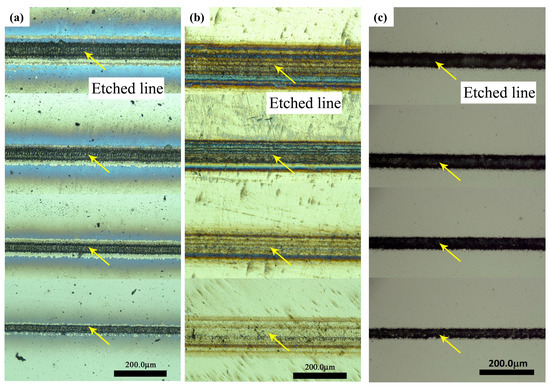

**Figure 5.**Optical images of straight lines etched by nanosecond laser: (

**a**) Si, (

**b**) stainless steel, and (

**c**) Al film. The etching energy is about 80 μJ, 51 μJ, 39 μJ, and 17 μJ from top to bottom. The arrows indicate the etched lines.

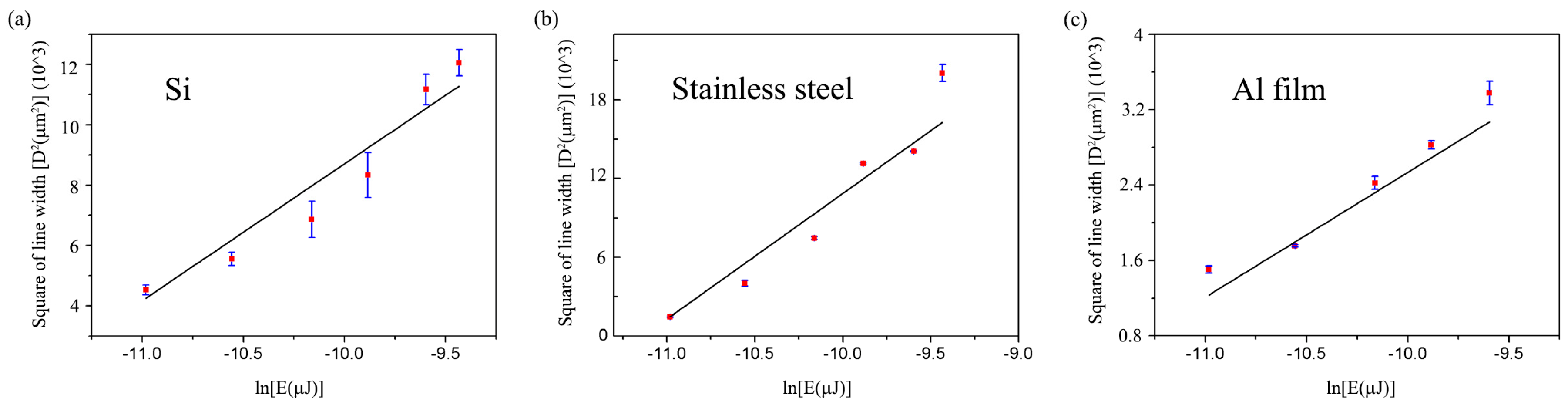

**Figure 6.**Linear fitting of measured data between the square of line width and logarithm of single pulse energy: (

**a**) Si, (

**b**) stainless steel, and (

**c**) Al film.

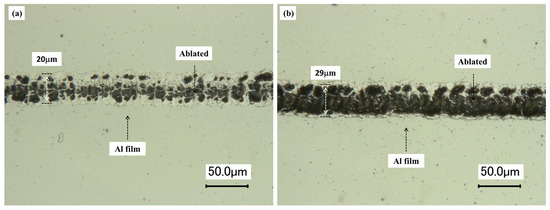

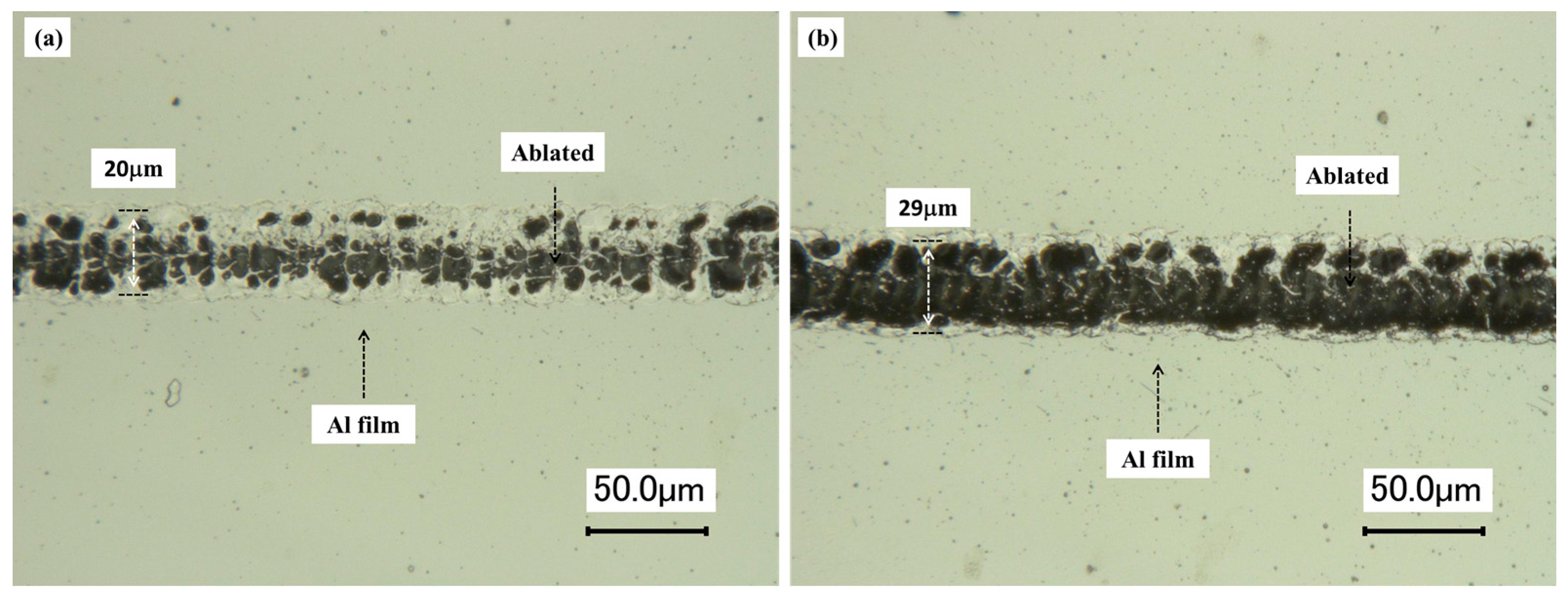

**Figure 7.**Optical images of straight line etched by nanosecond laser: (

**a**) etching energy is 6.8 μJ, and (

**b**) etching energy is 9.8 μJ.

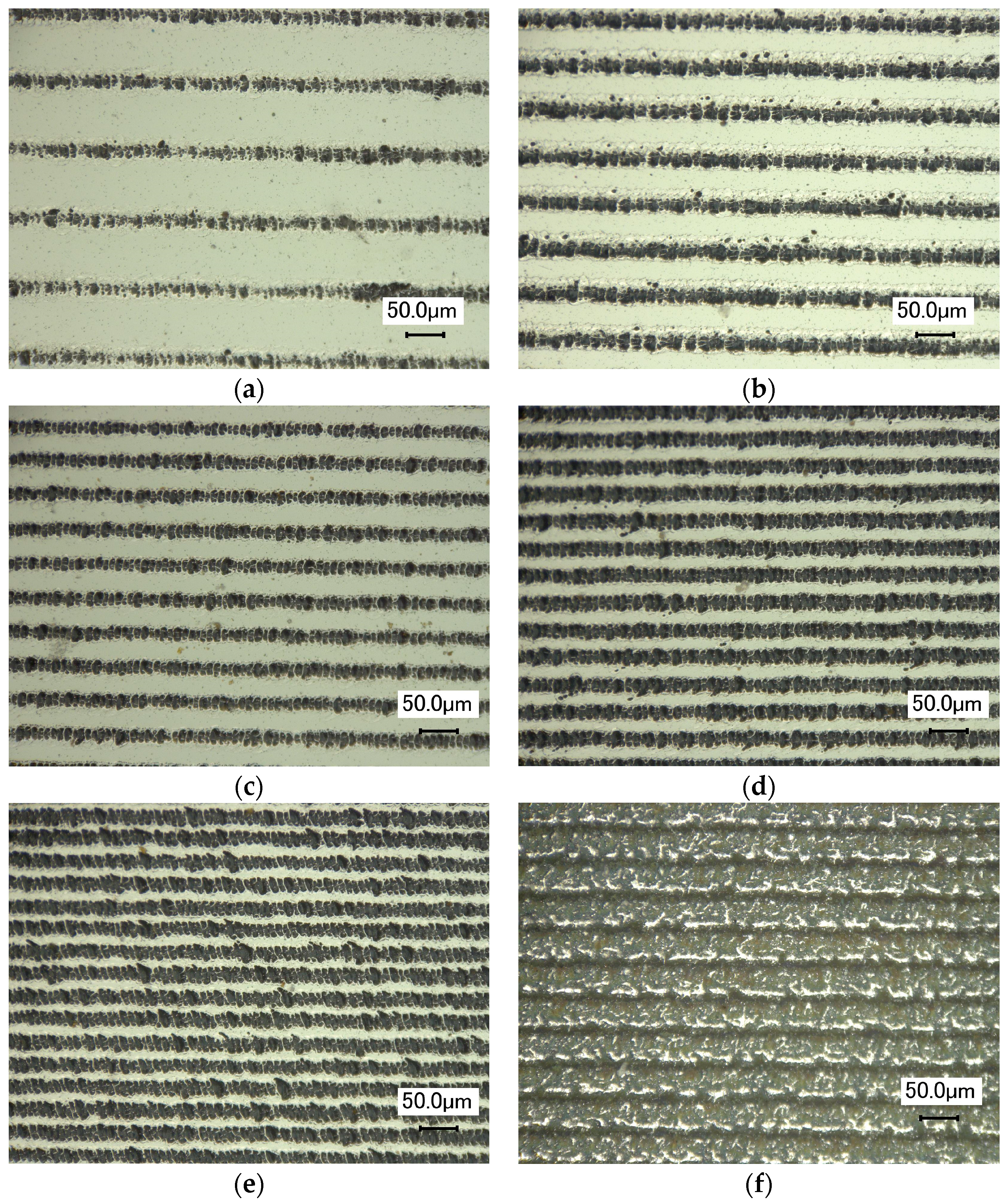

**Figure 8.**Optical images of gratings fabricated on Al film: (

**a**) d = 50 μm, (

**b**) d = 38.2 μm, (

**c**) d = 28.1 μm, (

**d**) d = 13.9 μm, (

**e**) d = 10 μm, and (

**f**) d = 0 μm. The frequency of gratings is (

**a**) 10 lines/mm, (

**b**) 15 lines/mm, (

**c**) 20 lines/mm, (

**d**) 25 lines/mm, (

**e**) 30 lines/mm, and (

**f**) 35 lines/mm. The energy of laser pulse is 9.8 μJ.

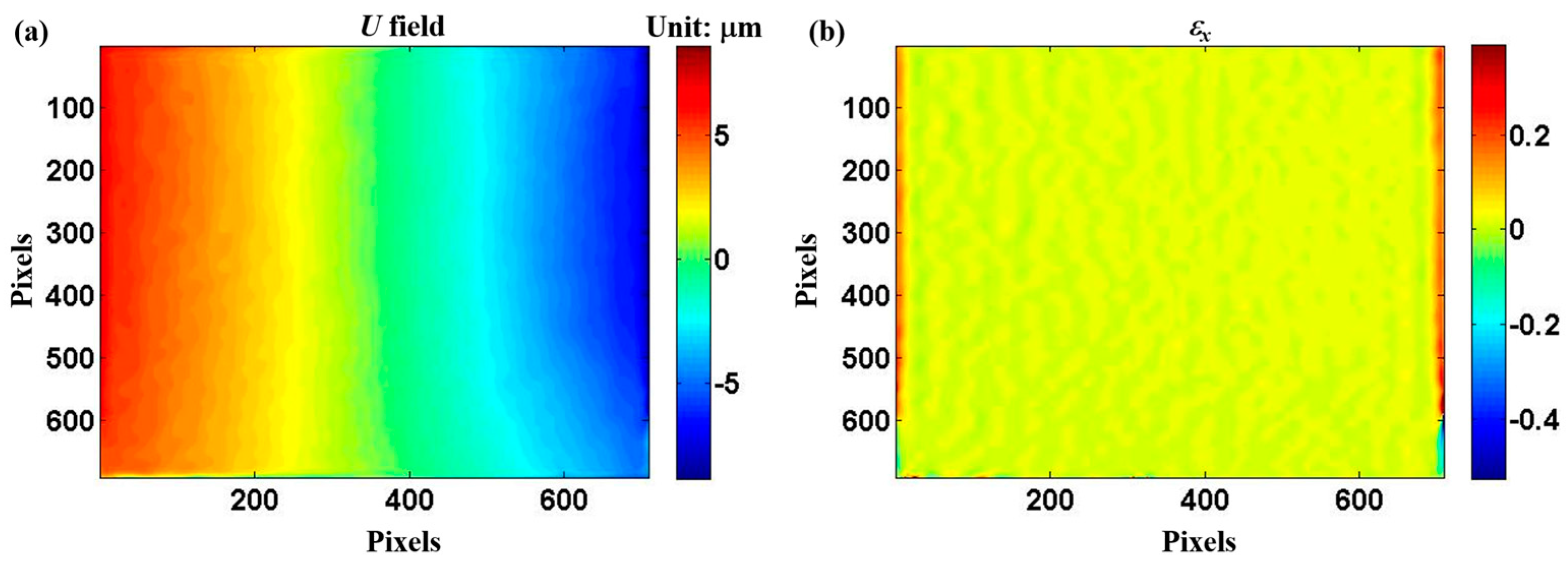

**Figure 11.**Calculated displacement and strain fields in horizontal direction: (

**a**) U and (

**b**) ε

_{x}. One pixel represents 0.55 μm. The tensile load is under 52.9 N.

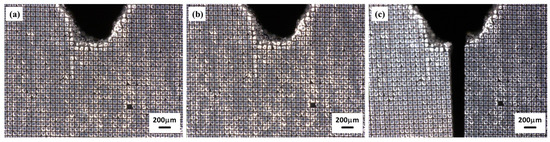

**Figure 13.**Gratings on the PMMA specimen with a V-shape notch: (

**a**) before load, (

**b**) under 49.0 N load, and (

**c**) under load 73.5 N.

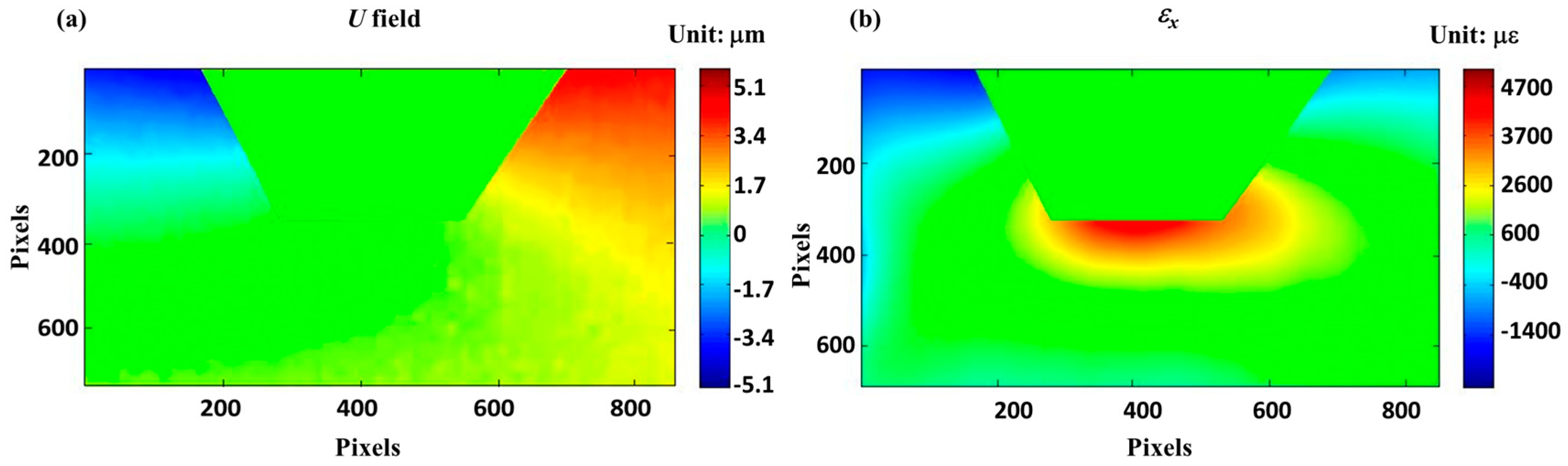

**Figure 14.**Calculated displacement and strain fields in horizontal direction under load 49.0 N: (

**a**) U and (

**b**) ε

_{x}. One pixel represents 0.55 μm.

Specimens | Ω_{0} (μm) | E_{th} (μJ) | I_{th} (J/mm^{2}) |
---|---|---|---|

Si | 52.0 | 8.71 | 2.05 |

Stainless Steel | 75.6 | 17.0 | 1.89 |

Al Film | 25.7 | 6.8 | 6.56 |

© 2017 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Yang, G.; He, W.; Zhu, J.; Chen, L.
Fabrication of Micro-Scale Gratings by Nanosecond Laser and Its Applications for Deformation Measurements. *Micromachines* **2017**, *8*, 136.
https://doi.org/10.3390/mi8050136

**AMA Style**

Yang G, He W, Zhu J, Chen L.
Fabrication of Micro-Scale Gratings by Nanosecond Laser and Its Applications for Deformation Measurements. *Micromachines*. 2017; 8(5):136.
https://doi.org/10.3390/mi8050136

**Chicago/Turabian Style**

Yang, Guanbao, Wei He, Jianguo Zhu, and Lei Chen.
2017. "Fabrication of Micro-Scale Gratings by Nanosecond Laser and Its Applications for Deformation Measurements" *Micromachines* 8, no. 5: 136.
https://doi.org/10.3390/mi8050136
