Open AccessArticle
Micromachines 2017, 8(4), 111;

A Programmable Digital Microfluidic Assay for the Simultaneous Detection of Multiple Anti-Microbial Resistance Genes

Electronics and Computer Science, Institute for Life Sciences, University of Southampton, Southampton SO17 1BJ, UK
National Infections Service, Public Health England, Porton Down, Salisbury SP4 0JG, UK
Author to whom correspondence should be addressed.
Academic Editors: Stephen Haswell and Nam-Trung Nguyen
Received: 25 January 2017 / Revised: 23 February 2017 / Accepted: 7 March 2017 / Published: 1 April 2017
(This article belongs to the Special Issue Application of Microfluidic Methodology for the Analysis of DNA)
Full-Text   |   PDF [3634 KB, uploaded 1 April 2017]   |


The rapid emergence of antimicrobial resistant bacteria requires the development of new diagnostic tests. Nucleic acid-based assays determine antimicrobial susceptibility by detecting genes that encode for the resistance. In this study, we demonstrate rapid and simultaneous detection of three genes that confer resistance in bacteria to extended spectrum β-lactam and carbapenem antibiotics; CTX-M-15, KPC and NDM-1. The assay uses isothermal DNA amplification (recombinase polymerase amplification, RPA) implemented on a programmable digital microfluidics (DMF) platform. Automated dispensing protocols are used to simultaneously manipulate 45 droplets of nL volume containing sample DNA, reagents, and controls. The droplets are processed and mixed under electronic control on the DMF devices with positive amplification measured by fluorescence. The assay on these devices is significantly improved with a Time to Positivity (TTP) half that of the benchtop assay. View Full-Text
Keywords: isothermal amplification; RPA; digital microfluidics (DMF); antimicrobial resistance (AMR) isothermal amplification; RPA; digital microfluidics (DMF); antimicrobial resistance (AMR)

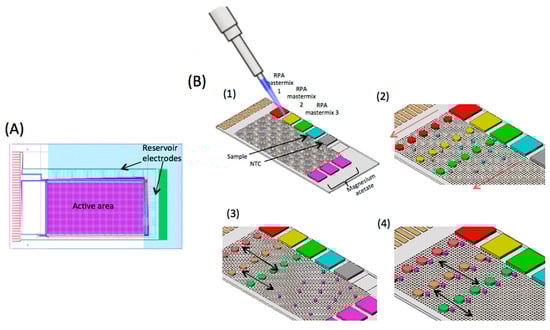

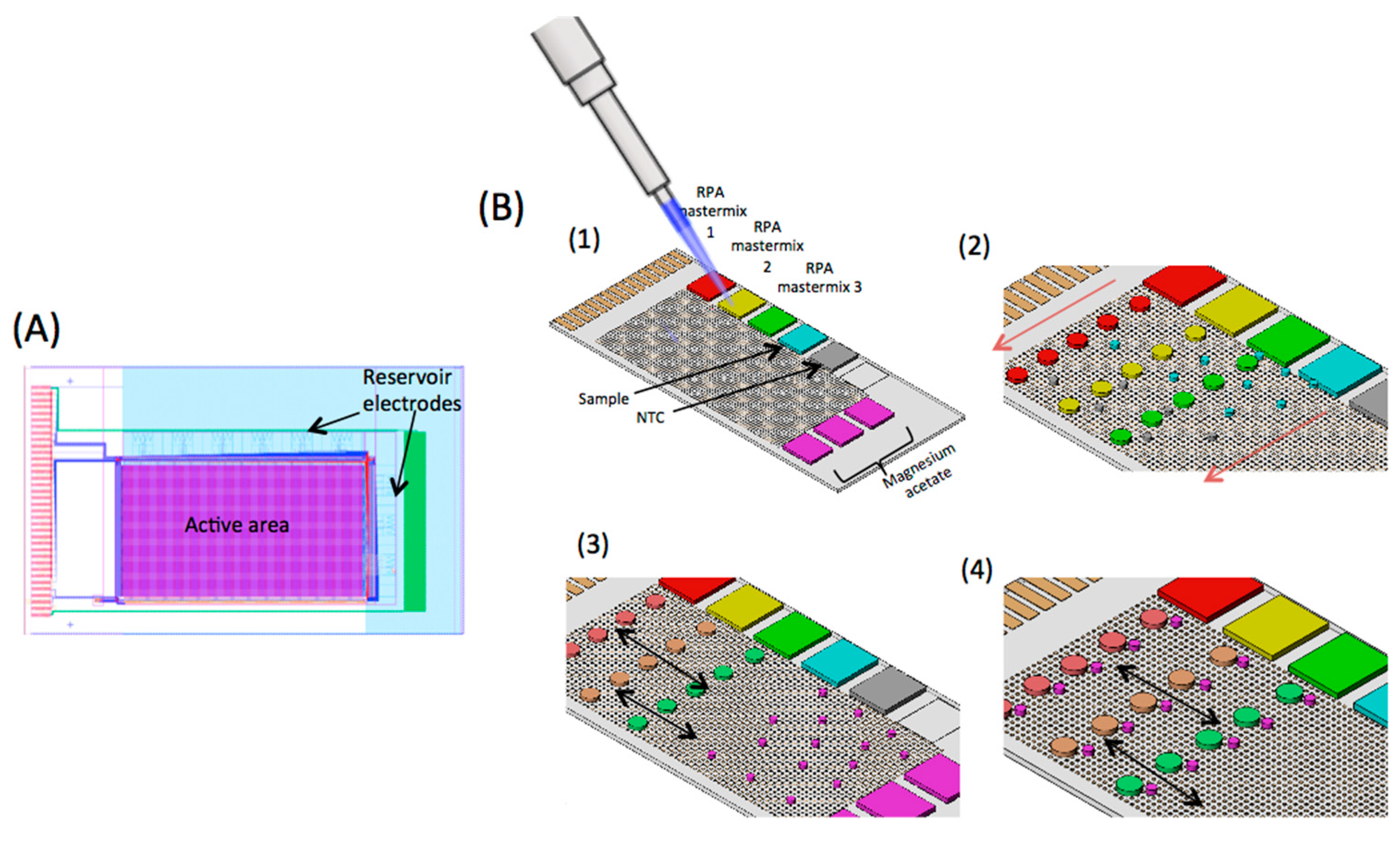

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Supplementary material


Share & Cite This Article

MDPI and ACS Style

Kalsi, S.; Sellars, S.L.; Turner, C.; Sutton, J.M.; Morgan, H. A Programmable Digital Microfluidic Assay for the Simultaneous Detection of Multiple Anti-Microbial Resistance Genes. Micromachines 2017, 8, 111.
