Micromachines 2017, 8(12), 348; https://doi.org/10.3390/mi8120348

Effects of the Manufacturing Process on the Reliability of the Multilayer Structure in MetalMUMPs Actuators: Residual Stresses and Variation of Design Parameters

1
School of Reliability and Systems Engineering, Beihang University, Beijing 100191, China
2
School of Electrical and Electionic Engieering, Zibo Vacational Insititute, Zibo 255314, China
3
Wolfson Mechanical and Manufacturing Engineering, Loughborough University, Leicestershire LE11 3TU, UK
*
Author to whom correspondence should be addressed.
Received: 3 November 2017 / Revised: 27 November 2017 / Accepted: 28 November 2017 / Published: 29 November 2017
(This article belongs to the Special Issue Microsystems for Power, Energy, and Actuation)
Full-Text   |   PDF [7997 KB, uploaded 30 November 2017]   |

Abstract

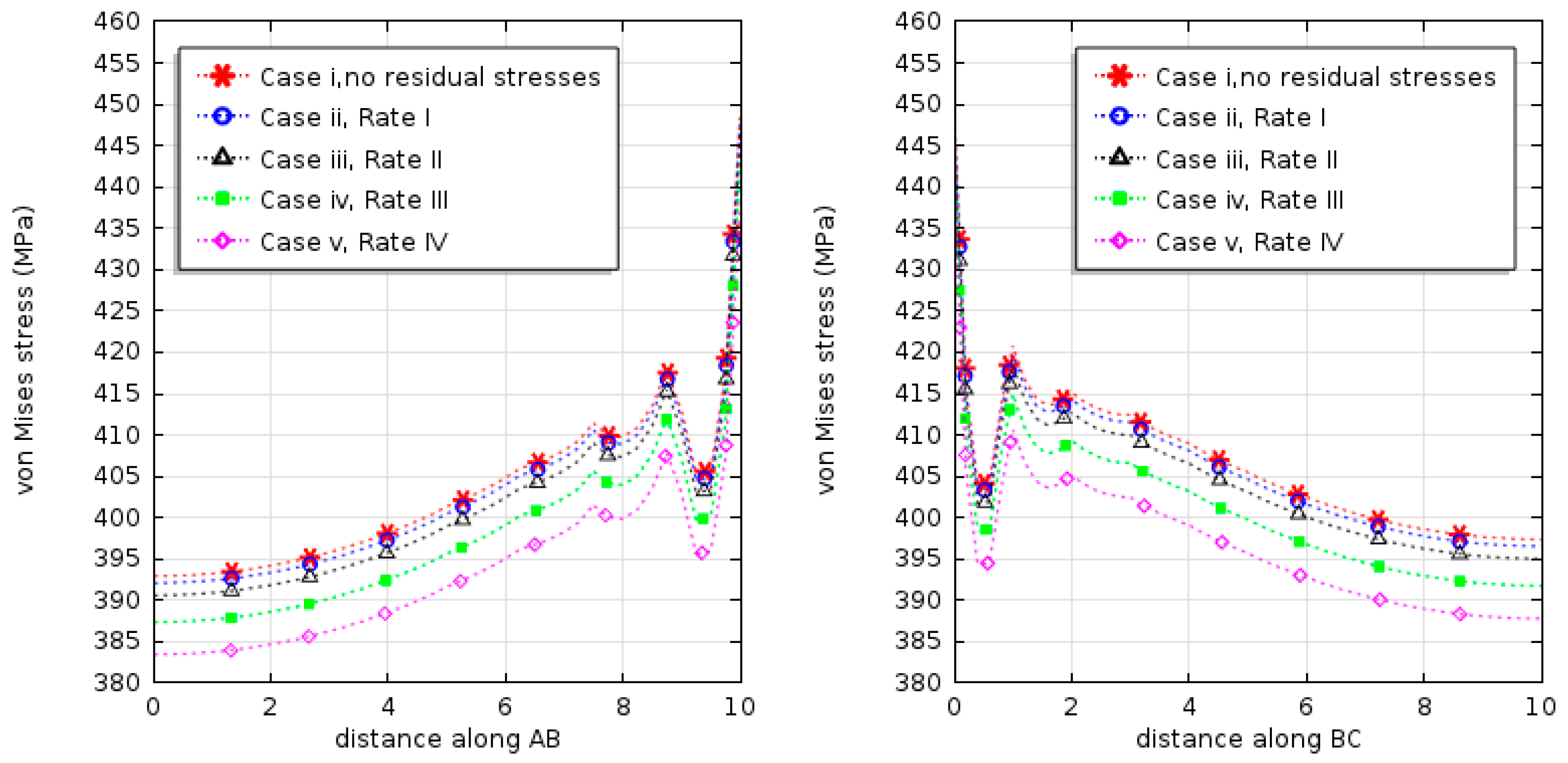

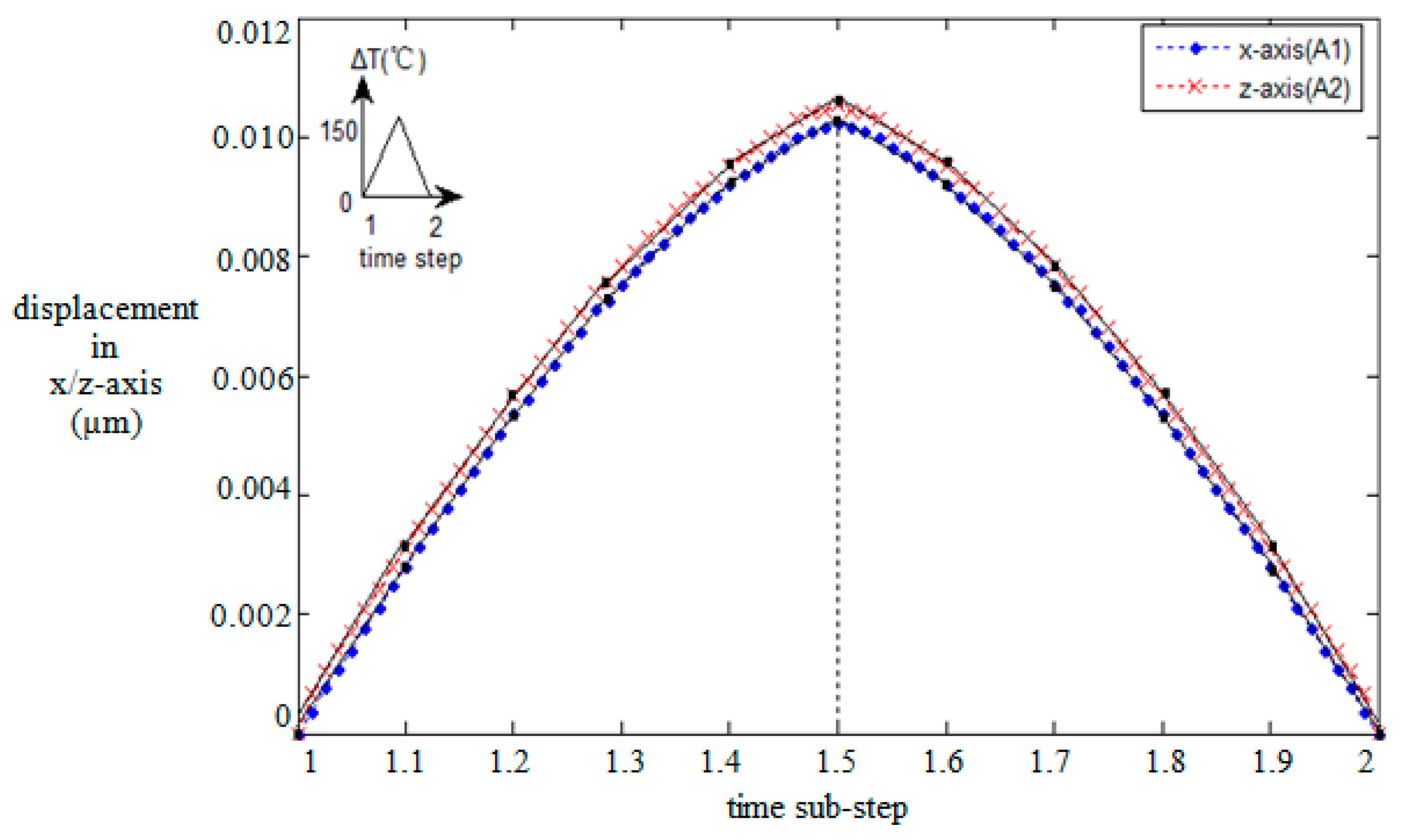

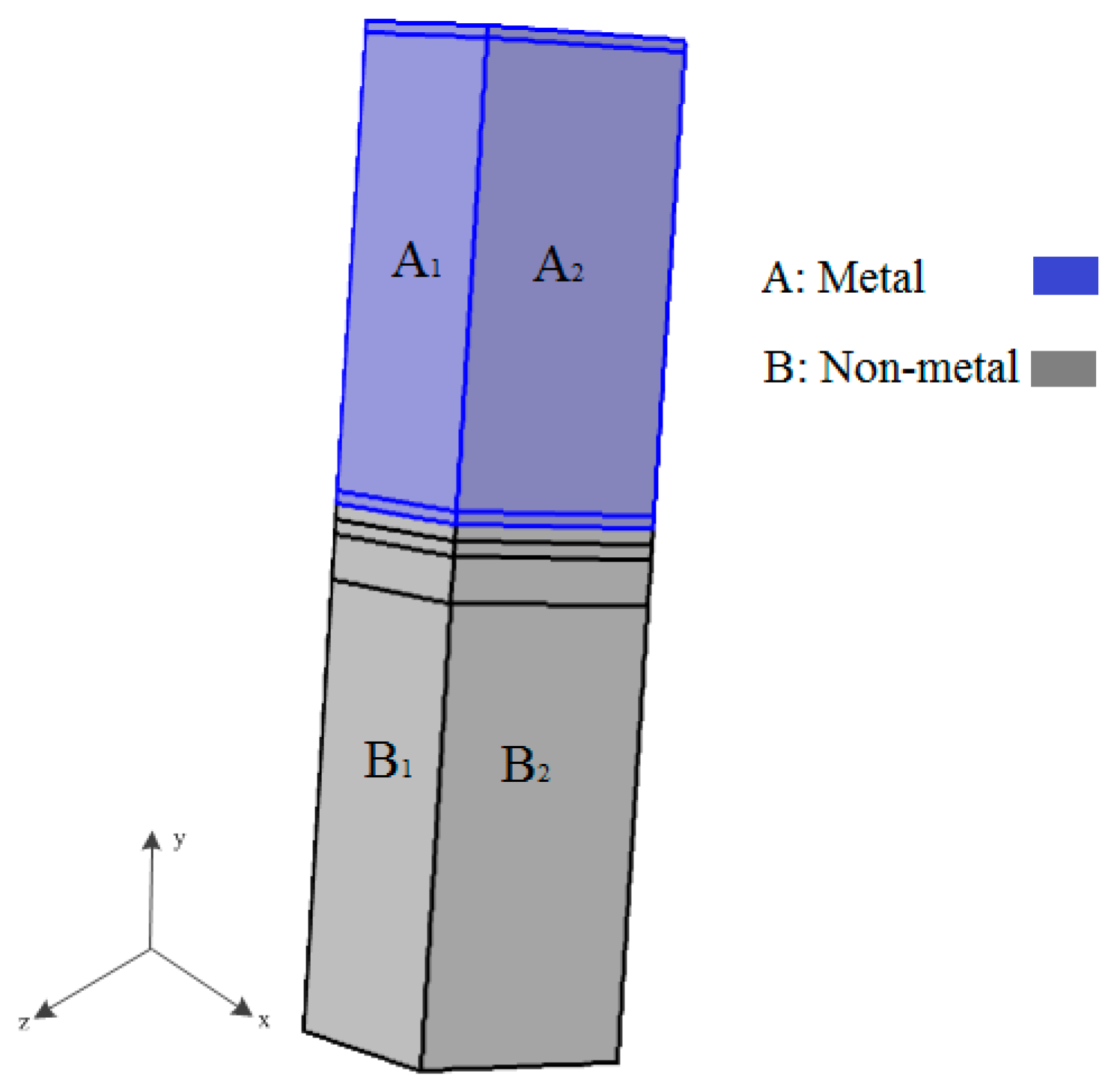

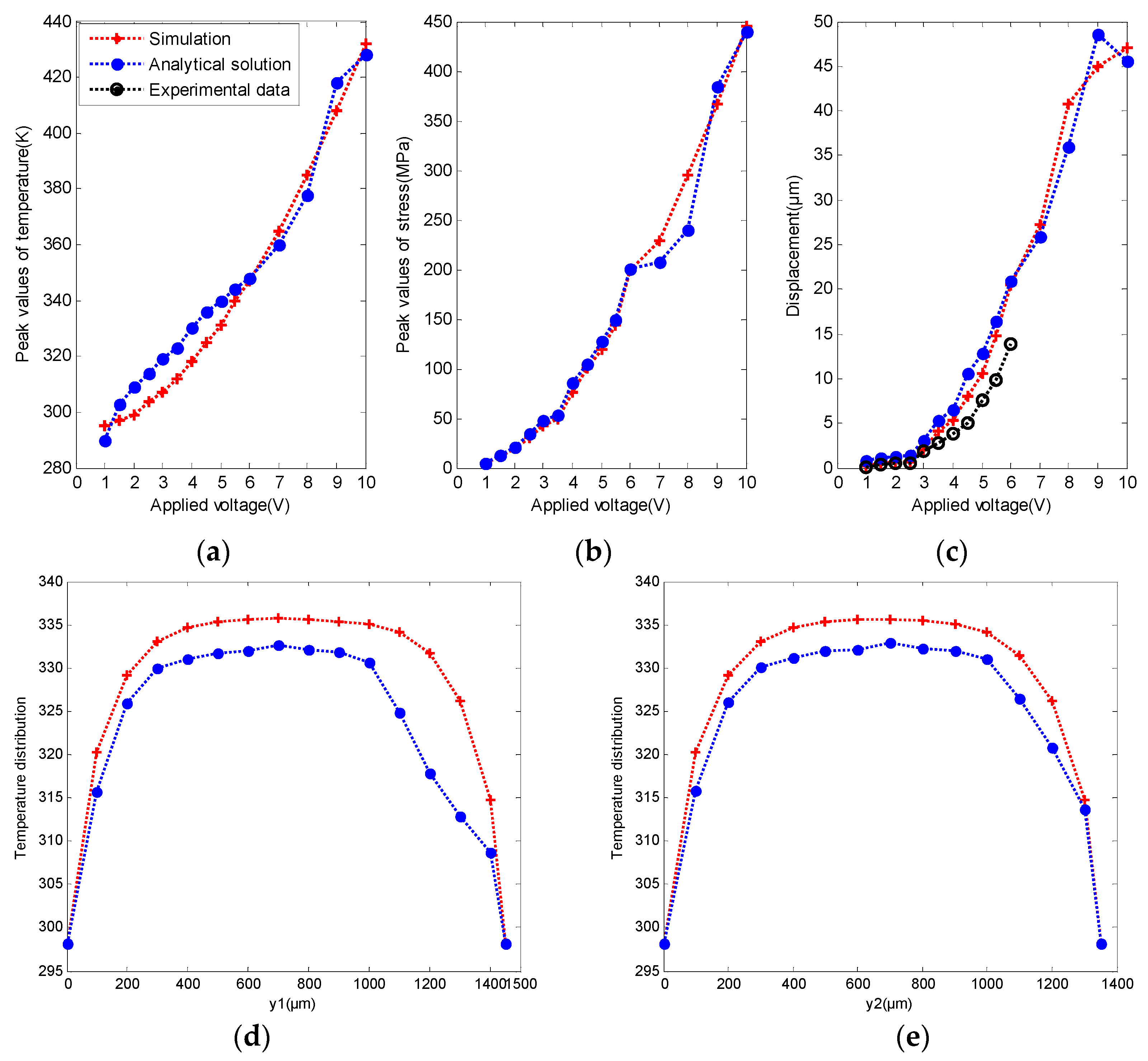

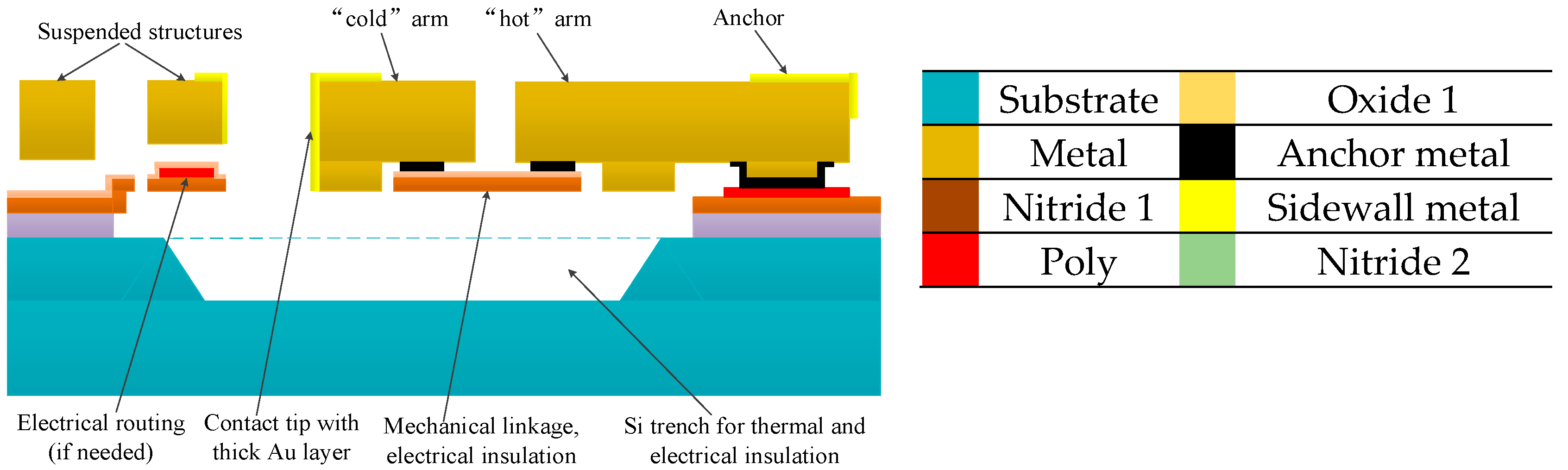

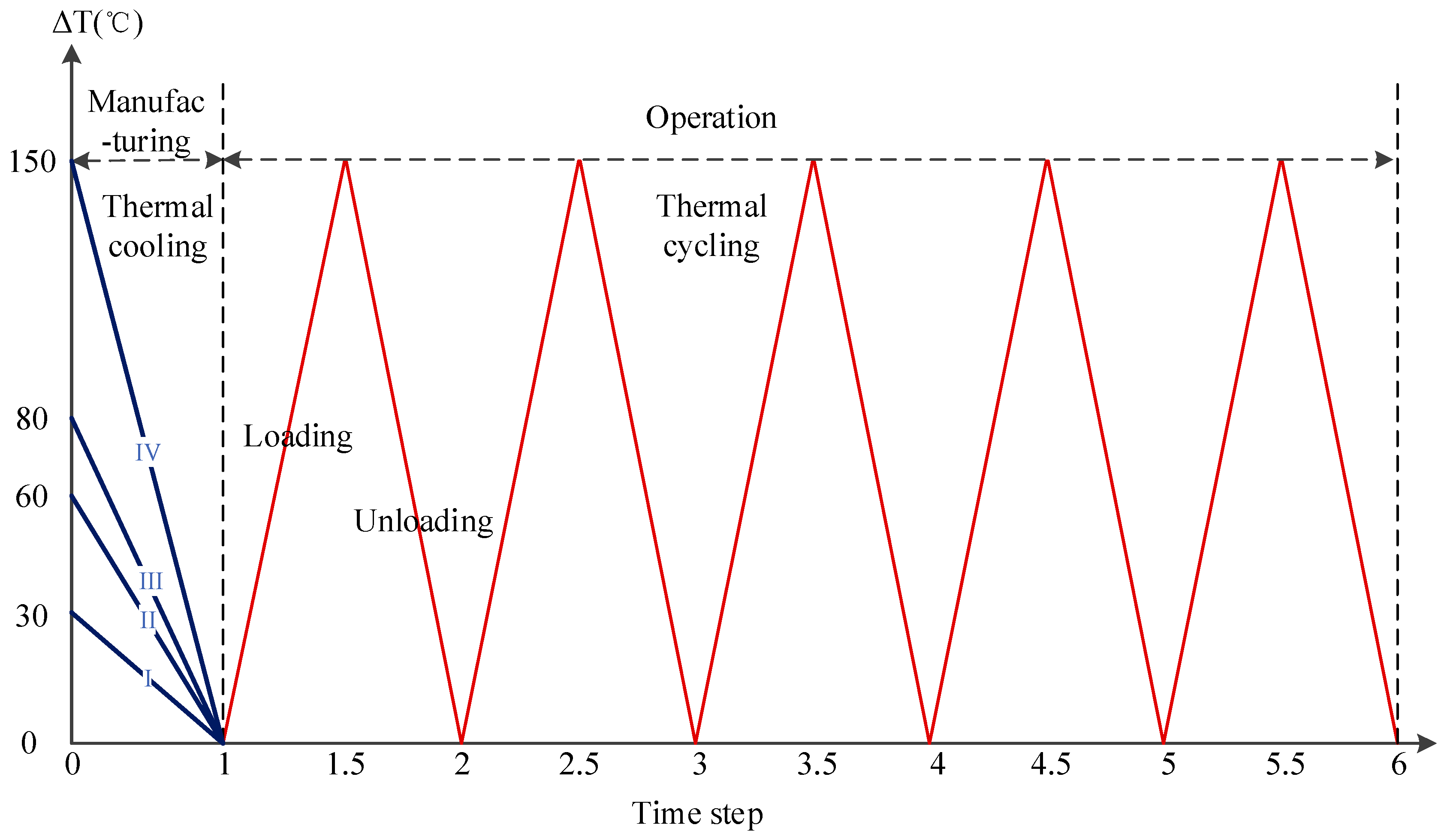

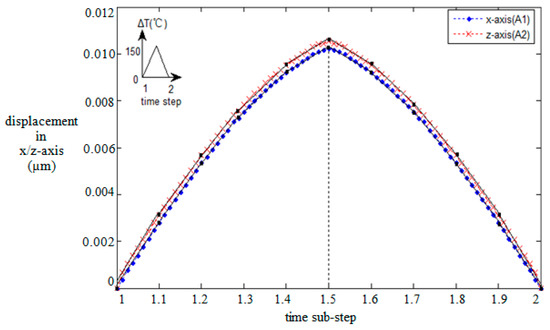

Potential problems induced by the multilayered manufacturing process pose a serious threat to the long-term reliability of MEMSCAP® actuators under in-service thermal cycling. Damage would initiate and propagate in different material layers because of a large mismatch of their thermal expansions. In this research, residual stresses and variations of design parameters induced by metal multi-user micro electromechanical system processes (MetalMUMPs) were examined to evaluate their effects on the thermal fatigue lifetime of the multilayer structure and, thus, to improve MEMSCAP® design. Since testing in such micro internal structure is difficult to conduct and traditional testing schemes are destructive, a numerical subdomain method based on a finite element technique was employed. Thermomechanical deformation from metal to insulator layers under in-service temperature cycling (obtained from the multiphysics model of the entire actuator, which was validated by experimental and specified analytical solutions) was accurately estimated to define failures with a significant efficiency and feasibility. Simulation results showed that critical failure modes included interface delamination, plastic deformation, micro cracking, and thermal fatigue, similarly to what was concluded in the MEMSCAP® technical report. View Full-Text
Keywords: micro electromechanical systems (MEMS); residual stresses; subdomain method; manufacturing process; multilayer structure micro electromechanical systems (MEMS); residual stresses; subdomain method; manufacturing process; multilayer structure
Figures

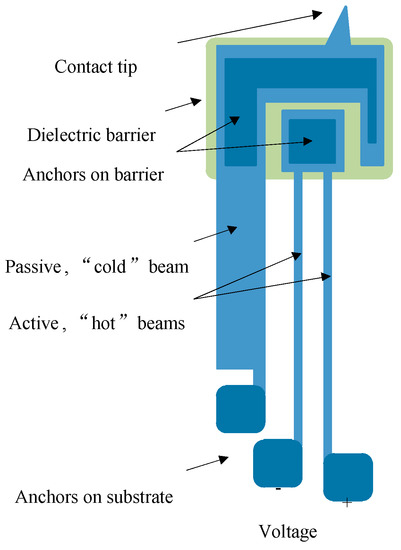

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Guo, J.; Wang, J.; Zeng, S.; Silberschmidt, V.V.; Shen, Y. Effects of the Manufacturing Process on the Reliability of the Multilayer Structure in MetalMUMPs Actuators: Residual Stresses and Variation of Design Parameters. Micromachines 2017, 8, 348.
