Micromachines 2017, 8(11), 316; https://doi.org/10.3390/mi8110316

Repetition Rate Effects in Picosecond Laser Microprocessing of Aluminum and Steel in Water

National Institute for Laser, Plasma and Radiation Physics, Laser Department, Atomistilor #409, 077125 Bucharest-Magurele, Romania
*
Author to whom correspondence should be addressed.
Received: 8 September 2017 / Revised: 11 October 2017 / Accepted: 24 October 2017 / Published: 26 October 2017
Full-Text   |   PDF [1448 KB, uploaded 26 October 2017]   |

Abstract

Picosecond laser drilling was studied in the case of industrial steel and aluminum, which are difficult to microprocess by conventional methods. The dependence of hole morphology and dimensions on the pulse repetition rate and number of pulses in water and air were ascertained. For both materials, the diameter of the hole is larger in water than in air. In water, the diameter is larger at higher repetition rates than at lower ones, and increases with the number of pulses. In air, the hole diameter is not affected by the repetition rate, and remains constant from 100 to 100,000 pulses. Overall, material removal is more efficient in water than in air. The shape of the hole is generally more irregular in water, becoming more so as the number of pulses is increased. This is probably due to debris being trapped in the hole, since water flowing over the target surface cannot efficiently remove it. In aluminum, the depth of the hole is smaller at higher repetition rates. By scanning the beam over the aluminum target in water, the laser penetrates a 400-μm thick workpiece, generating a line with comparable widths at the entrance and exit surfaces. View Full-Text
Keywords: picosecond laser; microprocessing; ablation in liquid; repetition rate picosecond laser; microprocessing; ablation in liquid; repetition rate
Figures

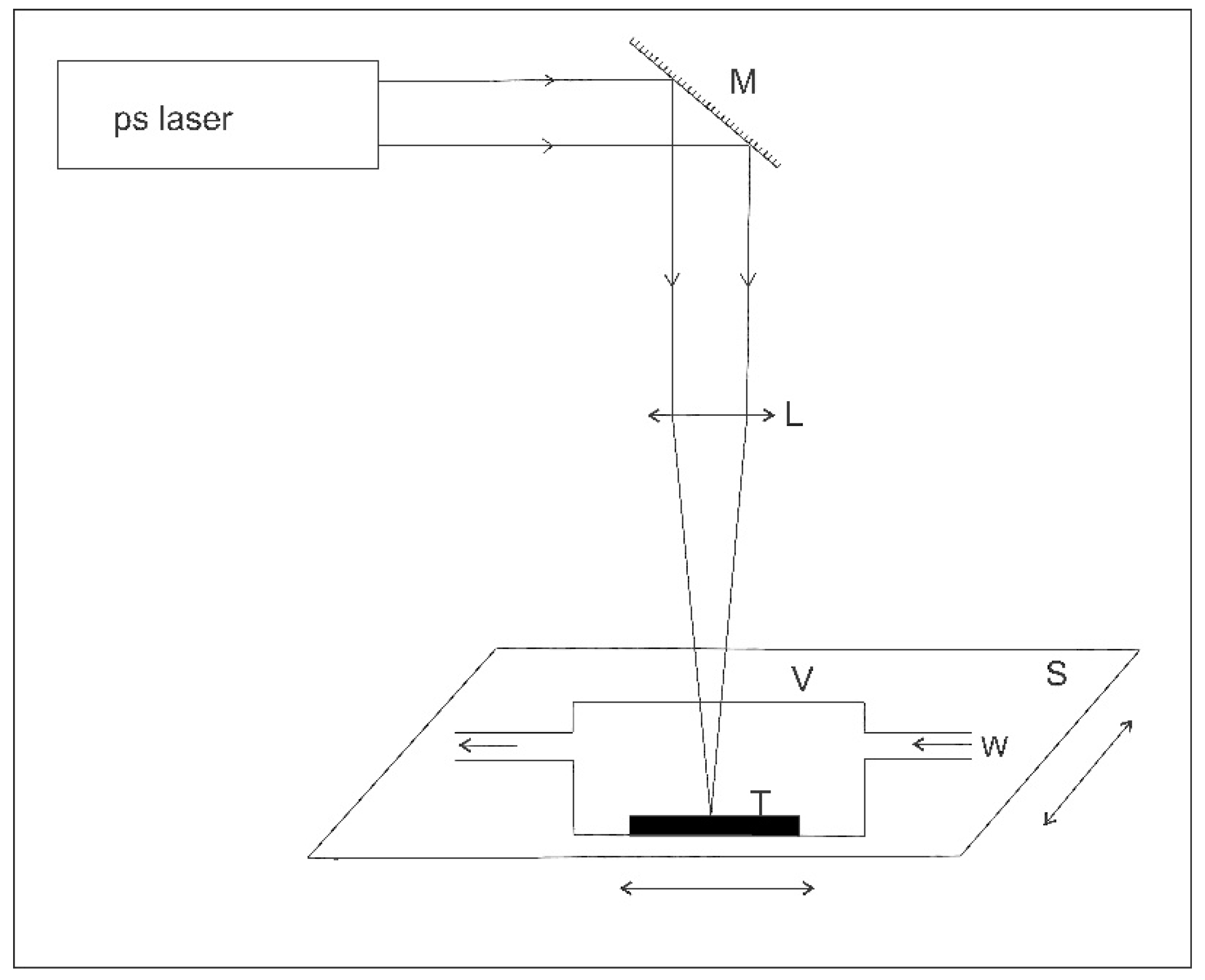

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Nicolae, I.; Bojan, M.; Viespe, C.; Miu, D. Repetition Rate Effects in Picosecond Laser Microprocessing of Aluminum and Steel in Water. Micromachines 2017, 8, 316.
