Miniaturized BAW Filter for Wide Band Application Based on High-Q Factor Active Inductor

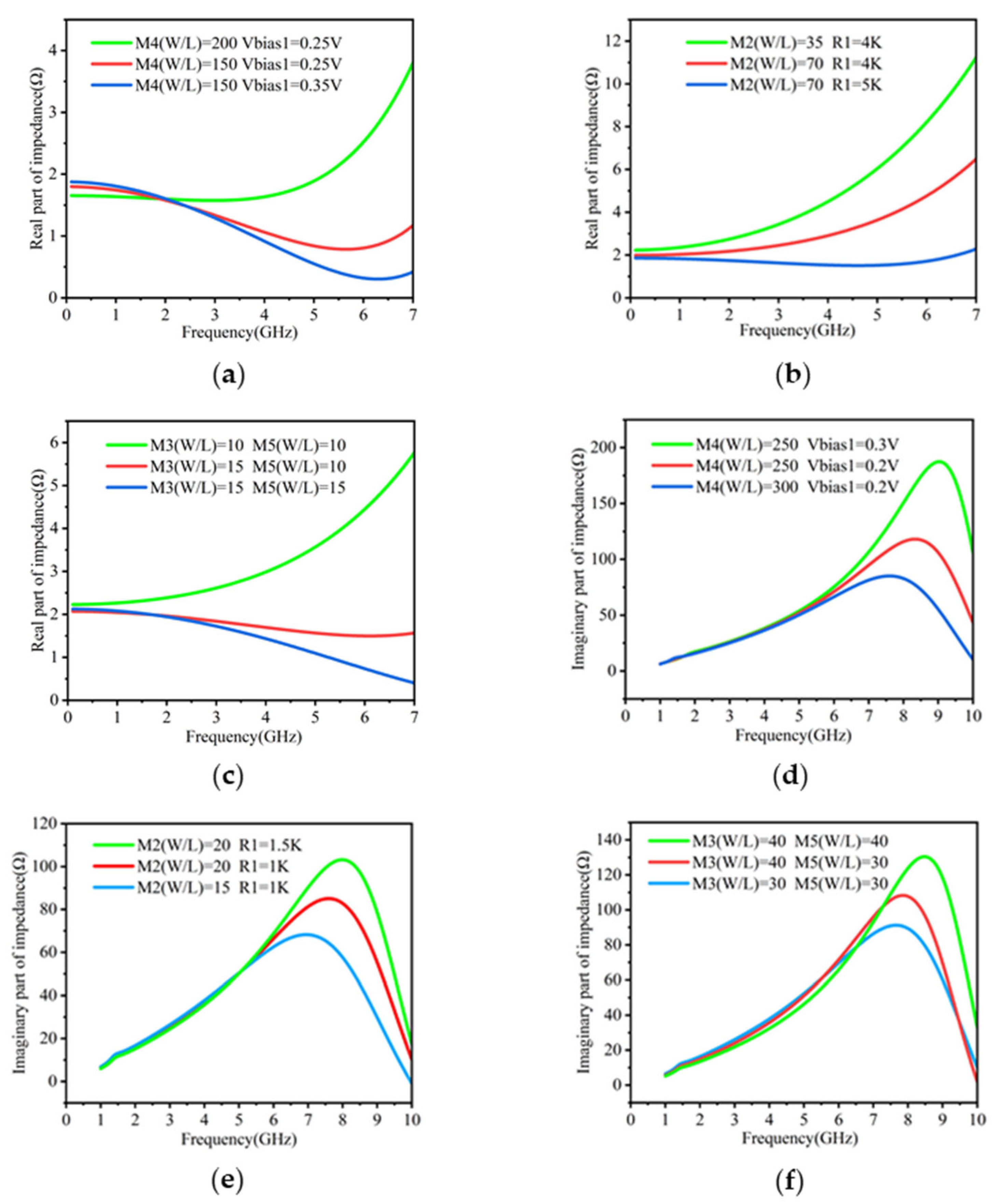

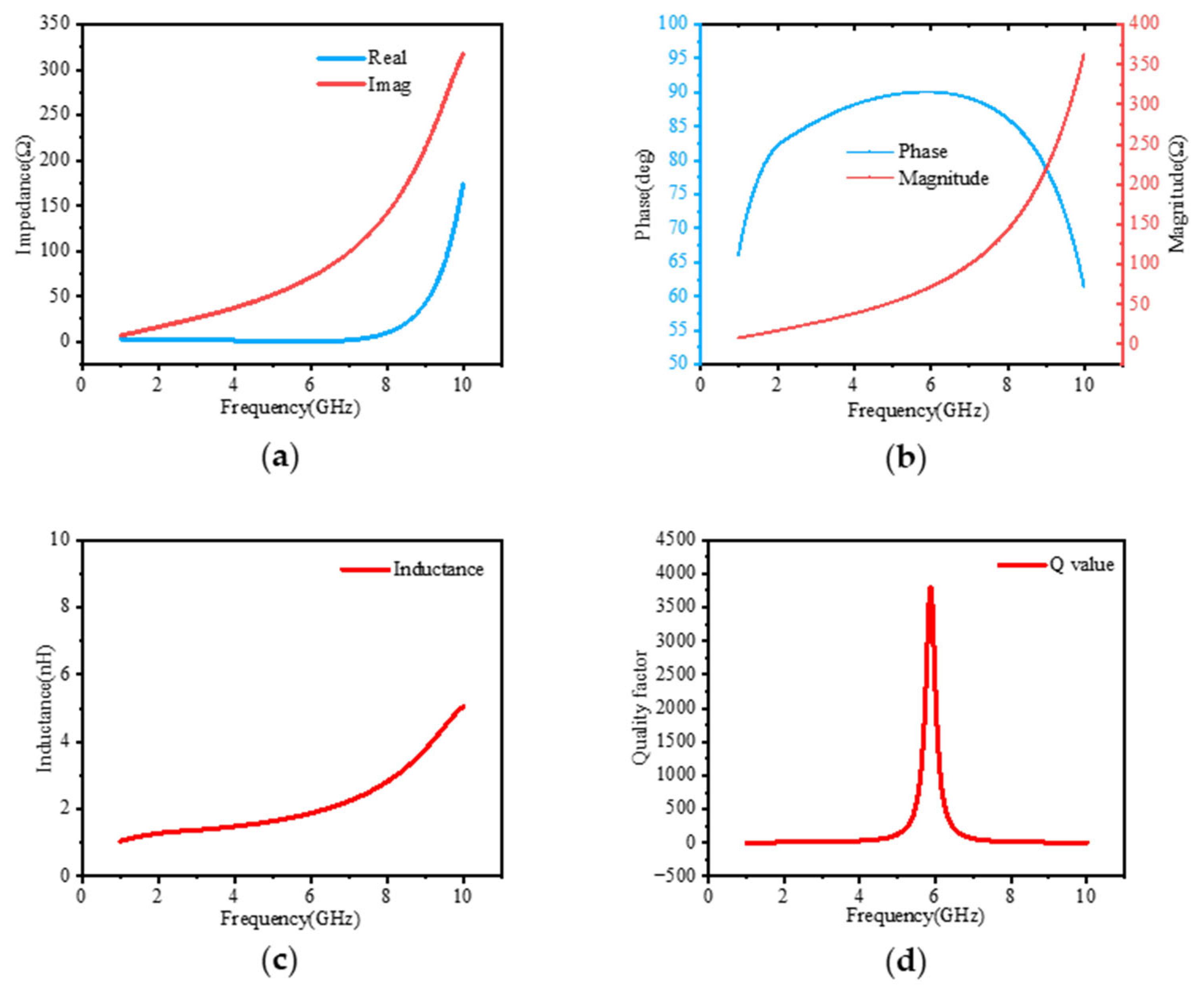

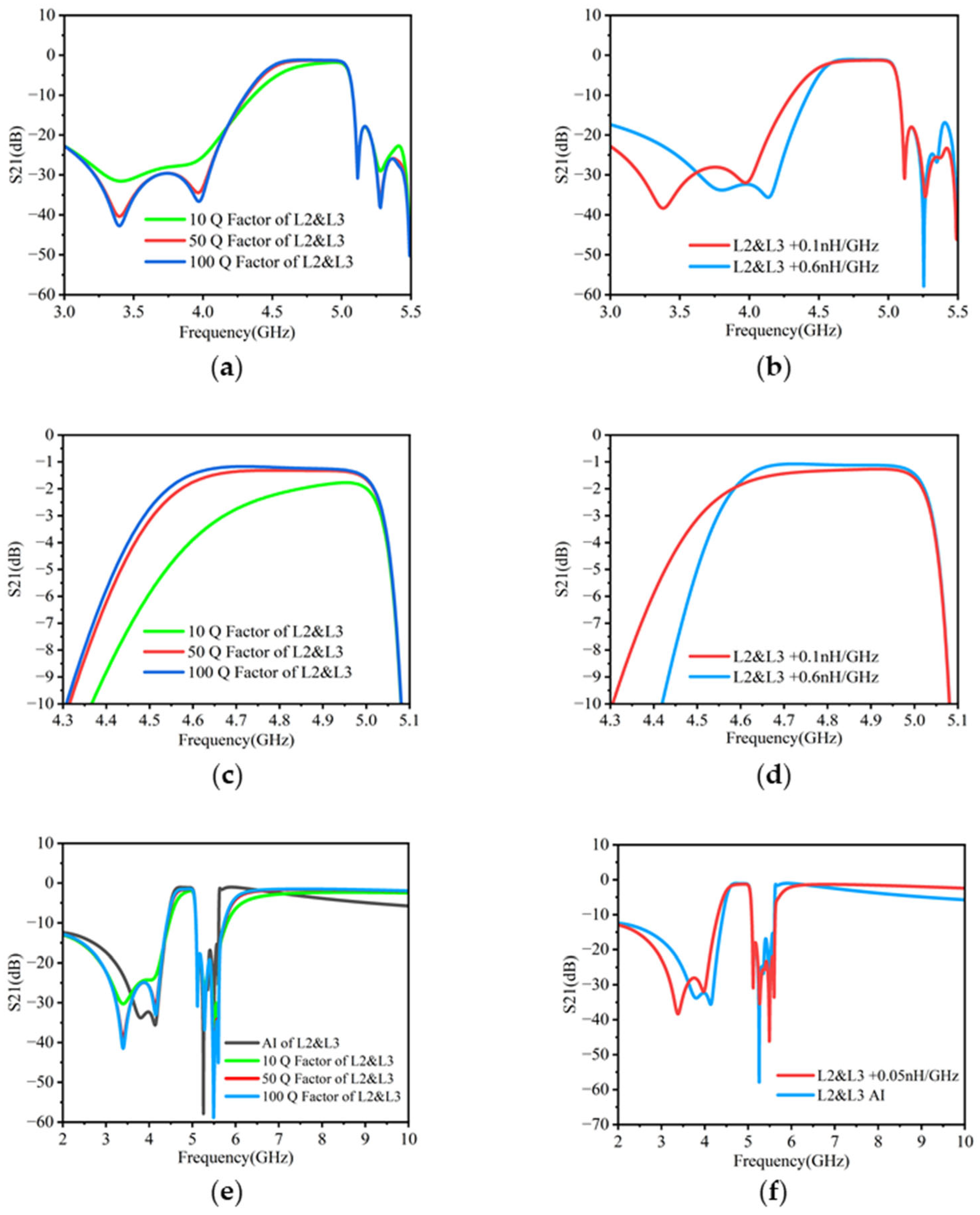

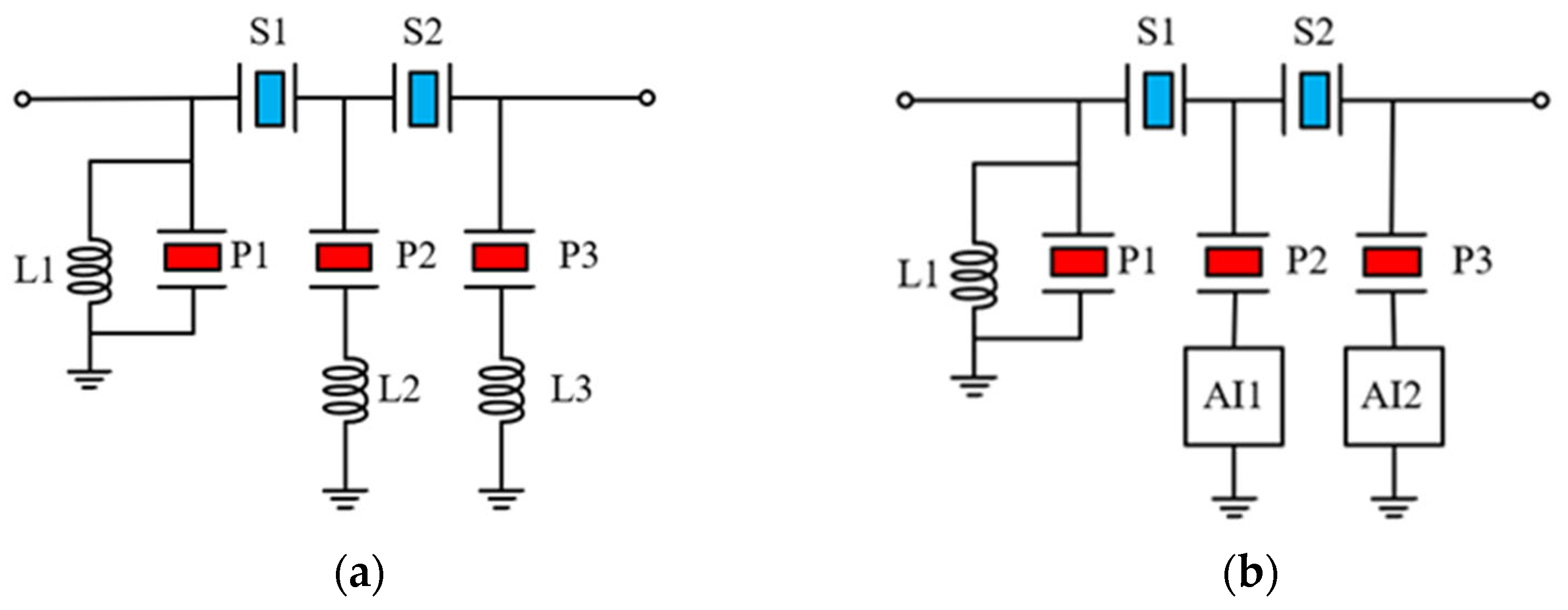

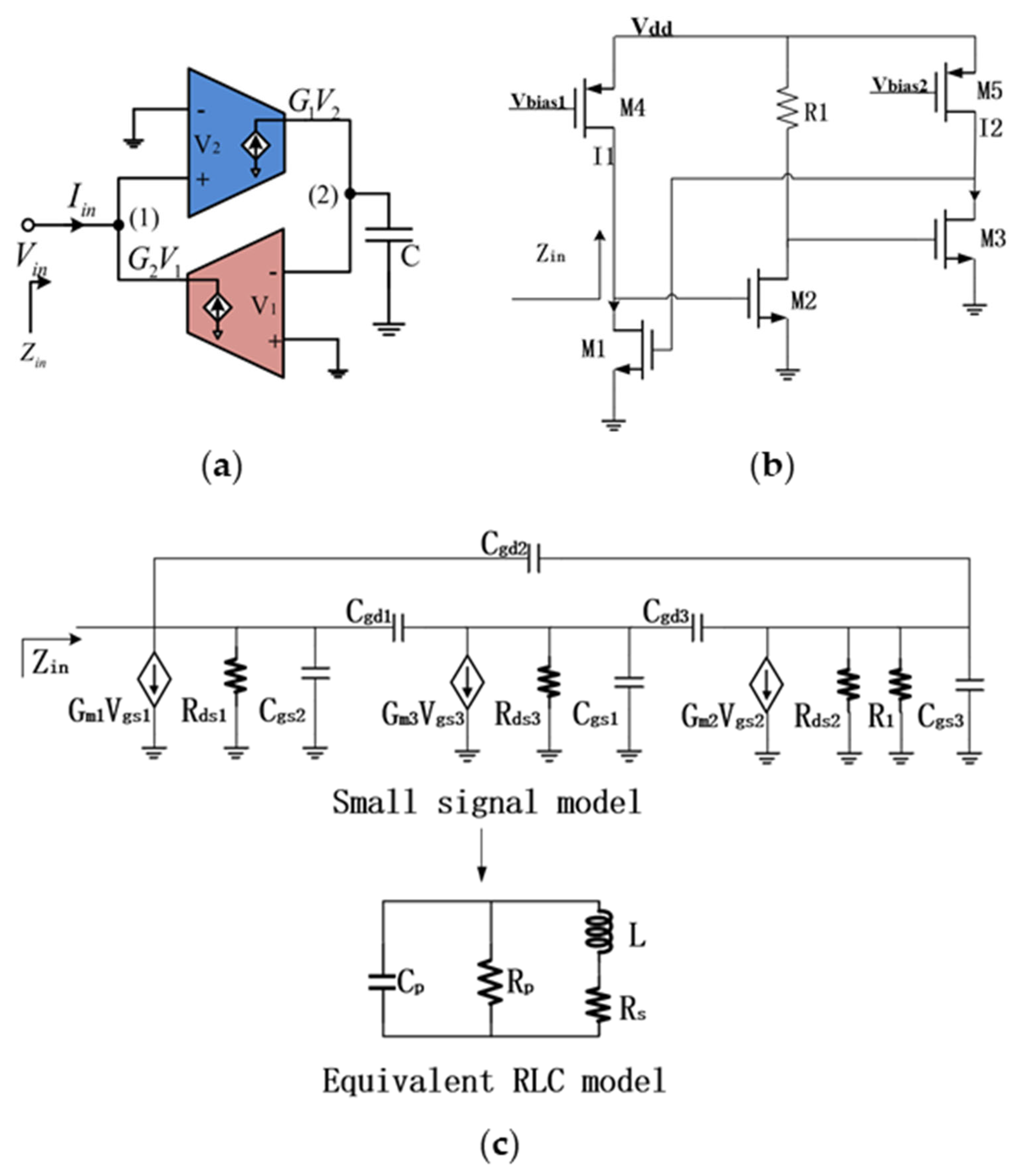

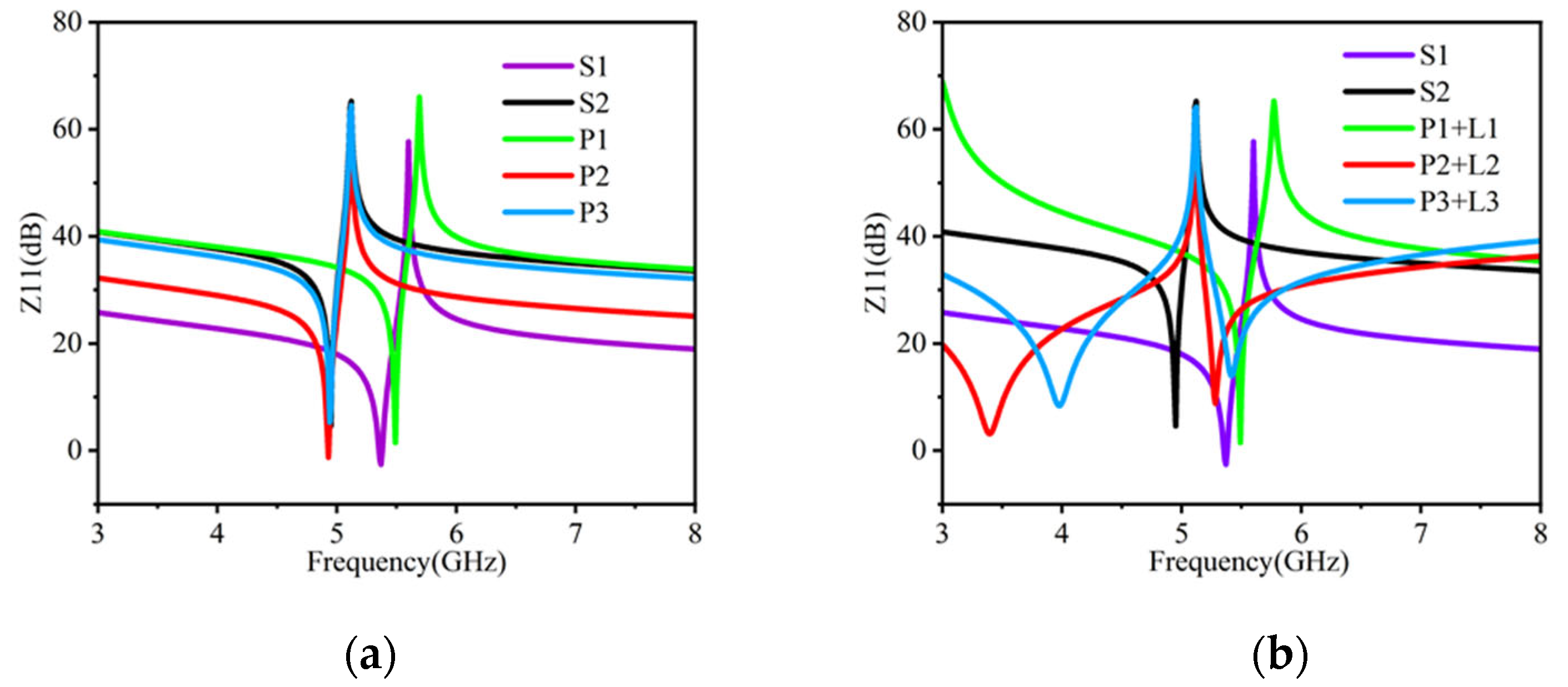

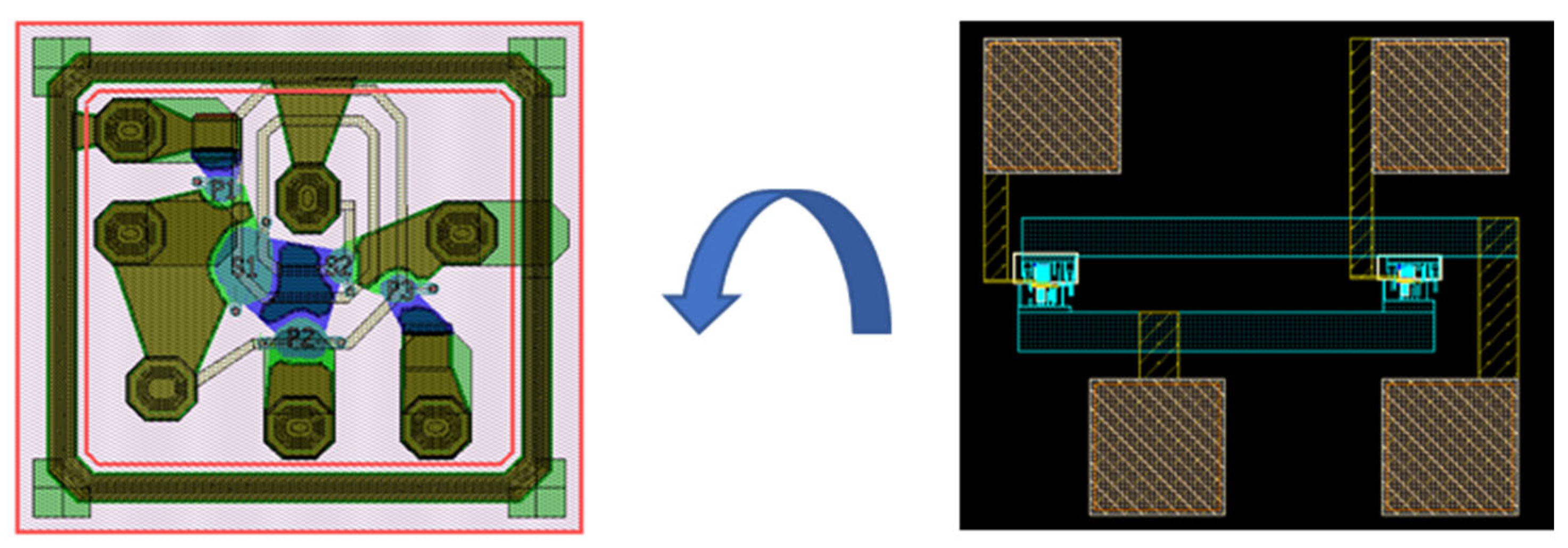

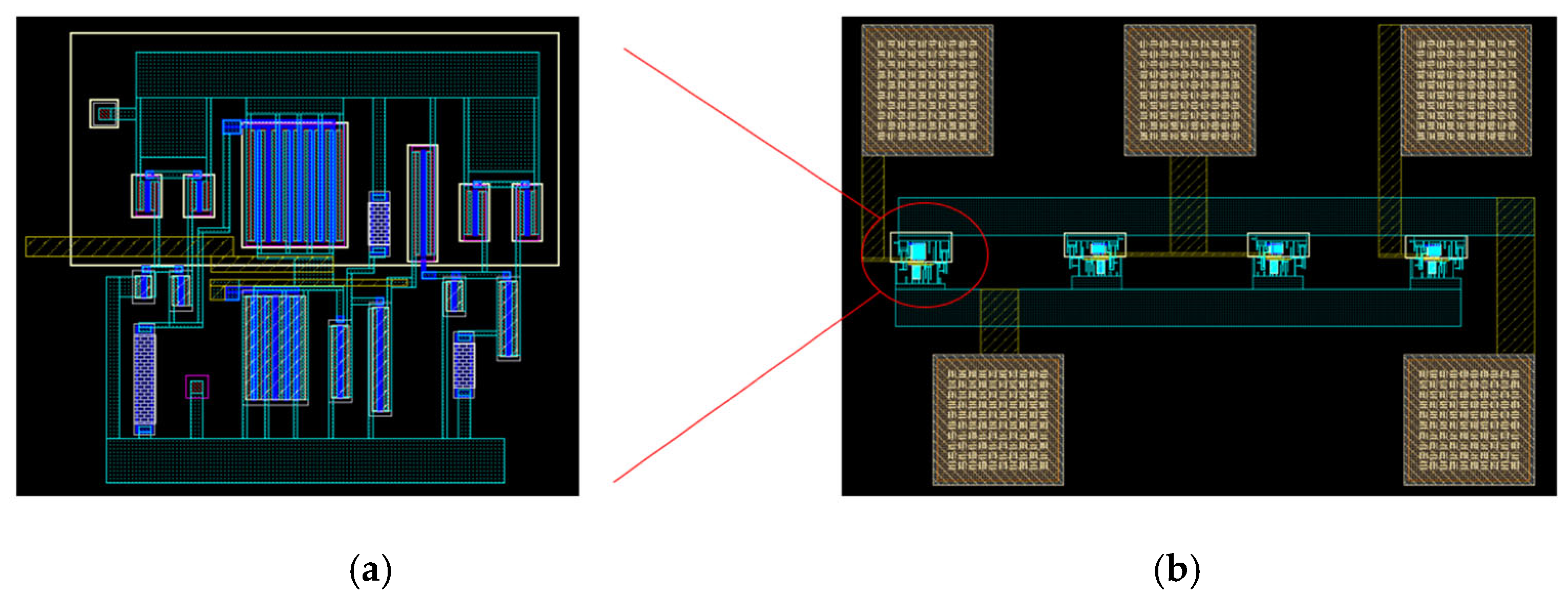

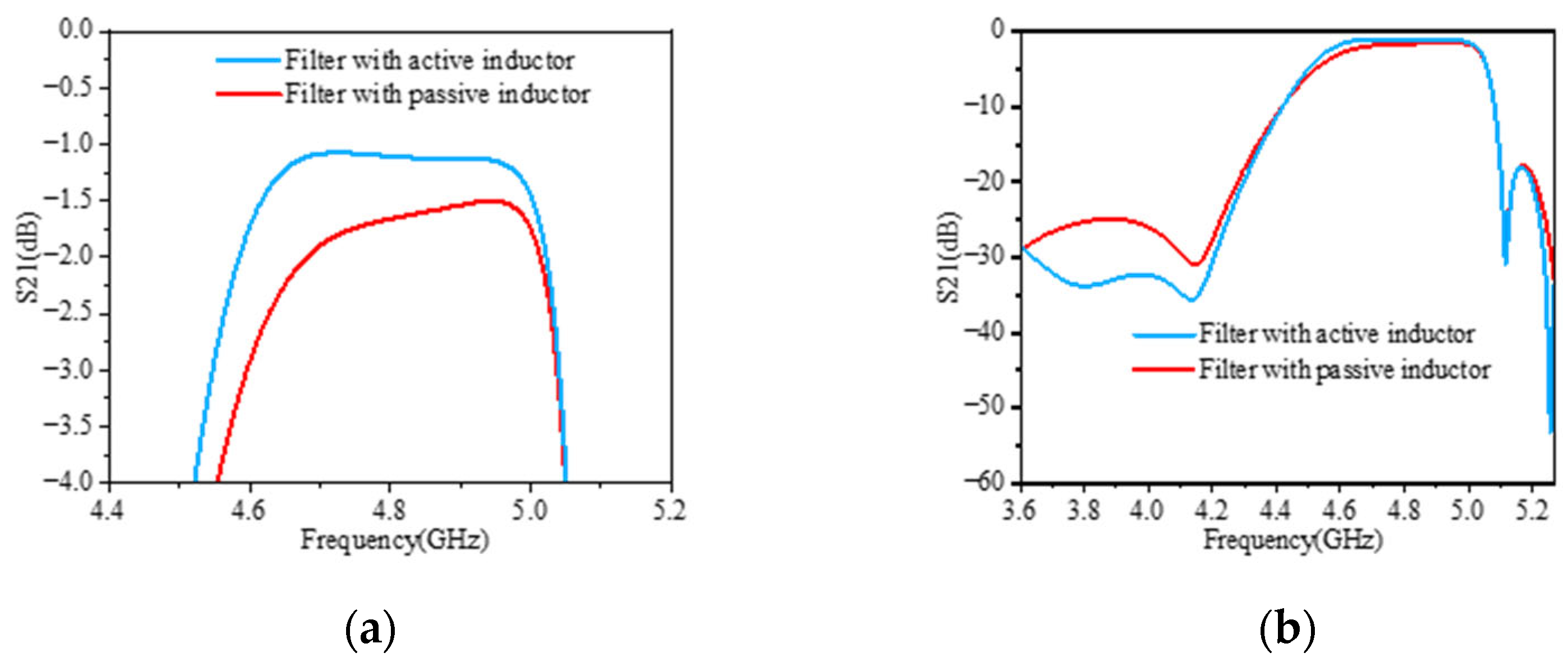

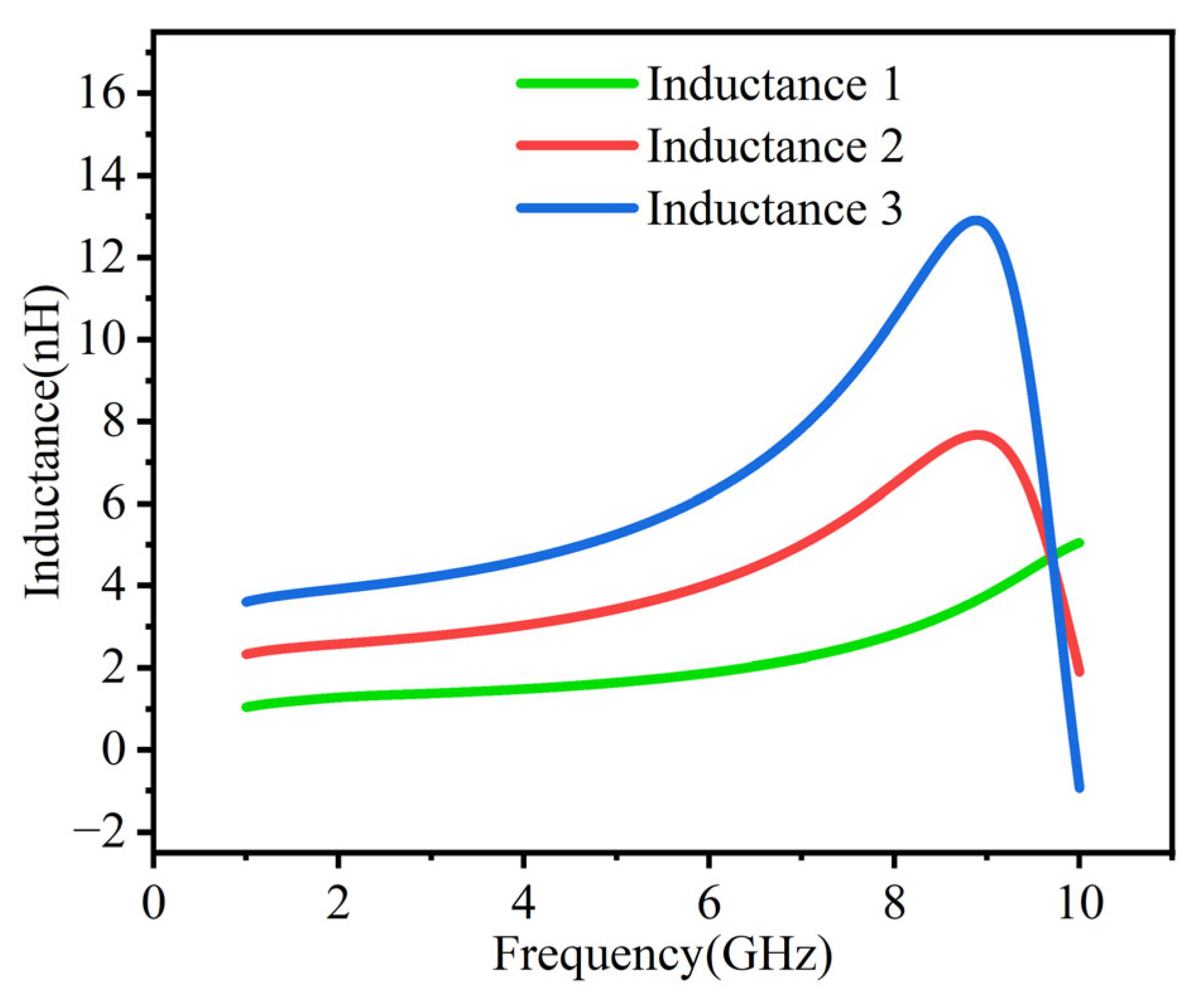

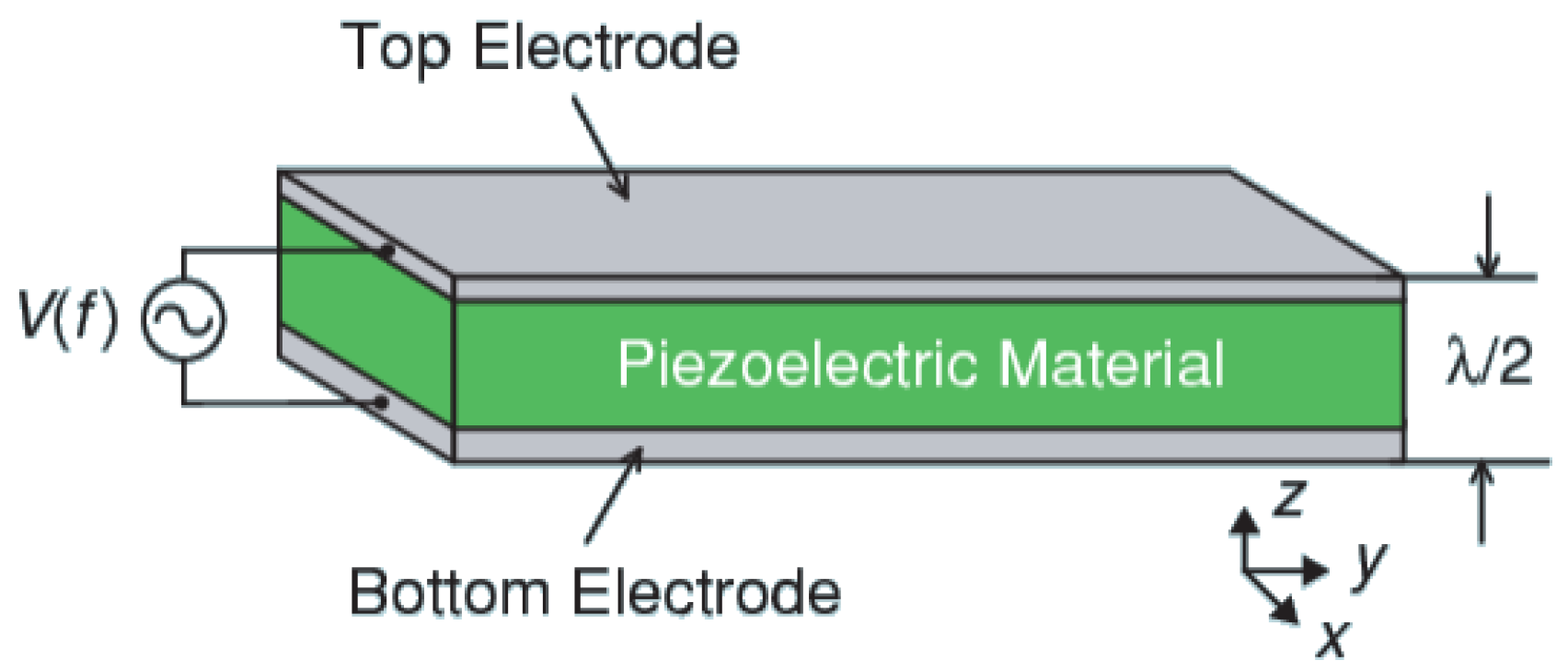

BAW filters have been widely used in RF circuits, and their combination with integrated passive inductors is one of the most common forms of BAW filters. However, the large size of passive inductors increases the area of the filter, making it unable to meet packaging requirements. At the same time, their low quality factor (Q) severely degrades the performance of the BAW filter. This paper presents a miniaturized wide band BAW filter with small-size high-Q active inductor. The active inductor is implemented by a circuit topology with three common-source amplifiers constructed with N-type transistors. The three-stage topology uses a small-size transistor in the middle stage to reduce the parasitic capacitance at the input node, achieving a large inductive bandwidth. The simulation results show that the active inductor has variable inductance from 1 nH to 10 nH, and a quality factor of up to 4K from 2 to 7 GHz. The 30 × 30 μm² active inductor is embedded in a 4.55–5.05 GHz BAW filter ladder so as to substantially decrease filter size. Simulation results indicate that the BAW filter based on the active inductor achieves a low insertion loss of −1.1 dB, out-of-band rejection of −35 dB on the left side, and out-of-band rejection of −53 dB on the right side. Compared to the traditional passive inductor, this active inductor significantly improves the performance of the BAW filter while occupying a much smaller chip size of 0.83 × 0.75 mm².
