A Review on AC-Dielectrophoresis of Nanoparticles
Abstract

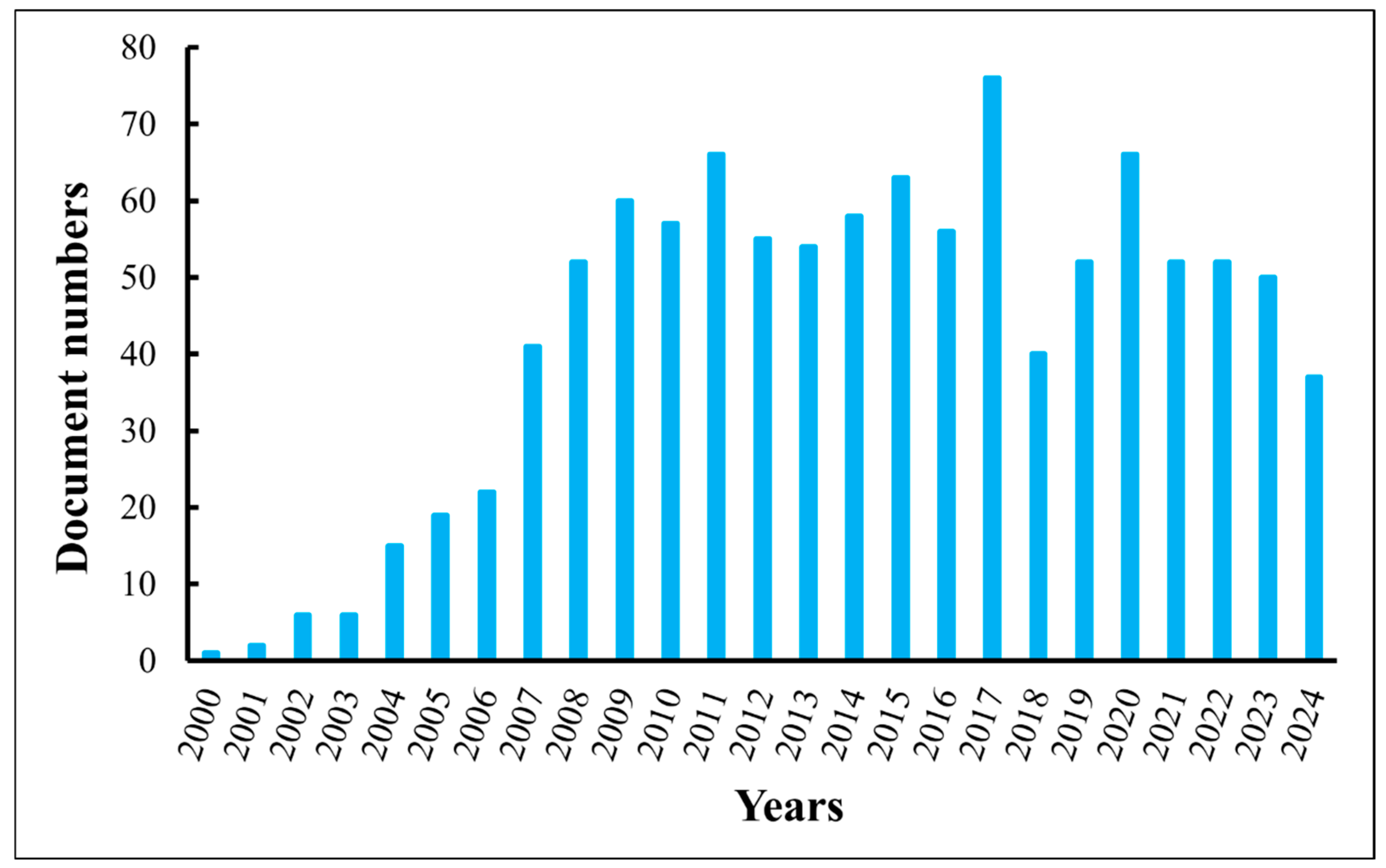

:1. Introduction
2. Theory of AC-DEP

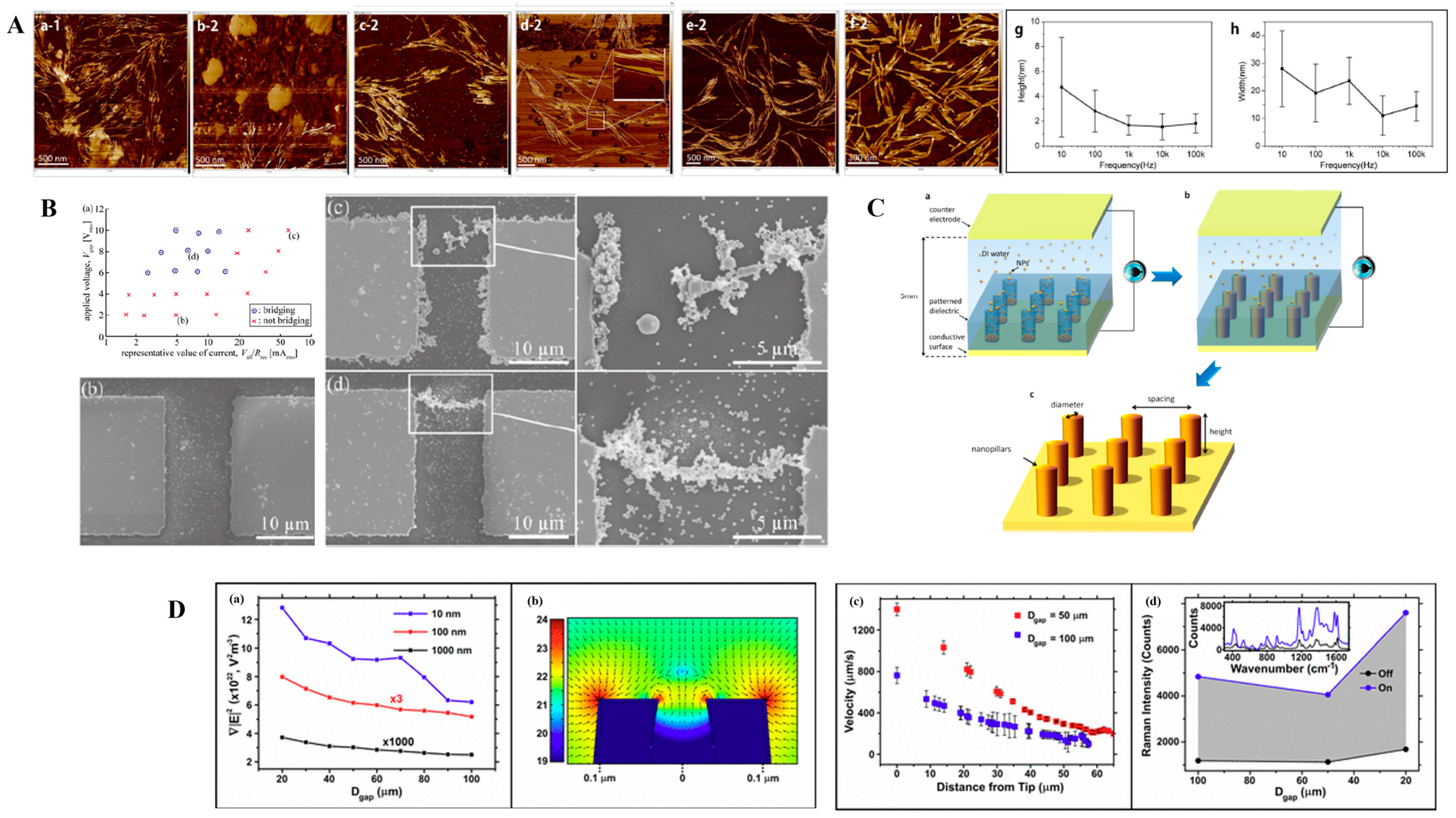

3. DEP of Nanoparticles

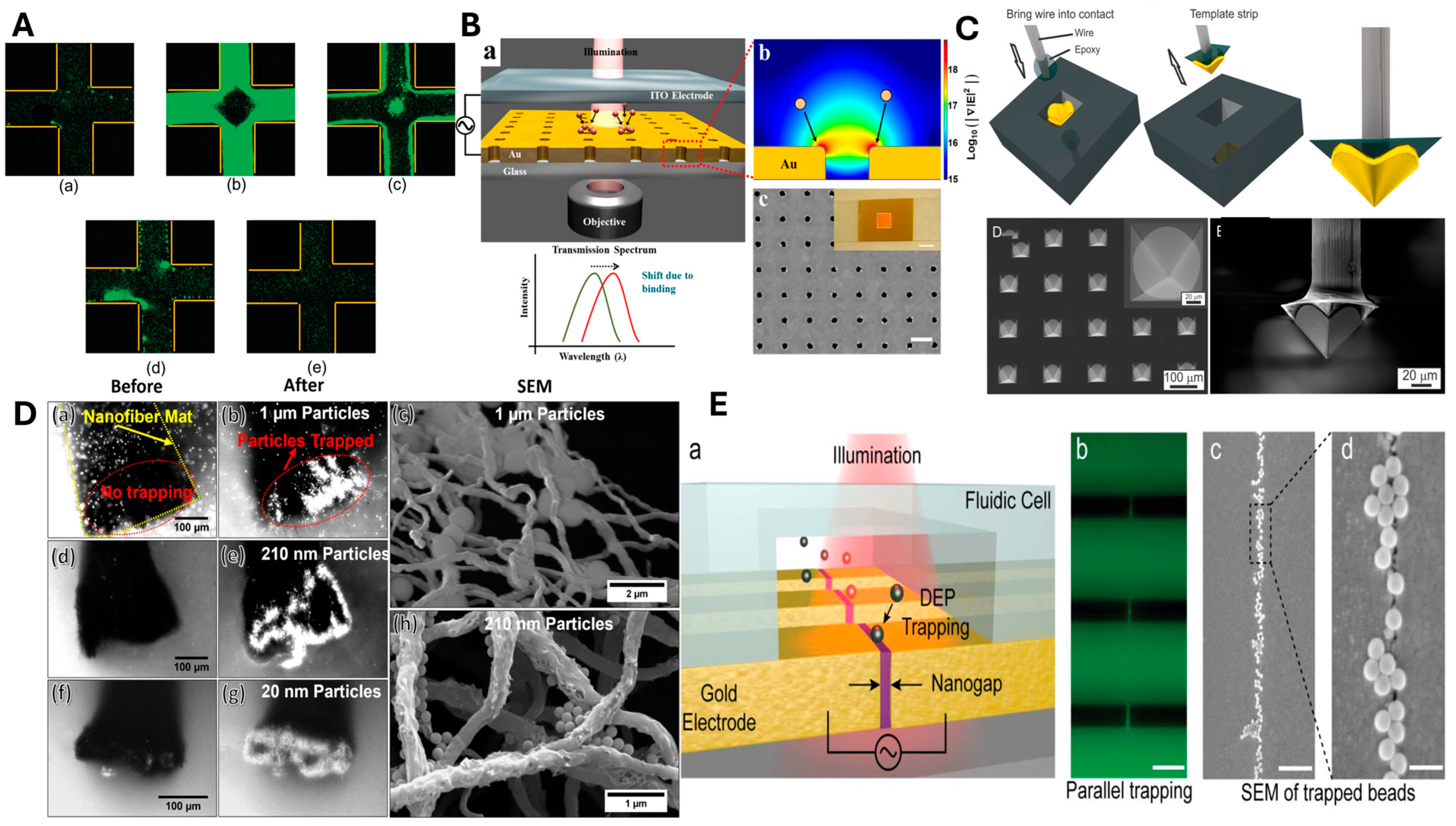

3.1. Metallic Nanostructures
Serial No. | Nanoparticle | Electric Field Signal | Electrode Information | Ref. | |||||
---|---|---|---|---|---|---|---|---|---|
NP Type | Size (Diameter/Length) | Material | Voltage | Frequency | Materials | Types | Length Scales (Gap/Length/Width/Height) | ||
1 | Metal NPs | 20 nm | Au | 1–20 V | 100 Hz–10 MHz | Al | Parallel, arrowhead | 100 µm | [91] |
2 | Metal NPs | 5, 10, and 20 nm | Au | 2–3 V | 1 MHz | Au | Nanogap | 20 nm gap electrode | [100] |
3 | Metal NPs | 20–30 nm | Au | 10 Vpp | 1 MHz | Ti/Au | Interdigitated | 1 µm/-/1 µm/5 nm, 200 nm | [71] |
4 | Metal NPs | 60 nm | Ag | 10 v | 20 MHz | Cr/Au | Gap electrode | 5 µm/-/-/50 nm, 150 nm | [97] |
5 | Metal NPs | 50 nm | Ag | 1–20 Vpp | 1 Hz–1 MHz | Cr/Au | Quadrapole | -/-/-/5 nm, 100 nm | [4] |
6 | Metal NPs | 40 nm | Au | 10 Vpp | 1 MHz | Au | Nanopore | 20 µm gap/70 nm Dia/5 nm Au coating | [94] |
7 | Metal NPs | 15–100 nm | Ag/Au | 1–20 Vpp | 1 MHz | Au | Nanoelectrode array | 80 nm/-/-/50 nm | [74] |
8 | Metal NPs | 40 nm | Ag | 7–8 V | 1–10 MHz | Au | Si Tips/Au | - | [85] |
9 | Metal NPs | 40 nm | Ag | 16 Vpp | 2.5 MHz | Au | - | -/-/-/100 nm | [101] |
10 | Metal NPs | 2, 10, and 100 nm | Au | 20 Vpp | 5 MHz | SiC/SWCNTS | Nanotip | 540 ± 140 nm | [98] |
11 | Metal NPs | 35, 120 nm | Au | 0.6–6 Vrms | 600 kHz | Cr/Ag | Nanoprobe | (150–500 nm in diameter, 2–150 µm in length) | [56] |
12 | Metal NPs | 150 nm | Au | 1.9–15 Vrms | 100 kHz | Au | Gap electrode | 10 µm/ | [93] |
13 | Metal NPs | 60 nm | Au | 0.7–2.5 V | 1 kHz–1 MHz | Au | Rounded/Rectangular | 40–100 nm, 1 µm, 10 µm/-/-/100 nm | [102] |
14 | Metal NPs | 100 nm–200 µm | Silver coated Silica | 100–600 V | 200 kHz | Al | Needle-shaped electrode | - | [5] |
15 | Metal NPs | 20 nm | Au | 3 V | 10 kHz–1 MHz | Cr/Pd | Triangular planar electrode | 3 µm/-/-/10 nm, 70 nm | [10] |
16 | Metal NPs | 40 nm | DNA coated Au | 2.5–2.8 V | 4 MHz | Ti/Au | Nanogap electrode | 13 nm/-/-/- | [103] |
17 | Metal NPs | 10 nm | Au | 9–13 V | 1 kHz–1 MHz | Cr/Au | Triangular planar electrode | 10 µm/-/-/20 nm, 120 nm | [104] |
18 | Metal NPs | 80, 100, 150 nm | Au | <10 Vpp | 1–5 MHz | ITO | Thin-film electrode | 20 µm/-/-/- | [99] |
19 | Metal NPs | 20 nm | Au | 3 Vpp | 1 MHz | Cr/Au | Nanogap electrode | 200 nm/-/-/5 nm, 30 nm | [95] |
20 | Metal + nonmetal NPs | 5, 10, 22 nm | Au, Cu, W, Al, Si, PSL | 12–20 Vpp | 30–70 kHz | Cr/Au | Parallel electrode | -/-/-/2 nm, 120 nm | [73] |
21 | Metal NP + Ligands | 10 nm | Au | 4 Vpp | 1 MHz | Ti/Pd | Nanogap electrode | 50 nm/-/100 nm/10, 40 nm | [105] |
22 | Metal NPs | 15 nm | Pt | 5 V | 500 kHz | Au | Microgap electrode | -/-/-/4 µm | [92] |
23 | Metal NPs | 2–4 nm | Pd | 1–4 Vpp | 500 kHz–2 MHz | Ti/Au | Coplanar electrode | 4 µm/-/-/10, 200 nm | [76] |
3.2. Non-Conducting Nanostructures
Serial No. | Nanoparticle | Electric Field Signal | Electrode Information | Ref. | |||||
---|---|---|---|---|---|---|---|---|---|
NP Type | Size | Material | Voltage | Frequency | Materials | Types | Length Scales (Gap/Length/Width/Height) | ||
1 | NPs | 63, 160, 200, and 410 nm | polystyrene | 10 Vpp | 30 MHz | Au/Cr | Coplanar parallel electrodes | 27 µm/22 mm/-/0.2 µm | [108] |
2 | NPs/ QDs | 100, 25 nm | Polystyrene/PEG coated CdSe/Zn QDs | 8 Vpp | 3 MHz–50 MHz | Au | Nanowire electrodes | 10 µm/-/100 nm/- | [83] |
3 | NPs | 10–30 nm | Aluminum oxide | 10 Vpp | 1 kHz–10 MHz | ITO | Planar electrodes | (4 mm × 4 mm reservoir)/1 cm/1 cm/1 mm | [109] |
4 | NPs | 20 nm, 210 nm, and 1 µm | polystyrene | 7 Vrms | 1 kHz–1 MHz | Carbon nanofiber mat/ITO | Electrospun nanofiber electrode | 150 µm gap/Mat–80 µm thick and 3 mm wide | [86] |
5 | NPs | 10–50 nm | polystyrene | 10 Vpp | 5 kHz–20 MHz | Au | Quadrupole microelectrodes | 20 µm gap/-/-/- | [72] |
6 | NPs/DNA molecules | 20, 10 nm | polystyrene | 2 Vrms | 100 kHz–50 MHz | Au/Cr | Co-axial probe electrodes | - | [111] |
7 | NPs | 0.8 µm | biotin/avidin-conjugated polystyrene | 10 Vpp | 80–100 kHz | Au | Interdigitated electrode | 25 μm/-/25 μm gap/- | [115] |
8 | NPs | 20, 100 nm | polystyrene | 500 V | 600 Hz | - | Electrodeless | - | [116] |
9 | NPs/ DNAmolecules | 200 nm, 10 µm | polystyrene/genomic hmw-DNA | 160 Vpp/80 Vpp | 10 kHz/3 kHz | Pt/Au | Nanowire electrode/ring type counter electrode | - | [84] |
10 | NPs | 220, 80 nm | Polystyrene/ tungsten trioxide | 15 V | 250 kHz–20 MHz | Au/Cr | Curved electrodes | 20–80 nm/270 nm/30 nm/200 nm | [121] |
11 | NPs | 150 nm | Polystyrene | 0.18 V/µm | 10 kHz | Au/ITO | Nanopillar electrode | 120 nm height/150 nm radius | [122] |
12 | NPs/ Bioparticles | 190 nm | Polystyrene/BSA | 10 Vpp/6 Vpp | 1 kHz–10 MHz | Au/ITO | Nanohole array/planar electrode | Hole diameter—140 nm/periodicity—600 nm | [112] |
13 | NPs | 100 nm to 2 µm | Polystyrene | 1.7 to 13.7 Vrms | 15 kHz | W, Si/ITO | Vertical and conical array/planar electrode | Gap—2 µm/W—500 nm dia, Si—50 nm dia./Height—40 nm | [124] |
14 | NPs/DNA molecules | 40 nm | polystyrene/DNA | 20 Vpp | 10 kHz | Pt | Microarray electrodes | 80 µm dia/Dimensions—2 mm × 2 mm | [120] |
15 | NPs/ DNA molecules | 200 nm | polystyrene/ λ-DNA | 12 Vpp | 6 kHz | Au/Ni | Interdigitated circular electrodes | 100 µm/-/-/3 to 5 µm | [119] |
16 | NPs | 5, 20, 40, and 80 nm | Si/Au | 12 V | 1 MHz/10 MHz | Au, PMMA/Au | Planar electrodes | -/-/-/235 nm | [126] |
17 | Polymer/DNA | 116 nm | H1/DNA plasmids | 8 Vpp | 20 MHz | - | Interdigitated electrodes | - | [127] |
18 | Micro/NPs | 0.5, 3, and 4.5 µm | Polystyrene/Graphite | 150–600 Vrms | 1 kHz–15 kHz | Stainless steel | Parallel planar electrodes | 8 mm/18 mm/8 mm/29 mm | [125] |
19 | NPs | 190 nm, 2 µm, | Polystyrene | 10 Vpp | 10 kHz–10 MHz | Au/ITO | Pyramid tip/Planar electrode | 70 µm/-/-/- | [113] |
20 | NPs/ DNA molecules | 40 nm | polystyrene/DNA | 20 Vpp/14 Vpp | 10 kHz | Pt | Microarray electrodes | 80 µm dia, Patch dimensions—200 µm | [123] |
21 | NPs | 300 nm | PMMA | 10 Vpp | 200 kHz | Au/ITO | Fish-bone type/Planar electrode | 50 µm/-/30 µm/- | [118] |
22 | NPs | 300 nm | PMMA | 10 Vpp | 200 kHz | Au/ITO | Planar electrode | 30 µm/2000 µm/30 µm/- | [78] |
23 | NPs | 50 nm/40 nm/50 nm | Anti-FITC/polystyrene/Au | 50/100/300 V | 50/500/260 kHz | Si | Electrodeless | 150 nm/-/-/- | [117] |
24 | NPs/Bacteria | 5 µm and 20 nm | Polystyrene/Staphylococcus aureus and Pseudomonas aeruginosa | 15 Vpp | 100 kHz–1.2 MHz | Au/Ti | Quadruple electrode array | -/-/-/235 nm | [128] |
25 | NPs | 200 nm | Polystyrene | 1 V | 1–4 MHz | Pt | Castellated arrays | 5 µm/-/5 µm/100 nm | [129] |
26 | Polymer/nanomedicine particles | 100–200 nm | Polymer, Silica, Liposome | 18 Vpp,15 Vpp, 8 Vpp, 12 Vpp | 15 kHz | Pt | Circular electrode array | 60 µm diameter | [130] |
27 | NPs/ QDs | 100, 20 nm | Polystyrene/QDs | 8 Vpp | 1 MHz | Ti/Au | Microelectrode | 10 µm/-/-/55 nm | [131] |
28 | Core–shell NP | 220 and 400 nm | poly-L-lysine shell NPs | 5 Vpp | 1 kHz–80 MHz | Ti/Au | Quadrupole microelectrodes | 25 µm/-/-/100 nm | [132] |
29 | NPs/Bioparticles | 200 nm | Polystyrene/BSA | 10 Vpp | 10 kHz | platinum−iridium/ITO | Tip and Planar electrode | Tip: Size—20 nm, height—15 nm, length—225 μm | [110] |
30 | NPs | 47 nm, 1 µm | Polystyrene | 20 Vpp | 10 kHz–1 MHz | Ti/Au | Zig-zag/face-to-face | Placement angle—60°. Zig-Zag gap—6 µm. Face-to-face gap—5 µm. Height—110 nm | [133] |
31 | NPs | 780 nm | Polystyrene | 1 V | 2 MHz–10 MHz | Pt | Crosswise configuration | 1 µm/-/-/60 nm | [134] |
32 | NPs/ QDs/nanodiamond | 30, 10, 190 nm | Polystyrene/Nanodiamond | 300 mV/750 mV/400 mV to 600 mV | 1 MHz to 10 MHz/1 MHz/100 kHz | Au | Nanogap electrode | 1–10 nm/0.8 mm/20 µm/150 nm | [114] |

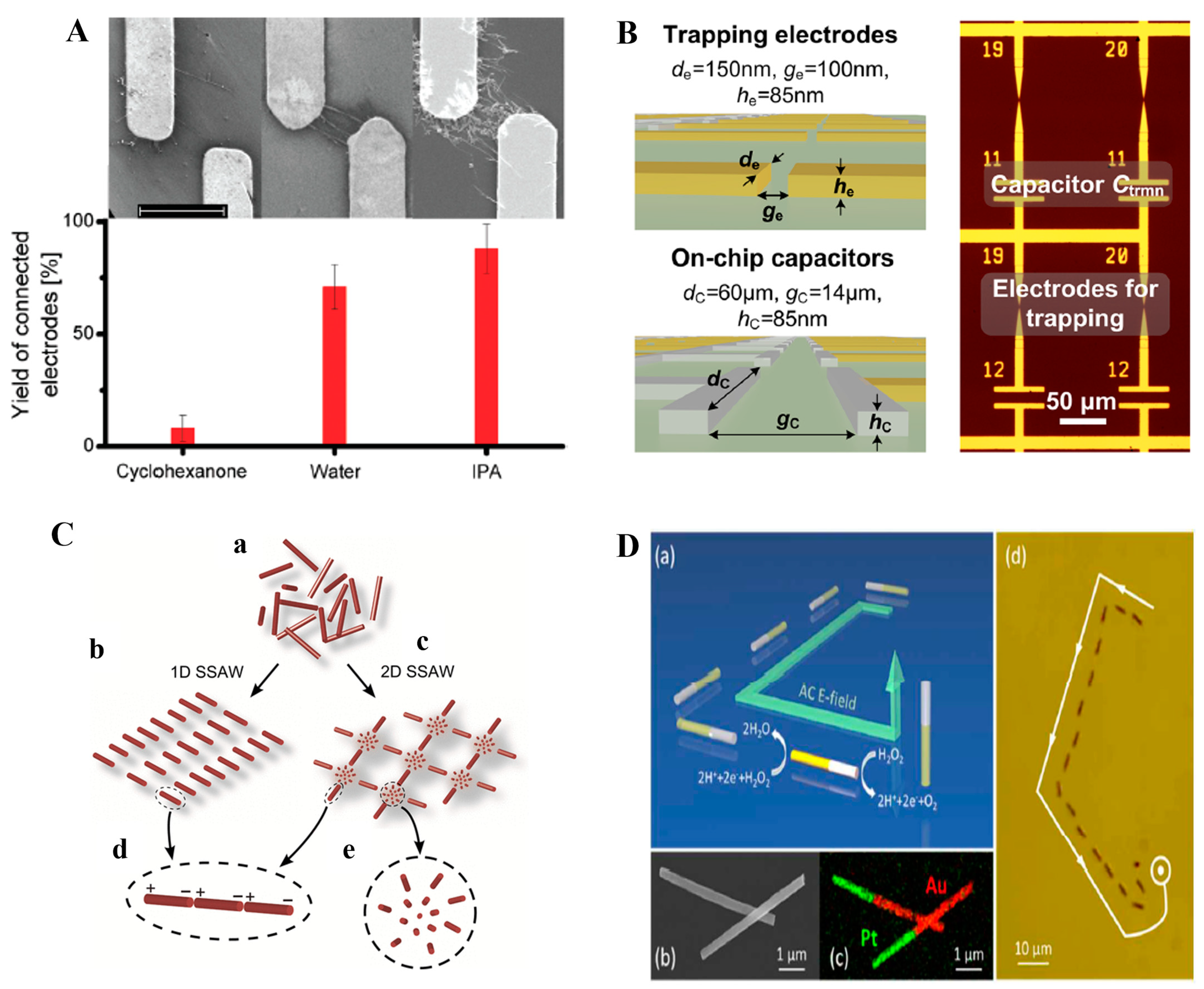

3.3. Nanowires/Nanotubes/Nanorings and Similar
Serial No. | Nanoparticle | Electric Field Signal | Electrode Information | Ref. | |||||
---|---|---|---|---|---|---|---|---|---|
NP Type | Size (Diameter/Length) | Material | Voltage | Frequency | Materials | Types | Length Scales (Gap/Length/Width/Height) | ||
1 | Metal NPs/NWs | 100 nm (NPs), 60 nm (NWs) | Ag | 10–30 Vpp | 10 kHz–1 MHz | ITO | Interdigitated, pillars, and pits | - | [138] |
2 | NWs/NTs | 200 nm/3 µm | ZnO, CNT | 5 V | 1 MHz | Ti/Au | Narrow gap | 1 µm, 4 µm, 5 µm/-/-/5 nm, 30 nm | [140] |
3 | sc-SWCNTs | - | CNT | 10 V | 500 kHz | ITO | Rectangular gap electrode | 10 µm/995 µm/-/0.14 µm | [141] |
4 | MWCNTs/NWs | 5 nm/200 nm–4 µm | ZnO/TiO2/VOX/CNT | 2 V | 1 MHz | Au | Microelectrode pair | 2 µm/-/-/50 nm | [142] |
5 | NWs | 220 nm/30 µm | CuO | 6 V | 20 kHz | Au | Gap electrode | 2.25 µm/-/-/- | [152] |
6 | NWs | 60 nm/40 µm | Ag | - | 19–37 MHz | Cr/Au | Gap electrode | 75 µm/-/75 µm/50 Å, 500 Å) | [144] |
7 | NWs | 300 nm/2.5 µm | SiO2 coated Ag | 2–6 V | 750 kHz | Ti/Au | Cylindrical post | -/-/-/15 nm, 30 nm | [154] |
8 | NWs | 100 nm/200 µm | Ag | 0.6–5 V | 10 kHz–10 MHz | Ag | Dot-matrix electrode | 50 µm diameter/150 µm gap | [155] |
9 | NWs | 75 nm/22 µm | Si | 10 Vpp | 1 kHz–20 MHz | Au | 3D-well electrode | 150 µm/-/-/70 Cu, 150 Polyamide | [139] |
10 | NWs | 2 nm/- | Au | 2–10 Vpp | 2–20 MHz | Cr/Au | Parallel probe electrode | 3 µm/5 nm, 50 nm | [146] |
11 | NWs | 30 nm/20, 60 µm | Ag | 5–70 Vpp | 1 MHz | Interdigitated electrode | 36, 65 µm/-/36, 184 µm/- | [149] | |
12 | SWCNT | -/600 nm | CNT | 5 Vpp | 400 kHz | Ti/Pd/Au | Surface microelectrodes | 100 nm/-/100 nm/0.2, 15, 15 nm | [11] |
13 | NWs | 50 nm/4–5 µm | Si/InAs/ZnO | 3.2 Vpp | 50 kHz | Cr | Interdigitated electrode | 2, 4, and 5 µm/-/-/100 nm | [148] |
14 | NWs | 30 nm/1–20 µm | Si | 5–20 Vpp | 5 kHz–5 MHz | Ti/Au | Parallel electrode-bars/Interdigitated electrode | 10, 20 µm/-/-/2 nm, 50 nm | [151] |
15 | NWs | 240 nm/18 µm | Si | 7 Vrms | 500 Hz | Al | Isolated and sparse electrode | -/12 µm/2 µm/50 nm | [147] |
16 | NWs | 151 nm/5.8 µm | Au | 2–8 Vpp | 10–50 MHz | Au/Ni/Au | Quadrupole microelectrode | -/-/-/6 nm, 100 nm, 100 nm | [150] |
17 | NWs | - | Au/MWCNT | 4 Vpp | 10 kHz–1 MHz | Cr/Au | Array of electrodes | 100 nm/-/150 nm/85 nm | [143] |
18 | NWs | 130 nm/- | Si | 0.3–5 V | 1 MHz | Ti | Tapered electrode | 4 µm/-/-/- | [159] |
19 | Nanobelt | 1–2 µm length/size | SnO2 | 70 Vpp | 5 Hz–10 MHz | Au | Castellated microelectrodes | 20 µm/-/-/250 nm | [158] |
20 | Nanomotor | 250 nm/5 µm | Pt–Au | 0–50 Vpp | 10 kHz–10 MHz | Au | Quadruple microelectrode | -/-/-/500 µm | [145] |
21 | NWs/NTs | 50–150 nm/4–6 µm | Ni, ZnO, Au, Ag, Sn, Fe2O3 | 0.6–6 Vpp | 50–200 kHz | Au | Parallel plate electrodes | -/-/-/400 nm | [153] |
22 | NWs | 23 nm/- | Pt | 4 V | 100 kHz | Pt/Au | Interdigitated electrode | 2–4 µm/-/-/3, 17 nm | [77] |
23 | NTs | 1–3 nm/ | CNT | 5–20 Vpp | 300 kHz | W-Ti/Pt | Interdigitated electrode | -/-/-/120 nm | [156] |

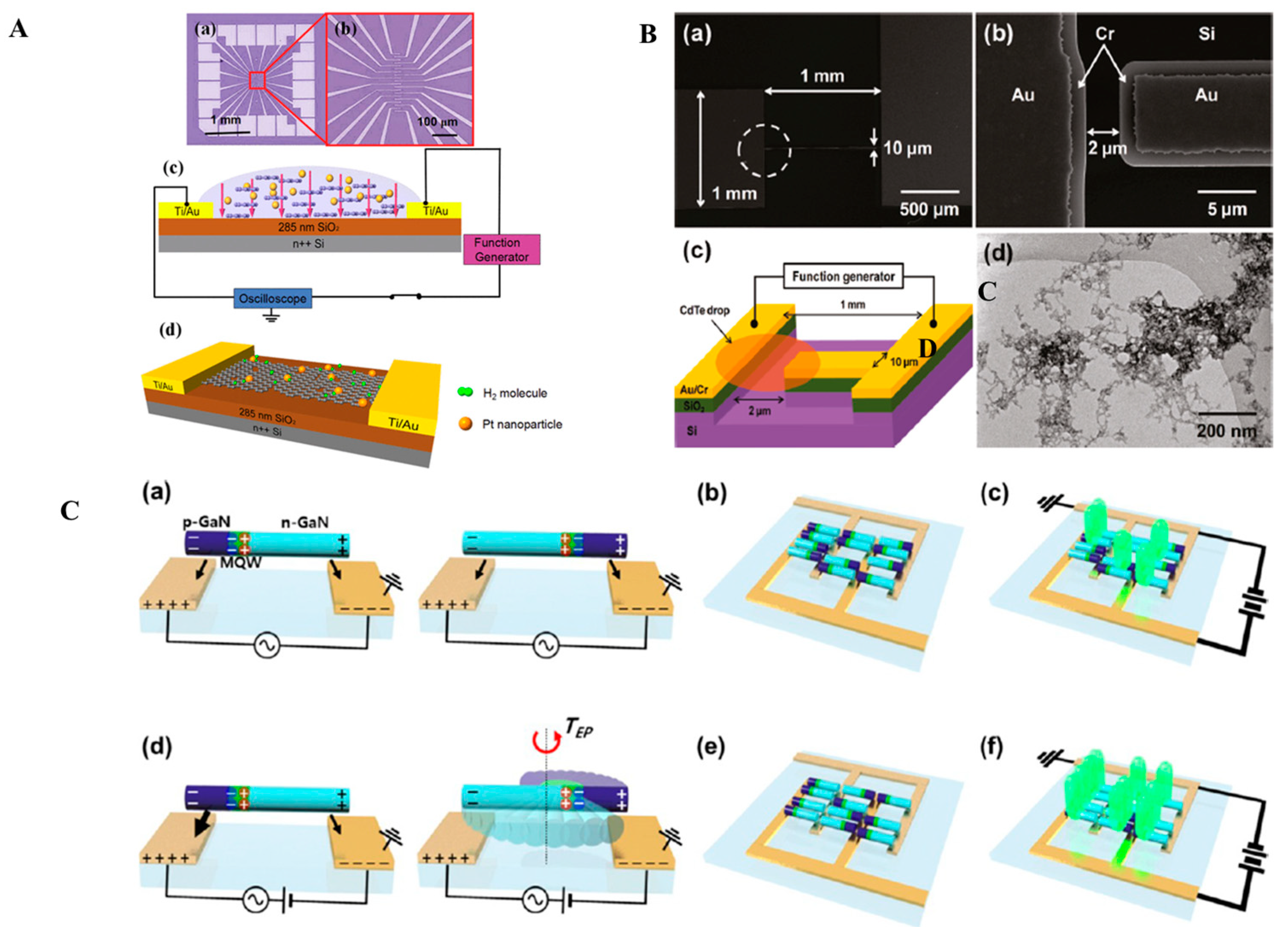

3.4. Other Semiconductive Nanostructures
Serial No. | Nanoparticle | Electric Field Signal | Electrode Information | Ref. | |||||
---|---|---|---|---|---|---|---|---|---|
Type | Size (Diameter/Length) | Material | Voltage | Frequency | Materials | Types | Length scales(Gap/Length/Width/Height) | ||
1 | Nanostructure + NPs | 1 nm GO/15 nm Pt | Graphene Oxide/Platinum | 2, 5, and 10 Vpp | 100, 500, 1000 kHz | Ti/Au | Microgap electrode | 4 µm/-/-/- | [164] |
2 | Nano-onions | 5 nm | Carbon | 3–20 Vpp | 1, 100, and 1000 kHz | Au | Interdigitated microelectrode | 5 µm/6760 µm/5 µm/- | [173] |
3 | NPs | 21.4 nm | Strontium titanate | 5 V | 1 MHz | Al | Probe electrodes | 100 nm/-/-/60 nm | [168] |
4 | NPs | 80 nm& 210 nm | Tungsten trioxide and Polystyrene | 15 V | 100 kHz–20 MHz | Cr/Au | Curved microelectrode | -/-/-/50, 100 nm | [121] |
5 | Nps | 4.2 nm/- | Cadmium telluride | 4–10 V | 100 kHz | Cr/Au | Microgap electrode | 2 µm/-/-/- | [166] |
6 | Nanorods | 500 nm/2.5 µm | Indium gallium nitride/Gallium nitride | 2.8–21 Vrms | 100–950 kHz | Au | Interdigitated microelectrode | 2.5 µm/-/3 µm/- | [169] |
7 | NPs | 20–100 nm | Zinc oxide | 10 V | 300 kHz | Ti/Pd | Gap electrode | 800 nm/200 nm/45 nm/5, 40 nm | [170] |
8 | CBNPs | 30 nm/- | Carbon black | 12–225 V | 10 Hz–10 kHz | Cu | Triangular planar electrode | 2–30 mm/-/-/88 µm | [171] |
9 | MWCNTs | 40–60 nm/5–15 µm | Multiwall carbon nanotube | 20 Vpp | 5 MHz | Cr/Au | Parallel electrode | 1–10 µm/10 mm/5 mm/30, 100 nm | [172] |
10 | Nanorods | 500 nm/3 µm | Indium gallium nitride/Gallium nitride | 21 Vrms | 950 kHz | Ti/Au | Interdigitated microelectrode | 3 µm/0.7 cm/0.6 cm/20, 200 nm | [167] |
11 | NPs | 300 nm/15 µm | Zinc oxide | 40 Vrms | 1 kHz | Au | In-plane electrode | 150 µm/-/-/- | [177] |
12 | NPs | 1 nm/5.69 µm | Graphene Oxide | 20 Vpp | 10 kHz | ITO | Interlaced electrode | 1 mm/-/1 mm/- | [178] |
13 | NPs | 450 nm, 80 nm/- | silica and tungsten trioxide | 15 Vpp | 0.1–250 MHz | Cr/Au | Curved microelectrode | 20 µm/17 mm/-/- | [175] |
14 | NPs | 60 nm, 109 nm, 10–20 nm/10 nm | Polystyrene/Nanoliposomes/Micelles/DNA strands | 2–18 Vpp | 15 kHz | Pt | Microelectrode | 218 µm gap/60 µm diameter | [130] |
15 | NPs | 10 nm QD/300 nm, 5 µm Au Nanowires | Cadmium Selenide, Zinc Sulfide QDs/Gold NWs | 20 Vpp | 50–700 kHz | - | Parallel microelectrode | 20–50 µm/-/-/- | [176] |
16 | NPs | 3–8 nm | Platinum-palladium | 10 Vpp | 1 MHz | Ti/Au | Triangular probe electrodes | 2 µm/-/-/5 nm, 90 nm | [165] |
4. Discussion and Conclusions
Author Contributions
Funding
Conflicts of Interest
References
