A Compact V-Band Temperature Compensation Low-Noise Amplifier in a 130 nm SiGe BiCMOS Process

by
Yi Shen
1,
Jiang Luo
1,*,
Wei Zhao
1,
Jun-Yan Dai
2 and
Qiang Cheng
2,*
1
School of Electronics and Information, Hangzhou Dianzi University, Hangzhou 310018, China
2
State Key Laboratory of Millimeter Waves, Southeast University, Nanjing 210096, China
*
Authors to whom correspondence should be addressed.
Micromachines 2024, 15(10), 1248; https://doi.org/10.3390/mi15101248
Submission received: 20 September 2024 / Revised: 8 October 2024 / Accepted: 9 October 2024 / Published: 11 October 2024

Abstract

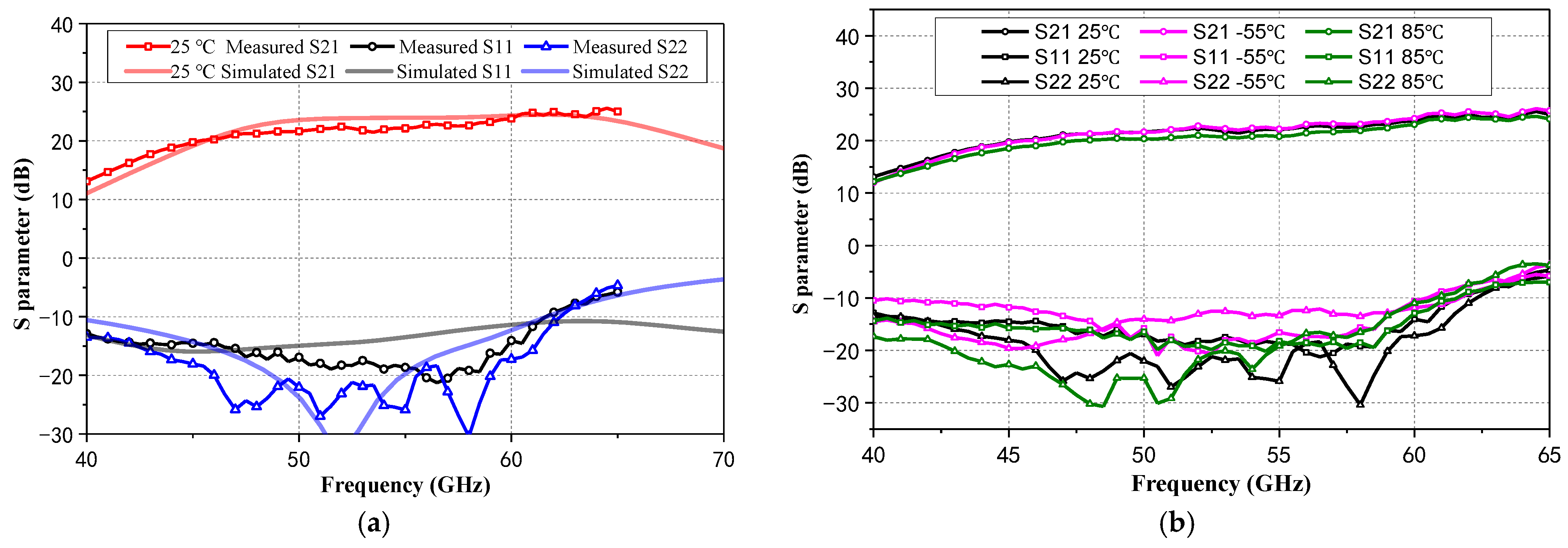

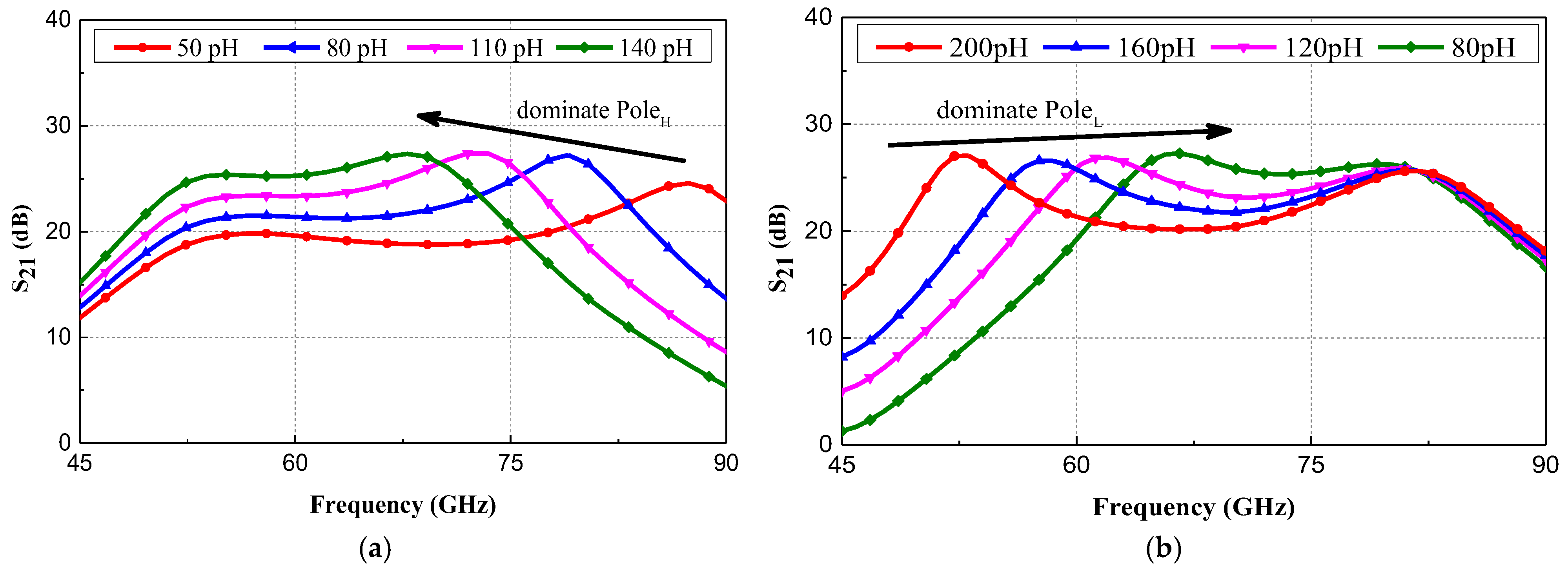

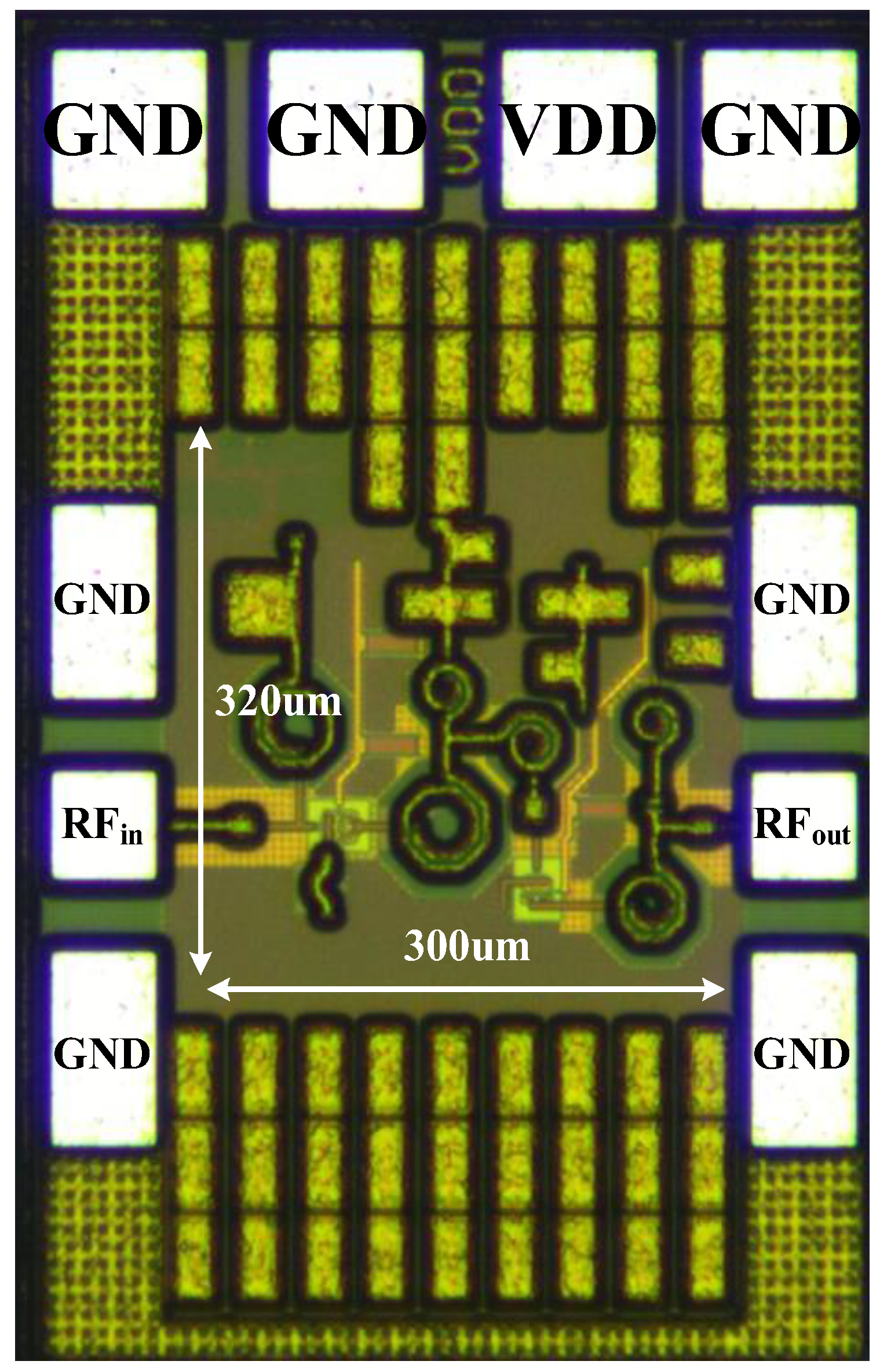

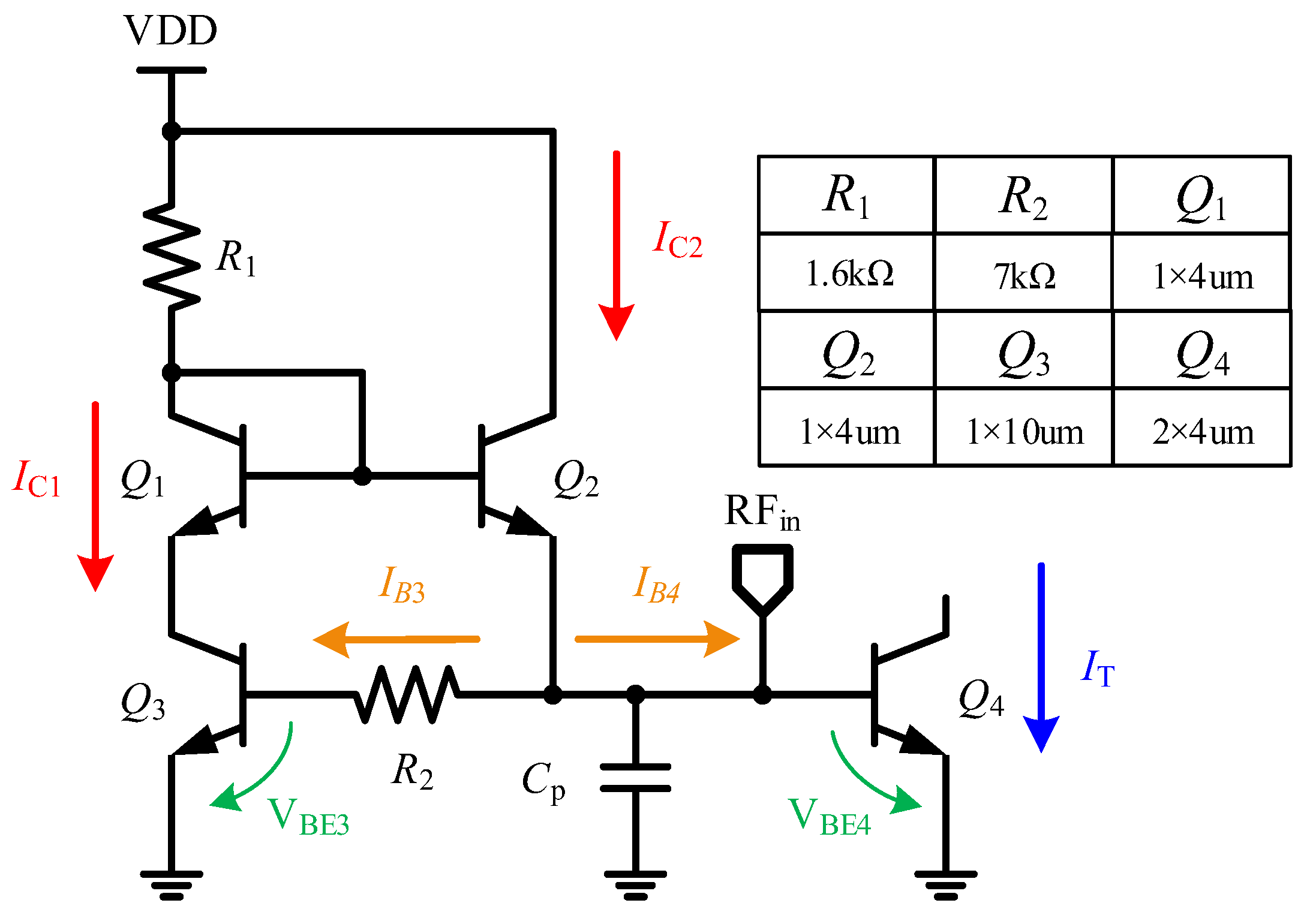

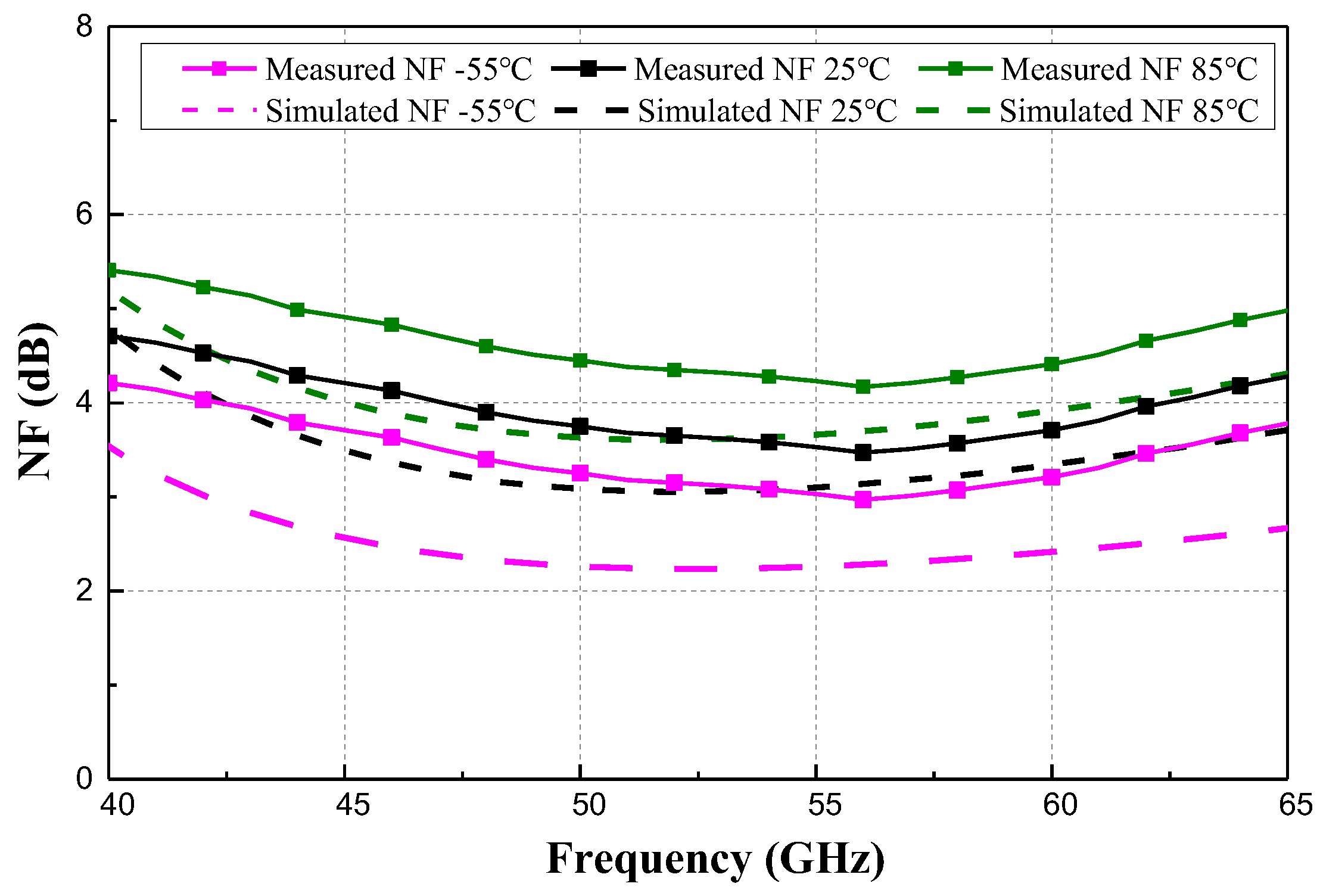

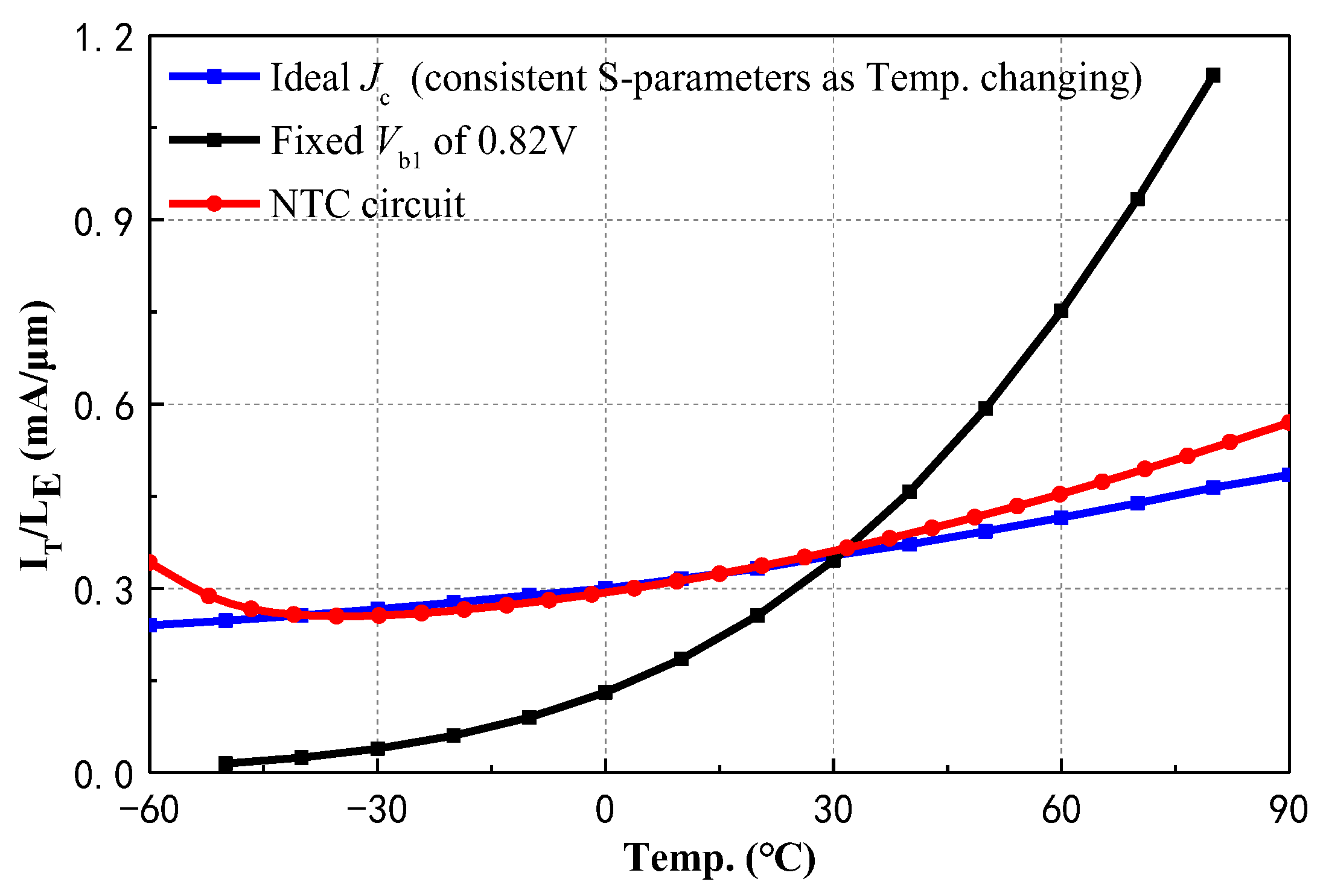

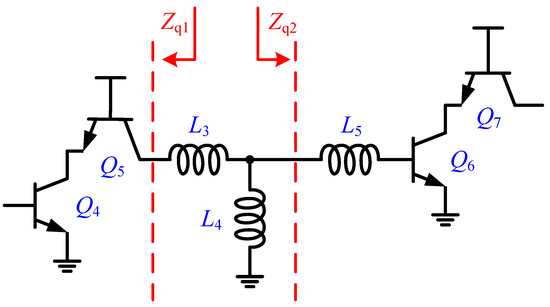

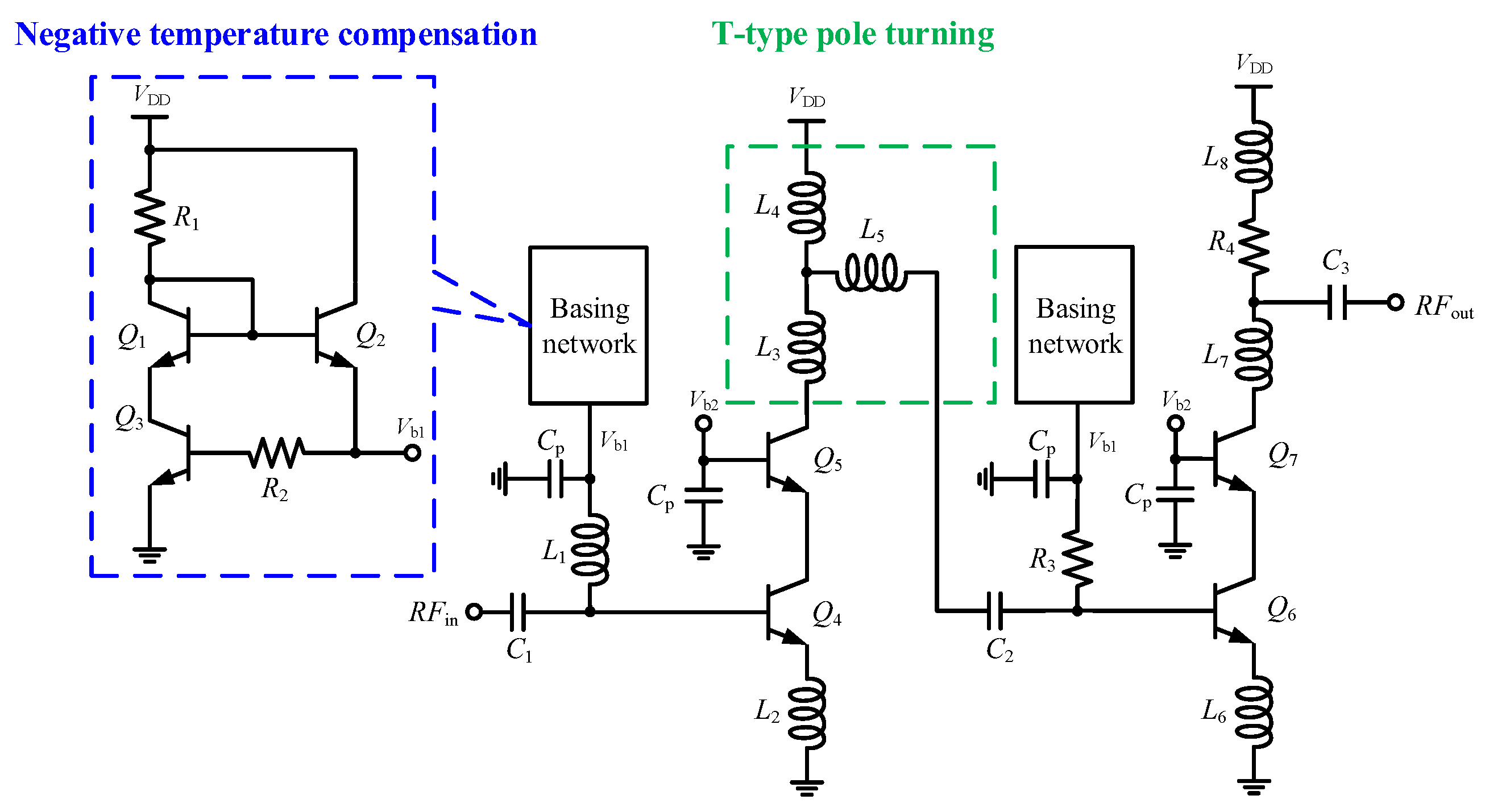

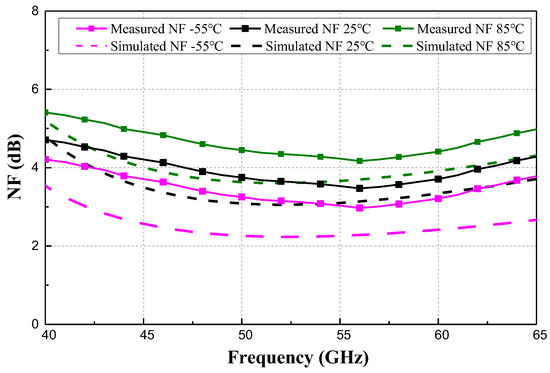

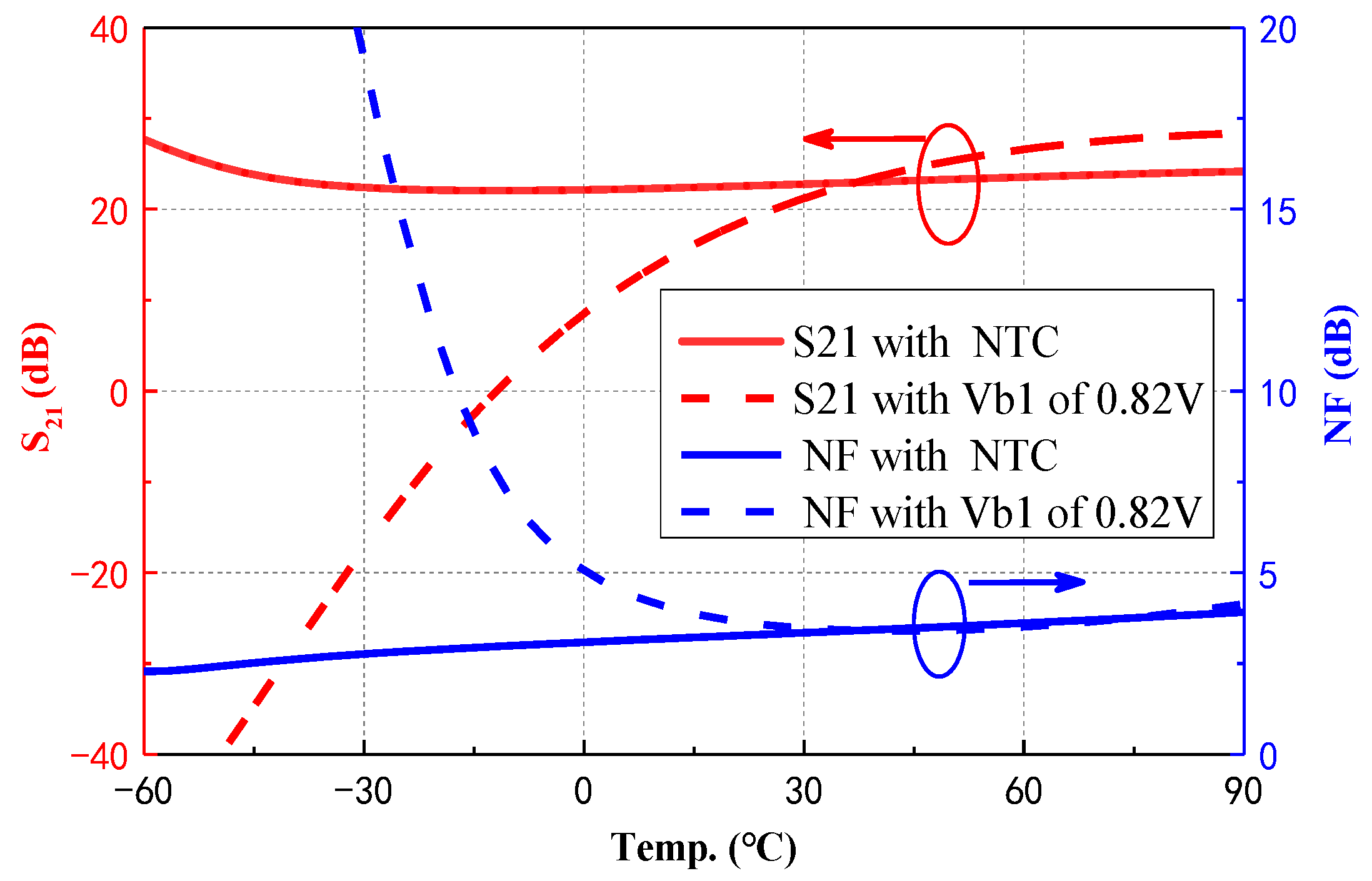

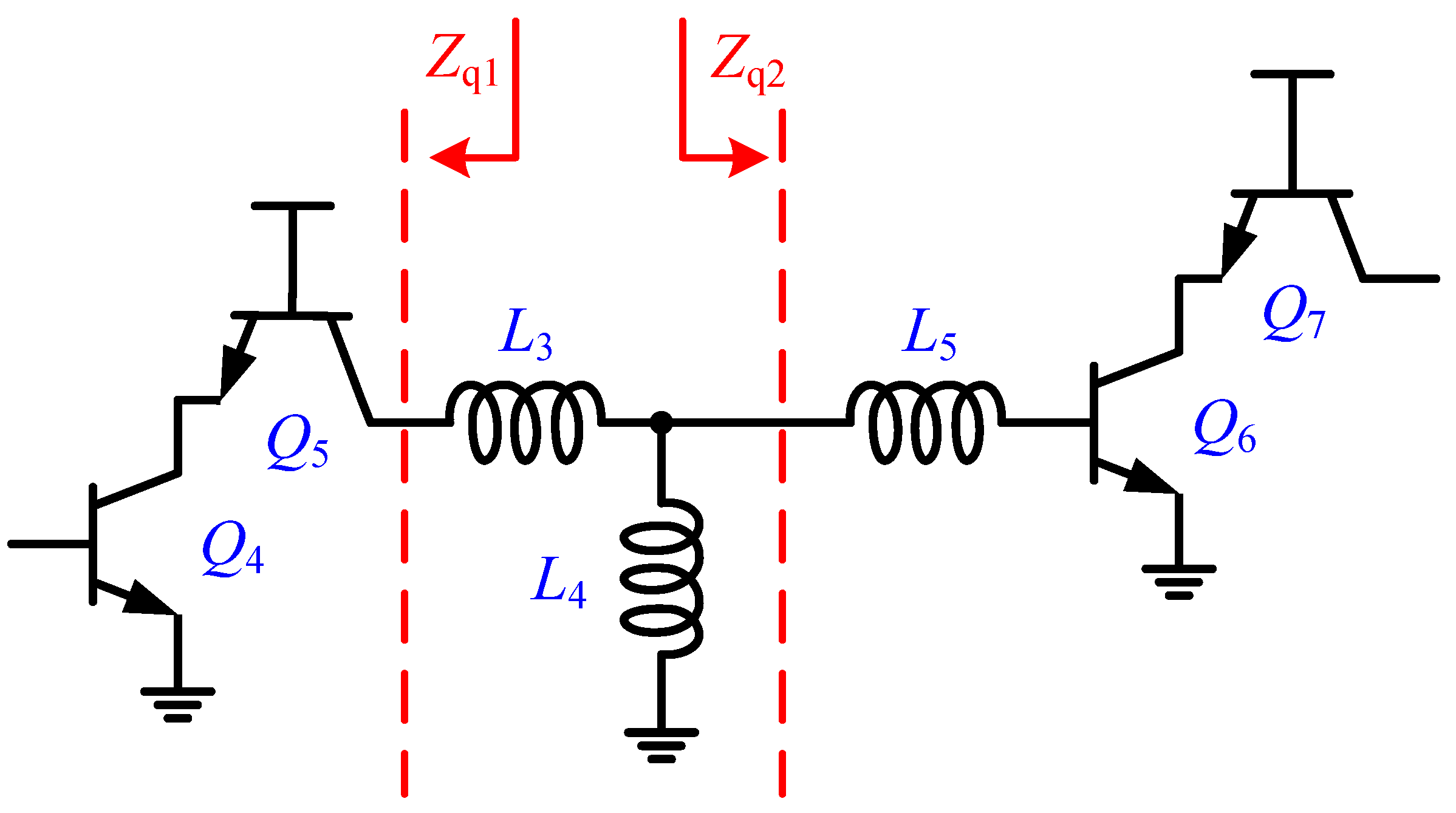

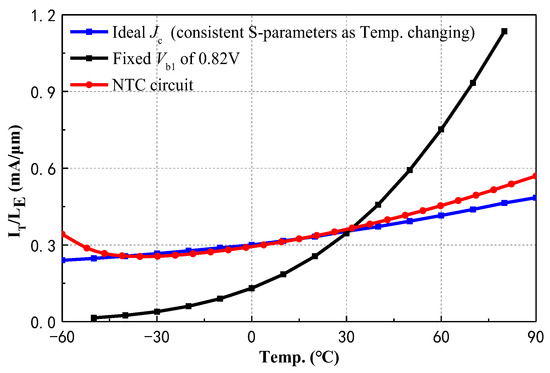

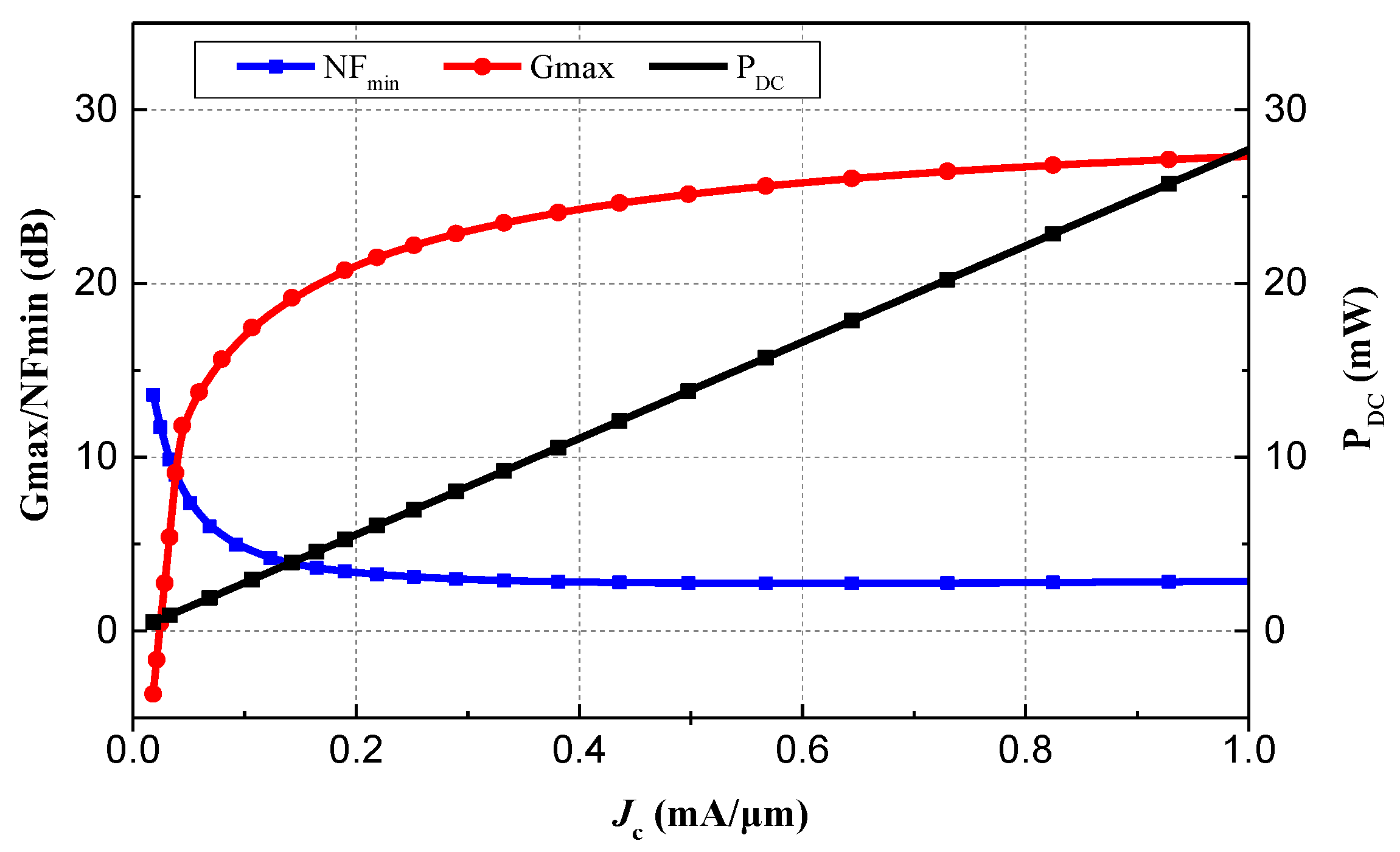

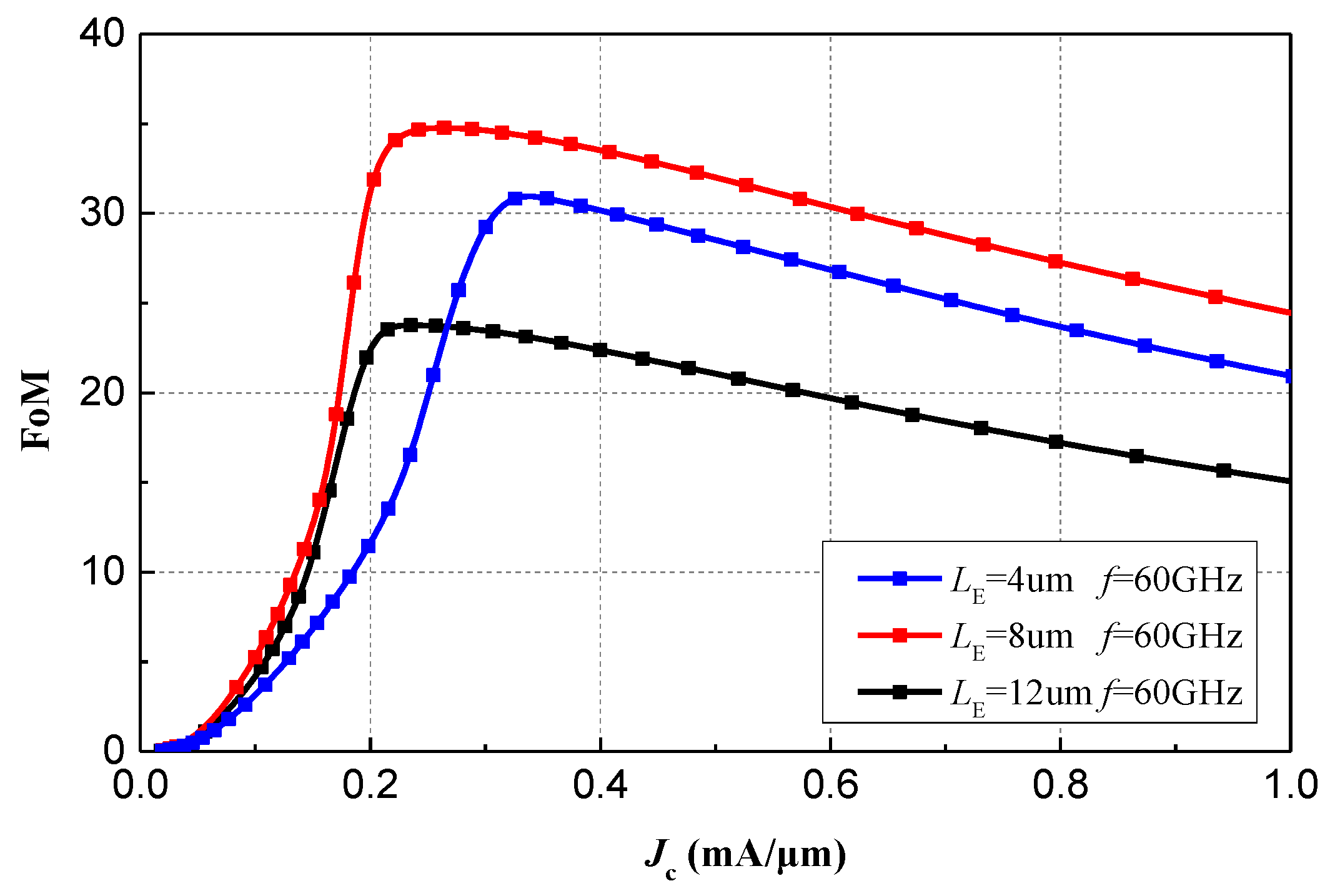

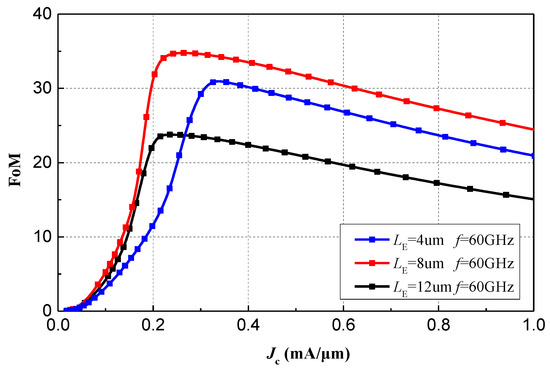

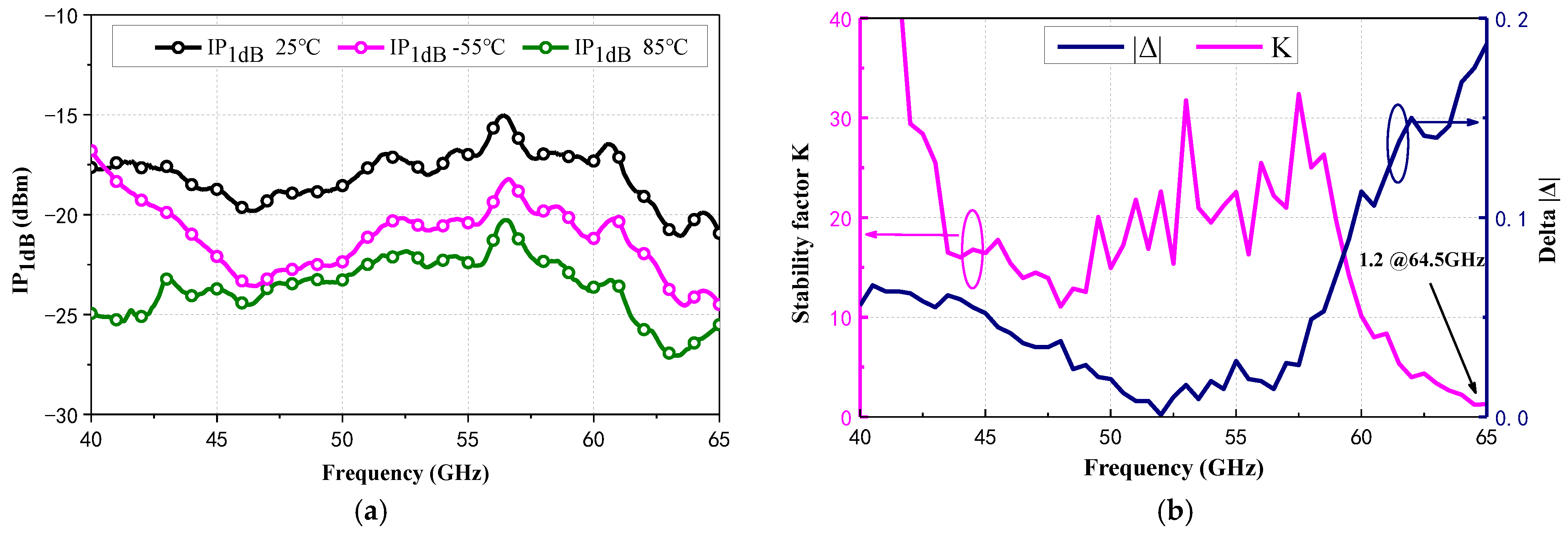

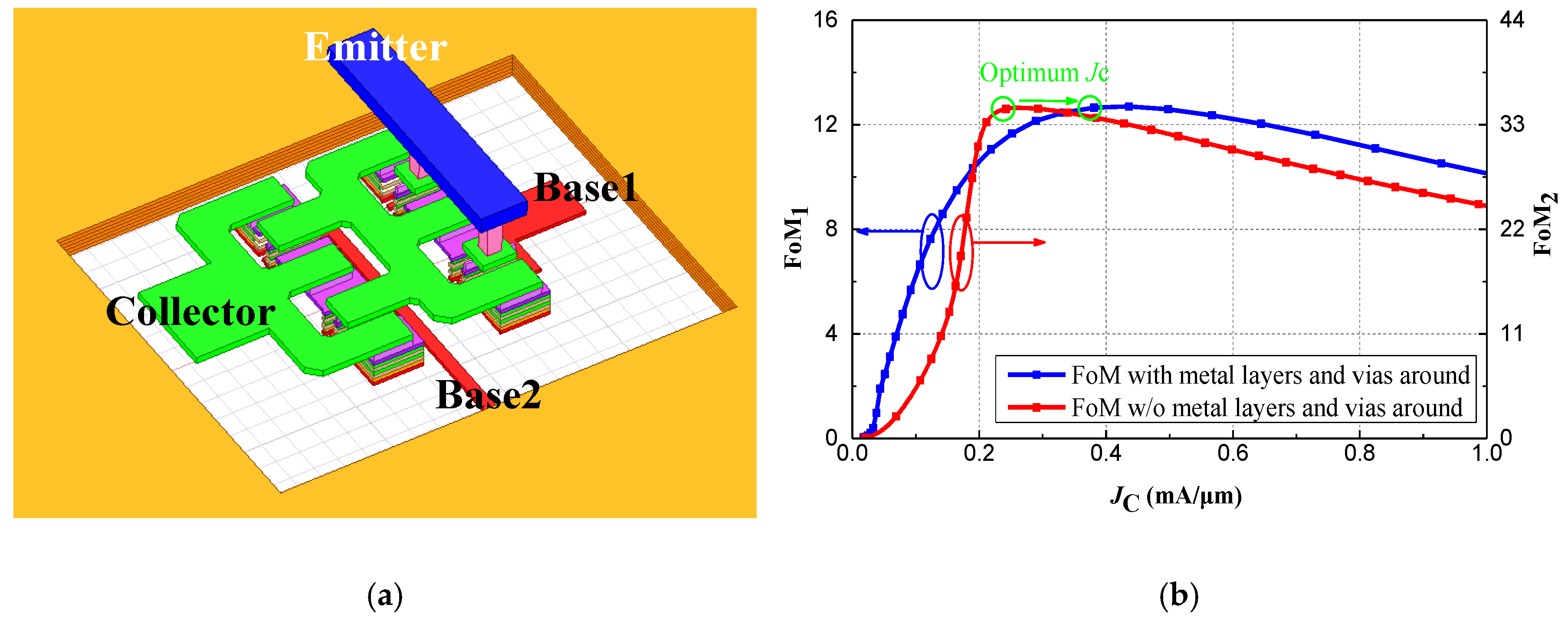

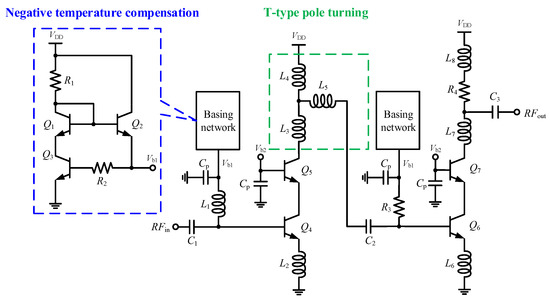

This paper presents a compact V-band low-noise amplifier (LNA) featuring temperature compensation, implemented in a 130 nm SiGe BiCMOS process. A negative temperature coefficient bias circuit generates an adaptive current for temperature compensation, enhancing the LNA’s temperature robustness. A T-type inductive network is employed to establish two dominant poles at different frequencies, significantly broadening the amplifier’s bandwidth. Over the wide temperature range of −55 °C to 85 °C, the LNA prototype exhibits a gain variation of less than 1.5 dB at test frequencies from 40 GHz to 65 GHz, corresponding to a temperature coefficient of 0.01 dB/°C. At −55 °C, 25 °C, and 85 °C, the measured peak gains are 25.5 dB, 25 dB, and 24.4 dB, respectively, with minimum noise figures (NF) of 3.0 dB, 3.5 dB, and 4.2 dB, and DC power consumptions of 22.3 mW, 27.6 mW, and 34.4 mW. Moreover, the total silicon area of the LNA chip is 0.37 mm2, including all test pads, while the core area is only 0.09 mm2.
Keywords: millimeter-wave (mm-wave); V-band; SiGe BiCMOS; temperature compensation; low-noise amplifier millimeter-wave (mm-wave); V-band; SiGe BiCMOS; temperature compensation; low-noise amplifier
