Electrografting a Hybrid Bilayer Membrane via Diazonium Chemistry for Electrochemical Impedance Spectroscopy of Amyloid-β Aggregation

by
Hamid Fini
†,
Qusai Hassan
†,
Meissam Noroozifar
and
Kagan Kerman
*,‡
Department of Physical and Environmental Sciences, University of Toronto Scarborough, 1265 Military Trail, Toronto, ON M1C 1A4, Canada
*
Author to whom correspondence should be addressed.
†
These authors contributed equally.
‡
This paper is dedicated to the memory of Ari Chow and Ian R. Brown.
Micromachines 2022, 13(4), 574; https://doi.org/10.3390/mi13040574
Submission received: 18 February 2022 / Revised: 20 March 2022 / Accepted: 24 March 2022 / Published: 5 April 2022
(This article belongs to the Special Issue Recent Trends in Biosensors)
Browse Figures
Versions Notes

Abstract

:
Herein, a novel hybrid bilayer membrane is introduced as a platform to study the aggregation of amyloid-β1–42 (Aβ1–42) peptide on surfaces. The first layer was covalently attached to a glassy carbon electrode (GCE) via diazonium electrodeposition, which provided a highly stable template for the hybrid bilayer formation. To prepare the long-chain hybrid bilayer membrane (lcHBLM)-modified electrodes, GCE surfaces were modified with 4-dodecylbenzenediazonium (DDAN) followed by the modification with dihexadecyl phosphate (DHP) as the second layer. For the preparation of short-chain hybrid bilayer membrane (scHBLM)-modified electrodes, GCE surfaces were modified with 4-ethyldiazonium (EDAN) as the first layer and bis(2-ethylhexyl) phosphate (BEHP) was utilized as the second layer. X-ray photoelectron spectroscopy (XPS) and time-of-flight secondary ion mass spectrometry (ToF-SIMS) were used to characterize the bilayer formation. Both positively charged [Ru(NH3)6]3+ and negatively charged ([Fe(CN)6]3-/4-) redox probes were used for electrochemical characterization of the modified surfaces using cyclic voltammetry (CV) and electrochemical impedance spectroscopy (EIS). EIS results showed a decrease in charge transfer resistance (Rct) upon incubation of Aβ1–42 on the hybrid bilayer-modified surfaces. This framework provides a promising electrochemical platform for designing hybrid bilayers with various physicochemical properties to study the interaction of membrane-bound receptors and biomolecules on surfaces.

1. Introduction

The direct, specifically in situ, investigation of biological membranes is a challenging topic of intense research interest. To study membrane proteins, scientists need to mimic biomembranes using various approaches to stabilize the bilayers on a solid substrate surface [1]. A wide variety of biomimetic membranes have been developed in the past [1,2,3,4,5,6,7,8,9,10]. Synthetic bilayer membranes made of lipids have been broadly employed as models to study biomembranes since they were first introduced in the form of black lipid membranes by Mueller et al. in 1962 [11]. The formation of biomembrane-like bilayer structures from a simple organic compound was introduced by Kunitake and Okahata in 1977 [12]. The most commonly reported types of biomimetic membranes are free solid-supported membranes, [7,8,13,14,15], polymer-cushioned membranes [16,17], tethered bilayer membranes [18,19], and hybrid bilayer membranes [9,10,20,21,22,23]. Hybrid bilayer lipid membranes (HBLMs) are often composed of a thiolated-alkyl chain covalently attached to a gold surface, resulting in the formation of a self-assembled monolayer (SAM), while the second layer is typically composed of a phospholipid [3,9,24]. The covalent nature of the first layer of the HBLMs provides stability against changes in the pH, ionic strength, and composition of buffer solutions [22,25,26]. HBLMs display significantly more mechanical stability compared to other types of bilayers [7,23]. Because of their rugged formation on the surface, HBLMs can be studied using a wide variety of analytical techniques, such as surface plasmon resonance [25,26], infrared spectroscopy [27], neutron reflectometry [24,27,28], vibrational spectroscopy [29], surface enhanced Raman scattering [30,31], spectroelectrochemistry [32], cyclic voltammetry (CV) [20,21,33,34,35,36,37], and electrochemical impedance spectroscopy (EIS) [33,35,38,39]. EIS is particularly advantageous as it provides the ability to study the surface-controlled processes with high sensitivity while determining the charge-transfer resistance (Rct) and double-layer capacitance (Cdl) along with diffusing species as represented by the Warburg element (ZW). Furthermore, when using EIS, there is no need for conjugation of analytes (e.g., amyloid-β1–42 (Aβ1–42) peptides) with a redox-active label [40].
HBLMs have been prepared on different substrates. Whereas HBLMs have traditionally been developed on gold surfaces with thiol alkyl modifications [7,10,21,36,41], carbon ones are yet to be extensively applied to construct HBLMs [42,43,44,45] despite the fact that they provide a relatively inert and stable surface [46]. Diazonium salts are excellent candidates for the covalent modification of carbon surfaces [47,48,49,50,51,52,53,54,55]. One of the earliest examples of using diazonium salts to electrochemically modify glassy carbon electrodes (GCE) was reported by Bélanger et al. [48], who electrodeposited the diazonium analogues of 4-nitrophenyl and 4-carboxyphenyl. Szunerits et al. [56] functionalized GCEs with diazonium salts in ionic liquids. Researchers have also shown that following the electrodeposition of aryl diazonium moieties, further post-functionalization modifications can be attained [55,57]. Several researchers also developed biosensors that incorporated diazonium modifications [45,58,59,60].
Amyloid-β (Aβ) is a hallmark protein implicated in Alzheimer’s disease (AD). The ability of Aβ peptides to disrupt membrane integrity have been studied by numerous research groups in the past decade [61,62,63,64]. Lindberg et al. [65] reported that lipid membranes of dioleoylphosphatidylcholine catalysed the fibril formation of Aβ1–42 through lipid–fibril interactions that reinforced secondary pathways. Single molecule microscopy has been applied to track individual Aβ peptide diffusion on lipid bilayers, with Chang et al. [66] reporting that trimers and larger oligomers were immobilized on the lipid bilayer. Kandel et al. [67] studied the cholesterol-dependent membrane pore formation of Aβ25–35 peptides. Additional evidence was provided by Capone et al. [68] suggesting that Aβ peptides induced an ion channel-like ion flux in cellular membranes that was independent from the postulated ability of Aβ to modulate intrinsic ion channels or transporter proteins. Lal et al. [69] reviewed the high-resolution 3D structure of Aβ channels and their relevance to the amyloid channel paradigm. Recently, it has been established that Aβ oligomers had a profound detergent-like effect on lipid membrane bilayers as imaged by AFM and electron microscopy. Since the aggregation of Aβ peptides has been a topic of significant interest, there have been numerous studies to follow this process using electrochemical techniques [70,71,72,73,74,75,76,77,78,79,80].
In this study, diazonium salts have been employed to prepare HBLM as a platform for electrochemical studies. The first and the second layers of HBLM were characterized by time-of-flight secondary ion mass spectrometry (ToF-SIMS), contact angel measurements, CV, and EIS. This platform was then used to study the aggregation of Aβ1–42, using EIS in connection with a positively charged redox probe, ruthenium hexamine, [Ru(NH3)6]3+, and a negatively-charged one, potassium ferri/ferrocyanide, [Fe(CN)6]3-/4-. Our results demonstrated that long-chain HBLM (lcHBLM) provided a promising platform for studying Aβ1–42 aggregation towards a wide range of drug screening studies targeting Aβ1–42 oligomers.

2. Materials and Methods

2.1. Chemicals

HBF4 (48% in H2O), 4-dodecylaniline (97%), 4-ethylaniline (98%), NaNO2 (97.0%), acetic acid (≥99.7%), propionic acid (≥99.5%), acetonitrile (≥99.9%), tetrabutylammonium tetrafluoroborate (>99%), dihexadecyl phosphate (DHP), bis(2-ethylhexyl) phosphate (BEHP), potassium hexacyanoferrate(III) K3[Fe(CN)6], potassium hexacyanoferrate (II) trihydrate, K2[Fe(CN)6], (≥99.5%), 1,1,1,3,3,3-hexafluoro-2-propanol (HFIP, ≥99.9%), ruthenium hexamine [Ru(NH3)6]3+, and phosphate buffered saline (PBS) tablets were obtained from Sigma-Aldrich (Oakville, ON, Canada). Hydrochloric acid (Reagent grade) was obtained from Caledon Laboratories Ltd. (Georgetown, ON, Canada). All solutions were prepared with deionized water obtained with a Millipore system (Woodbine, ON, Canada) after filtration with 0.4 µm filters. Nitrogen gas (99.999% purity) for electrochemical experiments was purchased from Air Liquide (Mississauga, ON, Canada).

2.2. Instruments

All electrochemical tests were performed using Autolab Potentiostat/Galvanostat (PGSTAT 302N, Metrohm AG, Herisau, Switzerland) in connection with NOVA™ software (NOVA 2.1.2, Metrohm AG, Herisau, Switzerland). Transmission electron microscopy (TEM) images were obtained using a Hitachi 7500 Transmission Electron Microscope equipped with an Olympus SIS MegaView II 1.35 MB digital camera (Hitachi Ltd., Chiyoda, Tokyo, Japan) and processed by iTEM™ software (iTEM 5.2, Hitachi Ltd., Chiyoda, Tokyo, Japan). Contact angle measurements were performed by using a digital camera (PowerShot S5 IS) (Canon, Tokyo, Japan) and ImageJ software. ToF-SIMS measurements were performed using ToF-SIMS IV (Ion-ToF USA Inc., New York, NY, USA). Ellipsometry measurements were conducted using a M2000V automated variable angle spectroscopic ellipsometer (J.A. Woollam Co. Inc., Lincoln, NE, USA) at the University of Western Ontario. Thermo-Scientific K-Alpha (Mississauga, ON, Canada) was used for XPS experiments. An Agilent 6530 Q-ToF (Santa Clara, CA, USA), Alpha-P FTIR (Bruker, Billerica, MA, USA), and Bruker 500 MHz Ultrashield NMR (Bruker, Billerica, MA, USA) were utilized for chemical characterizations of the synthesized 4-dodecylbenzenediazonium tetrafluoroborate molecule. Bruker Topsin 2.1 and MestreNova 14.2 (Bruker, Billerica, MA, USA) were used to process the NMR data.

2.3. Electrode Pretreatment

Glassy carbon electrodes (GCEs) (3.0 mm diameter) were purchased from CHInstruments Inc. (Austin, TX, USA). To prepare the modified electrodes, GCEs were first polished with alumina powder (1, 0.3, and 0.05 µm in sequence), followed by sonication in deionized water and subsequently ethanol (95%) for 30 min each. The electrode surface was then acid-activated by running a cyclic voltammogram in 1 M H2SO4 for 15 scans between −1.2 and +1.2 V (vs. Ag/AgCl) at a scan rate of 0.1 V/s. DHP and BEHP solutions (10 mM) were prepared in deionized water.

2.4. Synthesis of 4-dodecylbenzenediazonium tetrafluoroborate (DDAN)

4-Dodecylbenzenediazonium was prepared from 4-dodecylaniline using procedures as reported in the literature for similar molecules [81]. Briefly, 4-dodecylanaline (0.5 g, 2 mmol) was mixed into a solution that contained equal volumes of glacial acetic acid and concentrated propionic acid (7 mL in total), to which 2.5 mL of HBF4 was added. The solution was cooled to 6 °C, to which 0.2 g of NaNO2 was slowly added. The mixture was stirred for 1 h at 6 °C and was subsequently vacuum filtered to isolate the product, which was washed with ethanol and dried. The yield was measured to be approximately 85.1%. MS (Figure S1), FT-IR (Figure S2), and NMR (Figure S3) spectra of the product are shown in Figures S1–S3, respectively. The isolated product (yellow-orange) was stored in a sealed container over CaCl2 at 4 °C until further use.

2.5. Synthesis of 4-ethylbenzenediazonium (EDAN)

4-Ethyldiazonium was prepared in situ using a solution of 4-ethylaniline (2 mM) with an equimolar sodium nitrite in 1.25 M HCl solution according to previous reports [54]. This solution was purged with nitrogen gas for at least 10 min.

2.6. Electrode Modification

For the modification of GCE surfaces with lcHBLMs, GCEs were modified by the 4-dodecylbenzene moiety by first dissolving 4-dodecylbenzene (2 mM) and tetrabutylammonium tetrafluoroborate (10 mM) in acetonitrile. CV was run between −0.9 V and +0.6 V for 30 scans at 50 mV/s (Figure 1), resulting in the formation of the first layer. The electrodes were taken out of the solution, rinsed with deionized water, and sonicated in deionized water for 1 min. For the adsorption of the second layer, a solution of vesicles was prepared by mixing 10 mM DHP in deionized water along with equimolar NaOH to assist dissolution. The solution was then sonicated for 2 h to form a homogenous mixture. Subsequently, GCEs that were formerly modified with the first layer were incubated with 100 µL of the solution overnight. For the modification of GCE surfaces with short-chain hybrid lipid membranes (scHBLMs), immediately following the synthesis of EDAN in situ, CV was applied between 0.6 V and −1.2 V vs. Ag/AgCl for 10 cycles at 50 mV s−1 scan rate (Figure S4) [54]. The electrodes were taken out the solution, rinsed with deionized water, and sonicated in deionized water for 1 min. Electrodes modified with 4-ethylbenzene were then incubated with a 10 mM solution of BEHP in deionized water mixed with equimolar NaOH to assist dissolution.

2.7. Electrochemical Measurements

The modified GCEs (both ethyl and dodecyl bilayers) were analyzed electrochemically using cyclic voltammetry (CV) and electrochemical impedance spectroscopy (EIS) in either a 2.5 mM solution of [Fe(CN)6]3-/4- with 50 Mm NaBr or a 2 mM solution of [Ru(NH3)6]3+ with 50 mM NaBr (NaBr was added to the aforementioned solutions to act as a counterion). CV measurements were performed at a scan rate of 50 mV s−1 unless otherwise stated. EIS data were collected as Nyquist plots with an applied bias of −0.2 V and +0.2 V for measurements performed using [Ru(NH3)6]3+ and [Fe(CN)6]3-/4-, respectively at a frequency ranging from 100 MHz to 100 kHz.

2.8. Aβ1–42 Aggregation Studies

Aβ1–42 was obtained from AnaSpec Inc. (Fremont, CA). Aβ1–42 was first treated using HFIP as described before [82]. Briefly, 0.5 mL of HFIP was added to 1 g of Aβ1–42, which was then sonicated for 15 min. The solution was then stored at 4°C overnight. The solution was then aliquoted, after which the HFIP was dried under N2. Aβ1–42 films were then stored at −20 °C until required for the experiment. Immediately before measurement, 1 mL of 0.01 M phosphate buffer (pH 7.4) was added to dissolve the peptide. lcHBLM-modified GCEs were then incubated with 100 µL of the peptide solution for 10 min, 24 h, and 48 h. Aβ1–42-modified lcHBLM surfaces were gently washed with deionized water immediately before EIS measurements.

3. Results and Discussion

3.1. Covalent Modification of GCE Surfaces

To prepare the hybrid bilayer, DDAN and EDAN were utilized as precursors to covalently attach the alkylaryl chains onto the GCE surfaces. As described in Section 2 (also shown in Scheme S1), DDAN was synthesized, isolated, and characterized using NMR, MS, and FTIR (Figure S1–S3). EDAN was prepared in situ using 2-ethyl aniline (Scheme S2). To graft DDAN onto GCE surfaces, thirty consecutive cycles of CV were performed at a scan rate of 0.05 V s−1 between 0.6 V and −0.9 V vs. Ag/AgCl (Scheme 1). Every time, the HBLMs were prepared on a new, bare GCE to avoid any remnants from prior surface modifications interfering with the study. Figure 1 shows the first, second, and last two voltammograms for DDAN grafting. As shown in Figure 1, a broad irreversible peak can be seen at 0 V for the first scan, which represented the reduction and loss of N2 as previously reported for other diazonium modifications [50,54,58]. Our investigations showed that after thirty cycles, the current difference between the last two voltammograms displayed less than 2% difference for almost all measurements.

3.2. Preparation of the Hybrid Bilayer Membrane (HBLM)

To prepare the second layer, DHP was chosen for the electrodes with the first layer made of DDAN. For electrodes with EDAN as the first layer, BEHP was chosen as the second layer. A solution of 10 mM DHP was prepared and sonicated for 2 h to form vesicles prior to incubation. Figure S6 shows TEM images of these vesicles. Subsequently, 100 µL of the prepared solution was incubated on the DDAN-modified surfaces at room temperature overnight. The modified GCEs were then gently rinsed with deionized water followed by a 1 min sonication of the GCE-DDAN-DHP, which is coined here as the lcHBLM), to remove the non-specifically adsorbed DHP molecules/vesicles (Scheme 2).
The same procedure was performed to synthesize GCE-EDAN-BEHP using a 10 mM solution of BEHP, which is coined here as the scHBLM. Scheme 1 shows an illustration of the lcHBLM. Contact angle measurements (Table 1) performed on the bare GCE surfaces displayed approximately 73.4°. The contact angles increased after the first layer was deposited to about 85.6° due to the increased hydrophobicity resulting from the nonpolar alkyl chains populating the GCE surface for both lcHBLM and scHBLM. Following the construction of the second layer, contact angle measurements displayed a decrease to approximately 79.1° for both lcHBLM and scHBLM. This was attributed to the fact that the second layer consisted of negatively charged phosphate groups, which resulted in the increased hydrophilicity of the modified surfaces. Furthermore, ellipsometry studies were conducted to measure the length of the bilayer, which showed that the measured length was 84.8 Å for the monolayer of the lcHBLM. However, the calculated length was only 17.3 Å. We hypothesize that this is attributed to the first and second layers having different defections due to some multilayers possibly having been formed during electrografting. For future studies, the formation of multilayers can be prevented by adding a radical scavenger, such as 2,2-diphenyl-1-picrylhydrazyl, in excess or by electrodepositing diazonium moieties that possess a methyl group that is meta to the position of grafting [83,84,85]. Research in our laboratory to verify this hypothesis is in progress.

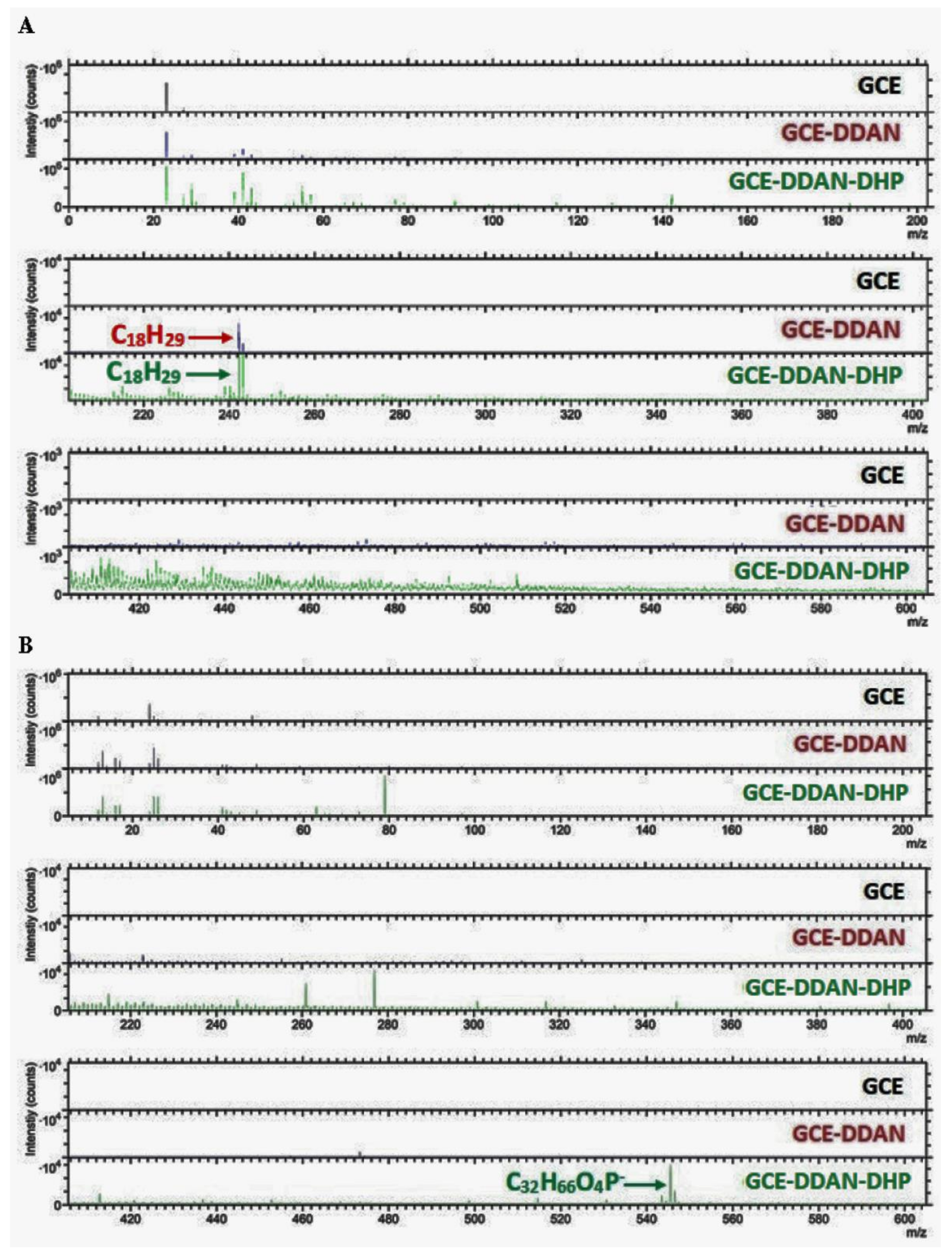

Surface characterizations of the HBLMs were performed using X-ray photoelectron spectroscopy (XPS) and time-of-flight secondary ion mass spectrometry (ToF-SIMS). XPS results showed a distinctive phosphorus peak for the modification of the GCE surface with DDAN-DHP (Figure 2). ToF-SIMS data for bare GCE, GCE-DDAN, and GCE-DDAN-DHP are shown in Figure 3A,B. In Figure 3A, the spectrum with negative polarity showed the mass of 4-dodecylbenzene, which formed the first layer of lcHBLM (DDAN) for both GCE-DDAN and GCE-DDAN-DHP, and no considerable peaks for the bare GCE. The spectra with positive polarity are shown in Figure 3B with the mass of dihexadecyl phosphate (DHP; the second layer of lcHBLM) only for GCE-DDAN-DHP and no considerable peaks for bare GCE and GCE-DDAN.

3.3. Electrochemistry of lcHBLM- and scHBLM-Modified Surfaces

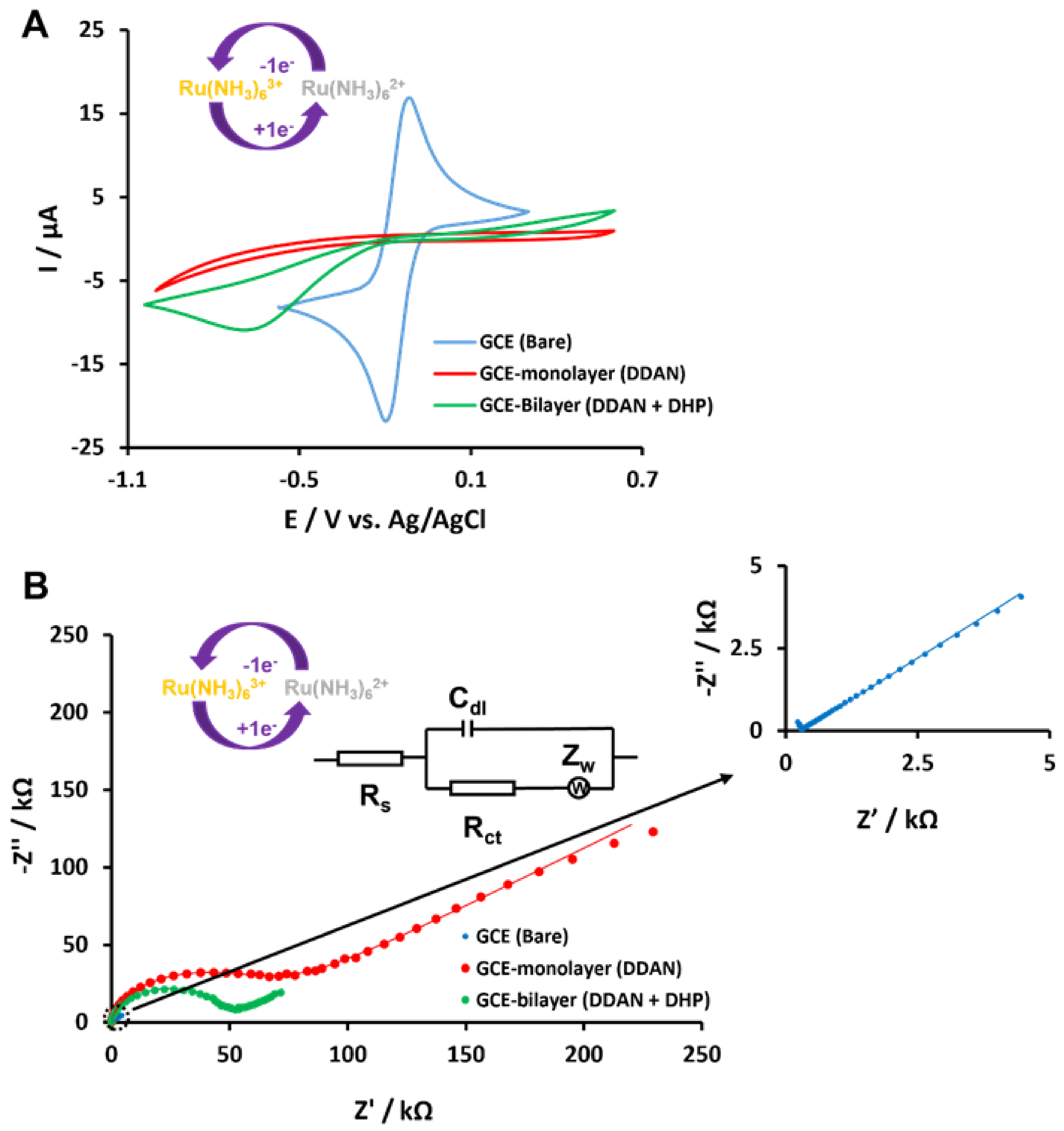

Ruthenium hexamine ([Ru(NH3)6]3+ and ferri/ferrocyanide ([Fe(CN)6]3-/4-, having overall positive and negative charges, respectively, revealed the electrochemical characteristics of lcHBLM- and scHBLM-modified surfaces. Figure 4A shows a reversible CV (blue line) for [Ru(NH3)6]3+ on a bare GCE, while in the CV (red line) of the first layer (GCE-DDAN), [Ru(NH3)6]3+ shows no detectable peaks under the given conditions. After incubation of the second layer (DHP), a small broadened reductive peak of [Ru(NH3)6]3+ was observed. We attributed this phenomenon to the presence of negatively charged phosphorous groups which facilitated the diffusion of the positively charged [Ru(NH3)6]3+ to the surface. EIS results for the same electrode are shown in Figure 4B. The blue graph (insertion) shows the small Rct of [Ru(NH3)6]3+ on a bare GCE. The red graph shows a relatively high Rct when the electrode was modified with the first layer (GCE-DDAN). Similar to CV, EIS for [Ru(NH3)6]3+ in the presence of a second layer (GCE-DDAN-DHP), a decrease in Rct was observed compared to the monolayer (green graph). These behaviors were reproducible for all measurements performed on different days with new solutions and different GCE surfaces. A similar behavior was observed for scHBLM (which consists of shorter molecules for both first and second layers) as shown in Figure S5.

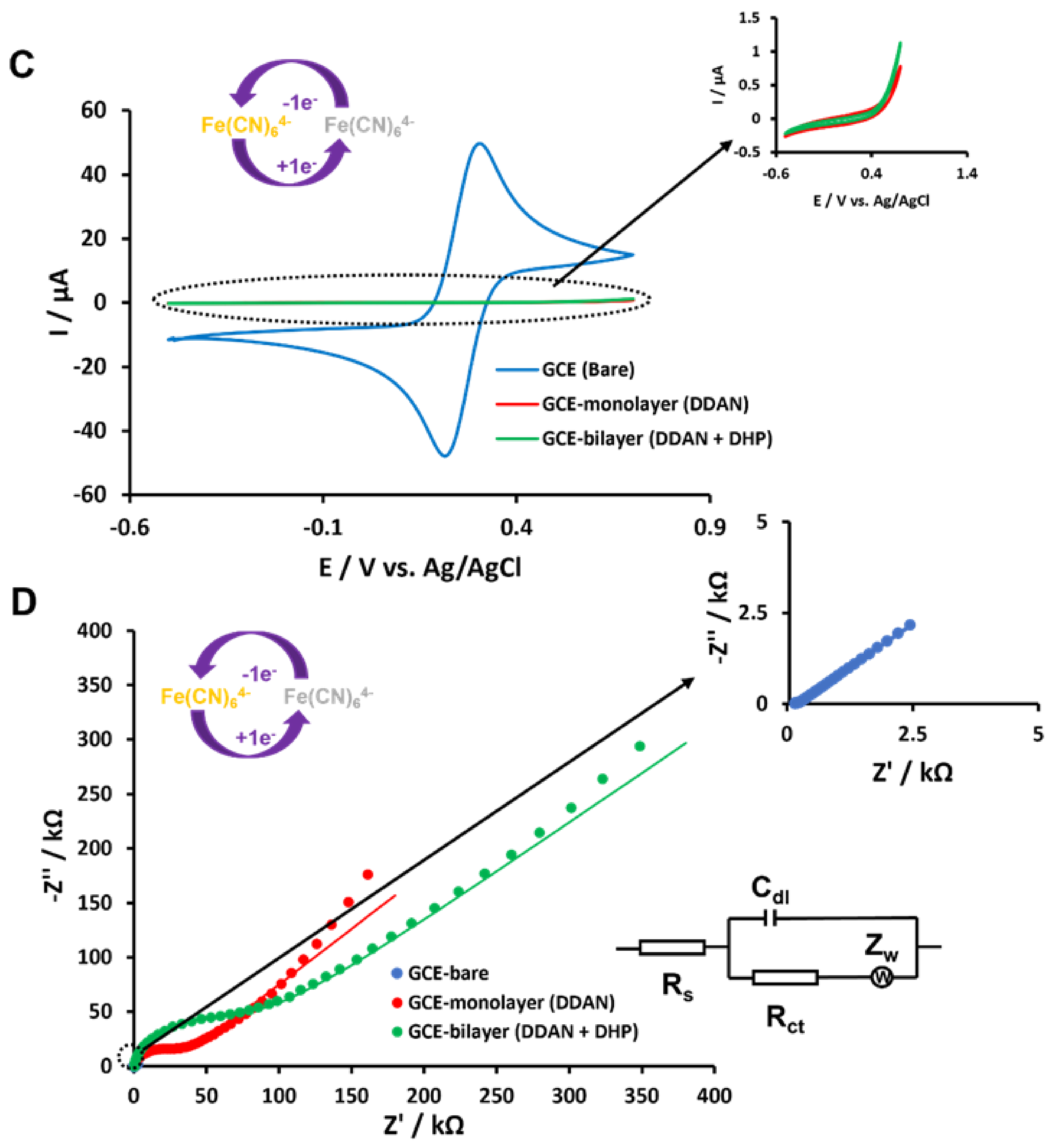

[Fe(CN)6]3-/4- as a negatively charged electrochemical probe showed results in a reverse trend compared to the positively charged [Ru(NH3)6]3+ (Figure 4C,D). CV (blue line) in Figure 4C shows the reversible voltammogram of [Fe(CN)6]3-/4- on a bare GCE. Meanwhile, the GCE-DDAN and GCE-DDAN-DHP showed no detectable peaks under the given conditions. EIS results showed a relatively high Rct of [Fe(CN)6]3-/4- on a GCE-DDAN (red), while for [Fe(CN)6]3-/4-, the presence of the second layer (GCE-DDAN-DHP) added to the semicircle diameter in EIS (green), which was attributed to the repulsion of the negatively charged groups in the second layer. For scHBLM, a similar behavior was observed, which is shown in Figure S2C,D. To simulate all EIS graphs, a modified Randles equivalent circuit (Figure 4B,D) was utilized with all values of the equivalent circuit elements as summarized in Table S1.
Furthermore, when the Cdl of the lcHBLM in the context of [Ru(NH3)6]3+ (Table S1) was examined, an increase in capacitance was observed (from 48.2 to 740 nF) between the GCE-DDAN and GCE-DDAN-DHP, which was hypothesized to be due to the increase in charge presented by the negatively charged phosphate groups of the DHP and the positively charged [Ru(NH3)6]3+, resulting in increased charge separation. However, a slight decrease in Cdl was observed for [Fe(CN)6]3-/4- (from 60.5 to 57.2 nF) indicating that the overall charge separation remained relatively unchanged. Furthermore, when the Zw was examined, an increase in diffusion was observed for [Ru(NH3)6]3+ (from 5.81 to 38.6 μMho∙s−1/2), which was hypothesized to be due to the attraction of the positively charged ions to the negatively charged DHP. This was further verified by the slight decrease in Zw for the [Fe(CN)6]3-/4- (from 5.18 to 2.86 μMho∙s−1/2), which was thought to be due to the slightly more hindered diffusion of the probe as a result of the repulsion between the negatively charged [Fe(CN)6]3-/4- and DHP layers.

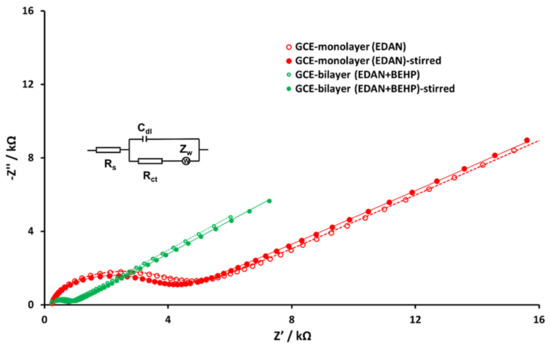

To investigate the mechanical stability of the bilayer, we stirred both EDAN-modified GCEs and EDAN-BEHP-bilayer-modified GCEs at 500 rpm for 5 min. EIS was performed using [Ru(NH3)6]3+ as the positively-charged redox probe before and after high-speed rotation (Figure 5). Values of the simulated equivalent circuit elements are shown in Table S2.
A comparison of each EIS result showed that both monolayer and bilayer were stable after a high-speed rotation. Work towards electrochemical kinetic investigations using HBLM-modified rotating disc electrodes are in progress in our laboratory.

3.4. Interaction with Aβ1–42

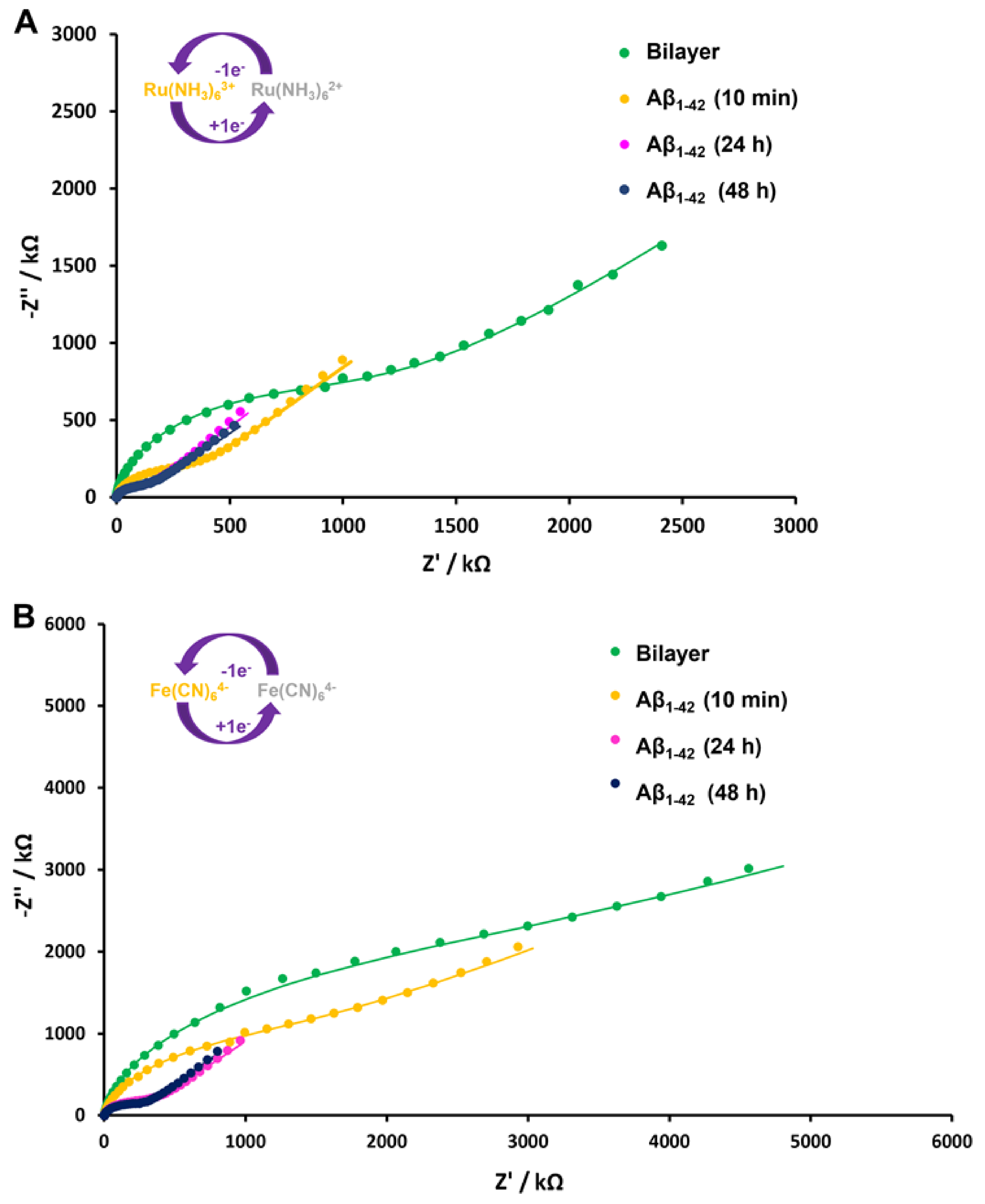

Aβ1–42, which is a well-described hallmark protein of AD [71,72,73,74], was used as a model system to explore the applications of lcHBLM-modified surfaces (the lcHBLM was used as opposed to the scHBLM due to the size of the protein being too large to be embedded in the scHBLM). To study the interaction of Aβ1–42 with the lcHBLM, we prepared a fresh solution of 10 µM of Aβ1–42 in PBS (pH 7.4) and incubated an aliquot of the peptide solution (20 mL) for 10 min, 24 h, and 48 h on the lcHBLM-modified surfaces. PBS was used in this proof-of-concept study so that any electrochemical changes detected were solely attributed to the interaction of Aβ1–42 with the lcHBLM. In the presence of biological fluids, non-specific adsorption of interfering particles could have provided misleading results in these preliminary experiments. However, further investigations are planned to study the behaviour of Aβ1–42 within the lcHBLM in the presence of biological fluids such as cerebrospinal fluid. After incubation, the electrodes were washed thoroughly with PBS and then deionized water before EIS measurements (Figure 6) were taken using [Ru(NH3)6]3+ and [Fe(CN)6]3-/4- as redox probes. As shown in Figure 6A,B, the Rct of Aβ1–42-modified surfaces decreased significantly after 10 min of incubation time (purple). This decrease in Rct was attributed to the aggregation of Aβ1–42 on the bilayer creating disruption on the ordered membrane surface that facilitated the diffusion of redox probes to the GCE surface. The disruption of neuronal cell membranes with the oligomers and fibrils of Aβ1–42 to form pores was previously described to cause neurotoxicity [75,76,77,78,79,80]. A significant decrease in Rct was observed with a similar trend for both redox probes, despite the fact that the charges of probes were opposite. This strengthened our hypothesis that some nano/micro pores were formed in the lcHBLM layer, which might have facilitated the charge transfer between the GCE surface and redox probes, as has been reported previously [86,87]. Additionally, when other circuit elements were examined in the context of the Aβ1–42 experiments, both [Fe(CN)6]3-/4- and [Ru(NH3)6]3+ experiments showed a consistent and gradual increase in Cdl with respect to incubation time ranging from 38.9 to 48.3 nF for [Fe(CN)6]3-/4- and from 39.8 to 59.2 nF for [Ru(NH3)6]3+ (Table S3). This was hypothesized to be due to an increase in charge separation between the undisturbed portions of the lcHBLM and [Ru(NH3)6]3+ probe as Aβ1–42 further aggregated and settled within the biomimetic membrane. However, further experiments need to be performed to verify this hypothesis. Meanwhile, the Zw for both probes showed an increase from 236 to 1330 μMho∙s−1/2 for [Fe(CN)6]3-/4- and from 560 to 1930 μMho∙s−1/2 for [Ru(NH3)6]3+. Similar studies have been performed using octadecanethiol monolayers on Au electrodes as described by Valincius et al. [88], who observed an instantaneous increase in capacitance upon the injection of small Aβ1–42 oligomers (1–4 nm in diameter) followed by a gradual return to near original Cdl within an hour, which they attributed to the disruption of the octadecanethiol SAM. However, their studies were performed on a smaller time scale (1 h). Valincius et al. [89] also reported that Aβ1–42 oligomers caused damage to the tethered BLMs composed of varying phospholipids, which they hypothesized to be due to the Aβ1–42 aggregating into pore-like structures.
Further studies aiming to observe the formation of Aβ-based pores on lcHBLM-modified surfaces are in progress in our laboratory using atomic force microscopy (AFM). Another noticeable trend in EIS results was that a significant decrease in Rct was observed after a short time (10 min) of incubation with Aβ1–42. The difference between the Rct values obtained at 24 and 48 h of incubation was not statistically significant (Table S3). In terms of differences in Rct observed with [Ru(NH3)6]3+ as the redox probe, there was a significant decrease of 72.1% in Rct between 0 and 10 min, while between 10 min and 24 h, there was a further 17.1% decrease. However, in between 24 h and 48 h incubation periods, there was a negligible decrease of 0.8% in Rct. In the case of the [Fe(CN)6]3-/4- as the redox probe, there was a 26.2% decrease between 0 and 10 min. A significant decrease of 51.8% in Rct was observed between 10 min and 24 h, but only a 3.8% decrease in Rct was detected between 24 h and 48 h incubation periods. These observations implied that the disruption of the lcHBLM layer took place at the early stages of Aβ1–42 aggregation. Electrochemical investigations to discover small molecules that would affect the interaction of Aβ1–42 with the lcHBLM-modified surfaces is in progress in our laboratory.

4. Conclusions

Our preliminary results displayed the synthesis and electrografting of a novel hybrid bilayer membrane on the surface of GCEs. The lcHBLM-modified GCEs were utilized to study the Aβ1–42 aggregation process upon interaction with the surface-anchored membrane. This platform can be customized according to the purpose of the study by choosing appropriate molecules that are used for diazonium salts for the covalently attached first layer as well as the phospholipid (or other bipolar molecules) as the second layer. A combination of different molecules can also be used for the two layers to adjust the affinity, thickness, and other physical properties of the HBLMs. We envisage that similar EIS studies can be performed using lcHBLM-modified GCES in connection with membrane-bound biomolecules to understand their interactions with small molecules in drug screening assays. Furthermore, future studies aim to use these novel HBLMs to quantify biomolecules in the context of biological fluids by embedding antibodies, aptamers, as well as other biorecognition elements within the HBLM.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/mi13040574/s1, Scheme S1: Schematic diagram for synthesis of DDAN; Scheme S2: Schematic diagram for in situ synthesis of EDAN; Figure S1: Mass spectrometric characterization of DDAN; Figure S2: FTIR spectra for (A) DDAN and (B) the precursor amine (4-dodecylaniline); Figure S3: NMR spectrum of DDAN; Figure S4: Cyclic voltammograms for the electrodeposition of EDAN; Figure S5: Cyclic voltammograms and Nyquist plots of bare GCE, GCE-EDAN layer, and GCE-EDAN-BEHP bilayer; Figure S6 TEM images of a solution of 10 mM of DHP at (A) 0.5 μm magnification and (B) 1 μm magnification. Table S1: The values of simulated equivalent circuit elements of Nyquist plots shown in Figure 4B,D; Table S2: The values of simulated equivalent circuit elements of Nyquist plots shown in Figure 5 with the redox probe [Ru(NH3)6]3+; Table S3: The values of simulated equivalent circuit elements of Nyquist plots shown in Figure 6.

Author Contributions

Conceptualization, H.F., Q.H., M.N., and K.K.; methodology, H.F., Q.H., and M.N.; validation, H.F., Q.H., and M.N.; formal analysis, H.F., Q.H., and M.N.; investigation, H.F., Q.H., and M.N.; resources, K.K.; data curation, H.F., Q.H., and M.N.; writing—original draft preparation, H.F., Q.H., and M.N.; writing—review and editing, H.F., Q.H., M.N., and K.K.; supervision, M.N. and K.K.; project administration, M.N. and K.K.; funding acquisition, K.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Canada Research Chair Tier−2 award to K. Kerman for “Bioelectrochemistry of Proteins” (project no. 950–231116), the Ontario Ministry of Research and Innovation (Project no. 35272), Discovery Grant (project no. RGPIN-2020–07164) from the Natural Sciences and Engineering Research Council of Canada (NSERC), and the Canada Foundation for Innovation (project no. 35272).

Acknowledgments

We would like to thank and acknowledge Rana Sodhi from the Surface Interface Ontario center at the University of Toronto for his assistance with the XPS and ToF-SIMS experiments. We would also like to thank and acknowledge Todd W. Simpson from the Nanofabrication Facility at the University of Western Ontario for his assistance with the ellipsometry measurements.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rebaud, S.; Maniti, O.; Girard-Egrot, A.P. Tethered bilayer lipid membranes (tBLMs): Interest and applications for biological membrane investigations. Biochimie 2014, 107, 135–142. [Google Scholar] [CrossRef]
  2. Shen, Y.X.; Saboe, P.O.; Sines, I.T.; Erbakan, M.; Kumar, M. Biomimetic membranes: A review. J. Memb. Sci. 2014, 454, 359–381. [Google Scholar] [CrossRef]
  3. Su, Z.; Leitch, J.J.; Lipkowski, J.; Maria, A.; Brett, O. Electrode-supported biomimetic membranes: An electrochemical and surface science approach for characterizing biological cell membranes. Curr. Opin. Electrochem. 2018, 12, 60–72. [Google Scholar] [CrossRef]
  4. Ogier, S.D.; Bushby, R.J.; Cheng, Y.; Evans, S.D.; Evans, S.W.; Jenkins, A.T.A.; Knowles, P.F.; Miles, R.E. Suspended planar phospholipid bilayers on micromachined supports. Langmuir 2000, 16, 5696–5701. [Google Scholar] [CrossRef]
  5. Deniaud, A.; Rossi, C.; Berquand, A.; Homand, J.; Campagna, S.; Knoll, W.; Brenner, C.; Chopineau, J. Voltage-dependent anion channel transports calcium ions through biomimetic membranes. Langmuir 2007, 23, 3898–3905. [Google Scholar] [CrossRef]
  6. Lautscham, L.A.; Lin, C.Y.; Auernheimer, V.; Naumann, C.A.; Goldmann, W.H.; Fabry, B. Biomembrane-mimicking lipid bilayer system as a mechanically tunable cell substrate. Biomaterials 2014, 35, 3198–3207. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Plant, A.L. Supported hybrid bilayer membranes as rugged cell membrane mimics. Langmuir 1999, 15, 5128–5135. [Google Scholar] [CrossRef]
  8. Burgess, J.D.; Rhoten, M.C.; Hawkridge, F.M. Cytochrome c oxidase immobilized in stable supported lipid bilayer membranes. Langmuir 1998, 14, 2467–2475. [Google Scholar] [CrossRef]
  9. Silin, V.I.; Wieder, H.; Woodward, J.T.; Valincius, G.; Offenhausser, A.; Plant, A.L. The role of surface free energy on the formation of hybrid bilayer membranes. J. Am. Chem. Soc. 2002, 124, 14676–14683. [Google Scholar] [CrossRef] [Green Version]
  10. Anderson, N.A.; Richter, L.J.; Stephenson, J.C.; Briggman, K.A. Characterization and control of lipid layer fluidity in hybrid bilayer membranes. J. Am. Chem. Soc. 2007, 129, 2094–2100. [Google Scholar] [CrossRef]
  11. Mueller, P.; Rudin, D.O.; Ti Tien, H.; Wescott, W.C. Reconstitution of cell membrane structure in vitro and its transformation into an excitable system. Nature 1962, 194, 979–980. [Google Scholar] [CrossRef] [PubMed]
  12. Kunitake, T.; Okahata, Y. A totally synthetic bilayer membrane. J. Am. Chem. Soc. 1977, 99, 3860–3861. [Google Scholar] [CrossRef]
  13. Brian, A.A.; McConnell, H.M. Allogeneic stimulation of cytotoxic T cells by supported planar membranes. Proc. Natl. Acad. Sci. USA 1984, 81, 6159–6163. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Rose, L.; Jenkins, A.T.A. The effect of the ionophore valinomycin on biomimetic solid supported lipid DPPTE/EPC membranes. Bioelectrochemistry 2007, 70, 387–393. [Google Scholar] [CrossRef] [PubMed]
  15. Knoll, W.; Naumann, R.; Friedrich, M.; Robertson, J.W.F.; Lösche, M.; Heinrich, F.; McGillivray, D.J.; Schuster, B.; Gufler, P.C.; Pum, D.; et al. Solid supported lipid membranes: New concepts for the biomimetic functionalization of solid surfaces. Biointerphases 2008, 3, FA125–FA135. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Sackmann, E.; Tanaka, M. Supported membranes on soft polymer cushions: Fabrication, characterization and applications. Trends Biotechnol. 2000, 18, 58–64. [Google Scholar] [CrossRef]
  17. Smith, H.L.; Jablin, M.S.; Vidyasagar, A.; Saiz, J.; Watkins, E.; Toomey, R.; Hurd, A.J.; Majewski, J. Model lipid membranes on a tunable polymer cushion. Phys. Rev. Lett. 2009, 102, 228102. [Google Scholar] [CrossRef] [PubMed]
  18. Schiller, S.M.; Naumann, R.; Lovejoy, K.; Kunz, H.; Knoll, W. Archaea analogue thiolipids for tethered bilayer lipid membranes on ultrasmooth gold surfaces. Angew. Chem. Int. Ed. Engl. 2003, 42, 208–211. [Google Scholar] [CrossRef]
  19. Rossi, C.; Chopineau, J. Biomimetic tethered lipid membranes designed for membrane-protein interaction studies. Eur. Biophys. J. 2007, 36, 955–965. [Google Scholar] [CrossRef]
  20. Tse, E.C.M.; Barile, C.J.; Gewargis, J.P.; Li, Y.; Zimmerman, S.C.; Gewirth, A.A. Anion transport through lipids in a hybrid bilayer membrane. Anal. Chem. 2015, 87, 2403–2409. [Google Scholar] [CrossRef]
  21. Patrice, F.T.; Zhao, L.J.; Fodjo, E.K.; Li, D.W.; Qiu, K.; Long, Y.T. Highly sensitive and selective electrochemical detection of dopamine using hybrid bilayer membranes. ChemElectroChem 2019, 6, 634–637. [Google Scholar] [CrossRef]
  22. Favero, G.; Campanella, L.; Cavallo, S.; D’Annibale, A.; Perrella, M.; Mattei, E.; Ferri, T. Glutamate receptor incorporated in a mixed hybrid bilayer lipid membrane array, as a sensing element of a biosensor working under flowing conditions. J. Am. Chem. Soc. 2005, 127, 8103–8111. [Google Scholar] [CrossRef] [PubMed]
  23. Meuse, C.W.; Niaura, G.; Lewis, M.L.; Plant, A.L. Assessing the molecular structure of alkanethiol monolayers in hybrid bilayer membranes with vibrational spectroscopies. Langmuir 1998, 14, 1604–1611. [Google Scholar] [CrossRef]
  24. Majkrzak, C.F.; Berk, N.F.; Krueger, S.; Dura, J.A.; Tarek, M.; Tobias, D.; Silin, V.; Meuse, C.W.; Woodward, J.; Plant, A.L. First-principles determination of hybrid bilayer membrane structure by phase-sensitive neutron reflectometry. Biophys. J. 2000, 79, 3330–3340. [Google Scholar] [CrossRef] [Green Version]
  25. Mozsolits, H.; Wirth, H.J.; Werkmeister, J.; Aguilar, M.I. Analysis of antimicrobial peptide interactions with hybrid bilayer membrane systems using surface plasmon resonance. Biochim. Biophys. Acta Biomembr. 2001, 1512, 64–76. [Google Scholar] [CrossRef] [Green Version]
  26. Suraniti, E.; Tumolo, T.; Baptista, M.S.; Livache, T.; Calemczuk, R. Construction of Hybrid Bilayer Membrane (HBM) biochips and characterization of the cooperative binding between cytochrome-c and HBM. Langmuir 2007, 23, 6835–6842. [Google Scholar] [CrossRef]
  27. Meuse, C.W.; Krueger, S.; Majkrzak, C.F.; Dura, J.A.; Fu, J.; Connor, J.T.; Plant, A.L. Hybrid bilayer membranes in air and water: Infrared spectroscopy and neutron reflectivity studies. Biophys. J. 1998, 74, 1388–1398. [Google Scholar] [CrossRef] [Green Version]
  28. Krueger, S.; Meuse, C.W.; Majkrzak, C.F.; Dura, J.A.; Berk, N.F.; Tarek, M.; Plant, A.L. Investigation of hybrid bilayer membranes with neutron reflectometry: Probing the interactions of melittin. Langmuir 2001, 17, 511–521. [Google Scholar] [CrossRef]
  29. Doyle, A.W.; Fick, J.; Himmelhaus, M.; Eck, W.; Graziani, I.; Prudovsky, I.; Grunze, M.; Maciag, T.; Neivandt, D.J. Protein deformation of lipid hybrid bilayer membranes studied by sum frequency generation vibrational spectroscopy. Langmuir 2004, 20, 8961–8965. [Google Scholar] [CrossRef] [Green Version]
  30. Kundu, J.; Levin, C.S.; Halas, N.J. Real-time monitoring of lipid transfer between vesicles and hybrid bilayers on Au nanoshells using surface enhanced Raman scattering (SERS). Nanoscale 2009, 1, 114–117. [Google Scholar] [CrossRef]
  31. Millo, D.; Bonifacio, A.; Moncelli, M.R.; Sergo, V.; Gooijer, C.; van der Zwan, G. Characterization of hybrid bilayer membranes on silver electrodes as biocompatible SERS substrates to study membrane-protein interactions. Colloids Surf. B Biointerfaces 2010, 81, 212–216. [Google Scholar] [CrossRef]
  32. Ma, W.; Ying, Y.; Qin, L.; Gu, Z.; Zhou, H.; Li, D.; Sutherland, T.C.; Chen, H.; Long, Y. Investigating electron-transfer processes using a biomimetic hybrid bilayer membrane system. Nat. Protoc. 2013, 8, 439–450. [Google Scholar] [CrossRef]
  33. Gao, H.; Luo, G.A.; Feng, J.; Ottova, A.L.; Tien, H.T. Electrochemical properties of hybrid bilayer membranes and interaction with melittin. Acta Chim. Sin. 2001, 59, 220–223. [Google Scholar]
  34. Li, A.; Ma, Y.; Yang, F.; Yang, X. Interaction between α-actinin and negatively charged lipids membrane investigated by surface plasmon resonance and electrochemical methods. Appl. Surf. Sci. 2007, 253, 6103–6108. [Google Scholar] [CrossRef]
  35. Yue, M.; Zhu, X.; Zheng, Y.; Hu, T.; Yang, L.; Wu, X. Amphotericin B ion channel mimetic sensor: A new type of potassium-selective sensor based on electrode-supported hybrid bilayer membranes. Electrochim. Acta 2012, 73, 78–85. [Google Scholar] [CrossRef]
  36. Hosseini, A.; Barile, C.J.; Devadoss, A.; Eberspacher, T.A.; Decreau, R.A.; Collman, J.P. Hybrid bilayer membrane: A platform to study the role of proton flux on the efficiency of oxygen reduction by a molecular electrocatalyst. J. Am. Chem. Soc. 2011, 133, 11100–11102. [Google Scholar] [CrossRef]
  37. Li, Y.; Tse, E.C.M.; Barile, C.J.; Gewirth, A.A.; Zimmerman, S.C. Photoresponsive Molecular switch for regulating transmembrane proton-transfer kinetics. J. Am. Chem. Soc. 2015, 137, 14059–14062. [Google Scholar] [CrossRef]
  38. Wilkop, T.; Xu, D.; Cheng, Q. Characterization of pore formation by streptolysin O on supported lipid membranes by impedance spectroscopy and surface plasmon resonance spectroscopy. Langmuir 2007, 23, 1403–1409. [Google Scholar] [CrossRef]
  39. Peng, Z.; Tang, J.; Han, X.; Wang, E.; Dong, S. Formation of a supported hybrid bilayer membrane on gold: A sterically enhanced hydrophobic effect. Langmuir 2002, 18, 4834–4839. [Google Scholar] [CrossRef]
  40. Liang, G.; Man, Y.; Jin, X.; Pan, L.; Liu, X. Aptamer-based biosensor for label-free detection of ethanolamine by electrochemical impedance spectroscopy. Anal. Chim. Acta 2016, 936, 222–228. [Google Scholar] [CrossRef]
  41. Zhi, Z.; Hasan, I.Y.; Mechler, A. Formation of alkanethiol supported hybrid membranes revisited. Biotechnol. J. 2018, 13. [Google Scholar] [CrossRef]
  42. Han, X.; Wang, L.; Qi, B.; Yang, X.; Wang, E. A Strategy for constructing a hybrid bilayer membrane based on a carbon substrate. Anal. Chem. 2003, 75, 6566–6570. [Google Scholar] [CrossRef]
  43. Anjum, S.; Qi, W.; Gao, W.; Zhao, J.; Hanif, S.; Aziz-Ur-Rehman; Xu, G. Fabrication of biomembrane-like films on carbon electrodes using alkanethiol and diazonium salt and their application for direct electrochemistry of myoglobin. Biosens. Bioelectron. 2015, 65, 159–165. [Google Scholar] [CrossRef]
  44. Li, Y.; Chen, Y.; Wang, L.; Fang, Y. Ion transport through a porphyrin-terminated hybrid bilayer membrane. Electrochim. Acta 2011, 56, 1076–1081. [Google Scholar] [CrossRef]
  45. Lebègue, E.; Louro, R.O.; Barrière, F. Electrochemical detection of pH-responsive grafted catechol and immobilized cytochrome c onto lipid deposit-modified glassy carbon surface. ACS Omega 2018, 3, 9035–9042. [Google Scholar] [CrossRef] [Green Version]
  46. Sharma, S. Glassy carbon: A promising material for micro- and nanomanufacturing. Materials 2018, 11, 1857. [Google Scholar] [CrossRef] [Green Version]
  47. Gam-derouich, S.; Mahouche-chergui, S.; Turmine, M.; Piquemal, J.; Hassen-Chehimi, D.B.; Omastová, M.; Chehimi, M.M. Surface Science A versatile route for surface modi fi cation of carbon, metals and semi-conductors by diazonium salt-initiated photopolymerization. Surf. Sci. 2011, 605, 1889–1899. [Google Scholar] [CrossRef]
  48. Saby, C.; Ortiz, B.; Champagne, G.Y.; Bélanger, D. Electrochemical modification of glassy carbon electrode using aromatic diazonium salts. 1. Blocking effect of 4-nitrophenyl and 4-carboxyphenyl groups. Langmuir 1997, 13, 6805–6813. [Google Scholar] [CrossRef]
  49. Ortiz, B.; Saby, C.; Champagne, G.Y.; Bélanger, D. Electrochemical modification of a carbon electrode using aromatic diazonium salts. 2. Electrochemistry of 4-nitrophenyl modified glassy carbon electrodes in aqueous media. J. Electroanal. Chem. 1998, 455, 75–81. [Google Scholar] [CrossRef]
  50. Shul, G.; Ruiz, C.A.C.; Rochefort, D.; Brooksby, P.A.; Bélanger, D. Electrochemical functionalization of glassy carbon electrode by reduction of diazonium cations in protic ionic liquid. Electrochim. Acta 2013, 106, 378–385. [Google Scholar] [CrossRef]
  51. Breton, T.; Bélanger, D. Modification of carbon electrode with aryl groups having an aliphatic amine by electrochemical reduction of in situ generated diazonium cations. Langmuir 2008, 24, 8711–8718. [Google Scholar] [CrossRef] [Green Version]
  52. Schirowski, M.; Abellán, G.; Nuin, E.; Pampel, J.; Dolle, C.; Wedler, V.; Fellinger, T.P.; Spiecker, E.; Hauke, F.; Hirsch, A. Fundamental insights into the reductive covalent cross-linking of single-walled carbon nanotubes. J. Am. Chem. Soc. 2018, 140, 3352–3360. [Google Scholar] [CrossRef]
  53. Peiris, C.R.; Vogel, Y.B.; Le Brun, A.P.; Aragonès, A.C.; Coote, M.L.; Díez-Pérez, I.; Ciampi, S.; Darwish, N. Metal-single-molecule-semiconductor junctions formed by a radical reaction bridging gold and silicon electrodes. J. Am. Chem. Soc. 2019, 141, 14788–14797. [Google Scholar] [CrossRef]
  54. Lin, S.; Lin, C.; Jhang, J.; Hung, W. Electrodeposition of long-chain alkylaryl layers on au surfaces. J. Phys. Chem. C 2012, 116, 17048–17054. [Google Scholar] [CrossRef]
  55. Gautier, C.; López, I.; Breton, T. A post-functionalization toolbox for diazonium (electro)-grafted surfaces: Review of the coupling methods. Mater. Adv. 2021, 2, 2773–2810. [Google Scholar] [CrossRef]
  56. Actis, P.; Caulliez, G.; Shul, G.; Opallo, M.; Mermoux, M.; Marcus, B.; Boukherroub, R.; Szunerits, S. Functionalization of glassy carbon with diazonium salts in ionic liquids. Langmuir 2008, 24, 6327–6333. [Google Scholar] [CrossRef]
  57. Liu, G.; Liu, J.; Bo, T.; Eggers, P.K.; Gooding, J.J. The modification of glassy carbon and gold electrodes with aryl diazonium salt: The impact of the electrode materials on the rate of heterogeneous electron transfer. Chem. Phys. 2005, 319, 136–146. [Google Scholar] [CrossRef]
  58. Hetemi, D.; Noël, V.; Pinson, J. Grafting of diazonium salts on surfaces: Application to biosensors. Biosensors 2020, 10, 4. [Google Scholar] [CrossRef] [Green Version]
  59. Bourdillon, C.; Delamar, M.; Demaille, C.; Hitmi, R.; Moiroux, J.; Pinson, J. Immobilization of glucose oxidase on a carbon surface derivatized by electrochemical reduction of diazonium salts. J. Electroanal. Chem. 1992, 336, 113–123. [Google Scholar] [CrossRef]
  60. Jiang, C.; Alam, M.T.; Silva, S.M.; Taufik, S.; Fan, S.; Gooding, J.J. Unique sensing interface that allows the development of an electrochemical immunosensor for the detection of tumor necrosis factor α in whole blood. ACS Sensors 2016, 1, 1432–1438. [Google Scholar] [CrossRef]
  61. Niu, Z.; Zhang, Z.; Zhao, W.; Yang, J. Interactions between amyloid β peptide and lipid membranes. Biochim. Biophys. Acta Biomembr. 2018, 1860, 1663–1669. [Google Scholar] [CrossRef] [PubMed]
  62. Khondker, A.; Alsop, R.J.; Rheinstädter, M.C. Membrane-accelerated Amyloid-β aggregation and formation of cross-β sheets. Membranes 2017, 7, 49. [Google Scholar] [CrossRef] [Green Version]
  63. Bharadwaj, P.; Solomon, T.; Malajczuk, C.J.; Mancera, R.L.; Howard, M.; Arrigan, D.W.M.; Newsholme, P.; Martins, R.N. Role of the cell membrane interface in modulating production and uptake of Alzheimer’s beta amyloid protein. Biochim. Biophys. Acta Biomembr. 2018, 1860, 1639–1651. [Google Scholar] [CrossRef]
  64. Drolle, E.; Hane, F.; Lee, B.; Leonenko, Z. Atomic force microscopy to study molecular mechanisms of amyloid fibril formation and toxicity in Alzheimer’s disease. Drug Metab. Rev. 2014, 46, 207–223. [Google Scholar] [CrossRef] [PubMed]
  65. Lindberg, D.J.; Wesén, E.; Björkeroth, J.; Rocha, S.; Esbjörner, E.K. Lipid membranes catalyse the fibril formation of the amyloid-β (1–42) peptide through lipid-fibril interactions that reinforce secondary pathways. Biochim. Biophys. Acta Biomembr. 2017, 1859, 1921–1929. [Google Scholar] [CrossRef]
  66. Chang, C.C.; Edwald, E.; Veatch, S.; Steel, D.G.; Gafni, A. Interactions of amyloid-β peptides on lipid bilayer studied by single molecule imaging and tracking. Biochim. Biophys. Acta Biomembr. 2018, 1860, 1616–1624. [Google Scholar] [CrossRef]
  67. Kandel, N.; Matos, J.O.; Tatulian, S.A. Structure of amyloid β 25–35 in lipid environment and cholesterol-dependent membrane pore formation. Sci. Rep. 2019, 9, 1–12. [Google Scholar] [CrossRef] [Green Version]
  68. Capone, R.; Quiroz, F.G.; Prangkio, P.; Saluja, I.; Sauer, A.M.; Bautista, M.R.; Turner, R.S.; Yang, J.; Mayer, M. Amyloid-β-induced ion flux in artificial lipid bilayers and neuronal cells: Resolving a controversy. Neurotox. Res. 2009, 16, 1–13. [Google Scholar] [CrossRef] [Green Version]
  69. Lal, R.; Lin, H.; Quist, A.P. Amyloid beta ion channel: 3D structure and relevance to amyloid channel paradigm. Biochim. Biophys. Acta Biomembr. 2007, 1768, 1966–1975. [Google Scholar] [CrossRef] [Green Version]
  70. Bode, D.C.; Freeley, M.; Nield, J.; Palma, M.; Viles, J.H. Amyloid-β oligomers have a profound detergent-like effect on lipid membrane bilayers, imaged by atomic force and electron microscopy. J. Biol. Chem. 2019, 294, 7566–7572. [Google Scholar] [CrossRef]
  71. Schenk, D.; Barbour, R.; Dunn, W.; Gordon, G.; Grajeda, H.; Guldo, T.; Hu, K.; Huang, J.; Johnson-Wood, K.; Khan, K.; et al. Immunization with amyloid-β attenuates Alzheimer disease-like pathology in the PDAPP mouse. Nature 1999, 400, 173–177. [Google Scholar] [CrossRef] [PubMed]
  72. Lambert, M.P.; Barlow, A.K.; Chromy, B.A.; Edwards, C.; Freed, R.; Liosatos, M.; Morgan, T.E.; Rozovsky, I.; Trommer, B.; Viola, K.L.; et al. Diffusible, nonfibrillar ligands derived from Aβ1-42 are potent central nervous system neurotoxins. Proc. Natl. Acad. Sci. USA 1998, 95, 6448–6453. [Google Scholar] [CrossRef] [Green Version]
  73. Nakamura, A.; Kaneko, N.; Villemagne, V.L.; Kato, T.; Doecke, J.; Doré, V.; Fowler, C.; Li, Q.X.; Martins, R.; Rowe, C.; et al. High-performance plasma amyloid-β biomarkers for Alzheimer’s disease. Nature 2018, 554, 249–254. [Google Scholar] [CrossRef]
  74. Limbocker, R.; Chia, S.; Ruggeri, F.S.; Perni, M.; Cascella, R.; Heller, G.T.; Meisl, G.; Mannini, B.; Habchi, J.; Michaels, T.C.T.; et al. Trodusquemine enhances Aβ 42 aggregation but suppresses its toxicity by displacing oligomers from cell membranes. Nat. Commun. 2019, 10, 225. [Google Scholar] [CrossRef] [Green Version]
  75. Bode, D.C.; Baker, M.D.; Viles, J.H. Ion channel formation by amyloid-β42 oligomers but not amyloid-β40 in cellular membranes. J. Biol. Chem. 2017, 292, 144–1413. [Google Scholar] [CrossRef] [Green Version]
  76. Korshavn, K.J.; Satriano, C.; Lin, Y.; Zhang, R.; Dulchavsky, M.; Bhunia, A.; Ivanova, M.I.; Lee, Y.H.; La Rosa, C.; Lim, M.H.; et al. Reduced lipid bilayer thickness regulates the aggregation and cytotoxicity of amyloid-β. J. Biol. Chem. 2017, 292, 4638–4650. [Google Scholar] [CrossRef] [Green Version]
  77. Pobandt, T.; Knecht, V. Free energy of lipid bilayer defects affected by Alzheimer’s disease-associated amyloid-β42 monomers. J. Phys. Chem. B 2014, 118, 3507–3516. [Google Scholar] [CrossRef]
  78. Ambroggio, E.E.; Kim, D.H.; Separovic, F.; Barrow, C.J.; Barnham, K.J.; Bagatolli, L.A.; Fidelio, G.D. Surface behavior and lipid interaction of Alzheimer β-amyloid peptide 1–42: A membrane-disrupting peptide. Biophys. J. 2005, 88, 2706–2713. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  79. Demuro, A.; Smith, M.; Parker, I. Single-channel Ca2+ imaging implicates Aβ 1–42 amyloid pores in Alzheimer’s disease pathology. J. Cell Biol. 2011, 195, 515–524. [Google Scholar] [CrossRef] [Green Version]
  80. Miyashita, N.; Straub, J.E.; Thirumalai, D. Structures of β-amyloid peptide 1–40, 1–42, and 1–55-the 672–726 fragment of APP-in a membrane environment with implications for interactions with γ-secretase. J. Am. Chem. Soc. 2009, 131, 17843–17852. [Google Scholar] [CrossRef] [Green Version]
  81. Mirkhalaf, F.; Paprotny, J.; Schiffrin, D.J. Synthesis of metal nanoparticles stabilized by metal-carbon bonds. J. Am. Chem. Soc. 2006, 128, 7400–7401. [Google Scholar] [CrossRef]
  82. Stine, W.B.; Jungbauer, L.; Yu, C.; LaDu, M.J. Preparing Synthetic Aβ in Different Aggregation States. In Alzheimer’s Disease and Frontotemporal Dementia: Methods and Protocols; Roberson, E.D., Ed.; Humana Press: Totowa, NJ, USA, 2010; ISBN 978-1-60761-744-0. [Google Scholar]
  83. Menanteau, T.; Levillain, E.; Breton, T. Electrografting via diazonium chemistry: From multilayer to monolayer using radical scavenger. Chem. Mater. 2013, 25, 2905–2909. [Google Scholar] [CrossRef] [Green Version]
  84. Menanteau, T.; Dias, M.; Levillain, E.; Downard, A.J.; Breton, T. Electrografting via diazonium chemistry: The key role of the aryl substituent in the layer growth mechanism. J. Phys. Chem. C 2016, 120, 4423–4429. [Google Scholar] [CrossRef]
  85. Greenwood, J.; Phan, T.H.; Fujita, Y.; Li, Z.; Ivasenko, O.; Vanderlinden, W.; Van Gorp, H.; Frederickx, W.; Lu, G.; Tahara, K.; et al. Covalent modification of graphene and graphite using diazonium chemistry: Tunable grafting and nanomanipulation. ACS Nano 2015, 9, 5520–5535. [Google Scholar] [CrossRef] [Green Version]
  86. Lin, H.A.I.; Bhatia, R.; Lal, R. Amyloid-beta protein forms ion channels: Implications for Alzheimer’s disease pathophysiology. FASEB J. 2001, 15, 2433–2444. [Google Scholar] [CrossRef] [Green Version]
  87. Tempra, C.; Scollo, F.; Pannuzzo, M.; Lolicato, F.; La Rosa, C. A unifying framework for amyloid-mediated membrane damage: The lipid-chaperone hypothesis. Biochim. Biophys. Acta Proteins Proteomics 2022, 1870, 140767. [Google Scholar] [CrossRef]
  88. Ragaliauskas, T.; Mickevicius, M.; Budvytyte, R.; Niaura, G.; Carbonnier, B.; Valincius, G. Adsorption of β-amyloid oligomers on octadecanethiol monolayers. J. Colloid Interface Sci. 2014, 425, 159–167. [Google Scholar] [CrossRef]
  89. Budvytyte, R.; Ambrulevičius, F.; Jankaityte, E.; Valincius, G. Electrochemical assessment of dielectric damage to phospholipid bilayers by amyloid β-oligomers. Bioelectrochemistry 2022, 145, 108091. [Google Scholar] [CrossRef]
Micromachines 13 00574 sch001 550

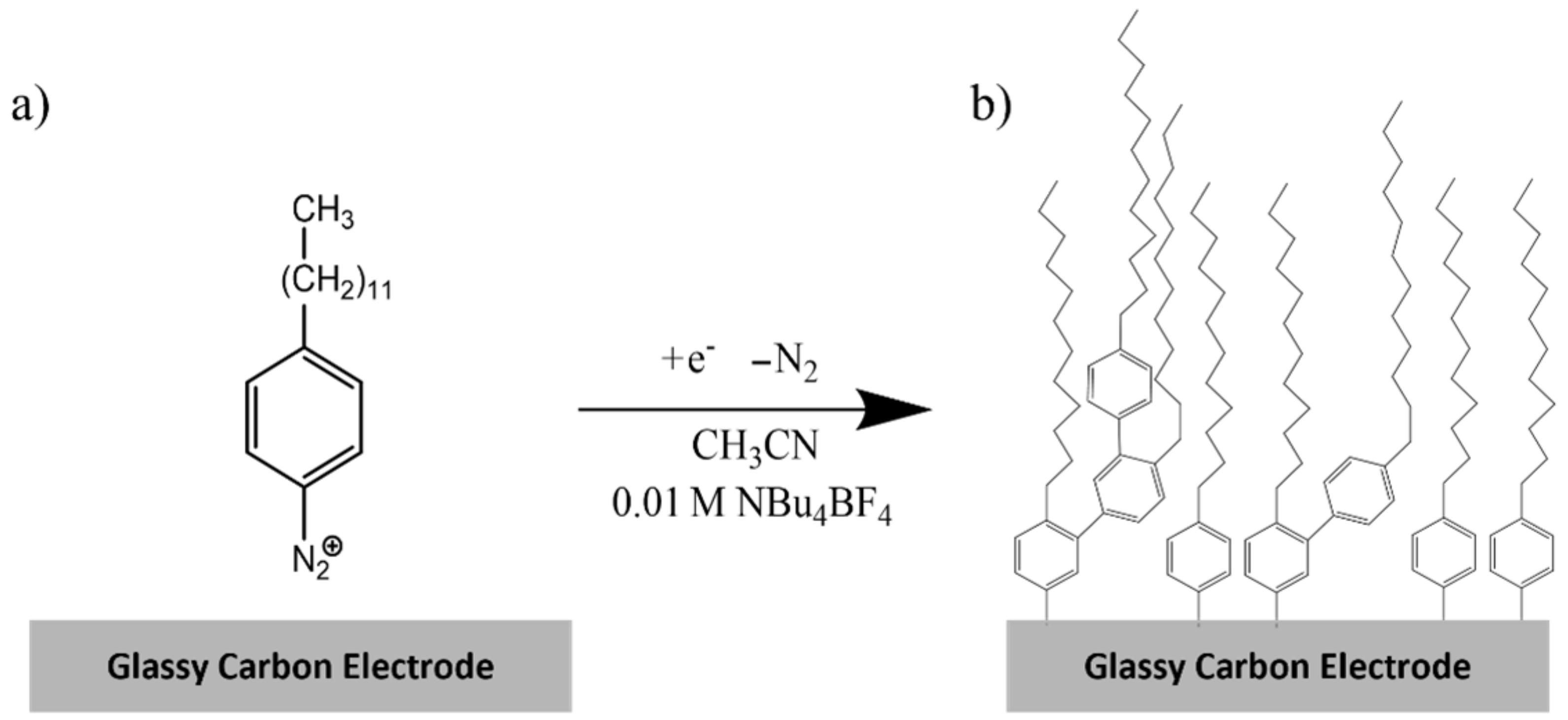

Scheme 1. Chemical reaction for the electrodeposition of (a) DDAN using cyclic voltammetry (b) to form the first layer on the surface of a GCE.
Scheme 1. Chemical reaction for the electrodeposition of (a) DDAN using cyclic voltammetry (b) to form the first layer on the surface of a GCE.
Micromachines 13 00574 sch001
Micromachines 13 00574 g001 550

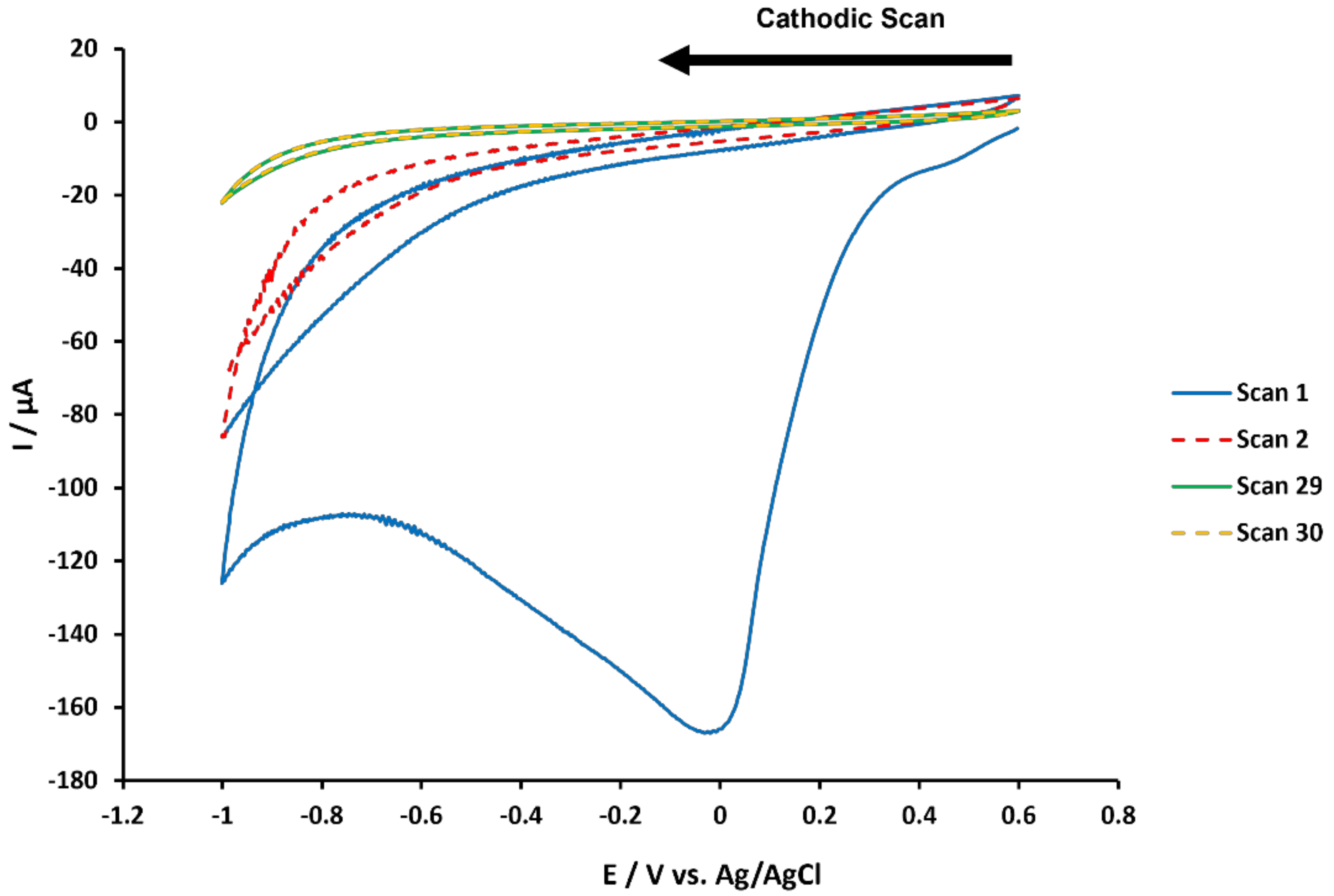

Figure 1. CV of 2 mM DDAN in acetonitrile along with 10 mM of tetrabutylammonium tetrafluoroborate at a scan rate of 0.05 V s−1 between +0.6 V and _0.9 V vs. Ag/AgCl: scans 1, 2, 29 and 30 (the last scan) are shown.
Figure 1. CV of 2 mM DDAN in acetonitrile along with 10 mM of tetrabutylammonium tetrafluoroborate at a scan rate of 0.05 V s−1 between +0.6 V and _0.9 V vs. Ag/AgCl: scans 1, 2, 29 and 30 (the last scan) are shown.
Micromachines 13 00574 g001
Micromachines 13 00574 sch002 550

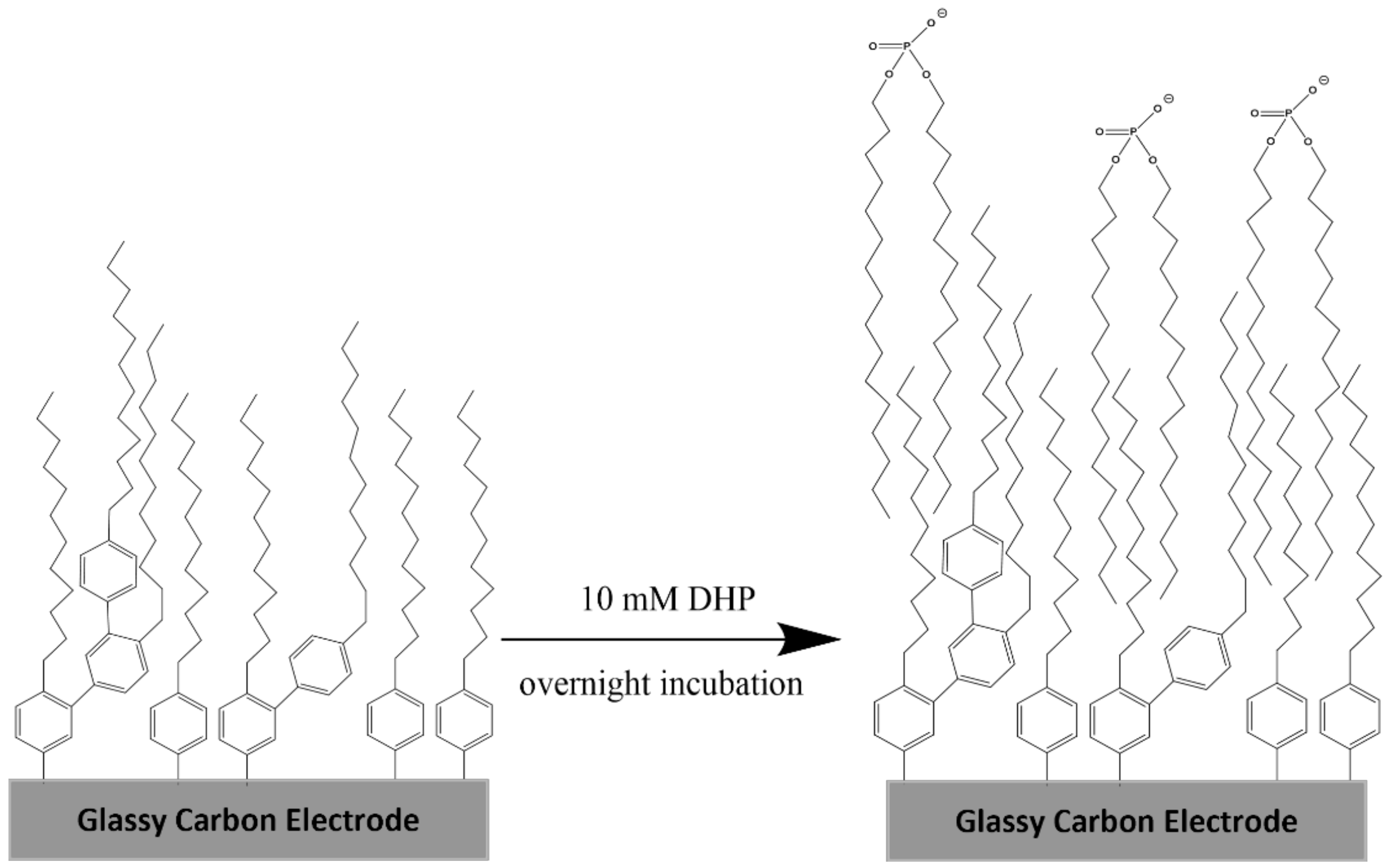

Scheme 2. Schematic illustration of the immobilization of DHP to form the bilayer by the incubation of DHP vesicles on the GCE surface overnight.
Scheme 2. Schematic illustration of the immobilization of DHP to form the bilayer by the incubation of DHP vesicles on the GCE surface overnight.
Micromachines 13 00574 sch002
Micromachines 13 00574 g002 550

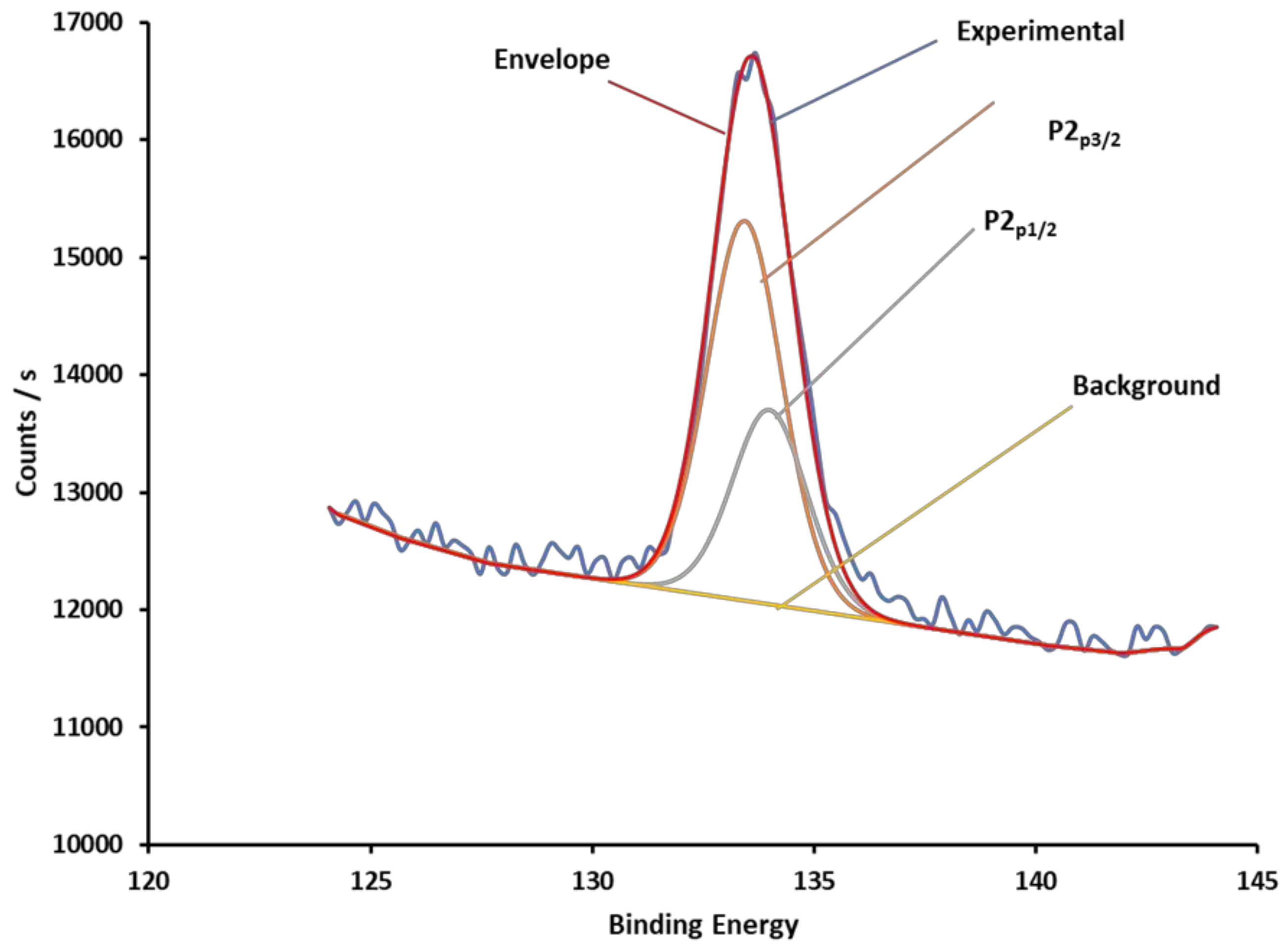

Figure 2. XPS spectra for the GCE-DDAN-DHP modification showing a clear distinct phosphorus peak with an asymmetric peak envelop due to the overlapping P2p3/2 and P2p1/2 spin orbit components.
Figure 2. XPS spectra for the GCE-DDAN-DHP modification showing a clear distinct phosphorus peak with an asymmetric peak envelop due to the overlapping P2p3/2 and P2p1/2 spin orbit components.
Micromachines 13 00574 g002
Micromachines 13 00574 g003 550
Figure 3. ToF-SIMS spectra for all three surfaces (500 × 500 μm2 area): bare glassy carbon electrode (GCE), the first layer-modified electrode (GCE-DDAN) and bilayer-modified electrode (GCE-DDAN-DHP) at negative (A) and positive (B) polarity.
Figure 3. ToF-SIMS spectra for all three surfaces (500 × 500 μm2 area): bare glassy carbon electrode (GCE), the first layer-modified electrode (GCE-DDAN) and bilayer-modified electrode (GCE-DDAN-DHP) at negative (A) and positive (B) polarity.
Micromachines 13 00574 g003
Micromachines 13 00574 g004a 550Micromachines 13 00574 g004b 550
Figure 4. Cyclic voltammograms and Nyquist plots of the bare GCE, DDAN monolayer (the first layer), and DDAN-DHP bilayer. (A,B) show the respective CV at a scan rate of 50 mV s−1 and EIS using [Ru(NH3)6]3+ as the positively-charged redox probe. (C,D) show the respective CV and EIS spectra using [Fe(CN)6]3-/4- as the negatively-charged redox probe. In Nyquist plots, all dots represent the experimental data and solid lines represent the simulated data with the applied frequency from 100 MHz to 100 kHz. Insets in (B,D) show the Nyquist plots obtained from bare GCEs and the modified Randle’s equivalent circuit used to fit the data. The parameters of each circuit element are included in Table S1.
Figure 4. Cyclic voltammograms and Nyquist plots of the bare GCE, DDAN monolayer (the first layer), and DDAN-DHP bilayer. (A,B) show the respective CV at a scan rate of 50 mV s−1 and EIS using [Ru(NH3)6]3+ as the positively-charged redox probe. (C,D) show the respective CV and EIS spectra using [Fe(CN)6]3-/4- as the negatively-charged redox probe. In Nyquist plots, all dots represent the experimental data and solid lines represent the simulated data with the applied frequency from 100 MHz to 100 kHz. Insets in (B,D) show the Nyquist plots obtained from bare GCEs and the modified Randle’s equivalent circuit used to fit the data. The parameters of each circuit element are included in Table S1.
Micromachines 13 00574 g004aMicromachines 13 00574 g004b
Micromachines 13 00574 g005 550
Figure 5. Nyquist plots of modified GCEs with monolayer (the first layer) (GCE-(EDAN); green circles), and bilayer (GCE-(EDAN+BEHP); red circles). Results are shown before (empty circles) and after (filled circles) stirring at 500 rpm for 5 min using [Ru(NH3)6]3+ as the positively-charged redox probe with the applied frequency ranging from 100 MHz to 100 kHz. The values of each equivalent circuit element are included in Table S2.
Figure 5. Nyquist plots of modified GCEs with monolayer (the first layer) (GCE-(EDAN); green circles), and bilayer (GCE-(EDAN+BEHP); red circles). Results are shown before (empty circles) and after (filled circles) stirring at 500 rpm for 5 min using [Ru(NH3)6]3+ as the positively-charged redox probe with the applied frequency ranging from 100 MHz to 100 kHz. The values of each equivalent circuit element are included in Table S2.
Micromachines 13 00574 g005
Micromachines 13 00574 g006 550
Figure 6. Nyquist plots of GCE-DDAN-DHP bilayer using [Ru(NH3)6]3+ (A) and [Fe(CN)6]3-/4- (B) as the redox probe in the absence of Aβ1–42 (green), and after 10 min (yellow), 24 h (purple) and 48 h (dark blue) incubation in a solution of Aβ1–42. All dots represent the experimental data and solid lines represent the simulated data with the applied frequency from 100 MHz to 100 kHz. The values of each equivalent circuit element are included in Table S3.
Figure 6. Nyquist plots of GCE-DDAN-DHP bilayer using [Ru(NH3)6]3+ (A) and [Fe(CN)6]3-/4- (B) as the redox probe in the absence of Aβ1–42 (green), and after 10 min (yellow), 24 h (purple) and 48 h (dark blue) incubation in a solution of Aβ1–42. All dots represent the experimental data and solid lines represent the simulated data with the applied frequency from 100 MHz to 100 kHz. The values of each equivalent circuit element are included in Table S3.
Micromachines 13 00574 g006
Table
Table 1. Contact angle measurements of the bare GCEs, GCEs modified with the DDAN layer, and the GCEs with the HBLM (DDAN + DHP) with the average contact angle values obtained from six independent GCE surfaces (n = 6).
Table 1. Contact angle measurements of the bare GCEs, GCEs modified with the DDAN layer, and the GCEs with the HBLM (DDAN + DHP) with the average contact angle values obtained from six independent GCE surfaces (n = 6).
ElectrodeContact Angle Measured (°)ElectrodeContact Angle Measured (°)ElectrodeContact Angle Measured (°)
Bare GCE 175.864GCE-DDAN 189.482GCE-DDAN-DHP 180.702
Bare GCE 266.880GCE-DDAN 285.151GCE-DDAN-DHP 280.441
Bare GCE 371.702GCE-DDAN 383.490GCE-DDAN-DHP 381.125
Bare GCE 475.156GCE-DDAN 484.299GCE-DDAN-DHP 475.250
Bare GCE 573.963GCE-DDAN 586.724GCE-DDAN-DHP 578.196
Bare GCE 676.869GCE-DDAN 686.220GCE-DDAN-DHP 679.021
Average Contact Angle (°), n = 673.405 85.894 79.122
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Fini, H.; Hassan, Q.; Noroozifar, M.; Kerman, K. Electrografting a Hybrid Bilayer Membrane via Diazonium Chemistry for Electrochemical Impedance Spectroscopy of Amyloid-β Aggregation. Micromachines 2022, 13, 574. https://doi.org/10.3390/mi13040574

AMA Style

Fini H, Hassan Q, Noroozifar M, Kerman K. Electrografting a Hybrid Bilayer Membrane via Diazonium Chemistry for Electrochemical Impedance Spectroscopy of Amyloid-β Aggregation. Micromachines. 2022; 13(4):574. https://doi.org/10.3390/mi13040574

Chicago/Turabian Style

Fini, Hamid, Qusai Hassan, Meissam Noroozifar, and Kagan Kerman. 2022. "Electrografting a Hybrid Bilayer Membrane via Diazonium Chemistry for Electrochemical Impedance Spectroscopy of Amyloid-β Aggregation" Micromachines 13, no. 4: 574. https://doi.org/10.3390/mi13040574

APA Style

Fini, H., Hassan, Q., Noroozifar, M., & Kerman, K. (2022). Electrografting a Hybrid Bilayer Membrane via Diazonium Chemistry for Electrochemical Impedance Spectroscopy of Amyloid-β Aggregation. Micromachines, 13(4), 574. https://doi.org/10.3390/mi13040574

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
