MHD Flow of a Hybrid Nano-Fluid in a Triangular Enclosure with Zigzags and an Elliptic Obstacle

Department of Physics, Faculty of Sciences, University of 20 Août 1955-Skikda, 21000 Skikda, Algeria
Mechanical Engineering Department, College of Engineering and Islamic Architecture, Umm Al-Qura University, Makkah P.O. Box 5555, Saudi Arabia
Mathematics Department, Faculty of Science, Tanta University, Tanta P.O. Box 31527, Egypt
Author to whom correspondence should be addressed.
Micromachines 2022, 13(2), 224;
Original submission received: 10 December 2021 / Resubmission received: 12 January 2022 / Revised: 25 January 2022 / Accepted: 26 January 2022 / Published: 29 January 2022
(This article belongs to the Special Issue Recent Advances in Nanotechnology and Nanomaterials)


The current study uses the multi-physics COMSOL software and the Darcy–Brinkman–Forchheimer model with a porosity of ε = 0.4 to conduct a numerical study on heat transfer by Cu-TiO2/EG hybrid nano-fluid inside a porous annulus between a zigzagged triangle and different cylinders and under the influence of an inclined magnetic field. The effect of numerous factors is detailed, including Rayleigh number (103 ≤ Ra ≤ 106), Hartmann number (0 ≤ Ha ≤ 100), volume percent of the nano-fluid (0.02 ≤ ϕ ≤ 0.08), and the rotating speed of the cylinder (−4000 ≤ w ≤ 4000). Except for the Hartmann number, which decelerates the flow rate, each of these parameters has a positive impact on the thermal transmission rate.

1. Introduction

Convection has always been the primary focus of research [1] for a variety of heating and cooling engineering systems. A modification of the geometrical shape of the system [2,3] was recently agreed upon among researchers in order to achieve spectacular optimization of the heat-transfer performance, from circular [4] and square geometries [5] to non-square geometries [6,7,8,9] (triangular, trapezoidal, etc.) as it has been proven by many research papers that aspect ratio and type of the geometry have a huge impact on thermal performance [10,11,12]. Heat-transfer fluid has also been the subject of significant development. Conventional fluids such as water and ethylene glycol now contain dispersed nanoparticles [13] that ensure an enhancement in thermal conductivity [14]. Therefore, these “nano-fluids” with improved physical properties yield great results, improving heat transfer [15]. Other attempts have been made [16,17,18,19,20] resulting in hybrid nano-fluids with two suspended nanoparticles, supporting the notion of lower costs and greateradvantages; therefore, they are regarded as enhancing parameters for heat systems, considering their superior thermal characteristics due to the combination of nanoparticles, when compared to mono nano-fluids and classical fluids [21,22].
In this context, Kahveci [23] studied heat transfer in a differentially heated square enclosure filled with nano-fluids and reported improvement in Nusselt number when inserting nanoparticles. Torki and Etesami [24] experimentally investigated the impact of the volume fraction of nano-fluids on Nusselt number in a rectangular enclosure and reported a proportional relationship between these two features.
Mansour et al. [25] explored an inclined square cavity with nano-fluids and heating circular solid, while Alsaberi et al. [26] inserted a hot solid square in a cold square under the effect of a magnetic field and reported a non-linear influence on heat transfer. Selcuk et al. [27] reported that increasing magnetic induction decreases velocity, which, in turn, decelerates the flow. The work of Zhang et al. [28] supports these results, finding a 33% reduction in cooling efficiency with increasing Hartmann number. Furthermore, Mahmoudi et al. [29] considered the Hartmann number parameter that restricted the heat-transfer rate. In this context, many studies were used to establish this research [30,31,32,33,34,35,36].
Ravnik et al. [37] studied natural convection in a cubic enclosure with a heated elliptical cylinder. Ishak et al. [38] numerically analyzed entropy generation in a classic trapezoid filled with alumina/water nano-fluid and an implemented immobile circular cylinder using the finite element method. Mebarek-Oudina et al. [39] studied the characteristics of a hybrid nano-fluid MHD flow in an annulus between a trapezoid and a rotating cylinder with a zigzagged wall.
Mahmoudi et al. [40] investigated nano-fluid flow in a triangular enclosure partially heated from below with a cold inclined wall. Majdi et al. [41] examined mixed convection in a lid-driven triangular enclosure with a motionless circle. Wang et al. [42] maintained a numerical approach for convection of a nano-fluid between a rotating circular cylinder and a conventional right-angled triangle, while Triveni and Panua [43] evaluated the impact of the aspect ratio of the hot wall in a triangular cavity and noticed a significant difference in the heat transfer rate as the caterpillar and zigzagged walls are more efficient than a linear wall. Other authors [44,45] studied convective flow inside enclosures with different hot-shaped inner cylinders. Several other references were utilized to establish this work [46,47,48,49,50,51].
These studies reported interesting results regarding the impact of motion, speed of rotation, placement of the internal cylinder, and the properties of nano-fluids, and it has been demonstrated that triangular-shaped enclosures are incredibly effective in the process of altering the efficiency of the heat system [52,53].
Based on the preceding investigations, this paper numerically analyzes thermal transport in a previously unseen configuration: an original triangular porous chamber filled with magnetized Cu-TiO2/EG hybrid nano-fluid and a spinning cylinder. The findings of this research will aid in achieving a better understanding of the effect of different cylinders inside the cavity, as well as expanding the contribution of sophisticated triangular geometries, which already have wide spread applications in industry [54,55,56] and are unquestionably adaptable in real-world applications, such as cooling electronic devices, solar heating systems, heat exchangers, solar collectors, etc. Aiming for high heat transmission efficiency under unusual settings, this work provides a significant contribution to future applications.

2. Physical Model

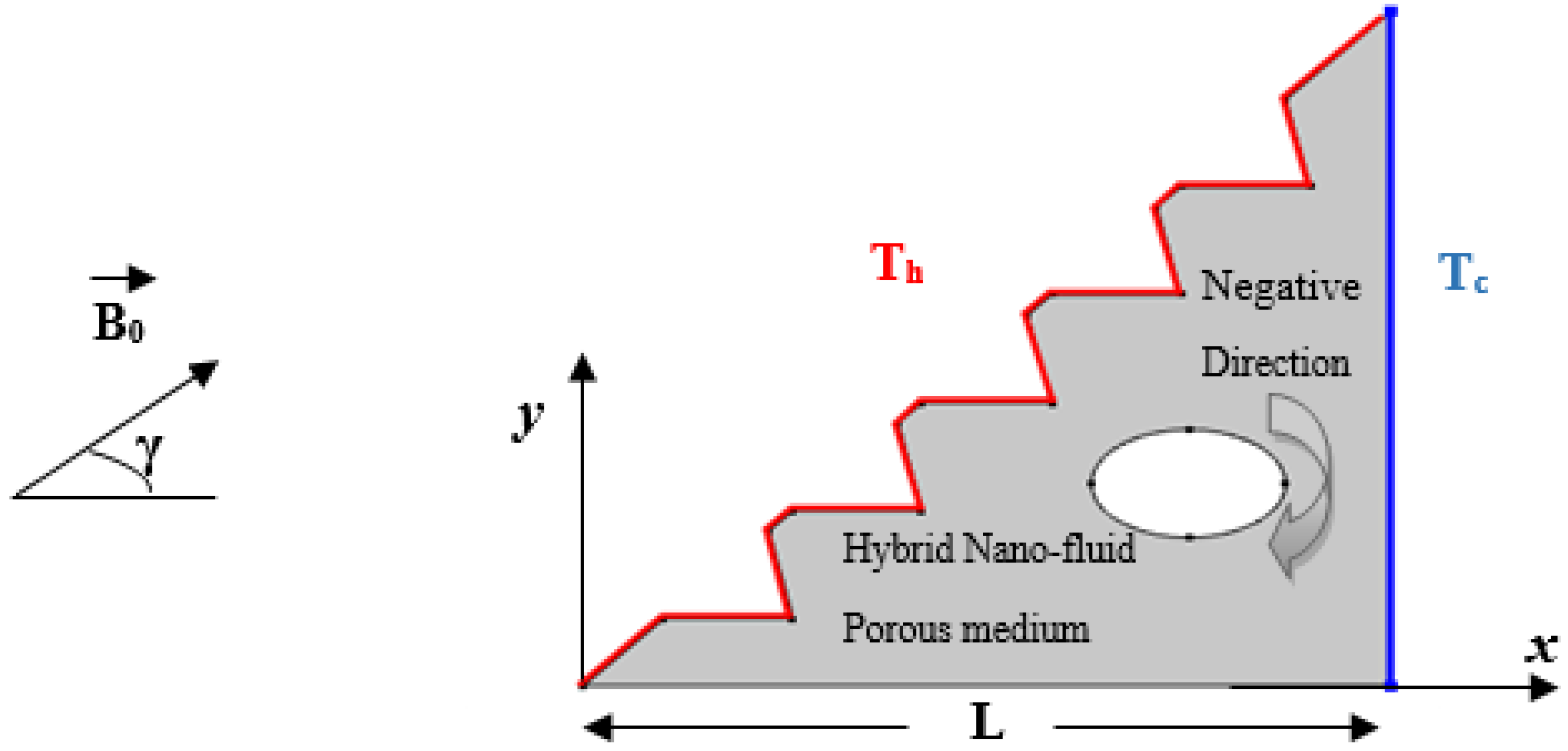

This study provides numerical insight into convection, owing to the magneto-hydrodynamic flow of a hybrid nano-fluid in a porous triangular enclosure described by the Darcy–Forchheimer–Brinkman model. The configuration presents a right-angled triangular cavity of 1m length with a zigzagged inclined wall and an elliptical rotating cylinder along the x-direction inserted in the center of the geometry in order to investigate mixed convection; this is combined with heat transfer due to the buoyancy forces that lead tonatural convection and to the rotational velocity of the cylinder that drives forced convection. Figure 1 depicts the porous setup that is exposed to a magnetic induction, B0, detailed in Table 1, and filled with the Cu-TiO2/EG hybrid nano-fluid featured in Table 2. The right-angled wall is cold with a fixed temperature, Tc, while the inclined wall is subject to a heating source and set as Th. The base of the triangle and the cylinder are both adiabatic.
Boundary conditions of the domain:
The right-angled wall: U = 0, V = 0 and T = Tc;
The inclined wall: U = 0, V = 0 and T = Th;
The   base   wall :   U = 0 ,   V = 0   and   T n = 0 ;
The   cylinder :   U = w ,   V = 0   and   T n = 0 .

3. Grid Test

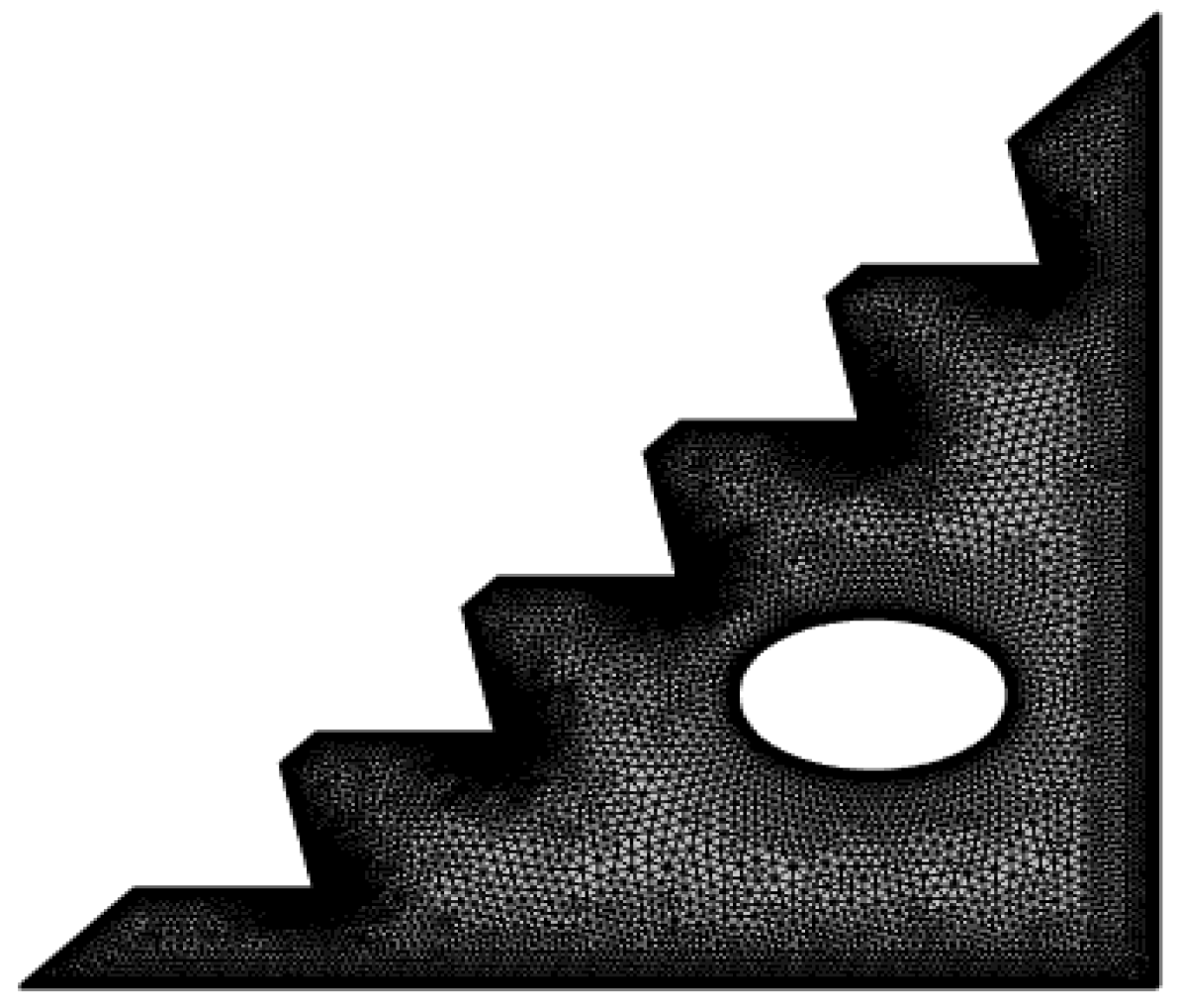

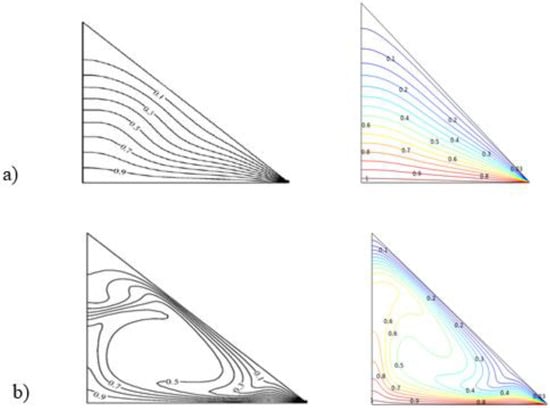

The grid test is performed by studying several types of meshes in COMSOL multi-physics and assessing different parameters to enable the selection of the relevant mesh that provides valid results, considering our convective flow. Because algorithms in this software only provide high-quality elements with a value greater than 0.1 [57], our inquiry examined four types of elements indicated in Table 2 with satisfactory quality. The skewness measure quality is detailed; it allowed us to determine that increasing the element number improves the average quality of the mesh, indicating the dependability of the extra-fine mesh in numerical simulations. Furthermore, these four meshes performed an independence test at Ra = 105 and ϕ = 0.04 to calculate the Nusselt number. Table 3 shows the obtained results, which reveal that the deviations in Nusselt number decreased as the mesh quality increased, and we can conclude that the mesh with the highest quality, “extra fine” ensured accurate outcomes. Therefore, the extra-fine mesh presented in Figure 2 was selected for our study.

4. Formulation of the Problem

4.1. Equations

The two-dimensional laminar convective flow in the studied triangular geometry is assumed to be stationary and incompressible. Thus, continuity and energy distribution in Cartesian coordinates are expressed as the following, according to [58,59]:
u x + v y = 0 ;
u x + v y = 0 ;
while the Navier–Stocks equations, which characterizethe flow of the hybrid nano-fluid, are described using the Darcy–Brinkman–Forchheimer model, which examines single-phase fluid circulation in a porous medium under the influence of magnetic fields [60], a model that has proven efficient and yields accurate outcomes [61]:
1 ε 2 ( u u x + v u y ) = 1 ρ h n f p x ϑ h n f u K + σ h n f B 0 2 ρ h n f ( v sin ( γ ) cos ( γ ) u sin ² ( γ ) ) F C K u | u | + ϑ h n f ε ( ² u x ² + ² u y ² ) ;
1 ε 2 ( u v x + v v y ) = 1 ρ h n f p y ϑ h n f v K + β h n f g ( T T a v g ) + σ h n f B 0 2 ρ h n f ( u sin ( γ ) cos ( γ ) v sin ² ( γ ) ) F C K v | u | + ϑ h n f ε ( ² v x ² + ² v y ² ) ;
where K is permeability, Fc is the Forchheimer coefficient, |u| is the amplitude velocity, and Tavg is the average temperature:
K = ε 3 d m 2 150 ( 1 ε ) 2 ,   F c = b a ε 3   2   with   ( a = 150   ,   b = 1.75 ) ,   | u | = u 2 + v 2 ,   T a v g = T h + T c 2
The following dimensionless numbers and variables are used to adjust the MHD flow distribution:
  • Dimensionless numbers
R a = β b f g ( T h T C ) L 3 α b f   ϑ b f   ,   H a = L B 0 σ b f μ b f   , D a = K L ²   , P r = ϑ b f α b f
  • Dimensionless variables
θ = T T f T h T f   , Y = y L   ,   X = x L   , V = v L α b f   , U = u L α b f   ,   P = ( p + ρ b f g y ) L ² α b f   ² ρ b f
The final governing dimensionless equations turn to:
U X + V Y = 0 ;
1 ε 2 ρ h n f ρ b f ( U U X + V U Y ) = P X ϑ h n f ϑ b f P r D a R a U +
σ h n f ρ h n f ρ b f ρ h n f P r ε H a ² R a ( V sin ( γ ) cos ( γ ) U sin ² ( γ ) ) F C D a U | U | + 1 ε ϑ h n f ϑ b f P r R a ( ² U X ² + ² U Y ² ) ;
1 ε 2 ρ h n f ρ b f ( U V X + V V Y ) = P Y ϑ h n f ϑ b f P r D a R a V + P r β h n f β b f g θ + σ h n f ρ h n f ρ b f ρ h n f P r ε H a ² R a ( U sin ( γ ) cos ( γ ) V sin ² ( γ ) ) F C D a V | U | + 1 ε ϑ h n f ϑ b f P r R a ( ² V X ² + ² V Y ² ) ;
U θ X + V θ Y = α h n f α b f ( 2 θ X 2 + 2 θ Y 2 )

4.2. Validation

The finite-element method (FEM) was used and applied in the COMSOL multi-physics software 5.6 to solve the dimensionless governing equations presented above with the given boundary conditions. The accuracy of the present program was assessed, and the results are reported in Figure 3, which compares the current isotherms and streamlines to those of the numerical findings of [62], in which natural convection was explored in a basic triangular enclosure.

4.3. Properties of the Hybrid Nano-Fluid

The volume fraction of the hybrid nano-fluid can be calculated as follows:
φ = φ C u + φ T i O 2
The equations of the specific heat capacity, density, thermal conductivity, thermal expansion, and electrical conductivity of Cu and TiO2 nanoparticles, respectively, were obtained from [63,64] and can be calculated as follows:
C p n p = φ C u C p C u + φ T i O 2 ρ C p T i O 2 φ
ρ n p = φ C u ρ C u + φ T i O 2 ρ T i O 2 φ
k n p = φ C u k C u + φ T i O 2 k T i O 2 φ
      β n p = φ C u β C u + φ T i O 2 β T i O 2 φ
        σ n p = φ C u σ C u + φ T i O 2 σ T i O 2 φ
while the equations of the hybrid nano-fluid are as follows [63,64]:
The density of the hybrid nano-fluid is defined as:
ρ h n f = ( 1 φ ) ρ b f + φ ρ n p
where ρ b f , σ b f are the density and electrical conductivity of the base fluid, respectively; and ρ n p , σ n p are the density and electrical conductivity of the used nanoparticles, respectively. Thus, the electrical conductivity of the hybrid nano-fluid is given by:
σ h n f = ( 1 φ ) σ b f + φ σ n p
As a result, the thermal expansion and specific heat of the hybrid nano-fluid are calculated to as follows:
( ρ β ) h n f = ( 1 φ ) ( ρ β ) b f + φ ( ρ β ) n p
( ρ C p ) h n f = ( 1 φ ) ( ρ C p ) b f + φ ( ρ C p ) n p
while the thermal and electrical conductivity of the hybrid nano-fluid are obtained from the following equations:
k h n f k b f = k n p + ( n 1 ) k b f ( n 1 ) ( k b f k n p ) φ k n p + ( n 1 ) k b f ( k b f k n p ) φ
σ h n f σ b f = 1 + 3 ( σ n p σ b f ) φ ( σ n p + 2 σ b f ) ( σ n p σ b f ) φ
Thermal diffusivity of the hybrid nano-fluid is considered as:
α h n f = k h n f ( ρ C p ) h n f
The dynamic viscosity is given as follows, according to the Brinkman model [58]:
μ h n f = μ b f ( 1 φ ) 2.5
The thermo-physical characteristics of the hybrid nano-fluid used in this study are presented in Table 4 [65].

5. Results and Discussion

This section will provide the numerical results obtained by streamline and isotherm contours, as well as the average Nusselt number for three major parameters: Rayleigh number (103 ≤ Ra ≤ 106), to study the convective heat transfer in the laminar regime and explore its features near the transition mode; Hartmann number (0 ≤ Ha ≤ 100), in order to investigate the relation between magnetic-field strength heat-transfer efficiency; and the volume fraction of the hybrid nano-fluid (0.02 ≤ ϕ ≤ 0.08), to evaluate the presence of nanoparticle in a porous medium with constant properties: Darcy number, Da = 0.1; porosity, ε=0.4. Additionally the following geometrical factors are discussed: the impact of the rotation of the internal cylinder with a speed, w, of (−4000 ≤ w ≤ 4000), as well as the placement of the cylinder and several shaped obstacles (square, circle, elliptic, and triangle).

5.1. Impact of the Nano-Fluid Volume Fraction

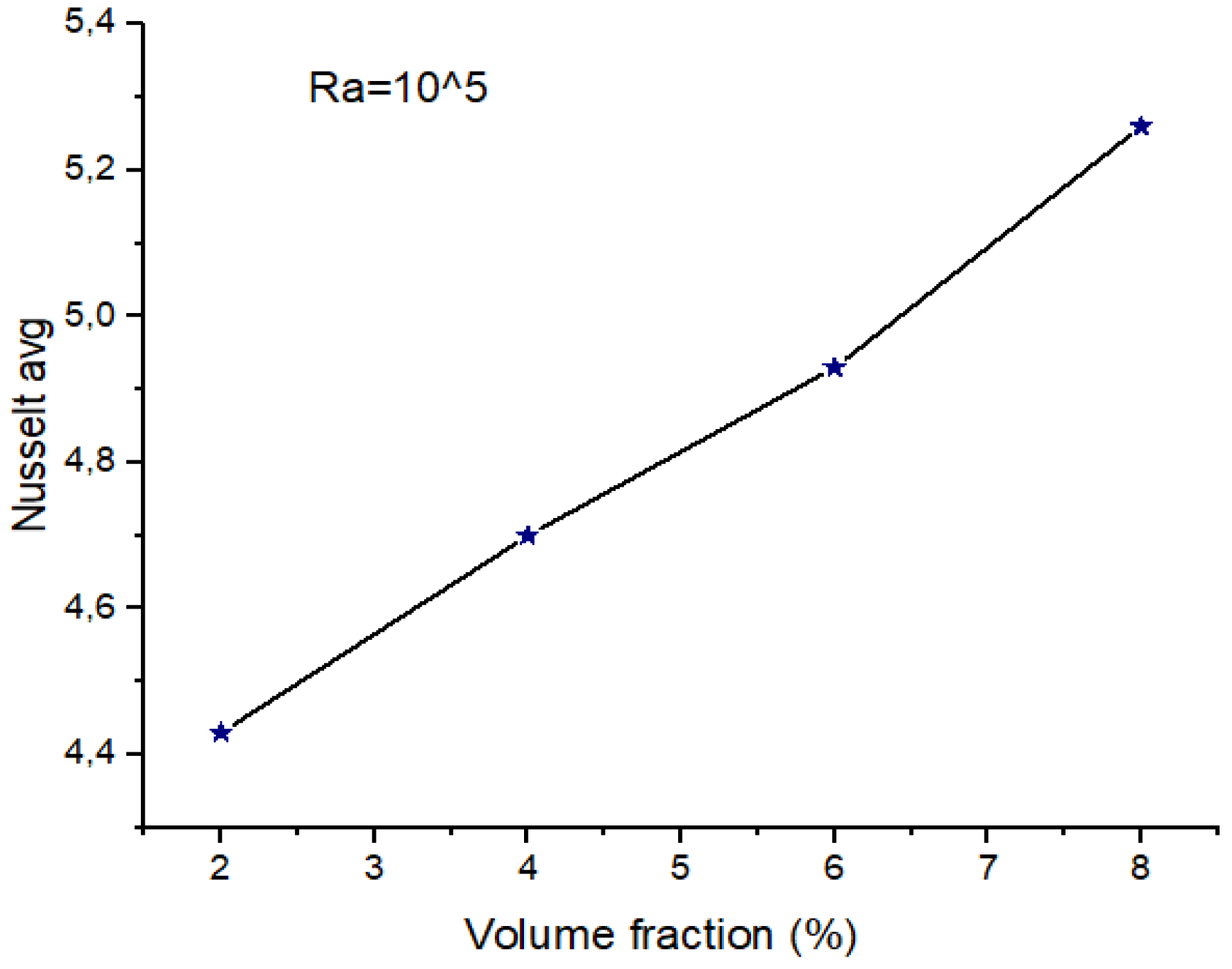

At Ra = 10 5 (Figure 4), the average Nu number appears to grow with the volume fraction where natural convection significantly dominates. Augmenting the concentration of the hybrid nano-fluid corresponds to an increase in the presence of nanoparticles, both Cu and TiO2, that present enhanced thermo-physical characteristics compared to classical fluids, as presented in Table 4, particularly their thermal conductivity. It worth mentioning that these properties improve the thermal conductivity of the hybrid nano-fluid and also increment the surface area of the nanoparticles [58]. Therefore, Nuavg is proportional to the presence and the volume fraction of the hybrid nano-fluid, and such correlation contributes to convective transfer.

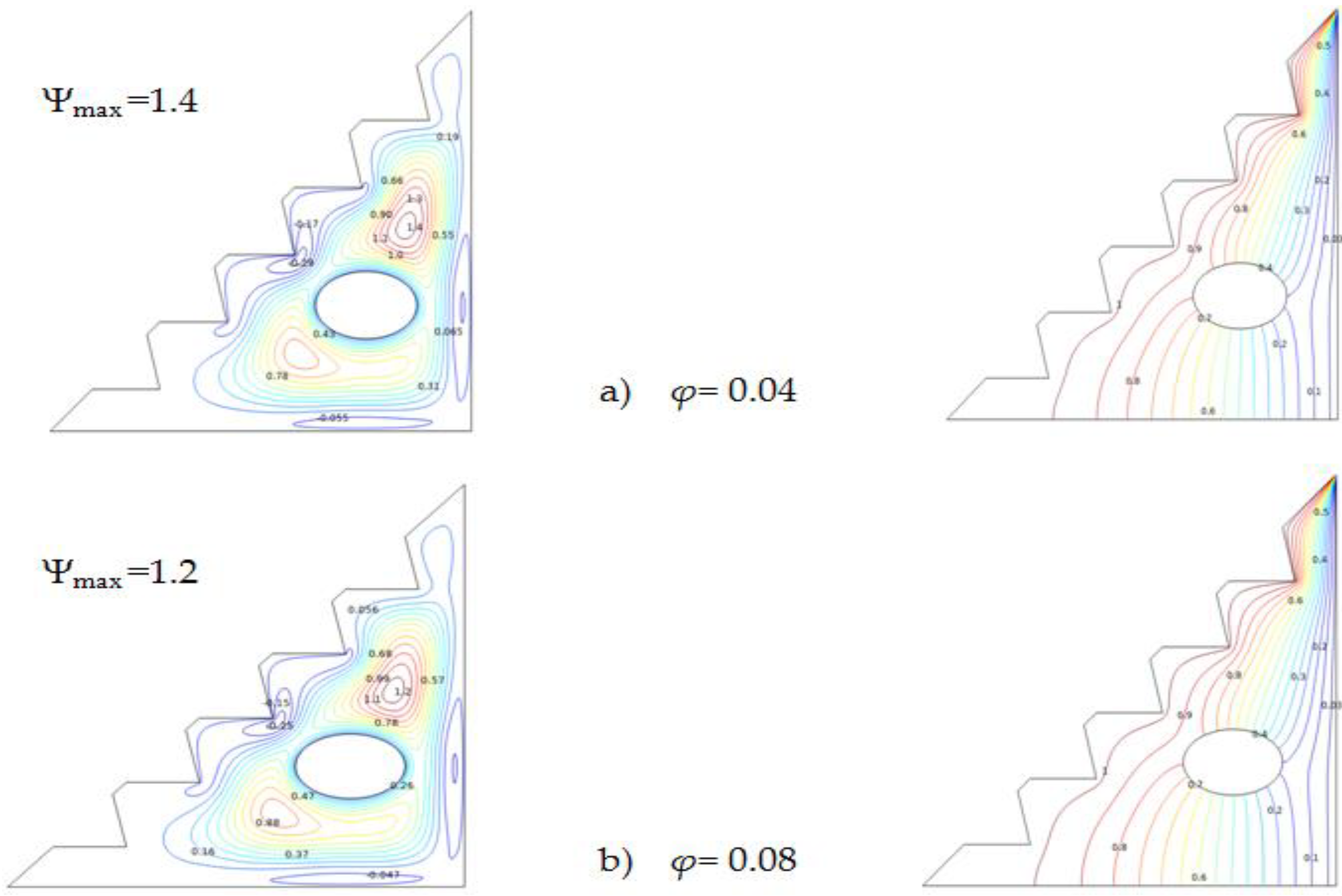

Figure 5 presents the impact of the hybrid nano-fluid concentration on heat-transfer features, isotherms, and streamlines. It is shown that incrementing the volume fraction of the nanoparticles has only a minor effect on streamline and isotherm contours, with a slight modification to the detected stream-function value. The enhanced heat transfer properties provided by the increase in the volume fraction also intensify entropy generation [66,67], which results in decremented stream-function values and a reduced heat-transmission rate.
Although the presence of nano-fluids is intended to boost convection, increasing their concentration also increases entropy production. Therefore, an equilibrium must be considered when augmenting ϕ.

5.2. Impact of Rayleigh Number

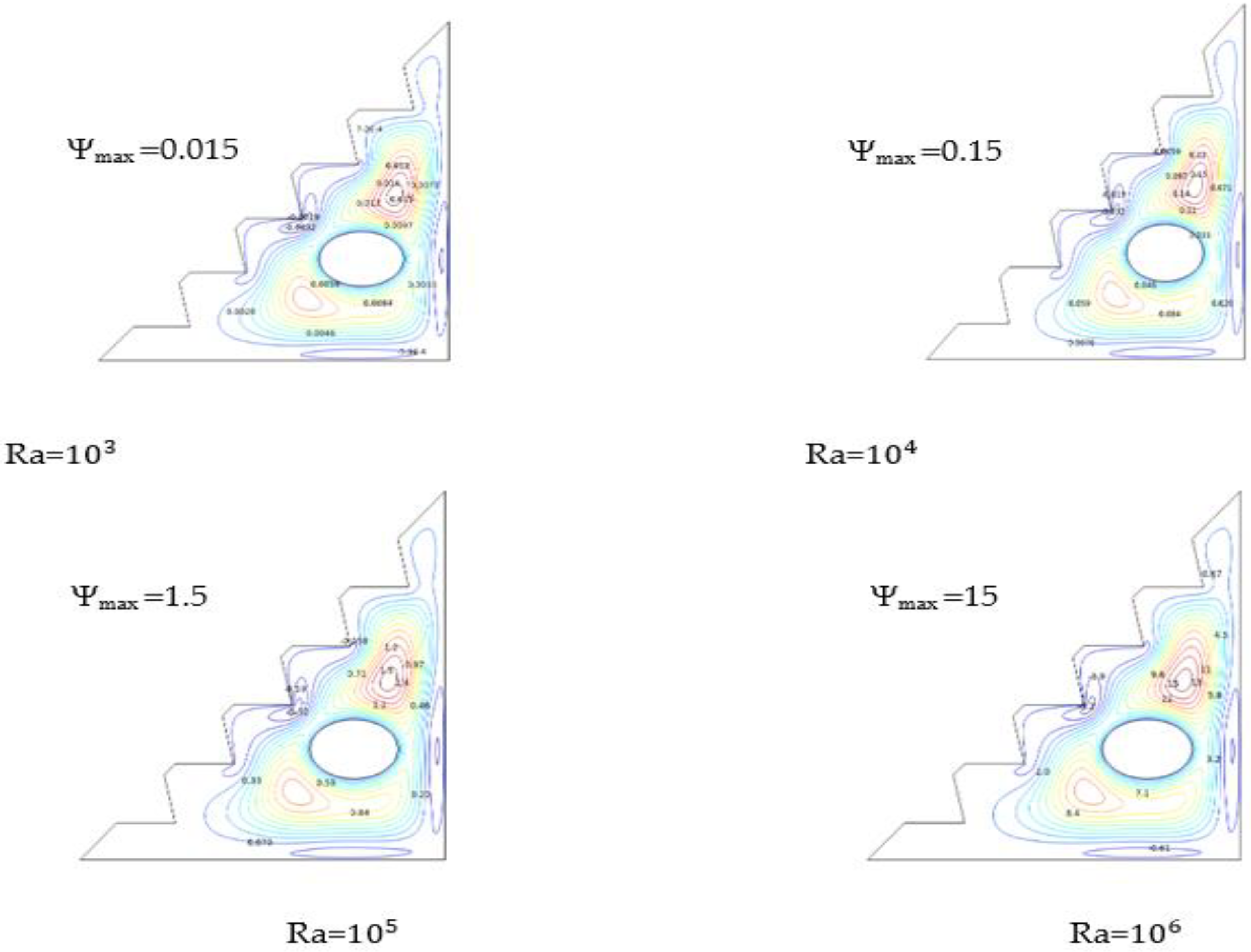

Figure 6 illustrates the influence of Ra number on streamlines for 2% of the hybrid Nano-fluid and no presence of the magnetic field. The results reveal that increasing Ra causes linear growth in the stream functions.
It is shown in Figure 6 that an increasing Ra number causes the vortices in the surroundings of the cylinder to grow larger and stronger, enabling the free convection to be significantly exploited, which strengthens the velocity field and speeds up the flow. As a result, the hybrid nano-fluid is heated up and becomes less dense, allowing buoyancy forces to ascend the hybrid nano-fluid and focus the flow on the upper part of the cylinder. Therefore, heat transfer is a trend of Rayleigh number since its enhancement indicates better heat transmission.
This enhancement is noted to be in a high range for Ra = 10 6 , with a stream-function value a hundred times greater than Ψmax at Ra = 10 4 and ten times greater than Ψmax at Ra = 10 5 . These results show that approaching the critical Rayleigh value (almost 10 9 ) engenders significant values of heat transfer.

5.3. Impact of Hartmann Number

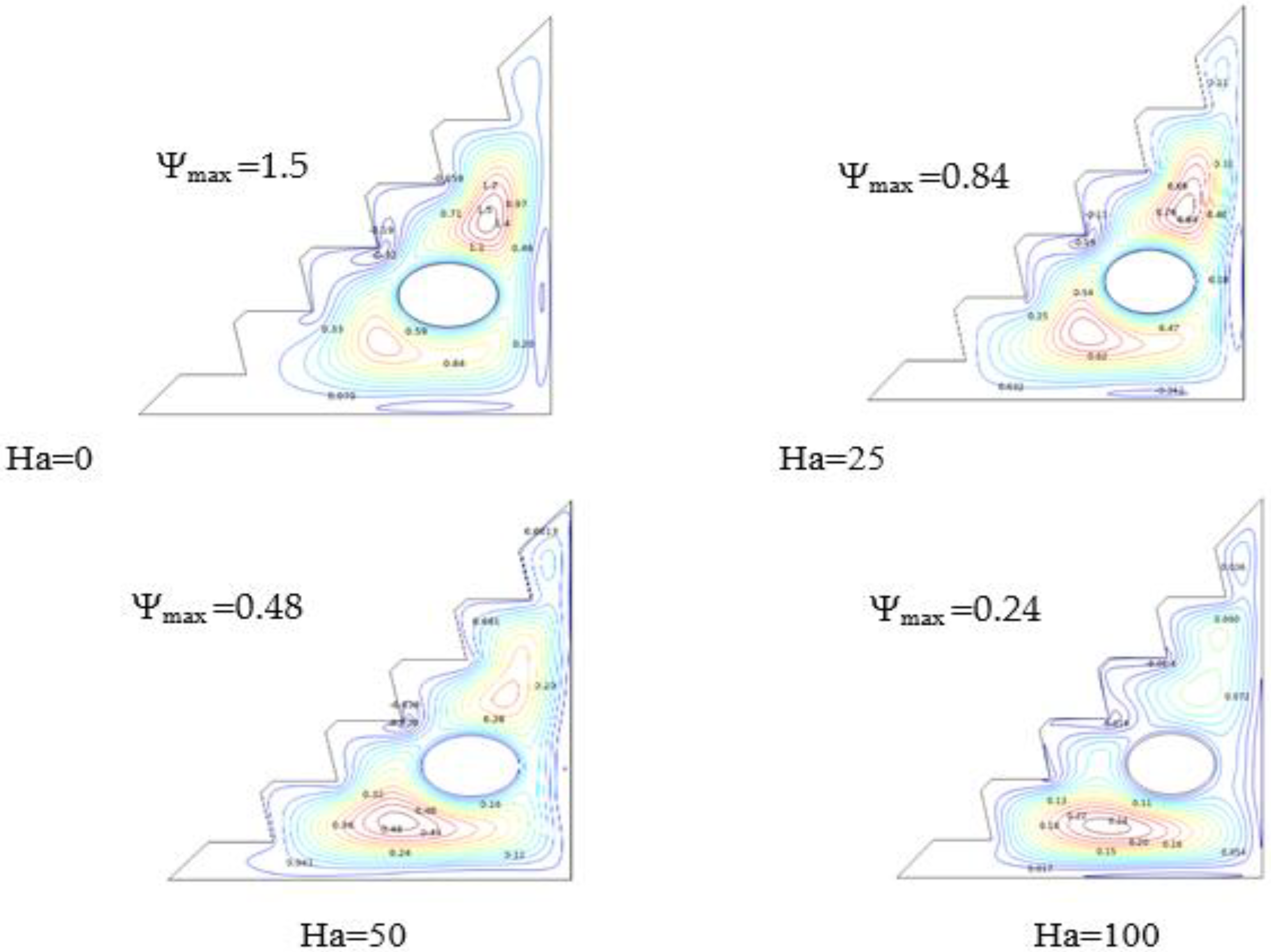

On the other hand, as shown in Figure 7, the presence of a magnetic field diminishes the convective transfer rate, as Lorentz forces inhibit the development of vortices and thus reduce the velocity of the nano-fluid and suppress the flow distribution. In the case where no magnetic induction was introduced, two large vortices were formed around the cylinder, which smoothed the flow of the hybrid nano-fluid. With an increasing Hartmann number, stream-function values were reduced as vortices shrunk in size and nearly disappeared in the upper part of the enclosure, causing the flow to aggregate towards the bottom wall. In conclusion, Hartmann number might be regarded as a limiting parameter for heat flow.

5.4. Impact of the Geometrical Features

5.4.1. Effect of Cylinder Placement

Figure 8 highlights the distinctions between the two elliptical obstacle placements for 2% of the hybrid nano-fluid and no subjection to a magnetic field. It is observed that for Ra = 10 4 , the temperature distribution is directly affected by the location of the cylinder; the temperature variation in the configuration in the case of (b) provides better heat transfer, as it enables the flow to be distributed in the surrounding central section of the enclosure, with a large vortex that provides great stream-function values, which permits buoyancy forces to freely drive the hybrid nano-fluid flow, thereby significantly exploiting natural convection. In contrast to case (a), where the elliptical cylinder is positioned in the center of the enclosure, in this scenario, the flow is divided into two vortices: a large upper big vortex that offers a lower stream-function value than case (b) and a smaller one obstructed in the bottom of the enclosure, therefore obtaining less thermal transmission. According to these findings, it has been demonstrated that placing the obstacle at the bottom of the enclosure improves the heat-transfer rate.

5.4.2. Effect of the Rotation of the Cylinder

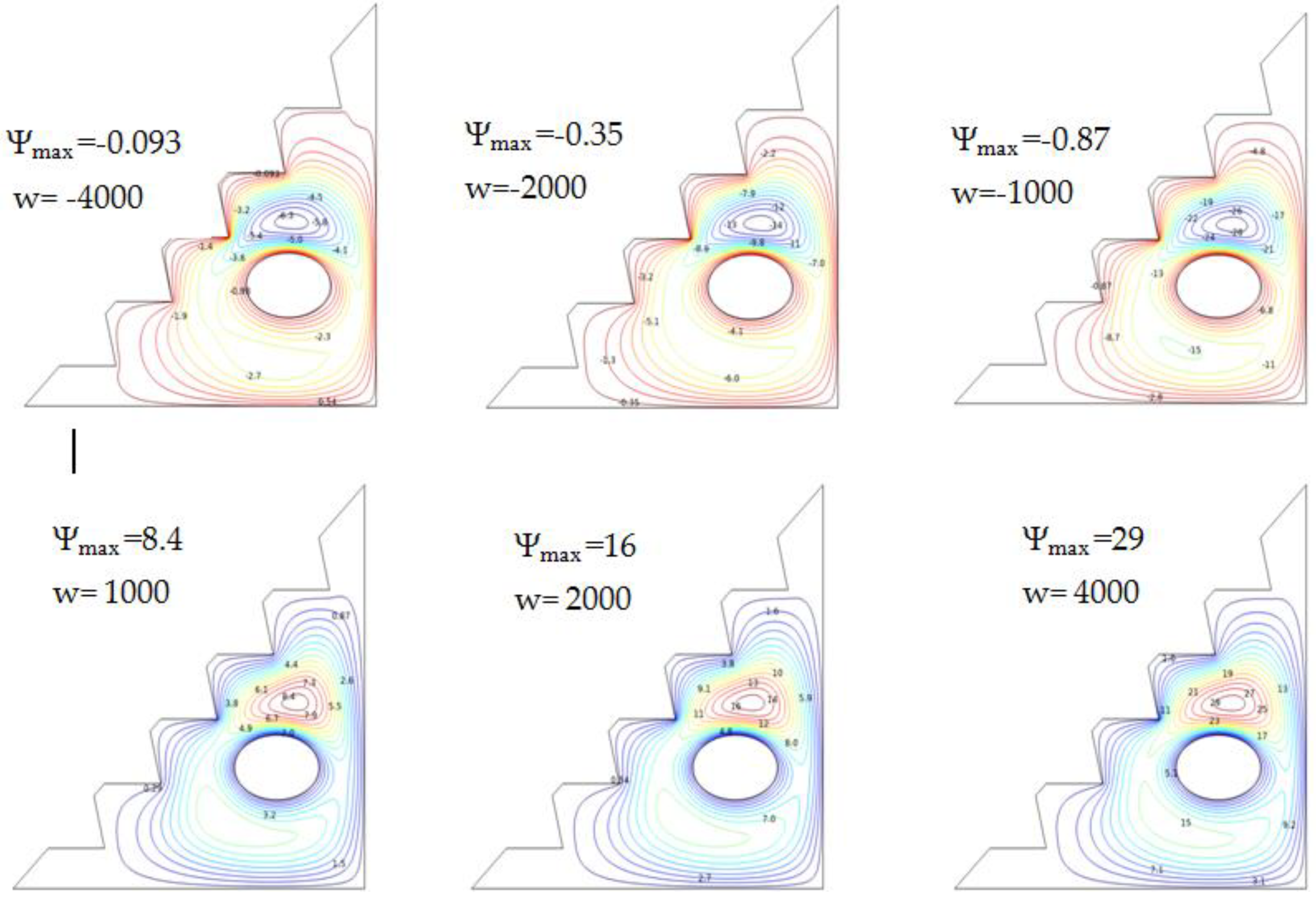

Mixed convection was investigated at Ra= 10 5 , and for 4% of the hybrid nano-fluid, the findings are shown in Figure 9, which displays several streamlines, exhibiting the impact of the ellipse’s rotational velocity. A negative rotation value indicates a clockwise motion.
Leading the cylinder counter-clock wise reveals the benefits of the convective transfer; convection, due to the positive rotation, is concentrated around the cylinder, where this movement produces a increase in stream functions as an outcome of high values of velocity. As a result, large vortices are created; hence, the flow of the hybrid nano-fluid is accelerated. Natural convection is oriented towards the walls of the enclosure, where buoyancy forces are amplified. Therefore, augmenting the cylinder’s angular velocity in a counter-clockwise direction intensifies mixed convection and results in a higher heat-transfer rate. Clockwise movement, on the other hand, diminishes the heat-transfer rate, and fewer stream-function values are reported.
According to these findings, the direction of movement and the value of the angular rotational velocity of the cylinder may be employed as essential parameters for improving heat transmission.

5.4.3. Effect of the Different Obstacles

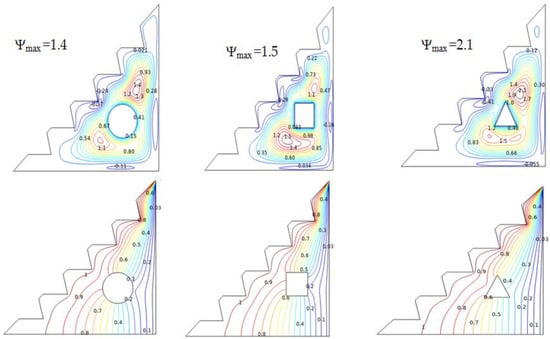

The streamlines and isotherms produced and illustrated in Figure 10 investigate the influence of several obstacles in the considered geometry on the flow distribution. The findings demonstrate that the square and circular obstruction appear to slow the flow by producing small vortices compared to the triangular obstacle, which provides increased heat-transfer since it delivers the greatest values of stream function. The two vortices arestretched around this cylinder, which provides more space for flow distribution, thereby strengthening heat transfer. Temperature variations also significantly contribute to improved buoyant forces, which drive and boost natural convection.

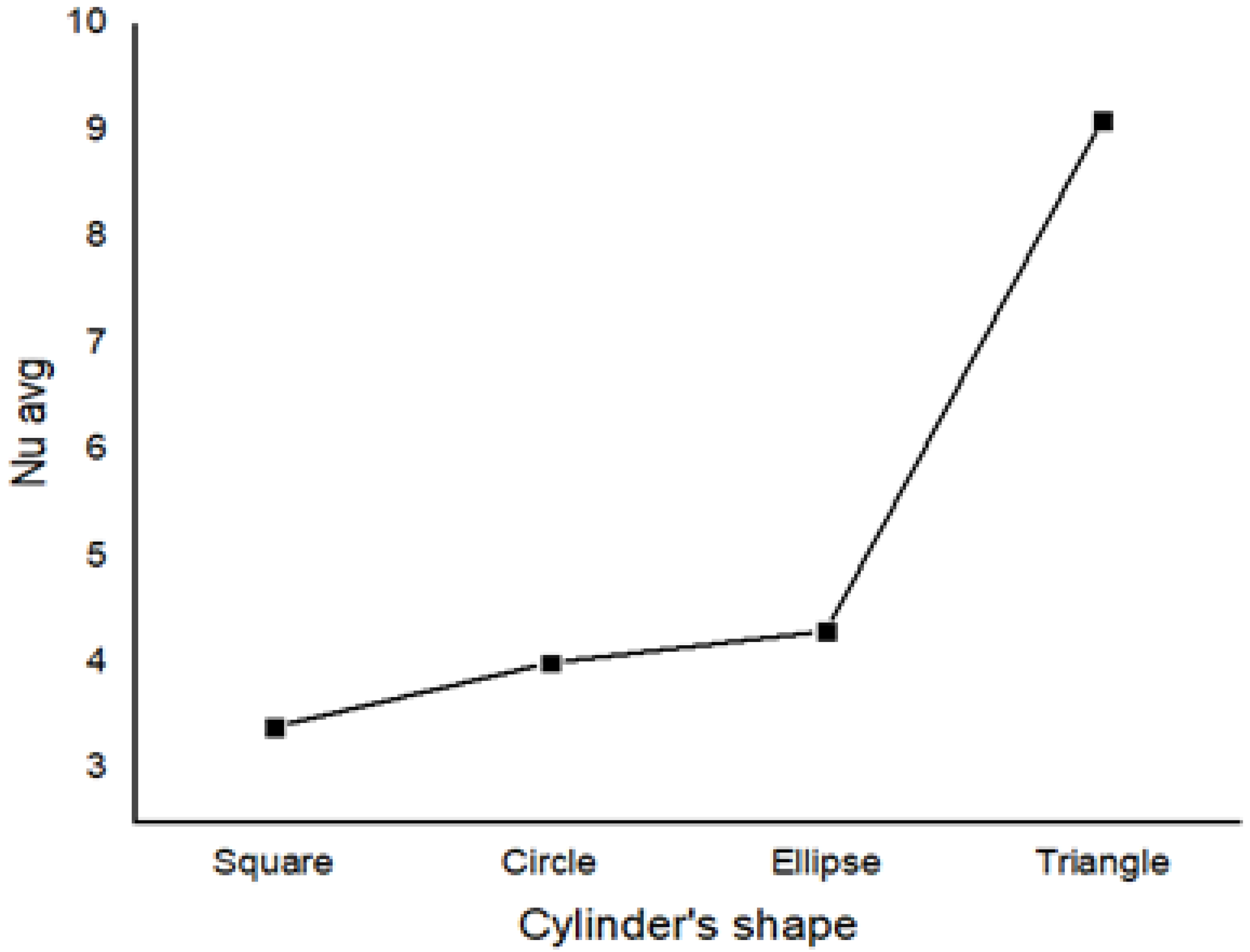

Furthermore, Figure 11 demonstrates that the triangular barrier provides improved heat-transfer efficiency by presenting the highest peak of Nuavg values when compared to the other cylinders. The geometrical features of the triangle and the uniform space provided around it make it easier for the hybrid nano-fluid to disperse, which can help amplify and alter the average Nu number and therefore convective transfer [68].
Additionally, the square, elliptic, and circular cylinders appear to have similar average Nusselt values; these cylinders should be further investigated by altering their radius.

6. Conclusions

In this paper, we performed a numerical study in order to investigate geometrical parameters and discussed which configuration is advantageous in terms of enhancement of convective heat transmission. The findings concerning streamlines, isotherms, and average Nusselt number obtained by altering Ra, ϕ, and Ha in the first examination documenting heat transfer in such a setup, using Cu- TiO2/ EG hybrid nano-fluid under magnetic-field influence reveal that incrementing the concentration of the working fluid from 0.02 to 0.08 improves the Nusselt number by 19%. Enhancing the Rayleigh number also accelerates the flow and strengthens the velocity field.
This enhancement is further boosted by the inclusion of counter-clockwise rotating cylinders in the enclosure, as well as triangular obstacles, which augment the Nu number by almost 120% compared to square, circular, and elliptical obstacles. However, this improvement is decremented when theenclosure is subjected to a magnetic field, as increasing Hartmann number reduced stream-function values and weakened the convective flow. Based on these findings, the following conclusions can be drawn:
  • Rayleigh number and the volume fraction of the nanoparticles can be considered crucial features in modulating convection.
  • The existence of a magnetic field, and therefore increasing Hartmann number, restricts heat transfer.
  • Thermal transmission can be improved by using triangular obstacles.
  • The angular velocity of the cylinder can alter the efficiency of the convective flow.
  • The location of the obstacle is a key parameter to adjust the thermal transfer.

Author Contributions

All authors have the same contribution in this manuscript. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Data Availability Statement

Data will be made available on request.


The authors would like to thank the Deanship of Scientific Research at Umm Al-Qura University for supporting this work; grant code: (22UQU4240002DSR02).

Conflicts of Interest

The authors declare no conflict of interest.


u, vVelocity components (m·s−1)
U, VDimensionless velocity components
x, yCartesian coordinates (m)
X, YDimensionless Cartesian coordinates
pPressure (N·m−2)
PDimensionless pressure
ρDensity (Kg·m−3)
gGravitational acceleration (m·s−2)
TTemperature (K)
TavgAverage temperature (K)
θDimensionless temperature
αThermal diffusivity (m²·s−1)
υKinematic viscosity (m²·s−1)
KPermeability (H·m−1)
σElectric conductivity (Ohm m)−1
B0Magnetic field density (Tesla)
kThermal conductivity ratio (W K−1 m−1)
CpSpecific heat (J K−1 Kg−1)
βThermal expansion (K−1)
µDynamic viscosity (Kg·m−1·s−1)
ϕVolume fraction of the nanoparticles
γInclination angle of the magnetic field
wVelocity of rotation(rad/s)
ΨStream function
LLength of the enclosure (m)
EGEthylene glycol
TiO2Titanium dioxide
hnfHybrid nano-fluid
BfBase fluid
FcForcheimer coefficient


  1. Unger, S.; Beyer, M.; Pietruske, H.; Szalinski, L.; Hampel, U. Natural convection heat transfer performance of additively manufactured tube bundle heat exchangers with novel fin design. Heat Mass Transf. 2021, 57, 1193–1203. [Google Scholar] [CrossRef]
  2. Rahimi, A.; Dehghan Saee, A.; Kasaeipoor, A.; Hasani Malekshah, E. A comprehensive review on natural convection flow and heat transfer. Int. J. Numer. Methods Heat Fluid Flow 2019, 29, 834–877. [Google Scholar] [CrossRef]
  3. Baïri, A.; Zarco-Pernia, E.; De María, J.M. A Review on Natural Convection in Enclosures for Engineering Applications. The Particular Case of the Parallelogrammic Diode Cavity. Appl. Therm. Eng. 2014, 63, 304–322. [Google Scholar] [CrossRef]
  4. Akbari, A.; Mohammadian, E.; Alavi Fazel, S.A.; Shanbedi, M.; Bahreini, M.; Heidari, M.; Babakhani Dehkordi, P.; Che Mohamed Hussein, S.N. Natural Convection from the Outside Surface of an Inclined Cylinder in Pure Liquids at Low Flux. ACS Omega 2019, 4, 7038–7046. [Google Scholar] [CrossRef] [PubMed]
  5. Saeid, N.H. Natural Convection in a Square Cavity with Discrete Heating at the Bottom with Different Fin Shapes. Heat Transf. Eng. 2018, 39, 154–161. [Google Scholar] [CrossRef]
  6. Kent, E.F. Numerical analysis of laminar natural convection in isosceles triangular enclosures for cold base and hot inclined walls. Mech. Res. Commun. 2009, 36, 497–508. [Google Scholar] [CrossRef]
  7. Das, D.; Roy, M.; Basak, T. Studies on natural convection within enclosures of various (non-square) shapes—A review. Int. J. Heat Mass Transf. 2017, 106, 356–406. [Google Scholar] [CrossRef]
  8. Teamah, M.A.; Shehata, A.I. Magnetohydrodynamic double diffusive natural convection in trapezoidal cavities. Alex. Eng. J. 2016, 55, 1037–1046. [Google Scholar] [CrossRef][Green Version]
  9. Mebarek-Oudina, F.; Keerthi Reddy, N.; Sankar, M. Heat Source location Effects on Buoyant Convection of Nanofluids in an Annulus. In Advances in Fluid Dynamics, Lecture Notes in Mechanical Engineering; Springer: Cham, Switzerland, 2021; pp. 923–937. [Google Scholar] [CrossRef]
  10. Chang, B.H.; Mills, A.F. Effect of aspect ratio on forced convection heat transfer from cylinders. Int. J. Heat Mass Transf. 2004, 47, 1289–1296. [Google Scholar] [CrossRef]
  11. Muthtamilselvan, M.; Sureshkumar, S. Impact of aspect ratio on a nanofluid-saturated porous enclosure. Mech. Ind. 2017, 18, 501. [Google Scholar] [CrossRef]
  12. Mohammadifar, H.; Sajjadi, H.; Rahnama, M.; Jafari, S.; Wang, Y. Investigation of Nanofluid Natural Convection Heat Transfer in Open Ended L-shaped Cavities utilizing LBM. J. Appl. Comput. Mech. 2021, 7, 2064–2083. [Google Scholar] [CrossRef]
  13. Holkar, C.R.; Jain, S.S.; Jadhav, A.J.; Pinjari, D.V. Chapter 14—Scale-Up Technologies for Advanced Nanomaterials for Green Energy: Feasibilities and Challenges. In Nanomaterials for Green Energy; Bhanvase, B.A., Pawade, V.B., Dhoble, S.J., Sonawane, S.H., Ashokkumar, M., Eds.; Elsevier: Amsterdam, The Netherlands, 2018; pp. 433–455. [Google Scholar]
  14. Hwang, Y.J.; Ahn, Y.C.; Shin, H.S.; Lee, C.G.; Kim, G.T.; Park, H.S.; Lee, J.K. Investigation on characteristics of thermal conductivity enhancement of nanofluids. Curr. Appl. Phys. 2006, 6, 1068–1071. [Google Scholar] [CrossRef]
  15. Ali, N.; Teixeira, J.A.; Addali, A. A Review on Nanofluids: Fabrication, Stability, and Thermophysical Properties. J. Nanomater. 2018, 2018, 6978130. [Google Scholar] [CrossRef]
  16. Sajid, M.U.; Ali, H.M. Thermal conductivity of hybrid nanofluids: A critical review. Int. J. Heat Mass Transf. 2018, 126, 211–234. [Google Scholar] [CrossRef]
  17. Dhif, K.; Mebarek-Oudina, F.; Chouf, S.; Vaidya, H.; Chamkha, A.J. Thermal Analysis of the Solar Collector Cum Storage System using a Hybrid-Nanofluids. J. Nanofluids 2021, 10, 634–644. [Google Scholar] [CrossRef]
  18. Das, P.K. A review based on the effect and mechanism of thermal conductivity of normal nanofluids and hybrid nanofluids. J. Mol. Liq. 2017, 240, 420–446. [Google Scholar] [CrossRef]
  19. Dadheech, P.K.; Agrawal, P.; Mebarek-Oudina, F.H.; Abu-Hamdeh, N.; Sharma, A. Comparative heat transfer analysis of MoS2/C2H6O2 and MoS2—SiO2/C2H6O2 nanofluids with natural convection and inclined magnetic field. J. Nanofluids 2020, 9, 161–167. [Google Scholar] [CrossRef]
  20. Khan, U.; Zaib, A.; Mebarek-Oudina, F. Mixed Convective Magneto Flow of SiO2–MoS2/C2H6O2 Hybrid Nanoliquids Through a Vertical Stretching/Shrinking Wedge: Stability Analysis. Arab. J. Sci. Eng. 2020, 45, 9061–9073. [Google Scholar] [CrossRef]
  21. Sarkar, J.; Ghosh, P.; Adil, A. A review on hybrid nanofluids: Recent research, development and applications. Renew. Sustain. Energy Rev. 2015, 43, 164–177. [Google Scholar] [CrossRef]
  22. Eshgarf, H.; Kalbasi, R.; Maleki, A.; Shadloo, M.S.; Karimipour, A. A review on the properties, preparation, models and stability of hybrid nanofluids to optimize energy consumption. J. Therm. Anal. Calorim. 2021, 144, 1959–1983. [Google Scholar] [CrossRef]
  23. Kahveci, K. Buoyancy Driven Heat Transfer of Nanofluids in a Tilted Enclosure. J. Heat Transf. 2010, 132, 062501. [Google Scholar] [CrossRef]
  24. Torki, M.; Etesami, N. Experimental investigation of natural convection heat transfer of SiO2/water nanofluid inside inclined enclosure. J. Therm. Anal. Calorim. 2019, 139, 1565–1574. [Google Scholar] [CrossRef]
  25. Mansour, M.A.; Rama Subba Reddy, G.; Sadia, S.; Rashad, A.M.; Salah, T. Unsteady MHD natural convection flow of a nanofluid inside an inclined square cavity containing a heated circular obstacle. Int. J. Nonlinear Sci. Numer. Simul. 2021, 000010151520200138. [Google Scholar] [CrossRef]
  26. Alsabery, A.; Sheremet, M.; Chamkha, A.; Hashim, I. MHD convective heat transfer in a discretely heated square cavity with conductive inner block using two-phase nanofluid model. Sci. Rep. 2018, 8, 7410. [Google Scholar] [CrossRef]
  27. Selcuk, S.; Ziyaddin, R.; Erol, A. Combined effects of magnetic and electrical field on the hydrodynamic and thermophysical parameters of magnetoviscous fluid flow. Int. J. Heat Mass Transf. 2015, 86, 426–432. [Google Scholar]
  28. Zhang, J.; Anjal, H.A.; Msmali, A.; Wange, F.; Nofal, T.A.; Selim, M.M. Heat transfer of nanomaterial with involve of MHD through an enclosure. Case Stud. Therm. Eng. 2022, 30, 101747. [Google Scholar] [CrossRef]
  29. Mahmoudi, A.; Mejri, I.; Abbassi, M.A.; Omri, A. Lattice Boltzmann simulation of MHD natural convection in a nanofluid-filled cavity with linear temperature distribution. Powder Technol. 2014, 256, 257–271. [Google Scholar] [CrossRef]
  30. Shahsavar, A.; Noori, S.; Toghraie, D.; Barnoon, P. Free convection of non-Newtonian nanofluid flow inside an eccentric annulus from the point of view of first-law and second-law of thermodynamics. J. Appl. Math. Mech. 2020, 101, e202000266. [Google Scholar] [CrossRef]
  31. Barnoon, P. Numerical assessment of heat transfer and mixing quality of a hybrid nanofluid in a microchannel equipped with a dual mixer. Int. J. 2021, 12, 100111. [Google Scholar] [CrossRef]
  32. Barnoon, P.; Ashkiyan, M.; Toghraie, D. Embedding multiple conical vanes inside a circular porous channel filled by two-phase nanofluid to improve thermal performance considering entropy generation. Int. Commun. Heat Mass Transf. 2021, 124, 105209. [Google Scholar] [CrossRef]
  33. Asogwa, K.; Mebarek-Oudina, F.; Animasaun, I. Comparative investigation of Water-based Al2O3 Nanoparticles through Water-based CuO Nanoparticles over an Exponentially Accelerated Radiative Riga Plate Surface via Heat Transport. Arab. J. Sci. Eng. 2022. [Google Scholar] [CrossRef]
  34. Barnoon, P.; Toghraie, D.; Karimipour, A. Application of rotating circular obstacles in improving ferrofluid heat transfer in an enclosure saturated with porous medium subjected to a magnetic field. J. Therm. Anal. Calorim. 2021, 145, 3301–3323. [Google Scholar] [CrossRef]
  35. Khan, M.R.; Mao, S.; Deebani, W.; Elsiddieg, A.M.A. Numerical analysis of heat transfer and friction drag relating to the effect of Joule heating, viscous dissipation and heat generation/absorption in aligned MHD slip flow of a nanofluid. Int. Commun. Heat Mass Transf. 2022, 131, 105843. [Google Scholar] [CrossRef]
  36. Warke, A.S.; Ramesh, K.; Mebarek-Oudina, F.; Abidi, A. Numerical Investigation of Nonlinear Radiation with Magnetomicropolar Stagnation Point Flow past a Heated Stretching Sheet. J. Therm. Anal. Calorim. 2021, 135, 533–549. [Google Scholar] [CrossRef]
  37. Ravnik, J.; Škerget, L.; Yeigh, B. Nanofluid natural convection around a cylinder by BEM. WIT Trans. Model. Simul. 2015, 61, 261–271. [Google Scholar]
  38. Ishak, M.S.; Alsabery, A.I.; Hashim, I.; Chamkha, A.J. Entropy production and mixed convection within trapezoidal cavity having nanofluids and localised solid cylinder. Sci. Rep. 2021, 11, 14700. [Google Scholar] [CrossRef] [PubMed]
  39. Mebarek-Oudina, F.; Fares, R.; Aissa, A.; Lewis, R.W.; Abu-Hamdeh, N. Entropy and convection effect on magnetized hybrid nano-liquid flow inside a trapezoidal cavity with zigzagged wall. Int. Commun. Heat Mass Transf. 2021, 125, 105279. [Google Scholar] [CrossRef]
  40. Mahmoudi, A.; Pop, I.; Shahi, M. Effect of magnetic field on natural convection in a triangular enclosure filled with nanofluid. Int. J. Therm. Sci. 2012, 59, 126–140. [Google Scholar] [CrossRef]
  41. Majdi, H.S.; Abed, A.M.; Habeeb, L.J. Mixed Convection Heat Transfer of Cuo-H2O Nanofluid in A Triangular Lid-Driven Cavity With Circular Inner Body. J. Mech. Eng. Res. Dev. 2021, 44, 164–175. [Google Scholar]
  42. Wang, Y.-F.; Xu, X.; Tian, T.; Fan, L.W.; Wang, W.L.; Yu, Z.T. Laminar mixed convection heat transfer of SiC-EG nanofluids in a triangular enclosure with a rotating inner cylinder: Simulations based on the measured thermal conductivity and viscosity. J. Zhejiang Univ. Sci. A 2015, 16, 478–490. [Google Scholar] [CrossRef][Green Version]
  43. Triveni, M.; Panua, R. Numerical analysis of natural convection in a triangular cavity with different configurations of hot wall. Int. J. Heat Technol. 2017, 35, 19–24. [Google Scholar] [CrossRef]
  44. Hussain, S.; Rahomey, M. Comparison of Natural Convection around a Circular Cylinder with Different Geometries of Cylinders inside a Square Enclosure Filled with Ag-Nanofluid Superposed Porous-Nanofluid Layers. J. Heat Transf. 2018, 141, 22501. [Google Scholar] [CrossRef]
  45. Ali, F.H.; Hamzah, H.K.; Abdulkadhim, A. Numerical study of mixed convection nanofluid in an annulus enclosure between outer rotating cylinder and inner corrugation cylinder. Heat Transf. Asian Res. 2018, 48, 343–360. [Google Scholar] [CrossRef]
  46. Pushpa, B.V.; Sankar, M.; Mebarek-Oudina, F. Buoyant convective flow and heat dissipation of Cu-H2O nanoliquids in an annulus through a thin baffle. J. Nanofluids 2021, 10, 292–304. [Google Scholar] [CrossRef]
  47. Marzougui, S.; Mebarek-Oudina, F.; Magherbi, M.; Mchirgui, A. Entropy Generation and Heat transport of Cu-water Nanoliquid in Porous lid-driven Cavity through Magnetic Field. Int. J. Numer. Methods Heat Fluid Flow 2021. [Google Scholar] [CrossRef]
  48. Swain, K.; Mahanthesh, B.; Mebarek-Oudina, F. Heat transport and stagnation-point flow of magnetized nanoliquid with variable thermal conductivity with Brownian moment and thermophoresis aspects. Heat Transf. 2021, 50, 754–764. [Google Scholar] [CrossRef]
  49. Mebarek-Oudina, F.; Aissa, A.; Mahanthesh, B.; Oztop, H.F. Heat Transport of Magnetized Newtonian Nanoliquids in an Annular Space between Porous Vertical Cylinders with Discrete Heat Source. Int. Comm. Heat Mass Transf. 2020, 117, 104737. [Google Scholar] [CrossRef]
  50. Mebarek-Oudina, F. Convective Heat Transfer of Titania Nanofluids of different base fluids in Cylindrical Annulus with discrete Heat Source. Heat Transf. Asian Res. 2019, 48, 135–147. [Google Scholar] [CrossRef][Green Version]
  51. Swain, K.; Mebarek-Oudina, F.; Abo-Dahab, S.M. Influence of MWCNT/Fe3O4 hybrid-nanoparticles on an exponentially porous shrinking sheet with chemical reaction and slip boundary conditions. J. Therm. Anal. Calorim. 2022, 147, 1561–1570. [Google Scholar] [CrossRef]
  52. Abood, F.A.; Ismael, A.M. Steady Laminar Natural Convection Heat Transfer inside Air- Filled Horizontal Triangular Enclosure Containing Three Cylindrical Rods. BasrahJ. Eng. 2011, 65–79. [Google Scholar]
  53. Das, D.; Basak, T. Analysis of entropy generation during natural convection in discretely heated porous square and triangular enclosures. Numer. Heat Transf. Part A Appl. 2017, 71, 979–1003. [Google Scholar] [CrossRef]
  54. Djebali, R.; Mebarek-Oudina, F.; Choudhari, R. Similarity solution analysis of dynamic and thermal boundary layers: Further formulation along a vertical flat plate. Physica Scripta 2021, 96, 85206. [Google Scholar] [CrossRef]
  55. Lei, Y.; Chen, Z.; Shi, J. Analysis of Condensation Heat Transfer Performance in Curved Triangle Microchannels Based on the Volume of Fluid Method. Microgravity Sci. Technol. 2017, 29, 433–443. [Google Scholar] [CrossRef]
  56. Qi, C.; Liu, M.; Tang, J. Influence of triangle tube structure with twisted tape on the thermo-hydraulic performance of nanofluids in heat-exchange system based on thermal and exergy efficiency. Energy Convers. Manag. 2019, 192, 243–268. [Google Scholar] [CrossRef]
  57. Gothäll, H. How to Inspect Your Mesh in COMSOL Multiphysics ®. Available online: (accessed on 10 January 2021).
  58. Abed, M.; Aissa, A.; Mebarek-Oudina, F.; Jamshed, W.; Ahmed, W.; Ali, H.M.; Rashad, A.M. Galerkin Finite Element Analysis of Thermal Aspects of Fe3O4-MWCNT/Water Hybrid Nanofluid Filled in Wavy Enclosure with Uniform Magnetic Field Effect. Int. Commun. Heat Mass Transf. 2021, 126, 105461. [Google Scholar] [CrossRef]
  59. Kadhim, H.T.; Jabbar, F.A.; Rona, A. Cu-Al2O3 hybrid nanofluid natural convection in an inclined enclosure with wavy walls partially layered by porous medium. Int. J. Mech. Sci. 2020, 186, 105889. [Google Scholar] [CrossRef]
  60. Nield, D.A.; Bejan, A. Convection in Porous Media; Springer: New York, NY, USA, 2017. [Google Scholar]
  61. Yuanqing, W.; Jisheng, K.; Shuyu, S.; Yu-Shu, W. Thermodynamically consistent Darcy–Brinkman–Forchheimer framework in matrix acidization. Oil Gas Sci. Technol.—Rev. Energ. Nouv. 2021, 76, 8. [Google Scholar]
  62. Varol, Y.; Avci, E.; Koca, A.; Oztop, H.F. Prediction of flow fields and temperature distributions due to natural convection in a triangular enclosure using Adaptive-Network-Based Fuzzy Inference System (ANFIS) and Artificial Neural Network (ANN). Int. Commun. Heat Mass Transf. 2007, 34, 887–896. [Google Scholar] [CrossRef]
  63. Ikram, M.D.; Asjad, M.I.; Akgül, A.; Baleanu, D. Effects of hybrid nanofluid on novel fractional model of heat transfer flow between two parallel plates. Alex. Eng. J. 2021, 60, 3593–3604. [Google Scholar] [CrossRef]
  64. Garud, K.S.; Lee, M.-Y. Numerical Investigations on Heat Transfer Characteristics of Single Particle and Hybrid Nanofluids in Uniformly Heated Tube. Symmetry 2021, 13, 876. [Google Scholar] [CrossRef]
  65. Okello, J.A.; Mutuku, W.; Oyem, A. Analysis of Ethylene Glycol (EG)-based ((Cu-Al2O3), (Cu-TiO2), (TiO2-Al2O3)) Hybrid Nanofluids for Optimal Car Radiator Coolant. J. Eng. Res. Rep. 2020, 17, 34–50. [Google Scholar] [CrossRef]
  66. Ferhi, M.; Djebali, R.; Mebarek-Oudina, F.; H. Abu-Hamdeh, N.; Abboudi, S. MHD free convection through entropy generation analysis of eco-friendly nanoliquid in a divided L-shaped heat exchanger with LBM simulation. J. Nanofluids 2022, 11, 99–112. [Google Scholar]
  67. Monaledi, R.L.; Makinde, O.D. Entropy generation analysis in a microchannel Poiseuille flows of nanofluid with nanoparticles injection and variable properties. J. Therm. Anal. Calorim. 2021, 143, 1855–1865. [Google Scholar] [CrossRef]
  68. Zheng, J.; Zhang, L.; Yu, H.; Wang, Y.; Zhao, T. Study on natural convection heat transfer in a closed cavity with hot and cold tubes. Sci. Prog. 2021, 104, 965. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Configuration of the physical model.
Figure 1. Configuration of the physical model.
Micromachines 13 00224 g001
Figure 2. Mesh of the physical model.
Figure 2. Mesh of the physical model.
Micromachines 13 00224 g002
Figure 3. Isotherm and streamline comparison: previous work (left) and current work (right) for Ha = 0 (a), Ra = 104 (b), and Ra = 106.
Figure 3. Isotherm and streamline comparison: previous work (left) and current work (right) for Ha = 0 (a), Ra = 104 (b), and Ra = 106.
Micromachines 13 00224 g003
Figure 4. Average Nu for Ra = 105, Ha = 0, and w = 0.
Figure 4. Average Nu for Ra = 105, Ha = 0, and w = 0.
Micromachines 13 00224 g004
Figure 5. Streamlines and isotherms for Ra = 105, Ha = 0, and w = 0.
Figure 5. Streamlines and isotherms for Ra = 105, Ha = 0, and w = 0.
Micromachines 13 00224 g005
Figure 6. Streamlines for Ha = 0, w = 0, and ϕ = 0.02.
Figure 6. Streamlines for Ha = 0, w = 0, and ϕ = 0.02.
Micromachines 13 00224 g006
Figure 7. Streamlines for Ra = 105, w = 0, and ϕ = 0.02.
Figure 7. Streamlines for Ra = 105, w = 0, and ϕ = 0.02.
Micromachines 13 00224 g007

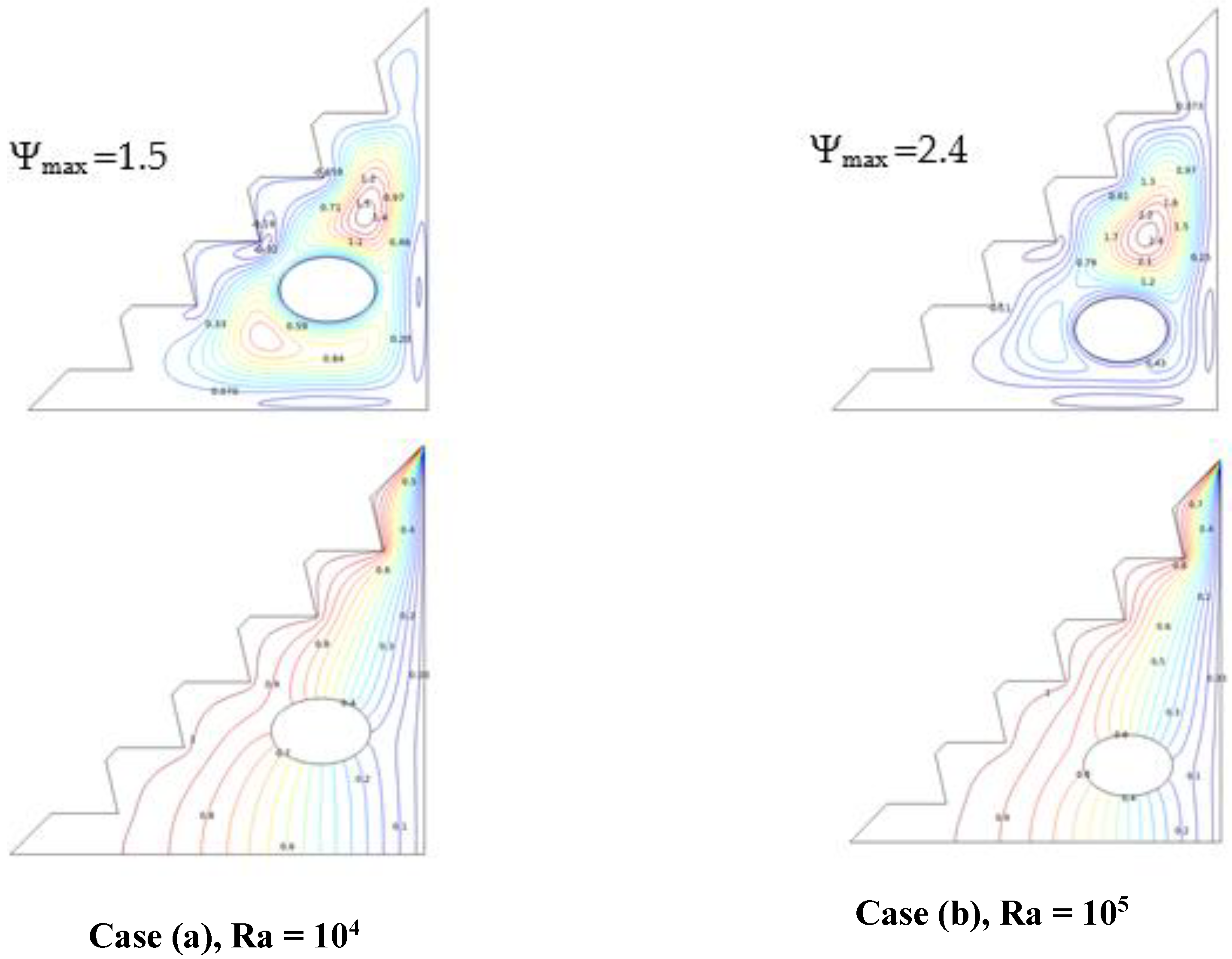

Figure 8. Streamlines and isotherms for Ha = 0, w = 0, and ϕ = 0.02.
Figure 8. Streamlines and isotherms for Ha = 0, w = 0, and ϕ = 0.02.
Micromachines 13 00224 g008
Figure 9. Streamlines via w and Ra = 10 5 , ϕ = 0.04, and Ha = 0.
Figure 9. Streamlines via w and Ra = 10 5 , ϕ = 0.04, and Ha = 0.
Micromachines 13 00224 g009
Figure 10. Streamlines and isotherms for w = 0, Ha = 0, Ra = 105, and ϕ = 0.02.
Figure 10. Streamlines and isotherms for w = 0, Ha = 0, Ra = 105, and ϕ = 0.02.
Micromachines 13 00224 g010
Figure 11. Average Nusselt values for w = 0, Ha = 0, Ra = 105, and ϕ = 0.02.
Figure 11. Average Nusselt values for w = 0, Ha = 0, Ra = 105, and ϕ = 0.02.
Micromachines 13 00224 g011
Table 1. Magnetic flux-density range.
Table 1. Magnetic flux-density range.
B0 (Tesla)135127025404
Table 2. Mesh-quality parameters.
Table 2. Mesh-quality parameters.
MeshExtra CoarseCoarseFineExtra Fine
Maximum element size (m)0.130.0670.0350.013
Minimum element size (m)0.0050.0030.0010.00015
Curvature factor0.
Growth rate1.
Number of elements8401984394422184
Average quality0.71100.77360.78030.8003
Table 3. Grid-independence test.
Table 3. Grid-independence test.
Mesh QualityNuNu Deviation %
0.7110 3.912.05%
0.7736 4.377.09%
0.7803 4.680.64%
0.8003 4.71/
Table 4. Thermo-physical properties of Cu- TiO2/ EG hybrid nano-fluid.
Table 4. Thermo-physical properties of Cu- TiO2/ EG hybrid nano-fluid.
CP (J. K−1·Kg−1)385686.22415
k(W. K−1·m−1)4018.950.252
β (K−1)1.67 × 10 5 0.9 × 10 5 57 × 10 5
σ (Ohm·m)−15.96 × 10 7 2.38 × 10 6 5.5 × 10 6
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Chabani, I.; Mebarek-Oudina, F.; Ismail, A.A.I. MHD Flow of a Hybrid Nano-Fluid in a Triangular Enclosure with Zigzags and an Elliptic Obstacle. Micromachines 2022, 13, 224.

AMA Style

Chabani I, Mebarek-Oudina F, Ismail AAI. MHD Flow of a Hybrid Nano-Fluid in a Triangular Enclosure with Zigzags and an Elliptic Obstacle. Micromachines. 2022; 13(2):224.

Chicago/Turabian Style

Chabani, Ines, Fateh Mebarek-Oudina, and Abdel Aziz I. Ismail. 2022. "MHD Flow of a Hybrid Nano-Fluid in a Triangular Enclosure with Zigzags and an Elliptic Obstacle" Micromachines 13, no. 2: 224.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
