Article

Genosensing Applications of Glassy Carbon Electrodes Modified with Multi-Walled Carbon Nanotubes Non-Covalently Functionalized with Polyarginine

by
Pablo Gallay
1,
Michael López Mujica
1,
Soledad Bollo
2,3 and
Gustavo Rivas
1,*
1
INFIQC, Departamento de FIsicoquímica, Facultad de Ciencias Químicas, Universidad Nacional de Córdoba, Ciudad Universitaria, Córdoba 5000, Argentina
2
Centro de Investigación de Procesos Redox, CIPRex, Facultad de Ciencias Químicas y Farmacéuticas, Universidad de Chile, Sergio Livingstone 1007, Independencia, Santiago 8380000, Chile
3
Departamento de Química Farmacológica y Toxicológica, Facultad de Ciencias Químicas y Farmacéuticas, Universidad de Chile, Sergio Livingstone 1007, Independencia, Santiago 8380000, Chile
*
Author to whom correspondence should be addressed.
Micromachines 2022, 13(11), 1978; https://doi.org/10.3390/mi13111978
Submission received: 27 October 2022 / Revised: 2 November 2022 / Accepted: 11 November 2022 / Published: 15 November 2022
(This article belongs to the Special Issue Carbon-Based Electrodes for Electrochemical Analysis and Detection)
Browse Figures
Versions Notes

Abstract

:
We report the advantages of glassy carbon electrodes (GCE) modified with multi-walled carbon nanotubes (MWCNTs) non-covalently functionalized with polyarginine (PolyArg) for the adsorption and electrooxidation of different DNAs and the analytical applications of the resulting platform. The presence of the carbon nanostructures, and mainly the charge of the PolyArg that supports them, facilitates the adsorption of calf-thymus and salmon sperm double-stranded DNAs and produces an important decrease in the overvoltages for the oxidation of guanine and adenine residues and a significant enhancement in the associated currents. As a proof-of-concept of possible GCE/MWCNTs-PolyArg biosensing applications, we develop an impedimetric genosensor for the quantification of microRNA-21 at femtomolar levels, using GCE/MWCNTs-PolyArg as a platform for immobilizing the DNA probe, with a detection limit of 3fM, a sensitivity of 1.544 × 103 Ω M−1, and a successful application in enriched biological fluids.

1. Introduction

Electrochemical (bio)sensors have emerged as important analytical tools for the quantification of analytes of clinical, pharmaceutical, environmental, and foods safety relevance [1,2,3], and currently there is an increasing interest in the development of new biosensing platforms and new transduction schemes. The incorporation of carbon nanomaterials has largely improved the analytical performance of the resulting bioanalytical platforms because of their unique physical and chemical properties [4,5,6,7,8]. Among these carbon nanostructures, carbon nanotubes (CNTs) have been widely used for the construction of electrochemical sensors [9,10,11].
To make possible use of CNTs for the development of electrochemical sensors, different functionalization routes have been proposed [12,13,14]. We have reported the successful functionalization of CNTs with polymers including polyethylenimine [15], polylysine [16], and polyhistidine [17]; proteins such as glucose oxidase [18], cytochrome C [19], avidin [20,21,22], and concanavalin [23]; and nucleic acids, namely, calf-thymus double-stranded DNA [24]. We have also reported the successful non-covalent functionalization of MWCNTs with polyarginine (PolyArg) [25] and the sensing applications for the quantification of uric acid [25] and ethanol [26]. Jalit et al. [27] demonstrated the advantages of using GCE modified with MWCNTs dispersed in polylysine for the electrooxidation of oligo and polynucleotides, and reported a model hybridization sensor using oligo(dC)11 as probe and oligo(dG)11 as target.
The goal of this work is to evaluate the adsorption and electrooxidation of different DNAs at glassy carbon electrodes (GCE) modified with MWCNTs non-covalently functionalized with PolyArg and discuss, as a proof-of-concept, the analytical usefulness of the resulting GCE/MWCNTs-PolyArg to build an impedimetric genosensor for miRNA-21 (miRNA-21) through the use of MWCNTS-PolyArg as a platform for anchoring the DNA probe. DNA-based nanostructured sensors combine the advantages of highly advanced nanomaterials and DNA receptors in one architecture. In the following sections, we discuss the electrochemical response of salmon sperm and calf-thymus double-stranded DNAs at GCE/MWCNTs-PolyArg as well as the optimization of the miRNA-21 biorecognition layer and the analytical performance of the resulting genosensor.

2. Materials and Methods

2.1. Reagents and Materials

Double-stranded calf-thymus DNA (dsDNACT, catalog number D-4522), salmon sperm double-stranded DNA (dsDNAS), poly-L-arginine (PolyArg, mol wt > 70,000), hydroquinone (HQ), and benzoquinone (Bz) were purchased from Sigma-Aldrich (USA). Multi-walled carbon nanotubes powder (MWCNTs) (30 ± 15 nm diameter, 1–5 microns length) was obtained from NanoLab (USA). Ethanol was purchased from J. T. Baker. Other chemicals were reagent grade and used without further purification. The oligonucleotides were purchased from Life Technology (USA) and the sequences are the following:
  • oligo21: 5′-TCA-ACA-TCA-GTCTGA-TAA-GCT-A-3′
  • microRNA-21: 5′-UAG-CUU-AUC-AGA-CUG-AUGUUG-A-3′
  • fully non-complementary sequence: 5′-GGG-GGG-GGGGGG-GGG-3′
  • single-base mismatch: 5′-UAG-CUU-AUC-ACA-CUGAUG-UUG-A-3′
Ultrapure water (ρ = 18.2 MΩ cm) from a Millipore Milli-Q system was used for pre paring all the solutions.

2.2. Apparatus

Electrochemical measurements were performed with an Epsilon (BAS) potentiostat. Glassy carbon electrodes (GCE, 3 mm diameter, CHI), either bare or modified with MWCNTs functionalized with PolyArg, were used as working electrodes. As counter and reference electrodes, we used a platinum wire and Ag/AgCl, 3M NaCl, respectively. All potentials refer to the latter.
The sonication of the MWCNTs-PolyArg mixture was conducted with an ultrasonic processor (VCX 130W, Sonics and Materials, Inc., Newtown, CT, USA), of 20 kHz frequency with a titanium alloy microtip. An AllegraTM 21 ultracentrifuge (Beckman Coulter) with a F2402H rotor was used to centrifuge the samples after sonication.
Electrochemical impedance spectroscopy (EIS) experiments were performed in a 1.0 × 10−3 M HQ/Bz solution (prepared in 0.050 M phosphate buffer solution pH 7.40) by applying a perturbation of sinusoidal potential of 10 mV in the frequency range of 105–10−1 Hz and a working potential of 0.200V. The spectra were analyzed and fitted using the Z-view program.
The spectrophotometric experiments were performed with a Shimadzu UV 1700 Pharma spectrometer.

2.3. Preparation of MWCNTs Functionalized with PolyArg (MWCNTs-PolyArg)

The dispersion of MWCNTs with PolyArg was prepared by sonicating 0.75 mg of MWCNTs with 1.0 mL of PolyArg solution (1.0 mg mL−1, prepared in water) with a sonicator probe (amplitude 50%) for 5.0 min. The amplitude was 50% and the mixture was kept in an ice bath during the procedure. After this treatment, the samples were centrifuged at 1500 rpm for 15 min and the supernatant collected for further work (See scheme shown in Figure 1).

2.4. Preparation of GCE Modified with MWCNT-PolyArg (GCE/MWCNT-PolyArg)

GCEs were first polished with alumina slurries of 1.0, 0.3, and 0.05 μm for 1.0 min each, rinsed carefully with water, sonicated for 10 s in water/ethanol 50:50 v/v, and dried under a nitrogen stream. GCE/MWCNT-PolyArg was obtained by dropping 10 µL of MWCNT-PolyArg onto the glassy carbon surface and dried at room temperature.

2.5. Preparation of GCE/MWCNTs-PolyArg Modified with DNA

The DNAs were adsorbed by dropping at GCE or GCE/MWCNT-PolyArg 10 µL of the corresponding solution prepared in acetate buffer solution (0.200 M, pH 5.00). Once the solvent was evaporated, the electrodes were washed by immersion in the acetate buffer solution for 5 s and then transferred to the stripping solution. The determination was performed by Adsorptive Stripping Linear Scan Voltammetry (AdSLSV) in a 0.200 M acetate buffer solution pH 5.00 at 0.050 V s−1. The analytical signals were obtained after subtracting the background currents.

2.6. microRNA-21 Genosensor

The DNA probe (oligo21, DNAp) was immobilized at GCE/MWCNT-PolyArg according to the protocol previously indicated in Section 2.5. The electrode was washed by immersion in a 0.050 M phosphate buffer solution + 0.200 M NaCl for 10 s and was then allowed to hybridize by dropping an aliquot of 20 µL microRNA-21 solution for 30 min. After washing with the phosphate buffer solution, the transduction was performed by EIS in a 1.0 × 10−3 M HQ/Bz solution (See scheme displayed in Figure 2).

3. Results

3.1. Adsorption and Electrooxidation of Different DNAs at GCE/MWCNT-PolyArg

Figure 3A displays linear scan voltammograms (LSV) obtained in a 0.200 M acetate buffer solution pH 5.00 before (a,c) and after (b,d) the deposition of 100 ppm dsDNAs at bare GCE (a,b) and GCE/MWCNTs-PolyArg (c,d). At GCE, there are two oxidation peaks, at 0.86 V and 1.31 V, due to the oxidation of guanine and adenine residues [28,29]. The LSV obtained at GCE/MWCNTs-PolyArg shows two oxidation peaks at potentials 93 and 223 mV more negative with currents 32.5 and 26.9 times higher than those obtained at bare GCE, for guanine and adenine, respectively. This decrease in the overvoltages and the enhancement in the oxidation currents are clear evidence of the facilitated interaction of the nucleic acid with the walls of the MWCNTs and the positively charged polycation that wraps them. It is important to mention that the oxidation of 5.0 × 10−4 M guanine and adenine at GCE/MWCNTs-PolyArg occurs at 0.64 V and 1.07 V, respectively (not shown). Figure 3B depicts the voltammetric response obtained in a 0.200 M acetate buffer solution pH 5.00 before (a,c) and after (b,d) the deposition of 100ppm dsDNACT at bare GCE (a,b) and at GCE/MWCNTs-PolyArg (c,d). In the case of this polynucleotide, the presence of MWCNTs-PolyArg produced a very important decrease in the overvoltages for the oxidation of guanine (Ep = 0.640 V versus 1.100 V for GCE/MWCNTs-PolyArg and GCE, respectively) and adenine (Ep = 1.120 V versus 1.300 V for GCE/MWCNTs-PolyArg and GCE, respectively), due to the considerably higher number of base-pairs of dsDNACT and, consequently, the higher negative charge density of the sugar–phosphate backbone. Compared to GCE, there is a significant enhancement of the associated currents at a factor of 16.7 and 6.5 for guanine and adenine, respectively, although it is smaller than the one observed for dsDNAS. This less pronounced enhancement in the currents is due to the larger size of dsDNACT that makes the accessibility for the electrooxidation of guanine and adenine residues more difficult. In fact, the currents are the result of a compromise between the accessibility of the guanine/adenine sites to the carbon surface, the surface packing, and the orientation of the polynucleotide [30,31,32]. The results discussed above demonstrate the relevance of the PolyArg that supports the MWCNTs, not only to disperse them but also to make more favorable the interaction of DNAs at the electrode surface.

3.2. GCE/MWCNT-PolyArg as a Platform to Build a miRNA-21 Genosensor

As proof-of-concept of the biosensing usefulness of MWCNTs-PolyArg nanohybrid, we develop an impedimetric biosensor for the quantification of miRNA-21. The biorecognition layer of the genosensor was obtained by adsorption of oligo21 at GCE/MWCNTs-PolyArg as probe. Figure 4 shows the effect of the adsorption time of oligo21 at GCE/MWCNTs-PolyArg on the guanine oxidation current. As the adsorption time increases, there is an increment in the oxidation signals, which starts to level off at 100 min, indicating a saturation of the available sites for the adsorption of the nucleic acid. For comparison, the guanine oxidation signal obtained after deposition of 100 ppm oligo21 at GCE/MWCNTs-PolyArg and solvent evaporation until dryness is also included. This current shows no significant difference with the one obtained after 2 h adsorption. Figure 4B displays the guanine oxidation currents for increasing concentrations of oligo21 deposited at GCE/MWCNTs-PolyArg. The currents almost level off for concentrations higher than 50 ppm. Therefore, the selected conditions to ensure the full coverage of the surface were the deposition of an aliquot of 100 ppm oligo21 solution at GCE/MWCNTs-PolyArg surface followed by the evaporation of the solvent.
Figure 5A displays a bars plot for the charge transfer resistance (Rct) obtained from Nyquist plots after each step during the building of the impedimetric biosensor: (a) GCE/MWCNTs-PolyArg, (b) GCE/MWCNTs-PolyArg/oligo21, and (c) GCE/MWCNTs-PolyArg/oligo21 after hybridization in the presence of 0.10 nM miRNA-21. The experimental results were fitted with a Randles circuit (inset), which involves the solution resistance (Rs), the redox marker charge transfer resistance (Rct), the double-layer capacitance (Cdl), and the impedance of Warburg (W). Once the oligo21 (DNAp) is immobilized at GCE/MWCNTs-PolyArg, there is an important increment in the Rct (40 vs. 4700 Ω) due to the blockage effect of the non-conductive DNA layer. After hybridization with 0.10 nM miRNA-21, there is a new increment of the Rct (7000 Ω) as a consequence of the additional blockage produced by the double helix formation.
The calibration plot presented a linear relationship between 10−14 M and 10−12 M miRNA-21, with a sensitivity of 1.544 × 103 Ω M−1 (r2 = 0.992), a detection limit (DL) of 3.3 fM, and a quantification limit (QL) of 10 fM (calculated according to 3σ/S and 10σ/S, for DL and QL, respectively, where S is the sensitivity and σ is the standard deviation of the blank signal). The reproducibility for 1.0 × 10−13 M target using three electrodes prepared with the same MWCNTs-PolyArg/oligo21 nanoplatform was 5.7%.
Figure 5B displays the bars plot for the Rct of the redox marker obtained at GCE/MWCNTs-PolyArg/oligo21 nanoplatform in the absence (a) and presence of: (b) 1.0 × 10−13 M of miRNA-21, (c) a fully non-complementary sequence, and (d) one-base mismatch sequence. Almost no changes were observed in the presence of the fully non-complementary and one-base mismatch sequences, clearly indicating the selectivity of the miRNA-21 genosensing.
We also explored the potential practical application of the biosensor to detect miRNA-21 in real samples such as urine and reconstituted human serum samples. Figure 5C displays the bars plot for the Rct obtained at GCE/MWCNTs-PolyArg/oligo21 (a) and at GCE/MWCNTs-PolyArg/oligo21 in the presence of: miRNA-21 1.0 × 10−13 M (b) and samples of human serum (c) and urine (d) diluted 1/10 with 0.050 M phosphate buffer solution pH 7.40 and enriched with 1.0 × 10−13 M miRNA-21. Excellent recovery percentages were obtained in both cases (91.0% and 94.0% for blood serum and urine, respectively), demonstrating the potential application of the proposed genosensor for the quantification of miRNA-21 in different biological fluids.
A comparison of the analytical performance of our biosensor with the most relevant miRNA-21 electrochemical biosensors reported in the past couple of years is displayed in Table 1. Even when there are some amplified schemes that present lower detection limits than our sensor, it represents an interesting strategy for quantifying miRNA-21 at fM levels in a non-amplified, label-free, fast, and friendly way [33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49].

4. Conclusions

We report the advantages of MWCNTs-PolyArg nanohybrid for the adsorption and electrooxidation of calf-thymus and salmon sperm double-stranded DNAs. Their most favorable interaction with the aromatic rings of MWCNTs and the positive charge of the polycation that wraps the nanostructures produces a significant decrease in the overvoltages for the oxidation of guanine and adenine residues as well as an important enhancement in the associated currents. This favorable interaction of DNAs with the nanobioplatform allowed us to use MWCNTs-PolyArg as a building block for the construction of a simple, easy-to-prepare, friendly, label- and amplification-free impedimetric genosensor for the highly selective and sensitive quantification of miRNA-21 at femtomolar levels in a very competitive way.

Author Contributions

Conceptualization, G.R.; methodology, G.R., S.B., P.G. and M.L.M.; software, P.G. and M.L.M.; validation, P.G. and M.L.M.; formal analysis, P.G., M.L.M.,G.R. and S.B.; investigation, P.G. and M.L.M.; resources, G.R. and S.B.; data curation, P.G. and M.L.M.; writing—original draft preparation, P.G. and G.R.; writing—review and editing, G.R. and S.B.; visualization, G.R.; supervision, G.R.; project administration, G.R. and S.B.; funding acquisition, G.R. and S.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by CONICET (PIP 2015), SECyT-UNC (2018–2022), and ANPCyT (PICT 2019-04111) from Argentina, and ANID-Fondecyt Grant No 1200828 from Chile.

Data Availability Statement

Not applicable.

Acknowledgments

M.L.M. acknowledges CONICET for the fellowship.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analysis, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Mostafa, I.; Tian, Y.; Anjum, S.; Hanif, S.; Hosseini, M.; Lou, B.; Xu, G. Comprehensive review on the electrochemical biosensors of different breast cancer biomarkers. Sens. Actuators B Chem. 2022, 365, 131944. [Google Scholar] [CrossRef]
  2. Negahdary, M.; Angnes, L. Application of electrochemical biosensors for the detection of microRNAs (miRNAs) related to cancer. Coord. Chem. Rev. 2022, 464, 214565. [Google Scholar] [CrossRef]
  3. Melinte, G.; Hosu, O.; Cristea, C.; Marrazza, G. DNA sensing technology a useful food scanning tool. TrAC—Trends Anal. Chem. 2022, 154, 116679. [Google Scholar] [CrossRef]
  4. Cetinkaya, A.; Kaya, S.; Ozcelikay, G.; Budak, F.; Ozkan, S. Carbon Nanomaterials-Based Novel Hybrid Platforms for Electrochemical Sensor Applications in Drug Analysis. Crit. Rev. Anal. Chem. 2022, 1–16. [Google Scholar] [CrossRef] [PubMed]
  5. Fu, S.; Zhu, Y.; Zhang, Y.; Zhang, M.; Zhang, Y.; Qiao, L.; Yin, N.; Song, K.; Liu, M.; Wang, W. Recent advances in carbon nanomaterials-based electrochemical sensors for phenolic compounds detection. Microchem. J. 2021, 171, 106776. [Google Scholar] [CrossRef]
  6. Chiorcea-Paquim, A.-M.; Oliveira-Brett, A.M. Nanostructured material–based electrochemical sensing of oxidative DNA damage biomarkers 8-oxoguanine and 8-oxodeoxyguanosine: A comprehensive review. Microchim. Acta 2021, 188, 58. [Google Scholar] [CrossRef]
  7. Wang, Y.; Rinawati, M.; Zhan, J.; Lin, K.; Huang, C.; Chen, K.; Mizuguchi, H.; Jiang, J.; Hwang, B.; Yeh, M. Boron-Doped Graphene Quantum Dots Anchored to Carbon Nanotubes as Noble Metal-Free Electrocatalysts of Uric Acid for a Wearable Sweat Sensor. ACS Appl. Nano Mater. 2022, 5, 11100–11110. [Google Scholar] [CrossRef]
  8. Xie, J.; Zhang, L.; Liu, Z.; Ling, G.; Zhang, P. Application of electrochemical sensors based on nanomaterials modifiers in the determination of antipsychotics. Colloids Surf. B Biointerfaces 2022, 214, 112442. [Google Scholar] [CrossRef]
  9. Eguílaz, M.; Dalmasso, P.R.; Rubianes, M.D.; Gutierrez, F.; Rodríguez, M.C.; Gallay, P.A.; López Mujica, M.; Ramírez, M.L.; Tettamanti, C.; Montemerlo, A.; et al. Recent advances in the development of electrochemical hydrogen peroxide carbon nanotube–based (bio)sensors. Curr. Opin. Electrochem. 2019, 14, 157–165. [Google Scholar] [CrossRef]
  10. Mujica, M.; Tamborelli, A.; Castellaro, A.; Barcudi, D.; Rubianes, M.; Rodríguez, M.; Saka, H.; Bocco, J.; Dalmasso, P.; Rivas, G. Impedimetric and amperometric genosensors for the highly sensitive quantification of SARS-CoV-2 nucleic acid using an avidin-functionalized multi-walled carbon nanotubes biocapture platform. Biosens. Bioelectron. X 2022, 12, 100222. [Google Scholar] [CrossRef]
  11. Bravo, I.; Prata, M.; Torrinha, Á.; Delerue-Matos, C.; Encarnacion, L.; Morais, S. Laccase bioconjugate and multi-walled carbon nanotubes-based biosensor for bisphenol A analysis. Bioelectrochemistry 2022, 144, 108033. [Google Scholar] [CrossRef] [PubMed]
  12. Kharlamova, M.; Paukov, M.; Burdanova, M. Nanotube Functionalization: Investigation, Methods and Demonstrated Applications. Materials 2022, 15, 5386. [Google Scholar] [CrossRef] [PubMed]
  13. Hosseini, H.; Ghaffarzadeh, M. Surface functionalization of carbon nanotubes via plasma discharge: A review. Inorg. Chem. Commun. 2022, 138, 109276. [Google Scholar] [CrossRef]
  14. Ferrier, D.; Honeychurch, K. Carbon Nanotube (CNT)-Based Biosensors. Biosensors 2021, 11, 486. [Google Scholar] [CrossRef] [PubMed]
  15. Rubianes, M.; Rivas, G. Dispersion of multi-wall carbon nanotubes in polyethylenimine: A new alternative for preparing electrochemical sensors. Electrochem. Commun. 2007, 9, 480–484. [Google Scholar] [CrossRef]
  16. Jalit, Y.; Rodríguez, M.; Rubianes, M.; Bollo, S.; Rivas, G. Glassy carbon electrodes modified with multiwall carbon nanotubes dispersed in polylysine. Electroanal. Int. J. Devoted Fundam. Pract. Asp. Electroanal. 2008, 20, 1623–1631. [Google Scholar] [CrossRef]
  17. Dalmasso, P.; Pedano, M.; Rivas, G. Dispersion of multi-wall carbon nanotubes in polyhistidine: Characterization and analytical applications. Anal. Chim. Acta 2012, 710, 58–64. [Google Scholar] [CrossRef]
  18. Gutierrez, F.; Rubianes, M.; Rivas, G. Dispersion of multi-wall carbon nanotubes in glucose oxidase: Characterization and analytical applications for glucose biosensing. Sens. Actuators B Chem. 2012, 161, 191–197. [Google Scholar] [CrossRef]
  19. Eguílaz, M.; Gutiérrez, A.; Rivas, G. Non-covalent functionalization of multi-walled carbon nanotubes with cytochrome c: Enhanced direct electron transfer and analytical applications. Sens. Actuators B Chem. 2016, 225, 74–80. [Google Scholar] [CrossRef]
  20. Gutierrez, F.; Rubianes, M.; Rivas, G. New bioanalytical platform based on the use of avidin for the successful exfoliation of multi-walled carbon nanotubes and the robust anchoring of biomolecules. Application for hydrogen peroxide biosensing. Anal. Chim. Acta 2019, 1065, 12–20. [Google Scholar] [CrossRef]
  21. Gallay, P.; Eguílaz, M.; Rivas, G. Designing electrochemical interfaces based on nanohybrids of avidin functionalized-carbon nanotubes and ruthenium nanoparticles as peroxidase-like nanozyme with supramolecular recognition properties for site-specific anchoring of biotinylated residues. Biosens. Bioelectron. 2020, 148, 111764. [Google Scholar] [CrossRef] [PubMed]
  22. Mujica, M.; Rubianes, M.; Rivas, G. A multipurpose biocapture nanoplatform based on multiwalled-carbon nanotubes non-covalently functionalized with avidin: Analytical applications for the non-amplified and label-free impedimetric quantification of BRCA1. Sens. Actuators B Chem. 2022, 357, 131304. [Google Scholar] [CrossRef]
  23. Ortiz, E.; Gallay, P.; Galicia, L.; Eguílaz, M.; Rivas, G. Nanoarchitectures based on multi-walled carbon nanotubes non-covalently functionalized with Concanavalin A: A new building-block with supramolecular recognition properties for the development of electrochemical biosensors. Sens. Actuators B Chem. 2019, 292, 254–262. [Google Scholar] [CrossRef]
  24. Primo, E.; Cañete-Rosales, P.; Bollo, S.; Rubianes, M.; Rivas, G. Dispersion of bamboo type multi-wall carbon nanotubes in calf-thymus double stranded DNA. Colloids Surf. B Biointerfaces 2013, 108, 329–336. [Google Scholar] [CrossRef]
  25. Gutiérrez, A.; Gutierrez, F.; Eguílaz, M.; Parrado, C.; Rivas, G. Non-covalent Functionalization of Multi-wall Carbon Nanotubes with Polyarginine: Characterization and Analytical Applications for Uric Acid Quantification. Electroanalysis 2018, 30, 1416–1424. [Google Scholar] [CrossRef]
  26. Gallay, P.; Eguílaz, M.; Rivas, G. Multi-walled Carbon Nanotubes Non-covalently Functionalized with Polyarginine: A New Alternative for the Construction of Reagentless NAD+/Dehydrogenase-based Ethanol Biosensor. Electroanalysis 2019, 31, 805–812. [Google Scholar] [CrossRef]
  27. Jalit, Y.; Moreno, M.; Gutierrez, F.; Sánchez Arribas, A.; Chicharro, M.; Bermejo, E.; Zapardiel, A.; Parrado, C.; Rivas, G.; Rodríguez, M. Adsorption and electrooxidation of nucleic acids at glassy carbon electrodes modified with multi-wall carbon nanotubes dispersed in polylysine. Electroanalysis 2013, 25, 1116–1121. [Google Scholar] [CrossRef]
  28. Pedano, M.; Rivas, G. Immobilization of DNA on glassy carbon electrodes for the development of affinity biosensors. Biosens. Bioelectron. 2003, 18, 269–277. [Google Scholar] [CrossRef]
  29. Cai, X.; Rivas, G.; Farias, P.A.M.; Shiraishi, H.; Wang, J.; Palecek, E. Evaluation of Different Carbon Electrodes for Adsorptive Stripping Analysis of Nucleic Acids. Electroanalysis 1996, 8, 753–758. [Google Scholar] [CrossRef]
  30. Wang, J.; Cai, X.; Wang, J.; Jonsson, C.; Paleček, E. Trace Measurements of RNA by Potentiometric Stripping Analysis at Carbon Paste Electrodes. Anal. Chem. 1995, 67, 4065–4070. [Google Scholar] [CrossRef]
  31. Wang, J.; Cai, X.; Jonsson, C.; Balakrishnan, M. Adsorptive Stripping Potentiometry of DNA at Electrochemically Pretreated Carbon Paste Electrodes. Electroanalysis 1996, 8, 20–24. [Google Scholar] [CrossRef]
  32. Wang, J.; Rivas, G.; Fernandes, J.R.; Jiang, M.; Lopez Paz, J.L.; Waymire, R.; Nielsen, T.W.; Getts, R.C. Adsorption and Detection of DNA Dendrimers at Carbon Electrodes. Electroanalysis 1998, 10, 553–556. [Google Scholar] [CrossRef]
  33. Kaplan, M.; Kilic, T.; Guler, G.; Mandli, J.; Amine, A.; Ozsoz, M. A novel method for sensitive microRNA detection: Electropolymerization based doping. Biosens. Bioelectron. 2017, 92, 770–778. [Google Scholar] [CrossRef] [PubMed]
  34. Su, S.; Cao, W.; Liu, W.; Lu, Z.; Zhu, D.; Chao, J.; Weng, L.; Wang, L.; Fan, C.; Wang, L. Dual-mode electrochemical analysis of microRNA-21 using gold nanoparticle-decorated MoS2 nanosheet. Biosens. Bioelectron. 2017, 94, 552–559. [Google Scholar] [CrossRef]
  35. Meng, T.; Zhao, D.; Ye, H.; Feng, Y.; Wang, H.; Zhang, Y. Construction of an ultrasensitive electrochemical sensing platform for microRNA-21 based on interface impedance spectroscopy. J. Colloid Interface Sci. 2020, 578, 164–170. [Google Scholar] [CrossRef]
  36. La, M.; Zhang, Y.; Gao, Y.; Li, M.; Liu, L.; Chang, Y. Impedimetric detection of microRNAs by the signal amplification of streptavidin induced in situ formation of biotin phenylalanine nanoparticle networks. J. Electrochem. Soc. 2020, 167, 117505. [Google Scholar] [CrossRef]
  37. Mandli, J.; Amine, A. Impedimetric genosensor for miRNA-34a detection in cell lysates using polypyrrole. J. Solid State Electrochem. 2018, 22, 1007–1014. [Google Scholar] [CrossRef]
  38. Zouari, M.; Campuzano, S.; Pingarrón, J.; Raouafi, N. Amperometric biosensing of miRNA-21 in serum and cancer cells at nanostructured platforms using anti-DNA–RNA hybrid antibodies. ACS Omega 2018, 3, 8923–8931. [Google Scholar] [CrossRef]
  39. Vargas, E.; Povedano, E.; Montiel, V.; Torrente-Rodríguez, R.; Zouari, M.; Montoya, J.; Raouafi, N.; Campuzano, S.; Pingarrón, J. Single-step incubation determination of miRNAs in cancer cells using an amperometric biosensor based on competitive hybridization onto magnetic beads. Sensors 2018, 18, 863. [Google Scholar] [CrossRef] [Green Version]
  40. Xiao, Q.; Li, J.; Jin, X.; Liu, Y.; Huang, S. Ultrasensitive electrochemical microRNA-21 biosensor coupling with carboxylate-reduced graphene oxide-based signal-enhancing and duplex-specific nuclease-assisted target recycling. Sens. Actuators B Chem. 2019, 297, 126740. [Google Scholar] [CrossRef]
  41. Wang, C.; Liu, Y.; Chen, R.; Wang, X.; Wang, Y.; Wei, J.; Zhang, K.; Zhang, C. Electrochemical biosensing of circulating microRNA-21 in cerebrospinal fluid of medulloblastoma patients through target-induced redox signal amplification. Microchim. Acta 2022, 189, 1–9. [Google Scholar] [CrossRef] [PubMed]
  42. Chen, Z.; Xie, Y.; Huang, W.; Qin, C.; Yu, A.; Lai, G. Exonuclease-assisted target recycling for ultrasensitive electrochemical detection of microRNA at vertically aligned carbon nanotubes. Nanoscale 2019, 11, 11262–11269. [Google Scholar] [CrossRef] [PubMed]
  43. Mahmudunnabi, R.; Umer, M.; Seo, K.; Park, D.; Chung, J.; Shiddiky, M.; Shim, Y. Exosomal microRNAs array sensor with a bioconjugate composed of p53 protein and hydrazine for the specific lung cancer detection. Biosens. Bioelectron. 2022, 207, 114149. [Google Scholar] [CrossRef] [PubMed]
  44. Deng, M.; Feng, J.; Tao, D.; Yan, H.; Ding, J.; Jaffrezic-Renault, N.; Guo, Z. A novel conductive nanocomposite-based biosensor for ultrasensitive detection of microRNA-21 in serum, using methylene blue as mediator. Bioelectrochemistry 2022, 148, 108256. [Google Scholar] [CrossRef] [PubMed]
  45. Mujica, M.; Zhang, Y.; Bédioui, F.; Gutiérrez, F.; Rivas, G. Label-free graphene oxide–based SPR genosensor for the quantification of microRNA21. Anal. Bioanal. Chem. 2020, 412, 3539–3546. [Google Scholar] [CrossRef]
  46. Xue, T.; Liang, W.; Li, Y.; Sun, Y.; Xiang, Y.; Zhang, Y.; Dai, Z.; Duo, Y.; Wu, L.; Qi, K.; et al. Ultrasensitive detection of miRNA with an antimonene-based surface plasmon resonance sensor. Nat. Commun. 2019, 10, 28. [Google Scholar] [CrossRef]
  47. Wang, Q.; Liu, R.; Yang, X.; Wang, K.; Zhu, J.; He, L.; Li, Q. Surface plasmon resonance biosensor for enzyme-free amplified microRNA detection based on gold nanoparticles and DNA supersandwich. Sens. Actuators B Chem. 2016, 223, 613–620. [Google Scholar] [CrossRef]
  48. Zhang, Q.; Yan, H.; Ru, C.; Zhu, F.; Zou, H.; Gao, P.; Huang, Z.; Wang, J. Plasmonic biosensor for the highly sensitive detection of microRNA-21 via the chemical etching of gold nanorods under a dark-field microscope. Biosens. Bioelectron. 2022, 201, 113942. [Google Scholar] [CrossRef]
  49. Li, Q.; Wang, Q.; Yang, X.; Wang, K.; Zhang, H.; Nie, W. High sensitivity surface plasmon resonance biosensor for detection of microRNA and small molecule based on graphene oxide-gold nanoparticles composites. Talanta 2017, 174, 521–526. [Google Scholar] [CrossRef]
Micromachines 13 01978 g001 550

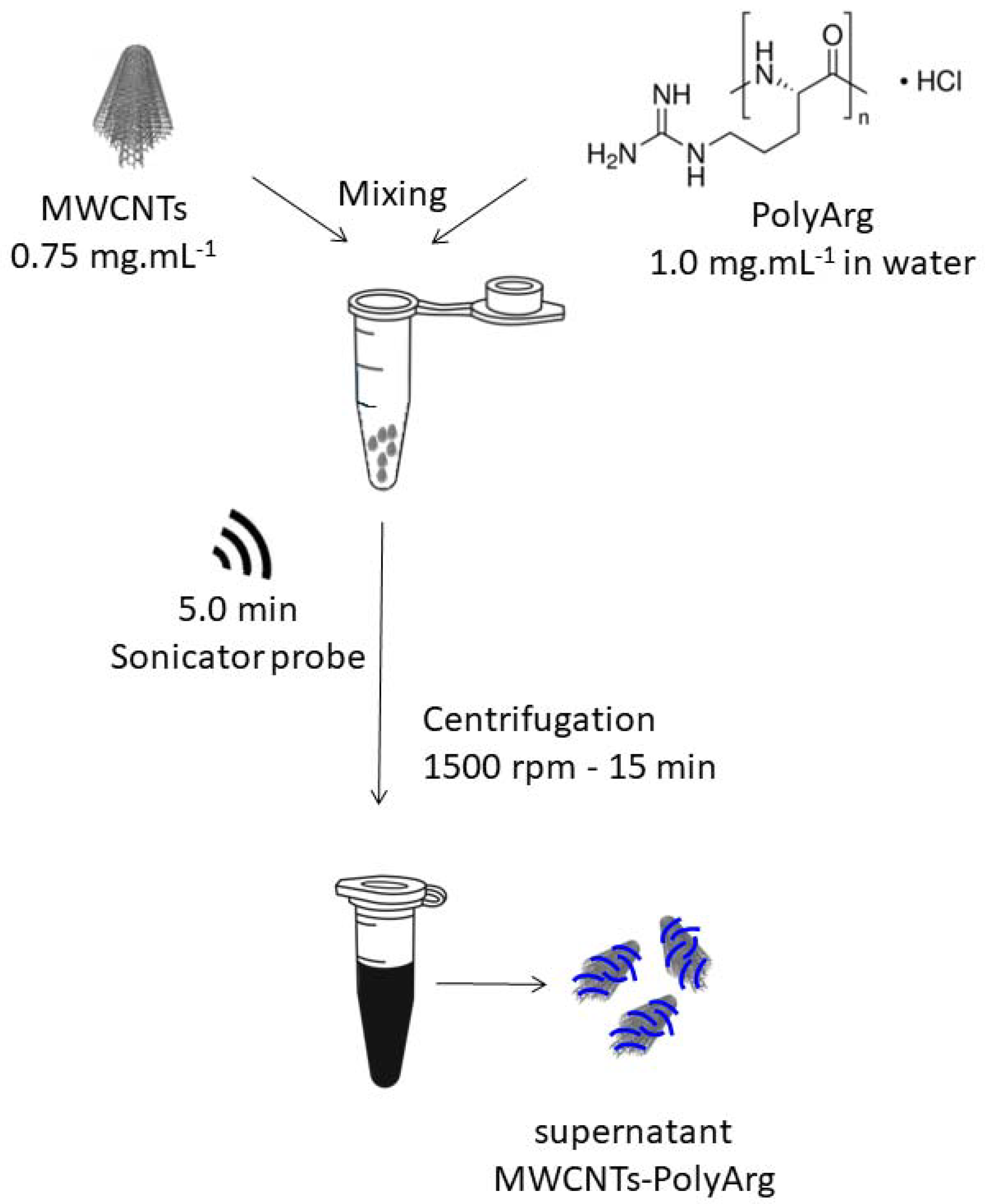

Figure 1. Schematic representation of the MWCNTs’ functionalization with PolyArg.
Figure 1. Schematic representation of the MWCNTs’ functionalization with PolyArg.
Micromachines 13 01978 g001
Micromachines 13 01978 g002 550

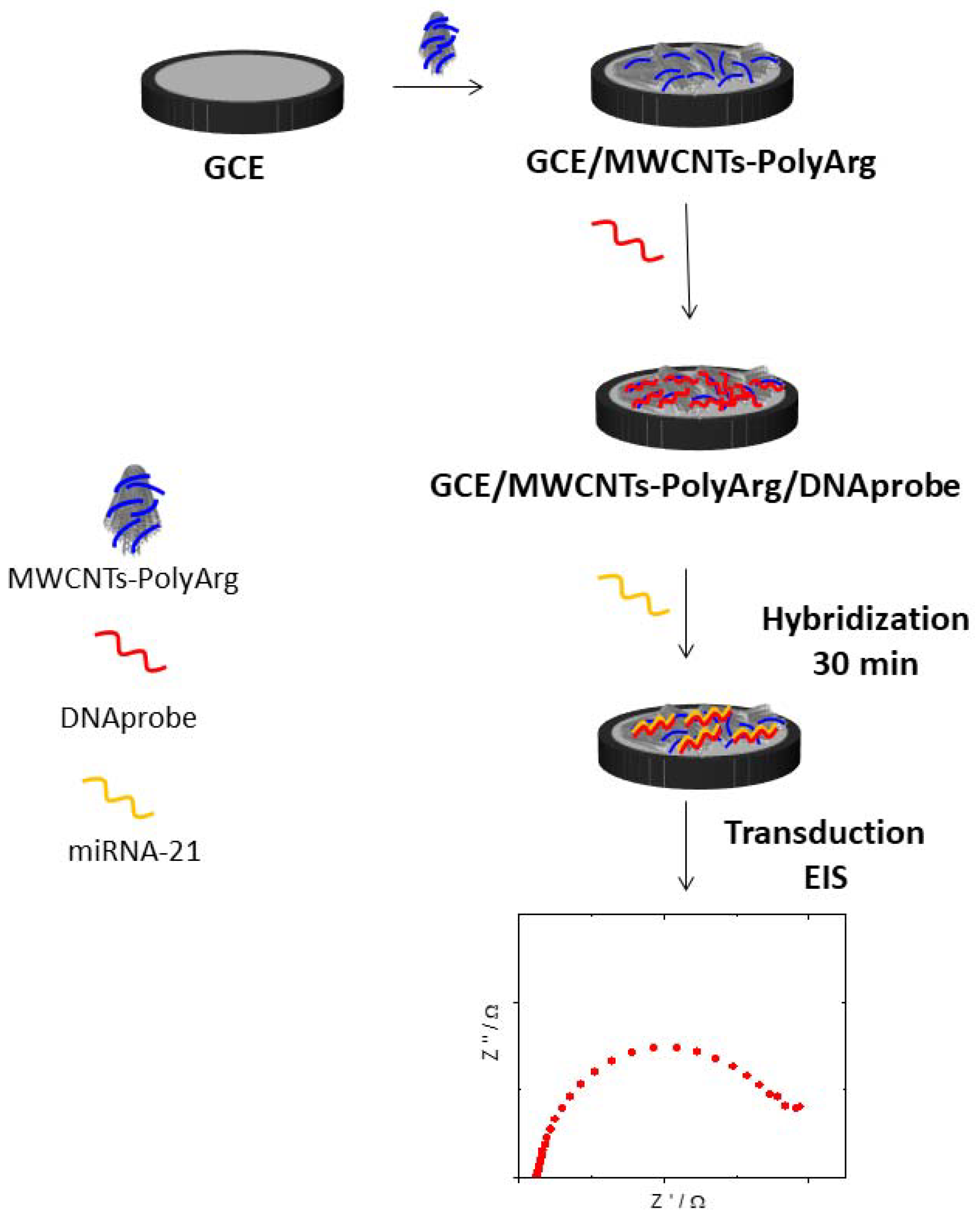

Figure 2. Schematic representation of the genosensor preparation.
Figure 2. Schematic representation of the genosensor preparation.
Micromachines 13 01978 g002
Micromachines 13 01978 g003 550
Figure 3. (A) Linear scan voltammograms obtained after baseline correction for: GCE (a), GCE/ds-DNAS (b), GCE/MWCNTs-PolyArg (c), and GCE/MWCNTs-PolyArg/ds-DNAS (d). (B) Linear scan voltammograms obtained after baseline correction for: GCE (a), GCE/ds-DNACT (b), GCE/MWCNTs-PolyArg (c), and GCE/MWCNTs-PolyArg/ds-DNACF (d). Supporting electrolyte: 0.200 M acetate buffer solution pH 5.00; dsDNAs accumulation: by deposition and solvent evaporation until dryness; dsDNAs Concentration: 100 ppm; scan rate: 0.050 V s−1.
Figure 3. (A) Linear scan voltammograms obtained after baseline correction for: GCE (a), GCE/ds-DNAS (b), GCE/MWCNTs-PolyArg (c), and GCE/MWCNTs-PolyArg/ds-DNAS (d). (B) Linear scan voltammograms obtained after baseline correction for: GCE (a), GCE/ds-DNACT (b), GCE/MWCNTs-PolyArg (c), and GCE/MWCNTs-PolyArg/ds-DNACF (d). Supporting electrolyte: 0.200 M acetate buffer solution pH 5.00; dsDNAs accumulation: by deposition and solvent evaporation until dryness; dsDNAs Concentration: 100 ppm; scan rate: 0.050 V s−1.
Micromachines 13 01978 g003
Micromachines 13 01978 g004 550
Figure 4. (A) Influence of the accumulation time of oligo21 at GCE/MWCNTs-PolyArg on the guanine oxidation peak current. Oligo21 concentration: 100 ppm. (B) Effect of oligo21 concentration deposited at GCE/MWCNTs-PolyArg on the guanine oxidation peak current. Accumulation time: until dryness. Other conditions are as in Figure 3.
Figure 4. (A) Influence of the accumulation time of oligo21 at GCE/MWCNTs-PolyArg on the guanine oxidation peak current. Oligo21 concentration: 100 ppm. (B) Effect of oligo21 concentration deposited at GCE/MWCNTs-PolyArg on the guanine oxidation peak current. Accumulation time: until dryness. Other conditions are as in Figure 3.
Micromachines 13 01978 g004
Micromachines 13 01978 g005 550

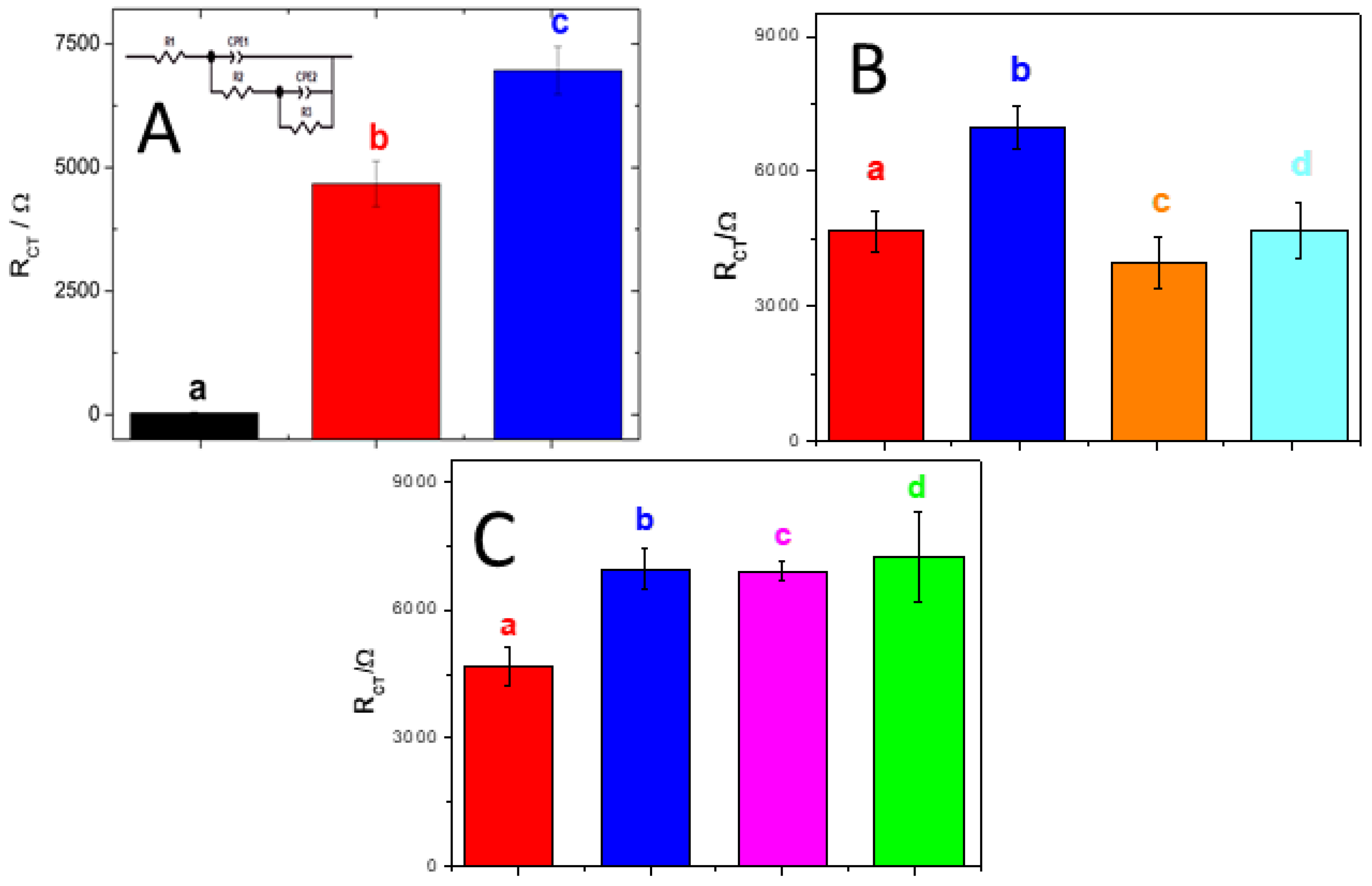

Figure 5. (A) Bar plot for the Rct of the redox marker obtained after the different steps during the construction of the genosensors and subsequent hybridization: GCE/MWCNTs-PolyArg (a), GCE/MWCNTs-PolyArg/oligo21 (b), and GCE/MWCNTs-PolyArg/oligo21 in the presence of 1.0 × 10−13 M miRNA-21 (c). The inset shows the corresponding equivalent circuit. (B) Bar plots for Rct of the redox marker obtained at: (a) GCE/MWCNTs-PolyArg/oligo21 in the absence (a) and in the presence of 1.0 × 10−13 M miRNA-21 (b); 1.0 × 10−13 M fully non-complementary sequence (c); 1.0 × 10−13 M one-base mismatch sequence (d). (C) Bar plots for Rct of the redox marker obtained at GCE/MWCNTs-PolyArg/oligo21 in the absence (a) and presence of 1.0 × 10−13 M miRNA-21 (b); serum 1/1000 enriched with 1.0 × 10−13 M miRNA.21 (c); urine diluted 1/10 enriched with 1.0 × 10−13 M miRNA-21 (d). Redox marker: 1.0 × 10−3 M HQ/Bz solution; EIS parameters: amplitude, 0.010 V, frequency range, 1.0 × 10−2 to 1.0 × 106 Hz, working potential, 0.200 V.
Figure 5. (A) Bar plot for the Rct of the redox marker obtained after the different steps during the construction of the genosensors and subsequent hybridization: GCE/MWCNTs-PolyArg (a), GCE/MWCNTs-PolyArg/oligo21 (b), and GCE/MWCNTs-PolyArg/oligo21 in the presence of 1.0 × 10−13 M miRNA-21 (c). The inset shows the corresponding equivalent circuit. (B) Bar plots for Rct of the redox marker obtained at: (a) GCE/MWCNTs-PolyArg/oligo21 in the absence (a) and in the presence of 1.0 × 10−13 M miRNA-21 (b); 1.0 × 10−13 M fully non-complementary sequence (c); 1.0 × 10−13 M one-base mismatch sequence (d). (C) Bar plots for Rct of the redox marker obtained at GCE/MWCNTs-PolyArg/oligo21 in the absence (a) and presence of 1.0 × 10−13 M miRNA-21 (b); serum 1/1000 enriched with 1.0 × 10−13 M miRNA.21 (c); urine diluted 1/10 enriched with 1.0 × 10−13 M miRNA-21 (d). Redox marker: 1.0 × 10−3 M HQ/Bz solution; EIS parameters: amplitude, 0.010 V, frequency range, 1.0 × 10−2 to 1.0 × 106 Hz, working potential, 0.200 V.
Micromachines 13 01978 g005
Table
Table 1. Comparative table of the analytical characteristics of the most relevant miRNA electrochemical biosensors reported in the past couple of years.
Table 1. Comparative table of the analytical characteristics of the most relevant miRNA electrochemical biosensors reported in the past couple of years.
Electrochemical Impedance Spectroscopy—EIS
TargetPlatform-Analytical SignalLODLinear Range R2Real SampleRef
miRNA-21Polypyrrole modified pencil graphite electrode. Change in Rct or meldola blue signal. 12.25 nM-/0.977MCF-7 and HUH-7[33]
miRNA-21AuNPs-decorated MoS2 nanosheet (AuNPs@MoS2) as electrode modifier and signal-amplifier element.7.08 fM10 fM–1.0 nM/0.99Human serum[34]
miRNA-21Hybridization chain reaction (HCR) amplification-based impedimetric biosensor. Two sequences are used to trigger HCR amplification (H1 and H2). 4.63 fM10 fM–50 pM/0.998Human serum[35]
miRNA-21Impedimetric detection of the miRNAs by the signal amplification of insulating biomaterials. Biotinylated miRNA with the same sequence as that of target miRNA was captured by the sensor. 0.1 fM0.1–250 fM/-Cell lysates[36]
miRNA-34aElectrochemical entrapment of the probe (antimiRNA-34a) into polypyrrole (PPy) performed by electropolymerization. 0.2 μg.mL−15–80 μg.mL−1/0.986MCF-7[37]
miRNA-21GCE/MWCNTs-PolyArg/DNAp. Rct of the redox probe hydroquinone/benzoquinone as analytical signal.3 fM1.0 × 10−14–1.0 × 10−12 M 0.992Serum and urineThis Work
Amperometry—Differential Pulse Voltammetry (DPV)
miRNA-21Thiolated DNA capture probe immobilized at gold nanoparticles–nanostructured electrode surface. Analytical signal obtained by amperometry using a specific antibody, horseradish peroxidase/H2O2/hydroquinone. 29 fM0.096−25 pM/-Human serum[38]
miRNA-21Competitive DNA-target miRNA hybridization on the surface of magnetic microbeads. Amperometric transduction at screen-printed carbon electrodes.0.2 nM0.7–10.0 nM/0.999MCF-7 and MCF-10A[39]
miRNA-21 Capture DNA (cDNA) self-assembled on the surface of gold electrode. Analytical signal obtained from the DPV current due to the accumulation of methylene blue. 0.01 fM0.05–5 fM/0.995Human serum[40]
miRNA-21Covalent assembling of the capture DNA at the gold nanoparticle-coated glassy carbon electrode. Analytical signal due to DPV current of the accumulated methylene blue at the hybrid obtained by sandwich hybridization with a long guanine-rich sequence. 56 fM0.5–80 pM/0.991Medulloblastoma cell extracts and clinical CSF[41]
miRNA-21Carboxylated single-walled carbon nanotubes immobilized at an aryldiazonium salt-modified electrode, as a platform to attach a ferrocene-labeled single-stranded DNA by non-covalent adsorption. Electrochemical signal due to the release of this labeled DNA.3.5 fM0.01 pM–100 pM/0.996-[42]
miRNA-21/155/A-205/let-7bmiRNA captured from lysed exosomes in specially designed capture probe modified magnetic beads, followed by T4 DNA polymerase-mediated and in situ formation of chimeric 5′ -miRNA-DNA-3′ (target).92 aM100 aM–10 pMHuman serum[43]
miRNA-21A nanocomposite containing thionine, reduced graphene oxide, ordered mesoporous carbon, and gold nanoparticles was used to increase the specific surface area of a glassy carbon electrode and amplify the DPV signal.0.046 fM0.1 fM–1.0 pMHuman serum[44]
Surface Plasmon Resonance (SPR)
miRNA-21Platform obtained by self-assembling of two poly(diallyldimethylammonium chloride) (PDDA) bilayers and graphene oxide at a gold surface modified with 3-mercaptopropane sulfonate (MPS), followed by the covalent attachment of the DNA probe.0.3 fM1.0 × 10−15–1.0 × 10−6 M Urine[45]
miRNA-21/miRNA-155Sensor based on two-dimensional nanomaterial of antimonene for the specific label-free detection of miRNA-21 and miRNA-155.10 aM10−17 to 10−11 M-[46]
miRNAEnzyme-free amplified biosensor based on gold nanoparticles coupled with DNA supersandwich. The DNA-linked gold nanoparticles as the primary amplification element hybridizes with the capture DNA on the Au film and initiates the subsequent secondary amplification. In the presence of target, stem-loop structure of capture DNA on the Au film surface was unfolded and DNA-linked gold nanoparticles were bound to Au film by hybridization with terminus of capture DNA. 8 fM-Human serum[47]
miRNABased on the produced-I2 triggered chemical etching of gold nanorods to a smaller size, resulting in a significant blue shift and high decrease of the localized surface plasmon resonance (LSPR) scattering71.22 fM0.1–10.000 pM/0.995Human serum[48]
miRNA-141Based on two layers of graphene oxide–gold nanoparticles (GO–AuNPs).0.1 fM-Human serum[49]
