# High Sensitivity Planar Hall Effect Magnetic Field Gradiometer for Measurements in Millimeter Scale Environments

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Experimental Techniques

## 3. Equivalent Magnetic Noise Characterizations

## 4. Equivalent Gradient Magnetic Noise

## 5. Summary

## Supplementary Materials

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Kim, H.; Golynsky, A.; Golynsky, D.; Yu, H.; von Frese, R.; Hong, J. New Magnetic Anomaly Constraints on the Antarctic Crust. J. Geophys. Res. Solid Earth
**2022**, 127, e2021JB023329. [Google Scholar] [CrossRef] - Chen, C.H.; Chen, P.W.; Chen, P.J.; Liu, T.H. Indoor Positioning Using Magnetic Fingerprint Map Captured by Magnetic Sensor Array. Sensors
**2021**, 21, 5707. [Google Scholar] [CrossRef] - Včelák, J.; Ripka, P.; Kubik, J.; Platil, A.; Kašpar, P. AMR navigation systems and methods of their calibration. Sens. Actuator A
**2005**, 123, 122–128. [Google Scholar] [CrossRef] - Ausserlechner, U. The optimum layout for giant magneto-resistive angle sensors. IEEE Sens. J.
**2010**, 10, 1571–1582. [Google Scholar] [CrossRef] - Musuroi, C.; Oproiu, M.; Volmer, M.; Neamtu, J.; Avram, M.; Helerea, E. Low field optimization of a non-contacting high-sensitivity GMR-based DC/AC current sensor. Sensors
**2021**, 21, 2564. [Google Scholar] [CrossRef] - Ripka, P.; Mlejnek, P.; Hejda, P.; Chirtsov, A.; Vyhnánek, J. Rectangular array electric current transducer with integrated fluxgate sensors. Sensors
**2019**, 19, 4964. [Google Scholar] [CrossRef] [Green Version] - Barroso, T.G.; Martins, R.C.; Fernandes, E.; Cardoso, S.; Rivas, J.; Freitas, P.P. Detection of BCG bacteria using a magnetoresistive biosensor: A step towards a fully electronic platform for tuberculosis point-of-care detection. Biosens. Bioelectron.
**2018**, 100, 259–265. [Google Scholar] [CrossRef] [Green Version] - Li, Y.; Cheng, H.; Alhalili, Z.; Xu, G.; Gao, G. The progress of magnetic sensor applied in biomedicine: A review of non-invasive techniques and sensors. J. Chin. Chem. Soc.
**2021**, 68, 216–227. [Google Scholar] [CrossRef] - Mooney, J.W.; Ghasemi-Roudsari, S.; Banham, E.R.; Symonds, C.; Pawlowski, N.; Varcoe, B.T. A portable diagnostic device for cardiac magnetic field mapping. Biomed. Phys. Eng. Express
**2017**, 3, 015008. [Google Scholar] [CrossRef] - Kim, J.; Kumar, R.; Bandodkar, A.J.; Wang, J. Advanced materials for printed wearable electrochemical devices: A review. Adv. Elect. Mater.
**2017**, 3, 1600260. [Google Scholar] [CrossRef] - Melzer, M.; Mönch, J.I.; Makarov, D.; Zabila, Y.; Cañón Bermúdez, G.S.; Karnaushenko, D.; Baunack, S.; Bahr, F.; Yan, C.; Kaltenbrunner, M.; et al. Wearable magnetic field sensors for flexible electronics. Adv. Mater.
**2015**, 27, 1274–1280. [Google Scholar] [CrossRef] [Green Version] - Jucevičius, M.; Ožiūnas, R.; Narvydas, G.; Jegelevičius, D. Permanent magnet tracking method resistant to background magnetic field for assessing jaw movement in wearable devices. Sensors
**2022**, 22, 971. [Google Scholar] [CrossRef] - Feiner, R.; Dvir, T. Tissue–electronics interfaces: From implantable devices to engineered tissues. Nat. Rev. Mater.
**2017**, 3, 17076. [Google Scholar] [CrossRef] - Javor, J.; Stange, A.; Pollock, C.; Fuhr, N.; Bishop, D.J. 100 pT/cm single-point MEMS magnetic gradiometer from a commercial accelerometer. Microsyst. Nanoeng.
**2020**, 6, 71. [Google Scholar] [CrossRef] - Lim, B.; Mahfoud, M.; Das, P.T.; Jeon, T.; Jeon, C.; Kim, M.; Nguyen, T.K.; Tran, Q.H.; Terki, F.; Kim, C. Advances and key technologies in magnetoresistive sensors with high thermal stabilities and low field detectivities. APL Mater.
**2022**, 10, 051108. [Google Scholar] [CrossRef] - Nhalil, H.; Givon, T.; Das, P.T.; Hasidim, N.; Mor, V.; Schultz, M.; Amrusi, S.; Klein, L.; Grosz, A. Planar Hall Effect Magnetometer With 5 pT Resolution. IEEE Sens. Lett.
**2019**, 3, 2501904. [Google Scholar] [CrossRef] - Nhalil, H.; Das, P.T.; Schultz, M.; Amrusi, S.; Grosz, A.; Klein, L. Thickness dependence of elliptical planar Hall effect magnetometers. Appl. Phys. Lett.
**2020**, 117, 262403. [Google Scholar] [CrossRef] - Tsukamoto, A.; Adachi, S.; Hato, T.; Oshikubo, Y.; Tanabe, K. Design and Fabrication of HTS-SQUID Gradiometer With Imbalance of 10–4 Using a Gradiometric SQUID Structure. IEEE Trans. Appl. Supercond.
**2022**, 32, 1600309. [Google Scholar] [CrossRef] - Sui, Y.; Miao, H.; Zhou, Z.; Luan, H.; Wang, Y. Correction and compensation of an airborne fluxgate magnetic tensor gradiometer. Explor. Geophys.
**2018**, 49, 726–734. [Google Scholar] [CrossRef] - Mahfoud, M.; Tran, Q.H.; Wane, S.; Ngo, D.T.; Belarbi, E.H.; Boukra, A.; Kim, M.; Elzwawy, A.; Kim, C.; Reiss, G.; et al. Reduced thermal dependence of the sensitivity of a planar Hall sensor. Appl. Phys. Lett.
**2019**, 115, 072402. [Google Scholar] [CrossRef] - Grosz, A.; Mor, V.; Amrusi, S.; Faivinov, I.; Paperno, E.; Klein, L. A high-resolution planar Hall effect magnetometer for ultra-low frequencies. IEEE Sens. J.
**2016**, 16, 3224–3230. [Google Scholar] [CrossRef] - Grosz, A.; Mor, V.; Paperno, E.; Amrusi, S.; Faivinov, I.; Schultz, M.; Klein, L. Planar hall effect sensors with subnanotesla resolution. IEEE Mag. Lett.
**2013**, 4, 6500104. [Google Scholar] [CrossRef] - Mor, V.; Schultz, M.; Sinwani, O.; Grosz, A.; Paperno, E.; Klein, L. Planar Hall effect sensors with shape-induced effective single domain behavior. J. Appl. Phys.
**2012**, 111, 07E519. [Google Scholar] [CrossRef] - Gijs, M.; Giesbers, J.; Beliën, P.; Van Est, J.; Briaire, J.; Vandamme, L. 1/f noise in magnetic Ni80Fe20 single layers and Ni80Fe20/Cu multilayers. J. Magn. Magn. Mater.
**1997**, 165, 360–362. [Google Scholar] [CrossRef] [Green Version] - McKenna, S.P.; Parkman, K.B.; Perren, L.J.; McKenna, J.R. Response of an electromagnetic gradiometer to a subsurface wire. IEEE Trans. Geosci. Remote Sens.
**2011**, 49, 4944–4953. [Google Scholar] [CrossRef] - Song, Z.; Dai, H.; Rong, L.; Dong, H.; Wu, J.; Qiu, L.; Zhang, G.; Wang, Y.; Tao, Q.; Pei, Y.; et al. Noise compensation of a mobile LTS SQUID planar gradiometer for aeromagnetic detection. IEEE Trans. Appl. Supercond.
**2019**, 29, 1600205. [Google Scholar] [CrossRef] - Perry, A.; Bulatowicz, M.; Larsen, M.; Walker, T.; Wyllie, R. All-optical intrinsic atomic gradiometer with sub-20 fT/cm/sqrt Hz sensitivity in a 22 μT earth-scale magnetic field. Opt. Express
**2020**, 28, 36696–36705. [Google Scholar] [CrossRef] - Limes, M.; Foley, E.; Kornack, T.; Caliga, S.; McBride, S.; Braun, A.; Lee, W.; Lucivero, V.; Romalis, M. Total-field atomic gradiometer for unshielded portable magnetoencephalography. arXiv
**2020**, arXiv:2001.03534. [Google Scholar] - Sui, Y.; Li, G.; Wang, S.; Lin, J. Compact fluxgate magnetic full-tensor gradiometer with spherical feedback coil. Rev. Sci. Instr.
**2014**, 85, 014701. [Google Scholar] [CrossRef] - Merayo, J.M.; Brauer, P.; Primdahl, F. Triaxial fluxgate gradiometer of high stability and linearity. Sens. Actuators A
**2005**, 120, 71–77. [Google Scholar] [CrossRef] - Zhang, M.; Or, S.W. Magnetoelectric transverse gradient sensor with high detection sensitivity and low gradient noise. Sensors
**2017**, 17, 2446. [Google Scholar] [CrossRef] [PubMed] - Shen, X.; Teng, Y.; Hu, X. Design of a low-cost small-size fluxgate sensor. Sensors
**2021**, 21, 6598. [Google Scholar] [CrossRef] [PubMed] - Wang, Z.; Shen, Y.; Lei, C.; Wang, J.; Zhao, S.; Chen, J.; Chu, Z.; Gao, J. Highly-Sensitive MEMS Micro-Fluxgate Magnetometer. IEEE Elec. Dev. Lett.
**2022**, 43, 1327–1330. [Google Scholar] [CrossRef] - Shen, Y.; McLaughlin, K.L.; Gao, J.; Li, M.; Li, J.; Viehland, D. Effective optimization of magnetic noise for a Metglas/Pb (Zr, Ti) O3 magnetoelectric sensor array in an open environment. Mater. Lett.
**2013**, 91, 307–310. [Google Scholar] [CrossRef] - Leach, W.M. Fundamentals of low-noise analog circuit design. Proc. IEEE
**1994**, 82, 1515–1538. [Google Scholar] [CrossRef] [Green Version] - Jung, G.; Ocio, M.; Paltiel, Y.; Shtrikman, H.; Zeldov, E. Magnetic noise measurements using cross-correlated Hall sensor arrays. Appl. Phys. Lett.
**2001**, 78, 359–361. [Google Scholar] [CrossRef] [Green Version] - Sui, Y.; Miao, H.; Wang, Y.; Luan, H.; Lin, J. Correction of a towed airborne fluxgate magnetic tensor gradiometer. IEEE Geosci. Remote. Sens. Lett.
**2016**, 13, 1837–1841. [Google Scholar] [CrossRef] - Klein, T.; Wang, W.; Yu, L.; Wu, K.; Boylan, K.L.; Vogel, R.I.; Skubitz, A.P.; Wang, J.P. Development of a multiplexed giant magnetoresistive biosensor array prototype to quantify ovarian cancer biomarkers. Biosens. Bioelectron.
**2019**, 126, 301–307. [Google Scholar] [CrossRef] - Schutt, J.; Illing, R.; Volkov, O.; Kosub, T.; Granell, P.N.; Nhalil, H.; Fassbender, J.; Klein, L.; Grosz, A.; Makarov, D. Two Orders of Magnitude Boost in the Detection Limit of Droplet-Based Micro-Magnetofluidics with Planar Hall Effect Sensors. ACS Omega
**2020**, 5, 20609–20617. [Google Scholar] [CrossRef] - Gul, A.; Tzirtzilakis, E.E.; Makhanov, S.S. Simulation of targeted magnetic drug delivery: Two-way coupled biomagnetic fluid dynamics approach. Phys. Fluids
**2022**, 34, 021911. [Google Scholar] [CrossRef] - Shaw, S.; Shit, G.; Tripathi, D. Impact of drug carrier shape, size, porosity and blood rheology on magnetic nanoparticle-based drug delivery in a microvessel. Colloids Surf. A
**2022**, 639, 128370. [Google Scholar] [CrossRef]

**Figure 1.**(

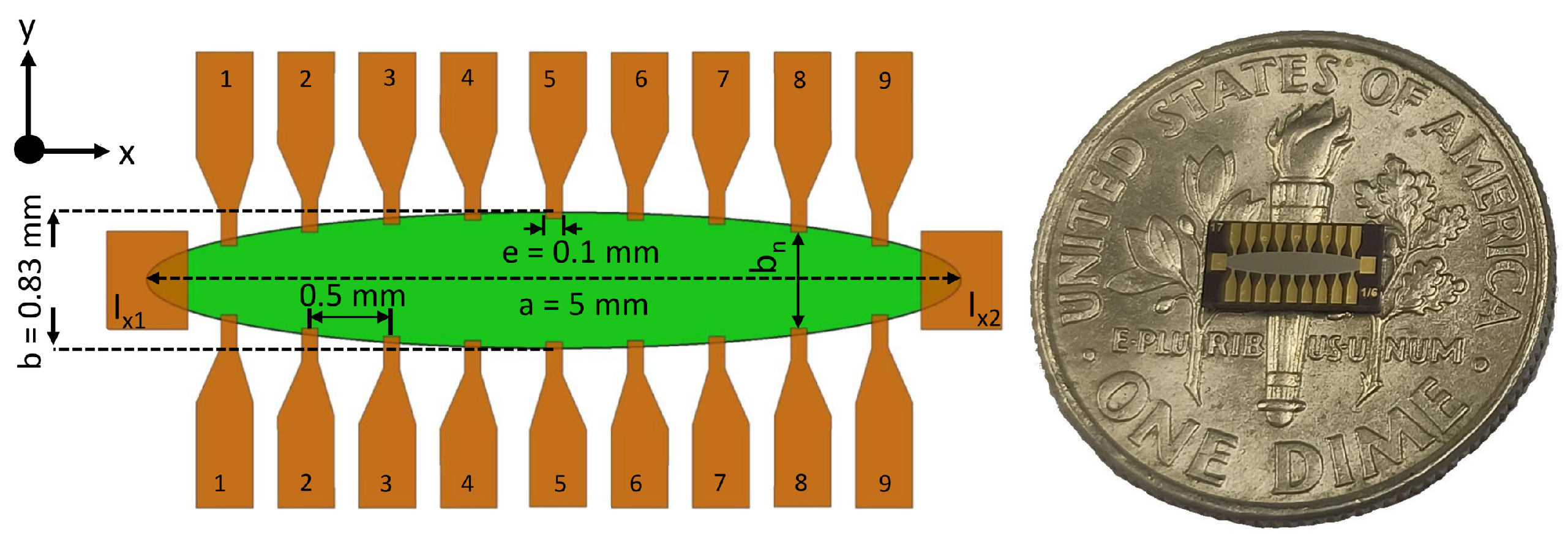

**left**) Schematics of EPHEG geometry (not to scale). The orange regions are gold electrical contact pads. The long and short axes of the ellipse are labeled as a and b, respectively. The sensor is excited between I${}_{x1}$ and I${}_{x2}$, and the transverse signal is measured across any of the parallel 9 voltage pairs (marked from 1 to 9). ${b}_{n}$ is the distance between voltage pairs n. (

**right**) Photograph of a sensor on a dime as a size reference.

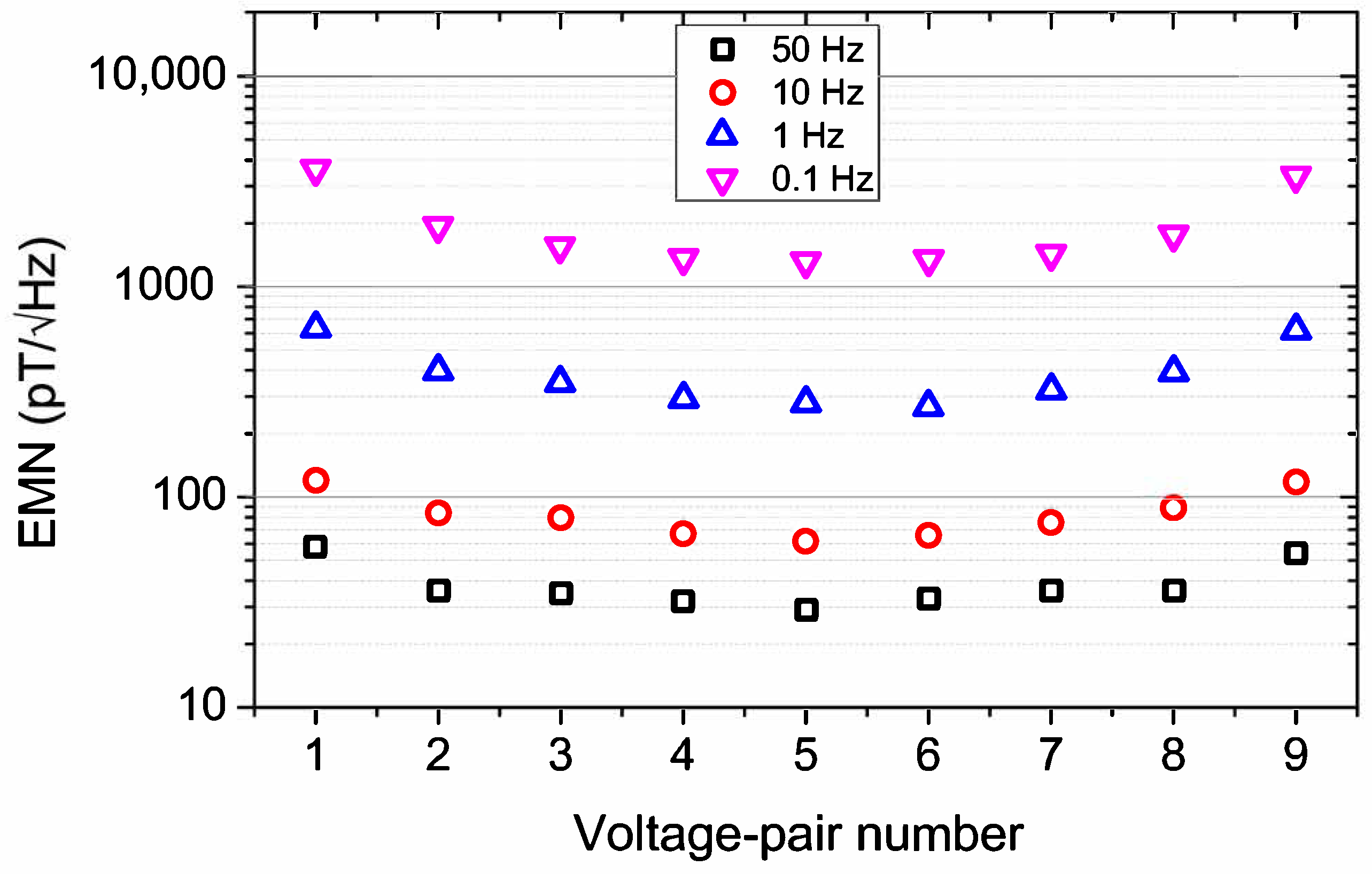

**Figure 2.**Plot showing the variation of EMN with the position of the voltage pairs for 50, 10, 1, and 0.1 Hz frequencies and for the highest excitation current of ∼130 mA.

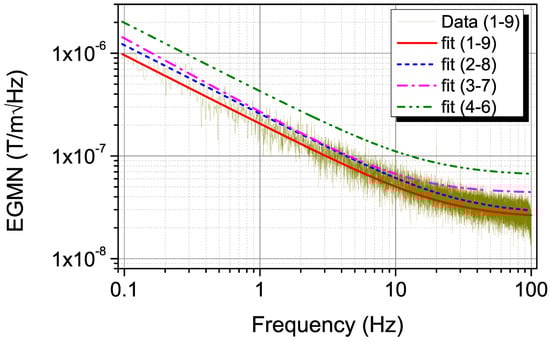

**Figure 3.**Frequency– dependence of EGMN of 4 voltage pairs 1–9, 2–8, 3–7 and 4–6. Data and fit according to Equation (8) are shown only for the 1-9 voltage pairs. For clarity, only the fit is shown for remaining pairs.

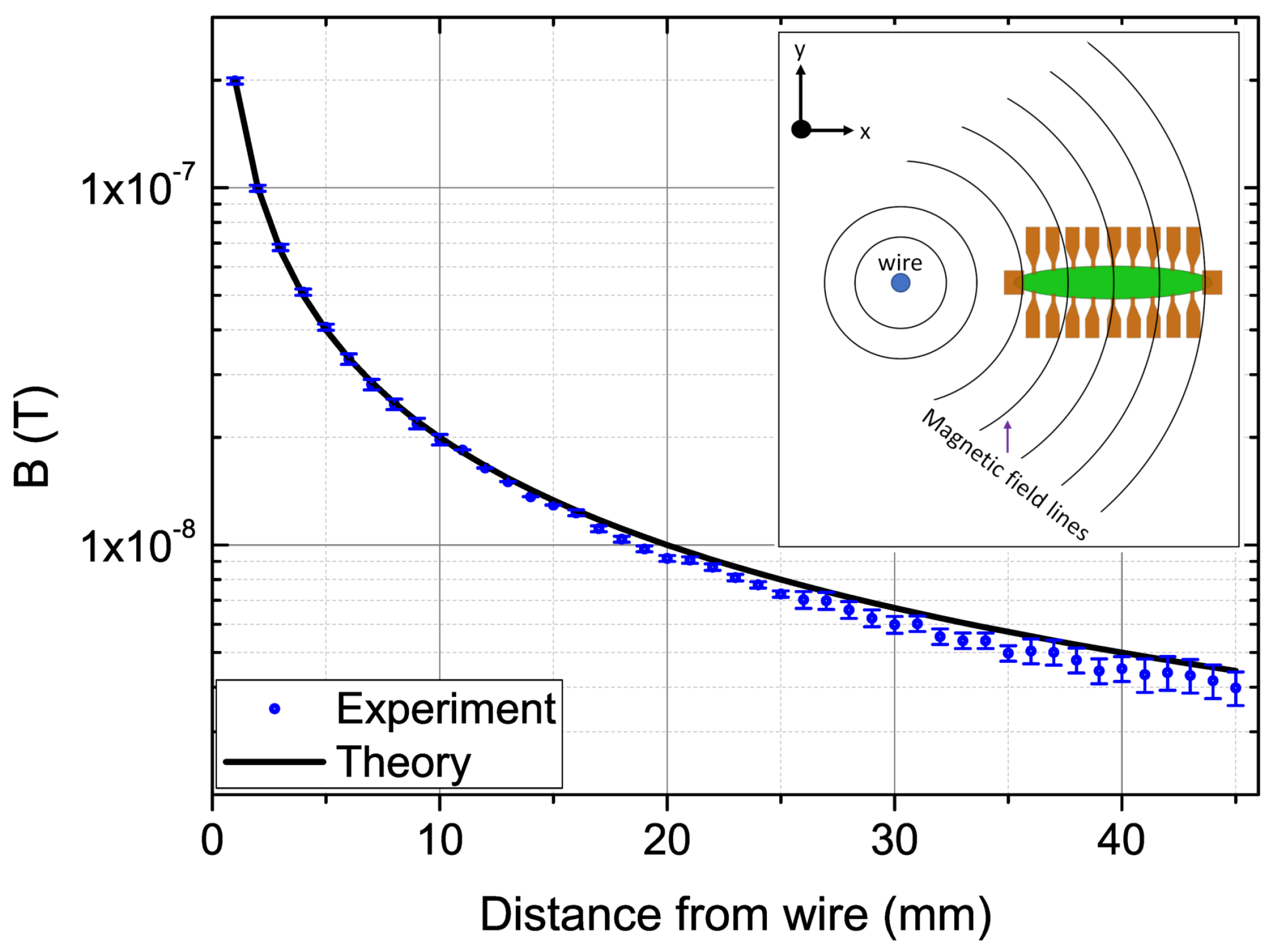

**Figure 4.**The variation of the magnetic field from a current-carrying wire with a distance from the wire (measured outside the magnetic shield) with an EPHEG along with the calculated magnetic field. The standard deviation of 10 measurements is presented as the error at each point. The inset depicts the schematics of the measurement setup. The current-carrying wire is in the z-direction perpendicular to the plane of the figure.

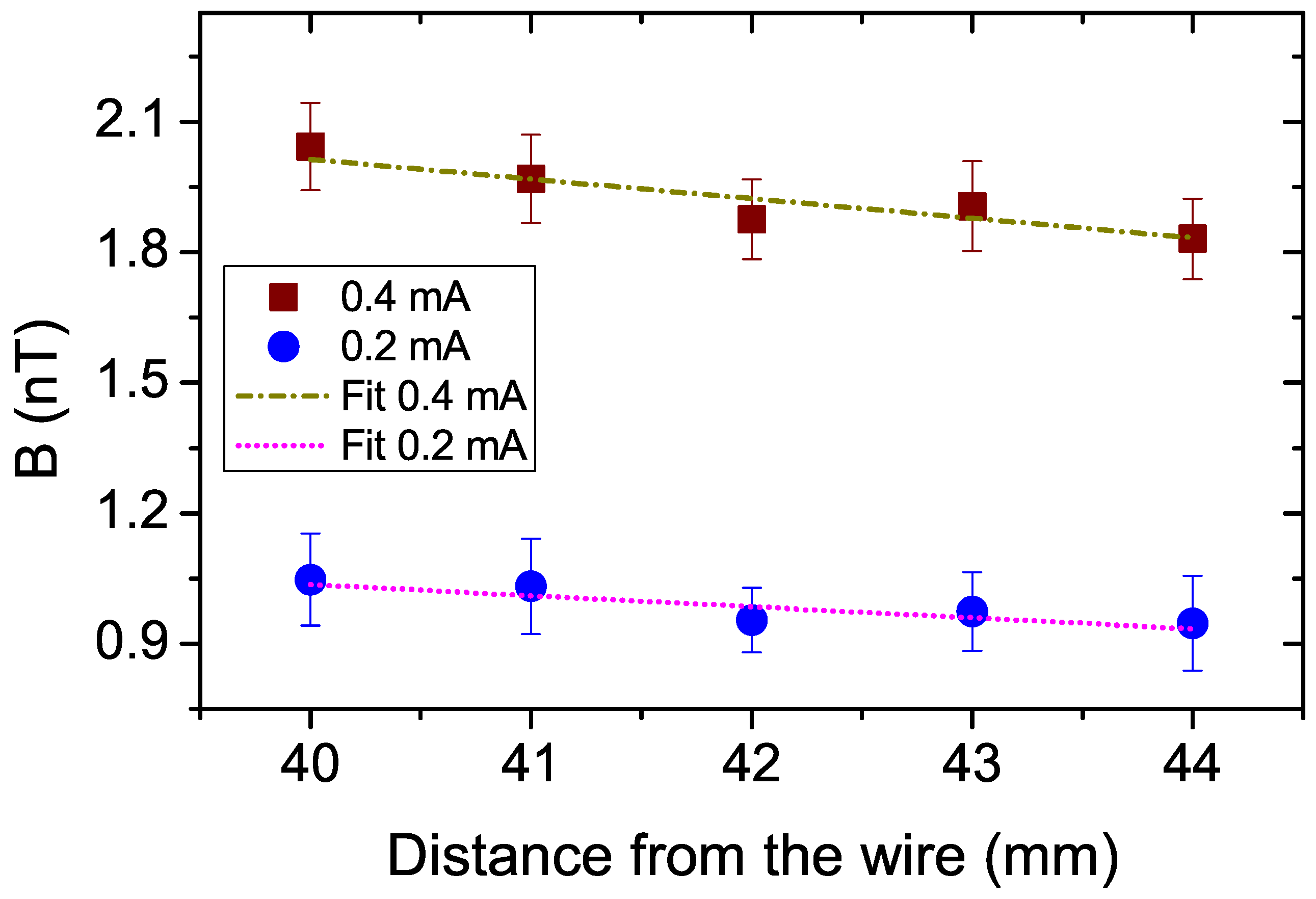

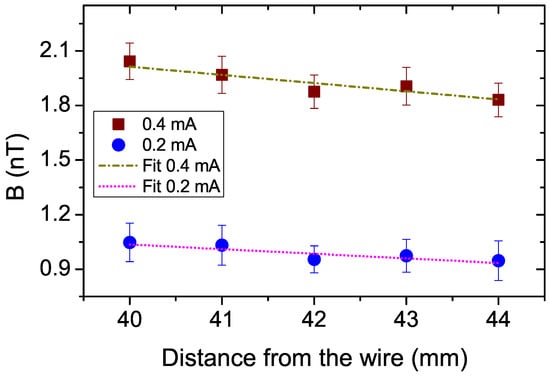

**Figure 5.**The magnetic field from a wire carrying 0.2 mA and 0.4 mA measured at a distance of ∼40 mm using five voltage pairs. The error bar shown for each data point represents the standard deviation of 20 measurements.
