# Secure Air Traffic Control at the Hub of Multiplexing on the Centrifugo-Pneumatic Lab-on-a-Disc Platform

## Abstract

**:**

## 1. Introduction

^{TM}(CD), Digital Video Disc (DVD), or Blu-ray formats (or sections thereof) with their standard 12 cm diameter, thickness of about 1.2 mm, and a central, 15 mm diameter hole for coupling to the spindle. The disc shape is also commensurate with the rotational symmetry of the centrifugal field. While centrifugal microfluidic devices have been implemented on many other shapes, e.g., circular segments, semicircle, standard (rectangular) microscope slides, and even tubes, for the sake of this work, the popular term “disc” will represent all types of chip formats attached to a rotor.

## 2. Basics of Rotational Flow Control

#### 2.1. Centrifugal Field

#### 2.2. Pressure Contributions

#### 2.3. Angular Acceleration

#### 2.4. Critical Spin Rate

#### 2.5. Siphon Valving

#### 2.6. Centrifugo-Pneumatic Siphon Valving with Dissolvable-Film Membranes

## 3. Performance Metrics

#### 3.1. High Field Strengths for LUOs

#### 3.2. Radial Space

#### 3.3. Spatial Footprint

#### 3.4. Volume Definition and Loss

#### 3.5. Reliability and Band Width

## 4. Multiplexing

#### 4.1. System-Level Robustness

#### 4.2. Frequency Corridor

#### 4.3. Configuration in Real and Frequency Space

#### 4.4. Exemplary Bioassay Panel

#### 4.5. Assay Parallelization

## 5. Advanced Rotational Flow Control

#### 5.1. Event Triggering

#### 5.2. Logical Flow Control

#### 5.3. Delay Elements

#### 5.4. Pulsing of Spin Rate

## 6. Conclusions and Outlook

## Funding

## Conflicts of Interest

## Appendix A. Default Geometry of CP-DF Siphon Valves

**Table A1.**Default geometrical parameters and relationships of CP-DF siphon valves (Figure 1). The resulting critical spin rate $\mathsf{\Omega}\left(R,\mathsf{\Gamma},{U}_{0}\right)/2\pi \approx 22\mathrm{Hz}$. Minimum lateral dimensions are given by the smallest practical diameter of milling tools (200 µm). As tools for injection molding are often adopted from optical data storage (e.g., CD, DVD, Blu-ray), a central, 1.5 cm diameter hole and a disc radius of 6 cm with thickness around 1.2 mm, fluidic structures $\mathsf{\Gamma}$ may need to stay within the radial interval between ${R}_{\mathrm{min}}=1.5\mathrm{cm}$ and ${R}_{\mathrm{max}}=5.5\mathrm{cm}$, and an upper limit for the depth of about 1 mm. The lowest depth of cavities is often restricted by the sealing technology; for large lateral extensions or small aspect ratios, sagging of the lid, which is often a foil, may significantly change the nominal volume capacity, also in response to the pressure, and might even lead to sticking to the bottom of the cavity.

$R=3\mathrm{cm}$ | ${R}_{\mathrm{min}}=1.5\mathrm{cm}$ | ${R}_{\mathrm{max}}=5.5\mathrm{cm}$ | ${R}_{\mathrm{DF}}=3.15\mathrm{cm}R$ |

${A}_{0}={d}_{0}\cdot {w}_{0}$ | ${d}_{0}=1\mathrm{mm}$ | ${w}_{0}=5\mathrm{mm}$ | |

${U}_{0}=100\mu \mathrm{L}{\mathrm{A}}_{0}\cdot \left(R-{R}_{\mathrm{min}}\right)$ | |||

${U}_{\mathrm{iso}}={d}_{0}\cdot h\cdot L\ll {U}_{0}$ | ${d}_{\mathrm{iso}}=1\mathrm{mm}$ | ${h}_{\mathrm{iso}}=1\mathrm{mm}$ | ${L}_{\mathrm{iso}}=15\mathrm{mm}{w}_{0}+w$ |

${U}_{Z}=d\cdot w\cdot Z$ | $d=500\mu \mathrm{m}$ | $w=800\mu \mathrm{m}\ll {w}_{0}$ | $Z=10\mathrm{mm}$ |

${V}_{\mathrm{C},0}={d}_{\mathrm{C}}\cdot {w}_{\mathrm{C}}\cdot {h}_{\mathrm{C}}\gg {U}_{Z}$ | ${d}_{\mathrm{C}}=1\mathrm{mm}$ | ${w}_{\mathrm{C}}=20\mathrm{mm}$ | ${h}_{\mathrm{C}}=10\mathrm{mm}$ |

${V}_{\mathrm{int}}={d}_{\mathrm{int}}\cdot {h}_{\mathrm{int}}\cdot {L}_{\mathrm{int}}\ll {V}_{\mathrm{C}}$ | ${d}_{\mathrm{int}}=200\mu \mathrm{m}$ | ${h}_{\mathrm{int}}=300\mu \mathrm{m}$ | ${L}_{\mathrm{int}}=1\mathrm{cm}2w$ |

${V}_{\mathrm{DF}}=0.25\pi \cdot {d}_{\mathrm{DF}}\cdot {D}_{\mathrm{DF}}^{2}\ll {V}_{\mathrm{C}}$ | ${d}_{\mathrm{DF}}=190\mu \mathrm{m}$ | ${D}_{\mathrm{DF}}=3\mathrm{mm}$ | $\alpha =0.45,\beta =0.5$ |

## References

- Manz, A.; Graber, N.; Widmer, H. Miniaturized total chemical analysis systems: A novel concept for chemical sensing. Sensors Actuators B Chem.
**1990**, 1, 244–248. [Google Scholar] [CrossRef] - Reyes, D.R.; Iossifidis, D.; Auroux, P.-A.; Manz, A. Micro Total Analysis Systems. 1. Introduction, Theory, and Technology. Anal. Chem.
**2002**, 74, 2623–2636. [Google Scholar] [CrossRef] [PubMed] - Auroux, P.-A.; Iossifidis, D.; Reyes, D.R.; Manz, A. Micro Total Analysis Systems. 2. Analytical Standard Operations and Applications. Anal. Chem.
**2002**, 74, 2637–2652. [Google Scholar] [CrossRef] [PubMed] - Whitesides, G.M. The origins and the future of microfluidics. Nat. Cell Biol.
**2006**, 442, 368–373. [Google Scholar] [CrossRef] - Yager, P.; Edwards, T.; Fu, E.; Helton, K.; Nelson, K.; Tam, M.R.; Weigl, B.H. Microfluidic diagnostic technologies for global public health. Nat. Cell Biol.
**2006**, 442, 412–418. [Google Scholar] [CrossRef] - Madou, M.J.; Kellogg, G.J. LabCD: A centrifuge-based microfluidic platform for diagnostics. In Proceedings of the BiOS ‘98 International Biomedical Optics Symposium, San Jose, CA, USA, 27–29 January 1998; Volume 3259, pp. 80–93. [Google Scholar] [CrossRef]
- Ducrée, J.; Haeberle, S.; Lutz, S.; Pausch, S.; Von Stetten, F.; Zengerle, R. The centrifugal microfluidic Bio-Disk platform. J. Micromech. Microeng.
**2007**, 17, S103–S115. [Google Scholar] [CrossRef] - Gorkin, R.; Park, J.; Siegrist, J.; Amasia, M.; Lee, B.S.; Park, J.-M.; Kim, J.; Kim, H.; Madou, M.; Cho, Y.-K. Centrifugal microfluidics for biomedical applications. Lab Chip
**2010**, 10, 1758–1773. [Google Scholar] [CrossRef][Green Version] - Park, J.-M.; Cho, Y.-K.; Lee, B.-S.; Lee, J.-G.; Ko, C. Multifunctional microvalves control by optical illumination on nanoheaters and its application in centrifugal microfluidic devices. Lab Chip
**2007**, 7, 557–564. [Google Scholar] [CrossRef] - Watts, A.S.; Urbas, A.A.; Moschou, E.; Gavalas, V.G.; Zoval, J.V.; Madou, M.; Bachas, L. Centrifugal Microfluidics with Integrated Sensing Microdome Optodes for Multiion Detection. Anal. Chem.
**2007**, 79, 8046–8054. [Google Scholar] [CrossRef] - Clime, L.; Geissler, M.; Veres, T.; Brassard, D. Active pneumatic control of centrifugal microfluidic flows for lab-on-a-chip applications. Lab Chip
**2015**, 15, 2400–2411. [Google Scholar] [CrossRef] - Strohmeier, O.; Keller, M.; Schwemmer, F.; Zehnle, S.; Mark, D.; von Stetten, F.; Zengerle, R.; Paust, N. Centrifugal microfluidic platforms: Advanced unit operations and applications. Chem. Soc. Rev.
**2015**, 44, 6187–6229. [Google Scholar] [CrossRef][Green Version] - Thompson, B.L.; Birch, C.; Nelson, D.A.; Li, J.; Duvall, J.A.; Le Roux, D.; Tsuei, A.-C.; Mills, D.L.; Root, B.E.; Landers, J.P. A centrifugal microfluidic device with integrated gold leaf electrodes for the electrophoretic separation of DNA. Lab Chip
**2016**, 16, 4569–4580. [Google Scholar] [CrossRef] - Smith, S.; Mager, D.; Perebikovsky, A.; Shamloo, E.; Kinahan, D.; Mishra, R.; Delgado, S.M.T.; Kido, H.; Saha, S.; Ducrée, J.; et al. CD-Based Microfluidics for Primary Care in Extreme Point-of-Care Settings. Micromachines
**2016**, 7, 22. [Google Scholar] [CrossRef][Green Version] - Hwang, H.; Kim, S.-H.; Kim, T.-H.; Park, J.-K.; Cho, Y.-K. Paper on a disc: Balancing the capillary-driven flow with a centrifugal force. Lab Chip
**2011**, 11, 3404–3406. [Google Scholar] [CrossRef][Green Version] - Kim, T.-H.; Hwang, H.; Gorkin, R.; Madou, M.; Cho, Y.-K. Geometry effects on blood separation rate on a rotating disc. Sens. Actuators B Chem.
**2013**, 178, 648–655. [Google Scholar] [CrossRef] - Hwang, H.; Kim, H.-H.; Cho, Y.-K. Elastomeric membrane valves in a disc. Lab Chip
**2011**, 11, 1434–1436. [Google Scholar] [CrossRef][Green Version] - Roy, E.; Stewart, G.; Mounier, M.; Malic, L.; Peytavi, R.; Clime, L.; Madou, M.; Bossinot, M.; Bergeron, M.G.; Veres, T. From cellular lysis to microarray detection, an integrated thermoplastic elastomer (TPE) point of care Lab on a Disc. Lab Chip
**2014**, 15, 406–416. [Google Scholar] [CrossRef] - Kong, L.X.; Perebikovsky, A.; Moebius, J.; Kulinsky, L.; Madou, M. Lab-on-a-CD. J. Lab. Autom.
**2016**, 21, 323–355. [Google Scholar] [CrossRef][Green Version] - Hess, J.F.; Zehnle, S.; Juelg, P.; Hutzenlaub, T.; Zengerle, R.; Paust, N. Review on pneumatic operations in centrifugal microfluidics. Lab Chip
**2019**, 19, 3745–3770. [Google Scholar] [CrossRef] - Aeinehvand, M.M.; Magaña, P.; Aeinehvand, M.S.; Aguilar, O.; Madou, M.J.; Martinez-Chapa, S.O. Ultra-rapid and low-cost fabrication of centrifugal microfluidic platforms with active mechanical valves. RSC Adv.
**2017**, 7, 55400–55407. [Google Scholar] [CrossRef] - Aeinehvand, M.M.; Weber, L.; Jiménez, M.; Palermo, A.; Bauer, M.; Loeffler, F.F.; Ibrahim, F.; Breitling, F.; Korvink, J.; Madou, M.; et al. Elastic reversible valves on centrifugal microfluidic platforms. Lab Chip
**2019**, 19, 1090–1100. [Google Scholar] [CrossRef] - Van Nguyen, H.; Nguyen, V.D.; Nguyen, H.Q.; Chau, T.H.T.; Lee, E.Y.; Seo, T.S. Nucleic acid diagnostics on the total integrated lab-on-a-disc for point-of-care testing. Biosens. Bioelectron.
**2019**, 141, 111466. [Google Scholar] [CrossRef] - Rombach, M.; Hin, S.; Specht, M.; Johannsen, B.; Lüddecke, J.; Paust, N.; Zengerle, R.; Roux, L.; Sutcliffe, T.; Peham, J.R.; et al. RespiDisk: A point-of-care platform for fully automated detection of respiratory tract infection pathogens in clinical samples. Analyst
**2020**, 145, 7040–7047. [Google Scholar] [CrossRef] - Miyazaki, C.; Carthy, E.; Kinahan, D. Biosensing on the Centrifugal Microfluidic Lab-on-a-Disc Platform. Processes
**2020**, 8, 1360. [Google Scholar] [CrossRef] - Madadelahi, M.; Acosta-Soto, L.F.; Hosseini, S.; Martinez-Chapa, S.O.; Madou, M.J. Mathematical modeling and computational analysis of centrifugal microfluidic platforms: A review. Lab Chip
**2020**, 20, 1318–1357. [Google Scholar] [CrossRef] - Homann, A.R.; Niebling, L.; Zehnle, S.; Beutler, M.; Delamotte, L.; Rothmund, M.-C.; Czurratis, D.; Beller, K.-D.; Zengerle, R.; Hoffmann, H.; et al. A microfluidic cartridge for fast and accurate diagnosis of Mycobacterium tuberculosis infections on standard laboratory equipment. Lab Chip
**2021**, 21, 1540–1548. [Google Scholar] [CrossRef] - Zehnle, S.; Schwemmer, F.; Bergmann, R.; von Stetten, F.; Zengerle, R.; Paust, N. Pneumatic siphon valving and switching in centrifugal microfluidics controlled by rotational frequency or rotational acceleration. Microfluid. Nanofluidics
**2015**, 19, 1259–1269. [Google Scholar] [CrossRef] - Zehnle, S.; Rombach, M.; Zengerle, R.; Von Stetten, F.; Paust, N. Network simulation-based optimization of centrifugo-pneumatic blood plasma separation. Biomicrofluidics
**2017**, 11, 024114. [Google Scholar] [CrossRef][Green Version] - Abaxis. Available online: https://www.abaxis.com/ (accessed on 14 June 2021).
- Schembri, C.T.; Ostoich, V.; Lingane, P.J.; Burd, T.L.; Buhl, S.N. Portable Simultaneous Multiple Analyte Whole-Blood Analyzer for Point-of-Care Testing. Clin. Chem.
**1992**, 38, 1665–1670. [Google Scholar] [CrossRef] [PubMed] - Schembri, C.T.; Burd, T.L.; Kopf-Sill, A.R.; Shea, L.R.; Braynin, B. Centrifugation and capillarity integrated into a multiple analyte whole blood analyser. J. Autom. Chem.
**1995**, 17, 99–104. [Google Scholar] [CrossRef] [PubMed] - Gyros Protein Technologies. Available online: https://www.gyrosproteintechnologies.com/ (accessed on 14 June 2021).
- Shea, M.; Ommert, S.; Gleich, L.; Towle, T.; Haspel, H.; Schmid, N.; Jindal, H.; Kellogg, G.; Carvalho, B.; Contarino, M.; et al. ADMET Assays on Tecan’s LabCD-ADMET System. J. Lab. Autom.
**2003**, 8, 74–77. [Google Scholar] [CrossRef] - Biosurfit, S.A. Available online: https://www.biosurfit.com/ (accessed on 14 June 2021).
- Burstein Technologies, Inc. 2006. Available online: https://web.archive.org/web/20061209052345/http://www.bursteintechnologies.com (accessed on 31 May 2021).
- Mian, A.; Kieffer-Higgins, S.G.; Corey, G.D. US6319469B1–Devices and methods for using centripetal acceleration to drive fluid movement in a microfluidics system. 1996. Available online: https://patents.google.com/patent/US6319469B1/en (accessed on 14 June 2021).
- Radisens Diagnostics. Available online: www.radisens.com (accessed on 14 June 2021).
- LaMotte Chemical Products Co. Available online: https://www.lamotte.com (accessed on 14 June 2021).
- Blusense Diagnostics. Available online: https://blusense-diagnostics.com/ (accessed on 14 June 2021).
- Spindiag GmbH. Available online: http://www.spindiag.de (accessed on 14 June 2021).
- RotaPrep Inc. Available online: https://rotaprep.com/ (accessed on 19 April 2021).
- Ducrée, J. Efficient Development of Integrated Lab-On-A-Chip Systems Featuring Operational Robustness and Manufacturability. Micromachines
**2019**, 10, 886. [Google Scholar] [CrossRef] [PubMed][Green Version] - Mark, D.; Haeberle, S.; Metz, T.; Lutz, S.; Ducrée, J.; Zengerle, R.; von Stetten, F. Aliquoting structure for centrifugal micro-fluidics based on a new pneumatic valve. In Proceedings of the MEMS 2008, 21st IEEE International Conference on Micro Electro Mechanical Systems, Tucson, AZ, USA, 13–17 January 2008. [Google Scholar]
- Schwemmer, F.; Hutzenlaub, T.; Buselmeier, D.; Paust, N.; Von Stetten, F.; Mark, D.; Zengerle, R.; Kosse, D. Centrifugo-pneumatic multi-liquid aliquoting—Parallel aliquoting and combination of multiple liquids in centrifugal microfluidics. Lab Chip
**2015**, 15, 3250–3258. [Google Scholar] [CrossRef] [PubMed][Green Version] - Keller, M.; Wadle, S.; Paust, N.; Dreesen, L.; Nuese, C.; Strohmeier, O.; Zengerle, R.; von Stetten, F. Centrifugo-thermopneumatic fluid control for valving and aliquoting applied to multiplex real-time PCR on off-the-shelf centrifugal thermocycler. RSC Adv.
**2015**, 5, 89603–89611. [Google Scholar] [CrossRef][Green Version] - Haeberle, S.; Brenner, T.; Zengerle, R.; Ducrée, J. Centrifugal extraction of plasma from whole blood on a rotating disk. Lab Chip
**2006**, 6, 776–781. [Google Scholar] [CrossRef] [PubMed] - Steigert, J.; Brenner, T.; Grumann, M.; Riegger, L.; Lutz, S.; Zengerle, R.; Ducrée, J. Integrated siphon-based metering and sedimentation of whole blood on a hydrophilic lab-on-a-disk. Biomed. Microdevices
**2007**, 9, 675–679. [Google Scholar] [CrossRef] [PubMed] - Kinahan, D.J.; Kearney, S.M.; Kilcawley, N.A.; Early, P.L.; Glynn, M.; Ducrée, J. Density-Gradient Mediated Band Extraction of Leukocytes from Whole Blood Using Centrifugo-Pneumatic Siphon Valving on Centrifugal Microfluidic Discs. PLoS ONE
**2016**, 11, e0155545. [Google Scholar] [CrossRef] - Dimov, N.; Gaughran, J.; McAuley, D.; Boyle, D.; Kinahan, D.J.; Ducree, J. Centrifugally automated solid-phase purification of RNA. In Proceedings of the 2014 IEEE 27th International Conference on Micro Electro Mechanical Systems (MEMS), San Francisco, CA, USA, 26–30 January 2014; pp. 260–263. [Google Scholar] [CrossRef]
- Gaughran, J.; Boyle, D.; Murphy, J.; Kelly, R.; Ducrée, J. Phase-selective graphene oxide membranes for advanced microfluidic flow control. Microsystems Nanoeng.
**2016**, 2, 16008. [Google Scholar] [CrossRef][Green Version] - Strohmeier, O.; Keil, S.; Kanat, B.; Patel, P.; Niedrig, M.; Weidmann, M.; Hufert, F.; Drexler, J.; Zengerle, R.; von Stetten, F. Automated nucleic acid extraction from whole blood, B. subtilis, E. coli, and Rift Valley fever virus on a centrifugal microfluidic LabDisk. RSC Adv.
**2015**, 5, 32144–32150. [Google Scholar] [CrossRef] - Brassard, D.; Geissler, M.; Descarreaux, M.; Tremblay, D.; Daoud, J.; Clime, L.; Mounier, M.; Charlebois, D.; Veres, T. Extraction of nucleic acids from blood: Unveiling the potential of active pneumatic pumping in centrifugal microfluidics for integration and automation of sample preparation processes. Lab Chip
**2019**, 19, 1941–1952. [Google Scholar] [CrossRef] - Karle, M.; Miwa, J.; Röth, G.; Zengerle, R.; Von Stetten, F. A Novel Microfluidic Platform for Continuous DNA Extraction and Purification using Laminar Flow Magnetophoresis. In Proceedings of the 2009 IEEE 22nd International Conference on Micro Electro Mechanical Systems, Sorrento, Italy, 25–29 January 2009; pp. 276–279. [Google Scholar] [CrossRef]
- Kido, H.; Micic, M.; Smith, D.; Zoval, J.; Norton, J.; Madou, M. A novel, compact disk-like centrifugal microfluidics system for cell lysis and sample homogenization. Colloids Surfaces B Biointerfaces
**2007**, 58, 44–51. [Google Scholar] [CrossRef] - Grumann, M.; Geipel, A.; Riegger, L.; Zengerle, R.; Ducrée, J. Batch-mode mixing on centrifugal microfluidic platforms. Lab Chip
**2005**, 5, 560–565. [Google Scholar] [CrossRef] - Ducrée, J.; Brenner, T.; Haeberle, S.; Glatzel, T.; Zengerle, R. Multilamination of flows in planar networks of rotating microchannels. Microfluid. Nanofluidics
**2006**, 2, 78–84. [Google Scholar] [CrossRef] - Burger, R.; Kinahan, D.J.; Cayron, H.; Reis, N.; Fonseca, J.; Ducrée, J. Siphon-Induced Droplet Break-Off for Enhanced Mixing on a Centrifugal Platform. Inventions
**2019**, 5, 1. [Google Scholar] [CrossRef][Green Version] - Ducrée, J.; Haeberle, S.; Brenner, T.; Glatzel, T.; Zengerle, R. Patterning of flow and mixing in rotating radial microchannels. Microfluid. Nanofluidics
**2005**, 2, 97–105. [Google Scholar] [CrossRef] - Lutz, S.; Mark, D.; Roth, G.; Zengerle, R.; von Stetten, F. Centrifugal Microfluidic Platforms for Molecular Diagnostics. Clin. Chem. Lab. Med.
**2011**, 49, S608. [Google Scholar] - Tang, M.; Wang, G.; Kong, S.-K.; Ho, H.-P. A Review of Biomedical Centrifugal Microfluidic Platforms. Micromachines
**2016**, 7, 26. [Google Scholar] [CrossRef][Green Version] - Maguire, I.; O’Kennedy, R.; Ducrée, J.; Regan, F. A review of centrifugal microfluidics in environmental monitoring. Anal. Methods
**2018**, 10, 1497–1515. [Google Scholar] [CrossRef] - Burger, R.; Amato, L.; Boisen, A. Detection methods for centrifugal microfluidic platforms. Biosens. Bioelectron.
**2016**, 76, 54–67. [Google Scholar] [CrossRef] - Duffy, D.C.; Gillis, H.L.; Lin, J.; Sheppard, N.F.; Kellogg, G.J. Microfabricated Centrifugal Microfluidic Systems: Characterization and Multiple Enzymatic Assays. Anal. Chem.
**1999**, 71, 4669–4678. [Google Scholar] [CrossRef] - Azimi-Boulali, J.; Madadelahi, M.; Madou, M.J.; Martinez-Chapa, S.O. Droplet and Particle Generation on Centrifugal Microfluidic Platforms: A Review. Micromachines
**2020**, 11, 603. [Google Scholar] [CrossRef] - Brennan, D.; Coughlan, H.; Clancy, E.; Dimov, N.; Barry, T.; Kinahan, D.; Ducrée, J.; Smith, T.J.; Galvin, P. Development of an on-disc isothermal in vitro amplification and detection of bacterial RNA. Sensors Actuators B Chem.
**2017**, 239, 235–242. [Google Scholar] [CrossRef][Green Version] - Delgado, S.M.T.; Kinahan, D.J.; Sandoval, F.S.; Julius, L.A.N.; Kilcawley, N.A.; Ducrée, J.; Mager, D. Fully automated chemiluminescence detection using an electrified-Lab-on-a-Disc (eLoaD) platform. Lab Chip
**2016**, 16, 4002–4011. [Google Scholar] [CrossRef][Green Version] - Ducrée, J. Systematic review of centrifugal valving based on digital twin modelling towards highly integrated Lab-on-a-Disc systems. Nat. Microsyst. Nanoeng.
**2021**. [Google Scholar] [CrossRef] - Ducrée, J. Design optimization of centrifugal microfluidic “Lab-on-a-Disc” systems towards fluidic larger-scale integration. Appl. Sci.
**2021**. [Google Scholar] [CrossRef] - Abi-Samra, K.; Hanson, R.; Madou, M.; Iii, R.A.G. Infrared controlled waxes for liquid handling and storage on a CD-microfluidic platform. Lab Chip
**2011**, 11, 723–726. [Google Scholar] [CrossRef] - Kong, L.X.; Parate, K.; Abi-Samra, K.; Madou, M. Multifunctional wax valves for liquid handling and incubation on a microfluidic CD. Microfluid. Nanofluidics
**2015**, 18, 1031–1037. [Google Scholar] [CrossRef] - Al-Faqheri, W.; Ibrahim, F.; Thio, T.H.G.; Moebius, J.; Joseph, K.; Arof, H.; Madou, M. Vacuum/Compression Valving (VCV) Using Parrafin-Wax on a Centrifugal Microfluidic CD Platform. PLoS ONE
**2013**, 8, e58523. [Google Scholar] [CrossRef] [PubMed][Green Version] - Wang, Y.; Li, Z.; Huang, X.; Ji, W.; Ning, X.; Liu, K.; Tan, J.; Yang, J.; Ho, H.-P.; Wang, G. On-board control of wax valve on active centrifugal microfluidic chip and its application for plasmid DNA extraction. Microfluid. Nanofluidics
**2019**, 23, 112. [Google Scholar] [CrossRef] - Garcia-Cordero, J.L.; Kurzbuch, D.; Benito-Lopez, F.; Diamond, D.; Lee, L.P.; Ricco, A.J. Optically addressable single-use microfluidic valves by laser printer lithography. Lab Chip
**2010**, 10, 2680–2687. [Google Scholar] [CrossRef][Green Version] - Stumpf, F.; Schwemmer, F.; Hutzenlaub, T.; Baumann, D.; Strohmeier, O.; Dingemanns, G.; Simons, G.; Sager, C.; Plobner, L.; von Stetten, F.; et al. LabDisk with complete reagent prestorage for sample-to-answer nucleic acid based detection of respiratory pathogens verified with influenza A H3N2 virus. Lab Chip
**2015**, 16, 199–207. [Google Scholar] [CrossRef] [PubMed][Green Version] - Delgado, S.M.T.; Kinahan, D.J.; Julius, L.A.N.; Mallette, A.; Ardila, D.S.; Mishra, R.; Miyazaki, C.M.; Korvink, J.; Ducrée, J.; Mager, D. Wirelessly powered and remotely controlled valve-array for highly multiplexed analytical assay automation on a centrifugal microfluidic platform. Biosens. Bioelectron.
**2018**, 109, 214–223. [Google Scholar] [CrossRef][Green Version] - Iii, R.G.; Nwankire, C.E.; Gaughran, J.; Zhang, X.; Donohoe, G.G.; Rook, M.; O’Kennedy, R.; Ducrée, J. Centrifugo-pneumatic valving utilizing dissolvable films. Lab Chip
**2012**, 12, 2894–2902. [Google Scholar] [CrossRef] - Godino, N.; Iii, R.G.; Linares, A.V.; Burger, R.; Ducrée, J. Comprehensive integration of homogeneous bioassays via centrifugo-pneumatic cascading. Lab Chip
**2013**, 13, 685–694. [Google Scholar] [CrossRef] - Kinahan, D.J.; Early, P.L.; Vembadi, A.; MacNamara, E.; Kilcawley, N.A.; Glennon, T.; Diamond, D.; Brabazon, D.; Ducrée, J. Xurography actuated valving for centrifugal flow control. Lab Chip
**2016**, 16, 3454–3459. [Google Scholar] [CrossRef] - Mishra, R.; Gaughran, J.; Kinahan, D.; Ducrée, J. Functional Membranes for Enhanced Rotational Flow Control on Centrifugal Microfluidic Platforms. Ref. Modul. Mater. Sci. Mater. Eng.
**2017**. [Google Scholar] [CrossRef] - Kinahan, D.J.; Kearney, S.M.; Dimov, N.; Glynn, M.T.; Ducrée, J. Event-triggered logical flow control for comprehensive process integration of multi-step assays on centrifugal microfluidic platforms. Lab Chip
**2014**, 14, 2249–2258. [Google Scholar] [CrossRef][Green Version] - Kinahan, D.J.; McConville, K.; Henderson, B.; McCaul, M.; McNamara, E.; Diamond, D.; Ducrée, J. Digital pulse actuated flow control on a centrifugal disc towards multiparameter water quality monitoring. In Proceedings of the 20th International Conference on Miniaturized Systems for Chemistry and Life Sciences (μTAS 2016), Dublin, Ireland, 9–13 October 2016; Pamme, N., Ducrée, J., Eds.; CBMS: Dublin, Ireland, 2016; pp. 871–872. [Google Scholar]
- Kinahan, D.J.; Renou, M.; Kurzbuch, D.; Kilcawley, N.A.; Bailey, Éanna; Glynn, M.; McDonagh, C.; Ducrée, J. Baking Powder Actuated Centrifugo-Pneumatic Valving for Automation of Multi-Step Bioassays. Micromachines
**2016**, 7, 175. [Google Scholar] [CrossRef][Green Version] - Mishra, R.; Reilly, G.; Agnew, M.; Garvey, A.; Rogers, C.; Andrade, E.; Ma, H.; Fitzgerald, S.; Zapatero, J.; O’Kennedy, R.; et al. Laser-actuated centrifugo-pneumatic flow control towards ‘sample-to-answer’ integrated detection of multi-marker panels at the point-of-care. In Proceedings of the 2018 IEEE Micro Electro Mechanical Systems (MEMS), Dublin, Ireland, 21–25 January 2018; pp. 1185–1188. [Google Scholar] [CrossRef][Green Version]
- Unger, M.A.; Chou, H.-P.; Thorsen, T.; Scherer, A.; Quake, S.R. Monolithic Microfabricated Valves and Pumps by Multilayer Soft Lithography. Science
**2000**, 288, 113–116. [Google Scholar] [CrossRef][Green Version] - Thorsen, T.; Maerkl, S.J.; Quake, S.R. Microfluidic Large-Scale Integration. Science
**2002**, 298, 580–584. [Google Scholar] [CrossRef][Green Version] - Digital Twin. 2021. Available online: https://en.wikipedia.org/wiki/Digital_twin (accessed on 25 May 2021).
- Marr, B. What Is Digital Twin Technology—And Why Is It So Important? 2017. Available online: https://www.forbes.com/sites/bernardmarr/2017/03/06/what-is-digital-twin-technology-and-why-is-it-so-important/ (accessed on 25 May 2021).
- Brenner, T.; Glatzel, T.; Zengerle, R.; Ducrée, J. Frequency-dependent transversal flow control in centrifugal microfluidics. Lab Chip
**2004**, 5, 146–150. [Google Scholar] [CrossRef] - Clime, L.; Daoud, J.; Brassard, D.; Malic, L.; Geissler, M.; Veres, T. Active pumping and control of flows in centrifugal microfluidics. Microfluid. Nanofluidics
**2019**, 23, 29. [Google Scholar] [CrossRef] - Noroozi, Z.; Kido, H.; Madou, M.J. Electrolysis-Induced Pneumatic Pressure for Control of Liquids in a Centrifugal System. J. Electrochem. Soc.
**2011**, 158, P130–P135. [Google Scholar] [CrossRef] - Abi-Samra, K.; Clime, L.; Kong, L.; Gorkin, R.; Kim, T.-H.; Cho, Y.-K.; Madou, M. Thermo-pneumatic pumping in centrifugal microfluidic platforms. Microfluid. Nanofluidics
**2011**, 11, 643–652. [Google Scholar] [CrossRef] - Haeberle, S.; Schmitt, N.; Zengerle, R.; Ducrée, J. Centrifugo-magnetic pump for gas-to-liquid sampling. Sens. Actuators A Phys.
**2007**, 135, 28–33. [Google Scholar] [CrossRef] - Siegrist, J.; Gorkin, R.; Bastien, M.; Stewart, G.; Peytavi, R.; Kido, H.; Bergeron, M.; Madou, M. Validation of a centrifugal microfluidic sample lysis and homogenization platform for nucleic acidextraction with clinical samples. Lab Chip
**2009**, 10, 363–371. [Google Scholar] [CrossRef] - Soroori, S.; Kulinsky, L.; Kido, H.; Madou, M. Design and implementation of fluidic micro-pulleys for flow control on centrifugal microfluidic platforms. Microfluid. Nanofluidics
**2014**, 16, 1117–1129. [Google Scholar] [CrossRef][Green Version] - Kinahan, D.J.; Kearney, S.M.; Faneuil, O.P.; Glynn, M.T.; Dimov, N.; Ducrée, J. Paper imbibition for timing of multi-step liquid handling protocols on event-triggered centrifugal microfluidic lab-on-a-disc platforms. RSC Adv.
**2014**, 5, 1818–1826. [Google Scholar] [CrossRef][Green Version] - Godino, N.; Vereshchagina, E.; Gorkin, R.; Ducrée, J. Centrifugal automation of a triglyceride bioassay on a low-cost hybrid paper-polymer device. Microfluid. Nanofluidics
**2014**, 16, 895–905. [Google Scholar] [CrossRef] - Ducrée, J. Anti-counterfeit technologies for centrifugal microfluidic “Lab-on-a-Disc” systems: An analysis.
**2021**, in press. [Google Scholar] - Ducrée, J.; Etzrodt, M.; Bartling, S.; Walshe, R.; Harrington, T.; Wittek, N.; Posth, S.; Wittek, K.; Ionita, A.; Prinz, W.; et al. Unchaining Collective Intelligence for Science, Research, and Technology Development by Blockchain-Boosted Community Participation. Front. Blockchain
**2021**, 4, 631648. [Google Scholar] [CrossRef] - Ducrée, J. Research—A blockchain of knowledge? Blockchain Res. Appl.
**2020**, 1, 100005. [Google Scholar] [CrossRef] - Ducrée, J.; Gravitt, M.; Walshe, R.; Bartling, S.; Etzrodt, M.; Harrington, T. Open Platform Concept for Blockchain-Enabled Crowdsourcing of Technology Development and Supply Chains. Front. Blockchain
**2020**, 3, 386525. [Google Scholar] [CrossRef] - Ducrée, J.; Etzrodt, M.; Gordijn, B.; Gravitt, M.; Bartling, S.; Walshe, R.; Harrington, T. Blockchain for Organizing Effective Grass-Roots Actions on a Global Commons: Saving the Planet. Front. Blockchain
**2020**, 3, 33. [Google Scholar] [CrossRef]

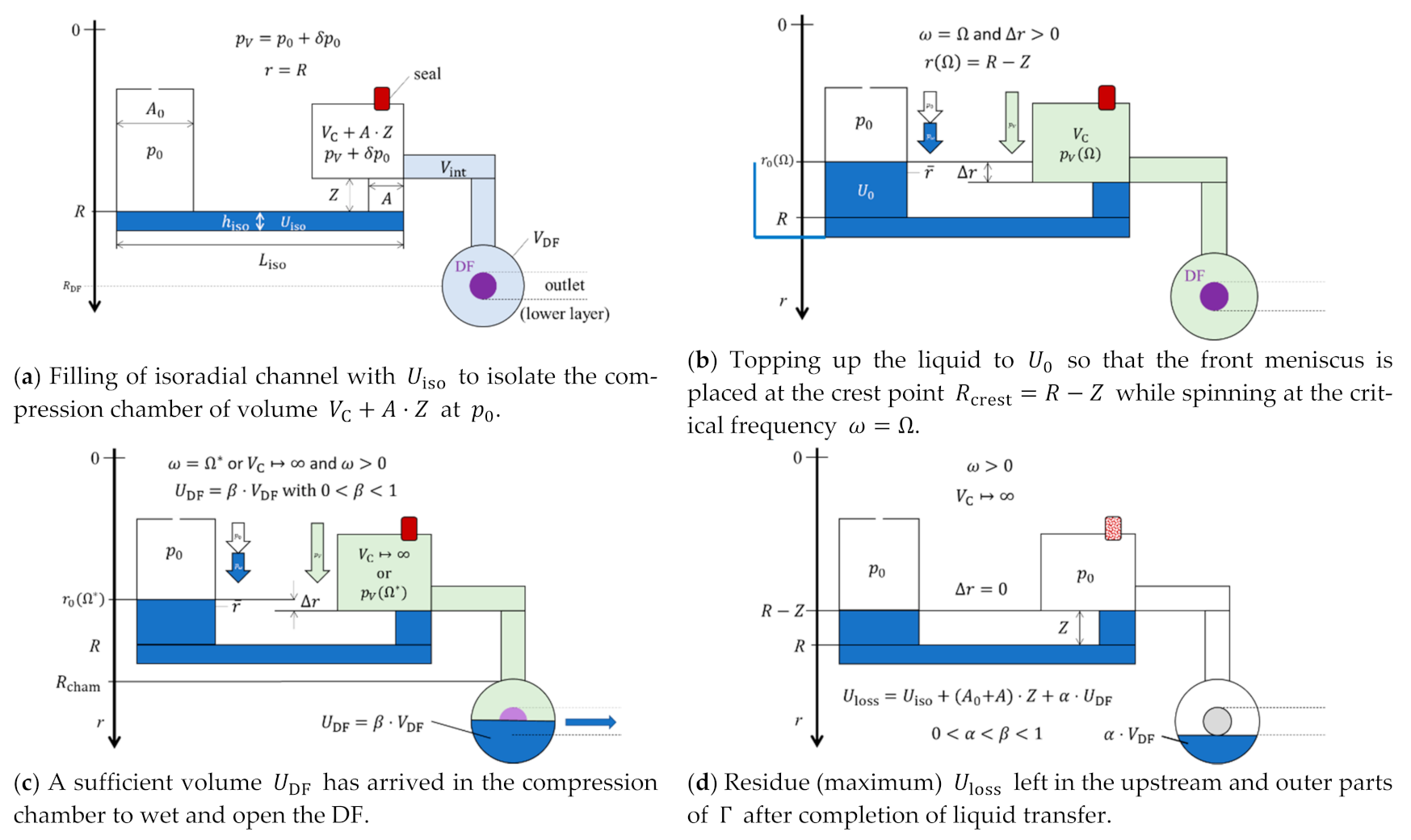

**Figure 1.**CP-DF siphon valving. The measures of the default geometry $\mathsf{\Gamma}$ (linearized display, not to scale) are compiled in Appendix A, Table A1. The structure consists of an inlet reservoir of cross-section ${A}_{0}={d}_{0}\cdot {w}_{0}$ with depth ${w}_{0}$ and width ${w}_{0}$, which is connected through a (narrow) isoradial channel of volume ${U}_{\mathrm{iso}}={d}_{\mathrm{iso}}\cdot {L}_{\mathrm{iso}}\cdot {h}_{\mathrm{iso}}$ positioned at $R$to an inbound section of radial extension $Z$ and cross-section $A=d\cdot w$ of depth $d$ and width $w$. (For the sake of simplicity, ${d}_{0}={d}_{\mathrm{iso}}=d=1\mathrm{mm}$ is chosen in this rudimentary layout.) During retention, the outer part represents the gas-filled compression chamber, with a main compartment of volume ${V}_{\mathrm{C},0}$, isoradial and radial sections of aggregate volume ${V}_{\mathrm{int}}$ (with ${V}_{\mathrm{int}}\ll {V}_{\mathrm{C},0}$) connecting to a shallow round chamber of volume ${V}_{\mathrm{DF}}$ (with ${V}_{\mathrm{DF}}\ll {V}_{\mathrm{C},0}$) centered at ${R}_{\mathrm{DF}}$. This outer compartment of volume ${V}_{\mathrm{DF}}$ features a dissolvable-film (DF) membrane. This DF intermittently covers a centrally placed vertical via leading to an outlet in a lower layer until a liquid volume ${U}_{\mathrm{DF}}=\beta \cdot {V}_{\mathrm{DF}}$ with geometry-dependent coefficient $0<\beta <1$ (here: $\alpha =1/2$) has arrived. A fraction $\alpha \cdot {V}_{\mathrm{DF}}$ with $\alpha <\beta $ remains in the receiving chamber after transfer.

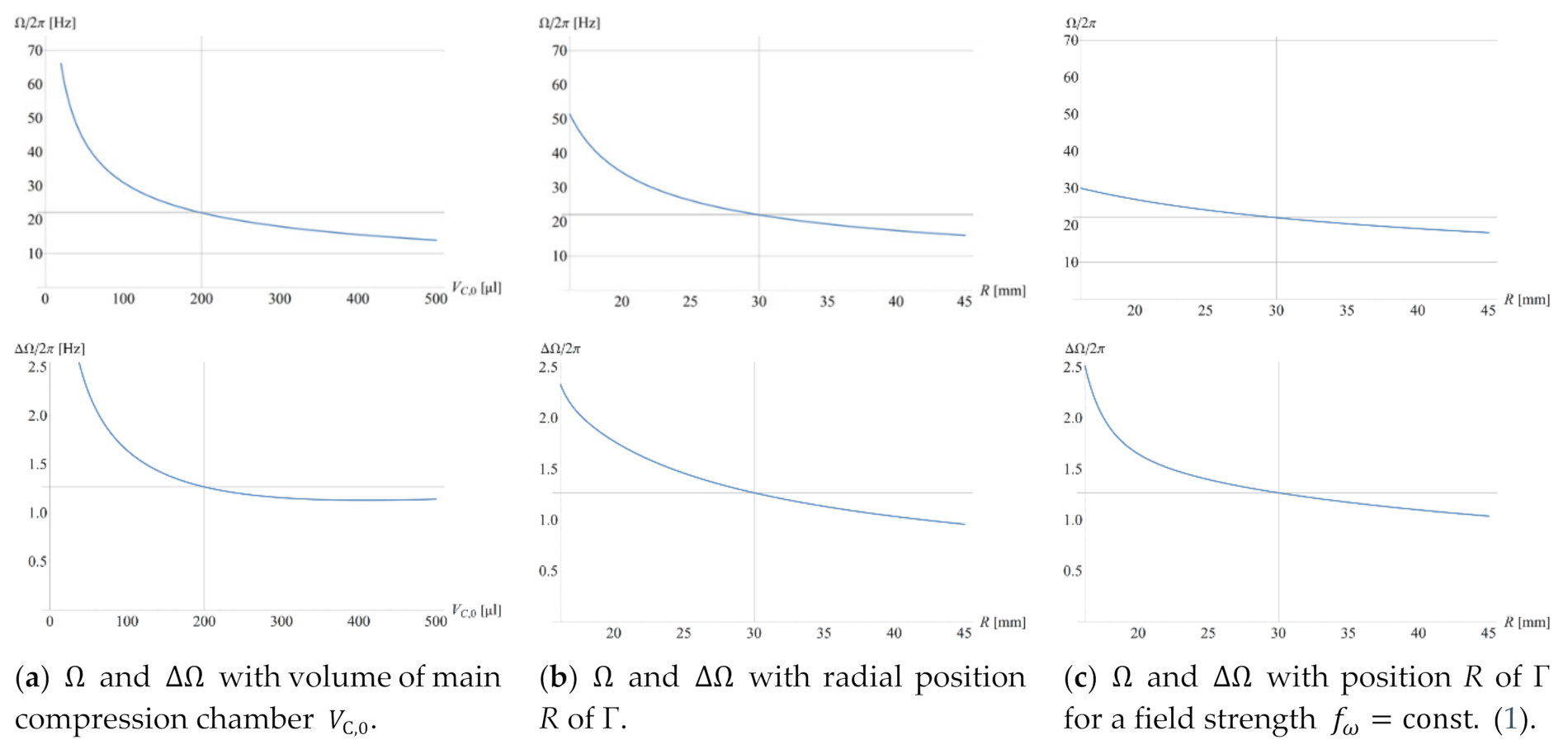

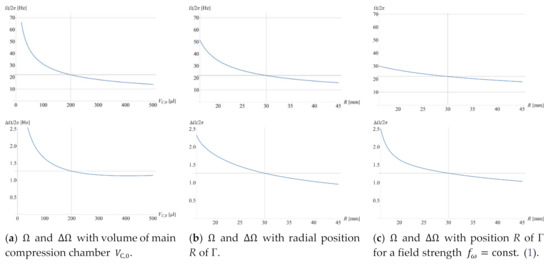

**Figure 2.**Variation of retention rate $\mathsf{\Omega}$ (11) and its standard deviation $\mathsf{\Delta}\mathsf{\Omega}$ (20) with (

**a**) the volume of the main, permanently gas-filled compartment of the compression chamber ${V}_{\mathrm{C},0}$ and (

**b**) the radial position $R$ while leaving (the remainder of) the structure $\mathsf{\Gamma}$ unchanged. The retention rate $\mathsf{\Omega}$ sharply increases towards shrinking compression volumes ${V}_{\mathrm{C},0}$ and central placements $R$; this comes at the expense of widening the tolerance $\mathsf{\Delta}\mathsf{\Omega}$. The gridlines represent the default volume ${V}_{\mathrm{C},0}=200\mu \mathrm{L}$, at a radial position $R=30\mathrm{mm}$ and retention rate $\mathsf{\Omega}/2\pi \approx 22\mathrm{Hz}$. (

**c**) $\mathsf{\Omega}$ and $\mathsf{\Delta}\mathsf{\Omega}\mathrm{vs}.R$ while maintaining the field strength ${f}_{\omega}$ (1), originally evaluated for its default geometry $\mathsf{\Gamma}$ (Table A1), critical spin rate $\mathsf{\Omega}/2\pi =30\mathrm{Hz}$, $\varrho =1000{\mathrm{kg}\mathrm{m}}^{-3}$ and $R=3\mathrm{cm}$, while varying the radial position $R$.

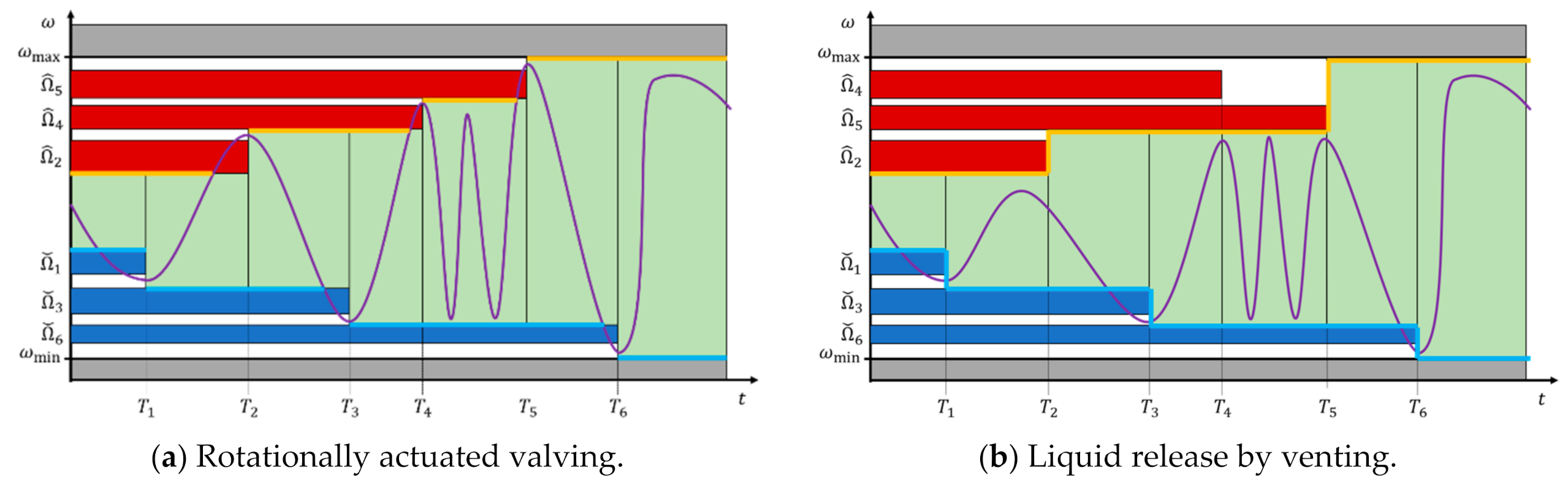

**Figure 3.**Multiplexing of concurrently loaded valves in frequency vs. time domain. High- and low-pass valving takes place at points in time $\{{T}_{i}\}$. With each step $i$, a certain frequency corridor (green) that is available for LUOs rearranges. (

**a**) For rotational actuation, reliable opening of valves $\{i,j\}$ in a given step $i$ is triggered by fully crossing their linked frequency bands $\{{\mathsf{\Omega}}_{i,j}\pm M\cdot {\mathsf{\Delta}\mathsf{\Omega}}_{i,j}\}$. (

**b**) In venting mode, the concurrently loaded valves serially release according to the order of opening their compression chamber, i.e., ${V}_{\mathrm{C},0,i}\mapsto \infty $ and ${p}_{V}\mapsto {p}_{0}$.

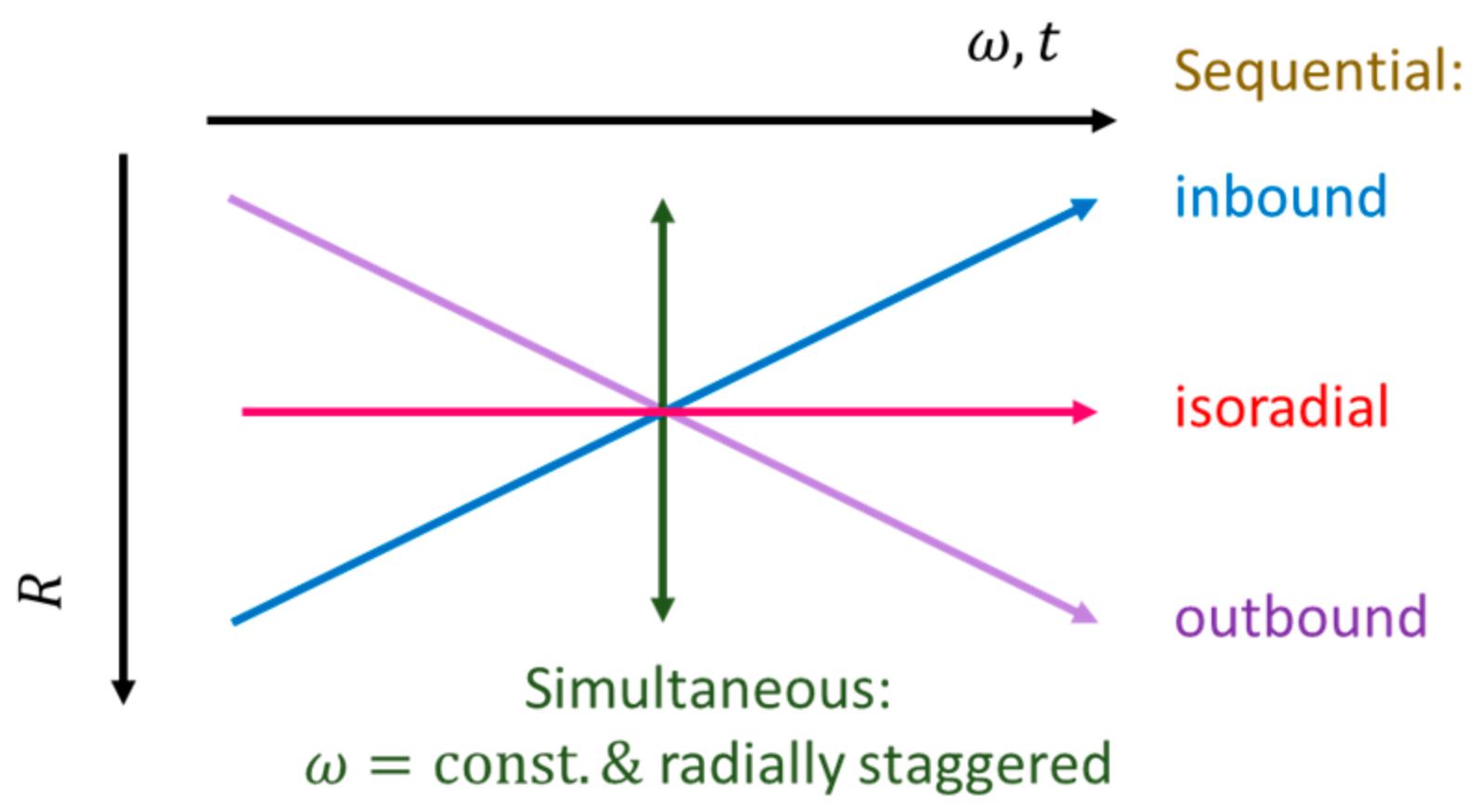

**Figure 4.**Representative scenarios underpinning multiplexing. The critical retention rates $\{{\mathsf{\Omega}}_{i,j}\}$ (11) of concurrently loaded (high-pass) valves $\{i,j\}$ to be rotationally actuated at a time ${T}_{i}$ may be preserved while shifting the radial positions $\{{R}_{i,j}\}$ of the structures $\{{\mathsf{\Gamma}}_{i,j}\}$. This might be, for instance, required to meet spatial needs towards more crowded disc layouts, by adjusting the (permanently gas-filled part) of the compression chamber of volume ${V}_{\mathrm{C},0,i,j}$, while observing proper arrangement in the frequency domain $\mathit{\omega}$, e.g., to avoid overlapping bands by ${\mathsf{\Omega}}_{i}+M\cdot {\mathsf{\Delta}\mathsf{\Omega}}_{i}<{\mathsf{\Omega}}_{i+1}-M\cdot {\mathsf{\Delta}\mathsf{\Omega}}_{i+1}$.

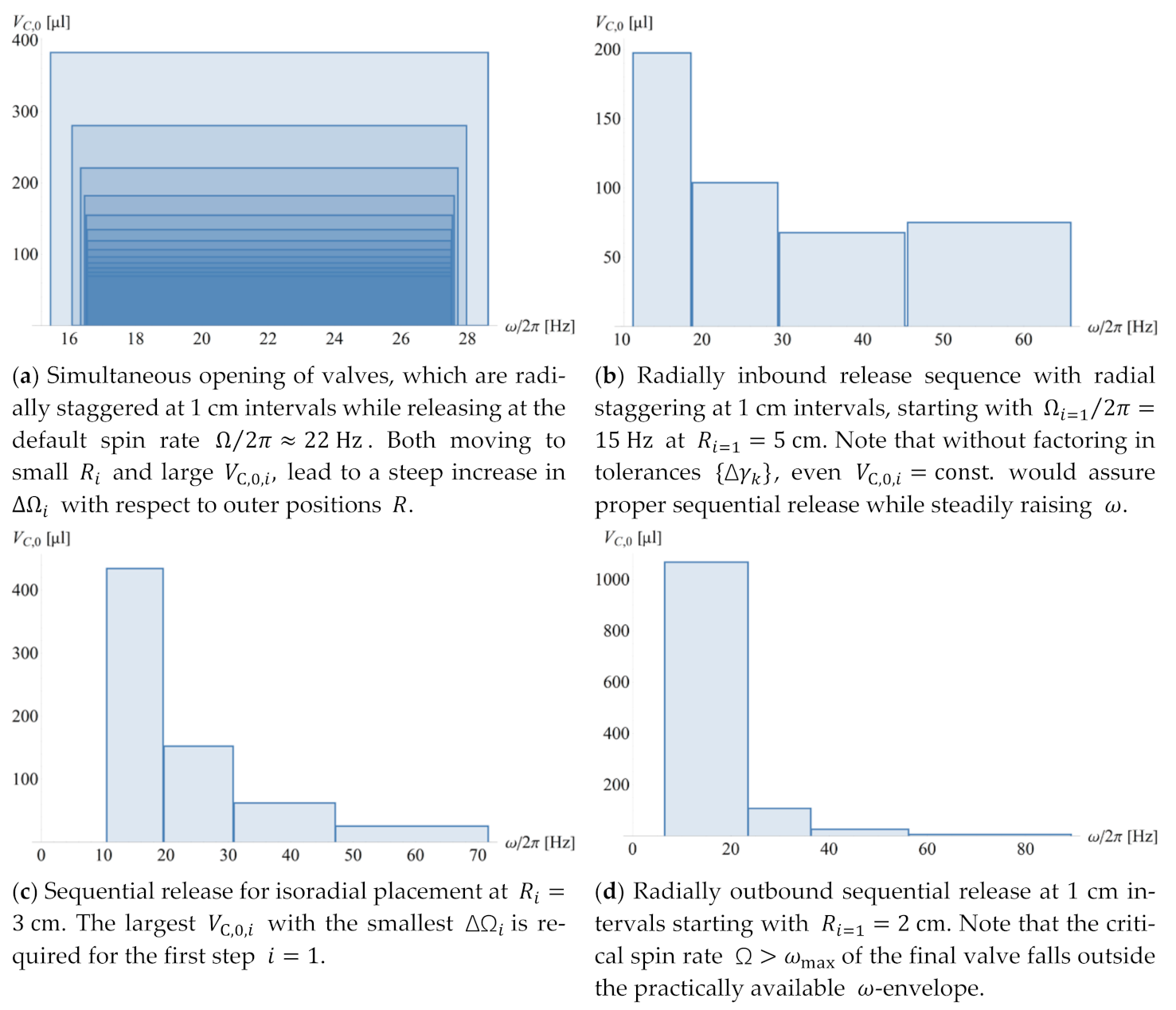

**Figure 5.**Distribution of bands in frequency space $\omega $ with required volumes of the main compression chamber ${V}_{\mathrm{C},0,i}$ for the different radial staggering and release scenarios as portrayed in Figure 4. CP-DF siphon valves $\{i,j\}$ to be released simultaneously, i.e., ${T}_{i}={T}_{i+1}$, or sequentially, i.e.,${T}_{i}{T}_{i+1}$; the valves, which have similar geometries ${\mathsf{\Gamma}}_{i,j}$ of their liquid-occupied sectors and downstream compression volumes ${V}_{C,0,i,j}$, are placed isoradially, i.e., at $R=3\mathrm{cm}$, or staggered over radial positions $R=\{2,3,4,5\}\mathrm{cm}$. The reliability factor is $M=4$. (

**a**) A set of radially staggered valves $\{i,j\}$with ${R}_{i,j}>{R}_{i,j-1}$ has been tuned through their ${V}_{\mathrm{C},0,i,j}$ to simultaneously burst in the same step $i$ once $\omega >{\mathsf{\Omega}}_{i}+M\cdot {\mathsf{\Delta}\mathsf{\Omega}}_{i}$ with ${\mathsf{\Delta}\mathsf{\Omega}}_{i}=\mathrm{max}\{{\mathsf{\Delta}\mathsf{\Omega}}_{i,j}\}$. There are three representative cases for sequential actuation with ${\mathsf{\Omega}}_{i}-M\cdot {\mathsf{\Delta}\mathsf{\Omega}}_{i}>{\mathsf{\Omega}}_{i-1}+M\cdot {\mathsf{\Delta}\mathsf{\Omega}}_{i-1}$ for successive steps $i$ according to ${\mathsf{\Omega}}_{i}>{\mathsf{\Omega}}_{i-1}$. (

**b**) For identical ${\mathsf{\Gamma}}_{i,j}$ and ${V}_{\mathrm{C},i,j}$, the valves will open according to their radially inbound order ${R}_{i}<{R}_{i-1}$. (

**c**) For isoradial alignment ${R}_{i}=R=\mathrm{const}.$, the valve with the largest ${V}_{\mathrm{C}}$ opens first: ${V}_{\mathrm{C},i}<{V}_{\mathrm{C},i-1}$. (

**d**) Further, a radially outbound opening sequence ${R}_{i}>{R}_{i-1}$ can be achieved, for which ${V}_{\mathrm{C},i}$ needs to be drastically reduced along successive steps $i$ to suppress premature release from by the high pressure ${p}_{\omega}$ (2) at distal locations $R$, which comes at the expense of huge bandwidth $\mathsf{\Delta}\mathsf{\Omega}$ (20).

**Figure 6.**Exemplary bioassay implementing the loading of blood sample, plasma separation, and mixing with three prestored liquid reagents $\{{\mathrm{L}}_{i}\}$. Flow is controlled by five high-pass valves with release rates ${\omega}_{\mathrm{min}}<{\mathsf{\Omega}}_{i}<{\omega}_{\mathrm{max}}$ located at ${R}_{\mathrm{min}}<{R}_{i}<{R}_{\mathrm{max}}$ and opening for $\omega >{\mathsf{\Omega}}_{i}$at points in time ${T}_{i}$. (

**a**) Plasma (P) is extracted from the sample (S) in a peripheral position ${R}_{\mathrm{P}}$ at high field strength ${f}_{\omega}\propto {R}_{\mathrm{P}}\cdot {\omega}^{2}$ (1). While owing to the unidirectional nature of the centrifugal field ${f}_{\omega}$ (1), the course of the assay requires ${R}_{\mathrm{S}}<{R}_{\mathrm{P}}<{R}_{\mathrm{D}}$ and ${R}_{\mathrm{L}1}<{R}_{\mathrm{P}}$, a radially inbound staggering ${R}_{\mathrm{L}1}>{R}_{\mathrm{L}2}>{R}_{\mathrm{L}3}$ (Figure 5b) has been chosen for the serial release of $\{{\mathrm{L}}_{i}\}$ through their high-pass valves opening at ${\mathsf{\Omega}}_{\mathrm{L}1}<{\mathsf{\Omega}}_{\mathrm{L}2}<{\mathsf{\Omega}}_{\mathrm{L}3}$. (

**b**) A blood sample S is loaded and released at ${\mathsf{\Omega}}_{\mathrm{S}}<\omega <{\mathsf{\Omega}}_{\mathrm{P}}$. Separation of plasma P proceeds at ${\mathsf{\Omega}}_{\mathrm{P}}<\omega <{\mathsf{\Omega}}_{\mathrm{L}1}$. Onboard liquid reagent L1 is then forwarded at ${\mathsf{\Omega}}_{\mathrm{L}1}<\omega <{\mathsf{\Omega}}_{\mathrm{L}2}$ into the separation chamber where it is mixed with the plasma P within ${\omega}_{\mathrm{min}}<\omega <{\mathsf{\Omega}}_{\mathrm{L}2}$. The mixture P&L1 then progresses to the final detection chamber for ${\mathsf{\Omega}}_{\mathrm{P}}<\omega <{\mathsf{\Omega}}_{\mathrm{L}2}$, followed by addition of and mixing with L2 within ${\mathsf{\Omega}}_{2}<\omega <{\mathsf{\Omega}}_{3}$ and ${\omega}_{\mathrm{min}}<\omega <{\mathsf{\Omega}}_{\mathrm{L}3}$, respectively. Finally, L3 is added at ${\mathsf{\Omega}}_{3}<\omega <{\omega}_{\mathrm{max}}$ and blended to obtain S&L1&L2 within ${\omega}_{\mathrm{min}}<\omega <{\omega}_{\mathrm{max}}$. The green background marks the allowed frequency corridor at each point in time $t={T}_{i}$, with its upper limit expanding according to ${\omega}_{\mathrm{min}}<{\mathsf{\Omega}}_{\mathrm{S}}<{\mathsf{\Omega}}_{\mathrm{P}}<{\mathsf{\Omega}}_{\mathrm{L}1}<{\mathsf{\Omega}}_{\mathrm{L}2}<{\mathsf{\Omega}}_{\mathrm{L}3}<{\omega}_{\mathrm{max}}$. Note that, for the sake of simplicity, the frequency thresholds $\{{\mathsf{\Omega}}_{i}\}$ are meant to refer to their associated bands ${\mathsf{\Omega}}_{i}\pm M\cdot {\mathsf{\Delta}\mathsf{\Omega}}_{i}$.

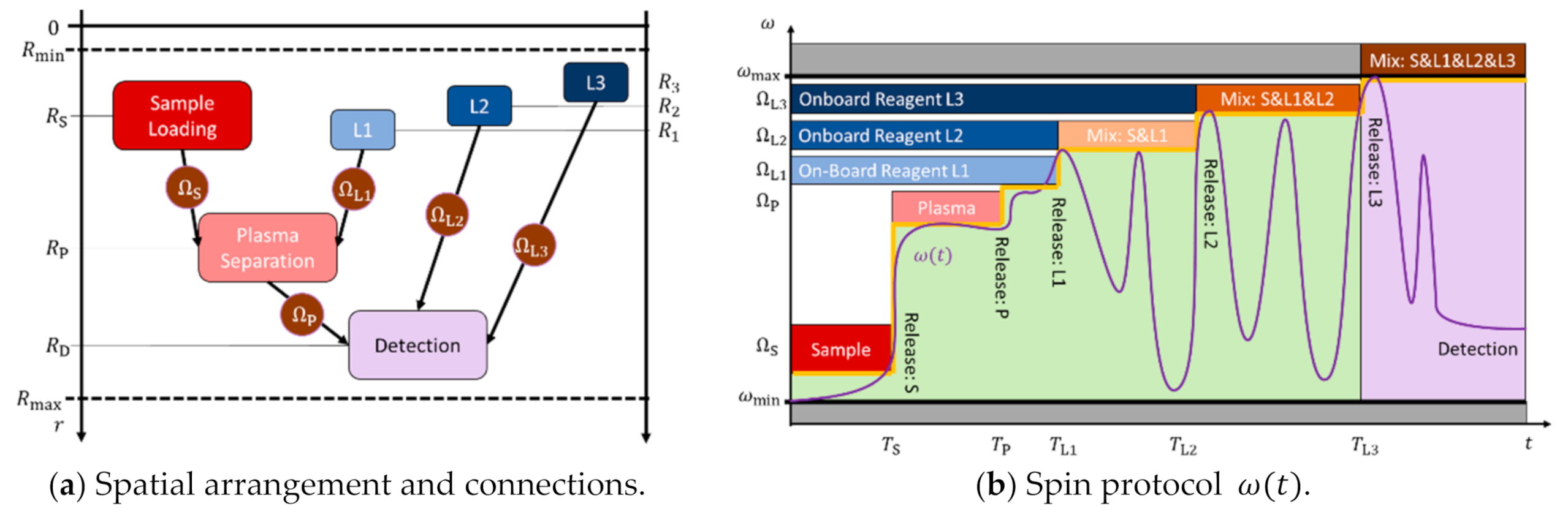

**Figure 7.**Rotational automation of an exemplary bioassay featuring sequential release of sample and separated plasma as well as pre-stored liquid onboard reagents L1, L2, and L3 with high-pass CP-DF siphon valves of release rates $\{{\mathsf{\Omega}}_{i}\}$ with ${\mathsf{\Omega}}_{\mathrm{S}}/2\pi =15\mathrm{Hz}$ and ${\mathsf{\Omega}}_{\mathrm{P}}/2\pi =30\mathrm{Hz}$. The release rates $\{{\mathsf{\Omega}}_{i}\}$ are tuned by the dead volumes of the main compression chamber $\{{V}_{\mathrm{C},0,i}\}$, as displayed on the vertical axis. (a) Radial positions (blue) ${R}_{i}$=$\{3,4,3.5,3,2.5\}\mathrm{cm}$ and (orange) ${R}_{i}^{\prime}={R}_{i}+0.5\mathrm{cm}$mimick concurrent processing of the same bioassay protocols requiring identical $\{{\mathsf{\Omega}}_{\mathrm{i}}\}$ for concurrent valving ($M=3$), while increasing their spatial packing density towards microfluidic LSI.

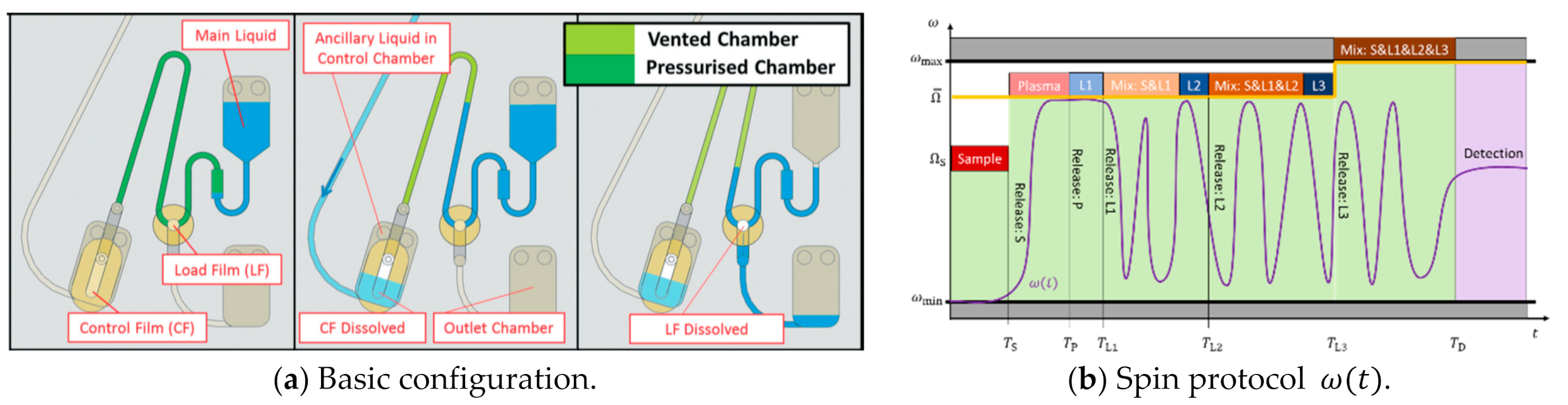

**Figure 8.**Principle of event-triggered flow control. (

**a**) Basic valve configuration with the control film (CF), which is opened by a first liquid to vent the compression chamber of a pneumatic valve. Consequently, a second liquid is released through the load film (LF) (Adopted from [81] with permission from The Royal Society of Chemistry). (

**b**) Extended corridor for the spin rate $\omega \left(t\right)$ in case of the event-triggered versus the rotationally actuated (Figure 6a) high-pass valves. After the sample is released at $\omega >{\mathsf{\Omega}}_{\mathrm{S}}$, the upper boundary is defined by the, e.g., common, retention rate $\stackrel{=}{\mathsf{\Omega}}$ shared by all LUOs. Release from their chambers is prompted by event-triggered venting, rather than raising the spin rate $\omega $.

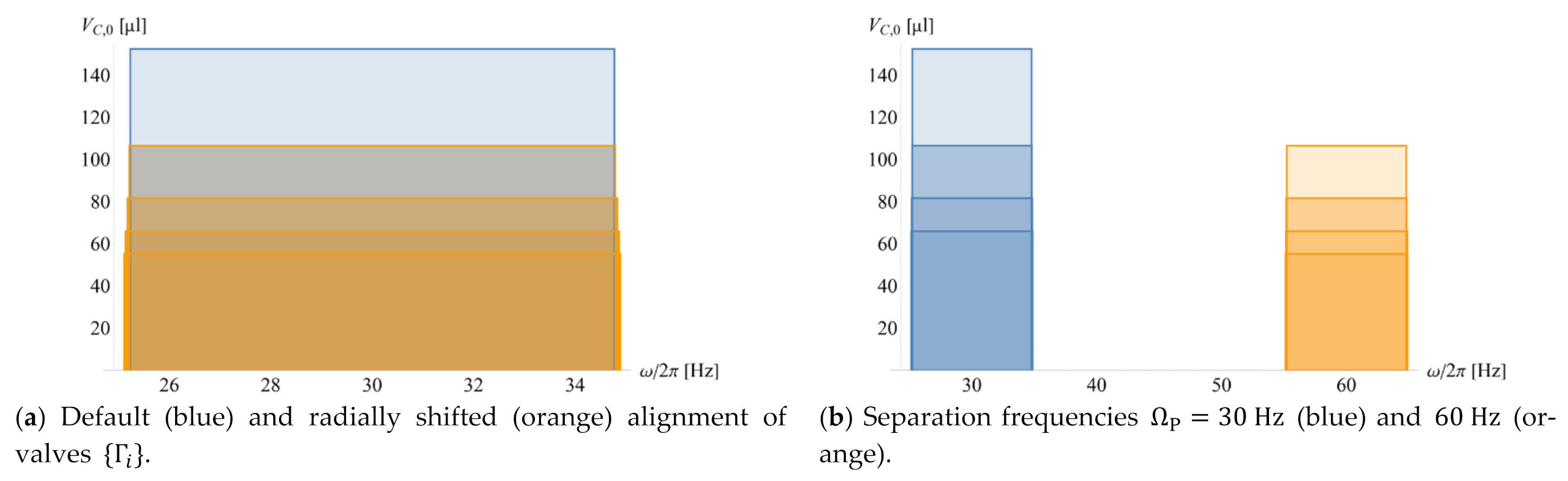

**Figure 9.**Event-triggered flow control in exemplary bioassay protocol. (

**a**) The set of valves $\{{\mathsf{\Gamma}}_{i}\}$ at their default (blue) positions $\{{R}_{i}\}$, and radially shifted outwards by $0.5\mathrm{cm}$ (orange), which is a common requirement towards microfluidic LSI. All frequency bands $\{{\mathsf{\Omega}}_{i}\pm M\cdot {\mathsf{\Delta}\mathsf{\Omega}}_{i}\}$ are centered at identical rates ${\mathsf{\Omega}}_{i}=\mathsf{\Omega}$. (

**b**) The same radial distribution $\{{R}_{i}\}$ is operated at different spin rates ${\mathsf{\Omega}}_{i}={\mathsf{\Omega}}_{\mathrm{P}}$, showing that event triggering is advantageous for enabling high spin rates $\omega $, e.g., for improving and accelerating plasma separation.

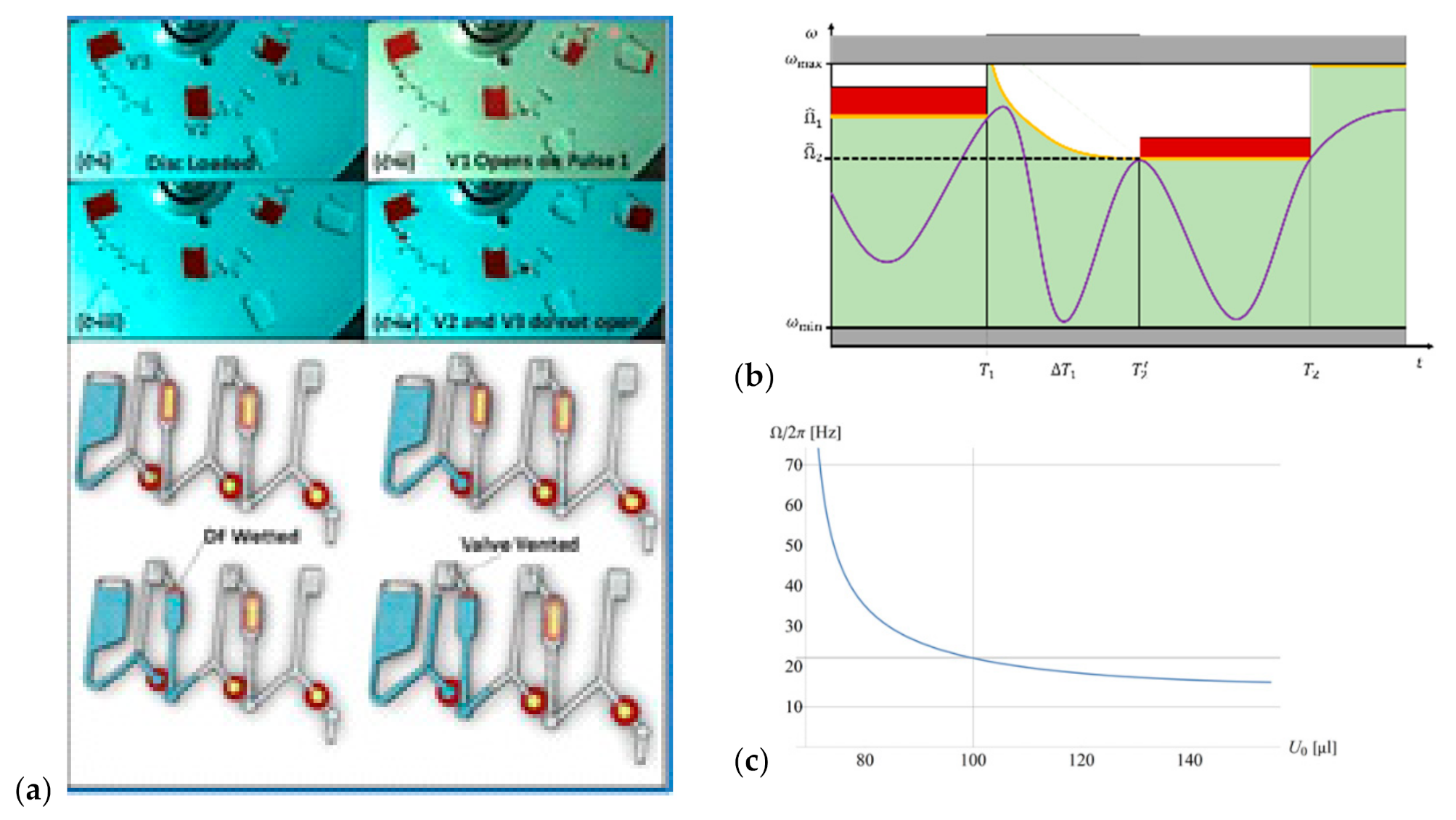

**Figure 10.**Pulse-actuated CP-DF valving (Adopted from [82]). (

**a**) Photo and concept of the fluidic structure. (

**b**) Spin protocol $\omega \left(t\right)$ and (

**c**) decrease of the retention frequency $\mathsf{\Omega}\left({U}_{0}\right)$ with the arrival of the liquid volume ${U}_{0}\left(t\right)$. In conventional CP-DF siphon valving (Figure 1), a group of liquids is sequentially released through stepping up the spin rate $\omega $ across their critical burst frequencies $\{{\mathsf{\Omega}}_{i}\}$. Digital pulse actuation considers the time $\mathsf{\Delta}{T}_{i}$ it takes a liquid volume ${U}_{0}$ to advance through the outlet channel between valve opening at the burst frequency ${\mathsf{\Omega}}_{i}$, and its arrival at the following valve featuring ${\mathsf{\Omega}}_{i+1}$. During this interval $\mathsf{\Delta}{T}_{i}$, which is primarily determined by the centrifugally induced pressure head ${p}_{\omega}$ (2), the flow resistance of the connecting channel on the viscosity of the liquid, and the dissolution time of the DF, the subsequent valve $i+1$ is only partially loaded, so its effective retention rate ${\mathsf{\Omega}}_{i+1}({T}_{i}<t<{T}_{i+1})$ is transiently be lifted above ${\mathsf{\Omega}}_{i+1}\left({U}_{0}\right)$ that is nominally calculated after the arrival of the full volume ${U}_{0}$ (

**c**). The spin rate $\omega \left(t\right)$ can thus be spiked well above ${\mathsf{\Omega}}_{i+1}\left({U}_{0}\right)$ during this interval $\mathsf{\Delta}{T}_{i}$, and also allow ${\mathsf{\Omega}}_{i+1}<{\mathsf{\Omega}}_{i}$ to squash the requirement of steadily growing retention rates ${\mathsf{\Omega}}_{i+1}>{\mathsf{\Omega}}_{i}$for the high-pass valves along the serial assay protocol $\omega \left(t\right)$.

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2021 by the author. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Ducrée, J. Secure Air Traffic Control at the Hub of Multiplexing on the Centrifugo-Pneumatic Lab-on-a-Disc Platform. *Micromachines* **2021**, *12*, 700.
https://doi.org/10.3390/mi12060700

**AMA Style**

Ducrée J. Secure Air Traffic Control at the Hub of Multiplexing on the Centrifugo-Pneumatic Lab-on-a-Disc Platform. *Micromachines*. 2021; 12(6):700.
https://doi.org/10.3390/mi12060700

**Chicago/Turabian Style**

Ducrée, Jens. 2021. "Secure Air Traffic Control at the Hub of Multiplexing on the Centrifugo-Pneumatic Lab-on-a-Disc Platform" *Micromachines* 12, no. 6: 700.
https://doi.org/10.3390/mi12060700
