Direct Write of 3D Nanoscale Mesh Objects with Platinum Precursor via Focused Helium Ion Beam Induced Deposition

1
Center for Nanophase Materials Science, Oak Ridge National Laboratory, Oak Ridge, TN 37831, USA
2
School of Mechanical Engineering, Pusan National University, Busan 46241, Korea
3
Department of Materials Science and Engineering, University of Tennessee, Knoxville, TN 37996, USA
*
Author to whom correspondence should be addressed.
Micromachines 2020, 11(5), 527; https://doi.org/10.3390/mi11050527
Received: 16 April 2020 / Revised: 19 May 2020 / Accepted: 20 May 2020 / Published: 22 May 2020
(This article belongs to the Special Issue Nanofabrication with Focused Electron/Ion Beam Induced Processing)

Abstract

The next generation optical, electronic, biological, and sensing devices as well as platforms will inevitably extend their architecture into the 3rd dimension to enhance functionality. In focused ion beam induced deposition (FIBID), a helium gas field ion source can be used with an organometallic precursor gas to fabricate nanoscale structures in 3D with high-precision and smaller critical dimensions than focused electron beam induced deposition (FEBID), traditional liquid metal source FIBID, or other additive manufacturing technology. In this work, we report the effect of beam current, dwell time, and pixel pitch on the resultant segment and angle growth for nanoscale 3D mesh objects. We note subtle beam heating effects, which impact the segment angle and the feature size. Additionally, we investigate the competition of material deposition and sputtering during the 3D FIBID process, with helium ion microscopy experiments and Monte Carlo simulations. Our results show complex 3D mesh structures measuring ~300 nm in the largest dimension, with individual features as small as 16 nm at full width half maximum (FWHM). These assemblies can be completed in minutes, with the underlying fabrication technology compatible with existing lithographic techniques, suggesting a higher-throughput pathway to integrating FIBID with established nanofabrication techniques.
Keywords: helium ion microscopy; focused ion beam induced deposition; 3D nano-printing; direct-write nanofabrication helium ion microscopy; focused ion beam induced deposition; 3D nano-printing; direct-write nanofabrication

1. Introduction

Design, high precision placement, and high throughput of 3D conductive and insulating nanostructures is attractive for many fields. These assemblies unlock complex geometry and can be created atop other structurally complex sites, otherwise inaccessible by standard lithographic methods [1,2,3,4,5,6]. Recent advances in the bottom-up design of 3D features include two-photon lithography, focused-electron-beam-induced deposition, and gallium ion beam irradiation [7,8,9,10].
Two-photon lithography is a technique capable of producing very complex nanostructures at a spatial resolution of ~140 nm [11]. By polymerizing the precursor with a laser, virtually any structure can be printed on the micron scale. Furthermore, many precursor polymers are being developed to offer material specificity for a given application [12,13].
Similar concepts are used in additive manufacturing, where layer by layer fabrication of 3D structures is possible for a variety of materials [14,15]. Here, 40–60 μm droplets of metal ink or, for features less than 10 µm, nanoparticle inks and ion solutions may be used [16]. Recently, an additive manufacturing process featuring a lithography-based approach showcasing Ni octet-lattices with 2-μm unit cells, 300–400-nm beams, and 30-nm layers has been demonstrated [17]. Direct write via electrolysis induced by electron and ion beams from liquid precursor solutions consisting of H2PdCl4 and K2PtCl6 has also been demonstrated as an approach for creating 3D Pd and Pt structures with feature sizes ~15 nm feature size when using a He ion beam [18,19].
An alternative route towards 3D nanostructures is using a gas injection system (GIS) in tandem with a charged-particle beam—an active area of research in recent years. Significant efforts went into developing topics such as nanoscale magnetic structures, freestanding copper nanostructures, precursor development (including liquid based precursors), optimization of operating conditions for working with 2D materials, simultaneous use of oxidants for enhanced deposit purity, and theory developments [20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36]. Fowlkes et al. recently demonstrated a duo of predictive modeling and fabrication; showcasing complex 3D nanostructures with focused-electron-beam-induced deposition (FEBID) [37]. This method is optimized for the deposition of general mesh object models defined as interconnected networks of suspended 3D nanowires—a form of 3D nanoprinting [38,39,40,41]. Electron beam induced heating has emerged as an important physical phenomenon to consider during 3D nanoprinting [42]. Recently, 3D nanoprinting using the electron beam has been extended to include the deposition of solid nanoscale object models, moving beyond the deposition of mesh object frameworks [43]. These studies [42,43] have revealed that electron beam heating can decrease the deposition rate dynamically, effectively degrading deposit quality if the heating effect is not accounted for during design. In fact, low temperature ion-induced deposition has been demonstrated as a means to increase growth rates but should also implicitly limit the negative side-effects of beam heating [44,45]. Additionally, 3D nanoprinting with automated methods to correct for deposit distortions, regardless of the origin of the unwanted deformation [46], have been demonstrated in nanomagnetic Co/Fe nanowire framework [47].
In addition to FEBID, gallium ion beam irradiation has been used for decades to deposit metals via a process referred to as focused-ion-beam-induced deposition (FIBID) [48,49,50]. Relative to FEBID, FIBID deposits are generally larger due to the increased spot size, greater secondary electron (SE) yield, and higher ion-solid energy transfer which dissociate adsorbed precursor molecules. Complex 3D structures are also possible with the gallium beam, with relatively high throughput when compared to FEBID [48,49,51]. Recently, interest in direct-write deposition of 3D conductive structures has shifted towards achieving single-digit-nanometer-scale fabrication, largely driven by the pursuit of new approaches to interconnecting architectures [5,50,52]. Gas field ion sources have been demonstrated to manufacture smaller and cleaner 3D structures [52,53,54]. While several studies discuss and demonstrate helium ion microscopy (HIM) as a nanofabrication tool for 3D structures, few studies [55] to date systematically explore the parameter space of the HIM gas flow injection system, or the interplay of deposition and milling that occurs during the fabrication process [31,54,56,57,58].
In this work, we demonstrate complex 3D mesh geometries, with features as small as 16 nm at full width half maximum (FWHM), made in a HIM with a gas flow injection system. We rely on automated methods to control the microscope and the gas injection system settings to yield 3D nanostructures as large as 300 nm made of interconnected parts. The manufacturing process is relatively quick, with each shape completing in or under one minute. Three-dimensional structure growth on conductive as well as insulating SiO2 substrates is possible and is demonstrated. Furthermore, we explore beam heating effects and the interplay of deposition and milling, which occurs as matter interacts with an accelerated ion beam in FIBID of free-standing structures by mapping deposition and milling regimes as a function of beam pitch and dwell time. Understanding beam heating and the simultaneous control of both milling and deposition offers the potential for higher fidelity and higher purity structures, and the ability to repair structures in situ.

2. Experimental Methods

2.1. Growth

3D platinum structures were grown on boron doped P-type silicon substrates with a Zeiss Orion Nanofab helium ion microscope (Zeiss, Peabody, MA, USA). Substrates were plasma cleaned in nitrogen plasma for 1 minute. All deposition patterns were executed using the NanoPatterning and Visualization Engine (NPVE) pattern generator produced by Fibics Inc. (Ottawa, ON, Canada). A 25 kV He+ beam was used at various current to control deposit dimensions. The working distance of 8.142 mm was used throughout the experiment. The helium pressure was 2 × 10−6 torr with a spot number 4. The HIM was used for imaging as well as FIBID. A first generation OmniGIS Gas Injection System, (GIS) produced by Oxford Instruments (Abingdon, UK), was utilized to flow MeCpPtMe3 into the HIM using ultra-pure (99.9995%) nitrogen carrier gas, with a 5% duty cycle. The Pt precursor was heated to 33 °C prior to use to minimize spiking of the chamber pressure. The vertical section of the pillar was grown by parking the beam for 2 ms. The chamber pressure prior to gas injection was ~3 × 10−7, and ~1.0 × 10−5 torr during the GIS operation. The GIS was at approximately 45° with respect to the ion column. All 3D structures were generated using an in-house computer-aided design (CAD) software package (ORNL, Oak Ridge, TN, USA) [37,59]. To analyze the composition of the nanostructures, energy dispersive X-ray spectroscopy (EDS) analysis was performed on a Zeiss Merlin SEM with a Bruker EDS spectrometer (Bruker, Billerica, MA, USA).

2.2. Data Analysis

Image analysis consisted of three main aspects: image pre-processing, segmentation, feature extraction, and quantification [60,61,62]. We used open-source Python 2.7 for all analysis steps. First, the image background was removed using local morphological filtering with circular filtering window of 400 pixels in diameter, to enhance the nanostructures. We then used a watershed function to automatically select the nanostructures and create a mask. After that segmentation was performed to separate all pixels corresponding to individual pillars. Finally, each pillar was fitted as by the function representing two connected linear segments. Fitting results were used to calculate length of the top segment l, its width w and angle α. An example of the single pillar analysis is shown in Figure 1c, where black dots show actual pixels of the pillar and red lines represent fitting results.

3. Results and Discussion

The size, deposition rate, and composition of the HIM FIBID structures with the MeCpPtMe3 precursor depend on many parameters. The precursor physically adsorbs onto the substrate before local dissociation by the ion beam from the generated secondary electrons (SEs) [63] as well as energy transfer via displaced deposited atoms, as illustrated in Figure 1a [64,65]. Depending on the precursor, deposition (2D and 3D), or etching are possible [66,67]. In this work, we focus on material deposition for 3D nanostructures. Firstly, we created large arrays of calibration structures at the different growth conditions shown in Figure 1b (for 0.54 pA, 25 keV), where the measured growth dimensions are illustrated in Figure 1c. The calibration structure consists of a vertical nanowire, or a pillar, which serves as the base for the subsequent deposition of a branch, or a segment, nanowire. After the calibration structures were deposited, an in-house developed analysis software was used to extract deposit dimensions and angles (see Experimental Methods) from HIM images.
Figure 2a is a plot of the segment angle versus the He+ dwell time at different pixel point pitches for a beam energy of 25 keV, a beam current of 0.54 pA, and a precursor chamber pressure of 1 × 10−5 torr. The plot illustrates that the segment angle increases with increasing dwell time. Furthermore, at a fixed dwell time, the segment angle also increases with decreasing pixel pitch. To illustrate the interdependence of the dwell time and pixel pitch, we combine these two terms into the dwell time per lateral displacement (DTPLD) (s nm−1) and plot the resultant segment height (h = sl*tan(α)) for a fixed lateral scan length (sl) versus s nm−1. As illustrated in Figure 2b, the data converge into a single curve. Furthermore, Figure 2b includes data for lower (0.38 pA) and higher current (2.3 pA). Note that the 0.38 pA data have a lower segment vertical growth rate (lower α), however the 2.3 pA data essentially overlay the 0.54 pA data, which show that the growth rate saturates. The data suggest that at low current the growth is limited by the beam induced dissociation (reaction rate limited), but at higher currents a transition to growth is limited by the precursor coverage (mass transport limited). Figure 2c is a plot of the vertical growth per current (nm-pA−1), which illustrates that the high current growth is clearly less efficient. However, it is noteworthy that the 0.54 pA efficiency is greater than the lowest current, 0.38 pA data. As illustrated below, the slightly increased current leads to an increase in the segment width (w) which produces a positive feedback in the vertical growth rate as more energy is deposited and secondary electrons are generated.
Regarding the overall specific vertical growth rate (nm-s−1/pA−1), for 30 keV - 21 pA FEBID the maximum specific vertical growth efficiency maximum is ~ 5 nm-s−1/pA−1 [68]. For FIBID, because of the increased stopping power of the ion beam, the maximum deposition efficiency for the 0.38, 0.54 and 2.3 pA current 25 keV He+ beam is ~163 nm-s−1/pA−1, 211 nm-s−1/pA−1, and 46 nm-s−1/pA−1, respectively.
Figure 3a is a plot of w as a function of the DTPLD for three currents. At the lowest current there is the expected increase in w with increasing DTPLD, which is suggestive of a reaction rate limited regime similar to a previous study [53]. At 0.54 pA, at low DTPLD, the width increases and then peaks and decreases at higher DTPLD. At high current, w is lower and steadily decreases with decreasing DTPLD. The decreasing w with increasing DTPLD and increasing current is indicative of beam heating effects and a transition from a reaction rate limited growth regime to a mass transport limited growth regime. In addition to the expected increase in heating with an increase in current, the small cross-sectional area of the resultant nanostructure also promotes a high thermal resistance, which further amplifies the heating effect. The thermal resistance increases with the increasing growth length because the substrate acts as a heat sink. A slight downward deflection in FEBID nanostructures has been identified as a signature of the onset of beam heating, which sets up a competition between higher precursor surface diffusion versus shorter precursor residence times, as the temperature progressively increases at the beam impact region [43]. Analysis of FEBID using the MeCpPtMe3 precursor has revealed that the residence time is the dominant parameter and thus the deposition rate decreases slightly, due to precursor depletion, and deposit bending results. Figure 3b illustrates an example of two pillars bending in segments grown at 25 keV, 2.3 pA, with 12 ms dwell time, and 0.25 nm and 2 nm pixel pitches.
In addition to beam heating, we also postulate a secondary competitive ion beam milling effect. We investigated the sputtering process of material from grown structures using the Monte Carlo [69] simulation code EnvizION [70,71]. EnvizION simulates the ion solid interactions, similar to the SRIM [72] package, where EnvizION is coupled to a voxelized substrate, allowing cumulative sputtering and arbitrary target geometries. Each voxel represents a single atom, and the voxel size is the mean interatomic distance. The simulation allows compound target geometries [67], however, these are purely sputtering simulations and do not include the deposition process.
The schematic for the simulated target is shown in Figure 4a, and it consists of a 25 nm radius cylindrical pillar with a cap, positioned at α degrees from the z-axis. We vary the angle α depending on the dwell time of the beam, to model the difference in pillar growth during FIBID. The experimental effect of dwell time on α is shown in Figure 2a. Initially, the simulated pillar consists of carbon and platinum with a C:Pt stoichiometry of ~8:1. A 25 kV He+, 50 nm FWHM Gaussian beam, with current 0.23 pA, is scanned along the pillar, from x = −50 nm, to x = 0 nm, with a pixel spacing of 0.5 nm. We simulate two dwell times: 4 ms, and 12 ms, with β = 52 and 25 degrees, respectively. Cross sections of the pillars after scanning are shown in Figure 4b,c. The sputter yields (corresponding to both backward and forward sputter yields) for each scan are given in Table 1. When the dwell time is 12 ms, the sputter yields are 50% higher for each specie, since the beam strikes the pillar at a glancing angle. Thus, the longer dwell time and the higher angle results in more sputtering, and when the reaction is limited by local precursor depletion the cumulative effect could contribute to narrower pillars.
We demonstrate feature sizes currently obtainable in FIBID with HIM, in Figure 5. Figure 5a is the HIM image of the branch structures, where the dwell time of the three grown posts were 4, 6 and 8 ms from left to right, with the 4 ms dwell time; producing the smallest features of ~16 nm (Figure 4c) at FWHM. These secondary processing steps with in situ feedback and control of the ion beam have the possibility to push structure fidelity down to single digit length scales and will be the focus of subsequent work. The line profile plot in Figure 5c is the overall size of the pillars, as measured across the line profile in Figure 5b. Some complex 3D geometries grown on conductive substrates with the HIM are shown in Figure 6. Figure 6a is a deltahedron grown on a post and Figure 4b is a truncated icosahedron with a total feature size of ~300 nm, which is half the total structure size to a similar icosahedron demonstrated with FEBID by Fowlkes et. al. of ~600 nm, as well as smaller than additive manufacturing approaches [18,38]. In addition to a reduction in total structure size, the nanowire thickness is nominally 20% smaller for the FIBID nanostructure in Figure 6b when compared with the complementary nanostructure deposited by FEBID [37]. However, the FIBID deposit exhibits more nanowire broadening on underlying nanowires, caused by transmitted and partially scattered primary ions emitted during the deposition of the topmost nanowire network. Further studies will be required at fixed precursor pressures to deconvolute the contributions of electron/ion scattering and total areal dose, for FEBID versus FIBID, to fully explain the origins of the broadening phenomenon.
Furthermore, Figure 6c,d show pillars and a deltahedron grown on SiO2. To estimate the composition of the as-grown FIBID 3D nanostructures, energy dispersive x-ray analysis was used to characterize a 3D “sheet”. Qualitative EDS was used to determine the uncorrected C/Pt peak ratio for a 3D deposit based on the integration range of 180–350 eV for carbon (K) and 1940–2250 eV for platinum (M), Figure 7. The C/Pt integrated EDS peak ratio of ~0.09 serves as a ‘pure Pt’ reference where small platinum (N) peak exists in the carbon peak region. The C/Pt peak ratio will vary depending on the EDS hardware but seems to vary over no more than ~0.01 [73,74,75]. This method, previously used by Mehendale [73] and Plank [74], yields an underestimate of the Pt content because the SiL peak also slightly overlaps the CK range. A C/Pt ratio of 0.44 ± 0.08 was calculated for our deposits. This estimate can be placed in the context of focused-electron-beam-induced deposition, or FEBID, using the same precursor MeCpPtMe3. The typical uncorrected C/Pt range for FEBID spans 0.7–1.3 [76], with PtCx values ranging from PtC4 to PtC8. Thus, the 3D FIBID deposits appear to have PtCx values where x < 4. For reference, 2D He-IBID deposits conducted with a beam energy of 30 kV, an exposure dose of 2 nC/µm2, a 6 pA beam current, and a MeCpPtMe3 reservoir temperature of 30 °C yielded reported deposit compositions of 15–19% Pt [76].
While not the focus of this initial study, we note in Figure 6 that collateral deposition is more pronounced on the SiO2 substrate versus the degenerately doped Si. Several conditions could contribute to this observation, namely, higher precursor concentration on the SiO2 substrate or enhanced dissociation probability on the SiO2. Regarding the enhanced precursor concentration, higher precursor residence time (binding energy) and/or higher surface diffusivity would lead to higher concentration in the beam interaction region. Regarding the enhanced dissociation, as was recently illustrated for ion beam induced reactive etching [77], energy transfer from incident and recoiled atoms as well as secondary electrons (SE) contribute to focused ion beam stimulated reactive processes. Naively, one would expect energy transfer in silicon would be higher as the average atomic number (14) is higher than SiO2 (10) and the densities comparable (Si = 2.32, SiO2 = 2.27 g/cm3). Channeling could be responsible for the decreased energy transfer in the single crystal silicon as ions scattered into open directions have much lower scattering. Regarding the secondary electron contribution, it should be noted that enhanced XeF2 chemical etching in Ga+ and Ne+ is dominated by the ion beam energy transfer and SE’s only contribute only a small fraction (<10%) of the chemically assisted etching. Regarding the ion induced secondary electron generation process, for conducting materials inelastic scattering of electrons is the operative mechanism [71], whereas for insulating materials, scattering from optical phonons is operative [78]. Future work will investigate the roles of these and other contributions to the direct and collateral focused ion beam induced deposition.
In conclusion, we demonstrate a novel method to grow platinum rich 3D structures atop a wide variety of substrates using a FIBID process in a helium ion microscope. Our workflow allows the users to rapidly optimize the experimental conditions for processing parameters using advanced data analytics. Three-dimensional calibration curves of the segment angle versus dwell time and pitch reveal the two variables converge to a single variable, the DTPLP. Slight deviations at DTPLP and high current suggest beam heating effects are operative in some conditions. Analysis of the segment width over a variety of patterning conditions can be understood by beam heating effects which lower the precursor coverage in the beam growth region. We illustrate this approach for fabricating complex 3D submicron architectures with minimum features measuring 16 nm, at FWHM. Future work will focus on detailed investigation of the beam heating phenomena and correlating the purity and electrical properties for different growth regimes and a wider variety of precursors.

Author Contributions

Project was conceived by, A.B., P.D.R. and O.S.O.; HIM data collection, A.B., M.J.B., S.K., M.G.S., and B.B.L.; CAD software, J.D.F.; Monte Carlo simulations, K.M.; Python data analysis code, A.I.; all authors contributed the writing and editing of the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was conducted at the Center for Nanophase Materials Sciences, which is a DOE Office of Science User Facility. MGS acknowledges support from the U.S. Department of Energy (DOE) under Grant No. DE-SC0002136.

Conflicts of Interest

The authors declare no conflict of interest.

Notice

This manuscript has been authored by UT-Battelle, LLC, under Contract No. DE-AC0500OR22725 with the U.S. Department of Energy. The United States Government retains and the publisher, by accepting the article for publication, acknowledges that the United States Government retains a non-exclusive, paid-up, irrevocable, world-wide license to publish or reproduce the published form of this manuscript, or allow others to do so, for the United States Government purposes. The Department of Energy will provide public access to these results of federally sponsored research in accordance with the DOE Public Access Plan (http://energy.gov/downloads/doe-public-access-plan).

References

  1. Ito, T.; Okazaki, S. Pushing the Limits of Lithography. Nature 2000, 406, 1027–1031. [Google Scholar] [CrossRef]
  2. Harriott, L.R. Limits of Lithography. Proc. IEEE 2001, 89, 366–374. [Google Scholar] [CrossRef]
  3. Mack, C.A. Line-Edge Roughness and the Ultimate Limits of Lithography; SPIE Advanced Lithography, International Society for Optics and Photonics: San Jose, CA, USA, 2010; p. 763931. [Google Scholar]
  4. Broers, A.; Hoole, A.; Ryan, J. Electron Beam Lithography—Resolution Limits. Microelectron. Eng. 1996, 32, 131–142. [Google Scholar] [CrossRef]
  5. Van Dorp, W.F.; Zhang, X.; Feringa, B.L.; Hansen, T.W.; Wagner, J.B.; De Hosson, J.T.M. Molecule-by-Molecule Writing Using a Focused Electron Beam. ACS Nano 2012, 6, 10076–10081. [Google Scholar] [CrossRef]
  6. Jesse, S.; Borisevich, A.Y.; Fowlkes, J.D.; Lupini, A.R.; Rack, P.D.; Unocic, R.R.; Sumpter, B.G.; Kalinin, S.V.; Belianinov, A.; Ovchinnikova, O.S. Directing Matter: Toward Atomic-Scale 3d Nanofabrication. ACS Nano 2016, 10, 5600–5618. [Google Scholar] [CrossRef] [PubMed]
  7. Kankala, R.K.; Zhu, K.; Li, J.; Wang, C.-S.; Wang, S.-B.; Chen, A.-Z. Fabrication of Arbitrary 3d Components in Cardiac Surgery: From Macro-, Micro-to Nanoscale. Biofabrication 2017, 9, 032002. [Google Scholar] [CrossRef]
  8. Kim, C.-S.; Ahn, S.-H.; Jang, D.-Y. Developments in Micro/Nanoscale Fabrication by Focused Ion Beams. Vacuum 2012, 86, 1014–1035. [Google Scholar] [CrossRef]
  9. Grilli, S.; Coppola, S.; Vespini, V.; Merola, F.; Finizio, A.; Ferraro, P. 3d Lithography by Rapid Curing of the Liquid Instabilities at Nanoscale. Proc. Natl. Acad. Sci. USA 2011, 108, 15106–15111. [Google Scholar] [CrossRef]
  10. Cho, J.H.; Keung, M.D.; Verellen, N.; Lagae, L.; Moshchalkov, V.V.; Van Dorpe, P.; Gracias, D.H. Nanoscale Origami for 3d Optics. Small 2011, 7, 1943–1948. [Google Scholar] [CrossRef]
  11. Yee, D.W.; Schulz, M.D.; Grubbs, R.H.; Greer, J.R. Functionalized 3d Architected Materials Via Thiol-Michael Addition and Two-Photon Lithography. Adv. Mater. 2017, 29, 1605293. [Google Scholar] [CrossRef] [PubMed]
  12. Montemayor, L.C.; Meza, L.R.; Greer, J.R. Design and Fabrication of Hollow Rigid Nanolattices via Two-Photon Lithography. Adv. Eng. Mater. 2014, 16, 184–189. [Google Scholar] [CrossRef]
  13. Liontas, R.; Greer, J.R. 3d Nano-Architected Metallic Glass: Size Effect Suppresses Catastrophic Failure. Acta Mater. 2017, 13, 393–407. [Google Scholar] [CrossRef]
  14. Zocca, A.; Colombo, P.; Gomes, C.M.; Günster, J. Additive Manufacturing of Ceramics: Issues, Potentialities, and Opportunities. J. Am. Ceram. Soc. 2015, 98, 1983–2001. [Google Scholar] [CrossRef]
  15. Frazier, W.E. Metal Additive Manufacturing: A Review. J. Mater. Eng. Perform. 2014, 23, 1917–1928. [Google Scholar] [CrossRef]
  16. Hirt, L.; Reiser, A.; Spolenak, R.; Zambelli, T. Additive Manufacturing of Metal Structures at the Micrometer Scale. Adv. Mater. 2017, 29, 1604211. [Google Scholar] [CrossRef]
  17. Vyatskikh, A.; Delalande, S.; Kudo, A.; Zhang, X.; Portela, C.M.; Greer, J.R. Additive Manufacturing of 3d Nano-Architected Metals. Nat. Commun. 2018, 9, 593. [Google Scholar] [CrossRef]
  18. Ievlev, A.V.; Jakowski, J.; Burch, M.J.; Iberi, V.; Hysmith, H.; Joy, D.C.; Sumpter, B.G.; Belianinov, A.; Unocic, R.R.; Ovchinnikova, O.S. Building with Ions: Towards Direct Write of Platinum Nanostructures Using in Situ Liquid Cell Helium Ion Microscopy. Nanoscale 2017, 9, 12949–12956. [Google Scholar] [CrossRef]
  19. Unocic, R.R.; Lupini, A.R.; Borisevich, A.Y.; Cullen, D.A.; Kalinin, S.V.; Jesse, S. Direct-Write Liquid Phase Transformations with a Scanning Transmission Electron Microscope. Nanoscale 2016, 8, 15581–15588. [Google Scholar] [CrossRef]
  20. De Teresa, J.; Fernández-Pacheco, A. Present and Future Applications of Magnetic Nanostructures Grown by Febid. Appl. Phys. A 2014, 117, 1645–1658. [Google Scholar] [CrossRef]
  21. De Teresa, J.; Fernández-Pacheco, A.; Córdoba, R.; Serrano-Ramón, L.; Sangiao, S.; Ibarra, M.R. Review of Magnetic Nanostructures Grown by Focused Electron Beam Induced Deposition (Febid). J. Phys. D Appl. Phys. 2016, 49, 243003. [Google Scholar] [CrossRef]
  22. Wanzenboeck, H.; Hochleitner, G.; Mika, J.; Shawrav, M.; Gavagnin, M.; Bertagnolli, E. Mapping of Local Argon Impingement on a Virtual Surface: An Insight for Gas Injection During Febid. Appl. Phys. A 2014, 117, 1749–1756. [Google Scholar] [CrossRef]
  23. Van Dorp, W.; Hagen, C.W. A Critical Literature Review of Focused Electron Beam Induced Deposition. J. Appl. Phys. 2008, 104, 10. [Google Scholar] [CrossRef]
  24. Randolph, S.; Fowlkes, J.; Rack, P. Focused, Nanoscale Electron-Beam-Induced Deposition and Etching. Crit. Rev. Solid State Mater. Sci. 2006, 31, 55–89. [Google Scholar] [CrossRef]
  25. Utke, I.; Luisier, A.; Hoffmann, P.; Laub, D.; Buffat, P. Focused-Electron-Beam-Induced Deposition of Freestanding Three-Dimensional Nanostructures of Pure Coalesced Copper Crystals. Appl. Phys. Lett. 2002, 81, 3245–3247. [Google Scholar] [CrossRef]
  26. Bret, T.; Utke, I.; Bachmann, A.; Hoffmann, P. In Situ Control of the Focused-Electron-Beam-Induced Deposition Process. Appl. Phys. Lett. 2003, 83, 4005–4007. [Google Scholar] [CrossRef]
  27. Henry, M.R.; Kim, S.; Fedorov, A.G. High Purity Tungsten Nanostructures Via Focused Electron Beam Induced Deposition with Carrier Gas Assisted Supersonic Jet Delivery of Organometallic Precursors. J. Phys. Chem. C 2016, 120, 10584–10590. [Google Scholar] [CrossRef]
  28. Fedorov, A.G.; Kim, S.; Henry, M.; Kulkarni, D.; Tsukruk, V.V. Focused-Electron-Beam-Induced Processing (Febip) for Emerging Applications in Carbon Nanoelectronics. Appl. Phys. A 2014, 117, 1659–1674. [Google Scholar] [CrossRef]
  29. Fisher, J.S.; Kottke, P.A.; Kim, S.; Fedorov, A.G. Rapid Electron Beam Writing of Topologically Complex 3d Nanostructures Using Liquid Phase Precursor. Nano Lett. 2015, 15, 8385–8391. [Google Scholar] [CrossRef]
  30. Kim, S.; Henry, M.; Fedorov, A.G. Using an Energized Oxygen Micro-Jet for Improved Graphene Etching by Focused Electron Beam. Appl. Phys. Lett. 2015, 107, 233102. [Google Scholar] [CrossRef]
  31. Utke, I.; Hoffmann, P.; Melngailis, J. Gas-Assisted Focused Electron Beam and Ion Beam Processing and Fabrication. J. Vac. Sci. Technol. B Microelectron Nanometer Struct. Process. Meas. Phenom. 2008, 26, 1197–1276. [Google Scholar] [CrossRef]
  32. Alkemade, P.F.; Chen, P.; van Veldhoven, E.; Maas, D. Model for Nanopillar Growth by Focused Helium Ion-Beam-Induced Deposition. J. Vac. Sci. Technol. BNanotechnol. Microelectron. Mater. Process. Meas. Phenom. 2010, 28, C6F22–C26F25. [Google Scholar] [CrossRef]
  33. Boden, S.; Moktadir, Z.; Bagnall, D.; Mizuta, H.; Rutt, H. Focused Helium Ion Beam Milling and Deposition. Microelectron. Eng. 2011, 88, 2452–2455. [Google Scholar] [CrossRef]
  34. Drezner, Y.; Greenzweig, Y.; Fishman, D.; van Veldhoven, E.; Maas, D.J.; Raveh, A.; Livengood, R.H. Structural Characterization of He Ion Microscope Platinum Deposition and Sub-Surface Silicon Damage. J. Vac. Sci. Technol. BNanotechnol. Microelectron. Mater. Process. Meas. Phenom. 2012, 30, 041210. [Google Scholar] [CrossRef]
  35. Nanda, G.; van Veldhoven, E.; Maas, D.; Sadeghian, H.; Alkemade, P.F. Helium Ion Beam Induced Growth of Hammerhead Afm Probes. J. Vac. Sci. Technol. BNanotechnol. Microelectron. Mater. Process. Meas. Phenom. 2015, 33, 06F503. [Google Scholar] [CrossRef]
  36. Onishi, K.; Guo, H.; Nagano, S.; Fujita, D. High Aspect Ratio Afm Probe Processing by Helium-Ion-Beam Induced Deposition. Microscopy 2014, 63, i30. [Google Scholar] [CrossRef]
  37. Fowlkes, J.D.; Winkler, R.; Lewis, B.B.; Stanford, M.G.; Plank, H.; Rack, P.D. Simulation-Guided 3d Nanomanufacturing Via Focused Electron Beam Induced Deposition. ACS Nano 2016, 10, 6163–6172. [Google Scholar] [CrossRef]
  38. Winkler, R.; Lewis, B.B.; Fowlkes, J.D.; Rack, P.D.; Plank, H. High-Fidelity 3d-Nanoprinting Via Focused Electron Beams: Growth Fundamentals. ACS Appl. Nano Mater. 2018, 1, 1014–1027. [Google Scholar] [CrossRef]
  39. Bret, T.; Utke, I.; Hoffmann, P.; Abourida, M.; Doppelt, P. Electron Range Effects in Focused Electron Beam Induced Deposition of 3d Nanostructures. Microelectron. Eng. 2006, 83, 1482–1486. [Google Scholar] [CrossRef]
  40. Gazzadi, G.; Frabboni, S.; Menozzi, C. Suspended Nanostructures Grown by Electron Beam-Induced Deposition of Pt and Teos Precursors. Nanotechnology 2007, 18, 445709. [Google Scholar] [CrossRef]
  41. Mølhave, K.; Madsen, D.N.; Dohn, S.; Bøggild, P. Constructing, Connecting and Soldering Nanostructures by Environmental Electron Beam Deposition. Nanotechnology 2004, 15, 1047. [Google Scholar] [CrossRef]
  42. Mutunga, E.; Winkler, R.; Sattelkow, J.; Rack, P.D.; Plank, H.; Fowlkes, J.D. Impact of Electron-Beam Heating During 3d Nanoprinting. ACS Nano 2019, 13, 5198–5213. [Google Scholar] [CrossRef] [PubMed]
  43. Skoric, L.; Sanz-Hernaández, D.; Meng, F.; Donnelly, C.; Merino-Aceituno, S.; Fernández-Pacheco, A. Layer-by-Layer Growth of Complex-Shaped Three-Dimensional Nanostructures with Focused Electron Beams. Nano Lett 2020, 20, 184–191. [Google Scholar] [CrossRef] [PubMed]
  44. De Teresa, J.M.; Orús, P.; Córdoba, R.; Philipp, P. Comparison between Focused Electron/Ion Beam-Induced Deposition at Room Temperature and under Cryogenic Conditions. Micromachines 2019, 10, 799. [Google Scholar] [CrossRef]
  45. Alkemade, P.F.; Miro, H.; Van Veldhoven, E.; Maas, D.J.; Smith, D.A.; Rack, P.D. Pulsed Helium Ion Beam Induced Deposition: A Means to High Growth Rates. J. Vac. Sci. Technol. BNanotechnol. Microelectron. Mater. Process. Meas. Phenom. 2011, 29, 06FG05. [Google Scholar] [CrossRef]
  46. Keller, L.; Huth, M. Pattern Generation for Direct-Write Three-Dimensional Nanoscale Structures Via Focused Electron Beam Induced Deposition. Beilstein J. Nanotechnol. 2018, 9, 2581–2598. [Google Scholar] [CrossRef]
  47. Keller, L.; Al Mamoori, M.K.; Pieper, J.; Gspan, C.; Stockem, I.; Schröder, C.; Barth, S.; Winkler, R.; Plank, H.; Pohlit, M. Direct-Write of Free-Form Building Blocks for Artificial Magnetic 3d Lattices. Sci. Rep. 2018, 8, 1–13. [Google Scholar] [CrossRef]
  48. Lipp, S.; Frey, L.; Lehrer, C.; Demm, E.; Pauthner, S.; Ryssel, H. A Comparison of Focused Ion Beam and Electron Beam Induced Deposition Processes. Microelectron. Reliab. 1996, 36, 1779–1782. [Google Scholar] [CrossRef]
  49. Reyntjens, S.; Puers, R. A Review of Focused Ion Beam Applications in Microsystem Technology. J. Micromech. Microeng. 2001, 11, 287. [Google Scholar] [CrossRef]
  50. Utke, I.; Moshkalev, S.; Russell, P. Nanofabrication Using Focused Ion and Electron Beams: Principles and Applications; Oxford University Press: Oxford, UK, 2012. [Google Scholar]
  51. Motayed, A.; Davydov, A.V.; Vaudin, M.D.; Levin, I.; Melngailis, J.; Mohammad, S. Fabrication of Gan-Based Nanoscale Device Structures Utilizing Focused Ion Beam Induced Pt Deposition. J. Appl. Phys. 2006, 100, 024306. [Google Scholar] [CrossRef]
  52. Belianinov, A.; Burch, M.J.; Kim, S.; Tan, S.; Hlawacek, G.; Ovchinnikova, O.S. Noble Gas Ion Beams in Materials Science for Future Applications and Devices. MRS Bull. 2017, 42, 660–666. [Google Scholar] [CrossRef]
  53. Chen, P.; van Veldhoven, E.; Sanford, C.A.; Salemink, H.W.; Maas, D.J.; Smith, D.A.; Rack, P.D.; Alkemade, P.F. Nanopillar Growth by Focused Helium Ion-Beam-Induced Deposition. Nanotechnology 2010, 21, 455302. [Google Scholar] [CrossRef] [PubMed]
  54. Stanford, M.G.; Lewis, B.B.; Mahady, K.; Fowlkes, J.D.; Rack, P.D. Advanced Nanoscale Patterning and Material Synthesis with Gas Field Helium and Neon Ion Beams. J. Vac. Sci. Technol. BNanotechnol. Microelectron. Mater. Process. Meas. Phenom. 2017, 35, 030802. [Google Scholar] [CrossRef]
  55. Kohama, K.; Iijima, T.; Hayashida, M.; Ogawa, S. Tungsten-Based Pillar Deposition by Helium Ion Microscope and Beam-Induced Substrate Damage. J. Vac. Sci. Technol. BNanotechnol. Microelectron. Mater. Process. Meas. Phenom. 2013, 31, 031802. [Google Scholar] [CrossRef]
  56. Krasheninnikov, A.; Nordlund, K. Ion and Electron Irradiation-Induced Effects in Nanostructured Materials. J. Appl. Phys. 2010, 107, 3. [Google Scholar] [CrossRef]
  57. Córdoba, R.; Ibarra, A.; Mailly, D.; De Teresa, J.M.M. Vertical Growth of Superconducting Crystalline Hollow Nanowires by He+ Focused Ion Beam Induced Deposition. Nano Lett. 2018, 18, 1379–1386. [Google Scholar] [CrossRef]
  58. Córdoba, R.; Mailly, D.; Rezaev, R.O.; Smirnova, E.I.; Schmidt, O.G.; Fomin, V.M.; Zeitler, U.; Guillamón, I.; Suderow, H.; De Teresa, J.M. Three-Dimensional Superconducting Nanohelices Grown by He+-Focused-Ion-Beam Direct Writing. Nano Lett. 2019, 19, 8597–8604. [Google Scholar] [CrossRef]
  59. Fowlkes, J.D.; Winkler, R.; Lewis, B.B.; Fernández-Pacheco, A.; Skoric, L.; Sanz-Hernández, D.; Stanford, M.G.; Mutunga, E.; Rack, P.D.; Plank, H. High-Fidelity 3d-Nanoprinting Via Focused Electron Beams: Computer-Aided Design (3bid). ACS Appl. Nano Mater. 2018, 1, 1028–1041. [Google Scholar] [CrossRef]
  60. Belianinov, A.; Vasudevan, R.; Strelcov, E.; Steed, C.; Yang, S.M.; Tselev, A.; Jesse, S.; Biegalski, M.; Shipman, G.; Symons, C. Big Data and Deep Data in Scanning and Electron Microscopies: Deriving Functionality from Multidimensional Data Sets. Adv. Struct. Chem. Imaging 2015, 1, 6. [Google Scholar] [CrossRef] [PubMed]
  61. Burch, M.J.; Ievlev, A.V.; Mahady, K.; Hysmith, H.; Rack, P.D.; Belianinov, A.; Ovchinnikova, O.S. Helium Ion Microscopy for Imaging and Quantifying Porosity at the Nanoscale. Anal. Chem. 2017, 90, 1370–1375. [Google Scholar] [CrossRef]
  62. Kim, S.; Dyck, O.; Ievlev, A.V.; Vlassiouk, I.V.; Kalinin, S.V.; Belianinov, A.; Jesse, S.; Ovchinnikova, O.S. Graphene Milling Dynamics During Helium Ion Beam Irradiation. Carbon 2018, 138, 277–282. [Google Scholar] [CrossRef]
  63. Notte, J.; Huang, J. The Helium Ion Microscope. In Helium Ion Microscopy; Springer: Berlin/Heidelberg, Germany, 2016; pp. 3–30. [Google Scholar]
  64. Timilsina, R.; Smith, D.A.; Rack, P.D. A Comparison of Neon Versus Helium Ion Beam Induced Deposition Via Monte Carlo Simulations. Nanotechnology 2013, 24, 115302. [Google Scholar] [CrossRef] [PubMed]
  65. Dubner, A.D.; Wagner, A.; Melngailis, J.; Thompson, C.V. The Role of the Ion-Solid Interaction in Ion-Beam-Induced Deposition of Gold. J. Appl. Phys. 1991, 70, 665–673. [Google Scholar] [CrossRef]
  66. Stanford, M.G.; Mahady, K.; Lewis, B.B.; Fowlkes, J.D.; Tan, S.; Livengood, R.; Magel, G.A.; Moore, T.M.; Rack, P.D. Laser-Assisted Focused He+ Ion Beam Induced Etching with and without Xef2 Gas Assist. ACS Appl. Mater. Interfaces 2016, 8, 29155–29162. [Google Scholar] [CrossRef] [PubMed]
  67. Stanford, M.G.; Pudasaini, P.R.; Cross, N.; Mahady, K.; Hoffman, A.N.; Mandrus, D.G.; Duscher, G.; Chisholm, M.F.; Rack, P.D. Tungsten Diselenide Patterning and Nanoribbon Formation by Gas-Assisted Focused-Helium-Ion-Beam-Induced Etching. Small Methods 2017, 1, 1600060. [Google Scholar] [CrossRef]
  68. Lewis, B.B.; Winkler, R.; Sang, X.; Pudasaini, P.R.; Stanford, M.G.; Plank, H.; Unocic, R.R.; Fowlkes, J.D.; Rack, P.D. 3d Nanoprinting Via Laser-Assisted Electron Beam Induced Deposition: Growth Kinetics, Enhanced Purity, and Electrical Resistivity. Beilstein J. Nanotechnol. 2017, 8, 801–812. [Google Scholar] [CrossRef]
  69. Smith, D.A.; Joy, D.C.; Rack, P.D. Monte Carlo Simulation of Focused Helium Ion Beam Induced Deposition. Nanotechnology 2010, 21, 175302. [Google Scholar] [CrossRef]
  70. Mahady, K.; Tan, S.; Greenzweig, Y.; Livengood, R.; Raveh, A.; Rack, P. Monte Carlo Simulations of Nanoscale Ne+ Ion Beam Sputtering: Investigating the Influence of Surface Effects, Interstitial Formation, and the Nanostructural Evolution. Nanotechnology 2016, 28, 045305. [Google Scholar] [CrossRef]
  71. Mahady, K.; Tan, S.; Greenzweig, Y.; Livengood, R.; Raveh, A.; Fowlkes, J.D.; Rack, P. Monte Carlo Simulations of Secondary Electron Emission Due to Ion Beam Milling. J. Vac. Sci. Technol. BNanotechnol. Microelectron. Mater. Process. Meas. Phenom. 2017, 35, 041805. [Google Scholar] [CrossRef]
  72. Ziegler, J.; Biersack, J.; Ziegler, M. Srim: The Stopping and Range of Ions in Matter; SRIM Co.: Chester, MD, USA, 2008. [Google Scholar]
  73. Mehendale, S.; Mulders, J.; Trompenaars, P. A New Sequential Ebid Process for the Creation of Pure Pt Structures from Mecpptme3. Nanotechnology 2013, 24, 145303. [Google Scholar] [CrossRef]
  74. Plank, H.; Noh, J.H.; Fowlkes, J.D.; Lester, K.; Lewis, B.B.; Rack, P.D. Electron-Beam-Assisted Oxygen Purification at Low Temperatures for Electron-Beam-Induced Pt Deposits: Towards Pure and High-Fidelity Nanostructures. ACS Appl. Mater. Interfaces 2014, 6, 1018–1024. [Google Scholar] [CrossRef] [PubMed]
  75. Geier, B.; Gspan, C.; Winkler, R.; Schmied, R.; Fowlkes, J.D.; Fitzek, H.; Rauch, S.; Rattenberger, J.; Rack, P.D.; Plank, H. Rapid and Highly Compact Purification for Focused Electron Beam Induced Deposits: A Low Temperature Approach Using Electron Stimulated H2o Reactions. J. Phys. Chem. C 2014, 118, 14009–14016. [Google Scholar] [CrossRef]
  76. Sanford, C.A.; Stern, L.; Barriss, L.; Farkas, L.; DiManna, M.; Mello, R.; Maas, D.J.; Alkemade, P.F. Beam Induced Deposition of Platinum Using a Helium Ion Microscope. J. Vac. Sci. Technol. B Microelectron. Nanometer Struct. Process. Meas. Phenom. 2009, 27, 2660–2667. [Google Scholar] [CrossRef]
  77. Mahady, K.T.; Tan, S.; Greenzweig, Y.; Raveh, A.; Rack, P.D. Monte Carlo Simulation of Nanoscale Material Focused Ion Beam Gas-Assisted Etching: Ga+ and Ne+ Etching of Sio 2 in the Presence of a Xef 2 Precursor Gas. Nanoscale Adv. 2019, 1, 3584–3596. [Google Scholar] [CrossRef]
  78. Fitting, H.J.; Friemann, J.U. Monte-Carlo Studies of the Electron Mobility in Sio2. Phys. Status Solidi (A) 1982, 69, 349–358. [Google Scholar] [CrossRef]

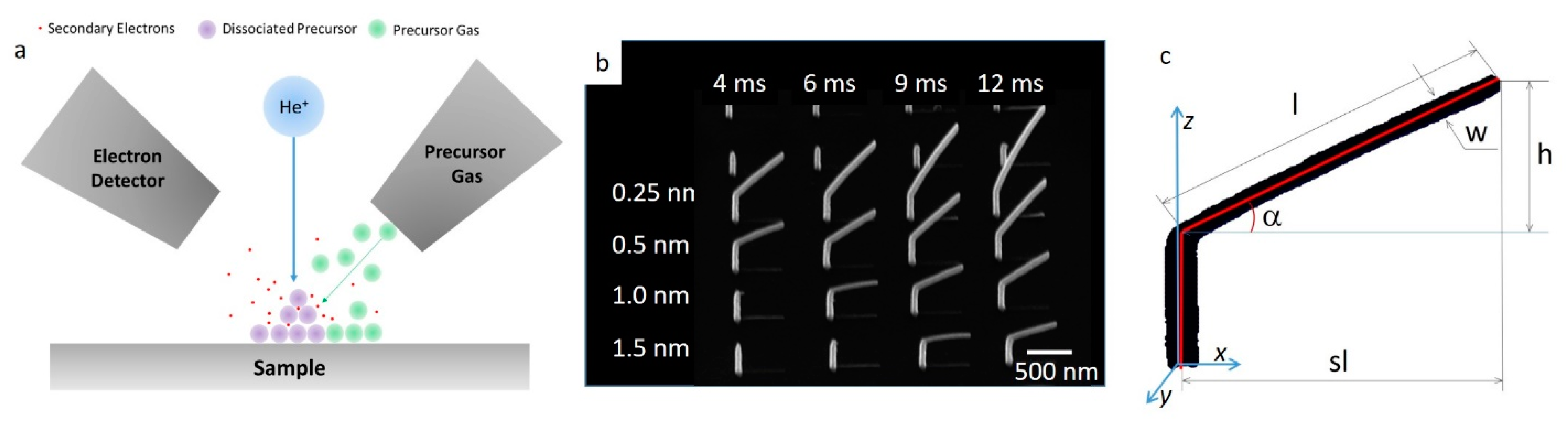

Figure 1. Focused-ion-beam-induced deposition (FIBID) diagram, calibration structure growth, and parametrization. (a) FIBID process in the helium ion microscopy (HIM) diagram, different structures are obtained by changing the beam pitch. (b) PtC structure array, made at 25 kV, 0.54 pA beam current with a 5 μm aperture with 8.142 mm working distance, columns are varying dwell times of 4, 6, 9, and 12 ms, and rows are varying pitch of 0.25, 0.5, 1.0 and 1.5 nm, respectively. (c) An example of a parametrized pillar grown for calibration of growth parameters with pillar values extracted.
Figure 1. Focused-ion-beam-induced deposition (FIBID) diagram, calibration structure growth, and parametrization. (a) FIBID process in the helium ion microscopy (HIM) diagram, different structures are obtained by changing the beam pitch. (b) PtC structure array, made at 25 kV, 0.54 pA beam current with a 5 μm aperture with 8.142 mm working distance, columns are varying dwell times of 4, 6, 9, and 12 ms, and rows are varying pitch of 0.25, 0.5, 1.0 and 1.5 nm, respectively. (c) An example of a parametrized pillar grown for calibration of growth parameters with pillar values extracted.
Micromachines 11 00527 g001
Figure 2. (a) Plot of the segment angle versus the He+ dwell time at different pixel point pitches for a beam energy of 25 keV, a beam current of 0.54 pA and a precursor chamber pressure of 1 × 10−5 Torr. (b) Plot of the resultant segment height (h) for a fixed lateral scan length (sl) versus dwell time per lateral displacement (DTPLD) (s nm−1), (c) plot of the vertical growth per current (nm-pA-1). Beam energy of 25 keV, beam currents of 0.38 pA, 0.54 pA and 2.3 pA, and a precursor chamber pressure of 1 × 10−5 torr used in (b,c).
Figure 2. (a) Plot of the segment angle versus the He+ dwell time at different pixel point pitches for a beam energy of 25 keV, a beam current of 0.54 pA and a precursor chamber pressure of 1 × 10−5 Torr. (b) Plot of the resultant segment height (h) for a fixed lateral scan length (sl) versus dwell time per lateral displacement (DTPLD) (s nm−1), (c) plot of the vertical growth per current (nm-pA-1). Beam energy of 25 keV, beam currents of 0.38 pA, 0.54 pA and 2.3 pA, and a precursor chamber pressure of 1 × 10−5 torr used in (b,c).
Micromachines 11 00527 g002

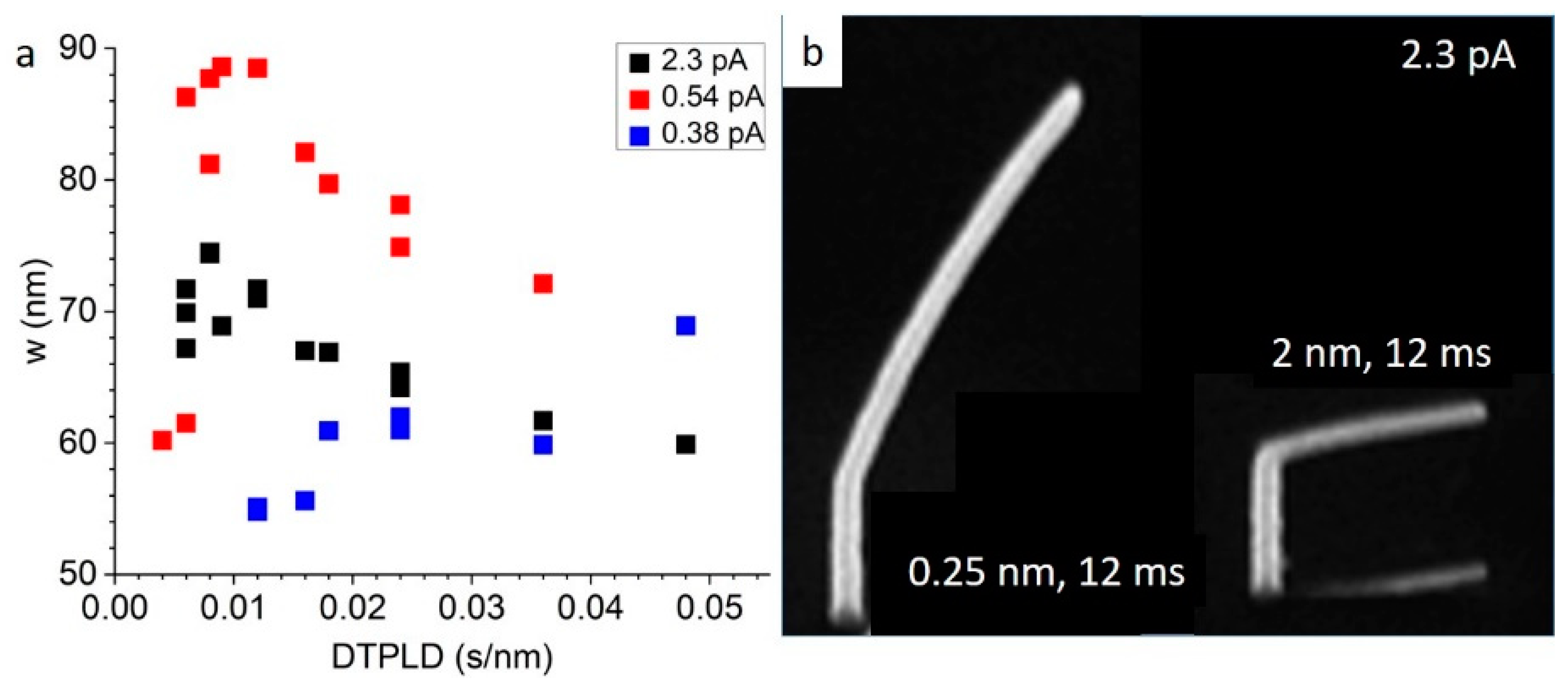

Figure 3. (a) Plot of w as a function of the dwell time per lateral displacement (DTPLD) (s nm−1), for beam energy of 25 keV, beam currents of 0.38 pA, 0.54 pA and 2.3 pA, and a precursor chamber pressure of 1 × 10−5 Torr. (b) Example of two pillars bending in segments grown at 25 keV, 2.3 pA, with 12 ms dwell time, and 0.25 nm and 2 nm pixel pitches, respectively.
Figure 3. (a) Plot of w as a function of the dwell time per lateral displacement (DTPLD) (s nm−1), for beam energy of 25 keV, beam currents of 0.38 pA, 0.54 pA and 2.3 pA, and a precursor chamber pressure of 1 × 10−5 Torr. (b) Example of two pillars bending in segments grown at 25 keV, 2.3 pA, with 12 ms dwell time, and 0.25 nm and 2 nm pixel pitches, respectively.
Micromachines 11 00527 g003

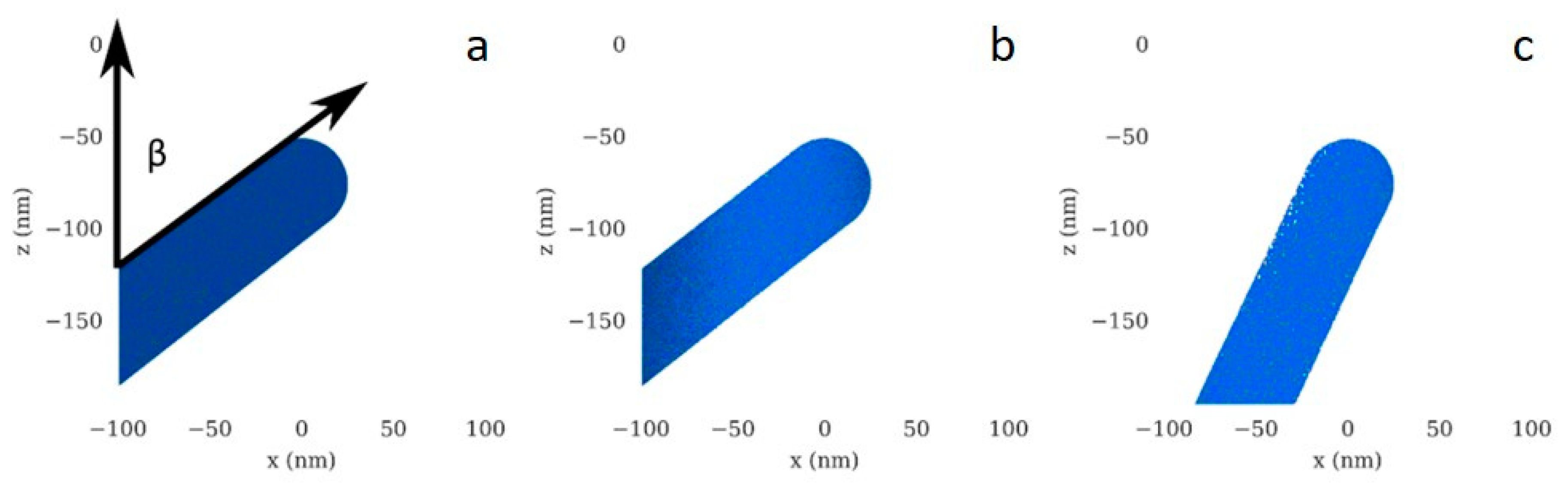

Figure 4. EnvizION Monte Carlo simulation results. (a) Schematic of the initial geometry for sputtering simulations. (b) Pillar corresponding to the 4 ms dwell time scan (~5.6 million ions), and (c) pillar corresponding to the 12 ms dwell time scan (~16.8 million ions).
Figure 4. EnvizION Monte Carlo simulation results. (a) Schematic of the initial geometry for sputtering simulations. (b) Pillar corresponding to the 4 ms dwell time scan (~5.6 million ions), and (c) pillar corresponding to the 12 ms dwell time scan (~16.8 million ions).
Micromachines 11 00527 g004

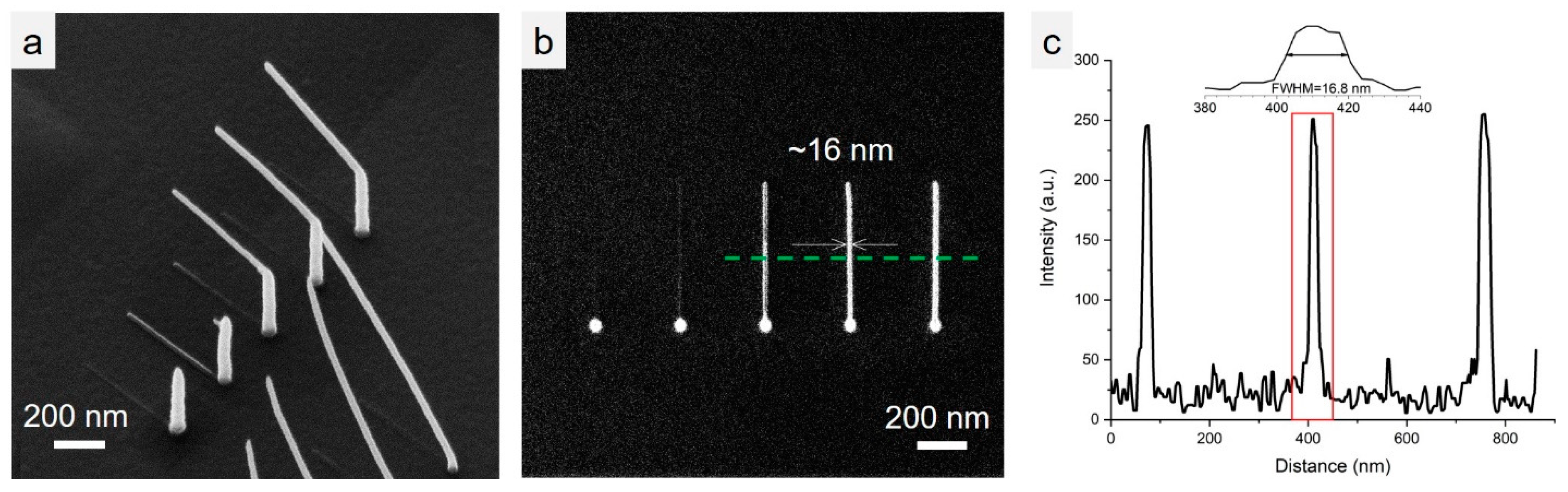

Figure 5. Examples of grown structures with ~16 nm features at full width half maximum (FWHM). (a) Side view of the structures with increasing dwell time of 4, 6, and 8 ms, respectively. (b) Top view of the structures in (a). (c) Line profile of the structures along the green line shown in panel (b) with zoom in of FWHM = 16.8 nm pillar.
Figure 5. Examples of grown structures with ~16 nm features at full width half maximum (FWHM). (a) Side view of the structures with increasing dwell time of 4, 6, and 8 ms, respectively. (b) Top view of the structures in (a). (c) Line profile of the structures along the green line shown in panel (b) with zoom in of FWHM = 16.8 nm pillar.
Micromachines 11 00527 g005

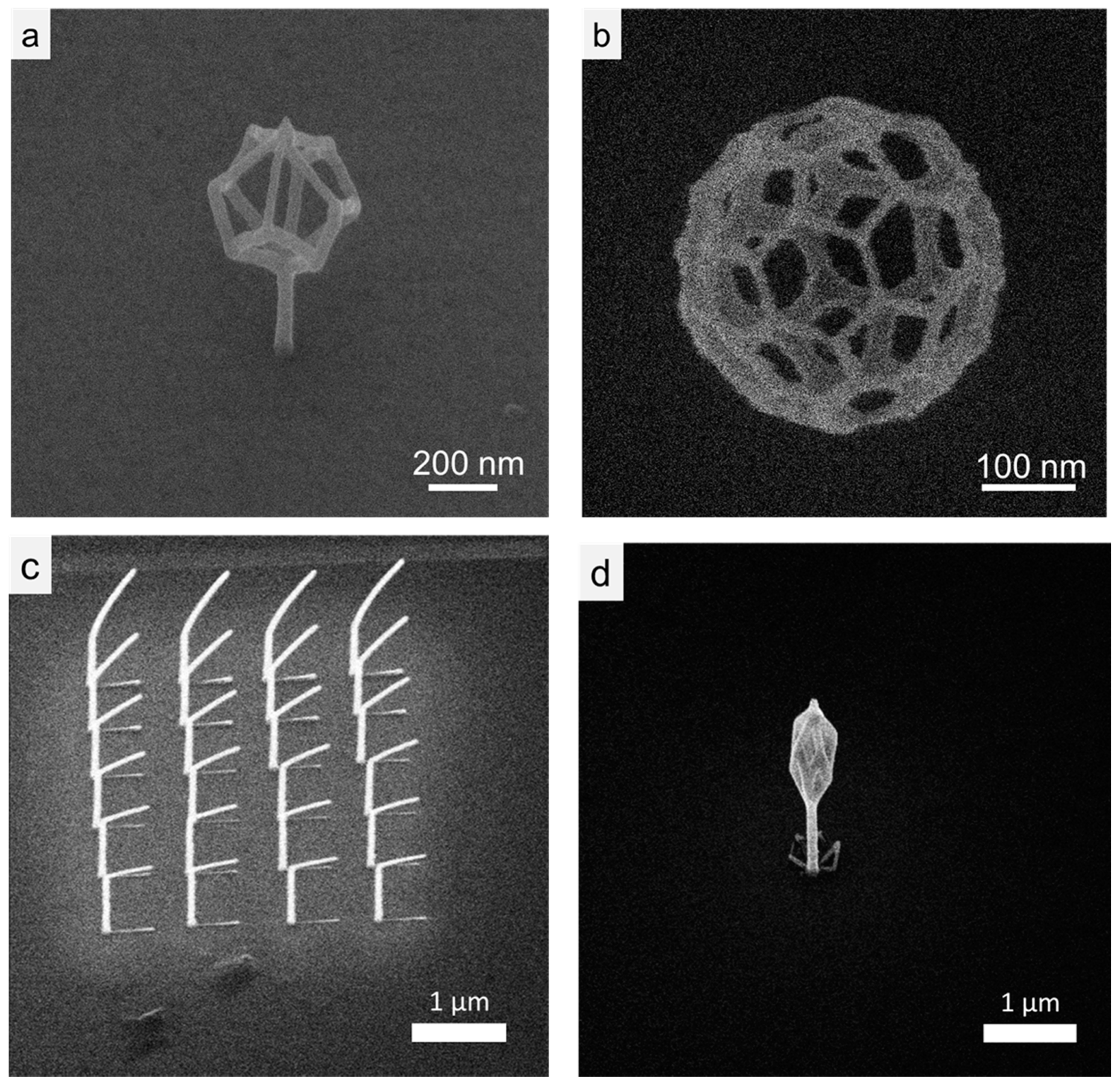

Figure 6. Complex 3D structures made with FIBID, (a) deltahedron grown on a pillar on a conductive substrate and (b) a truncated icosahedron a conductive substrate (c) pillars and (d) deltahedron grown on insulating SiO2.
