A Facile Preparation and Energetic Characteristics of the Core/Shell CoFe2O4/Al Nanowires Thermite Film

1
School of Chemical Engineering, Nanjing University of Science and Technology, Nanjing 210094, China
2
Shaanxi Applied Physics and Chemistry Research Institute, Xi’an 710061, China
3
State Key Laboratory for Manufacturing Systems Engineering, Xi’an Jiaotong University, Xi’an 710049, China
*
Authors to whom correspondence should be addressed.
Micromachines 2020, 11(5), 516; https://doi.org/10.3390/mi11050516
Received: 31 March 2020 / Revised: 27 April 2020 / Accepted: 8 May 2020 / Published: 20 May 2020
(This article belongs to the Special Issue Miniaturized Pyro Devices)

Abstract

In this study, CoFe2O4 is selected for the first time to synthesize CoFe2O4/Al nanothermite films via an integration of nano-Al with CoFe2O4 nanowires (NWs), which can be prepared through a facile hydrothermal-annealing route. The resulting nanothermite film demonstrates a homogeneous structure and an intense contact between the Al and CoFe2O4 NWs at the nanoscale. In addition, both thermal analysis and laser ignition test reveal the superb energetic performances of the prepared CoFe2O4/Al NWs nanothermite film. Within different thicknesses of nano-Al for the CoFe2O4/Al NWs nanothermite films investigated here, the maximum heat output has reached as great as 2100 J·g−1 at the optimal thickness of 400 nm for deposited Al. Moreover, the fabrication strategy for CoFe2O4/Al NWs is also easy and suitable for diverse thermite systems based upon other composite metal oxides, such as MnCo2O4 and NiCo2O4. Importantly, this method has the featured advantages of simple operation and compatibility with microsystems, both of which may further facilitate potential applications for functional energetic chips.
Keywords: nanoenergetic materials; nanothermite; composite metal oxide; nanowires structure; core/shell; energy release nanoenergetic materials; nanothermite; composite metal oxide; nanowires structure; core/shell; energy release

1. Introduction

Nanothermites are generally composed of a metal fuel (mostly Al) and an oxidizer (mostly metal oxides and fluoropolymers) [1,2,3,4,5,6,7,8]. At least one component in the nanothermites should be on the nano scale. Most probably benefitted from their enhanced contact area and reduced mass diffusion distance between fuel and oxidant, nanothermites exhibit satisfactory performances in energy release, reaction rate and ignition delay time, when compared with those of bulk or micro counterparts [9,10,11,12,13]. In addition, their ignition and energy release properties can be tuned by regulating the sizes and shapes, interface contact and stoichiometric ratios of these two components. Therefore, nanothermites are strongly desired in the application fields of microelectromechanical systems (MEMS), propulsion, thermal batteries, gas generators, ignition, initiation and so on [14,15,16,17,18,19].
The properties of energetic thermites largely depend on both a meticulous design of nano-structure and an intense assembly between fuels and oxidizers. Inspired by these strategies, a variety of nanostructured thermites, e.g. porous nanothermite films [20], core/shell structured thermites [21,22], multilayered and sandwich-structure nanothermites [23,24,25,26], have been prepared. Among these reported nanostructured thermites, the core/shell nanothermite film has been widely investigated as a one-dimensional array architecture [27,28,29,30]. Such an architecture can lead to great improvements in the interfacial contact, intimacy of reactive components, and nanoscale mixing uniformity, and thus potentially boosting its energetic performances [31]. Although CuO/Al [32], Co3O4/Al [33] and NiCo2O4/Al [34] core/shell nanowire (NW) structures have demonstrated notable advantages in not only outstanding reactivity but also a significantly low activation energy. However, few investigations have been made on the core/shell nanothermite films involving other species of NWs structured metal oxides and composite metal oxides in particular. Therefore, it is highly desirable to develop different NW structured thermites for the demand of diversity in nanothermites.
Here, we demonstrate, by the example of CoFe2O4 NWs as a template, that the core/shell composite metal oxide/Al NWs nanothermite film can be effectively achieved. As schematically illustrated in Figure 1, the CoFe2O4 NWs array film has been firstly fabricated on the surface of a Ni substrate by means of a simple hydrothermal and annealing process and then a following deposition of nano Al through controllable magnetron sputtering to realize the core/shell CoFe2O4/Al NWs nanothermite film. The distinct NWs arrays structure can result in great improvements in the distribution and contact degree between fuel and oxidizer for an enhanced energy release and ease of ignition. An adjustment in the thickness of the nano-Al deposition can effectively lead to a control in both the molar ratio of fuel/oxidizer and energy release properties of the prepared nanothermite film. Moreover, the prepared CoFe2O4/Al NWs nanothermite film can be easily integrated into MEMS to achieve functional energetic chips. In addition, such an approach proposed here can also be applicable to the construction of various composite metal oxides/Al NWs, such as MnCo2O4/Al, NiCo2O4/Al and so on.

2. Materials and Methods

2.1. Materials

Fe(NO3)3·9H2O, Co(NO3)2·6H2O, CO(NH2)2, NH4F, Mn(SO4)2·H2O, Ni(NO3)2·6H2O and anhydrous ethanol were purchased from the Kelong Chemical Reagent Company (Chengdu, China). Ni foil and acetone were obtained from the Sinopharm Chemical Reagent Company (Shanghai, China). All chemicals were of analytical grade to be used as received without any further purification. For all experiments, deionized water (Milli-Q) was used.

2.2. Synthesis of the CoFe2O4 NWs Film

In the typical synthesis, a piece of Ni foil was cleaned ultrasonically first with acetone for 10 min and washed subsequently with deionized water and ethanol several times. In general, 2 mmol Co(NO3)2·6H2O and 4 mmol Fe(NO3)3·9H2O were dissolved in 60 mL deionized water under vigorous stirring to obtain a homogeneous precursor solution. The cleaned Ni foil was transferred into a 100 mL Teflon-lined stainless autoclave containing the precursor solution. The autoclave was sealed and maintained at 120 °C for 5 h. After reaction, the Ni substrate was taken out and washed with DI water and ethanol several times, followed by drying at 60 °C and then annealing in N2 at 400 °C for 5 h to obtain the CoFe2O4 NWs. For the synthesis of MnCo2O4 NWs or NiCo2O4 NWs, the processes were carried out in a similar way. The molar ratio of Co(NO3)2·6H2O and Mn(SO4)2·H2O was 2:1. The molar ratio of Co(NO3)2·6H2O and Ni(NO3)2·6H2O was 2:1.

2.3. Synthesis of the CoFe2O4/Al NWs Nanothermite Film

Nano-Al film was deposited over the CoFe2O4 NWs film by magnetron sputtering to realize the core/shell CoFe2O4/Al NWs nanothermite film. For all the magnetron sputtering processes, Ar gas with purity 99.99% was used as the working gas, with a flow rate of 50 sccm. Both the target holder and the substrate holder were cooled by circulating cooling water to make sure that the working temperature was under 25 °C. The Al layer thicknesses analyzed in this paper were set to be 200, 400, and 600 nm for a flat surface, respectively.

2.4. Characterizations

The structural and compositional information of the prepared materials were obtained by X-ray diffraction (XRD), (Bruker D8 Advance, Bruker, Karlsruhe, Germany). The morphological features and the element distribution of the obtained samples on Ni substrates were characterized by field emission scanning electron microscopy (SEM) (Quanta 250F, FEI, Hillsboro, OR, USA), equipped with an energy dispersive X-ray spectrometer (EDS), transmission electron microscopy (TEM) (FEI Tecnai G2 20 LaB6, FEI, Hillsboro, OR, USA), and high resolution transmission electron microscopy (HRTEM) (FEI Tecnai G2 F30 S-Twin, FEI, Hillsboro, OR, USA). The element mappings were also performed on the HRTEM. Differential scanning calorimetry (DSC) (TGA/DSC 3+, Mettler Toledo, Zurich, Switzerland), was used to determine the reaction heats of the nanothermites from 300 to 900 °C at a heating rate of 10 °C·min−1 under 30 mL·min−1 N2 flow. In addition, the ignition performances of the nanothermite film were studied by a Nd:YAG laser device and a high-speed camera. The wavelength, the pulse width and the incident laser energy were 1064 nm, 6.5 ns and 30 mJ, respectively.

3. Results and Discussion

With our starting chemical materials, the formation mechanism of the CoFe2O4 phase can be described in the following two steps. (1) Precursor NWs can be grown on the Ni substrate by a facile hydrothermal method with the assistance of F [35,36]. Typically, Co2+ and Fe3+ ions are fully coordinated with F to form [CoFx](x−2)− and [FeFy](y−3)− in the as-prepared precursor solution, respectively. As the temperature of the hydrothermal reaction ramps up to 120 °C, urea generates a large amount of CO32− and OH ion, both of which can slowly displace F in the [CoFx](x−2) − and [FeFy](y−3)− to result in the formation of a nucleus. As the reaction time increases, numerous nuclei are aligned to a wire-like structure; finally the process continues until formation of the Co-Fe-precursor NWs arrays are grown directly on the Ni substrate. (2) After annealing at 400 °C for 5 h in N2, the Co-Fe-precursor NWs gradually decompose to develop CoFe2O4 NWs. The chemical reactions responsible for the formation of CoFe2O4 NWs are presented in the following formulas:
Co2+ + xF → [CoFx](x-2)-,
Fe2+ + yF → [FeFy](y-3)-,
H2NCONH2 + H2O → 2NH3 + CO2,
CO2 + H2O → CO32- + 2H+,
NH3·H2O → NH4+ + OH,
[CoFx](x-2)- + 2[FeFy](y-3)- + 0.5(2-z) CO32- + (6+z)OH +nH2O →
Co(OH)z(CO3)0.5(2-z)·2Fe(OH)3·nH2O + (x+2y)F
Co(OH)z(CO3)0.5(2-z)·2Fe(OH)3·nH2O → CoFe2O4 + (1−0.5z)CO2 +(n+3+0.5z)H2O.
The phase composition and crystal structure of the CoFe2O4 film and CoFe2O4/Al nanothermite film are studied using XRD measurements, as shown in Figure 2. It should be pointed out here that the samples are scraped off the Ni substrate before XRD analysis. All the detected diffraction peaks from the CoFe2O4 film at 18.3°, 30.1°, 35.5° and 43.1° (labelled with blue squares) can be assigned to the (111), (220), (311) and (440) planes of CoFe2O4 cubic spinel phase (JCPDS Card 22-1086), respectively. With respect to CoFe2O4/Al, it can be clearly observed that the three additional characteristic peaks at 38.5°, 44.7° and 65.1°, which are marked with green triangles, can be indexed as the (111), (200) and (311) planes of Al, respectively. All these evidences are consistent with the successful formation of the CoFe2O4/Al nanothermite films on the substrate surfaces. In addition, no other peaks are detected for any impurity so that there is little or even no reaction between oxidizer and Al during the magnetron sputtering process.
The morphologies of CoFe2O4 NWs film and CoFe2O4/Al NWs nanothermite film are presented with different Al deposition thicknesses of 200, 400 and 600 nm, respectively, in Figure 3. The dense and compact CoFe2O4 NWs, whose average diameter is ca. 180 nm, are uniformly grown on the substrate surface, as shown in Figure 3a,b. Interestingly, the tip parts of the CoFe2O4 NWs structure are thinner than the root parts. As seen from the cross-section SEM image of the CoFe2O4 NWs (Figure 3c), NWs appear like numerous orderly-arranged grasses with ca. 8 μm in length to be rooted in the substrate. There is averagely a 2 μm layer of CoFe2O4 in thickness beneath the NWs structure, which contributes to the adhesion of the NWs structure to the substrate.
The SEM images are shown in Figure 3d–f for CoFe2O4/Al NWs nanothermite films with different thicknesses of Al deposition. The Al nanolayer can be effectively coated on the CoFe2O4 NWs to achieve core/shell CoFe2O4/Al NWs. In addition, the CoFe2O4/Al NWs still remain in the array structure without a change during the course of the Al coating. Furthermore, it is obvious that the surface of CoFe2O4/Al NWs becomes rough. The different deposition rates of Al on the sidewall of a single NWs could result in some nano-Al agglomerations to form a layer of granular coatings. Distinctly, the average diameter of the CoFe2O4/Al NWs expands with increasing thickness of Al deposition. The CoFe2O4/Al NWs can reach up to ca. 250 nm and 330 nm in average diameter for 200 nm and 400 nm thickness of the deposited Al, respectively (Figure 3d,e). However, it is worth noting that the deposited Al gradually aggregates on the top of the NWs until the NWs get fused with each other when the deposition thickness is 600 nm (Figure 3f), which prevents a further penetration of the Al atoms during magnetron sputtering to reduce the mixing uniformity between fuel and metal oxide. Moreover, Figure 3g shows the corresponding EDS elemental mappings of CoFe2O4/Al NWs nanothermite film at the Al deposition thickness of 400 nm. It can be observed that the Al, Co, Fe and O are uniformly distributed in this nanothermite film. As a result, it reveals that Al material is uniformly coated onto the CoFe2O4 NWs.
The molar ratios between Al to CoFe2O4 are 2.00, 4.34 and 6.72 in the CoFe2O4/Al nanothermite film with the 200, 400 and 600 nm thicknesses of the Al deposition, respectively. The fuel/oxidizer molar ratio obviously rises with increasing thickness of the Al deposition. In addition, the molar ratio between Al to CoFe2O4 (4.34), which goes beyond the theoretical value (2.67) in the CoFe2O4/Al film with the 400 nm thickness of the Al deposition, reveals a slight surplus of fuel. It is worth noting that this proposed approach can be applied to fabricate various composite-metal-oxides-based thermite systems, such as MnCo2O4/Al (see Figures S1–S3, in Supplementary Materials) and NiCo2O4/Al (see Figures S4–S6, in Supplementary Materials).
Both TEM and HRTEM were performed to further characterize the morphology and detailed structure of the CoFe2O4 NWs and CoFe2O4/Al NWs, as shown in Figure 4. The TEM image (Figure 4a) shows that each NW consists of many nanocrystallites. From the TEM image of Figure 4b, it can be found that the CoFe2O4 NWs is wrapped with a layer of nano-Al for ca. 35 nm averagely in thickness to form a core/shell structure CoFe2O4/Al NWs, which is well consistent with its SEM observations (Figure 3d). Meanwhile, the HRTEM characterizations of CoFe2O4/Al NWs reveal the intense contact between the Al and CoFe2O4 at the nanoscale (Figure 4c). In addition, the HRTEM image of the CoFe2O4 core (Figure 4d) displays clear lattice fringes with an interplanar spacing of 0.242 nm, which corresponds to the (222) crystal plane of the CoFe2O4. For the Al shell, lattice fringe with spacing value of 0.234 nm, as indicated in Figure 4e, corresponds to the (111) plane of the Al. Furthermore, the corresponding elemental mapping images (Figure 4f) for a single CoFe2O4/Al NW obviously reveals the core/shell structure for well-distributed Co, Fe and O elements in the core as well as Al in the shell. In addition, the O signal on the shell surface is derived from the inevitable oxidation of the nano-Al. Therefore, it can be definitely concluded that the core/shell nanothermite films are successfully fabricated in structure with CoFe2O4 NWs as a core and Al as a shell on the Ni substrate.
To acquire the preferable energy release of CoFe2O4/Al NWs nanothermite films, the different thicknesses of 200, 400 and 600 nm are tested for the Al deposition on a flat surface, respectively. It should be pointed out here that the CoFe2O4/Al NWs nanothermite films are scratched from the Ni substrate before DSC analysis. As shown in Figure 5, the DSC curve has been analyzed for CoFe2O4/Al NWs nanothermite film with the deposition thickness of 400 nm. It is clearly observed that only one sharp and large exothermic peak appears with an onset temperature of ca. 610 °C. The peak temperature at 615 °C demonstrates that the CoFe2O4/Al film has reacted prior to the melting point of Al (660 °C). In addition, the total released heat for the CoFe2O4/Al NWs nanothermite film is 2100 J·g−1, revealing a rapid redox reaction between CoFe2O4 and Al. Of note, it is the largest reaction heat among the investigated samples within different deposition thicknesses of Al (Figure S7, in Supplementary Materials). The data of exothermic performances are summarized in Table 1 for the samples with different thicknesses of Al. The energy release rises with increasing Al deposition from 200 to 400 nm in thickness, since an increment in the thickness of deposited Al layer will lead to an increase in overall fuel/oxidizer ratio of Al/CoFe2O4 [37], as confirmed by the EDS analysis. Nevertheless, the released heat starts to decrease when the deposited Al is too thick (greater than 600 nm here). Excess Al will reduce the oxidizer/fuel ratio. In addition, the maximum reaction heat is lower than the theoretical value. It could be attributed to not only the oxidation of the nano-Al layer but also a nonstoichiometric ratio for a complete reaction between Al and CoFe2O4 in the CoFe2O4/Al nanothermite film [27]. Despite all these, the energy release for CoFe2O4/Al NWs investigated in this work is larger than that of reported thermites, such as assembly Fe2O3/Al (2088 J·g−1) [38], sol gel Fe2O3/Al (1686 J·g−1) [38], physical mixing Fe2O3/Al (1097 J·g−1) [38] and porous Co3O4/Al (1740 J·g−1) [39].
The enhanced released heat of the CoFe2O4/Al NWs nanothermite film could be ascribed to the following reasons. Firstly, the obtained CoFe2O4/Al NWs are of excellent spatial uniformity. The CoFe2O4/Al film could be regarded as a compact integration of numerous individual core/shell NWs nanothermites at the nanoscale. Secondly, a low temperature and high vacuum environment during magnetron sputtering process can efficiently avoid the introduction of impurities and the potential reaction between Al and CoFe2O4. Thirdly, the synergistic effect of the composite metal oxide may promote the exothermic performance of the nanothermite to some extent, but the mechanism deserves further study.
The ignition performances of the prepared CoFe2O4/Al NWs nanothermite film are investigated using a laser ignition source and a high speed camera. The combustion process was recorded in Figure 6, where the interval time for each image frame is 20 μs. A very bright flash originated from the intense combustion of CoFe2O4/Al NWs nanothermite film is clearly visible, which is quite beneficial to the potential applications in micro-ignition and micro-actuation. The whole ignition duration lasts ca. 200 μs, which is significantly longer than that of the three-dimensionally ordered NiFe2O4/Al nanothermite film [40]. In addition, the flame height for the CoFe2O4/Al nanothermite film can reach as high as 10 mm. It reveals that this thermite film can be used as an ideal ignition material.

4. Conclusions

In conclusion, a novel core/shell CoFe2O4/Al NWs nanothermite film is fabricated via a facile hydrothermal process combined with a post annealing treatment and controllable magnetron sputtering. An adjustment in the deposition thicknesses of the Al shell is a qualitative way to realize the optimal fuel/oxidizer ratio of the nanothermite film. The thermodynamic results demonstrate the excellent energetic capability of the CoFe2O4/Al NWs nanothermite film (2100 J·g−1), which is much better than those of single metal oxide based thermite systems. In addition, a preliminary laser ignition test indicates that the as-prepared CoFe2O4/Al NWs nanothermite film can be successfully ignited. It is believed that the core/shell CoFe2O4/Al NWs nanothermite film prepared in this work will contribute to the studies of nanostructured energetic composite, especially for thermite systems based upon composite metal oxides. Finally, excellent energetic performance, easy synthesis process and high compatibility with MEMS technology meet the demands for functional energetic chips.

Supplementary Materials

The following are available online at https://www.mdpi.com/2072-666X/11/5/516/s1, Figure S1: The SEM images of the MnCo2O4 NWs film, Figure S2: The SEM images of the MnCo2O4/Al NWs nanothermite film. (Al = 200 nm), Figure S3: The XRD pattern of the (a) MnCo2O4 NWs film and (b) MnCo2O4/Al NWs nanothermite film, Figure S4: The SEM images of the NiCo2O4 NWs film, Figure S5: The XRD pattern of the NiCo2O4 NWs film, Figure S6: The SEM images of the NiCo2O4/Al NWs nanothermite film. (Al = 200 nm), Figure S7: The DSC curve of CoFe2O4/Al NWs nanothermite film with different Al deposition thicknesses (a) 200 nm and (b) 600 nm.

Author Contributions

Conceptualization, C.Y. and W.R.; methodology, D.N. and C.Z.; data curation, G.W., B.H., Z.Z. and J.Y.; writing—original draft preparation, C.Y. and W.R.; writing—review and editing, W.Z.; W.R. and K.M.; project administration, W.Z.; funding acquisition, W.Z. All authors have read and agreed to the published version of the manuscript. C.Y. and W.R. contributed equally to this work.

Funding

The authors are grateful to the financial support from the National Natural Science Foundation of China (Grants 51576101, 51676100), the Fundamental Research Funds for the Central Universities (Grant 30918015102) and the Qing Lan Project.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. He, W.; Liu, P.J.; He, G.Q.; Gozin, M.; Yan, Q.L. Highly reactivemetastable intermixed composites (MICs): Preparation and characterization. Adv. Mater. 2018, 30, e1706293. [Google Scholar] [CrossRef] [PubMed]
  2. Sundaram, D.; Yang, V.; Yetter, R.A. Metal-based nanoenergetic materials:synthesis, properties, and applications. Prog. Energy Combust. Sci. 2017, 61, 293–365. [Google Scholar] [CrossRef]
  3. Khasainov, B.; Comet, M.; Veyssiere, B.; Spitzer, D. Comparison of performance of fast-reacting nanothermites and primary explosives. Propellants Explos. Pyrotech. 2017, 42, 754–772. [Google Scholar] [CrossRef]
  4. Dong, Z.; Al-Sharab, J.F.; Kear, B.H.; Tse, S.D. Combined flame and electrodeposition synthesis of energetic coaxial tungsten-oxide/aluminum nanowire arrays. Nano Lett. 2013, 13, 4346–4350. [Google Scholar] [CrossRef] [PubMed]
  5. Su, H.; Zhang, J.; Du, Y.; Zhang, P.; Li, S.; Fang, T.; Pang, S. New roles of metal-organic frameworks: Fuels for aluminum-free energetic thermites with low ignition temperatures, high peak pressures and high activity. Combust. Flame 2018, 191, 32–38. [Google Scholar] [CrossRef]
  6. Wang, H.; Shen, J.; Kline, D.J.; Eckman, N.; Agrawal, N.R.; Wu, T.; Wang, P.; Zachariah, M.R. Direct writing of a 90wt% particle loading nanothermite. Adv. Mater. 2019, 31, e1806575. [Google Scholar] [CrossRef]
  7. Jacob, R.J.; Hill, K.J.; Yang, Y.; Pantoya, M.L.; Zachariah, M.R. Pre-stressing aluminum nanoparticles as a strategy to enhance reactivity of nanothermite composites. Combust. Flame 2019, 205, 33–40. [Google Scholar] [CrossRef]
  8. Yan, D.; Yang, Y.; Dong, Y.; Wang, L.; Chen, X.; Zhang, J.; He, J. Reaction products and their solidification process of the plasma sprayed Fe2O3-Al composite powders. Mater. Chem. Phys. 2012, 133, 190–196. [Google Scholar] [CrossRef]
  9. Comet, M.; Vidick, G.; Schnell, F.; Suma, Y.; Baps, B.; Spitzer, D. Sulfates-based nanothermites: An expanding horizon for metastable interstitial composites. Angew. Chem. Int. Ed. 2015, 54, 4458–4462. [Google Scholar] [CrossRef]
  10. Elbasuney, S. Novel colloidal nanothermite particles (MnO2/Al) for advanced highly energetic systems. J. Inorg. Organomet. Polym. Mater. 2018, 28, 1793–1800. [Google Scholar] [CrossRef]
  11. He, W.; Tao, B.; Yang, Z.; Yang, G.; Guo, X.; Liu, P.-J.; Yan, Q.-L. Mussel-inspired polydopamine-directed crystal growth of core-shell [email protected]@CuO metastable intermixed composites. Chem. Eng. J. 2019, 369, 1093–1101. [Google Scholar] [CrossRef]
  12. Comet, M.; Martin, C.; Schnell, F.; Spitzer, D. Nanothermite foams: From nanopowder to object. Chem. Eng. J. 2017, 316, 807–812. [Google Scholar] [CrossRef]
  13. Yin, Y.; Li, X.; Shu, Y.; Guo, X.; Bao, H.; Li, W.; Zhu, Y.; Li, Y.; Huang, X. Fabrication of electrophoretically deposited, self-assembled three-dimensional porous Al/CuO nanothermite films for highly enhanced energy output. Mater. Chem. Phys. 2017, 194, 182–187. [Google Scholar] [CrossRef]
  14. Zhou, X.; Torabi, M.; Lu, J.; Shen, R.; Zhang, K. Nanostructured energetic composites: Synthesis, ignition/combustion modeling, and applications. ACS Appl. Mater. Interfaces 2014, 6, 3058–3074. [Google Scholar] [CrossRef]
  15. Xu, J.; Shen, Y.; Wang, C.; Dai, J.; Tai, Y.; Ye, Y.; Shen, R.; Wang, H.; Zachariah, M.R. Controlling the energetic characteristics of micro energy storage device by in situ deposition Al/MoO3 nanolaminates with varying internal structure. Chem. Eng. J. 2019, 373, 345–354. [Google Scholar] [CrossRef]
  16. Luo, Q.; Long, X.; Nie, F.; Liu, G.; Zhu, M. The safety properties of a potential kind of novel green primary explosive: Al/Fe2O3/RDX nanocomposite. Materials 2018, 11, 1930. [Google Scholar] [CrossRef]
  17. Glavier, L.; Nicollet, A.; Jouot, F.; Martin, B.; Barberon, J.; Renaud, L.; Rossi, C. Nanothermite/RDX-based miniature device for impact ignition of high explosives. Propellants Explos. Pyrotech. 2017, 42, 308–317. [Google Scholar] [CrossRef]
  18. Wang, A.; Bok, S.; Thiruvengadathan, R.; Gangopadhyay, K.; McFarland, J.A.; Maschmann, M.R.; Gangopadhyay, S. Reactive nanoenergetic graphene aerogel synthesized by one-step chemical reduction. Combust. Flame 2018, 196, 400–406. [Google Scholar] [CrossRef]
  19. Ahn, J.Y.; Kim, S.B.; Kim, J.H.; Jang, N.S.; Kim, D.H.; Lee, H.W.; Kim, J.M.; Kim, S.H. A micro-chip initiator with controlled combustion reactivity realized by integrating Al/CuO nanothermite composites on a microhotplate platform. J. Micromech. Microeng. 2015, 26, 015002. [Google Scholar] [CrossRef]
  20. Shin, D.J.; Kim, W.D.; Lee, S.; Lee, D.C. Nanothermite of Al nanoparticles and three-dimensionally ordered macroporous CuO: Mechanistic insight into oxidation during thermite reaction. Combust. Flame 2018, 189, 87–91. [Google Scholar] [CrossRef]
  21. Zhou, X.; Xu, D.; Yang, G.; Zhang, Q.; Shen, J.; Lu, J.; Zhang, K. Highly exothermic and superhydrophobic Mg/fluorocarbon core/shell nanoenergetic arrays. ACS Appl. Mater. Interfaces 2014, 6, 10497–10505. [Google Scholar] [CrossRef] [PubMed]
  22. Wang, J.; Qiao, Z.; Yang, Y.; Shen, J.; Long, Z.; Li, Z.; Cui, X.; Yang, G. Core-shell Al-polytetrafluoroethylene (PTFE) configurations to enhance reaction kinetics and energy performance for nanoenergetic materials. Chemistry 2016, 22, 279–284. [Google Scholar] [CrossRef] [PubMed]
  23. Zhou, X.; Xu, D.G.; Lu, J.; Zhang, K.L. CuO/Mg/fluorocarbon sandwich-structure superhydrophobic nanoenergetic composite with anti-humidity property. Chem. Eng. J. 2015, 266, 163–170. [Google Scholar] [CrossRef]
  24. Petrantoni, M.; Rossi, C.; Salvagnac, L.; Conédéra, V.; Estève, A.; Tenailleau, C.; Alphonse, P.; Chabal, Y.J. Multilayered Al/CuO thermite formation by reactive magnetron sputtering: Nano versus micro. J. Appl. Phys. 2010, 108, 084323. [Google Scholar] [CrossRef]
  25. Taton, G.; Lagrange, D.; Conedera, V.; Renaud, L.; Rossi, C. Micro-chip initiator realized by integrating Al/CuO multilayer nanothermite on polymeric membrane. J. Micromech. Microeng. 2013, 23, 105009. [Google Scholar] [CrossRef]
  26. Nicollet, A.; Lahiner, G.; Belisario, A.; Souleille, S.; Djafari-Rouhani, M.; Estève, A.; Rossi, C. Investigation of Al/CuO multilayered thermite ignition. J. Appl. Phys. 2017, 121, 034503. [Google Scholar] [CrossRef]
  27. Yu, C.; Zhang, W.; Hu, B.; Ni, D.; Zheng, Z.; Liu, J.; Ma, K.; Ren, W. Core/shell CuO/Al nanorod thermite film based on electrochemical anodization. Nanotechnology 2018, 29, 36LT02. [Google Scholar] [CrossRef]
  28. Zhou, X.; Wang, Y.J.; Cheng, Z.P.; Ke, X.; Jiang, W. Facile preparation and energetic characteristics of core-shell Al/CuO metastable intermolecular composite thin film on a silicon substrate. Chem. Eng. J. 2017, 328, 585–590. [Google Scholar] [CrossRef]
  29. Ohkura, Y.; Liu, S.-Y.; Rao, P.M.; Zheng, X. Synthesis and ignition of energetic CuO/Al core/shell nanowires. Proc. Combust. Inst. 2011, 33, 1909–1915. [Google Scholar] [CrossRef]
  30. Zhu, Y.; Zhou, X.; Xu, J.B.; Ma, X.X.; Ye, Y.H.; Yang, G.C.; Zhang, K.L. In situ preparation of explosive embedded CuO/Al/CL20 nanoenergetic composite with enhanced reactivity. Chem. Eng. J. 2018, 354, 885–895. [Google Scholar] [CrossRef]
  31. Wang, J.; Qiao, Z.; Shen, J.; Li, R.; Yang, Y.; Yang, G. Large-Scale synthesis of a porous Co3O4 nanostructure and its application in metastable intermolecular composites. Propellants Explos. Pyrotech. 2015, 40, 514–517. [Google Scholar] [CrossRef]
  32. Zhang, K.; Rossi, C.; Tenailleau, C.; Alphonse, P.; Chane-Ching, J.-Y. Synthesis of large-area and aligned copper oxide nanowires from copper thin film on silicon substrate. Nanotechnology 2007, 18, 275607. [Google Scholar] [CrossRef]
  33. Yu, C.; Zhang, W.; Gao, Y.; Ni, D.; Ye, J.; Zhu, C.; Ma, K. The super-hydrophobic thermite film of the Co3O4/Al core/shell nanowires for an underwater ignition with a favorable aging-resistance. Chem. Eng. J. 2018, 338, 99–106. [Google Scholar] [CrossRef]
  34. Chen, Y.; Zhang, W.; Yu, C.; Ni, D.; Ma, K.; Ye, J. Controllable synthesis of NiCo2O4 /Al core-shell nanowires thermite film with excellent heat release and short ignition time. Mater. Des. 2018, 155, 396–403. [Google Scholar] [CrossRef]
  35. Jiang, J.; Liu, J.; Huang, X.; Li, Y.; Ding, R.; Ji, X.; Hu, Y.; Chi, Q.; Zhu, Z. General synthesis of large-scale arrays of one-dimensional nanostructured Co3O4 directly on heterogeneous substrates. Cryst. Growth Des. 2010, 10, 70–75. [Google Scholar] [CrossRef]
  36. Yu, C.; Zhang, W.; Gao, Y.; Chen, Y.; Ma, K.; Ye, J.; Shen, R.; Yang, Y. Shape-controlled syntheses of Co3O4 nanowires arrays with excellent catalytic performances upon ammonium perchlorate decomposition. Mater. Res. Bull. 2018, 97, 483–489. [Google Scholar] [CrossRef]
  37. Xu, D.; Yang, Y.; Cheng, H.; Li, Y.Y.; Zhang, K. Integration of nano-Al with Co3O4 nanorods to realize high-exothermic core-shell nanoenergetic materials on a silicon substrate. Combust. Flame 2012, 159, 2202–2209. [Google Scholar] [CrossRef]
  38. Zhang, T.; Wang, Z.; Li, G.; Luo, Y. Tuning the reactivity of Al/Fe2O3 nanoenergetic materials via an approach combining soft template self-assembly with sol–gel process process. J. Solid State Chem. 2015, 230, 1–7. [Google Scholar] [CrossRef]
  39. Zheng, Z.; Zhang, W.; Yu, C.; Zheng, G.; Ma, K.; Qin, Z.; Ye, J.; Chao, Y. Integration of the 3DOM Al/Co3O4 nanothermite film with a semiconductor bridge to realize a high-output micro-energetic igniter. RSC Adv. 2018, 8, 2552–2560. [Google Scholar] [CrossRef]
  40. Shi, L.; Zhang, W.; Cheng, J.; Yu, C.; Shen, R.; Ye, J.; Qin, Z.; Chao, Y. A high energy output and low onset temperature nanothermite based on three-dimensional ordered macroporous nano-NiFe2O4. RSC Adv. 2016, 6, 93330–93334. [Google Scholar] [CrossRef]

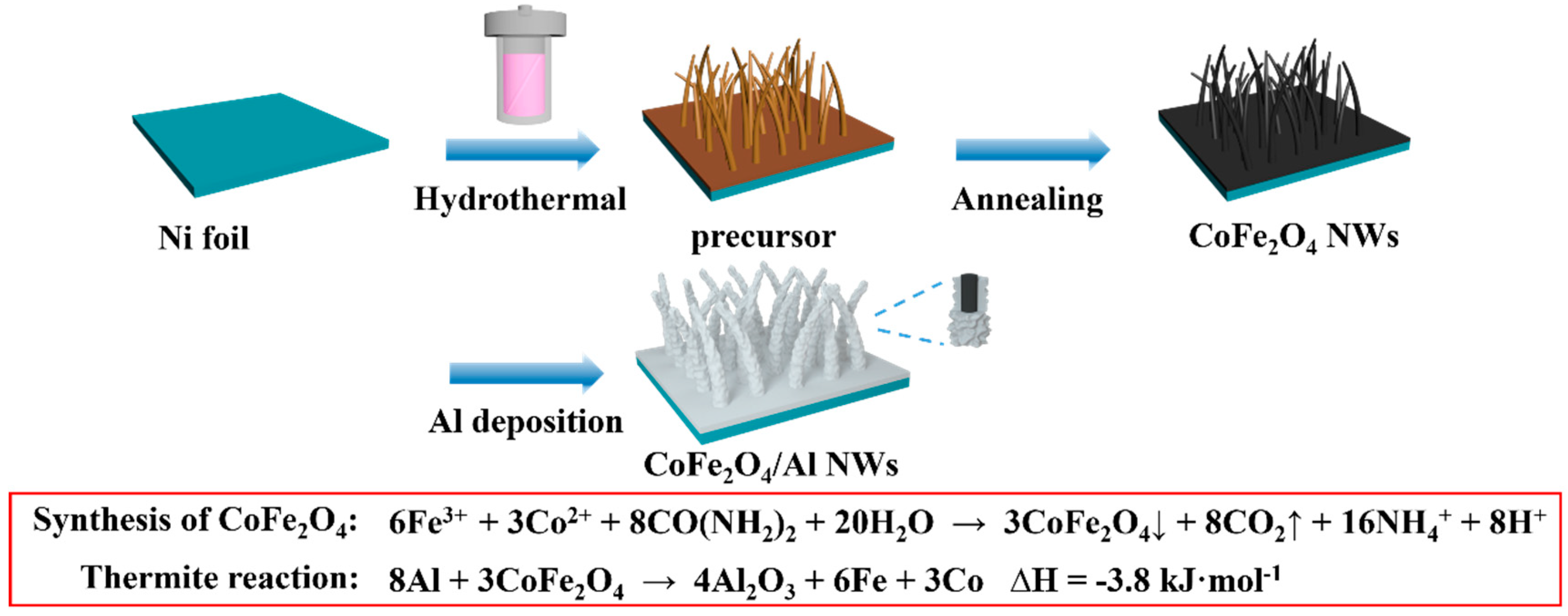

Figure 1. Schematic diagram for the fabrication of the core/shell CoFe2O4/Al nanothermite film.
Figure 1. Schematic diagram for the fabrication of the core/shell CoFe2O4/Al nanothermite film.
Micromachines 11 00516 g001

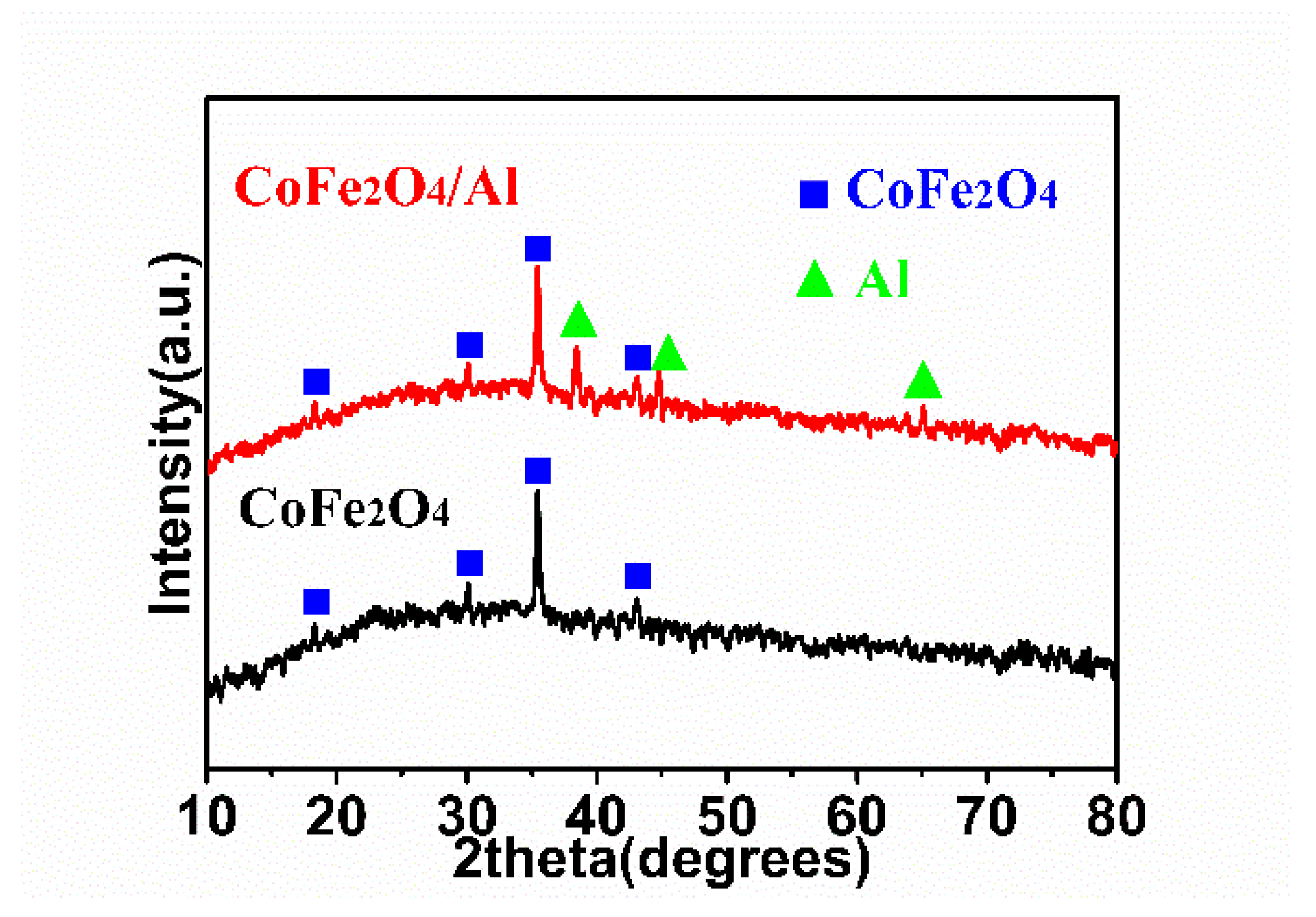

Figure 2. The XRD patterns of the CoFe2O4 nanowires (NWs) film and the CoFe2O4/Al NWs nanothermite film.
Figure 2. The XRD patterns of the CoFe2O4 nanowires (NWs) film and the CoFe2O4/Al NWs nanothermite film.
Micromachines 11 00516 g002

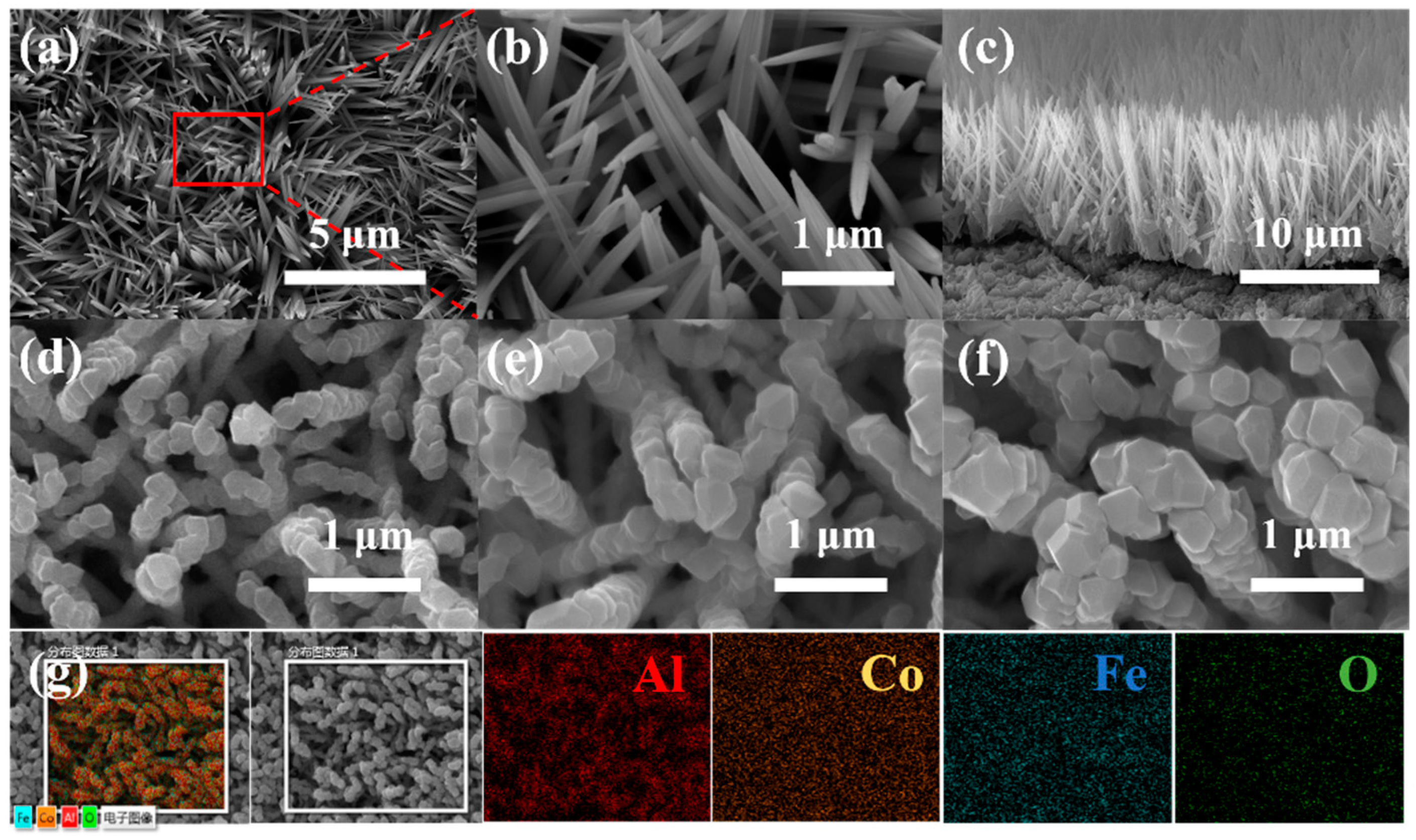

Figure 3. The scanning electron microscopy (SEM) images of the (a,b) CoFe2O4 NWs film, (c) CoFe2O4 NWs film from the side view, (d) CoFe2O4/Al NWs nanothermite film (Al = 200 nm), (e) CoFe2O4/Al NWs nanothermite film (Al = 400 nm), (f) CoFe2O4/Al NWs nanothermite film (Al = 600 nm) and (g) elemental mappings of CoFe2O4/Al NWs nanothermite film (Al = 400 nm).
Figure 3. The scanning electron microscopy (SEM) images of the (a,b) CoFe2O4 NWs film, (c) CoFe2O4 NWs film from the side view, (d) CoFe2O4/Al NWs nanothermite film (Al = 200 nm), (e) CoFe2O4/Al NWs nanothermite film (Al = 400 nm), (f) CoFe2O4/Al NWs nanothermite film (Al = 600 nm) and (g) elemental mappings of CoFe2O4/Al NWs nanothermite film (Al = 400 nm).
Micromachines 11 00516 g003
Figure 4. The transmission electron microscopy (TEM) images of the (a) CoFe2O4 NWs, (b) CoFe2O4/Al NWs (Al = 200 nm), (c,d,e) high resolution transmission electron microscopy (HRTEM) images of CoFe2O4/Al NWs (Al = 200 nm), and (f) the corresponding element mappings of CoFe2O4/Al NWs.
Figure 4. The transmission electron microscopy (TEM) images of the (a) CoFe2O4 NWs, (b) CoFe2O4/Al NWs (Al = 200 nm), (c,d,e) high resolution transmission electron microscopy (HRTEM) images of CoFe2O4/Al NWs (Al = 200 nm), and (f) the corresponding element mappings of CoFe2O4/Al NWs.
Micromachines 11 00516 g004

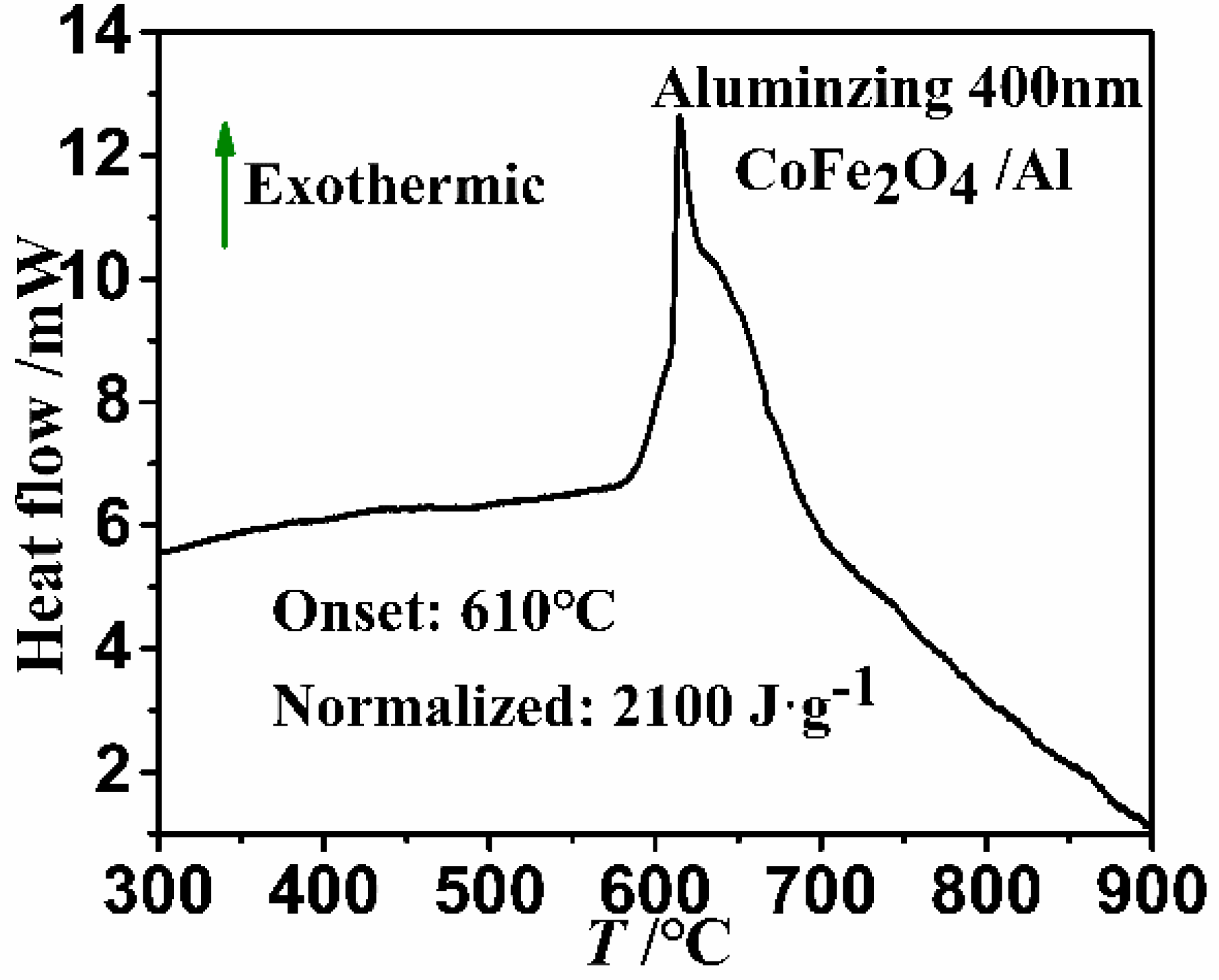

Figure 5. The differential scanning calorimetry (DSC) curve of the CoFe2O4/Al NWs nanothermite film (Al = 400 nm).
Figure 5. The differential scanning calorimetry (DSC) curve of the CoFe2O4/Al NWs nanothermite film (Al = 400 nm).
Micromachines 11 00516 g005

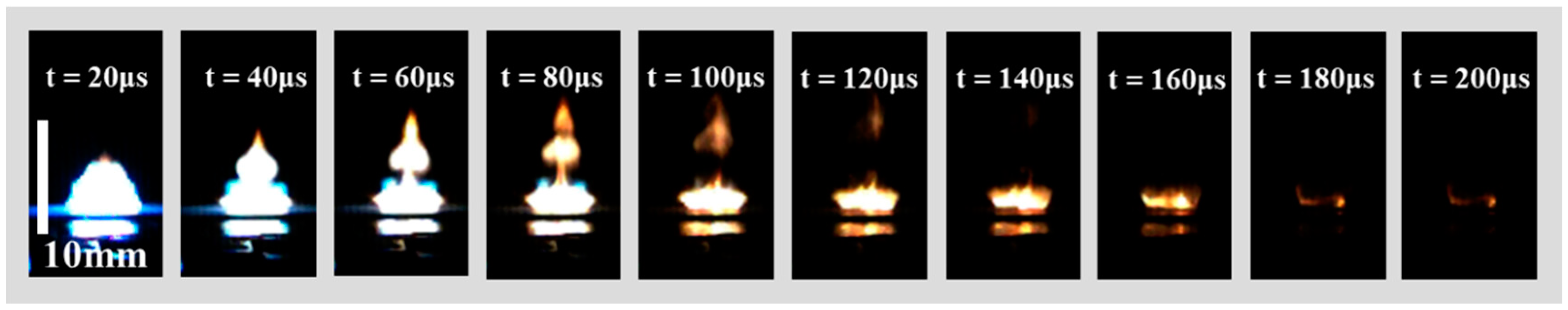

Figure 6. The high-speed camera photos of the ignition process of the CoFe2O4/Al NWs nanothermite film (Al = 400 nm).
