# Three-Dimensional Modeling of Avascular Tumor Growth in Both Static and Dynamic Culture Platforms

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Tumor Growth Model

#### 2.1.1. Nutrient Concentrations

#### 2.1.2. Growth Equation

#### 2.1.3. Initial and Boundary Conditions

#### 2.1.4. Applying the Modified Model to Tumor Spheroid in Microfluidic Devices

#### 2.2. Geometry

#### 2.3. Numerical Method

#### 2.4. Model Validation

^{6}cells/mL. The authors only provided the exact value of the proliferation rate constant of HT-29. Here, we applied the model for the proliferating phase of the HT-29 tumor spheroids in the dynamic microwells, Figure 3b. Although the general trend is achieved, there are some disagreements between the experimental and simulation results. This is directly due to the lack of knowledge about some necessary parameters of HT-29 cell line, such as the necrosis and apoptosis rates, the diffusion coefficient of the nutrients to the HT-29 tumor spheroids, as well as Michaelis-Menten parameters of the nutrients. The only known parameter was the proliferation rate constant, and the rest of the parameters were adopted from EMT6/Ro cell line. The better agreement could be achieved in future studies by replacing the exact parameters of HT-29.

## 3. Results and Discussion

#### 3.1. Tumor Growth in Static, Unlimited Culture Medium

#### 3.1.1. Effect of Nutrient Concentration on Final Tumor Volume

#### 3.1.2. Effect of Initial Tumor Radius on Tumor Growth

#### 3.2. Tumor Growth in a Microchannel Containing U-shaped Barrier

^{2}.

^{2}is appropriate for cancer cell culture under continuous flow. Therefore, the shear stress throughout this study is in a suitable range for cancer cell culture.

#### 3.3. Comparison between Tumor Growth in Microchannels with U-Shaped Barrier and Microwell Trap

## 4. Limitations and Suggestions

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Fitzmaurice, C.; Akinyemiju, T.F.; Al Lami, F.H.; Alam, T.; Alizadeh-Navaei, R.; Allen, C.; Alsharif, U.; Guzman, N.A.; Amini, E.; Anderson, B.O.; et al. Global Burden of Disease Cancer Collaboration. Global, Regional, and National Cancer Incidence, Mortality, Years of Life Lost, Years Lived With Disability, and Disability-Adjusted Life-Years for 29 Cancer Groups, 1990 to 2016: A Systematic Analysis for the Global Burden of Disease Study. JAMA Oncol.
**2018**, 4, 1553–1568. [Google Scholar] [CrossRef] [PubMed] - Ward, J.P.; King, J.R. Mathematical modelling of avascular-tumour growth. Math. Med. Biol.
**1997**, 14, 39–69. [Google Scholar] [CrossRef] - Hill, A.V. The diffusion of oxygen and lactic acid through tissues. Proc. R. Soc. Lond. Ser. B
**1928**, 104, 39–96. [Google Scholar] [CrossRef][Green Version] - Gray, L.H.; Conger, A.D.; Ebert, M.; Hornsey, S.; Scott, O. The concentration of oxygen dissolved in tissues at the time of irradiation as a factor in radiotherapy. Br. J. Radiol.
**1953**, 26, 638–648. [Google Scholar] [CrossRef] [PubMed] - Mayneord, W.V. On a law of growth of Jensen’s rat sarcoma. Am. J. Cancer
**1932**, 16, 841–846. [Google Scholar] - Thomlinson, R.; Gray, L. The histological structure of some human lung cancers and the possible implications for radiotherapy. Br. J. Cancer
**1955**, 9, 539. [Google Scholar] [CrossRef] [PubMed] - Burton, A.C. Rate of growth of solid tumours as a problem of diffusion. Growth
**1966**, 30, 157–176. [Google Scholar] - Greenspan, H. Models for the growth of a solid tumor by diffusion. Stud. Appl. Math.
**1972**, 51, 317–340. [Google Scholar] [CrossRef] - McElwain, D.; Ponzo, P. A model for the growth of a solid tumor with non-uniform oxygen consumption. Math. Biosci.
**1977**, 35, 267–279. [Google Scholar] [CrossRef] - McElwain, D.; Morris, L. Apoptosis as a volume loss mechanism in mathematical models of solid tumor growth. Math. Biosci.
**1978**, 39, 147–157. [Google Scholar] [CrossRef] - Kiran, K.L.; Jayachandran, D.; Lakshminarayanan, S. Mathematical modelling of avascular tumour growth based on diffusion of nutrients and its validation. Can. J. Chem. Eng.
**2009**, 87, 732–740. [Google Scholar] [CrossRef] - Casciari, J.; Sotirchos, S.; Sutherland, R. Mathematical modelling of microenvironment and growth in EMT6/Ro multicellular tumour spheroids. Cell Prolif.
**1992**, 25, 1–22. [Google Scholar] [CrossRef] [PubMed] - Casciari, J.J.; Sotirchos, S.V.; Sutherland, R.M. Variations in tumor cell growth rates and metabolism with oxygen concentration, glucose concentration, and extracellular pH. J. Cell. Physiol.
**1992**, 151, 386–394. [Google Scholar] [CrossRef] [PubMed] - Freyer, J.P.; Sutherland, R.M. Regulation of growth saturation and development of necrosis in EMT6/Ro multicellular spheroids by the glucose and oxygen supply. Cancer Res.
**1986**, 46, 3504–3512. [Google Scholar] [PubMed] - Hou, H.W.; Li, Q.; Lee, G.; Kumar, A.; Ong, C.; Lim, C.T. Deformability study of breast cancer cells using microfluidics. Biomed. Microdevices
**2009**, 11, 557–564. [Google Scholar] [CrossRef] [PubMed] - Kashaninejad, N.; Shiddiky, M.J.A.; Nguyen, N.T. Advances in Microfluidics-Based Assisted Reproductive Technology: From Sperm Sorter to Reproductive System-on-a-Chip. Adv. Biosyst.
**2018**, 2, 1700197. [Google Scholar] [CrossRef] - Moshksayan, K.; Kashaninejad, N.; Warkiani, M.E.; Lock, J.G.; Moghadas, H.; Firoozabadi, B.; Saidi, M.S.; Nguyen, N.-T. Spheroids-on-a-chip: Recent advances and design considerations in microfluidic platforms for spheroid formation and culture. Sens. Actuators B
**2018**, 263, 151–176. [Google Scholar] [CrossRef][Green Version] - Zhang, Z.; Nagrath, S. Microfluidics and cancer: Are we there yet? Biomed. Microdevices
**2013**, 15, 595–609. [Google Scholar] [CrossRef] - Barisam, M.; Saidi, M.; Kashaninejad, N.; Nguyen, N.-T. Prediction of Necrotic Core and Hypoxic Zone of Multicellular Spheroids in a Microbioreactor with a U-Shaped Barrier. Micromachines
**2018**, 9, 94. [Google Scholar] [CrossRef] - Chen, H.; Cao, B.; Chen, H.; Lin, Y.-S.; Zhang, J. Combination of antibody-coated, physical-based microfluidic chip with wave-shaped arrays for isolating circulating tumor cells. Biomed. Microdevices
**2017**, 19, 66. [Google Scholar] [CrossRef] - Hu, G.; Li, D. Three-dimensional modeling of transport of nutrients for multicellular tumor spheroid culture in a microchannel. Biomed. Microdevices
**2007**, 9, 315–323. [Google Scholar] [CrossRef] [PubMed] - Kashaninejad, N.; Nikmaneshi, M.; Moghadas, H.; Kiyoumarsi Oskouei, A.; Rismanian, M.; Barisam, M.; Saidi, M.; Firoozabadi, B. Organ-tumor-on-a-chip for chemosensitivity assay: A critical review. Micromachines
**2016**, 7, 130. [Google Scholar] [CrossRef] [PubMed] - Okano, H.; Konishi, T.; Suzuki, T.; Suzuki, T.; Ariyasu, S.; Aoki, S.; Abe, R.; Hayase, M. Enrichment of circulating tumor cells in tumor-bearing mouse blood by a deterministic lateral displacement microfluidic device. Biomed. Microdevices
**2015**, 17, 59. [Google Scholar] [CrossRef] - Yadav, S.; Kashaninejad, N.; Masud, M.K.; Yamauchi, Y.; Nguyen, N.-T.; Shiddiky, M.J.A. Autoantibodies as diagnostic and prognostic cancer biomarker: Detection techniques and approaches. Biosens. Bioelectron.
**2019**, 139, 111315. [Google Scholar] [CrossRef] [PubMed] - Rostami, P.; Kashaninejad, N.; Moshksayan, K.; Saidi, M.S.; Firoozabadi, B.; Nguyen, N.-T. Novel approaches in cancer management with circulating tumor cell clusters. J. Sci. Adv. Mater. Devices
**2019**, 4, 1–18. [Google Scholar] [CrossRef] - Jiang, Y.; Pjesivac-Grbovic, J.; Cantrell, C.; Freyer, J.P. A multiscale model for avascular tumor growth. Biophys. J.
**2005**, 89, 3884–3894. [Google Scholar] [CrossRef] [PubMed] - Barisam, M.; Saidi, M.; Kashaninejad, N.; Vadivelu, R.; Nguyen, N.-T. Numerical Simulation of the Behavior of Toroidal and Spheroidal Multicellular Aggregates in Microfluidic Devices with Microwell and U-Shaped Barrier. Micromachines
**2017**, 8, 358. [Google Scholar] [CrossRef] [PubMed] - Astolfi, M.; Péant, B.; Lateef, M.; Rousset, N.; Kendall-Dupont, J.; Carmona, E.; Monet, F.; Saad, F.; Provencher, D.; Mes-Masson, A.-M. Micro-dissected tumor tissues on chip: An ex vivo method for drug testing and personalized therapy. Lab Chip
**2016**, 16, 312–325. [Google Scholar] [CrossRef] [PubMed] - Freyer, J.; Sutherland, R. A reduction in the in situ rates of oxygen and glucose consumption of cells in EMT6/Ro spheroids during growth. J. Cell. Physiol.
**1985**, 124, 516–524. [Google Scholar] [CrossRef] - Mahmood, M.S.; Mahmood, S.; Dobrota, D. Formulation and numerical simulations of a continuum model of avascular tumor growth. Math. Biosci.
**2011**, 231, 159–171. [Google Scholar] [CrossRef] - Ziółkowska, K.; Stelmachowska, A.; Kwapiszewski, R.; Chudy, M.; Dybko, A.; Brzózka, Z. Long-term three-dimensional cell culture and anticancer drug activity evaluation in a microfluidic chip. Biosens. Bioelectron.
**2013**, 40, 68–74. [Google Scholar] [CrossRef] [PubMed] - Yu, W.; Qu, H.; Hu, G.; Zhang, Q.; Song, K.; Guan, H.; Liu, T.; Qin, J. A Microfluidic-Based Multi-Shear Device for Investigating the Effects of Low Fluid-Induced Stresses on Osteoblasts. PLoS ONE
**2014**, 9, e89966. [Google Scholar] [CrossRef] [PubMed] - Shemesh, J.; Jalilian, I.; Shi, A.; Yeoh, G.H.; Tate, M.L.K.; Warkiani, M.E. Flow-induced stress on adherent cells in microfluidic devices. Lab Chip
**2015**, 15, 4114–4127. [Google Scholar] [CrossRef] [PubMed] - Colom, A.; Galgoczy, R.; Almendros, I.; Xaubet, A.; Farré, R.; Alcaraz, J. Oxygen diffusion and consumption in extracellular matrix gels: Implications for designing three-dimensional cultures. J. Biomed. Mater. Res. Part A
**2014**, 102, 2776–2784. [Google Scholar] [CrossRef] [PubMed] - Gouirand, V.; Guillaumond, F.; Vasseur, S. Influence of the Tumor Microenvironment on Cancer Cells Metabolic Reprogramming. Front. Oncol.
**2018**, 8, 117. [Google Scholar] [CrossRef] - Walker, C.; Mojares, E.; Del Río Hernández, A. Role of Extracellular Matrix in Development and Cancer Progression. Int. J. Mol. Sci.
**2018**, 19, 3028. [Google Scholar] [CrossRef] [PubMed] - Bresch, D.; Colin, T.; Grenier, E.; Ribba, B.; Saut, O. Computational Modeling of Solid Tumor Growth: The Avascular Stage. SIAM J. Sci. Comput.
**2010**, 32, 2321–2344. [Google Scholar] [CrossRef]

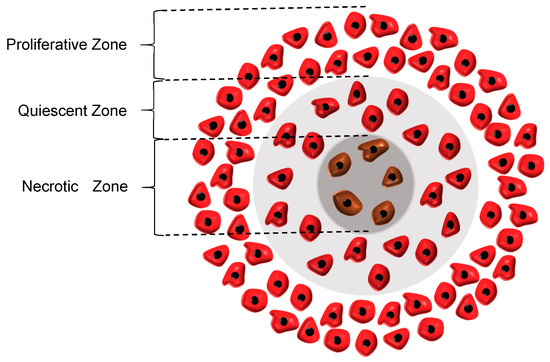

**Figure 1.**Three main regions in a tumor. Proliferative zone, nutrients concentrations are above their critical value; Quiescent zone, the concentration of one of the nutrients fall below its critical value; Necrotic zone, nutrients concentrations are below their critical value.

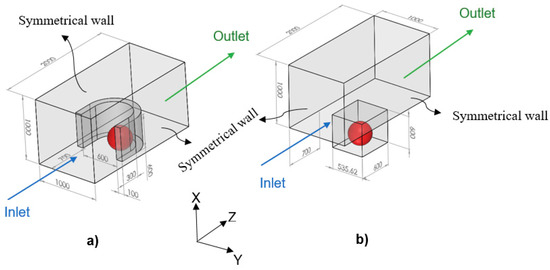

**Figure 2.**Tumor spheroid (the objects in red) in a microchannel containing: (

**a**) A U-shaped barrier; (

**b**) A microwell trap. The dimensions are in micrometer.

**Figure 3.**(

**a**) Comparison of the tumor volumes from experiment data of the Sutherland and Freyer for EMT6/Ro spheroid [14] and simulation based on the proposed model. In both cases, the tumor is exposed to the unlimited static culture medium, and the glucose and oxygen concentrations in the culture medium are 0.8 mM and 0.28 mM, respectively. (

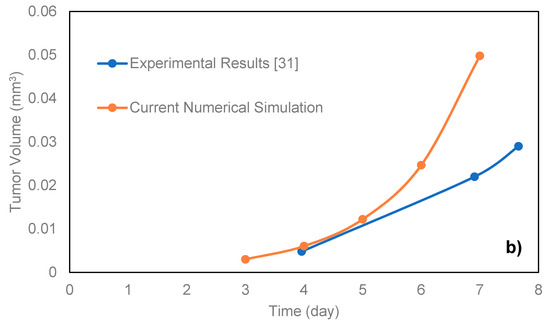

**b**) Applying the model for HT-29 tumor growth in proliferative phase in a microfluidic device with a microwell trap proposed by Ziółkowska et al. [31]. To better validate the results, on-chip measurements of specific parameters of the HT-29 cell line was necessary. These parameters included the necrosis and apoptosis rates, the diffusion coefficient of the nutrients to the HT-29 tumor spheroids, as well as Michaelis-Menten parameters of the nutrients.

**Figure 4.**(

**a**) Effect of nutrient concentrations on the tumor volume after 550 h. Tumors with 24.3 μm initial radius are exposed to unlimited static culture mediums varying in nutrient concentrations. (

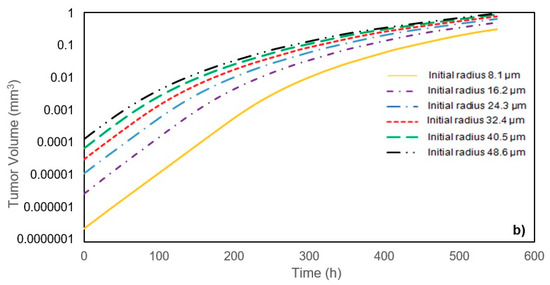

**b**) Effect of the initial tumor radius on the growth. All of the tumors are exposed to the unlimited static culture medium with 0.8 mM glucose and 0.28 mM oxygen concentration.

**Figure 5.**(

**a**) Glucose; (

**b**) Oxygen concentration during the growth of a tumor (concentrations of glucose and oxygen in the culture medium are constant versus time and they are respectively 0.8 mM and 0.28 mM). The initial radius of the tumor is 24.3 μm. (

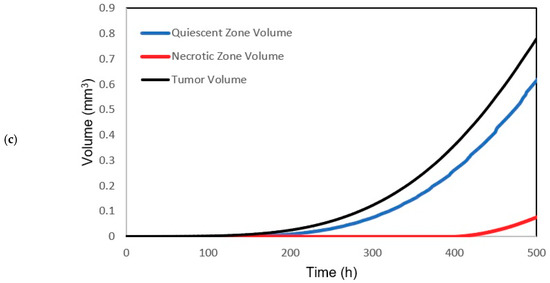

**c**) Volume distributions of the different regions of the tumor.

**Figure 6.**(

**a**) Tumor volume; (

**b**) Quiescent zone volume; (

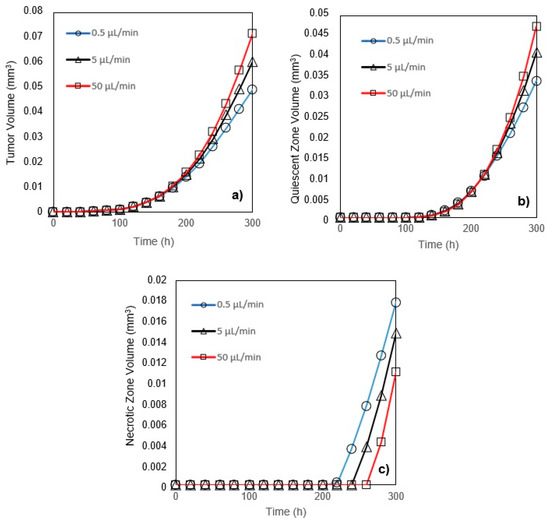

**c**) Necrotic zone volume for three inlet flows (0.5, 5, and 50 µL/min) versus time (glucose and oxygen concentration at the inlet are respectively 0.8 mM and 0.28 mM). The initial radius of the tumors in both of the traps is 24.3 μm.

**Figure 7.**(

**a**) Tumor volume; (

**b**) Quiescent zone volume; (

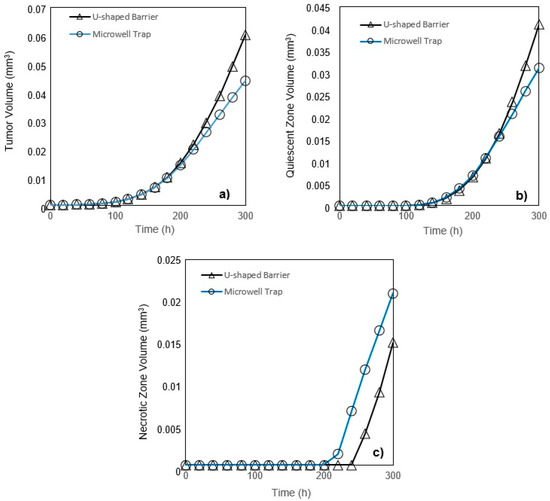

**c**) Necrotic zone volume for U-shaped barrier and microwell trap versus time (glucose and oxygen concentration at the inlet of each case are respectively 0.8 mM and 0.28 mM). The initial radius of the tumors in both of the traps is 24.3 μm.

**Figure 8.**(

**a**) Glucose concentration in a tumor in the U-shaped barrier; (

**b**) Glucose concentration in a tumor in the microwell trap; (

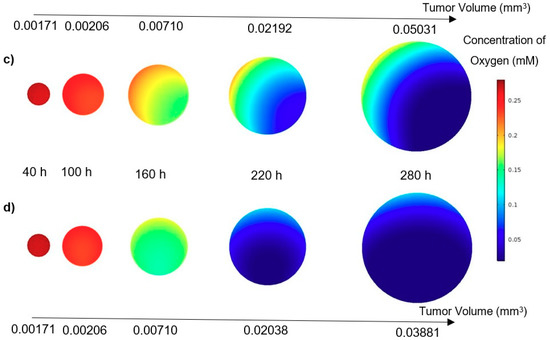

**c**) Oxygen concentration in a tumor in the U-shaped barrier; (
