An Interface ASIC for MEMS Vibratory Gyroscopes with Nonlinear Driving Control

1
MEMS Center, Harbin Institute of Technology, Harbin 150001, China
2
Key Laboratory of Micro-Systems and Micro-Structures Manufacturing (Harbin Institute of Technology), Ministry of Education, Harbin 150001, China
3
State Key Laboratory of Urban Water Resource & Environment, Harbin Institute of Technology, Harbin 150001, China
*
Authors to whom correspondence should be addressed.
Micromachines 2019, 10(4), 270; https://doi.org/10.3390/mi10040270
Received: 23 March 2019 / Revised: 11 April 2019 / Accepted: 11 April 2019 / Published: 22 April 2019
  |
PDF [3427 KB, uploaded 30 April 2019]
  |

Abstract

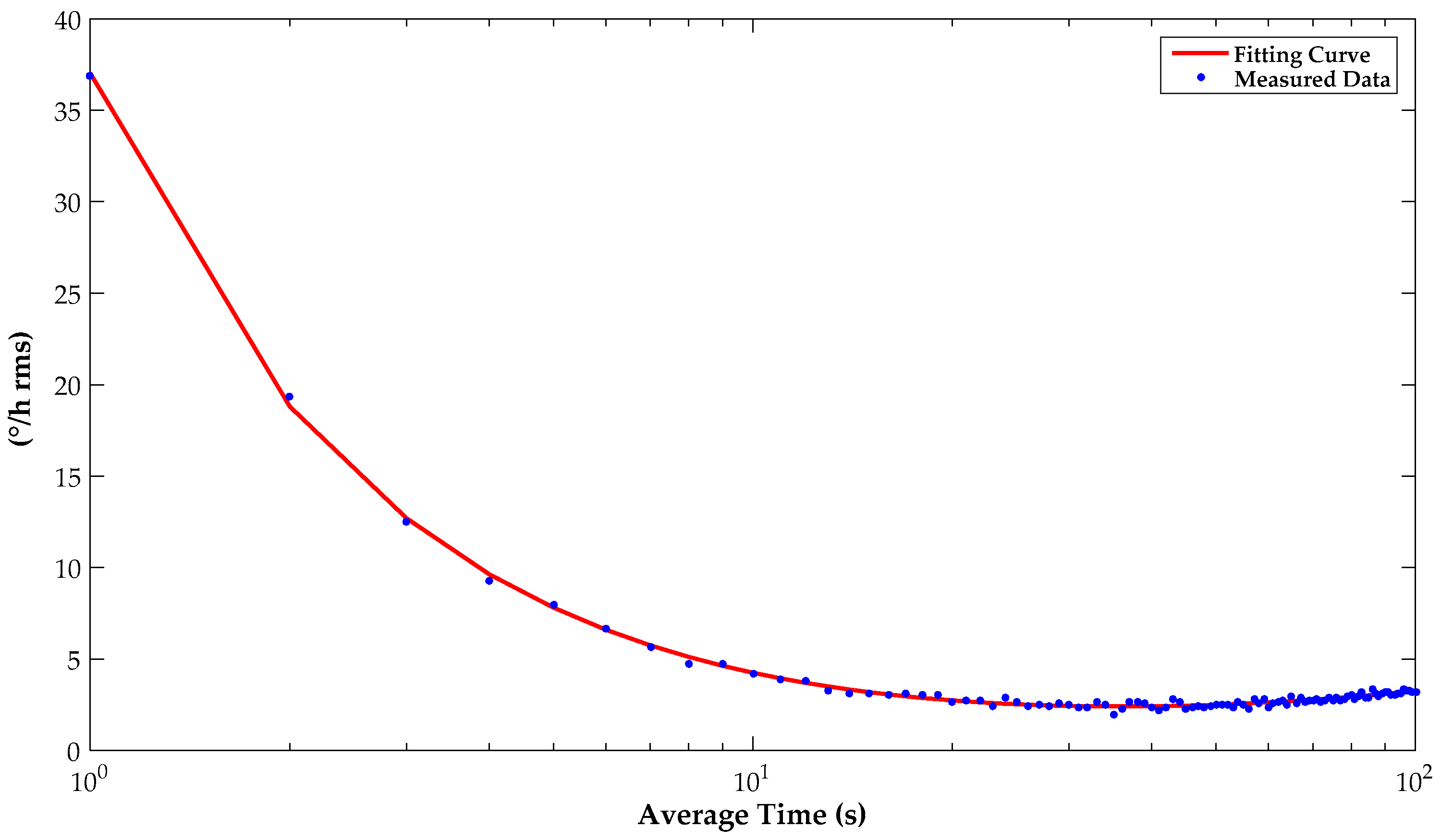

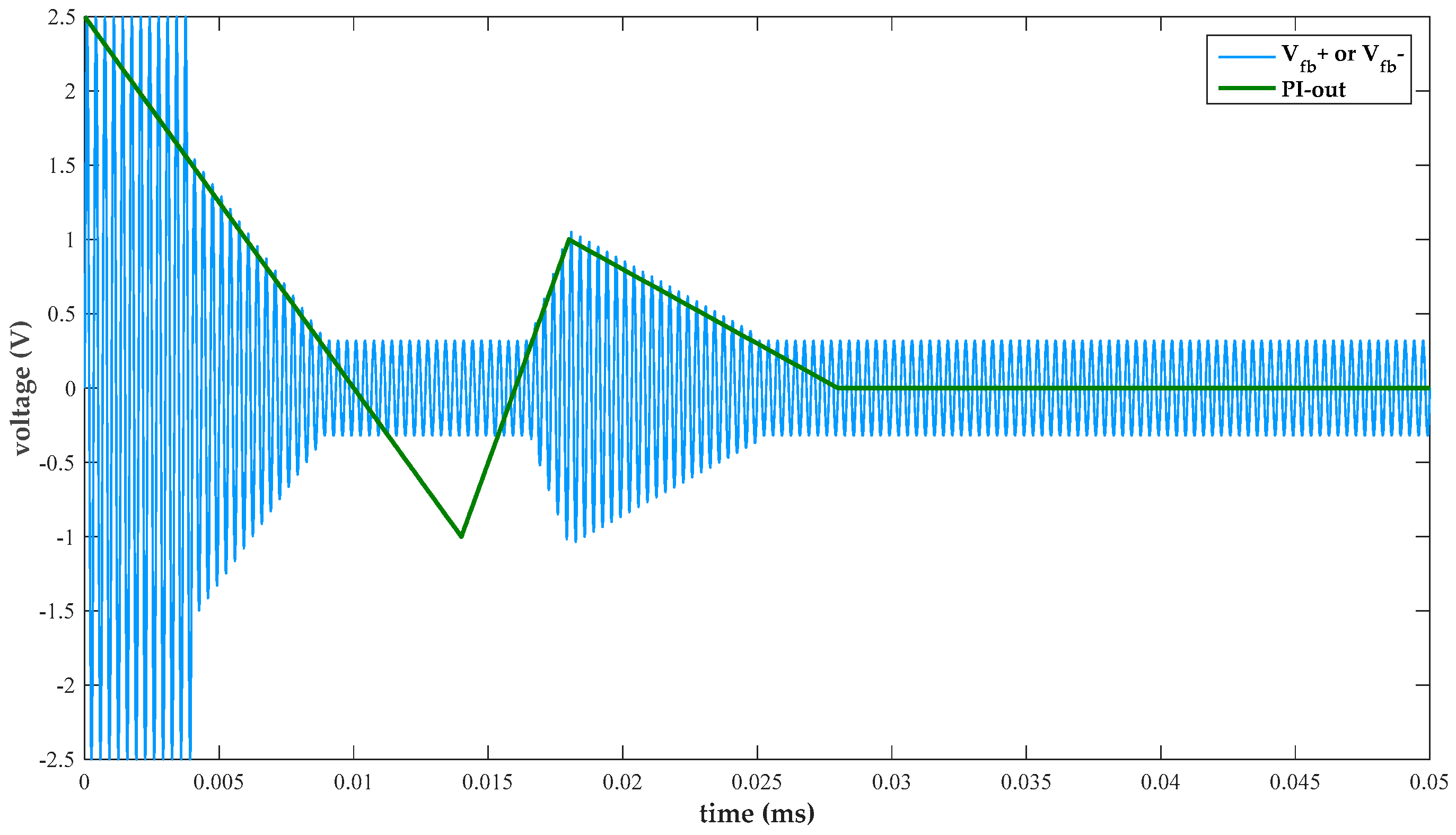

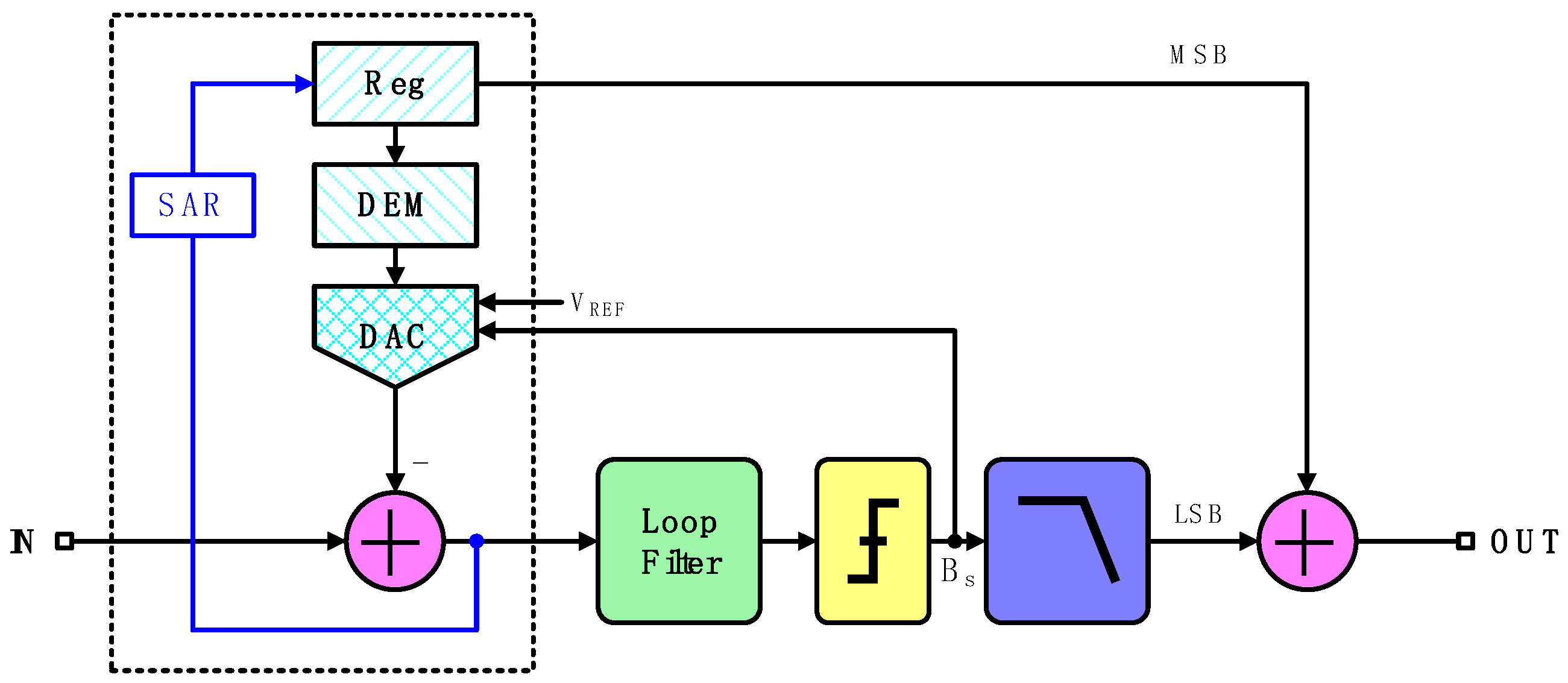

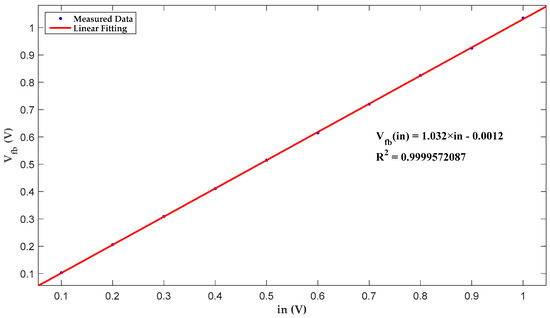

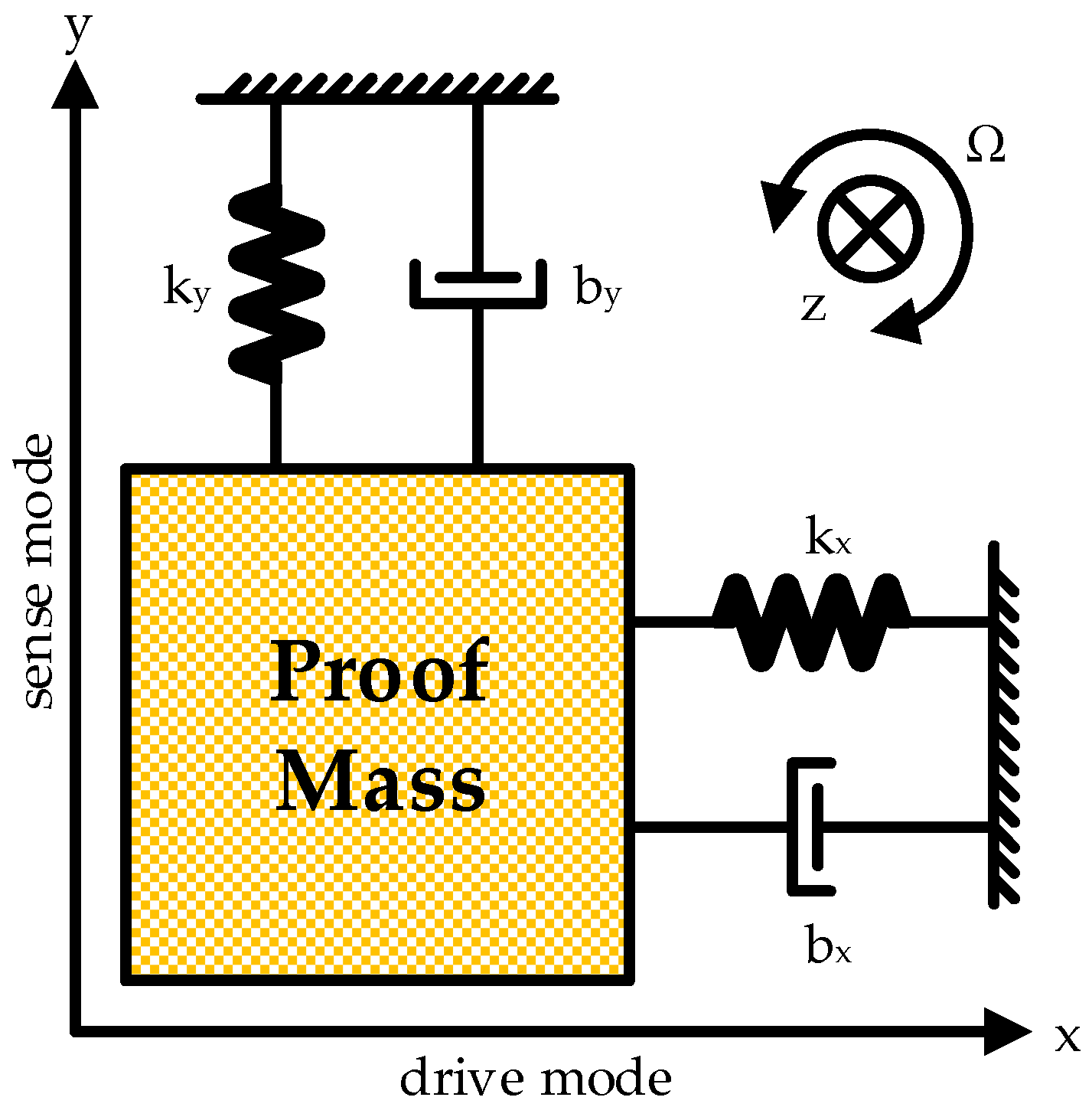

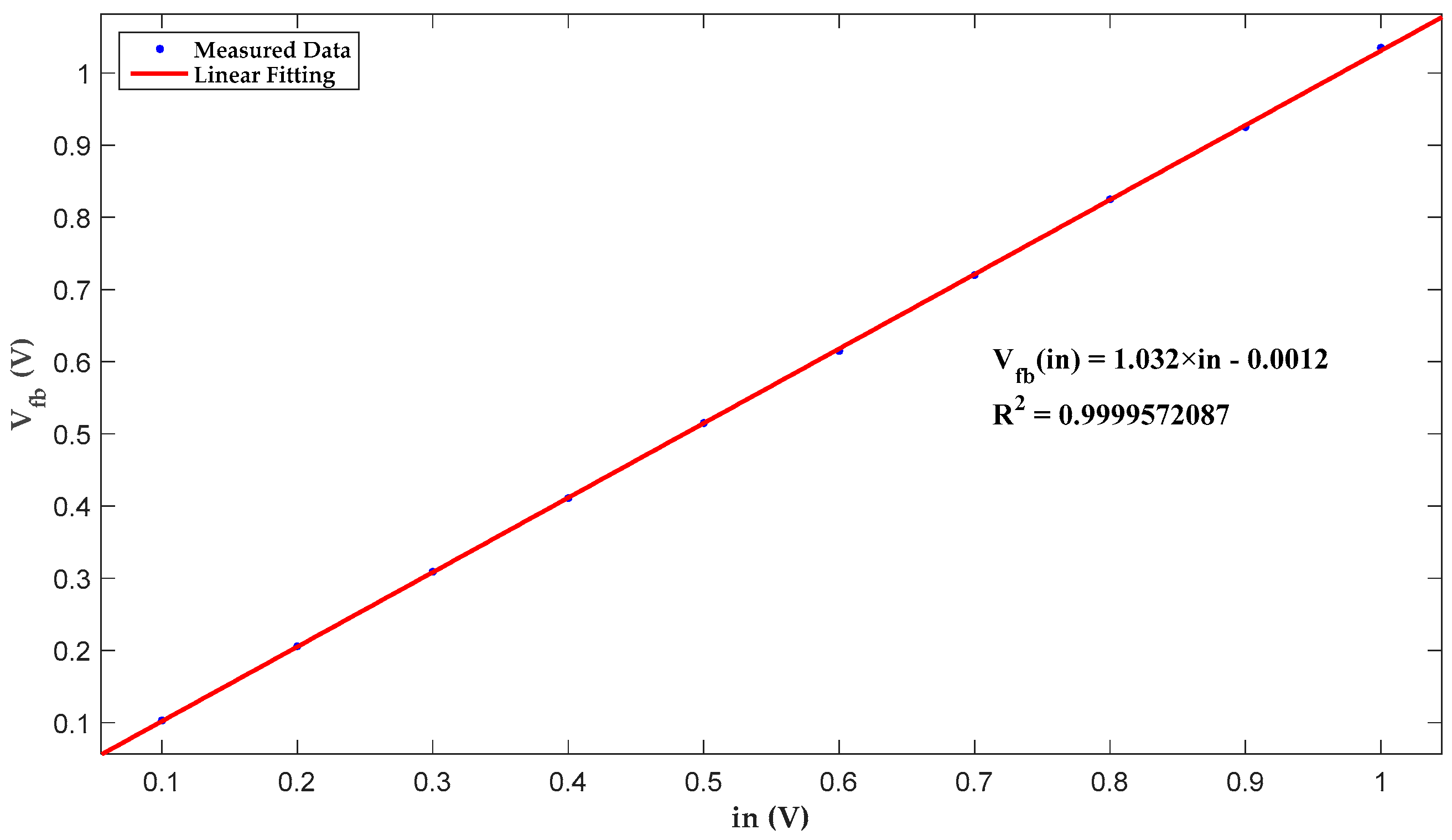

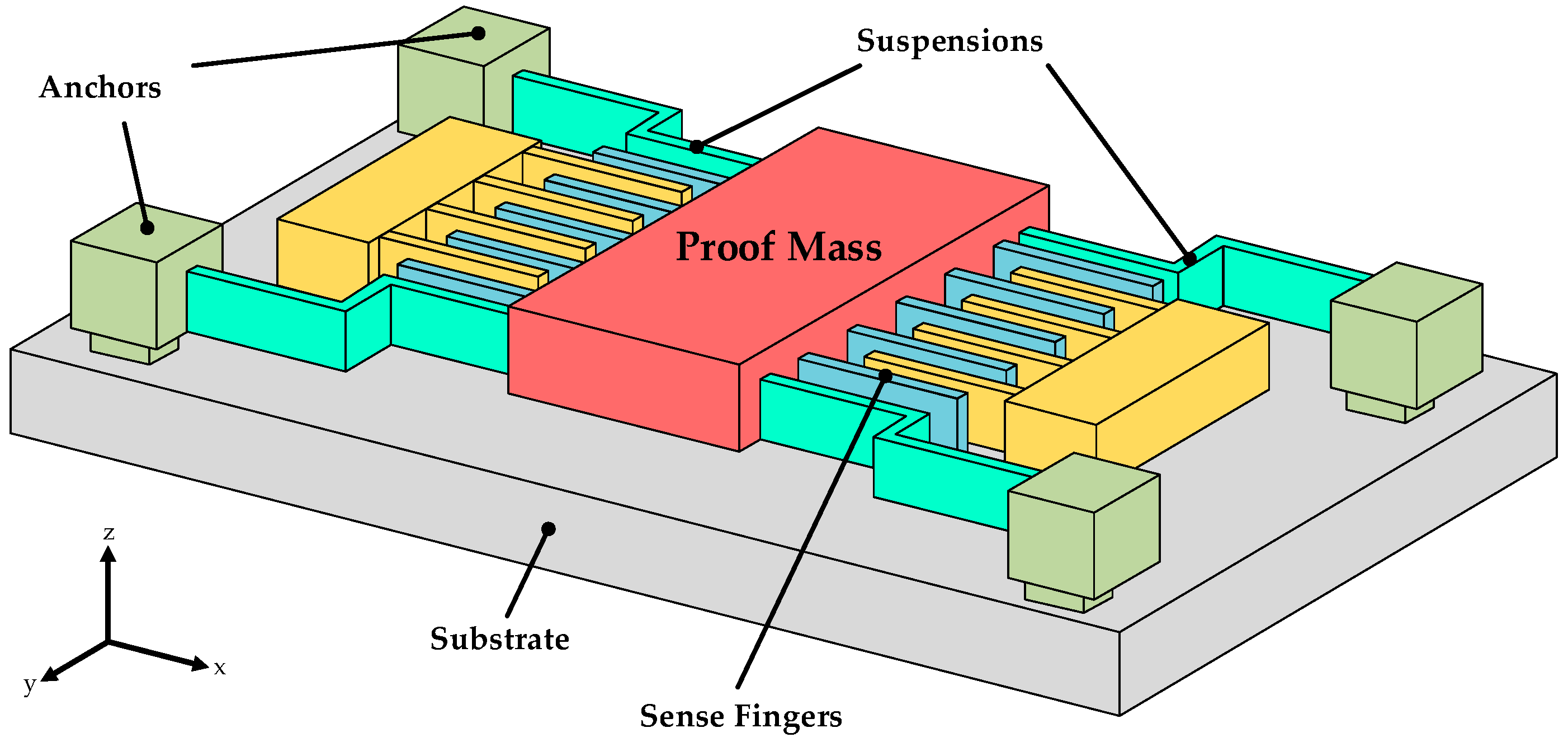

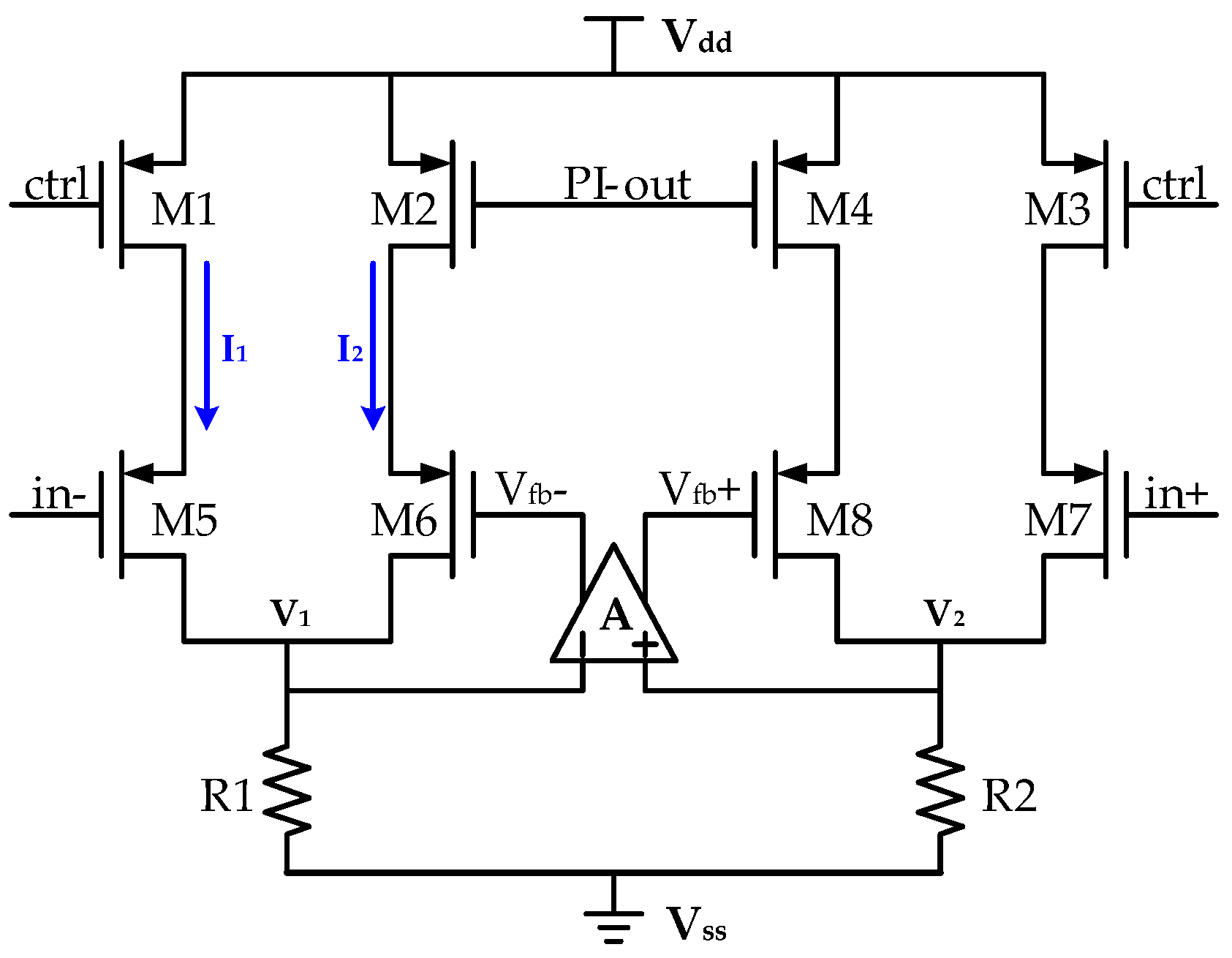

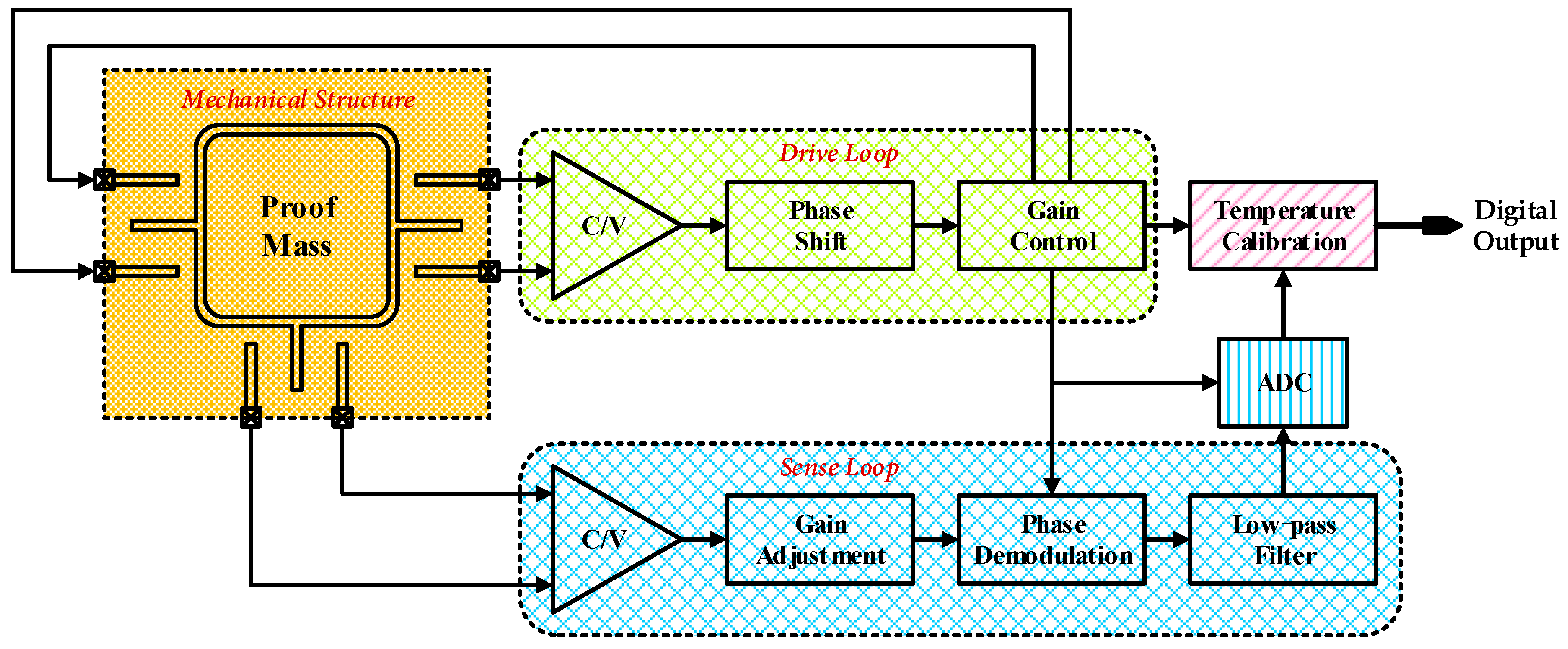

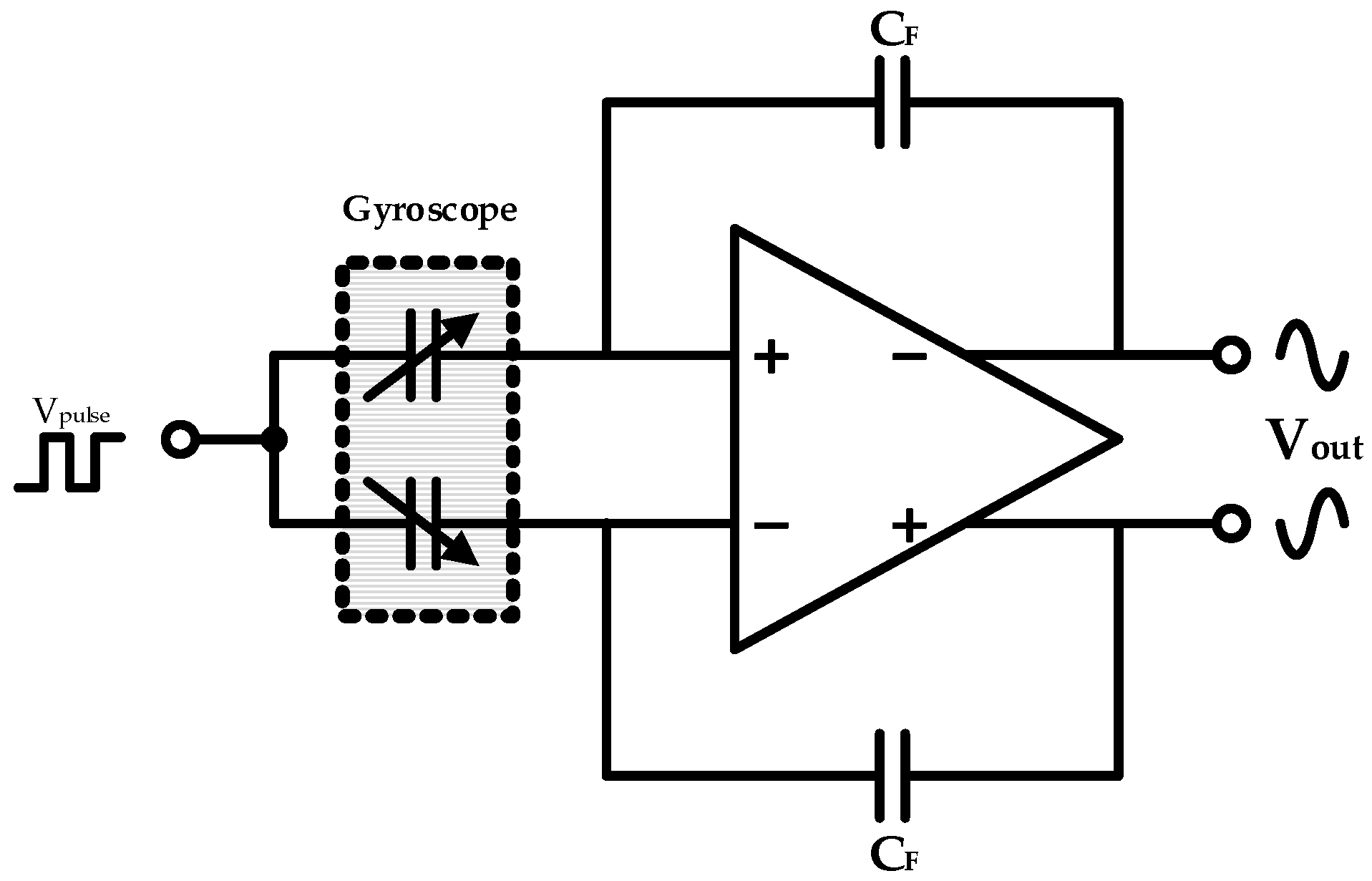

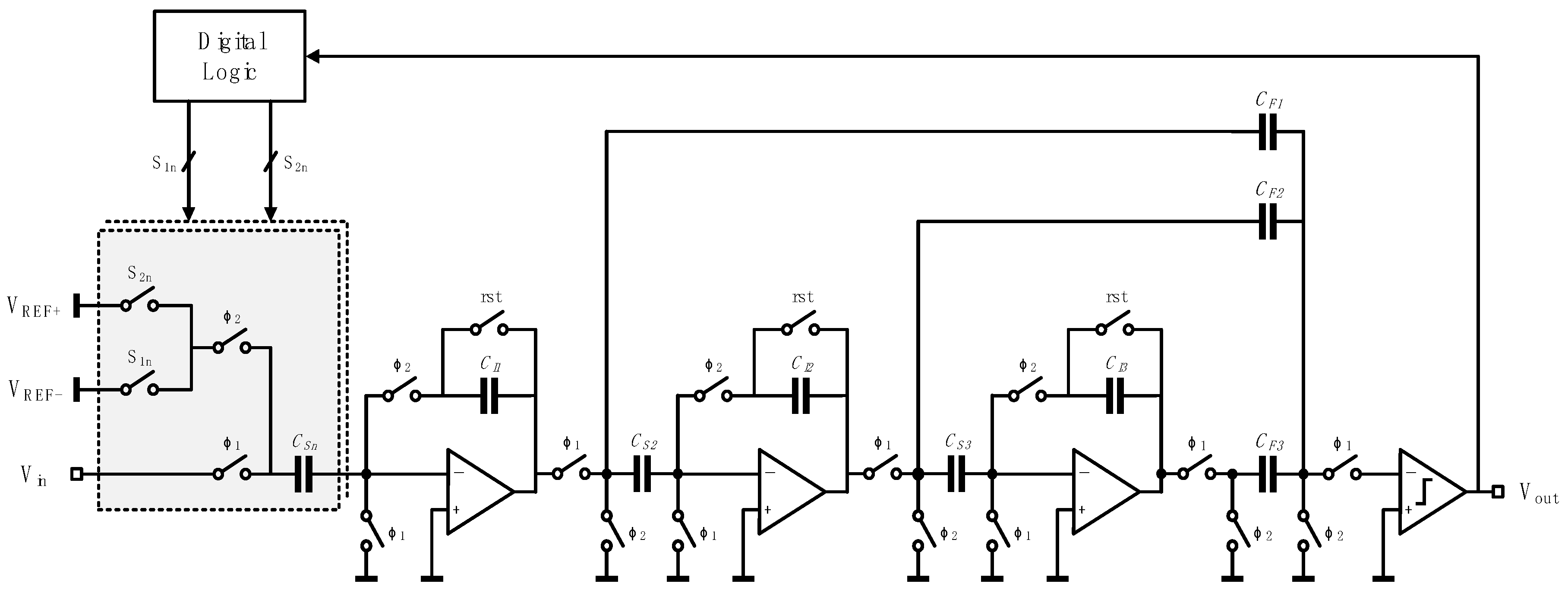

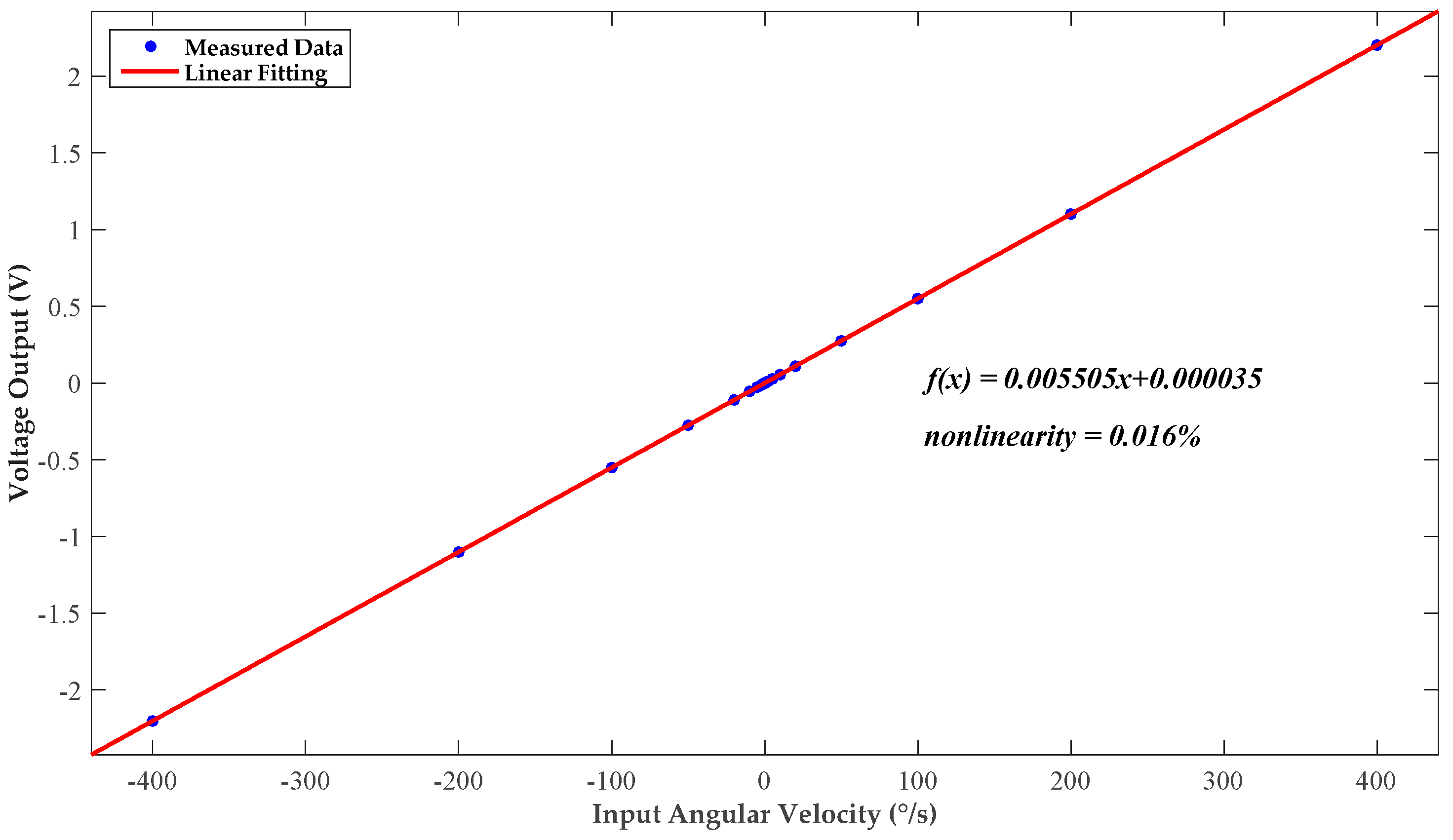

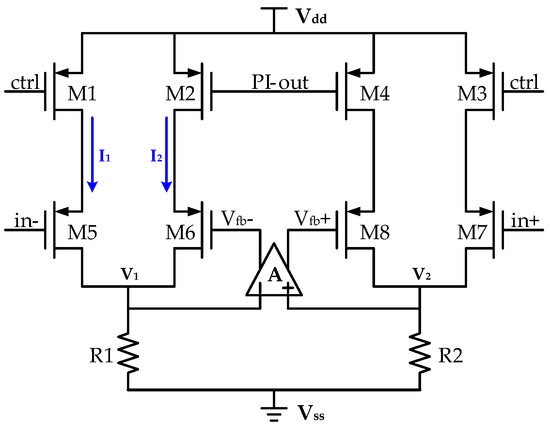

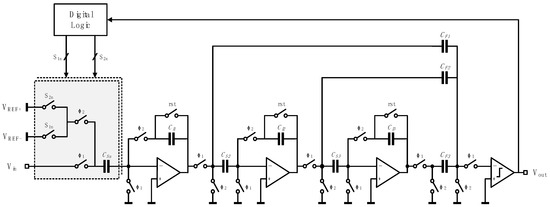

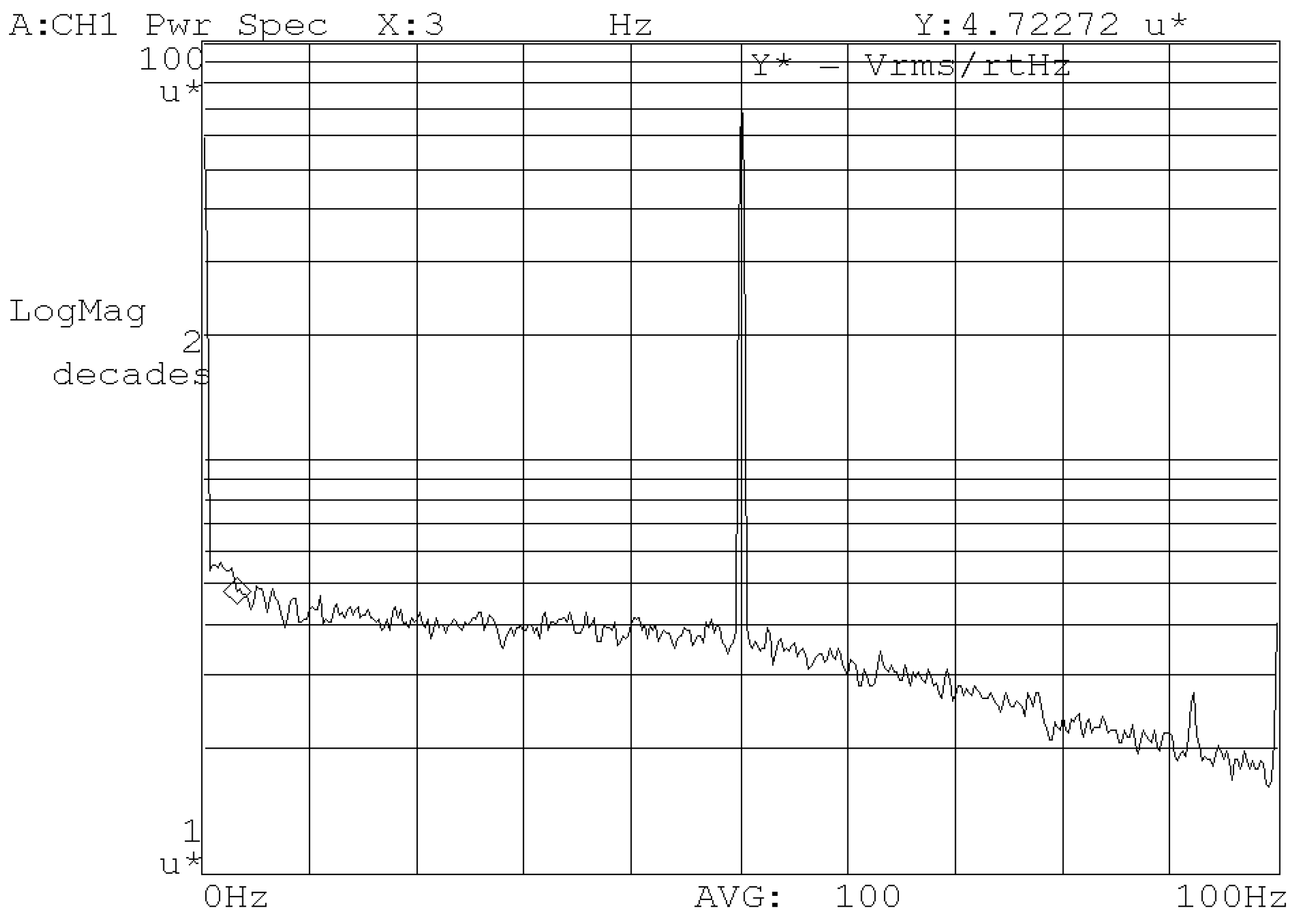

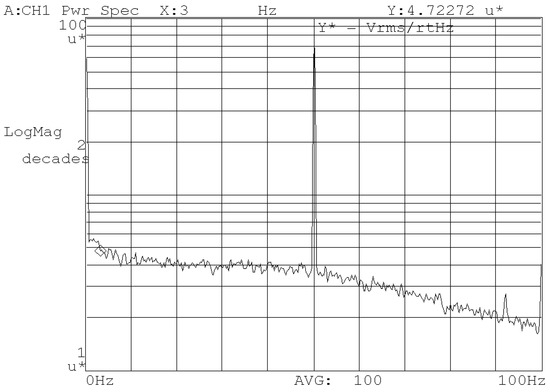

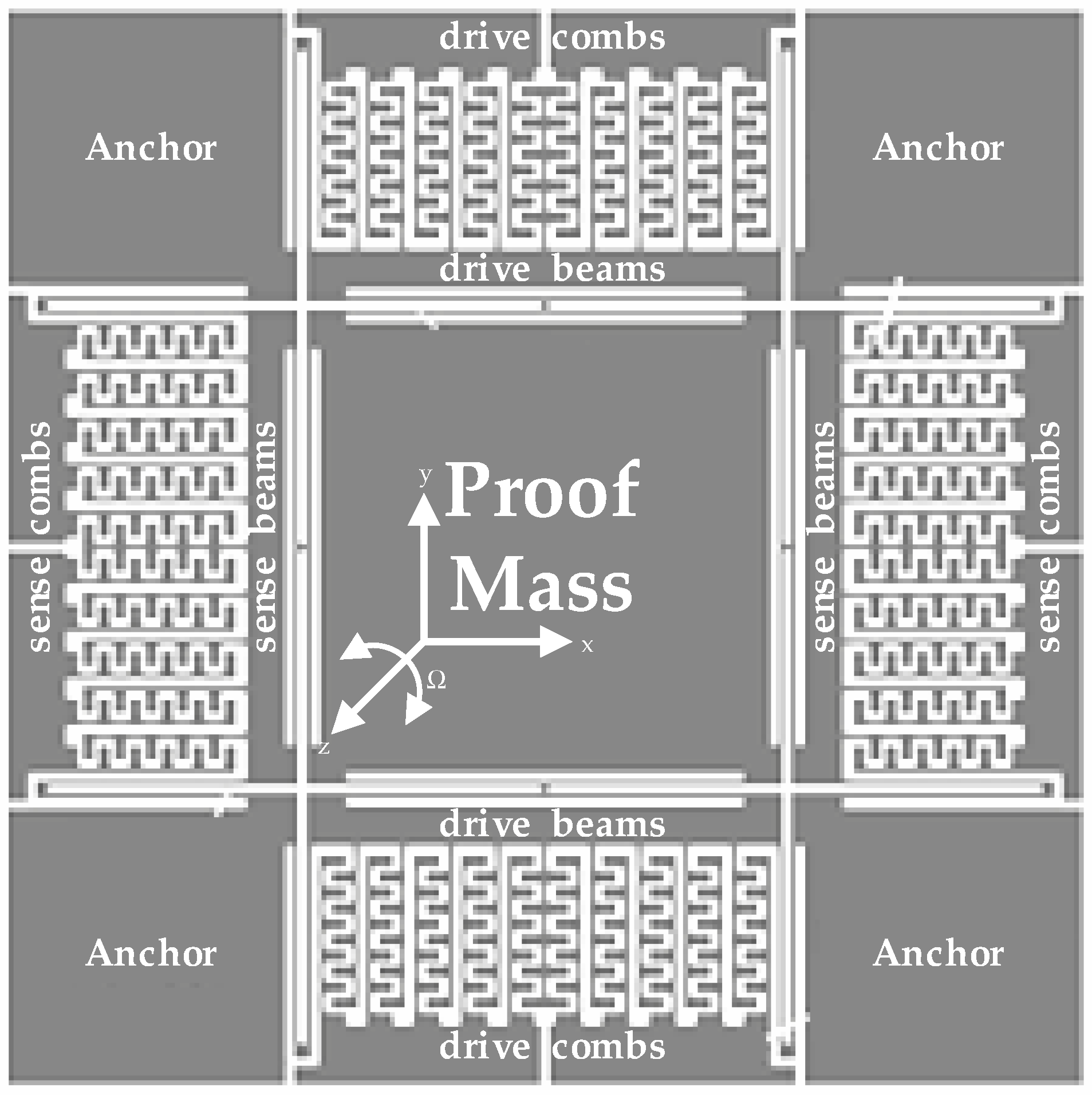

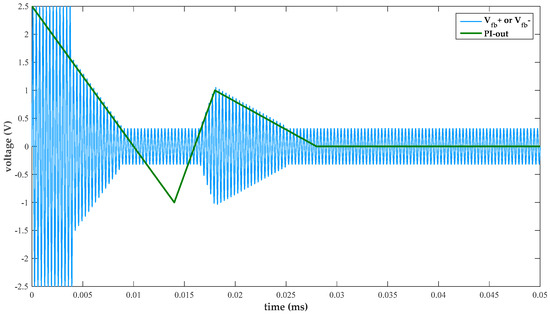

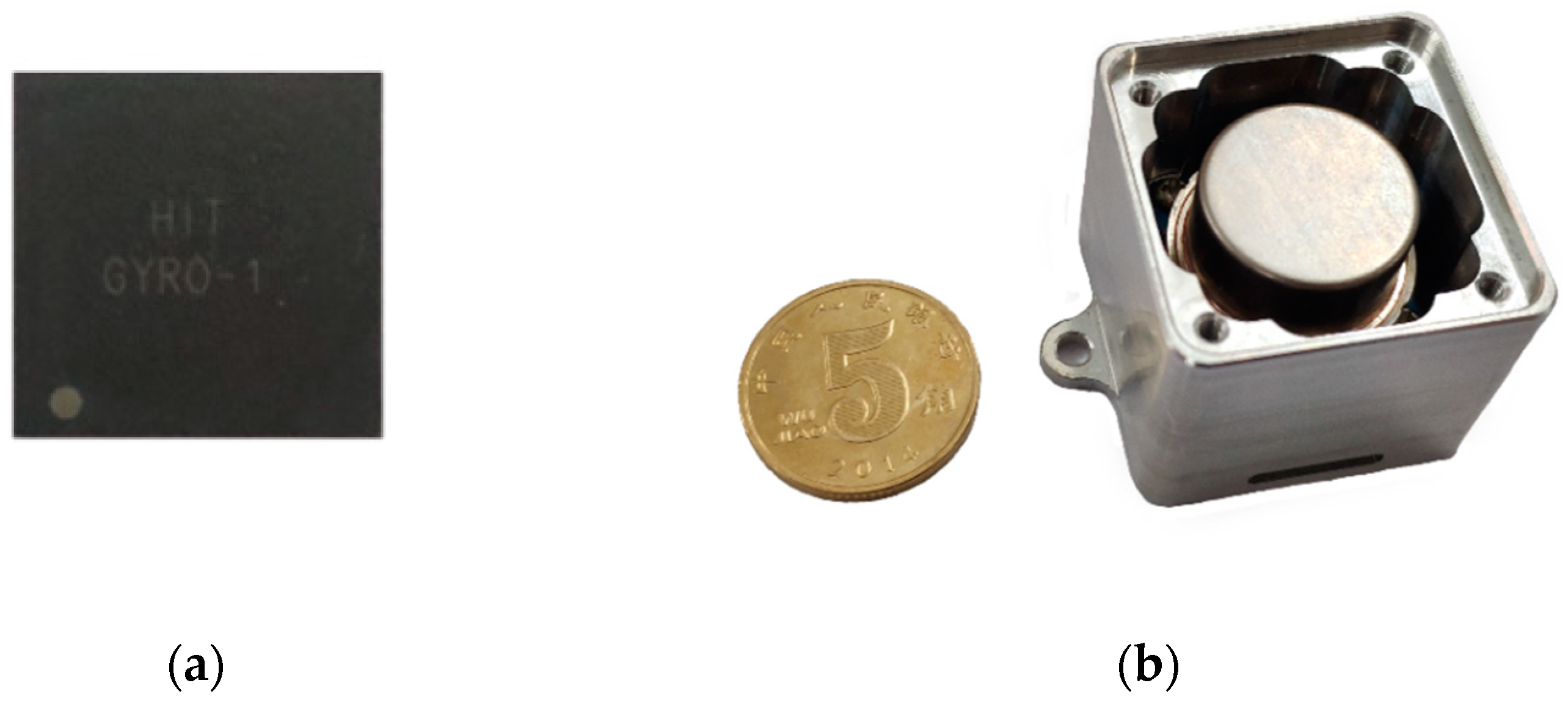

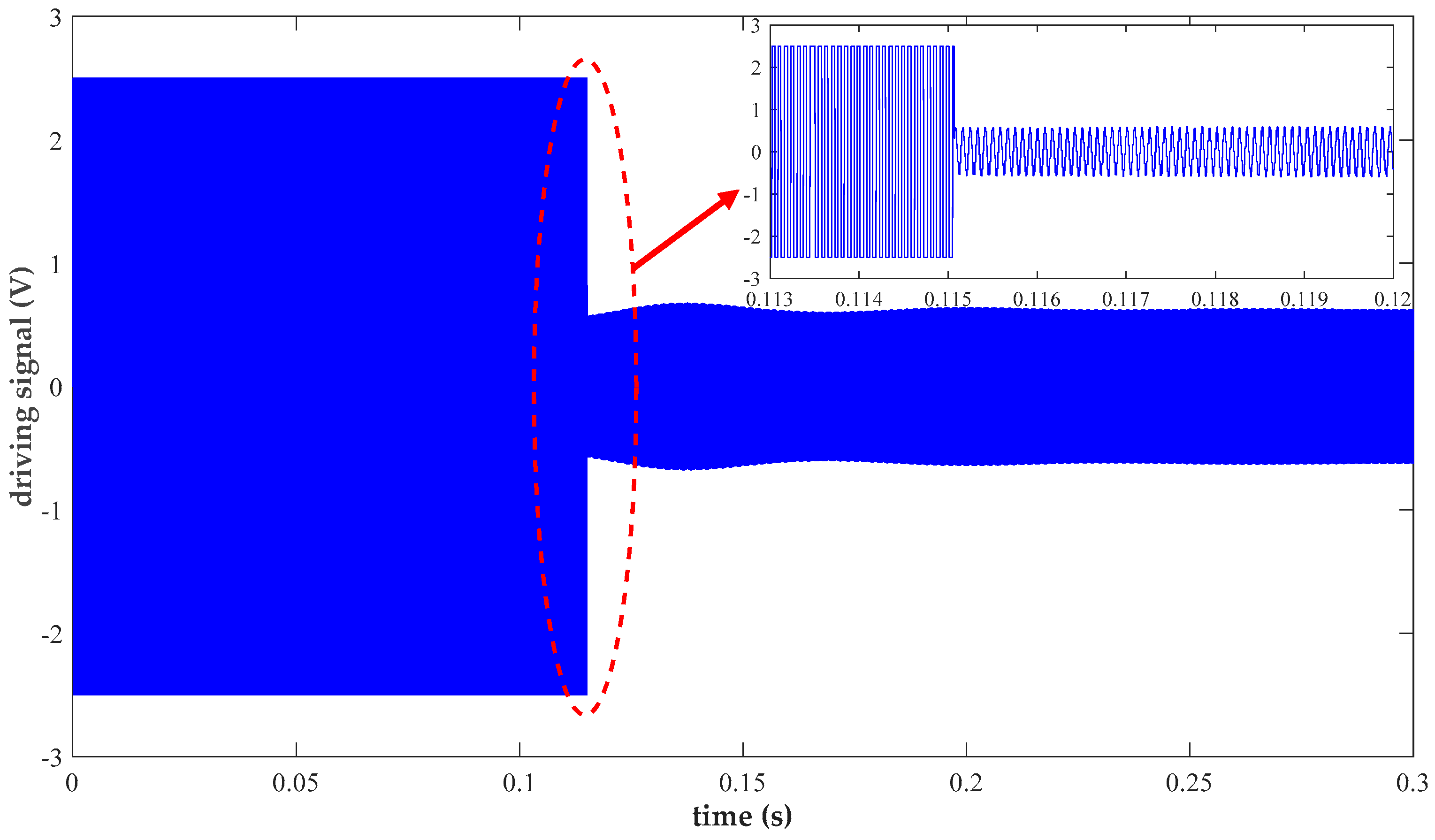

This paper proposes an interface application-specific-integrated-circuit (ASIC) for micro-electromechanical systems (MEMS) vibratory gyroscopes. A closed self-excited drive loop is employed for automatic amplitude stabilization based on peak detection and proportion-integration (PI) controller. A nonlinear multiplier terminating the drive loop is designed for rapid resonance oscillation and linearity improvement. Capacitance variation induced by mechanical motion is detected by a differential charge amplifier in sense mode. After phase demodulation and low-pass filtering an analog signal indicating the input angular velocity is obtained. Non-idealities are further suppressed by on-chip temperature drift calibration. In order for better compatibility with digital circuitry systems, a low passband incremental zoom sigma-delta (ΣΔ) analog-to-digital converter (ADC) is implemented for digital output. Manufactured in a standard 0.35 μm complementary metal-oxide-semiconductor (CMOS) technology, the whole interface occupies an active area of 3.2 mm2. Experimental results show a bias instability of 2.2 °/h and a nonlinearity of 0.016% over the full-scale range. View Full-Text
Keywords: micro-electromechanical systems (MEMS) vibratory gyroscope; nonlinear multiplier; automatic gain control; incremental zoom analog-to-digital converter (ADC) micro-electromechanical systems (MEMS) vibratory gyroscope; nonlinear multiplier; automatic gain control; incremental zoom analog-to-digital converter (ADC)
Figures

Figure 1
