InAs/InAsSb Strained-Layer Superlattice Mid-Wavelength Infrared Detector for High-Temperature Operation
Previous Article in Journal
Au-Embedded and Carbon-Doped Freestanding TiO2 Nanotube Arrays in Dye-Sensitized Solar Cells for Better Energy Conversion Efficiency
Open AccessArticle

Diversity of 2D Acoustofluidic Fields in an Ultrasonic Cavity Generated by Multiple Vibration Sources

1
Faculty of Mechanical and Material Engineering, Huaiyin Institute of Technology, Huaian 223001, China
2
School of Instrument Science and Opto-Electronics Engineering, Hefei University of Technology, Hefei 230009, China
*
Author to whom correspondence should be addressed.
Micromachines 2019, 10(12), 803; https://doi.org/10.3390/mi10120803
Received: 29 October 2019 / Revised: 18 November 2019 / Accepted: 20 November 2019 / Published: 22 November 2019
(This article belongs to the Special Issue Acoustofluidics)

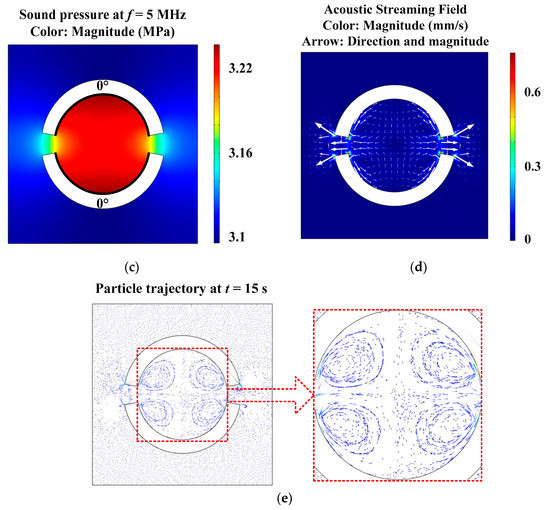

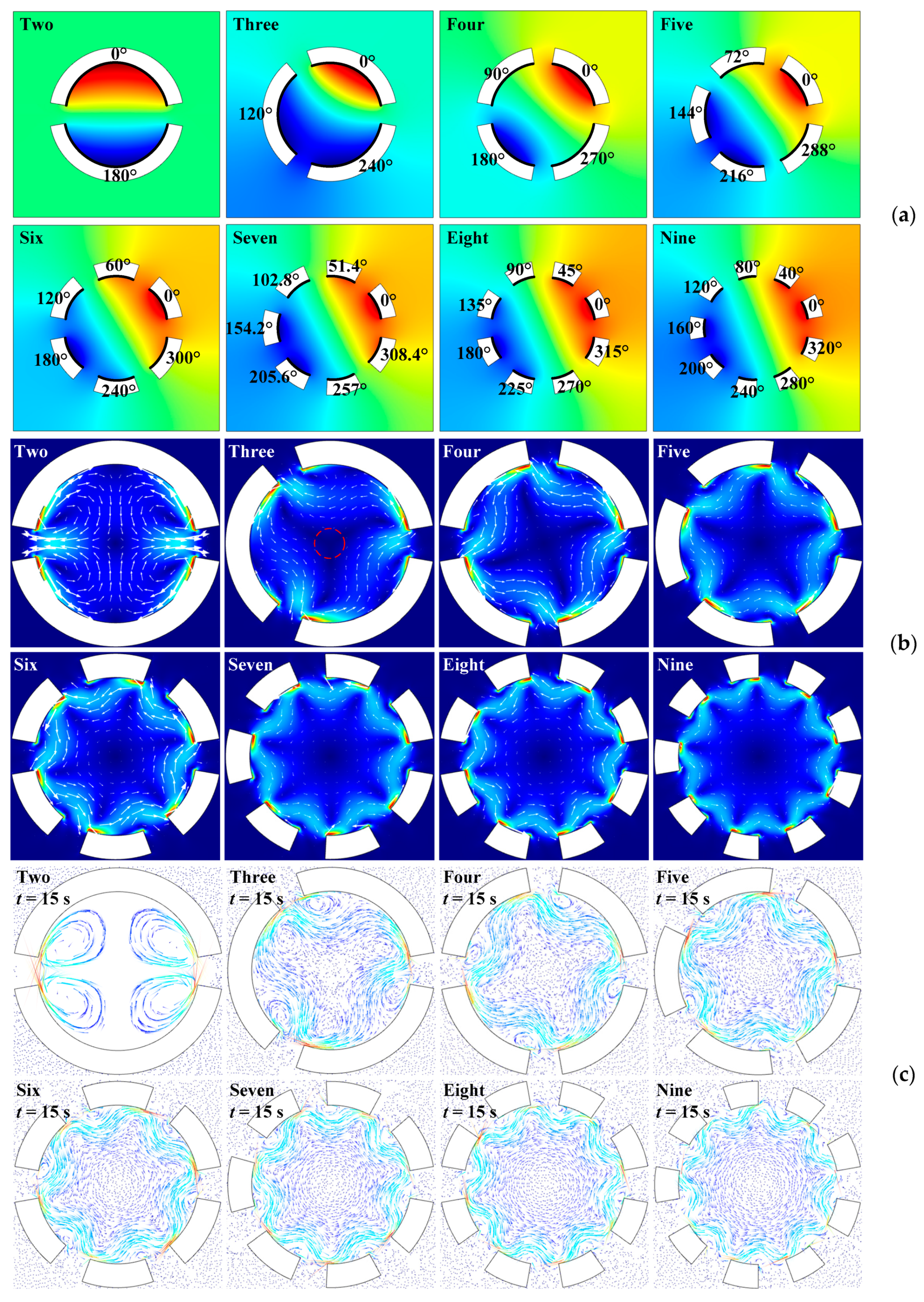

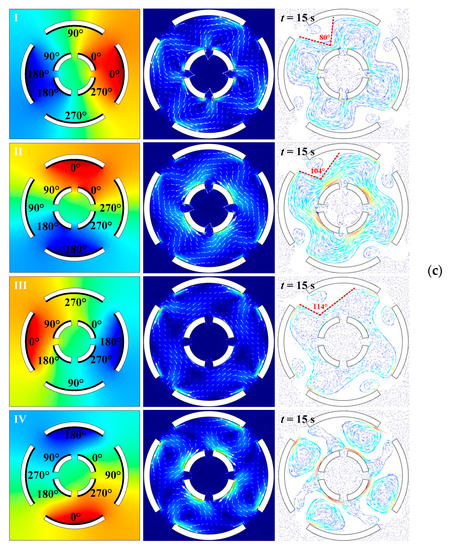

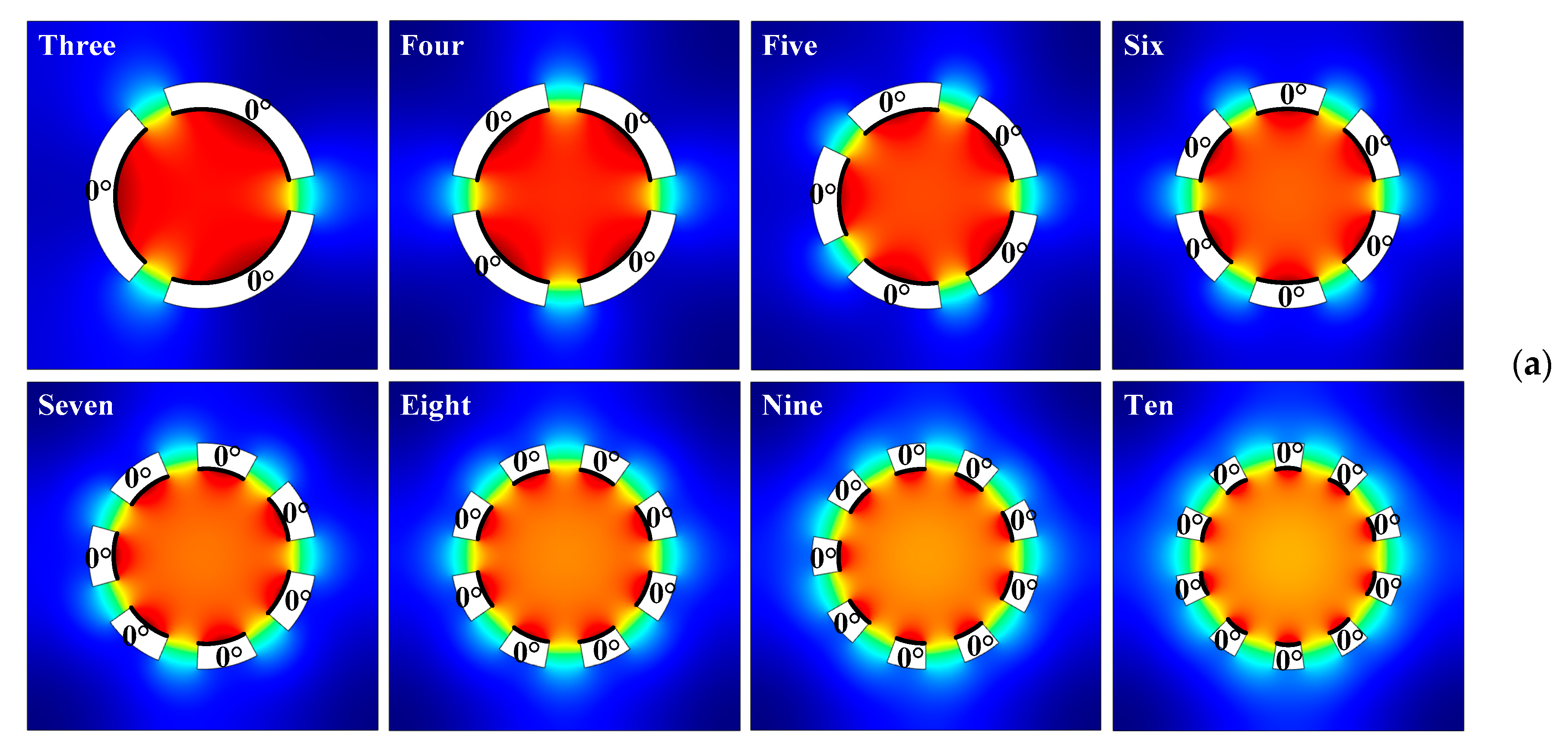

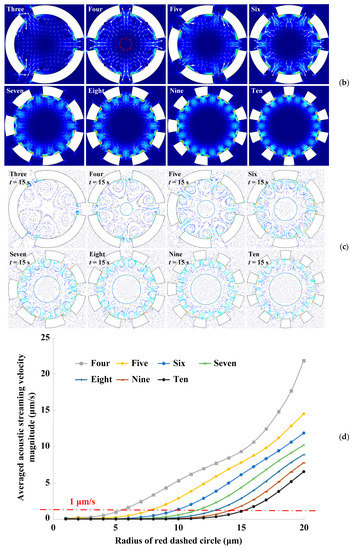

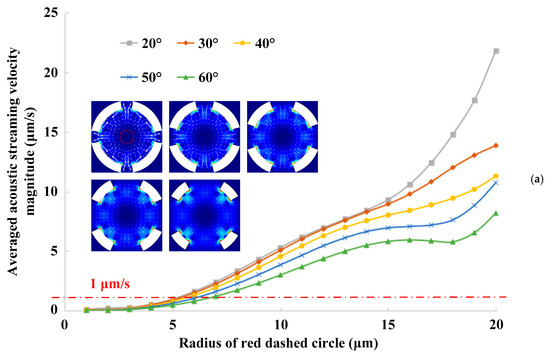

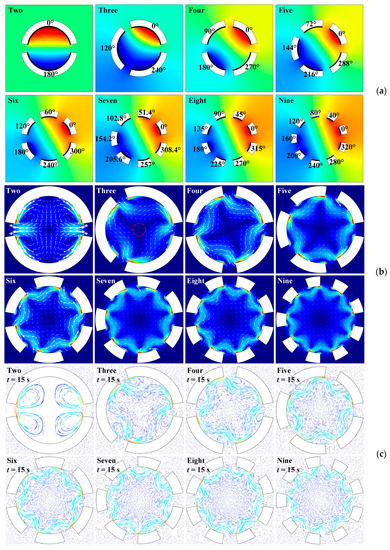

Two-dimensional acoustofluidic fields in an ultrasonic chamber actuated by segmented ring-shaped vibration sources with different excitation phases are simulated by COMSOL Multiphysics. Diverse acoustic streaming patterns, including aggregation and rotational modes, can be feasibly generated by the excitation of several sessile ultrasonic sources which only vibrate along radial direction. Numerical simulation of particle trajectory driven by acoustic radiation force and streaming-induced drag force also demonstrates that micro-scale particles suspended in the acoustofluidic chamber can be trapped in the velocity potential well of fluid flow or can rotate around the cavity center with the circumferential acoustic streaming field. Preliminary investigation of simple Russian doll- or Matryoshka-type configurations (double-layer vibration sources) provide a novel method of multifarious structure design in future researches on the combination of phononic crystals and acoustic streaming fields. The implementation of multiple segmented ring-shaped vibration sources offers flexibility for the control of acoustic streaming fields in microfluidic devices for various applications. We believe that this kind of acoustofluidic design is expected to be a promising tool for the investigation of rapid microfluidic mixing on a chip and contactless rotational manipulation of biosamples, such as cells or nematodes. View Full-Text

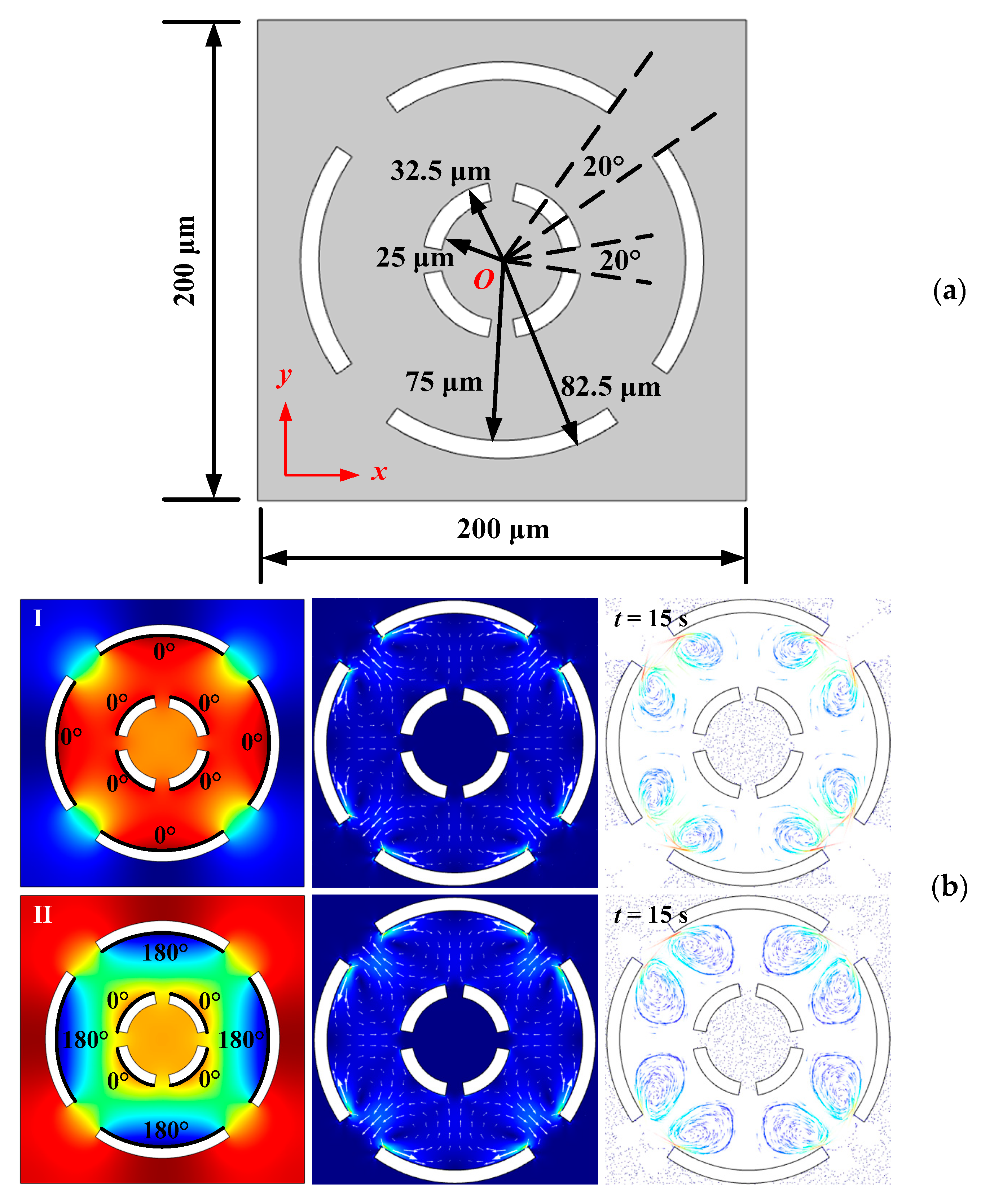

Keywords: acoustic streaming; diversity; acoustofluidic field; Matryoshka structure acoustic streaming; diversity; acoustofluidic field; Matryoshka structure
Show Figures

Figure 1

MDPI and ACS Style

Tang, Q.; Zhou, S.; Huang, L.; Chen, Z. Diversity of 2D Acoustofluidic Fields in an Ultrasonic Cavity Generated by Multiple Vibration Sources. Micromachines 2019, 10, 803.
