Elaboration of the Demulsification Process of W/O Emulsion with Three-Dimensional Electric Spiral Plate-Type Microchannel

Lab of Microfluidic Synthesis & Separation, College of Chemistry & Environment Protection Engineering, Southwest Minzu University, Chengdu 610041, China
School of Chemical and Biomolecular Engineering, Georgia Institute of Technology, Atlanta, GA 30332, USA
Author to whom correspondence should be addressed.
Micromachines 2019, 10(11), 751;
Received: 7 October 2019 / Revised: 29 October 2019 / Accepted: 30 October 2019 / Published: 1 November 2019
(This article belongs to the Special Issue Optimization of Microfluidic Devices)

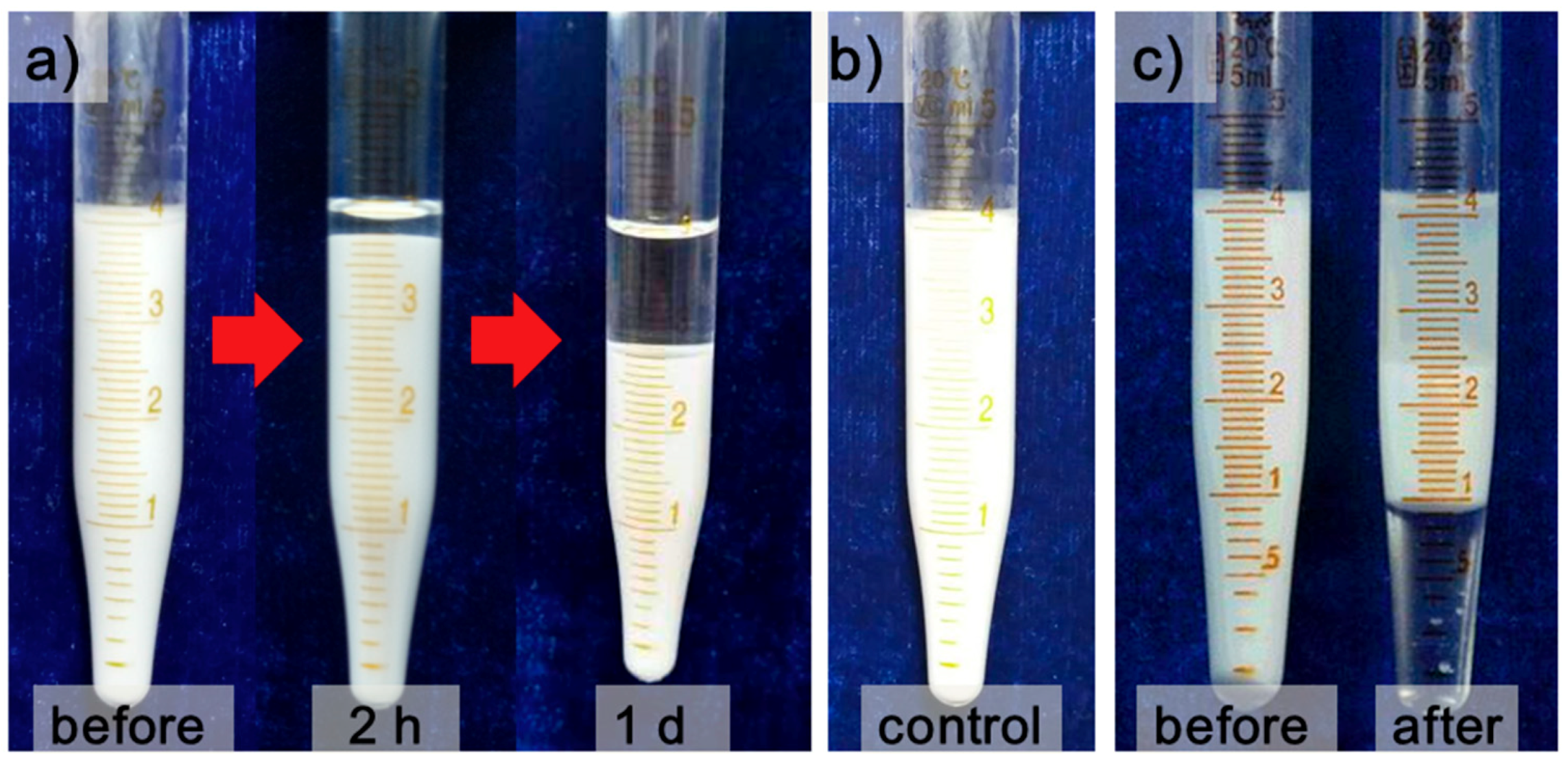

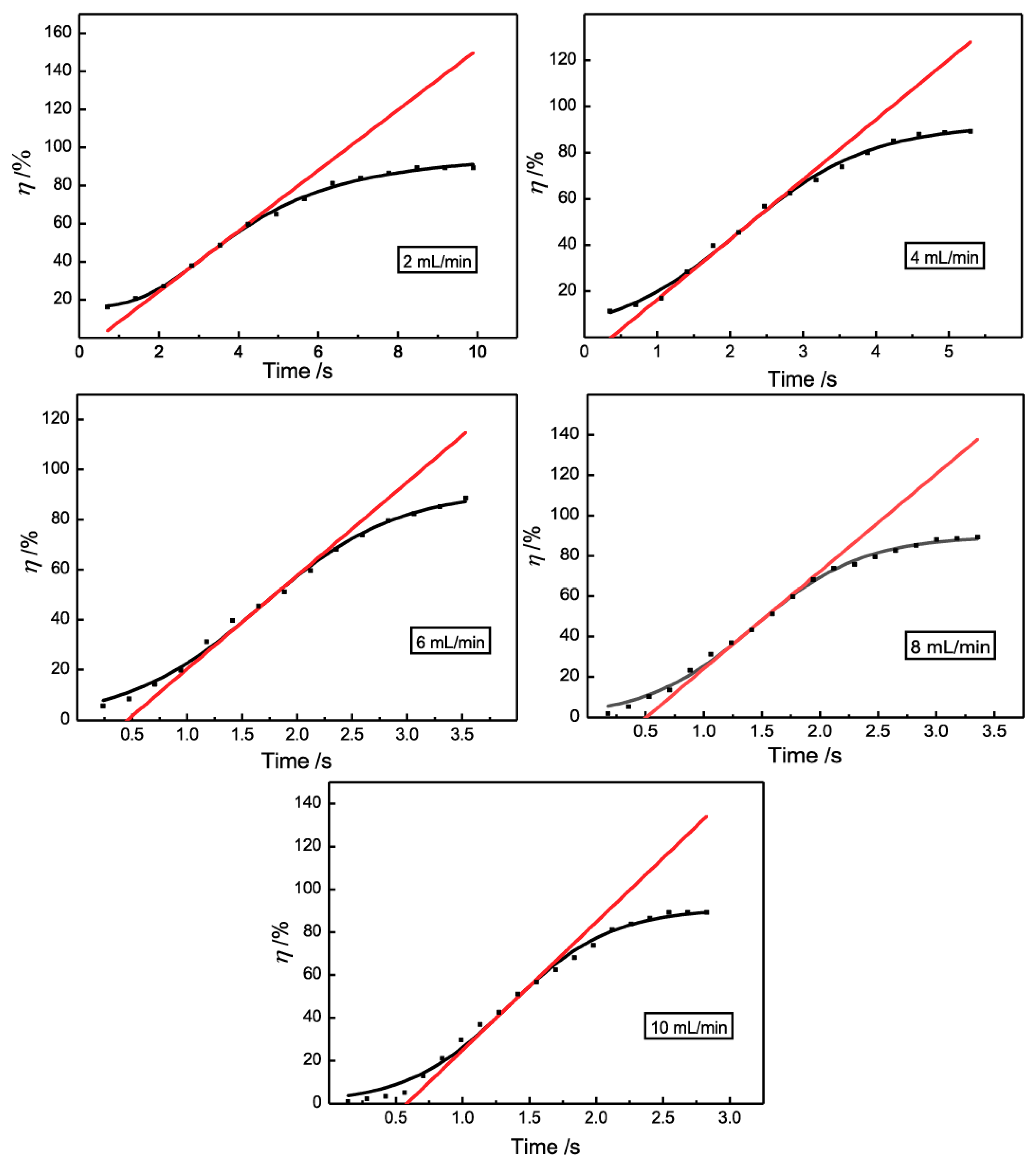

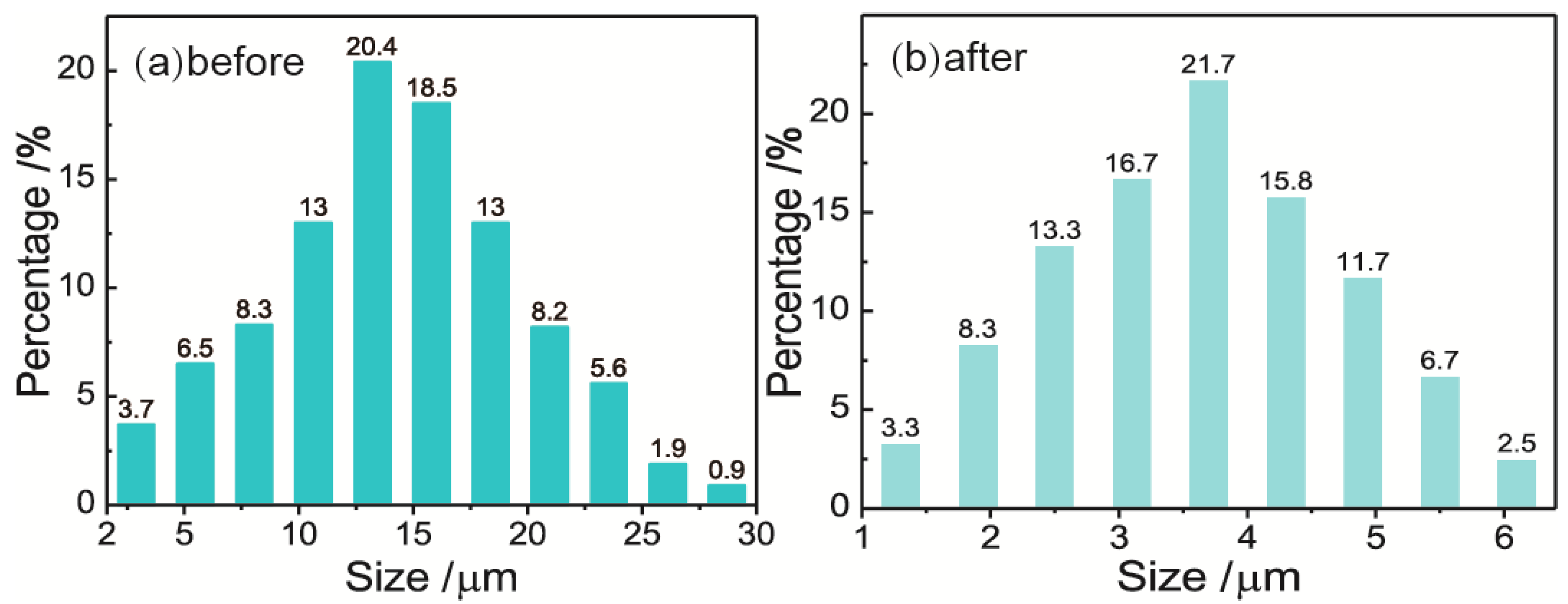

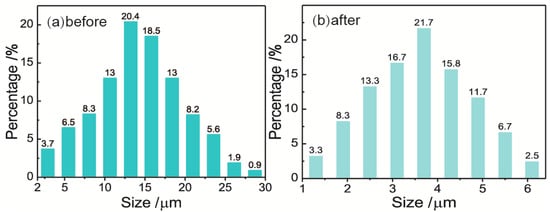

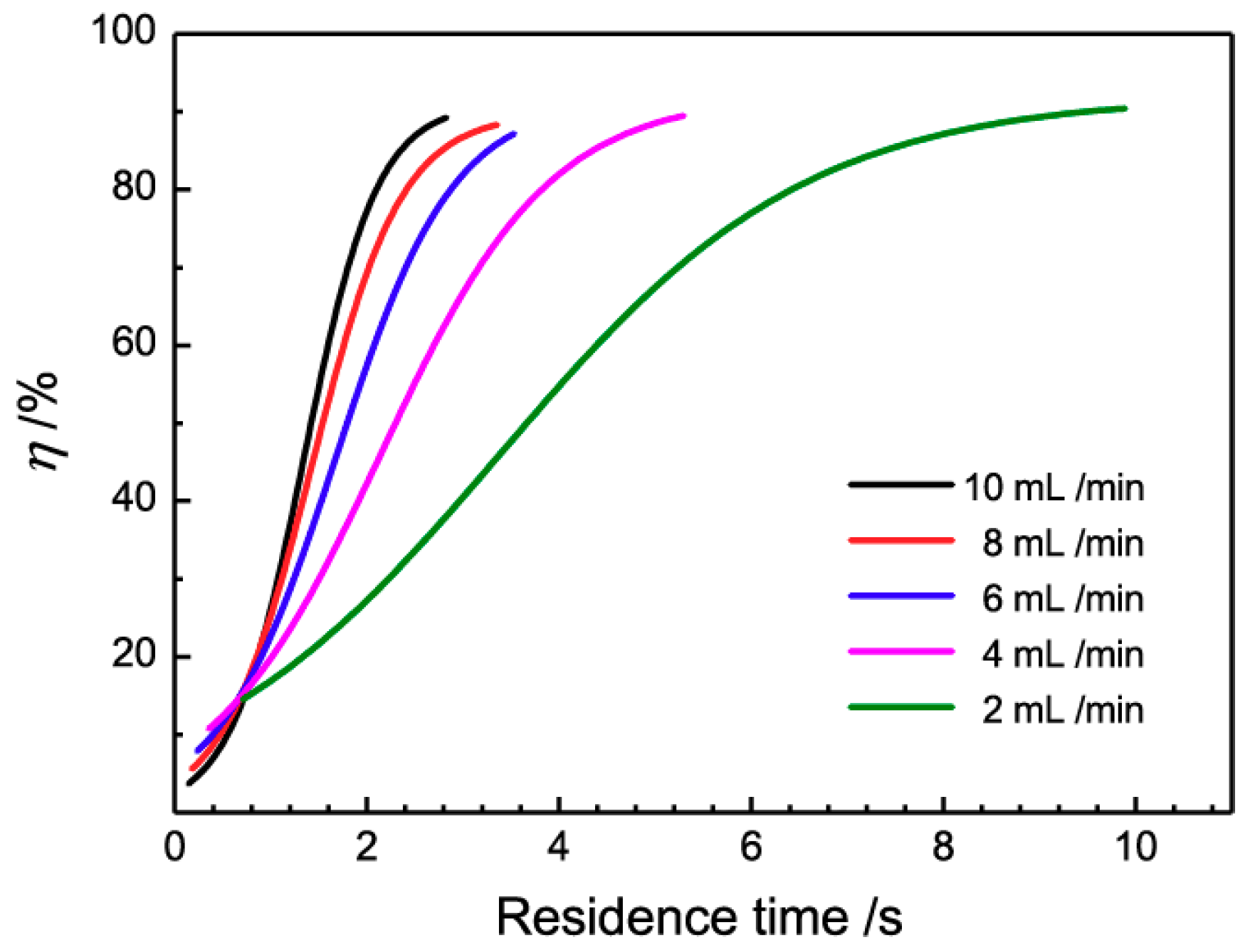

Rapid and efficient demulsification (destabilizing of an emulsion) processes of a water in oil (W/O) emulsion were carried out in a three-dimensional electric spiral plate-type microchannel (3D-ESPM). In this experiment, the demulsifying efficiency of emulsions by 3D-ESPM was compared with that by gravity settling, the factors influencing demulsifying efficiency were investigated, and the induction period, cut size and residence time in the demulsification process were studied. The results showed that in contrast to the gravity settling method, 3D-ESPM can directly separate the disperse phase (water) instead of the continuous phase (oil). The maximum demulsifying efficiency of W/O emulsion in a single pass through the 3D-ESPM reached 90.3%, with a microchannel height of 200 μm, electric field intensity of 250 V /cm, microchannel angle of 180°, microchannel with 18 plates and a flow rate of 2 mL /min. An induction period of 0.6 s during the demulsification process was simulated with experimental data fitting. When the residence time of emulsion in 3D-ESPM was longer than the induction period, its demulsifying efficiency increased as the increase of the flow velocity due to the droplet coalescence effects of Dean vortices in the spiral microchannel. For this device a cut size of droplets of 4.5 μm was deduced. Our results showed that the demulsification process of W/O emulsion was intensified by 3D-ESPM based on the coupling effect between electric field-induced droplets migration and microfluidic hydrodynamic trapping. View Full-Text
Keywords: microchannel; demulsification; induction period; residence time; cut size microchannel; demulsification; induction period; residence time; cut size
